Technical Sound Event Classiﬁcation Applying Recurrent and

Convolutional Neural Networks

Constantin Rieder, Markus Germann, Samuel Mezger and Klaus Peter Scherer

Institute for Automation and Applied Informatics, Karlsruhe Institute of Technology,

Hermann-von-Helmholtz-Platz 1, Eggenstein-Leopoldshafen, Germany

Keywords:

Deep Learning, Sound Analysis, Information Systems, Intelligent Assistance.

Abstract:

In many intelligent technical assistance systems (especially diagnostics), the sound classiﬁcation is a signiﬁ-

cant and useful input for intelligent diagnostics. A high performance classiﬁcation of the heterogeneous sounds

of any mechanical components can support the diagnostic experts with a lot of information. Classical pattern

recognition methods fail because of the complex features and the heterogeneous state noise. Because of no

explicit human knowledge about the characteristic representation of the classes, classical feature generation

is impossible. A new approach by generation of a concept for neural networks and realization by especially

convolutional networks shows the power of technical sound classiﬁcation methods. After the concept ﬁnding

a parametrized network model is devised and realized. First results show the power of the RNNs and CNNs.

Dependent on the parametrized conﬁguration of the net architecture and the training sets an enhancement of

the sound event classiﬁcation is possible.

1 INTRODUCTION

In the context of intelligent diagnostics, information

and intelligent support systems are developed and in

use for technical services concerning surveillance of

machine components. In addition to 2-dimensional

pattern recognition (optical digital image analysis),

also 1-dimensional sound analysis is becoming in-

creasingly important because of the information it

provides about the interior of a component. Experi-

enced engineers are often able to detect and identify

the technical condition (fault or normal) of the com-

ponents due to the their emission of complex sounds.

The main idea is to support the human experts and di-

agnosticians by a condensed, evaluated information

about processes and behaviour of the components.

Based on this, an intelligent decision making and fault

detection is possible. Once the technical sound events

are detected in a very reliable way, intelligent reac-

tion and regulation processes can follow. However,

the problem is the audio event classiﬁcation itself, in-

cluding the audio event detection. Classical pattern

recognition has no chance to recognize the different

sound classes, since no explicit features can be de-

scribed. In this proposal a new method is presented.

Based on different training sets neural networks are

examined, the different architectures are applied and

ﬁnally a parametrized convolutional network is con-

ceptualized and realized. The results are evaluated

in different steps. Section II describes the general

approach used to tackle the problem with Recurrent

Neural Networks, in particular the Long short-term

memory network. It contains an overview over the

corpus used as a basic training set and furthermore an

evaluation of the artiﬁcial neural networks. In sec-

tion III a solution approach based on Convolutional

Neural Networks is designed and demonstrated. This

requires certain transformations of the training data.

2 SOUND EVENT CLASSIFYING

USING RECURRENT NNs

The LSTM network (Long-Short-Term-Memory Net-

work) is one of the most popular variant of a Recur-

rent Neural Network (RNN). It adopts the gated ar-

chitecture and extends it with the ability to handle

the vanishing gradients and is able to learn depen-

dencies which are more extensive. It implements a

kind of long-lasting short-term memory (Hochreiter

and Schmidhuber, 1997). This fact is responsible for

the power of this type of RNNs and achieves good re-

sults in the sound event classiﬁcation. The neurons of

the hidden layer are generated from LSTM cells that

aggregate the output from four components. These

Rieder, C., Germann, M., Mezger, S. and Scherer, K.

Technical Sound Event Classiﬁcation Applying Recurrent and Convolutional Neural Networks.

DOI: 10.5220/0009874400840088

In Proceedings of the 1st International Conference on Deep Learning Theory and Applications (DeLTA 2020), pages 84-88

ISBN: 978-989-758-441-1

components of a common LSTM-cell consist of three

gates that regulate how much of the data is forgot-

ten, updated and output, and one cell core with linking

logic. The input gate determines which values enter

the cell, the Forget Gate determines whether informa-

tion remains or is forgotten and the output gate deter-

mines how the remaining values are output. Inside the

core of the cell, the information ﬂows are controlled

by linking logic to derive the state of the cell.

2.1 Datasets and Preprocessing Steps

The AudioSet (Gemmeke et al., 2017) from Google

Research provides the data set for the experimental

implementation of the classiﬁcations with RNNs and

CNNs. In its current version, it consists of over 2

million hand-labelled 10-second clips. The individ-

ual clips come from YouTube videos. The labels are

taken from the AudioSet ontology developed for this

purpose, a hierarchical set of over 600 audio event

classes. The ontology covers a wide range of sounds,

from the human voice to music, machine sounds, and

general environmental sounds. A big advantage of us-

ing Google AudioSet (GAS) is that the audio material

is commonly available and well prepared for machine

learning. The AudioSet offers a compact representa-

tion of the audio sources in a CSV format and a set of

extracted 128-dimensional audio features (per second

of audio recording). These audio features are stored in

over 12 thousand TensorFlow Record Files and have

a size of about 2.4 GB. The features are stored as Ten-

sorﬂow sequence example protocol buffers. The con-

text part contains meta information like the video ID,

start and end time and the labels contained in the se-

quence in encoded form. The audio features them-

selves are also contained in the protocol buffer and

are stored as byte lists as 128-bit quantiﬁed features.

One such byte list is created for every second in the

sequence (AudioSet, 2020).

The full range of sounds contained in the GAS is not

needed because the focus is on application in a techni-

cal and industrial environment. Therefore, in the ﬁrst

step irrelevant sounds like Human Sounds, Animal

Sounds and Music were removed in a rough cut. After

this class elimination three superclasses are consid-

ered (see ﬁgure 1), namely Source Ambigouus Sounds

with 6 subclasses, Sound of Things with 13 subclasses

and Channel, Environment and Background with 3

subclasses. Thus, an n-classiﬁcation problem must

be solved with n=3 at the top level and n=22 at the

subclass level.

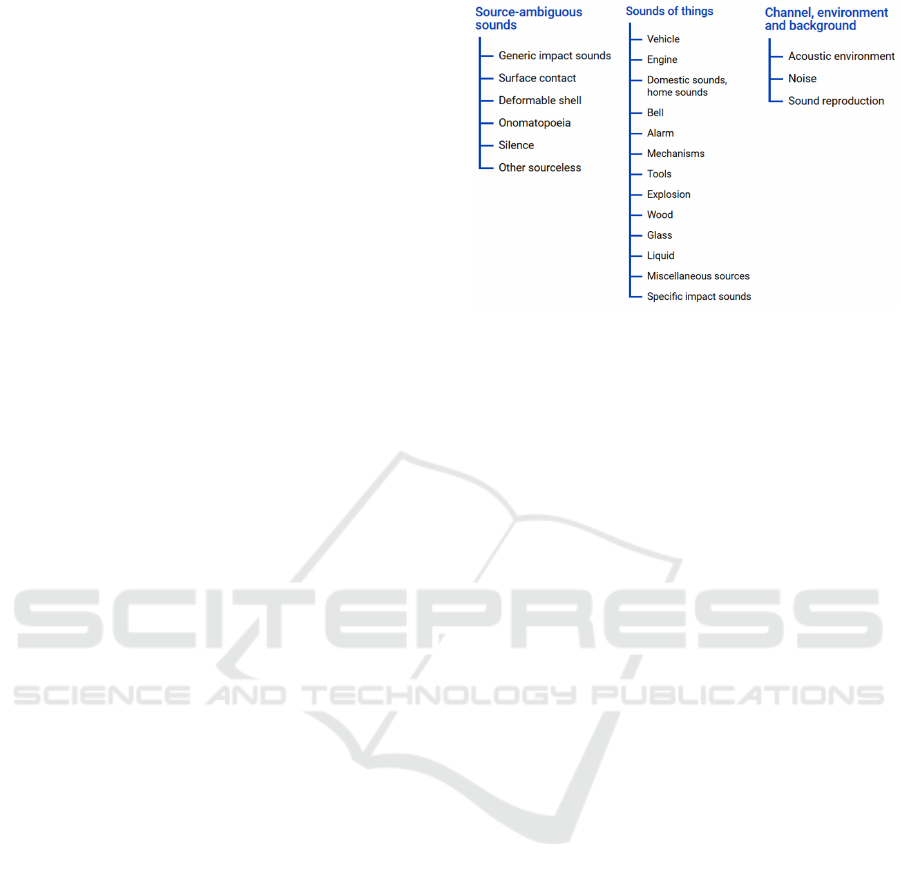

Figure 1: Selected classes from the GAS ontology.

2.2 First Experiments with Used

Application Models

In the ﬁrst experimental setup, different neural net-

works are used, examined and evaluated for the au-

dio event classiﬁcation of the above mentioned sound

sources. The sound events themselves are represented

as time series events over a certain time window.

Therefore, the sound events are considered as sam-

ple sequences, and the classiﬁcation task consists in

predicting a category for the sequence. The audio fea-

tures are provided by the AudioSet in frame-level for-

mat. They map 10 second blocks at 1 HZ. So the fol-

lowing approaches to frame-level classiﬁcation with

the TensorFlow framework were used for training and

classiﬁcation:

• Deep bag of frames model (Dbof)

• LSTM (Long Short Term Memory) model

• Bidirectional LSTM

These models were preferred because they are suit-

able for the intended application area according to

(Abu-El-Haija et al., 2016) and provide interesting

results. For more detailed information and details

and advantages of LSTM networks, see (Hochreiter

and Schmidhuber, 1997) and for Dbof networks see

(Araujo et al., 2018). The relatively strict Top-1 accu-

racy (Hit@1-Score) was used for the evaluation. This

means that the model response (i.e. the one with the

highest probability rating) must be the expected re-

sponse. From the pre-processed data set, all classes

were ﬁrst selected, trained and evaluated. The ini-

tial results were moderate and only provided the basis

for further adaptations and improvements of the meth-

ods used. Problematic aspects were the weak-labeling

and parameterization as well as the large number of

classes.

Technical Sound Event Classiﬁcation Applying Recurrent and Convolutional Neural Networks

2.3 Reduction and Selection of Relevant

Corpora

One successful solution to the problem was to reduce

the number of classes in a special manner. The num-

ber of classes is reduced by categories such as engine

sounds, vehicle sounds and similar others. The re-

striction of classes showed a signiﬁcant improvement

and the classiﬁer achieved a high top-1 accuracy after

a certain amount of training steps. Figure 2 summa-

rizes the evaluation results in a representative man-

ner in relation to the partial corpus for the category

engine. Comparable training runs in other categories

such as vehicle, mechanisms, tools and other mechan-

ical objects delivered similar results.

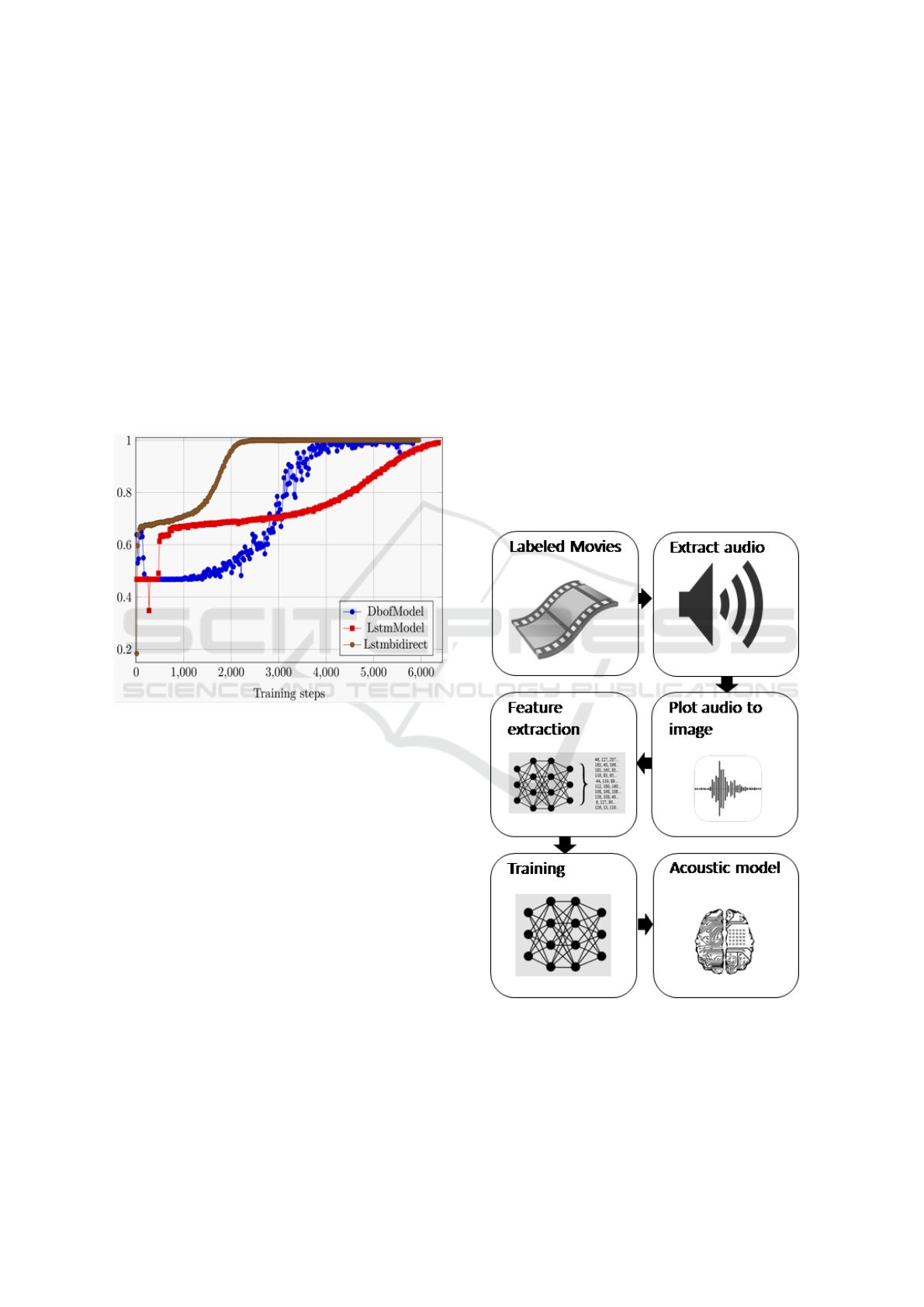

Figure 2: Improvement of results on reduced corpus Engine

Sounds.

Considering the results of the runs using the reduced

corpora, bidirectional LSTM delivered the best per-

formance in the evaluation, followed by the Dbof

model and the LSTM model. Overall, the reduction of

the entire corpus to certain categories showed signiﬁ-

cantly better results than the application to all classes.

In the next step of the project, CNNs will be used for

classiﬁcation.

3 SOUND EVENT CLASSIFYING

USING CONVOLUTIONAL NNs

CNNs are the method of choice for the analysis of im-

ages with deep learning methods. There is extensive

research work and well developed networks dedicated

to this task. We will use these methods and advan-

tages to implement the use case of technical sound

event classiﬁcation. Considering that CNNs can be

very powerful in classifying image data, at ﬁrst it

seems to be inapplicable to use them for classifying

sound events, but it show promise for audio classiﬁ-

cation (Hershey et al., 2016).

This requires a huge amount of training data con-

sisting of images labeled with their corresponding

classes. Transfer learning, however, can overcome

this barrier by using pre-trained Neural Networks, in

our use case CNNs. This can signiﬁcantly reduce the

effort required to train a powerful and complex neural

network. This becomes possible by using components

of proven and powerful image recognition networks,

which have already learned basic and crucial differ-

entiating features and capabilities for image recog-

nition. A variety of powerful CNNs have been de-

veloped for image classiﬁcation, such as Inception,

VGG, DenseNet and MobileNet, to mention some of

them.

To do this, the previously applied concept for training

the model must be changed. The following ﬁgure 3

shows an overview of the conceptual scheme.

Figure 3: Acoustic CNN Model Training scheme.

The data set for GAS is divided into a balanced train-

ing set, a balanced eval set and an unbalanced training

set. This split has also been adopted unchanged for

the experiments with the CNNs. The unbalanced set

was used as the training set and the eval set as the test

DeLTA 2020 - 1st International Conference on Deep Learning Theory and Applications

set. The structuring of the classes followed the au-

dio set ontology. The biggest changes with respect to

the RNNs were in the class selection (subset from the

domain) and the raw data. The pre-extracted features

of GAS as raw data were not applied and were im-

plemented and generated by a separate feature extrac-

tion process (sound to spectrogram to features). For

this procedure, the corresponding source ﬁles of the

sounds are downloaded and converted into the audio

format WAV by using the ontology as an orientation.

The audio ﬁles are split into 10-second chunks in the

next step. For the image analysis images are of course

needed. For this purpose the created chunks are trans-

formed and plotted into spectrograms. It is expected

that audio examples of an individual class will repre-

sented by color and shape similarities in different re-

gions of the spectrograms. The remaining part of the

neural network must then assign these characteristics

to the classes to be learned. The following models are

considered for image classiﬁcation:

• InceptionV3

• MobileNet

The application of the technical sound classiﬁcation

is also extended by the transformation of the sound

ﬁles to images, as the following scheme shows.

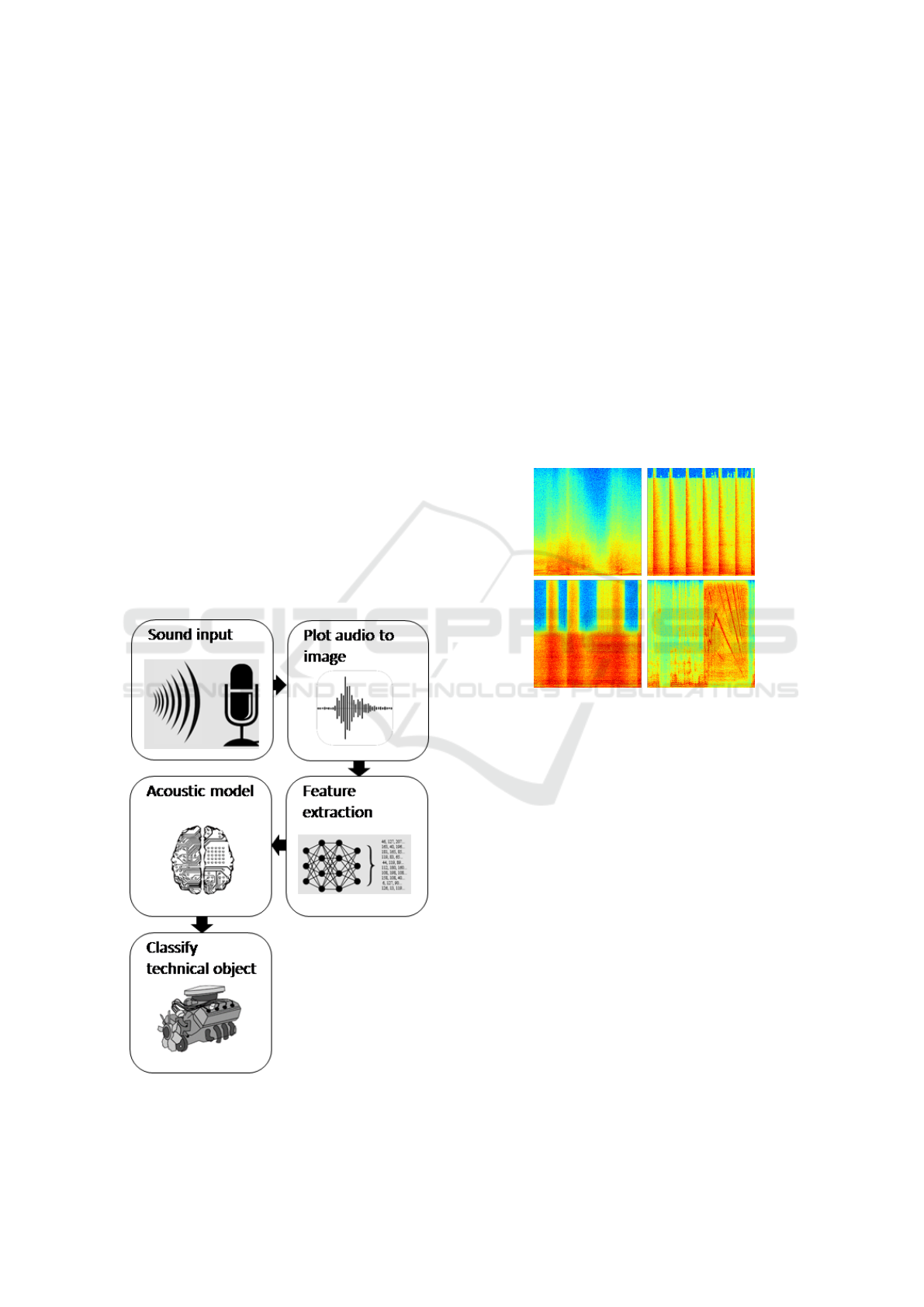

Figure 4: Classiﬁcation scheme with applying the acoustic

model.

3.1 Transformation and Visual

Representations of Audio Sets

As the above schemes show, the audio signals are

transformed into a visual 2-dimensional representa-

tion. These are then used as input for the feature ex-

traction. The extracted features are used to train the

CNNs. The feature extraction from the visual repre-

sentations is also used as input generator for the ap-

plication of the trained models. The visual representa-

tion is generated by a Fast Fourier Transform from the

time series into the frequency domain. Spectrograms

are generated from the WAV audio ﬁles. There are

different types of spectrograms that can be generated

from audio signals. The following ﬁgure 5 shows an

extract of four audio chunks from the used technical

sounds as MEL-spectrograms.

Figure 5: Generated spectrograms.

For the 2-dimensional pattern recognition, i.e. pic-

ture analysis, very powerful methods are known and

used for classiﬁcation of 2 dimensional patterns. Also

for deep learning algorithms, experiences and effec-

tive results can be produced. Because of that the

sound patterns are transformed into images with spe-

cial features. One method consists of a fast Fourier

transformation and cepstrum analysys from the time

domain into the frequency domain and return. The

models must be selected by the learning methods. A

parametrized model is developed to guarantee differ-

ent inﬂuences from net parameters to the results. The

consequence is a generated information concerning

robustness, accuracy and performance. Following pa-

rameter set can have an impact on the model genera-

tion of the training corpus.

• Type of signal transformation for the spectograms

• Selection of the color map

• Resolution of the spectrogram images

• Scaling & cropping of the images

• Selection of the audio samples / classes

Technical Sound Event Classiﬁcation Applying Recurrent and Convolutional Neural Networks

3.2 Multiclass Classiﬁcation with CNNs

The spectrograms generated for the respective classes

now form the new corpora and serve as input for the

training of the selected models. For this purpose, the

following six classes were deliberately chosen to rep-

resent the technical sounds: Drill, Hammer, Knock,

Sawing, Scrape, Clapping. The multiclass problem

for technical sounds was now addressed with the In-

ceptionV3 model and the MobileNet model.

The runs delivered the following results regarding cat-

egorical accuracy, as can be seen in ﬁgure 6.

The Inception Model on the evaluation set approached

the categorical accuracy of 0.5. The training with Mo-

bileNet was convincing with a faster run and delivered

accuracy values on the evaluation set also above 0.5 .

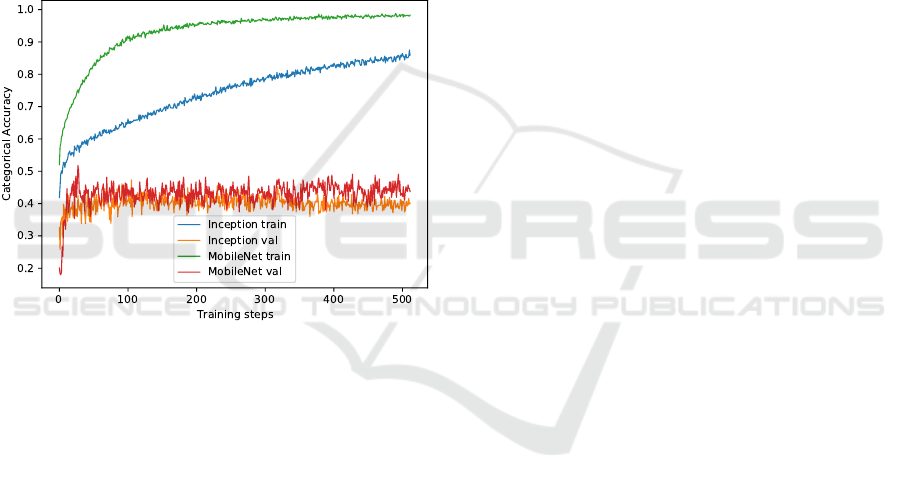

Figure 6: Training of both, the InceptionV3 and the Mo-

bileNet model.

4 CONCLUSIONS

The position paper has introduced two technical

sound classiﬁcation approaches that included meth-

ods to classify technical sound events by Recurrent

Neural Networks and by Convolutional Neural Net-

works. Experiments on different data sets showed the

advantages of the proposed methods over sound data

transforming to image data. Most of the sound record-

ings have been recorded under real conditions. This

is a great advantage and corresponds to the use case.

However, it is both a difﬁcult situation and a great

challenge, because the sound sources were recorded

from different environments and distances. They con-

tain other interfering noises and the quality can vary

greatly in some cases. One of the most important dis-

coveries so far is the reduction of corpora to selected

classes for RNNs, which improved the classiﬁcation

results. In the case of the CNNs the results are still

in need of improvement. This will be further pur-

sued in future work. Other models such as VGG19

and DenseNet will be examined and applied. An-

other possibility could be a combined use of so-called

convolutional recurrent neural networks, which is de-

scribed in (Choi et al., 2017). Other options could be

the use of hybrid architectures, which are introduced

in (Choi et al., 2017) and (Feng et al., 2017).

ACKNOWLEDGEMENTS

The work presented in this article is supported and

ﬁnanced by Zentrales Innovationsprogramm Mittel-

stand (ZIM) of the German Federal Ministry of Eco-

nomic Affairs and Energy. The authors would like

to thank the project management organisation AiF in

Berlin for their cooperation, organisation and budget-

ing.

REFERENCES

Abu-El-Haija, S., Kothari, N., Lee, J., Natsev, P., Toderici,

G., Varadarajan, B., and Vijayanarasimhan, S. (2016).

Youtube-8m: A large-scale video classiﬁcation bench-

mark. CoRR, abs/1609.08675.

Araujo, A., N

egrevergne, B., Chevaleyre, Y., and Atif, J.

(2018). Training compact deep learning models for

video classiﬁcation using circulant matrices. CoRR,

abs/1810.01140.

AudioSet, G. (2020). Google AudioSet: A large-scale

dataset of manually annotated audio events. Accessed

on 01.03.2020.

Choi, K., Fazekas, G., Sandler, M., and Cho, K. (2017).

Convolutional recurrent neural networks for music

classiﬁcation. In 2017 IEEE International Confer-

ence on Acoustics, Speech and Signal Processing

(ICASSP), pages 2392–2396.

Feng, L., Liu, S., and Yao, J. (2017). Music genre classiﬁ-

cation with paralleling recurrent convolutional neural

network. CoRR, abs/1712.08370.

Gemmeke, J. F., Ellis, D. P. W., Freedman, D., Jansen,

A., Lawrence, W., Moore, R. C., Plakal, M., and

Ritter, M. (2017). Audio set: An ontology and

human-labeled dataset for audio events. In Proc. IEEE

ICASSP 2017, New Orleans, LA.

Hershey, S., Chaudhuri, S., Ellis, D. P. W., Gemmeke,

J. F., Jansen, A., Moore, R. C., Plakal, M., Platt,

D., Saurous, R. A., Seybold, B., Slaney, M., Weiss,

R. J., and Wilson, K. W. (2016). CNN architec-

tures for large-scale audio classiﬁcation. CoRR,

abs/1609.09430.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural Computation, 9(8):1735–1780.

DeLTA 2020 - 1st International Conference on Deep Learning Theory and Applications
