A Real-time Integration of Semantics into Heterogeneous Sensor

Stream Data with Context in the Internet of Things

Besmir Sejdiu

, Florije Ismaili

and Lule Ahmedi

Contemporary Sciences and Technologies, South East European University, Tetovo, Macedonia

Faculty of Electrical and Computer Engineering, University of Prishtina, Prishtinë, Kosova

Keywords: Sensor Stream Data, Semantic Annotations, Semantic Sensor Web (SSW), Internet of Things (IoT).

Abstract: Recently, billions Internet of Things (IoT) devices, including sensors are producing sensed data continuously

in the stream data, and transmit these data to a centralized server. Due to the dramatically increase of streaming

data, their management and exploitation has become increasingly important and difficult to process and

integrate the semantic to sensor stream data in real-time. This research focuses on real-time integration of

semantics into heterogeneous sensor stream data with context in the IoT. In this context, an IoT real-time air

quality monitoring system and different semantic annotations are developed for sensor stream data in the

format of Sensor Observation Service (SOS).

1 INTRODUCTION

The Internet of Things (IoT) represents an active

scientific research field due to its importance in

development of many domains, including

environmental monitoring, healthcare, homes, cities,

traffic control, energy systems, industry, etc. Sensors

are one of the main components that enable IoT,

which send the observation in stream data.

Furthermore, sensor data are enabled to the web

through the Sensor Web. Sensor Web by

incorporating technologies of the Semantic Web

creates the Semantic Sensor Web. In this way, sensor

data stream can be annotated with semantics by

providing machine-interpretable descriptions on what

the data represents, where it originates from, how it

can be related to its surroundings, who is providing it,

and what are the quality, technical, and non-technical

attributes (Barnaghi, 2012). The real-time integration

of sensor data as dynamic data with semantics is

defined as real-time semantic annotation, while

sensor data that are stored in repository (data store) as

static data, and then integrated with semantics is

defined as non-real-time semantic annotation

(Sejdiu, 2020).

https://orcid.org/0000-0002-2786-5384

https://orcid.org/0000-0002-3627-0147

https://orcid.org/0000-0003-0384-6952

Organizations like Open Geospatial Consortium

(OGC) and World Wide Web Consortium (W3C)

have proposed several standards for sensor data. The

OGC defines standardization for the Sensor Web

named Sensor Web Enablement (SWE). It’s a

framework and a set of standards that allow

exploitation of sensors and sets of sensors connected

to a communication network. Is founded on the

concept of “Web Sensor” using standard protocols

and application interfaces (Pradilla, 2016).

In this paper, we will investigate on how to

integrate semantic annotations into the sensor stream

data. In particular, we will discuss the annotation

techniques for real-time integration of semantics into

heterogeneous sensor observation data and sensor

metadata with context in the IoT.

The paper is organized as follows: Section II

provides a discussion on related work for semantic

annotations to the sensor stream data. Section III is an

overview of the sensor stream data and semantic

annotations concepts. Selection of technologies and

standards for semantic annotations are presented in

Section IV, while a system architecture is presented

in Section V. Section VI represents the implemented

system, including received sensor data format,

integration of semantic annotations to the sensor data,

376

Sejdiu, B., Ismaili, F. and Ahmedi, L.

A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things.

DOI: 10.5220/0009884403760383

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 376-383

ISBN: 978-989-758-443-5

and system outputs. Finally, Section VII concludes

the paper and identifies some of the future

perspectives of the semantic integrations into the

sensor stream data.

2 RELATED WORK

Authors in (Aggarwal, 2013) brought together

semantic web and data mining in the context of IoT

with a focus on sensors as interconnected devices,

concluding that practical data mining applications can

be built by usage of real world sensors ontologies,

query mechanisms and linked sensor data available.

SSW is described as a synthesis of sensor data and

semantic metadata in (Sheth, 2008). It represents an

approach by OGC and Semantic Web Activity of the

W3C to provide meaning for sensor data.

Construction of a Semantic Sensor Observation

Service (SemSOS) based on the SWE standards is

discussed in (Henson, 2009), by adding semantic

annotations to sensor data and by using the ontology

models to reason over sensor observations.

An extension of the SWE framework in order to

support standardized access to sensor data is

described in (Lee, 2015). Furthermore, they list as

future work the extension of SOS server with

semantics, since the lack of semantically rich

mechanism is seen as a significant issue, which makes

it hard to explore related concepts, subgroups of

sensor types, or other dependencies between the

sensors and data collected.

The objective of this paper is to present a real-

time integration of semantics into heterogeneous

sensor stream data with context in the IoT.

3 SENSOR STREAM DATA AND

SEMANTIC ANNOTATIONS

IoT applications are enabled using heterogeneous

sensors, which send observational data referred to as

sensor stream data to a remote server. Raw sensor

stream data is useless unless properly annotated.

Therefore, the researchers proposed Semantic Sensor

Web (SSW), which is a combination of Sensor Web

and technologies of Semantic Web. Based on study

(Sejdiu, 2020), the explored publications show that

major number of research are accepting the proposed

industry standards, such as SWE, and techniques that

http://spark.apache.org

https://kafka.apache.org

can be used for annotating sensor data, such as

Resource Description Framework in attributes

(RDFa), XML Linking Language (Xlink), and

Semantic Annotations for WSDL and XML Schema

(SAWSDL), by different organizations like OGC and

W3C. However, how to advance techniques for

integration of the semantic annotations in real-time is

still an open issue that should be addressed.

4 SELECTED TECHNOLOGIES

AND STANDARDS

Currently, billions of interconnected IoT devices

produce sensed data continuously in the stream data,

and transmit these data to a centralized server. Due to

the dramatically increase of streaming data, their

management

and exploitation has become increasingly

important and difficult to process and integrate the

semantic to sensor data stream in real time. Therefore,

the selection of technologies and standards for

technique development of real-time integration of

semantics into heterogeneous sensor observation data

and sensor metadata with context in the IoT is highly

important. The proposed real-time semantic

annotation system utilizes Spark Streaming

, Apache

Kafka

, Apache Cassandra database

, and standards

like OGC Sensor Web Enablement standards, which

will be discussed below.

4.1 Spark Streaming

Several stream data processing systems including

Spark Streaming, Storm, Google Data Flow, and

Flink have emerged to support real-time analytics for

the streaming data sets (Karimov, 2018). Majority

studies conclude that Spark Streaming works best

with high throughput when the incoming volume is

huge (Gorasiya, 2019). Therefore, we have chosen

Sparking Streaming to develop our system for real-

time integration of semantic annotations to sensor

stream data.

Spark Streaming is an extension of the Apache

Spark that enables to build scalable fault-tolerant IoT

applications for real-time processing sensor stream

data. It can receive data from different input sources

such as Apache Kafka, TCP sockets, Flume, Kinesis,

Hadoop Distributed File System (HDFS), or Twitter,

and can be processed using complex algorithms

expressed with high-level functions like map, join,

http://cassandra.apache.org

A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things

377

Figure 1: An overview of the system architecture.

reduce and window. Finally, processed streaming

data can be published in IoT real-time applications or

can be pushed out to databases or file systems.

4.2 Apache Kafka

Apache Kafka is a distributing streaming platform

with capabilities to publish and subscribe to streams

of records, similar to a message queue or enterprise

messaging system, store streams of records in a fault-

tolerant durable way, and process streams of records

as they occur. Kafka is generally used for building

real-time streaming data pipelines that reliably get

data between systems or applications (Kafka, 2020).

In our system Kafka is used as middleware between

sensor stream data and Spark Streaming.

4.3 Apache Cassandra Database

The Apache Cassandra database is a free and open

source, distributed store for structure data that scale-

out on cheap, commodity hardware or cloud

infrastructure make it the perfect platform for

mission-critical data. It is designed to handle large

amounts of data across many commodity servers,

providing high availability with no single point of

failure. The Spark Streaming interacts well with

Cassandra database. Therefore, in our system, the

sensor stream data with their semantic annotations

processed by Spark Streaming are stored in Cassandra

database.

4.4 OGC Standards

The OGC defines standardization for the Sensor Web

named Sensor Web Enablement (SWE), which is

divided into two parts (OGC, 2020):

 SWE Information Model: Is comprised of

conceptual language encodings that permits

sensor observations visibility on the Internet. The

SWE information model includes the following

specifications: Sensor Model Language

(SensorML), Observation and Measurement

(O&M), and Transducer Model Language

(TransducerML).

 SWE Service Model: Is a set of Web Service

specifications that allow a client to search and find

the required information. The SWE Service model

includes the following specifications: Sensor

Observation Service (SOS), Sensor Alert Service

(SAS), Sensor Planning Service (SPS), and Web

Notification Services (WNS).

To encode semantic annotations and data gathered by

sensors, in this paper is used SOS O&M, which will

be discussed in section 6.2.

5 SYSTEM ARCHITECTURE

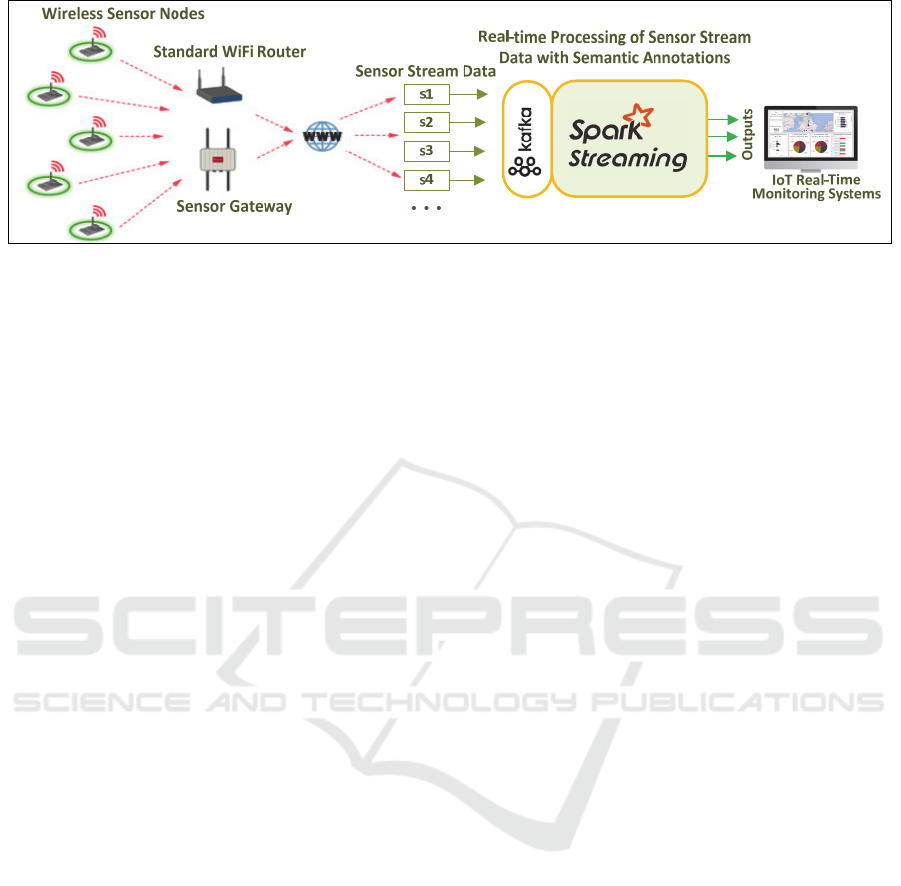

In the Figure 1, an overview of the system

architecture for real-time integration of semantics

into heterogeneous sensor stream data with context in

the Internet of Things is presented. As mentioned

above, the proposed real-time semantic annotation

system utilizes Apache Kafka, Spark Streaming,

Apache Cassandra database, and SOS O&M

standards.

The heterogeneous sensor stream data from the

IoT-based sensor device is wirelessly transmitted to

serve as the “producer” for the Kafka server. The

“producer” client publishes streams of data to Kafka

“topics” distributed across one or more cluster

nodes/servers called “brokers”. The published

streams of data from Kafka are then processed by

Apache Spark Streaming in parallel and real-time.

Kafka server is utilized to receive various formats

of sensor data streams (e.g. text, binary, JSON, XML

etc.), and to transform them in a particular format that

will be processed by Spark Streaming.

ICSOFT 2020 - 15th International Conference on Software Technologies

378

The Spark Streaming enables a real-time

integration of semantics into heterogeneous sensor

stream data with context in the IoT, by using sensor

metadata, archival data streams, mining data streams,

association rules for adding semantic annotations

with concept definitions from ontologies or other

semantic sources, which allows the understanding of

senor data and metadata elements. The semantic

annotations will be implemented into SOS O&M by

using stakes, such as XLink (without including

XPath) and Embedded (only a single value-scalar of

semantic annotation) to add annotations in XML files.

These annotations can point to extra sources of

information (e.g. a file), or Uniform Resource Name

(URN).

The enriched sensor stream data with the semantic

annotations results will be stored in the Cassandra

database, and will be displayed in IoT real-time

monitoring system. It is worth mentioning that Spark

Streaming will process sensor data stream in format

of OGC standards like SWE, respectively version 2.0

of the SOS standard to encode semantic annotations

and data gathered by sensors (Bröring, 2012).

The detailed description is presented in section 6.2

where an example of integration of semantic

annotations into the sensor stream data with context

in the IoT is given.

6 IMPLEMENTED SYSTEM

An IoT real-time air quality monitoring system is

developed to visualize sensor stream data and their

semantic annotations, based on web platform. Sensor

data of Hydrometeorological Institute of Kosovo

(HMIK

) are used, through World Air Quality Index

API (AQI API). The AQI API can be used for

advanced programmatic integration, such as: access

to more than 11000 station-level and 1000 city-level

data, station name and coordinates, search station by

name, geo-location query based on latitude/longitude,

individual Air Quality Index (AQI) for all pollutants,

current weather conditions, etc (Aqicn, 2020).

6.1 Received Sensor Stream Data

Format

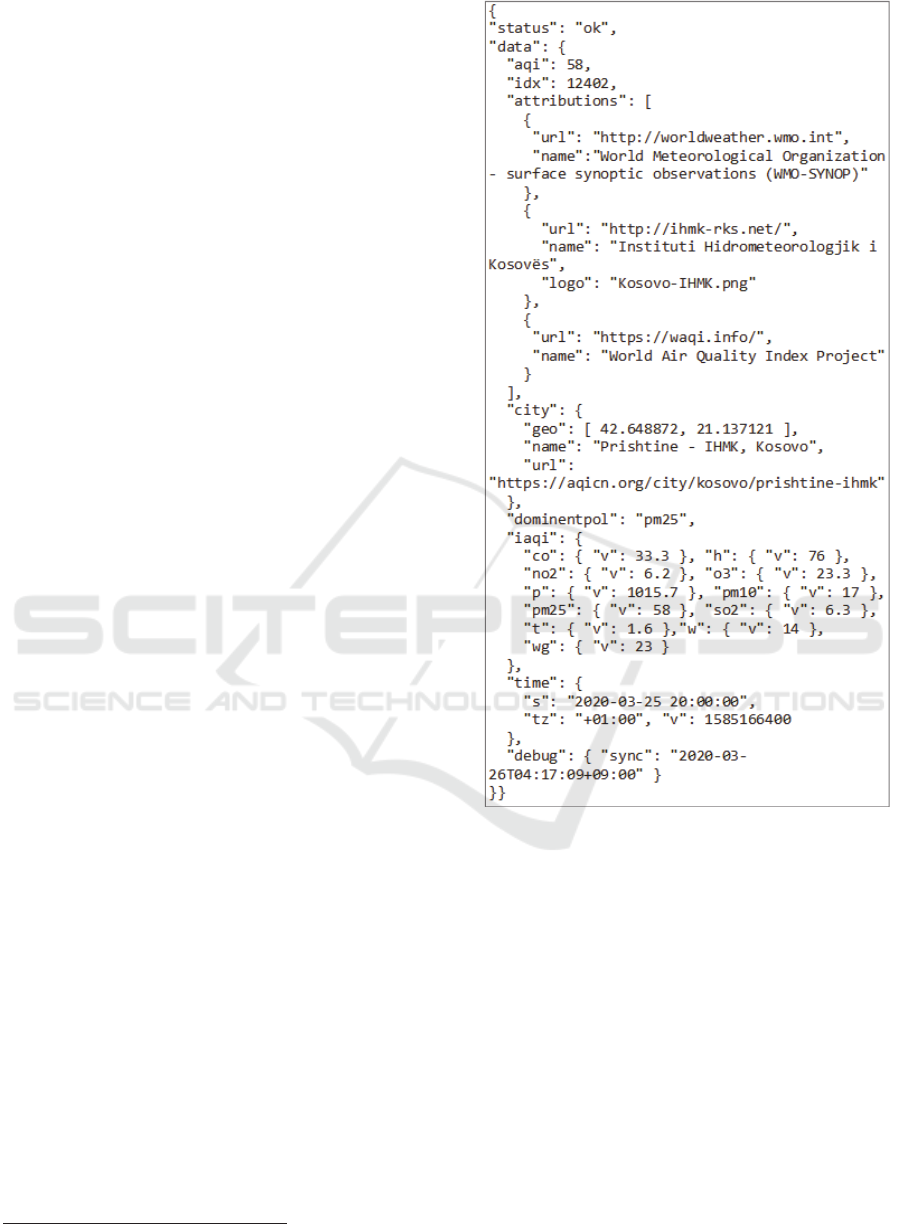

The system receives raw sensor stream data from AQI

API in JSON format, as presented in Figure 2, which

supports measuring in real-time of the following

parameters: Carbon Monoxide (co), Humidity (h),

http://ihmk-rks.net/

Figure 2: Sensor stream data - JSON format.

Nitrogen Dioxyde (no2), Ozone (o3), Pressure (p),

(pm10), PM

(pm25), Sulphur Dioxide (so2),

Temperature (t), Wind (w), and Water Gauge (wg).

As shown in Figure 2, JSON data contains also

attributes such as: data (station data: idx - unique id

for the city monitoring station, aqi - real time air

quality information, time - measurement time

information, s - local measurement time, and tz -

station time zone), city (information about the

monitoring station: name - name of the monitoring

station, geo - latitude/longitude of the monitoring

station, and url - url for the attribution link),

attributions (EPA Attribution for the station), and

iaqi (measurement time information: pm25 -

individual AQI for the PM2.5, v - individual AQL for

the PM2.5).

A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things

379

Data received by sensors every 6 minutes, through

AQI API, are represented in corresponding numerical

formats, e.g. in -3.8 (°C) for temperature parameter.

6.2 Integration of Semantic

Annotations to the Sensor Stream

Data

In our system, different semantic annotations for

sensor stream data are developed, such as:

 #AIQ_Index,

 #Air_Pollution_Level, and

 #Health_Implications

#AIQ_Index annotation – is an index for reporting

daily air quality, and tells how clean or polluted air is.

United States Environmental Protection Agency

(EPA

) calculates the AQI for five major air

pollutants regulated by Clean Air Act: ground-level

ozone, particle pollution (also known as particulate

matter), carbon monoxide, sulfur dioxide, and

nitrogen dioxide. The AQI range values is from 0 to

500. According to EPA, the higher the AQI value, the

greater the level of air pollution and the greater the

health center (take the maximum of all individual

AQI), as presented equation 1:

AQI = max(AQI

PM2.5

, AQI

PM10

, AQI

, ...) (1)

#Air_Pollution_Level annotation – based on the AQI

value, its divided into six ‘Air Quality Index Levels of

Health Concern’ categories:

 Good (AQI is 0 to 50)

 Moderate (AQI is 51 to 100)

 Unhealthy for Sensitive Groups (101 to 150)

 Unhealthy (AQI is 151 to 200)

 Very Unhealthy (AQI is 201 to 300)

 Hazardous (AQI is 301 to 500)

#Health_Implications annotation – each of six

categories described above, corresponds to a different

level of health concert. #Health Implications

annotation tells what they mean, for example

”Unhealthy for Sensitive Groups” category means:

‘Although general public is not likely to be affected

at this AQI range, people with lung disease, older

adults and children are at a greater risk from exposure

to ozone, whereas persons with heart and lung

disease, older adults and children are at greater risk

https://www.epa.gov

from the presence of particles in the air.’, or for

”Moderate” category: ‘Air quality is acceptable;

however, for some pollutants there may be a moderate

health concern for a very small number of people who

are unusually sensitive to air pollution.’

The above described annotations are developed

into ontology named ‘ont-core’.

After describing different types of the semantic

annotations for sensor stream data, in the following is

presented the process of semantic annotations.

The sensor stream data may arrive in different

formats to Kafka server (JSON format - in our case),

which will transform them in a specific format that

will be processed by Spark Streaming. After that,

through the Spark Streaming, based on measuring

values, the sensor data stream will semantically be

annotated and converted in SOS O&M format. A

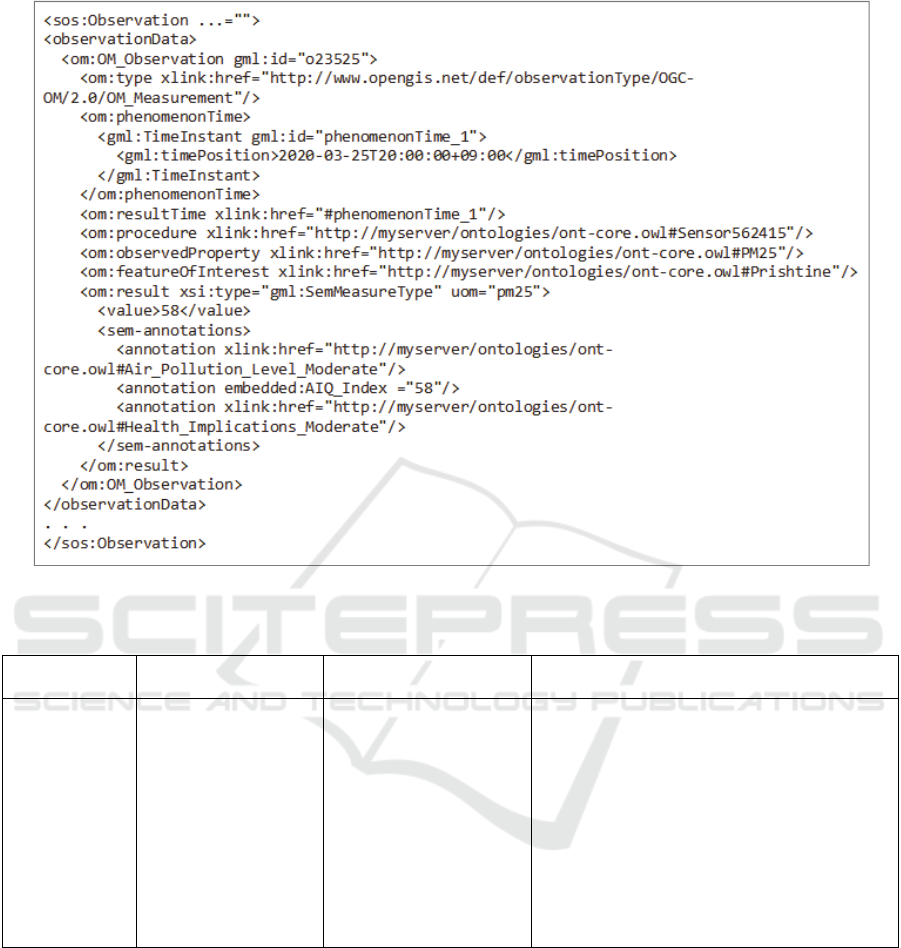

fragment of an example of integrated semantic

annotations to the SOS O&M format by using stakes

like XLink and Embedded, is presented in Figure 3.

SOS O&M observation document comprise zero

or multiple observationData entries, and each store

an instance of an observation. In the following are

presented common observation properties (the prefix

gml indicates that this element is defined in OGC 07-

033, while the prefix om indicates that the element is

defined in OGC 10-025r1) (Jirka, 2014):

 gml:identifier (mandatory): identifies or refers to

a specific observation.

 om:phenomenonTime (mandatory): describes the

time instant or time period for which the

observation contains sensor data.

 om:resultTime (mandatory): provides the time

when the result became available (often this is

identical to the phenomenonTime).

 om:procedure (mandatory): the identifier of the

sensor instance that has generated the observation.

 om:observedProperty (mandatory): the identifier

of the phenomenon that was observed.

 om:featureOfInterest (mandatory): an identifier

of the geometric feature (e.g. sensor station) to

which the observation is associated.

 om:result (mandatory): the observed value, the

type of the result is restricted to the types such as:

gml:MeasureType, xs:integer, xs:boolean,

gml:ReferenceType, xs:string, swe:DataArray.

We have developed a new type of observation to add,

named ‘SemObservation’ with ‘gml:Sem

MeasureType’ result type, as shown and described in

Table 1.

ICSOFT 2020 - 15th International Conference on Software Technologies

380

Figure 3: An example of integrated semantic annotations to the sensor stream data.

Table 1: The developed SemObservation observation type.

Observation

Type

Result Type Description Example

SemObservation gml:SemMeasureType

Inside the result element,

two children elements will

be added: value and sem-

annotations. The value

element will contain a

scalar numerical value,

while the sem-annotations

element will contain one

or more annotation empty

elements.

<om:result xsi:type="gml:SemMeasureType"

uom="pm25">

<sem-annotations>

<annotation xlink:href="http://

myserver/ontologies/ont-core.owl#Air_

Pollution_Level_Moderate"/>

<annotation

xlink:href="http://myserver/ontologies/ont-

core.owl#Health_Implications_Moderate"/>

</sem-annotations> </om:result>

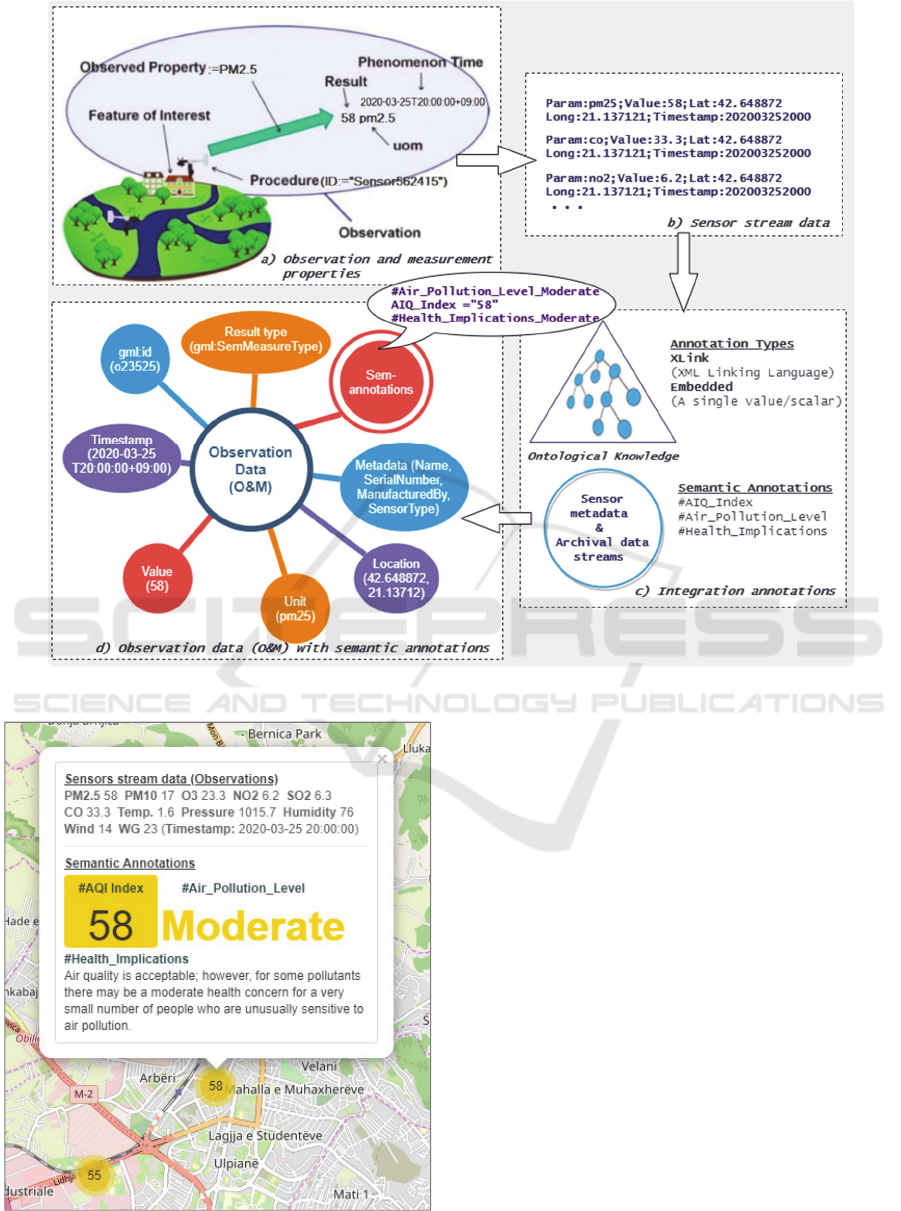

For clearer explanation of semantic integration to

sensor observation data, Figure 4 illustrates (a) the

concept of the O&M and relationship between the

entities involved in observations, (b) data streams

generated from wireless sensor networks, (c) the

sensor data integrated with sensor metadata, archival

data streams and the ontological knowledge, and

finally, (d) the semantic annotated data with

attributes: sem-annotations data, the observed value,

unit, metadata, location, timestamp, result type, and

gml:id of observation.

6.3 System Outputs

To display the heterogeneous sensor stream data and

their semantic annotations, is developed an real time

IoT application in the ASP.NET Core MVC, a

cross-platform, high-performance, open source

framework for building modern, cloud-based, and

Internet-connected applications. The ‘DataStax C#

for Apache Cassandra’ is used to read data from

Apache Casandra database. It’s a modern, feature-

rich and highly tunable C# client library. To display

A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things

381

Figure 4: Integrating semantics to sensor observation data.

Figure 5: System Outputs.

the data in the map, is used Leaflet, an open-source

JavaScript library for interactive web maps. Leaflet is

designed with simplicity, performance and usability

in mind. It works efficiently across all major desktop

and mobile platforms out of the box, taking advantage

of HTML5 and CSS3 on modern browsers while

being accessible on older ones too.

As shown in Figure 5, the users can observe the

quality of air pollution on certain geographical points

in map marked as measuring nodes. Each node

(marker) has an AQI Index, to indicate air pollution.

When clicking over a whatever marker, the latest

measurement values obtained for that point will be

shown, such as: PM2.5, PM10, O3, NO2, SO2, CO,

Temperature, Pressure, Humidity, Wind, Water

Gauge, and semantic annotations, such as: #AQI

Index, #Air Pollution Level, and #Health

Implications.

7 CONCLUSIONS

The IoT represents an active scientific research field

ICSOFT 2020 - 15th International Conference on Software Technologies

382

due to its importance in different domain

applications. Sensors are one of the most important

components of the IoT. Raw sensor stream data are

useless unless properly annotated. Therefore, by

adding semantic annotations with concept definitions

from ontologies, it’s possible the interpretation and

understanding of sensor stream data.

This study presents a system for real-time

integration of semantics into heterogeneous sensor

stream data with context IoT. First, selected

technologies and standards for semantic annotations,

such as Spark Streaming, Apache Kafka, Apache

Cassandra, and OGC standards are described. Then,

the system architecture and implementation of an IoT

real-time air quality monitoring system is presented,

including:

a) Received sensor data in JSON format of the

following measuring parameters: co, h, no2, o3,

pm10, pm25, so2, t, w, and wg,

b) Integration of semantic annotations such as

#AIQ Index, #Air Pollution Level, and #Health

Implications to the sensor stream data in SOS O&M

format. One of the most important point of this

research is that a new type of observation

SemObservation (with gml:Sem MeasureType result

type) is developed, and

c) System outputs to display the heterogeneous

sensor stream data and their semantic annotations.

Extending the system with more advanced real-

time annotation techniques of semantics such as

XPath annotations and development of techniques for

real-time interpretation of semantic annotations is left

for future work.

REFERENCES

Aggarwal, C. C., Ashish, N., & Sheth, A. (2013). The

internet of things: A survey from the data-centric

perspective. In Managing and mining sensor data.

Springer US. (383-428).

Aqicn, API – Air Quality Programmatic APIs, [Online,

Accessed 20/02/2020]. Available: https://aqicn.org/api.

Barnaghi, P., Wang, W., Henson, C., & Taylor, K. (2012).

Semantics for the Internet of Things: Early Progress and

Back to the Future. International Journal on Semantic

Web and Information Systems (IJSWIS), 8(1), 1-21.

Bröring, A., Stasch, C., & Echterhoff, J. (2012). OGC

sensor observation service interface standard. Open

Geospatial Consortium Interface Standard, 12-006.

Gorasiya, D. V., 2019. Comparison of Open-Source Data

Stream Processing Engines: Spark Streaming, Flink and

Storm. Technical Report, DOI: 10.13140/RG.2.2.

16747.49440.

Henson, C. A., Pschorr, J. K., Sheth, A. P., & Thirunarayan,

K. (2009). SemSOS: Semantic sensor observation

service. In International Symposium on Collaborative

Technologies and Systems, 2009. CTS'09. IEEE. (44-

53).

Jirka, S., Stasch, Ch. & Bröring, A. (2014). OGC Best

Practice for Sensor Web Enablement, Lightweight SOS

Profile for Stationary In-Situ Sensors. Open Geospatial

Consortium. Version 1.0, ref. no. 11-169r1.

Kafka Apache, Kafka Apache – A distributed streaming

platform, [Online, Accessed 15/02/2020]. Available:

https://kafka.apache.org.

Karimov, J., Rabl, T., Katsifodimos, A., Samarev, R.,

Heiskanen, H., & Markl, V., 2018. Benchmarking

Distributed Stream Data Processing Systems. In

Proceedings of the IEEE 34th International Conference

on Data Engineering (ICDE). Paris, France.

Lee, Y. J., Trevathan, J., Atkinson, I., & Read, W. (2015).

The Integration, Analysis and Visualization of Sensor

Data from Dispersed Wireless Sensor Network Systems

Using the SWE Framework. Journal of Telecommuni-

cations and Information Technology, (4), 86.

OGC Standards, Open Geospatial Consortium (OGC),

[Online, Accessed 05/01/2020]. Available: https://

www.ogc.org /docs/is/.

Pradilla, J., Palau C., & Esteve, M. (2016). SOSLITE:

Lightweight Sensor Observation Service (SOS) for the

Internet of Things (IOT). ITU Kaleidoscope: Trust in

the Information Society, Barcelona.

Sejdiu, B., Ismaili F., and Ahmedi L., (2020). “Integration

of semantics into sensor data for the IoT - A Systematic

Literature Review” - International Journal on Semantic

Web and Information Systems (IJSWIS). Volume 16,

Issue 4, Article 1.

Sheth, A., Henson, C., & Sahoo, S. S. (2008). Semantic

sensor web. IEEE Internet computing, 12(4), (78-83).

W3C Semantic Sensor Network Incubator Group (SSN-

XG), Semantic Sensor Network Ontology. [Online,

Accessed 25/02/2020]. Available: https://www.w3.org

/2005/ Incubator/ssn/ssnx/ssn.

A Real-time Integration of Semantics into Heterogeneous Sensor Stream Data with Context in the Internet of Things

383
