Investigating on the Relationships between Design Smells Removals

and Refactorings

Lerina Aversano

, Mario Luca Bernardi

, Marta Cimitile

, Martina Iammarino

and Kateryna Romanyuk

Department of Engineering, University of Sannio, Via Traiano, Benevento, Italy

UnitelmaSapienza, University of Rome, Italy

CERICT, Benevento, Italy

marta.cimitile@unitelmasapienza.it, kateryna.romanyuk20@gmail.com

Keywords: Design Smells, Software Maintenance, Software Evolution.

Abstract: Software systems continually evolve and this conducts to its architectural degradation due to the existence of

numerous design problems. The presence of Design Smells is the main indicator of such problems, it points

out the use of constructs that generally hurt system evolution. In this work, an investigation on Design Smells

removals has been performed, focusing specifically on the co-occurrence of refactoring and related changes

performed on a software system. An empirical study has been conducted considering the evolution history of

5 software systems. The detection of instances of multiple Design Smell types has been performed, along with

all the history of the systems, along with, the detection of refactoring activities. The empirical study shows

that Design Smells removals are not correlated to the presence of refactoring. The analysis provides useful

indications about the percentage of activities conducted on smelly classes, including refactoring (even if these

activities in few cases lead to effective smell removals).

1 INTRODUCTION

Software system evolution is usually affected by

challenging trade-off between short-term and long-

term goals. Usually, stringent deadlines lead to design

problems inducing rework costs. In particular, design

violations taken to satisfy fast delivery might

compromise software maintainability and introduce

technical debt.

In the literature, there are numerous studies

investigating design problems introduced along with

the evolution of a software system. Specifically, at the

design level the presence of construct design

problems, the so-called Design Smells, contribute to

system erosion. Design smells can be defined as

indicators of poor design quality (Hochstein et al.,

2005, De Silva et al., 2012, Garcia et al., 2009, Le et

al., 2016, Sharma et al., 2016), and are originated

from implementation constructs (e.g., classes).

Design Smells are closely related to system

evolution, as often an organization necessity deal

with accumulated design problems when adding new

features to a software system. Unmanaged, Design

Smells can lead to significant technical problems and

increased maintenance and evolution efforts.

More in detail, during the software evolution, the

amount and complexity of the interactions among the

software elements increase, with a consequent effect

on the design structure.

In this work, an investigation on the Design

Smells removals has been performed, focusing on the

relationships with refactoring performed on the

software system (Bernardi et Al., 2016).

An empirical study has been conducted

considering the evolution history of 5 software

systems. The detection of instances of multiple

Design Smell types has been performed, as well as the

detection of the refactoring activities. Then a co-

occurrence analysis has been conducted to investigate

their relationships.

The empirical study confirmed that classes

affected by Design Smells are more subject to

refactoring, evidencing that especially when multiple

smells are detected in the same classes these are more

frequently subject to changes. Moreover, it emerged

that in some cases Design Smells are removed, and

212

Aversano, L., Bernardi, M., Cimitile, M., Iammarino, M. and Romanyuk, K.

Investigating on the Relationships between Design Smells Removals and Refactorings.

DOI: 10.5220/0009887102120219

In Proceedings of the 15th International Conference on Software Technologies (ICSOFT 2020), pages 212-219

ISBN: 978-989-758-443-5

smells removals are not correlated to the presence of

refactoring.

The rest of the paper is organized as follow:

Section 2 discusses the related work, Section 3

describes the empirical study design, while the results

of the study are reported in Section 4. Section 5

discusses the threats that could affect the obtained

results, finally, conclusions are given in the last

section.

2 RELATED WORK

The impact of code level smells defined by Fowler

(Fowler, 1999) has been widely investigated in the

research literature. In particular, several studies

analysed their effects on maintainability (Sjoberg et

al., 2013, Tufano et al., 2015, Sjoberg et al., 2013),

program comprehension (Abbes et al., 2011), change,

and fault-proneness (Khomh et al, 2012, Palomba et

at., 2017).

Currently, there are also several tools used to

automatically detect (Moha et al., 2010, Palomba et

al., 2015), code smells, exploiting different sources

of information. Several papers discuss code smells fix

through the application of refactoring operations

(Tsantalis et al., 2009, Suryanarayana et al., 2014).

At architectural level smells are ultimately

instances of poor design decisions (Garcia et al.,

2009). The technical debt is due to the presence of

construct design problems, the so-called architectural

smells (Hochstein et al., 2005, de Silva et al., 2012,

Garcia et al. 2009), that contribute to system erosion.

They have a negative impact on system life cycle

properties, such as understandability, testability,

extensibility, and re-usability (Le et al., 2016).

Several research papers in the literature deal with

the detection of architectural smells, and part also

with the influence of architectural smell on issue

related activities. Brunet et al. (Brunet et al., 2012)

studied the evolution of architectural violations in 76

versions selected from four subject systems showing

how the number of architectural violations is

constantly growing over time. Moreover, some

previously identified violations reappear, and in all

the studied systems a critical core is identified and

this core does not change over time.

Arcan (Arcelli Fontana et al., 2017) is a static

analysis tool targeted at the detection of three

architectural smells, including cycles and hubs. Arcan

creates a graph database containing the structural

dependencies of a Java system and then runs several

detection algorithms (one per smell) on this graph.

Finally, there are some commercial tools for detecting

architectural smells, such as Designite (Sharma et al.,

2016), which identifies seven architecture smells,

including cycles and other dependency-based smell.

As far as we are aware, all the previous tools have no

predictive capabilities.

Le et al. (Le et al., 2016) presented an empirical

study to date of architectural decay and its impact on

software systems. For each version of the system,

different architectural recovery techniques have been

applied considering different types of smells. They

examined the relationships between the collected

smells and the issues extracted from the repositories

of the various systems in question. This has shown

how architectural decay can cause significant

problems for each software system.

Mo et al. (Mo et al., 2015) presented an empirical

study of hotspot patterns that cause high maintenance

costs. The aim of the study shows like these patterns

not only identify the most error-prone and change-

prone files, but also the root causes of bug-proneness

and change-proneness in specific architecture

problems. Tufano et al. (Tufano et al., 2015)

presented an empirical investigation into when and

why code smells are introduced in software projects.

The study conducted over the commit history of open

source projects demonstrated that most of the times

the smells identified since their creation.

All of these studies were conducted at a

significantly high-level scope than our work. Indeed,

none of these studies considered the different types of

Design Smells removals and refactoring at commits

level.

3 STUDY DEFINITION AND

PLANNING

The study aims to investigate the recurrence between

refactoring actions and code smell in the source code,

and also to understand if refactoring really contributes

to the removal of Design Smells, or if, instead, both

activities are used to improve the quality of the

systems.

To conduct the empirical study, the complete

historical evolution of five open-source Java projects

has been considered: Atlas, Guice, Junit4, Log4j, and

Zookeeper. Table I reports the number of commits,

the relative number of files analysed, and the number

of detected Design Smells.

To achieve the aforementioned objective, it has

been necessary to identify to what extent the

refactoring actions take place in the same files in

which at least one code smell has been detected and

Investigating on the Relationships between Design Smells Removals and Refactorings

213

if this happens with a greater or lesser percentage than

other files. Therefore, the first research question is:

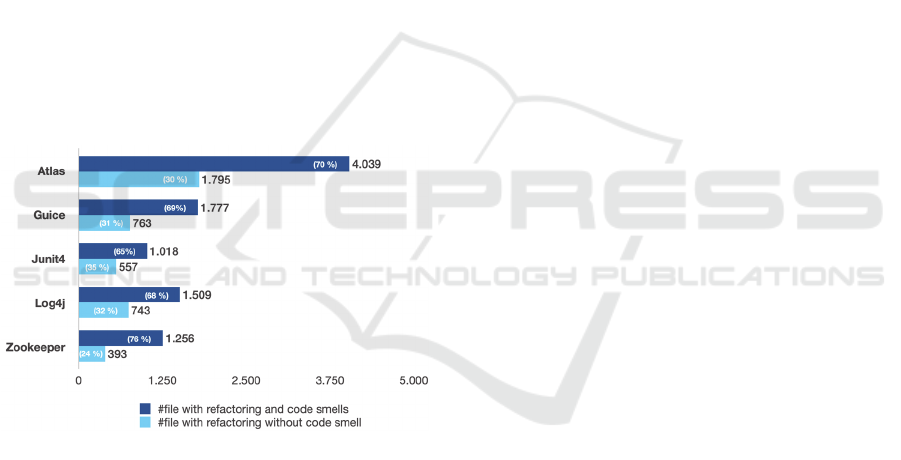

RQ1: To what extent are smelly file more subject to

refactoring actions?

The occurrences of refactoring on smelly files and

clean files, commits per commits, have been

analysed, to understand if refactoring activities are

more used in the commits changing smelly files.

The second objective was to understand if the

refactoring actually contributes to the removal of

smells code. The simultaneous occurrence of these

two activities could be due to chance, for this reason,

a more in-depth study was conducted to understand if

it could be a true cause-effect relationship between

them. Therefore, the second research question is:

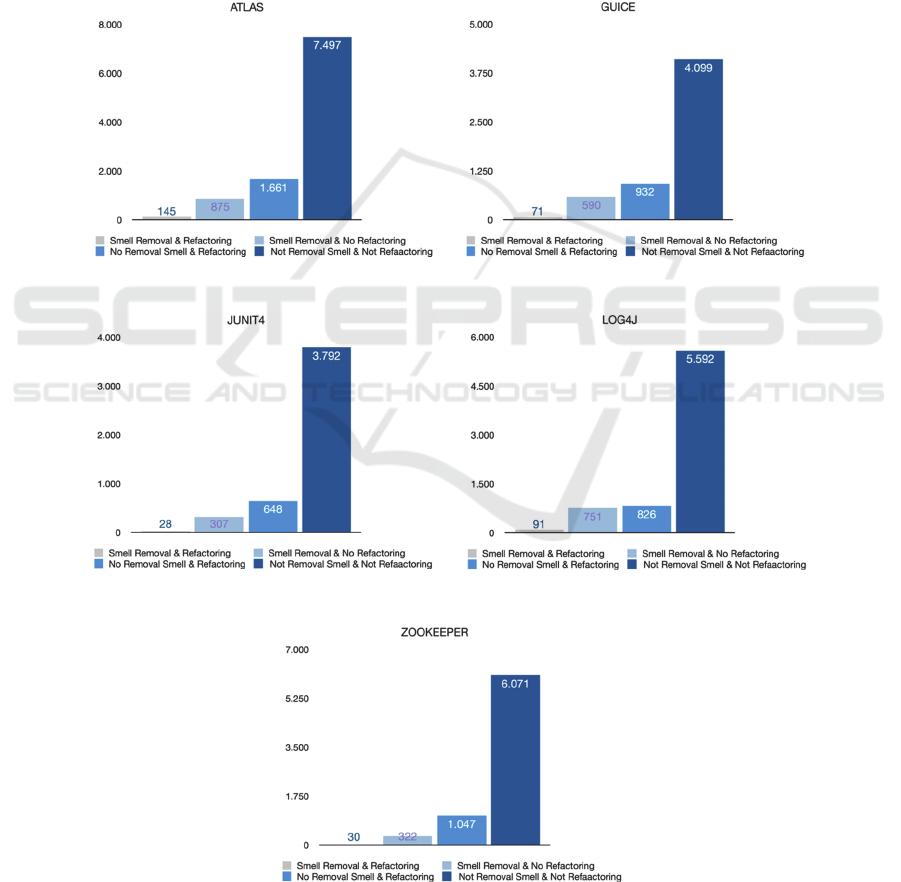

RQ2: To what extent do refactoring actions and

Design Smells removals co-occur?

Table 1: Characteristics of the studied Projects.

Project #Commits #Files #Design Smells

Atlas 1580 13822 15383

Guice 1177 8590 7400

Junit4 1406 5444 5529

Log4j 2042 9235 9049

Zookeeper 1084 6216 8952

3.1 Data Extraction

To carry out this work, two datasets were built for

each project.

The first dataset collects for each commit, at the

class level, the presence or absence of each one of the

17 Design Smells considered in the study. Moreover,

for each commit, a comparison with the previous

commit has been performed to understand if someone

of the detected smells has been removed or added, or

if nothing has changed.

The Designite tool was used to detect the presence

of the Design Smells. Designite is a software design

quality assessment tool. It offers various features to

support the identification of design problems that

contribute to the decay of the software architecture.

Table 2 lists the Design Smells that are detectable by

Designite (Sharma et al., 2016).

The second dataset collects, for each commit, all the

data related to the presence or absence of refactoring

activities. For the detection of refactoring activities,

version 2.0 of Refactoring Miner (Tsantalis et al.,

2018) was used, which allows the identification of 40

different types of refactoring.

For each commit, trough Refactoring Miner, it has

been extracted the list of refactoring actions

performed in the commit, with the specification of the

refactoring type and the source/target classes and

methods involved. The complete dataset used in the

empirical study was obtained from the merge of the

two abovementioned datasets and provides

information on the refactoring actions that occurred

together with the removal of the code smells.

Table 2: Detected Design Smells.

Abstraction

Design Smells

Imperative Abstraction

Unnecessary Abstraction

Multifaceted Abstraction

Unutilized Abstraction

Encapsulation

Design Smells

Deficient Encapsulation

Unexploited Encapsulation

Modularization

Design Smells

Broken Modularization

Insufficient Modularization

Hub-like Modularization

Cyclically dependent

Modularization

Hierarchy Design

Smells

Wide Hierarchy

Deep Hierarchy

Multipath Hierarchy

Cyclic Hierarchy

Rebellious Hierarchy

Missing Hierarchy

Figure 1 shows in detail the adopted process,

highlighting the role of the adopted tools.

To address RQ1, the occurrences of refactoring

that concurred with the removal of one or more code

smells were counted.

Figure 1: Toolchain of the Analysis Process.

ICSOFT 2020 - 15th International Conference on Software Technologies

214

To address RQ2, Fisher’s exact test (Fisher, 1962)

and Odds Ratio were used to compare the proportion

of refactoring that occur together with the removal of

code smells. More in detail, for each system, this

analysis was carried out by considering the individual

smells separately, then considering the categories of

smells, and finally all the smells together.

4 EXPERIMENTAL RESULTS

This section reports the results achieved in our study

and aims at answering our two research questions.

RQ1: To what extent are smelly file more subject to

refactoring actions?

It has been evaluated how many times a

refactoring activity has been applied on a file

containing at least one smell. Figure 2 depicts the co-

occurrence between Refactoring actions and Design

Smells, comparing with the blue bars, the set of files,

where both were contained, and with light blue bars

the set of files with just refactoring inside.

Figure 2: Number of commits with refactoring actions:

smelly file and clean files.

For each analysed system, the occurrences of

refactoring in the files have been measured together

with the presence of Design Smells. As shown in

Figure 2, the number of files containing both

refactoring and at least one Design Smell is

substantially higher in all the analysed systems.

More specifically, for Atlas, files with the

presence of refactoring and Design Smell represent

70% of the cases, while files containing only

refactoring represent only 30% of the cases, therefore

less than half.

In the case of Guice, the percentages are very

closed to those of Atlas.

The analysis of Junit confirms the trend, indeed

also, in this case, the number of files containing both

the refactoring and the Design Smell is greater, with

a percentage of 65%, compared to the number of files

containing only the refactoring which represents

35%. Results are similar also for the Log4j system,

where the percentage of smells and refactoring co-

occurrences is 68%, while the percentage of commits

on files with just refactoring detected is 32%.

Finally, in the case of Zookeeper, the highest

percentage is recorded. Here the number of files

containing both activities is more than three times

higher (76%) compared to the number of files with

only the refactoring inside them (24%).

Finally, the results indicate that, in general,

refactoring actions have much more chance of

occurring inside files that contain at least one code

smell.

RQ2: To what extent do refactoring actions and

Design Smells removals co-occur?

This analysis aims to highlight a possible correlation

between two main maintenance activities, that are

refactoring and the removal of the Design Smells. In

particular, the research objective is to understand if

refactoring actions contribute in some way to the

removal of Design Smells, or if both are generically

used in the context of the source code improvement.

Therefore, first of all, a comparison was made of each

file related to a commit, containing a Design Smell,

with the same file in the successive commit, to

understand if that Design Smell has been removed or

if it remains unchanged. Then, some statistical

analysis has been conducted to perform a deep

analysis of the occurrences. Fisher's exact test was

used to analyse the correlation between refactoring

and smells removal, to compare the proportion of

refactoring activities that occurred together with the

Design Smells removals.

Fisher’s test was applied to 3 different couples of

variables:

a) individual smells and refactoring;

b) smells by categories (as shown in Table 2) and

refactoring;

c) all the smells on the whole project and

refactoring.

From a statistical point of view, Fisher's exact test

was used to understand if refactoring is most used in

the files in which the removal of a code smell was

detected, or not.

In this specific case, every single

smell was considered concerning refactoring.

Investigating on the Relationships between Design Smells Removals and Refactorings

215

Table 3: Proportion of refactoring involving Design Smell removal separately: Fisher’s exact test p-value and Odds Ratio.

Code smell Atlas Guice Junit4 Log4j Zookeeper

value

Odds

Ratio

value

Odds

Ratio

p- value Odds

Ratio

value

Odds

Ratio

value

Odds

Ratio

Imperative

Abstraction 1 0 1 0 1 0 1 0 0,29 7,41

Multifaced

Abstraction 0,036 4,43 1 1,01 0,57 0 1 0 1 0

Unnecessary

Abstraction 1 0 1 0 1 0 1 0 1 0

Unutilized

Abstraction 0,0098 0,66 0,001 0,47 0,000002 0,2 0,47 0,87 1 0,96

Deficient

Encapsulation 0,24 0,75 0,23 0,44 1 0,94 0,21 0,66 0,68 0,73

Unexploited

Encapsulation 1 0 1 1,51 1 0 1 0 1 0

Broken

Modularization 1 0 1 0 1 0 1 0 1 0

Cyclic‐

Dependent

Modularization 0,78 1,07 0,28 0,76 1 1,02 0,62 0,78 0,006 0,11

Insufficient

Modularization 0,17 1,3 0,01 0,46 0,24 1,9 0,06 0,46 0,63 0,7

Hub‐like

Modularization 1 0,86 0,11 0,19 1 0 1 0 0,007 inf

Broken

Hierarchy 0,02 0,42 0,77 0,69 1 0,95 0,14 1,63 0,01 0,12

CyclicHierarchy 1 0 1 0 1 0 1 0 1 0

DeepHierarchy 1 0 1 0 1 0 1 0 1 0

Missing

Hierarchy 1 0 1 0,94 1 0 1 0 1 0

Multipath

Hierarchy 0,44 0 1 0 1 0 1 0 1 0

Rebellious

Hierarchy 1 0 1 0 1 0 1 0 1 0

WideHierarchy 1 0 1 0 1 0 0,16 15,19 1 0

Table 4: Proportion of refactoring involving smell code removal by category.

Table 5: Proportion of refactoring involving smell code

removal.

p-value Odds Ratio

Atlas

0,001 0,74

Guice

0,0000003 0,52

Junit4

0,001 0,53

Log4j 0,09 0,82

Zookeeper

0,0007 0,54

Fisher’s exact test results are reported in Table 3,

where it is shown that a few number of times the

difference was statistically significant.

More in detail, in Atlas the test is significant in the

case of Multifaced Abstraction, Unutilized

Abstraction, and Broken Hierarchy. Only for the

smell Multifaced Abstraction the

Odds Ratio is greater

than 1.

Code smell Atlas Guice Junit4 Log4j Zookeeper

value

Odds

Ratio

value

Odds

Ratio

value

Odds

Ratio

value

Odds

Ratio

value

Odds

Ratio

Abstraction

0,02 0,7 0,001 0,49 0,0000004 0,19

0,43 0,87 1 0,995

Encapsulation 0,24 0,74 0,37 0,54 1 0,89 0,22 0,66 0,558 0,73

Modularization 0,25 1,18

0,003 0,6

0,24 1,54 0,065 0,61 0,101 0,52

Hieerarchy

0,007 0,39

0,389 0,59 1 0,88 0,22 1,53

0,006 0,11

ICSOFT 2020 - 15th International Conference on Software Technologies

216

In Guice, it is statistically significant only in the

case of Unutilized Abstraction, as previously, and

Insufficient Modularization.

For JUnit4 only one significance is found, in the

case of the smell Unutilized Abstraction.

In the case of Log4j, no smell is statistically

significant.

Finally, in Zookeeper, the following smells are

statistically significant: Cyclic-Dependent

Modularization, Hub-like Modularization, and

Broken Hierarchy.

The analysis of the dependence between the

presence of refactoring and the effective removal of

smell shows that the two phenomena are not related.

Only for some types of smells, there was a

dependence between refactoring and elimination of

smells, so it is possible to say that the elimination of

smell is more likely in the absence of refactoring.

Only in two particular cases, there was the opposite

trend, a high probability of removing smell in the

presence of refactoring (in Atlas for Multifaced

Abstraction, and in Zookeeper for Hub-like

Modularization). However, this evidence was only

observed in two different projects and for two

different types of smell designs.

a) b)

c) d)

Figure 3: Number of files with and without refactoring actions: smelly file and clean files.

Investigating on the Relationships between Design Smells Removals and Refactorings

217

Another analysis considers smells by category.

As shown in Table 4, in the case of smells

belonging to the Abstraction category, the difference

is statistically significant for 3 projects (Atlas, Guice,

and Junit4) out of 5.

For Encapsulation, no project shows a significant

result, in line with the results obtained by considering

the smells separately.

For the Modularization category, only Guice

reports a statistical significance.

Finally, for the Hierarchy category, the

significance is found only in the case of Atlas and

Zookeeper.

In any case, we cannot speak of correlation

between refactoring activities and removal of smells,

because although in some cases the p-value is

significant, the

Odds Ratio is always less than 1.

The latest analysis considered all smells with

refactoring activities on each project.

To better understand the data that was used in this

analysis, Figure 3 shows a graph for each system.

The graphs use: i) grey bars to describe the

number of files in which the removal of the smell was

identified and there is presence of the refactoring, ii)

the dark grey bars for the number of files in which the

removal of the smell was identified and there is

absence of the refactoring, iii) the blue bars for the

number of files where the smell has not been removed

but the presence of the refactoring has been identified,

and finally iv) the dark blue bars to describe the

number of files in which neither the smell has been

removed and there is not the presence of refactoring.

Table 5 shows the results of the exact Fisher test.

As you can see, the difference was statistically

significant for all projects, except for Log4j.

However, even in this case, as in the previous one, the

Odds Ratio is always less than 1.

5 THREATS TO VALIDITY

Threats to construct validity concern the relationship

between theory and observation. Such threats mostly

regard possible imprecision in our measurements.

Indeed, the Design Smells removals belong to a

dataset constructed and validated in this study, and we

considered refactoring actions as detected by the

Refactoring Miner tool. However, Tsantalis et al.

show, for it, high precision ('98%) and recall ('87%)

values (Tsantalis et al., 2018).

Threats to internal validity concerns factors

internal to our study that can influence the results. In

particular, we cannot, in general, claim a cause-effect

relationship between refactoring actions and Design

Smells removal. We mitigate this threat by analysing,

in RQ2, refactorings occurred on smelly files.

Threats to conclusion validity concern the

relationship between experimentation and outcome.

We used an appropriate statistical test (Fisher’s exact

test) and effect size measure (

Odds Ratio) to support

our findings.

Threats to external validity concern the

generalizability of our findings. This is a small,

preliminary study, conducted on only 5 projects.

Results might be confirmed or contradicted when

analysing other projects.

6 CONCLUSIONS

The data collected for this study highlighted that in

the software project analysed, almost 70% of

refactoring is applied to classes affected by Design

Smell. Despite this, the analysis of the dependence

between the presence of refactoring activities and the

effective removal of these smell shows that the two

phenomena are not related.

Only for some types of smells, a co-occurrence

has been observed between refactoring and removal

of Design Smells, and surprisingly it refers that the

elimination of Design Smell is high also in case of

absence of refactoring.

In two particular cases, the opposite trend was

observed, namely a high probability of removing

smells in the presence of refactoring. However, this

evidence was only observed in two different projects

and for two different types of smell designs.

Future work aims at extending this work towards

several directions. In particular, we may perform an

in-depth quantitative and qualitative analysis of

commits to study general quality improvement

activities.

REFERENCES

L. Hochstein and M. Lindvall. Combating architectural

degeneration: A survey. Information and Software

Technology, 47(10):643–656, July 2005.

L. de Silva and D. Balasubramaniam. Controlling software

architecture erosion: A survey. Journal of Systems and

Software, 85(1):132–151, 2012.

J. Garcia, D. Popescu, G. Edwards, and N. Medvidovic.

Toward a catalogue of architectural bad smells. In

QoSA, volume 5581 of LNCS, pages 146–162.

Springer, 2009.

F. Arcelli Fontana, I. Pigazzini, R. Roveda, D.A. Tamburri,

M. Zanoni, and E. Di Nitto. Arcan: A tool for

architectural smells detection. In 2017 IEEE ICSA

ICSOFT 2020 - 15th International Conference on Software Technologies

218

Workshops 2017, Gothenburg, Sweden, April 5-7,

2017, pages 282–285, 2017.

R. Mo, Y. Cai, R. Kazman, and L. Xiao. Hotspot patterns:

The formal definition and automatic detection of

architecture smells. 2015, 12th Working IEEE/IFIP

Conf. on Software Architecture, pages 51–60, 2015.

M. Abbes, F. Khomh, Y.-G. Guéhéneuc, G. Antoniol, An

empirical study of the impact of two antipatterns, Blob

and Spaghetti Code, on program comprehension, 15th

European Conference on Software Maintenance and

Reengineering, CSMR 2011, 1–4 March 2011,

Oldenburg, Germany, IEEE Computer Society, 2011,

pp. 181–190.

F. Khomh, M. Di Penta, Y.-G. Guéhéneuc, G. Antoniol, An

exploratory study of the impact of antipatterns on class

change- and fault-proneness, Empir. Softw. Eng. 17 (3)

(2012) 243–275.

F. Palomba, G. Bavota, M. Di Penta, F. Fasano, R. Oliveto,

A. De Lucia, On the diffuseness and the impact on

maintainability of code smells: a large-scale empirical

investigation, Empir. Softw. Eng. (2017) 1–34.

D. I. K. Sjoberg, A. Yamashita, B. C. D. Anda, A. Mockus,

and T. Dybå. 2013. Quantifying the Effect of Code

Smells on Maintenance Effort. IEEE Transactions on

Software Engineering 39, 8 (Aug 2013), 1144–1156.

M. Tufano, F. Palomba, G. Bavota, R. Oliveto, M. Di Penta,

A. De Lucia, D. Poshyvanyk, When and why your code

starts to smell bad, Proceedings of the 37th

International Conference on Software Engineering -

Volume 1, ICSE ’15, IEEE Press, Piscataway, NJ,

USA, 2015, pp. 403–414. [Online].

N. Moha, Y.-G. Guéhéneuc, L. Duchien, A.-F.L. Meur,

Decor: a method for the specification and detection of

code and design smells, IEEE Transaction on Software

Engineering, 36 (2010) 20–36.

D. Le and N. Medvidovic. Architectural-based speculative

analysis to predict bugs in a software system. In

Proceedings of the 38th International Conference on

Software Engineering Companion (ICSE ’16), pages

807–810, Austin, TX, USA, 2016.

F. Palomba, G. Bavota, M. Di Penta, R. Oliveto, D.

Poshyvanyk, A. De Lucia, Mining version histories for

detecting code smells, Softw. Eng. IEEE Trans. 41 (5)

(2015) 462–489.

N. Tsantalis, A. Chatzigeorgiou, Identification of move

method refactoring opportunities, IEEE Trans. Softw.

Eng. 35 (3) (2009) 347–367.

M. Fowler, Refactoring: Improving the Design of Existing

Code. Addison-Wesley Professional, 1999.

J. Brunet, R. A. Bittencourt, D. Serey, and J. Figueiredo. On

the evolutionary nature of architectural violations. In

Reverse Engineering (WCRE), 2012 19th Working

Conference on. IEEE, 2012.

D. I. K. Sjoberg, A. Yamashita, B. C. D. Anda, A. Mockus,

and T. Dybå. 2013. Quantifying the Effect of Code

Smells on Maintenance Effort. IEEE Transactions on

Software Engineering 39, 8 (Aug 2013), 1144–1156.

M. Tufano, F. Palomba, G. Bavota, R. Oliveto, M. Di Penta,

A. De Lucia, Denys Poshyvanyk. When and Why Your

Code Starts to Smell Bad.

G. Suryanarayana, G. Samarthyam, and T. Sharma.

Refactoring for Software Design Smells: Managing

Technical Debt. Morgan Kaufmann, 1 edition, 2014.

Tushar Sharma, Pratibha Mishra, and Rohit Tiwari. 2016.

Designite: a software design quality assessment tool. In

Proceedings of BRIDGE ’16, New York, NY, USA, 1–4.

N. Tsantalis, M. Mansouri, L. M. Eshkevari, D.

Mazinanian, and D. Dig, “Accurate and efficient

refactoring detection in commit history,” in

Proceedings of the 40th International Conference on

Software Engineering, ICSE 2018, Gothenburg,

Sweden, May 27 - June 03, 2018, 2018, pp. 483–494.

R. A. Fisher, “Confidence limits for a cross-product ratio,”

Australian Journal of Statistics, 1962.

M. Bernardi, M. Cimitile, Reducing Static Dependences

Exploiting a Declarative Design Patterns Framework,

in Proceedings of the 11th International Joint

Conference on Software Technologies - Volume 2:

ICSOFT-PT, ISBN 978-989-758-194-6, pages 154-

160.

Investigating on the Relationships between Design Smells Removals and Refactorings

219
