Analyzing Decision Polygons of DNN-based Classification Methods

Jongyoung Kim, Seongyoun Woo, Wonjun Lee, Donghwan Kim and Chulhee Lee

Department of Electrical and Electronic Engineering, Yonsei University,

134 Shinchon-Dong, Seodaemun-Gu, Seoul, Republic of Korea

Keywords: Decision Polygon, ReLU, Convolutional Neural Networks, Decision Boundary.

Abstract: Deep neural networks have shown impressive performance in various applications, including many pattern

recognition problems. However, their working mechanisms have not been fully understood and adversarial

examples indicate some fundamental problems with DNN-based classification methods. In this paper, we

investigate the decision modeling mechanism of deep neural networks, which use the ReLU function. We

derive some equations that show how each layer of deep neural networks expands the input dimension into

higher dimensional spaces and generates numerous decision polygons. In this paper, we investigate the

decision polygon formulations and present some examples that show interesting properties of DNN based

classification methods.

1 INTRODUCTION

Deep neural networks (DNN) have been successfully

applied in various computer vision and pattern

recognition problems, which include speech

recognition (Sainath, 2015, Amodei, 2016), object

recognition (Ouyang, 2015, Wonja, 2017, Girshick,

2014), image processing (Jin, 2017), medical imaging

(Gibson, 2018), and super-resolution. Although the

DNN-based methods have substantially

outperformed conventional methods in many fields,

the understanding of their working models is rather

limited (Radford, 2015, Yang, 2017, Zeiler, 2014,

Yosinski, 2014, 2015, Koushik, 2016, Szegedy, 2013,

Mallat, 2016).

In (Zeiler, 2014), a visualization method was

proposed, which can provide some insight into the

intermediate feature spaces and classification

operation. Also, it is observed that the first-layer

features may not be specific to a particular task, but

can be transferable to other tasks (Yosinski, 2014). In

(Yosinski, 2015), some visualization tools were

proposed, which may provide some insight and

understanding of DCN working mechanisms. In

(Koushik, 2016), the author presented some analyses

of DCN operations in the form of a framework.

The paper is organized as follows: In Section 2 we

explain how filter banks project the space into a

higher dimension space and the ReLU function

creates a higher dimensional structure. Section 3

describes the decision polygon generation when the

ReLU function is used along with some properties of

the decision polygons. Section 4 investigates

adversarial images based on the decision polygons

and subspaces. Conclusions are drawn in Section 5.

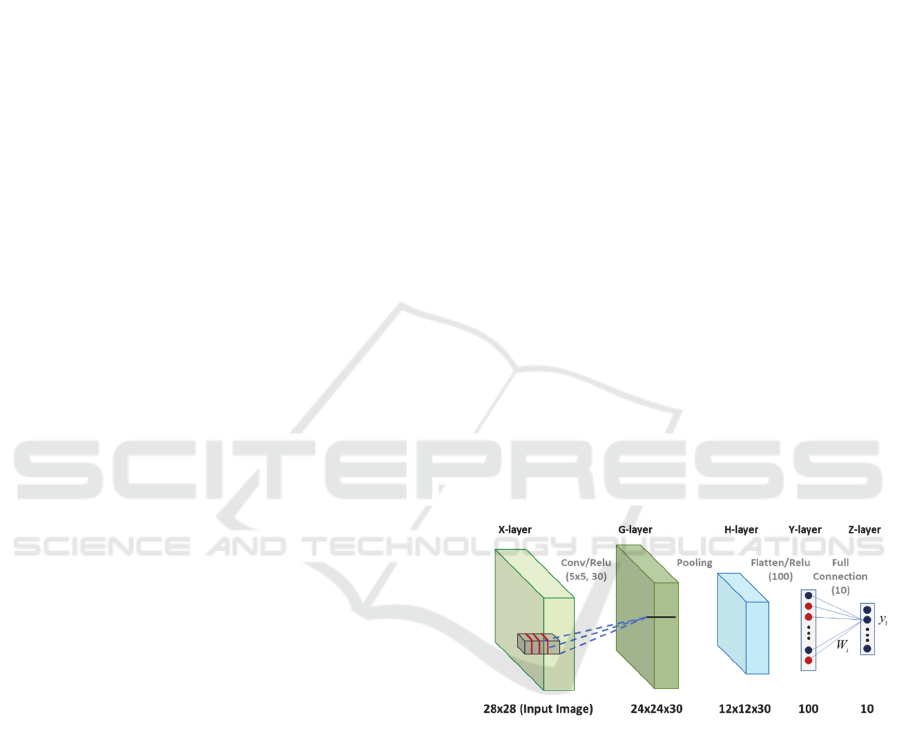

Figure 1: DCN-based classification method for the MNIST

data (softmax operation is not shown).

2 SPACE DIVISION BY FILTER

BANK

Fig. 1 shows a convolutional neural networks for the

MNIST dataset. First, thirty 2-dimensional FIR filters

(filter banks) are applied to the input hidden layers.

In this case, the FIR filters are square (e.g., 5x5). The

number of filters exceeds the number of pixels of the

window, though it can be the same as or smaller than

the number of pixels of the window. The ReLU

function is defined as follows:

346

Kim, J., Woo, S., Lee, W., Kim, D. and Lee, C.

Analyzing Decision Polygons of DNN-based Classiﬁcation Methods.

DOI: 10.5220/0009888203460351

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 346-351

ISBN: 978-989-758-442-8

𝑓



𝑥



𝑚𝑎𝑥



0,𝑥



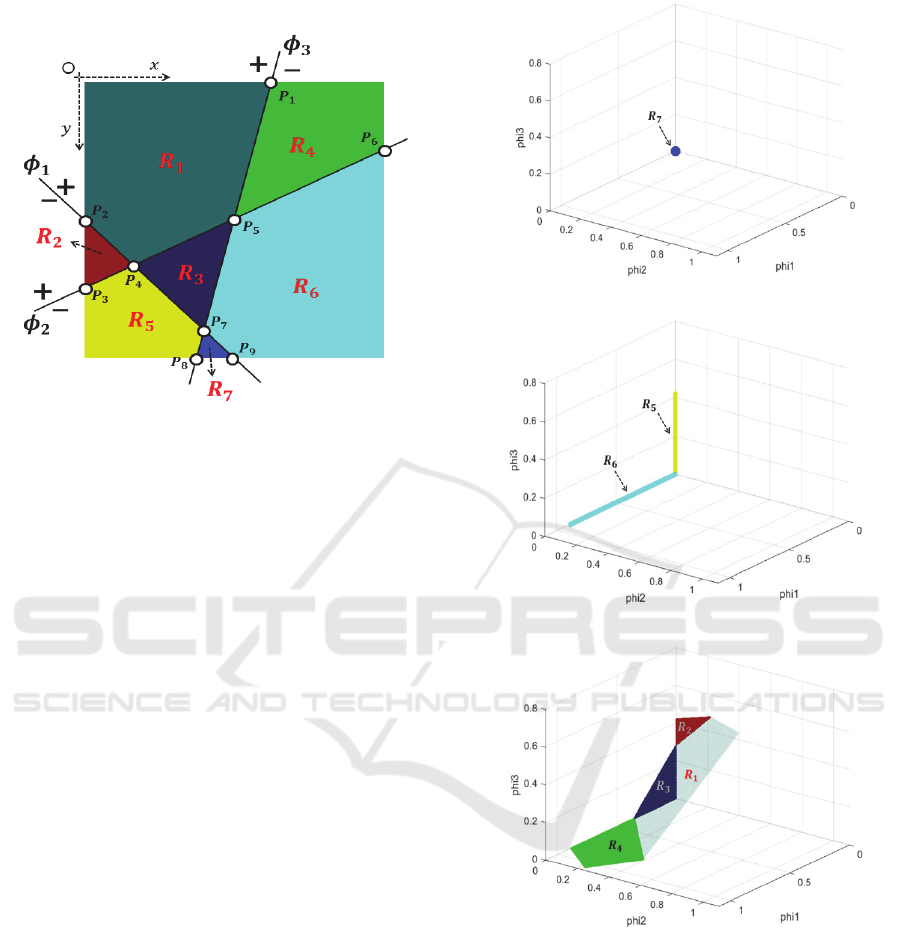

Figure 2: Three filters in the 2 dimensional space.

Fig. 2 illustrates how multiple filters with the

ReLU function perform non-linear mapping. In Fig.

2, there are three filters in the 2 dimensional input

space, which map the input space into a higher space

(3 dimensional space). The three filters can be

expressed as follows:

𝑋•𝜙



𝑐



0

𝑋•𝜙



𝑐



0

𝑋•𝜙



𝑐



0

where 𝜙



,𝜙



,𝜙



and 𝑋 are two-dimensional vectors.

In general, the three equations represent planes or

hyper-planes in high dimensional spaces and

𝜙



,𝜙



,𝜙



are the normal vectors to the planes.

The three filters divide the input space into seven

regions (Fig. 2). One region (R7) is mapped to a point

in the 3-dimensional space (Fig. 3a). Two regions

(R5, R6) are mapped into lines in the 3-dimensional

space (Fig. 3b). Three regions (R2, R3, R4) are

mapped into 2-dimensional polygons (Fig. 3c).

In region R7, we have the following relationships:

𝑋•𝜙



𝑐



0,𝑋•𝜙



𝑐



0,𝑋•𝜙



𝑐



0.

In region R5,

𝑋•𝜙



𝑐



0,𝑋•𝜙



𝑐



0,𝑋•𝜙



𝑐



0.

In region R1, we have the following:

𝑋•𝜙



𝑐



0,𝑋•𝜙



𝑐



0,𝑋•𝜙



𝑐



0.

(a)

(b)

(c)

Figure 3: Non-linear mapping of the ReLU function. (a)

Region 7 is mapped into a point, (b) Regions 5 and 6 are

mapped into lines, (c) three regions (R2, R3, R4) are

mapped into 2-dimensional polygons.

For the other regions, we can derive similar

relationships. It can be seen that a polygon in the

original input space can be mapped into a polygon in

the same dimensional space or a lower dimensional

space. Also, a polygon may have a lower degree of

freedom in the expanded space. For example, a

triangle can be mapped into a point, a line or a triangle

in the expanded space when ReLU is used in

Analyzing Decision Polygons of DNN-based Classiﬁcation Methods

347

convolutional neural networks. It is also noted that a

polygon in the original space never increase its

dimension. For example, a triangle in the original

space cannot be mapped into a pyramid or a higher

dimensional polygon. At most, they can retain their

original dimension in a higher dimensional space.

However, as we can construct a three dimensional

object by folding a paper, the non-linear function of

CNN allows the original space mapped into a higher

dimensional object through the non-linear function.

Nevertheless, the local dimension in the higher space

is always the same as in the original space. For

example, although a folded paper can make a 3D

structure, locally it is always a 2D structure (plane).

3 DECISION POLYGONS OF DNN

WITH RELU

In deep convolutional networks, another filter bank or

full connection layer can be applied to the output

images. These operations can be viewed as a projection

on a vector and all the points on a plane that is normal

to the vector will be mapped into a single value (Fig.

4a). For example, if we move on the dotted line in the

expanded space (Fig. 4a), the projection value on the

vector will remain the same. Consequently, the

decision boundary will be locally linear and the

corresponding decision boundary in the original space

will be also locally linear (Fig. 4b). For example, the

decision boundary in region R4 is locally linear (a line

normal to 𝛼



𝜙



𝛼



𝜙



) and the corresponding

decision boundary in region R4 of the original input

space is locally linear (a line normal to 𝛼



𝜙



𝛼



𝜙



The max-pooling operation can be also viewed as

dividing a space into several subspaces. For example,

in 2 by 2 max-pooling, the maximum of four values is

selected. Consider the G-layer in Fig. 1. Without loss

of generality, we may skip the ReLU operation since

the operation doesn’t change the output of the max-

pooling operation. Thus, the max-pooling operation

chooses the maximum value among the four values

(𝐺



•𝑋



, 𝐺



•𝑋



, 𝐺



•𝑋



, 𝐺



•𝑋



𝐶ℎ𝑜𝑜𝑠𝑒 𝐺



•𝑋



𝑖𝑓 𝐺



•𝑋



𝐺



•𝑋



𝑖,𝑗0,..,3;𝑖𝑗.

The four vectors (𝐺



,𝐺



,𝐺



,𝐺



) represent hyper-

planes in the input space and the inequality equations

divide the input space into a number of polygons.

Therefore, the max-pooling operation will divide the

input space into a number of subspaces and all the

points of a subspace will have the same output for the

max-pooling operation. In other words, for each point

( 𝑋



) of a subspace, 𝐺



•𝑋



will be the

maximum.

(a)

(b)

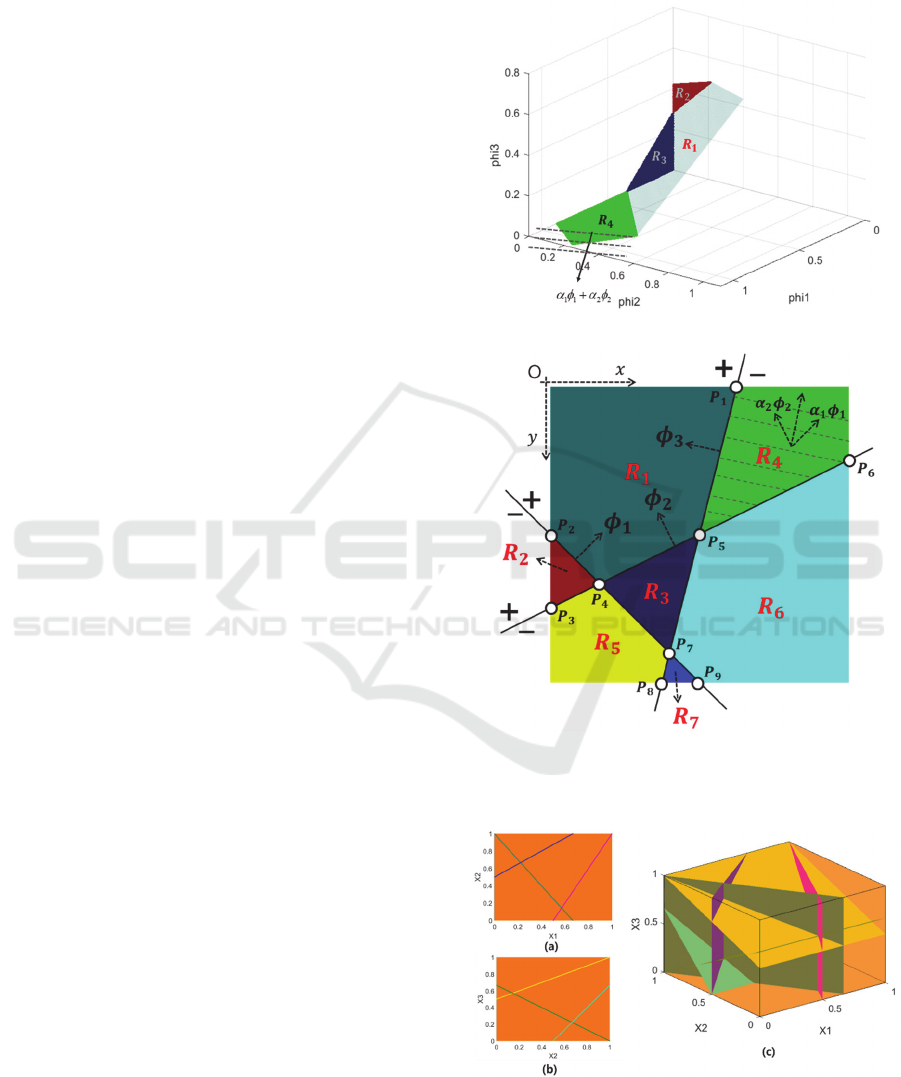

Figure 4: Decision boundary formation in the expanded

space (a) and in the original space (b).

Figure 5: Space division into polygons. (a) three lines

divide the 𝑥



𝑥



space into 6 regions, (b) the same three

lines divide the 𝑥



𝑥



space into 6 regions, (c)

corresponding 3D volume divisions (polygons).

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

348

Eventually, the original space will be divided into

a number of decision polygons and all the points

within the same polygon will be classified as the same

class when DNN with ReLU is used as a classifier

(Fig. 5). It is noted that the input dimension is very

large in typical problems and the planes defined by

the filter banks of the first layer are parallel to most

of the axes since the filter banks are highly localized.

The number of decision polygons may exceed the

number of training samples. In the MNIST dataset,

the number of training samples is 60,000 and the

number of test samples is 10,000. Table I shows the

number of samples of decision polygons. After

training the DCN of Fig. 1 using the 60,000 training

samples, we investigated the decision polygons

occupied by the training and test samples. It is found

that 69,924 decision polygons are occupied by a

single sample. Only 34 decision polygons contain

more than one sample. Also, many decision polygons

may be unoccupied.

Table 1: Number of samples within decision polygons.

No. samples per polygon No. polygons

1 69924

2 29

3 3

4 1

5 1

Recently, a number of DCN-based super

resolution methods have been proposed (Kim, 2016,

Lim, 2017, Zhang, 2018, Wang, 2018), which showed

noticeably improved performance compared to

conventional super-resolution techniques. When

DCN-based super resolution methods use the ReLU

function, the filter banks and full-connection layers

also divide the input space (receptive field) into a

large number of polygons. In this case, each image

patch can be considered as a point in the input space

and it will belong to one of the polygons. We

investigated over 22,000 image patches and found

that every image patch belonged to a different

polygon. In other words, it is observed that the

polygons generated by a DCN-based super resolution

method with ReLU are occupied by at most one

sample.

4 DECISION BOUNDARY

MARGIN OF DNN WITH RELU

4.1 Adversarial Images

Recently, a strange behavior of DNN-based classifier

has been reported (Szegedy, 2013). A slightly

modified image may be misclassified (Fig. 6) and

such adversarial images can be easily generated to

fool DNN-based classifiers. Also, one can easily fool

DNN-based classifiers to misclassify meaningless

images with certainty (Fig. 7).

(a) (b) (c)

Figure 6: (a) original image, (b) difference image, (c)

modified image.

(a) (b)

Figure 7: (a) classified as king penguin, (b) classified as

cheetah.

4.2 Mathematical Analyses on

DNN-based Classifiers

In general, the layer dimensions are significantly

larger than the input dimension. In Fig. 1, the input

dimension is 784 (28 x 28), the G-layer dimension is

17280, the H-layer dimension is 4320 and the Y-layer

dimension is 100, the Z-layer (output layer)

dimension is 10:

𝑋𝑥



,𝑥



,...,𝑥







, 𝐺𝑔



,...,𝑔







𝐻ℎ



,...,ℎ







, 𝑌𝑦



,...,𝑦







𝑍𝑧



,...,𝑧







In other words, an input image is viewed as a point in

the 784 dimensional space. We can compute the

Analyzing Decision Polygons of DNN-based Classiﬁcation Methods

349

gradients of each layer. The Z-layer gradients with

respect to the X-layer and the Y-layer are given by

𝛻



𝑧



≡

𝜕𝑧



𝜕𝑋



𝜕𝑧



𝜕𝑥



,…,

𝜕𝑧



𝜕𝑥







𝛻



𝑧



≡

𝜕𝑧



𝜕𝑌



𝜕𝑧



𝜕𝑦



,…,

𝜕𝑧



𝜕𝑦









𝑖  1~10



Although the Y-layer dimension is 100, the number

of linearly independent vectors that can affect the

outputs (𝑧



) is 10, which is equal to the number of

classes. The remaining 90 vectors that are normal to

the 10 vectors don’t affect the output values (𝑧



). We

define the subspace spanned by the 10 vectors (𝜑





)

as a relevant subspace (𝑆





) and the subspace

spanned by the 90 vectors as an irrelevant subspace

(𝑆





𝑆





𝑠𝑝𝑎𝑛𝜑







𝑆





𝑠𝑝𝑎𝑛𝜓





 (

𝜑





•𝜓





0).

where i and j are vector indexes, and k is the layer

index.

In each layer, the layer space can be divided

into relevant and irrelevant subspaces and the

dimension of relevant space can’t exceed the number

of classes. When a sample moves in irrelevant

subspaces, all the output values (𝑧



, i = 0,..,9) remain

the same. Consequently, one can almost unlimitedly

generate equivalent images, many of which can be

meaningless images.

In the previous section, it is shown that DNN-

based classifiers divide the input space into a large

number of decision polygons and each decision

polygon is very sparsely populated. In other words,

most polygons may be unoccupied by training or test

samples It is observed that the margin between a

sample and the boundaries of decision polygons is

very small (Woo, 2018). Fig. 8 shows the within-class

MSE histogram and the between-class MSE

histogram, which indicate the margins between

samples and the boundaries of decision polygons.

5 CONCLUSIONS

In this paper, we investigate the working mechanism

of DNN-based classifiers. When filter bank or full-

connection layers are applied along with the ReLU

function to a layer, the layer space is divided into a

number of polygons. Eventually, the input space is

divided into a large number of decision polygons.

Several interesting properties are observed. A vast

majority of decision polygons are occupied by a

single sample and the margin between the sample and

the boundaries of the decision polygon is very small.

In the layer space, the dimension of the relevant

subspace exceeds the dimension of the irrelevant

subspace in most cases. Consequently, in current

structures of DNN-based classifiers, it is difficult to

prevent misclassification of adversarial images. In

particular, to effectively handle adversarial images,

new type of DNN-based methods may be needed,

which provide larger margins between samples and

the boundaries of decision polygons and adequate

controls of irrelevant subspaces.

(a)

(b)

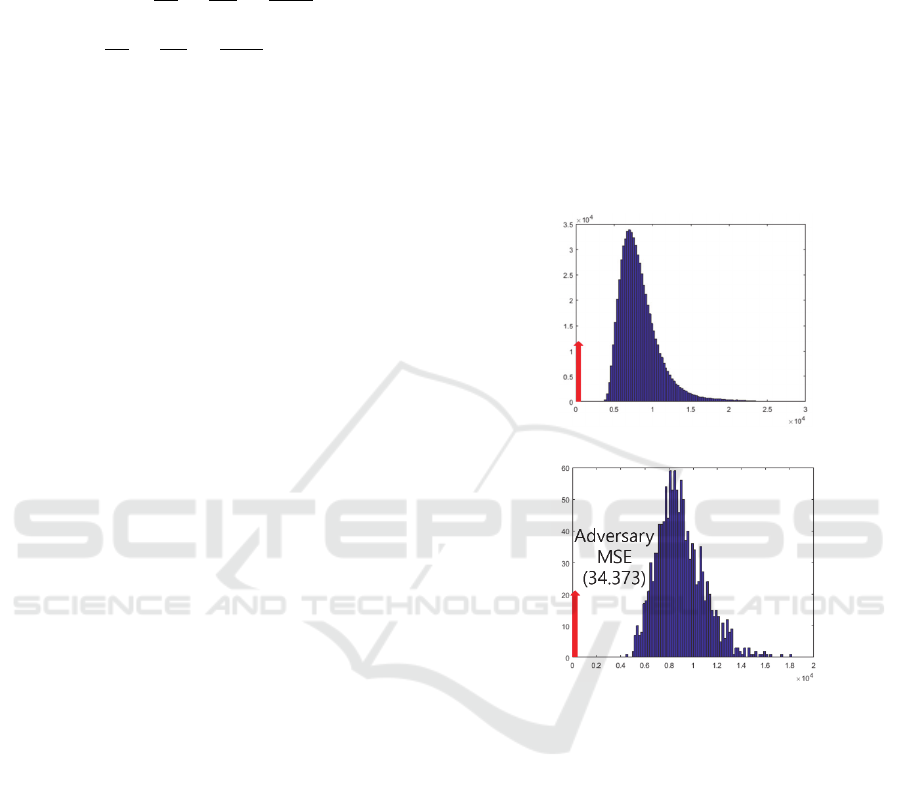

Figure 8: (a) within-class MSE histogram, (b) between–

class MSE histogram.

ACKNOWLEDGEMENTS

This research was supported by Basic Science

Research Program through the National Research

Foundation of Korea (NRF) funded by the Ministry

of Education, Science and Technology

(2017R1D1A1B03036172).

REFERENCES

Sainath, T. N., Kingsbury, B., Saon, G., Soltau, H.,

Mohamed, A. R., Dahl, G., & Ramabhadran, B. (2015).

Deep convolutional neural networks for large-scale

speech tasks. Neural Networks, 64, 39-48.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

350

Ouyang, W., Wang, X., Zeng, X., Qiu, S., Luo, P., Tian, Y.,

& Tang, X. (2015). Deepid-net: Deformable deep

convolutional neural networks for object detection. In

Proceedings of the IEEE conference on computer vision

and pattern recognition (pp. 2403-2412).

Jin, K. H., McCann, M. T., Froustey, E., & Unser, M.

(2017). Deep convolutional neural network for inverse

problems in imaging. IEEE Transactions on Image

Processing, 26(9), 4509-4522.

Woo, S., & Lee, C. L. (2018, August). Decision boundary

formation of deep convolution networks with relu. In

2018 IEEE 16th Intl Conf on Dependable, Autonomic

and Secure Computing, 16th Intl Conf on Pervasive

Intelligence and Computing, 4th Intl Conf on Big Data

Intelligence and Computing and Cyber Science and

Technology Congress

(DASC/PiCom/DataCom/CyberSciTech) (pp. 885-

888). IEEE.

Wojna, Z., Gorban, A. N., Lee, D. S., Murphy, K., Yu, Q.,

Li, Y., & Ibarz, J. (2017, November). Attention-based

extraction of structured information from street view

imagery. In 2017 14th IAPR International Conference

on Document Analysis and Recognition (ICDAR) (Vol.

1, pp. 844-850). IEEE.

Gibson, E., Li, W., Sudre, C., Fidon, L., Shakir, D. I.,

Wang, G., ... & Whyntie, T. (2018). NiftyNet: a deep-

learning platform for medical imaging. Computer

methods and programs in biomedicine, 158, 113-122.

Amodei, D., Ananthanarayanan, S., Anubhai, R., Bai, J.,

Battenberg, E., Case, C., ... & Chen, J. (2016, June).

Deep speech 2: End-to-end speech recognition in

english and mandarin. In International conference on

machine learning (pp. 173-182).

Girshick, R., Donahue, J., Darrell, T., & Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Proceedings of the IEEE

conference on computer vision and pattern recognition

(pp. 580-587).

Radford, A., Metz, L., & Chintala, S. (2015). Unsupervised

representation learning with deep convolutional

generative adversarial networks. arXiv preprint

arXiv:1511.06434.

Yang, H. F., Lin, K., & Chen, C. S. (2017). Supervised

learning of semantics-preserving hash via deep

convolutional neural networks. IEEE transactions on

pattern analysis and machine intelligence, 40(2), 437-

451.

Zeiler, M. D., & Fergus, R. (2014, September). Visualizing

and understanding convolutional networks. In

European conference on computer vision (pp. 818-

833). Springer, Cham.

Yosinski, J., Clune, J., Bengio, Y., & Lipson, H. (2014).

How transferable are features in deep neural networks?.

In Advances in neural information processing systems

(pp. 3320-3328).

Yosinski, J., Clune, J., Nguyen, A., Fuchs, T., & Lipson, H.

(2015). Understanding neural networks through deep

visualization. arXiv preprint arXiv:1506.06579.

Koushik, J. (2016). Understanding convolutional neural

networks. arXiv preprint arXiv:1605.09081.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan,

D., Goodfellow, I., & Fergus, R. (2013). Intriguing

properties of neural networks. arXiv preprint

arXiv:1312.6199.

Mallat, S. (2016). Understanding deep convolutional

networks. Philosophical Transactions of the Royal

Society A: Mathematical, Physical and Engineering

Sciences, 374(2065), 20150203.

Kim, J., Kwon Lee, J., & Mu Lee, K. (2016). Accurate

image super-resolution using very deep convolutional

networks. In Proceedings of the IEEE conference on

computer vision and pattern recognition (pp. 1646-

1654).

Lim, B., Son, S., Kim, H., Nah, S., & Mu Lee, K. (2017).

Enhanced deep residual networks for single image

super-resolution. In Proceedings of the IEEE

conference on computer vision and pattern recognition

workshops (pp. 136-144).

Zhang, Y., Li, K., Li, K., Wang, L., Zhong, B., & Fu, Y.

(2018). Image super-resolution using very deep residual

channel attention networks. In Proceedings of the

European Conference on Computer Vision (ECCV) (pp.

286-301).

Wang, X., Yu, K., Wu, S., Gu, J., Liu, Y., Dong, C., ... &

Change Loy, C. (2018). Esrgan: Enhanced super-

resolution generative adversarial networks. In

Proceedings of the European Conference on Computer

Vision (ECCV) (pp. 0-0).

Analyzing Decision Polygons of DNN-based Classiﬁcation Methods

351
