An Integrated Object Detection and Tracking Framework

for Mobile Robots

William Kristian Juel

∗ a

, Frederik Haarslev

∗ b

, Norbert Kr

uger

and Leon Bodenhagen

SDU Robotics, University of Southern Denmark, Campusvej 55, Odense C, Denmark

Keywords:

Detection, Visual Tracking, Mobile Robots, Perception System and Automation.

Abstract:

In this paper, we propose an end-to-end-solution to the problem of multi-object tracking on a mobile robot.

The tracking system consists of a process where we project 2D multi-object detections to the robots base

frame, using RGB-D sensor data. These detections are then transformed to the map frame using a localization

algorithm. This system predicts trajectories of humans and objects in the environment of the robot and can be

adapted to work with any detector and track from multiple cameras. The system can then be used to build a

temporally consistent costmap to improve navigation strategies.

1 INTRODUCTION

Mobile Robots are becoming an integrated part of

our society and are already making their ways around

factory ﬂoors, but they are also moving into uncon-

strained environments, ﬁlled with people and object,

as hospitals. For a mobile robot to seamlessly nav-

igate and manipulate within an unconstrained envi-

ronment, reasoning about the environment is impor-

tant. Mobile robots manipulate within an environ-

ment by ﬁnding the cheapest costs of a movement in

a costmap. The costmap gets information about ob-

stacles in the environment from the laser range sen-

sors and/or 3D cameras on the robot. In the classi-

cal methods, every obstacle is treated the same way

and there is no spatio-temporal nor semantic informa-

tion about each of these obstacles in the costmap. In

unconstrained environments, there can be a lot of hu-

mans and non-static objects, and because there is not

enough knowledge about these and their trajectory,

the robot fails to make an adequate decision when en-

countering them. We implement a system that pre-

dicts trajectories of humans and objects in the envi-

ronment of the robot, which can then be used to build

a temporally consistent costmap to improve naviga-

tion strategies. We refer to such a system as an object

https://orcid.org/0000-0001-5046-8558

https://orcid.org/0000-0003-2882-0142

https://orcid.org/0000-0002-3931-116X

https://orcid.org/0000-0002-8083-0770

∗

Equal contribution between the authors.

tracking system. A tracking system for a mobile robot

must be able to provide a target identity for the object

being tracked at each time-step. It should also be able

to perform well on a variety of sequences from differ-

ent environments and with a variation in the level of

crowdedness. Since the robots are moving, a tracking

system should be able to handle camera motion and to

some degree changes in illumination. Many, mobile

robots also have several cameras mounted, and there-

fore a tracking system should be able to utilize views

from multiple cameras. A tracker should be able to

function using a ﬁxed set of parameters for every se-

quence in any type of environment so that installation

time is kept at a minimum (Leal-Taix

e et al., 2017), it

should also have a limited computational complexity

such that it can be run on embedded devices.

Most state-of-art tracking methods follow the

paradigm of tracking-by-detection. This is a two-step

process where ﬁrst a frame-by-frame object detection

is required. Here learning-based detectors like (Red-

mon et al., 2015; Ren et al., 2015; He et al., 2017)

can be used or (Cao et al., 2018; Zhou et al., 2019)

if humans and their pose are of special interest. Sec-

ondly, the task is to determine inter-frame correspon-

dence between detections in order to predict trajecto-

ries. This is referred to as performing data association

where the quality of the matches between each de-

tected object per camera sequence is measured (Kim

et al., 2015; Rezatoﬁghi et al., 2015; Wojke et al.,

2017; Son et al., 2017; Schulter et al., 2017).

The state-of-the-art benchmark for tracking sys-

tems is the MOT challenge (Voigtlaender et al., 2019).

Juel, W., Haarslev, F., Krüger, N. and Bodenhagen, L.

An Integrated Object Detection and Tracking Framework for Mobile Robots.

DOI: 10.5220/0009888405130520

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 513-520

ISBN: 978-989-758-442-8

513

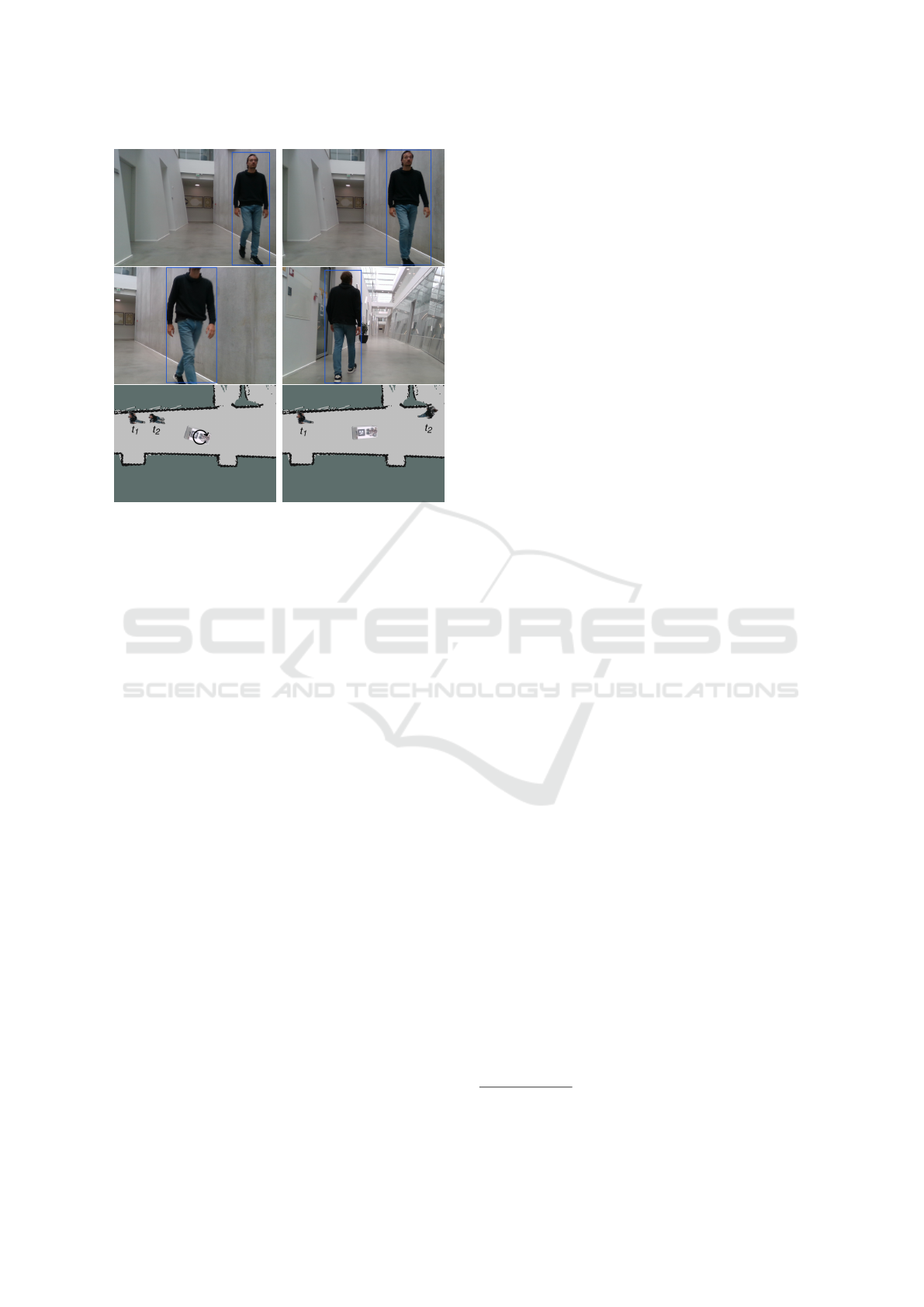

Figure 1: Two problems arising when using 2D tracking on

a mobile robot. Left column shows camera images before

and after the robot has rotated, causing a shift in the center

pixel of the person. Right column shows a person transi-

tioning from one camera to another, which is undeﬁned in

image coordinates. Both are non-issues when tracking the

3D coordinates in the map frame. Here the before and after

are shown as time step t

and t

This challenge focuses on tracking in the image plane,

which might be a reason for most state-of-the-art

tracking systems being designed respectively. How-

ever, our 3D detection and tracking system tracks in

the map frame and not in the image plane. It esti-

mates the tracked identities absolute position in the

map frame, which is reliable even in cases where the

robot is moving as opposed to tracking in the im-

age plane. Mobile robots often have multiple cam-

eras mounted, and transitions between pixel coordi-

nates in different cameras are not well deﬁned in 2D.

This is not the case for 3D since point clouds can be

transformed into other camera frames (given a cali-

bration) making the transition well deﬁned. There-

fore, we change the state-space to the 3D position of

the detected object in the map frame (see ﬁg. 1). By

using the map coordinates the robot can move while

the state of the objects does not change. In that way,

it will be able to use the tracked identities in robot

navigation tasks and general reasoning about the en-

vironment the robot manipulates with and in. Like-

wise, many of these 2D trackers are not designed with

computational complexity in mind, but instead with a

focus on scoring as high as possible on a benchmark

dataset. However, tracking systems deployed on mo-

bile robots must be able to run on embedded devices

such as a Jetson AGX XAVIER

. These two aspects

are essential to our implementation of the 3D detec-

tion and tracking system and therefore our contribu-

tion can be summarized as the following:

• We present a framework within the tracking-by-

detection paradigm by modifying a state-of-the-

art tracking algorithm to operate in the map frame.

This enables the framework to work with multi-

ple detectors operating on any number of cameras,

while only using a single global tracker.

• We show the framework working on a mobile

robot deployed in an unconstrained environment.

• We show that both the detector and tracker can run

online on the Jetson AGX XAVIER using multiple

cameras as input.

2 RELATED WORK

The tracking-by-detection paradigm divides the prob-

lem of multi-object tracking into two steps: (1) An

independent bounding-box detection of any object in

the scene – animate and inanimate – usually done us-

ing a convolutional neural network (CNN) such as

(He et al., 2017; Zhou et al., 2019; Cao et al., 2018).

(2) Data association, where a frame by frame linking

of all object instances detected in the scene is done

and each is assigned a trajectory that describes the

path of each of the object instances over time.

Traditionally, Multiple Hypothesis Tracking

(MHT) (Blackman, 2004) and Joint Probabilistic

Data Association (JPDA) (Rezatoﬁghi et al., 2015)

have been used to solve the data association problem

in Multi-object tracking. However, the computation

times of these methods make them unfeasible for

online tracking - the complexity is exponential with

the number of object instances. In the following

section, we will focus on CNN detectors and tracking

algorithms that can track online.

2.1 Detectors

Since the introduction of AlexNet (Krizhevsky et al.,

2012), CNNs have been the state-of-art architecture

for image classiﬁcation. Likewise, CNNs have shown

to work well for object detection and bounding box

prediction tasks. Object detection networks are usu-

ally divided into two different categories, two-stage,

and one-stage detectors. A widely used two-stage de-

tector is Faster R-CNN (Ren et al., 2015), which de-

https://www.nvidia.com/en-us/autonomous-machines/

embedded-systems/jetson-agx-xavier/

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

514

tects objects by ﬁrst proposing possible object bound-

ing boxes, then classifying the boxes as either con-

taining objects or not, and ﬁnally which type of ob-

ject it is. The Faster R-CNN architecture improves

on the computational complexity problems from ear-

lier versions (Girshick et al., 2013; Girshick, 2015)

by computing proposals with a CNN. Mask-RCNN

by (He et al., 2017) is an extension on Faster R-CNN,

that predicts a segmentation mask within the region

proposal. A segmentation mask like this could be use-

ful in a tracking system to feed the tracker with more

ﬁne-grained information about the speciﬁc object and

in that way be able to ignore the background pixels.

Instead of detecting objects by region proposal

and classiﬁcation, one-stage detectors like YOLO

(Redmon et al., 2015) and SSD (Liu et al., 2015) esti-

mates the bounding boxes in a single forward pass us-

ing anchors. One of the main problems with anchor-

based one-stage detectors is spatial constraints on the

bounding box predictions since each grid cell only

predicts a limited amount of boxes and only can have

one class. Another type of one-stage detector uses

keypoint detection to detect more than just the bound-

ing box of the objects. OpenPose (Cao et al., 2018) is

used speciﬁcally for humans, in that it uses heat maps

to detect joint locations, and part afﬁnity ﬁelds to as-

sociate the key points to a single human. CenterNet

(Zhou et al., 2019) is a keypoint based one-stage de-

tector which expands on this idea. It uses keypoint

estimation to ﬁnd the center pixel of detected objects,

and regression to estimate the width and height of the

bounding boxes. The architecture can easily be ex-

panded to regress to other object properties such as

3D pose, and can even be used for human pose estima-

tion by adding a joint keypoint head. The key points

are then associated with each center detection using

the regressed width and height of the bounding box.

All of these methods above facilitates a wide range

of ﬂexible architecture designs, where a compromise

between runtime and mean Average Precision (mAP)

has to be made.

2.2 Tracking Algorithms

Tracking on a mobile robot must be done online while

the robot manipulates in its environment. Likewise,

the runtime of the tracker must be low enough so that

the robot has time to act and react to each tracked

object instance. Therefore, trajectories must be cal-

culated for each object instance on a frame-by-frame

basis. Due to the advancement in real-time object

detection, we theorize that using tracking algorithms

that focus on feature extraction from the detected ob-

ject instances is the best for deployment on a mobile

robot. Methods such as (Wojke et al., 2017; Son et al.,

2017) both exploit deep learning techniques.

In (Wojke et al., 2017) the tracking algorithm

DeepSORT uses a Kalman ﬁlter for state estimation

and the Hungarian algorithm to solve associations be-

tween the predicted Kalman states and new object

instances. They apply a siamese CNN with triplet

loss, that has been trained to discriminate between

humans. The triplet loss helps the network learn dif-

ferent feature vectors for different humans. This in-

creases the tracker’s robustness to misses and occlu-

sion while running at 40 Hz. In (Son et al., 2017)

a Quadruplet Convolutional Neural Networks (Quad-

CNN) is used for multi-object tracking, this learns to

associate the object instances across frames by using

quadruplet loss. This type of network consider object

appearances and temporal adjacencies for data asso-

ciation, Quad-CNN enforces temporally adjacent de-

tections to be more similar then the ones with large

temporal gaps.

3 3D DETECTION AND

TRACKING

The tracking framework proposed in this paper con-

sists of multiple components, communicating through

ROS (Stanford Artiﬁcial Intelligence Laboratory et

al., 2018). As per the tracking-by-detection paradigm,

the two major components are object detection mod-

ules and the tracking module. These are supported by

two utility modules: a camera gate that controls the

ﬂow of images from multiple cameras to the different

detectors, and a map frame transformer which trans-

forms the detections to the map frame. Figure 2 shows

an overview of the framework. The code is available

at https://gitlab.com/sdurobotics/semantic map.

3.1 Capturing and Distributing Images

The developed framework is a visual tracking system,

and as such needs image and depth data in order to

detect and track objects in 3D. These images are pro-

vided by any number of RGB-D sensors. Any type

of RGB-D sensor works with the framework, as long

as it has ROS drivers that publish color images with

intrinsic camera parameters and a depth map with a

known transformation to the color image frame. The

images are used as input to the various detectors im-

plemented for the framework, but in many cases, it

does not make sense to use images from all cameras

as input for all detectors. Examples of this include

only detecting obstacles in the camera pointing in the

An Integrated Object Detection and Tracking Framework for Mobile Robots

515

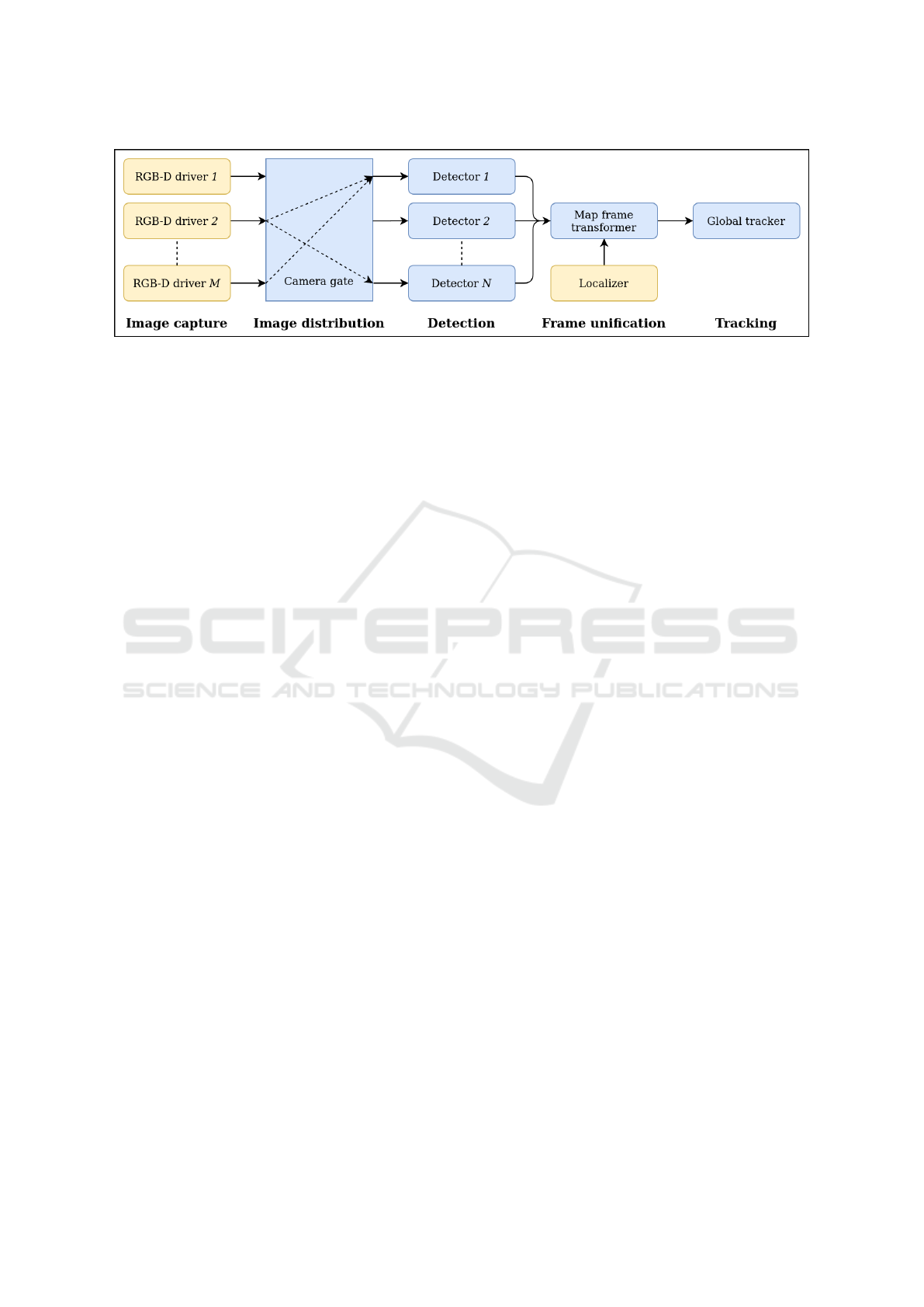

Figure 2: Flow of the tracking framework. Blue indicates modules implemented for the framework, where yellow is standard

modules available in ROS. Images from M RGB-D cameras are passed to a logic gate which can turn on/off passthrough to

each of the N detectors. The detectors process the received images as a batch and pass them to the map frame transformer

which uniﬁes the coordinate frames using global localization information. The detections are then in the map frame and can

be tracked by the global tracker.

movement direction of the robot, or only detecting the

pose of an object of interest once the robot is near it.

To control this a camera gate module is imple-

mented, which can be used to open up an efﬁcient

publisher/subscriber connection between a camera

and detector, using a simple ROS service call. The

service sends the intrinsic parameters of the selected

camera to the desired detector, adds the detector to

a list of connections for that camera, and then cre-

ates a subscriber to the camera if it was not created

previously by a service call for that camera and a dif-

ferent detector. Whenever a color and depth image

pair is published to the camera gate, it is immediately

republished to all detectors on the connection list of

that camera. A corresponding service call for delet-

ing connections is also implemented. It removes the

detector from the list of connections of that camera,

and if the list becomes empty the camera subscriber

is removed entirely. The next step is then to detect

objects in the color/depth image pair.

3.2 Detecting Object Properties

For the detection of objects, a versatile detector ROS

package has been implemented which can be conﬁg-

ured to detect a variety of object types. The task of the

detector is to detect each object of speciﬁc classes in

the color image, and then use the depth information to

derive each object’s 3D position or full 6-DoF pose,

along with optional keypoint information. Addition-

ally, the detector must also output a cropped image of

each object, as it is needed for the tracker as explained

in section 3.4. This is accomplished using Center-

Net (Zhou et al., 2019). CenterNet is a simple CNN

which can be conﬁgured for various detection tasks.

The authors of CenterNet have released models for a

2D bounding box, 3D bounding box, and human key-

point detection. In the simple case of 2D bounding

box detection, the pipeline is as follows: CenterNet is

used to detect the bounding box of each object in the

color image of the classes which it has been trained

to detect (ﬁg. 3). For each detection, the detector now

uses the bounding box to crop the object image and

then transforms the bounding box to the depth image.

This enables the estimation of the objects 3D position

by ﬁnding the median depth in a small square around

the center of the bounding box and then projecting

it to 3D. The detector then outputs a ROS message

which for each object contains, their class, cropped

image, and 3D position. In case that multiple sensors

publish to the detector, then CenterNet processes all

color images as a batch in order to conserve comput-

ing resources. Afterward, each detection is processed

individually as previously stated, but using the depth

map corresponding to the color image where the de-

tection was made.

Besides the 2D bounding box network, the human

keypoint conﬁguration of CenterNet has also been in-

tegrated with the detector. It functions in the same

way since it also provides a bounding box detection,

but additional to the 3D position, it also estimates the

torso direction of each detected human and the de-

tected keypoints in 3D. This is done by transforming

each keypoint to the depth image and projecting it

to 3D. The torso direction is then found as the vec-

tor orthogonal to the vector between the two shoulder

joints. The integration of the 3D bounding box detec-

tion conﬁguration is also planned in the near future.

3.3 Unifying Detection Frames

Since the system supports multiple cameras, detec-

tions might have the same 3D position in their respec-

tive camera frames. E.g. an object 2 meter in front

of a robot’s front camera, has the same coordinates in

the front camera frame as an object 2 meter behind the

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

516

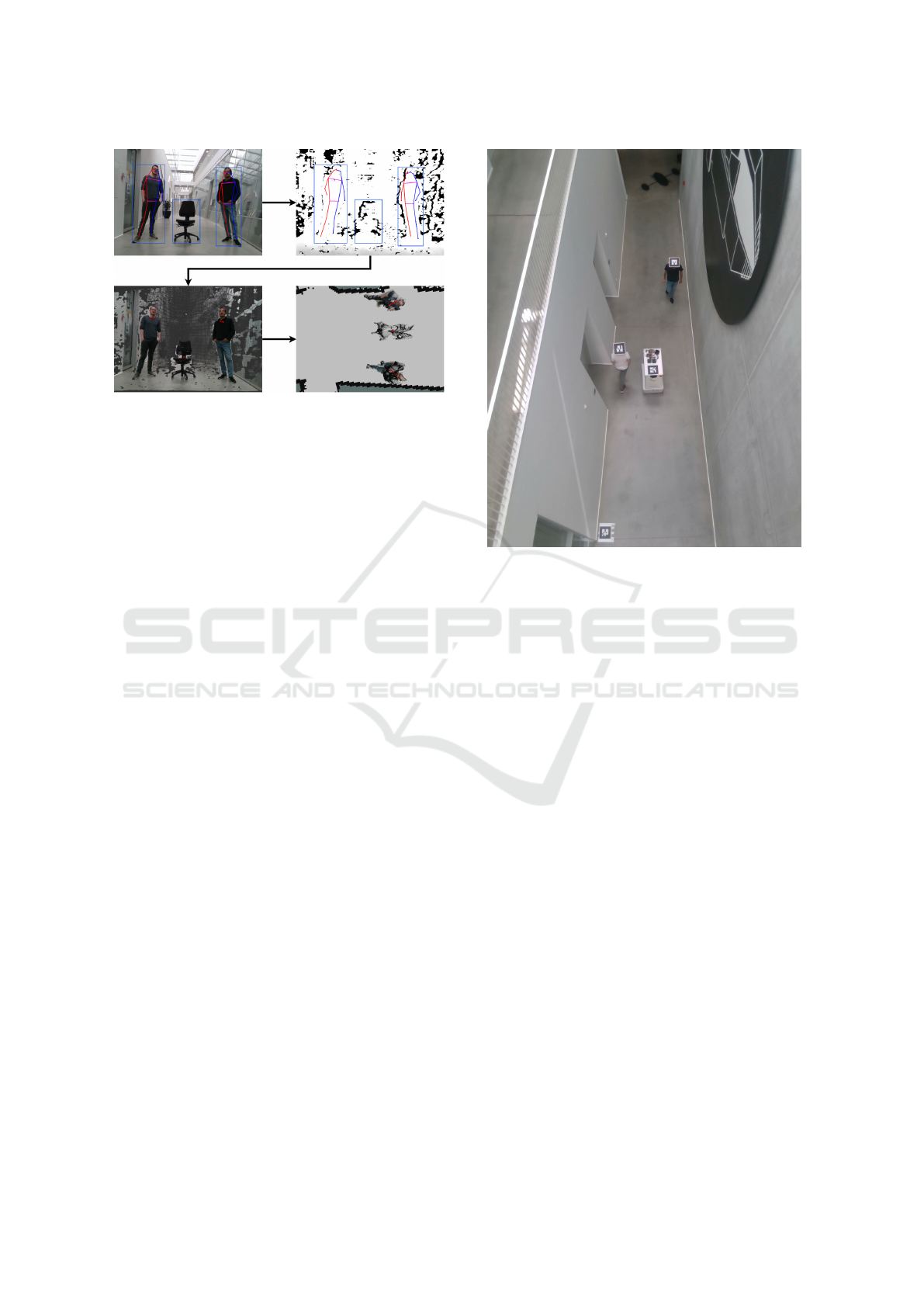

Figure 3: The ﬂow of the two integrated detectors. The

bounding boxes for each object in the image is found, and

depending on the detector, keypoints as well. The detec-

tions are transformed to the depth map, and are then used to

estimate the 3D position of each object. The positions are

then transformed to the map frame. Along with the 3D po-

sition, the human keypoint detector also estimates the torso

direction as the vector orthonogal to the vector between the

projected shoulder joints.

robots back camera has in the back camera frame. In

order to distinguish these objects, their position needs

to be deﬁned in a common frame. An idea could

be to transform each detection to the base frame of

the robot. This solves the ambiguity of the positions,

however, in case that the robot moves stationary ob-

jects will appear to move relative to it. This makes the

objects hard to track if the robot moves, as all objects

will appear to move in that way. Instead, each object

is transformed into the map frame using localization

data from e.g. the ROS navigation stack. This way

detections from different cameras have unique posi-

tions, which only changes based on the object’s own

movement, given a good localization. In reality, local-

ization is not perfect, which means that the positions

of the detection might jump in the map from one time

step to the next. It is then the job of the tracker to cor-

relate detections over time and estimate the objects’

true positions.

3.4 Tracking Object Instances

Until now each step in the framework happens with

no knowledge of the previous time step. This is not

the case for the tracker, which is used to assign IDs

to the detections while correcting the detected state of

the object. The tracker is based on DeepSORT (Wo-

jke et al., 2017), which uses a Kalman ﬁlter combined

with a deep association metric in order to track detec-

tions. The state space of the Kalman ﬁlter has been

changed to the 3D position of the object along with

Figure 4: Experimental setup viewed from the top-down

view camera: Reference marker on the ground-plan, Marker

on the robot and a marker on each test subject.

pose information if available. This enables the tracker

to smooth out detection noise and predict the move-

ment of objects if e.g. they move out of the ﬁeld of

view of the camera. The deep feature used for associ-

ation is found by inputting the object image cropped

by the detector to a siamese CNN.

4 EXPERIMENTS

The robot used in the experiments has two Intel Re-

alSense cameras mounted – one in the front and one in

the back. Both are positioned 82 cm above the ground

plane. To asses the performance of the framework

we design an experimental setup where we mount a

camera in a top-down view in a hallway where the

robot is maneuvering. The test is limited to the ﬁeld

of view of the top-down view camera. Ground truth

of trajectories are collected by mounting markers on

the test subjects and the robot and a stationary marker

is placed on the ground as a reference point for cali-

bration of the marker detection camera placement in

the map frame. The experimental setup is shown on

ﬁg. 4, from the point of view of the marker detection

camera.

Different scenarios are tested where the robot is

either stationary or moving, and one or two test sub-

jects move around in either one of the cameras ﬁeld

An Integrated Object Detection and Tracking Framework for Mobile Robots

517

(a) (b) (c) (d)

(e) (f) (g) (h)

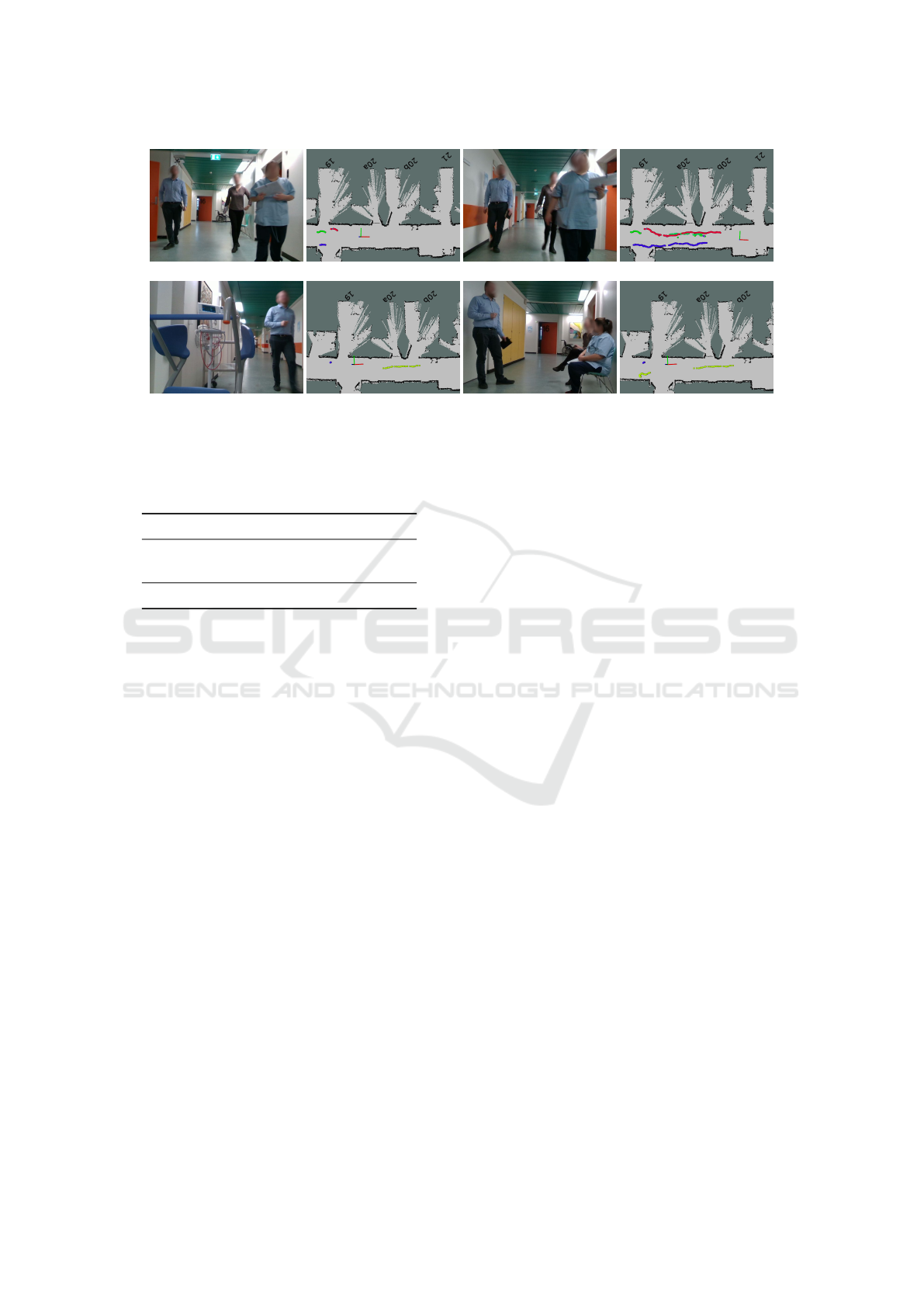

Figure 5: The image pairs on the left hand side (a)+(b) and (e)+(f) are initial trajectories where the image pairs on the right

hand side (c)+(d) and (g)+(h) are the ﬁnal tracked trajectories. The color represents the ID of the track.

Table 1: Tracking results using the bounding box detector

with different backbones or the human keypoint estimator.

Detector MOTA ID Sw Frag

BBox-ResNet-18 0.740 9 5

BBox-DLA-34 0.725 10 7

Pose-DLA-34 0.742 19 6

of view, or both. The test is done using three differ-

ent detectors: two bounding box detectors with dif-

fering backbones (BBox-ResNet-18 and BBox-DLA-

34) and a human pose estimator (Pose-DLA-34). We

compute 40 individual trials consisting of a total of

6118 frames. Evaluation is carried out as suggested

in (Bernardin and Stiefelhagen, 2008) with the fol-

lowing metrics:

• MOTA. Multiple Object Tracking Accuracy,

measuring the combination of three error sources,

false positives, missed targets and identity

switches, as a value between 0-1.

• ID Sw. The number of identity switches.

• Frag. The number of times a trajectory is frag-

mented/interrupted during tracking.

The results from the evaluation can be seen on table 1.

Our results show that we have few identity

switches, between 9 and 19 over 6118 frames. This

shows that we maintain object identities through oc-

clusions, e.g., when the test subjects are in the robot’s

blind spots or when the test subjects occlude each

other during movement. Because of the appear-

ance information identities can be maintained through

longer occlusions. Likewise, the number of trajectory

fragmentations are below 8, which can be contributed

to the Kalman ﬁlter predicting the subject positions

while they are transitioning between cameras or oc-

clude each other. The MOTA is around 0.75 which in-

dicates we have a relatively low amount of false pos-

itives combined with few missed targets and identity

switches.

4.1 Real World Experiments

To asses the framework in an unconstrained environ-

ment we use data recorded on the same mobile robot

but operating in a hospital ward. This data does not

have ground truth associated with it and therefore we

do a qualitative assessment of the performance. The

test is visualized in a top-down view of the map at

the hospital ward. In the map, the robot position is

shown with a base link marker and the trajectory of

each tracked identity in the scene is marked with a

colored line (ﬁg. 5b). Changes in the color of a con-

tinuous line thereby symbolizes an identity switch. In

ﬁgure 5 we see two examples of encounters with the

mobile robot.

In the ﬁrst example, ﬁgs. 5a and 5b are the initial

measurement and ﬁgs. 5c and 5d are the ﬁnal. Here

we see three people walking behind the robot while

it is driving. Generally the colored trajectory lines on

ﬁg. 5d are stable. We observe zero identity switches,

although we can see that the two people walking on

the right-hand side of ﬁg. 5c are walking in a line fol-

lowing a similar path (red and green), naturally the

person furthest behind (the green) will occasionally

be occluded by the person in front (the red). This oc-

clusion appears as fragmentation in the colored line,

which happens twice for the green line. After both oc-

clusions, the person is picked up by the tracker again

and given the same identity as before the occlusion.

The blue and the red line are continuous, each of the

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

518

(a) (b)

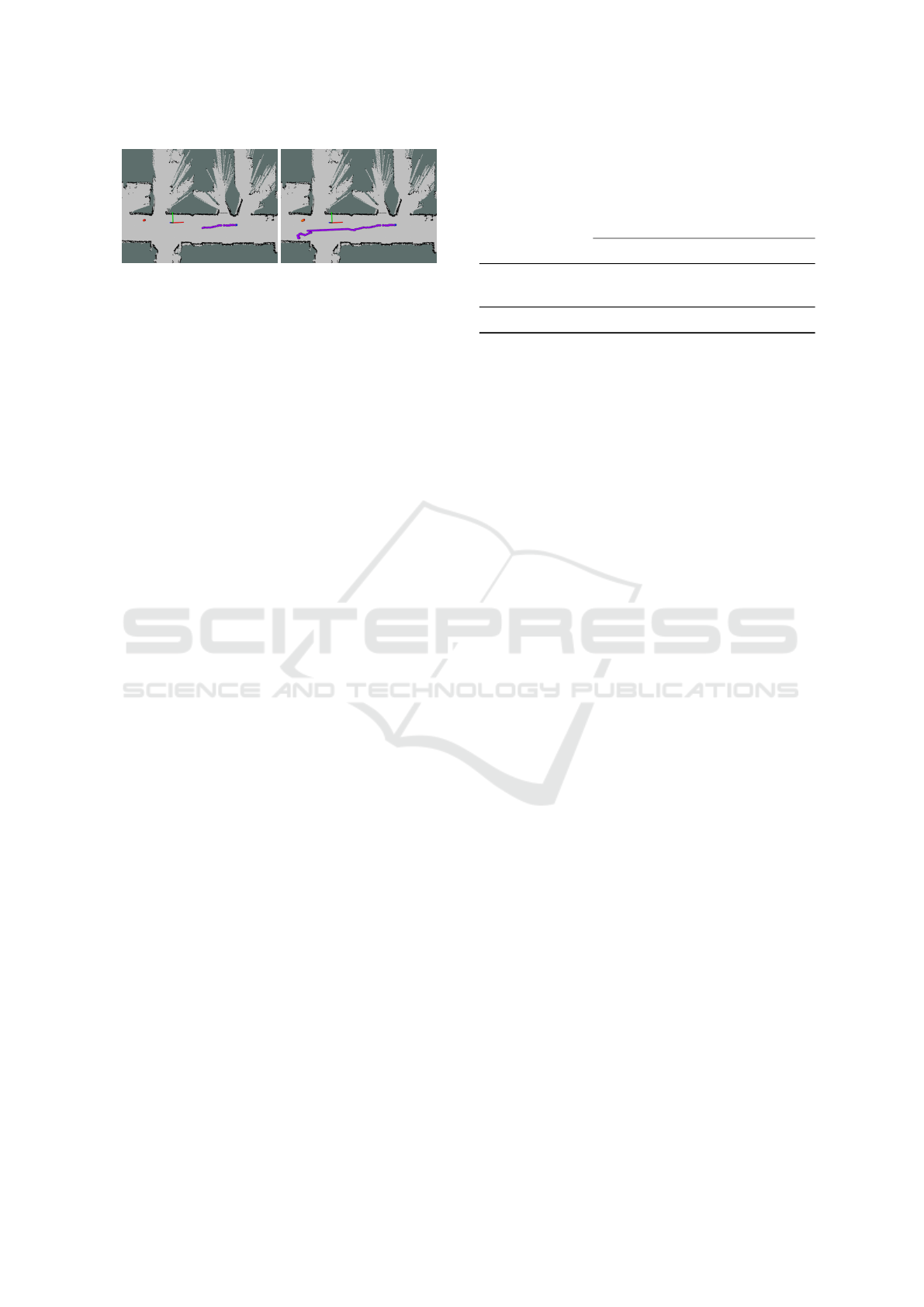

Figure 6: (a) shows the trajectory before the person leaves

the ﬁeld of view of the ﬁrst camera and (b) shows the esti-

mated trajectory of the person while not in the ﬁeld of view

of the robot and the measured trajectory when the person

enters the ﬁeld of view again.

trajectories is only fragmented once. To summarise,

this ﬁrst example shows that the tracker handles oc-

clusions well and can keep the identity even after a

short time of occlusion. This example also shows that

the tracker handles long continuous walking down a

hallway consistently.

In the second example, ﬁgs. 5e and 5f are the ini-

tial measurement and ﬁgs. 5g and 5h are the ﬁnal.

Here the robot is not moving but parked at the side

of the hallway. Initially, we see one person walking

towards the robot on ﬁg. 5e. This person’s measured

trajectory is the green line in ﬁgure ﬁg. 5f. We also see

a blue line, which is a measured trajectory of a station-

ary person sitting behind the robot. On ﬁg. 5g the per-

son has walked past the robot and enter into the cam-

era frame of the second camera, where we also see the

stationary people. On ﬁg. 5h we can see that after the

person leaves the frame of the ﬁrst camera, passes the

robot, and enters the ﬁeld of view of the second cam-

era, he is picked up by the tracker and given the same

identity as before leaving the ﬁrst camera frame. We

see that there are two stationary people, and only one

of them is detected and tracked, which is marked with

a blue line. This blue line is stable and does not ﬂicker

which indicates that the tracker handles this situation

satisfyingly. In this example, zero identity switches,

and only one fragmented trajectory is observed when

the person leaves the camera frame before entering

into the view of the second camera. To summarise,

this second example shows that the tracker handles

the tracking of a person leaving the ﬁrst camera frame

and entering the second camera frame well and can

keep the identity even after a short time of disappear-

ance. This type of fragmented trajectory, due to the

person leaving the ﬁeld of view of one of the cam-

eras, can be handled by using the estimated states or

trajectories from the Kalman ﬁlter. In ﬁgure ﬁg. 6 we

see the exact same example where one person leaves

the ﬁeld of view of the robot and enters it again on

the other side (the predicted trajectory is now purple

instead of green). By including the estimated trajec-

Table 2: Run time evaluation of the framework using using

the bounding box detector with differing backbones, or the

human keypoint estimator. Each combination is tested using

1-4 cameras.

M cameras

Detector 1 2 3 4

BBox-ResNet-18 13.3Hz 11.5Hz 7.9Hz 5.9Hz

BBox-DLA-34 11.6Hz 9.2Hz 6.3Hz 4.8Hz

Pose-DLA-34 7.5Hz 5.1Hz 3.3Hz 2.6Hz

tories from the Kalman ﬁlter we see that the trajectory

is not fragmented when the person leaves the ﬁeld of

view of the robot, because we continuously estimate

a linear velocity.

4.2 Run Time

To ensure that the framework can track online on em-

bedded robot hardware, we evaluate the run time of

our system on a Jetson AGX XAVIER. The test is

done using the three aforementioned detectors and a

1-4 camera conﬁguration. The results of our run time

evaluation can be seen in table 2. From the results

we can see that the framework is computationally ef-

ﬁcient and can operate in real-time on a mobile robot.

The environments that people interacting robots of-

ten operate in are rather slow-paced with humans and

many stationary objects. Here a run time of minimum

2.6Hz will be enough time to react to changes in the

environment.

5 CONCLUSION

We have presented an end-to-end-solution to the prob-

lem of multi-object tracking on a mobile robot. We

change the state-space of a tracking algorithm to

3D, and track 2D detections by transforming them to

the map frame using available depth and localization

data. Our experiments shows that we are able to track

through periods of occlusion, when people are transi-

tioning between different cameras and we predict re-

liable trajectories while the robot is moving. We ana-

lyze the run time of the system and show that it can be

used directly on mobile robot hardware. Our system

runs between 2.6-13.3Hz depending on detector and

camera conﬁguration, making our system computa-

tionally efﬁcient and able to track online on a mobile

robot.

An Integrated Object Detection and Tracking Framework for Mobile Robots

519

ACKNOWLEDGMENT

This research was supported by the project Health-

CAT, funded by the European Fund for regional de-

velopment, and by the project SMOOTH (project

number 6158-00009B) by Innovation Fund Denmark.

REFERENCES

Bernardin, K. and Stiefelhagen, R. (2008). Evaluating mul-

tiple object tracking performance: The clear mot met-

rics. EURASIP Journal on Image and Video Process-

ing, 2008.

Blackman, S. S. (2004). Multiple hypothesis tracking for

multiple target tracking. IEEE Aerospace and Elec-

tronic Systems Magazine, 19(1):5–18.

Cao, Z., Hidalgo, G., Simon, T., Wei, S., and Sheikh,

Y. (2018). Openpose: Realtime multi-person 2d

pose estimation using part afﬁnity ﬁelds. CoRR,

abs/1812.08008.

Girshick, R. B. (2015). Fast R-CNN. CoRR,

abs/1504.08083.

Girshick, R. B., Donahue, J., Darrell, T., and Malik, J.

(2013). Rich feature hierarchies for accurate ob-

ject detection and semantic segmentation. CoRR,

abs/1311.2524.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. B. (2017).

Mask R-CNN. CoRR, abs/1703.06870.

Kim, C., Li, F., Ciptadi, A., and Rehg, J. (2015). Multiple

hypothesis tracking revisited. pages 4696–4704.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Proceedings of the 25th Interna-

tional Conference on Neural Information Processing

Systems - Volume 1, NIPS’12, page 1097–1105, Red

Hook, NY, USA. Curran Associates Inc.

Leal-Taix

e, L., Milan, A., Schindler, K., Cremers, D., Reid,

I. D., and Roth, S. (2017). Tracking the trackers: An

analysis of the state of the art in multiple object track-

ing. CoRR, abs/1704.02781.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S. E.,

Fu, C., and Berg, A. C. (2015). SSD: single shot multi-

box detector. CoRR, abs/1512.02325.

Redmon, J., Divvala, S. K., Girshick, R. B., and Farhadi, A.

(2015). You only look once: Uniﬁed, real-time object

detection. CoRR, abs/1506.02640.

Ren, S., He, K., Girshick, R. B., and Sun, J. (2015). Faster

R-CNN: towards real-time object detection with re-

gion proposal networks. CoRR, abs/1506.01497.

Rezatoﬁghi, S. H., Milan, A., Zhang, Z., Shi, Q., Dick, A.,

and Reid, I. (2015). Joint probabilistic data associa-

tion revisited. In 2015 IEEE International Conference

on Computer Vision (ICCV), pages 3047–3055.

Schulter, S., Vernaza, P., Choi, W., and Chandraker, M.

(2017). Deep network ﬂow for multi-object tracking.

CoRR, abs/1706.08482.

Son, J., Baek, M., Cho, M., and Han, B. (2017). Multi-

object tracking with quadruplet convolutional neural

networks. In 2017 IEEE Conference on Computer Vi-

sion and Pattern Recognition (CVPR), pages 3786–

3795.

Stanford Artiﬁcial Intelligence Laboratory et al. (2018).

Robotic operating system.

Voigtlaender, P., Krause, M., Osep, A., Luiten, J.,

Sekar, B. B. G., Geiger, A., and Leibe, B.

(2019). Mots: Multi-object tracking and segmenta-

tion. arXiv:1902.03604[cs]. arXiv: 1902.03604.

Wojke, N., Bewley, A., and Paulus, D. (2017). Simple on-

line and realtime tracking with a deep association met-

ric. CoRR, abs/1703.07402.

Zhou, X., Wang, D., and Kr

ahenb

uhl, P. (2019). Objects as

points. CoRR, abs/1904.07850.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

520
