The Pipeline Concept as Key Ingredient for Modular, Adaptive

Communication for Cyber-physical Systems

Stefan Linecker

, Jia Lei Du

, Anderson Val

oes Silva

and Reinhard Mayr

Advanced Networking Center, Salzburg Research, Salzburg, Austria

COPA-DATA GmbH, Salzburg, Austria

Keywords:

Cyber-physical Systems, Internet of Things, Interoperability, Self-adaption, Software Architecture.

Abstract:

We are currently experiencing another phase within the digital transformation. This phase is prominently

called the Internet of Things. It is enabled by the progress in energy efﬁciency, cost and capability both

in sensor-actuator electronics and in data transmission technologies. The envisioned Internet of Things will

consist of billions of connected cyber-physical systems. To fully harvest the potential of this development,

a strategy for robust, interoperable and future-proof network communication between a myriad of different

systems in a global network is required. The ongoing TriCePS project develops both a framework and the

missing building blocks to fulﬁll those requirements. In this paper, the authors propose the pipeline concept

as such a building block.

1 INTRODUCTION

A cyber-physical system (CPS) is a system that in-

tegrates computation with physical processes. Em-

bedded, networked computers use sensors and ac-

tuators to interact with the physical world. Physi-

cal processes can then affect computation and vice

versa. In contrast to traditional embedded systems,

a CPS is a network of interacting appliances (a sys-

tem of systems if you want) instead of a standalone

device (Minerva et al., 2015). The CPS concept is

strongly related to another concept called Internet

of Things (IoT). IoT describes a global infrastruc-

ture of networked everyday objects (or things), which

are connected through interoperable communication

technologies (Xia et al., 2012). Prominent IoT ap-

plications include smart home, wearables, the con-

nected car and many more. CPS and IoT have become

possible due to the progress in highly capable, low-

cost sensor-actuator electronics and low-cost, energy-

efﬁcient, (deeply) embedded computing and commu-

nication systems.

The ongoing TriCePS project investigates barriers

and possible solutions concerning CPS communica-

tion. During our more ﬁne-grained work on the soft-

ware architecture for the TriCePS project, we iden-

tiﬁed some core, technical building blocks that were

required to make our idea work. This work tries to

explain and empathize the importance of pipelines as

one of those building blocks.

The remaining part of this chapter gives a brief

overview of the TriCePS project, more details can be

found in (Du et al., 2019).

1.1 Project Rationale

With a global network of connected entities, there

comes a wide range of communication technologies

and a myriad of actual connections with varying qual-

ities of connectivity. The most obvious reasons for

this volatility being the stochastic nature of packed-

switched networks and the greedy nature of applica-

tions that compete for available bandwidth. The dif-

ferent qualities of connectivity, a multitude of used

communication standards and a wide variety of hard-

ware capabilities create a challenging situation. A

generally suitable CPS architecture requires new ap-

proaches which can fulﬁll the adaptivity and interop-

erability needs for the integration of highly different

systems under widely varying conditions.

1.2 Project Overview

The TriCePS project addresses the communication-

related challenges in the ﬁeld of CPS. It aims for

adaptive and interoperable communication in such

systems. If network conditions vary and the current

Linecker, S., Du, J., Silva, A. and Mayr, R.

The Pipeline Concept as Key Ingredient for Modular, Adaptive Communication for Cyber-physical Systems.

DOI: 10.5220/0009890907750780

In Proceedings of the 17th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2020), pages 775-780

ISBN: 978-989-758-442-8

775

conditions are not suitable, various strategies can be

helpful for sending critical data.

First, some form of prioritization can be used.

This typically requires support from and proper con-

ﬁguration of the underlying network and is usually

not well supported in networks that are not under your

control. Second, it is possible to reduce the data but

keep its general type (e.g. through compression or

by sending grayscale images instead of color images).

Third, one can send a different type of data (e.g. text

descriptions instead of a video stream) which can sig-

niﬁcantly change the amount of sent data.

The software framework developed in the course

of the TriCePS project supports all of these ap-

proaches. The focus of this paper will be on the sec-

ond and third approach.

2 RELATED WORK

The overall TriCePS project touches several areas of

research in computer networking including network

monitoring, network measurements, quality of ser-

vice and application layer protocols. As stated, CPS

communication might require adaptivity and/or mod-

ularity. While TriCePS tries to integrate both, related

work is mostly found in either one of the categories.

2.1 Adaptivity

The need for adaptivity is not exclusive to the area

of CPS. In TriCePS, the application layer is informed

about current QoS metrics and has the chance to adapt

accordingly. Similar functionality, often called ”adap-

tive codecs” has been around for quite a while. Adap-

tive Multi-Rate (AMR) audio, which is used in GSM

is a classical example. AMR uses different cod-

ing schemes depending on link quality measurements

(Ekudden et al., 1999). Another prominent and more

recent example is a technique called adaptive bitrate

streaming (ABS), which is used for video. ABS mea-

sures the available bandwidth and adjusts the bitrate

(and quality) of the video stream accordingly. Insights

into how YouTube is handling this can be found in

(Sieber et al., 2016). NADA (Network-Assisted Dy-

namic Adaptation) is another interesting method since

it integrates implicit and explicit congestion signaling

(Zhu et al., 2013).

Besides adaptive codecs, switching the communi-

cation protocol is another form of adaptivity. This can

be important for both interoperability and optimiza-

tion (using the most appropriate protocol for the cur-

rent network conditions). A relevant, related project is

Application-Layer Protocol Negotiation (ALPN), de-

scribed in (Friedl et al., 2014). It allows for proto-

col negotiation within the TLS handshake. The Ses-

sion Initiation Protocol (SIP), including SDP (Session

Description Protocol) can be seen as another example

(Rosenberg et al., 2002).

2.2 Modularity

Software architecture-wise, the kind of modularity we

were looking for within the TriCePS project could

be denoted as building a “communication abstraction

layer”. The following projects (or parts of projects)

or research have similar goals. One relevant im-

plementation is the GNUnet Transport Service API

(Grothoff, 2017). “GNUnet is an alternative network

stack for building secure, decentralized and privacy-

preserving distributed applications.” At its very bot-

tom, it uses something called the “transport underlay

abstraction” and transport plugins to cope with very

different transport mechanisms. Each transport plu-

gin has to provide the means for addressing other en-

tities and sending and receiving of data. Another rel-

evant project is the Common Communication Inter-

face (Atchley et al., 2011), which has its roots in the

area of high performance computing. It was designed

to provide a common API with support for all major

HPC interconnects. Abstraction is provided by the

concepts of endpoints, connections, active messages

for smaller and remote memory access for larger data

movements. The H2020 NEAT project (Grinnemo

et al., 2016) is also related. NEAT is a user-level

networking API that is agnostic concerning the spe-

ciﬁc transport protocol underneath. Hiding those de-

tails can have beneﬁts concerning the technical evo-

lution of transport protocols. Changes can potentially

be made “under the hood” (in the transport protocol),

without causing changes in the interface (leaving the

user-level application as is). In this respect, NEAT

provides very similar abstractions to what Triceps

would require to provide a software interface that is

future-proof. Another interesting project is the IETF

Internet-Draft GEARS, the “Generic and Extensible

Architecture for Protocols”. It is an architectural pro-

posal that adopts a three layered architecture (hard-

ware drivers layer, generic abstract layer, application

protocols layer) and the use of data modelling lan-

guages for the development of new protocols (Zhang

et al., 2015). Last but not least, we found SensiNact

urgen et al., 2016) Bridges to be relevant. Sensi-

Nact is a project under the umbrella of the Eclipse

Foundcation. It provides an open IoT platform for

Smart Cities. SensiNact uses the concept of “bridges”

as an abstraction for the interaction with other entities.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

776

Southbound bridges are those that are specialized for

the interaction with IoT devices like networked sen-

sors. Northbound bridges are used for managerial

tasks and data distribution and implement protocols

like MQTT or HTTP/REST.

3 SMART CAMERA REFERENCE

SCENARIO

A simple example scenario is presented in Figure 1.

A video camera has a network connection to a re-

mote display. The connection will typically cross the

public internet. Furthermore, it may use wireless ac-

cess technologies which will also contribute to vari-

ations in the quality of the connection. The cam-

era will use the concepts outlined in the following

sections to asses the current network conditions and

adapt its strategy of operation. Please note that with

this use case, we assume that the video is watched

live on the remote display, and therefore, timely play-

back is more important than consistent quality (which

is often the case for monitoring applications). Specif-

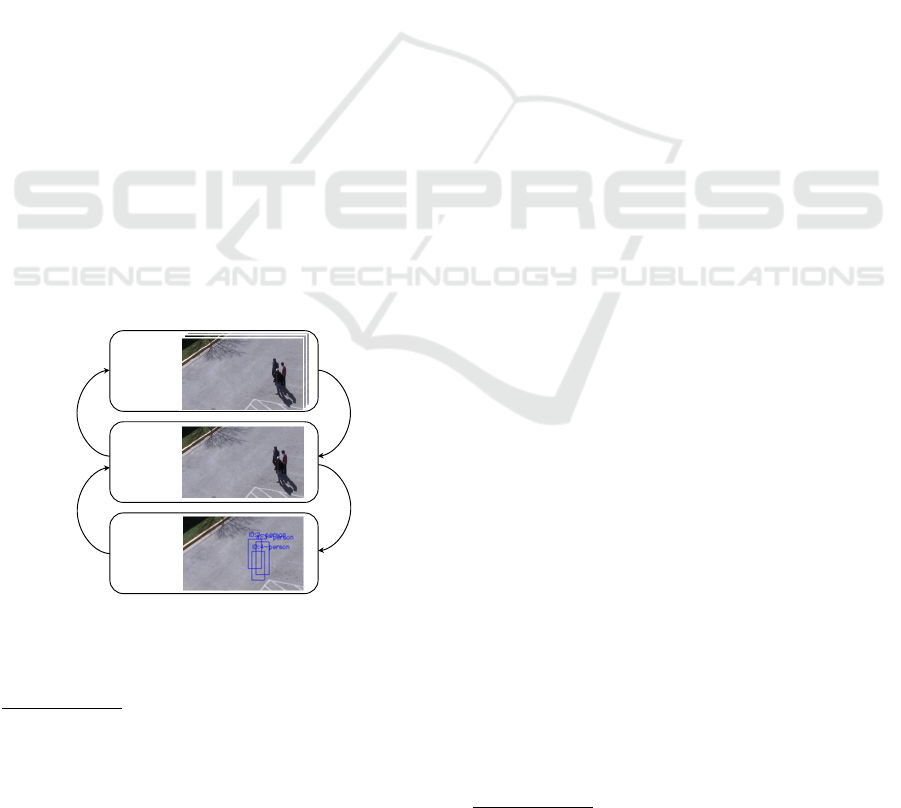

ically, the camera will emit high quality, high frame

rate video when the network allows it. When network

utilization is high, the camera will switch to differ-

ent modes of operation, e.g. a lower quality, lower

frame rate video, single images or even textual repre-

sentations generated via feature extraction and recon-

structed at the receiver.

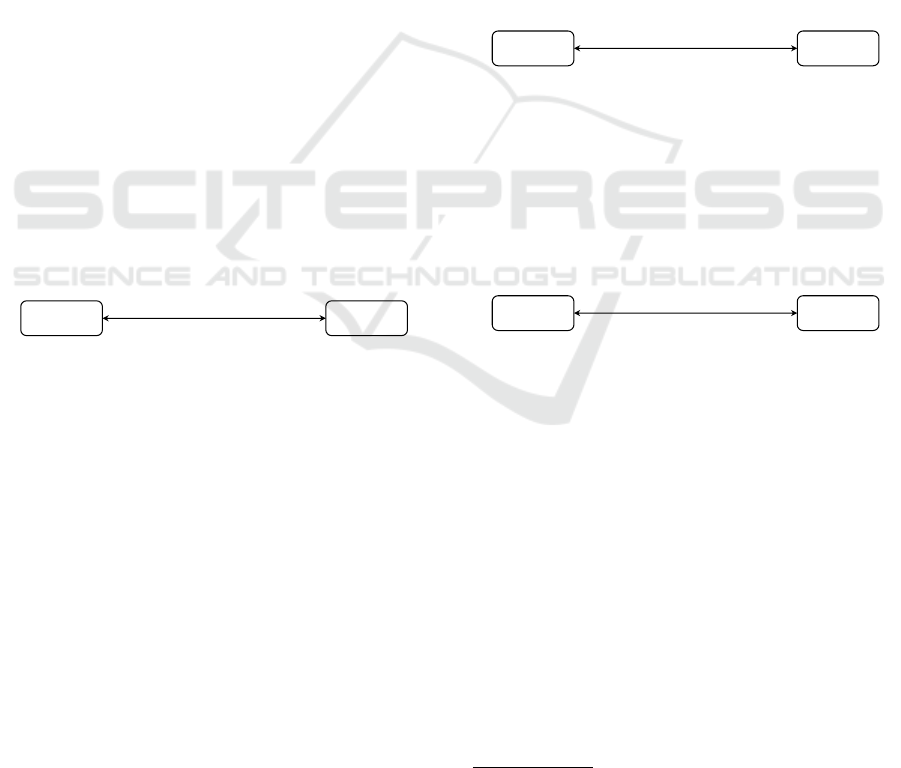

Camera Display

Network Link

Figure 1: Schematic view of camera use case.

4 PIPELINES FOR MODULAR

AND ADAPTIVE

COMMUNICATION

ARCHITECTURES

The pipeline concept helps making networked appli-

cations modular and adaptive. This section describes

our thought process concerning modularity before in-

troducing pipelines as a valuable architectural princi-

ple.

When designing a networked application, engi-

neers have to carefully consider the network-related

abstractions they rely on. The socket API is a well

known abstraction in this context but modern soft-

ware systems frequently use higher-level network-

ing libraries or custom-built networking components.

Future-proof networked systems (which are the aim

of the TriCePS project) have to be able to adapt to new

mechanisms of communication. As a genuine exam-

ple, consider that a security ﬂaw is found in the com-

munication protocol used by your application. You

then need a practical way to update your application.

If not considered from the beginning, such changes

can be difﬁcult to manage. Therefore, we propose a

way of thinking that assumes that all parts of your

mechanisms of communication will be replaced some

day in the future. We will now try to describe this way

of thinking in a more formal manner.

4.1 Problem Formulation

Let’s start with the most simplistic model of commu-

nication possible. Figure 2 depicts the initial situa-

tion. Two communicating applications A and B ex-

change information (that can be thought of as wire

image x

A B

Figure 2: Two communicating applications (A,B) exchang-

ing wire image x.

If we want to change the way this information is

represented (the data format or encoding), or change

the way this information is encapsulated, protected,

acknowledged, etc. (the protocol), we naturally end

up with a different wire image on the link between A

and B, just as depicted in Figure 3 as y.

A‘ B‘

Figure 3: Two modiﬁed communicating applications

(A’,B’) exchanging a modiﬁed wire image (y).

Depending on the actual change (data format, en-

coding, protocol, etc.) A and B might have to change

too (that is why they are called A’ and B’ now). The

interesting question now is, how to propose generic

architectural guidelines so that the difference between

A and A’ – let’s call this difference ∆A has mini-

mal ”intertwinedness”, or, speaking more in terms of

practical software engineering, has well-designed in-

terfaces and abstractions concerning the mechanisms

of communication.

Since we highly anticipate changes concerning

data formats, encodings or protocols in use (or all or

combinations of them), we very much want to have a

strategic way to minimize the intertwinedness of ∆A.

The wire image (Trammell and Kuehlewind, 2019) is

the sequence of packets sent by each application as seen on

a ﬁctive point of observation on the path of communication.

The Pipeline Concept as Key Ingredient for Modular, Adaptive Communication for Cyber-physical Systems

777

A B

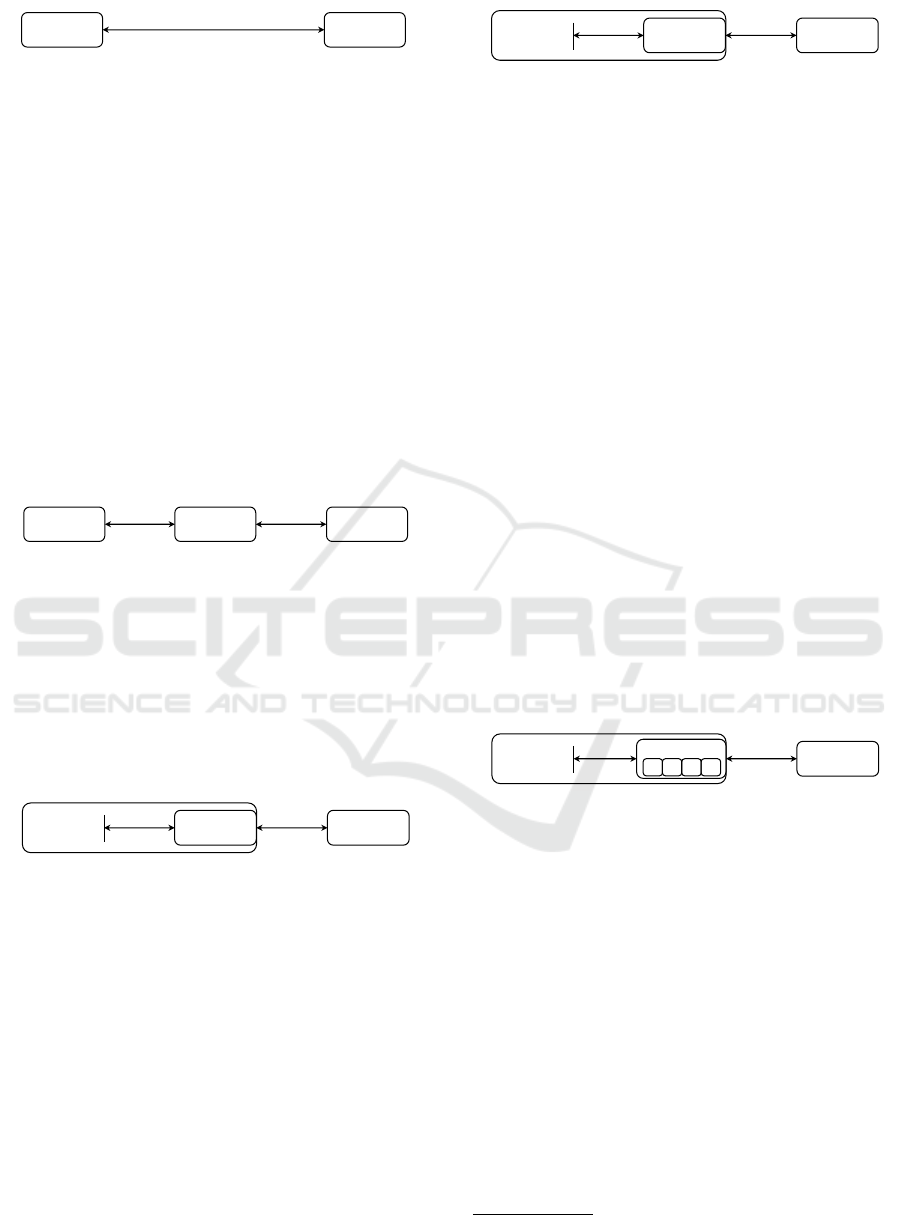

Figure 4: Two communicating applications exchanging

wire image x via protocol p.

Let us reconsider our initial situation, where we

have A and B that exchange information as wire im-

age x via protocol p (see Figure 4, p is also included

there now). We could then add an additional compo-

nent (we call it a handler, more on that nomenclature

later) d, that exchanges wire image x with A via pro-

tocol p and wire image y with B via protocol q (just

as shown in the Figure 5). The addition of d is trans-

parent to A (it still speaks p and sends/receives x).

This is somewhat similar to what protocol convert-

ers do (there is no robust deﬁnition of nomenclature

that is known to us, so the terms protocol converters,

protocol bridges and protocol gateways might all be

used here. What is meant is a technical artefact, ei-

ther software or hardware, that can convert between

two protocols).

A B

Figure 5: Two communicating applications (A,B) with an

additional handler (d) in between.

The protocols p and q might be identical (if only

the data format has changed, not the protocol) but

x and y will be different in any case (otherwise we

would not need this new handler d in between). Now

comes the conceptual trick: You can think of d as be-

ing embodied in A (in contrary to being an extra com-

ponent), as shown in Figure 6.

A B

Figure 6: Two communicating applications (A,B), where

one (A) has an additional, embodied handler (d).

There are scenarios where the use of an additional

handler d is not possible. End-to-end encryption be-

tween A and B for example, would make an addi-

tional handler d impossible. If, on the other hand,

d is embodied in A and end-to-end encryption hap-

pens between d and B, you have a design where you

can always modify the embodied handler d (we call

this modiﬁed handler d’) in such a way that new re-

quirements from B (e.g. wire image z, protocol r)

are met, while maintaining the original interface to-

wards A (wire image x, protocol p), just as illustrated

in Figure 7. Additional handlers can (and often will)

be stateful and can (and often will) require additional

conﬁguration.

A B

d‘

Figure 7: Two communicating applications (A,B), where

one (A) has an additional, embodied handler (d’) that can

communicate with B via a new protocol (r instead of q).

When we design the mechanisms of communica-

tion in our software in a way that allows for the ad-

dition of auxiliary handlers, we have good chances

that future changes can be solved via new or updated

handlers. While we discussed individual handlers in

the current section, we will now introduce pipelines

of handlers.

4.2 Pipelines

The thought model of handlers can help to deter-

mine which parts of your application have to be

designed in a manner that makes them replaceable

but it does not necessarily facilitate the process of

doing so. To achieve this, we borrowed the con-

cept of ”pipelines” from Facebook’s Wangle project

which itself adapted this from the Netty (Maurer and

Wolfthal, 2016) project. With pipelines ”the basic

idea is to conzeptualize a networked application as

a series of handlers that sit in a pipeline between a

socket and the application logic”. Figure 8 shows an

application where there is no single additional han-

dler d anymore but a whole pipeline (named PL) of

handlers (h1, h2, h3, ...).

A B

…

h1 h2 h3

Figure 8: Two applications, one with a pipeline of handlers.

Each handler has a speciﬁc duty. For example en-

cryption, framing, compression, character encoding,

etc. The aim of this level of modularity is to keep

the complexity associated with handling the differ-

ent communication mechanisms of a wide range of

entities manageable. The concrete dissection of the

pipeline into individual handlers can of course be a

matter of perspective. What we can highly suggest

is to follow the now classic UNIX maxim of ”do one

thing and do it well”.

https://github.com/facebook/wangle (accessed January

20, 2020)

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

778

5 REFERENCE

IMPLEMENTATION

The ideas presented in the former chapters were not

born from purely theoretical considerations but from

our practical work on a reference implementation of

a software library. Figure 10 shows a schematic

overview of the library as used by two communicating

applications. It can be interpreted with regard to the

reference scenario from chapter II. Node A and node

B represent two communicating applications. Node A

represents the video camera, while node B represents

the remote display. Node A and B are connected over

the Internet. The video signal captured by A is trans-

mitted to and synchronously displayed by B. Both

nodes A and B use of the software library. Further-

more, a new, third entity (entitled repository) comes

into play, which acts as a library for new and updated

handlers. The business logic of node A feeds video

data (denoted as x) into the pipeline. The pipeline

uses a set of handlers

to process the video data ac-

cording to current network conditions (as measured

by the network monitoring module). The pipeline

emits a wire image y (using the protocol p) to the net-

work. Node B receives the data, routes it through all

of its pipeline and ﬁnally hands over video data (de-

noted as z) to its very own business logic. Varying

network conditions might require the use of a differ-

ent set of handlers in which case the wire image on

the network link (y) will change while the interfaces

towards the business logic on both nodes will stay the

same.

Sending

still

images

Sending

text

Sending

video

Congestion

persists

Congestion

resolved

Congestion

(still)

resolved

Figure 9: State machine for an adaptive camera.

Figure 9 shows this mechanism as a state ma-

chine. When network conditions are good, high qual-

It is noteworthy that Figure 10 shows one speciﬁc, sim-

pliﬁed example of a pipeline setup. The two pipelines in

the example hold the same handlers (h1, h2, h3, h4) for

each node. That is not a requirement. Quite contrary, the

two pipelines could each hold a different set and number of

handlers.

ity video

will be emitted. When congestion is de-

tected, lower quality still images will be emitted and

when conditions get even worse, a text representation

of the moving parts of the image will be emitted. With

bettering conditions, the same process will happen in

reverse order. The state where video is emitted uses

a pipeline with two handlers (transcode video to tar-

get bandwidth, apply framing), the state where still

images are emitted uses a pipeline with three han-

dlers (downsampling, apply image compression, ap-

ply framing) and the state where text is emitted uses

a pipeline with four handlers (use feature extraction,

ﬁlter out irrelevant features, apply run-length encod-

ing, apply framing). While video emission will re-

quire 2000 kbit/s of bandwidth, text will only require

20 kbit/s. This means, that for this example, we can

scale network usage by factor 100, while still provid-

ing relevant information on the display on the receiver

side.

Apart from the concrete example, the library func-

tionality can be described as three modules. The Net-

work Monitoring module continuously monitors the

network ﬂows between A and B and supplies network

metrics to both the library and the business logic. The

Pipeline module glues together the individual han-

dlers. Data ﬂows from the business logic of a node

through all handlers in the pipeline, then through the

network to the opposite node, where all handlers are

traversed in reverse order. Finally, the Protocol Ne-

gotiation module makes sure that the applications use

pipeline setups that are compatible with each other

while also taking care of the process of retrieving new

or updated handlers from the repository.

6 CONCLUSIONS

A pipeline-based design of an application layer com-

munication channel can help with making the mech-

anisms of communication much more adaptable. We

used this approach to develop a framework, software

library and demo application that can switch seam-

lessly between handlers. In contrast to other ap-

proaches, TriCePS integrates short-term (think sec-

onds) and long-term (think years) adaptability and

modularity into one. Pipelines proved to be a valid

conceptual enabler for sound and practical dissection

of networked software into lightweight, exchangeable

components (handlers).

as provided by (Oh et al., 2011)

The Pipeline Concept as Key Ingredient for Modular, Adaptive Communication for Cyber-physical Systems

779

Repository

Business logic A

Network Monitoring

Library

Pipeline

h1 h2 h3

Protocol Negotiation

Network Monitoring

Library

Pipeline

h2 h1

Protocol Negotiation

h4 h5 h6 h7

h4 h4

Business logic B

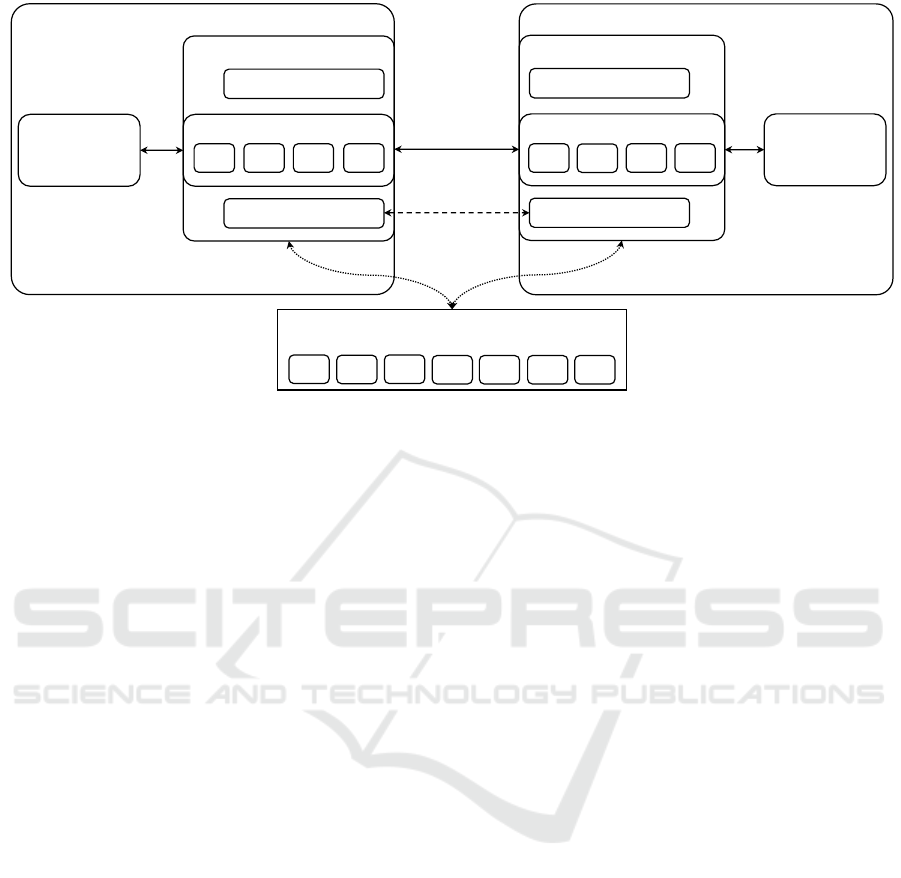

Figure 10: Schematic overview of the reference implementation and its use by two applications.

ACKNOWLEDGEMENTS

This project is partially funded by the Austrian Fed-

eral Ministry of Transport, Innovation and Technol-

ogy (BMVIT) under the program ”ICT of the Future”

(https://iktderzukunft.at/en/).

REFERENCES

Atchley, S., Dillow, D., Shipman, G., Geoffray, P., Squyres,

J. M., Bosilca, G., and Minnich, R. (2011). The com-

mon communication interface (cci). In 2011 IEEE

19th Annual Symposium on High Performance Inter-

connects, pages 51–60. IEEE.

Du, J. L., Linecker, S., Dorﬁnger, P., and Mayr, R. (2019).

Triceps: Self-optimizing communication for cyber-

physical systems. In Proceedings of the 4th Interna-

tional Conference on Internet of Things, Big Data and

Security (IoTBDS 2019), volume 1, pages 241–247.

Ekudden, E., Hagen, R., Johansson, I., and Svedberg, J.

(1999). The adaptive multi-rate speech coder. In

Speech Coding Proceedings, 1999 IEEE Workshop

on, pages 117–119. IEEE.

Friedl, S., Popov, A., Langley, A., and Stephan, E. (2014).

Transport layer security (tls) application-layer proto-

col negotiation extension. RFC 7301, RFC Editor.

Grinnemo, K.-J., Brunstrom, A., Jones, T. H., Fairhurst, G.,

Hurtig, P., and Ros, D. (2016). Neat-a new, evolutive

api and transport-layer architecture for the internet.

Grothoff, C. (2017). The gnunet system. PhD thesis.

urgen, L., Munilla, C., Druilhe, R., Gandrille, E., and

Botelho do Nascimento, J. (2016). sensinact iot plat-

form as a service. Enablers for Smart Cities, pages

127–147.

Maurer, N. and Wolfthal, M. (2016). Netty in Action. Man-

ning Publications New York.

Minerva, R., Biru, A., and Rotondi, D. (2015). Towards a

deﬁnition of the internet of things (iot). IEEE Internet

Initiative, 1:1–86.

Oh, S., Hoogs, A., Perera, A., Cuntoor, N., Chen, C.-C.,

Lee, J. T., Mukherjee, S., Aggarwal, J., Lee, H., Davis,

L., et al. (2011). A large-scale benchmark dataset

for event recognition in surveillance video. In CVPR

2011, pages 3153–3160. IEEE.

Rosenberg, J., Schulzrinne, H., Camarillo, G., Johnston, A.,

Peterson, J., Sparks, R., Handley, M., and Schooler, E.

(2002). Session initiation protocol. RFC 3261, RFC

Editor.

Sieber, C., Heegaard, P., Hoßfeld, T., and Kellerer, W.

(2016). Sacriﬁcing efﬁciency for quality of experi-

ence: Youtube’s redundant trafﬁc behavior. In IFIP

Networking 2016.

Trammell, B. and Kuehlewind, M. (2019). The Wire Image

of a Network Protocol. RFC 8546, RFC Editor.

Xia, F., Yang, L. T., Wang, L., and Vinel, A. (2012). Internet

of things. International Journal of Communication

Systems, 25(9):1101–1102.

Zhang, M., Dong, J., and Chen, M. (2015). Gears: Generic

and extensible architecture for protocols. Draft IETF.

Zhu, X., Pan, R., Ramalho, M., Mena, S., Jones, P., Fu, J.,

and D’Aronco, S. (2013). Nada: A uniﬁed congestion

control scheme for real-time media. Draft IETF.

ICINCO 2020 - 17th International Conference on Informatics in Control, Automation and Robotics

780
