What Makes an Industrial Control System Security Testbed Credible
and Acceptable?
Towards a Design Consideration Framework
Uchenna D. Ani
a
and Jeremy M. Watson
Department of Science Technology Engineering and Public Policy, University College London, U.K.
Keywords: ICS Testbeds, Security Modelling & Simulations, Security Modelling, Cyber Security Simulations, Model
Credibility, Model Acceptance.
Abstract: The convergence of Industrial Control System (ICS) with Information Technologies (IT) coupled with the
resulting and widely publicized cyber security incidents have made ICS security and resilience issues of
critical concern to operators and governments. The inability to apply traditional IT security practice to ICSs
further complicates the challenges of effectively securing critical industrial systems. To investigate these
challenges without impacting upon live system operations, testbeds are being widely used as viable options
to explore, develop and assess security risks and controls. However, how an ICS testbed is designed, and its
attributes, can directly impact not only on its viability but also its credibility and acceptance for use as a whole.

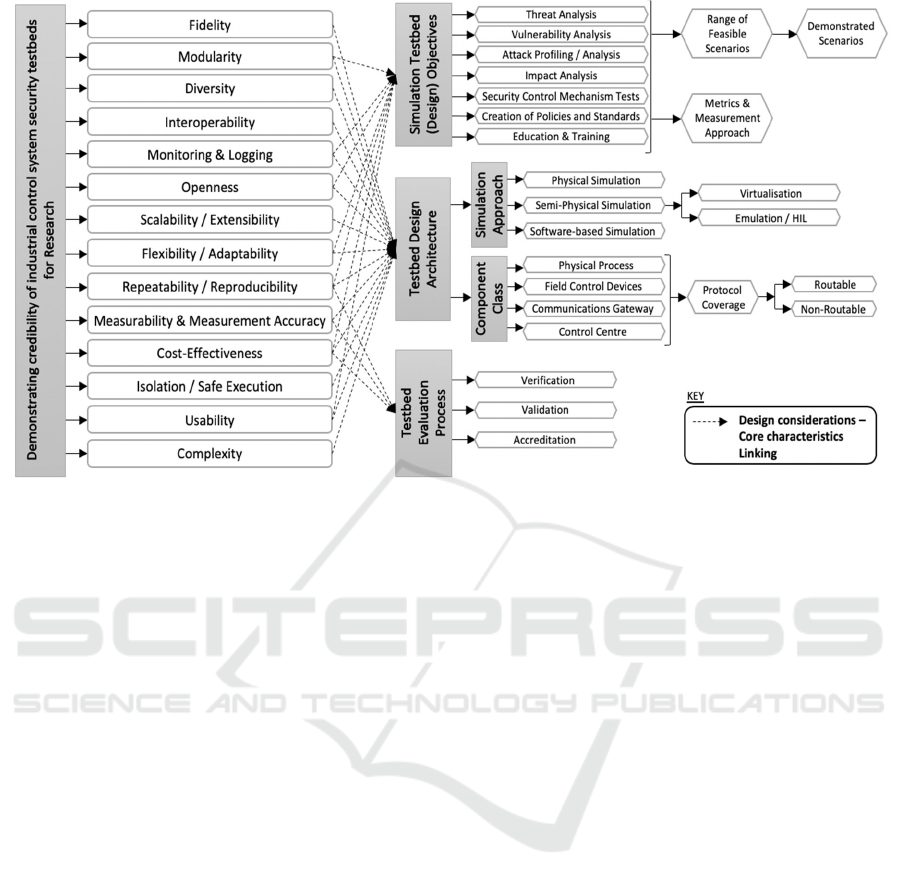

Through a systematic review and analysis of ICS security testbed design factors, a novel outline conceptual
mapping of design factors for building credibility and acceptance is proposed. These design considerations
include: design objectives, implementation approach, architectural component coverage, core operational
characteristics, and evaluation approach.
1 INTRODUCTION
Industrial Control Systems (ICSs) play crucial roles
in operating and controlling critical infrastructure
(CI) systems that support essential societal services
such as: transport, energy/power, and water
treatment. Although technological advances have
improved the functionalities of ICSs through their
design, setup, and operational scope, other more
challenging issues exist. ICS deployment life cycles
can span decades – leading to outdated and insecure
legacy systems, connecting with modern, more secure
deployments (Sadeghi, Wachsmann and Waidner,
2015). These introduce new security risks in ICSs,
which have become issues of growing concern due to
the challenges posed by cyber-attacks (Knowles et
al., 2015). ICSs that are part of CIs must exhibit high
levels of system safety, security, and resilience. These
requirements relate to factors where the impact of ICS
failures on environmental and human safety,
economic and national security viewpoints would be
highly damaging (Candell, Zimmerman and Stouffer,
a
https://orcid.org/0000-0001-6064-480X
2015). As a consequence it is often not feasible to test
these requirements on live operational ICS
environments as severe functional disruptions can
occur (Ani, He and Tiwari, 2017).
To overcome the concerns about conducting
research and testing on live ICSs, modelling and
simulation (M&S) provides a viable alternative using
testbeds to replicate ICS environments for exploring
and addressing cyber security challenges (Davis and
Magrath, 2013). This can be approached in various
ways, providing exploratory platforms where
training, experimentation, data aggregation, and
evaluation can be safely performed, while avoiding
undesirable interference, performance degradation,
and/or damage to system operations (Pahi, Leitner
and Skopik, 2017). This process is referred to as
‘simulation’, and is widely acknowledged as effective
in experimenting, studying, analysing, and
developing ICS security practices (Frank, Leitner and
Pahi, 2018). While ‘simulation’ is common term in
the ICS community; it is often referred to as testbeds
– creating an experimental platform for executing
Ani, U. and Watson, J.
What Makes an Industrial Control System Security Testbed Credible and Acceptable? Towards a Design Consideration Framework.
DOI: 10.5220/0010170301810190
In Proceedings of the 11th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2021), pages 181-190
ISBN: 978-989-758-528-9
Copyright
c
 2021 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved
181

activities and processes as if in real life. The motive
is to avoid compromising system performance and
reliability on live ICS (Holm, Ekstedt and Andersson,
2012). Hence for the remainder of this paper we will
use ‘testbeds’ as an all-inclusive term.
ICS testbeds are being used to evaluate or address
security-related challenges (Holm et al., 2015), and
follow different development approaches (Frank,
Leitner and Pahi, 2018). Mostly, the testbeds are
unavailable for public use, or focus on specific
sectors/applications, hence they lack detailed
information about their use and results. Also, they are
characterised by dissimilar approaches to M&S
security research (Craggs et al., 2018). Thus, the
trustworthiness and reliability of such works are
unclear. Also, there are no available design
benchmarks, or a structured and clearly defined set of
design considerations to provide guidance on ICS
security testbeds. This presents a challenge when
developing capabilities to support research
objectives, and when evaluating the quality of a
testbed and related research. Often, it is difficult to
state or demonstrate how these works strongly
support or improve confidence in reproducing real
ICS scenarios. Thus, a benchmarking structure is
required to guide the proof of relevance and
effectiveness of ICS security testbeds and associated
works (Gardiner et al., 2019).
To address this challenge, this study draws from
a systematic study of existing ICS security testbed
works to identify the relevant design factors that can
provide guidance on ICS security testbed
development, and can support confidence on the
trustworthiness and use of such testbeds and
associated research outcomes. An outline and
mapping of design factors and attributes is then
proposed that can support the above need. This can
assist security developers and decision-makers in
determining suitable design approaches and/or
factors peculiar to their requirements. It can also
support establishing and/or enhancing acceptability
requirements for security-related ICS testbed work.
1.1 Acceptance of Simulations Models
and Testbeds
M&S acceptance is a common topic in various fields
including computing, engineering, communications
and psychology. It has been linked to; ‘believability’,
reliability, trustworthiness, accuracy, objectivity and
any combinations thereof (Hilligoss and Rieh, 2008).
Acceptance means agreeing with a claimed assertion
that a simulation model is a reasonable representation
of reality. This requires a higher level of belief in a
M&S with evidence supporting such claim (Patterson
and Whelan, 2017). This builds M&S credibility,
which depends on perceived quality from
simultaneous multiple dimensions of evidence,
enabling the assessments of trustworthiness and
expertise (Fogg and Tseng, 1999). Credibility comes
from confidence in the lack of biased knowledge,
skills and experience of the source, and centres on
attributes that make a context likely or worthy of
being believed, (Young Rieh and Hilligoss, 2008). It
can be based on presumption, reputation, surface
appearance, or first-hand experience (Fogg and
Tseng, 1999).
From an M&S perspective, credibility and
acceptance are often expressed by the disposition to
agree, and base decisions on the attributes
(information) acquired from a model (Schruben,
1980). Hence, judging simulation credibility to drive
acceptance relies on clear data collection and good
documentation by developers. In terms of testbeds,
this describes how well a security testbed (setup,
system, process, and/or output) expresses and
promotes confidence, belief and acceptance as a
reasonable representation of a real system (Law,
2009). It includes a testbed's suitability for exploring
realistic scenarios. Thus, the absence of certain design
attributes that commonly contribute to the reasonable
representativeness of an actual system can degrade
credibility and inhibit acceptance. In ICS security
simulation testbeds, this can make or mar an accurate
understanding, analysis and the resolution of security
and safety issues.
2 RELATED WORK
Security testbed works were reviewed considering
their close alignment with variants of ICSs, and
relevant cyber security measures. From reviewing
prior testbeds, a conceptual design of a cyber-
physical production system testbed is presented by
Salunkhe et al (2018). Testbeds were analysed based
on their application with cyber security being a
dominant area of focus.
A three scenario-based ICS security testbed
demonstration is described (Candell Jr., Zimmerman
and Stouffer, 2015). Details of processes,
components, architecture, protocols, modelling
approach, and security context were muddled. The
lack of a clear outline for structural design attributes
makes it difficult to easily recognise relevant design
requirements and attributes. The work also fails to
consider some credibility-supporting factors that can
improve acceptance such as ‘evaluation modes and
SIMULTECH 2021 - 11th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
182

outputs’ (McLean et al., 2011; Government Office for
Science, 2018). Lacking corroboration from external
parties on the testbed quality, such works can be
presumed to lack sufficient evidence to support
claimed representativeness and can be considered
weak. Holm et al (2015) surveyed thirty ICS testbeds
proposed for scientific research. Most of them were
designed for: vulnerability analysis, testing defence
mechanisms, and educational purposes. Simulation
fidelity was more heavily emphasised, and factors
like repeatability and safe execution were not well-
addressed by the surveyed testbed articles.
Design factors for security testbeds is a topic of
interest across relevant communities and
stakeholders. However, what is not seen in
community discussions and literature is the context of
relevant requirements that can help to support design
credibility and acceptance, or how this may be
achieved. While design and development
considerations have appeared directly or implicitly in
some works, they are fragmented. This limits the
ability to identify a broader set of critical
requirements that support confidence and acceptance
of ICS security testbed design and associated
research. Clearly, there are design factors and
guidelines which can be considered and followed to
build ICS testbeds that can appear credible. However,
there are diverse views on how this may be achieved.
Considering such diversities, having a uniform and
structured outline of design considerations becomes
necessary. This can help in organising existing ideas.
A mapping outline can provide a focal guide for
developing future ICS security testbeds with
simplified uniform evaluation. This can also shape
the direction for benchmarking and standardising
testbed design.
3 METHODOLOGY
A systematic review (Grant and Booth, 2009) was
used in this work starting with unstructured searches
on Google on ‘ICS security’, and applying related
titles for a period covering 2008 to 2019. Relevant
keywords were identified and applied to a structured
search in SCOPUS and Web of Science (WoS)
databases to identify relevant articles. This enabled
the benefits of access to a wider resource coverage
and concurrency (Salisbury, 2009). Keywords used
involved Boolean combinations of `ICS' OR
`SCADA' AND `Security Testbeds' OR `Testbeds' to
identify relevant literature on ICS security-related
testbed works.
77 articles were identified based on their match to
applied search parameters. Each article was
considered for relevance from reading the title and
abstract. Duplications were discarded, and 41 articles
were found useful.
3.1 Design Factors
ICS security testbeds that can support evidence-based
decision-making on security policies and controls
typically rely on an assured correctness representation
of system and operations. This increases confidence in
the testbed’s reliability to satisfy specific purposes
(Government Office for Science, 2018). Typically, a
testbed’s composition would depend on the knowledge
being drawn. The testbed’s quality and the confidence
it can evoke depends on the quality of the underpinning
theory. Hence relevant existing literature on ICS
security testbeds was reviewed based on its ability to
capture design attributes.
NIST SP 800-82 Rev 2 (Stouffer et al., 2015)
presents a broad guide to ICS security. The `Basic
ICS Architecture' is shown to consist of; Physical
Process (PP), Field Devices (FD), Communications
Gateway (CG), and Control Centre (CC) component
functionality groups. In M&S, well-defined
`design/usage objectives' – the purpose(s) intended
for a testbed prior to its development – often drive
good design considerations (McDonald and
Richardson, 2009). Prior work (Holm et al., 2015)
highlights that representativeness and cost trade-offs
amongst other factors explain why design
considerations and decisions need to be guided by a
testbed's intended use. Usage objectives need to align
with design configurations (Holm et al., 2015), and
defined early to direct and scope the development
process, eliminate ambiguity, and support functional
and operational validity.
Other factors that appear to significantly
contribute to the reliability and trustworthiness of ICS
security testbed projects include: `component
architecture' and `operational requirements’ (Zhao,
Peng and Xie, 2013; Vaughn and Morris, 2016).
Component architecture refers to the combination of
component functionality groups that are part of ICS
setup as outlined in NIST SP 800-82 Rev 2. Again,
this are; PP, FD, CG, and CC, including aspects of
communications protocols; IP routable and/or IP non-
routable protocols (Candell, Zimmerman and
Stouffer, 2015). Including these types of information
at more granular levels can help to achieve better
clarity of security issues around specific components.
This can enable a sense of the broader security
implications of certain component issues for the
What Makes an Industrial Control System Security Testbed Credible and Acceptable? Towards a Design Consideration Framework
183

entire ICS network, and better representation of an
ICS from both architectural and operational
viewpoints. All of these promote acceptance of the
resulting testbed and the research activities that use it.
Operational Requirement refer to the features that
underpin the structure and operations of a testbed,
which can be functional or non-functional
(McLaughlin et al., 2016). Functional features refer
to behavioural attributes of testbed operations
including the ability to; mirror real system form
(fidelity), add or remove components or test scenarios
(modularity), and log status of test scenarios
(monitoring and logging). Non-functional features
refer to performance attributes of testbeds, and
include the ability to; easily use the testbed for an
intended application (usability), adapt to new
applications or scenarios (adaptability), and be open to
improvements and modifications (scalability),
normally drawn from functional features (Siboni et al.,
2019). The relevance of these operational requirements
in supporting the credibility and acceptance of a
testbed has been acknowledged (Holm et al., 2015;
McLaughlin et al., 2016). Demonstrating functional
and non-functional features in an M&S testbed
contributes to assurance, hence promotes
trustworthiness, credibility, and acceptability.
The design approaches for simulation testbeds
also contribute to testbed reliability (Vaughn and
Morris, 2016). This refers to the structural formation
of components that make up a simulation testbed.
Typically, this can take one of three approaches: (i)
Physical Simulation (PS); involving real components
(hardware and/or software), (ii) Semi-Physical
Simulations (SPS); involving a combination of real
and emulation and/or virtualisation of ICS
components, (iii) Software-based Simulations (SBS);
involving a purely software simulation of ICS (Zhao,
Peng and Xie, 2013). These three testbed forms are
often referred to as; real system, computer emulations
or virtualisation (including hardware-in-the-loop),
and pure software-based simulations (Holm et al.,
2015) or live, virtual, and constructive simulations
(Kavak et al., 2016). Selecting an approach is often
influenced by the desired degree of
representativeness, cost and time for development
(Zhao, Peng and Xie, 2013), and the experience or
expertise of those involved (GSE Systems, 2017).
Experience/expertise is particularly crucial as it
can affect the level of detail in a simulation testbed.
Physical, real, or live simulations typically enable the
nearest representation of the real system, hence these
are most likely to lend better credibility and
acceptance than the other two. The evaluation
process
for ICS security testbeds can also influence
design quality (McLean et al., 2011). This refers to
the procedure(s) for performing assessments to
understand how well the testbed design or related
outputs are correct, and(or) acceptable. To drive
simulation testbed reliability, scenarios, data, and
outcomes all rely on suitable evaluations, and
demonstration of proof that relevant reliability factors
and operational characteristics are achieved,
especially for the intended use (McLean et al., 2011).
This proof is good when produced by authors and
implementers (a verification). It can be rather better
if produced by sources other than the authors (a
validation). The most valuable endorsements are
from public institutions, standards or certification
agencies (an accreditation) (DoD, 2010).
Thus, in security testbed M&S, an evaluation
process can transition from verification to validation
and to accreditation over time; demonstrating an
incremental appraisal process, building stronger
evidence and grounds for incremental trust and
acceptance. Such multi-level evaluation processes for
simulation models and testbeds can help provide a
secure basis for critical decision-making.
This study draws insights from reviewing 41
relevant articles to identify and evaluate the
significance of the following key criteria for building
reliable and acceptable ICS security testbeds. These
include: (i) Design Objectives, (ii) Implementation
Approach, (iii) Architectural Coverage, (iv)
Operational Requirements, and (v) Evaluation
Process.
4 ANALYTICAL RESULTS
4.1 Design Objectives
In determining the design objectives from both explicit
and implicit descriptions, eight broad themes were
found. These include threat analysis, vulnerability
analysis, attack analysis, impact analysis, defence
mechanism test/analysis, education and training,
creation of policies and(or) standards, and
performance/quality of service analysis (See Table 1).
These results overlap with the outcomes of similar
evaluations (Holm et al., 2015), and suggest that most
ICS security-related works seem to address a common
range of security areas including the investigation of;
cyber-attack feasibilities, effectiveness of security
controls and defence mechanisms, and the
consequences and impacts of successful cyber-attacks
and failed security measures. Interest in understanding
security vulnerabilities is also found. Note that it is
good practice to define at the beginning, the key
SIMULTECH 2021 - 11th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
184

objectives in scope and application, which can help
clarify understanding of the requirements for testbed
design and implementation.
4.2 Implementation Approach
The ICS testbed simulation approaches found can be
broadly categorised into three groups. These include;
(i) Physical Simulation (PS), which involves purely
real infrastructure components; (ii) Semi-Physical
Simulations (SPS), which involves combining real,
emulated and/or virtualised abstractions of ICS
components; and (iii) Software-based Simulations
(SBS), which involves simulating ICS components on
purely software-based platform. These approaches
may also be combined to achieve a desired hybrid
system setup (Lu et al., 2014). Results in Table 1
show the different implementation approaches.
Combining multiple simulation approaches seems to
be more favoured than using them singly. This might
be motivated by the possibility of gaining greater
representativeness, and/or having one approach
compensate for the limitations of another. However,
the expertise/experience of developers, development
time, and costs are also influencing factors in
deciding on an appropriate implementation approach.
4.3 Architectural Component Coverage
An ICS architecture can be categorised into four
functional areas: (i) Physical Process (PP), (ii) Field
Devices (FD), (iii) Communications Gateway (CG),
and (iv) Control Centre (CC). These can be
implemented at different levels of abstraction in a
system; they constitute the basic elements of a typical
ICS needing to be considered in any design project.
From Table 3, nearly half of the reviewed works
reflect design/component structures that covered all
four functional ICS areas. Between 3 and 11 works
covered three functional areas, and on average 2
works covered two functional areas. Communications
gateway (CG) appears to be the most widely included
functional area, with a frequency of 95.12% of all the
works reviewed. Covering all the functional areas in
a testbed architecture can support representing wider
contexts which lends to a better architectural and
operational specification of a real ICS.
4.4 Core Operational Characteristics
Fourteen categories of re-occurring operational
characteristics emerged as shown in Table 2. Analysis
shows that 70.7% of the reviewed works contained
statements associated with one or more of the
fourteen categories of operational characteristics. ICS
security testbed ‘fidelity’ (41.46%) appeared to be
most highly acknowledged. This is followed by
‘scalability’ also referred to as ‘extensibility’ with
26.83%. For credibility that can drive acceptance and
use, it is important for ICS security testbeds and
research to demonstrate some (if not most) of the
identified operational characteristics (Holm et al.,
2015). This can increase the confidence of adopters,
decision-makers, and other stakeholders to trust the
approach and its related outputs.
4.5 Evaluation Process
From the earlier identified mechanisms for achieving
an incremental build-up of credible evidence
involving verification, validation, and accreditation
(DoD, 2010), results show that a significant
proportion of works reviewed lacked any form of
evaluation (See Table 2). This is despite the
acknowledged significance of testbed evaluations.
While a few works covered verification and
validation, no reviewed work demonstrated any form
of evaluation to the level of accreditation by any
formal body to support its use. This supports earlier
arguments on the lack of sufficient research emphasis
and efforts to establishing trustworthiness to promote
acceptance and the use of ICS security testbeds and
their associated outputs.
Table 1: Results from ICS Security Design Objectives and
Implementation Approaches.
Design/Simulation Objectives
(Security-Centric)
Percent of
Total (%)
Attack Analysis 63.41
Defence Mechanism Tests/Anal
y
sis 56.10
Im
p
act Anal
y
sis 41.46
Vulnerability Analysis 36.59
Education and Training 24.39
Threat Analysis 9.76
Performance/QoS Anal
y
sis 2.44
Creation of Policies and
(
or
)
Standards 2.44
Design/Simulation Approach:
Percent of
Total (%)
SBS + SPS 21.95
SBS + SPS + PS 19.51
PS 17.07
SBS 17.07
SPS + PS 12.20
SPS 12.20
Key to notations:
- Software-Based Simulation = SBS,
- Semi-Physical Simulation (Emulation or
/Virtualisation / HIL) = SPS, Physical Simulation = PS,
-‘+’ used to re
f
lect combination o
f
a
pp
roaches.
What Makes an Industrial Control System Security Testbed Credible and Acceptable? Towards a Design Consideration Framework
185

Table 2: Analysis of Testbed Evaluation Process.
Process
Category
Evaluation Method
Percent of
Total (%)
- Not Mentione
d
56.10
Verification
User-defined
Requirements
14.63
Validation
Standards and Reference
Model
19.51
Prior Works 4.88
Real ICS 2.44
- Unreferenced Architecture 2.44
Table 3: Analysis of Architectural Component Simulation
Coverage.
Design/Simulation Coverage:
Percent of
Total (%)
CC + CG + PP + FD 46.34
CC + CG + PP 26.83
PP + CG + FD 9.76
CC + CG + FD 7.32
CC + FD 4.88
CC + CG 4.88
Characteristics
Percent of
Total (%)
Fidelit
y
41.46
Scalabilit
y
or Extensibilit
y
26.83
Flexibility or Adaptabilit
y
19.51
Reproducibility or Repeatabilit
y
19.51
Modularit
y
17.07
Cost-Effectiveness 9.76
Measurabilit
y
& Measurement Accurac
y
9.76
Isolation or Safe Execution 7.32
Usabilit
y
4.88
Diversit
y
4.88
Intero
p
erabilit
y
2.44
Monitorin
g
& Lo
gg
in
g
2.44
O
p
enness 2.44
Complexit
y
2.44
Key to notations:
- Communications Gateway = CG
- Physical Process = PP, Control Centre = CC
- Field Device/Components = FD
- ‘+’ used to reflect combination of component classes
covered.
5 MAPPING
CREDIBILITY-SUPPORTING
DESIGN FACTORS FOR ICS
SECURITY TESTBEDS
From the results, the occurrence and frequency of
certain factors and themes suggest their reasonable
relevance in ICS security testbed works. We find that;
(i) clearly defined security-related design/usage
objectives and scenarios, (ii) the type(s) of modelling
and simulation approach(es) and the degree of
abstractions applied, (iii) the architectural design
components covered, (iv) the indication and clear
mappings to core operational system characteristics,
and (v) the testbed evaluation modes covered, can all
contribute to building the credibility, acceptance, and
use of ICS security testbeds and(or) associated
research.
Clearly defined security-related objectives
defined from the outset can direct an ICS testbed
development process and can support the evaluation
of reliability. Clearly indicating the testbed
simulation approach clarifies understanding of the
tools and techniques being used and their simulation
capabilities. Defining simulation approach(s) also
provides crucial detail that can support reproducing
and evaluating security testbed M&S and associated
research. Defining the various architectural
components, combined with defined simulation
testbed approach(s), enhances the potential for
achieving scientific research rigour that is repeatable
with reproducible results. Having an evaluation step
helps to demonstrate endorsements from authors or
external parties on the reliability of an ICS security
testbed’s claim. All of these come together to create
or add confidence and credibility to any claimed
quality state of an ICS security testbed. A mapping
structure is provided in Fig 1 showing how the above
factors can be considered during design process to
advance belief and acceptance based on the core
operational characteristics found. Fidelity in M&S
emphasises the degree of structural, operational, and
process correlation between a testbed or test
predictions, and real-world observations (Alves, Das
and Morris, 2016) and can be demonstrated by
defining a testbed’s simulation design approach.
Commonly, Physical simulation (PS) tends to provide
the most fidelity (Kavak et al., 2016). Scalability or
Extensibility refers to a testbed's ability to be to easily
expanded in functionality and size (Hahn et al.,
2013). This can be defined in design objective(s) and
architectural components covered and demonstrates a
capacity to add or migrate components from testbeds
without any significant need for entire system re-
design. Flexibility or Adaptability refers to a testbed’s
dynamic attribute of supporting re-definition and
repurposing for alternative use case(s) (Kavak et al.,
2016). For example, showing in design objectives that
a testbed initially meant to analyse vulnerabilities,
can be easily re-purposed for analysing security
impacts. Repeatability or Reproducibility describes a
testbed’s ability to produce consistent results when
replicated (Koutsandria et al., 2015). This can be
SIMULTECH 2021 - 11th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
186

Figure 1: Outline and conceptual Mapping of design consideration for credible ICS testbeds.
demonstrated through appropriate definitions of
architectural components, process configurations,
and design objectives; enabling others to easily
reproduce experimental parameters and obtain
similar results. Modularity allows a testbed to be
efficiently changed to accommodate new design or
functional requirements (Ahmed et al., 2016). This
enables ICS testbeds to accept continuous
improvements; indicated in design objective(s).
Modularity can help structurally, to realise
incremental validation, credibility, and acceptance.
Measurability and Measurement accuracy are
two linked attributes. Measurability describes the
capacity of a testbed to enable the quantification of
tests. Measurement accuracy quantifies the degree to
which measurement processes interfere (or not) with
corresponding results (Alves, Das and Morris, 2016).
Both attributes can be achieved by including tools and
defining relevant metrics in the architectural
component definition to support authentication of
performance. Interoperability testbed attributes
describe the capacity to support any combination of
simulation approaches; software-based, semi-
physical or purely physical simulation, to interface,
communicate, and use information for desired
objectives. Cost-effectiveness describes the attributes
of a testbed to be within defined budgets (Holm et al.,
2015). Often, there are trade-offs between testbed
development cost and its fidelity (Gao et al., 2014).
The Safe execution or Isolation attribute pertains to
real world test cases linked to testbeds. It ensures that
security M&S activities are bounded and isolated to
avoid any impacts on real system functions (Bergman
et al., 2009). Network segmentation (Fovino et al.,
2010) and access control (Bergman et al., 2009) can
be applied at the architectural component level to
help show that the outputs from tests are unaltered.
This is a proof of testbed simulation integrity.
Usability describes the ability for a testbed to be
used for purposes defined. This reduces the likelihood
of testbed misuse (Holm et al., 2015), and is
necessary to assist users with varying competencies
(contextual knowledge and skills). It can be promoted
at the architectural component level by applying
design structures and components with friendly user
interfaces (Almalawi et al., 2013). This can support
credibility and acceptance if seen to support a wider
range of users with diverse skillsets. Diversity
describes the capacity of a testbed to include different
vendor components without undermining scalability
or extensibility as discussed earlier. Device
heterogeneity is a common feature where IoT
converges into ICS, and needs to be replicated in
testbeds design. Diversity can be demonstrated at the
architectural component and simulation approach
levels. Monitoring and Logging describe testbed
attributes of observing process executions and
optimising data logging for security purposes (Green
et al., 2017; Gardiner et al., 2019). These can be
shown from the results of evaluation processes.
Credibility and acceptance can be improved by the
ability to record and review recorded outputs for
What Makes an Industrial Control System Security Testbed Credible and Acceptable? Towards a Design Consideration Framework
187

future reference. Complexity and Openness are two
related attributes. Openness defines a simulation
testbed’s capacity to support data openness or remote
access (Gardiner et al., 2019). This can be
demonstrated at architectural component
configuration and evaluation process levels.
Complexity assures that architectural components are
represented transparently so that a single point of data
access or extraction can be supported.
6 CONCLUSIONS
This paper presented a critical review and analysis to
identify relevant factors that can provide guidance on
ICS security testbed development and use, upon
which credibility can be based. A novel conceptual
mapping of design considerations for credible ICS
security testbeds is presented. Building or enhancing
testbed credibility typically comes mostly from
architectural coverage, augmented by the adopted
implementation approach, selected components, and
a demonstration of some reasonable degree of
evaluation. ICS security researchers and developers
must strive to achieve fundamental architectures that
are representative of real-world systems and can
allow appropriate, yet realistic testing.
It may not be necessary or feasible to capture all
the core characteristics outlined within a testbed
setup. However, choosing those compliance
characteristics viewed as important within a
particular project may well depend on the project’s
core objectives and scope. Considering the available
resources and capabilities, some characteristics may
be incorporated or maximised at the expense of
others. New attributes can also be considered based
on evolving dynamics or system context.
The proposed mapping structure can promote
effective and well-organized procurement of systems
and sub-system components guided by clearly
defined design requirements – in response to system
and functional dynamics, and the endorsement of the
relevant community of stakeholders. This can thereby
streamline the task of setting requirements and reduce
the costs of both infrastructure development and sub-
system integration. Also, it can lead to greater
consistency and efficiency in growing research
related to ICS security testbeds. Most conveniently,
combining this with the growing trend and capability
for federating ICS security testbeds as keenly
advocated and explored in recent initiatives, the
potential to make testbeds more available and
interoperable. Furthermore, it can minimise the
diversity in design structures amongst different and
physically dispersed testbeds in a federated system.
For future work, we will explore further acceptance-
supporting design considerations for ICS testbeds.
We will also explore how to build credibility-
supporting ICS security testbeds, and how such
models can be better evaluated to drive and simplify
acceptance and use.
ACKNOWLEDGEMENTS
The research is supported by the EPSRC-funded PETRAS
National Centre of Excellence for IoT Systems Cyber
Security.
REFERENCES
Ahmed, I. et al. (2016) ‘A SCADA System Testbed for
Cybersecurity and Forensic Research and Pedagogy’, in
2nd Annual Industrial Control System Security
Workshop on - ICSS ’16. Los Angeles, CA, USA:
ACM, pp. 1–9.
Almalawi, A. et al. (2013) ‘SCADAVT-A framework for
SCADA security testbed based on virtualization
technology’, in Conference on Local Computer
Networks, LCN. Sydney, NSW, Australia: IEEE, pp.
639–646.
Alves, T., Das, R. and Morris, T. (2016) ‘Virtualization of
Industrial Control System Testbeds for Cybersecurity’,
in 2nd Annual Industrial Control System Security
Workshop on - ICSS ’16. Los Angeles, CA, USA:
ACM, pp. 10–14.
Ani, U. P. D., He, H. (Mary) and Tiwari, A. (2017) ‘Review
of cybersecurity issues in industrial critical
infrastructure: manufacturing in perspective’, Journal
of Cyber Security Technology. Taylor & Francis, 1(1),
pp. 32–74.
Bergman, D. C. et al. (2009) ‘The virtual power system
testbed and inter-testbed integration’, in 2nd conference
on Cyber Security Experimentation and Test. Montreal,
Canada: USENIX Association Berkeley, CA, USA, p.
5.
Candell Jr., R., Zimmerman, T. A. and Stouffer, K. A.
(2015) ‘NISTIR 8089 - An Industrial Control System
Cybersecurity Performance Testbed’. Gaithersburg,
Maryland, United States: National Institute of
Standards and Technology (NIST), pp. 1–47.
Candell, R., Zimmerman, T. and Stouffer, K. (2015) ‘An
industrial control system cybersecurity performance
testbed ( NISTIR 8089)’. National Institute of
Standards and Technology.
Craggs, B. et al. (2018) ‘A Reference Architecture for IIoT
and Industrial Control Systems Testbeds.’, in 2nd
Conference on Living in the Internet of Things. London,
UK: Institution of Engineering and Technology (IET).
Davis, J. and Magrath, S. (2013) A Survey of Cyber Ranges
and Testbeds. Edinburgh South Australia.
SIMULTECH 2021 - 11th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
188

DoD (2010) ‘Department of Defense Modeling and
Simulation Best Practices Guide’. US Department of
Defense.
Fogg, B. J. and Tseng, H. (1999) ‘The elements of computer
credibility’, in CHI 99 Human Factors in Computing
Systems Conference. Pittsburgh, PA: ACM Press, pp.
80–87.
Fovino, I. N. et al. (2010) ‘An experimental platform for
assessing SCADA vulnerabilities and countermeasures
in power plants’, in 3rd International Conference on
Human System Interaction, HSI’2010 - Conference
Proceedings. Rzeszow, Poland: IEEE, pp. 679–686.
Frank, M., Leitner, M. and Pahi, T. (2018) ‘Design
Considerations for Cyber Security Testbeds: A Case
Study on a Cyber Security Testbed for Education’, in
15th International Conference on Dependable,
Autonomic and Secure Computing, IEEE 15th
International Conference on Pervasive Intelligence and
Computing, IEEE 3rd International Conference on Big
Data Intelligence and Compu. Orlando, FL, USA:
IEEE, pp. 38–46.
Gao, H. et al. (2014) ‘An Industrial Control System Testbed
Based on Emulation, Physical Devices and Simulation’,
in Butts, J. and Shenoi, S. (eds) IFIP Advances in
Information and Communication Technology. Critical
I. Arlington, Virginia, USA: Springer Berlin
Heidelberg, pp. 79–91.
Gardiner, J. et al. (2019) ‘Oops I Did it Again : Further
Adventures in the Land of ICS Security Testbeds’, in
Proceedings of the 2019 Workshop on Cyber-Physical
Systems Security and Privacy. London, UK: ACM.
Government Office for Science (2018) Computational
Modelling: Technical Futures. London.
Grant, M. J. and Booth, A. (2009) ‘A typology of reviews:
An analysis of 14 review types and associated
methodologies’, Health Information and Libraries
Journal, 26, pp. 91–108.
Green, B. et al. (2017) ‘Pains, Gains and PLCs: Ten
Lessons from Building an Industrial Control Systems
Testbed for Security Research’, in 10th USENIX
Workshop on Cyber Security Experimentation and Test
(CSET ’17). Vancouver, Canada: USENIX Association
Berkeley, CA, USA, pp. 1–8.
GSE Systems (2017) Fidelity Matters: What ‘High-fidelity’
Really Means, Simulation & Training Blog.
Hahn, A. et al. (2013) ‘Cyber-physical security testbeds:
Architecture, Application, and Evaluation for Smart
Grid’, IEEE Transactions on Smart Grid, 4(2), pp. 847–
855.
Hilligoss, B. and Rieh, S. Y. (2008) ‘Developing a unifying
framework of credibility assessment: Construct,
heuristics, and interaction in context’, Information
Processing and Management. Elservier
(ScienceDirect), 44(4), pp. 1467–1484.
Holm, H. et al. (2015) ‘A Survey of Industrial Control
System Testbeds’, in In: Buchegger S., Dam M. (eds)
Secure IT Systems. Lecture Notes in Computer Science.
Switzerland: Springer, Cham, pp. 11–26.
Holm, H., Ekstedt, M. and Andersson, D. (2012) ‘Empirical
analysis of system-level vulnerability metrics through
actual attacks’, IEEE Transactions on Dependable and
Secure Computing, 9(6), pp. 825–837.
Kavak, H. et al. (2016) ‘A Characterization of
Cybersecurity Simulation Scenarios’, in 19th
Communications and Networking Simulation
Symposium (CNS’16). CA, USA: Society for Modelling
& Simulation International (SCS) & ACM, pp. 1–8.
Knowles, W. et al. (2015) ‘A survey of cyber security
management in industrial control systems’,
International Journal of Critical Infrastructure
Protection. Elsevier, 9, pp. 52–80.
Koutsandria, G. et al. (2015) ‘A Real-Time Testbed
Environment for Cyber-Physical Security on the Power
Grid’, in First ACM Workshop on Cyber-Physical
Systems-Security and/or PrivaCy - CPS-SPC ’15.
Denver, CO, USA: ACM, pp. 67–78.
Law, A. M. (2009) ‘How to build valid and credible
simulation models’, in Rossetti, M. D. et al. (eds) 2009
Winter Simulation Conference (WSC). Austin, TX,
USA: IEEE, pp. 24–33.
Lu, T. et al. (2014) ‘Cyber-Physical Security for Industrial
Control Systems Based on Wireless Sensor Networks’,
Downloads.Hindawi.Com, 2014.
McDonald, M. J. and Richardson, B. T. (2009) Position
Paper : Modeling and Simulation for Process Control
System Cyber Security Research , Development and
Applications, Center for Information Management,
Integration and Connectivity - Position Papers.
McLaughlin, S. et al. (2016) ‘The Cybersecurity Landscape
in Industrial Control Systems’, Proceedings of the
IEEE, 104(5), pp. 1039–1057.
McLean, C. et al. (2011) ‘Modeling and Simulation of
Critical Infrastructure Systems for Homeland Security
Applications’, NIST Special Publications. National
Institute of Standards and Technology, p. 86.
Pahi, T., Leitner, M. and Skopik, F. (2017) ‘Data
Exploitation at Large: Your Way to Adequate Cyber
Common Operating Pictures’, in 16th European
Conference on Cyber Warefare and Security. Reading,
Berkshire, UK: Academic Conferences and Publishing
International Ltd, pp. 307–315.
Patterson, E. A. and Whelan, M. P. (2017) ‘A framework to
establish credibility of computational models in
biology’, Progress in Biophysics and Molecular
Biology. Elsevier Ltd, 129, pp. 13–19.
Sadeghi, A.-R., Wachsmann, C. and Waidner, M. (2015)
‘Security and Privacy Challenges in Industrial Internet
of Things’, in 52nd Annual Design Automation
Conference on - DAC ’15. San Francisco, CA, USA:
ACM, pp. 1–6.
Salisbury, L. (2009) ‘Web of Science and Scopus: A
comparative review of content and searching
capabilities’, The Charleston Advisor, July, pp. 5–19.
Salunkhe, O. et al.
(2018) ‘Cyber-Physical Production
Testbed: Literature Review and Concept
Development’, Procedia Manufacturing. Elsevier
B.V., 25, pp. 2–9.
Schruben, L. W. (1980) ‘Establishing the credibility of
simulations’, Simulation. Simulation Councils Inc.,
34(3), pp. 101–105.
What Makes an Industrial Control System Security Testbed Credible and Acceptable? Towards a Design Consideration Framework
189

Siboni, S. et al. (2019) ‘Security Testbed for Interne-of-
Things Devices’, IEEE Transactions on Reliability,
68(1), pp. 23–44.
Stouffer, K. et al. (2015) ‘Guide to Industrial Control
Systems (ICS) Security - NIST.SP.800-82r2’.
Gaithersburg, Maryland: NIST, US Department of
Commerce, pp. 1–247.
Vaughn, R. B. and Morris, T. (2016) ‘Addressing Critical
Industrial Control System Cyber Security Concerns via
High Fidelity Simulation’, in 11th Annual Cyber and
Information Security Research Conference on - CISRC
’16. Oak Ridge, Tennessee, USA: ACM, pp. 1–4.
Young Rieh, S. and Hilligoss, B. (2008) ‘College Students’
Credibility Judgments in the Information-Seeking
Process’, in Metzger, M. J. and Flanagin, A. J. (eds)
Foundation Series on Digital Media and Learning. The
John D. Cambridge, MA: The MIT Press, pp. 49–72.
Zhao, W., Peng, Y. and Xie, F. (2013) ‘Testbed Techniques
of Industrial Control System’, in 3rd International
Conference on Computer Science and Network
Technology, ICCSNT 2013. Dalian, China: IEEE, pp.
61–65
SIMULTECH 2021 - 11th International Conference on Simulation and Modeling Methodologies, Technologies and Applications
190
