Empirical Evaluation on Utilizing CNN-features for Seismic Patch

Classiﬁcation

Chun-Xia Zhang

1 a

, Xiao-Li Wei

1 b

and Sang-Woon Kim

2 c

School of Mathematics and Statistics, Xi’an Jiaotong University, Xi’an, 710049, China

Department of Computer Engineering, Myongji University, Yongin, 17058, South Korea

Keywords:

Seismic Patch Classiﬁcation, Feature Extraction, CNN-features, Transfer Learning.

Abstract:

This paper empirically evaluates two kinds of features, which are extracted respectively with neural networks

and traditional statistical methods, to improve the performance of seismic patch image classiﬁcation. The

convolutional neural networks (CNNs) are now the state-of-the-art approach for a lot of applications in var-

ious ﬁelds, including computer vision and pattern recognition. In relation to feature extraction, it turns out

that generic feature descriptors extracted from CNNs, named CNN-features, are very powerful. It is also well

known that combining CNN-features with traditional (non)linear classiﬁers improves classiﬁcation perfor-

mance. In this paper, the above classiﬁcation scheme was applied to seismic patch classiﬁcation application.

CNN-features were acquired ﬁrst and then used to learn SVMs. Experiments using synthetic and real-world

seismic patch data demonstrated some improvement in classiﬁcation performance, as expected. To ﬁnd out

why the classiﬁcation performance improved when using CNN-features, data complexities of the traditional

feature extraction techniques like PCA and the CNN-features were measured and compared. From this com-

parison, we conﬁrmed that the discriminative power of the CNN-features is the strongest. In particular, the

use of transfer learning techniques to obtain CNN’s architectures to extract the CNN-features greatly reduced

the extraction time without sacriﬁcing the discriminative power of the extracted features.

1 INTRODUCTION

Recently, seismic wave fault detection using deep

learning techniques has been actively studied (Cunha,

A. et al., 2020), (Di, H. et al., 2018), (Hung, L. et al.,

2017), (Pochet, A. et al., 2019), (Wang, Z. et al.,

2018). In this approach, seismic images are ﬁrst di-

vided into patches of a certain size. The fault detec-

tion problem then becomes a two-class classiﬁcation

problem that classiﬁes fault and non-fault (normal)

patches. The fault detection problem can be solved

by identifying the location of patches classiﬁed as ab-

normal patches in the fault line. This paper focuses

on the classiﬁcation of patch data. First, feature vec-

tors are extracted from seismic patch data and then

classiﬁed as fault and non-fault patches using existing

classiﬁers to ﬁnd fault lines.

Convolutional neural networks (CNNs) are now

state-of-the-art approach for a lot of applications.

https://orcid.org/0000-0001-9639-4507

https://orcid.org/0000-0003-1383-8040

https://orcid.org/0000-0002-3172-8462

Based on their good performance, CNNs have re-

cently been used to detect seismic faults (Pochet, A.

et al., 2019). However, two constraints can be found

in this approach: one is the need to provide a huge

number of interpreted data (e.g., fault and nonfault

patches); the other is a signiﬁcant amount of time re-

quired to process them. To address the ﬁrst, a syn-

thetic data set having simple fault geometries has been

built. Therefore, the input to the CNN is the seismic

amplitude only. That is, the approach does not require

the calculation of the other seismic attributes, but the

second constraint remains without any solution.

As is commonly known, CNN takes a tremendous

amount of time to learn when allowing “sufﬁcient”

training data. Recently, it has been observed that

the convolutional (C) and fully-connected (FC) lay-

ers take most of the time to run (Donahue, J. et al.,

2014). In particular, since the latter is responsible

for multiplication of large-scale matrices, it consumes

most of the computation time up to 60%. From the

above review results and the ﬁndings in (Alshazly,

H. et al., 2019), (Athiwaratkun, B. and Kang, K.,

2015), (Donahue, J. et al., 2014), (Girshick, R. et al.,

166

Zhang, C., Wei, X. and Kim, S.

Empirical Evaluation on Utilizing CNN-features for Seismic Patch Classiﬁcation.

DOI: 10.5220/0010185701660173

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 166-173

ISBN: 978-989-758-486-2

2014), (Razavian, L. et al., 2014), and (Weimer, D.

et al., 2016), we may consider replacing the FC lay-

ers responsible for classifying seismic patch data us-

ing CNN with existing classiﬁers such as support vec-

tor machines (SVMs). The role of the C layer in this

framework is the same as that of PCA (principal com-

ponent analysis), for example.

The use of SVMs instead of FC layers is known

to improve classiﬁcation accuracy (Lin, T.-Y. et al.,

2015), but no analysis has been made on why. Rather

than embarking on a general analysis, in this paper we

will consider comparative studies that will be taken

as the basis for the above improvements. In addition,

measures of data complexity can be used to estimate

the difﬁculty in separating the sample points into their

expected classes. Especially, it has been reported that

the measurements are performed to ﬁgure out a va-

riety of characteristics related to data classiﬁcation

(Lorena, A. C. et al., 2018). From this point of view,

to derive an intuitive comparison and to answer the

above question, we will consider the measurements.

In this paper we use CNN-features in seismic

patch classiﬁcation. This feature allows CNN to avoid

learning time problems without compromising perfor-

mance. We also analyze data complexity to compare

the discriminating power of the features. The fol-

lowing sections in turn describe the relevant studies,

methods and results of experiments, conclusions, etc.

2 RELATED WORK

In this section we ﬁrst brieﬂy review some of the latest

results related to the design and performance evalua-

tion of the classiﬁers using the features extracted from

CNNs.

2.1 CNN-features

CNN-features consist of the values taken from the

activation units of the ﬁrst FC layer of the CNN ar-

chitecture (Athiwaratkun, B. and Kang, K., 2015).

Various studies have been conducted using CNN-

extracted features in many applications. First, in

(Oquab, M. et al., 2014), it is evaluated whether CNN

weights obtained from large-scale source tasks could

be transferred to a target task with a limited amount of

training material. Along with this study, many studies

on related to the extraction and utilization of CNN-

features have been conducted (Razavian, L. et al.,

2014), (Donahue, J. et al., 2014), (Zeiler, M. D. and

Fergus, R., 2014), (Girshick, R. et al., 2014).

Then, in (Hertel, L. et al., 2015), it was re-

ported again that reusing a previously trained CNN

as generic feature extractors leads to a state-of-the-art

result, meaning that CNNs are able to learn generic

feature extractors that can be used for different tasks.

Thus, some studies have recently been reported in the

industry on the techniques of extracting and then clas-

sifying feature vectors with this approach (Weimer, D.

et al., 2016), (Alshazly, H. et al., 2019).

In addition, in (Alshazly, H. et al., 2019), seven

best-performing hand-crafted descriptors were com-

pared with four CNN-based models using variants of

AlexNet (Krizhevsky, A. et al., 2012). Experiments

on three data sets reported that CNN-based models

were very superior to other models. However, it was

also pointed out that, to extract meaningful features

from raw data, the approach requires huge amounts

of training data. In case the generation of the data is

expensive, it might not be appropriate, as in (Sun, C.

et al., 2017).

2.2 Data Complexity

An attempt to identify the relationship between the

data and the classiﬁer that classiﬁes it was speciﬁcally

initiated in (Ho, T. K. and Basu, M., 2002). Since

then, it has been studied a lot. A few of them, but

not all, can be found in: (Sotoca, J. M. et al., 2006),

(Cano, J.-R., 2013), (Lorena, A. C. et al., 2018).

Measurements of data complexity can be divided

into three groups: (i) overlapping measurements of in-

dividual feature values, e.g. Fisher’s discriminant ra-

tio (F1), directional-vector Fisher’s discriminant ratio

(F1v or simply Fv), volume of overlap region (F2),

and maximum individual feature efﬁciency (F3), (ii)

measuring separability of grade, e.g. non-parametric

separability of classes (N2), distance of erroneous in-

stances to a linear classiﬁer (L1) or its training error

rate (L2), and (iii) neighborhood measures, e.g. vol-

ume of local neighborhood (D2)

On the other hand, the data complexity measure-

ments mentioned above have been used for various

applications such as meta-analysis of classiﬁers, pro-

totype selection, and feature selection. In addition,

another application that enables the proper use of

complexity measurements in deep learning is an ap-

plication that analyzes and organizes the capabilities

of a number of learning algorithms by application

area. In this paper we are going to use the data com-

plexities to explain why using the CNN-features im-

proves classiﬁcation performance.

A detailed description of each of these parameters is

omitted here, but can be found in the literature.

Empirical Evaluation on Utilizing CNN-features for Seismic Patch Classiﬁcation

167

3 METHODS AND DATA

This section ﬁrst introduces the classiﬁcation meth-

ods associated with current empirical research, then

provides the structure of seismic wave image data de-

veloped in this paper.

3.1 Classiﬁcation Methods

The classiﬁcation of the seismic patch data (as de-

scribed in Section 3.2) in this paper is carried out

by a method (named HYB) that hybridizes the exist-

ing linear (nonlinear) classiﬁer (e.g., SVM) and the

convolution neural network. HYB is a classiﬁcation

framework in which feature extraction is performed

on CNN from input seismic patches and then SVM is

trained using the extracted features. In particular, a

pretrained CNN model is used for initialization when

extracting CNN-feature vectors.

In HYB, feature vectors are obtained in the CNN

architecture (as described in Section 4.1) as follows:

this is an mid-level representation just before the in-

put image passes through the C layers that make up

the CNN and then passes it to the FC layers. There-

fore, the dimension of the feature vectors is equal to

the number of neurons that make up the ﬁrst FC layer.

As a result, the CNN-speciﬁc dimensions can be op-

timized by determining the number of FC input neu-

rons appropriate for a given application.

To extract CNN-features as described above, the

CNN’s weights that make up the C layers should be

ﬁxed in advance. To this end, transfer learning tech-

niques can be used. In transfer learning, the cardinal-

ity of the dataset of the target task is less than that of

the training dataset of the source task. Therefore, the

CNN-feature extraction method can avoid the com-

mon problem of CNN needing a large amount of data

for learning. In addition, CNN learning in the transfer

learning mode is made up of ﬁne-tuning. Therefore,

a small number of epochs can signiﬁcantly reduce the

learning time.

3.2 Seismic Data

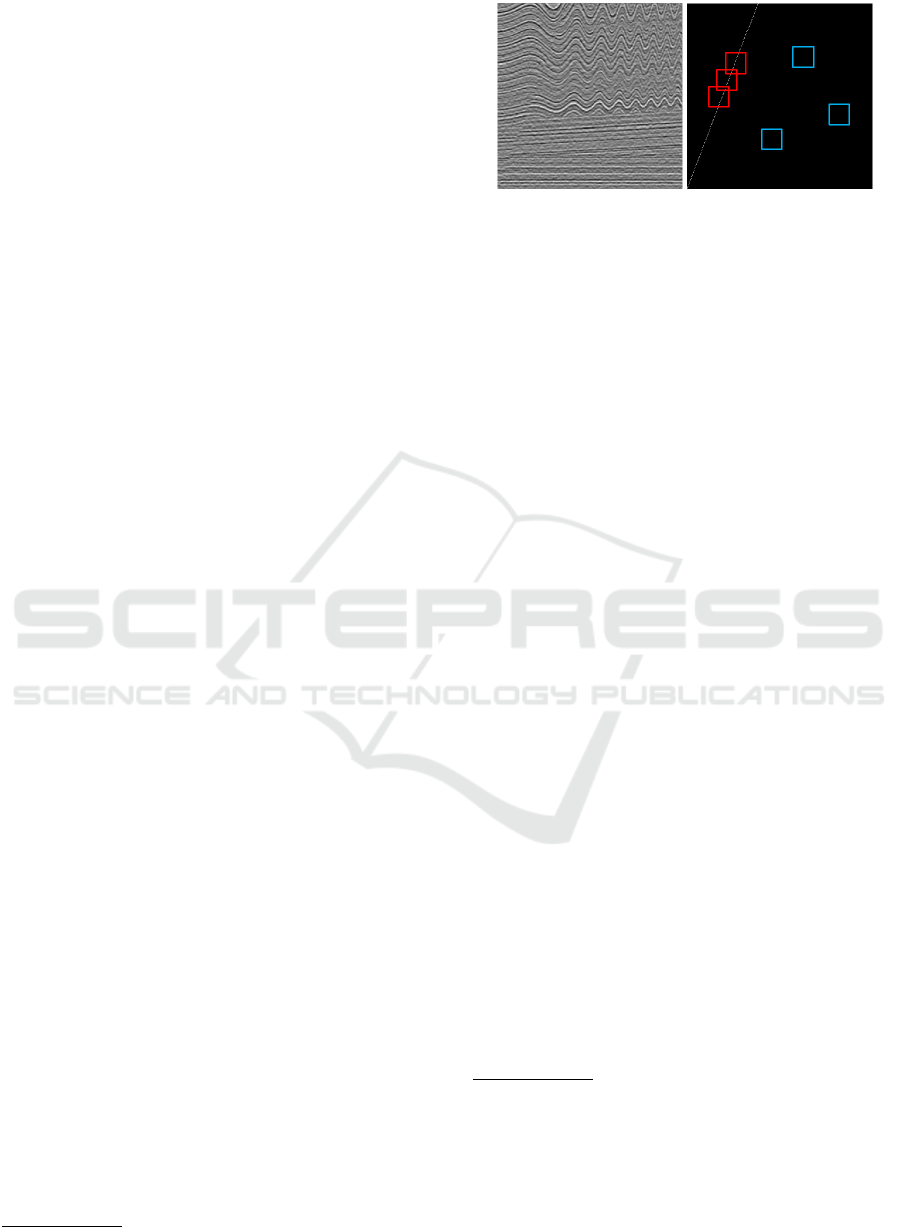

Fig. 1 presents an example of a synthetic seismic wave

image (left) and a fault line (right) to be extracted

from it. The data set of the synthetic seismic wave im-

ages (501 × 501 pixels), reproduced through the open

source code IPF

, is an artiﬁcial implementation of

sequential rock deformation over time.

A total of 500 seismic images have been prepared,

and each of them contains one fault line with differ-

ent slopes and positions. The corresponding fault po-

https://github.com/dhale/ipf

Figure 1: Plots presenting a synthetic seismic image (left)

and a fault line (right). Blocks marked in red and blue indi-

cate fault and non-fault patches respectively.

sition in each image was indicated in white by gener-

ating binary masks, referring to the seismic amplitude

information.

From the data set composed of image pairs shown

in Fig. 1 (where, the two images on the left and right

side include seismic waves and fault lines respec-

tively), the fault and non-fault patches were extracted.

One patch is a (45 × 45)-dimensional matrix with one

candidate pixel in the center and 2024 pixels adja-

cent to it

. This patch can be classiﬁed as a fault

patch or non-fault patch according to the following

rule: if the candidate pixel is a pixel forming a fault

line, then it becomes a fault patch; otherwise it be-

comes a non-fault patch. For example, referring to the

fault line matrix shown in Fig. 1 (right), all possible

fault patches were ﬁrst extracted and then the same

number of non-fault patches were randomly extracted

from the seismic wave image shown in Fig. 1 (left).

4 EXPERIMENT

In this section we present the evaluation results on

experimental datasets and comparisons to the related

methods. For kernel- PCA (kPCA) using ‘gaussian’

kernel (Wang, Q., 2012)

and discriminative Auto-

Encoder (AE) (Gogna, A. and Majumdar, A., 2019)

the original implementations provided by the authors

were used without change. CNN was implemented

in the simplest structure to perform basic functions

Then, SVM was realized from LIBSVM

This is known to be the smallest patch size that pro-

vides satisfactory results (Pochet, A. et al., 2019).

https://www.mathworks.com/matlabcentral/ﬁle-

exchange/39715-kernel-pca-and-pre-image-reconstruction

https://www.mathworks.com/matlabcentral/ﬁle-

exchange/57347-autoencoders

https://github.com/rasmusbergpalm/DeepLearnToolbox

https://www.csie.ntu.edu.tw/

∼

cjlin/libsvm/

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

168

Table 1: The CNN architecture implemented.

descriptions IN OUT outputmaps kernelsize

convolution 45 × 45 40 × 40 4 6

subsampling 40 × 40 20 × 20

convolution 20 × 20 16 × 16 8 5

subsampling 16 × 16 8 × 8

fully connected 8 × 8 2 × 1

4.1 Experimental Data

The CNN-feature extractor was tested and compared

with traditional ones such as PCA, kPCA, and AE.

Here PCA was chosen as one of the best known linear

extractors, and kPCA as one of the nonlinear versions.

In addition, AE was included as one of the feature ex-

tractors that could be implemented in a network based

manner. Experiments were performed using seismic

patch data, named Train1 (Train2 and Test1).

From the total 500 seismic wave images, three

patch sets of ‘Test1’, ‘Train1’, and ‘Train2’ were con-

structed as follows: Test1 is a set of 76, 038 patches

extracted from the ﬁrst 100 images; Train1 is a set

of 74, 046 patches extracted from 100 images from

101 to 200; and Train2 is a set of 290, 074 patches

extracted from 400 seismic images from 101 to 500.

Train1 and Test1 were used to extract and evaluate

CNN-features, and Train2 was used to generate pre-

trained models needed to extract the CNN-features.

In all experiments carried out in subsequent sec-

tions, the same training and testing process were car-

ried out. First, the features of the training data were

ﬁrst extracted according to a given feature extractor,

then the features of the test data was extracted by the

same process. One SVM was learned using features

extracted from the training data and the features of the

test data were used to evaluate this SVM.

4.2 The CNN Architecture

Table 1 presents the architecture of the CNN imple-

mented in this paper. This is a structure consisting of

two C’s and subsampling layers and one FC layer, one

of the smallest scale needed for the evaluation exper-

iments we are trying to realize.

In Table 1, the last component at the bottom of

the CNN is a set of FC layers, and the number of in-

put neurons of this component is deﬁned as the num-

ber of weights output from the previous layer. The

CNN-features we are trying to extract consist of these

input neurons that connect directly to FC. Therefore,

the dimension of the feature vector can be determined

by adjusting the number of these neurons. However,

in order to ﬁnd any new feature dimension, the cor-

responding structure should be retrained. Therefore,

we ﬁrst got CNN-features from CNN and then applied

PCA to this vector set to reduce the dimension to the

target dimension.

Finally, this paper deals with the 2-class problem

of classifying the image patches as normal and abnor-

mal. Therefore, it is necessary to adjust the number

of neuron units in the output layer when expanding to

multi-class problems. In addition, a softmax function

is required to obtain normalized probabilities for each

class.

The CNN shown in the table was properly learned

and evaluated using the experimental data. To do this,

various parameters, including learning rate (α), mo-

mentum (µ), batch-size (γ), and number of epochs (η),

need to be set, and we experimentally set these values

as follows: α = 1, µ = 0.5, γ = 10, and η = 100.

4.3 Experiment #1: Synthetic Data

To conﬁrm that the use of CNN-features actually

improves classiﬁcation performance, we ﬁrst exper-

imented with the synthetic seismic data.

4.3.1 Comparison of Classiﬁcation Accuracy

Prior to presenting the classiﬁcation accuracy, the task

of using data to select optimal or near-optimal param-

eters for the experiment was considered. To achieve

the best classiﬁcation accuracy, we ﬁrst need to se-

lect an optimized dimension value that is neither too

large nor too small. A simple preliminary experiment

was conducted in this paper to select dimensions op-

timized for the space of CNN-features. Speciﬁcally,

the experiment showed that the highest classiﬁcation

accuracy was achieved when the dimension of the fea-

ture subspace was 256. Then the number of epochs

was optimized by referring to the learning curve to

prevent overﬁtting.

In addition, for more successful extraction, two

types of CNN-features, CNN1- and CNN2-features,

were extracted from Train1 in different ways and

compared. The CNN1-features were extracted from

randomly initialized architectures, but the CNN2-

features were extracted using pretrained models.

From the comparison of the two classiﬁcation accu-

racy rates obtained with the CNN1- and the CNN2-

features, the latter was superior to the former. This

means that using pretrained CNN models leads to an

improved performance in classiﬁcation. Based on this

observation, we used the CNN2-features as CNN-

features in the following experiments. At this time,

the pretrained CNN model was prepared using Train2

(# epochs is 300). Then, using Train1 (# epochs

is 200), we ﬁne-tuned a CNN model and extracted

CNN-features from it.

Empirical Evaluation on Utilizing CNN-features for Seismic Patch Classiﬁcation

169

In general, however, there is no optimal feature ex-

tractor for all classiﬁers, and vice versa. Thus, various

classiﬁers were ﬁrst applied to verify the performance

of CNN-based extractors. Table 2 shows a numerical

comparison of classiﬁcation accuracy measured by

NNs (nearest neighbor rules) and SVMs

. Here the

process of evaluating classiﬁcation performance by

randomly selecting a subset of 20, 000 (and 15, 000)

from Train1 (and Test1) was repeated ten times and

the results obtained were averaged. In each iteration,

a pretrained model ﬁne-tuned by one subset of Train1

was jointly used.

From the comparison shown in Table 2, it can be

re-observed that the use of the CNN-based extrac-

tor in conjunction with existing classiﬁers can signif-

icantly improve classiﬁcation accuracy compared to

other extractors included in the comparison. It is note-

worthy that the CNN-based extractor uses not only

training data but also pretrained CNN models that

could not be used for other extractions. Under this

condition, direct comparison of the four feature ex-

tractors may not be fair. However, from the perspec-

tive of machine learning, such as transfer learning,

the results of this experiment are shown to suggest

one possibility related to the new feature extractor.

From this consideration, the performance improve-

ments observed in the last column of the table may

have resulted from the discriminating ability of the

pretrained models.

In addition to using the accuracy of numerical

metrics, classiﬁcation performance can also be com-

pared using ROC (receiver operating characteristic)

curves. From the ROC curves obtained, it was

revealed that the CNN-features have generated the

curve closest to the upper left corner and the highest

AUC (area under the curve) value.

4.3.2 Comparison of Data Complexities

To highlight why the use of the CNN-features im-

proves classiﬁcation performance, complexity mea-

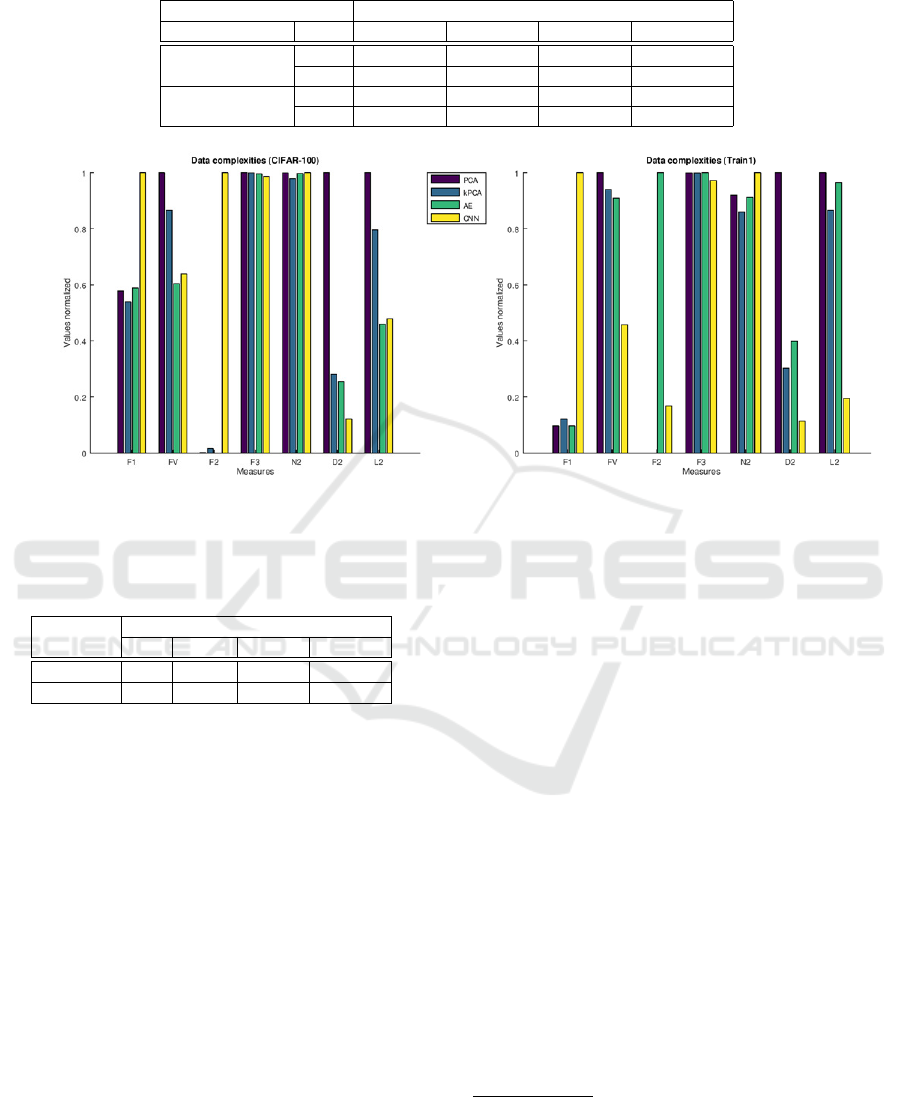

sures were also measured and compared. Fig. 2 com-

pares the complexity measures obtained by applying

the four extractors to two data, Train1 and CIFAR-100

(Krizhevsky, A., 2009). Here the latter was used in

reference experiments for comparison. The original

CIFAR data were converted into a 45 × 45 grayscale

set consisting of 20 classes for testing under the same

conditions. Then, only two classes of 5, 000 (and

1, 000) samples were selected “randomly” as training

Each of these two classiﬁers was chosen as one of the

easiest to learn and the most widely used classiﬁers. There-

fore, thorough evaluation using other classiﬁers such as ad-

abust and decision tree is a future challenge.

(and test) data.

In Fig. 2, it can be observed that the relative mag-

nitude of the measured complexity values from the

feature vectors extracted in four ways is mostly very

similar. For easy observation, consider together the

accuracy rate of Table 2 and the data complexity of

Fig. 2. Compared to the accuracy of PCA and CNN-

features in Table 2, CNN-based is superior to PCA.

In Fig. 2, when comparing the F1 complexity values

for these two extractors, the CNN-based bar height is

higher than that of the PCA. However, the comparison

of Fv, D2, and L2 complexity is the opposite. Specif-

ically, the fact that the CNN-based accuracy rate in

Table 2 is greater than that of PCA is consistent with

the fact that the CNN-based F1 bar in Fig. 2 is higher

than that of PCA. However, the comparison of Fv val-

ues is the opposite. The Fv value is small when the

accuracy rate is large. As already reported in the rele-

vant literature, the increasing value of F1 reduces the

overlapping feature space and thus allows better sep-

aration of the feature space of the two classes. Unlike

F1, the smaller the value measured in Fv, the sim-

pler the classiﬁcation problem. Similar comparative

analyses can be applied for the remaining other com-

plexity metrics.

In Fig. 2, however, F2 shows different character-

istics for CIFAR-100 and Train1. In general the larger

the F2 value, the greater the overlap between classes

and, therefore, the more difﬁcult the classiﬁcation is.

In addition, if there is at least one non-overlapping

feature, the result of the calculation expression is zero

(Lorena, A. C. et al., 2018). Furthermore, this mea-

sure differs in sensitivity from classiﬁcation accuracy

depending on the type of classiﬁer and does not pro-

duce reasonable information for use in the case of

SVM classiﬁers (Cano, J.-R., 2013).

From the observations made above, the CNN-

based extractor can be argued to be a good feature

extractor comparable to the AE-based as well as the

PCA (kPCA). In particular, this extractor can be ap-

plied to applications where existing extractors do not

work well due to the nature of the data. In various

practices dealing with high-dimensional data, PCA,

which relies on covariance matrices, is known to be

rarely used because they are not efﬁcient.

4.3.3 Comparison of Time Complexities

Finally, to make the comparison complete, the time

complexity of the proposed approach with the experi-

mental data was explored. Rather than embarking on

another analysis of the computational complexities of

the approaches, however, the time consumption levels

for the datasets were simply measured and compared.

In the interest of brevity, the processing CPU-times

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

170

Table 2: The classiﬁcation accuracy mean rates (%) (and standard deviation in parentheses) measured with the four extractors

for Train1 and Test1. Here the highest accuracy in each row is highlighted with a ? marker.

classiﬁcation methods feature extraction methods

classiﬁers types PCA kPCA AE-features CNN-features

kNN k = 1 69.93 (0.56) 72.07 (0.36) 70.13 (0.61)

74.45 (0.50)

k = 3 68.72 (0.85) 71.53 (0.34) 69.08 (0.89)

75.80 (0.39)

SVM polyn. 52.91 (0.16) 65.13 (0.30) 65.92 (0.45)

80.58 (0.30)

(opts = ’-s 0 -t 1/2’) rbf 73.32 (0.40) 75.76 (0.41) 76.45 (0.37)

85.14 (0.25)

Figure 2: Plots comparing the four complexity measures obtained in the four subspaces developed from CIFAR-100 (left)

and Train1 (right). For ease of comparison, the complexity values measured in each of the four subspaces were divided into

the largest of the four values and then displayed graphically.

Table 3: The processing CPU-times (in seconds) measured

with the four extraction methods.

datasets feature extraction methods

PCA kPCA AE-feat. CNN-feat.

CIFAR-100 6.4 99.8 6,103.9 6.3

Train1 8.3 7,775.0 9,560.8 35.5

(in seconds) for each data set is the time obtained by

repeating the feature extraction several times and then

averaging it.

Table 3 presents a numerical comparison of the

processing CPU-times (in seconds). Here the times

recorded are the required CPU-times on a laptop com-

puter with a CPU Core(TM) i7-9750H speed of 2.60

GHz and RAM 16.0 GB, and operating on a Window

10 Home 64-bit platform.

In the results of the comparison, it can be observed

that the extractor of CNN-features requires a much

shorter processing CPU-time than the traditional non-

linear algorithms (i.e., kPCA) for the datasets used. In

particular, this result demonstrates that the extractor

can dramatically reduce processing time compared to

other network-based methods (e.g., AE-features).

However, it should be noted that extracting the

CNN-features requires a pretrained model. That is,

the CNN-features were obtained after training in the

CNN architecture using the pretrained model as an

initial weight matrix (i.e., after ﬁne-tuning). In this

experiment, CIFAR-100 (train) was used for CIFAR

to obtain the pretrained model (# epochs is 100), and

Train2 was used for seismic data (# epochs is 300).

Then, the training time for these models was excluded

when counting the processing time in Table 3.

4.4 Experiment #2: Real-world Data

To further investigate the improvement, we extracted

patch data from real seismic wave image data and then

repeated the above classiﬁcation. Our real seismic im-

ages were cited from Project Netherlands Offshore F3

Block - Complete

First, fault lines were marked manually after the

fault and normal patches were extracted from the real

seismic images

. For simple comparative analysis,

only ten seismic images were displayed with the fault

lines. Then, when extracting patches, the number of

patches on the larger side was adjusted to the smaller

side by randomly selecting them to prevent imbal-

ance between classes. A total of 52, 026(= 26, 013 +

26, 013) fault and non-fault patches were extracted

https://terranubis.com/datainfo/Netherlands-Offshore-

F3-Block-Complete

The work of assigning fault lines to real seismic wave

images should be done by human labelers using appropriate

tools, as was in ImageNet (Krizhevsky, A. et al., 2012).

Empirical Evaluation on Utilizing CNN-features for Seismic Patch Classiﬁcation

171

Table 4: The classiﬁcation accuracy mean rates (%) (and standard deviation in parentheses) measured with the four extractors

from the real seismic data. Here the highest accuracy in each row is highlighted with a ? marker.

classiﬁcation methods feature extraction methods

classiﬁers types PCA kPCA AE-features CNN-features

kNN k = 1 92.47 (0.39) 93.10 (0.25) 86.33 (0.34)

95.49 (0.27)

k = 3 84.52 (0.46) 86.56 (0.42) 74.59 (0.43)

93.60 (0.15)

SVM polyn. 80.20 (0.47) 86.69 (0.45) 72.69 (0.00)

85.47 (0.42)

(’-s 0 -t 1/2 -c 10’) rbf 91.16 (0.27) 93.32 (0.29) 83.58 (0.00)

95.22 (0.24)

Table 5: The classiﬁcation accuracy rates (%) obtained with

a fully-connected CNN and two HYBs.

classiﬁers synthetic data real data

CNN (fully-connected) 84.78 (0.28) 92.82 (0.16)

kNN (k = 1) 74.48 (0.32) 95.52 (0.19)

SVM (’-s 0 -t 2 -c 10’) 85.06 (0.23) 95.20 (0.21)

from the ten seismic images.

Next, the extracted patches were classiﬁed in the

four ways and the accuracy was compared. The eval-

uation here was conducted under the same conditions

as the experiments in Table 2, including all param-

eters for extracting CNN-features and learning the

classiﬁers. In particular, as recently was done in

(Cunha, A. et al., 2020), the pretrained model used

for CNN learning of synthetic data was used after

ﬁne-tuning using the real-world patch data. Table 4

presents a numerical comparison of the classiﬁcation

accuracy (mean and standard deviation in parenthe-

sis) rates (%). A random selection of 10, 000 (and

10, 000) patches was made for training (and test) data.

The assessment was repeated ten times and the results

obtained were averaged.

From Table 4, we can rediscover the results of ex-

periments very similar to those seen in Table 2. The

CNN-feature has again obtained the highest accuracy

in all classiﬁcations of the real-world patch data, as

in the previous synthetic data. This means that us-

ing CNN-features can meaningfully improve classi-

ﬁcation accuracy, and as discussed earlier, these im-

provements are attributed to the pretrained models. To

avoid repetition, among the experiments carried out in

Section 4.3, experiments other than classiﬁcation ac-

curacy comparisons were omitted here.

Rather than using fully-connected CNNs, CNN-

features were categorizied using conventional (non-)

linear classiﬁers in the experiments. Thus, a compar-

ative analysis of these two recognition systems was

made. Table 5 presents a comparison of the classi-

ﬁcation accuracy (%) measured with three classiﬁers

for the synthetic and real-life seismic data. The as-

sessments performed under the conditions shown in

Table 4 were averaged ten times over.

In Table 5, it can be inspected that the accuracy of

HYB is superior to that of CNN: SVM is always good

and NN is good in real-life data. Through this ob-

servation we can conclude that by hybridizing CNN-

features with existing classiﬁers, we can improve the

classiﬁcation of seismic patch data.

5 CONCLUSIONS

In an effort to design a pattern recognition system that

can be successfully utilized for seismic patch classi-

ﬁcation, a method of extracting feature vectors ob-

tained using CNNs was considered and empirically

evaluated. In this paper CNN-features were acquired

ﬁrst using a pretrained CNN model and then used to

learn an existing classiﬁer, such as SVM. This type

of classiﬁcation is equivalent to replacing the FC lay-

ers of the CNN with the classiﬁer. Simulation using

the experimental data conﬁrmed that the features were

extracted at a relatively rapid rate and the classiﬁca-

tion performance improved.

To answer the question why this hybrid is superior

to the original CNN, relationship between data com-

plexity and classiﬁcation accuracy of input feature

vectors was investigated. We ﬁrst identiﬁed the rela-

tionship using one public data that allows for visual

observation. This relationship was then rechecked

with experimental data. After extracting PCA-based

and CNN-based features, the data complexity and

classiﬁcation accuracy were measured and compared

for these two types of features. From the comparison

obtained, it was observed that the discriminative abil-

ities of the latter outperformed that of the PCA-based.

Although it was demonstrated that the classiﬁ-

cation can be improved by using the CNN-features,

the architecture was simply determined by referring

to the smallest structure that can express basic algo-

rithms. Thus, a comprehensive evaluation using var-

ious architectures such as GoogLeNet, ResNet, and

VGGNet for another structure of seismic wave data

remains a task to compare with the state-of-the-art

results in the domain. Also, empirical comparisons

were made with a limited number of feature extrac-

tors using seismic datasets that only represent an am-

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

172

plitude attribute. In addition to these limitations, the

problem of theoretically investigating CNN-based ex-

tractors to extract powerful features remains unre-

solved.

ACKNOWLEDGEMENTS

This work was supported in part by the National

Key Research Development Program of China (No.

2018AAA0102201) and the National Natural Science

Foundation of China (No. 11671317).

REFERENCES

Alshazly, H., Linse, C., Barth, E., and Martinetz, T. (2019).

Handcrafted versus CNN features for ear recognition.

In Symmetry, volume 11, pages 1493.1–1493.27.

Athiwaratkun, B. and Kang, K. (2015). Feature repre-

sentation in convolutional neural networks. In arXiv

preprint arXiv:1507.02313.

Cano, J.-R. (2013). Analysis of data complexity measures

for classiﬁcation. In Expert Systems with Applica-

tions, volume 40, pages 4820–4831.

Cunha, A., Pochet, A., Lopes, H., and Gattass, M. (2020).

Seismic fault detection in real data using transfer

learning from a convolutional neural network pre-

trained with synthetic seismic data. In Computers &

Geosciences, volume 135, pages 104344.1–104344.9.

Di, H., Wang, Z., and AlRegib, G. (2018). Seismic fault

detection from post-stack amplitude by convolutional

neural networks. In Proc of 80th EAGE Conference

and Exhibition, pages 1–5.

Donahue, J., Jia, Y., Vinyals, O., Hoffman, J., Zhang, N.,

Tzeng, E., and Darrell, T. (2014). Decaf: A deep con-

volutional activation feature for generic visual recog-

nition. In Proc of the 31st Int’l Conf. Mach. Learning

(ICML), pages 647–655.

Girshick, R., Donahue, J., Darrell, T., and Malik, J. (2014).

Rich feature hierarchies for accurate object detection

and semantic segmentation. In Proc of IEEE Conf on

CVPR (CVPR), pages 580–587.

Gogna, A. and Majumdar, A. (2019). Discriminative au-

toencoder for feature extraction: application to char-

acter recognition. In Neural Processing Letters, vol-

ume 49, pages 1723–1735.

Hertel, L., Barth, E., K ¨aster, T., and Martinetz, T. (2015).

Deep convolutional neural networks as generic feature

extractors. In Proc of Int’l Joint Conf on Neural Net-

works (IJCNN), pages 1–4.

Ho, T. K. and Basu, M. (2002). Complexity measures of su-

pervised classiﬁcation problems. In IEEE Trans. Pat-

tern Anal. Mach. Intell., volume 24, pages 289–300.

Hung, L., Dong, X., and Clee, T. (2017). A scalable

deep learning platform for identifying geologic fea-

tures from seismic attributes. In The Leading Edge,

volume 36, pages 249–256.

Krizhevsky, A. (2009). Learning multiple layers of features

from tiny images. Univ. Toronto, Canada.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. In Advances in Neural Information Pro-

cessing Systems (NIPS), pages 1097–1105.

Lin, T.-Y., RoyChowdhury, A., and Maji, S. (2015). Bilin-

ear CNN models for ﬁne-grained visual recognition.

In Proc of Int’l Conf on CV (ICCV), pages 1449–1457.

Lorena, A. C., Garcia, L. P. F., Lehmann, J., Souto,

M. C. P., and Ho, T. K. (2018). How complex is

your classiﬁcation problem? A survey on measuring

classiﬁcation complexity. In ACM Comput. Surv., vol-

ume 52, pages 107:1–107:34.

Oquab, M., Bottou, L., Laptev, I., and Sivic, J. (2014).

Learning and transferring mid-level image represen-

tations using convolutional neural networks. In Proc

of IEEE Conf on CVPR (CVPR), pages 1717–1724.

Pochet, A., Diniz, P. H. B., Lopes, H., and Gattass, H.

(2019). Seismic fault detection using convolutional

neural networks trained on synthetic poststacked am-

plitude maps. In IEEE Geoscience and Remote Sens-

ing Letters, volume 16, pages 352–356.

Razavian, L., Azizpour, H., Sullivan, J., and Carlsson, S.

(2014). Cnn features off-the-shelf: an astounding

baseline for recognition. In Proc of IEEE Conf on

CVPR (CVPR), pages 512–519.

Sotoca, J. M., Mollineda, R. A., and S ´anchez, J. S. (2006).

A meta-learning framework for pattern classiﬁcation

by means of data complexity measures. In Revista

Iberoamericana de Inteligencia Artiﬁcial, volume 10,

pages 31–38.

Sun, C., Shrivastava, A., Singh, S., and Gupta, A. (2017).

Revisiting unreasonable effectiveness of data in deep

learning era. In Proc of Int’l Conf on CV (ICCV),

pages 843–852.

Wang, Q. (2012). Kernel principal component analysis and

its applications in face recognition and active shape

models. In arXiv preprint arXiv:1207.3538.

Wang, Z., Di, H., Shaﬁq, M. A., Alaudah, Y., and AlRegib,

G. (2018). Successful leveraging of image processing

and machine learning in seismic structural interpre-

tation: A review. In The Leading Edge, volume 37,

pages 451–461.

Weimer, D., Scholz-Reiter, B., and Shpitalni, M. (2016).

Design of deep convolutional neural network archi-

tectures for automated feature extraction in industrial

inspection. In CIRP Annals - Manufacturing Technol-

ogy, volume 65, pages 417–420.

Zeiler, M. D. and Fergus, R. (2014). Visualizing and under-

standing convolutional networks. In Proc of European

Conf on CV (ECCV), pages 818–833.

Empirical Evaluation on Utilizing CNN-features for Seismic Patch Classiﬁcation

173
