A Methodology for Deriving Evaluation Criteria for Software

Solutions

Harald Papp

and Marc Hanussek

Department for Digital Business, University of Stuttgart, Institute of Human Factors and Technology Management (IAT),

Nobelstraße 12, 70569 Stuttgart, Germany

Keywords: Software Solution, Digitization, Requirements Management, Machine-Learning-as-a-Service,

Small-Medium-Sized Enterprises.

Abstract: Finding a suited software solution for a company poses a resource-intensive task in an ever-widening market.

Software should solve the technical task at hand as perfectly as possible and, at the same time, match the

company strategy. Based on these two dimensions, domain knowledge and industry context, we propose a

methodology for deriving individually tailored evaluation criteria for software solutions to make them

assessable. The approach is formalized as a three-layer model, that ensures the encoding of said dimensions,

where each layer holds a more refined and individualized criteria list, starting from a general software-

agnostic catalogue we composed. Finally, we exemplarily demonstrate our method for Machine-Learning-as-

a-Service platforms (MaaS) for small and medium-sized enterprises (SME).

1 INTRODUCTION

Increasing digitization offers huge potential for

enterprises to streamline and automate processes and

services and thus increase the value creation in the

company (Loebbecke & Picot, 2015). Choosing the

right software solution for internal processes is a

crucial step towards optimal workflow. This requires

not only a constantly updated market overview to

catch up on the ever-increasing software-supply, but

an accurate assessment of the company needs

(Schmidt, et al., 2015).

However, the variety of services and the

specificity of solutions makes it difficult for non-

experts to choose the right product. On the other hand,

technical experts might not have the strategic insight,

as well as detailed industry knowledge.

For orderly assessment of such challenges,

requirements managers are employed. Their scope of

action includes leading the communication between

internal and external stakeholders, transforming

overall objectives into tangible requirements. They

aim to generate a mutual understanding of the

complex problem at hand between all involved parties

(Stellman & Greene, 2005).

https://orcid.org/0000-0002-8255-1556

https://orcid.org/0000-0002-8041-8858

Since the selection of a software solution for

company-internal purposes neglects external

stakeholders, we will address a subset of common

requirements management methodologies. In this

paper we hypothesize that the problem space for

choosing an optimal company-intern software

solution is comprised of two dimensions.

Accordingly, a requirements manager in the

context of this work is not to be understood from a

common project management perspective, but in the

role of flexibly adopting the two mentioned

dimensions: domain knowledge and industry context.

1.1 Domain Knowledge vs. Industry

Context

For the scope of this paper we define two abstract

dimensions to describe the theoretical basis of our

approach. This simplifies a multi-dimensional

problem to a more manageable setting. Every

possible aspect is then part of either one of the

dimensions.

There is domain knowledge, the knowledge

coming from an expert of the field, where the new

software solution is to be employed. The expert works

Papp, H. and Hanussek, M.

A Methodology for Deriving Evaluation Criteria for Software Solutions.

DOI: 10.5220/0010203001450152

In Proceedings of the 10th International Conference on Operations Research and Enterprise Systems (ICORES 2021), pages 145-152

ISBN: 978-989-758-485-5

145

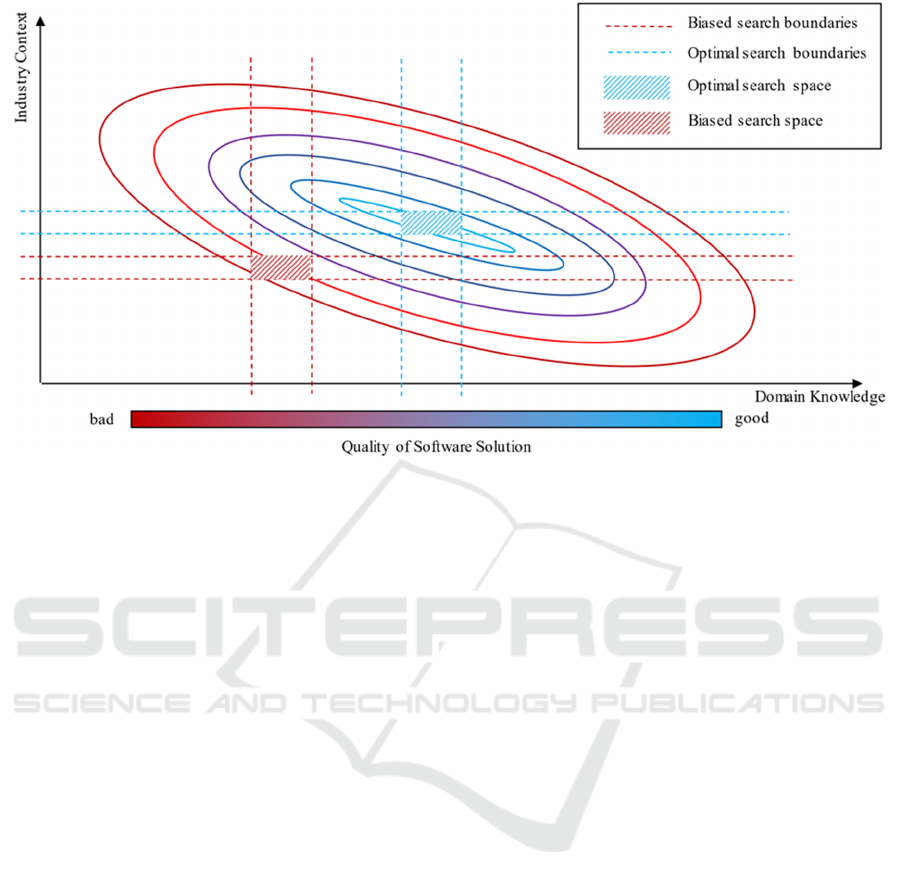

Figure 1: Schematic depiction of the theoretical foundation of the model. On the axes, the two presented dimensions are

depicted (although not necessarily orthogonal). A point on the graph is defined as the matching score: How well is a software

solution suited. Theoretical matching scores for a specific software solution are illustrated in form of an ellipse.

with the current suboptimal product, can assess its

perks and drawbacks, knows about the future

professional trajectory of his field and thus is able to

generate requirements from his perspective.

On the other hand, the term industry context

summarizes all information about company size,

market segmentation and niche of the company as

well as its strategy. It is a broader, coarser

perspective, inspired by KPIs (Key Performance

Indicators) and company policies, like interfaces,

personal resource allocations together with company

guidelines.

1.2 Different Actors Propose Different

Criteria

These two dimensions must not be understood as

mathematical dimensions, where linear independence

holds, but from a pragmatic company-hierarchy

perspective. They depict the perspective of different

states of mind from individual actors in a company

and both need to be encoded into a criteria list for a

software solution, so that all requirements can be met.

If an actor, who thinks in industry context terms

proposes a list of criteria for assessing the optimal

software solution, simply by definition of human

nature, he encodes a bias to the criteria list (Evans,

1989). For example, low cost and low implementation

effort might be driving factors.

This holds for an actor, who thinks in domain

knowledge terms, vice versa. Here, the bias might be

directed towards performance and functionality.

1.3 Choosing the Wrong Search Space

Thus, a criteria list which stems from a single party

tends to be incomplete. The so-created search space

in the field of all possible software solutions, does not

necessarily allow for a global maximum (ergo the

best possible solution), but tends to result in a local

one (a solution which is subjectively optimal). Only

by bringing both dimensions into account, the optimal

solution can be found in the overlap of the respective

search spaces (see Figure 1). De facto, especially

large companies tend to struggle to bring the two

dimensions together (Lund & Gjerding, 1996).

However, there is a wide spectrum of proposed

methodologies to derive criteria for assessing the best

software solution, that try to solve such problems.

1.4 Related Work

In (Jadhav & Sonar, 2009) the authors review

evaluation and selection of software packages. They

discuss various software evaluation techniques such

as Analytic Hierarchy Process, feature analysis,

weighted average sum and a fuzzy based approach.

They also provide evaluation criteria which they

subdivide into categories such as Functional,

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

146

Personalizability, Portability, Maintainability,

Usability, Reliability, Efficiency, Vendor, Cost and

Benefits. The authors clearly state that “there is lack

of a common list of generic software evaluation

criteria and its meaning”.

In (Godse & Mulik, 2009) selection of Software-

as-a-Service Product is discussed. They use the

Analytic Hierarchy Process for calculating weights of

selection parameters and scores for products. The

selection parameters they quote, are Functionality,

Architecture, Usability, Vendor Reputation, and

Cost. They assert that “there is no explicit guidance

available on selection of SaaS product for business

application”.

The authors of (Ekanayaka, Currie, & Seltsikas,

2003) evaluate application service providers (ASP)

by using an evaluation framework that comprises

categories such as “security, pricing, integration,

service level agreement, and reliability, availability

and scalability”. They state that SMEs with limited

experience of IT outsourcing can “enter the ASP

market at reduced risk as long as they learn to

evaluate disparate ASP offerings”. At that time, it was

too early to assess the success of ASPs, which is also

stated in the paper. Nowadays we (continue to)

observe rapid growth in the Software-as-a-service

(SaaS) market. While the ASP model and SaaS are

not the same thing, the basic concept is resembling

and the need for well-defined specific evaluation

frameworks or criteria remains high.

Hence, we propose a three-layer method for

deriving a requirements criteria catalogue for

software products, tailored not only for specific use

cases, but also accounting for the industry context of

the company. Applying this catalogue to different

software solutions gives a rating score per solution

and allows comparison.

2 METHODS

Our method is comprised of three layers, each a list

of criteria and two connections, defining the

transitions between the layers (Figure 1).

In a first step a list of generic requirements criteria

for software products is refined to a domain-specific

subset by employing domain knowledge. The second

step then weighs the criteria in the subset to mirror

industry context. The resulting list of criteria then

allows to rate a software solution on every criterion

A Likert scale (Likert, 1932) is the most widely used

approach for measuring personal opinions. The typical

five-level form of the Likert scale consists of the five

with a numeric value. Adding all values then results

in a Matching Score (MS) that reflects both:

 How well does the software solution solve the

technical problem a business has?

 How well does the software solution line up with

the business strategy?

While we will exemplarily apply this approach to

Machine Learning as a Service (MaaS) for small and

medium-sized enterprises in Section 3, the method

should allow for an employment in overall software

solutions.

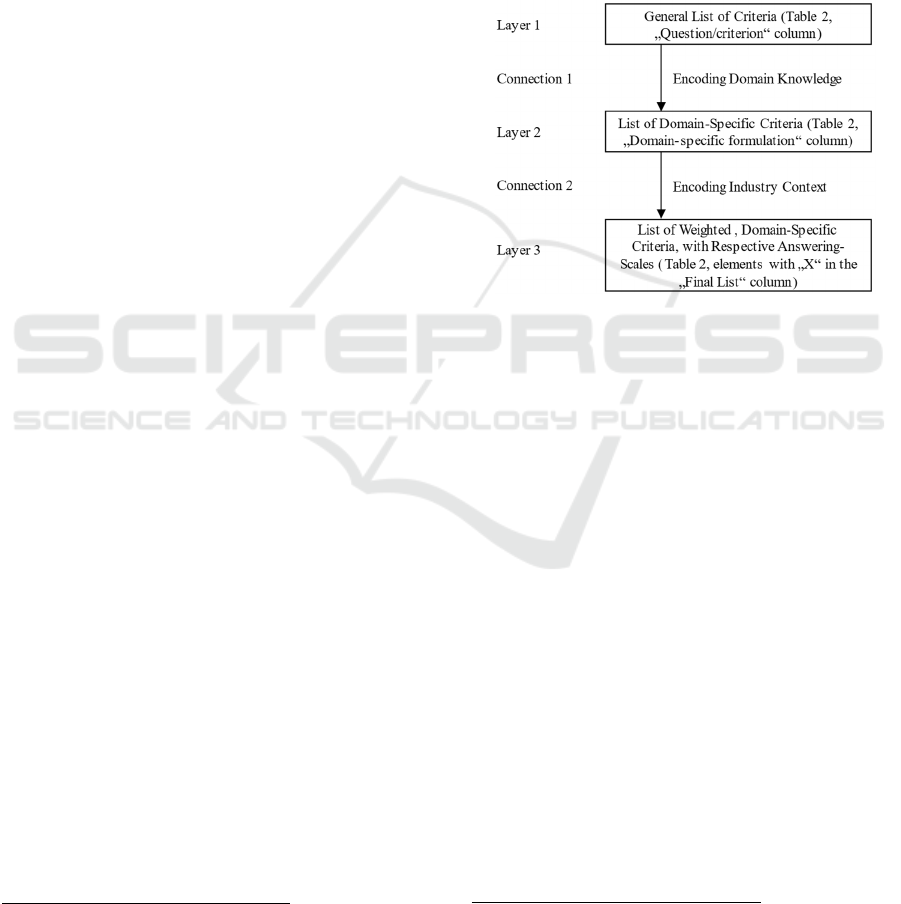

Figure 1: Illustration of the three-layer methodology to

derive a criteria catalogue for software solutions.

2.1 Layer 1 – List of Criteria for

General Software Solutions

The first layer of our method is a list of use case and

industry agnostic criteria formulated as questions.

Some are formulated in such a way, that they can be

answered on a Likert scale

, others can be answered

by numeric values. Scaling will become relevant in

the second layer-connection.

Every criteria list-element belongs to a different

category.

Table

shows a brief overview of those

categories, that hold most questions.

The list is partly composed from ISO Norms (ISO,

2011), as well as different requirements models

(Jadhav & Sonar, 2009), (Ekanayaka, Currie, &

Seltsikas, 2003), (Brand, 2017), (Godse & Mulik,

2009), (SoftGuide GmbH & Co. KG, 2020),

(Ludewig, 2011). Semantic overlap between different

models was resolved, by summarizing similar

questions from different models into one element.

manifestations Strongly disagree, Disagree, Neither

agree nor disagree, Agree and Strongly agree.

A Methodology for Deriving Evaluation Criteria for Software Solutions

147

Actors form the domain specific field are free to

revise and add further elements.

In total, the list has 62 elements and tries to give

an as complete and generic as possible criteria

catalogue for software solutions. The complete list

can be found in the Supplementary Materials

, while

an exemplary sample can be found in the Appendix

(Table 2, “Question/criterion” column).

Table 1: Overview of criteria categories.

Category

Number of Elements in

Cate

Usabilit

Documentation and

support for different

languages

Costs 3

Performance 3

Requirement of workers

and their skill

2.2 Layer 2 – Deriving a

Domain-specific Criteria List

The second layer results in a list of domain specific

criteria or in other words, the search space should be

correctly localized in the domain knowledge

dimension (see Fig. 1). To assess the correct search

space boundaries, the connection from the first layer

(list of criteria for general software solutions) to the

second layer is to be specified:

Encoding domain specific knowledge and

information from experts of the field to the list of

general criteria is key. This is done in two steps:

 Identify those criteria, that are impractical or

cannot be applied to the software solution under

scrutiny. Remove them.

 Reformulate the remaining criteria to domain-

specific wording. Scaling is irrelevant at this stage.

2.3 Layer 3 – Deriving a Weighted

Domain-specific Criteria List

The final, third layer needs to have industry context

encoded into it. Further, it depicts the final list of

criteria that makes a software solution rate-able and

therefore comparable.

For this matter, a wide spectrum of methods,

spanning from analytic hierarchy processes to fuzzy

based approaches, is available. In (Jadhav & Sonar,

2009) a weight-based approach (weight average sum

https://github.com/Pappipapp/A-Methodology-for-Deriving-

Evaluation-Criteria-for-Software-Solutions

(WAS)) was called to be the easiest to use. As a

downside, the arbitrariness of assigning weight-

values to criteria list-elements was criticized. We

therefore propose a corrected weight-based approach,

accompanied by a rule set to induce more objectivity

into the weighting process. The connection from layer

2 to 3 is defined as follows:

 Before assigning weight-values, every criteria

list-element in layer 2 is rated based on

importance to the business, business-strategy,

etc.: an all-over industry context assessment,

where a high number shows significance to the

business and a low number insignificance. We

found that a 1 to 5 scale was sufficiently fine-

grained, but coarse enough to be distinct.

However, differently numbered scales are also

possible.

 Every element from layer 2 is examined, whether

it represents a showstopper to the business.

 Depending on the rating and on being a

showstopper or not, every element is assigned a

scale (Boolean, Likert, Numerical). Based on this

scale, a specific criterion is later rated and

reflected in the final assessment of a software

solution. The rule set to match a scale to an

element is defined as follows (Further above rules

overrule lower rules):

 Element is a showstopper: Boolean

 Element is rated 1-3: Boolean

 Element is rated 4,5: Likert

 Element specifically asks for a numeric value:

Numeric

Thus, missing showstopper criteria impose a high

penalty, because they simply won’t appear in the MS.

Important (4, 5), but non-showstopper criteria leave

space to accurately weigh them, while unimportant

criteria (1, 2, 3) are not taken into account in such

detail and being Boolean, can be “turned” on and off,

reducing the noise in the MS.

 Every criteria list-element is reformulated in such

a way, that it can be answered on the assessed

scale.

 Weights are normalised and depicted as

percentages.

2.4 Giving Matching Scores to

Software Solutions

Layer 3 is comprised of 𝑲 Numeric-scaled criteria

(𝑑



∈ℝ



), 𝑳 Boolean-scaled criteria (𝑏



∈ 0,1)

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

148

and 𝑴 Likert-scaled criteria (𝑐



∈ 1,2,3,4,5) and

thus total in 𝑵 criteria, so that holds.

= K + L + M (1)

A software solution is then respectively rated in

every criteria list-element with normalised

Numeric

values (𝑎





), Boolean values (𝑎





) and

Likert-values (𝑎





). The Matching Score (MS) is:

MS =

∑

𝑎





𝑏









∑

𝑎





𝑐









∑

𝑎





𝑑







(2)

3 APPLICATION: MaaS

PLATFORMS CRITERIA FOR

SME

This section exemplarily applies the methodology

described in Section 2 to a scenario in which a SME

is in search for a MaaS solution, hence intending to

prepare a selection process. This scenario is abstract

in order to address as many concerned parties as

possible and enable them to individually derive

specific insights (for further discussion see section 4).

Followingly, we establish a minimum of

presumptions.

Beginning with the complete list (see a sample in

Table 2, “Question/criterion” column), criteria which

are not relevant for the specific domain are removed.

Here, the domain is Machine learning as a Service,

which can be understood as the overlap of machine

learning on the one hand and cloud services on the

other hand. While there are several reasons that lead

to removal of criteria, we describe the three main

ideas in the following. A sample of the complete list

of removed criteria, complemented by the respective

reason, can be found in Table 2 (elements with no “X”

in the “Final List?” column).

The first reason is that, due to its nature, cloud

solutions do not need to be installed on a local

computer or connected to the corporate network.

More specifically, MaaS solutions usually run in

server clusters which are hosted by the vendor. The

customer can comfortably access the service via web

browser or APIs. Consequently, criteria such as 4.1

and 22.4 are removed.

High numerical values bias the Matching Score: although

a numeric criterion might be weighted with a 1,

following formula (2) it strongly outweighs even

showstopper-criteria. This is not negatively reflected in

the comparison between software solutions, because

Another reason for removal concerns servicing

and maintenance aspects. Normally, the vendor of

MaaS platforms manages all arising technical issues

such as (security) incidents, customer support,

preventive maintenance and updating software.

Ideally, the user is not even aware of these operations

and can fully concentrate on his business use case and

its implementation in the platform. This leads to

removal of, for example, criteria 9.1 and 20.2.

The third reason deals

with the fashion MaaS

solutions are used. Usually, the products are offered

in a highly service-oriented fashion. Next to servicing

and maintenance aspects, this particularly applies to

modification of the solution. Normally, vendors of

MaaS solutions provide complete services which do

not need to be customized by the customer. Vendors

strive to offer generic interfaces such that it is not

necessary (or possible, or desired, respectively) for

users or other agents to adjust the software to users’

needs. Consequently, structure, maintainability and

documentation of source code is not relevant for the

customer, at least not immediately. These are, among

others, criteria 22.6 and 22.7.

After the removal process, we face a list of criteria

which is relevant for MaaS solutions (see a sample in

Table 2, elements with “X” in the “Final List?”

column). For the next step, that is refinement to

specific target audiences, we investigate specific

needs and customs of the considered company or its

industry. Concretely, consider a SME whose primary

field of activity is not (machine learning centered) IT.

By weighting the remaining criteria, we aim to obtain

a final list of criteria of varying importance. Like the

previous step, we subsequently present the main

reasons and ideas behind this exemplary approach.

Note that, while different companies and business

sectors can have immensely differing needs and

customs, we try to focus on possible similarities. We

hereby invoke experiences from our project work in

diverse fields of application.

The first assumption is lack of machine learning

specialists in the company. This hypothesis should

hold true for most of the concerned businesses, since

we consider companies that do not primarily operate

in (machine learning centered) IT by assumption.

Furthermore, hiring such staff is hard, as the hype for

machine learning is a relatively new phenomenon,

hence limiting the number of graduates. Having the

every numeric value is on the same scale across the

different solutions, however a normalization of numeric

values to a proper range, ensures the consistency within

a single software solution. Through normalization,

differently scaled variables become comparable.

A Methodology for Deriving Evaluation Criteria for Software Solutions

149

aforementioned lack in mind, we assume that the

considered company will conduct comparatively

basic experiments on the MaaS platform.

Consequently, expert features of the MaaS solution

like 2.19, 6.2 and 13.1 are not of particular

importance and will be assigned minor weights.

Limited resources are another impact factor for

the evaluation. We suppose that SMEs neither have

sufficient reserve assets, nor enough staff for distinct

advance development. Instead, SMEs need decent

return on investment in a comparatively short time

period. Hence, the MaaS solution should either be

low in price or generate quick net product. Criteria

fulfilling these requirements will be assigned major

weights (e.g. 3.2, 3.3).

Lastly, like every other company, SMEs must deal

with showstoppers. Such criteria will be assigned the

highest possible weight. Apart from universal

showstoppers, like non-compliance with locally

applicable law, we identified one noteworthy MaaS-

specific criterion: reliability or the correctness of the

system’s output (15.1). In machine learning,

estimating model performance for unseen data is a

complex task. Small or biased datasets can

complicate this task even more. Combined with non-

expert users, this bears the pitfall of overestimating

model performance which, in turn, can have

economic consequences. Next to mere model

performance in terms of known evaluation metrics,

there are additional risks such as estimators learning

side issues instead of focusing on relevant aspects of

the data. In image classification, for example, there

are known cases in which this leads to unexpected

behavior of image classifiers (Han S. Lee, 2017).

Therefore, in our scenario it is utterly important for

MaaS solutions to feature robust model performance

estimates such as cross validation on the one hand and

provide model insight (possibly with methods of the

field of explainable artificial intelligence) on the other

hand. Thereby, the risk of misuse by non-expert users

can be reduced.

The three aforementioned assumptions, together

with additional considerations (see a sample in Table

2), lead to the weights column. By normalizing, as

described in Section 2.3, we obtain the final list

exhibiting the most import criteria which is adjusted

to the domain MaaS as well as to the target audience

SMEs.

4 CONCLUSIONS

We presented a transferable methodology for

deriving a criteria catalogue for software solutions. It

can be directly applied as is or used as an inspiration

for problems alike. As such, different software

solutions (of the same scope) on the market can

objectively be compared, so that the optimal solution

can be found for a business.

To allow for this, we proposed that two

independent dimensions – domain knowledge and

industry context – need to be encoded into a template

criteria catalogue (which we also compiled). The first

dimension ensures that the software solution indeed

solves the technical problem one faces, the second

dimension attests, that it is in line with business

strategy and branch context. Followingly, one could

consider domain knowledge, as a bottom-up process,

reflecting the skill of specialists, while industry

context mirrors a top-down process, reflecting the

market understanding of decision makers.

The method is formalized in a three-layer model

with two-layer connections in between. Because the

first layer is a general list of criteria, blended from

many sources, it should offer a software-agnostic

basis for tackling decision problems. The transition to

the second layer encodes domain knowledge and the

connection to the third layer encodes industry

context. Connections were presented as a step

sequence, accompanied by examples, to additionally

illustrate the approach.

The resulting catalogue in layer three can then be

used for the comparison of software solutions: Every

software solution under scrutiny, is assessed in every

criterion, yielding a final matching score.

The theoretically derived model – here presented

in an abstract scenario – of course needs further real-

world validation. Thus, additional examination is

strongly suggested, and we plan to investigate this in

an empirical study.

REFERENCES

Brand, K. (2017, April 27). www.xing.com. Retrieved from

https://www.xing.com/news/insiders/articles/wesentlic

he-kriterien-fur-die-auswahl-von-it-losungen-705949

Ekanayaka, Y., Currie, W., & Seltsikas, P. (2003).

Evaluating application service providers.

Benchmarking.

Evans, J. (1989). Bias in human reasoning: Causes and

consequences. Lawrence Erlbaum Associates, Inc.

Godse, M., & Mulik, S. (2009). An Approach for Selecting

Software-as-a-Service (SaaS) Product. 2009 IEE

International Conference on Cloud Computing.

Han S. Lee, A. A. (2017, September). Why Do Deep Neural

Networks Still Not Recognize These Images?: A

Qualitative Analysis on Failure Cases of ImageNet

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

150

Classification. Retrieved from https://arxiv.org/abs/

1709.03439

ISO, I. (2011). Iec25010: 2011 systems and software

engineering--systems and software quality

requirements and evaluation (square)--system and

software quality models. International Organization

for Standardization, p. 2910.

Jadhav, A. S., & Sonar, R. M. (2009). Evaluating and

selecting software packages: A review. Information and

Software Technology.

Likert, R. (1932). A technique for the measurement of

attitudes. Archives of Psychology, pp. 22 140, 55.

Retrieved from

https://legacy.voteview.com/pdf/Likert_1932.pdf

Loebbecke, C., & Picot, A. (2015). Reflections on societal

and business model transformation arising from

digitization and big data analytics: A research agenda.

The Journal of Strategic Information Systems 24.3, pp.

149-157.

Ludewig, E. (2011). https://www.usabilityblog.de.

Retrieved from https://www.usabilityblog.de/messen-

zahlen-vergleich-%E2%80%93-diese-metriken-

konnen-usability-tests-bereichern/

Lund, R., & Gjerding, A. (1996). The flexible company:

innovation, work organization and human resource

management. Danish Research Unit for Industrial

Dynamics (DRUID) Working Paper.

Schmidt, R., Zimmermann, A., Möhring, M., Nurcan, S.,

Keller, B., & Bär, F. (2015). Digitization–perspectives

for conceptualization. European Conference on

Service-Oriented and Cloud Computing.

SoftGuide GmbH & Co. KG. (2020).

https://www.softguide.de. Retrieved from

https://www.softguide.de/software-tipps/

Stellman, A., & Greene, J. (2005). Applied software project

management. O'Reilly Media, Inc.

APPENDIX

Table 2: Sample list of criteria and the refined criteria for the example in section 3. The “Question/criterion” column

respectively depicts the sample list of general criteria for software solutions. If an element is relevant for the example in

section 3 it is marked with an “X” in the “Final List?” column. It is reformulated in the “Domain-specific formulation” column

and rated, weighted and fitted with a scale (“Rating, Weighting, Scale” column). The “Justification” column bears a

description for the elimination from the list for the rating for the example. The complete table can be found on GitHub

(https://github.com/Pappipapp/A-Methodology-for-Deriving-Evaluation-Criteria-for-Software-Solutions).

Index
