A Quality Framework for Automated Planning Knowledge Models

Mauro Vallati

and Thomas Leo Mccluskey

School of Computing and Engineering, University of Huddersﬁeld, Queensgate, Huddersﬁeld, U.K.

Keywords:

Automated Planning, Domain Models, Knowledge Engineering, Quality of Models.

Abstract:

Automated planning is a prominent Artiﬁcial Intelligence challenge, as well as a requirement for intelligent

autonomous agents. A crucial aspect of automated planning is the knowledge model, that includes the relevant

aspects of the application domain and of a problem instance to be solved. Despite the fact that the quality

of the model has a strong inﬂuence on the resulting planning application, the notion of quality for automated

planning knowledge models is not well understood, and the engineering process in building such models is still

mainly an ad-hoc process. In order to develop systematic processes that support a more comprehensive notion

of quality, this paper, building on existing frameworks proposed for general conceptual models, introduces a

quality framework speciﬁcally focused on automated planning knowledge models.

1 INTRODUCTION

Automated planning is an area within Artiﬁcial Intel-

ligence that has matured to such a degree that there

exists a wide range of applications utilising planning.

Embedding automated planning engines within ap-

plications is a specialist activity, as the application

requires a knowledge model to be built for opera-

tion with the planning engine. Planning knowledge

models are conceptual models, in that they are ex-

plicit (and formal) representations of some propor-

tions of reality as perceived by some actor (Weg-

ner and Goldin, 1999). These models may contain

representations of objects, relations, properties, func-

tions, resources, actions, events and processes, in

the application domain. There are signiﬁcant differ-

ences between generic conceptual models and plan-

ning knowledge models, however, in that the latter is

aimed more for its operational value than for its use

in interactions and communications with domain ex-

perts and other stakeholders.

Up to now, despite the existence of quality frame-

works for various conceptual models (see, e.g., (Lind-

land et al., 1994; Krogstie, 2012; Krogstie et al.,

2006)), there has been no overall framework for con-

sidering the quality of the various components in-

volved in the life cycle of the planning knowledge

model. There has been research into the quality of

planning applications in terms of veriﬁcation and val-

https://orcid.org/0000-0002-8429-3570

https://orcid.org/0000-0001-8181-8127

idation (Frank, 2013), and in terms of accuracy and

completeness of the knowledge model (McCluskey

et al., 2017; Vallati and Kitchin, 2020), but no overall

conceptual model covering the many aspects of such

models.

In this paper, building on existing frameworks

proposed for general conceptual models, we intro-

duce a quality framework speciﬁcally focused on au-

tomated planning knowledge models. The main ben-

eﬁt of a framework is to replace ad-hoc notions of

quality, and ad-hoc knowledge engineering processes,

with a connected, composite and over-arching notion,

that can be used within all work relating to this en-

deavour. The proposed framework is exploited for in-

troducing and describing specialised aspects of qual-

ity of automated planning knowledge models, which

are based on semiotic layers and on planning-speciﬁc

aspects.

As a ﬁrst solid contribution to the ﬁeld, we demon-

strate the usefulness of the proposed framework as a

means for assessing a range of tools environments for

knowledge engineering for automated planning. The

exercise highlights areas and processes that the ex-

isting tools do not support appropriately, and where

future work of the planning community should be fo-

cused. Finally, we argue for the importance of a com-

prehensive quality framework for the planning area,

by providing a list of beneﬁts that the framework is

likely to bring into the AI planning ﬁeld. The pa-

per is aimed at giving knowledge engineers a broader

perspective on the issues involved in capturing and

Vallati, M. and Mccluskey, T.

A Quality Framework for Automated Planning Knowledge Models.

DOI: 10.5220/0010216806350644

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 635-644

ISBN: 978-989-758-484-8

635

maintaining planning knowledge, and to provide AI

and planning experts with an over-arching notion of

quality, and an example of its usefulness.

The remainder of this paper is organised as fol-

lows. First, the required background on automated

planning is provided, and the distinctive characteris-

tic of planning knowledge models are then presented.

Then, the proposed quality framework is introduced,

and the involved quality concepts are then detailed in

the subsequent section. After that, it is shown how the

quality framework can be concretely applied. Finally,

a discussion on the beneﬁts of the proposed frame-

work is provided, and conclusions are given.

2 AUTOMATED PLANNING

Automated planning deals with ﬁnding a (partially

or totally ordered) sequence of actions transform-

ing the environment from some initial state to a de-

sired goal state (Ghallab et al., 2004). As an ex-

ample, in the classical STRIPS-inspired represen-

tation, atoms are predicates and States are deﬁned

as sets of ground predicates. A planning opera-

tor o = (name(o), pre(o), eff

−

(o), eff

(o)) is speciﬁed

such that name(o) = op name(x

, . . . , x

) (op name is

a unique operator name and x

, . . . x

are variable sym-

bols (arguments) appearing in the operator), pre(o)

is a set of predicates representing the operator’s pre-

conditions, eff

−

(o) and eff

(o) are sets of predicates

representing the operator’s negative and positive ef-

fects. Actions are ground instances of planning op-

erators. An action a = (pre(a), eff

−

(a), eff

(a)) is

applicable in a state s if and only if pre(a) ⊆ s.

Application of a in s (if possible) results in a state

(s \ eff

−

(a)) ∪ eff

(a).

This knowledge is made explicit in two compo-

nents: a domain model and a problem instance, to-

gether forming the knowledge model. When using

the dominant family of planning knowledge represen-

tation languages – the PDDL, the domain model and

problem instance are provided to planners as two dif-

ferent ﬁles, and the same domain model is used for

all the problems of the application. In the restricted

world view of classical planning, a domain model is

speciﬁed via sets of predicates and planning opera-

tors. A problem instance is speciﬁed via an initial

state and set of goal atoms, that need to be reached. A

solution plan is a sequence of actions such that a con-

secutive application of the actions in the plan (starting

in the initial state) results in a state that satisﬁes the

goal.

The classical planning model can be extended, in

order to handle a wider range of constraints and in-

crease expressiveness. On this matter, the interested

reader is referred to (Ghallab et al., 2004).

2.1 Peculiarities of Planning Knowledge

Models

A major part of the AI planning component is played

by the knowledge model, which enables rational plan-

ning and reasoning. Therefore, to evaluate the plan-

ning component, one needs to be able to discuss

and ultimately measure the quality of the constructed

model.

In the last decades, a number of frameworks have

been introduced for evaluating the quality of con-

ceptual models, and for identifying quality notions

and corresponding goals and metrics. The SEQUAL

framework (Lindland et al., 1994) was initially intro-

duced as a general framework for understanding qual-

ity of any conceptual model, and then extended by

adding a larger number of quality aspects (Krogstie

et al., 1995; Krogstie and Jørgensen, 2002), or by fo-

cusing on speciﬁc types of models, such as interac-

tive models (Krogstie et al., 2006) or business pro-

cess models (Krogstie, 2012), data (Krogstie, 2013),

and enterprise models (Krogstie and de Flon Arnesen,

2004).

Essentially, planning knowledge models are con-

ceptual models, in that they are explicit (and for-

mal) representations of some proportions of reality

as perceived by some actor (Wegner and Goldin,

1999). Nevertheless, there are signiﬁcant differences

between generic conceptual models and planning

knowledge models. Planning knowledge models are

usually formulated into a planner input language di-

rectly from a requirements speciﬁcation, which sum-

marises the current understanding and interpretation

of the application domain. The planning component

is usually a module of a larger framework, that has

a very limited interaction with human experts and

stakeholders (McCluskey et al., 2017). A good ex-

ample is that of an autonomous agent, which contains

a planning component within a module of the larger

(and more complex) architecture, that is supposed to

operate autonomously, with no (or limited) needs for

humans in the loop. It is of course important that an

expert can read and understand the models for val-

idation and maintenance purposes, but the main fo-

cus is on effectiveness and efﬁciency. In fact, once a

model has been thoroughly tested and validated, with

the support of domain and planning experts, it is usu-

ally reformulated for the sake of performance. Au-

tomated reformulation of a model, of course, tends

to make it more difﬁcult to analyse and interpret the

model by human experts.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

636

The main differences between general conceptual

models and planning knowledge models can be found

in the modelling process. General conceptual mod-

elling processes may have various, and sometimes un-

clear, goals. The modelling may be performed for

representing a process, in order to analyse and im-

prove it, or may aim at generating models that can be

shared in order to transfer knowledge between differ-

ent actors. Instead, in Planning, the modelling has

a clear and well deﬁned goal: enabling a planning

engine to generate solution plans, given some con-

straints bounds, that show some desired characteris-

tics. In other words, the quality of a planning model

also depends on its ability to allow planning engines

to generate solution plans that show some predeﬁned

characteristics. Characteristics may vary, according

to the expressiveness of the exploited language and

the type of planning that is performed. Solution plans

may be required to be optimal, with regards to some

aspects like the number of actions, the overall cost, or

the predicted duration.

The aforementioned dependencies, and the a-

priori known goal of performing modelling for plan-

ning, have to be reﬂected into quality frameworks that

should incorporate both planning engine and solution

plan. The planning engine plays an important role

in the quality framework because, as routinely ob-

served in International Planning Competitions, dif-

ferent planning approaches show very different be-

haviours even when provided with the same knowl-

edge model. Furthermore, different planning engines

tend to support different subsets, and different ver-

sions, of the PDDL language. The selection of the

planning engine is therefore an important step of the

planning modelling process, as it affects (and is af-

fected) by the encoding language, and by the knowl-

edge model itself.

3 THE QUALITY FRAMEWORK

The proposed quality framework for automated plan-

ning knowledge models aims at representing all the

aspects that affect the quality of models, and high-

lighting how the different aspects interact. Fig-

ure 1 presents the basic ideas of the quality frame-

work, which originate from the specialisation of the

SEQUAL framework and the subsequent work of

Krogstie et al (Krogstie et al., 2006). The framework

considers different components (represented as boxes

in the Figure), and processes (represented as arrows

and their annotations in the Figure). The following

components are introduced:

L represents the language that is used to encode

the model. This can be, for instance, a version of

PDDL. In this context, the language is expected to

have a well-deﬁned syntax, vocabulary, and oper-

ational semantics: this means that, independent of

planning engine and application domain, there is a de-

ﬁned process for executing plans which correspond to

sequences of actions in the application domain. In

other words, there exists a single interpretation of the

dynamics of a well-formed knowledge model (Mc-

Cluskey, 2002).

D is the domain speciﬁcation, a set of require-

ments for the application domain at hand. Such re-

quirements can be described informally in diagrams

and textual documents, or described (at least in part)

in a formal language. The requirements speciﬁcation

would include information about the dynamics of the

domain, the kind of problems the planning engine will

have to solve, and the kind of plans (solutions) that

need to be provided as output.

M represents the model externalisation in a lan-

guage L, that is, a formal speciﬁcation of the appli-

cation domain part of the requirements speciﬁcation.

This represents entities invariant over every problem

instance, such as object classes, functions, properties

and relations; a speciﬁcation of domain dynamics;

and a speciﬁcation of problem instances that has to

be reasoned upon by the planning engine. In other

words, this is what we refer to above as the knowl-

edge model, around which the quality framework sits.

I is the interpretation of the domain requirements

D, that is, the internal speciﬁcation of either a human

(expert) or of an automated technique, that results in

the generation of the model M, in the selected lan-

guage L. In other words, it can be described as the

understanding that the interpreter has of the domain

requirements. As it is apparent, the internal spec-

iﬁcation can vary signiﬁcantly among experts and,

as well, among different automated encoding tech-

niques, which may rely on very different technologies

in order to be able to provide a complete model exter-

nalisation.

K represents the relevant explicit current knowl-

edge that is available to the human expert or the au-

tomated technique and that affects the interpretation

I. Such knowledge should can encoded in a formal

or semi-formal way, so that it can be exploited by

any interpreter wishing to. This may include, for ex-

ample, incomplete models previously generated, or

textbook knowledge about the dynamics of the do-

main, or heuristics to be used in the planning engine.

It is worth emphasising that this knowledge is not a

model externalisation, but it should be understood as

a source of knowledge on which an agent relies to cre-

ate the externalisation.

A Quality Framework for Automated Planning Knowledge Models

637

Domain

Interpretation

Model

Externalisation

Engine

Plan

(Solution)

Language

Articulation

Execution

Activation

Reflection

Evolution

Changes

Current

Knowledge

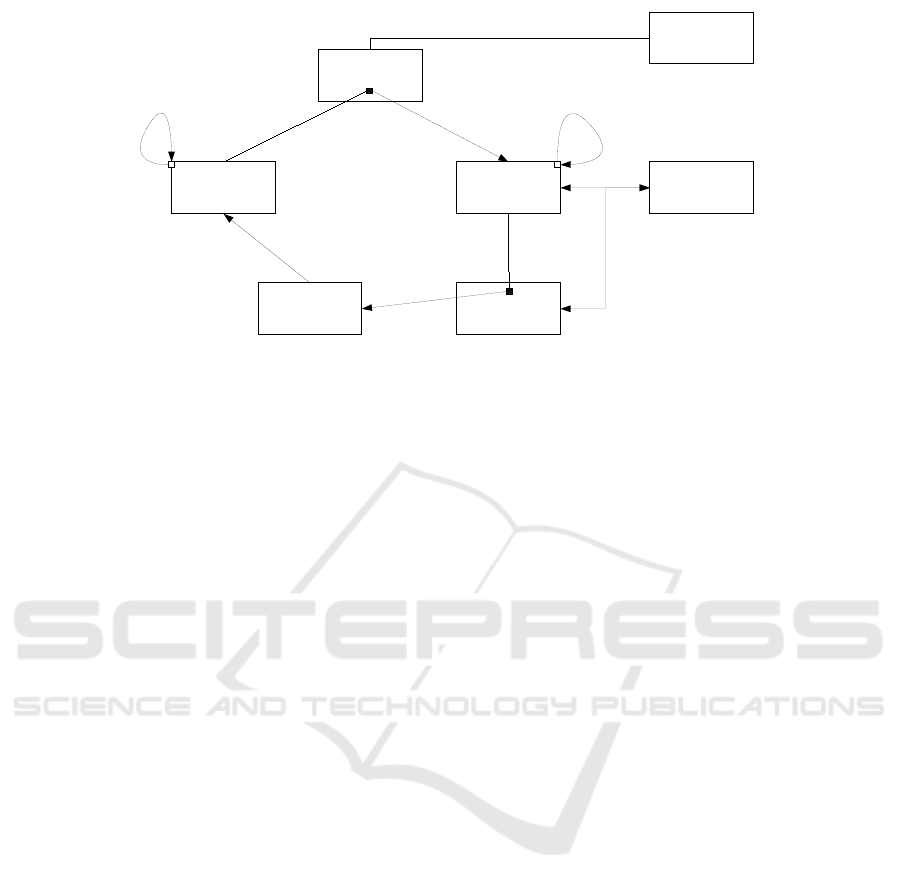

Figure 1: The proposed quality framework for planning models. Boxes are used to represent components, while processes are

represented as arrows linking the involved components.

E is the set of rules and techniques exploited by a

planning engine in order to generate, given the model

externalisation of the domain and of a problem, a so-

lution plan P. In fact, E is not to be considered as

an actual planning engine, rather it should be the de-

scription and speciﬁcation of the engine, and how it

will operate on the provided models. It can be, for in-

stance, under the form of pseudo-code, specifying the

steps (pre-processing, search, optimisation) and their

behaviour.

Finally, P stands for the solution plans that can

be obtained, using the engine E on the model exter-

nalisation M. P has a twofold meaning in this con-

text: it can represent a speciﬁc plan, in terms of set

of actions to be performed in order to reach the goal

of a given planning problem model, but it can also

indicate –through a speciﬁcally-designed language or

formalism– the characteristics of the plans that can be

generated.

The framework depicted in Figure 1 includes also

the notion of processes. Processes represent interac-

tions between components, that lead to changes in

one (or more) of the involved components. In our

framework, processes have been named following, to

some extent, the existing nomenclature proposed in

(Krogstie et al., 2006), appropriately extended and

modiﬁed for the sake of dealing with planning domain

and problem models.

Articulation (D → I → M) is the process where

the domain D is encoded as a model M by means of

a speciﬁc language L. The articulation is performed

by an interpreter, on the basis of her interpretation I

of the domain, and of the available knowledge K. No

assumptions are made on the nature of the interpreter:

the role can be played by a human expert, by an auto-

mated technique, or by a mix of those. Similarly, no

assumptions are made on the nature of the interpre-

tation I; this can be fully formal (i.e., a model itself

but in a different formalism) or natural language, or

sketches, etc. Notably, this process can be repeated

if the interpreter is changed, or the interpretation I is

updated. This can be the result of improvements in

the current knowledge K or, for instance, because of

a better understanding of the speciﬁcations.

The Reﬂection process stands for the impact that a

language L has on the model externalisation, as well

as on the planning engine E. The impact on the model

is extremely intuitive: different languages provide

different expressive power, and different ways for for-

malising the relevant speciﬁcation requirements of the

domain. In some versions of PDDL, for instance, it is

not possible to specify the duration of an action. Fur-

thermore, the language has also a strong impact on the

planning engine, as different engines support different

languages, or different subsets of the language’s fea-

tures. Therefore, the selection of the language leads

to the possibility (or not) of using some planning tech-

niques. Furthermore, similar dynamics can be differ-

ently encoded in different languages, with a poten-

tially different impact on the performance of planning

engines.

Execution (M → E → P) is the process of generat-

ing solution plans, by providing as input to the plan-

ning engine E the model externalisation M. As afore-

mentioned, P can therefore represent a single solution

plan, or can be speciﬁed in terms of characteristics of

plans that can be generated via the execution process.

Activation (P → D) captures the changes that the

use of the model may trigger in the domain speciﬁ-

cation D. Changes can include, for instance, the re-

ﬁnement of the domain speciﬁcation on the grounds

of some unexpected results. The work of Vaquero

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

638

et al (Vaquero et al., 2013a) on post-design analysis

falls into this category, where using the model in plan-

ning may lead to the discovery of missing require-

ments and hence lead to changes in D. Differently

from interactive and business process models, plan-

ning knowledge models are activated indirectly, via

solutions P. Therefore the activation is usually less

frequent in planning, and it tends to point to changes

in the domain that are due to the exploitation of the

automated planning technology in the application do-

main, that may allow to perform actions in a different

way. In a given domain, for instance, the use of plan-

ning may allow to perform more complex tasks, that

were previously impossible to perform. This can then

be reﬂected in changes in the domain speciﬁcation.

Finally, there are two processes that, respectively,

affect the domain D and the model externalisation M,

only. The changes process incorporates changes to

the speciﬁcation. This can be the case, for instance, of

a logistic company that decides to extended its trans-

port ﬂeet by including different kind of vehicles. That

would change the domain speciﬁcation, and would

then need to be reﬂected in the model. The evolu-

tion process focuses on the evolution of the model M.

Evolution can be due to the use of reformulation tech-

niques, that change the model externalisation in order

to improve the performance of the engine E. In fact,

this process is only aimed at capturing the modiﬁca-

tions that are made on a model M to make it more

amenable to engines, or easier to read for human ex-

perts.

4 QUALITY CONCEPTS

Previous work in the area of knowledge engineering,

and particularly knowledge capture, for AI planning

seems to point to the direction of a single general

quality notion - that of Semantic Quality (McCluskey

et al., 2017; McCluskey, 2002). However, as pointed

out by the strand of research based on the SEQUAL

framework (Lindland et al., 1994), that general qual-

ity notion cannot be directly evaluated nor measured.

It is therefore pivotal to introduce different quality di-

mensions, that should include aspects and elements

that can, in principle, be measured and analysed. An

in-depth explanation of quality aspects for conceptual

models is provided in (Krogstie et al., 1995). Remark-

ably, quality levels are deﬁned following the levels

of the semiotic ladder (Stamper, 1996). The semiotic

ladder introduced six levels, corresponding to differ-

ent dimensions (either related to the IT platform or to

the human society) allowing to describe the properties

of ’signs’ –in a broader semiotic sense.

In the following we specialise the main quality

types in order to ﬁt the needs of planning knowledge

models, and expected users and knowledge engineers.

Noteworthy, due to the inner aims of planning knowl-

edge models –that are not mainly focused on com-

municating knowledge, but on allowing the genera-

tion of solution plans–, we have to introduce qual-

ity aspects that are not covered in the semiotic lad-

der, and to drop some aspects that are not relevant

for the purposes of planning. Quality aspects separate

the goals, which represent what this aspect is trying

to assess and maximise, from the means for achiev-

ing such goals. In other words, the quality aspects are

related to the components (from the proposed frame-

work) that are involved in the assessment. There is not

a one-to-one connection between the processes pre-

sented in the previous section, and the quality aspects.

The processes are designed to represent interactions

between components, and have to be supported in or-

der to make sure that the delivered changes are beneﬁ-

cial for the involved components; in that, they are in-

directly affecting the different quality aspects. How-

ever, the notion of quality is inevitably entangled with

the actual components, because components are the

tangible outcome of the processes.

Physical Quality: this aspect focuses on the availabil-

ity and accessibility of the model M. Following the

existing literature, this quality has two main goals,

the externalisation and the internalisability. The for-

mer refers to the fact that the model M is an artefact,

resulting from the externalisation (in other words,

of making explicit) of the interpretation knowledge

I of an interpreter, and is based also on the avail-

able current knowledge K. Externalisation also cov-

ers the fact that the considered application domain

can be represented under the form of some symbolic

model, speciﬁcally using available planning-oriented

languages. The internalisability stands for the fact

that the model M is persistent and available to inter-

preters that can understand it and interpret it, and can

be used by an appropriate engine E to generate solu-

tions. In other words, the internalisability focuses on

the fact that the model is available for the planning

engine, as well as to experts that may need to check

or revise it. At a ﬁrst glance this may seem trivial in

the typical planning settings, particularly for the do-

main model part of the knowledge model. However,

in terms of problem instances, it may be the case that

such problems are automatically generated by com-

bining information gathered from different sources

(sensors, data bases, etc.), and the process may be

hard to reproduce. This is the case for many plan-

ning applications (see, e.g. (Venturelli et al., 2017)).

In such scenarios, Internalisability aims also at max-

A Quality Framework for Automated Planning Knowledge Models

639

imising the availability of planning knowledge mod-

els, so that future validations and evaluations can be

performed.

Syntactic Quality: is probably the easiest quality as-

pect that can be measured and assessed, as it is aimed

at the syntactic correctness of the model M with re-

gards to the selected modelling language L. It is im-

portant to remark that planning engines E may add

additional constraints on the syntax of the language,

due to partial support of some language features, for

instance. The planning engine cannot be selected in

isolation: the language and the planning engine are af-

fecting each other and, of course, decisions taken with

regards to E and L have repercussions on the rest of

the modelling process. For this reason, it is necessary

to include the engine in the analysis of the syntactic

quality.

Semantic Quality: aims at the goals of accuracy and

completeness. In this context, we rely on the deﬁ-

nitions provided in (McCluskey et al., 2017). In a

nutshell, accuracy is focused on relating the model M

and the domain speciﬁcation D, by ensuring that M

is a valid representation of the speciﬁcation, i.e. it

encodes all the aspects that are correct and relevant

for the domain. Conversely, completeness involves

the solution plans P in that it means that M enables

the generation of all (and only) solution plans that are

correct with regards to the domain speciﬁcation D.

Pragmatic Quality: this covers how the model exter-

nalisation is activated, i.e. the way in which the ex-

ploitation of the model, maybe within a larger frame-

work, can affect the domain speciﬁcation and, in a

broader sense, the application domain itself. In prin-

ciple, activation and articulation can be seen as a

co-design cycle, where feedback drives the improve-

ment of the overall understanding of the domain and

its speciﬁcation; and as the model externalisation is

evolved and reﬁned, this has potential impacts on the

efﬁciency of the planning engine, on the interpreta-

tion, and on current knowledge. To some extent, prag-

matic quality is driven by the comprehension of the

domain speciﬁcation, and of the model, by the differ-

ent stakeholders.

Operational Quality: this quality covers the ability

of the selected planning engine E to reason upon the

model externalisation M to generate P. This quality

aspect incorporates two perspectives. First, the shape

of solution plans that E allows to generate. On this

matter there may be preferences in terms of number of

actions involved, or makespan, or cost of the actions

that are considered. It may also be the case that, for

the speciﬁc application domain, only optimal solution

plans are acceptable. Second, the resource bounds

that can be used by E to solve a problem instance.

In this context, acceptable resource bounds can be de-

ﬁned in terms of runtime, memory usage, number of

CPUs, etc. Resource bounds can be speciﬁed in the

domain speciﬁcation D, or may be derived by the in-

terpretation I, or by the current shared knowledge.

5 EVALUATION OF TOOL

SUPPORT ENVIRONMENTS

The proposed quality framework can provide a valu-

able means for relating existing environments with the

process they are aimed to support, and to the qual-

ity aspects a speciﬁc tool can contribute to. Here we

consider a range of knowledge engineering tools en-

vironments for planning, focusing on those that lead

to the generation of PDDL models. This appears to

be a timely exercise, as the last edition of the Inter-

national Competition on Knowledge Engineering for

Planning and Scheduling (Chrpa et al., 2017) high-

lighted that most teams did not use any knowledge

engineering tool (except text editors), and thus relied

only on their expertise. Some teams were not aware

of the existence of such tools support.

We selected four tools environments, aiming at

including very different approaches and techniques.

The ﬁrst two tools are well-cited early examples, and

the second two are more recently produced environ-

ments.

• GIPO: The Graphical Interface for Planning with

Objects (Simpson et al., 2007) is based on users

encoding in object-centred languages OCL and

the HTN variant OCL

, with a translation to

PDDL in the background. These formal lan-

guages exploit the idea that a set of possible states

of objects are deﬁned ﬁrst, before action (oper-

ator) deﬁnition. This allows the integration of a

number of tools covering automated domain ac-

quisition, consistency checking and plan anima-

tion.

• itSIMPLE (Vaquero et al., 2013b) provides a

graphical environment that enables knowledge en-

gineers to encode knowledge of the domain by us-

ing the Uniﬁed Modelling Language (UML). Ob-

ject classes, predicates, action schema are mod-

elled by UML diagrams allowing users to visu-

ally inspect knowledge models. itSIMPLE incor-

porates a model checking tool based on Petri Nets

that are used to check invariants or analyse dy-

namic aspects of the knowledge models. Standard

planning engines are integrated for dynamic test-

ing.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

640

Table 1: Fully and partially supported processes by the con-

sidered Knowledge Engineering tools for automated plan-

ning.

Supported Processes

Tool Fully Partially

GIPO Articulation Execution, Changes

KEWI Articulation Changes

itSIMPLE Articulation

Execution, Activation,

Evolution, Changes

VS-studio –

Articulation, Execution,

Evolution

• KEWI (Wickler et al., 2014) is a tool for encod-

ing planning knowledge collaboratively by do-

main and planning experts, in a high level lan-

guage called AIS-DDL, originally for use within

Industrial Drilling domains. It features a domain

expert-friendly set of tools for veriﬁcation and

validation, based around a layered domain ontol-

ogy.

• VS-studio (Long et al., 2018). There is a

class of PDDL editors that provide a range

of different ways for supporting the knowl-

edge encoding process, such as syntax highlight,

auto-completion, plan visualisation, etc. This

class includes tools such as PDDL studio (Plch

et al., 2012), planning.domains, and more re-

cently VS-studio (and its integration with the

planning.domains editor). For the sake of read-

ability, we will focus on VS-studio, as its set of

functionalities appears to subsume the functional-

ities of the other members of the class.

In terms of the various kinds of Quality Concepts dis-

cussed above, all the environments aim to assist in

physical and syntactical qualities. The ﬁrst three en-

vironments employ a user-oriented language (OCL

UML, AIS-DDL respectively) to act as an intermedi-

ary language between domain requirements and ex-

ternalisation, which enhances support for semantic

quality. On the other hand, the planning engines that

they are connected to are not fully integrated (in part,

this is so the environments can be ﬂexible in enabling

users to embed a choice of planners). The VS-studio

environment, however, is aimed at supporting opera-

tional quality, with its planning engine embedded cen-

trally, and its focus on dynamic testing. In the follow-

ing, we analyse the considered tools with regards to

the support they provide for each of the processes de-

scribed in the quality framework. Table 1 shows an

overview of the analysis. Tools are partially support-

ing processes if they provide means to support some

aspects of the considered process, but not the whole

process.

With regards to Articulation, all the considered

tools support it. itSIMPLE, GIPO, and KEWI pro-

vide high level, structured languages that can be used

to represent the knowledge about the domain, from

which the model externalisation M can be generated

(automatically or semi-automatically). In that, these

tools support both the steps of the overall Articula-

tion process: from the domain D to the interpretation

I, and from I to a model M. VS-studio instead sup-

ports, in a very thorough way, only the last step of

the process. No support is provided for obtaining the

interpretation, but the tool includes a wide range of

techniques for supporting the generation of the model

M, and for making sure that it is syntactically correct.

Reﬂection is not appropriately supported by any of

the tools. Either they translate domain knowledge to

a single version of the PDDL language, or they do not

provide means for measuring the impact of different

languages L on the model externalisation M and on

the engine(s) E. As a matter of fact, the ability of hu-

man experts to select the best language L (or version

of the language) that is sufﬁciently expressive for en-

coding the model externalisation M, and to select the

most appropriate planning engine(s), is still somewhat

of an art. This indicates the need for an extension to

the tools which feature high level input languages, to

facilitate Reﬂection.

The Execution process is partially supported by

most of the tools. VS-studio incorporates a single pre-

deﬁned planning engine, but provides a remarkable

interface for the visualisation and analysis of the gen-

erated plans P and of the way in which the planning

engine has explored the search space. There are also

means for testing the shape of plans, and for generat-

ing test sets of problems, which characteristics can be

speciﬁed in a meta language. itSIMPLE incorporates

a wide range of planning engines, but provides a lim-

ited support for analysing and comparing plans gen-

erated by the different engines, or for compare the en-

gines’ performance. GIPO incorporates a plan anima-

tor that is used to view and query object state changes

over plan execution.

Activation is partially supported by the latest ver-

sion of itSIMPLE, only. By including a dedicated

module (Vaquero et al., 2013a), itSIMPLE supports

the post-design analysis of the model externalisation

M, and of the plans P. Such analysis allows to identify,

among other model-speciﬁc issues, missing require-

ments in the domain, for instance. In fact, it would

be more precise to state that the analysis is done with

regards to the interpretation I: however, changes in

the interpretation can then be reﬂected in the domain

requirements.

itSIMPLE, GIPO and KEWI support Changes

partially, in the sense that their high level interfaces

are built to support maintenance throughout opera-

A Quality Framework for Automated Planning Knowledge Models

641

tion, with the engineer changing the high level lan-

guage, and the new externalisation being automati-

cally generated. For example, in the case of GIPO, the

diagrams deﬁning object classes can be edited, and

updated PDDL will be generated automatically.

The Evolution process is partially supported by

itSIMPLE via the previously mentioned post-design

analysis module. Such analysis my lead to the iden-

tiﬁcation of aspects of M that can be represented in a

different way. Evolution is partially supported also by

VS-studio: the environment provides the means for

making sure that changes made in part of the knowl-

edge models are correctly reﬂected in problem in-

stances.

All the environments provide some limited sup-

port for encoding additional knowledge K. Users of

KEWI encode a dedicated domain-speciﬁc ontology

and a corresponding set of relations. With VS-studio

the user can encode in a pre-deﬁned programming

language the characteristics of instances to be solved,

and the expected properties of solutions P. Both GIPO

and itSIMPLE allow the user to encode axioms, al-

though their purpose is for static domain analysis

rather than for inﬂuencing the interpretation function

and hence the externalisation. VS-studio provides a

mean for encoding some additional knowledge that

could be exploited for testing purposes, and for the

automated population of planning problems.

Summarising, the knowledge engineering envi-

ronments sampled provide support for engineering

automated planning knowledge models in major as-

pect such as actualisation, but have major gaps as

highlighted by the application of the framework.

6 BENEFITS AND DISCUSSION

This section provides an overview of potential bene-

ﬁts that the use of the proposed framework can bring

to the AI planning ﬁeld and, to some extent, to the

more general AI area.

Use of an Over-arching Framework and Terminol-

ogy. The main beneﬁt of the framework presented

is to replace disparate notions of quality with a con-

nected, composite and over-arching notion, that can

be used within all work relating to this endeavour.

Embedding automated planning, and in particular au-

tomated planning engines, within applications soft-

ware, is becoming more widespread, as evidenced in

part by the growth of applications papers and rele-

vant workshops in academic conferences. This points

to the immediate need for a general framework for

considering the quality of the various components in-

volved in the life cycle of the planning knowledge

model. Applications papers tend to take an ad hoc ap-

proach to analysing such issues, but a framework such

as the one proposed would lead to more structured and

rationalised experience reports about applied AI plan-

ning. While we have shown how the framework can

be used to evaluate tools environments, it would also

help clear up ambiguous or vague terminology in cur-

rent use –a prime example being the term “domain”

itself. This term is sometimes used to mean the model

M, and sometimes used to mean domain speciﬁcation

D. Clarifying terminology at the very least would im-

prove communication within development processes,

as well as the clearer communication of research.

Insights from Previous Framework Research. The

research surrounding the foundations of the SEQUAL

framework can be used to provide insights into plan-

ning developments using the proposed quality frame-

work. For example, the modelling process should ter-

minate not when the model is perfect, i.e. when se-

mantic quality goals such as accuracy and complete-

ness are satisﬁed, but when the model has reached a

state where further modelling is less beneﬁcial than

exploiting it (Krogstie et al., 1995). Feasibility in-

troduces a trade-off between the beneﬁts and the re-

quired resources for achieving a given overall quality

of the knowledge model. Beneﬁts and reasonable re-

source bounds are themselves part of the speciﬁcation

of the domain D, as they are a key component of the

modelling process. In that, the “right” feasible quality

of a planning knowledge model has to be decided via

a domain-speciﬁc analysis, and can not be generalised

over different domains and scenarios.

Casting Previous Work into a Wider Framework.

As remarked above, work addressing quality in the

automated planning area has largely addressed se-

mantic quality, motivated by software engineering

concerns about the veriﬁcation and validation of a

completed system, as well as knowledge engineer-

ing concerns about accuracy and completeness of the

knowledge model (Biundo et al., 2003). Taking ac-

tion model learning as an example, there has been

much work in developing machine learning proce-

dures which learn parts of the knowledge model, e.g.

(Zhuo et al., 2010). In order to evaluate the qual-

ity of these learning procedures, it is natural to want

to measure the quality of what is learned –such as

by comparing the learned knowledge with what has

been hand crafted (evaluating physical and semantic

quality), or by checking that the new knowledge can

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

642

be used by a planner (evaluating operational quality).

Similarly, we can classify the type of learning by its

inputs, such as training examples taken from the do-

main speciﬁcation D. In this way, the activity of using

machine learning to learn parts of the model external-

isation M can be cast within the Framework to clarify

quality goals and classiﬁcations of procedure, leading

to a sounder footing for the evaluation of such domain

model learning techniques.

Generalisation to Other Areas of Automated Rea-

soning. It may be argued that the introduced frame-

work, as well as some of the peculiarities of plan-

ning knowledge models described in the correspond-

ing section, are shared by other approaches for au-

tomated reasoning. This is, to some extent, cor-

rect. Answer Set Programming (ASP) and Satisﬁabil-

ity (SAT) components can be seen as components of

larger frameworks, potentially providing support and

automated reasoning capabilities to autonomous sys-

tems. However, a signiﬁcant difference lies in the fact

that in areas such as ASP and SAT, there is less em-

phasis on the shape of generated solutions. In fact,

ASP solvers are usually bounded to return all the pos-

sible solutions. In SAT, instead, it is important to

show that there exists a solution, or to demonstrate

that a formula is unsatisﬁable. Sub-areas of SAT, such

as MaxSAT, can accommodate preferences about the

structure of solutions, but solvers tend to be more fo-

cused on optimality –by including preferences in the

overall quality of generated solutions. From a lan-

guage perspective, both SAT and ASP show a smaller

degree of variability than planning: the selection of

the language is therefore much easier and less im-

portant for the overall modelling process. Therefore,

components such as P, and L are less relevant for the

ASP and SAT modelling process.

7 CONCLUSIONS AND FUTURE

WORK

The engineering of automated planning applications

–and in particular the knowledge model– is of great

importance as research advancements lead to applica-

tions, particularly in autonomous systems. To support

this, a deeper understanding of quality in the devel-

opment process needs to be derived. Utilising gen-

eral frameworks for conceptual modelling, we have

introduced a quality framework for use in viewing the

development of the knowledge model in automated

planning. This links previously distinct research ef-

forts in areas such as post-design analysis, automated

model acquisition, model debugging, and tool devel-

opment.

We have shown how past research in this area can

be given a more holistic setting within this frame-

work, and have exploited the framework for assess-

ing the support provided by existing knowledge engi-

neering tools for automated planning, and, ﬁnally, we

pointed out a list of potential beneﬁts to the planning

community. The results of the performed analysis,

beside demonstrating the usefulness of the introduced

framework, conﬁrms the lack of support for engineer-

ing automated planning knowledge models of state-

of-the-art tools and indicates the areas where further

work is needed. For instance, the analysis put a spot-

light on the lack of support for the Reﬂection process,

and on the limited ability of existing tools in support-

ing the encoding of additional knowledge that is not

strictly part of the models.

For future work, we are interested in synthesising

metrics that can be used for quantitatively evaluating

processes and components of the quality framework,

and to develop approaches that, by leveraging on the

introduced processes and quality concepts, can help

in addressing robustness issues of planning engines

(Vallati and Chrpa, 2019).

REFERENCES

Biundo, S., Aylett, R., Beetz, M., Borrajo, D., Cesta, A.,

Grant, T., McCluskey, T., Milani, A., and Verfaillie,

G. (2003). PLANET roadmap. http://www. planet-

noe.org/service/Resources/Roadmap/Roadmap2.pdf.

Chrpa, L., McCluskey, T. L., Vallati, M., and Vaquero, T.

(2017). The ﬁfth international competition on knowl-

edge engineering for planning and scheduling: Sum-

mary and trends. AI Magazine, 38(1):104–106.

Frank, J. (2013). The challenges of veriﬁcation and valida-

tion of automated planning systems. Proceedings of

ASE, page 2.

Ghallab, M., Nau, D., and Traverso, P. (2004). Automated

Planning: Theory & Practice. Morgan Kaufmann.

Krogstie, J. (2012). Quality of business process models. In

The Practice of Enterprise Modeling - 5th IFIP WG

8.1 Working Conference (PoEM), pages 76–90.

Krogstie, J. (2013). A semiotic approach to data quality. In

Proceedings of the International Conference on En-

terprise, Business-Process and Information Systems

Modeling (BPMDS/EMMSAD), pages 395–410.

Krogstie, J. and de Flon Arnesen, S. (2004). Assessing

enterprise modeling languages using a generic qual-

ity framework. Information modeling methods and

methodologies, (1537-9299):63–79.

Krogstie, J. and Jørgensen, H. D. (2002). Quality of in-

teractive models. In Advanced Conceptual Modeling

Techniques, ER 2002 Workshops: ECDM, pages 351–

363.

A Quality Framework for Automated Planning Knowledge Models

643

Krogstie, J., Lindland, O. I., and Sindre, G. (1995). Deﬁn-

ing quality aspects for conceptual models. In Proc. of

ISCO, pages 216–231.

Krogstie, J., Sindre, G., and Jørgensen, H. D. (2006). Pro-

cess models representing knowledge for action: a re-

vised quality framework. European Journal of Infor-

mation Systems, 15(1):91–102.

Lindland, O. I., Sindre, G., and Sølvberg, A. (1994). Under-

standing quality in conceptual modeling. IEEE Soft-

ware, 11(2):42–49.

Long, D., Dolejsi, J., and Fox, M. (2018). Building Support

for PDDL as a Modelling Tool. In Proc. of KEPS.

McCluskey, T. L. (2002). Knowledge Engineering: Issues

for the AI Planning Community. In Proc. of (KEPS).

McCluskey, T. L., Vaquero, T. S., and Vallati, M. (2017).

Engineering knowledge for automated planning: To-

wards a notion of quality. In Proc. of K-CAP, pages

14:1–14:8.

Plch, T., Chomut, M., Brom, C., and Bart

ak, R. (2012). In-

spect, edit and debug PDDL documents: Simply and

efﬁciently with PDDL studio. In Proc of ICAPS.

Simpson, R. M., Kitchin, D. E., and McCluskey, T. L.

(2007). Planning domain deﬁnition using gipo. The

Knowledge Engineering Review, 22(2):117–134.

Stamper, R. (1996). Signs, information, norms and systems.

Signs of work.

Vallati, M. and Chrpa, L. (2019). On the robustness of

domain-independent planning engines: The impact

of poorly-engineered knowledge. In Proceedings of

the 10th International Conference on Knowledge Cap-

ture, K-CAP, pages 197–204.

Vallati, M. and Kitchin, D. E., editors (2020). Knowledge

Engineering Tools and Techniques for AI Planning.

Springer.

Vaquero, T., Silva, J., and Beck, J. (2013a). Post-design

analysis for building and reﬁning ai planning systems.

Eng. App. of AI, (26(8)):1967–1979.

Vaquero, T. S., Silva, J. R., Tonidandel, F., and Beck, J. C.

(2013b). itsimple: towards an integrated design sys-

tem for real planning applications. Knowl. Eng. Rev.,

28(2):215–230.

Venturelli, D., Do, M., Rieffel, E. G., and Frank, J. (2017).

Temporal planning for compilation of quantum ap-

proximate optimization circuits. In Proc. of IJCAI.

Wegner, P. and Goldin, D. (1999). Interaction as a frame-

work for modeling. In Conceptual Modeling: Current

Issues and Future Directions, pages 243–257.

Wickler, G., Chrpa, L., and McCluskey, T. L. (2014). Kewi:

A knowledge engineering tool for modelling ai plan-

ning tasks. In Proc. of KEOD.

Zhuo, H. H., Yang, Q., Hu, D. H., and Li, L. (2010). Learn-

ing complex action models with quantiﬁers and logi-

cal implications. Artiﬁcial Intelligence, 174(18):1540

– 1569.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

644
