Data Fusion of Histological and Immunohistochemical Image Data for

Breast Cancer Diagnostics using Transfer Learning

Pranita Pradhan

1,2 a

, Katharina K

ohler

3,4

, Shuxia Guo

1,2 b

, Olga Rosin

3,4

, J

urgen Popp

1,2 c

Axel Niendorf

3,4

and Thomas Wilhelm Bocklitz

∗,1,2 d

Institute of Physical Chemistry and Abbe Center of Photonics, Friedrich Schiller University,

Helmholtzweg 4, Jena, 07743, Th

uringen, Germany

Leibniz Institute of Photonic Technology, Albert-Einstein-Straße 9, Jena, 07745, Th

uringen, Germany

MVZ Prof. Dr. med. A. Niendorf Pathologie Hamburg-West GmbH,

Lornsenstraße 4-6, Hamburg, 22767, Hamburg, Germany

Institute for Histology, Cytology and Molecular Diagnostics,Lornsenstraße 4, Hamburg, 22767, Hamburg, Germany

Keywords:

Breast Cancer, Transfer Learning, Histology, Immunohistochemistry.

Abstract:

A combination of histological and immunohistochemical tissue features can offer better breast cancer diag-

nosis as compared to histological tissue features alone. However, manual identiﬁcation of histological and

immunohistochemical tissue features for cancerous and healthy tissue requires an enormous human effort

which delays the breast cancer diagnosis. In this paper, breast cancer detection using the fusion of histolog-

ical (H&E) and immunohistochemical (PR, ER, Her2 and Ki-67) imaging data based on deep convolutional

neural networks (DCNN) was performed. DCNNs, including the VGG network, the residual network and the

inception network were comparatively studied. The three DCNNs were trained using two transfer learning

strategies. In transfer learning strategy 1, a pre-trained DCNN was used to extract features from the images

of ﬁve stain types. In transfer learning strategy 2, the images of the ﬁve stain types were used as inputs to a

pre-trained multi-input DCNN, and the last layer of the multi-input DCNN was optimized. The results showed

that data fusion of H&E and IHC imaging data could increase the mean sensitivity at least by 2% depending

on the DCNN model and the transfer learning strategy. Speciﬁcally, the pre-trained inception and residual

networks with transfer learning strategy 1 achieved the best breast cancer detection.

1 INTRODUCTION

Breast cancer is one of the most prevalent cancers

among women. It is diagnosed by a routine procedure

which is based on morphological tissue features in

hematoxylin and eosin (H&E) stained tissue sections

(ﬁgure 1a). The morphological tissue features in-

clude tumour size and type, which are regularly docu-

mented to assess the histological grade of breast can-

cer tissue (Webster et al., 2005). These morphologi-

cal tissue features are also used to prevent recurrence

risk of breast cancer and prescribe personalized ther-

apies. Breast cancer is additionally veriﬁed by other

staining technique called the immunohistochemical

https://orcid.org/0000-0002-0558-2914

https://orcid.org/0000-0001-8237-8936

https://orcid.org/0000-0003-4257-593X

https://orcid.org/0000-0003-2778-6624

(IHC) staining technique. The IHC staining technique

uses antibodies to highlight speciﬁc antigens in the

tissue region (Veta et al., 2014), and includes estro-

gen receptor (ER), progesterone receptor (PR) and

human epidermal growth factor-2 (Her2) (ﬁgure 1b-

d). Studies have shown that the IHC examination

with ER, PR, Her2 and Ki-67 can detect ﬁve molec-

ular breast cancer sub-types to provide adequate per-

sonalized therapies (Perou et al., 2000; Sørlie et al.,

2001; Cheang et al., 2009). However, none of the

studies report a combination of histology (H&E) and

IHC staining techniques (ER, PR, Her2 and Ki-67)

for breast cancer diagnosis. Therefore, in this work,

an integration of IHC imaging technique i.e. hormone

receptors including ER, PR, Her2 and Ki-67 nuclear

protein stained images with H&E stained images is

proposed to gain new insights into breast cancer bi-

ology (Elledge et al., 2000; Damodaran and Olson,

2012). The combination of histology and IHC stain-

Pradhan, P., Köhler, K., Guo, S., Rosin, O., Popp, J., Niendorf, A. and Bocklitz, T.

Data Fusion of Histological and Immunohistochemical Image Data for Breast Cancer Diagnostics using Transfer Learning.

DOI: 10.5220/0010225504950506

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 495-506

ISBN: 978-989-758-486-2

495

(a) (b) (c) (d) (e)

Figure 1: Five stain type images. (a) Hematoxylin and eosin (H&E), (b) Estrogen receptor (ER), (c) Progesterone receptor

(PR), (d) Human epidermal growth factor-2 (Her2) and (e) Ki-67 protein are shown. Scale bar is 200 µm.

ing technique is referred to as ‘Data fusion’ approach.

Data fusion approach by combining the histologi-

cal and IHC stained images can provide various tissue

features associated with the disease stage and relapse

of breast cancer. However, visual inspection of all ﬁve

stained images is a tedious process which can pro-

long the diagnosis. Therefore, automation of breast

cancer detection based on the combination of histo-

logical and IHC imaging data is needed. In this re-

gard, researchers (Pham et al., 2007; Dobson et al.,

2010) used computer-assisted image analysis tech-

niques to automatically monitor changes in the tis-

sue features of histological and IHC stained images

separately. However, computer-assisted image analy-

sis can be limited due to the need for speciﬁc soft-

ware systems or the need for user-speciﬁc input to

analyze the images. This slows down the process of

analyzing images and providing personalized thera-

pies to the patients. To increase the analysis speed

and reduce human intervention, this work proposes

machine learning (ML) instead of computer-assisted

image analysis techniques.

Conventional ML methods can automatize breast

cancer detection based on the fusion of histological

and IHC imaging data in the following way. First,

the features (e.g. color, shape and texture features)

from the ﬁve stain type of imaging data (H&E, ER,

PR, Her2 and Ki-67) can be extracted using image

analysis methods. The feature extraction step in the

conventional ML method is subjective and requires

the effort of an image analyst. Based on the extracted

features, a classiﬁcation, or a regression model can

be constructed. Subsequently, the classiﬁcation or the

regression model can be used to make ‘predictions’

(i.e. to predict a class like tumour or normal) on a

new or unseen dataset. Thus, the extracted features

affect the predictions made by the ML model. How-

ever, recently developed ML methods are capable

of performing automatic feature extraction for clas-

siﬁcation or regression purpose. These self-learning

methods are categorized into a broad family of ML

called ‘Deep learning’ (DL). The DL models can have

many types of network architectures. Widely used

DL model for images is the deep convolutional neu-

ral network (DCNN) and its numerous applications

are reported in the ﬁeld of digital pathology (Liu

et al., 2017); for example, cell segmentation or de-

tection (Chen and Chefd’Hotel, 2014), tumour classi-

ﬁcation (Cires¸an et al., 2013; Wang et al., 2016) and

carcinoma localization (Janowczyk and Madabhushi,

2016; Coudray et al., 2018; Khosravi et al., 2018;

Sheikhzadeh et al., 2018). Nevertheless, a bottleneck

for DL models is the requirement of huge dataset dur-

ing training, which is difﬁcult to acquire, particularly

in the medical imaging ﬁeld. In such cases, ‘trans-

fer learning’ methods for DCNNs can be applied for

improving the model performance (Tajbakhsh et al.,

2016).

Transfer learning is the transfer of knowledge

learned on a source task using a source dataset to im-

prove the performance on a target task using the target

dataset (Torrey and Shavlik, 2010). Transfer learning

using any DL model like DCNN can be performed

by three strategies. First, a pre-trained DCNN can be

used as a feature extractor. In this strategy, features

for the target dataset are extracted using a DCNN

trained on different or similar source dataset. The sec-

ond strategy is ﬁne-tuning the weights of the last lay-

ers of a pre-trained DCNN, and the third strategy is

ﬁne-tuning the weights of all layers of a pre-trained

DCNN. In the second and third ﬁne-tuning strategies,

the weights of speciﬁc layers of a DCNN trained on a

source dataset are further optimized based on the tar-

get dataset. The three transfer learning strategies like

using a DCNN as a feature extractor or ﬁne-tuning

of a DCNN, requires adequate knowledge of the size

and type of the source and the target dataset (Pan and

Yang, 2010). Transfer learning, if used appropriately,

can improve the initial and ﬁnal performance of the

DL model on the target dataset. It can also reduce

the total training time of the DL model on the target

dataset. Different transfer learning strategies acquire

different results based on the source and target dataset

which is evident in the next section.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

496

(a) (b)

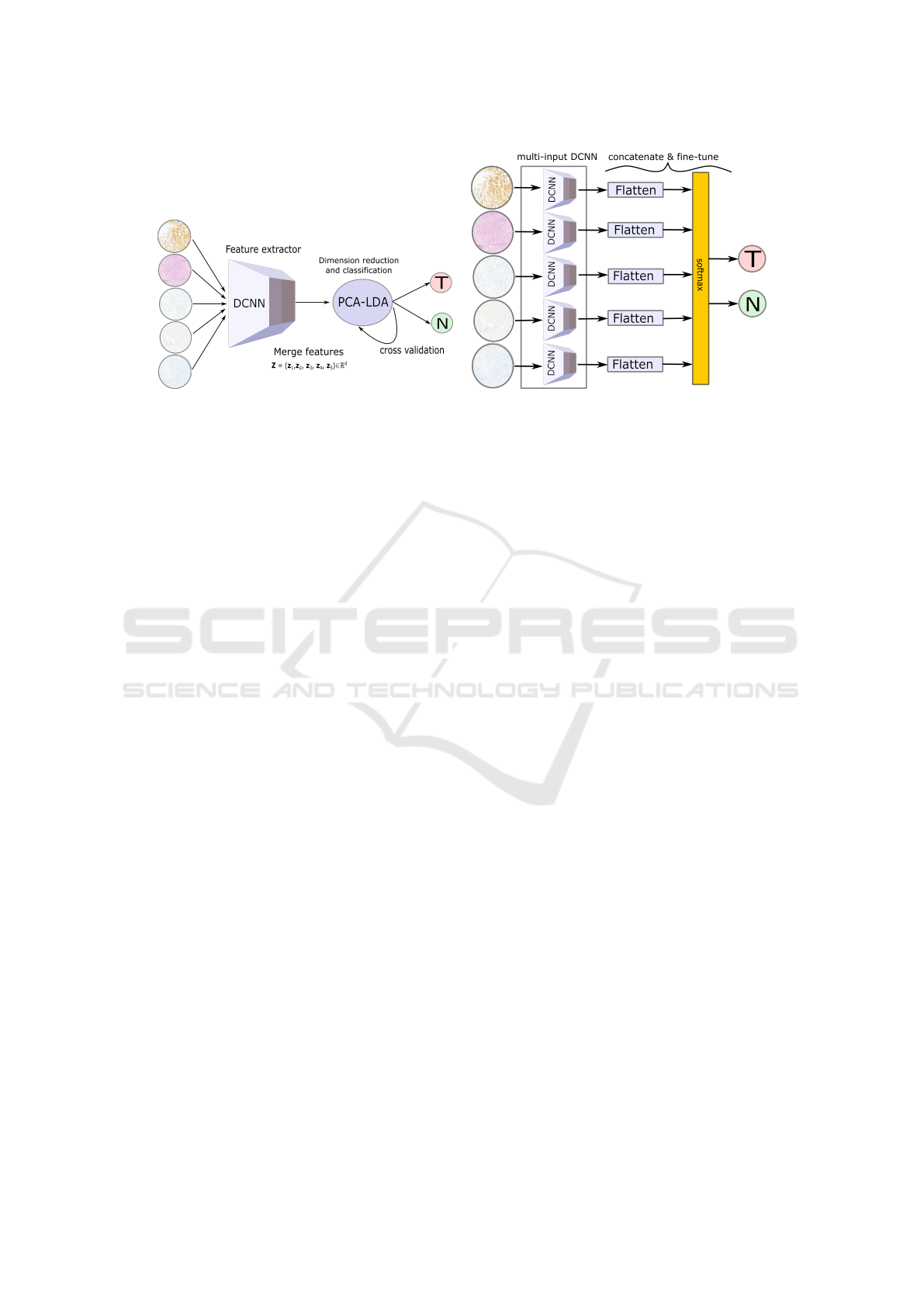

Figure 2: (a) visualizes transfer learning strategy 1 for data fusion approach where a pre-trained DCNN is used as a feature

extractor. The features extracted from a pre-trained DCNN for all ﬁve stain type images are merged and classiﬁed into tumour

and normal using the PCA-LDA model. (b) shows transfer learning strategy 2 for data fusion approach where ﬁne-tuning of

the last layer of a pre-trained multi-input DCNN is performed. The ﬁve DCNNs are pre-trained models like the VGG16, the

Inceptionv3 or the ResNet50, each having a stain type as its input.

2 RELATED WORK

Transfer learning in medical imaging can be achieved

by training a DCNN on a large medical or non-

medical dataset, and transferring its knowledge to

the target medical dataset (Bayramoglu and Heikkil

2016; Tajbakhsh et al., 2016). A recent study used a

large non-medical dataset like the ImageNet dataset

(Russakovsky et al., 2015) to pre-train a DCNN and

transfer its off-the-shelf features to investigate two

computer-aided detection (CADs) problems namely

thoracoabdominal lymph node detection and intersti-

tial lung disease detection (Shin et al., 2016). In

their work, three different DCNNs including the Ci-

farNet (Krizhevsky and Hinton, 2009), the AlexNet

(Krizhevsky et al., 2012) and the GoogleNet (Szegedy

et al., 2015) were evaluated with three transfer learn-

ing strategies. Similarly, a recent publication (Mor-

mont et al., 2018) compared various transfer learning

strategies based on pre-trained DCNNs using eight

classiﬁcation datasets in digital pathology. Their re-

sults showed that ﬁne-tuning the ResNet (He et al.,

2016) and the DenseNet (Huang et al., 2017) mod-

els outperformed the other tested models in the mor-

phological classiﬁcation task. Similar ﬁndings were

observed in other references (Antony et al., 2016; Ki-

effer et al., 2017; Ravishankar et al., 2016).

In contrast to the previously mentioned appli-

cations where ﬁne-tuning of a DCNN achieved the

best performance, several other applications using

a DCNN as feature extractor achieved signiﬁcant

performance on binary and multi-class classiﬁcation

tasks. These applications included prediction of mor-

phological changes in cells in microscopic images

(Kensert et al., 2018), classiﬁcation of colon polyps in

endoscopic images (Ribeiro et al., 2016), identiﬁca-

tion of mammographic tumours (Huynh et al., 2016)

and detection of pulmonary nodules in computed to-

mography scans (Van Ginneken et al., 2015). It is

clear from the previous researches that transfer learn-

ing techniques are data-dependent, and a generaliza-

tion of the above-mentioned results is not feasible, es-

pecially in the medical imaging ﬁeld (Litjens et al.,

2017). Therefore, no consensus of the proper applica-

tion of transfer learning in the medical imaging ﬁeld

is established. Likewise, the application of transfer

learning, especially for medical imaging data requires

utmost care and further investigations.

In this contribution, data fusion of histological and

immunohistochemical imaging data for classifying

breast cancer is presented for the ﬁrst time. Due to our

small dataset size, the classiﬁcation task is performed

using two transfer learning strategies. From previous

experience, the third transfer learning strategy i.e. the

training of a DCNN from scratch is avoided, as it is

computationally expensive and may lead to overﬁtting

in the absence of large datasets. The performance of

the two transfer learning strategies for the data fusion

approach is compared with histological imaging data.

Moreover, the two transfer learning strategies are per-

formed using three pre-trained DCNN models like the

VGG16 (He et al., 2016), the Inceptionv3 (Szegedy

et al., 2016) and the ResNet50 network (Simonyan

and Zisserman, 2014). The goal of this study was to

verify whether the data fusion approach along with

Data Fusion of Histological and Immunohistochemical Image Data for Breast Cancer Diagnostics using Transfer Learning

497

transfer learning improves the breast cancer diagnosis

based on the sensitivity and F1 score metric.

3 MATERIAL AND METHODS

3.1 Sample Preparation

A Tissue Microarray (TMA) with 97 cores represent-

ing 23 breast cancer cases (78 tumour cores, 18 non-

cancerous tissue cores or the normal breast tissue and

one control core of liver tissue) was produced using

the Manual Tissue Arrayer MTA-1 by Estigen. The

cases were randomly selected out of the daily rou-

tine of MVZ Prof. Dr. med. A. Niendorf Pathologie

Hamburg-West GmbH and anonymized according to

a statement of the ethics committee of the Hamburg

Medical Chamber. Core tissue biopsies (1.0 mm in di-

ameter) were taken from individual FFPE (formalin-

ﬁxed parafﬁn-embedded) blocks and arranged within

a new recipient block. From the block, 2 µm sections

were cut, placed on glass microscope slides and H&E

staining (ﬁgure 1a) following a standard protocol was

performed. Digital images of histology (H&E) slides

were obtained at 40× magniﬁcation using the 3DHis-

tech Pannoramic 1000 Flash IV slide scanner with a

spatial resolution of 0.24 µm/pixel (.mrxs image ﬁle).

Subsequently, immunohistochemistry staining (ER,

PR, Her2 and Ki-67) (ﬁgure 1b-e) was performed on

super frost charged glass slides.

3.2 Image Preprocessing

For the analysis, 96 TMAs or scans (78 tumour

scans and 18 normal scans) from 23 patients were

used, and each TMA had ﬁve stain types (H&E,

PR, ER, Her2 and Ki-67). The pixel intensity I of

each TMA was standardized using a min-max scal-

ing (I − I

min

)/(I

max

− I

min

), where I

min

and I

max

the minimum and maximum intensity of a pixel in

a TMA. The background pixels were cropped manu-

ally and non-overlapping patches of size 1024×1024

were extracted from a standardized TMA. This led

to 9 patches per TMA (702 tumour and 162 normal

patches). The four corner patches including a large

number of background pixels were removed, leading

to 390 tumour and 90 normal patches. Based on the

480 selected patches, three pre-trained models were

used with two transfer learning strategies.

3.3 DCNN Architectures

To check the robustness of the data fusion approach,

three DCNNs: the VGG network, the Inception net-

work and the residual network, with unique architec-

tures were chosen. The VGG network is a DCNN that

has acquired state-of-the-art performances for image

classiﬁcation tasks. However, the VGG network can

exhibit the problem of vanishing gradients with an in-

creasing number of layers (Hanin, 2018). Thus, the

residual network which can solve the problem of van-

ishing gradients by adding the ‘shortcut connections’

was explored in this work. Furthermore, the inception

network that provides width in addition to the depth to

a conventional DCNN was utilized. A detailed expla-

nation of the architecture of the three models is given

further.

3.3.1 VGG Network

A VGG network is a DCNN with different conﬁgura-

tions from 11 to 16 convolutional layers followed by

three fully connected layers. The number of convo-

lutional layers increases the depth of the VGG net-

work. It is shown that an increase in the depth of

the VGG network decreases the top-5 validation er-

ror (He et al., 2016). However, the decrease in the er-

ror for the VGG network from 16 to 19 convolutional

layers is not signiﬁcant. Thus, the VGG network

with 16 convolutional layers referred to as VGG16

from Keras was used (Chollet et al., 2015). The in-

put to the VGG16 network was an RGB image of

size 224×224, and each image was preprocessed by

subtracting the mean RGB values computed over the

training dataset.

3.3.2 Inception Network

Deep networks like VGG network require an appro-

priate selection of the number of convolution ﬁlters

and ﬁlter sizes. For this reason, the inception network

concatenates convolutional layers of different ﬁlter

size, including the spatial dimension of 1×1, 3×3

and 5×5. This captures information at various scales

while increasing the computational complexity. In or-

der to reduce the computational cost, a convolutional

layer of 1×1 ﬁlter size is applied before each convo-

lutional layer of ﬁlter size 3×3 and 5×5. These two

salient features of the Inception network reduce the

dimensionality in the feature space and thereby allows

the network to be deeper and wider. Moreover, the

inception network replaces the fully connected layer

with global averaging layers which reduces the num-

ber of trainable weights, thus reducing over-ﬁtting on

the training dataset (Szegedy et al., 2016). The In-

ceptionv3 implementation from Keras, which has 95

layers and requires an RGB image as input with size

299×299 was used.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

498

Table 1: This table shows confusion matrices, mean sensitivities and mean F1 scores for the VGG, the Inception and the

residual networks using transfer learning strategy 1. Here, two feature sets extracted from pre-trained models are used; one

feature set is extracted from H&E images only, while the other feature set is extracted from all the ﬁve stain types. All metrics

are computed for 96 TMAs by taking majority voting of the predictions acquired for the patches using the PCA-LDA model.

N: normal scans, T: tumour scans.

Data fusion (H&E+IHC imaging data) Only histological imaging data

DCNN

N T

Sens (%) F1 (%) DCNN

N T

Sens (%) F1 (%)

VGG16

N 13 5

79.06 76.24

VGG16

N 14 4

80.56 76.61

T 11 67 T 13 65

Inceptionv3

N 16 2

89.32 85.47

Inceptionv3

N 15 3

88.46 86.97

T 8 70 T 5 75

ResNet50

N 14 4

86.97 87.80

ResNet50

N 14 4

85.68 84.96

T 3 75 T 5 73

Table 2: This table shows confusion matrices, mean sensitivities and mean F1 scores for the VGG, the Inception and the

residual networks using transfer learning strategy 2. Data fusion approach used multi-input DCNN with the ﬁve stain type

images as input, whereas a single-input DCNN was used only the H&E image as input. The last layers of both single-input

and multi-input DCNNs were ﬁne-tuned. The mean sensitivities are computed for 96 TMAs by taking majority voting of the

predictions obtained for the patches. N: normal scans, T: tumour scans.

Data fusion (H&E+IHC imaging data) Only histological imaging data

DCNN

N T

Sens (%) F1 (%) DCNN

N T

Sens (%) F1 (%)

VGG16

N 7 11

66.88 70.86

VGG16

N 3 15

55.13 57.57

T 4 74 T 5 73

Inceptionv3

N 0 18

50.00 44.83

Inceptionv3

N 9 9

72.44 75.66

T 0 78 T 4 74

ResNet50

N 0 18

50.00 44.83

ResNet50

N 12 6

81.41 83.78

T 0 78 T 3 75

Table 3: This table shows confusion matrices, mean sensitivities and mean F1 scores for the VGG, the Inception and the

residual network using the two transfer learning strategies. All metrics are computed for 96 TMAs by taking majority voting

of the predictions acquired by the models for patches.

Transfer learning strategy 1 Transfer learning strategy 2

DCNN

N T

Sens (%) F1 (%) DCNN

N T

Sens (%) F1 (%)

VGG16

N 13 5

79.06 76.24

VGG16

N 7 11

66.88 70.86

T 11 67 T 4 74

Inceptionv3

N 16 2

89.32 85.47

Inceptionv3

N 0 18

50.00 44.83

T 8 70 T 0 78

ResNet50

N 14 4

86.97 87.80

ResNet50

N 0 18

50.00 44.83

T 3 75 T 0 78

3.3.3 Residual Network

The conﬁgurations of the VGG network show that

deep neural networks achieve good top-5 accuracy

until a certain depth limit (He et al., 2016). An in-

crease in the network depth causes a problem of van-

ishing or exploding gradients (Hanin, 2018) which af-

fects the network convergence and degrades the per-

formance (Simonyan and Zisserman, 2014). There-

fore, the residual networks are built to solve this

degradation problem by adding activations of the top

layers into the deeper layers of the network. For in-

stance, in a deep neural network the activation a of

the (l + 2)

layer with weight w and bias b is given as

(l+2)

= f [(w

(l+2)

× a

(l+1)

) + b

(l+2)

], (1)

where f is an activation function like linear recti-

ﬁed unit ( f = max (a

(l+2)

,0)). However, in a resid-

ual block the activation a of the l

layer (or an iden-

tity mapping) is added via the ‘skip or shortcut con-

nections’ (Bishop et al., 1995; Venables and Ripley,

2013) to the (l +2)

layer of the network. Therefore,

the activation of the (l +2)

layer in a residual block

can be given a

(l+2)

= f [(w

(l+2)

× a

(l+1)

) + b

(l+2)

+ a

(l)

]. (2)

This implies that in worse cases when the network

Data Fusion of Histological and Immunohistochemical Image Data for Breast Cancer Diagnostics using Transfer Learning

499

fails to learn representative features, i.e. w

(l+2)

= 0

and b

(l+2)

= 0, the output still remains an identity

mapping of the input a

. In residual networks, a se-

ries of residual blocks along with intermediate nor-

malization layers was used; thus improving the learn-

ing of the deep neural networks. In this work, the

ResNet50 implementation from Keras, which has 152

layers and requires an RGB image as an input with

size 224×224, was used.

The above explained three DCNN models were

trained using two transfer learning strategies which

are discussed in the next section.

3.4 Transfer Learning Strategies

The above-mentioned DCNNs were utilized for two

transfer learning strategies. For the ﬁrst strategy, a

pre-trained DCNN model to extract off-the-shelf fea-

tures followed by a linear classiﬁer was used. In

the second strategy, a multi-input pre-trained DCNN

model followed by a softmax classiﬁer was used.

Both strategies were performed on a commercially

available PC system intel

 Core

with NVIDIA

GeForce GTX 1060, 6GB with python packages:

Keras(Chollet et al., 2015), Tensorﬂow(Abadi et al.,

2015), Scikit-learn (Pedregosa et al., 2011), Scipy

(Jones et al., 2001) and Numpy (Oliphant, 2006).

3.4.1 DCNN as Feature Extractor

In the ﬁrst strategy (ﬁgure 2a), features z

∈ R

,i =

(1,2,3,4,5) were extracted for patches of each stain

type i using the pre-trained VGG16, Inceptionv3 and

ResNet50 networks. The patches were resized ac-

cording to the model’s input size requirement. For

a patch of a single stain type, 25,088 features were

extracted by the VGG16 (feature shape: 1, 7, 7,

512), 51,200 features were calculated by the Incep-

tionv3 (feature shape: 1, 5, 5, 2048) and 2048 fea-

tures were obtained by the ResNet50 (feature shape:

1, 1, 1, 2048). For data fusion approach, the fea-

tures from all ﬁve stain types were concatenated, z =

) ∈ R

(d  m) resulting in ∼0.12

million features by the VGG16 model, ∼0.25 mil-

lion features by the Inceptionv3 model and 10,240

features by the ResNet50 model per patch. For his-

tological imaging data, i.e. without the data fusion

approach, the features extracted only from the H&E

images were used. In both cases, the large feature

dimension of each patch was reduced by principal

component analysis (PCA) model, and classiﬁed as

normal or tumour using linear discriminant analy-

sis (LDA) model (Hastie et al., 2009). The PCA-

LDA model was evaluated using internal and external

cross-validation scheme explained elsewhere (Guo

et al., 2017). Shortly, the internal cross-validation

was used to optimize the number of PC’s of the PCA-

LDA model. The external cross-validation was used

to predict an independent test dataset based on the

PCA-LDA model. The external cross-validation used

leave-one-patient-out cross-validation, such that the

patches acquired from TMAs of 23 patients were used

at least once as an independent test dataset. The in-

ternal cross-validation used 10 fold cross-validation.

The predictions by the PCA-LDA model acquired for

the patches from the external cross-validation step

were voted to assign each TMA into a tumour or nor-

mal class. Based on the predicted TMA labels (ob-

tained after majority voting of the patches) and true

TMA labels, metrics like confusion matrix, mean sen-

sitivity and mean F1 score were reported. The mean

sensitivity and the mean F1 score were calculated us-

ing an average of the mean sensitivities and the mean

F1 scores for the tumour and normal class, respec-

tively. Lastly, the transfer learning strategy 1 was per-

formed for all the three DCNNs and their classiﬁca-

tion performance based on TMAs was compared.

3.4.2 Fine-tuning of DCNN

In the second strategy (ﬁgure 2b), for histologi-

cal imaging data, a single-input DCNN was used;

whereas for the data fusion approach, a multi-input

DCNN was used. The multi-input DCNN model N

was constructed using ﬁve pre-trained models of the

same architecture; for instance, ﬁve pre-trained VGG

networks each using a stain type image as an in-

put. The input to the multi-input DCNN model was

the ﬁve stained images (H&E, ER, Her2, Ki-67 and

PR). The last layer of the multi-input DCNN models

was concatenated and followed by a dense layer with

two outputs (corresponding to the normal and tumour

class) with a softmax activation layer. The softmax

activation layer mapped the non-normalized output of

the model N to the distribution of K probabilities and

is deﬁned as

P(r)

exp(r

)

∑

j=1

exp(r

)

, (3)

where r = (r

,· · ·, r

) and K = 2 for a binary clas-

siﬁcation task. During the training process, the last

two layers were ﬁne-tuned using Adam optimizer

(Kingma and Ba, 2014) with a learning rate 0.001 and

mini-batch size of 5 patches. To allocate higher class

weight for the minority class (here, the normal class),

the weighted binary cross-entropy loss function

L = −

∑

log(P(r)

) (4)

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

500

was used, where α

, y

, P(r)

are the weight,

ground truth and the probability from the softmax ac-

tivation layer of the i

class in K, respectively. The

model was evaluated using the mean sensitivity and

the mean F1 score similar to transfer learning strat-

egy 1.

For the evaluation of the single and multi-input

DCNN, the dataset was divided into three parts: train-

ing, validation and testing. In every iteration, patches

of one patient were used as an independent test dataset

and the patches of remaining patients were used as

training and validation dataset. To avoid any train-

ing bias, the training and validation datasets were

randomly split patient-wise such that patches from

30% patients were used as validation dataset and the

rest as the training dataset. In other words, during

each iteration, patches of one patient were used as the

test dataset, patches of 16 patients formed the train-

ing dataset and patches of remaining 6 patients be-

longed to the validation dataset. The combination of

16 and 6 patients in training and validation datasets

were chosen randomly. The iterations were repeated

until all 23 patients were used as an independent test

dataset. Further, every iteration was executed for ten

epochs, and validation sensitivity was monitored for

early stopping of the model training. The model with

best validation sensitivity was used for predicting the

independent test dataset in that iteration. In this way,

the patches of all 23 patients were used individually

as an independent test dataset, and majority voting

of the patches similar to transfer learning strategy 1

was performed. The confusion matrices and aver-

age of the mean sensitivities for the normal and tu-

mour classes were evaluated using the independent

test dataset. Subsequently, transfer learning strategy

2 was performed for all the three pre-trained DCNN

models with the same hyper-parameter setting.

3.4.3 ROC Curve Analysis for TMAs

The results of the two transfer learning strategies were

obtained as ROC curves showing the true and the

false positive rate for the tumour class. The ROC

curves were evaluated for TMAs based on the major-

ity voting of the selected patches. To achieve ROC

curves for TMAs, the model output in the form of

probabilities of each patch for the tumour class was

thresholded using 100 different values in the range

[0, 1]. This led to predictions for patches with dif-

ferent threshold values. Subsequently, the predic-

tions for patches obtained for each threshold value

were majority voted to obtain a prediction for a TMA.

The predictions for TMAs were used to calculate the

true positive rate, the false positive rate and the ROC

curve, as shown in ﬁgure 3 and 4. The predictions

for the TMAs obtained with 0.5 threshold were used

to obtain the confusion matrix, mean sensitivities and

mean F1 scores as reported in table 1, 2 and 3.

4 RESULTS

The main aim of this work was to conﬁrm that the

data fusion approach can achieve better breast can-

cer diagnosis than histological imaging data based on

performance metrics. This was conﬁrmed by one of

the two transfer learning strategies. The results are

divided in three parts as shown in table 1, 2 and 3.

Table 1 and 2 report performance metrics obtained

for transfer learning strategy 1 and transfer learning

strategy 2, with and without data fusion approach, re-

spectively. Table 3 shows a comparison of the two

transfer learning strategies using only the data fusion

approach. In table 1, 2 and 3 report values for the

VGG16, the Inceptionv3 and the ResNet50 models.

These values were evaluated for 96 TMAs acquired

by majority voting of the ﬁve patches extracted from

each TMA.

The results in table 1 show that the pre-trained

features acquired from the data fusion approach yield

slightly higher mean sensitivities and mean F1 scores

in comparison to the pre-trained features extracted

from the histological imaging data. Higher mean sen-

sitivities using the data fusion approach were seen for

at least two of the three DCNNs. Higher mean F1

score using the data fusion approach was seen only

for the ResNet50 model. Speciﬁcally, the pre-trained

features obtained from the data fusion approach us-

ing the Inceptionv3 and the ResNet50 models showed

mean sensitivities 89.32% and 86.97%, respectively.

Similarly, the mean F1 scores for the two models

were 85.47% and 87.80%, respectively. In compari-

son, the pre-trained features from the histological data

using the same DCNN model showed mean sensitiv-

ities 88.46% and 85.68%, respectively. Thus, there

was approximately 2% increase in the model perfor-

mance by data fusion approach based on the mean

sensitivity, which is signiﬁcant from a clinical per-

spective. However, the VGG16 model showed higher

mean sensitivity (80.56%) using histological imaging

data compared to the mean sensitivity calculated for

the data fusion approach (79.06%). Overall, it can be

seen that transfer learning using pre-trained DCNN

features and a linear classiﬁcation model (PCA-LDA)

based on data fusion approach show a slight improve-

ment in breast cancer detection in some cases for a

small dataset as in our study.

Contrarily, table 2 obtained by the transfer learn-

ing strategy 2 shows lower mean sensitivities for

Data Fusion of Histological and Immunohistochemical Image Data for Breast Cancer Diagnostics using Transfer Learning

501

(a) (b) (c)

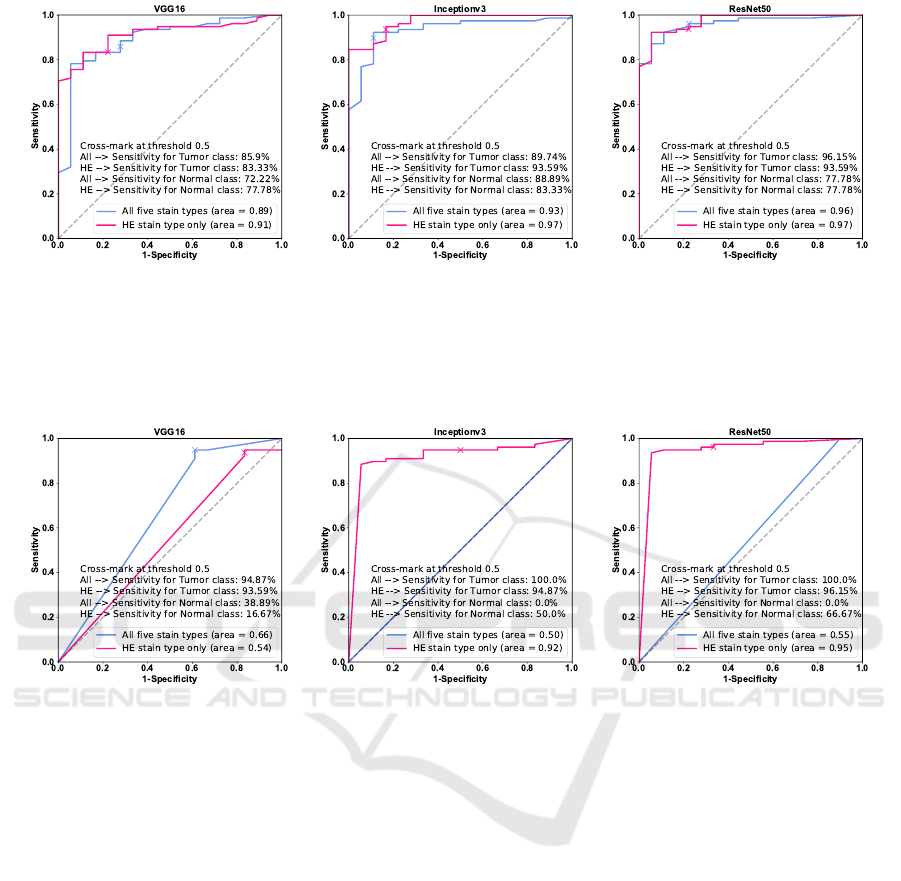

Figure 3: (a-c) show ROC curves for the VGG16, the Inceptionv3 and the ResNet50 networks using the transfer learning

strategy 1 based on TMAs. The blue line shows ROC curve for the PCA-LDA model trained using the pre-trained DCNN

features obtained from the histological and IHC imaging data, whereas the pink line shows ROC curve for the PCA-LDA

model trained using pre-trained DCNN features extracted from the histological imaging data only. The cross-mark shows the

true and the false positive rate on the ROC curve with 0.5 threshold.

(a) (b) (c)

Figure 4: (a-c) show ROC curves for the VGG16, the Inceptionv3 and the ResNet50 networks using the transfer learning

strategy 2 based on TMAs. The blue line shows ROC curve for the multi-input DCNN model ﬁne-tuned using the histological

and IHC imaging data, whereas the pink line shows the ROC curve for the single-input DCNN model ﬁne-tuned using only

the histological imaging data. The cross-mark shows the true and the false positive rate at 0.5 threshold.

the data fusion approach in comparison to the per-

formance achieved by using histological imaging

data alone. Except for the multi-input VGG16 net-

work, the multi-input Inceptionv3 and the multi-input

ResNet50 network trained with a combination of his-

tological and IHC imaging data predicted all normal

patches as tumour patches. Thus, the multi-input

Inceptionv3 and the multi-input ResNet50 model

achieved mean sensitivity of 50% and mean F1 score

of 44.83%; whereas, the multi-input VGG16 network

showed mean sensitivity of 66.88% and mean F1

score of 70.86% for the data fusion approach. The

mean sensitivity of the single-input VGG16 network

declined to 55.13% when only histological imaging

data was used. On the other hand, the single-input

Inceptionv3 and the single-input ResNet50 models

using histological imaging data showed an opposite

trend with comparatively higher mean sensitivities of

72.44% and 81.41%, and higher mean F1 scores of

75.66% and 83.78%, respectively. Overall, it was ob-

served that transfer learning performed by ﬁne-tuning

the last layer of the pre-trained multi-input DCNNs

result in lower mean sensitivities for the data fusion

approach. This behaviour can be a consequence of

the small sample size. It is clear from the results that

ﬁne-tuning the last layer of DCNNs is not the best ap-

proach for our small breast cancer dataset. Thus, it

is suspected that the ﬁne-tuning of all the layers of a

DCNN will decrease the model performance further.

However, ﬁne-tuning of all layers for large breast can-

cer dataset should be investigated in the future.

Lastly, the performance of the two transfer learn-

ing strategies for the data fusion approach is summa-

rized in table 3, where higher mean sensitivities are

reported for strategy 1, i.e. using pre-trained features

from the VGG16, the Inceptionv3 and the ResNet50

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

502

model. The training of the PCA-LDA model based

on pre-trained features of the Inceptionv3 and the

ResNet50 network yield promising results. The re-

sults from the VGG16 network are lower in compari-

son to the other two models for transfer learning strat-

egy 1, but higher for transfer learning strategy 2.

The performance of the two transfer learning

strategies based on TMAs is summarized in the form

of ROC curves in ﬁgure 3 and 4. The ROC curve

calculated for the data fusion approach and histolog-

ical imaging data at various thresholds is depicted in

blue and pink, respectively. The AUC values given in

the ﬁgure legend show lower values for the data fu-

sion approach in comparison to the AUC values cal-

culated using histological imaging data. This trend

is observed for both the transfer learning strategies.

From ﬁgure 3 and 4, it can be inferred that the over-

all performance of DCNN models trained using an

H&E image is better for both transfer learning strate-

gies. However, the ﬁnal performance of the models in

terms of mean sensitivities evaluated at 0.50 threshold

is better for the data fusion approach in some cases.

The mean sensitivities cross-marked in each subplot

of ﬁgure 3 and 4 are calculated at 0.50 threshold coin-

cide with the values reported in table 1, 2 and 3. These

values are evaluated for TMA’s by performing major-

ity voting of the ﬁve patches in each TMA. The ROC

curves at threshold 0.50 which is mostly used to eval-

uate the model performance, show higher mean sensi-

tivities for data fusion approach than using histologi-

cal data, at least for the Inceptionv3 and the ResNet50

model in transfer learning strategy 1 (ﬁgure 3). Nev-

ertheless, the AUC derived from the ROC curves for

transfer learning strategy 2 (ﬁgure 4) show low mean

sensitivities for all the DCNN networks. The incon-

sistency in the results of two transfer learning strate-

gies can be due to various reasons discussed below.

5 DISCUSSION

Based on the results, three critical ﬁndings can be dis-

cussed.

5.1 Data Fusion vs. Histological

Imaging

The results showed that the data fusion approach, i.e.

combining histological and IHC imaging data, in-

creases the model performance by ∼2%. However,

the increase in model performance was achieved only

for transfer learning strategy 1, where features were

extracted from a pre-trained DCNN followed by bi-

nary classiﬁcation using the PCA-LDA model. It is

important to mention that the analysis was performed

on a limited number of TMAs and it is suspected that

the results can improve with an increasing number of

TMAs, at least for the transfer learning strategy 1.

Furthermore, the data fusion approach can largely in-

crease the feature dimension of the data, thus increas-

ing computational complexity. Nevertheless, these

limitations are the cost of performing reliable and

early breast cancer diagnosis. In future studies, fea-

ture dimension can be reduced by extracting features

from the last layers and a comparative study can be

performed.

5.2 Strategy 1 vs. Strategy 2

From the results shown in table 3 it is clear that

transfer learning strategy 1 outperforms the transfer

learning strategy 2 for our breast cancer dataset. For

transfer learning strategy 2, the misclassiﬁcation of

the under-represented normal class as tumour class is

higher. This means that transfer learning strategy 2

performed by merging and ﬁne-tuning the last layer

of the pre-trained multi-input model causes ‘negative

transfer learning’ showing lower binary classiﬁca-

tion performance. Although the past studies (Kensert

et al., 2018; Mormont et al., 2018) have shown that

transfer learning strategy 2 for medical imaging data

can provide good classiﬁcation performances, these

studies used a single-input DCNN for ﬁne-tuning;

whereas, in this study a multi-input DCNN was used.

Thus, training a large multi-input network on a small

dataset can cause the model to overﬁt and degrade

its performance. Degradation in model performance

can also be a consequence of transferring features

of top layers from two different domains (Yosinski

et al., 2014). Speciﬁcally, the transferability of fea-

tures can be negatively affected when the source task

(e.g. classiﬁcation of the ImageNet dataset) is differ-

ent from the target task (e.g. breast cancer detection).

Thus, transfer learning of features for different do-

mains should be performed cautiously (Yosinski et al.,

2014). Further, merging and ﬁne-tuning only the last

layer and initializing the weights of the whole net-

work based on the ImageNet dataset transferred the

speciﬁc features (learned in top layers) of the non-

medical domain to the medical domain, thus decreas-

ing the classiﬁcation performance in the strategy 2.

To improve the performance of a DCNN model by

the transfer learning strategy 2, initializing and ﬁne-

tuning weights of the top and intermediate layers of

the multi-input DCNN model should be investigated

in future studies.

So far, limitations of the transfer learning strategy

2 were discussed, now it is important to discuss few

Data Fusion of Histological and Immunohistochemical Image Data for Breast Cancer Diagnostics using Transfer Learning

503

limitations of the transfer learning strategy 1. One

of the limitations is the need for an aggressive down-

sampling of the pathological images according to the

input size of the pre-trained DCNN, ignoring the es-

sential information. Although it is also possible to use

a desired input image size by removing the fully con-

nected layers of a pre-trained DCNN, downsampling

our patches of size 1024×1024 to the model’s in-

put size facilitated the best classiﬁcation performance.

Extracting smaller size patches to increase the num-

ber of patches were also evaluated during the analysis.

However, it was observed that small size patches in-

creased the dataset size but decreased the biologically

signiﬁcant tissue features in each patch. Irrespective

of our acceptable results using the pre-trained DCNNs

as feature extractors, the interpretability of the trans-

ferred features is questionable. It is difﬁcult to ob-

tain an intuitive understanding of the transferability

of non-medical features obtained from the ImageNet

dataset to the medical domain. Thus, it is important to

investigate transferring features from the medical do-

main to improve the breast cancer classiﬁcation rate

in future.

5.3 Effect of DCNN Architecture

It was clear from the results that acquiring a good

classiﬁcation rate using data fusion approach is de-

pendent on the DCNN model. For transfer learn-

ing strategy 1, the Inceptionv3 and the ResNet50

network achieved better classiﬁcation performances.

While for transfer learning strategy 2, the multi-input

VGG16 network achieved good classiﬁcation perfor-

mance. Furthermore, for transfer learning strategy

1, the Inceptionv3 and the VGG16 provided a large

number of features (as they were combined from mul-

tiple modalities) in comparison to the ResNet50 net-

work. Large feature dimension not only increased the

dataset size but also increased the memory require-

ment. However, large feature dimension obtained by

large DCNNs like the Inceptionv3 and the ResNet50

proved to be beneﬁcial for training the PCA-LDA

model in transfer learning strategy 1. While for trans-

fer learning strategy 2, it was seen that large DCNN

like the multi-input Inceptionv3 and the multi-input

ResNet50 networks easily overﬁt and degrade model

performance. It is suspected that large networks

in multi-input fashion like the Inceptionv3 and the

ResNet50 network generates a large number of train-

able parameters which degrades model performance

during ﬁne-tuning. Furthermore, the time required

to ﬁne-tune the last layers of networks increases with

network size.

6 CONCLUSION

The results show that combining histological imaging

data along with IHC imaging data (estrogen recep-

tor, progesterone receptor, human epidermal growth

factor-2 and Ki-67) can improve breast cancer classi-

ﬁcation rate as compared to histological imaging data

alone. The improvement in the classiﬁcation perfor-

mance was approximately 2% when deep convolu-

tional neural networks (DCNN) were used as feature

extractors (i.e. transfer learning strategy 1). However,

the classiﬁcation performance degraded when ﬁne-

tuning of the last layer of the multi-input DCNN (i.e.

transfer learning strategy 2) was performed. Out of

all three pre-trained networks, the pre-trained resid-

ual network and inception network as feature extrac-

tor outperformed the binary classiﬁcation task (tu-

mour vs normal), while the pre-trained VGG network

as feature extractor obtained reasonable results. On

the other hand, the VGG network showed better per-

formances than the residual network and the incep-

tion network when ﬁne-tuning of last layers was per-

formed. The increase in performance by 2% for di-

agnosing breast cancer is explainable, because this

task is normally performed using H&E, so the ad-

vancement is limited. Nevertheless, the data fusion

approach can substantially improve differential diag-

nosis, which is important from a clinical perspec-

tive. Therefore, combining histology and IHC stain-

ing technique should be encouraged in future for more

complicated tasks like a differential diagnosis or the

prognosis of breast cancer patients. Overall, this com-

parative study showed that transfer learning could be

utilized to diagnose breast cancer based on the com-

bined histological and IHC imaging data with accept-

able results. However, it is important to perform this

study on a larger dataset in future. On large dataset,

transfer learning strategy 3 i.e. training a DCNN from

scratch can also be investigated. Furthermore, the

data fusion approach can be performed to characterize

stages of breast cancer in future.

ACKNOWLEDGEMENTS

Financial support of the German Science Foundation

(BO 4700/1-1, PO 563/30-1 and STA 295/11-19) and

funding by the BMBF for the project Uro-MDD (FKZ

03ZZ0444J) are highly acknowledged.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

504

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., Ghemawat, S., Goodfellow, I., Harp, A., Irving,

G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kud-

lur, M., Levenberg, J., Man

e, D., Monga, R., Moore,

S., Murray, D., Olah, C., Schuster, M., Shlens, J.,

Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Van-

houcke, V., Vasudevan, V., Vi

egas, F., Vinyals, O.,

Warden, P., Wattenberg, M., Wicke, M., Yu, Y., and

Zheng, X. (2015). TensorFlow: Large-scale machine

learning on heterogeneous systems. Software avail-

able from tensorﬂow.org.

Antony, J., McGuinness, K., O’Connor, N. E., and Moran,

K. (2016). Quantifying radiographic knee osteoarthri-

tis severity using deep convolutional neural networks.

In 2016 23rd International Conference on Pattern

Recognition (ICPR), pages 1195–1200. IEEE.

Bayramoglu, N. and Heikkil

a, J. (2016). Transfer learning

for cell nuclei classiﬁcation in histopathology images.

In European Conference on Computer Vision, pages

532–539. Springer.

Bishop, C. M. et al. (1995). Neural networks for pattern

recognition. Oxford university press.

Cheang, M. C., Chia, S. K., Voduc, D., Gao, D., Leung,

S., Snider, J., Watson, M., Davies, S., Bernard, P. S.,

Parker, J. S., et al. (2009). Ki67 index, her2 status,

and prognosis of patients with luminal b breast can-

cer. JNCI: Journal of the National Cancer Institute,

101(10):736–750.

Chen, T. and Chefd’Hotel, C. (2014). Deep learning

based automatic immune cell detection for immuno-

histochemistry images. In International workshop on

machine learning in medical imaging, pages 17–24.

Springer.

Chollet, F. et al. (2015). Keras. https://github.com/fchollet/

keras.

Cires¸an, D. C., Giusti, A., Gambardella, L. M., and Schmid-

huber, J. (2013). Mitosis detection in breast cancer

histology images with deep neural networks. In In-

ternational conference on medical image computing

and computer-assisted intervention, pages 411–418.

Springer.

Coudray, N., Ocampo, P. S., Sakellaropoulos, T., Narula,

N., Snuderl, M., Feny

o, D., Moreira, A. L., Raza-

vian, N., and Tsirigos, A. (2018). Classiﬁcation and

mutation prediction from non–small cell lung cancer

histopathology images using deep learning. Nature

medicine, 24(10):1559–1567.

Damodaran, S. and Olson, E. M. (2012). Targeting the hu-

man epidermal growth factor receptor 2 pathway in

breast cancer. Hospital Practice, 40(4):7–15.

Dobson, L., Conway, C., Hanley, A., Johnson, A., Costello,

S., O’Grady, A., Connolly, Y., Magee, H., O’Shea, D.,

Jeffers, M., et al. (2010). Image analysis as an adjunct

to manual her-2 immunohistochemical review: a diag-

nostic tool to standardize interpretation. Histopathol-

ogy, 57(1):27–38.

Elledge, R. M., Green, S., Pugh, R., Allred, D. C., Clark,

G. M., Hill, J., Ravdin, P., Martino, S., and Osborne,

C. K. (2000). Estrogen receptor (er) and progesterone

receptor (pgr), by ligand-binding assay compared with

er, pgr and ps2, by immuno-histochemistry in predict-

ing response to tamoxifen in metastatic breast can-

cer: A southwest oncology group study. International

journal of cancer, 89(2):111–117.

Guo, S., Bocklitz, T., Neugebauer, U., and Popp, J. (2017).

Common mistakes in cross-validating classiﬁcation

models. Analytical Methods, 9(30):4410–4417.

Hanin, B. (2018). Which neural net architectures give rise

to exploding and vanishing gradients? In Advances in

Neural Information Processing Systems, pages 582–

591.

Hastie, T., Tibshirani, R., and Friedman, J. (2009). The el-

ements of statistical learning: data mining, inference,

and prediction. Springer Science & Business Media,

Germany.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Huang, G., Liu, Z., Van Der Maaten, L., and Weinberger,

K. Q. (2017). Densely connected convolutional net-

works. In Proceedings of the IEEE conference on

computer vision and pattern recognition, pages 4700–

4708.

Huynh, B. Q., Li, H., and Giger, M. L. (2016). Digital mam-

mographic tumor classiﬁcation using transfer learning

from deep convolutional neural networks. Journal of

Medical Imaging, 3(3):034501.

Janowczyk, A. and Madabhushi, A. (2016). Deep learn-

ing for digital pathology image analysis: A compre-

hensive tutorial with selected use cases. Journal of

pathology informatics, 7.

Jones, E., Oliphant, T., Peterson, P., et al. (2001). SciPy:

Open source scientiﬁc tools for Python.

Kensert, A., Harrison, P. J., and Spjuth, O. (2018). Trans-

fer learning with deep convolutional neural networks

for classifying cellular morphological changes. SLAS

DISCOVERY: Advancing Life Sciences R&D, page

2472555218818756.

Khosravi, P., Kazemi, E., Imielinski, M., Elemento, O., and

Hajirasouliha, I. (2018). Deep convolutional neural

networks enable discrimination of heterogeneous dig-

ital pathology images. EBioMedicine, 27:317–328.

Kieffer, B., Babaie, M., Kalra, S., and Tizhoosh,

H. R. (2017). Convolutional neural networks for

histopathology image classiﬁcation: Training vs. us-

ing pre-trained networks. In 2017 Seventh Interna-

tional Conference on Image Processing Theory, Tools

and Applications (IPTA), pages 1–6. IEEE.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Krizhevsky, A. and Hinton, G. (2009). Learning multiple

layers of features from tiny images. Technical report,

Citeseer.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

Data Fusion of Histological and Immunohistochemical Image Data for Breast Cancer Diagnostics using Transfer Learning

505

networks. In Advances in neural information process-

ing systems, pages 1097–1105.

Litjens, G., Kooi, T., Bejnordi, B. E., Setio, A. A. A.,

Ciompi, F., Ghafoorian, M., Van Der Laak, J. A.,

Van Ginneken, B., and S

anchez, C. I. (2017). A survey

on deep learning in medical image analysis. Medical

image analysis, 42:60–88.

Liu, W., Wang, Z., Liu, X., Zeng, N., Liu, Y., and Alsaadi,

F. E. (2017). A survey of deep neural network ar-

chitectures and their applications. Neurocomputing,

234:11–26.

Mormont, R., Geurts, P., and Mar

ee, R. (2018). Com-

parison of deep transfer learning strategies for digital

pathology. In Proceedings of the IEEE Conference on

Computer Vision and Pattern Recognition Workshops,

pages 2262–2271.

Oliphant, T. (2006). NumPy: A guide to NumPy. USA:

Trelgol Publishing.

Pan, S. J. and Yang, Q. (2010). A survey on transfer learn-

ing. IEEE Transactions on knowledge and data engi-

neering, 22(10):1345–1359.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Perou, C. M., Sørlie, T., Eisen, M. B., Van De Rijn, M.,

Jeffrey, S. S., Rees, C. A., Pollack, J. R., Ross,

D. T., Johnsen, H., Akslen, L. A., et al. (2000).

Molecular portraits of human breast tumours. nature,

406(6797):747–752.

Pham, N.-A., Morrison, A., Schwock, J., Aviel-Ronen, S.,

Iakovlev, V., Tsao, M.-S., Ho, J., and Hedley, D. W.

(2007). Quantitative image analysis of immunohisto-

chemical stains using a cmyk color model. Diagnostic

pathology, 2(1):1–10.

Ravishankar, H., Sudhakar, P., Venkataramani, R., Thiru-

venkadam, S., Annangi, P., Babu, N., and Vaidya, V.

(2016). Understanding the mechanisms of deep trans-

fer learning for medical images. In Deep Learning

and Data Labeling for Medical Applications, pages

188–196. Springer.

Ribeiro, E., Uhl, A., Wimmer, G., and H

afner, M. (2016).

Exploring deep learning and transfer learning for

colonic polyp classiﬁcation. Computational and

mathematical methods in medicine, 2016.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., et al. (2015). Imagenet large scale visual

recognition challenge. International journal of com-

puter vision, 115(3):211–252.

Sheikhzadeh, F., Ward, R. K., van Niekerk, D., and Guil-

laud, M. (2018). Automatic labeling of molec-

ular biomarkers of immunohistochemistry images

using fully convolutional networks. PloS one,

13(1):e0190783.

Shin, H.-C., Roth, H. R., Gao, M., Lu, L., Xu, Z., Nogues,

I., Yao, J., Mollura, D., and Summers, R. M. (2016).

Deep convolutional neural networks for computer-

aided detection: Cnn architectures, dataset charac-

teristics and transfer learning. IEEE transactions on

medical imaging, 35(5):1285–1298.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Sørlie, T., Perou, C. M., Tibshirani, R., Aas, T., Geisler, S.,

Johnsen, H., Hastie, T., Eisen, M. B., Van De Rijn,

M., Jeffrey, S. S., et al. (2001). Gene expression

patterns of breast carcinomas distinguish tumor sub-

classes with clinical implications. Proceedings of the

National Academy of Sciences, 98(19):10869–10874.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions.

In Proceedings of the IEEE conference on computer

vision and pattern recognition, pages 1–9.

Szegedy, C., Vanhoucke, V., Ioffe, S., Shlens, J., and Wo-

jna, Z. (2016). Rethinking the inception architecture

for computer vision. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 2818–2826.

Tajbakhsh, N., Shin, J. Y., Gurudu, S. R., Hurst, R. T.,

Kendall, C. B., Gotway, M. B., and Liang, J. (2016).

Convolutional neural networks for medical image

analysis: Full training or ﬁne tuning? IEEE trans-

actions on medical imaging, 35(5):1299–1312.

Torrey, L. and Shavlik, J. (2010). Transfer learning. In

Handbook of research on machine learning appli-

cations and trends: algorithms, methods, and tech-

niques, pages 242–264. IGI Global.

Van Ginneken, B., Setio, A. A., Jacobs, C., and Ciompi,

F. (2015). Off-the-shelf convolutional neural network

features for pulmonary nodule detection in computed

tomography scans. In 2015 IEEE 12th International

symposium on biomedical imaging (ISBI), pages 286–

289. IEEE.

Venables, W. N. and Ripley, B. D. (2013). Modern applied

statistics with S-PLUS. Springer Science & Business

Media.

Veta, M., Pluim, J. P., Van Diest, P. J., and Viergever, M. A.

(2014). Breast cancer histopathology image analysis:

A review. IEEE Transactions on Biomedical Engi-

neering, 61(5):1400–1411.

Wang, D., Khosla, A., Gargeya, R., Irshad, H., and Beck,

A. H. (2016). Deep learning for identifying metastatic

breast cancer. arXiv preprint arXiv:1606.05718.

Webster, L., Bilous, A., Willis, L., Byth, K., Burgemeister,

F., Salisbury, E., Clarke, C., and Balleine, R. (2005).

Histopathologic indicators of breast cancer biology:

insights from population mammographic screening.

British journal of cancer, 92(8):1366–1371.

Yosinski, J., Clune, J., Bengio, Y., and Lipson, H. (2014).

How transferable are features in deep neural net-

works? In Advances in neural information processing

systems, pages 3320–3328.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

506
