Using Goal Directed Techniques for Journey Planning with Multi-criteria

Range Queries in Public Transit

Arthur Finkelstein

and Jean-Charles R

egin

Instant System, Garden Space B2, Rue Evariste Galois, 06410 Biot, France

Universit

e C

ote d’Azur, I3S, CNRS, France

Keywords:

Public Transit Routing, Shortest Path, Pareto Optimization, Preprocessing.

Abstract:

One of the main problems for a realistic journey planning in public transit is the need to give the user multiple

qualitative choices. Usually, public transit journeys involve 4 main criteria: the departure time, the arrival time,

the number of transfers and the walking distance. The problem of computing Pareto sets with these criteria is

called the Pareto range query problem. This problem is complex and difﬁcult to solve within the constraints of

the industrial world of smartphone applications, like a response time of the order of a second. In this paper, we

present the Goal Directed Connection Scan Algorithm (GDCSA), an algorithm that allows, for the ﬁrst time,

to solve this problem with run times of less than 0.5 seconds on most European city or country-wide networks,

like Berlin or Switzerland. In addition, GDCSA satisﬁes other industrial needs: it is conceptually simple and

easy to implement. It partitions the graph in geographically small areas and precomputes some lower bounds

on the duration of a trip in order to select for each itinerary a sub-set of these areas to decrease the number of

scanned connections. Combining this sub-set and a journey planning using 4 criteria, the number of scanned

connections is lowered by a factor of up to 17 times compared to the best algorithms (CSA and RAPTOR), the

number of nodes opened during the search is lowered by a factor of up to 2.9 and the query times are lowered

by a factor of up to 9 on metropolitan networks. The integration of GDCSA in a smartphone app backend

server led to an improvement in results by a factor of 5.

1 INTRODUCTION

1.1 Problem Description

With the advent of smartphones, millions of passen-

gers use computer-based journey planning systems to

obtain public transport directions. Those directions

need to be given in a reasonable amount of time, usu-

ally in less than a second, and a user does not want

only the shortest path from A to B but may want a

journey with the lowest walking distance, the least

transfers, something in between or any number of

combinations of criteria. A journey planning system

cannot guess what a passenger wants speciﬁcally so it

has to give directions containing more than one jour-

ney. This can be done by computing Pareto sets with

multiple criteria (arrival time, departure time, walk

distance, number of transfers, accessibility, ...). A lot

of work exists on the shortest path problem in public

transit but few integrate the real needs of the users:

not only the earliest arrival journey but a Pareto opti-

mal set of journeys.

Multiple variants of the public transport routing

problem exist: the proﬁle variant solves simultane-

ously the earliest arrival problem for all source times,

the range query variant solves simultaneously the ear-

liest arrival problem for journeys that are at most two

times as long as the fastest journey. For each of those

variants we can add a Pareto set to solve a multi-

criteria problem, leading to the Pareto proﬁle variant

and the Pareto range query variant.

The Pareto range query variant, mainly the one

that involves 4 criteria (departure time, arrival time,

number of transfers and walked distance) has a prac-

tical relevance because travelers do not want to ar-

rive signiﬁcantly later than the earliest arrival time

and may have speciﬁc preferences on the number of

transfers or the walk distance. The two criteria for the

range query are the arrival and the departure time. The

other criteria provide a wide array of choices for the

user, which allows users to ﬁnd a suitable answer ac-

cording to their mobility or their aversion to changing

vehicles. Note that the price is not used as a criteria

because most users have a transit subscription either

Finkelstein, A. and Régin, J.

Using Goal Directed Techniques for Journey Planning with Multi-criteria Range Queries in Public Transit.

DOI: 10.5220/0010235303470357

In Proceedings of the 10th International Conference on Operations Research and Enterprise Systems (ICORES 2021), pages 347-357

ISBN: 978-989-758-485-5

347

where the user lives or when visiting another city as a

tourist, and therefore do not care about the price.

To solve this kind of problem there are mainly

two types of methods. The ﬁrst one proceeds by

pre-processing and pre-calculating many solutions for

multiple hours (for example at night) in order to be

able to respond quickly to users. The second calcu-

lates solutions on demand. We can also imagine com-

bining these two types of methods.

The major drawback of preprocessing methods is

that they cannot integrate seamlessly the modiﬁca-

tions that may appear on a network and that inevitably

occur every day. On the other hand, on-demand cal-

culation methods (called search methods) do not have

this problem, but they are too slow at the moment to

be used into a modern journey planning system.

In this paper, we propose to speed-up the response

time by guiding a search method using goal directed

techniques and using a little preprocessing not af-

fected by real-world hazards.

1.2 Proposed Solution

Algorithms that yield fast query times for public tran-

sit routing in large metropolitan networks are numer-

ous, with extensions of Dijkstra’s algorithm (Disser

et al., 2008; M

uller-Hannemann et al., 2007; Pyrga

et al., 2008), graph labeling algorithms (Delling et al.,

2015a; Wang et al., 2015), non graph based algo-

rithms like the Connection Scan Algorithm (CSA)

(Dibbelt et al., 2018) or RAPTOR (Delling et al.,

2015b), preprocessing heavy approaches with Trans-

fer Patterns (Bast et al., 2010; Bast and Storandt,

2014), or with a lighter preprocessing with Trip-

Based Public Transit Routing (Witt, 2015). There

are also extensions to these algorithms to allow

for shorter response times, Trip Based Routing is

made faster with the use of condensed search trees

(Witt, 2016), RAPTOR with the use of hyper graphs

(Delling et al., 2017), CSA with the use of overlay-

graphs (CSAccel) (Strasser and Wagner, 2014) and

Transfer Patterns by reducing the space and time con-

sumption of the preprocessing (Bast et al., 2016b).

Among search based methods the two main ones

are CSA and RAPTOR. CSA based algorithms are

simple, short, easy to implement and have good per-

formances which makes them often used in jour-

ney planning systems (e.g. Instant System on the

Paris metropolitan network, TrainLine on the Euro-

pean train network, ...). In addition, the PRVCSA, the

Pareto range variant of the CSA, seems to be one of

the faster algorithms to solve the Pareto range query

problem as mentioned in multiple well-known articles

(Bast et al., 2016a; Dibbelt et al., 2018). Therefore,

we focus our study on CSA based algorithms.

In CSA, the connections are treated one after the

other, without distinguishing if they are useful or

not for the journey, CSA trades relevance of infor-

mation with simplicity and speed. Adding criteria

to the CSA leads to a performance degradation be-

cause more complex data structures are needed and

with each added criterion the size of the Pareto set in-

creases which decreases even more the performance.

In practice, for a system to be considered interactive it

should respond in less than 1 second. Unfortunately,

the PRVCSA does not have this performance when

more than three criteria are involved.

One way to achieve such a goal for the PRVCSA

is to combine it with goal-directed techniques, that

is to ”guide” the search toward the target by avoid-

ing the scan of an element (a vertex for Dijkstra, a

connection for the CSA) that is not in the direction

of the target. Classic algorithms using goal-directed

techniques are the A* search (Hart et al., 1968) and

the ALT algorithm (Goldberg and Harrelson, 2005)

which have been successfully used on road networks.

The CSAccel algorithm (Strasser and Wagner, 2014)

can be seen as the ﬁrst combination of goal directed

technique and CSA. It applies CSA on multi-level

overlay graphs to reduce the number of scanned con-

nections and in doing so lower the run time. The main

idea behind CSAccel is to avoid looking at rural buses

that are neither near the departure city nor the arrival

city, and only keep a subset of connections between

cities. This reduces the number of scanned connec-

tions and the run time as well. CSAccel uses ex-

tremely sound principles and has signiﬁcant gains on

country-wide networks. Unfortunately, it does not im-

prove run time for large dense metropolitan networks.

It is also a complex algorithm to implement.

In this article, we present GDCSA, a novel ap-

proach that combines goal-directed techniques with

the PRVCSA to allow the use of more criteria. We

reuse the principles behind CSAccel but in an easier

and more pragmatic way. We roughly use the same

idea of partitioning the graph but we introduce addi-

tional lower and upper bounds, and remove the multi-

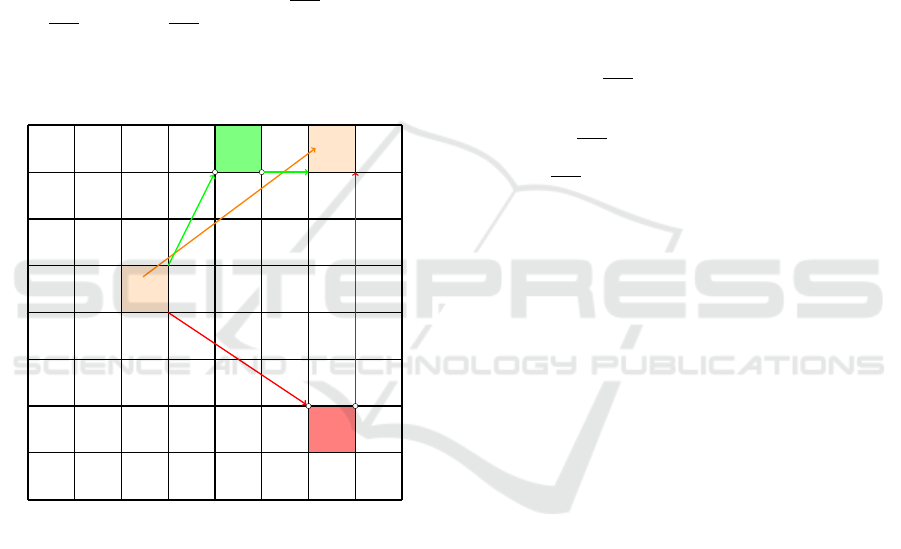

level part of the partitioning. The key idea is to par-

tition the graph in areas and only use the connections

of a sub-set of the areas when computing a journey,

thanks to lower and upper bounds on the duration

of the public transit journey. The lower bounds are

computed in a preprocessing step for each pair of ar-

eas while the upper bounds are computed during the

journey planning. Each area is opened or discarded

with a simple evaluation between the upper bound

and the sum of two lower bounds (from the start stop

to the candidate area and from the candidate area to

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

348

the arrival stop). Then we merge the connections of

the chosen areas and launch the PRVCSA on this re-

stricted set of connections.

Our experiments reveal that on a large and dense

metropolitan public transit networks, the GDCSA al-

lows a journey planning using 4 criteria (departure

time, arrival time, number of transfers and walked dis-

tance) with a run time 2.5 to 9 times faster than the

PRVCSA and 4.3 to 16 times faster than the Pareto

range query variant of the RAPTOR. Thus, the jour-

ney planning can be used in an interactive setting

to satisfy the client’s needs (i.e. on the passenger’s

smartphone) with run times of less than 0.5 second on

most of the compared networks.

1.3 Integrating a Solution in an

Industrial Setting

We can identify multiple problems when integrating

an algorithm in an industrial setting: the accuracy of

the data, the maintainability and adaptability of the

algorithm and the integration into an existing system.

The problem when using public transport journey

planning systems on metropolitan data is that the data

is never 100% accurate, we can have multiple prob-

lems, e.g. circular lines that are not declared as such,

lines that have not been updated with the new stops

and departure times and any number of other prob-

lems. As such an algorithm that is robust to inaccurate

data is essential.

With inaccurate data and real life usage, we have

a lot of bug ﬁxing and in a small company like ours

with 30 employees, any one of the R&D engineers

should be able to debug the core of the journey plan-

ning because a debug task is assigned independently

of who wrote the code. This means that an algorithm

that is easy to code, understand and maintain is vital.

An easily adaptable algorithm is important be-

cause each client has different needs, depending on

the size of the public transport network, the wish of

the community and other factors. This leads to an al-

gorithm that has to be easily modiﬁable. For example

certain clients want speciﬁc modes at the top or the

bottom, to use gps coordinates instead of stops as de-

parture and arrival, to combine free ﬂoating bikes or

kick-scooters with public transport which means jour-

neys to or from other modes will have speciﬁc con-

straints.

A complete app containing other components,

such as ticketing, next departure times, favorite no-

tiﬁcation, guiding, transport on demand and more, in-

volves more complex data structures than the ones de-

scribed in the literature. For example simple iden-

tiﬁers are used for benchmarking whereas they are

more complex in an app to be human readable. So ac-

cess times to the data structures are longer and there-

fore the run time is slower. We also have the prob-

lem of persistence and the need for databases which

limit access times, and when connecting to real time

providers the correspondence between the line and

stop ids is never automatic.

During the development of the GDCSA, we made

sure to integrate all those aspects and we will give ex-

perimental results as well as results of an integration

in an industrial backend server.

This paper is organized as follows: Section 2 will

give all the notions necessary to understand the algo-

rithm. Section 3 introduces the GDCSA, the intuition

behind it and how the transit network graph is par-

titioned. Section 4 presents the experimental evalu-

ation of the algorithm on the performance and other

metrics. Section 5 concludes with a summary and a

discussion of future work.

2 PRELIMINARIES

In this section we formalize the inputs and algorithms

used in this work, we use the same formalization as

the CSA (Dibbelt et al., 2018) because it is the cen-

terpiece of our algorithm.

2.1 Timetable

A timetable represents for one speciﬁc day the vehi-

cles that exist (train, bus, tram, ferry, ...), when they

travel, where they travel and how passengers can go

from one vehicle to another. A timetable is a quadru-

ple (S, T,C, F) of stops S, trips T , connections C and

footpaths F:

• A stop is a position outside of a vehicle where a

passenger can wait. At a stop (and only at a stop)

a vehicle can halt and passengers can leave or get

on.

• A trip is deﬁned by a vehicle going through stops

at ﬁxed times. Formally a trip is a scheduled ve-

hicle: a journey done by a unique vehicle from a

starting stop to a last stop at a ﬁxed time and made

of connections.

• A connection is a vehicle going from one

stop to another with no intermediate stops, it

is a sub-part of a trip. It is a quintuple

dep stop

, c

arr stop

, c

dep time

, c

arr time

, c

trip

) whose

attributes are the departure stop, the arrival stop,

the departure time, the arrival time and the trip

of c respectively. Each connection must respect

two conditions: c

dep stop

6= c

arr stop

and c

dep time

Using Goal Directed Techniques for Journey Planning with Multi-criteria Range Queries in Public Transit

349

arr time

. All the connections of a trip form

a set. This set can be ordered in a sequence

, c

, . . . , c

such that c

arr stop

= c

i+1

dep stop

and

arr time

< c

i+1

dep time

for all i.

• The footpaths are used to model transfers, in other

words how to get from one vehicle to another.

They are neither trips, nor connections. Formally

a footpath f is a triple ( f

dep stop

, f

arr stop

, f

dur

Going from a connection c to a connection c

with

trip

6= c

trip

is possible if and only if:

– A footpath from c

arr stop

to c

dep stop

exists

– c

dep time

− c

arr time

> f

dur

+ s

change

The inequality allows a passenger to be sure the

transfer can be done even if one or both of the ve-

hicles have a delay. The variable s

change

depends

on the departure stop, arrival stop and modes for

each of these stops. A loop is introduced on each

stop to allow a passenger to get off at a stop and

take another trip going through this stop.

Example. We will use the public transit network of

New York City.

Trips can be done by trains, trams, buses, ferry

and other modes of transportation that have ﬁxed de-

parture and arrival times. Let t be a trip of the line 1

of the metro going to ”South Ferry” with a departure

date at 08/16/19 3:14 PM. The trip without a depar-

ture date is not a unique identiﬁer because this trip

exists each day of the week.

If we take 3 consecutive stops of t ”50 Street”,

”Times Square - 42 Street” and ”34 Street - Penn Sta-

tion”, then there is a valid connection with ”50 Street”

as a departure stop, ”Times Square - 42 Street” as an

arrival stop and t as a trip. There is another valid con-

nection with ”Times Square - 42 Street” as a departure

stop, ”34 Street - Penn Station” as an arrival stop and

t as a trip. A non-valid connection is a connection that

has ”50 Street” as a departure stop, ”34 Street - Penn

Station” as an arrival stop and t as a trip because there

exists an intermediate stop (i.e. ”Times Square - 42

street”).

2.2 Journeys

A journey describes how a passenger can travel

through a public transit network. It is made of legs

that are pairs of connections (l

enter

, l

exit

) from the

same trip. l

enter

must appear before l

exit

in the trip

or l

enter

= l

exit

if the trip has only one connection.

Formally a journey is composed of legs and foot-

paths alternately f

, l

, f

, l

, . . . , f

, l

. A journey

must start and end with a footpath, which can be a

self loop.

2.3 Connection Scan Algorithm

Given a source stop s, a target stop t, a minimum de-

parture time τ and a timetable T , the CSA outputs a

journey with the minimum arrival time over all jour-

neys that depart after τ from s and arrive at t. This

earliest arrival variant assumes that the connections

are stored as a sorted array using the departure time of

the connections, and that the footpaths are stored in a

data structure that allows an iteration over the incom-

ing or outgoing footpaths. A connection is reachable

if a passenger can get on the connection. Similarly to

Dijkstra’s algorithm, tentative arrival times are stored

for each stop but a priority queue is not used. Instead,

the CSA iterates over all the connections (sorted by

departure time) and tests if they are reachable. For

each reachable connection, the algorithm updates the

tentative arrival time for each stop that can be reached

by foot from the arrival stop of the connection. The

CSA is signiﬁcantly faster than Dijsktra’s algorithm

even though it touches more connections, because the

work required per connection does not involve a pri-

ority queue operation.

2.3.1 Variants of the Connection Scan Algorithm

The CSA can be extended to account for all of the

source times with the proﬁle variant. This is still done

by scanning the ordered connections only once, but

the journeys are constructed from late to early and the

algorithm exploits the fact that an early journey can

only have later journeys as sub-journeys. We then can

add a Pareto set to solve a multi-criteria problem, the

Pareto proﬁle variant. When adding one criterion, the

code can be modiﬁed in a speciﬁc way to avoid de-

creasing the performances too much but when adding

more the code needs to be generic leading to a bigger

decrease in performance.

Another way the CSA can be extended is the range

query variant, where we only solve the earliest arrival

problem for journeys that are at most two times as

long as the fastest journey, the solution to this problem

is a sub-set of the solution to the proﬁle problem. In

the same way as before, we can also then add a Pareto

set to solve a multi-criteria problem, the Pareto range

query variant. This algorithm is the PRVCSA.

3 GOAL-DIRECTED

TECHNIQUES MEET CSA

From now on we will only consider the Pareto range

query variant of the journey planning in public transit

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

350

with the 4 criteria mentioned in the introduction (de-

parture time, arrival time, walking distance and num-

ber of transfers).

CSAccel (Dibbelt et al., 2018) uses goal-directed

techniques in the form of multi-level overlay graphs.

A multi-level (hierarchical) partition of the stop set

is done, this approach relies on small balanced graph

cuts and while they can easily be found between cities

on a country-wide scale, it is signiﬁcantly more difﬁ-

cult to do so for a particular city. CSAccel works on

a hierarchical graph that is organized geographically,

large cells at the top and small cells at the bottom. A

level corresponds to a geographic abstraction of the

reality, the goal is to avoid scanning all the connec-

tions of a given cell. This is done with a preprocess-

ing step by keeping a sub-set of the connection in a

cell that will allow us to go through it, called transit

connections, because a core observation is that con-

nections in a journey where a passenger does not get

off or on a bus do not need to be scanned. This al-

lows the CSAccel to scan a lower number of connec-

tions by identifying potential relevant cells and only

using their transit connections. CSAccel is strongly

dependent on its non-obvious hierarchical graph par-

titioning and has a signiﬁcant increase in code and

algorithmic complexity compared to CSA, as said by

its authors.

Our approach is simpler. It partitions the graph

in areas, on a single level, and uses lower and upper

bounds to open a sub-set of areas needed to compute

the journey that will lead to a smaller search space,

i.e. the number of connections, and in doing so the

run time is lowered as well.

The idea behind the algorithm is that when com-

puting a journey between New York and Washington,

it is important to look at trips going between the two

cities as well as those that go a little bit off-course,

i.e. Atlantic City. On the other hand looking at trips

near Boston or Syracuse will only lengthen the jour-

ney, thus we can safely remove those trips from the

search space.

3.1 Partitioning the Graph

Intuitively, we want to geographically partition the

timetable to allow a preprocessing step to compute

lower bounds to guide the search of the GDCSA.

In order to deﬁne the geographical partitioning,

we present some notations and deﬁne the core con-

cepts of: geographical graph of a timetable, areas,

boundaries and geographical partitioning.

3.1.1 Geographical Graph

A geographic graph G = (S, E) can be abstracted from

a timetable T where S is the set of stops, E is the set

of edges and M is the seconds of a day such that

(u, v) ∈ E ⇒ ∃t

∈ M, z ∈ T | (u, v, t

, z) ∈ C (1)

3.1.2 Area

An area a is a connected sub-graph of G. The ar-

eas partition the graph, i.e. they are pairwise disjoint,

such that the union of the parts give you the entire set

of stops.

We have a few deﬁnitions for an area:

• A connection c belongs to an area a if and only if

dep stop

∈ a.

• For all u ∈ S, A(u) is the area containing u.

• Let connections(a) be the list of connections of

the area a.

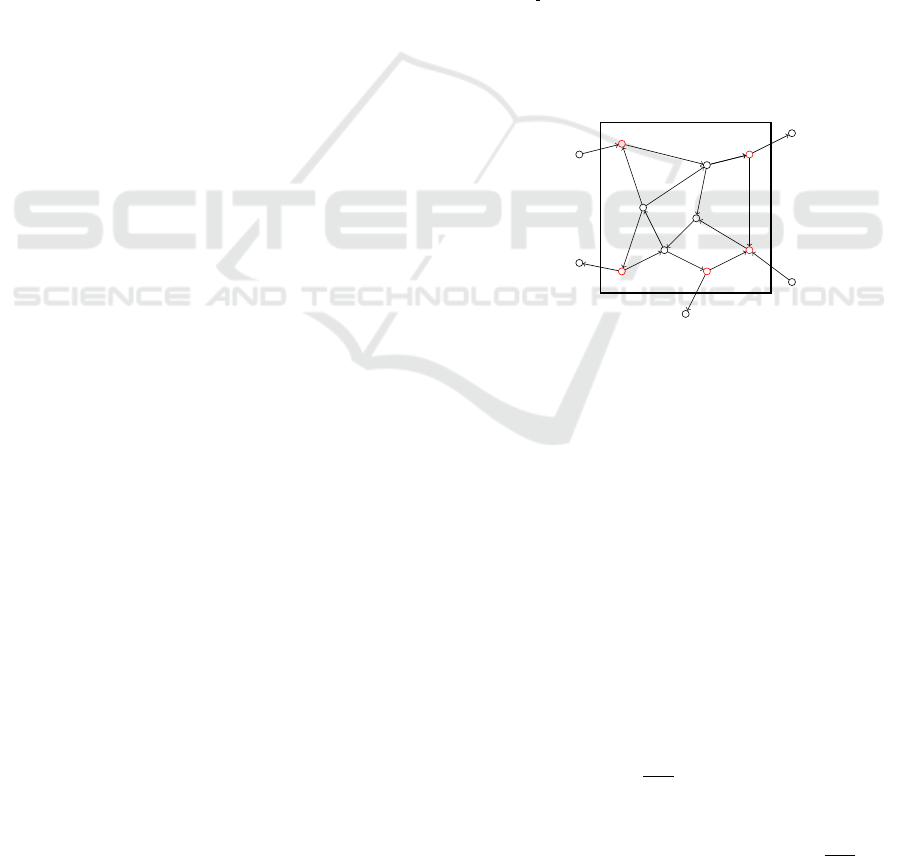

Figure 1: Example of an area.

3.1.3 Boundary of an Area

The boundary of an area a is the set of stops B(a) ⊆ a

who have at least one edge with an extremity outside

of the area a.

The boundary B(a) contains the stops that allow

us to leave an area a to reach another and to get to the

internal stops of other areas. They are the red stops in

the Figure 1.

3.2 Management of Candidate Areas

We have two deﬁnitions for the duration in public

transport:

• An upper bound of the duration in public transit

between two stops s and t ∈ S, with a departure

time τ

is written d

(s,t, τ

• A lower bound of the duration in public transit

between two stops s and t ∈ S is written d

(s,t).

Using Goal Directed Techniques for Journey Planning with Multi-criteria Range Queries in Public Transit

351

Goal directed techniques aim to guide the search to-

ward the target by avoiding the scan of unnecessary

stops. We apply the same techniques only to the areas

of the graph G to avoid scanning connections that will

only take us away from the target. By using upper and

lower bounds on the duration between stops and more

speciﬁcally between the areas.

Opening or not a candidate area will either add

the connections of an area to the search space of the

current journey computation if it is opened or discard

them if the candidate area is not opened.

Given s, t ∈ S. A candidate area a is opened when

computing a journey from s to t at time τ

if and only

(A(s), a) + d

(a, A(t)) ≤ d

(s,t, τ

) (2)

Traversing an area cost 0 in time because the lower

bounds are always computed using stops on the

boundary.

Figure 2: Example of an area opening.

The opening of an area is schematized in Figure 2,

let us assume the shortest path between points is the

length of a straight line. The green and red arrows

represent the lower bounds between the areas and the

orange arrow represents the upper bound between s

and t. Two areas are depicted, the one in green will

be opened because the sum of the length of the green

arrow from the area containing s to the green area and

the length of the green arrow from the green area to

the area containing t (traversing an area cost 0) is less

than the length of the arrow between s and t. However

the red area will not be opened because the sum of the

length of the red arrow from the area containing s to

the red area and the length of the red arrow from the

red area to the area containing t is greater than the

length of the arrow between s and t.

3.2.1 Upper Bound on the Duration

Intuitively, the upper bound on the duration is found

by quickly computing the size of the search span be-

cause a user isn’t interested in journeys that arrive sig-

niﬁcantly later than the earliest arrival time.

We use the maximum arrival time τ

as deﬁned in

(Dibbelt et al., 2018), which is equal to

= τ

+ 2 · (x − τ

) (3)

Where x is the earliest arrival time. This upper bound

is advantageous because it is realistic e.g. consider

a traveler departing at 8:00 AM and arriving at the

earliest at 9:00 AM, then journeys arriving after 10:00

AM can be discarded because they are not of practical

relevance.

The upper bound on the duration we use is

(s,t, τ

) = τ

− τ

(4)

That is the time span to satisfy a journey request. We

can estimate d

(s,t, τ

) easily:

(s,t, τ

) = τ

− τ

= τ

+ 2 · (x − τ

) − τ

= 2 · (x − τ

)

(5)

The only unknown is x which is the earliest arrival

time and can be computed with a CSA in an extremely

small amount of time.

3.2.2 Lower Bound on the Duration

Intuitively, the lower bound on the duration between

two stops s and t is the minimum duration over all

the journeys of the day going from the the boundary

of the area containing s to the boundary of the area

containing t.

The lower bounds associated with an area a

computed by launching a PCSA, the proﬁle variant

of the CSA. The start stops are the boundary of the

area, as if we could reach all of them instantly. Then,

we iterate over every other area and take the minimum

duration to reach the boundary of the area a

from the

boundary of the area a

. Algorithm 1 is a possible

implementation of these computations.

The lower bounds can be computed once and for

all in a preprocessing step, note that this preprocess-

ing step can be parallelized, because each PCSA is

independent and we don’t access the same variables

in memory, meaning the preprocessing time can be

reduced. And also because the lower bound is valid

for an entire day because public transit vehicle can

only be delayed and cannot arrive earlier than the time

written in the schedules.

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

352

Algorithm 1: Lower bound algorithm in pseudo-code.

function LOWER BOUND(G)

dur ← [G.areas()][G.areas()]

 Creation of a duration matrix

for all a

∈ G.areas() do

r ← PCSA(B (a

))

 We compute a PCSA using the boundary

as starting points

for all a

∈ G.areas() do

min dur ← +∞

 Minimum duration to reach a

from a

for all b ∈ B (a

) do

min dur ← min(min dur, r[b])

end for

dur[a

][a

] ← min dur

end for

return dur

end function

3.3 GDCSA

GDCSA works in four phases, the ﬁrst computes the

upper bound, the second iterates over each area to

only keep the ones that will be useful to the jour-

ney planning, the third will merge all the connec-

tions from the chosen areas and the last will launch

a PRVCSA using the sub-set of connections.

Algorithm 2: GDCSA algorithm in pseudo-code.

function GDCSA(G, s,t, τ

)

← empty list

ub ← d

(s,t, τ

)

 We iterate over all areas of the graph

for all a ∈ G.areas() do

if d

(A(s), a) + d

(a, A(t)) ≤ ub then

.insert(a)

end if

end for

← empty list

 We iterate over all opened areas of the graph

for all a ∈ L

.insertAll(connections(a))

end for

← sort(L

)

 We only use the connections of the opened ar-

eas

return PRVCSA(G, s, t, τ

, L

)

end function

The GDCSA is described in the algorithm 2. We can

see 4 phases: the ﬁrst computes the upper bound (line

3), the second opens areas (from line 5 to line 9), the

third retrieves the connections and sorts them (from

line 12 to line 15) and the last launches a 4 crite-

ria Pareto range query variant of the CSA using only

the sorted connections of the opened areas (line 18).

The ﬁrst two parts (opening the areas and getting their

connections) are easy to code and understand leading

to an easy code implementation. We only need to pre-

compute the lower bounds but we do so using a proﬁle

variant of the CSA which is also fast and easy to code.

3.3.1 Optimizations

Using the Earliest Arrival CSA Instead of the

Lower Bound. Instead of using equation 2 to open

a candidate area, we can use

(s, r, τ

) + d

(r, A(t)) ≤ d

(s,t, τ

) (6)

by replacing the lower bound between the start stop

and a candidate area with the earliest arrival time al-

ready computed by the CSA.

This will let us discard more candidate areas, al-

lowing us to have a more ﬁne-grained management of

the candidate areas.

Optimizing the Opening Time. All the connec-

tions of an area are not relevant, because the further

away we are from the start of the journey s the lower

the number of reachable connection there is. There-

fore, for an area a the ﬁrst connection that can be

scanned by the PRVCSA has

dep time

≥ τ

+ d

(A(s), a) (7)

So we only keep connections that have a departure

time greater than the ﬁrst reachable connection. For

example, consider a journey from New York to Wash-

ington with a departure time at 3:00 PM, then an area

near Washington only needs to scan connections with

a departure time greater than 5:30 PM because the

lower bound between New York and Washington is

2 hours and 30 minutes. This leads to a lower number

of scanned connections.

Optimizing the Closing Time. The same optimiza-

tion can be done but for the last reachable connection.

The last connection of an area a that can be scanned

by the PRVCSA must satisfy

dep

time

≤ τ

− d

(a, A(t)) (8)

So we only keep connections that have a departure

time lower than the last reachable connection.

Using Goal Directed Techniques for Journey Planning with Multi-criteria Range Queries in Public Transit

353

Table 1: Instance size.

Network Stops Connections Lines Trips Footpaths

Paris 44534 3209401 1864 150963 502291

Berlin 28651 1379755 1296 63569 62456

Stockholm 14258 703326 664 34799 22138

Germany 74398 3601420 3599 168024 599284

Switzerland 29844 2599675 5645 248826 27202

Table 2: Details of the GDCSA and the variants of the CSA on metropolitan and country wide public transit networks.

# Scanned # Updated

Instance Algorithm Query (ms) connections stops # Labels

Paris PRVRAPTOR 15701 – – –

PRVCSA 7858 346376 18029 453452

GDCSA 2981 67293 10835 165529

Berlin PRVRAPTOR 1971 – – –

PRVCSA 1383 290444 13855 221128

GDCSA 338 46696 7027 67477

Stockholm PRVRAPTOR 1451 – – –

PRVCSA 847 137403 6298 98767

GDCSA 89 19175 3147 26727

Germany PRVRAPTOR 2312 – – –

PRVCSA 2587 273317 5499 143329

GDCSA 529 26535 3825 53407

Switzerland PRVRAPTOR 2364 – – –

PRVCSA 1289 824012 10011 132970

GDCSA 147 46005 3437 21597

3.3.2 Geographical Partitioning

The areas partition the graph. Thus, by geograph-

ically partitioning the graph, a passenger can go

through an area using only its connections.

We partition the graph using the inertial ﬂow algo-

rithm (Schild and Sommer, 2015), a simple and efﬁ-

cient algorithm that minimizes the boundary between

the areas. This is done by sorting the list of stops us-

ing either latitude or longitude or both, choosing a cer-

tain percentage (lower than 50%) of stops at the start

and end of the sorted list, which will be the sources

and the sinks respectively. Then a ﬂow algorithm is

used, the min-cut gives the smallest boundary that di-

vides the stops into two new areas. These steps are

repeated for each new area, until a maximum depth or

a minimum size of the area is reached.

For example, when partitioning New York City

and New Jersey the algorithm will try to ﬁnd the

smallest boundary which would be the extremities of

the bridges connecting New York City to the main-

land.

Once the graph is partitioned, we precompute the

lower bounds.

4 EXPERIMENTS

We evaluate the GDCSA and compare it to the 4 cri-

teria Pareto range query variant of the CSA. Apart

from measuring the run times, we also report the time

needed for the preprocessing as well as other metrics

related to the size of the search space (i.e. number

of scanned connections, number of stops with at least

one label). We also compare the run time of the GD-

CSA to the run time of the 4 criteria Pareto range

query variant of the RAPTOR.

Our test instance is based on the data of the public

transit network of 3 cities (Paris, Berlin and Stock-

holm) and 2 country wide train networks (Germany

and Switzerland), the data is openly available via a

GTFS feed (https://transitfeeds.com/) which has been

downloaded in October 2019. The details of the size

of the instances are in table 1.

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

354

Table 3: Performance of the precomputing on metropolitan public transit networks.

Paris Berlin Stockholm

Depth Query (ms) Prepro. (min) Query (ms) Prepro. (min) Query (ms) Prepro. (min)

8 3849 ∼ 33 450 ∼ 4 103 ∼ 2

9 3686 ∼ 39 408 ∼ 8 102 ∼ 3

10 3364 ∼ 61 379 ∼ 13 92 ∼ 5

11 3133 ∼ 96 357 ∼ 15 91 ∼ 8

12 2981 ∼ 172 338 ∼ 20 89 ∼ 12

13 2953 ∼ 315 323 ∼ 30 85 ∼ 14

14 2884 ∼ 413 317 ∼ 43 88 ∼ 16

Table 4: Performance of the precomputing on country-sized public transit networks.

Germany Switzerland

Depth Query (ms) Prepro. (min) Query (ms) Prepro. (min))

8 898 ∼ 26 238 ∼ 12

9 843 ∼ 43 217 ∼ 16

10 703 ∼ 73 195 ∼ 27

11 598 ∼ 120 187 ∼ 29

12 529 ∼ 178 147 ∼ 43

13 513 ∼ 240 132 ∼ 58

14 505 ∼ 301 129 ∼ 70

We can see that the city wide network range from

big with Paris, to smaller with Stockholm, the goal of

those metropolitan public transit network is to show

the performances of the GDCSA on dense networks.

Whereas the goal of the country wide train networks

is to show the performances on sparse networks.

The footpaths were given in the GTFS feed but the

graph was not transitively closed, we then program-

matically generated the missing ones.

We implemented all the algorithms in Java 8 and

run them with OpenJDK 8. All experiments were

conducted on a Intel Core i7-7700HQ processor with

16GiB of RAM.

In our evaluation, we ran for each variant of the

algorithm the same set of 1000 queries generated ran-

domly. The source and target stops are chosen uni-

formly at random. The departure time is picked uni-

formly at random within the day.

We ran a 4 criteria Pareto range query variant of

the CSA (PRVCSA in the table 2), as well as the

GDCSA, the 4 criteria are: maximizing the depar-

ture time, minimizing the arrival time, minimizing the

number of transfers and minimizing the walked dis-

tance. We also ran a Pareto range query variant of the

RAPTOR (PRVRAPTOR in the table 2) on the same

set of queries.

The GDCSA uses an Inertial Flow partitioning

with a maximum depth of 12.

The table 2 reports the average for the run time

(query), the number of scanned connections, the num-

ber of updated stops (stops that have at least one label)

and the total number of labels.

We can see that the run time of the GDCSA is 2.5

to 9 times faster than the PRVCSA. The run times for

the smaller networks have a greater gain from the GD-

CSA, whereas the bigger network the lower the gains

are. Across all the networks we see that the number

of updated stops (stops with at least one label), the

number of scanned connections and the number of la-

bels have considerably decreased when comparing the

PRVCSA and the GDCSA.

As for the results of the PRVRAPTOR, we can

see that the PRVCSA is 1.42 to 1.99 faster than

the PRVRAPTOR, except on the Germany network

where the PRVRAPTOR is faster due to the fact

that the number of journeys is extremely low. This

is in line with the results of (Bast et al., 2016a;

Dibbelt et al., 2018) where the same factors between

PRVRAPTOR and PRVCSA are shown.

Note that the gains from the GDCSA are really

good, one possible alternative would have been to

use the same ideas on the PRVRAPTOR. Unfortu-

nately there is no straightforward way to apply the

same ideas of partitioning the stops of the graph for

the PRVRAPTOR, as said in (Delling et al., 2017).

Using Goal Directed Techniques for Journey Planning with Multi-criteria Range Queries in Public Transit

355

4.1 Precomputing the Lower Bound

Precomputing the lower bound is done by launching

a proﬁle variant of the CSA for each area.

We benchmark the partitioning and precomputing

on 5 public transit networks, with a maximum depth

for the Inertial Flow going from 8 to 14.

As we can see from table 3 and 4, the preprocess-

ing time is quite short. It takes on average 30 minutes

except for the biggest city-wide and country-wide net-

work where the preprocessing is close to 3 hours. All

those results are sequential, and the longest part of

the preprocessing can be easily parallelized (the pro-

ﬁle variant of the CSA for each area), meaning that a

large gain is possible.

For the query times, we can see that a query with

a maximum depth of 12 has the most gain compared

to the preprocessing time and that with a maximum

depth of 14 the gains are not worth the added prepro-

cessing time.

4.2 Integration in an Industrial Product

The GDCSA is integrated in an industrial backend

server for a smartphone app, with less than 1000

lines of code added. We achieve the same results as

those found for the European networks, on a large and

sparse instance of comparable size to the Germany in-

stance we see that the GDCSA is 5 times faster than

the PRVCSA. While also being a more complex prob-

lem, the departure and arrival stops can be GPS coor-

dinates, mixing multiple modes of transportation (car,

scooter, ...).

With a volume of only 1000 lines, this means that

an external engineer could comprehend the code and

then be able to modify it in less than a day.

5 CONCLUSION

In this article we presented an improvement of the

CSA to compute Pareto range queries by introduc-

ing additional upper and lower bounds that guide the

search by safely discarding areas that are not needed

during the search. The GDCSA uses preprocessed

lower bounds between each areas, and upper bounds

that are computed during the journey planning. It also

uses the PRVCSA as a center-piece which receives as

an input the sorted list of connections from the opened

areas. This leads to a simple implementation, with

an already working Pareto range query variant of the

CSA, the only code needed is the earliest arrival and

the proﬁle variants of the CSA. Furthermore the algo-

rithm is easily extensible, because the addition or re-

moval of a criterion is made simple by the fact that the

upper and lower bound computation are not affected

by the Pareto criteria.

Our experiments on large realistic metropolitan

and country-wide public transit network have shown

that the GDCSA is up to 9 times faster than the

PRVCSA when computing 4 criteria Pareto range

queries. An interactive use can be considered for most

networks with a response time near or under 0,5 sec-

ond, even if the Paris network is still too slow some

headway has been made.

For future works, we would be interested in using

other graph partitioning. One other interesting direc-

tion to look in would be the addition of real time infor-

mation (delays, strikes, major events, ...) in the pub-

lic transit journey computation. And lastly, we could

look at the computation of the lower bounds and try

to make them closer to the optimal by adding a tem-

poral aspect with the computation of the lower bound

for every 4 hour span of a day.

ACKNOWLEDGEMENTS

This work has been supported by the 3IA C

ote

d’Azur, Interdisciplinary Institute for Artiﬁcial Intel-

ligence (ANR-19-P3IA-0002) and by ANR project

MULTIMOD (ANR-17-CE22-0016).

REFERENCES

Bast, H., Carlsson, E., Eigenwillig, A., Geisberger, R., Har-

relson, C., Raychev, V., and Viger, F. (2010). Fast

routing in very large public transportation networks

using transfer patterns. In European Symposium on

Algorithms, pages 290–301. Springer.

Bast, H., Delling, D., Goldberg, A., M

uller-Hannemann,

M., Pajor, T., Sanders, P., Wagner, D., and Wer-

neck, R. F. (2016a). Route planning in transporta-

tion networks. In Algorithm engineering, pages 19–

80. Springer.

Bast, H., Hertel, M., and Storandt, S. (2016b). Scalable

transfer patterns. In 2016 Proceedings of the Eigh-

teenth Workshop on Algorithm Engineering and Ex-

periments (ALENEX), pages 15–29. SIAM.

Bast, H. and Storandt, S. (2014). Frequency-based search

for public transit. In Proceedings of the 22nd ACM

SIGSPATIAL International Conference on Advances

in Geographic Information Systems, pages 13–22.

Delling, D., Dibbelt, J., Pajor, T., and Werneck, R. F.

(2015a). Public transit labeling. In International Sym-

posium on Experimental Algorithms, pages 273–285.

Springer.

Delling, D., Dibbelt, J., Pajor, T., and Z

undorf, T. (2017).

Faster transit routing by hyper partitioning. In 17th

ICORES 2021 - 10th International Conference on Operations Research and Enterprise Systems

356

Workshop on Algorithmic Approaches for Transporta-

tion Modelling, Optimization, and Systems (ATMOS

2017). Schloss Dagstuhl-Leibniz-Zentrum fuer Infor-

matik.

Delling, D., Pajor, T., and Werneck, R. F. (2015b). Round-

based public transit routing. Transportation Science,

49(3):591–604.

Dibbelt, J., Pajor, T., Strasser, B., and Wagner, D. (2018).

Connection scan algorithm. Journal of Experimental

Algorithmics (JEA), 23:1–56.

Disser, Y., M

uller-Hannemann, M., and Schnee, M. (2008).

Multi-criteria shortest paths in time-dependent train

networks. In International Workshop on Experimental

and Efﬁcient Algorithms, pages 347–361. Springer.

Goldberg, A. V. and Harrelson, C. (2005). Computing the

shortest path: A search meets graph theory. In Pro-

ceedings of the sixteenth annual ACM-SIAM sympo-

sium on Discrete algorithms, pages 156–165. Society

for Industrial and Applied Mathematics.

Hart, P. E., Nilsson, N. J., and Raphael, B. (1968). A for-

mal basis for the heuristic determination of minimum

cost paths. IEEE transactions on Systems Science and

Cybernetics, 4(2):100–107.

uller-Hannemann, M., Schulz, F., Wagner, D., and Zaro-

liagis, C. (2007). Timetable information: Models and

algorithms. In Algorithmic Methods for Railway Op-

timization, pages 67–90. Springer.

Pyrga, E., Schulz, F., Wagner, D., and Zaroliagis, C. (2008).

Efﬁcient models for timetable information in public

transportation systems. Journal of Experimental Al-

gorithmics (JEA), 12:1–39.

Schild, A. and Sommer, C. (2015). On balanced separa-

tors in road networks. In International Symposium on

Experimental Algorithms, pages 286–297. Springer.

Strasser, B. and Wagner, D. (2014). Connection scan

accelerated. In 2014 Proceedings of the Sixteenth

Workshop on Algorithm Engineering and Experiments

(ALENEX), pages 125–137. SIAM.

Wang, S., Lin, W., Yang, Y., Xiao, X., and Zhou, S.

(2015). Efﬁcient route planning on public transporta-

tion networks: A labelling approach. In Proceedings

of the 2015 ACM SIGMOD International Conference

on Management of Data, pages 967–982.

Witt, S. (2015). Trip-based public transit routing. In

Algorithms-ESA 2015, pages 1025–1036. Springer.

Witt, S. (2016). Trip-based public transit routing using con-

densed search trees. arXiv preprint arXiv:1607.01299.

Using Goal Directed Techniques for Journey Planning with Multi-criteria Range Queries in Public Transit

357
