Checking Contact Tracing App Implementations

Robert Flood

, Sheung Chi Chan

, Wei Chen

and David Aspinall

1,3

LFCS, University of Edinburgh, Edinburgh, U.K.

Department of Computer Science, Heriott-Watt University, Edinburgh, U.K.

The Alan Turing Institute, London, U.K.

Keywords:

Static Analysis, Covid-19, Contact Tracing, Android.

Abstract:

In the wake of the COVID-19 pandemic, contact tracing apps have been developed based on digital contact

tracing frameworks. These allow developers to build privacy-conscious apps that detect whether an infected

individual is in close-proximity with others. Given the urgency of the problem, these apps have been devel-

oped at an accelerated rate with a brief testing period. Such quick development may have led to mistakes in

the apps’ implementations, resulting in problems with their functionality, privacy and security. To mitigate

these concerns, we develop and apply a methodology for evaluating the functionality, privacy and security of

Android apps using the Google/Apple Exposure Notiﬁcation API. This is a three-pronged approach consist-

ing of a manual analysis, general static analysis and a bespoke static analysis, using a tool we’ve developed,

dubbed MonSTER. As a result, we have found that, although most apps met the basic standards outlined by

Google/Apple, there are issues with the functionality of some of these apps that could impact user safety.

1 INTRODUCTION

As governments around the world attempt to contain

the spread of the COVID-19 virus, the research area

of digital contact tracing has grown rapidly with sev-

eral methods being proposed to aid this cause. Digi-

tal contact tracing refers to the tracking of individuals

to determine potential exposure between an infected

patient and a user, using mobile technologies such as

QR codes, Bluetooth and GPS. Currently, the most ef-

fective strategy to control the outbreak is widespread

social-distancing and isolation of even healthy indi-

viduals. This has signiﬁcantly impacted almost every

aspect of daily life, with profound economic and so-

cial drawbacks. Health authorities hope digital con-

tact tracing will allow for social-distancing measures

to be eased by automating the time-consuming pro-

cess of manual contact tracing, allowing more indi-

viduals to discover whether they are infected.

Such efforts may leave users vulnerable to secu-

rity and privacy ﬂaws. Due to the urgency in develop-

ing contact tracing apps, many have been built at an

accelerated rate. It is unclear if measures were under-

taken to minimise the risk of security vulnerabilities.

As these apps need to be used by a large segment of

a country’s population to be effective, the integrity of

many people’s data and digital assets may be at risk.

So far, ensuring tracing frameworks maintain

strong privacy guarantees has been the focus of re-

search, with new privacy-preserving frameworks be-

ing designed by several parties (Google, 2020; Tron-

coso et al., 2020; Wan and Liu, 2020). However, lit-

tle research has investigated real-world implementa-

tions of these frameworks; the apps using these frame-

works can violate these privacy guarantees by shar-

ing additional information. As digital contact tracing

techniques involve the collection of sensitive medical

and location data in order to function, there are se-

vere privacy implications if this information is stolen

or improperly handled. For instance, the Bahraini

BeAware was linked to a televised game-show ‘Are

You At Home?’, where users of the app were called

and offered prizes if they were at home and shamed

otherwise. This show leveraged data collected from

the app such as the contestant’s name and phone num-

ber (Amnesty, 2020). Such misuse could have been

prevented by using a privacy-preserving framework,

provided the app did not retrieve further information.

Thus, it is important that a tracing app uses a privacy-

preserving framework, but also it does not share data

beyond what the framework allows.

As government bodies urge people to use tracing

apps, they are an enticing target for malicious ac-

tors. Malware claiming to be contact tracing software

or malicious, repackaged versions of contact tracing

apps exist (Anomali, 2020; ESET, 2020) and more

are likely to be discovered. Developers may also in-

troduce security problems via misuse of these frame-

works. Therefore, tracing frameworks have consid-

ered potential security issues in their design. For

instance, the Google/Apple Exposure Notiﬁcations

(GAEN) API acts as a security boundary, allowing

developers to access its functionality whilst shielding

them from its internal operation. However, previous

similar secure APIs have had faulty implementations

that led to fundamental issues, such as the PCKS 11

API of hardware security modules leaking their pri-

vate keys (Bortolozzo et al., 2010).

This paper introduces a methodology for

analysing the functionality, privacy and security of

COVID-19 contact tracing apps. We employ manual

and static analysis alongside a bespoke, customisable

static analysis tool. This bespoke tool, developed by

us and dubbed MonSTER, ensures apps adhere to the

requirements of a given framework, something im-

possible with an out-of-the-box tool, and can provide

repeatable, lightweight checks throughout an app’s

development and updates. We target apps using the

GAEN API. Our approach and analysis focus solely

on the implementation of the apps themselves and

assume the adopted contact tracing framework is well

deﬁned and problem-free. This helps protect against

mistakes by app developers, as well as attacks and

inﬁltration by adversaries by discovering potential

security vulnerabilities. Ultimately, work like this

may help assuage public concerns of using these apps

and increase uptake, helping to better contain the

spread of COVID-19.

The contributions of this paper are as follows:

• We design a methodology with three stages, man-

ual analysis, off-the-shelf static analysis and be-

spoke static analysis, to evaluate the functionality,

privacy and security of contact tracing apps.

• We develop MonSTER, a conﬁgurable,

lightweight static analysis tool to verify an

app’s adherence to API usage requirements.

• We collect a set of 12 contact tracing apps us-

ing the GAEN API and, where necessary, rebuild

the apps from their source code to obtain a non-

obfuscated APK. We have released these apps as

a public dataset

• We obtain results demonstrating that, although the

majority of apps tested functioned correctly, there

were implementation problems in some apps that

impacted their functionality. Namely, we found

apps may incorrectly inform users contact tracing

https://github.com/glo-ﬁ/GAEN-Contact-Tracing-

Apps

is enabled when it is in fact disabled during rea-

sonable usage.

The structure of the rest of this paper is as follows.

Section 2 provides background information, includ-

ing security and privacy concerns, and an overview

of the GAEN API. Section 3 describes our method-

ology, including our lightweight static analysis tool

MonSTER (Monoid-based Static Analyser). Section 4

describes the process we undertake for our manual,

static, and MonSTER analysis in more detail. Sec-

tion 5 shows the results of this analysis. Section 6

discusses the effectiveness of our approach alongside

a brief discussion on contact tracing app designs. Sec-

tion 7 summarises the related work. Section 8 con-

cludes and discusses ongoing and future steps.

2 BACKGROUND

Due to privacy concerns surrounding the collection

of user location data by governments, decentralised

approaches to digital contact tracing are promoted.

Decentralised approaches trace contacts with minimal

interaction with a central database; several have been

proposed, including TCN (TCN, 2020), DP3T (Tron-

coso et al., 2020) and the Google/Apple Exposure No-

tiﬁcation protocol or GAEN for short (Google, 2020).

They are similar in design, using Bluetooth Low

Energy (BLE) to measure distance between users.

The effectiveness of BLE tracking has been criti-

cised (Leith and Farrell, 2020), but tracking can be

augmented with the use of QR-code registrations, and

even a partially successful approach may help.

In this section, we discuss details of the GAEN

Framework and potential security/privacy problems.

2.1 Google/Apple Exposure Notiﬁcation

This framework is developed by Apple and Google

for their mobile operating systems, each providing

the same set of API calls. The major features of the

GAEN Framework are divided into three stages. For

each stage, we summarise the responsibilities of the

app developers, the communication of the servers and

the underlying APIs. We focus our research on ver-

sion 1.3 of the framework.

Contact Exchange. When ﬁrst setting up the app,

the device generates a Temporary Exposure Key

(TEK) using a cryptographically secure random

number generator. Every 24 hours, a new TEK is

generated. Two further keys are generated using

this key via HKDF, a Rolling Proximity Identiﬁer

Key and an Associated Encrypted Metadata Key.

These keys are in turn used to generate two BLE

payloads: the Rolling Proximity Identiﬁer (RPI)

and the Associated Encrypted Metadata (AEM).

These consist of a byte string acting as an iden-

tiﬁer and a payload that can be later decrypted to

reveal the user’s TEK, both encrypted using AES-

128. The phone alternates between the Bluetooth

client and host modes, continuously broadcasting

the RPI and AEM when in client mode and seek-

ing such broadcasts from nearby phones when in

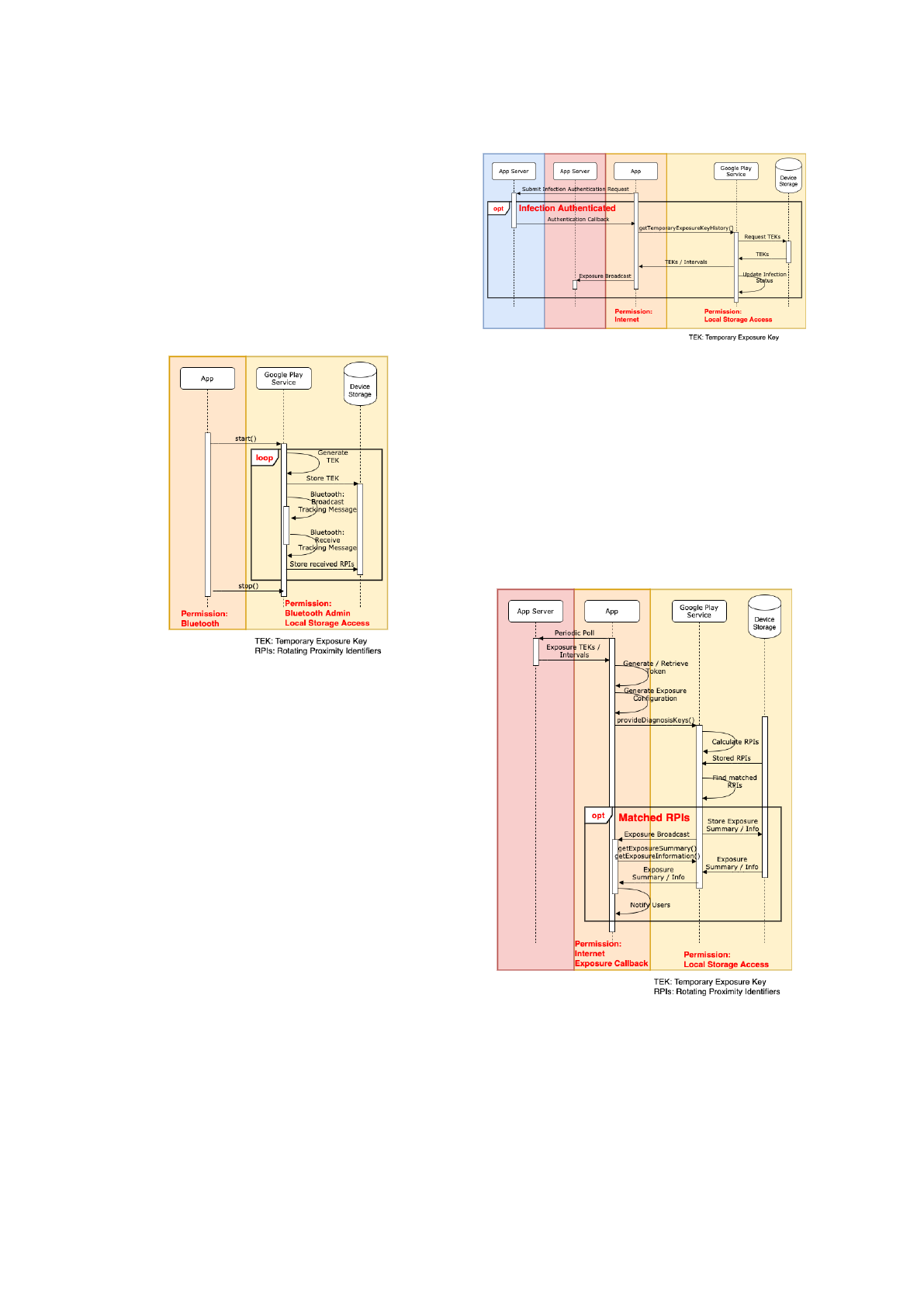

host mode, storing any received payloads. Fig-

ure 1 shows a sequence diagram for this stage.

Figure 1: Contact Exchange Sequence Diagram.

Infection Report. If a user tests positive with

COVID-19, they can choose to upload their TEK

history, extending back 14 days, to a Diagnosis

Server, alongside a timestamp to describe when

their validity started. These are referred to as Di-

agnosis Keys and only leave the device if the user

tests positive. The contact tracing app is responsi-

ble for verifying a diagnosis report from an autho-

rised medical provider. The apps are responsible

for protecting this information during the upload-

ing process. Identiﬁers over 14 days old are con-

sidered no longer useful as infected user would

have likely recovered in that time. Thus, identi-

ﬁers are deleted from both the device and central

server 14 days after being ﬁrst created. Figure 2

shows a sequence diagram for this stage.

Exposure Update. To determine if a user was ex-

posed to an infected person, users routinely down-

load the list of newly added Diagnosis Keys from

the Diagnosis Server. As RPIs are derived from

TEKs, each client can then derive a series of RPIs

from these Diagnosis Keys. These derived iden-

tiﬁers can then be matched with the list of stored

Figure 2: Infection Report Sequence Diagram.

identiﬁers discovered over BLE scanning. If any

of the derived identiﬁers match a stored identiﬁer

then the user has come into contact with some-

one infected with COVID-19 and the app should

notify them of this. The app should implement a

broadcast receiver to receive this information and

use an API call to retrieve further exposure sum-

mary information, notifying the users of this fact.

None of these steps should reveal the identity of

the infected person nor the notiﬁed users. Figure 3

shows a sequence diagram for this stage.

Figure 3: Exposure Update Sequence Diagram.

2.1.1 App Responsibilities

To aid the development of these apps, Google and

Apple provided the GAEN API and documenta-

tion (Google, 2020) outlining its usage. They describe

the functionality the API provides and the functional-

ity app developers must provide. The API handles the

complex aspects of the protocol including the crypto-

graphic systems, the broadcasting and collection of

BLE data and the calculation of an ‘exposure risk

level’. The documentation states the app must:

1. Allow users to start and stop contact tracing.

2. Register a Broadcast Receiver to receive the

ACTION EXPOSURE STATE UPDATED intent

3. Poll the Diagnosis server to obtain keys.

4. Download Diagnosis Keys and provide them to

the API.

5. Upload TEKs after a positive test and the user has

provided permission.

6. Notify the user with medical information when

they have been exposed to an infected user.

These responsibilities are part of the API lifecycle

outlined in Section 2.1. To fulﬁll these, the GAEN

Framework provides developers with an API via

the ExposureNotificationClient class. In this

paper, we focus on the API methods start, stop,

isEnabled, getTemporaryExposureKeyHistory

(which retrieves the past two weeks of TEKs) and

provideDiagnosisKeys (which submits down-

loaded keys to the API).

2.2 Security Concerns

In developing our methodology for analysing the se-

curity, privacy and functionality of contact tracing

apps, we consider two attacker models.

For the ﬁrst, we assume the developers attempted

to securely and faithfully adopt the GAEN framework

but failed, reducing user privacy or providing exploit

vectors for attackers. Although the GAEN API has

been designed with privacy and security in mind, apps

using this API must adhere to strict requirements in

order to maintain these properties. For instance, de-

velopers accidentally misusing the GAEN API may

build an app that retrieves and uploads the users’ TEK

history overly frequently. This results in the online

database resembling a centralised protocol, such as

BlueTrace, damaging user privacy. These functional-

ity failings may lead to numerous security and privacy

violations: exposure of a user’s identity; their address;

their employer; their infection status; the identities

of their contacts; their location and the loss of secu-

rity of their device, which may lead to other potential

data exposures. Even if the GAEN API is correctly

utilised, the app may contain vulnerabilities impact-

ing user security, such as misconﬁgured webviews or

exported components.

For the second, we consider the case where the

app is malware purporting to perform contact tracing,

perhaps as a repackaged version of a legitimate app.

Such apps have already been discovered, including

backdoors (Anomali, 2020) and ransomware (ESET,

2020). In this situation, the fact that the malware

claims to be a contact tracing app is incidental to its

true behaviour. Nevertheless, any systematic review

of the security of contact tracing apps needs to con-

sider this possibility.

The two attack models discussed above concen-

trate on the wrongful adoption of the GAEN API, ei-

ther accidental or intentional; both result in possible

security and privacy problems which leak user infor-

mation. Although such security problems can occur

in the GAEN framework, our approach focuses on the

adoption of the framework. Thus, our attack models

consider the security concerns of only the implemen-

tation of the contact tracing apps.

We discuss how these models inform our method-

ology for analysing contact tracing apps in Section 3.

2.3 Static Analysis Tools

There are many static analysis tools for Android soft-

ware. However, these tools know little about the

context in which they are applied. Many tools used

for Android code analysis are primarily Java analysis

tools, such as Error-Prone (Sadowski et al., 2018) and

FindBugs (Ayewah et al., 2008), and are unaware of

any potential problems speciﬁc to the Android plat-

form or any particular details of the app. Many secu-

rity vulnerabilities are the result of faulty implemen-

tation logic which cannot be divorced from the app’s

utility. As such, there are a wide-range of bugs that

general static analysis tools are incapable of ﬁnding.

Contact tracing apps are one domain where gen-

eral static analysis is lacking and implementation

bugs may arise. Prior to March 2020, there were

no tracing apps developers could base their apps on,

and disparate teams are developing apps with little

guidance. The challenges faced by tracing apps are

unique, and it is unlikely general static analysis solu-

tions could detect functionality issues or missing fea-

tures, such as notifying the user when an exposure oc-

curs. It would be extremely beneﬁcial to have a static

analysis tool that ensures an app is adhering to neces-

sary standards during its development and release.

3 METHODOLOGY

In this section, we discuss our methodology, together

with the static analysis tool MonSTER (Monoid-based

Static Analyser) developed to identify problematic

patterns in Android apps which may pose security,

privacy or functionality concerns. In this paper, we

use this methodology to verify the apps studied in

Section 3.1 adhere to the basic requirements needed

to function as contact tracing tools, based on the re-

sponsibilities discussed in Section 2.1.1.

Although we apply this three-pronged methodol-

ogy, consisting of manual, general static and bespoke

static analysis, to contact tracing apps, we stress this

methodology is highly customisable and can be ap-

plied to many domains. The manual analysis acts as a

research stage, providing us with an understanding of

the inner workings of a set of related apps. During the

general static analysis stage, we screen the apps for

common vulnerabilities that could occur in any do-

main. We also ensure the app is not malware. We

then apply the knowledge gained during our manual

analysis to our bespoke analysis stage, allowing us to

search for design vulnerabilities that are unique to the

domain in a repeatable, automated manner.

3.1 Collection of Apps

We chose a set of Android apps using the GAEN

framework with open-source code, with the exception

of Protect Scotland which is partially open-source.

Table 1 shows a list of the apps, their country of ori-

gin or developer, the analysed version, the primary

language used and the size of the code. These were

downloaded on the 28th July 2020, except for Stop-

COVID-19 and NHS Test & Trace, which were down-

loaded on the 12th August 2020, and Protect Scot-

land, which was downloaded on the 10th September

2020. SwissCovid is developed using the DP3T proto-

col: this is extremely similar to the GAEN framework

and uses the GAEN API as part of its design. We had

to build some apps from source and disable ProGuard

in order to generate unobfuscated APK ﬁles.

3.2 Manual Analysis

Having collected a series of apps, we began a manual

analysis process. First, we ran the apps and system-

atically iterated over all possible functionality, with

the exception of the later stages of the key submis-

sion process. Following this, we began a code re-

view, plotting out the general structure of each app

and noting how they interacted with the GAEN API.

We achieved this by ﬁnding where the app calls the

various GAEN API methods and following their re-

spective call ﬂows through the application. Finally,

we reviewed any publicly released documentation.

3.3 General Static Analysis

We evaluated several Android static analysis tools as

options for conducting off-the-shelf static analysis as

might be used by a professional security analyst or

penetration tester. Many tools are available freely

and as commercial products; our point was to select

something typical which demonstrates the capability

of general static analysis tools in the context of our

methodology, rather than ﬁnd some ”ultimate” best

possible tool. We looked on GitHub and considered

popularity as measured by GitHub stars. The most

popular tools were MobSF (Abraham et al., 2016)

and QARK (LinkedIn, 2015). Ultimately, we chose

MobSF, since QARK ﬂagged many trivial issues.

MobSF ﬂags many generic Android security prob-

lems, such as certiﬁcate issues, hard-coded API keys

and blacklisted malicious domains. It provides a use-

ful condensed overview of the app including mea-

surements such as the permissions used, the included

native code libraries and the number of components

— including exported components which extend an

app’s attack surface. Finally, MobSF summarises the

overall code quality with an app security score, rang-

ing from 0 to 100. We ran MobSF on all of our apps;

the results are summarised in Section 5.2.

3.4 Bespoke Static Analysis - MonSTER

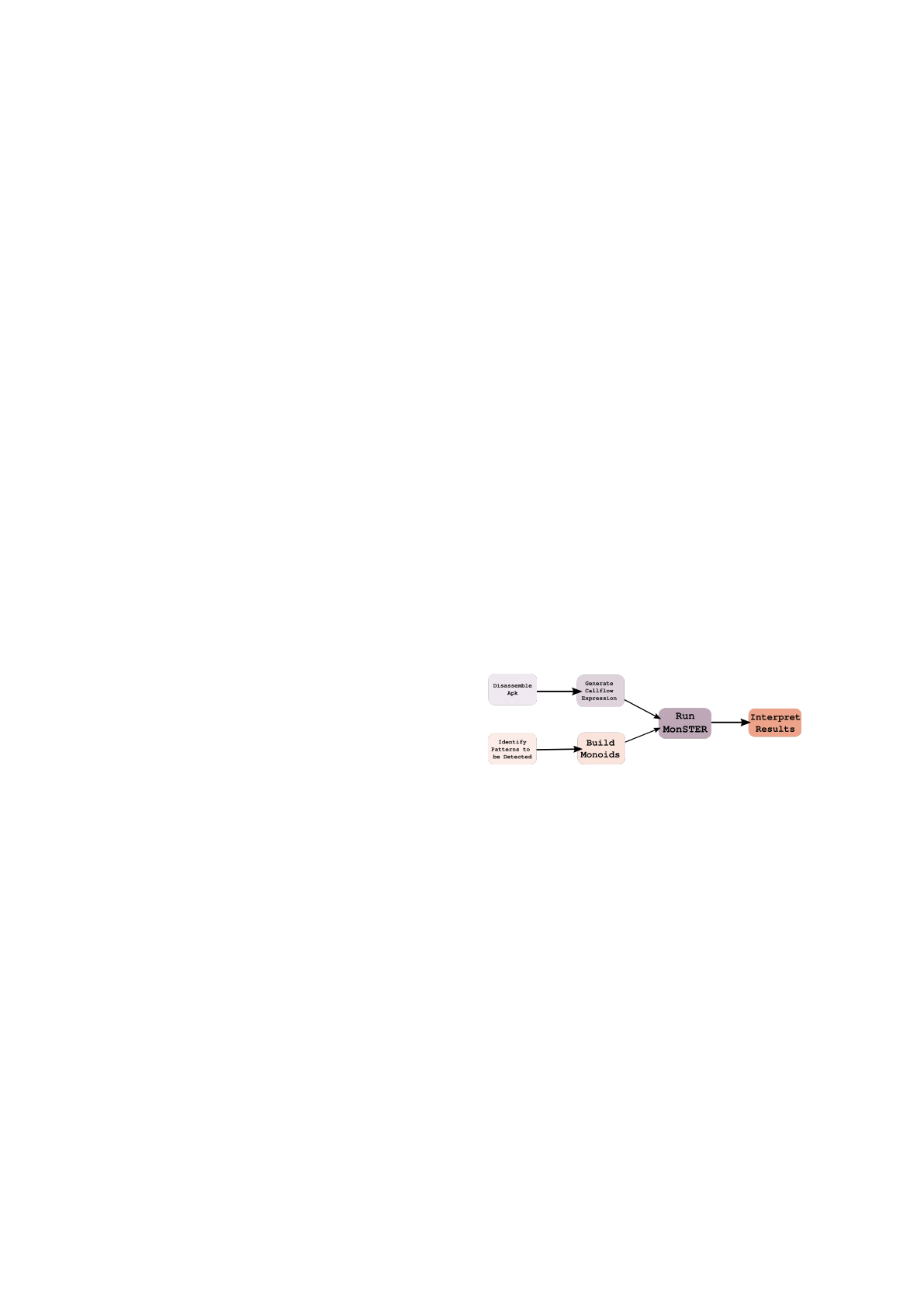

Figure 4: MonSTER workﬂow.

MonSTER is a static analysis tool written in Haskell

and Python, using Androguard (Desnos et al., 2015).

It can be conﬁgured to detect patterns of method calls

in Android apps. These patterns are customisable

to ensure certain liveness and safety properties are

present in an app. It is intended to function as a tool to

aid the testing of apps during and after development,

using bespoke patterns to detect desirable or undesir-

able properties.

MonSTER uses a control-ﬂow abstraction. A pro-

gram is a collection of recursive procedures f = e

where f is a procedure identiﬁer and e

is an expres-

sion in the grammar:

e ::= a | f | e

| e

Here a is an atomic procedure, ; and ? are sequential

composition and non-deterministic branching.

Table 1: Contact tracing apps.

App Name Origin Version Language Code Size URL

ApturiCovid Latvia 1.0.47 Kotlin 313KB apturicovid.lv

Corona-Warn-App Germany 1.0 Kotlin 650KB coronawarn.app/

Covid Safe Paths MIT None TypeScript 2.4MB pathcheck.org

CovidShield Shopify None TypeScript 790KB covidshield.app

Covid Tracker App Ireland 1.0.4 TypeScript 430KB covidtracker.gov.ie

Immuni Italy 1.0.3 Kotlin 850KB immuni.italia.it

NHS Test & Trace UK 3.0 Kotlin 570KB github.com/nhsx/

Protect Scotland Scotland 1.0.0.30 TypeScript Unknown protect.scot

ProtegoSafe Poland 1.0 Kotlin 500KB gov.pl/web/protegosafe

Stop-Covid-19 Croatia 1.0 Java 230KB github.com/stop-covid-19-croatia

Stopp Corona Austria 1.2.0 Kotlin 860KB github.com/austrianredcross

SwissCovid Swiss 1.0.4 Java 520KB https://github.com/DP-3T/

MonSTER converts method calls from Dalvik

bytecode in an APK into this expression language.

Branch points are abstracted by considering exit

points of basic blocks as potential branches. Methods

whose body can be ignored — such as API calls or

those we aren’t interested in — are treated as atomic

methods and the rest are identiﬁers with deﬁnitions.

This gives a set of expressions deﬁning the overall

program’s execution, called the call ﬂow expression

form of the APK. Methods from this expression form

are lifted into a monoid, picking out ones of interest.

Consider the ﬁrst GAEN check as an illustration.

For many of the analysed apps, before starting the

GAEN client, there is a check to see it is already run-

ning. If it is, the function exits gracefully. The GAEN

documentation is unclear as to what happens when

the API is started if already running and whether this

causes unexpected behaviour, such as the “resetting”

of the protocol, inhibiting its effectiveness. So we

treat the already-running check as good practice and

will use MonSTER to verify that it takes place.

data StartCheck = U | ENABLED | START

| ENABLED2START

| START2ENABLED

deriving (Eq, Ord, Show)

instance Mon StartCheck where

unit = U

mult c U = c

mult U c = c

mult ENABLED ENABLED = ENABLED

mult START START = START

mult START2ENABLED ENABLED = START2ENABLED

mult START _ = START2ENABLED

mult _ _ = ENABLED2START

lift "ENABLED" = ENABLED

lift "START" = START

lift _ = U

Listing 1: Monoid for Start Check.

We wish to verify that a call to isEnabled() is

followed by a call to start(). In Listing 1, the

monoid’s operator mult models method sequencing.

To keep the monoid’s policy clear and succinct, we

use keywords to stand for groups of methods — for in-

stance, every method considered to be a network sink

is modelled by SINK. In this case, we replace all ap-

pearances of the isEnabled() and start() methods

with the keywords ENABLED and START. When

parsing the call ﬂow expression, these keywords are

embedded into the monoid using the lift operator

shown in Listing 1. Methods that are not of interest

are lifted to the monoid’s identity. By creating such

policies as monoids, we can deﬁne desirable or unde-

sirable patterns customised to an app or app type.

Once translated into the monoid, MonSTER gen-

erates a system of equations using the program’s call

ﬂow expression, consisting of a type expression for

each procedure. MonSTER solves this system of

equations by calculating its least ﬁxed point. We ex-

pect to see the element ENABLED2START appear

in the output of MonSTER only in cases where this

pattern occurs.

MonSTER is kept simple by design: it focuses

on an app’s call ﬂow and ignores its data ﬂow. But,

crucially, it can capture call ﬂows for continually-

executing code in its model of mutually recursive

uchi automata. So we can model the Android ac-

tivity lifecycle, including implicit invocations (e.g.,

onCreate() followed by onStart()) as well as

cycles (onStop() followed by onResume() then

onStart() again). Liveness and safety properties can

be ensured regardless of how the app is used, which

is useful for checking longer term API call sequences

such as used in GAEN. As Section 1 mentioned, se-

cure APIs can be vulnerable to API fuzzing attacks: a

string of API calls in a certain order leads to a security

issue. Such vulnerabilities, once discovered, could be

captured as custom rules in MonSTER.

4 MonSTER CHECKS

In this section, we outline the call ﬂow patterns we

aim to discover, alongside the example in Section 3.4.

These patterns are intended to act as sanity checks,

allowing a developer to verify an app meets the API

requirements and is functional. Although we apply

these checks to contact tracing apps, the methodology

is highly customisable, allowing similar checks to be

performed on a wide variety of apps. We base these

checks around the necessary operations discussed in

Section 2.1.1. To ensure accuracy, we also test a mod-

iﬁed version of the Google reference app

designed

to fail all of the checks.

4.1 Registration of Broadcast Receiver

The GAEN documentation states apps must reg-

ister a Broadcast Receiver that handles the

ACTION EXPOSURE STATE UPDATED intent. This

intent is broadcast when the user’s exposure sta-

tus has changed. The documentation contains a

recommended way of doing this, as seen in Listing 2.

public void onReceive(Context c, Intent i) {

...

if (ACTION_EXPOSURE_STATE_UPDATED.equals(action))

{

String token = i.getStringExtra(EXTRA_TOKEN);

workManager.enqueue(

new OneTimeWorkRequest.Builder(Update.class)

.setInputData(new Data.Builder()

.putString(EXTRA_TOKEN, token)

.build()).build());

}

Listing 2: Broadcast Receiver.

instance Mon BRCheck where

...

mult GSE GSE = GSE

mult OTWR OTWR = OTWR

mult BUILD BUILD = BUILD

mult ENQUEUE ENQUEUE = ENQUEUE

mult _ GSE_OTWR = GSE_OTWR

...

mult GSE_OTWR_BUILD ENQUEUE

= GSE_OTWR_BUILD_ENQUEUE

...

Listing 3: Monoid for Receiver Check.

We implement a check to verify whether apps

follow this recommendation. We identify the meth-

ods that compose this pattern: getStringExtra(),

https://github.com/google/exposure-notiﬁcations-

android

OneTimeWorkRequest<init>(), build() and

enqueue() and replace them with the keywords

GSE, OTWR, BUILD and ENQUEUE. As we

are interested in a speciﬁc pattern, we do not need

to deﬁne our multiplication rules fully, treating

irrelevant situations as having no effect. Deﬁning

the monoid this way, we produce an element that

represents the behaviour we are hoping to express:

GSE OTWR BUILD ENQUEUE. If this element

is in MonSTER’s output then the pattern is present in

the app.

4.2 Handling of Keys

We introduce another common sense check to ensure

the apps are correctly managing their keys. This con-

sists of two parts: the handling of the TEKs and the

handling of the Diagnosis Keys. For the TEKs, we

verify they are accessed only to be submitted to some

central server i.e retrieving the keys is always fol-

lowed by a network sink. Similarly, for the Diagnosis

Keys, we ensure they are downloaded from a central

server and then provided to the API i.e providing the

keys is always preceded by a network source. To do

this, we build a monoid consisting of the GAEN API

methods getTemporaryExposureKeyHistory(),

provideDiagnosisKeys() and all network sinks/-

sources. We encode these as RECENTKEYS,

PROVIDEKEYS and NETWORK. We also intro-

duce an element DOUBLE SHARE that allows us

to see if there are multiple paths through the app that

lead to TEK sharing.

instance Mon KeyCheck where

...

mult RECENTKEYS RECENTKEYS = RECENTKEYS

mult PROVIDEKEYS PROVIDEKEYS = PROVIDEKEYS

mult NETWORK NETWORK = NETWORK

mult NETWORK PROVIDEKEYS = SUBMIT

mult RECENTKEYS NETWORK = SHARE

mult SHARE SHARE = DOUBLE_SHARE

...

Listing 4: Monoid for Key Submission.

4.3 Notifying Users of Exposure

When a user becomes potentially infected after being

exposed to an infected passerby, the app should in-

form the user via a push notiﬁcation. Again, we can

modify our tool in order to test whether this happens

across all of the apps tested.

We use the monoid displayed in Listing 5

to test whether a notiﬁcation is created after

the ACTION EXPOSURE STATE UPDATED broadcast re-

ceiver is triggered. We introduce a ﬁctional method

RECEIVE to the start of the broadcast receiver’s

onReceive() method in the call ﬂow expression

form of each app. Furthermore, we replace any

methods that create a push notiﬁcation — such as

NotificationCompat.Builder() — with the key-

word NOTIFY. In particular, we are hoping we see

the element RECEIVE NOTIFY in the output.

instance Mon NotifyCheck where

...

mult RECEIVE RECEIVE = RECEIVE

mult NOTIFY NOTIFY = NOTIFY

mult RECEIVE NOTIFY = RECEIVE_NOTIFY

mult NOTIFY RECEIVE = NOTIFY_RECEIVE

...

Listing 5: Monoid for User Notiﬁcation.

4.4 Updating the UI Correctly

Although not mentioned in the GAEN documenta-

tion, ensuring the user interface accurately reﬂects the

state of the GAEN client is important. For instance,

if an app stopped sharing TEKs but failed to indicate

this, the user would reasonably assume they have a

greater level of protection against Covid-19 than in

reality. Similar problems may occur with privacy-

conscious users unwittingly sharing TEKs.

The UI should update regardless of the entrypoint

into the app. This problem can easily be represented

in MonSTER by encoding each stage of the Android

app lifecycle as a method. These methods can then

call the methods of other stages in the lifecycle that

are immediately reachable. This technique embeds

all potential paths through the Android app lifecycle

in the app’s call ﬂow expression, allowing us to check

whether a property occurs in any possible path.

Following these preparations, we build our

monoid as before. We are hoping to see a call to

isEnabled() followed by a a call to any function

that changes the UI, which we treat as a single class

of methods. We replace these with ENABLED and

UI CHANGE respectively. The desired pattern is

represented by the element UPDATED.

instance Mon UICheck where

...

mult ENABLED ENABLED = ENABLED

mult UI_CHANGE UI_CHANGE = UI_CHANGE

mult ENABLED UI_CHANGE = UPDATED

mult UI_CHANGE ENABLED = UI2ENABLED

...

Listing 6: Monoid for UI Update.

5 RESULTS

In this section, we discuss the results of the three

stages of our analysis.

5.1 Manual Analysis

All of the apps tested could be described as wrappers

around the GAEN API of various sizes and complex-

ity, with the exception of Covid-Safe-Paths which has

a GPS tracing mode. Almost all the activities of these

apps are static and there are few ways the user can

input arbitrary data; users can often only enter a ran-

dom identiﬁcation number to conﬁrm they have been

tested. There is no link between the user’s identity

and the identiﬁcation number, which is provided in

person at a medical centre.

5.1.1 Permissions & Services

In many of our apps, there is a failure to accurately

convey the services and permissions needed for the

GAEN client to operate. On Android, apps must re-

quest the Internet and Bluetooth permissions. They do

not need any location permissions. However, Android

requires Bluetooth, location and network services are

active for the GAEN to function. In Google Play re-

views, several users express confusion over this dis-

tinction, questioning why an app needs location ser-

vices when it claims not to be tracking users.

During our manual analysis, we found several

apps exacerbate this problem by failing to prop-

erly check whether the needed services are running

when turning on exposure notiﬁcations, namely Ap-

turi Covid, Corona-Warn-App, Covid Tracker App

and Protect Scotland. All of these apps indicate ex-

posure notiﬁcations are active when the GAEN client

is blocked at an OS level due to some services not run-

ning. Corona-Warn-App and Protect Scotland trigger

a notiﬁcation asking the user to activate the required

services but this is unreliable and can be dismissed.

Otherwise, users are only informed of this problem

in their phone’s settings menu. This could easily im-

pact the effectiveness of the GAEN protocol and user

safety as user’s may be misinformed to their level of

protection against COVID-19.

5.1.2 Individual App Comments

Apturi Covid. If the user hands the responsibility of

managing the GAEN client from this app to another

app, Apturi Covid still indicates it is seeking nearby

keys when, in actuality, it isn’t. If the user then deac-

tivates exposure notiﬁcations in the other app, Apturi

Covid still indicates it is actively working, when no

exposure notiﬁcations are being sent. We think this is

a signiﬁcant safety problem, as a user could be misled

into believing they were protected by the app when

nothing was happening. We notiﬁed the developers

of Apturi Covid of this and received a response stat-

ing they would ﬁx this issue.

Corona-Warn-App. This is one of three apps whose

functionality was questionable. When a user switches

between contact tracing apps, this app throws a Java

exception error. The error states the GAEN API is

not active, although it actually is; it’s just not being

managed by Corona-Warn-App. Although minor, this

error together with other problems discussed in this

section may exacerbate confusion about the GAEN

client’s functionality.

Covid-Safe-Paths. This app has two distinct func-

tionalities, GPS tracing and BLE tracing. Therefore,

its attack surface is larger than other apps tested and it

collected more sensitive information. Although users

could delete their GPS location history from the app,

there was no way from within the app to turn off this

feature. An updated version of Covid-Safe-Paths has

split its functionality into two apps, a GPS tracing app

and a BLE tracing app.

Covid Tracker App. This app was donated to the

Linux Foundation Public Health group; modiﬁed ver-

sions of it may be developed for other countries. The

Linux Foundation will take care of the app’s main-

tenance. The app allows the user to supply a phone

number, but this number is stored on the phone and is

only shared with the health authority if the user tests

positive and provides permission. Covid Tracker App

collects anonymised metric data, such as whether the

user deleted the app during the onboarding process,

but users must opt-in to this service.

NHS Test & Trace (England/Wales). Unlike the

other apps here, this app allows users to scan QR

codes outside of public spaces to provide the app with

a rough user location. Our analysis was limited be-

cause a beta key was necessary to access the app’s

full functionality, which we did not get access to.

Stopp Corona. As with Apturi Covid, switching be-

tween apps causes problems with this app. As trac-

ing apps act passively in the background, we feel this

could be a signiﬁcant problem as a user rarely inter-

acting with Stopp Corona app may be inadvertently

unprotected. We notiﬁed the developers of Stopp

Corona of this but received no response.

SwissCovid. SwissCovid is produced by the re-

searchers behind DP3T and can be seen as its refer-

ence implementation.We found the information and

notiﬁcations shown to the user to be of a high stan-

dard compared to other apps, even warning users of

the risk of linkage attacks when submitting their keys.

5.2 General Static Analysis

We outline the results of our MobSF scans in Table 2:

the number of exported components, the number of

potentially dangerous permissions requested, the cer-

tiﬁcate signing schemes used, the number of tracking

libraries used and the code score — a score MobSF

generates to surmise the code quality, ranging from 0

(worst) to 100 (best).

The OWASP Mobile Security Testing Guide

(MSTG)

suggests these checks are relevant:

• exported components form an attack surface that

may be exploited by malware. Thus, exported

components could cause future vulnerabilities;

• tracking libraries introduce potential privacy vio-

lations of user data;

• insufﬁcient signing schemes prevent developers

from rotating their signing keys;

• additional permissions represent the capability for

the phone to access user data or undertake ”risky”

actions.

For the number of exported components, Covid

Safe Paths exceeds the other examples by some mar-

gin, demonstrating a concerning attack surface.

Due to the privacy-focus of these apps, most use

no tracking libraries. Of the apps that use tracking li-

braries, these consist of Google Crashlytics, Firebase

Analytics and, in the case of Stop-Covid-19, Google

Admob. All of these libraries allow for the harvesting

of information that is tangential to the operation of the

GAEN API and could harm user privacy.

For APKs downloaded from the Play Store, the

certiﬁcate signing schemes used are shown. MSTG

recommends using all three schemes in apps that tar-

get modern Android SDK levels. Only 3 apps do this.

For apps using GAEN, the minimum required per-

missions are Bluetooth and Internet; some apps re-

quest much more than is necessary, particularly Covid

Safe Paths and Stopp Corona. The version of Covid

Safe Paths analysed includes GPS tracking function-

ality, which accounts for GL, but the other permis-

sions seem unnecessary when contrasted with other

apps. Similarly, Stopp Corona requests the usage of

Bluetooth Admin, which is strongly discouraged by

the GAEN documentation, and location services and

is thus over-privileged. Permission creep is a well-

established problem in Android (Vidas et al., 2011)

and the principle of least privilege is considered good

practise by MSTG. Corona-Warn-App and NHS Test

& Trace require the use of the phone’s camera (CA)

as both of these apps utilise QR code scanning.

https://github.com/OWASP/owasp-mstg/

Table 2: MobSF summary of Apps in Table 1.

App Name Components Additional Permissions Certiﬁcate Trackers Score

Apturi Covid 4 WL v1, v2 2 65

Corona Warn 3 WL CA v1, v2, v3 0 50

Safe Paths 11 WL NL GL DS AA DS AR AA ST AT None 1 5

CovidShield 4 WL AW None 0 45

Covid Tracker 4 None v1,v2 0 30

Immuni 3 WL v1, v2 0 35

NHS Test & Trace 6 WL CA v1,v2,v3 0 60

Protect Scotland 6 None v1, v2, v3 0 30

ProtegoSafe 5 WL v1, v2 2 70

Stop-Covid-19 3 WL v1,v2,v3 3 90

Stopp Corona 3 WL BA NL LB v1,v2 0 35

SwissCovid 3 WL v1,v2 0 45

Key: WL: Wake Lock / BA: Bluetooth Admin / CA: Camera / AW: Alert Window

NL: Network Location / GL: GPS Location / LB: Location in Background / DS: Device Sync

AR: Activity Recognition / AA: Account Authentication / ST: Device Storage / AT: Access OS Task List

As most functionality of the GAEN framework is

provided by the API, apps only need to be a wrap-

per around it, preferably as thin as possible. Any

additional functionality increases the risk of security,

privacy or functionality issues. This is reﬂected in

the code score of each app which, as can be seen by

cross-referencing Table 1 with Table 2, is inversely

correlated with the code size; Covid-Safe-Paths has

the worst score and is largest while Stop-Covid-19 has

the best score and is smallest.

5.3 Bespoke Static Analysis

The output of MonSTER is a list of tuples containing

a method name and the monoid elements that can be

reached from that method. We conﬁrm the existence

of a pattern in an app’s source code by the existence

of the monoid element representing that pattern in the

output. We summarise our results in Table 3.

Check 1 - Starting Tracing in a Suitable Manner.

All apps tested met this requirement except for Pro-

tegoSafe and Stop-Covid-19, indicating neither app

checks whether the Exposure Notiﬁcation client is

running before starting.

Check 2 - Registering a Broadcast Receiver. All

apps tested met this requirement, except Stop-Covid-

19. Of those that passed, all but one followed the im-

plementation listed in the Google documentation ex-

actly. The app that failed was Stop-Covid-19 which

registered a broadcast receiver but did not do so in the

manner described in the documentation.

Check 3 - Handling of Temporary Keys. We could

not perform this test on Covid Tracker App, Covid-

Shield and Protect Scotland as parts of this pro-

cess are coded in TypeScript. For all other apps,

we found all calls to getTemporaryExposureKeys()

are followed by a network sink and all calls to

provideDiagnosisKeys() are preceded by a net-

work source. We also ensure keys are sent to a sin-

gle sink when submitted. We surmise that if a user

is presented with the option to share their keys, all

apps tested submit them to only one Diagnosis Server.

Similarly, we conclude that after retrieving the Diag-

nosis Keys from the server, these apps correctly pro-

vide them to the API.

Check 4 - Notifying Users of Exposure. Again, we

could not run this check on CovidShield as it is largely

written in Typescript. Furthermore, the heavy use

of dependency injection in Immuni and ProtegoSafe

limits MonSTER’s ability to generate meaningful call

ﬂow expressions which hinders its ability to analyse

these apps. Of the apps properly tested, only Covid-

Safe-Paths failed.

Check 5 - Updating the UI Correctly. Stopp Corona

and Apturi Covid failed this check. The logic for

updating the UI in these apps is handled in the

onCreate() method of the main landing page instead

of onResume(). Thus, one can activate exposure no-

tiﬁcations, close the app and turn them off — either

in the phone’s settings or using another contact trac-

ing app — and neither app will update the UI, instead

incorrectly informing the user that the app is contact

tracing. Manual testing conﬁrmed this behaviour.

As seen from Table 2 and Section 5.2, the re-

sults generated by MobSF, although worthwhile from

a security perspective, reveal nothing about the us-

age of the GAEN framework. In contrast, our be-

spoke analysis with MonSTER allows us to generate

strong guarantees about the functionality of the apps

and their adherence to the GAEN requirements.

Although MonSTER requires more effort to pro-

duce customised checks, its advantages over general

Table 3: Results of our MonSTER checks.

App Name 1 2 3 4 5

Apturi Covid X X X X X

Covid Tracker App X X - X X

Corona-Warn-App X X X X X

CovidShield X X - - -

Covid Safe Paths X X X X -

Immuni X X X - X

Protect Scotland X X - X X

ProtegoSafe X X X - X

NHS Test & Trace X X X X X

Stop-Covid-19 X X X X X

Stopp Corona X X X X X

SwissCovid X X X X X

Misconﬁgured App X X X X X

static analysis are clear. MonSTER’s call ﬂow check-

ing allows the user to ﬁne-tune the properties to be

checked that are unique to a given app or set of

apps. Such properties can then be checked repeatedly

throughout the app’s development and release.

6 DISCUSSION

6.1 Limitations of Methodology

MonSTER is a prototype designed to explore our

methodology and thus has issues. One pitfall is scal-

ability; larger apps take far longer to analyse. We can

mitigate this problem by excluding irrelevant code

from the analysis. Moreover, we can only analyse

patterns that appear in the app’s bytecode i.e those

written using Java or Kotlin. Finally, some program-

ming constructs that rely on generated methods, such

as Dependency Injection libraries and coroutine sup-

port, limit MonSTER’s ability to build accurate call

ﬂow expressions, requiring manual ﬁxing.

6.2 Discussion of Contact Tracing Apps

When evaluating apps for this paper, we found few

we could properly analyse. Many tracing apps us-

ing the GAEN API are not open source and these all

used code obfuscation. We believe this is counter-

productive to the goals of the GAEN as the end-

user has little guarantee of the app’s capabilities and

whether it has faithfully implemented the protocol.

To instill greater trust in end-users that the apps are

working as intended, providing a public veriﬁcation

method, such as open-source code or third-party au-

dits, would be advantageous. In these times, accu-

rately functioning contact tracing should take prece-

dence over intellectual property.

7 RELATED WORK

Unlike our work which focuses on correct imple-

mentation, most current research on contact tracing

apps focuses on the design of the underlying frame-

works, particularly with respect to privacy. Cho et

al. deﬁne three notions of privacy for contact tracing

apps: privacy from snoopers, contacts, and the au-

thorities (Cho et al., 2020). They note some informa-

tion will always be revealed and simple attacks can

always be performed; therefore an acceptable level of

privacy should be deﬁned with respect to these three

parties. Gvili analyses privacy issues with the GAEN

framework and proposes attacks that would hinder its

effectiveness, such as relay and replay attacks (Gvili,

2020). Similarly, Magklaras et al. assess the weak-

nesses of published tracing frameworks(Magklaras

and Bojorquez, 2020). Some research does focus on

app implementations, but at a higher level compared

to us. Samhi et el. provide a categorisation of existing

apps on Google Play related to Covid-19, but do not

analyse apps individually (Samhi et al., 2020).

There are many static analysing tools for the An-

droid platform. Li et al. (Li et al., 2017) identiﬁed

over 100 such tools. Unlike MonSTER, the major-

ity of these tools establish an app is secure using a

generalised ruleset. For instance, the MobSF (Abra-

ham et al., 2016) and QARK (LinkedIn, 2015) work

by analysing decompiled code and ﬂagging bad pro-

gramming practises that may lead to security issues,

such as the existence of logging or API keys. Some

tools are more speciﬁc but lacking the customisation

of MonSTER; for instance, taint analysis research has

led to tools such as FlowDroid (Arzt et al., 2014), de-

signed to ensure sensitive information cannot be ex-

ﬁltrated from an app. MonSTER can also be seen

as a static analogue of dynamic analysis call tracing,

utilised by tools such as DroitMat (Wu et al., 2012)

and DroidTrace (Zheng et al., 2014). However, both

of these tools focus on identifying malware, rather

than functionality properties like MonSTER.

8 CONCLUSION

This paper presented an analysis into the functional-

ity, security and privacy of contact tracing apps us-

ing a methodology involving manual, general static

and bespoke static analysis. For the bespoke case,

we present MonSTER, a lightweight, static analysis

tool that can detect the existence of patterns of An-

droid app behaviour in a customisable way, as gen-

eral static analysis tools were not sufﬁcient. Using

this process, we veriﬁed that many contact tracing

apps adhered to the GAEN API’s recommended us-

age. However, we found failings in tested versions of

some apps that could impact user safety or security,

namely Covid-Safe-Paths, which failed to adhere to

design practices that minimise user risk, Apturi Covid

and Stopp Corona, which failed to correctly inform

users of the status of the GAEN client. For future

work, we mention that MonSTER’s generation of call

ﬂow expressions from an app’s bytecode could be im-

proved to capture more programming constructs, such

as coroutines.

ACKNOWLEDGEMENTS

We are grateful for support for this work from the Of-

ﬁce of Naval Research ONR NICOP award N62909-

17-1-2065 and The Alan Turing Institute under the

EPSRC grant EP/N510129/1.

REFERENCES

Abraham, A., Schlecht, D., Dobrushin, M., and Nadal, V.

(2016). Mobile Security Framework (MobSF). https:

//github.com/MobSF.

Amnesty (2020). Bahrain, Kuwait and Norway Contact

Tracing Apps among Most Dangerous for Pri-

vacy. https://www.amnesty.org/en/latest/news/2020/

06/bahrain-kuwait-norway-contact-tracing-apps-

danger-for-privacy/. Accessed: 2020-08-04.

Anomali (2020). Anomali Threat Research Identiﬁes Fake

COVID-19 Contact Tracing Apps Used to Download

Malware that Monitors Devices, Steals Personal Data.

https://www.anomali.com/blog. Accessed: 2020-09-

10.

Arzt, S., Rasthofer, S., Fritz, C., Bodden, E., Bartel, A.,

Klein, J., Le Traon, Y., Octeau, D., and McDaniel,

P. (2014). Flowdroid: Precise Context, Flow, Field,

Object-Sensitive and Lifecycle-Aware Taint Analysis

for Android Apps. Acm Sigplan Notices, 49(6):259–

269.

Ayewah, N., Pugh, W., Hovemeyer, D., Morgenthaler, J. D.,

and Penix, J. (2008). Using Static Analysis to Find

Bugs. IEEE software, 25(5):22–29.

Bortolozzo, M., Centenaro, M., Focardi, R., and Steel, G.

(2010). Attacking and Fixing PKCS#11 Security To-

kens. pages 260–269.

Cho, H., Ippolito, D., and Yu, Y. W. (2020). Contact Tracing

Mobile Apps for COVID-19: Privacy Considerations

and Related Trade-offs.

Desnos, A. et al. (2015). Androguard. https://github.com/

androguard/androguard.

ESET (2020). New Ransomware Posing as

COVID-19 Tracing App Targets Canada.

https://www.welivesecurity.com/2020/06/24/. Ac-

cessed: 2020-09-10.

Google (2020). Exposure Notiﬁcations:

Android API Documentation. https:

//web.archive.org/web/20200603200341/

https://static.googleusercontent.com/media/

www.google.com/en//covid19/exposurenotiﬁcations/

pdfs/Android-Exposure-Notiﬁcation-API-

documentation-v1.3.2.pdf. Accessed: 2020-08-

04.

Gvili, Y. (2020). Security analysis of the covid-19 contact

tracing speciﬁcations by apple inc. and google inc.

Leith, D. J. and Farrell, S. (2020). Coronavirus Contact

Tracing: Evaluating the Potential of using Bluetooth

Received Signal Strength For Proximity Detection.

Li, L., Bissyand

e, T. F., Papadakis, M., Rasthofer, S., Bar-

tel, A., Octeau, D., Klein, J., and Traon, L. (2017).

Static Analysis of Android Apps: A Systematic Liter-

ature Review. Information and Software Technology,

88:67–95.

LinkedIn (2015). Quick Android Review Kit (QARK).

https://github.com/linkedin/qark.

Magklaras, G. and Bojorquez, L. N. L. (2020). A Re-

view of Information Security Aspects of the Emerg-

ing COVID-19 Contact Tracing Mobile Phone Appli-

cations.

Sadowski, C., Aftandilian, E., Eagle, A., Miller-Cushon, L.,

and Jaspan, C. (2018). Lessons from Building Static

Analysis Tools at Google. Communications of the

ACM, 61(4):58–66.

Samhi, J., Allix, K., Bissyand

e, T. F., and Klein, J. (2020).

A First Look at Android Applications in Google Play

related to Covid-19.

TCN (2020). TCN coalition. https://www.covid19.nhs.uk/.

Troncoso, C., Payer, M., Hubaux, J.-P., Salath

e, M.,

Larus, J., Bugnion, E., Lueks, W., Stadler, T., Pyrge-

lis, A., Antonioli, D., et al. (2020). Decentralized

Privacy-Preserving Proximity Tracing. arXiv preprint

arXiv:2005.12273.

Vidas, T., Christin, N., and Cranor, L. (2011). Curbing An-

droid Permission Creep. In Proceedings of the Web,

volume 2, pages 91–96.

Wan, Z. and Liu, X. (2020). ContactChaser: A Simple yet

Effective Contact Tracing Scheme with Strong Pri-

vacy. Cryptology ePrint Archive, Report 2020/630.

https://eprint.iacr.org/2020/630.

Wu, D.-J., Mao, C.-H., Wei, T.-E., Lee, H.-M., and Wu,

K.-P. (2012). Droidmat: Android Malware Detection

through Manifest and API Calls Tracing. In 2012 Sev-

enth Asia Joint Conference on Information Security,

pages 62–69. IEEE.

Zheng, M., Sun, M., and Lui, J. C. (2014). DroidTrace: A

Ptrace Based Android Dynamic Analysis System with

Forward Execution Capability. In 2014 international

wireless communications and mobile computing con-

ference (IWCMC), pages 128–133. IEEE.
