A Two Step Fine-tuning Approach for Text Recognition on

Identity Documents

Francesco Visalli

1 a

, Antonio Patrizio

and Massimo Ruffolo

1,2 b

High Performance Computing and Networking Institute of the National Research Council (ICAR-CNR),

Via Pietro Bucci 8/9C, Rende (CS), 87036, Italy

Altilia.ai, Piazza Vermicelli, c/o Technest, University of Calabria, Rende (CS), 87036, Italy

Keywords:

Text Recognition, Identity Documents, Transfer Learning, Fine-tuning, Scene Text Recognition, Deep

Learning, Transformer.

Abstract:

Manually extracting data from documents for digitization is a long, tedious and error-prone job. In recent

years, technologies capable of automating these processes are gaining ground and managing to obtain surpris-

ing results. Research in this ﬁeld is driven by the strong interest of organizations that have identiﬁed how the

automation of data entry leads to a reduction in working time and a speed-up of business processes. Doc-

uments of interest are heterogeneous in format and content. These can be natively machine readable or not

when they are images obtained by scanning paper. Documents in image format require pre-processing before

applying information extraction. A typical pre-processing pipeline consists of two steps: text detection and

text recognition. This work proposes a two step ﬁne-tuning approach for text recognition in Italian identity

documents based on Scene Text Recognition networks. Experiments show promising results.

1 INTRODUCTION

Feeding enterprise information systems with data

coming from documents often requires manual data

entry that is a long, tedious, and error-prone job.

Nowadays, automatic information extraction can of-

fer a big boost in efﬁciency, accuracy, and speed in

all those business processes where data capture from

documents plays an important role. Therefore, au-

tomating data entry can save a lot of time and speed-

up the execution of business processes allowing em-

ployees to focus on core and more valuable aspects of

their daily activities.

Organizations in all industries may require to pro-

cess myriads of documents with a variety of formats

and contents. Usual examples of documents of inter-

est are invoices, orders, bills, receipts, payrolls, appli-

cation forms, passports and other identity documents,

and so on. Such documents are often digitized as

images, so they require pre-processing before apply-

ing information extraction. A typical pre-processing

pipeline consists of two steps: text detection and text

recognition.

https://orcid.org/0000-0002-6768-3921

https://orcid.org/0000-0002-4094-4810

This work addresses the text recognition task for

identity documents. This is a particularly difﬁcult

problem because while the text detection step can be

performed by many different computer vision algo-

rithms (Ren et al., 2017; Baek et al., 2019b; Wang

et al., 2019; He et al., 2020), classic Optical Char-

acter Recognition (OCR) algorithms (e.g. Textract

Tesseract

or Calamari

), that work well on standard

documents such as receipts or invoices, fail in rec-

ognizing texts within identity documents. In particu-

lar, identity documents are paramount in business pro-

cesses related to customer subscription and on board-

ing where users frequently submit photos taken via

smartphones, or poor-quality scanned images that are

blurred, unclear, and with very complex framing an-

gles.

The text recognition method we present in this

work is based on transfer learning and Scene Text

Recognition (STR) networks. Transfer learning is a

widely used technique within machine learning and,

in particular, in the ﬁelds of computer vision and natu-

ral language processing (Yosinski et al., 2014; Devlin

https://aws.amazon.com/textract/

https://github.com/tesseract-ocr/tesseract/

https://github.com/Calamari-OCR/calamari/

Visalli, F., Patrizio, A. and Ruffolo, M.

A Two Step Fine-tuning Approach for Text Recognition on Identity Documents.

DOI: 10.5220/0010252208370844

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 837-844

ISBN: 978-989-758-484-8

 2021 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

837

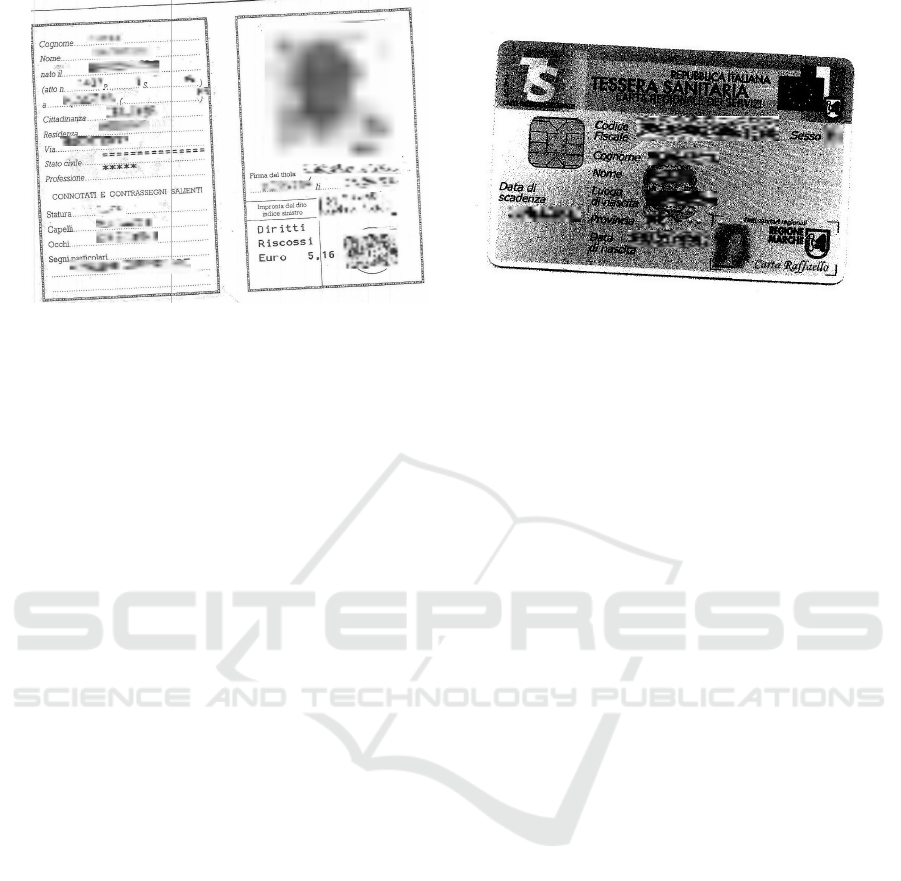

(a) Italian identity card. (b) Italian tax code.

Figure 1: Examples of identity documents processed. On the left an Italian identity card, on the right an Italian tax code where

sensitive data has been bleared for privacy reasons.

et al., 2019). It relies on the fact that models trained

to perform a speciﬁc task in a given domain (source)

can be applied to do a similar task in another domain

(target), thus reducing the need for labeled data in the

target domain. STR is a special form of OCR aim-

ing at recognizing text in natural scenes. Text in the

wild presents much more complex problems than that

found in scanned documents. Some of these problems

concern, for example, complex backgrounds, multiple

font colors, irregular fonts, different font sizes, differ-

ent text orientations, imperfect image conditions such

as non-uniform illumination, low resolution, motion

blurring, and so on. Many of these problems are

also found in identity documents. For these reasons,

STR networks are ideal candidates to experiment with

transfer learning approaches in order to tackle our text

recognition problem on identity documents.

To validate the approach we propose we built two

datasets, one composed of text extracted from real-

world identity documents (i.e. Italian identity cards

and tax codes, Figure 1) and another one composed

of synthetic text examples randomly generated. We

created synthetic texts having same visual and content

features of real documents (Figure 2) in order to have

more training examples and get better text recognition

performances. To train the STR algorithm we adopted

a two phase ﬁne-tuning procedure. In the ﬁrst phase

we used synthetic examples, then we used real-world

documents to get the ﬁnal model. In order to prove

the effectiveness of our method, we propose a section

of ablation studies (Section 4.4). It is important to

underline that although we experimented with Italian

documents, the approach we propose is general.

The main contributions of this work are:

• the deﬁnition of a transfer learning approach for

identity documents based on STR algorithms;

• an exhaustive experimental evaluation of the pro-

posed approach that shows the achievement of re-

sults that allow the application of the obtained

model in real-world scenarios.

The rest of this paper is organized as follows: in Sec-

tion 2 we introduce and discuss a list of works related

to the extraction of text on identity documents; in Sec-

tion 3 we describe Scene Text Recognition networks

and principles underlying our two step ﬁne-tuning ap-

proach; in Section 4 we present the creation process

of the datasets leveraged for the experiments along

with the discussion of the results of these and a series

of ablation studies to demonstrate the effectiveness of

our method; ﬁnally, in Section 5 we draw conclusions

and present the future work.

2 RELATED WORK

Information extraction from document images is a re-

search ﬁeld that is attracting a lot of attention. In the

following, we describe works that carry out the whole

information extraction process on identity documents.

The work presented by (Llad

os et al., 2001) shows

that information extraction from identity documents

is a well known problem in literature. The authors ex-

perimented with Spanish identity cards, Spanish drive

licenses and passports achieving 94.50%, 70.00% and

65% of accuracy, respectively. Text regions are pre-

processed for background removal and image bina-

rization. OCR is performed as a combination of vot-

ing strategy combining several classiﬁers. The ﬁnal

step of the recognition pipeline consists in a parser

designed to consider linguistic and geometric context

to overcome typical OCR confusions (e.g. ”D” and

”O” or ”B” and ”8”).

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

838

(Bulatov et al., 2017) propose an information ex-

traction pipeline for mobile applications. They focus

on Russian driving license and internal Russian pass-

port, achieving an average per-frame accuracy over

ﬁve ﬁeld of 89.34%, 92.51% and 94.29% calculated

on Russian driving license captured by smartphone,

internal Russian passport captured by smartphone and

internal Russian passport captured by webcam, re-

spectively. Text recognition is performed by per-

character ﬁeld segmentation (Chernov et al., 2016).

Results are very good but multiple frames contain the

same document. Moreover, a correction step of the

text recognized through language model is performed.

(Viet et al., 2019) present an end-to-end informa-

tion extraction systems for Vietnamese identity cards.

Text bounding boxes are recognized by an encoder-

decoder attention model that follows the architecture

of STR networks (Shi et al., 2017). Dataset is com-

posed of real examples and data augmentation is per-

formed. The authors reach an average accuracy of

92.00% over ﬁelds of interest. However, they only

focus on three ﬁelds (ID number, name and date of

birth), this makes the task easier. Moreover, because

of the data augmentation, the distribution of the char-

acters in the ﬁelds is almost always the same.

(Attivissimo et al., 2020) propose a method that

starts with the classiﬁcation of the document and ends

with the recognition of the text areas detected. They

created a synthetic dataset of Italian identity docu-

ments composed of paper identity card, electronic

identity card, driving license, health insurance card

and passport. Text recognition is performed with

a typical STR encoder-decoder architecture (Yousef

et al., 2018), reaching 92.72% of accuracy on the

text ﬁelds extracted from the document photos. Al-

though results are good, they are obtained on a syn-

thetic dataset. Typically, these synthetic images can

hardly replicate those of real scenarios.

As further evidence of the strong interest in au-

tomated information extraction systems from identity

documents, in recent years, several commercial sys-

tems have emerged

3 METHODOLOGY

In this section we ﬁrst provide basic concepts about

STR networks and their architecture, then we intro-

duce principles underlying our two step ﬁne-tuning

method.

https://microblink.com/products/blinkid

3.1 Model

Scene Text Recognition (STR) has a wide range of

applications and is attracting a huge interest in the

research community. In last years, the use of deep

learning methods (Chen and Shao, 2019; Chen et al.,

2020), has evolved this ﬁeld very rapidly. STR net-

works, due to their nature, are able to recognize text

on complex backgrounds while state of the art OCR

tools usually fail.

STR deep learning solutions typically follow a

standard encoder-decoder architecture (Shi et al.,

2019; Baek et al., 2019a). The encoder module per-

forms feature extraction and sequence modeling. The

feature extraction is the stage in which the model ab-

stracts an input image and outputs a visual feature

map. It is performed by a Convolutional Neural Net-

work or some variant of this (Simonyan and Zisser-

man, 2015; Lee and Osindero, 2016; He et al., 2016).

In order to enlarge the feature context, the extracted

features from the previous stage are processed by a

sequence model (e.g. Long Short-Term Memory net-

works).

The decoder module performs the prediction

stage. It takes the sequence map output from the

encoder and transforms it in a sequence of charac-

ters. Predictions are usually made through Connec-

tion Temporal Classiﬁcation (CTC) (Graves et al.,

2006) or attention-based mechanism. The former al-

lows predicting a non-ﬁxed number of characters even

though a ﬁxed number of features are given, the latter

enables a STR model to learn a character-level lan-

guage model.

In this work we leverage the so called Self-

Attention Text Recognition Network (SATRN) (Lee

et al., 2019). It follows the encoder-decoder archi-

tecture described above. This network is inspired by

Transformer (Vaswani et al., 2017), which has deeply

revolutionized the NLP ﬁeld (Devlin et al., 2019; Liu

et al., 2019; Yang et al., 2019) and also inﬂuenced the

CV (Computer Vision) world (Parmar et al., 2018).

Visual features extracted by the encoder are passed to

self-attention modules which are modiﬁed version of

the original Transformer self-attention modules. The

decoder retrieves these enriched features from the en-

coder and passes them through multi-head attention

and point-wise feedforward layers. The output of this

process is a sequence of characters.

Due to the full-graph propagation of self-attention

mechanism, SATRN is able to recognize text with ar-

bitrary arrangements and large inter-character spac-

ing. This is an important feature for our text recog-

nition task on identity documents. In fact, these kind

of documents are often photographed or scanned with

A Two Step Fine-tuning Approach for Text Recognition on Identity Documents

839

very complex angles. Because of this, text areas result

not horizontally aligned unless the document is pre-

viously rotated in a pre-processing step. This align-

ment step is quite common in pipelines for extract-

ing data from document images. Using an STR such

as SATRN allows avoiding an explicit phase of text

alignment.

3.2 Two Step Fine-tuning Approach

Transfer learning is a widely used technique in the

world of deep learning. It allows transferring the

knowledge learned by a model from one task to an-

other (or from one domain to another for the same

task). Models that leverage the transfer learning need

less data than those trained from scratch. It is a must

when the architecture is a deep one. In fact, deep

learning models usually require lot of data in order

to learn a task. Fine-tuning is a transfer learning ap-

proach that consists in some minor adjustment of the

weights of the network.

SATRN is pretrained on two large datasets which

are MJSynth (Jaderberg et al., 2014) and SynthText

(Gupta et al., 2016). It is important to note that these

two datasets are designed for STR, more details about

them are provided in Section 4.1. The key concept

here is that SATRN needs to be ﬁne-tuned in order

to properly recognize text on identity documents. In

fact, unlike problems they share, text areas in identity

documents are different from those in natural scenes

both from a visual and linguistic point of view.

Starting from real Italian identity documents (Fig-

ure 1), our goal is to train SATRN in order to recog-

nize text on them. The language gap is the biggest one

to bridge. Character distribution learned on natural

text scenes is completely different from that learned

on identity documents. Moreover, most of the text in

MJSynth and SynthText is in English while the doc-

uments we want to recognize are in Italian, thus in-

creasing the language gap. Due to privacy reasons,

identity document datasets are not distributed. To pro-

vide more examples to the model, we created a big

synthetic dataset of text areas. These were created

trying to replicate the real ones as much as possible

(Figure 2, more about it in Section 4.1). Since syn-

thetic examples can never be like real ones and to

avoid overﬁtting the synthetic distribution, we ﬁne-

tuned SATRN in two distinct phases: ﬁrst with the

synthetic dataset and then with the real dataset. In

this way we can use more synthetic examples than

we could have used by training the network with both

synthetic and real ones in a single training set. This is

why we talk about two step ﬁne-tuning approach.

4 EXPERIMENTS

In this section we describe experiments carried out in

order to train SATRN for the text recognition task on

Italian identity documents. First we present datasets

used and how we made them. Then, we describe in

depth the experiments and the results obtained. The

section concludes with some ablation studies demon-

strating the effectiveness of our two step ﬁne-tuning

approach.

4.1 Datasets

SATRN was originally trained with the combination

of MJSynth (Jaderberg et al., 2014) and SynthText

(Gupta et al., 2016), which are two very big datasets

of Scene Text Recognition. The ﬁrst contains 9 mil-

lion text boxes while the second 8 million. As de-

scribed in Section 3.2, in order to ﬁne-tune the net-

work on identity document texts, our two step ap-

proach leverages two different datasets.

The ﬁrst training step is performed on a synthetic

dataset created by us. Our goal was to recognize most

of the ﬁelds from paper identity cards (front and back)

and plastic tax codes (front) for a total of 13 and

8 ﬁelds, respectively. Identity cards ﬁelds include:

name, surname, date of birth, place of birth, citizen-

ship, residence, address, civil status, profession, mu-

nicipality of issue, date of issue, Identity card code

and expiration date. While tax codes ﬁelds include:

tax code, name, surname, place of birth, county, date

of birth, sex and expiration date.

In order to create text areas of interest we lever-

age a data generator

. It takes as input dictionaries of

ﬁelds and a set of backgrounds. Generality dictionar-

ies were created by taking the ﬁelds randomly from

the web

6,7

, ﬁeld dictionaries like data were randomly

generated, tax codes were calculated by a REST ser-

vice

. In order to reproduce real documents we add

some text skewing and text blurring to the boxes (Fig-

ure 2). We balanced the examples for each ﬁeld. We

experimented with two synthetic datasets of different

sizes: 8886 and 14762.

We further ﬁne-tuned the model on a real-world

dataset. Fields are the same of those synthetics, de-

scribed before. The size of the dataset is 714. To

extract text areas from documents we leveraged ob-

ject detection algorithms (Ren et al., 2017; He et al.,

2020). Because we work on documents having a stan-

https://github.com/Belval/TextRecognitionDataGenerator

https://github.com/napolux/paroleitaliane

https://github.com/napolux/italia

http://webservices.dotnethell.it/codiceﬁscale.asmx

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

840

dard layout, the object detection model can be trained

with few examples.

(a) Real example

cropped from an Italian

identity card.

(b) Real example

cropped from an Italian

tax code.

similar to those cropped

from real Italian

identity cards.

(d) Synthetic example

similar to those cropped

from real Italian tax

codes.

Figure 2: Comparison between real and synthetic text

boxes.

4.2 Experimental Setting

We leveraged the implementation of SATRN pro-

posed in vedastr

. SATRN was originally tested with

three different architectures: SATRN-small, SATRN-

middle and SATRN-big. Differences are in the chan-

nel dimension per layer, encoder and decoder lay-

ers. We chose SATRN-small which guarantees a good

trade-off between accuracy and efﬁciency. The num-

ber of channel dimension per layer, encoder and de-

coder layers in SATRN-small is 256, 9 and 3, respec-

tively. The model was trained using default hyperpa-

rameters: Adam (Kingma and Ba, 2015) as optimizer,

16 as batch size dimension and 1e − 4 as initial learn-

ing rate.

We trained our models for 6 epochs taking each

time the best one in terms of validation loss and met-

rics. In order to evaluate the models we used two dif-

ferent metrics: the case sensitive accuracy at bound-

ing box level (i.e. a bounding box is correct if all the

characters inside it are correctly recognized) and the

mean character error rate (mCER). The CER is de-

ﬁned in Equation 1, where ed(s1, s2) is the edit dis-

tance of two sequences s1 and s2 normalized by the

maximum length (Wick et al., 2018). The learning

policy is different from that of the original work. In-

stead of using Cyclic learning rate (Smith, 2017) we

used a simple weight decay setting the gamma at 0.1

and the decay at the second and fourth epoch.

CER =

ed(s1, s2)

max(|s1|, |s2|)

(1)

https://github.com/Media-Smart/vedastr

4.3 Results and Discussion

All results presented from now on are calculated

through 5-fold cross validation. For each fold, we

took the 80% of the original size of the dataset as

training set and the remaining 20% as validation set.

Unfortunately, a direct comparison on public identity

documents is not possible because datasets are not re-

leased for privacy reasons.

Table 1 shows the results of the two step

ﬁne-tuning approach. On the rows there are

pairs of dataset used for each experiment.

SY NT HET IC

SMALL

× REAL is the model

ﬁrst ﬁne-tuned on the smaller synthetic dataset

(the one that contains 8886 examples) and then

ﬁne-tuned again on the real dataset, whereas

SY NT HET IC

LARGE

× REAL is the model ﬁrst

ﬁne-tuned on the larger synthetic dataset (the one that

contains 14762 examples) and then ﬁne-tuned again

on the real dataset. On the columns there are results

expressed in accuracy and mean character error rate

(mCER).

Table 1: Results of the two step ﬁne-tuning approach.

Accuracy mCER

SY NT HET IC

SMALL

× REAL 88.44% 2.71%

SY NT HET IC

LARGE

× REAL 86.98% 3.02%

We can observe that the model trained on the smaller

synthetic dataset during the ﬁrst step performs better

than the model trained on the larger, both in terms of

accuracy and in terms of mCER. Usually, the larger

is the dataset the better are results. This conﬂicting

behaviour could be due to the fact that during the ﬁrst

ﬁne-tuning the model overﬁts the synthetic distribu-

tion when trained on more examples. It could be a

ﬁrst clue that shows us how synthetic datasets are dif-

ferent from real ones even if very similar.

(a) Example of poor

quality text box.

(b) Example of outlier.

Figure 3: Examples on which the model makes mistakes.

Studying the predictions of the model we noticed

that most of the errors are made on very noisy ex-

amples or on examples with character distributions

completely different from all those seen in both the

synthetic and the real dataset (3). We are conﬁdent

A Two Step Fine-tuning Approach for Text Recognition on Identity Documents

841

that by increasing the size of the real dataset results

can be further improved. It is noteworthy that results

presented here are obtained without any kind of im-

age pre-processing to reduce noise. Results can be

further improved by applying post-processing tech-

niques such as OCR correction or dictionaries match-

ing. Some of the errors made by the model could be

easily corrected applying some of the techniques just

mentioned. For example it could be very easy and

effective match some ﬁelds (i.e. name of people) on

dictionaries.

4.4 Ablation Studies

In this section we present a series of ablation stud-

ies to demonstrate the effectiveness of our approach.

First we carried out experiments to demonstrate how

synthetic datasets are different from those real. Table

2 shows the evaluation of the models trained on the

synthetic datasets without the ﬁne-tuning on the real

one. Results are calculated on the ﬁve folds of the

real dataset. On the rows there are the datasets and on

the columns the metrics. We can observe far worse

results than those obtained after performing a further

ﬁne-tuning on the real dataset. Best results are ob-

tained on the smaller synthetic dataset following the

trend of the experiments in Section 4.3.

Table 2: Results of the models ﬁne-tuned only on the syn-

thetic datasets calculated on the validation folds of the real

one.

Accuracy mCER

SY NT HET IC

SMALL

77.31% 6.80%

SY NT HET IC

LARGE

73.95% 7.92%

Table 3 has the same structure of previous ones. The

ﬁrst row shows results of the evaluation of SATRN

on the ﬁve folds of the real dataset without any ﬁne-

tuning. Results conﬁrm the need and the effective-

ness of transfer learning from natural scenes to iden-

tity documents domain.

The second row shows results of the ﬁne-tuning of

SATRN only on the real dataset. They are compara-

ble to those in Table 1. We can observe that the model

ﬁne-tuned only on the real dataset performs way bet-

ter than the models ﬁne-tuned only on the synthetic

datasets (Table 2). This once again conﬁrms the im-

portance of having real data. However, best results

are those presented in Table 1 obtained performing

the training both on the synthetic dataset and then on

the real one. This conﬁrms the effectiveness of our

approach.

Table 3: Evaluation of SATRN from scratch and results of

the model ﬁne-tuned only on the real dataset.

Accuracy mCER

NO FINE − TU NING 39.69% 23.39%

REAL 85.15% 3.47%

5 CONCLUSIONS AND FUTURE

WORK

In this work we proposed a transfer learning proce-

dure to tackle the problem of text recognition on iden-

tity documents. To do this we leveraged Scene Text

Recognition (STR) networks. In order to better trans-

fer knowledge from text in natural scenes to those

within Italian identity documents we carried out a two

step ﬁne-tuning approach.

We created two datasets of text areas, one com-

posed of cropped text extracted from real-world ex-

amples through object detection algorithms and an-

other one composed of synthetic text examples ran-

domly generated. We created synthetic texts having

the same visual and content features of real docu-

ments. Therefore, we ﬁrst trained the STR network

on the synthetic dataset and then on the real one.

We achieved an accuracy of 88.44% (consider-

ing a text box correct if all the characters inside it

are correctly recognized) and a mean character er-

ror of 2.71%. Results reported are obtained directly

from the network without any form of pre or post-

processing. Finally, we demonstrated the effective-

ness of our approach through a section of ablation

studies.

We plan to perform further experiments extending

datasets with examples on which the network misbe-

haves. We also intend to experiment with some pre

and post-processing techniques in order to improve

input images and correct output results. These ex-

periments will include per-ﬁeld analysis. Afterwards,

we want to integrate the work presented here into a

complete pipeline of information extraction for iden-

tity documents.

REFERENCES

Attivissimo, F., Giaquinto, N., Scarpetta, M., and Spadav-

ecchia, M. (2020). An Automatic Reader of Identity

Documents. CoRR, abs/2006.14853.

Baek, J., Kim, G., Lee, J., Park, S., Han, D., Yun, S., Oh,

S. J., and Lee, H. (2019a). What Is Wrong With Scene

Text Recognition Model Comparisons? Dataset and

Model Analysis. In International Conference on Com-

puter Vision (ICCV).

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

842

Baek, Y., Lee, B., Han, D., Yun, S., and Lee, H. (2019b).

Character Region Awareness for Text Detection. In

IEEE Conference on Computer Vision and Pattern

Recognition, CVPR 2019, Long Beach, CA, USA,

June 16-20, 2019, pages 9365–9374. Computer Vision

Foundation / IEEE.

Bulatov, K. B., Arlazarov, V. V., Chernov, T. S., Slavin, O.,

and Nikolaev, D. P. (2017). Smart IDReader: Doc-

ument Recognition in Video Stream. In 7th Interna-

tional Workshop on Camera-Based Document Anal-

ysis and Recognition, 14th IAPR International Con-

ference on Document Analysis and Recognition, CB-

DAR@ICDAR 2017, Kyoto, Japan, November 9-15,

2017, pages 39–44. IEEE.

Chen, X., Jin, L., Zhu, Y., Luo, C., and Wang, T. (2020).

Text Recognition in the Wild: A Survey. CoRR,

abs/2005.03492.

Chen, Y. and Shao, Y. (2019). Scene Text Recognition

Based on Deep Learning: A Brief Survey. In 2019

IEEE 11th International Conference on Communica-

tion Software and Networks (ICCSN), pages 688–693.

Chernov, T., Ilin, D., Bezmaternykh, P., Faradzhev, I.,

and Karpenko, S. (2016). Research of Segmenta-

tion Methods for Images of Document Textual Blocks

Based on the Structural Analysis and Machine Learn-

ing. Vestnik RFFI, pages 55–71.

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2019).

BERT: Pre-training of Deep Bidirectional Transform-

ers for Language Understanding. In Burstein, J.,

Doran, C., and Solorio, T., editors, Proceedings of

the 2019 Conference of the North American Chap-

ter of the Association for Computational Linguistics:

Human Language Technologies, NAACL-HLT 2019,

Minneapolis, MN, USA, June 2-7, 2019, Volume 1

(Long and Short Papers), pages 4171–4186. Associ-

ation for Computational Linguistics.

Graves, A., Fern

andez, S., Gomez, F. J., and Schmid-

huber, J. (2006). Connectionist temporal classiﬁca-

tion: labelling unsegmented sequence data with recur-

rent neural networks. In Cohen, W. W. and Moore,

A. W., editors, Machine Learning, Proceedings of the

Twenty-Third International Conference (ICML 2006),

Pittsburgh, Pennsylvania, USA, June 25-29, 2006,

volume 148 of ACM International Conference Pro-

ceeding Series, pages 369–376. ACM.

Gupta, A., Vedaldi, A., and Zisserman, A. (2016). Syn-

thetic Data for Text Localisation in Natural Images. In

2016 IEEE Conference on Computer Vision and Pat-

tern Recognition, CVPR 2016, Las Vegas, NV, USA,

June 27-30, 2016, pages 2315–2324. IEEE Computer

Society.

He, K., Gkioxari, G., Doll

ar, P., and Girshick, R. B. (2020).

Mask R-CNN. IEEE Trans. Pattern Anal. Mach. In-

tell., 42(2):386–397.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep Resid-

ual Learning for Image Recognition. In 2016 IEEE

Conference on Computer Vision and Pattern Recog-

nition, CVPR 2016, Las Vegas, NV, USA, June 27-30,

2016, pages 770–778. IEEE Computer Society.

Jaderberg, M., Simonyan, K., Vedaldi, A., and Zisserman,

A. (2014). Synthetic Data and Artiﬁcial Neural Net-

works for Natural Scene Text Recognition. CoRR,

abs/1406.2227.

Kingma, D. P. and Ba, J. (2015). Adam: A Method for

Stochastic Optimization. In Bengio, Y. and LeCun,

Y., editors, 3rd International Conference on Learn-

ing Representations, ICLR 2015, San Diego, CA, USA,

May 7-9, 2015, Conference Track Proceedings.

Lee, C. and Osindero, S. (2016). Recursive Recurrent Nets

with Attention Modeling for OCR in the Wild. In

2016 IEEE Conference on Computer Vision and Pat-

tern Recognition, CVPR 2016, Las Vegas, NV, USA,

June 27-30, 2016, pages 2231–2239. IEEE Computer

Society.

Lee, J., Park, S., Baek, J., Oh, S. J., Kim, S., and Lee, H.

(2019). On Recognizing Texts of Arbitrary Shapes

with 2D Self-Attention. CoRR, abs/1910.04396.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen, D.,

Levy, O., Lewis, M., Zettlemoyer, L., and Stoyanov,

V. (2019). RoBERTa: A Robustly Optimized BERT

Pretraining Approach. CoRR, abs/1907.11692.

Llad

os, J., Lumbreras, F., Chapaprieta, V., and Queralt, J.

(2001). ICAR: Identity Card Automatic Reader. In 6th

International Conference on Document Analysis and

Recognition (ICDAR 2001), 10-13 September 2001,

Seattle, WA, USA, pages 470–475. IEEE Computer

Society.

Parmar, N., Vaswani, A., Uszkoreit, J., Kaiser, L., Shazeer,

N., Ku, A., and Tran, D. (2018). Image Transformer.

In Dy, J. G. and Krause, A., editors, Proceedings of the

35th International Conference on Machine Learning,

ICML 2018, Stockholmsm

assan, Stockholm, Sweden,

July 10-15, 2018, volume 80 of Proceedings of Ma-

chine Learning Research, pages 4052–4061. PMLR.

Ren, S., He, K., Girshick, R. B., and Sun, J. (2017). Faster

R-CNN: Towards Real-Time Object Detection with

Region Proposal Networks. IEEE Trans. Pattern Anal.

Mach. Intell., 39(6):1137–1149.

Shi, B., Bai, X., and Yao, C. (2017). An End-to-End

Trainable Neural Network for Image-Based Sequence

Recognition and Its Application to Scene Text Recog-

nition. IEEE Trans. Pattern Anal. Mach. Intell.,

39(11):2298–2304.

Shi, B., Yang, M., Wang, X., Lyu, P., Yao, C., and Bai, X.

(2019). ASTER: An Attentional Scene Text Recog-

nizer with Flexible Rectiﬁcation. IEEE Trans. Pattern

Anal. Mach. Intell., 41(9):2035–2048.

Simonyan, K. and Zisserman, A. (2015). Very Deep Con-

volutional Networks for Large-Scale Image Recogni-

tion. In Bengio, Y. and LeCun, Y., editors, 3rd In-

ternational Conference on Learning Representations,

ICLR 2015, San Diego, CA, USA, May 7-9, 2015,

Conference Track Proceedings.

Smith, L. N. (2017). Cyclical Learning Rates for Training

Neural Networks. In 2017 IEEE Winter Conference on

Applications of Computer Vision, WACV 2017, Santa

Rosa, CA, USA, March 24-31, 2017, pages 464–472.

IEEE Computer Society.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is All you Need. In Guyon, I., von

Luxburg, U., Bengio, S., Wallach, H. M., Fergus, R.,

A Two Step Fine-tuning Approach for Text Recognition on Identity Documents

843

Vishwanathan, S. V. N., and Garnett, R., editors, Ad-

vances in Neural Information Processing Systems 30:

Annual Conference on Neural Information Processing

Systems 2017, 4-9 December 2017, Long Beach, CA,

USA, pages 5998–6008.

Viet, H. T., Hieu Dang, Q., and Vu, T. A. (2019). A Robust

End-To-End Information Extraction System for Viet-

namese Identity Cards. In 2019 6th NAFOSTED Con-

ference on Information and Computer Science (NICS),

pages 483–488.

Wang, X., Jiang, Y., Luo, Z., Liu, C., Choi, H., and Kim,

S. (2019). Arbitrary Shape Scene Text Detection

With Adaptive Text Region Representation. In IEEE

Conference on Computer Vision and Pattern Recogni-

tion, CVPR 2019, Long Beach, CA, USA, June 16-20,

2019, pages 6449–6458. Computer Vision Foundation

/ IEEE.

Wick, C., Reul, C., and Puppe, F. (2018). Calamari -

A high-performance tensorﬂow-based deep learning

package for optical character recognition. CoRR,

abs/1807.02004.

Yang, Z., Dai, Z., Yang, Y., Carbonell, J. G., Salakhutdinov,

R., and Le, Q. V. (2019). XLNet: Generalized Au-

toregressive Pretraining for Language Understanding.

In Wallach, H. M., Larochelle, H., Beygelzimer, A.,

d’Alch

e-Buc, F., Fox, E. B., and Garnett, R., editors,

Advances in Neural Information Processing Systems

32: Annual Conference on Neural Information Pro-

cessing Systems 2019, NeurIPS 2019, 8-14 December

2019, Vancouver, BC, Canada, pages 5754–5764.

Yosinski, J., Clune, J., Bengio, Y., and Lipson, H. (2014).

How transferable are features in deep neural net-

works? In Ghahramani, Z., Welling, M., Cortes, C.,

Lawrence, N. D., and Weinberger, K. Q., editors, Ad-

vances in Neural Information Processing Systems 27:

Annual Conference on Neural Information Processing

Systems 2014, December 8-13 2014, Montreal, Que-

bec, Canada, pages 3320–3328.

Yousef, M., Hussain, K. F., and Mohammed, U. S. (2018).

Accurate, Data-Efﬁcient, Unconstrained Text Recog-

nition with Convolutional Neural Networks. CoRR,

abs/1812.11894.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

844
