Adversarial Machine Learning: A Comparative Study on

Contemporary Intrusion Detection Datasets

Yulexis Pacheco and Weiqing Sun

College of Engineering, University of Toledo, Toledo, Ohio, U.S.A.

Keywords: Adversarial Machine Learning, Deep Learning, Deep Neural Networks, Intrusion Detection Datasets.

Abstract: Studies have shown the vulnerability of machine learning algorithms against adversarial samples in image

classification problems in deep neural networks. However, there is a need for performing comprehensive

studies of adversarial machine learning in the intrusion detection domain, where current research has been

mainly conducted on the widely available KDD’99 and NSL-KDD datasets. In this study, we evaluate the

vulnerability of contemporary datasets (in particular, UNSW-NB15 and Bot-IoT datasets) that represent the

modern network environment against popular adversarial deep learning attack methods, and assess various

machine learning classifiers’ robustness against the generated adversarial samples. Our study shows the

feasibility of the attacks for both datasets where adversarial samples successfully decreased the overall

detection performance.

1 INTRODUCTION

Machine learning has become one of the most

important techniques for image classification, voice

recognition, intrusion detection, and many other

systems. It has a significant impact on everyday

tasks and it shaped how we process information and

data. Machine learning methods have shown a great

improvement in terms of processing time,

scalability, and reliability. These techniques and

methods are being used by many areas from health

care, retail, government, transportation, and many

others. Intrusion Detection Systems (IDS) has

adopted machine learning to monitor network traffic

to detect specific types of attacks against the

systems. Traditional IDS could take relatively long

time to analyse the complex data and provide results,

which can result in the vulnerability of the system

for missing alerts (Othman et al., 2018). To address

the issue and other challenges, deep learning

techniques have been the focus of the IDS area due

to its efficiency at processing data and providing

great analysis results.

The challenge of a machine learning algorithm is

that it can be vulnerable against an adversary who

tries to inject malicious data into the learning

algorithm, with the main goal of making the

algorithm fail to detect the attack (Papernot et al.,

2016). This process is called adversarial machine

learning which involves designing “machine

learning algorithms that can resist sophisticated

attacks and also the study of capabilities and

limitations of attackers” (Huang et al., 2011). An

attacker can adopt different techniques depending on

the end goal such as seeking to launch targeted

attacks and evade the detection systems. Other goals

could be causing misclassification or lower accuracy

metrics.

Many studies have showed that machine learning

is vulnerable to adversarial data (Biggio et al., 2010;

Carlini & Wagner, 2017; Goodfellow et al., 2015;

Papernot et al., 2016; Rigaki & Elragal, 2017;

Szegedy et al., 2014). Although there is a great deal

of research based on image datasets, the issue with

adversarial machine learning in the intrusion

detection domain has been popular in the last few

years (Wang, 2018). New challenges have arisen

with machine learning in the intrusion detection field

since an attacker can evolve and improve attack

techniques by adopting available technology being

developed, when the main focus was to find patterns

and vulnerabilities in particular applications and

systems (Biggio et al., 2010).

The main contribution of this work is to evaluate

the effectiveness of adversarial deep learning attacks

against contemporary datasets which represent the

new networking and computing environment. This

160

Pacheco, Y. and Sun, W.

Adversarial Machine Learning: A Comparative Study on Contemporary Intrusion Detection Datasets.

DOI: 10.5220/0010253501600171

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 160-171

ISBN: 978-989-758-491-6

study provides the evaluation of different intrusion

detection datasets such as UNSW-NB15 and Bot-

IoT to demonstrate their vulnerability against

popular adversarial attack methods including

Jacobian Saliency Map Attack (JSMA), Fast

Gradient Method (FGSM), and Carlini Wagner

(CW). The study was performed by evaluating

different metrics such as accuracy, AUC (area under

the curve), F1 score, and Recall with different

classifiers to compare and analyze the impact of the

attacks with different datasets.

The rest of the paper is organized as follows:

Section 2 presents an overview of adversarial

machine learning and the methods used in this study.

Section 3 presents related work in adversarial

samples generation and adversarial machine

learning. Section 4 discusses the experimental

evaluation process for the study. Section 5 provides

experimentation results. Section 6 provides a

discussion of the adversarial attacks on the datasets.

Finally, we conclude in Section 7.

2 BACKGROUND

2.1 Adversarial Machine Learning

The training and testing phases for machine learning

algorithms are vulnerable against adversarial attacks,

where the attacker can modify input data and lead to

a misclassification result. An adversarial example is

an input crafted to cause machine learning

algorithms to misclassify the output. This process is

performed during the test time after the algorithm

has been trained (Papernot et al., 2016), and the

process where the attacker crafts malicious input to

fool the machine learning algorithms is called

adversarial machine learning. This technique also

involves designing and creating robust machine

learning algorithms that can resist sophisticated

attacks (Huang et al., 2011).

Relevant research related to adversarial machine

learning describes specific characteristics of the

attack model, the adversary, and the defenses.

Barreno et al. (2006) presented three main properties

for such an attack. Influence refers to the capability

of the attacker and it could be causative (modify

input training data) or exploratory (learn classifier

decisions after sending instances to the classifier).

The second property is security violation which

covers integrity, availability, and privacy. The third

property is specificity targeted (degrade classifier

based on one instance target) and indiscriminate (the

goal is to cause classifier failure based on a large

number of classes). The threat model refers to the

types of potential attacks considered by black-box

attacks where the attacker has no information about

the model or white-box attack where the attacker has

access to all parameters of the model.

2.2 Adversarial Sample Generation

2.2.2 Jacobian based Saliency Map

One of the adversarial techniques evaluated in this

work was Jacobian Based Saliency Map (JSMA)

which was introduced by Papernot et al. (2016). This

specific attack minimizes the L0 norm by iteratively

calculating a saliency map and then perturbing the

feature that will have the highest effect (Martins,

2019). The process consists of obtaining the

Jacobian matrix where the component i is the input

and j is a derivative of the class for input I (Papernot

et al., 2016):

𝐽





𝑥

































(1)

Where F represents the second to last layer

(Yuan et al., 2019). The perturbation is selected and

the process continues until misclassification in the

target class is achieved or the parameter for the

maximum number of perturbed features is reached

(Papernot et al., 2016). If it fails, then the algorithm

selects the next feature and adds it to the perturbed

sample (Rigaki & Elragal, 2017). The authors were

successful by only modifying 4.02% of the input

features per sample and achieved 97% adversarial

success (Yuan et al., 2019). This process requires

full knowledge of the targeted model’s architecture

and parameters (Papernot et al., 2016).

This attack can generate adversarial samples with

a similar success rate as FGSM with the difference

of using less feature modification with higher

computing cost (Martins, 2019).

2.2.3 Fast Gradient Sign Method

Goodfellow et al. (2015) introduced a method called

Fast Gradient Sign Method (FGSM) to generate

adversarial examples. The perturbation is defined as:

η  ε ∗ sign∇x Jθ,x,y (2)

Where θ represents the parameters of a specific

model, x is the input to the model, y represents the

targets associated with x, J (θ, x, y) is the cost used

to train the neural network (Goodfellow et al., 2015)

and ε represents the magnitude of the attack, and the

gradient can be obtained by backpropagation.

Adversarial Machine Learning: A Comparative Study on Contemporary Intrusion Detection Datasets

161

FGSM implements a loss function to decide the

course of the input data in order to minimize this

loss function (Wang, 2018). The authors

successfully proved that this attack method is able to

cause output misclassification with a variety of

models (Goodfellow et al., 2015). The main goal of

this attack was to be faster in the adversarial sample

generation and it is not optimal in finding the

minimal adversarial perturbations (Carlini &

Wagner, 2017) which is why this attack method is

the most efficient in terms of computing time.

2.2.4 Carlini Wagner

Carlini and Wagner (2017) proposed a powerful

attack to evaluate the vulnerability of a secured

model. This attack works by finding adversarial

samples. The objective function is defined by:

(3)

Where g(x') ≥ 0 if and only if f (x’) = l’ and l’ is

the label of the adversarial class in targeted

adversarial examples (Yuan et al., 2019). In this

way, the distance and penalty term can be better

optimized (Wang, 2018). The authors provided an

L2 attack to generate adversarial samples defined by

(Carlini & Wagner, 2017):

(4)

The main goal is to be able to lower distortion in

the L2 metric. The authors also stated that this attack

is robust against defensive distillation (Carlini &

Wagner, 2017), making this attack the most

powerful among the existing attacks against

defenses. In this work, L2 was the one implemented

by Cleverhans library (Papernot et al., 2017).

2.3 Dataset Overview

Datasets are fundamental in the process of

developing new research. They play an important

role in representing real-life network activity with

labeled data, where each data point is assigned to a

normal or attack class that will be used as evaluation

criteria (Ring et al., 2017). Although there are many

studies available in the intrusion detection domain,

the lack of representative datasets which include a

variety of attacks is one of the recurring issues, since

most of the studies use the KDD’99 dataset or its

derivation, the NSL-KDD (Rigaki & Elragal, 2017).

The process to create new labeled datasets requires

effort in addition to the complications that come

with making a public dataset available since it would

contain important information about the network, the

users, and the current system environment (Javaid et

al., 2016). In the last few years, there has been an

effort in developing new datasets that contribute to

new research as well as improving the quality of

these datasets. The UNSW-NB15 dataset and the

Bot-IoT dataset are two examples in this effort.

Although the NSL-KDD dataset is the most

commonly used dataset in the IDS domain, modern

datasets such as the UNSW-NB15 and the Bot-IoT

were used for this study. One of the reasons is

because the NSL-KDD contains a large number of

redundant records in the training set which definitely

have an impact on results and multiple missing

records affect the nature of the data (Moustafa &

Slay, 2016). Another reason is that the NSL-KDD

dataset is not a very comprehensive representation of

an attack environment as the underlying network

traffic of NSL-KDD dates back to 1998 (Ring et al.,

2017). Both the UNSW-NB15 dataset and the Bot-

IoT dataset represent realistic modern network

traffic with diverse attack scenarios (Koroniotis et

al., 2019).

2.3.1 UNSW-NB15 Dataset

This dataset was developed in the Cyber Range Lab

of the Australian Centre for Cyber Security (ACCS)

(Moustafa & Slay, 2015). It represents new modern

normal activities containing contemporary attacks. A

partition of the full dataset is provided, divided into

a training set and a test set according to the

hierarchical sampling method, namely,

UNSW_NB15_training-set.csv with 175,341 records

and UNSW_NB15_testing-set.csv contains 82,332

records with a total of 257,673 records (Moustafa &

Slay, 2016). The number of features is 43 with the

class label. There are ten categories in total, one for

normal class representing no attacks and nine

attacks: shellcode, backdoor, exploits, worms,

reconnaissance, generic, analysis, DoS, and fuzzers.

This dataset is more complex than the KDD’99

because it contains features where the attacks and

normal classes have similar behaviors. Another

reason is the correlation of the features for the

UNSW-NB15 where training and test sets have the

same distribution (Moustafa & Slay, 2016).

2.3.2 Bot-IoT Dataset

The Bot-IoT dataset was created by the Cyber Range

Lab of the Centre of UNSW Canberra Cyber. The

main characteristic of this dataset is that it represents

a realistic network environment with more attacks

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

162

and network traffic in a realistic setting with its

respective labels (Koroniotis et al., 2019). The

dataset has normal IoT-related and other network

traffic, along with various types of attack traffic

commonly used by botnets. The attack categories in

the dataset include Keylogging, Data exfiltration,

DDoS, DoS, OS, and Service Scan. The dataset has

3 components: network platforms, simulated IoT

services, extracting features and forensics analytics.

The dataset has more than 72,000,000 records but a

smaller version is available of around 3 million

records. An extracted version of 5% of the total

dataset was used in this study.

3 RELATED WORK

There has been extensive research on providing

different techniques to generate adversarial samples.

Szegedy et al. (2014) were the first to prove how

vulnerable deep neural networks are against

adversarial examples. Because of this research, the

need to study adversarial attacks and defenses

increased (Wang, 2018).

When it comes to extensive studies on defenses,

Barreno et al. (2006) created a taxonomy of several

attacks related to adversarial machine learning, as

well as defensive methods and techniques against

them. Also, they discussed how an adversary could

successfully insert malicious data into the learning

algorithm and provided detailed information about

the attack model and its properties. Yuan et al.

(2019) presented a taxonomy of adversarial attacks

and defenses for deep neural networks, as well as

challenges and possible defenses for these attacks.

Biggio et al. (2010) focused on improving

classifiers under adversarial data manipulation, in

addition to proposing a strategy for linear classifiers

with Boolean features. Tan et al. (2020) focused on

active adversarial attacks against machine learning

algorithms, specifically on backdoor attacks, where

the adversary manipulates training data and/or the

training algorithm and parameters of the model to

embed an adversarial sample.

Previous studies have created adversarial

examples in the IDS domain successfully.

Warzyński and Kołaczek (2018) studied the

vulnerability of the NSL-KDD dataset against

adversarial examples generated by FGSM. Wang

(2018) researched the performance of attack

algorithms against deep learning intrusion detection

systems on the NSL-KDD dataset, as well as on the

impact of feature selection in generating adversarial

examples, demonstrating the vulnerability of deep

learning algorithms against adversarial samples. He

performed four attacks: FGSM, JSMA, Deepfool,

and CW on a Multi-layer perceptron model. The

most effective attack was targeted FGSM and the

least efficient was CW. It also showed that it is not

realistic to alter a very large set of features for an

adversary, which explains why JSMA attacks are

more popular than other attacks.

Rigaki and Elragal (2017) performed two types

of attacks JSMA and FGSM on the NSL-KDD

dataset. The study focused on evaluating the

performance of several classifiers under attack such

as RandomForest, Linear Support Vector Machine,

Decision Tree, Multi-Layer Perceptron, and Voting

Ensembles. The metrics used in this study were

accuracy, AUC, and F1 score. The attacks

implemented successfully decreased classifier

performance by lowering accuracy on Linear SVM

by 27% and Random Forest by 18%. The study

demonstrated that adversarial methods can be

implemented in the intrusion detection area. The

authors showed that FGSM uses 100% of features to

generate adversarial samples, while JSMA needs 6%

of altered features to generate adversarial samples.

The authors concluded that machine learning

techniques need to be hand in hand with defensive

methods against adversarial attacks.

Yang et al. (2018) showed how adversarial

samples can have a negative impact on deep neural

networks classifiers using the NSL-KDD dataset.

They performed three attacks: CW, Zeroth-order

Optimization (ZOO), and GAN. The process

consisted of training a classifier to generate

adversarial samples with CW and then attack

another trained model. The same process was

followed, but instead of CW, ZOO was implemented

to get the gradient and then generate adversarial

samples. Results showed a decrease of 70% in F1

score with the ZOO attack.

Martins et al. studied four attacks JSMA,

DeepFool, CW, and FGSM on the NSL-KDDD and

CICIDS2017 (Martins, 2019). They only performed

the study on denial of service records and evaluated

the attacks with Decision Tree, SVM, Naïve Bayes,

Denoising Autoencoder (DAE), Neural Networks,

and Random Forest. Results showed that overall

performance is compromised by the attacks by

decreasing 40% on CICDS2017 and 13% on the

NSL-KDD. One key finding is that DAE was the

most robust classifier.

Martins et al. (2020) presented a systematic

review of adversarial machine learning applied to

IDS and malware scenarios. In this work, the authors

reviewed all existing research in the IDS field that

Adversarial Machine Learning: A Comparative Study on Contemporary Intrusion Detection Datasets

163

apply machine learning principles. One of the major

findings is the lack of research using modern

datasets. Of all the studies evaluated, six used the

NSL-KDD, three implemented CTU-13, and one

used CICIDS2017. According to the authors, the

main reason is the lack of labelled intrusion datasets

available. All studies observed performance

degradation after adversarial attacks such as JSMA,

WGAN, DeepFool, and FGSM. Results showed that

the most affected classifiers are SVM, naïve Bayes,

Decision Tree, while the most robust are Random

Forest, and RBF SVMs.

4 EXPERIMENTAL

EVALUATION

Our study is based on a multi-class classification

problem. Bot-IoT has 5 classes while UNSW-NB15

has 10 classes. Based on this, four algorithms were

selected to perform the experimental evaluation:

Multi-Layer Perceptron (MLP), Decision Tree (DT),

Random Forest (RD), and Support Vector Machine

(SVM). The hyperparameters implemented for the

experiment are presented in Table 1. In order to

handle multi-class classification,

OneVsRestClassifier was implemented to fit one

classifier per class. The experimental evaluation,

preprocessing and analysis were done with Python

3.6.5, Scikit-learn V.0.19.1 (Pedregosa et al., 2011),

Tensorflow V.1.13.2 (Abadi et al., 2015), and Keras

V.2.1.5 (Chollet, 2015). The attack algorithms were

implemented with Cleverhans V.3.0.1 (Papernot et

al., 2017), a library dedicated to assess machine

learning vulnerability against adversarial samples.

4.1 Data Pre-processing

Data preparation is essential to train the machine

learning algorithm. The first step was One-Hot

encoding to convert all values to numerical data. The

second step was standardization as not all features in

the datasets are continuous values, but categorical or

different data types that require pre-processing.

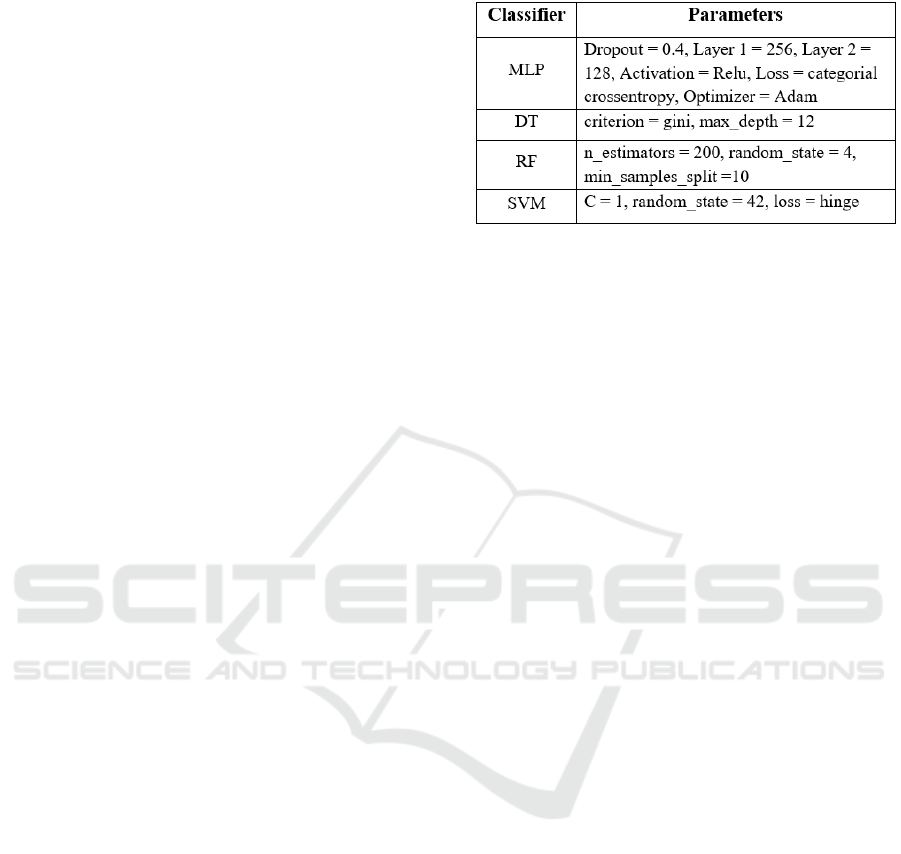

Table 1: Hyperparameters chosen for classifiers.

4.1.1 One-Hot Encoding

One-Hot encoding was used to convert nominal

values to numerical data. For example, the nominal

values in the proto and service features need to be

converted to numerical values. The UNSW-NB15

dataset has a total of 45 features and after One-Hot

encoding, the number of features is 206. The Bot-

IoT dataset has 39 features and after One-Hot

encoding, the total number of features becomes 65.

4.1.2 Min-Max Normalization

After One-Hot encoding, Min-Max normalization

was applied to all features on both datasets. The

values were transformed to fit between 0 and 1. This

step was important because datasets consist of

numeric features whose values can be drawn from

different distributions, have different scales, and,

sometimes, contaminated by outliers (Wang, 2018).

This affects results since features with very large

values may cause imbalanced results by some

classifiers. Besides, this step is needed by the attack

methods so all features are within an interval

(Martins, 2019).

4.2 Adversarial Sample Generation

The three selected adversarial attack algorithms

include Jacobian Based Saliency Map Attack, Fast

Gradient Sign Method, and Carlini Wagner attack.

And they are available in the Cleverhans Library

(Papernot et al., 2017). In addition, we chose

targeted attacks since the goal of the experiment is to

attack the normal class to be misclassified. The goal

is to test the effectiveness of adversarial attacks on

the Bot-IoT and UNSW-NB15 datasets and then

evaluate the results based on the classifiers.

The study is divided into two main processes:

model training for original data and adversarial

sample generation. Model training for original data

consists of pre-processing training and test data

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

164

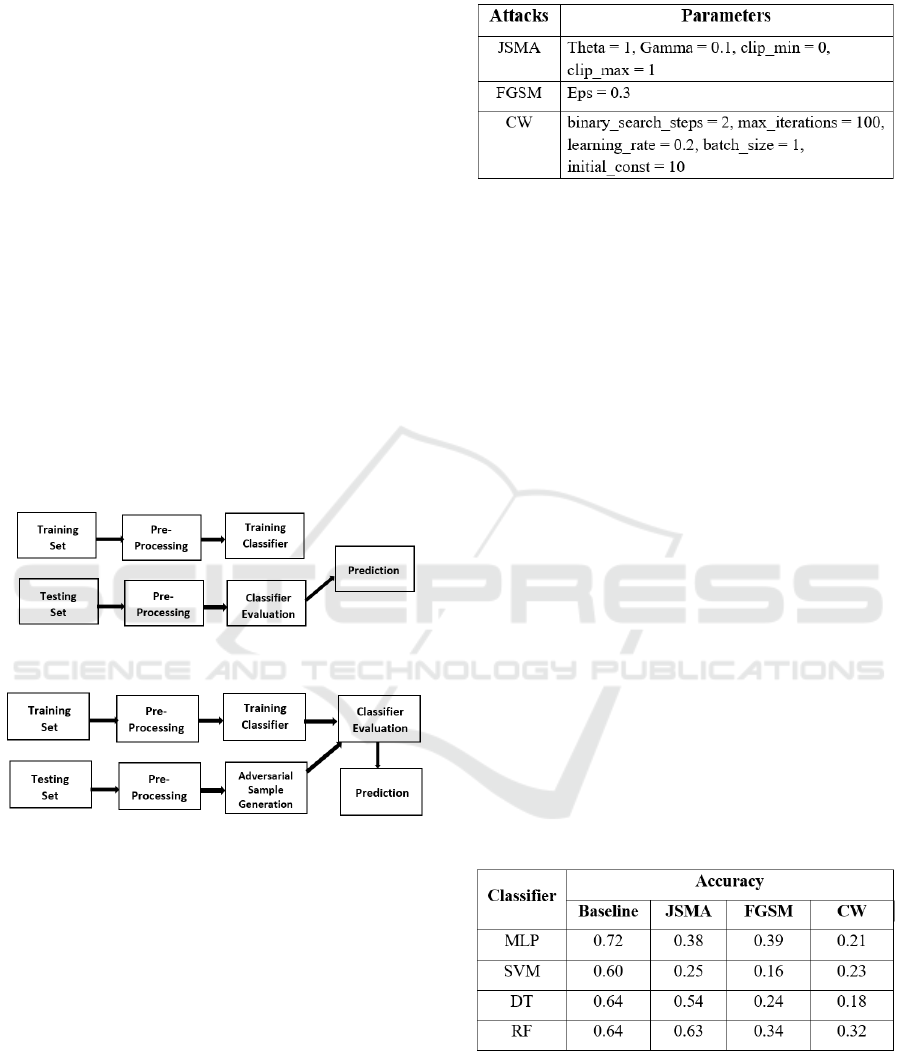

(Figure 1) so it is scaled and prepared to train the

machine learning algorithm. For this study, the

model chosen for adversarial attack generation is a

Multi-Layer Perceptron. The model was trained

using training data to obtain the accuracy of normal

samples. Then the evaluation of different machine

learning algorithms such as Decision Tree, Support

Vector Machine, and Random Forest were

performed.

The same process was followed for the

adversarial sample generation (Figure 2), where the

pre-processed testing set was the input for the MLP

to generate a new test set containing the poisoned

samples by using three main attack methods JSMA,

FGSM, and CW. After generating the poisoned

adversarial test set, it was used for the evaluation of

the classifier to make the predictions from the same

machine algorithms and metrics mentioned above.

Targeted attacks for the normal class were

performed on the datasets. The datasets are split into

training and test sets. The study was performed in a

white-box setting, where all the model information,

target, and data are known by the attacker.

Figure 1: Training process for original data.

Figure 2: Adversarial sample generation process.

Multi-Layer Perceptron (MLP) was implemented

as the source for the adversarial test set generation

with Keras model (Chollet, 2015). Then, the JSMA

attack algorithm was used to generate adversarial

samples. The last step was evaluating the

performance of the classifier with the original test

set and the poisoned test set. The same process was

followed for FGSM and Carlini Wagner attacks.

The default parameters used by the attacks are

presented in Table 2. The values can be easily

modified through Cleverhans (Papernot et al., 2017).

For feature evaluation, we calculated the difference

between the poisoned test set generated by the

attacks and the original test set to obtain the list of

features altered by the attacks.

Table 2: Parameters used by the attacks on both datasets.

To obtain reasonable results for both datasets, the

results were evaluated with averages provided by

running the program 10 times for the UNSW-NB15

dataset and the Bot-IoT datasets.

5 EXPERIMENTATION RESULTS

As described in Section 4, the first process is to train

and test all the baseline models on the original

training set and test set from the UNSW-NB15 and

Bot-IoT datasets. The second process is to generate

an adversarial test set with the baseline model MLP

with the attack algorithms including JSMA, FGSM,

and CW to then target the machine learning

classifiers including DT, RF, and SVM. After the

adversarial attacks, we evaluated the results on the

original data before the attacks and after perturbed

samples are included. The metrics chosen for the

evaluation are ROC AUC, accuracy, F1 score, and

Recall. The final results are averaged from 10 runs

in order to obtain more accurate final results to

measure the impact of the adversarial samples on the

classifiers.

5.1 UNSW-NB15 Dataset

Table 3: Accuracy results for the UNSW-NB15 dataset.

Adversarial Machine Learning: A Comparative Study on Contemporary Intrusion Detection Datasets

165

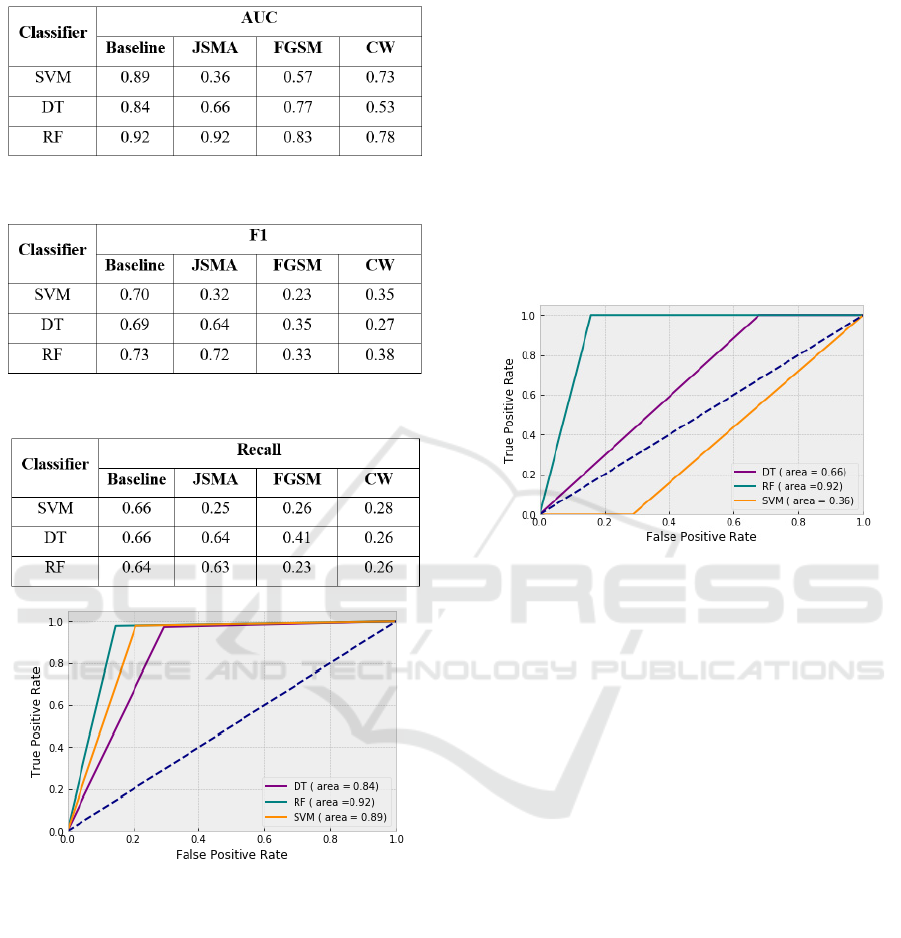

Table 4: AUC results for the UNSW-NB15 dataset.

Table 5: F1 score results for the UNSW-NB15 dataset.

Table 6: Recall results for the UNSW-NB15 dataset.

Figure 3: ROC Curve for baseline results on the UNSW-

15 dataset.

5.1.1 Jacobian Saliency Map Attack

The results from the evaluation of the original data

and after the attack on the UNSW-NB15 are

presented in Tables 3-6. The baseline model MLP,

used to generate adversarial samples on the test set is

affected by the JSMA attack for this dataset as

expected with a 34% drop in accuracy (from 0.72 to

0.38). Results showed the UNSW-NB15 presented a

decrease in accuracy for SVM, DT, and RF that

ranges from 1% to 35%, AUC from 0% to 53%, F1

score from 1% to 38%, and Recall from 1% to 41%.

It demonstrated an overall decrease in performance

of the JSMA on the UNSW-NB15.

The most severely affected algorithm after the

evaluation with the perturbed samples was SVM in

terms of accuracy, AUC, F1 score, and Recall (see

Tables 3-6). SVM presented a decrease in accuracy

of 0.35, AUC of 0.53, F1 score of 0.38, and Recall

0.41. This finding confirms the results obtained from

Rigaki and Elragal (2017) where the weakest

classifier was also linear SVM. Meanwhile, RF

presented no change in AUC after the attack and

only 0.01 drop in accuracy, F1 score, and Recall. DT

was affected by the attack with a 0.1 drop in

accuracy, 0.18 AUC, 0.05 F1 score, and 0.02 Recall.

Figure 4: ROC Curve for normal class after JSMA attack

on the UNSW-NB15 dataset.

The top 10 features used by the adversarial

samples are sbytes, smean, sinpkt, dur, spkts, sload,

sttl, rate, ct_srv_src, ct_state_tt. The feature

categories include basic information features and

connection/content related features (Moustafa &

Slay, 2016). The number of unique features changed

by the JSMA attack is 95 and the number of average

features changed per data point is 22. The

percentage of altered features is 11%. The

adversarial sample generation process took 9

minutes and 34 seconds to finish. JSMA attacks are

well known for its high computational cost which is

why the attack is slower than FGSM (Yuan et al.,

2019).

5.1.2 Fast Gradient Sign Method Attack

The metrics from the FGSM attack on the UNSW-

NB15 are presented in Tables 3-6. The baseline

model MLP used to generate adversarial samples is

affected by the FGSM attack with 0.33 drop in

accuracy (from 0.72 to 0.39), which successfully

degraded the performance of the model. Also, the

overall range decrease in accuracy is from 30% to

44%, AUC from 7% to 32%, F1 score from 34% to

47%, and Recall from 25% to 41%. It demonstrated

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

166

the vulnerability of the UNSW-NB15 dataset against

FGSM.

The performance of the classifiers varies based

on the metrics selected for the study. SVM

decreased by 0.44 in accuracy, AUC by 0.32, F1

score by 0.47, and Recall by 0.4. Meanwhile, DT

showed a drop in accuracy of 0.4, AUC by 0.07, F1

score by 0.34, and Recall by 0.25. RF showed a

decrease in accuracy of 0.3, AUC by 0.09, F1 score

by 0.4, and Recall by 0.41.

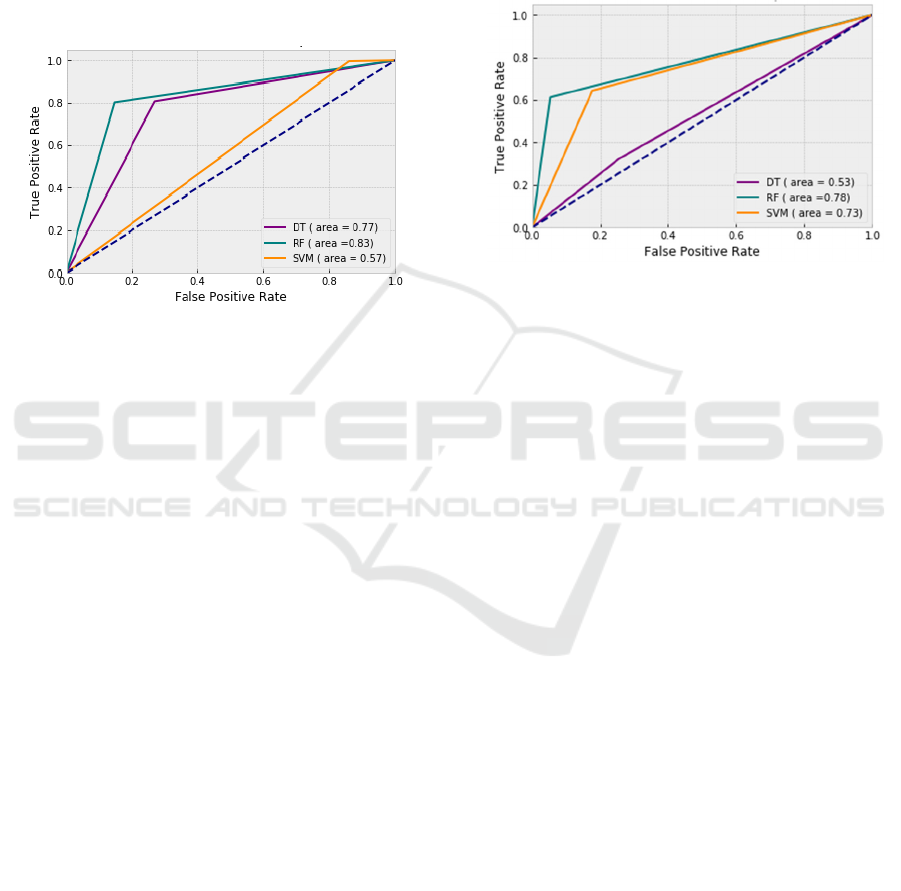

Figure 5: ROC Curve for normal class after FGSM attack

on the UNSW-NB15 dataset.

ROC AUC curves for the models showed an

overall decrease in performance against targeted

misclassification related to the normal class (Figure

3 and Figure 5). It is clear SVM was severely

affected by the attack with a decrease of 0.32. The

classifiers RF and DT were similarly degraded by

the attack with a decrease of 0.09 and 0.07

respectively.

The top 10 features used by the adversarial

samples are sbytes, spkts, sttl, dur, smean, sinpkt,

sload, rate, ct_state_ttl, ct_srv_src. Feature

categories are basic information, connection, time-

related, and content. Another finding is that the top

features are more evenly distributed compared to

JSMA attacks. The number of unique features

changed is 196 and the number of average features

changed per data point with FGSM is 162. The

percentage of altered features is 78%.

The adversarial sample generation process took 5

seconds to complete. The FGSM attack was

designed to run faster than other attack algorithms

(Yuan et al., 2019) and this study has confirmed that

FGSM attack is the fastest to generate adversarial

samples for the UNSW-NB15 dataset.

5.1.3 Carlini Wagner Attack

The results for the CW attack on the UNSW-NB15

are presented in Tables 3-6. The baseline model

MLP, used to generate adversarial samples for the

normal class is affected by the CW attack for this

dataset with about a 0.5 decrease in accuracy (from

0.72 to 0.21) as shown in Table 3. Results showed

that CW attacks have a negative impact on accuracy

with a decrease from 32% to 46%, AUC from 14%

to 31%, F1 score from 35% to 42%, and Recall from

38% to 40%.

Figure 6: ROC Curve for normal class after CW attack on

the UNSW-NB15 dataset.

The performance of RF is significantly better

than SVM and DT in terms of accuracy. RF showed

a decrease in accuracy of 0.32, AUC by 0.14, F1

score by 0.35, and Recall by 0.38. SVM had a

decrease of 0.37 in accuracy, AUC by 0.16, F1 score

by 0.35, and Recall by 0.38. Meanwhile, DT showed

a decrease across all metrics with a drop by 0.46,

AUC by 0.31, F1 score by 0.42, and Recall by 0.40.

In terms of AUC, RF and SVM performed

similarly with a decrease of 14% and 16%

respectively (Figure 3 and Figure 6). DT is shown

as the most affected with a decrease of 31%.

The top 10 features used by the adversarial

samples are sbytes, smean, sinpkt, dur, sload, sttl,

spkts, ct_state_ttl, rate, sjit. The features chosen are

related to basic, time, and connection features,

similar to the results obtained by JSMA and FGSM

attacks. Also, the number of unique features changed

with the CW attack is 196, while the number of

average features changed per data point is 133. The

percentage of altered features is 65%. The

adversarial generation process for this attack took 51

minutes and 24 seconds. This process is the slowest

of all the three attacks for the UNSW-NB15.

Adversarial Machine Learning: A Comparative Study on Contemporary Intrusion Detection Datasets

167

5.2 Bot-IoT Dataset

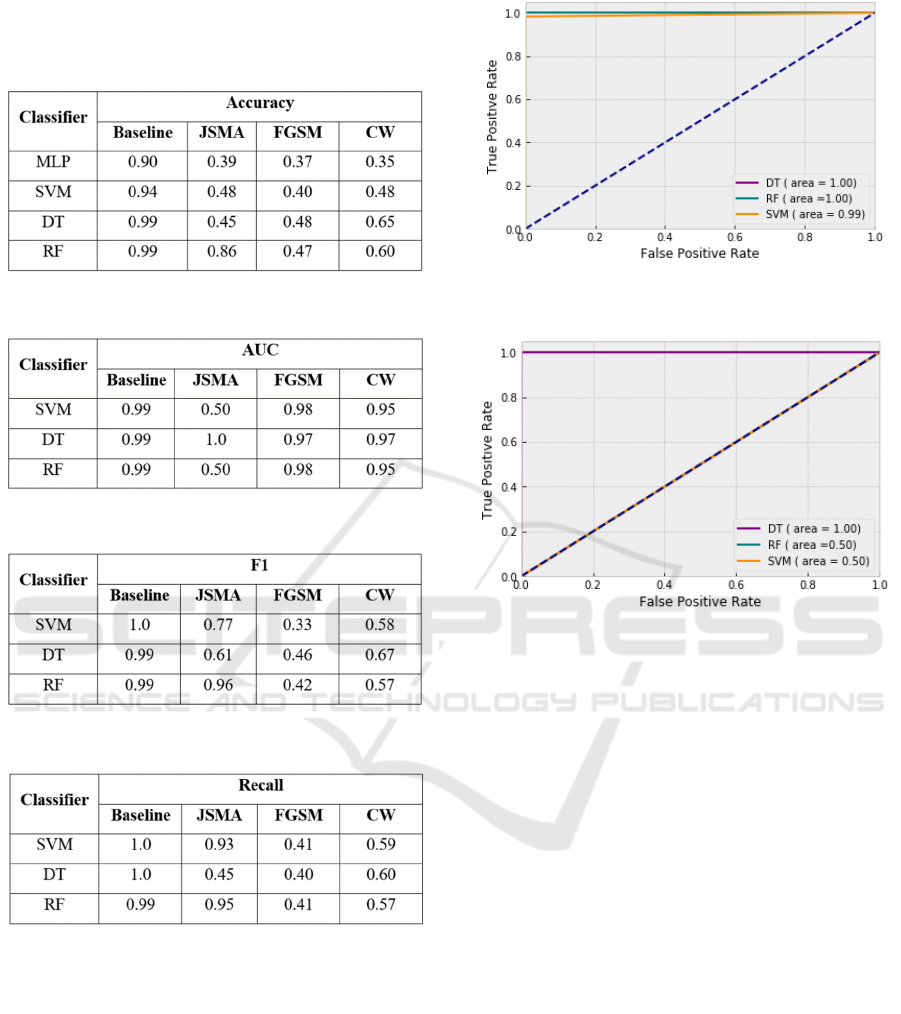

Table 7: Accuracy results on the Bot-IoT dataset.

Table 8: AUC results on Bot-IoT dataset.

Table 9: F1 score results on Bot-IoT dataset.

Table 10: Recall results on Bot-IoT dataset.

5.2.1 Jacobian Saliency Map Attack

The results from the evaluation of the original

dataset and the attacks for the Bot-IoT are presented

in Tables 7-10. The baseline model, MLP is affected

by the JSMA attack for this dataset with a 51% drop

in accuracy (from 0.94 to 0.48). The Bot-IoT

showed an overall decrease in performance across

all metrics with accuracy from 13% to 56% after the

attack, AUC from 0% to 49%, F1 score from 3% to

38%, and Recall from 4% to 55%.

Figure 7: ROC Curve for baseline results on the Bot-IoT

dataset.

Figure 8: ROC Curve for normal class after JSMA attack

on the Bot-IoT dataset.

DT presented a 0.51 drop in accuracy, no change

in AUC, F1 score by 0.38, and Recall by 0.4. DT

was the most affected with accuracy, F1, and Recall.

RF showed similar results as SVM with a decrease

in accuracy of 0.13, AUC of 0.49 0.03 F1 score, and

0.04 Recall. SVM was degraded by 0.46 in

accuracy, AUC by 0.49, F1 score by 0.23, and

Recall by 0.07.

In terms of AUC, SVM, and RF were equally

affected by the attack as shown in Figure 7 and

Figure 8 with 0.5 drop in accuracy. The AUC for DT

was not affected after the JSMA attack.

The top 10 features used by the adversarial

samples are TnBPSrcIP, stime, TnBPDstIP, seq,

Pkts_P_State_P_Protocol_P_DestIP, TnP_PSrcIP,

TnP_PerProto, Pkts_P_State_P_Protocol_P_SrcIP,

TnP_PDstIP. These features belong to flow and

basic categories. The number of unique features

changed was 57 and the number of average features

changed per data point is 28. The percentage of

altered features is 43%.

The adversarial generation process for this attack

took 16 minutes and 5 seconds.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

168

5.2.2 Fast Gradient Sign Method Attack

The results for the FGSM attack on the Bot-IoT

dataset are presented in Tables 7-10. The baseline

model, MLP is affected by the FGSM attack for this

dataset with a 53% drop in accuracy (from 0.90 to

0.37). All metrics were degraded for all algorithms

implemented SVM, DT, and RF after the evaluation

with the perturbed samples for the FGSM attack.

The decrease in accuracy ranges from 51% to 53%

for all classifiers, AUC from 1% to 2%, F1 score

from 53% to 67%, and Recall from 58% to 60%.

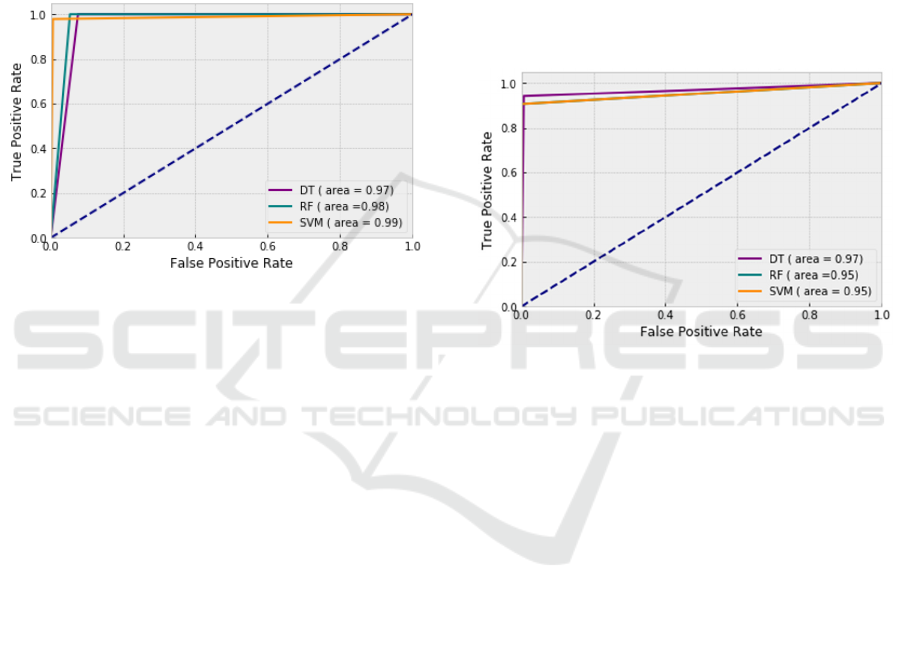

Figure 9: ROC Curve for normal class after FGSM attack

on the Bot-IoT dataset.

Based on the results from all metrics, SVM had a

decrease in accuracy by 0.54, AUC by 0.01, F1

score by 0.67, and Recall by 0.59. DT decreased by

0.51 in accuracy, AUC by 0.02, F1 score by 0.53,

and Recall by 0.6. RF had a drop in accuracy by

0.52, AUC by 0.01, F1 score by 0.57, and Recall by

0.58. The results confirm that FGSM attacks had a

negative impact on the Bot-IoT dataset across all

metrics. AUC score was degraded for all algorithms

SVM, DT and RF with a small decrease between

0.01 and 0.02 as shown in Figure 7 and 9.

The top 10 features used by the adversarial

samples are seq, TnP_PerProto, stime, bytes,

Pkts_P_State_P_Protocol_P_DestIP,

TnP_Per_Dport, TnBPSrcIP, TnBPDstIP,

TnP_PDstIP, ltime. These features belong to flow

and basic categories. The number of unique features

changed by the attack was 60 and the number of

average features changed per data point is 34. The

percentage of altered features is 52%.

The adversarial sample generation process for

this attack finished in 33 seconds. FGSM was

observed to generate adversarial samples faster than

the other two attacks.

5.2.3 Carlini Wagner Attack

The results for the CW attack on the Bot-IoT dataset

are presented in Tables 7-10. Accuracy for the

baseline model MLP was affected by the CW attack

for this dataset with an almost 0.5 decrease in

accuracy (from 0.9 to 0.43). The results confirm that

the CW attacks have an impact on accuracy for the

Bot-IoT dataset with a decrease in accuracy from

34% to 46% for all classifiers, AUC from 2% to 4%,

F1 score from 32% to 42%, and Recall from 40% to

42%. In terms of AUC, it is not severely affected by

adversarial samples with an average drop in

accuracy of 3% (Figure 7 and Figure 10), presenting

a small difference of 0.02 to 0.04 (Table 8).

Figure 10: ROC Curve for normal class after CW attack

on the Bot-IoT dataset.

Based on the results from all the metrics, all the

classifiers were affected by the CW attack. SVM

decreased in accuracy by 0.46, AUC by 0.04, F1

score by 0.42, and Recall by 0.41. DT had a

decrease in accuracy by 0.34, AUC by 0.02, F1

score by 0.32, and Recall of 0.4. RF had a drop in

accuracy of 0.39, AUC of 0.04, F1 score of 0.42,

and Recall of 0.42.

The top 10 features used by the adversarial

samples are stime, bytes, TnP_Per_Dport,

Pkts_P_State_P_Protocol_P_SrcIP, sbytes,

AR_P_Proto_P_DstIP, AR_P_Proto_P_SrcIP, pkts,

AR_P_Proto_P_Sport, dur. These features belong to

flow and basic categories. Most of them are related

to protocol transactions in the network flow. The

number of unique features changed was 59 and the

number of average features changed per data point is

42. The percentage of altered features is 65%.

The adversarial generation process for this attack

finished in 2 hours and 14 minutes as it is more

computationally expensive compared to FGSM and

JSMA.

Adversarial Machine Learning: A Comparative Study on Contemporary Intrusion Detection Datasets

169

6 DISCUSSIONS

The performance of JSMA, FGSM, and CW attacks

varies based on the datasets used. On the UNSW-

NB15 dataset, an average accuracy of all classifiers

decreased by 33%, AUC by 20%, F1 score by 31%,

and Recall 30%, while Bot-IoT showed an average

decrease in accuracy by 47%, AUC by 12%, F1

score by 41%, and Recall 40%. Both datasets are

vulnerable against JSMA, FGSM, and CW attacks.

However, the UNSW-NB15 had a lower decrease

across all the metrics compared to Bot-IoT. This is

because Bot-IoT has fewer features, making it more

vulnerable to adversarial attacks.

The robustness of the classifiers and attacks also

varies between datasets. CW had the best

performance in terms of accuracy and Recall on the

UNSW-NB15 dataset with an overall decrease in

accuracy by 42% and recall by 39%, while FGSM

was the most efficient in decreasing the average

performance for F1 score by 40%. In terms of AUC,

JSMA decreased it by 24%. On the Bot-IoT dataset,

results show FGSM is the most efficient attack with

all the three metrics by decreasing the overall

average by 53% in accuracy, F1 score by 59%, and

Recall by 59%. The most efficient attack at

degrading AUC was JSMA with an overall average

decrease of 33%. JSMA and FGSM were shown as

the most consistent attacks for both datasets with the

least efficient performance. JSMA was the least

efficient in terms of accuracy, F1, and Recall, while

FGSM was the least successful in terms of AUC.

This means the attacks’ performances vary across

datasets and affect the metrics differently which is

an important factor for the attacker to consider when

launching an attack. Time spent on adversarial

sample generation is another factor to consider. The

attack that takes the longest to generate perturbed

samples is CW, while the most efficient attack is

FGSM.

The classifier with the best performance on the

UNSW-NB15 is RF with accuracy overall average

decrease by 21%, AUC by 8%, and F1 score by

25%, while the best performance in terms of Recall

was DT by 22%. The least robust classifier is SVM

with an overall decrease across all the metrics with a

39% drop in accuracy, 34% decreased in AUC, 40%

drop in F1 score and Recall. On the Bot-IoT dataset,

the most robust classifier is RF in terms of accuracy,

F1, and Recall by 35%, 34%, and 35% respectively.

DT was the most robust in terms of AUC with a

decrease of only 1%. On the contrary, the least

robust classifier is RF and SVM in terms of AUC

with an overall decrease of 18%. Meanwhile, SVM

is the least robust in terms of accuracy and F1 with a

decrease of 49% and 44% respectively, while DT

had the worst performance in terms of Recall with a

decrease of 52%.

The average number of features used by all

attacks for the Bot-IoT is 59 out of 65, while the

UNSW-NB15 dataset is 162 out of 206. JSMA

required the least number of features to modify for

both datasets with 11% and 43% for the UNSW-

NB15 and Bot-IoT respectively. FGSM required

78% of features for the UNSW-NB15, and 52% for

the Bot-IoT dataset. CW attack required 65% of all

the features modified for both datasets. According to

this finding, JSMA required the least number of

features modified and it would need less effort for

the attacker compared to FGSM and CW. Another

observation is the feature perturbation distribution

by the attack. On the UNSW-NB15, basic category

features were the most perturbed by all attacks. For

the Bot-IoT most of the features related to protocol

and packet information were targeted by all attacks.

Another finding is that CW also altered time-related

features while JSMA targeted connection features in

addition to basic features.

7 CONCLUSIONS

In this work, we use modern IDS datasets UNSW-

NB15 and the Bot-IoT to study the impact of

popular adversarial machine learning attacks JSMA,

FGSM, and CW against machine learning

classifiers. This study demonstrated that the above-

mentioned attacks were able to effectively degrade

the overall performance of the different classifiers

SVM, DT, and RF used on the two IDS datasets. RF

was shown as the most resilient classifier, while

SVM was the least robust on both datasets. The

attacks presented varied results based on the two

datasets. Overall, JSMA was the least efficient on

both datasets. CW was most efficient attack on the

UNSW-NB15, while FGSM was the most efficient

attack on the Bot-IoT dataset.

For the future work, we will incorporate a

broader selection of contemporary IDS datasets,

adversarial machine learning attacks and machine

learning classifiers into the research. In addition, we

will work on developing and evaluating various

defensive techniques against adversarial machine

learning attacks to improve the robustness of

machine learning algorithms used in IDS systems.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

170

REFERENCES

Abadi et al. (2015). TensorFlow: Large-scale machine

learning on heterogeneous systems. Retrieved from

https://www.tensorflow.org/about/bib

Barreno, M., Nelson, B., Sears, R., Joseph, A., & Tygar, J.

(2006). Can machine learning be secure? ASIACCS

'06.

Biggio, B., Fumera, G., & Roli, F., (2010). Multiple

classifier systems for robust classifier design in

adversarial environments. International Journal of

Machine Learning and Cybernetics, 1, 27-41.

Carlini, N., & Wagner, D., (2017). Towards Evaluating

the Robustness of Neural Networks. 2017 IEEE

Symposium on Security and Privacy (SP), 39-57.

Chollet, F. (2015). keras, Retrieved from

https://github.com/fchollet/keras.

Goodfellow, I.J., Shlens, J., & Szegedy, C., (2015).

Explaining and Harnessing Adversarial Examples.

CoRR, abs/1412.6572.

Huang, L., Joseph, A., Nelson, B., Rubinstein, B.I., &

Tygar, J., (2011). Adversarial machine learning. In

Proceedings of the 4th ACM workshop on Security

and artificial intelligence, 43–58.

Javaid, A., Niyaz, Q., Sun, W., & Alam, M., (2016). A

Deep Learning Approach for Network Intrusion

Detection System. EAI Endorsed Trans. Security

Safety.

Koroniotis, N., Moustafa, N., Sitnikova, E., & Turnbull,

B., (2019). Towards the Development of Realistic

Botnet Dataset in the Internet of Things for Network

Forensic Analytics: Bot-IoT Dataset. Future Gener.

Comput. Syst., 100, 779-796.

Martins, N., (2019). Analyzing the footprint of classifiers

in adversarial DoS contexts. Proc. EPIA Conf. Artif.

Intell, pp. 256–267.

Martins, N., Cruz, J.M., Cruz, T., & Abreu, P.H., (2020).

Adversarial Machine Learning Applied to Intrusion

and Malware Scenarios: A Systematic Review. IEEE

Access, 8, 35403-35419.

Moustafa, N., & Slay, J., (2015). UNSW-NB15: a

comprehensive data set for network intrusion detection

systems (UNSW-NB15 network data set). 2015

Military Communications and Information Systems

Conference (MilCIS), 1-6.

Moustafa, N., & Slay, J., (2016). The evaluation of

Network Anomaly Detection Systems: Statistical

analysis of the UNSW-NB15 data set and the

comparison with the KDD99 data set. Information

Security Journal: A Global Perspective, 25, 18 - 31.

Othman, S.M., Ba-Alwi, F., Alsohybe, N.T., & Al-

Hashida, A.Y., (2018). Intrusion detection model

using machine learning algorithm on Big Data

environment. Journal of Big Data, 5, 1-12.

Papernot, N., McDaniel, P., Jha, S., Fredrikson, M., Celik,

Z.Y., & Swami, A., (2016). The Limitations of Deep

Learning in Adversarial Settings. 2016 IEEE

European Symposium on Security and Privacy

(EuroS&P), 372-387.

Papernot et al. (2017). Cleverhans v2.0.0: an adversarial

machine learning library. arXiv:1610.00768v4

Pedregosa et al., (2011). Scikit-learn: Machine Learning in

Python, JMLR 12: 2825-2830.

Rigaki, M., Elragal, A., (2017). Adversarial Deep

Learning against Intrusion Detection Classifiers. ST-

152 Workshop on Intelligent Autonomous Agents for

Cyber Defence and Resilience.

Ring, M., Wunderlich, S., Grüdl, D., Dieter Landes, D., &

Hotho, A., (2017). Flow-based benchmark data sets

for intrusion detection. European Conference on

Cyber Warfare and Security (ECCWS), ACPI, 361–

369.

Szegedy, C., Zaremba, W., Sutskever, I., Bruna, J., Erhan,

D., Goodfellow, I.J., & Fergus, R., (2014). Intriguing

properties of neural networks. CoRR, abs/1312.6199.

Tan, T., Lester, J. & Shokri, R., (2020). Bypassing

Backdoor Detection Algorithms in Deep Learning.

IEEE European Symposium on Security and Privacy

(EuroS&P), pp. 175-183.

Wang, Z., (2018). Deep learning-based intrusion detection

with adversaries. IEEE Access 6 38367-38384.

Warzynski, A., & Kolaczek, G., (2018). Intrusion

detection systems vulnerability on adversarial

examples. 2018 Innovations in Intelligent Systems and

Applications (INISTA), 1-4.

Yang, K., Liu, J., Zhang, C., & Fang, Y., (2018).

Adversarial Examples Against the Deep Learning

Based Network Intrusion Detection

Systems. MILCOM 2018 - 2018 IEEE Military

Communications Conference (MILCOM), 559-564.

Yuan, X., He, P., Zhu, Q., & Li, X., (2019). Adversarial

Examples: Attacks and Defenses for Deep

Learning. IEEE Transactions on Neural Networks and

Learning Systems, 30, 2805-2824.

Adversarial Machine Learning: A Comparative Study on Contemporary Intrusion Detection Datasets

171
