Representation of PE Files using LSTM Networks

Martin Jure

cek and Matou

s Koz

Faculty of Information Technology, Czech Technical University in Prague, Czech Republic

Keywords:

Malware Detection, PE File Format, Recurrent Neural Network, Long Short-term Memory.

Abstract:

An ever-growing number of malicious attacks on IT infrastructures calls for new and efﬁcient methods of

protection. In this paper, we focus on malware detection using the Long Short-Term Memory (LSTM) as a

preprocessing tool to increase the classiﬁcation accuracy of machine learning algorithms. To represent the

malicious and benign programs, we used features extracted from ﬁles in the PE ﬁle format. We created a large

dataset on which we performed common feature preparation and feature selection techniques. With the help of

various LSTM and Bidirectional LSTM (BLSTM) network architectures, we further transformed the collected

features and trained other supervised ML algorithms on both transformed and vanilla datasets. Transformation

by deep (4 hidden layers) versions of LSTM and BLSTM networks performed well and decreased the error

rate of several state-of-the-art machine learning algorithms signiﬁcantly. For each machine learning algorithm

considered in our experiments, the LSTM-based transformation of the feature space results in decreasing the

corresponding error rate by more than 58.60 %, in comparison when the feature space was not transformed

using LSTM network.

1 INTRODUCTION

Malware is a software that conducts malicious activ-

ities on the infected computer. Cybersecurity profes-

sionals across the globe are trying to tackle this un-

wanted behaviour. Even though they are developing

defense systems on a daily basis, cybercriminals pro-

cess at the same, if not, in a faster manner.

Antivirus programs detect more than 370,000 ma-

licious programs each day (AV-test, 2019), and the

number keeps rising. Although Windows remains the

most attacked platform, macOS and IoT devices are

becoming attractive targets as well. The most popular

weapon for cybercriminals on Windows remains Tro-

jan, for instance, Emotet, WannaCry, Mirai and many

others (Symantec, 2019).

In May 2017, the world was struck by new

ransomware WannaCry. This virus quickly spread all

around the world, infecting more than 230,000 com-

puters in 150 countries. Between infected organiza-

tions were, e.g. FedEx, O2, or Britain’s NHS and the

cost of damage was estimated at around 4 billion dol-

lars (Latto, 2020).

In the paper, we focus on static malware detection

where features are collected from the PE ﬁle format.

We are not examining ﬁles’ working behaviour for

multiple reasons. Firstly, extracting API calls from

executable ﬁles needs to be performed in a sandbox

environment to secure the leak of possible malicious

activities into our system. However, this is bypassed

by the unnatural behaviour of many programs in these

surroundings. Secondly, it’s time-consuming running

large datasets and capturing their activities.

During the last years, the current trend is to

used malware detection framework based on machine

learning algorithms. Thanks to cloud-based comput-

ing which makes the cost of big data computing more

affordable, the concept of employing machine learn-

ing to malware detection has become more realistic to

deploy.

This paper aims to explore whether the LSTM net-

works can transform features to more convenient fea-

ture space, and as a result, improve the classiﬁcation

accuracy. This problem is tackled in two stages. In

the ﬁrst stage, we collect malware and benign ﬁles,

extract useful information, prepare and select the best

features to create our dataset. The second stage con-

sists of training different LSTM network architec-

tures, transforming our dataset using these networks,

and evaluating our results with the help of several su-

pervised machine learning (ML) algorithms.

The structure of the paper is as follows. In Section

2, we review related work on malware detection us-

ing neural networks, especially recurrent neural nets.

516

Jure

cek, M. and Kozák, M.

Representation of PE Files using LSTM Networks.

DOI: 10.5220/0010257105160525

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 516-525

ISBN: 978-989-758-491-6

Section 3 describes fundamental background, such as

PE ﬁle format and LSTM networks. In Section 4,

we describe feature preprocessing and propose fea-

ture transformation using LSTM networks. Descrip-

tion of our experimental setup, from the dataset and

hardware used to ﬁnal evaluation using supervised

ML algorithms, is placed in Section 5. We conclude

our work in Section 6.

2 RELATED WORK

In this part, we review related research in the ﬁeld of

static malware detection. We focused on the papers

linked to neural networks, notably recurrent neural

networks (RNNs). However, we didn’t ﬁnd much

work dealing with the use of LSTM networks as a

feature pre-treatment before the classiﬁcation itself.

In (Lu, 2019), the authors used opcodes (opera-

tion code, part of machine language instruction (Bar-

ron, 1978)) extracted from a disassembled binary ﬁle.

From these opcodes, they created a language with the

help of word embedding. The language is then pro-

cessed by the LSTM network to get the prediction.

They achieved an AUC-ROC score of 0.99, however,

their dataset consisted of only 1,092 samples.

A much larger dataset of 90,000 samples was used

in (Zhou, 2018). They used an LSTM network to pro-

cess API call sequences combined with the convolu-

tional neural network to detect malicious ﬁles. While

also using static and dynamic features, they managed

to achieve an accuracy of 97.3%.

Deep neural networks were also used in (Saxe

and Berlin, 2015) with the help of Bayesian statist-

ics. They worked with a large dataset of more than

400 thousand binaries. With ﬁxed FPR at 0.1%, they

reported AUC-ROC of 0.99964 with TPR of 95.2%.

The authors of (Hardy et al., 2016) used stacked

autoencoders for malware classiﬁcation and achieved

an accuracy of 95.64% on 50,000 samples.

In (Vinayakumar et al., 2018), they trained the

stacked LSTM network and achieved an accuracy of

97.5% with an AUC-ROC score of 0.998. That said

they focused on android ﬁles and collected only 558

APKs (Android application package).

3 BACKGROUND

In this chapter, we explain the necessary background

for this paper. The ﬁrst part deals with the Portable

Executable ﬁle format, describing the use cases and

structure. In the second part, we study the LSTM net-

works in detail. In the end, we also brieﬂy mention

the autoencoder networks.

3.1 Portable Executable

Portable Executable (PE) format is a ﬁle format

for Windows operation systems (Windows NT) ex-

ecutables, DLLs (dynamic link libraries) and other

programs. Portable in the title denotes the trans-

ferability between 32-bit and 64-bit systems. The

ﬁle format contains all basic information for the OS

loader (Kowalczyk, 2018).

The structure of the PE ﬁle is strictly set as fol-

lows. Starting with MS-DOS stub and header, fol-

lowed with ﬁle, optional, and section headers and ﬁn-

ished with program sections as illustrated in Figure 1.

The detailed description can be found in (Karl Bridge,

2019).

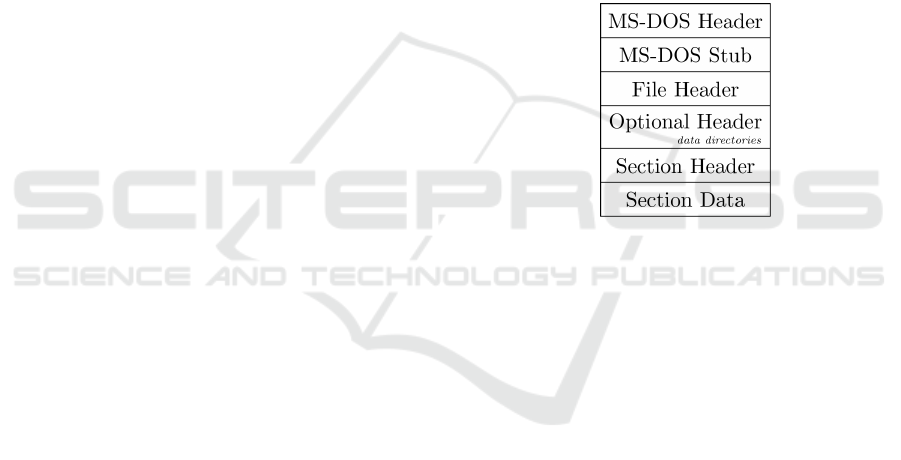

Figure 1: Structure of a PE ﬁle.

3.2 LSTM Network

Long short-term memory or shortly LSTM network

is a subdivision of recurrent neural networks. This

network architecture was introduced in (Hochreiter

and Schmidhuber, 1997). The improvement lies in

replacing a simple node from RNN with a compound

unit consisting of hidden state or h

(as with RNNs)

and so-called cell state or c

. Further, adding in-

put node g

compiling the input for every time step

t and three gates controlling the ﬂow of information.

Gates are binary vectors, where 1 allows data to pass

through, 0 blocks the circulation. Operations with

gates are handled by using Hadamard (element-wise)

product  with another vector (Leskovec et al., 2020).

As mentioned above, the LSTM cell is formed by

a group of simple units. The key difference from RNN

is the addition of three gates which regulate the in-

put/output of the cell.

Note that W

, W

and

b with subscripts in all of

the equations below are learned weights matrices and

vectors respectively, and f denotes an activation func-

tion, e.g. sigmoid. Subscripts are used to distinguish

matrices and vectors used in speciﬁc equations.

Representation of PE Files using LSTM Networks

517

1. Input Gate. Determines which information can

be allowed inside the unit:

= f (W

t−1

) (1)

2. Forget Gate. Allows us to discard information

from memory we do not longer need:

= f (W

t−1

) (2)

3. Output Gate. This gate learns what data is para-

mount at a given moment and enables the unit to

focus on it:

= f (W

t−1

) (3)

The input node takes as an input x

and previous

hidden state:

= f (W

t−1

) (4)

As an activation function is typically used tanh

even though ReLU might be easier to train (Lipton

et al., 2015).

The cell state is calculated as follows:

= i

 g

+ f

 c

t−1

(5)

In equation (5), we can see the intuition behind

using the input and forget gates. The gates handle

how much of the input node and previous cell state

we allow into the cell. This formula is the essen-

tial improvement to simple RNNs as the forget gate

vector applied to the previous cell state is what al-

lows the gradient to safely pass during backpropaga-

tion, thus abolishing the problem of vanishing gradi-

ent (Leskovec et al., 2020).

The hidden state is then updated with the content

of the current cell state modiﬁed with output gate o

as follows:

= f (c

 o

) (6)

We can imagine the hidden state as the short-term

memory and cell state as the long-term memory of the

LSTM network.

The output ˆy

is then computed as:

ˆy

= f (W

) (7)

To see the detailed illustration of LSTM cell see

Figure 2.

Presented LSTM architecture in Figure 2 closely

maps the state-of-the-art design from (Zaremba et al.,

2014). Note that we dropped the network’s parame-

ters, matrices of weights, and vectors of biases to keep

it well-arranged.

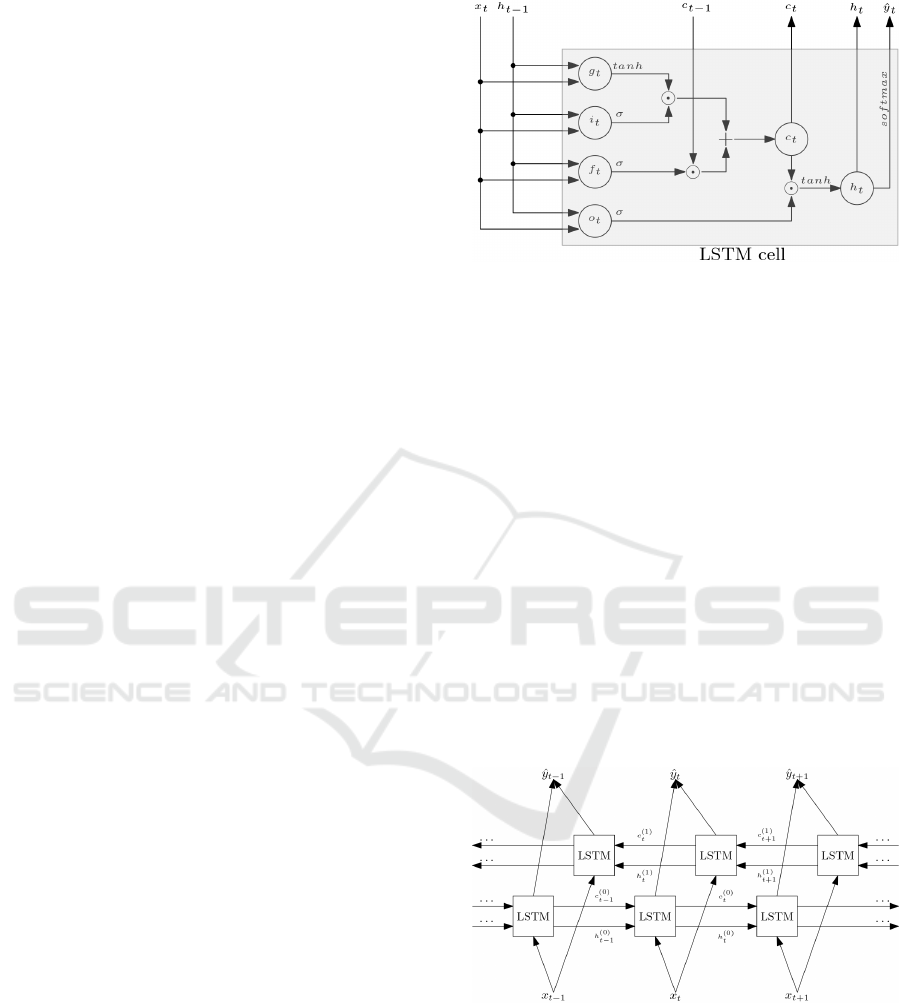

Figure 2: Example of the LSTM architecture.

3.2.1 Bidirectional Long Short-term Memory

The traditional LSTM networks, the same as standard

recurrent neural networks and bidirectional recurrent

neural networks (BRNNs), are not suitable for some

tasks as the hidden and cell states are determined only

by prior states. Such tasks include text and speech re-

cognition and many more where the output at a time t

depends on the past as well as future inputs or labeling

problems where the output is only expected after ﬁn-

ishing the whole input sequence (Graves, 2012). Bi-

directional Long Short-Term Memory or shortly

(BLSTM) networks try to solve this problem by hav-

ing connections both from the past and future cells.

Input to the BLSTM network is then presented in two

rounds, once forwards as with the LSTM network and

then in a reversed direction from the back. This archi-

tecture was introduced in (Graves and Schmidhuber,

2005).

Figure 3: Structure of BLSTM network.

In Figure 3 we can see the structure of BLSTM

network, the (0) and (1) in superscripts stand for for-

wards and backwards directions, respectively. We

omitted the detailed representation of LSTM cells to

make the illustration simpler.

BLSTM networks can be used to solve similar

problems as bidirectional RNNs where we have entire

input available beforehand. Training the network in

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

518

forward and backward directions helps to gain context

from the past and future as well (Brownlee, 2019). In

addition, having hidden and cell state enables better

storage of information across the timeline even from

the distant past or future.

BLSTM networks were found to outperform

standard BRNNs in many tasks, e.g. speech recog-

nition. This was proven in the ﬁrst application of

BLSTM networks by Graves et al. for phoneme clas-

siﬁcation problem (Graves and Schmidhuber, 2005).

BLSTMs are not suitable for all tasks, such as where

we do not know the ﬁnal length of the input, and

the results are required after each timestamp (online

tasks).

3.3 Autoencoder

Autoencoder is a type of neural network that can

learn a representation of given data by compressing

and decompressing the input values. As described in

(Chollet, 2016), it consists of two parts, the encoder

and decoder. The encoder is typically a dense feed-

forward neural network (other types of neural net-

works can be used as well) with subsequent layers

shrinking in width. The decoder mirrors the struc-

ture of the encoder with expanding layers. The au-

toencoder is then trained with a set of data where in-

put matches the target output. After training, the de-

coder is detached and the encoder is used as the sole

model for prediction. The illustration of the autoen-

coder setup can be seen in Figure 4.

Figure 4: Example of autoencoder for digit compression

(Chollet, 2016).

Although the data compressed by autoencoder

could be used in image compression, generally au-

toencoders do not outperform well-known compres-

sion algorithms. Since the compression inside autoen-

coders is not lossless (the output is fuzzy), they are not

suitable for practical use of image compression.

Among places where autoencoders found utiliza-

tion belong dimension reduction and data denoising

problems. In dimension reduction, autoencoders are

used either as a preprocessing stage in machine learn-

ing problems or before data visualization where large

data dimension hinders the comprehension of the im-

age. In data denoising, the autoencoder is trained with

noisy images as the input and clear pictures being the

output. The use of autoencoders is not limited to im-

ages, however, they can also be used with audio and

other problems affected by noisiness.

4 FEATURE

TRANSFORMATIONS USING

LSTM NETWORKS

In this section, we present our approach - feature

transformation using LSTM networks. We describe

feature extraction and preparation, then feature selec-

tion along with the central part of this paper, the fea-

ture transformation using LSTM networks. Our com-

plete workﬂow is illustrated in Figure 8 at the end of

this section.

4.1 Feature Extraction

For extracting features from PE ﬁles, we used Py-

thon module pefile (Carrera, 2017). This module

extracts all PE ﬁle attributes into an object from which

they can be easily accessed. The structure of the PE

ﬁles is brieﬂy explained in Section 3.1. We used as

many PE attributes as possible and reached the total

number of 303 features. Features can be divided into

multiple categories based on their origin from the PE

ﬁle. A summary of all target static features used in

our experiments is as follows:

Headers: Data from DOS, NT, File, and Optional

headers.

Data Directories: Names and sizes of all data dir-

ectories. Also adding detailed information from

prevalent directories for instance IMPORT, EX-

PORT, RESOURCE, and DEBUG directories.

Sections: Names, sizes, entropies of all PE sections

expressed by their average, min, max, mean and

standard deviation. To cooperate with a variable

amount of sections in different ﬁles, we decided

to describe only the ﬁrst four and last sections in-

dividually.

Others: Extra characteristics associated with a ﬁle,

e.g. byte histogram, printable strings, or version

information.

4.2 Feature Preparation

Since not all machine learning models used in our

experiments can handle strings and other categorical

data, we must such data types encode into numeric

values. This strategy is necessary for more than 60

out of 303 columns. We chose to perform common

Representation of PE Files using LSTM Networks

519

transformation techniques on the entire dataset as op-

posed to only using the training set. We believe that

by doing so, we can better focus on designing LSTM

architectures and our results won’t be affected by the

capability of other algorithms.

4.2.1 Vectorization

Upfront, we transformed string features into sparse

matrix representation using TfidfVectorizer from

the scikit-learn Python library (Pedregosa et al.,

2011). This class demands corpus (collection of doc-

uments) as an input. We also adjusted parameters

stop_words and max_df that inﬂuence which words

to exclude from further calculations. Among the ex-

cluded words are either commonly used words in a

given language, words that do not bear any mean-

ing, and words that occur with such high frequencies

that they are not statistically interesting for us. To

eliminate the massive rise of dimensionality, we set

max_features parameter according to the feature’s

cardinality. The transformation itself consists of con-

verting sentences to vectors of token counts. Then

they are transformed into tf-idf representation. Tf-idf

is an abbreviation for the term frequency times inverse

document frequency. It is a way to express the weight

of a single word in the corpus (Maklin, 2019).

Term Frequency is the frequency of a word inside

the document. The formula is:

tf(w, d) =

w,d

∑

k,d

, (8)

where n

w,d

is the number of times word w appears

in a document d and the denominator is the sum of all

words found in d.

Inverse Document Frequency is a scale of how

much a word is rare across the whole corpus:

idf(w, D) = log

|D|

|d ∈ D : w ∈ d|

(9)

It is a fraction of the total number of documents

in corpus D divided by the number of documents con-

taining the speciﬁc word.

Tf-idf is then calculated as a multiplication of

these two values as follows:

tf-idf(w, d) = tf(w, d) · idf(w, D) (10)

All of this is done by the aforementioned class

TfidfVectorizer, and as a result, we get a matrix

of tf-idf features that can be used in further computa-

tions.

4.2.2 Hashing

For non-string values, we used a technique called fea-

ture hashing. This approach turns the column of

values into a sparse matrix using the value’s hash

as an index to the matrix. For this task, we used

FeatureHasher also from the scikit-learn. The

class takes an optional argument n_features which

limits the number of columns in the output matrix. We

set this argument dynamically according to the size of

the feature’s value set.

4.3 Feature Selection

Even though we tried to limit the rise of new features,

we ended up with 1488 features. To speed up the

forthcoming training process, we tried several feature

selection techniques to reduce the dimensionality of

the dataset.

Before all else, we ﬁlled missing values by

column’s mean and divided data into train and test

splits to ensure correct evaluation of the model’s per-

formance. For this, we used train_test_split

from sklearn.model_selection with test split

taking 20% of the dataset. Afterwards, we

transformed features to stretch across a smaller

range. For this task, we looked for another class

from sklearn.preprocessing library and selected

MinMaxScaler. This scaler turns each feature x to lie

between zero and one. The transformation is calcu-

lated as:

− min(x)

max(x) − min(x)

(11)

For feature selection, we settled with PCA (Prin-

cipal Component Analysis) with the number of com-

ponents determined by testing conducted with the

state-of-the-art ML algorithms: AdaBoost, Decision

tree, Feed-forward neural network, Random forest,

K-nearest neighbours, Support vector machine, Gaus-

sian naive bayes, and Logistic regression. The same

ML algorithms were used to evaluate performance of

LSTM-based transformation (see Section 5.2). We

tested a number of components ranging from 2 to

1400, however increasing beneﬁts were found only

until 50 components, after which we did not measure

any signiﬁcant improvements. The results are presen-

ted in Figure 5.

Note that while the resulting components are not

primarily in the form of sequences, they can still be

sequentially processed using the LSTM and achieve

solid classiﬁcation results (see Section 5.3).

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

520

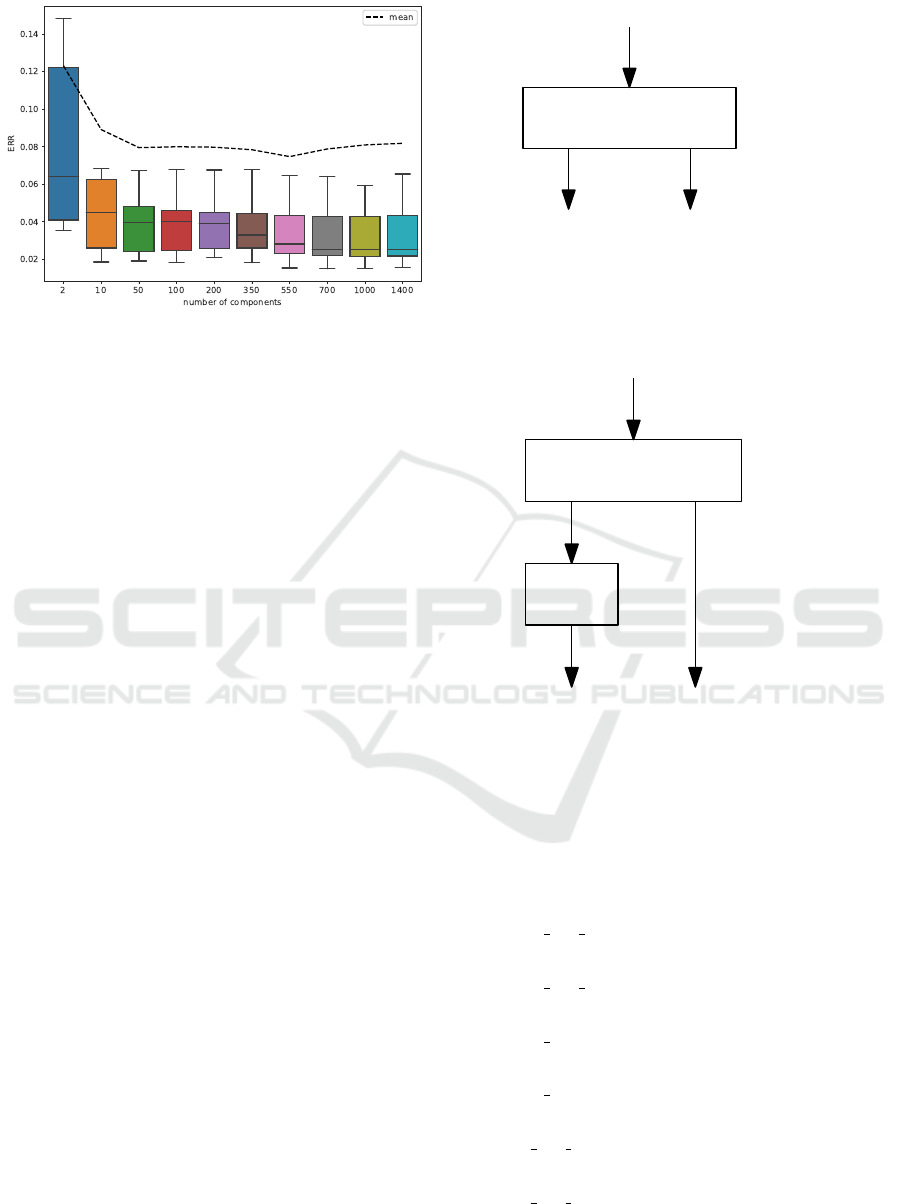

Figure 5: Average error rate (ERR) of ML algorithms across

number of components.

4.4 Feature Transformation using

LSTM Network

We experimented with various LSTM architectures

which we used for feature transformation. All net-

works were trained only on the train set. After the

training process, the train and test set were trans-

formed using the LSTM network.

Our research is not limited to only LSTM net-

works, however, bidirectional version of LSTM net-

works (BLSTM) was also included in our exper-

iments. We considered two different types of

neural networks: the Basic version consisting of

one (B)LSTM layer and the Deep version with four

(B)LSTM layers, each layer containing 50 LSTM

units equal to the number of input features. All net-

works were trained up to 50 epochs with a batch size

of 32, Adam optimization, and mean squared error

loss function.

4.4.1 Type 1

The ﬁrst type of LSTM network we experimented is

based on autoencoder’s architecture. In this case, we

worked only with explanatory variables with a net-

work designed to predict the same values which were

given on input. The predicted transformation was

taken from the penultimate layer’s last hidden state.

Schema of the Type 1 transformer is illustrated in Fig-

ure 6.

4.4.2 Type 2

The second type was similar to the regular use of the

LSTM network, where we work with both the explan-

atory and response variables. For prediction, we used

the last hidden state of the penultimate LSTM layer as

with Type 1. The last layer was occupied by a single

(B)LSTM layer

Output

Predicted

transformation

Input

Figure 6: Schema of Basic version Type 1 transformer.

neuron with a sigmoid activation function. Diagram

of the Type 2 transformer is presented in Figure 7.

(B)LSTM layer

Input

Output

Predicted

Dense

layer

transformation

Figure 7: Schema of Basic version Type 2 transformer.

4.4.3 Description of All Transformed Datasets

The following is a description of the datasets used in

testing. Recall that ”Basic” and ”Deep” in the de-

scription below denote one layer and four layers of

the deep network, respectively:

BLSTM AE basic Transformed by Basic version of

BLSTM Type 1 (autoencoder) network.

BLSTM AE deep Transformed by Deep version of

BLSTM Type 1 (autoencoder) network.

BLSTM basic Transformed by Basic version of

BLSTM Type 2 network.

BLSTM deep Transformed by Deep version of

BLSTM Type 2 network.

LSTM AE basic Transformed by Basic version of

LSTM Type 1 (autoencoder) network.

LSTM AE deep Transformed by Deep version of

LSTM Type 1 (autoencoder) network.

Representation of PE Files using LSTM Networks

521

LSTM basic Transformed by Basic version of

LSTM Type 2 network.

LSTM deep Transformed by Deep version of LSTM

Type 2 network.

VANILLA Control dataset, no transformations

made.

4.5 Evaluation using Supervised ML

Algorithms

The ﬁnal part of the experiment workﬂow consists

of evaluation of the aforementioned transformations.

We tested several supervised ML algorithms and com-

pared their performance on vanilla and transformed

datasets. Detailed description of this part can be

found in Section 5.2. Figure 8 overviews the exper-

iment pipeline.

PE ﬁles

Static features

Vanilla Dataset

(B)LSTM

network

Transformed Dataset

Results

ML algorithms

Feature selection

(PCA)

Feature preparation

Feature extraction

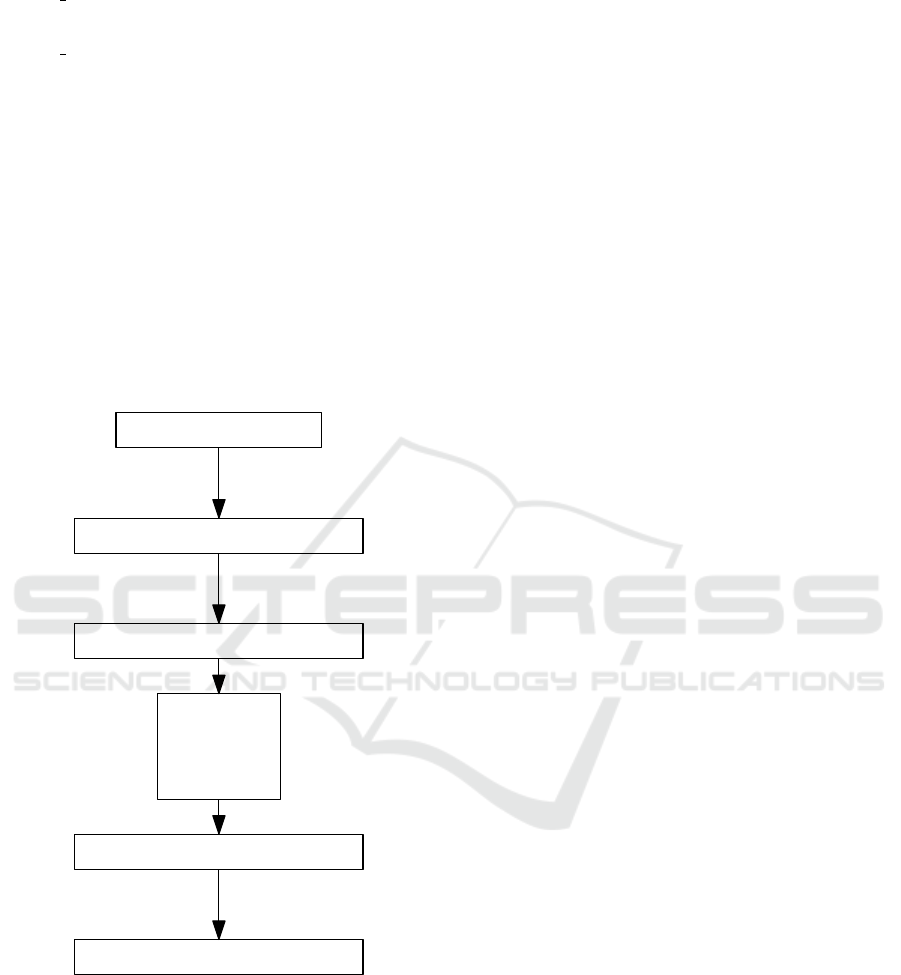

Figure 8: Experiment pipeline.

5 EXPERIMENTS

In this section, we ﬁrstly describe the dataset used in

our experiments. Then we specify our experimental

setup in detail and evaluation methods, and in the end,

we present our results.

5.1 Dataset

We gathered a dataset of 30,154 samples which

are evenly distributed between malware and be-

nign ﬁles. For amassing benign ﬁles, we searched

disks on university computers and the malware ﬁles

were obtained from an online repository https://

virusshare.com which we thanks for the access.

5.2 Experimental Setup and Evaluation

Methods

The performance of LSTM pre-treatment was eva-

luated by the following supervised ML algorithms.

Among the ML algorithms we used were Support

vector classiﬁcation (SVC) with kernel rbf, deep

Feed-forward network (FNN) with 8 hidden layers

(128-128-64-64-32-32-16-16 neurons per layer) all

with ReLU activation function, trained up to 200

epochs with Adam optimization and binary cross-

entropy loss function. Further, we tested Decision

tree, Random forest, AdaBoost, K-nearest neighbours

(k=5), Gaussian naive bayes, and Logistic regres-

sion. The hyperparameters which we did not men-

tion were left to default settings as set by authors of

the scikit-learn library (Pedregosa et al., 2011) ex-

cept for the FNN which was modeled with the help of

the Python deep learning library Keras (Chollet et al.,

2015).

Our implementation was executed on a single

computer platform having two processors (Intel Xeon

Gold 6136, 3.0GHz, 12 cores each), with 32 GB of

RAM running the Ubuntu server 18.04 LTS operating

system.

5.2.1 Metrics

In this section, we present the metrics we used to

measure the performance of our proposed classiﬁc-

ation models. For evaluation purposes, the following

classical quantities are employed:

True Positive (TP) represents the number of mali-

cious samples classiﬁed as malware.

True Negative (TN) represents the number of benign

samples classiﬁed as benign.

False Positive (FP) represents the number of benign

samples classiﬁed as malware

False Negative (FN) represents the number of mali-

cious samples classiﬁed as benign.

The performance of our classiﬁers on the test set

is measured using the following standard metrics:

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

522

Accuracy (ACC) Proportion of correctly classiﬁed

samples out of all predictions:

ACC =

T P + T N

T P + T N + FP + FN

(12)

Error rate (ERR) The inverse of accuracy:

ERR = 1 − ACC (13)

Sensitivity (TPR, Recall) How many samples from

the positive class were predicted correctly:

T PR =

T P

T P + FN

(14)

Fall-out (FPR) Probability of predicting samples

from the negative class as positives:

FPR =

FP + T N

(15)

5.3 Results

In order to expose any biases in the data, we tested

the ML algorithms with 5-fold cross-validation using

cross_validate from scikit-learn library.

We found that the results did not only vary

between different network architectures but also

among particular ML algorithms. These observations

are presented in the heatmap in Figure 9. These res-

ults indicate that Type 1 based on autoencoder design

does not seem to improve the performance whatso-

ever. However, Type 2, especially deep versions of

LSTM and BLSTM networks, seem to enhance the

performance of many algorithms signiﬁcantly.

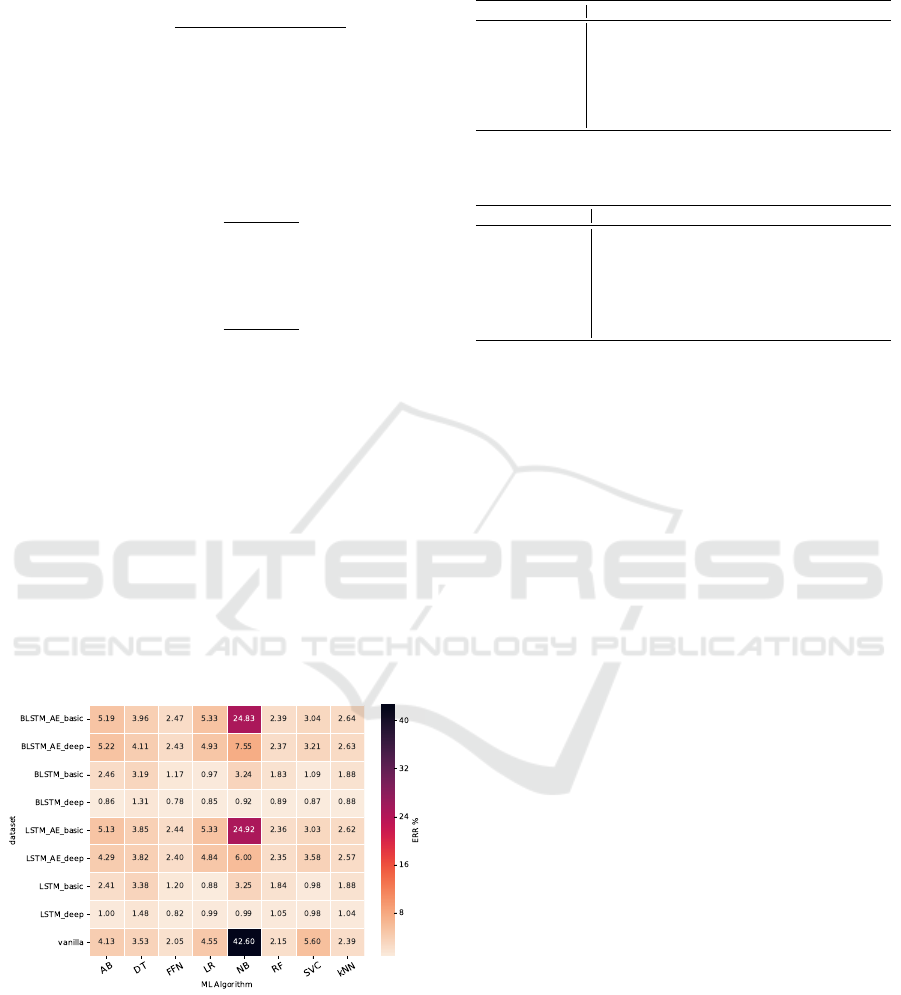

Figure 9: Heatmap comparing the ERR of ML algorithms

with respect to different transformer architectures.

Tables 1, 2 and 3 present the improvements made

by pre-treatment with LSTM and BLSTM networks

for different ML algorithms used for evaluation. Note

that the performance of Logistic regression, Naive

Bayes, SVC, or AdaBoost algorithms increased the

most signiﬁcantly.

Table 1: Baseline results of ML algorithms on unedited

(vanilla) dataset.

ML Algorithm ACC TPR FPR ROC-AUC

AdaBoost 95.87 ± 0.39 95.49 ± 0.55 3.75 ± 0.46 95.87 ± 0.39

DecisionTree 96.47 ± 0.20 96.37 ± 0.25 3.44 ± 0.40 96.47 ± 0.20

Feed-ForwardNetwork 97.95 ± 0.12 97.75 ± 0.36 1.86 ± 0.23 97.95 ± 0.12

LogisticRegression 95.45 ± 0.38 94.62 ± 0.38 3.73 ± 0.45 95.45 ± 0.38

NaiveBayesGaussian 57.40 ± 16.01 16.63 ± 36.13 1.84 ± 4.11 57.40 ± 16.01

RandomForest 97.85 ± 0.20 97.52 ± 0.24 1.82 ± 0.19 97.85 ± 0.20

SVC(kernel=rbf) 94.40 ± 1.74 93.49 ± 1.74 4.69 ± 1.81 94.40 ± 1.74

kNN(k=5) 97.61 ± 0.21 97.17 ± 0.28 1.94 ± 0.16 97.61 ± 0.21

Table 2: Results of ML algorithms on dataset transformed

by deep LSTM network.

ML Algorithm ACC TPR FPR ROC-AUC

AdaBoost 99.00 ± 0.71 98.76 ± 0.78 0.76 ± 0.66 99.00 ± 0.71

DecisionTree 98.52 ± 0.55 98.43 ± 0.60 1.40 ± 0.50 98.52 ± 0.55

Feed-ForwardNetwork 99.18 ± 0.77 99.10 ± 0.64 0.75 ± 0.90 99.18 ± 0.77

LogisticRegression 99.01 ± 0.72 98.89 ± 0.78 0.87 ± 0.67 99.01 ± 0.72

NaiveBayesGaussian 99.01 ± 0.67 98.70 ± 0.58 0.69 ± 0.78 99.01 ± 0.67

RandomForest 98.95 ± 0.77 98.85 ± 0.77 0.95 ± 0.78 98.95 ± 0.77

SVC(kernel=rbf) 99.02 ± 0.72 98.73 ± 0.74 0.69 ± 0.70 99.02 ± 0.72

kNN(k=5) 98.96 ± 0.75 98.82 ± 0.80 0.91 ± 0.71 98.96 ± 0.75

The performance of the two most successful clas-

siﬁers evaluated on all transformed datasets con-

sidered in our experiments, Feed-forward neural net-

work, and Logistic regression, is presented in Figure

10.

To emphasize our results, we express the perform-

ance of the ML algorithms in terms of error rate (in

[%]). In Table 4, we overview the error rates (ERR)

of ML algorithms evaluated on the original and trans-

formed dataset by deep BLSTM network.

6 CONCLUSIONS

We collected a large number of PE binaries from

available resources. From these binaries, we extrac-

ted as many features as possible, which we later scale

down by the feature selection algorithm PCA in order

to reduce the dimension of our dataset. After that, we

conducted extensive testing with various (B)LSTM

network architectures used to transform the selec-

ted features. On these transformed datasets, we ran

a cross-validation benchmark using multiple super-

vised ML algorithms to see whether the feature trans-

formation based on (B)LSTM networks can increase

the performance of the ML algorithms in comparison

to the performance to the accuracy on the vanilla data-

set.

We have found that the feature transformation by

(B)LSTM nets was hugely successful, decreasing er-

ror rate from 58.6% to 97.84% depending on the ML

algorithm used. These gains were achieved by so-

called Type 2 architecture which was similar to the

standard use of recurrent neural networks for clas-

siﬁcation problems. In contrast, the Type 1 design

based on autoencoder structure didn’t prove to en-

Representation of PE Files using LSTM Networks

523

(a) Feed-forward neural network. (b) Logistic regression.

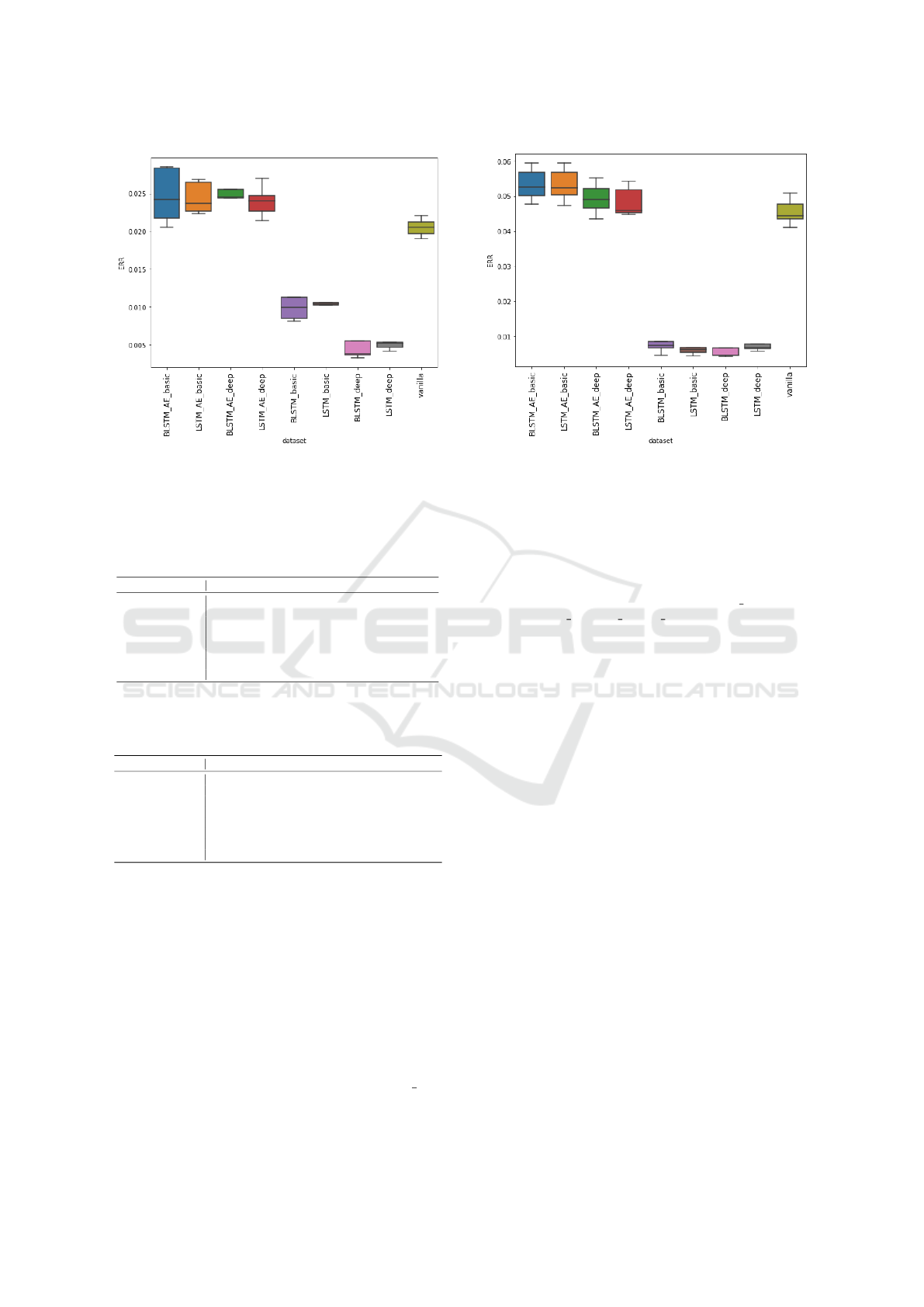

Figure 10: Boxplots showing the performance of the two most successfull classiﬁers evaluated on multiple datasets.

Table 3: Results of ML algorithms on dataset transformed

by deep BLSTM network.

ML Algorithm ACC TPR FPR ROC-AUC

AdaBoost 99.14 ± 0.77 99.06 ± 0.81 0.78 ± 0.80 99.14 ± 0.77

DecisionTree 98.69 ± 0.71 98.67 ± 0.79 1.30 ± 0.65 98.69 ± 0.71

Feed-ForwardNetwork 99.22 ± 0.84 99.12 ± 0.87 0.67 ± 0.83 99.22 ± 0.84

LogisticRegression 99.15 ± 0.78 99.07 ± 0.81 0.78 ± 0.79 99.15 ± 0.78

NaiveBayesGaussian 99.08 ± 0.78 98.65 ± 0.82 0.48 ± 0.77 99.08 ± 0.78

RandomForest 99.11 ± 0.74 99.01 ± 0.80 0.78 ± 0.72 99.11 ± 0.74

SVC(kernel=rbf) 99.13 ± 0.82 98.94 ± 0.87 0.67 ± 0.79 99.13 ± 0.82

kNN(k=5) 99.12 ± 0.82 99.02 ± 0.87 0.78 ± 0.79 99.12 ± 0.82

Table 4: Comparison of the results achieved from the ML

algorithms evaluated on the vanilla (non-transformed) data-

set and the transformed dataset by deep BLSTM network.

ML Algorithm ERR (no LSTM) ERR (with LSTM) ERR decreased by

AdaBoost 4.13 0.86 79.18

DecisionTree 3.53 1.31 62.89

Feed-ForwardNetwork 2.05 0.78 61.95

LogisticRegression 4.55 0.85 81.32

NaiveBayesGaussian 42.60 0.92 97.84

RandomForest 2.15 0.89 58.60

SVC(kernel=rbf) 5.60 0.87 84.46

kNN(k=5) 2.39 0.88 63.18

hance performance. The transformation by Type 2

deep transformers brought all tested ML algorithms

to a similar level. The smaller performance in-

crements were observed among the ML algorithms

which already performed well on the non-transformed

dataset.

ACKNOWLEDGEMENTS

The authors acknowledge the support of the OP VVV

MEYS funded project CZ.02.1.01/0.0/0.0/16 019/

0000765 ”Research Center for Informatics”.

REFERENCES

AV-test (2019). Security report 2018/19. https:

//www.av-test.org/ﬁleadmin/pdf/security report/

AV-TEST Security Report 2018-2019.pdf.

Barron, D. W. (1978). Assemblers and loaders. Elsevier

Science Inc.

Brownlee, J. (2019). How to develop a bidirectional

lstm for sequence classiﬁcation in python with

keras. https://machinelearningmastery.com/develop-

bidirectional-lstm-sequence-classiﬁcation-python-

keras/.

Carrera, E. (2017). Peﬁle. https://github.com/erocarrera/

peﬁle.

Chollet, F. (2016). Building autoencoders in keras. https:

//blog.keras.io/building-autoencoders-in-keras.html.

Chollet, F. et al. (2015). Keras. https://keras.io.

Graves, A. (2012). Supervised sequence labelling. In Su-

pervised sequence labelling with recurrent neural net-

works, pages 13–39. Springer.

Graves, A. and Schmidhuber, J. (2005). Framewise phon-

eme classiﬁcation with bidirectional lstm and other

neural network architectures. Neural networks, 18(5-

6):602–610.

Hardy, W., Chen, L., Hou, S., Ye, Y., and Li, X. (2016).

Dl4md: A deep learning framework for intelligent

malware detection. In Proceedings of the Interna-

tional Conference on Data Mining (DMIN), page 61.

The Steering Committee of The World Congress in

Computer Science, Computer . . . .

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8):1735–1780.

Karl Bridge, M. (2019). Pe format - win32 apps.

”https://docs.microsoft.com/en-us/windows/win32/

debug/pe-format”.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

524

Kowalczyk, K. (2018). Portable executable ﬁle

format. https://blog.kowalczyk.info/articles/

peﬁleformat.html.

Latto, N. (2020). What is wannacry? https://

www.avast.com/c-wannacry.

Leskovec, J., Rajaraman, A., and Ullman, J. D. (2020). Min-

ing of massive data sets. Cambridge university press.

Lipton, Z. C., Berkowitz, J., and Elkan, C. (2015). A crit-

ical review of recurrent neural networks for sequence

learning. arXiv preprint arXiv:1506.00019, pages 5–

25.

Lu, R. (2019). Malware detection with lstm using opcode

language. arXiv preprint arXiv:1906.04593.

Maklin, C. (2019). Tf idf: Tﬁdf python example.

https://towardsdatascience.com/natural-language-

processing-feature-engineering-using-tf-idf-

e8b9d00e7e76.

Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,

Thirion, B., Grisel, O., Blondel, M., Prettenhofer,

P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,

A., Cournapeau, D., Brucher, M., Perrot, M., and

Duchesnay, E. (2011). Scikit-learn: Machine learning

in Python. Journal of Machine Learning Research,

12:2825–2830.

Saxe, J. and Berlin, K. (2015). Deep neural network based

malware detection using two dimensional binary pro-

gram features. In 2015 10th International Conference

on Malicious and Unwanted Software (MALWARE),

pages 11–20. IEEE.

Symantec, C. (2019). Internet security threat report 2019.

https://docs.broadcom.com/doc/istr-24-2019-en.

Vinayakumar, R., Soman, K., Poornachandran, P., and

Sachin Kumar, S. (2018). Detecting android malware

using long short-term memory (lstm). Journal of In-

telligent & Fuzzy Systems, 34(3):1277–1288.

Zaremba, W., Sutskever, I., and Vinyals, O. (2014). Re-

current neural network regularization. arXiv preprint

arXiv:1409.2329, pages 1–3.

Zhou, H. (2018). Malware detection with neural network

using combined features. In China Cyber Security An-

nual Conference, pages 96–106. Springer.

Representation of PE Files using LSTM Networks

525
