How to Improve the GDPR Compliance through Consent Management

and Access Control

Said Daoudagh

1,2 a

, Eda Marchetti

1 b

, Vincenzo Savarino

3 c

, Roberto Di Bernardo

3 d

and Marco Alessi

3 e

ISTI-CNR, Pisa, Italy

University of Pisa, Pisa, Italy

Engineering Ingegneria Informatica, Italy

Keywords:

Access Control, Consent Management, GDPR, Privacy-by-Design.

Abstract:

This paper presents a privacy-by-design solution based on Consent Manager (CM) and Access Control (AC)

to aid organizations to comply with the GDPR. The idea is to start from the GDPR’s text, transform it into a

machine-readable format through a given CM, and then convert the obtained outcome to a set of enforceable

Access Control Policies (ACPs). As a result, we have deﬁned a layered architecture that makes any given sys-

tem privacy-aware, i.e., systems that are compliant by-design with the GDPR. Furthermore, we have provided

a proof-of-concept by integrating a Consent Manager coming from an industrial context and an AC Manager

coming from academia.

1 INTRODUCTION

The General Data Protection Regulation (GDPR) is

the EU Data Protection Regulation (European Union,

2016) in charge of harmonizing the regulation of Data

Protection across the EU member states. At the same

time, it enhances and arises business opportunities

within the Digital Single Market (DSM) space. How-

ever, the natural language nature of the GDPR makes

most of the provisions to be expressed in generic

terms and does not provide speciﬁc indication on how

they should be actuated. As a consequence, assuring

the GDPR compliance, and therefore avoid the related

ﬁnes, becomes an important research challenge.

Currently, many businesses are struggling in the

deﬁnition of appropriate procedures and technical so-

lutions for their development process so as to enforce

and demonstrate the GDPR compliance (Krenn S. et

al., 2020). More precisely, they recognized as a piv-

otal factor in the availability of automated supports

for specifying privacy requirements, controlling per-

https://orcid.org/0000-0002-3073-6217

https://orcid.org/0000-0003-4223-8036

https://orcid.org/0000-0002-2741-5543

https://orcid.org/0000-0002-4432-5128

https://orcid.org/0000-0002-1982-606X

sonal data, and processing them in compliance with

the GDPR.

From a practical point of view, scientiﬁc com-

munities, private companies, and European projects

such as CyberSec4Europe (Cyber Security Network

of Competence Centres for Europe)

are identifying

in the consent and security services, the successful el-

ements for automatic speciﬁcation and enforcing the

data protection regulation (Krenn S. et al., 2020).

Indeed, the consent services may allow citizens

and companies to manage and track personal data in a

straightforward, user-centric, and user-friendly man-

ner; while the security services, and speciﬁcally the

authorization systems (i.e., Access Control (AC)), can

enforce the data protection regulations taking into ac-

count additional legal requirements, such as the data

usage purpose, user consent, and the data retention

period. Therefore, the joint work of the consent

and security services may overcome the challenging

and error-prone task of extracting legal and machine-

readable policies directly from the GDPR’s rules.

Currently, different research activities have been

devoted to deﬁne and implement privacy knowledge

and rules (Sforzin A. et al., 2020), but no generic so-

lution is still available. Along these lines, under the

https://cybersec4europe.eu/

534

Daoudagh, S., Marchetti, E., Savarino, V., Di Bernardo, R. and Alessi, M.

How to Improve the GDPR Compliance through Consent Management and Access Control.

DOI: 10.5220/0010260205340541

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 534-541

ISBN: 978-989-758-491-6

hypothesis that the joint integration of access control

systems and consent manager can enhance the con-

troller’s and processor’s compliance with the regula-

tion, this paper wants to provide the basic architecture

of a generic and practical solution to solve the GDPR

compliance problem.

In presenting our idea, we focus on the following

primary Research Question (RQ):

How a consent manager solution can be im-

proved with access control for assuring com-

pliance with the data protection or privacy

regulation?

In answering the above RQ, we present a possi-

ble privacy-by-design architecture by integrating AC

and consent management systems. Finally, an imple-

mentation of the proposed architecture by using real

available solutions for the consent management and

the Access Control Mechanism (ACM), coming from

both industry and academia, is presented.

Outline. Section 2 presents the basic concepts used

along the proposal and related works; Section 3

describes the proposed solution by answering our

RQ; Section 4 shows the proof-of-concept we imple-

mented by instantiating the proposed solution with

real artifacts coming from both industrial and aca-

demic contexts; and ﬁnally, Section 5 concludes the

paper and illustrates future works.

2 BACKGROUND AND RELATED

WORK

This section introduces the main concepts used along

the present work: the GDPR concepts, Access Con-

trol, and Smart ICT Systems; and reports the related

work.

The GDPR Concepts. The General Data Protec-

tion Regulation (GDPR) (European Union, 2016) de-

ﬁnes Personal Data as any information related to an

identiﬁed or identiﬁable natural person called Data

Subject. That means that, a data subject is a Natural

Person (a living human being), whose data are man-

aged by a Controller. The GDPR aims to ensure equal

protection of the Human Rights of the European Cit-

izens, to eliminate the barriers for the services to be

delivered in the European Union, and to enhance busi-

ness opportunities within the Digital Single Market

(DSM).

The GDPR is applied to the processing of per-

sonal data, whether it is automated (even partially) or

not. It deﬁnes, among others, the following princi-

ples and demands: Purposes, i.e., data should only

be collected for determined, explicit and legitimate

purposes, and should not be processed later for other

purposes; Accuracy, i.e., the processed data must

be accurate and up-to-date regularly; Retention, i.e.,

data must be deleted after a limited period; Subject

explicit consent, i.e., data may be collected and pro-

cessed only if the data subject has given his/her ex-

plicit consent.

Access Control. The eXtensible Access Control

Markup Language (XACML) (OASIS, 2013) is one

of the most widely used AC languages. It provides a

reference architecture including speciﬁc components

for managing policies and access requests. Indeed,

the evaluation of the the policy against the request

provides response corresponding to the authorization

decision. Very brieﬂy, an XACML policy is a spe-

ciﬁc statement of what is and is not allowed on the

basis of a set of rules, deﬁned in terms of conditions

on attributes of subjects, resources, actions, and envi-

ronment, and combining algorithms for establish the

precedence among the rules.

In this paper, Access Control mechanism becomes

a means for restricting access to personal data, based

on the GDPR compliant Access Control Policies

(ACPs), i.e., a set of rules that specify who (e.g.,

Controller, Processor or Data Subject) has access

to which resources (e.g., Personal Data) and under

which circumstances (i.e., the GDPR’s demands, such

as Purpose and Consent).

Smart ICT System. Smart ICT Systems (or Ser-

vices) are becoming increasingly important in almost

all industries and areas of today’s society (Neuh

uttler

et al., 2020). They rely on the integration and im-

plementation of innovative tools and techniques that

make a given system smart to strengthen economic

needs (Samir Labib et al., 2018). Despite their in-

creasing signiﬁcance, a distinct deﬁnition of Smart

ICT has not yet evolved in the scientiﬁc literature.

Nevertheless, it is possible to identify a very high-

level abstract architecture for a standard Smart ICT

System, as depicted in Figure 1. Commonly, it is

composed of a Smart ICT Core System that offers

the main functionalities to Smart Services in terms of

both hardware and smart software (e.g., Cloud Com-

puting, Internet of Things, and Big Data). Conse-

quently, developers use these functionalities to con-

ceive and implement Smart Services that end-users

consume to achieve a given business or personal

needs.

How to Improve the GDPR Compliance through Consent Management and Access Control

535

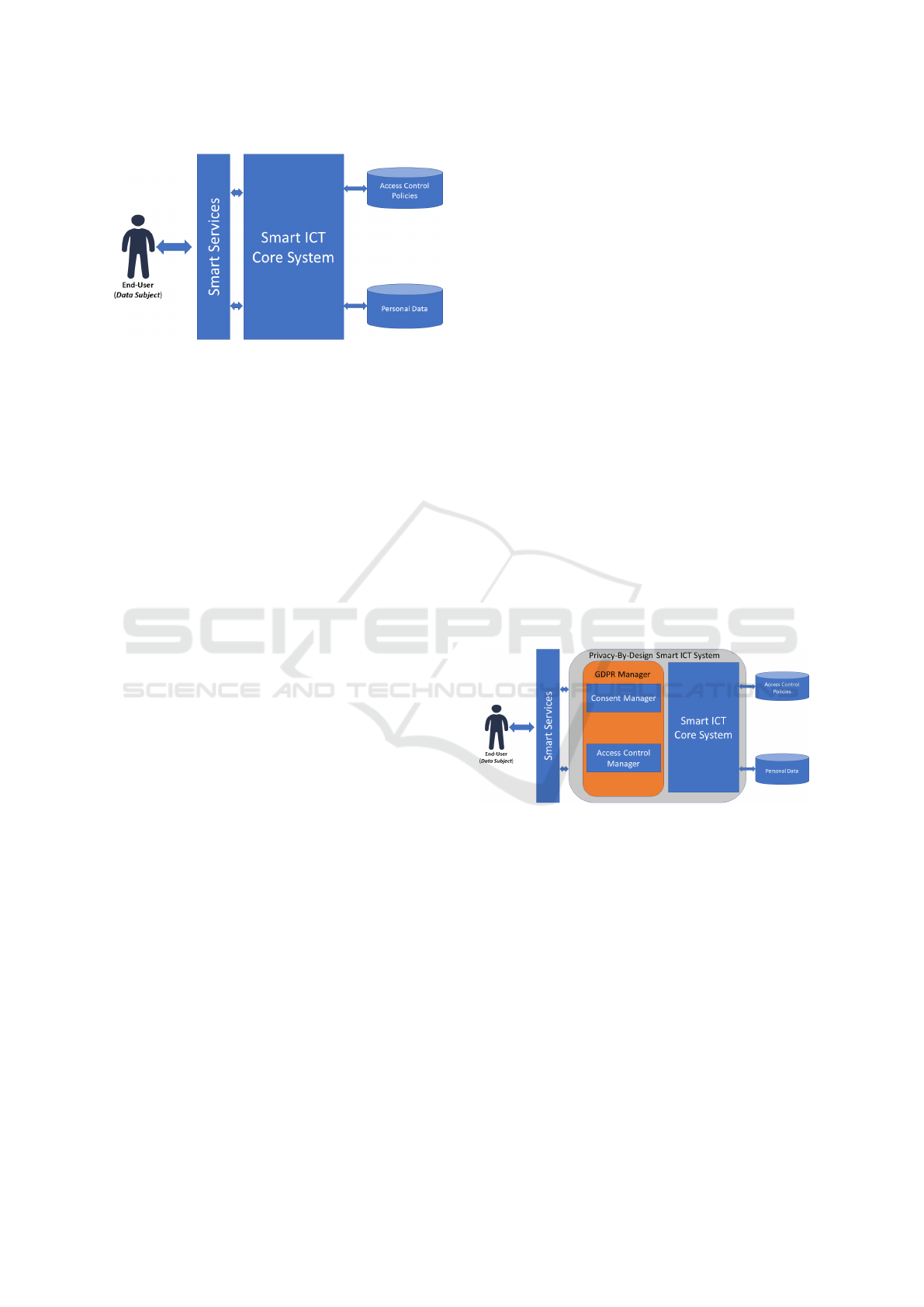

Figure 1: A Smart ICT System.

Smart ICT Core System is also in charge of man-

aging the resource and data access by using either cus-

tomized facilities or by relying on a speciﬁc Access

Control System. To this purpose, in Figure 1 an Ac-

cess Control Policies repository has been considered.

Related Work. Over the last years, different solu-

tions have been proposed for the enforcement of the

GDPR compliance into the Smart ICT Systems. They

can be roughly divided into the following categories:

• Solutions applicable at Business Processes level,

i.e., mainly focused on the behavioral aspect (Bar-

tolini et al., 2019a; Calabr

o et al., 2019;

Akerlund

and Große, 2020; Sokolovska and Kocarev, 2018).

• Proposals providing supporting facilities for

transforming the GDPR’s text into executable ac-

cess control policies. In this case, the policies

are either systematically derived from the GDPR,

e.g., (Bartolini et al., 2019c; Dernaika et al., 2020)

or generated through intermediate formal struc-

tures (Bartolini et al., 2019b; Carauta Ribeiro and

Dias Canedo, 2020).

• Proposals easily enforceable into the Smart ICT

Systems architecture. They can be roughly clas-

siﬁed into: i) those using access control mecha-

nisms for the protection of personal data within

Smart ICT Systems perimeters (Greaves et al.,

2018); ii) those using Smart ICT Systems users

location information for authenticate the customer

and manage his/her data (Haofeng and Xiaorui,

2019); and iii) those exploiting speciﬁc secu-

rity attributes for assuring the GDPR compli-

ance (Jensen et al., 2013; Barsocchi et al., 2018;

Calabr

o et al., 2019).

Our answer to the RQ wants to merge the best

practices of the identiﬁed above research areas. In-

deed, we are proposing the integration of the con-

sent and access control management for enhancing

the business process execution with speciﬁc activi-

ties able to modeling and enforcing the GDPR legal

framework.

3 A PRIVACY-BY-DESIGN

PROPOSAL FOR SMART ICT

SYSTEMS

In this section, we answer the RQ presented in the

introduction of this paper by integrating consent and

access control management for assuring compliance

with a reference data protection legal framework, i.e.,

the GDPR.

In the remainder of this section, details about the

proposed reference architecture are provided. Indeed,

they are our positive answer to the RQ. Additionally,

to remark the feasibility of the proposed solution, we

also provide its possible instantiation by using two

real-world systems coming from both industrial and

academic contexts. Details of this integration are re-

ported in Section 4.

3.1 A Privacy-by-Design Smart ICT

System

In this section, we describe the Privacy-By-Design

Smart ICT System layer, that provides features for in-

teracting directly with smart services and end-users of

the system to guaranteeing compliance with the EU

regulation.

Figure 2: A Privacy-By-Design Smart ICT System Pro-

posal.

By referring to Figure 1, the extended architec-

ture is schematized in Figure 2, where the Privacy-

By-Design Smart ICT System is represented by the

external grey square. As in the ﬁgure, this layer

has the responsibility to interact with end-users (in

our case Data Subject and the Smart Services) of the

Smart ICT system. It is also in charge of managing

all the domain dependent activities that are necessary

for the end-users interactions. More precisely, the

Privacy-By-Design Smart ICT System includes: (1)

the components already part of the Smart ICT core

systems (described in Section 2) and represented as

blue square labeled Smart ICT Core System; and (2) a

new layer called GDPR Manager, that is in charge of

the translation and enforcement of executable access

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

536

control policies. This is represented by the orange

square labeled GDPR Manager, and detailed more in

the remainder of this section.

3.2 GDPR Manager

The GDPR Manager includes two main components

(see Figure 2): Consent Manager that translates the

textual consent into structured representation, and Ac-

cess Control Manager that provides enforceable ac-

cess control policies.

Consent Manager. The aim of Consent Manager is

to manage and control personal data during the in-

teraction among Data Subjects and public and private

services as Data Controller and Processors (e.g., PA,

Social, IoT, B2C). It provides facilities for lawful data

sharing processes, with the ability to grant and with-

draw consent to third parties for accessing own per-

sonal data. Concerning Smart Services, the Consent

Manager should allow them to deﬁne speciﬁc pur-

poses for each operation (i.e., processing activities)

and the data needed to accomplish the required tasks

lawfully. Thus, the Consent Manager should include a

consent-based, user-centric interface enabling: (1) the

data subjects to manage, trace their own data and its

associated consent; (2) the data controllers/processors

to use consent to data sharing among digital services

using personal data and meet the GDPR’s require-

ments. Additionally, Consent Manager should guar-

antee by-design the compliance with the GDPR’s de-

mands, such as data minimization and purpose limi-

tation principles.

Access Control Manager. Access Control Man-

ager has the responsibility of creating Access Con-

trol Policies (ACPs) that are compliant by-design with

the GDPR. It works in collaboration with the Con-

sent Manager by receiving, as input, the machine-

readable speciﬁcation of services deﬁnitions and the

related Data Subjects’ consents. More precisely, it

uses: Personal Data related to Data Subject classi-

ﬁed in categories as required by the GDPR; infor-

mation about the Controller of each service and the

deﬁned purposes; the consent given by the Data Sub-

ject in terms of relation between Personal Data and

Purposes. Based on that information, Access Con-

trol Manager is able to create speciﬁc Access Con-

trol Policies, each related to a speciﬁc article of the

GDPR. The peculiarities of the Access Control Man-

ager are the possibility to (a) be integrated with differ-

ent Consent Managers, and (b) to collaborating with

different Access Control systems. This in order to

guarantee the independence with speciﬁc input and

output formats, and to be easily enhanced with stan-

dardized Access Control Systems, such as the one of-

fered by the XACML standard, e.g., when this com-

ponent is missed in the Smart ICT Core System.

4 PROOF-OF-CONCEPT

In this section, we provide an instantiation of the ar-

chitecture presented in the previous section by us-

ing real artefacts coming from both industrial and

academic contexts described in Section 4.1 and 4.2,

respectively. More precisely, we will show how

CaPe

(industrial open-source product) and GEN-

ERAL D (Gdpr-based ENforcEment of peRsonAL

Data) framework (academic proposal) can collaborate

and easily be integrated to achieve the GDPR compli-

ance.

To better explain the use of CaPe and GEN-

ERAL D framework, we consider the following ap-

plication example sets into a wellness environment.

Alice, a Data Subject, wants to use a smart wellness

application to monitor her daily activities to achieve a

predeﬁned training objective. The application is pro-

vided by the myWellness company (Controller). To

meet Alice’s needs, myWellness has so far deﬁned

different purposes, each related to a speciﬁc data set

of Personal Data. At the time of subscribing to the

myWellness application, Alice provided her personal

data (i.e., Age, Gender, and Blood Cholesterol) and

gave her consent for one purpose (i.e., MyCholes-

terol). Additionally, Alice gave her consent to share

her personal data with a third-party company named

zzz-HealthOrg company. In turn, myWellness gave to

Alice controller’s contacts that include: piiController,

orgName, address, e-mail, and phone number.

4.1 Consent Manager: CaPe at Glance

CaPe provides an ICT suite for a consent-based, user-

centric personal data management. It follows My-

Data

principles to exploit the potential of personal

data, facilitates its control and new business oppor-

tunities in compliance with the GDPR. Thus, CaPe

assures the following features: i) Consent authorizes

Data Sources to provision data to Data Consumer and

authorizes Data Requester to process that data; ii)

Consent refers to a Data Usage Policy that can be

linked to consent formalization; iii) Consent is given

in a clear manner so as to let the data controller to

demonstrate that a valid consent has been given; iv)

https://www.cape-suite.eu/

https://mydata.org/

How to Improve the GDPR Compliance through Consent Management and Access Control

537

Consent record clearly includes 1. Who consented;

2. When they consented; 3. What was consented;

4. How was consented; 5. Whether a consent with-

drawn occurred.

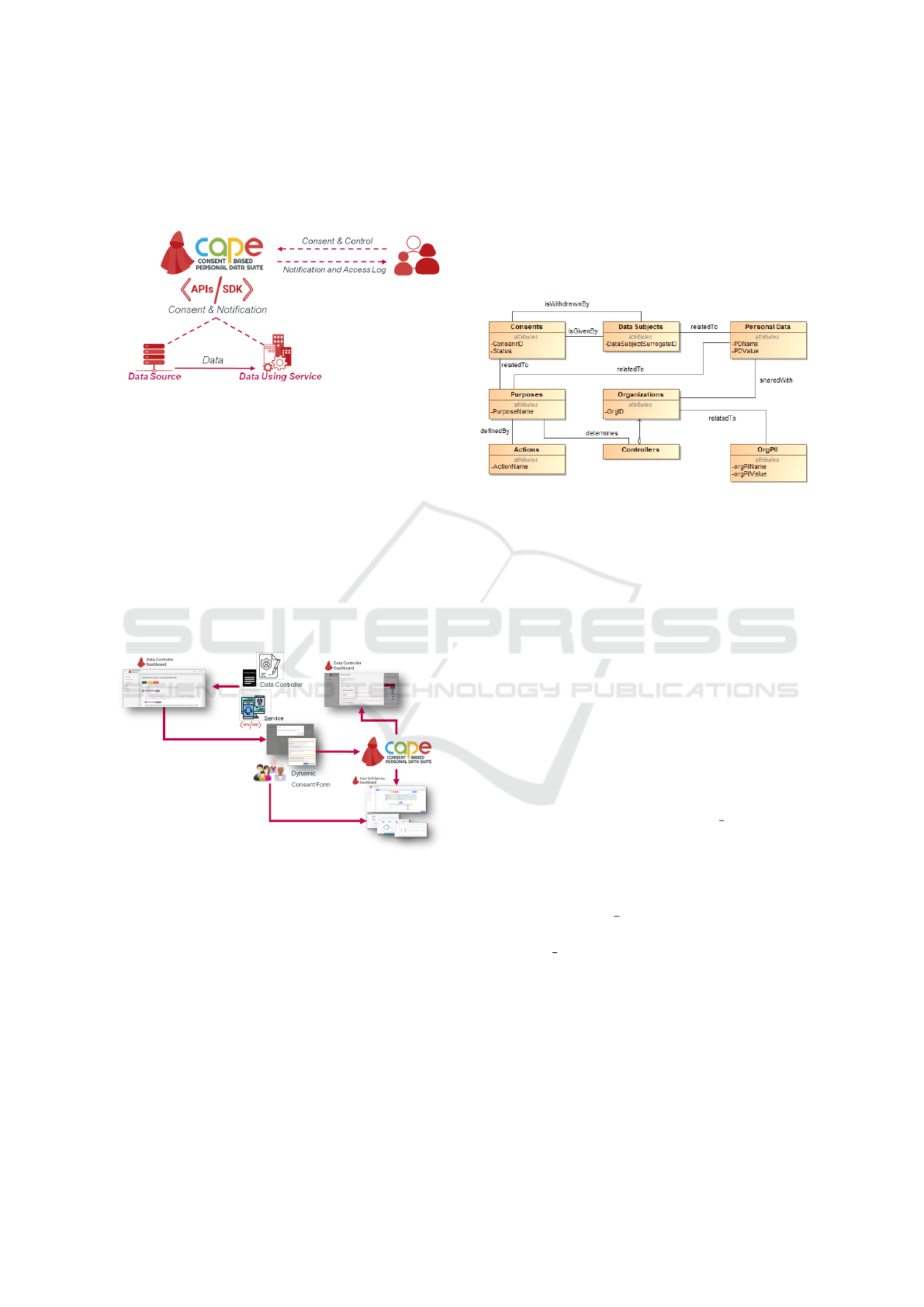

Figure 3: Overview of the CaPe Consent Manager.

Figure 3 shows an overview of the CaPe Consent

Manager. As in the ﬁgure, the CaPe acts as an in-

termediary for the communication between data sub-

jects and data controllers, supporting the generation

and management of dynamic consents.

As shown in Figure 4, the CaPe provides also two

speciﬁc dashboards (the Data Controller Dashboard

and the User Self-Service Dashboard) for let the over-

all management of the personal data management.

Additionally, through these interfaces, CaPe provides

speciﬁc features to grant and withdraw consent to

third parties for access to data about oneself.

Figure 4: How CaPe Works.

A general CaPe use is provided in Figure 4. In

the depicted scenario, through the Data Controller

Dashboard an organization can model the legal basis

for the processing of personal data: in a standardized

manner; in accordance with the relevant information

(i.e., purpose, processing, type of data and so on); and

in line with the related privacy policy. According to

the derived model, CaPe automatically generates the

consent form that can be shown to the data subject.

The two separated dashboards can let, on one side, the

Data Controller to view and manage all the consents

collected, on the other, the Data Subject, through the

User Self-Service Dashboard, to check which data is

used, how and for what purpose and to manage the

related consents.

Considering the application example mentioned at

the beginning of this section, for conﬁdential reasons

we we report in Figure 5 just an extract of the consent

model derived by CaPe. As in the ﬁgure, the Consent

is modeled as an entity having a unique ID identifying

it and a status (Active, Non-Active).

Figure 5: Extract of the CaPe Consent Model.

A Data Subject is identiﬁed by its ID, and it is re-

lated to a set of Personal Data, each represented by a

name/value pair. The Data Subject can give a Consent

for processing his/her for a speciﬁc Purpose deﬁned

by the Controller. Each Purpose has a name and it

is implemented by means a set of Actions. During the

given consent phase, the Data Subject can choose also

to share his/her Personal Data with one or more Orga-

nizations, so as the controller can eventually achieve

the deﬁned purposes. As deﬁned in Art. 7 of the

GDPR, Data Subject can withdraw at any time the

given consent. In the deﬁned model, this is modeled

as the withdrawnBy association between Data Sub-

jects and Consent entities reported in Figure 5.

In the current implementation, CaPe encodes the

instances of the deﬁned model as Json ﬁles, and it then

provides such a ﬁles to the GENERAL D Framework

for the aim of making the given consent directly en-

forceable by the Smart ICT Core System.

4.2 Access Control Manager:

GENERAL D Framework

GENERAL D Framework instantiates the Access

control Manager, and it is composed of four main

components (see Figure 6): User Stories Manager;

Json Manager; ACP Manager; and DBs Manager.

User Stories Manager. manages a Data Protection

Backlog that contains GDPR-based User Sto-

ries (Bartolini et al., 2019b). In the considered

implementation, these are speciﬁc ACP templates,

each associated with speciﬁc GDPR’s provision,

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

538

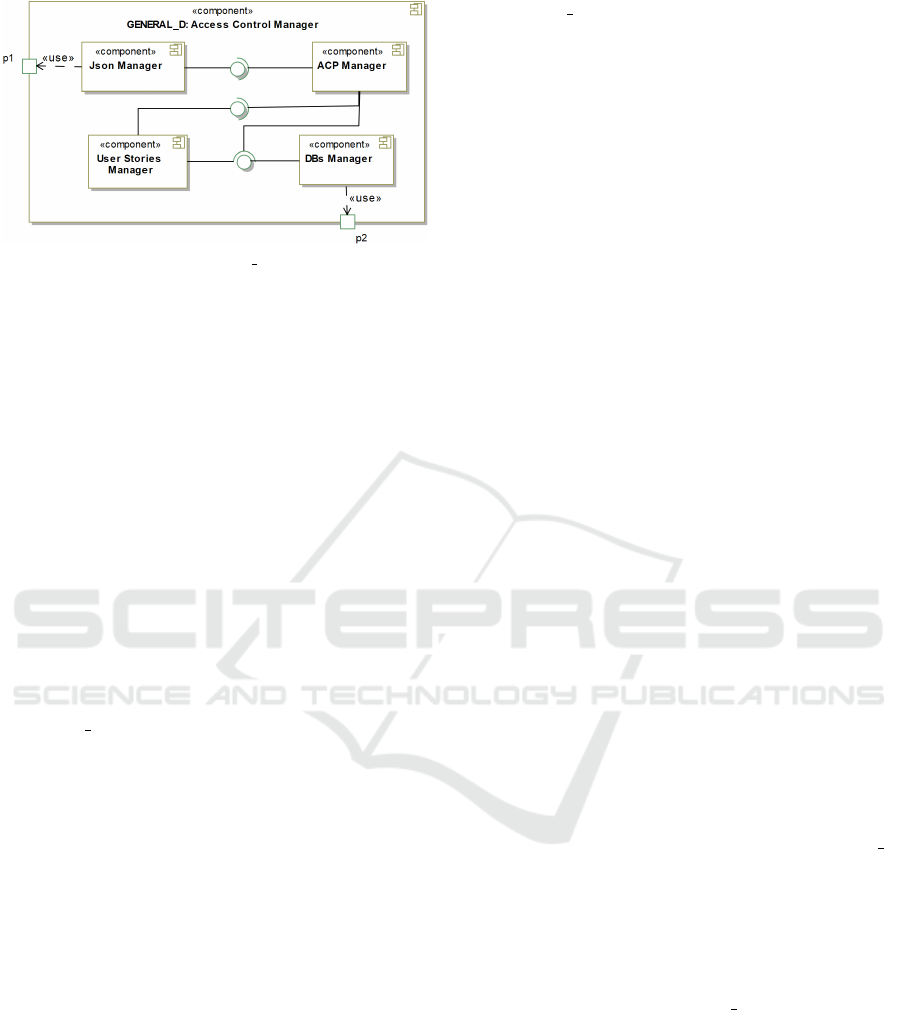

Figure 6: Overview of GENERAL D Access Control Man-

ager.

useful for automating the implementation of stan-

dardized access control policies in compliance

with the regulation. In our case, the here consid-

ered User Stories are templates structured as ab-

stract XACML policies, and they are stored in an

internal database (not shown in Figure 6).

Json Manager. has the responsibility to interact di-

rectly with CaPe described in the previous sec-

tion. It receives the consent in Json format, and it

parses that consent so as to extract the relevant in-

formation for the ACPs generation purpose. Such

information includes, among others, the Consent

ID and the Consent Usage Rules that contain the

deﬁned purposes of processing, the allowed op-

erations, and Personal Data provided by the Data

Subject.

ACP Manger. is the core component of GEN-

ERAL D framework. It has the responsibil-

ity of creating enforceable ACPs encoded in the

XACML language. It interacts with: 1) Json Man-

ager for retrieving the data to be processed (e.g.,

the Controller’s data, the deﬁned purposes, the list

of allowed third parties); 2) User Stories Manager

for receiving the ACPs templates to be ﬁlled with

those data. Therefore, ACP Manager combines

the received data for deriving XACML policies,

that it stores in the Access Control Policies repos-

itory.

DBs Manager. offers databases supporting function-

alities to the User Stories Manager and ACP

Manger (e.g., create/modify/delete database, and

insert/modify/delete speciﬁc entries in the avail-

able tables). In the considered implementation,

DBs Manager relies on the MySQL Data Base

Management System.

By referring to the Alice’s activities in the my-

Wellness’ application scenario presented at the be-

ginning of this section, and to CaPe’s consent model

shown in Figure 5, the algorithm implemented by

GENERAL D Framework, for deriving enforceable

XACML policies, is reported in Algorithm 1.

From the behavioral point of view, the algorithm

implements three scenarios:

1. Data Subject (Alice) gives his/her consent to Con-

troller (myWellness company). In this case the

XACML-based ACPs are generated from scratch

and loaded into the database. These policies will

be then made enforceable as soon as the Aclice’s

activities start, i.e., during the production phase.

2. Data Subject modiﬁes his/her consent, e.g., Al-

ice wants to modify her given consent so as to

allow the management only to two of the three

initially provided Personal Data. This involves

the withdraw of the previously given consent and

its substitution with a new one. In terms of the

access control policies, this means to modify the

related ACPs in DENY-ALL policies and create

new ACPs for the modiﬁed consent. This be-

havior is in line with the accountability princi-

ple, because it lets the controller to demonstrate

the compliance with the GDPR by showing the

history of both the consent and the related ACPs

modiﬁcations. Speciﬁcally, it refers to the trans-

parency principle (Art. 5.1(a) “lawfulness, fair-

ness and transparency”) and Art. 30 (“Records of

processing activities”).

3. Data Subject (Alice) withdraws the given consent:

i.e., prevent any access to Personal Data belong-

ing the Data Subject. In terms of access control,

this means to deny any access requests to those

data. Practically, this can be enforced by the ACP

Manager by setting the related ACPs to DENY-

ALL.

From a procedural point, as shown in Algorithm 1,

through the Json Manager component, GENERAL D

parses the Json ﬁle for retrieving the data of inter-

est, i.e., Personal Data, Purposes and the third par-

ties those data are shared with. Then, through the

joint collaboration of ACP Manager and User Stories

Manager, the ACPs templates can be instantiated for

generating XACML-based policies that are compli-

ant with the GDPR (GENERAL D Framework’s out-

comes).

In details, the Algorithm 1 (line 1) takes as in-

put the consent represented in Json format (CJF), and

it parses that ﬁle by obtaining its internal represen-

tation (CJFAsPOJO, line 4). Then, in case of active

consent (Algorithm 1, line 6), the algorithm veriﬁes

whether the processed consent is a modiﬁcation of

an already given one. In case of modiﬁcation, the

related ACPs derived so far are modiﬁed to DENY-

ALL policies (Algorithm 1, line 8). Consequently,

How to Improve the GDPR Compliance through Consent Management and Access Control

539

for each User Story and for each consent related to

a speciﬁc purpose, an XACML policy is generated

(Algorithm 1, line 11-16). In case of withdrawing

the content, the received Json input contains the sta-

tus non-Active (Algorithm 1, line 17), and in terms of

AC, this means that no one is able to access Personal

Data related Data Subject. This is reﬂected in deny-

ing all the incoming access requests, by triggering the

default DENY-ALL policies modiﬁed in Algorithm 1,

line 18.

Algorithm 1: GDPR-based ACP Derivation.

1: input: CJF  Consent as Json File

2: output: GAL  GDPR-based ACP List of XACML

policies

3: GAL ← {}

4: CJFAsPOJO ← parse(CJF)

5: cID ← CJFAsPOJO.getCID()

6: if CJFAsPOJO.isActive() then

7: if isAlreadyGiven(cID) then

8: DenyAllPolicies(cID)

9: end if

10: UST L ← loadUserStoriesTempaltes()

11: Foreach ust

∈ UST L do

12: Foreach c

∈ CJFAsPOJO do

13: ACP ← CreateACPS(ust

, c

, cID)

14: GAL.add(ACP)

15: end for

16: end for

17: else if !CJFAsPOJO.isActive() then

18: DenyAllPolicies(cID)

19: end if

20: return GAL

By referring to the previously presented Use Case

scenario, and by applying Algorithm 1, we illustrate

in Figure 7 one of the obtained ACPs in XACML-

like format. This policy rules access to the Personal

Data as deﬁned in Art. 6.1(a), i.e., when the process-

ing activity is lawful based on the consent given by the

Data Subject. As in the ﬁgure, the allowed subjects,

to access Alice’s Personal Data, are both myWellness

(Controller) and zzz-HealthOrg (Third Party). This is

expressed in the Target element of the XACML pol-

icy. As speciﬁed in the derived rule, the purpose of

processing (i.e., MyCholesterol purpose) is achieved

by allowing access to perform a speciﬁc set of Ac-

tions, i.e., AGGREGATE, COLLECT, DERIVE and

QUERY.

5 CONCLUSIONS

Smart ICT Systems are gaining a certain amount of

attention in the last years. They provide means for

developing Smart Services in different domains such

as Smart-Cities, Education, and Healthcare environ-

Policy . . . . . . . . . . . . . . . . . . . . . . PolicyId = alicePolicy

root element

rule-combining-algorithm:permit-

overrides

Target . . . . . . . . . . . . . . . . Lawfulness of Processing Sample Pol-

icy

Subject . . . . . . . . . . . Controller.orgName = myWellness

Subject . . . . . . . . . . . ThirdParty.orgName = zzz-HealthOrg

Rule . . . . . . . . . . . . . . . . . . . RuleId = readRule, Effect = Permit

Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Resource . . . . . Age

Resource . . . . . Gender

Resource . . . . . Blood Cholesterol

Action . . . . . . . Action.Purpose=MyCholesterol

Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

And . . . . . . . . . . . And Operator

string-one-and-only . . . . . . . . . . . . . . . . . . . . . . .

type-One-And-Only Function.

#Resource = 1

string-equal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

type-Equal Function.

Resource.owner = AliceID

string-is-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Action ∈ {AGGREGATE,

COLLECT, DERIVE, QUERY}

Rule . . . . . . . . . . . . . . . . . . . RuleId = defaultRule, Effect = Deny

default: deny all, which is not allowed

explicitly.

Figure 7: An XACML-like Policy authorizing Lawfulness

of processing of Personal Data based of the Consent Given

by the Data Subject (Art. 6.1(a)).

ments, to cite a few. However, with the entering into

the force of the EU data protection regulation, i.e.,

the GDPR, proposed solutions for Smart ICT Systems

lack appropriate supports to aid Controllers in devel-

oping Smart Services. More precisely, the proposed

solutions are not Privacy-By-Design conceived, i.e.,

the implemented services are not compliant with the

GDPR from the early stage of their design. To over-

come these difﬁculties, we have conceived a possi-

ble generic architecture that can be customized with

real artifacts to accomplish the GDPR compliance.

We have also provided a proof-of-concept consist-

ing of the integration of two new tools coming from

the industrial and academic sectors: CaPe and GEN-

ERAL D Framework. This integration has demon-

strated the applicability and ﬂexibility of our Privacy-

By-Design solution for Smart ICT Systems.

For future work, we are planning to validate our

approach by considering a Smart-Cities environment.

In particular, the integration will be validated in the

currently available and emerging Smart-Cities plat-

forms, such as the ones based on the market-ready

open-source software FIWARE platform.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

540

ACKNOWLEDGEMENTS

This work is partially supported by CyberSec4Europe

H2020 Grant Agreement No. 830929.

REFERENCES

Akerlund, A. and Große, C. (2020). Integration of data

envelopment analysis in business process models: A

novel approach to measure information security. In

ICISSP, pages 281–288.

Barsocchi, P., Calabr

o, A., Ferro, E., Gennaro, C.,

Marchetti, E., and Vairo, C. (2018). Boosting a low-

cost smart home environment with usage and access

control rules. Sensors, 18(6):1886.

Bartolini, C., Calabr

o, A., and Marchetti, E. (2019a). En-

hancing business process modelling with data protec-

tion compliance: An ontology-based proposal. In Pro-

ceedings of the 5th International Conference on Infor-

mation Systems Security and Privacy, ICISSP 2019,

Prague, Czech Republic, February 23-25, 2019.,

pages 421–428.

Bartolini, C., Daoudagh, S., Lenzini, G., and Marchetti, E.

(2019b). Gdpr-based user stories in the access con-

trol perspective. In Piattini, M., da Cunha, P. R.,

de Guzm

an, I. G. R., and P

erez-Castillo, R., editors,

Quality of Information and Communications Technol-

ogy - 12th International Conference, QUATIC 2019,

Ciudad Real, Spain, September 11-13, 2019, Proceed-

ings, volume 1010 of Communications in Computer

and Information Science, pages 3–17. Springer.

Bartolini, C., Daoudagh, S., Lenzini, G., and Marchetti, E.

(2019c). Towards a lawful authorized access: A pre-

liminary gdpr-based authorized access. In van Sin-

deren, M. and Maciaszek, L. A., editors, Proceed-

ings of the 14th International Conference on Software

Technologies, ICSOFT 2019, Prague, Czech Republic,

July 26-28, 2019, pages 331–338. SciTePress.

Calabr

o, A., Daoudagh, S., and Marchetti, E. (2019). Inte-

grating access control and business process for GDPR

compliance: A preliminary study. In Proceedings of

the Third Italian Conference on Cyber Security, Pisa,

Italy, February 13-15, 2019.

Calabr

o, A., Marchetti, E., Moroni, D., and Pieri, G. (2019).

A dynamic and scalable solution for improving daily

life safety. In Proceedings of the 2nd International

Conference on Applications of Intelligent Systems,

pages 1–6.

Carauta Ribeiro, R. and Dias Canedo, E. (2020). Using

mcda for selecting criteria of lgpd compliant personal

data security. In The 21st Annual International Con-

ference on Digital Government Research, dg.o ’20,

page 175–184, New York, NY, USA. Association for

Computing Machinery.

Dernaika, F., Cuppens-Boulahia, N., Cuppens, F., and Ray-

naud, O. (2020). Accountability in the A posteriori

access control: A requirement and a mechanism. In

Quality of Information and Communications Technol-

ogy - 13th International Conference, QUATIC 2020,

Faro, Portugal, September 9-11, 2020, Proceedings,

volume 1266 of Communications in Computer and In-

formation Science, pages 332–342. Springer.

European Union (2016). Regulation (EU) 2016/679 of the

European Parliament and of the Council of 27 April

2016 (General Data Protection Regulation). Ofﬁcial

Journal of the European Union, L119:1–88.

Greaves, B., Coetzee, M., and Leung, W. S. (2018). Access

control requirements for physical spaces protected by

virtual perimeters. In Furnell, S., Mouratidis, H., and

Pernul, G., editors, Trust, Privacy and Security in Dig-

ital Business, pages 182–197, Cham. Springer Inter-

national Publishing.

Haofeng, J. and Xiaorui, G. (2019). Wi-ﬁ secure access con-

trol system based on geo-fence. In 2019 IEEE Sym-

posium on Computers and Communications (ISCC),

pages 1–6.

Jensen, C. D., Geneser, K., and Willemoes-Wissing, I. C.

(2013). Sensor enhanced access control: Extend-

ing traditional access control models with context-

awareness. In Fern

andez-Gago, C., Martinelli, F.,

Pearson, S., and Agudo, I., editors, Trust Management

VII, pages 177–192, Berlin, Heidelberg. Springer

Berlin Heidelberg.

Krenn S. et al. (2020). Deliverable D3.2: Cross Sec-

toral Cybersecurity Building Blocks. https://

cybersec4europe.eu/wp-content/uploads/2020/06/D3.

2-Cross sectoral cybersecurity-building-blocks-v2.0.

pdf.

Neuh

uttler, J., Fischer, R., Ganz, W., and Urmetzer, F.

(2020). Perceived quality of artiﬁcial intelligence in

smart service systems: A structured approach. In

Shepperd, M., Brito e Abreu, F., Rodrigues da Silva,

A., and P

erez-Castillo, R., editors, Quality of Infor-

mation and Communications Technology, pages 3–16,

Cham. Springer International Publishing.

OASIS (2013). eXtensible Access Control Markup Lan-

guage (XACML) Version 3.0. http://docs.oasis-open.

org/xacml/3.0/xacml-3.0-core-spec-os-en.html.

Samir Labib, N., Liu, C., Esmaeilzadeh Dilmaghani,

S., Brust, M., Danoy, G., and Bouvry, P. (2018).

White paper: Data protection and privacy in smart

ict-scientiﬁc research and technical standardization.

Technical report, ILNAS.

Sforzin A. et al. (2020). Deliverable D3.11: Deﬁnition of

Privacy by Design and Privacy Preserving Enablers.

https://cybersec4europe.eu/publications/deliverables/.

Sokolovska, A. and Kocarev, L. (2018). Integrating tech-

nical and legal concepts of privacy. IEEE Access,

6:26543–26557.

How to Improve the GDPR Compliance through Consent Management and Access Control

541
