Characterization of Software Design and Collaborative Modeling in

Open Source Projects

Khandoker Rahad

, Omar Badreddin

and Sayed Mohsin Reza

Computer Science, University of Texas at El Paso, El Paso, Texas, U.S.A.

Keywords:

UML, UML Usages, Software Design, Software Quality, Software Maintenance, Mining Software

Repositories.

Abstract:

Software design is fundamental to developing high-quality, sustainable, maintainable software. Design lan-

guages, such as UML, have become the defacto standard in software design, but their inﬁltration in the main-

stream practices remains vague. Recent studies suggest signiﬁcant and increasing uptake in mainstream and

open source spheres. Mining repositories and the software modeling artifacts often underpin the ﬁndings of

these studies and focus on counting the instances of modeling artifacts as an indicator for adoption. This study

aims to characterize this uptake in greater depth by focusing on analyzing the instances of models in open

source projects. The goal is to uncover the proﬁles of developers who tend to create modeling artifacts, and

those developers who maintain them throughout the project life cycle and to uncover the timelines of model

creation and manipulation in reference to project evolution. This study sheds light on the nature of model-

based collaboration and interactions and characterizes the role of model-based artifacts well beyond mining

their presence in open source repositories. The study ﬁnds that, despite the nominal increase in the presence

of model-based artifacts, these artifacts are rarely maintained and are typically created by a small and unique

set of practitioners. Models are often created early in the project life cycle and do not play any signiﬁcant role

in the collaborative development activities of the subject projects. Life span of these model ﬁles is relatively

shorter than the code ﬁle life span. Unexpectedly, models tend to be more frequently updated and maintained

when the project has a relatively fewer number of models.

1 INTRODUCTION

Software systems and software-intensive systems

continue their exponential growth in size and com-

plexity. Such systems require enhanced levels of col-

laborations and collective comprehensibility and de-

signs (Podgorelec and Heri

cko, 2007). Continuous

software design and modeling throughout the project

life cycle are proven to enhance collaboration, main-

tainability, and the sustainability of these systems.

Recent research that investigates the practices of

software design and the adoption of several design

languages tend to suggest a consistent increase in the

adoption of design and modeling practices. These

studies tend to rely on two primary sources of data;

mining open source repositories and empirical inves-

tigations of the practitioners. Despite the advances

in software repository mining tools and techniques,

these studies tend to rely on nominal numbers of mod-

https://orcid.org/0000-0001-7481-8954

https://orcid.org/0000-0002-8851-4131

https://orcid.org/0000-0003-3379-6319

eling artifacts presence as an indicator for the level

of adoption of design practices. The focus on count-

ing the number of modeling artifacts in repositories

leaves much more uncovered, such as the proﬁles

of those engineers who create the models, when are

those models created, and how often are these models

are maintained.

The goal of this study is to focus on relatively

smaller instances of repositories, and investigate their

models in greater depth. The investigations focus on

uncovering the speciﬁcs of those models, their cre-

ators and maintainers, their lifespans in reference to

the project overall evolution, and the frequency with

which these models are updated in reference to other

repository artifacts.

In this study, we identify seventeen (17) soft-

ware repositories selected from an extensive and cus-

tomized query from GitHub. The query identiﬁes

most active repositories with signiﬁcant presence of

design artifacts. From these repositories, we extract

every software design artifact and collect extensive

contextual data sets that include, the proﬁle of engi-

254

Rahad, K., Badreddin, O. and Reza, S.

Characterization of Software Design and Collaborative Modeling in Open Source Projects.

DOI: 10.5220/0010266802540261

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 254-261

ISBN: 978-989-758-487-9

neers who created and maintained those models, the

timelines of model creations and maintenance, the

frequency of their updates in reference to other repos-

itory artifacts, among other.

2 RELATED WORK

Studies on software modeling uses are conducted by

surveys and questionnaires (Torchiano et al., 2013).

However, very few studies are focused on the usages

of models in open source (Ho-Quang et al., 2017).

Software modeling practices are investigated by a

few industries. Gorschek et al. focused on a sample

population, who are programmers, partially working

in the industry, and open source systems (Gorschek

et al., 2014). The results show that their sample de-

sign models are not used extensively. However, UML

models are used mainly for communication purposes.

Kobryn et al. reported that UML has been widely

accepted throughout the software industry (Kobryn,

2002).

Often, research would identify a speciﬁc project

or organization for in-depth analysis of the practices.

These studies often focus on one or a few cases for in-

vestigations. There are some works addressing small

numbers of case studies of modeling in open source

projects. Yatani et al. (Yatani et al., 2009) reported on

the model usage in Ubuntu development by interview-

ing 9 contributors. The authors found that models are

not actively used and updated.

In open source software development, code re-

mains the key development artifacts (Badreddin et al.,

2013). Researchers know very little about the use of

UML models in open source. However, some soft-

ware engineering researchers performed some efforts

to identify UML models and their usages. Nonethe-

less, the data set is very small and not up to date. Re-

MoDD (France et al., 2006) is a repository for UML

models, but their repository collection is not exten-

sive. Hebig et al. (Hebig et al., 2016) reported on

a study that investigates how UML models are used.

The results of the study suggest that UML models are

generally used at the beginning of the project start.

3 STUDY DESIGN

In this study, we investigate 17 repositories listed in

Table 1 that uses and practices UML modeling in

open source. The goal of the study is to understand

the uses of UML modeling in open source. We used a

tool ModelMine (Reza et al., 2020) to identify UML

model and their repositories. There are some repos-

itory selection criteria that we used to identify UML

models such as programming languages, number of

commits, number of contributors, and popularity in

GitHub. After Identifying models from these selected

repositories we analyzed the UML models. We iden-

tiﬁed the total commits in each repository. Commits

are analyzed to understand the updates that are made

on the UML ﬁles. The raw data is published in (Khan-

doker Rahad, 2020). This study answers the follow-

ing research questions.

RQ1. How Prevalent Are Model-based Artifacts in

Open Source Projects?

To answer this research question, we investigate the

UML based repository in open source. We use the

ModelMine tool that has a feature to retrieve repos-

itory from open source using different ﬁle extension

and number of commits and the project update date

and other criteria. This research question investi-

gates how often UML models are used in open source

repositories.

RQ2. How Are UML Models Maintained in Open

Source Projects?

To answer this research question, we investigate UML

model commits. Model commits are provided with

updates that are performed by the contributors. This

information also provides information on the model

updates in relation to the project update. This will

give us information on how frequently models are

used and get updated over time.

RQ3.What Are the Proﬁles of Those Engineers

Who Create, Share, and Maintain Model Arti-

facts?

To answer this research question, we obtained the

repository contributor’s information. We also collect

proﬁle information including the practitioners’ activ-

ities, contributions, and experiences in open source

projects. We identify the total number of model con-

tributors in each repository.

RQ4. What Is the Lifespan of Model-based Arti-

facts in Relation to the Project Lifecycle?

To investigate how UML models are maintained by

the repository contributors, we mine model and repos-

itory commits. We compare the total number of

model commits with the total number of repositories

commits.

3.1 Data Collection Methodology

This section presents the data collection of this study.

We use a mining tool to collect UML based repos-

itories from open source platforms. There are sev-

eral open source platforms that contain UML based

repository. GitHub is one of the popular open sources

Characterization of Software Design and Collaborative Modeling in Open Source Projects

255

Table 1: Repository Information.

Repo # Name Contributors Commits Language GitHub URL

1 contrib 7 209 Java https://github.com/europeana/contrib

2 SnakeInTheDark 6 416 Java https://github.com/MrStrings/SnakeInTheDark

3 nanoengineer 6 11688 Python https://github.com/kanzure/nanoengineer

4 luciddb 7 5107 Java https://github.com/LucidDB/luciddb

5 MobSens 7 776 Java https://github.com/Institute-Web-Science-and-Technologies/MobSens

6 lambda-alligatoren 6 1786 Java https://github.com/vincent23/lambda-alligatoren

7 mars city 21 1304 C++ https://github.com/mars-planet/mars city

8 arcemu 11 4307 C++ https://github.com/arcemu/arcemu

9 pse allocation 6 1418 Java https://github.com/EmilDohse/pse allocation

10 h5cpp 12 1317 C++ https://github.com/ess-dmsc/h5cpp

11 netty 11 2247 Java https://github.com/ChenLuigi/netty

12 hotel-california 6 433 Java https://github.com/verath/hotel-california

13 dataDictionary 8 1316 C++ https://github.com/openETCS/dataDictionary

14 TDA593-18 7 312 Java https://github.com/Jaxing/TDA593-18

15 model-driven-software-development 7 478 Java https://github.com/Centril/model-driven-software-development

16 FinalPortalURL 8 254 Java https://github.com/ahuitz/FinalPortalURL

17 moodles 9 222 Java https://github.com/hedmanw/moodles

repositories. However, there are deﬁciencies identi-

fying UML models in GitHub because GitHub min-

ing is a nontrivial task. Nonetheless, there are few

publicly available repositories that list UML projects.

However, this collection is relatively small and not up

to date. In this study, we use a model mining tool

named ModelMine (Reza et al., 2020) to retrieve the

up to date UML based repositories with recent meta-

data information. The following sections discuss the

mining repositories, identifying UML based reposito-

ries and data extraction of UML ﬁles.

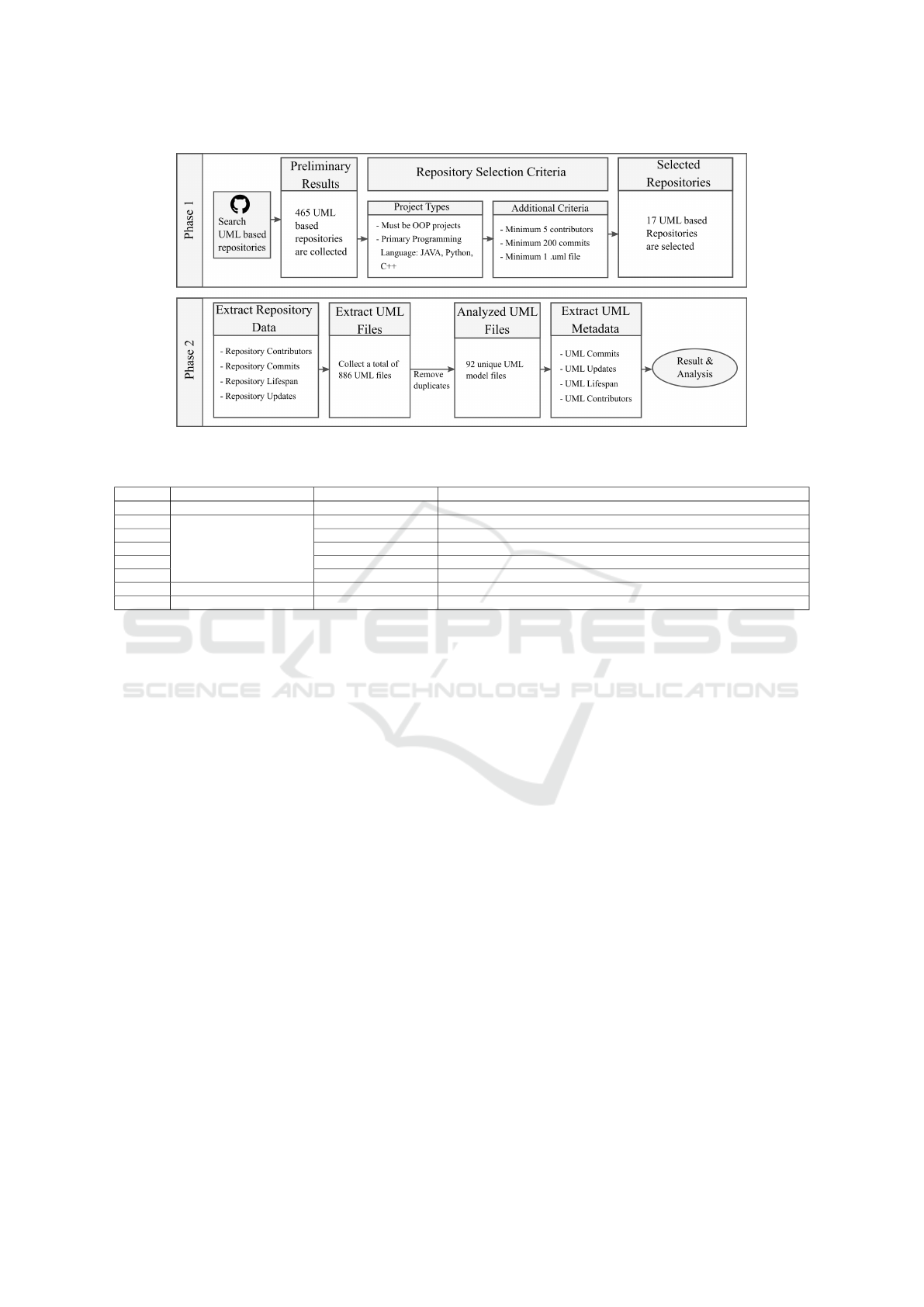

3.2 Mining Open Source Repositories

In this section, we present the UML based repository

collection methodology from open source GitHub. To

access the resources from GitHub, we use ModelMine

tool (Reza et al., 2020) which fetches models with ﬁl-

tered criteria. To identify model based repositories

that use UML, we identify 8 ﬁltered variables that

identify well maintained and popular model based

repositories listed in Table 2.

There are two types of artifacts (keywords and

qualiﬁers). This is because of the tool requirements

for search query construction. It requires at least one

search term as keywords to be included in addition to

that add qualiﬁers. This artifacts (keywords or qual-

iﬁers) allow us to limit our search to speciﬁc areas

of open source repositories. For example, minimum

200KB memory size is used to identify non-trivial

projects in Table 2.

We use a .uml ﬁle extension in the search and re-

trieve 465 UML based repositories. These reposito-

ries include a minimum of one UML model in the

repository. This is a large number of repositories to

analyze. We use a set of repository selection criteria

shown in ﬁg 1 to make the list short. The criteria are

as follows: minimum 200 commits, 5 contributors,

and primary programming languages of the reposi-

tory must belong to Python, Java or C++. Finally, we

remove duplicate repositories to identify 17 reposito-

ries that has a minimum of one UML modeling. This

exclusion criteria also ensure that we do not include

trivial model based repositories.

3.3 Identiﬁcation of Potential UML

based Repositories

After the mining process, we identify 17 UML based

repositories. Primarily, the .uml ﬁle extension is used

because they are defacto standard (Ozkaya and Erata,

2020). We select .uml ﬁle extension to retrieve UML

model ﬁles with their repository information. More-

over, all UML ﬁles are not actual UML ﬁles. There-

fore, we use a manual ﬁltering process to identify ac-

tual UML models to ensure expert opinion on the se-

lection.

This ﬁltering process has been applied after col-

lecting all the UML models. Identifying actual UML

models will be impossible if we do not classify UML

models at the beginning of repository selection.

3.4 UML Metadata Extraction

After identifying 17 repositories that used UML mod-

eling, we found a total number of 886 UML ﬁles.

After ﬁltering out the duplicate model ﬁles we col-

lected 92 unique model ﬁles. To understand the us-

ages of these model ﬁles we analyze the commits of

these model ﬁles. ModelMine tool is used to retrieve

the commits of those model ﬁles. The tool is able to

provide the commits, author information, ﬁle creation

date, modiﬁcation date, etc.

3.5 UML Model File Assessment

Criteria

We conduct analysis on UML model ﬁles. We com-

pare code ﬁle commits with the average number of

UML model ﬁle commits in respective repositories.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

256

Figure 1: Data Collection Flow.

Table 2: Variable Identifying Model Based Repository.

Number Type Variable Name Description

1 Keywords (Required) UML Context Identify repositories that matches given context.

Qualiﬁers (Optional)

Language Identify repositories with given language such as java.

3 Extension Identify repositories with given ﬁle extension.

4 Memory size Identify repository which have minimum 200 KB

5 Life Span Identify repositories that have minimum project life span

6 Popularity Identify repositories that have minimum number of stars as popularity index.

7 Commits Number of Commits Identify the total number of commits in a repository

8 Contributors Number of contributors Identify the total number of active contributors in a repository

Commits percentage and average commits are used to

visualize the comparison. Similarly, the life span of

model ﬁle is computed. Total number of model ﬁle

and model ﬁle updates is counted for all seventeen

repositories. Additionally, we assumed software de-

velopment is performed in three development phases

(First phase, Second phase, Third phase). This as-

sumption is made to understand when models are cre-

ated and whether they are maintained after creation.

These three phases are identiﬁed by dividing the en-

tire project life into three parts equally.

4 RESULTS

This section presents the results of this study such as

how often models are used in open source, who cre-

ate, contribute, and manage those models. Moreover,

we presented the total number of model ﬁle contribu-

tors compared to code ﬁle contributors. This section

presents how those models are updated by the contrib-

utors and whether maintained in a timely manner. Fi-

nally, we presented the timeline of model ﬁle creation

in reference to the project timeline and time span of

model updates in the software life cycle.

4.1 How Models Are Used in Open

Source

For the analysis, we downloaded 465 non-forked

GitHub repositories with ModelMine tool (Reza et al.,

2020). After ﬁltering out the data for potential UML

ﬁles, we retrieved a list of 17 repositories and their

GitHub link. 886 ﬁles were classiﬁed as UML model

ﬁles in 17 repositories, this includes duplicate mod-

els. To ﬁlter out unique models ﬁles, we performed

the extraction of model related data which are unique.

Unique model ﬁles are identiﬁed after the data collec-

tion. This ﬁlter resulted in 92 unique UML ﬁles.

We obtained the dataset from GitHub between Jan

2012 to August/September 2019. All the commits and

repository information lies between this time frame.

The reason for selecting this time span is due to the

fact that our retrieval procedure takes so much time

that context changes. Therefore, for instance, in the

time that goes from the retrieval of information of the

ﬁles that are included in a project (August/ 2019) to

the time where the git repositories were downloaded

(November/December 2019), some of them were re-

named, deleted or made private.

In consequence, 92 unique model ﬁles are used for

analysis. These ﬁles belong to 17 GitHub projects.

Of these 3, include a single UML ﬁle, only and 14

Characterization of Software Design and Collaborative Modeling in Open Source Projects

257

projects include between 2 and 9 UML ﬁles. We per-

form our analysis in 92 unique model ﬁles and their

repositories.

4.2 How Models Are Updated and

Maintained

This research question answers whether models get

updated and if so, how often models get updated. We

computed the model commit in reference to project

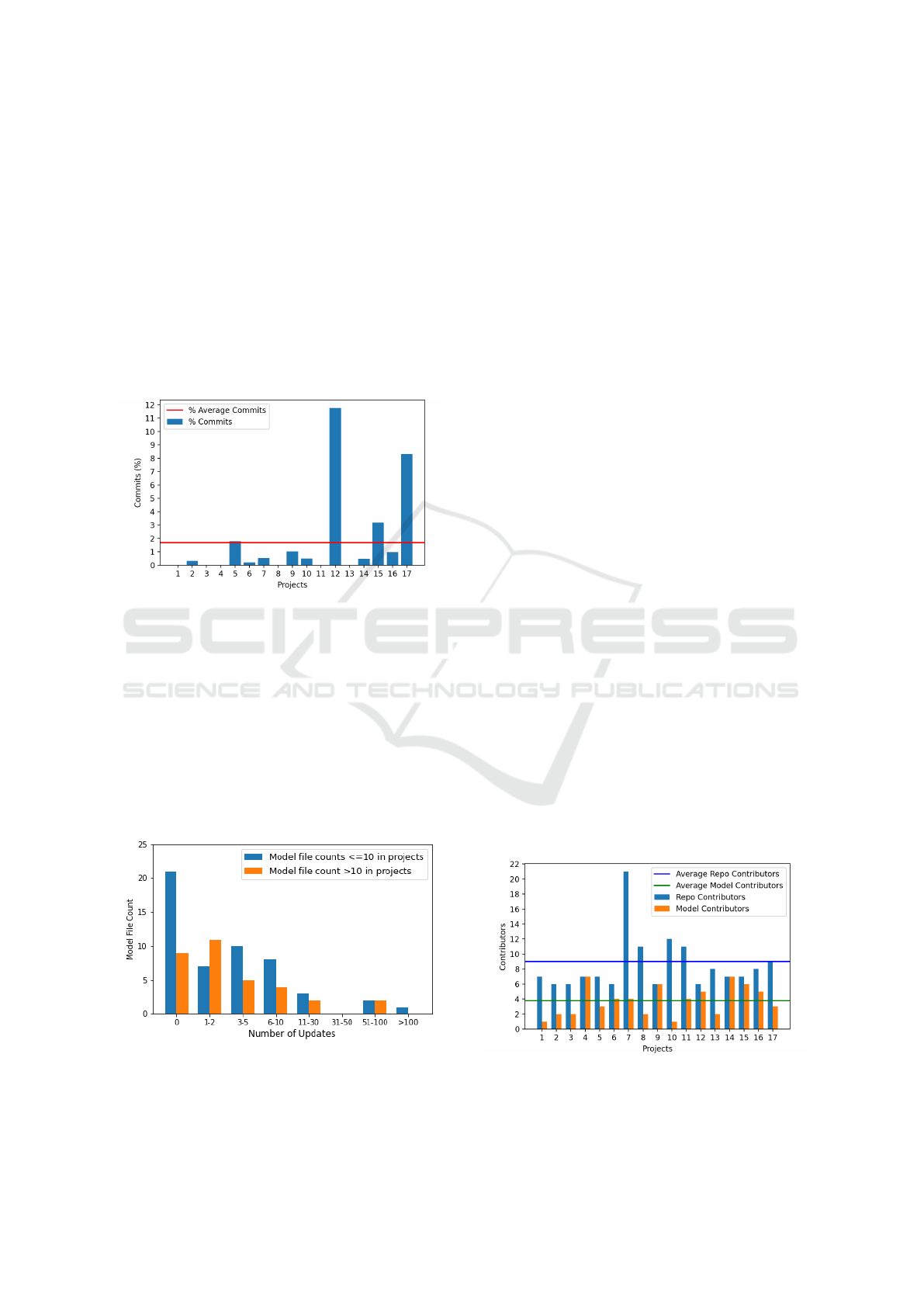

commits in ﬁg 2. For example, in repository 17, 8.5%

model commits is performed compared to repository

commits.

Figure 2: UML Model Commits.

Additionally, we computed the total number of

model ﬁle updates for those repositories that have

equal or less than 10 model ﬁles and those have more

than 10 model ﬁle in ﬁg 3. In ﬁg 3, the total number

of model ﬁle updates are grouped in eight categories

where X-axis and Y-axis presents the total number

of model ﬁle. Our results indicate that many model

ﬁles never get updated (ﬁg. 3). The results show

that projects with less than 10 model ﬁles are fre-

quently updated than projects containing greater than

10 model ﬁles. This result is reﬂected in Fig 3.

Figure 3: Model File Distribution Per Update.

Fig 2 depicts all that the repositories have lower

number of average model commits than the projects

ﬁle commits. This explores the phenomenon that

models are less updated and maintained than code

ﬁles. The highest percentage of model commits per-

formed in repository number 12 which is approxi-

mately 12%. However, repository 1,3,4,8,11 have ap-

proximately 0% of model commits compare to repos-

itory commit.

4.3 Who Creates, Contributes, and

Manages Models

This research question investigates model contribu-

tor’s proﬁling information and the total number of

model contributor in relation to repository contrib-

utor. Table 3 presents model contributors proﬁling

data in GitHub (Only publicly available data have

been collected). This reveals the model contributor’s

software development experience in GitHub. This

also includes the total number of contributed repos-

itories in GitHub and the total number of contribu-

tions in GitHub. Table 3 data shows that a large num-

ber of model contributors are experienced and have a

minimum number of contributions in GitHub except

for model contributor number 5,6,7 in repository Lu-

cidDb (Repo # 4) which is shown in bold. These three

model contributors have less than one year of soft-

ware development experience and additionally, their

total number of contributions in GitHub is one.

Results also show that very few contributors con-

tribute to the models in ﬁg 4. Fig 4 depicts that the

number of model contributors is always lower than

repository contributors. We measured the average

number of contributors and found that the average

number of model contributors is lower than the repos-

itory contributors. For instance, the average num-

ber of repository contributor is 9 whereas the average

number of model contributors is 4. The average con-

tributor number is measured by simply adding all the

contributors and divided by the total project count.

Figure 4: Number of Model and Repository Contributors.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

258

Table 3: Model Contributor’s Proﬁling Information.

Repo # Repo Name Model Contributor Number of Contributed Repos Years of Experience in Github Total Number of Contributions

1 Contrib #1 12 10 1352

#1 9 6 533

2 ShakeInTheDark

#2 4 6 75

#1 1 10 2

3 nanoengineer

#2 11 10 169

#1 17 9 2127

#2 15 12 1627

#3 1 8 2

#4 37 11 1051

#5 1 0 1

#6 1 0 1

4 LucidDb

#7 1 0 1

#1 6 7 125

5 Mobens

#2 28 7 1557

#1 19 9 692

6 lambda-alligatoren

#2 20 8 1434

#1 26 8 583

7 mars city

#2 68 6 1075

#1 20 11 4498

8 arcemu

#2 6 12 1254

#1 14 7 424

#2 4 4 2099 pse allocation

#3 2 4 233

#1 5 8 4218

10 h5cpp

#2 13 7 5605

11 netty #1 39 15 11031

#1 10 7 868

#2 41 11 3118

#3 8 8 370

#4 6 7 238

12 hotel-california

#5 7 8 365

13 dataDictionary #1 4 8 496

#1 23 6 648

#2 30 6 1605

#3 37 6 2431

14 TDA593-18

#4 4 6 309

#1 7 7 1091

#2 4 9 562

#3 13 7 5182

#4 2 7 88

#5 2 7 289

15 model-driven-software-development

#6 119 9 13886

#1 15 5 394

#2 8 6 17116 FinalPortalURL

#3 6 5 842

#1 12 7 688

#2 32 7 246917 moodles

#3 35 7 4564

4.4 When Models Are Created and

Updated in Software Life Cycle

The last research question investigates model life cy-

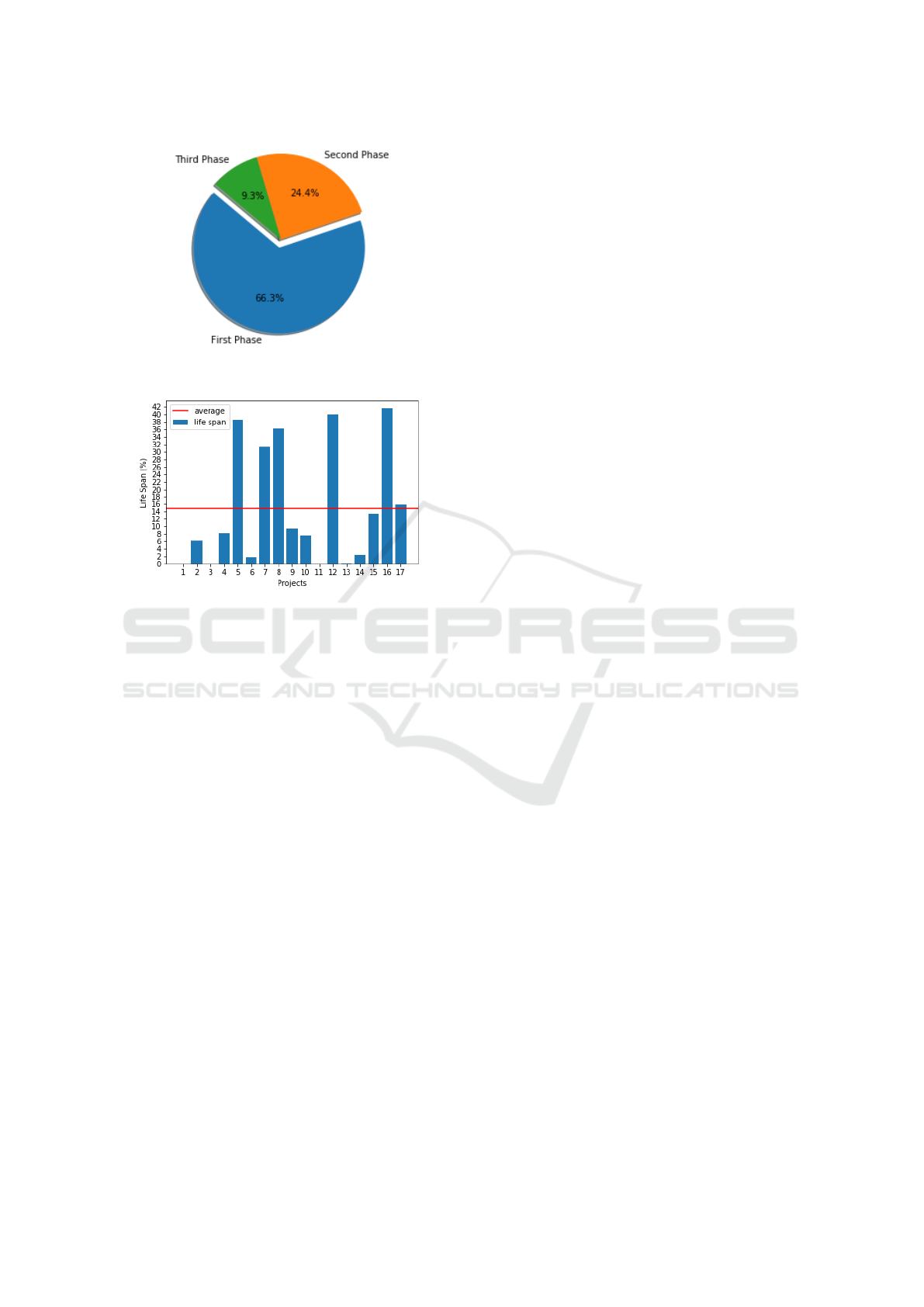

cle in relation to the project life cycle. Fig 5 shows

that 66.3% of models are created and get updated in

the ﬁrst phase of software development. Only, 24.4%

model ﬁles are created and get updated in the second

phase of the development and 9.3% in the third phase.

This reveals an interesting ﬁnding that models are in-

troduced at the beginning of the development whereas

at the end very few models are introduced.

Fig 6 shows the life span of the model ﬁle in re-

lation to the project life span. We measured the life

span (model and project) by simply identifying the

ﬁrst creation date and last update date. Results in ﬁg

6 reveal that the average model life span compares to

the project life span is only approximately 15%.

5 ANALYSIS

Considering our initial expectation we found a small

number of model ﬁles in open source. 17 selected

repositories contained 886 models. After the ﬁltering

process, we identiﬁed 92 unique model ﬁles which

is a small number of models compared to code ﬁles.

In the following, some interpretations are presented

from this study.

5.1 Models Maintenance

The interpretation is that models are introduced very

early in the development and rarely maintained by

the developers. Several studies support this claim

such as Hebig et al. found that creating/updating of

UML happens most often during a very short phase at

the project start (Hebig et al., 2016). Moreover, Ho-

Quang et al. reported that modeled designs are only

partially followed during implementation (Ho-Quang

Characterization of Software Design and Collaborative Modeling in Open Source Projects

259

Figure 5: Distribution of model ﬁles when ﬁrst introduced

in project life cycle.

Figure 6: Life Span of UML Models.

et al., 2017). Models are just used in designing or

visualizing the system, which could be one of the rea-

sons behind this. Another interpretation is that main-

taining models is an extra work that developers are

not willing to perform because of time constraint.

Fig 3 shows different model ﬁle distributions per

edit. This explores that projects with fewer model

ﬁles are updated frequently than projects with a

higher number of model ﬁles. The reason behind this

could be there is no systematic way to maintain model

ﬁles such as if any changes needed to make model

ﬁles require to regenerate the model ﬁle.

However, introducing models is a positive aspects

on the usages of modeling in open source. This could

be a starting point of the use of models in open source.

5.2 Model Contributors

Results show that model contributors are a subset of

repository contributors. It is also evident that very few

contributors take part in modeling compare to code

ﬁle contribution. The interpretation behind this is

contributors who are experienced with modeling are

able to contribute to model creation and updates. Ta-

ble 3 data veriﬁes this claim. However, Gorschek et

al. found a different result that modeling is mostly

done by the novice programmers rather than experi-

enced software engineer (Gorschek et al., 2014).

5.3 Model Life Cycle

Model life cycle refers to the time between model cre-

ation and end. In the analysis, it is found that models

are created a very early stage of developments and get

maintained after that for a short period of time (Fig.

5). However, at the end of development, there is very

little updates evident in the model ﬁles. The interpre-

tation is that models are only used for system design-

ing purpose and become obsolete over time. Other

possibilities, such as the fact that the models could

also be used for code generation, and the code sim-

ply do not need to be further adapted. Supporting this

claim Osman et al. reported that the frequency of up-

dating UML models is low (Osman and Chaudron,

2013). Authors found two triggers for updating UML

diagrams: 1) if there are changes in the features of

the system, and 2) if there is a group of newcomers

joining the project.

5.4 Reasons of Model Usages

One of the threats that are remained in this study is

that we do not know the source of the actual usages of

these UML modeling. Additionally, we do not have

sufﬁcient evidence on whether these models are in-

troduced because of designing purpose or introduced

to contribute to the actual development. We plan to

further investigate these phenomena in our future re-

search.

6 THREATS TO VALIDITY

There are internal and external threats to validity in

this study. Internal threats refer to risks within the

study whereas external threats refer threats outside of

the study design.

External Threats. We do not claim that the set of

repositories presented in this paper include all UML

based repository in open source. Though this study

is worth to investigate because the results provide in-

sightful information on UML uses in open source.

There is another bias in this study that is whether

identiﬁed UML models are actual UML models. To

mitigate this risk we manually checked the identiﬁed

UML ﬁles that really contain any UML modeling.

The study is conducted within the context of

GitHub, but not other open source platforms such as

BitBucket, SourceForge. Therefore, the results of this

study can not be generalized to the other platforms.

It is possible that UML is used in a different ration

within projects at other platforms. However, GitHub

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

260

is one of the popular and most used open source plat-

form (Noten et al., 2017), hence the contribution of

this research is useful for fellow researchers in this

ﬁeld.

Internal Threats. Internal risks of this study is that

considering UML ﬁles as the only UML model based

repository. We used UML ﬁles since they are defacto

standard (Ozkaya and Erata, 2020). There are many

other ﬁle formats are available that also present UML

modeling.

Risks exist in proﬁling information for the soft-

ware engineers who participate in software modeling.

It could be the case that the targeted software engi-

neers do not perform modeling frequently and this is

the reason, we ﬁnd fewer updates on models.

Another risk is that the identiﬁed UML models are

created only for teaching or academic purpose for a

short period time. And these models are not repre-

sentative for the models in open source projects. To

mitigate this risk we manually checked the reposito-

ries and conﬁrmed that the selected repositories are

non trivial.

7 CONCLUSION

In this paper, we investigate a sub set of projects that

has UML modeling and the usages of model ﬁles in

the open source. Model ﬁle commits provide use-

ful information on the updates and maintenance of

the UML models. Additionally, this study investigate

how often contributors update model ﬁles. Study re-

sults show that the models are created and maintained

by experienced software engineers.

Further, this study reveals that often UML model

ﬁles are created at the very ﬁrst phase of software

development. Modiﬁcation or updates are made on

the ﬁles mostly at the beginning and in the middle

of software development phase. Study results show

that the model life span is shorter compared to project

life span. Often, repositories with fewer model ﬁles

get updated frequently than repositories with higher

number of model ﬁles.

This study investigate 17 repositories which are

a small data set representing open source projects. In

the future, we have a plan to include more repositories

in our data set which will be a broad representation of

models usages in the open source.

REFERENCES

Badreddin, O., Lethbridge, T. C., and Elassar, M. (2013).

Modeling practices in open source software. In IFIP

International Conference on Open Source Systems,

pages 127–139. Springer.

France, R., Bieman, J., and Cheng, B. H. (2006). Repos-

itory for model driven development (remodd). In In-

ternational Conference on Model Driven Engineering

Languages and Systems, pages 311–317. Springer.

Gorschek, T., Tempero, E., and Angelis, L. (2014). On the

use of software design models in software develop-

ment practice: An empirical investigation. Journal of

Systems and Software, 95:176–193.

Hebig, R., Quang, T. H., Chaudron, M. R., Robles, G., and

Fernandez, M. A. (2016). The quest for open source

projects that use uml: mining github. In Proceedings

of the ACM/IEEE 19th International Conference on

Model Driven Engineering Languages and Systems,

pages 173–183.

Ho-Quang, T., Hebig, R., Robles, G., Chaudron, M. R., and

Fernandez, M. A. (2017). Practices and perceptions of

uml use in open source projects. In 2017 IEEE/ACM

39th International Conference on Software Engineer-

ing: Software Engineering in Practice Track (ICSE-

SEIP), pages 203–212. IEEE.

Khandoker Rahad (2020). Raw data: Characterization of

software design and collaborative modeling in open

source projects,.

Kobryn, C. (2002). Will uml 2.0 be agile or awkward?

Communications of the ACM, 45(1):107–110.

Noten, J., Mengerink, J. G., and Serebrenik, A. (2017).

A data set of ocl expressions on github. In 2017

IEEE/ACM 14th International Conference on Mining

Software Repositories (MSR), pages 531–534. IEEE.

Osman, M. H. and Chaudron, M. R. (2013). Uml usage in

open source software development: A ﬁeld study. In

EESSMOD@ MoDELS, pages 23–32.

Ozkaya, M. and Erata, F. (2020). A survey on the prac-

tical use of uml for different software architecture

viewpoints. Information and Software Technology,

121:106275.

Podgorelec, V. and Heri

cko, M. (2007). Estimating soft-

ware complexity from uml models. ACM SIGSOFT

Software Engineering Notes, 32(2):1–5.

Reza, S. M., Badreddin, O., and Rahad, K. (2020). Mod-

elmine: A tool to facilitate mining models from open

source repositories. In 2020 ACM/IEEE 23rd Interna-

tional Conference on Model Driven Engineering Lan-

guages and Systems (MODELS). ACM.

Torchiano, M., Tomassetti, F., Ricca, F., Tiso, A., and Reg-

gio, G. (2013). Relevance, beneﬁts, and problems of

software modelling and model driven techniques—a

survey in the italian industry. Journal of Systems and

Software, 86(8):2110–2126.

Yatani, K., Chung, E., Jensen, C., and Truong, K. N. (2009).

Understanding how and why open source contributors

use diagrams in the development of ubuntu. In Pro-

ceedings of the SIGCHI Conference on Human Fac-

tors in Computing Systems, pages 995–1004.

Characterization of Software Design and Collaborative Modeling in Open Source Projects

261
