Towards Verifying a Blocks World for Teams GOAL Agent

Alexander Birch Jensen

DTU Compute, Department of Applied Mathematics and Computer Science, Technical University of Denmark,

Richard Petersens Plads, Building 324, DK-2800 Kongens Lyngby, Denmark

Keywords:

Agent Programming, Formal Veriﬁcation, Agent Logic, GOAL.

Abstract:

We continue to see an increase in applications based on multi-agent system technology. As the technology

becomes more widespread, so does the requirement for agent systems to operate reliably. In this paper, we

expand on the approach of using an agents logic to prove properties of agents. Our work describes a transfor-

mation from GOAL program code to an agent logic. We apply it to a Blocks World for Teams agent and prove

a correctness property. Finally, we sketch future challenges of extending the framework.

1 INTRODUCTION

It is of key importance to provide assurance of the

reliability of multi-agent systems (Dix et al., 2019).

However, demonstrating the reliability of such sys-

tems remains a challenge due to their often complex

behavior, usually exceeding the complexity of proce-

dural programs (Winikoff and Craneﬁeld, 2014).

Popular approaches to programming agents have

been inspired by the agent-oriented programming

paradigm (Shoham, 1993). Examples include JADE

for the Java-platform and GOAL that is inspired by

logic programming (Bellifemine et al., 2001; Hin-

driks et al., 2001). A notable difference between the

two is that GOAL implements a BDI model (Rao and

Georgeff, 1991) whereas JADE is a middleware that

facilitates development of multi-agent systems under

the FIPA standard (Poslad, 2007). In this paper, we

will focus our efforts towards the GOAL agent pro-

gramming language as its compact formal semantics

gives a solid foundation for the development of veri-

ﬁcation mechanisms.

An approach to verifying agents GOAL is pro-

posed in (de Boer et al., 2007) using a veriﬁcation

framework. The framework is a complete program-

ming theory for GOAL — it gives the semantics of

the GOAL language and a temporal logic proof theory

for proving properties of agents. We extend this ap-

proach by describing a transformation from program

code to the agent logic.

We apply the veriﬁcation framework to an in-

stance of a Blocks World for Teams (BW4T) prob-

https://orcid.org/0000-0002-7298-2133

lem (Johnson et al., 2009). We start from program

code and transform it to an agent logic from which

we prove its correctness.

The paper is structured as follows. Section 2 re-

lates to existing work in the literature. Section 3 in-

troduces GOAL and the BW4T environment. Sec-

tion 4 describes a proof theory for GOAL. Section 5

presents a transformation method from GOAL pro-

grams to agent logic. Section 6 describes how to ver-

ify agents in the agent logic. Finally, Section 7 gives

concluding remarks.

2 RELATED WORK

The work in this paper relates to our work on formal-

izing GOAL and the veriﬁcation framework in a proof

assistant (Jensen, 2021). Unlike this paper, it does

not consider the practical aspects of programming the

agents and transforming program code to an agent

logic. Instead, the paper explores the use of a proof

assistant as a tool for veriﬁcation of agents based on

an agent logic. In (Jensen et al., 2021), we consider

how a theorem proving approach can contribute to

demonstrating reliability for cognitive agent-oriented

programming.

The veriﬁcation framework notation and theory

have some resemblance to Misra’s UNITY (Misra,

1994), in particular the ensures operator. How-

ever, a notable difference is that we are working to-

wards verifying a cognitive agent language whereas

UNITY is for veriﬁcation of general parallel pro-

grams. The UNITY framework has been mecha-

Jensen, A.

Towards Verifying a Blocks World for Teams GOAL Agent.

DOI: 10.5220/0010268303370344

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 337-344

ISBN: 978-989-758-484-8

337

nized in the higher-order logic theorem prover Is-

abelle/HOL (Nipkow et al., 2002; Paulson, 2000).

In (Alechina et al., 2010) theorem-proving tech-

niques are applied to verify correctness properties of

simpleAPL agents (simpleAPL is a simpliﬁed ver-

sion of 3APL (Hindriks et al., 1999)). In this work

agents execute actions based on plans and planning

rules whereas GOAL agents decide their next action

in each state based on decision rules.

A different approach to verifying agent system is

through model-checking where one attempts to ver-

ify desired properties over possible states of the sys-

tem. A propositional logic variant of the veriﬁca-

tion framework, as we are considering here, is in

many ways similar to model-checking: we explore

and prove formulas about the possible states of the

agent program. However, once we start to consider

possible ways to generalize the theory to higher-order

logics, we could see some advantages over ﬁnite-

state models; although this remains speculative and

it is not yet clear how this can be achieved. (Den-

nis and Fisher, 2009) has worked towards techniques

for analyzing implemented multi-agent system plat-

forms based on BDI. With a starting point in model-

checking techniques for AgentSpeak (Bordini et al.,

2006), these are extended to other languages includ-

ing GOAL. From a recent review of logic-based ap-

proaches for multi-agent systems by (Calegari et al.,

2020), it is clear that model-checking has retained its

position as the primary tool for practical veriﬁcation

of multi-agent systems.

3 BACKGROUND

This section brieﬂy introduces the GOAL program-

ming language and the BW4T environment.

3.1 GOAL Programming Language

Below we give a brief introduction to the GOAL pro-

gramming language; for further details we direct the

reader to (Hindriks, 2009; de Boer et al., 2007).

A multi-agent system (MAS) in GOAL is speci-

ﬁed by a conﬁguration ﬁle (*.mas2g). It speciﬁes the

environment to connect to, if any; and which agents

to start and when. The agent speciﬁcation may state

a number of modules (*.mod2g) to be used by the

agent. An initialization module may be used to set up

the initial beliefs and goals of the agent. The belief

and goal base constitutes the agent’s mental state. An

event module may be used to update the agent’s men-

tal state, usually also based on environment percep-

tion. Lastly, a main module speciﬁes decision rules

for action selection by a number of rules of the form

if condition then action. The condition is

over the mental state of the agent where bel(query)

performs a Prolog-like query on the belief base. Like-

wise, goal(query) queries the goal base. The avail-

able actions with the pre- and postconditions are spec-

iﬁed in an action speciﬁcation (*.act2g); usually the

available actions are made available by the environ-

ment, but internal actions may be deﬁned. Each mod-

ule may specify knowledge bases, most commonly

Prolog ﬁles (*.pl), that specify available belief predi-

cates and usually also auxiliary functions.

We now turn to the semantics of the language. A

rule is applicable if its condition holds and is then said

to be enabled; its precondition should also be met as

deﬁned in the action speciﬁcation. The default behav-

ior is to select the ﬁrst applicable rule. The execution

is performed in cycles as follows:

1. Process any new events.

2. Select an action based on the decision rules.

3. Perform the selected action.

4. Update state based on pre- and postconditions.

As such, (1) is associated with the event module and

processing of received messages from the environ-

ment, (2) with the main module; (3) sends a request

to the environment and (4) updates the agent’s mental

state based on the action speciﬁcation. GOAL applies

the blind commitment strategy in which a goal is only

dropped when it has been completely achieved (Rao

and Georgeff, 1993).

3.2 The BW4T Environment

In the BW4T environment, the goal is to collect

blocks located in different rooms in a particular se-

quence of colors. Pathﬁnding between rooms is han-

dled by the environment server. For now, we restrict

ourselves to a single-agent instance. Table 1 shows

the relevant subset of the available percepts and ac-

tions of the BW4T environment.

Following the Russell & Norvig categorization

of environments (Russell and Norvig, 2020), BW4T

can for our conﬁguration be categorized as a single-

agent, partially observable, deterministic environ-

ment. This categorization plays an essential part in

enabling modelling of the environment in the veriﬁ-

cation framework. We will assume the environment

to be fully observable which in turn is ensured by run-

ning on a predeﬁned map.

We have designed a simple, deterministic custom

map that will be our example instance. Figure 1

shows the initial state of the example map where the

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

338

Table 1: Relevant percepts and actions for our agent in the BW4T environment.

Percepts

in(RoomId) The agent is in the room <RoomId>.

atBlock(BlockId) The agent is at the block <BlockId>.

holding(BlockId) The agent is holding the block <BlockId>.

Actions

goTo(RoomId) The agent moves to the room <RoomId>.

goToBlock(BlockId) The agent moves to the block <BlockId> in

the current room.

pickUp(BlockId) The agent picks up the block <BlockId>.

putDown The agent puts down the block it is carrying.

goal is to collect a single red block (indicated in the

bottom left corner).

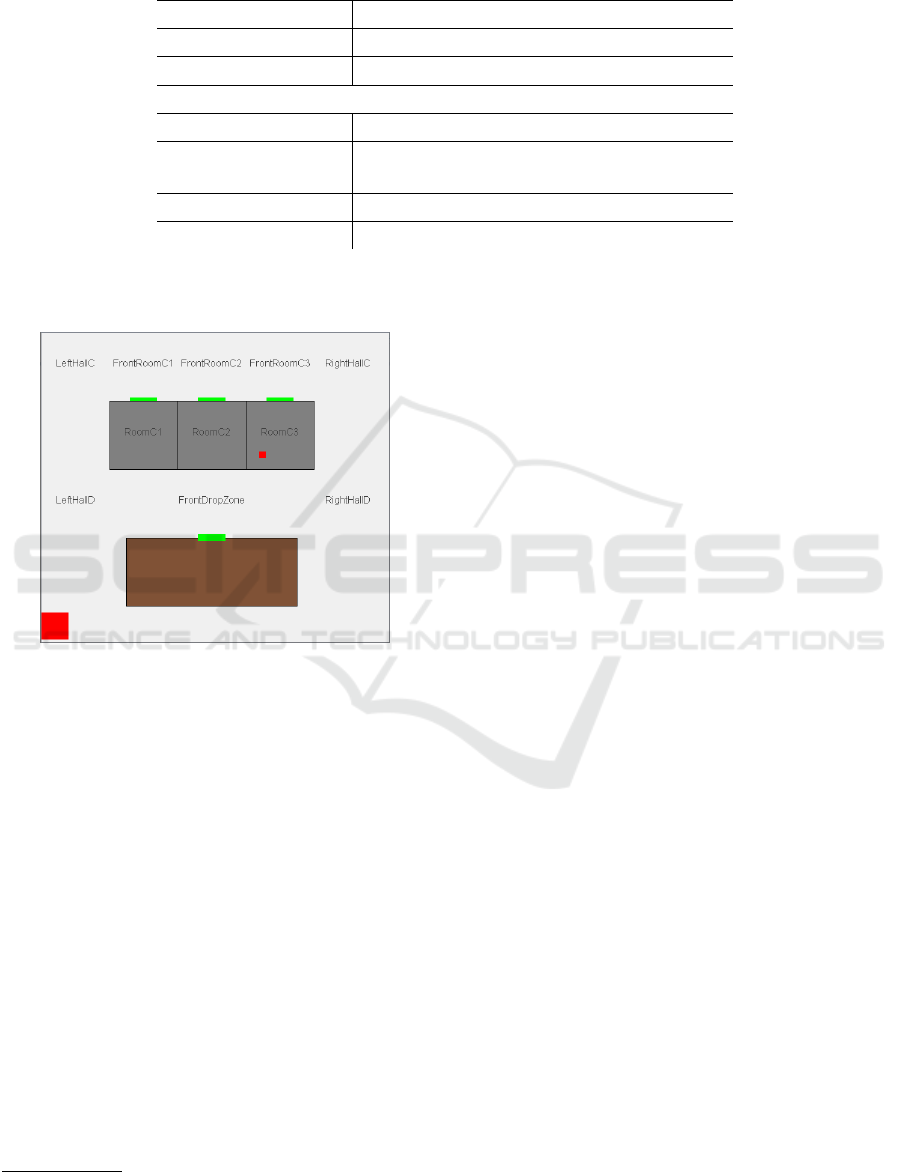

Figure 1: The example map in the initial state.

3.3 Distributed Files

This section describes important details about the im-

plementation of the BW4T agent in GOAL.

The source code is publicly available online:

https://people.compute.dtu.dk/aleje/public/

To run the program, the BW4T map ﬁle should

be copied to the maps subfolder in a BW4T environ-

ment installation. It will then become available in the

map selector when running the environment server. If

using Eclipse for GOAL

, the remaining ﬁles can be

imported to a new example BW4T project.

The MAS ﬁle connects to the environment and

creates a single agent entity. The initialization sets

up the agent’s initial mental state. It is not inherently

possible for agents to perceive block positions before

entering rooms and is thus hardcoded to ensure full

observability. The event module updates the agent’s

https://goalapl.atlassian.net/wiki/

belief base in each execution cycle with regard to rel-

evant percepts. The main module states the decision

rules used by the agent to select an appropriate ac-

tion in each cycle. The knowledge base is a Prolog

ﬁle that in our case simply deﬁnes the belief predi-

cates and their arities. Finally, the BW4T map ﬁle is

a custom map conﬁguration that sets up the example

situation used throughout this paper.

4 PROOF THEORY FOR GOAL

A temporal logic is constructed on top of GOAL. It

differs from regular deﬁnitions of temporal logic by

having its semantics derived from the semantics of

GOAL and by incorporating the belief and goal opera-

tors. Hoare triples are used to specify effect of actions

on mental states. A Hoare triple

{

}

ρ  do(a)

{

}

for a conditional action a, where the truth of ρ deter-

mines if a is enabled, holds if ϕ is true in the mental

state before execution of a and ψ is true in the mental

state following the execution of a.

4.1 Basic Action Theory

A basic action theory speciﬁes the effects of agent ca-

pabilities by associating Hoare triples with effect ax-

ioms. Effect axioms are Hoare triples that state the ef-

fects of actions. By means of an enabled predicate for

each action, the conditions on actions are also speci-

ﬁed. Additionally, the theory speciﬁes what does not

change following execution of actions by associating

Hoare triples with frame axioms. Effect and frame

axioms should be speciﬁed by the user — in our case

effect axioms are the result of the program code trans-

formation as described in Section 5. It may also be

useful to prove invariants of the program help with

proofs. Frame axioms and invariants have a close re-

lation: frame axioms express stable properties and in-

variants are stable properties that also hold initially.

Towards Verifying a Blocks World for Teams GOAL Agent

339

4.2 Proof System

We now consider a Hoare system for GOAL. The

proof rules are as deﬁned in (de Boer et al., 2007)

and are listed in Table 2.

The rule for infeasible actions allows derivation of

frame axioms for actions on mental states in which

they are not enabled. The rule for conditional ac-

tions allows us to prove a Hoare triple for a condi-

tional action from that of a basic action. We use the

notion basic action when referring to an action but

not its decision rule. The three remaining rules are

structural rules that allow us to combine Hoare triples

(the conjunction and disjunction rule) and strengthen-

ing the precondition and weakening the postcondition

(the consequence rule).

For further studies of the Hoare system, we direct

the reader to Section 4 in (de Boer et al., 2007) in

which the Hoare system is proved sound and com-

plete with respect to the semantics of Hoare triples on

mental state formulas.

5 TRANSFORMATION

In order to make the link between GOAL program

code and the veriﬁcation framework, we describe how

to perform a mechanical transformation from GOAL

code to the agent logic. Due to current limitations of

the framework, we have to assume the following:

(1) Single agent assumption: only the agent executes

actions.

(2) The environment is deterministic: an action has a

deterministic outcome.

(3) The agent has complete knowledge about the ini-

tial state of the environment and its initial beliefs

and goals are completely speciﬁed.

(4) Action execution is instantaneous (no durative ac-

tions).

Assuming a single agent to be the only actor in the

environment plays into the fact that the environment

is not modelled in the framework. Percept handling

and environment interactions is a general issue in

veriﬁcation frameworks that has not been addressed

effectively: any non-agent interaction must be inte-

grated into the agent’s beliefs and capabilities. For

instance, in the BW4T environment, an agent is not

initially aware of the position of blocks; the agent be-

comes aware only when it enters the room in which

the blocks are located. It is not clear how to deal with

such interactions: we need to apply some level of do-

main knowledge to integrate this interaction; in our

case the simplest approach is to add the block loca-

tions to the agent’s knowledge. A similar problem

occurs when dealing with non-determinism in the en-

vironment: we have no way of dealing with dynamic

changes, not necessarily known to the agent, and it is

not clear how to model this either.

In order to make the transformation as mechanical

as possible, we impose restrictions on the structure of

the GOAL code:

(1) The main module (for decision-based action se-

lection) should only have rules of the form if ϕ

then a where ϕ is a query to the mental state and

a is an action in the environment.

(2) The preconditions of an action should specify the

minimal condition under which the action is en-

abled (action speciﬁcation).

(3) Rules for environment interaction should be anno-

tated with an action name (event module).

Let us elaborate on these restrictions. The restric-

tions on the form of the action decision rules are sim-

ply in place to allow a straightforward translation that

plays well with the speciﬁcation of Hoare triples. A

minimal action speciﬁcation is at the core of the phi-

losophy of GOAL: changes to the mental state should

be based on perceived changes in the environment

whenever possible. As such, this is more of a recom-

mendation than a restriction that also eases the trans-

lation process. Lastly, the annotation of code for en-

vironment interaction in the event module is to make

the process as mechanical as possible — recall that

events are handled before the main module in each

cycle. We need to translate environment interaction

to the pre- and postconditions of actions. Thus, we

need to be able to associate these condition with an

action speciﬁcation.

5.1 BW4T Transformation

We now apply the transformation method to the goTo

action for our BW4T agent.

Hoare triples are derived from the GOAL code by

transforming the relevant parts of the action speciﬁca-

tion and the event and main module. To avoid branch-

ing in the proof shown later, we have ensured that de-

cision rules are mutually exclusive.

Consider ﬁrst the action speciﬁcation goTo:

define goTo ( X ) w i th

pre { true }

post { true }

The effects of actions are perceived through changes

in the environment and are left empty (simply true).

The precondition speciﬁes the minimal conditions for

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

340

Table 2: The proof rules of our Hoare system.

Infeasible actions:

ϕ −→ ¬enabled(a)

{

}

{

}

Rule for conditional actions:

{

ϕ ∧ ψ

}

{

}

(ϕ ∧ ¬ψ) −→ ϕ

{

}

ψ  do(a)

{

}

Consequence rule:

−→ ϕ

{

}

{

}

ψ −→ ψ

{

}

{

}

Conjunction rule:

{

}

{

} {

}

{

}

{

∧ ϕ

}

{

∧ ψ

}

Disjunction rule:

{

}

{

} {

}

{

}

{

∨ ϕ

}

{

}

action execution — here, it is always possible to go to

another room. This yields the following skeleton for

our ﬁnal Hoare triple:

{

true

}

enabled(goTo(X))  do(goTo(X))

{

true

}

Note that enabled is not yet speciﬁed.

Below is the code annotated with goTo from the

event module:

% act - goT o

if bel ( in ( X )) , n ot ( p e r c e p t ( in ( X ) )) th en

delete ( in ( X ) ).

if perc e p t ( in (X )) , not ( b el ( in ( X ) )) th en

insert ( in ( X ) ).

Since the agent has full control, we can model the

changes to the environment brought about by actions

by mapping code in the event module to pre- and post-

conditions of actions. The annotation act-goTo tells

us that it is related to the goTo action. The ﬁrst rule

has the pattern bel(Q), not(percept(Q)) used for

removing outdated beliefs. The second rule pattern

inserts a new belief, thus yielding:

{B(in(Y )∧ ¬in(X))}

enabled(goTo(X))  do(goTo(X))

{B(in(X) ∧ ¬in(Y ))}

Since B(in(X) ∧¬in(X)) is never true, we implic-

itly ensure that X 6= Y holds. The ﬁnal step of deriv-

ing the Hoare triple is to transform code from the main

module to the speciﬁcation of enabled(goTo(X)). That

is, the condition under which the action should be en-

abled for the agent. The decision rule for goTo is as

follows:

if go a l ( co l l e c t (C )) ,

no t ( h o lding ( _ )) , co l o r (_ , C , X)) ,

no t ( bel ( in ( Y ) , c olor ( _ , C , Y ) ))

the n goTo ( X ).

GOAL allows use of for variables we do not care

about. We cannot do this in our logic so we introduce

variable symbols:

enabled(goTo(X)) ←→ G(collect(C))∧

B(¬holding(U) ∧color(V,C, X)))

∧ ¬B(in(Y ) ∧ color(W,C,Y ))

Before we are done, the Hoare triple should be

instantiated with propositional symbols. Consider the

following initial state (capturing the initial state of the

example map):

Bcolor(b

, red, r

) ∧ Bin(r

) ∧ Gcollect(red)

In the above, r

is the initial position of the agent (the

drop zone).

The derived Hoare triples must be instantiated

with propositional symbols. Below is the effect ax-

iom for goTo for going from r

to r

{

B(in(r

) ∧ ¬in(r

))

}

G(collect(red))∧

B(¬holding(b

) ∧ color(b

, red, r

))∧

¬B(in(r

) ∧ color(b

, red, r

))  do(goTo(r

))

{

B(in(r

) ∧ ¬in(r

))

}

The shown instantiation of the effect axiom will

be useful for the correctness proof we go through in

Section 6. While not apparent from the example, we

have a special case for the goTo action when going

back to the the drop zone r

. The agent only needs to

go to the drop zone to put down blocks. Putting down

a (correct) block in the drop zone means the environ-

ment considers the block to be collected. Thus, we

only show the enabled equivalence for goTo(r

enabled(goTo(r

)) ←→ B(holding(U) ∧ ¬in(r

))

We perform similar transformations for every ac-

tion. We are still considering ways to fully automate

the process, potentially by imposing additional re-

strictions on the structure of the GOAL code.

Towards Verifying a Blocks World for Teams GOAL Agent

341

5.2 Automating the Transformation

The transformation method is not yet something that

can be fully automated. In this section, we expand

on why this is the case, and how it can be fully auto-

mated.

One of the main issues is that the veriﬁcation

framework abstracts from a core feature of GOAL

programming: interacting with the environment. In

particular, the processing of events is problematic.

The veriﬁcation framework assumes that only the ac-

tions of agents may change the state of the environ-

ment. While this may be feasible for our use of the

BW4T environment, the proper approach is to per-

ceive changes in the environment. In order to map the

expected effect of performing an action, we need to

be able to associate event processing with actions di-

rectly. This requires some domain knowledge from

the programmer and should therefore be speciﬁed.

Alleviating this will likely require that the veriﬁca-

tion framework is able to model the environment. We

still need to be able to state some model of the envi-

ronment, i.e. what are the expected results of actions

— if we know that the environment provides an ac-

tion for moving the agent, but we have no idea what

it does, then we are stuck.

Another issue is the assumption of full observ-

ability for the agent. This causes us to push domain

knowledge to the initial mental state of the agent. This

issue very much ties into the issue of not modelling

the environment. Also here, the solution seems to be

to push the domain knowledge into a model of the en-

vironment and have the agent perceive it.

6 PROVING CORRECTNESS

The proof of correctness consists of proofs of ensures

formulas. The operator is deﬁned as:

ϕ ensuresψ := (ϕ −→ (ϕ until ψ)) ∧ (ϕ −→ ♦ψ)

Informally, ϕ ensures ψ means that ϕ guarantees the

realization of ψ. In sequence they prove that the agent

reaches its goal in a ﬁnite number of steps.

The operator ϕ 7→ ψ is the transitive, disjunctive

closure of ensures:

ϕ ensures ψ

ϕ 7→ ψ

ϕ 7→ χ χ 7→ ψ

ϕ 7→ ψ

7→ ψ . . . ϕ

7→ ψ

(ϕ

∨ . . . ∨ ϕ

) 7→ ψ

The operator differs from ensures as ϕ is not re-

quired to remain true until ψ is realized.

The proof of a formula ϕ ensures ψ requires

that we show that every action a satisﬁes the

Hoare triple

{

ϕ ∧ ¬ψ

}

{

ϕ ∨ ψ

}

and that there is at

least one action a

which satisﬁes the Hoare triple

{

ϕ ∧ ¬ψ

}

{

}

6.1 BW4T Agent Correctness Proof

In order to prove the correctness of an agent, we need

to show that it reaches a desired state from its initial

state. Using the operator deﬁned above, this means

that we need to prove ϕ 7→ ψ where ϕ is the ini-

tial state and ψ is the desired state. As stated, this

can be split up into a number of ensures proof steps

where we consider each intermediate state and prove

the transitions between them.

It is often useful to expand our base of derived

Hoare triples yielded by the transformation. Proving

program invariants that are useful in multiple steps

of the proof is an effective strategy to minimize the

workload. We claim the following invariant inv-in to

hold:



∀r, r

((in(r) ∧ r 6= r

) −→ ¬in(r

))



The invariant states that the agent can only be in one

place at any point in time. Invariants must be proved

in the proof theory — due to space we do not show

the proof here.

We ﬁnd that the correctness property for the

BW4T agent is: from its initial state, the agent must

reach a state where it believes the red block to be col-

lected:

Bcolor(b

, red, r

) ∧ Bin(r

)∧

Gcollect(red) 7→ Bcollect(red)

The full proof outline is a sequence of ensures

statements that lead to the desired mental state as

shown in Figure 2. This sequence is explicitly stated

and of course ties into the belief that there exist ac-

tions that will satisfy each step.

In the proof outline in Figure 2 the changes to the

mental state in each step are underlined. The proof

outline consists of 5 steps. Each step indicates the

transition from one mental state to another caused by

the execution of an action. The fact that our decision

rules for actions are mutually exclusive makes each

step easier to prove: at each of the ﬁve steps only a

single action is enabled. In other words we only need

to consider a single execution trace.

The proof is completed by proving each of the 5

steps. If we consider step (1) this means that we need

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

342

(1) Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

) ∧ Gcollect(red)

ensures

Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

) ∧ Gcollect(red)

(2) Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

) ∧ Gcollect(red)

ensures

Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

) ∧ BatBlock(b

) ∧ Gcollect(red)

(3) Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

) ∧ BatBlock(b

) ∧ Gcollect(red)

ensures

Bcolor(b

, red, r

) ∧ Bin(r

) ∧ Bholding(b

) ∧ Gcollect(red)

(4) Bcolor(b

, red, r

) ∧ Bin(r

) ∧ Bholding(b

) ∧ Gcollect(red)

ensures

Bcolor(b

, red, r

) ∧ Bin(r

) ∧ Bholding(b

) ∧ Gcollect(red)

(5) Bcolor(b

, red, r

) ∧ Bin(r

) ∧ Bholding(b

) ∧ Gcollect(red)

ensures

Bcollect(red)

Figure 2: Proof outline consisting of ﬁve steps.

to prove, for every action a:

{Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

)∧

Gcollect(red) ∧ ¬(Bcolor(b

, red, r

) ∧ Bin(r

)

∧ ¬Bholding(b

) ∧ Gcollect(red))}

{Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

)∧

Gcollect(red) ∨ Bcolor(b

, red, r

) ∧ Bin(r

)

∧ ¬Bholding(b

) ∧ Gcollect(red)}

For at least one action a

, in our case goTo(r

), we

are further required to prove:

{Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

)∧

Gcollect(red) ∧ ¬(Bcolor(b

, red, r

) ∧ Bin(r

)

∧ ¬Bholding(b

) ∧ Gcollect(red))}

{Bcolor(b

, red, r

) ∧ Bin(r

) ∧ ¬Bholding(b

)∧

Gcollect(red)}

Each of these Hoare triples are proved by applying

the proof rules of Table 2. The effect axioms are de-

rived from the described transformation method while

the frame axioms, describing what does not change,

as of now have to be supplied manually by the user.

Due to space limitations example derivations are left

out; they may be found online as a separate appendix

ﬁle (see Section 3.3).

7 CONCLUSION

We have presented an approach for veriﬁcation of an

implemented GOAL agent program for Blocks World

for Teams using a veriﬁcation framework. We have

described a method for transforming GOAL program

code into expressions of an agent logic for which a

temporal logic proof theory is used to prove properties

of agents. We exempliﬁed the process from code to

proof using a simple BW4T problem.

Reﬂecting on the agent logic approach, a notable

characteristic of agent logics is their close ties to agent

programming. In our case, the logic is directly linked

to implemented GOAL program code. On the quest

to make agent veriﬁcation more approachable for pro-

grammers of agent systems, closing the gap between

practice and theory is of key importance. In our fu-

ture work with the framework there are some key

challenges to address. We have only experimented

with rather limited scenarios and it will be interest-

ing to see how well it scales for more complex sce-

narios. We need to consider means to relax the con-

Towards Verifying a Blocks World for Teams GOAL Agent

343

straint that the agent must have complete knowledge;

this constraint severely hinders the usability of the ap-

proach. Furthermore, we need to be able to model

environments in the framework. Further challenges

appear due to our rather basic notion of actions; this

notion ought to be extended to also consider non-

determinism and real-time constraints (e.g. an action

must be fully executed before a deadline). Lastly, we

have of course the challenge of modelling systems

with more than just a single agent. There have been

efforts towards agent logics for multiple agents, such

as by (Bulling and Hindriks, 2009), but the the logical

languages are rather limited.

We observe that the current state-of-the-art is to

apply model-checking tools for veriﬁcation of agent

software (Luckcuck et al., 2019). Efforts towards en-

hancing the practicality of tools for verifying agents

systems are ongoing. We believe that approaches us-

ing agent logics, with further work, have potential

and could offer an alternative to model-checking ap-

proaches. Achieving this will require further research,

in particular towards enhancing practicalities.

ACKNOWLEDGEMENTS

I would like to thank Koen Hindriks for discussions

and comments on drafts of this paper. I would also

like to thank Asta H. From and Jrgen Villadsen for

comments on drafts of this paper.

REFERENCES

Alechina, N., Dastani, M., Khan, A. F., Logan, B., and

Meyer, J.-J. (2010). Using Theorem Proving to Verify

Properties of Agent Programs, pages 1–33. Springer.

Bellifemine, F., Poggi, A., and Rimassa, G. (2001). JADE: a

FIPA2000 compliant agent development environment.

pages 216–217.

Bordini, R. H., Fisher, M., Visser, W., and Wooldridge, M.

(2006). Verifying Multi-agent Programs by Model

Checking. Autonomous Agents and Multi-Agent Sys-

tems, 12:239–256.

Bulling, N. and Hindriks, K. V. (2009). Towards a Veriﬁca-

tion Framework for Communicating Rational Agents.

MATES, pages 177–182.

Calegari, R., Ciatto, G., Mascardi, V., and Omicini, A.

(2020). Logic-based technologies for multi-agent sys-

tems: a systematic literature review. Autonomous

Agents and Multi-Agent Systems, 35.

de Boer, F. S., Hindriks, K. V., Hoek, W., and Meyer, J.-J.

(2007). A veriﬁcation framework for agent program-

ming with declarative goals. Journal of Applied Logic,

5:277–302.

Dennis, L. A. and Fisher, M. (2009). Programming Veriﬁ-

able Heterogeneous Agent Systems. In Programming

Multi-Agent Systems, pages 40–55. Springer.

Dix, J., Logan, B., and Winikoff, M. (2019). Engineer-

ing Reliable Multiagent Systems (Dagstuhl Seminar

19112). Dagstuhl Reports, 9(3):52–63.

Hindriks, K. V. (2009). Programming Rational Agents in

GOAL, pages 119–157.

Hindriks, K. V., Boer, F., Hoek, W., and Meyer, J.-J. (1999).

Agent programming in 3APL. Autonomous Agents

and Multi-Agent Systems, 2:357–401.

Hindriks, K. V., de Boer, F. S., van der Hoek, W., and

Meyer, J.-J. (2001). Agent Programming with Declar-

ative Goals. In Intelligent Agents VII Agent The-

ories Architectures and Languages, pages 228–243.

Springer.

Jensen, A. B. (2021). Towards Verifying GOAL Agents in

Isabelle/HOL. In ICAART 2021 - Proceedings of the

13th International Conference on Agents and Artiﬁ-

cial Intelligence. SciTePress. To appear.

Jensen, A. B., Hindriks, K. V., and Villadsen, J. (2021). On

Using Theorem Proving for Cognitive Agent-Oriented

Programming. In ICAART 2021 - Proceedings of the

13th International Conference on Agents and Artiﬁ-

cial Intelligence. SciTePress. To appear.

Johnson, M., Jonker, C., Riemsdijk, B., Feltovich, P. J., and

Bradshaw, J. (2009). Joint Activity Testbed: Blocks

World for Teams (BW4T). ESAW, pages 254–256.

Luckcuck, M., Farrell, M., Dennis, L. A., Dixon, C., and

Fisher, M. (2019). Formal Speciﬁcation and Veriﬁ-

cation of Autonomous Robotic Systems: A Survey.

ACM Comput. Surv., 52(5).

Misra, J. (1994). A Logic for Concurrent Programming.

Technical report, Formal Aspects of Computing.

Nipkow, T., Paulson, L., and Wenzel, M. (2002). Is-

abelle/HOL — A Proof Assistant for Higher-Order

Logic. Springer.

Paulson, L. (2000). Mechanizing UNITY in Isabelle. ACM

Trans. Comput. Logic, 1(1):3–32.

Poslad, S. (2007). Specifying Protocols for Multi-Agent

Systems Interaction. TAAS, 2.

Rao, A. S. and Georgeff, M. P. (1991). Modeling Ratio-

nal Agents within a BDI-Architecture. In Proceedings

of the Second International Conference on Principles

of Knowledge Representation and Reasoning, KR’91,

pages 473–484. Morgan Kaufmann Publishers Inc.

Rao, A. S. and Georgeff, M. P. (1993). Intentions and Ratio-

nal Commitment. In Proceedings of the First Paciﬁc

Rim Conference on Artiﬁcial Intelligence (PRICAI-

90). Citeseer.

Russell, S. and Norvig, P. (2020). Artiﬁcial Intelligence: A

Modern Approach (4th Edition). Pearson.

Shoham, Y. (1993). Agent-oriented programming. Artiﬁcial

Intelligence, 60(1):51–92.

Winikoff, M. and Craneﬁeld, S. (2014). On the Testability

of BDI Agent Systems. Journal of Artiﬁcial Intelli-

gence Research, 51:71–131.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

344
