RCM-Extractor: Automated Extraction of a Semi Formal

Representation Model from Natural Language Requirements

Aya Zaki-Ismail

1 a

, Mohamed Osama

1 b

, Mohamed Abdelrazek

1 c

, John Grundy

2 d

and Amani Ibrahim

1 e

Information Technology Institute, Deakin University, 3125 Burwood Hwy, VIC, Australia

Information Technology Institute, Monash University, 3800 Wellington Rd., VIC, Australia

Keywords:

Natural-language Extraction, Requirements Formalization.

Abstract:

Formal veriﬁcation requires system requirements to be speciﬁed in formal notations. Formalisation of system

requirements manually is a time-consuming and error-prone process, and requires engineers to have strong

mathematical and domain expertise. Most existing requirements formalisation techniques assume require-

ments to be speciﬁed in pre-deﬁned templates and these techniques employ pre-deﬁned transformation rules

to transform requirements speciﬁed in the predeﬁned templates to formal notations. These techniques tend

to have limited expressiveness and more importantly require system engineers to re-write their system re-

quirements following these templates. In this paper, we introduces an automated extraction technique (RCM-

Extractor) to extract the key constructs of a comprehensive and formalisable semi-formal representation model

from textual requirements. We have evaluated our RCM-Extractor on a dataset of 162 requirements curated

from the literature. RCM-Extractor achieved 95% precision, 79% recall, 86% F-measure and 75% accuracy.

1 INTRODUCTION

Formal veriﬁcation techniques - e.g. model check-

ing - are usually highly recommended, and in many

cases mandatory, when proving the correctness of a

given mission critical system or system component

(Buzhinsky, 2019a). To beneﬁt from these formal ver-

iﬁcation techniques, system requirements need to be

speciﬁed in suitable formal notations, such as tempo-

ral logic (TL) (Buzhinsky, 2019a).

According to the recently conducted reviews

(Brunello et al., 2019) and (Buzhinsky, 2019b), there

is still a need for an approach that can automatically

extract and transform existing textual requirements

written using different structures and formats – i.e.

no pre-deﬁned templates – into formal notations. To

achieve this goal, we transform NL-requirements to

a well-deﬁned semi-formal representation model that

is mappable (using well-deﬁned transformation rules)

into formal notations.

https://orcid.org/0000-0002-1580-6619

https://orcid.org/0000-0002-6940-0833

https://orcid.org/0000-0003-3812-9785

https://orcid.org/0000-0003-4928-7076

https://orcid.org/0000-0001-8747-1419

Our previous work in (Zaki-Ismail et al., 2020)

proposes a comprehensive intermediate representa-

tion for critical system requirements - RCM: Require-

ment Capturing Model. The model deﬁnes a compre-

hensive list of key requirement properties. In addi-

tion, the model is transferable to temporal logic using

transformation rules. We also provide the mapping

from RCM into Metric Temporal Logic (MTL) and

Computational Tree Logic (CTL).

In this paper, we introduce our requirement ex-

traction technique (RCM-Extractor) that can process

textual requirements and produce RCM representa-

tion of these requirements. Then using the rules de-

ﬁned by (Zaki-Ismail et al., 2020), we can generate

formal notation. Our approach does not require tex-

tual requirements to follow speciﬁc structure, format,

style, order or length. We evaluated our technique on

a dataset of 162 requirements sentences curated from

papers in the literature and online sources as well.

Figure 1 presents the entire process of transform-

ing a set of textual requirements into TL notations.

Figure 1.(a) shows a set of 5 input textual require-

ments. Figure 1.(b) shows a simpliﬁed ﬂow of our

RCM-Extractor to transform example one require-

ment (R1) into RCM representation in Figure 1.(c).

Figure 1.(d) provides the TL formula to be produced

270

Zaki-Ismail, A., Osama, M., Abdelrazek, M., Grundy, J. and Ibrahim, A.

RCM-Extractor: Automated Extraction of a Semi Formal Representation Model from Natural Language Requirements.

DOI: 10.5220/0010270602700277

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 270-277

ISBN: 978-989-758-487-9

Req-Scope

vPre-conditional Scope

ØScopeType = StartUpPhase

ØTimekeyword = after

ØPredicate

üpredicateText = “After every sailing

termination ”

üRelation = equals

üOp1

qText = sailing termination

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

Req

-Scope

vAction-Scope

ØScopeType = EndUpPhase

ØTimekeyword = before

ØPredicate

üpredicateText = “before

RCMVAR_B_sig is RCMVAL_TRUE”

üRelation = is

üOp1

qText = RCMVAR_B_sig

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

Conditions

vPredicate

üpredicateText = “If RCMVAR_A_sig is

RCMVAL_TRUE”

üRelation = is

üOp1

qText = RCMVAR_A_sig

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

Action

vPredicate

üpredicateText = “the inhibitor shall

transition to RCMVAL_TRUE”

üRelation = shall transition to

üOp1

qText = the inhibitor

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

(b) RCM-Extractor

(a) Requirements Document

R2: if the camera recognizes the lights of an advancing vehicle, the high beam headlight that is activated is reduced to

low beam headlight within 5 seconds.

R3: if the maximum deceleration is [insufficient] before a collision with the vehicle ahead, the vehicle warns the driver

by acoustical signals <E> for 1 seconds every 2 seconds. The maximum deceleration is 5.

R4: When it rains for 1 minute, the wipers are activated within 30 seconds before the windscreen is dry.

R5: the fuel display blinks while the fuel level is low.

R1: In case of <cal: A_sig> after sailing termination is [TRUE], the inhibitor shall transition to [true] before <B_sig> is [TRUE].

Req

-Scope

vPre-conditional Scope

ØScopeType = StartUpPhase

ØTimekeyword = after

ØPredicate

üpredicateText = “After every

sailing termination ”

üRelation = equals

üOp1

qText = sailing termination

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

Req

-Scope

vAction-Scope

ØScopeType = EndUpPhase

ØTimekeyword = before

ØPredicate

üpredicateText = “before

RCMVAR_B_sig is RCMVAL_TRUE”

üRelation = is

üOp1

qText = RCMVAR_B_sig

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

Conditions

vPredicate

üpredicateText = “If

RCMVAR_A_sig is

RCMVAL_TRUE”

üRelation = is

üOp1

qText = RCMVAR_A_sig

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

Action

vPredicate

üpredicateText = “the inhibitor

shall transition to RCMVAL_TRUE”

üRelation = shall transition to

üOp1

qText = the inhibitor

üOp2

qText = RCMVAL_TRUE

üneg_flag = false

(P1)

Pre-processing

(P2)

Components

Extraction

DSSAM

(P3)

Sub-

Components

Extraction

(P4)

Classification

(P5)

Arguments

Extraction

REQ

R1:

In case of <cal: A_sig> after sailing termination is [TRUE], the inhibitor shall

transition to [true] before <

B_sig> is [TRUE].

Extracted

Components

of PR[1]

C[1]

RCMVAR_A_sig after sailing termination is [TRUE]

”Intermingled & incomplete”

C[2]

the inhibitor shall transition to RCMVAL_TRUE

C[3]

before

RCMVAR_B_sig is RCMVAL_TRUE

Pre

processed

Primitive

Requirement

of R1

PR[1]

RCMVAR_A_sig after sailing termination is

RCMVAL_TRUE, the inhibitor shall transition

to [true]

before RCMVVAR_B_sig is

RCMVAL_TRUE.

Stanford

NLP

Word-

Net

Technical

terms

Req-

Document

Input Files

External

To ol s

(d) TL Representation of R1

G(B → (C → F(F(S) → (F(A v S)U S) )))

Transformation Rules

(d) TL Representation of R1

G(B

→ (C → F(F(S) → (F(A v S)U S) )))

Processed Component C[1]

Internal Pre-

processing

of C[1]

Text

If variable after sailing termination is value

POS

IN, NN, IN, NN, NN, VBZ, NN

Component

abstraction

Text

If [variable] after [sailing termination] [is] [value]

POS

IN, basicNP, IN, basicNP, basicVP, basicNP

Extracted

Sub-

components

S[1]

S[2]

[If] [variable] [is] [value ]

Core-segment

POS

= [[’IN’],[’basicNP’],

[’

basicVP’],[’basicNP’]]

[After] [sailing termination] [] []

Core

-segment

POS

= [[’IN’],[’basicNP’],[],[]]

Classification

Component

è Condition

Component

è Req-Scope (split)

Pre-conditional Scope

Extracted

Arguments

Cond-keyword = if

OP1 = RCMCAL_A_sig

OP2 = RCMVAL_TRUE

Relation = is

Time cond-keyword = after

Created Artificial arguments

-OP1 = sailing_termination

-OP2 = RCMVAL_TRUE

-Relation = equals

RCM-Extractor Processes Input

RCM-Extractor Processes output

Formalization Flow

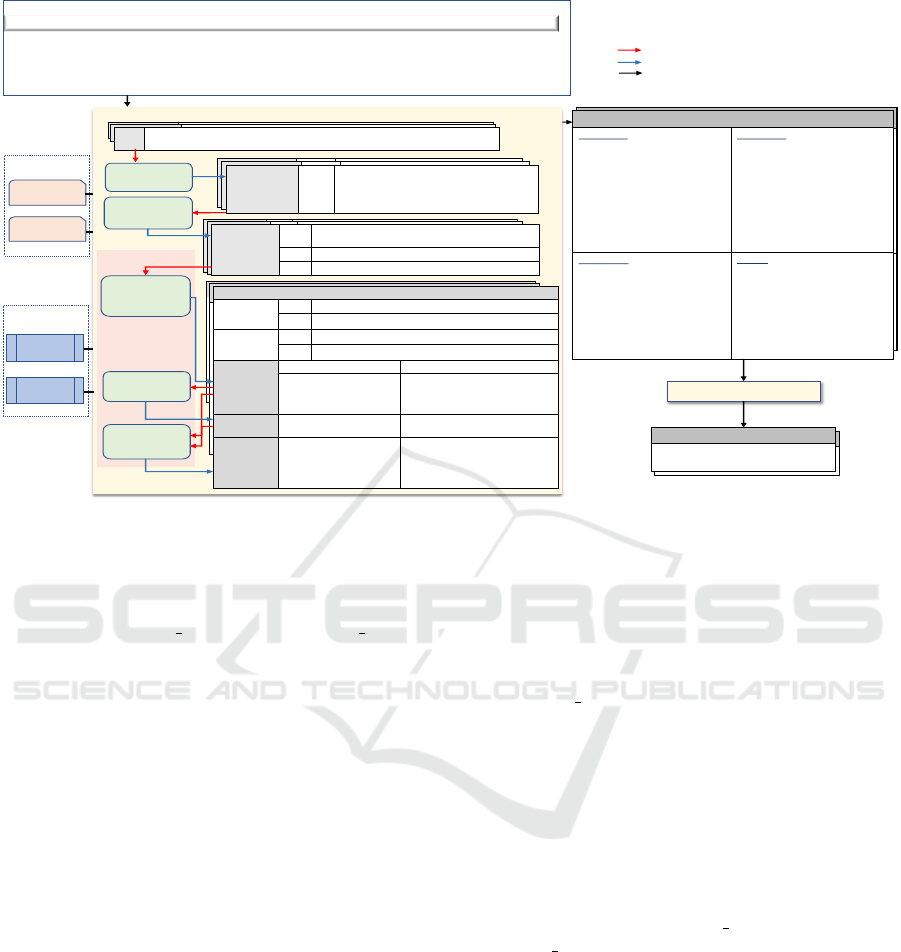

Figure 1: Textual Requirement Extraction Example.

by the formalisation rules applied on the extracted

RCM of R1, where B, C, S, and A are proposition

variables corresponding to ”sailing termination being

happened”, ”<cal: A sig> is [True]”, ”< B sig > is

[TRUE]”, and ”the inhibitor shall transition to [true]”,

respectively.

2 REQUIREMENTS CAPTURING

MODEL (RCM)

In RCM (Zaki-Ismail et al., 2020), each system re-

quirement R

, may have one or more primitive re-

quirements PR where {R

= < PR

> and n>0}. Each

represents only one sentence. Each primitive re-

quirement contains zero or more conditions, zero or

more triggers, zero or more Req-scope, and one or

more actions. Figure 2 shows a simpliﬁed representa-

tion of RCM. Below we provide a description of each

of these components using the example requirements

in Figure 1:

• Trigger; holds an event that automatically ini-

tiates/ﬁres action(s) whenever it occurs within

the system life-cycle (e.g., ”When it rains for 1

minute” in R4 Fig.1).

• Condition; represents the constraints that should

be explicitly checked by the system before exe-

cuting one or more actions (e.g., if the maximum

deceleration is [insufﬁcient] in R3 Fig. 1).

• Req-scope; determines the operational context

under which (i) ”condition(s) and trigger(s)” can

be valid – called a pre-conditional scope; or (ii)

”action(s)” can occur – called an action scope.

The Scope may deﬁne a start boundary (e.g., ”af-

ter sailing termination”), end boundary (e.g., ”be-

fore < B sig > is [TRUE]” in R1 Fig.1), or both

(e.g., ”while R is true” can be expressed by after

and until as ”after R is true” and ”until not R”).

A component can be broken into sub-components.

The RCM uses 5 types of sub-components:

• Core-Segment: Each requirement component

must have one Core-Segment. It expresses

the core part of the component including: the

operands, the operator and negation ﬂag/property

(e.g., in ”In case of <: A sig > is [True]” the

”<: A sig >” and ”[True]” are the operands and

”is” is the operator).

• Valid-Time: an optional sub-component provides

the valid period of time for the component of

interest including: the quantifying relation (e.g.,

”=”,”<”,”>”, etc.), the time length, and the unit

(e.g., in ”the vehicle warns the driver by acousti-

cal signals < E > for 1 seconds” the action is hold

for 1 second length of time).

• Hidden Constraint: holds an explicit constraint

deﬁned for a speciﬁc operand within a compo-

nent. For example, in ”the high beam headlight

that is activated is reduced” in R2, the that is ac-

RCM-Extractor: Automated Extraction of a Semi Formal Representation Model from Natural Language Requirements

271

System

Requirement

Primitive

Requirement

Req-Scope

Trigger

Condition

Action

Pre-elapsed-time

1..*

0..*

Valid-time

Core-segment

In-between-time

Hidden Constraint

Predicate

• Operands

• Operator

• Negation Flag

Operand

• Operand

• Hidden

constraint

Time

• QR

• Va lue

• Unit

Components Sub-components Internal Structure

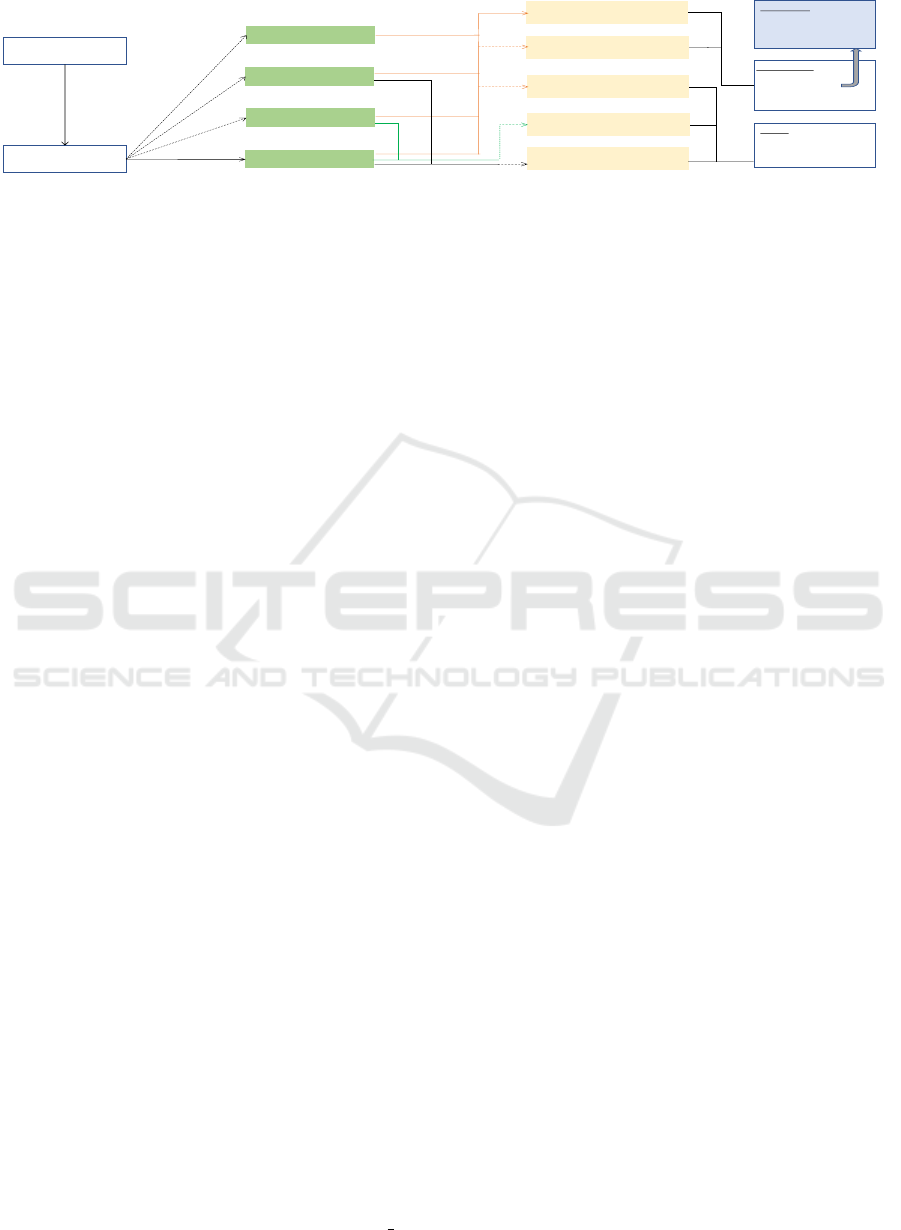

Figure 2: Compact Meta-model of the RCM. Dashed arrow: optional, solid arrow: mandatory, line-segment: internal repre-

sentation, green box: component and yellow box: sub-components.

tivated is a constraint deﬁned for the operand the

high beam headlight. RCM stores the constraint

inside its related operand object.

• Pre-elapsed-time: can be found for action and

condition components. This indicates the length

of time from an offset point before the action to

start or the condition to be checked (e.g., ”the

wipers are activated within 30 seconds” in R4).

• In-between-time: associated with action and

trigger components and used to reﬂect the elapsed

time between consecutive occurrences of the same

event (e.g., ”the vehicle warns the driver by acous-

tical signal for 1 seconds every 2 seconds” in R3).

3 RCM-EXTRACTOR APPROACH

RCM-Extractor consists of ﬁve main phases as in

Figure 1. We use StanfordNLP to extract Parts-of-

Speech (POS), Typed-Dependencies (TD) and pars-

ing tree. TDs are set of mentions representing syn-

tactic relations among the sentences words (e.g., in

”nsubj(equals-14, X-13)”, ”X” is subject to the verb

”equals”). POS provide the syntactic type of each

word (e.g., noun, verb, .etc). We use WordNet to

conﬁrm the Stanford POS correction (i.e., the word

tagged as a verb by Stanford is actual verb in Word-

Net). The approach accepts the following as input: (1)

Requirements document – a text ﬁle containing sys-

tem requirements in natural language, and (2) Tech-

nical terms – a ﬁle containing domain-speciﬁc terms

expressed in English.

3.1 Phase 1: Pre-processing

The requirement pre-processing process aims to im-

prove the accuracy of the extraction as follows:

1. Requirements Cleaning: multiple spaces and

defected spaces at the beginning or at the end of

the sentence are removed. Other styling formats

are also considered (e.g., ”-” replaced with ” ”).

2. Closed Words Uniﬁcation: English has closed

word classes (Leech et al., 1982). Each class con-

tains a ﬁnite set of words with a deﬁned func-

tion. In this step, all English words holding

the same function (e.g., Subordinating conditional

keyword, timing keyword, instant timing key-

word) are uniﬁed and converted to a single unique

word selected from the class to be its representa-

tive within our approach (e.g., all subordinating

instant timing keywords {whenever, once, .etc}

replaced with ”when”). For example, in Figure

1.P1 ”In case of” is replaced with ”if”.

3. Foreign Words Substitution: the extraction ap-

proach is supported by the Stanford Parser, which

is speciﬁed and trained on speciﬁc dataset and has

a percentage of error. When the Stanford parser is

feed with non-English words, it usually produces

incorrect results. To avoid this problem, we re-

place any identiﬁed non-English words (i.e., tech-

nical variables, technical terms and technical val-

ues) with English words representing them (e.g.,

variable, term and value).

3.2 Phase 2: Components Extraction

In this process, we extract the RCM requirement com-

ponents – action, Req-scope, trigger or condition –

from each primitive natural language requirement.

We base our component extraction algorithm - ES-

SAG - on SSGA (Das et al., 2018). Figure 3 outlines

the steps used to extract requirement R1 in ﬁgure 1.

In step1, the elements identifying the clauses -verbs

in our case- are marked. First, we get the POS of the

given sentence using Stanford and then, highlight the

main verbs. We conﬁrm the correction of the high-

lighted verbs using WordNet –defected cases are re-

moved. In step2, we compute the typed-dependency

of the input sentence using StnafordNLP. Then, in

step3, we break the connection between clauses be

removing the same mentions connecting clause used

by SSGA, but we excluded mentions reﬂecting impor-

tant domain relations (e.g., ”mark”, ”CComp”, ”ref”,

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

272

Step 2, 3

1. mark(value-7, If-1)

2. nsubj(value-7, Variable-2)

3. case(termination-5, after-3)

4. compound(termination-5, sailing-4)

5. nmod(Variable-2, termination-5)

6. cop(value-7, is-6)

7. advcl(transition-12, value-7) ✗

8. det(inhibitor-10, the-9)

9. nsubj(transition-12, inhibitor-10)

10. aux(transition-12, shall-11)

11. root(ROOT-0, transition-12)

12. case(value-14, to-13)

13. nmod(transition-12, value-14)

14. mark(value-18, before-15)

15. nsubj(value-18, variable-16)

16. cop(value-18, is-17)

17. advcl(transition-12, value-18) ✗

Step 4

Group1: {1,2,3,4,5,6}

Group2: {8,9,10,11,12,13}

Group3: {14,15,16}

Step 5

Comp1:

•Sorted Distinct words: {If-1, Variable-2, after-

3, sailing-4, termination-5, is-6, value-7}

•Substitute and rewrite: If RCMVAR_A_sig

after sailing termination is [TRUE]

Comp2:

•Sorted Distinct words: {the-9, inhibitor-10,

shall-11, transition-12, to-13, value-14}

•Substitute and rewrite: the inhibitor shall

transition to RCMVAL_TRUE

Comp3:

•Sorted Distinct words: {before-15, variable-

16, is-17, value-18}

•Substitute and rewrite: before

RCMVAR_B_sig is RCMVAL_TRUE

Input= “If RCMVAR_A_sig after sailing termination is RCMVAL_TRUE, the inhibitor shall

transition to RCMVAL_true before RCMVAR_B_sig is RCMVAL_TRUE.”

Processed Input = “If variable after sailing termination is value, the inhibitor shall transition to

value, before variable is value.”

Step 1

POS = If/IN Variable/NNP after/IN sailing/NN termination/NN is/VBZ value/NN ,/,

the/DT inhibitor/NN shall/MD transition/VB to/TO value/NN before/IN variable/NN

is/VBZ value/NN

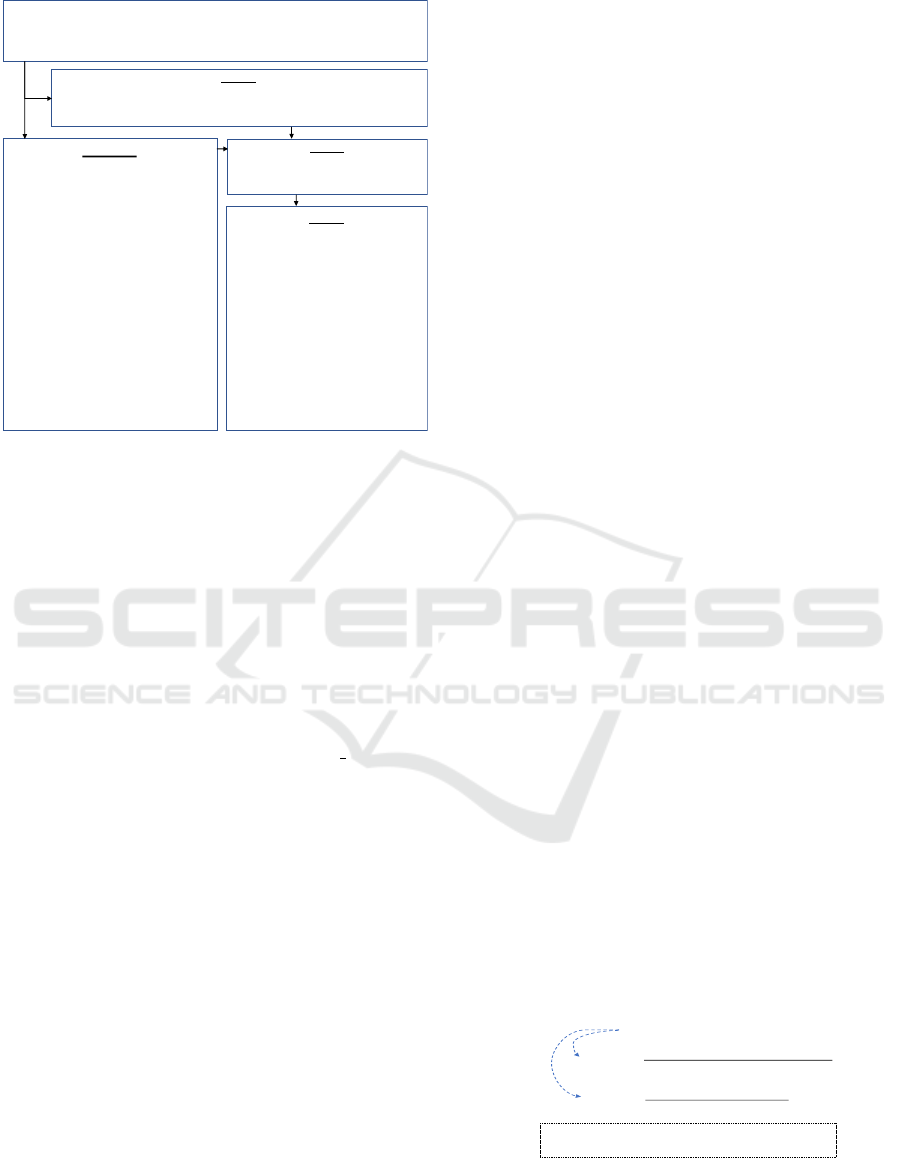

Figure 3: Components Extraction Example.

”dep”), removed mentions are marked with ”7” in ﬁg-

ure 1. Afterwards, in step4, all the mentions having

direct or indirect connections with each identiﬁed el-

ement are grouped. Finally, in step5, distinct words

of each group are sorted according to their occurrence

indices in the original sentence formulating one com-

ponent.

Requirements expressed in NL causes several

complex challenges. Requirement components may

(1) exist in any order in the sentence (e.g., R3.S1 and

R4 in Figure 1 show alternative orders); (2) may be

intermingled (e.g., ”In case of < cal : A sig >after

sailing termination is [TRUE]” in R1); (3) exist in

alternative structures (e.g., simple sentence and com-

plex sentence) that could be represented by alterna-

tive types (e.g.,imperative and declarative) and dif-

ferent voice (e.g., active and passive). Our ESSGA

algorithm overcomes these challenges by breaking

the connections between the clauses and reforming

each one on its own, step2 and step4. Such isolation

makes the approach insensitive to intermingling com-

ponents, their order, and sentence complexity.

A component may be expressed by an incom-

plete clause following a correct syntax and hold im-

plicit meaning (e.g., ”after sailing termination” in R1

implicitly means ”the sailing termination happens”).

This case is only eligible to adverbal clauses (Hud-

dleston and Pullum, 2005), where the clause involves

a time conditional keyword and that corresponds to

the Req-scope component type. Such incompleteness

may cause components merge especially if the missed

part is the verb (e.g., before termination).

3.3 Deep Syntactic and Semantic

Analysis (DSSAM)

DSSAM is responsible for deeply understanding each

component to complete the extraction. It consists of

the remaining three processes: sub-components ex-

traction, classiﬁcation, and arguments extraction.

3.3.1 Phase 3: Sub-components Extraction

In Phase 3, the ﬁrst part of DSSAM, each com-

ponent is processed to extract the sub-components

that comprise it. Figure 1 shows two extracted sub-

components (S[1] and S[2]) along with their POS

tags.

This process consists of two steps: (1) abstracting

the input component and (2) identifying the bound-

aries of each sub-component. First, the initial POS

tags of all the tokens within a component are scanned

to identify noun and verb phrases. For each identiﬁed

phrase, the POS tags of its tokens are replaced with

a single tag as indicated in the example in Figure 1

(”basicNP” for noun phrases and ”basicVP for verb

phrases). This is carried out via regular expressions

that match the POS tags of the tokens within a com-

ponent against a hand crafted set of patterns covering

the possible structures of noun and verb phrases in the

English language.

Second, the boundaries of each sub-component

are identiﬁed by locating the head (starting word)

and the most suitable body (i.e., the succeeding set

of words to fulﬁl a correct grammatical structure

for the sub-component) as in Figure 4. Some sub-

components (e.g., the core-segment reﬂecting condi-

tion, trigger, or Req-scope) have a keyword head as a

result of the pre-processing uniﬁcation step (e.g., the

head of a trigger is ”when”). The heads of other sub-

components (e.g., pre-elapsed-time, valid-time, in-

between-time, hidden constraint) have exclusive POS

tags (e.g., the hidden constraint starts with a relative

pronoun having the POS tag ”WP$” or ”WDT”).

If variable after [sailing termination] is value

✓

✗

✓

If variable after [sailing termination] is value

↑

: Head I

: Intermediate E

: End

✓: syntactically correct ✗: syntactically in correct

Figure 4: Best suitable sub-components decomposition.

However, identifying the body of a sub-

component is more challenging because it can have

RCM-Extractor: Automated Extraction of a Semi Formal Representation Model from Natural Language Requirements

273

different structures in English clauses. To over-

come this, we created a set of hand crafted reason-

ing rules to reﬂect the possible structures of each sub-

component. We also developed a recursive technique

to ﬁgure out the most suitable body structure for an in-

tended sub-component while taking into account the

remaining sub-components. For example, the second

sub-component in Figure 4 starting at ”H

” conforms

to two possible structures, but only one of them will

prevent syntactic defects to the other sub-component.

The reasoning rules are developed on Prolog to bene-

ﬁt from the inference backtracking nature.

3.4 Phase 4: Classiﬁcation

The aim of this sub-process is assigning label/type

(e.g., Trigger, condition, action, Req-scope, Fac-

tual Rule) to each of the extracted components and

(pre-elapsed-time, valid-time, in-between-time, hid-

den constraints) to sub-components. The classiﬁer as-

signs types by applying two-level checking on the ob-

tained sub-components. The ﬁrst level, as indicated in

Figure 5, identiﬁes types based on four attributes: (1)

the head of the given sub-component, (2) comp count:

is the total count of the extracted components of the

current prim-requirement, (3) the count of the ex-

tracted core-segment sub-components. It worth not-

ing that, sub-components heads are uniﬁed through

step3:closed words uniﬁcation in the pre-processing

phase. In addition, the classiﬁcation is done in

comply to the types of clauses(Huddleston and Pul-

lum, 2005), where (1) independent clauses identiﬁed

through ”No Head”, (2) subordinating clause iden-

tiﬁed through: ”conditional, instant-conditional, and

time-conditional heads”, and (3) relative clause iden-

tiﬁed through ”Relative head”. Regarding the co-

ordinating clause, ﬁrst, it is adjusted to one of the

other types (i.e., independent, subordinating or rela-

tive) based on its main attached clause (e.g., ”if X is

True or Y is True” −→ ”if X is True, or if Y is True”),

then it is ready to undergo the classiﬁcation process.

In the second level, Req-scope component type

is classiﬁed further to either ”action scope” or ”pre-

conditional scope”. The type is identiﬁed based on

the surrounding components. If Req-scope is found in

a merged component, its type will be identiﬁed based

on the component it is merged with (i.e., if action =>

action scope, else ==> Pre-conditional scope). Oth-

erwise, we rely on the nearest non-Req-scope compo-

nent within the primitive requirement as in Table 1.

Sub-Component

Checking Attributes

• Head

• Comp Count

• Core-segments

count

• No head

• comp Count == 1

• Core-segment count == 1

• No head

• comp Count > 1

• Conditional Head

• Instant Conditional Head

• Timing Conditional Head

• Core-segment count == 1

• Pre-elapsed-time Prep

Head

• Valid-time Prep Head

• In-between-time Prep

Head

Main Comp

Type

Sub-Comp to

Main Comp

Split Comp

• Timing Conditional Head

• Core-segment count > 1

Req-scope

Pre-elapsed

Time

In-between

Time

Valid

Time

Factual Rule

Condition

Trig ger

Classification

RoleDecision Criteria

Action

Req-scope

• Relative Head

Hidden

Constraint

Figure 5: Classiﬁcation Checking.

Table 1: Req-Scope Classiﬁcation examples.

Req Example Req-scope type

(a) 1. Before termination, if X is

[True], Y shall be set to [True]

1. Pre-conditional Scope

2. Before termination, Y shall

be set to [True], if X is [True]

2. Action Scope

(b) 1. If X is [True], Y shall be set

to [True] before termination

1. Action Scope

2. Y shall be set to [True], if X

is [True] before termination

2. Pre-Conditional Scope

nation, Y shall be set to [True]

1. Pre-Conditional Scope

2. Y shall be set to [True] be-

fore termination, if X is [True]

2. Action Scope

(d) 1. If X is [True], before termi-

nation, Y shall be set to [True]

1. Pre-Conditional Scope

3.5 Phase 5: Arguments Extraction

This process identiﬁes the complete arguments set

of a given sub-component. To achieve this, we

beneﬁt from the sub-component extraction pro-

cess, to construct an initial argument decomposi-

tion within each identiﬁed sub-component. Each

sub-component contains two lists. The ﬁrst list

contains the text of the sub-component initially

broken down into separate arguments. The sec-

ond list contains the corresponding POS tags of

each argument in the ﬁrst list. For example, the

second sub-component in Figure 1 is represented

with: (1) text=[[’After’],[’sailing termination’],[],[]]

and (2) POS= [[’IN’],[’basicNP’],[],[]]. Both lists are

constructed with the same static length that is deter-

mined based on the most complete possible version

of the sub-component (i.e., the case where all the ele-

ments of the sub-component are present), as follows:

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

274

Table 2: Measured performance of the RCM-Extractor Technique.

Perspective Criteria Manual-Ev TP FP FN Recall Precision F-measure Accuracy

ESSGA Initial components 331 317 5 14 96% 98% 97% 94%

DSSAM

Final components 366 347 3 19 95% 99% 97% 94%

Rel(sub-components) 407 318 8 82 80% 98% 88% 78%

Rel(Arguments) 326 318 8 0 100% 98% 99% 98%

Entire Prim Requirement 162 122 7 33 79% 95% 86% 75%

• Core-segment: the adopted structure consists of

head keyword, subj, verb, complement. This sub-

component type can represent:

1. Condition case: conditional keyword, subj,

verb, complement (e.g., [If] [X] [exceeds] [Y])

2. Trigger case: conditional keyword, subj, verb,

complement (e.g., [when] [X] [exceeds] [Y])

3. Action case: empty-item, subj, verb, comple-

ment (e.g., [x] [shall be set to] [True)]

4. Req-scope: time-conditional keyword, subj,

verb, obj (e.g., [After][X][transitions to][True])

• Hidden Constraint: relative-noun,

relative-pronoun, subj, verb, obj (e.g.,

[X][whose][index][exceeds][2])

• Time: time head, quantifying relation, value, unit

(e.g., [for] [at most] [2] [seconds]). This depicts to

pre-elapsed-time, valid-time and in-between-time

sub-components.

The role of each argument is deﬁned based on

the argument location in the list. In case of missing

element(s), the corresponding location of such ele-

ment(s) are left empty to maintain the proper ordering

and roles of the expected elements within the list.

4 EVALUATION

We evaluated the performance of our RCM-Extractor

technique on 162 behavioral requirements sentences

(found in

) of critical systems, curated from exist-

ing case studies in the literature. In which, 89

of these requirements used for expressing proposed

CNLs, templates and deﬁned formats for represent-

ing requirements in different domains considering dif-

ferent writing styles in (Justice, 2013) (Jeannet and

Gaucher, 2016)(Thyssen and Hummel, 2013), (Fi-

farek et al., 2017), (L

ucio et al., 2017a), (Dick et al.,

2017), (Bitsch, 2001), (Teige et al., 2016), (L

ucio

et al., 2017b), (Mavin et al., 2009), (R. S. Fuchs,

1996). Additional 28 requirements were used for

evaluating formalization approaches in (Ghosh et al.,

2016; Yan et al., 2015). Further, the remaining 45

Dataset, RCM-Extractor output, and evaluation sheet:

https://github.com/ABC-7/RCM-Extractor

requirements were extracted from an online avail-

able critical-system requirements that are not tweaked

for any special use in (Houdek, 2013). These re-

quirements do not contain coordinating relations (i.e,

and/or) as we currently do not support coordination

in the RCM-extractor. However, they cover the entire

components and sub-components types –proposed by

the RCM– with different writing styles.

We ﬁrst processed the 162 requirements with the

RCM-Extractor (i.e., the extraction output found in

Then, we assess the performance of each process/step

of the RCM-Extractor as well as the ﬁnal results

against the expected outcomes of the manual extrac-

tion (conducted and agreed by the authors, where each

requirement sentence has a unique ground truth of ex-

traction –the manual assessment found in

). Table 2

presents the manual evaluation measures and the com-

puted measures for the extraction (i.e., recall, preci-

sion, f-measure and accuracy) on the dataset. The as-

sessment criteria are:

• Initial Components: are the initial set of com-

ponents extracted by our ESSGA algorithm. As

seen in the table, 317 and 14 components out

of the expected 331 are correctly extracted and

missed respectively by the ESSGA Algorithm. In

addition, the remaining 5 components (FP) are:

1)with incomplete text, 2)with excess text, or 3)

composition of two components (i.e., un-illegibly

merged). The main cause for the missed and

the wrongly produced components is the miss-

interpretation by Stanford. It also worth noting

that, not all of the 14 components are missed, but

each un-illegibly merged components in FP in-

creases the FN (FN = the expected outcome - TP).

• Final Components: are the ﬁnal components of

the given requirement sentence obtained by our

DSSAM process (after resolving merged cases).

The RCM-Extractor succeeded in dissolving the

merged cases (Sec.3.3.1) by increasing the initial

components to 347. In addition, the decrease in

the FP from 5 (in the initial-count) to 3 (in the ﬁ-

nal count), indicates that, the un-illegibly merged

components due to Stanford interpretations are

also resolved in this stage.

• Rel(sub-components): are the sub-components

extracted by Phase 3 in our DSSAM process,

RCM-Extractor: Automated Extraction of a Semi Formal Representation Model from Natural Language Requirements

275

given the extracted components by ESSGA that

are provided as input(i.e., missed components by

ESSGA are excluded). The DSSAM correctly ex-

tracted 318 sub-component out of 407 one’s de-

rived from the correctly/partially extracted 347

component. The DSSAM produced 8 incomplete

sub-components (FP) and failed to produce 82

ones.

• Rel(Arguments): are the sub-components with

correctly extracted arguments by Phase 5 of

our DSSAM process, given the extracted sub-

components by P3 and P4 (i.e, missed sub-

components are excluded). The correctness of an

extracted sub-component indicate the correctness

of its initially extracted arguments according to

the described process in Sec.3.5. Thus, the cor-

rectly extracted 318 sub-component correctly de-

composed into arguments.

• Entire Primitive Requirement: are the extracted

primitive requirements reﬂecting the performance

of the entire pipeline. The table shows that, 122

requirement sentence are correctly extracted in

addition to 7 sentences (FP) are produced with

missed arguments. On the other hand, 33 re-

quirement sentences failed due to the failure of

DSSAM at any phase. It is also worth noting that,

the failed sentences contain (sub-)components

process-able by the RCM-Extractor. However,

the failure in decomposing a given component in

the entire requirement into (partially)correct sub-

components by DSSAM causes failure to the en-

tire requirement sentence.

Overall the RCM-Extractor achieved 94% and

94% accuracy for extracting the initial and ﬁnal re-

quirements components, 78% accuracy in Rel(Sub-

components), 98% accuracy in Rel(Arguments) and

75% accuracy in the entire primitive requirement ex-

traction. The main causes of extraction failure are:

• the Stanford accuracy (e.g., the requirement ”the

display elements glow”, failed in Phase 1 since

it is wrongly interpreted as NP by StanfordNLP

although it is a simple sentence).

• input with wrong grammar (e.g., ”if timer greater

than timeout then heater command equal to er-

ror.”, failed in Phase3, the ﬁrst clause ”if timer

greater than timeout” does not have verb).

• current extraction limitations (e.g., ”while moving

the window up, the engine control system shall be

essentially single fault tolerant with respect to loc

event”, failed in Phase 3 due to the excess word

”essentially” –excesses words are words that do

not affect semiformal/formal semantic of the input

requirement (e.g., adverbs)).

These causes affect 9, 7,and 17 requirement sentence

respectively of the missed 33. 76% of the require-

ments are correctly extracted and ≈ 4% are partially

correct due to the ”missed”/”partially extracted” com-

ponents through the RCM-Extractor phases.

5 RELATED WORK

There is a rich body of research for formalizing re-

quirement speciﬁcation into formal notations to elim-

inate errors in an early phase. The main adopted

paradigm is feeding the approach with requirement

sentences written in pre-deﬁned format(s) (Konrad

and Cheng, 2005; Pohl and Rupp, 2011; R. S. Fuchs,

1996; Mavin et al., 2009; Sl

adekov

a, 2007; Justice,

2013; Marko et al., 2015; Fu et al., 2017). Then the

deﬁned structure of the template is utilized for pars-

ing the NL requirements into formal notations. The

extraction of each technique differs slightly upon the

addressed elements in the deﬁned template.

Ghosh et al., in (Ghosh et al., 2016) proposed a

framework called ARSENAL for translating natural

language requirements into LTL. In ARSENAL, a se-

mantic analysis applies on dependency parsing and

POS tags of a simpliﬁed sentence. NExt, grammat-

ical relation with word types are aggregated into an

intermediate representation ”IR”. Then, IR is en-

riched with formal information resulted from apply-

ing a set of hand crafted mapping rules on the typed

dependency of the input sentence. Such rules are in-

evitably domain-speciﬁc and limited to restricted sce-

narios. The ﬁnal version of IR can be eventually con-

verted into several formalisms, including LTL. The

approach achieved 78% and 95% on two different

data-sets. The provided approach is order sensitive

since it achieved 95% and 65% accuracy for the same

data-set by perturbing ”If A then B” to ”B if A”.

Yan et al., in (Yan et al., 2015) presented NLP-

based technique for formalizing NL-requirements

into LTL. Similar to our approach, this technique

identify clauses of a requirement mapping each to one

proposition in LTL later. The provided approach al-

low coordination between clauses which is currently

lacked by our approach. On the other hand, this

approach is very limited to its very strictly deﬁned

clause structure. In which, a clause should contain

(1) single word noun as a subject and a verb pred-

icate with one of the following formats ”verb —

be+(gerund—participle) — be+complement”, (2) the

complement should be adjective or adverbial word,

(2) prepositional phrases are not allowed except ”in

+ time point” at the end of the clause, etc. Moreover,

more complex cases of natural language (e.g., relative

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

276

clauses, imperative cases, and intermingled clauses)

are not addressed. Time scope and repetition proper-

ties are not considered in the deﬁned structure as well.

Conversely to this approach, our technique aims to

process NL-requirements instead and thus reveal the

overhead work of rewriting the requirements in addi-

tion to covering a wider range of requirements struc-

ture due to the insensitivity to number, order, or types

of components constituting a requirements sentence.

6 CONCLUSION

The paper introduces RCM-Extractor - an automated

approach to extract and transform textual require-

ments into intermediate representation - RCM. In

which, RCM is expressive enough to be transformed

into formal notation. The approach is domain inde-

pendent and insensitive to structure and format of the

input requirements. We evaluated the approach on

162 requirements sentences achieving 95% precision,

79% recall, 86% F-measure and 75% accuracy.

REFERENCES

Bitsch, F. (2001). Safety patterns—the key to formal speci-

ﬁcation of safety requirements. In International Con-

ference on Computer Safety, Reliability, and Security,

pages 176–189. Springer.

Brunello, A., Montanari, A., and Reynolds, M. (2019).

Synthesis of ltl formulas from natural language texts:

State of the art and research directions. In 26th Inter-

national Symposium on Temporal Representation and

Reasoning (TIME 2019). Schloss Dagstuhl-Leibniz-

Zentrum fuer Informatik.

Buzhinsky, I. (2019a). Formalization of natural language

requirements into temporal logics: a survey. In 2019

IEEE 17th International Conference on Industrial In-

formatics (INDIN), volume 1, pages 400–406. IEEE.

Buzhinsky, I. (2019b). Formalization of natural language

requirements into temporal logics: a survey. pages

400–406.

Das, B., Majumder, M., and Phadikar, S. (2018). A novel

system for generating simple sentences from complex

and compound sentences. International Journal of

Modern Education and Computer Science, 11(1):57.

Dick, J., Hull, E., and Jackson, K. (2017). Requirements

engineering. Springer.

Fifarek, A. W., Wagner, L. G., Hoffman, J. A., Rodes, B. D.,

Aiello, M. A., and Davis, J. A. (2017). Spear v2. 0:

Formalized past ltl speciﬁcation and analysis of re-

quirements. In NASA Formal Methods Symposium,

pages 420–426. Springer.

Fu, R., Bao, X., and Zhao, T. (2017). Generic safety re-

quirements description templates for the embedded

software. In 2017 IEEE 9th International Conference

on Communication Software and Networks (ICCSN),

pages 1477–1481. IEEE.

Ghosh, S., Elenius, D., Li, W., Lincoln, P., Shankar, N.,

and Steiner, W. (2016). Arsenal: automatic require-

ments speciﬁcation extraction from natural language.

In NASA Formal Methods Symposium, pages 41–46.

Springer.

Houdek, F. (2013). System requirements speciﬁcation au-

tomotive system cluster(elc and acc). Technical Uni-

versity of Munich.

Huddleston, R. and Pullum, G. (2005). The cambridge

grammar of the english language. Zeitschrift f

ur An-

glistik und Amerikanistik, 53(2):193–194.

Jeannet, B. and Gaucher, F. (2016). Debugging embedded

systems requirements with stimulus: an automotive

case-study.

Justice, B. (2013). Natural language speciﬁcations for

safety-critical systems. Master’s thesis, Carl von Ossi-

etzky Universit

at.

Konrad, S. and Cheng, B. H. (2005). Real-time speciﬁca-

tion patterns. In Proceedings of the 27th international

conference on Software engineering, pages 372–381.

ACM.

Leech, G., Deuchar, M., and Hoogenraad, R. (1982). En-

glish Grammar for Today. Palgrave Macmillan UK.

ucio, L., Rahman, S., bin Abid, S., and Mavin, A. (2017a).

Ears-ctrl: Generating controllers for dummies. In

MODELS (Satellite Events), pages 566–570.

ucio, L., Rahman, S., Cheng, C.-H., and Mavin, A.

(2017b). Just formal enough? automated analysis of

ears requirements. In NASA Formal Methods Sympo-

sium, pages 427–434. Springer.

Marko, N., Leitner, A., Herbst, B., and Wallner, A. (2015).

Combining xtext and oslc for integrated model-based

requirements engineering. In 2015 41st Euromicro

Conference on Software Engineering and Advanced

Applications, pages 143–150. IEEE.

Mavin, A., Wilkinson, P., Harwood, A., and Novak,

M. (2009). Easy approach to requirements syntax

(ears). In Requirements Engineering Conference,

2009. RE’09. 17th IEEE International, pages 317–

322. IEEE.

Pohl, K. and Rupp, C. (2011). Requirements Engineering

Fundamentals. Rocky Nook.

R. S. Fuchs, N. E. (1996). Attempto controlled english

(ace). In CLAW 96, First International Workshop on

Controlled Language Applications, Katholieke Uni-

versiteit, Leuven.

adekov

a, V. (2007). Methods used for requirements engi-

neering. Master’s thesis, Univerzity Komensk

eho.

Teige, T., Bienm

uller, T., and Holberg, H. J. (2016). Uni-

versal pattern: Formalization, testing, coverage, veri-

ﬁcation, and test case generation for safety-critical re-

quirements. pages 6–9. MBMV.

Thyssen, J. and Hummel, B. (2013). Behavioral speciﬁca-

tion of reactive systems using stream-based i/o tables.

Software & Systems Modeling, 12(2):265–283.

Yan, R., Cheng, C.-H., and Chai, Y. (2015). Formal con-

sistency checking over speciﬁcations in natural lan-

guages. In 2015 Design, Automation & Test in Europe

Conference & Exhibition (DATE), pages 1677–1682.

IEEE.

Zaki-Ismail, A., Osama, M., Abdelrazek, M., Grundy, J.,

and Ibrahim, A. (2020). Rcm: Requirement capturing

model for automated requirements formalisation.

RCM-Extractor: Automated Extraction of a Semi Formal Representation Model from Natural Language Requirements

277
