SRCM: A Semi Formal Requirements Representation Model Enabling

System Visualisation and Quality Checking

Mohamed Osama

1 a

, Aya Zaki-Ismail

1 b

, Mohamed Abdelrazek

1 c

, John Grundy

2 d

and Amani Ibrahim

1 e

Information Technology Institute, Deakin University, 3125 Burwood Hwy, VIC, Australia

Information Technology Institute, Monash University, 3800 Wellington Rd., VIC, Australia

Keywords:

Requirement Representation, Requirement Modeling, Requirement Engineering, Quality Checking.

Abstract:

Requirements engineering is pivotal to the successful development of any given system. The core artifact

for such phase is the requirements speciﬁcation document. Requirements can be speciﬁed in informal, semi-

formal, and formal notations. The majority of the requirements across many ﬁelds and domains are written

natural language. However, natural language is inherently ambiguous and imprecise and the requirements

cannot be automatically validated. Formal notations on the other hand enable automated testing and validation

but is only comprehensible by experts and requires rewriting the requirements. Semi-formal notations strikes

a good balance between comprehension and checking for several systems. However, the majority of the

existing representation models mandates the requirements to be (re)written to adhere to certain templates.

They also do not support automated checking. In this paper, we present SRCM –a semi-formal requirements

representation model based on a comprehensive requirements capturing model (RCM) that does not enforce

much limitations on how the requirements can be written. We also provide an automated approach to construct

SRCM from RCM. In addition to providing a uniﬁed visualisation of the system entities and relations between

the requirements key components, SRCM also enables automated quality checking on the requirements.

1 INTRODUCTION

Detecting quality issues (i.e., inconsistencies, incom-

pleteness and incorrectness) at an early stage, in sys-

tem requirements speciﬁcations, improves the quality

of the developed system. In addition, it minimises the

overall development time and cost (Kamalrudin et al.,

2011). Formal methods and model checking are used

for requirements veriﬁcation in software engineering

to detect such issues(Ghosh et al., 2016; ?). To ben-

eﬁt from these approaches, requirements should be

represented in a suitable formal notation. However,

requirements formalisation is a difﬁcult task that re-

quires experience in both mathematics and the system

domain of interest (Buzhinsky, 2019; ?). Another re-

search direction is detecting quality issues at the semi-

formal representation level. Semi-formal require-

https://orcid.org/0000-0002-1580-6619

https://orcid.org/0000-0002-6940-0833

https://orcid.org/0000-0003-3812-9785

https://orcid.org/0000-0003-4928-7076

https://orcid.org/0000-0001-8747-1419

ments are typically represented in graphical notations

(i.e., helping users to better understand systems –

specially large ones). Existing techniques are limited

to detecting quality issues by comparing the semi-

formal model against a reference (e.g., system domain

or model repository (Kamalrudin et al., 2011)). This

is primarily because they are built upon either widely

known semi-formal models (e.g., UML) or on a pro-

posed model (e.g., (Kamalrudin et al., 2011)) that pro-

vides abstract view of the system (i.e, behavior, struc-

ture, etc.).

Complementary to existing work, we propose a

semi-formal model –system requirements capturing

model (SRCM)– visualising the system requirements

in a uniﬁed view. This model is designed to enable a

better understanding of textual requirements and the

relations among them, in addition to automatically de-

tecting a wide range of quality issues.

SRCM is an extension to requirement capturing

model (RCM) (Zaki-Ismail et al., 2020). RCM is

a comprehensive model developed for representing

behavioural system requirements by supporting their

key properties. RCM encapsulates semi-formal and

278

Osama, M., Zaki-Ismail, A., Abdelrazek, M., Grundy, J. and Ibrahim, A.

SRCM: A Semi Formal Requirements Representation Model Enabling System Visualisation and Quality Checking.

DOI: 10.5220/0010271202780285

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 278-285

ISBN: 978-989-758-487-9

formal semantics. However, it is created to repre-

sent only one requirement and does not capture inter-

requirements relations. We build SRCM to aggregate

and unify the given system requirements (RCMs) in

a model that shows the relations among them and en-

ables the automated detection of quality issues.

2 RELATED WORK

The main three approaches for representing require-

ments in semi-formal notations are: controlled nat-

ural language (CNL), graphical representations, and

mathematical representations (Marko et al., 2015).

CNL aims at writing syntactically correct require-

ments adhering to a given set of templates and/or

boilerplates (De Gea et al., 2012). Several types of

templates and boilerplates (e.g., the EARS approach

ucio et al., 2017)) are present in the literature.

Farfeleder et al. (Farfeleder et al., 2011) devel-

oped an approach relying on boilerplates along with

a domain ontology. A case study in (St

alhane and

Wien, 2014) provides an evaluation of their work.

This study showed that the use of such tools helped

’develop a requirement set that is consistent and un-

ambiguous (St

alhane and Wien, 2014). Such ap-

proaches however, require the presence of an ontol-

ogy.

In (Kamalrudin et al., 2017)(Kamalrudin et al.,

2011), MaramaAIC tool is proposed to support con-

sistency management and requirements validation us-

ing semi-formal essential use cases (EUC). First,

the use case models are extracted from the NL-

requiremnts. Then, the abstract interactions of the

EUC are compared to a repository of patterns. Con-

sequently, a mismatch indicatea a quality issue.

Nguyen et. al. in (Nguyen et al., 2016) proposed

an ontology-based integrated framework for verifying

goal use cases. They developed a tool called GUI-

TAR. It takes textual requirements and transforms

them into Goal use-cases for automatic reasoning and

issues detection. A similar approach is presented in

(Corea and Delfmann, 2017) for business processes

veriﬁcation, where business rules are speciﬁed as a

logic program, and an ontology reasoner is used to

discover model elements violating these rules.

Veriﬁcation of UML Class/OCL model through

(semi)formal notations has been discussed in the liter-

ature. Truong et. al. (Truong and Souqui

eres, 2004)

presented the transformation of UML class model into

the B method. Then, the consistency of the class

model is veriﬁed against UML well-formedness rules.

In which, the rules are transformed into the invariant

of B abstract machine. Similarly, Cabot et. al. (Cabot

and Teniente, 2009) proposed an incremental veriﬁ-

cation of UML Class/OCL model through (Constraint

Satisfaction Problem) CSP. They illustrated that veri-

ﬁcation of constraints after every structure event (En-

tity Insertion, Attribute update, Entity Deletion, etc.)

is costly and inefﬁcient. They proposed the PSEs con-

cept (Potential Structure Events). PSEs are events

causing constraints violation. In this technique, PSEs

for every integrity constraint are recorded and in-

stances of entities and relationships are incrementally

veriﬁed.

Model Based Systems Engineering (MBSE) like

SysML (Mhenni et al., 2014) and Capella (Roques,

2016) languages are popularly used in multiple indus-

tries (Azzouzi et al., 2019). However, they encounter

considerable limitations concerning formal handling

of requirements, and thus the automatic veriﬁcation

and validation. In addition, there is a wide gap be-

tween the early design phases (e.g., requirement cap-

ture) and the subsequent detailed design phases (i.e.,

when disciplinary modeling and simulation are in-

volved) (Azzouzi et al., 2019). A common issue

within the highlighted semi-formal notations tools

and approaches is that no automated checking support

is provided (Azzouzi et al., 2019)

3 REQUIREMENTS CAPTURING

MODEL (RCM)

RCM is a semi-formal representation model proposed

in (Zaki-Ismail et al., 2020) for capturing behavioural

system requirements. RCM deﬁnes the the compo-

nents constituting any NL-requirement speciﬁcation

and their breakdowns.

Figure 1 provides the compact high level architec-

ture of RCM.

System

Requirement

Primitive

Requirement

Req Scope

Req Tr igger

Req Condition

Req Action

1..*

0..*

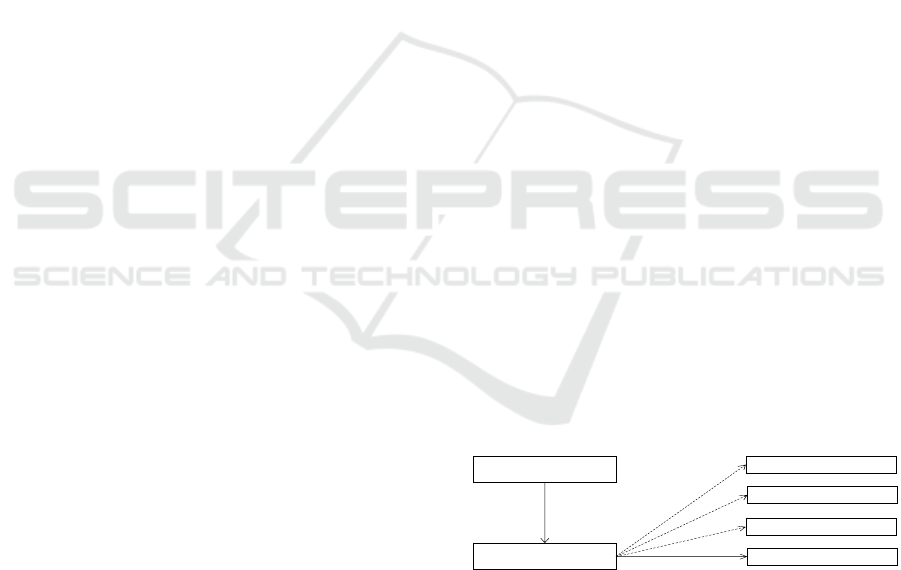

Figure 1: Compact High-level Architecture of RCM.

RCM deﬁnes system requirements as a set of re-

quirements R. Each requirement R

, may have one

or more primitive requirements PR where {R

= <

> and n>0}. Each PR

represents only one sen-

tence, and may contain conditions, triggers, actions

and scope – in the NL-requirement. RCM captures

primitive requirements of the same requirement sep-

arately and stores them as one unit. A primitive re-

quirements consists of four main components:

SRCM: A Semi Formal Requirements Representation Model Enabling System Visualisation and Quality Checking

279

• Trigger: an event that automatically initiates/ﬁres

action(s) whenever it occurs (e.g.,when emer-

gency button is pressed).

• Condition: constraints that should be checked ex-

plicitly by the system to allow action(s) to happen

(e.g., if aircraft data is unavailable).

• Scope: provides the circumstances under which:

(1) condition(s) and trigger(s) shall be valid –

called ”pre-conditional scope”, and (2) action(s)

should occur – called action scope.

• Action: holds the task that should be executed in

response to trigger(s) and/or constrained by con-

dition(s) (e.g., the communication system shall

sustain telephone contact with 10 callers). A

primitive requirement with an action component

only is a factual rule expressing system factual in-

formation (e.g., ”The duration of a ﬂashing cycle

is 1 second”).

The core part of these components is the Predi-

cate including: the operands, the operator and nega-

tion ﬂag/property. For example, in the condition

If X exceeds Y, ”X” and ”Y” are the operands and

”exceeds” is the operator.

RCM avoids loss of information, by preserving

logical relations among components of the same type

in the interior nodes of a tree structure (the most suit-

able structure), where the components themselves are

stored in the leaves.

4 SYSTEM REQUIREMENTS

CAPTURING MODEL (SRCM)

Sys RCM

Sys Entity Sys Pre-condition Sys Action Sys Action source

System

Component

Sys Condition Sys Trigger

1..*

Inheritance Relation

Aggregation Relation

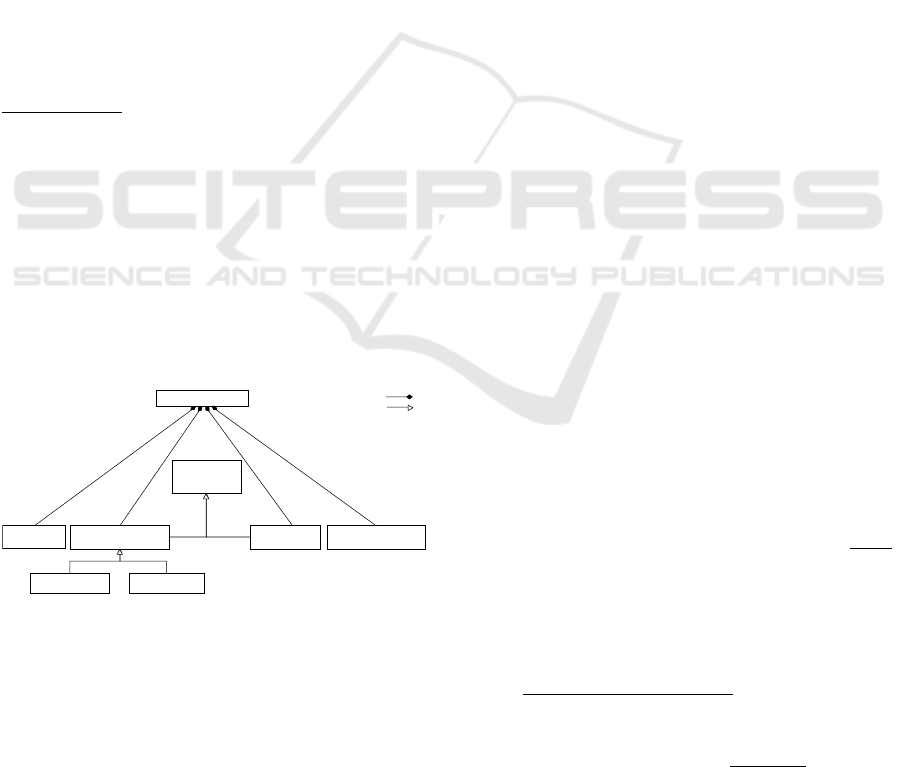

Figure 2: High-level Architecture for SRCM.

SRCM is a graph-based extension of RCM that uniﬁes

the representation of all the requirements of a given

system in one integrated model. It enables (1)visu-

alising the relations among system requirements, and

(2) detecting quality issues in an automated manner.

SRCM consists of four main components: system en-

tities, system pre-conditions, system actions and ac-

tion sources as indicated in Figure 2.

1. System Entities are all the unique domain entities

for a given system. For each entity, the following

properties are deﬁned:

• Domain Name: the name used to refer to such

entity within the given system

• Value Type: the type of the values assigned

to this entity. It may be either atomic (e.g.,

number, boolean) or system dependent (system

value).

• Possible Values: list of the system values in

case the value type is system dependent.

• Affecting Entities: system entities that may

cause a change to this entity when they change.

• Affected Entities: in contrast to the previous

list, it contains the system entities that may be

changed as a result of a change in this entity.

2. Pre-conditions hold the prerequisite(s) required

for an action to occur. A pre-condition may

be a system-condition or a system-trigger. Pre-

condition are modeled as system components in

SRCM as indicated in Figure 2. Figure 3 shows

the architecture of different system component

structures. The system component structurally

visualises the relations between the contributing

system entities in the component, by showing

links to: (1) the primary entity (the entity upon

which the system component is deﬁned) and (2)

the value source entity (the entity where the sys-

tem component gets its value from). A value may

have one of the following structures:

• External Value: the primary entity is compared

to the value of another entity (e.g., If X exceeds

Y) as in Figure 3.(a).

• Internal Value: the primary entity is compared

to a related domain dependent system value

(e.g., If the Regulator Mode equals [NOR-

MAL]) as in Figure 3.(b).

• Atomic Value: the primary entity is compared

to atomic values as numbers, boolean, etc (e.g.,

If the Regulator Interface Failure is set to False)

as in Figure 3.(c).

• Aggregated Value: the primary entity is com-

pared against the aggregation of some system

entities that may include the primary entity it-

self (e.g., if the calculated distance is less than

(the current speed / 3) * t2) as in Figure 3.(d).

• Aggregated Entity: the primary entity is the ag-

gregation of multiple entities that are compared

to an atomic value (e.g., if (S1 + S2)

exceeds 3).

If the aggregated entities are assessed against

a system value then it would match the aggre-

gated value structure in Figure 3.(e).

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

280

Sys Comp

Primary Entity

value

(a) External value

Sys Comp

Primary Entity

value

(b) Internal value

Sys Comp

Primary Entity

value

Sys Comp

Primary Entity

Aggregated

value

(d) Aggregated value

value

(e) Aggregated entity

Sys Comp

Primary Entity

value

Aggregated

Entities

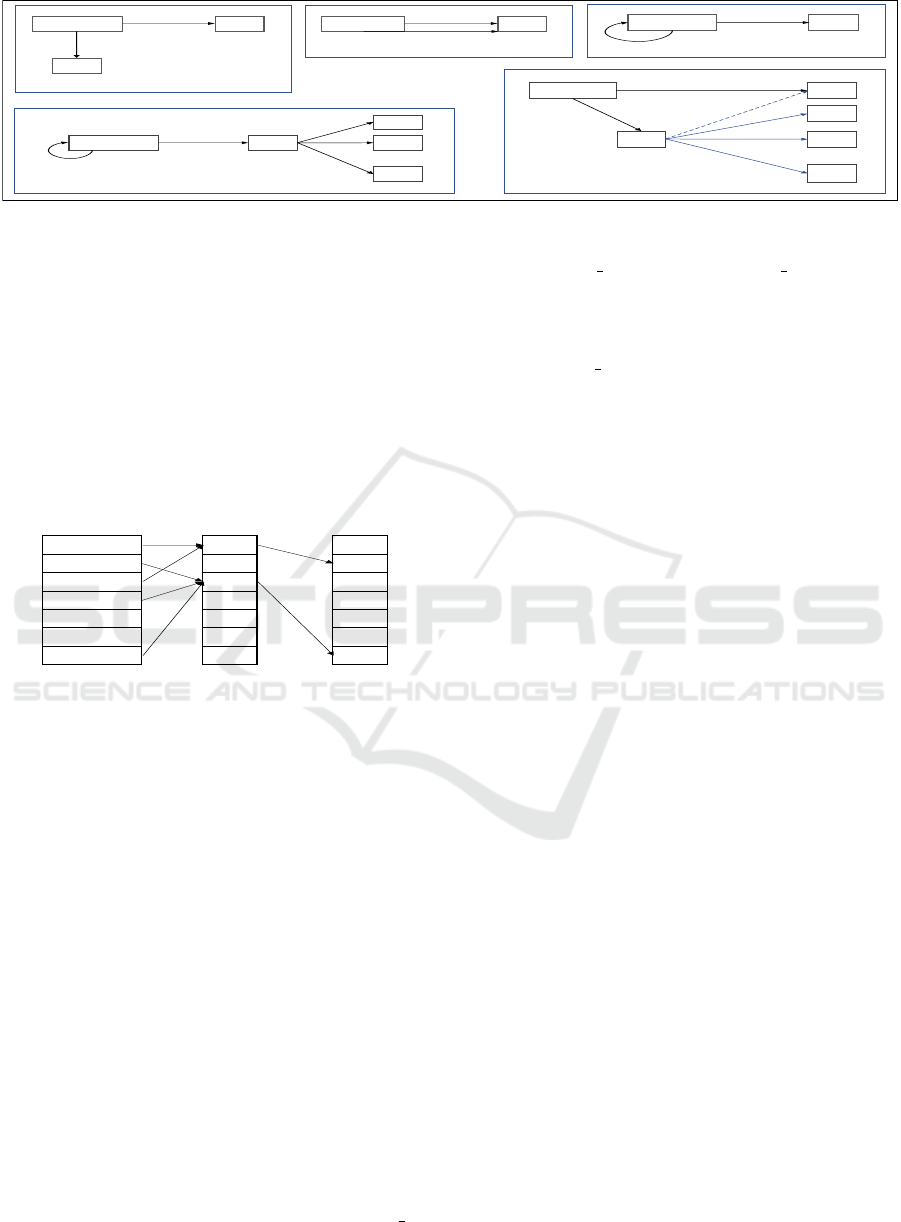

Figure 3: Different structures of a system component.

3. Action represents the action or change that should

happen in response to its precondition(s) being

satisﬁed. It corresponds to RCM requirements ac-

tion. An action can be in any of the various struc-

tures applicable to a pre-condition as in Figure 3.

4. Action Source connects each action to its corre-

sponding preconditions within the system as in-

dicated in Figure 4. It also holds any relations

(e.g. AND/OR) between the pre-conditions of an

action.

Pre-cond

System Pre-

conditions

Action

Sources

System

Actions

Figure 4: System action sources.

5 SRCM CONSTRUCTION

APPROACH

SRCM is constructed by extracting the required in-

formation from each RCM structure. The three main

goals of the automatic construction are: (1) iden-

tify unique system entities, (2) identify unique system

components and (3) construct system level mapping.

These goals are achieved incrementally through an it-

erative approach.

5.1 Entities Identiﬁcation

Each RCM structure is addressed apart to extract all

the system entities from each component. To achieve

this, the arguments of each component in an RCM

structure are classiﬁed into entities and values based

on domain and English characteristics as follows:

• Entities are either (1) domain variables following

a special format (e.g., preceded by ”RCMVAR ..”,

”RCMCAL ..” and ”RCMTech ..”), or (2)

expressed in English noun phrases.

• Values, similarly to entities, are either (1) domain

values with a special format (e.g., preceded by

”RCMVAL ..” in RCM), or (2) expressed in En-

glish adjective, adverb ,or cardinal number.

The extracted entities are then added to the entire

system entities list in case they are new (not previ-

ously extracted from another component). Accord-

ing to the domain variables, unique items are added

to system entities. On the other hand, English enti-

ties should pass similarity checking with the existing

English entities in system entities to ensure unique-

ness. Each unique entity, domain/English entity, is

assigned a unique Id. All encountered English terms

are grouped in a side structure, similar terms referenc-

ing the same entity, for similarity checking purpose.

5.2 Components Identiﬁcation

The aim of this process is identifying the unique sys-

tem component sets (pre-conditions and actions sets).

First, the system component type of the RCM com-

ponent under investigation is identiﬁed based on the

RCM component type (i.e., condition −→ system

condition, trigger −→ system trigger and action −→

system action). Second, the component breakdowns,

primary entity and the appropriate value structure, are

identiﬁed. RCM components provide LHS (left hand

side), RHS (right hand side) and relation(s) (e.g., in

the component ”the rain signal is ON”, the LHS: :the

rain signal”, the RHS: ”ON”, and the rel: ”=”).

The relations controlling the entities (i.e., aggre-

gating relation) and the component (e.g., = 6=<>≤≥)

are mapped from the RCM component. After the

complete construction of a system component, if the

constructed component is new, it will be added to the

relevant unique set and assigned a unique id.

5.3 Relational Mapping

In this process, a requirement can be deﬁned on the

system level. Since SRCM consists of unique sets

SRCM: A Semi Formal Requirements Representation Model Enabling System Visualisation and Quality Checking

281

of system components, actions, and preconditions, a

mapping is required to indicate which pre-conditions

cause which action(s) (i.e., representing one require-

ment sentence done through action sources as dis-

cussed earlier). The mapping can be accomplished

in a compact manner by storing the unique keys, each

corresponding to a unique system component, of the

preconditions and actions constituting one require-

ment sentence. In addition, The logical relations,

AND/OR, among multiple system components of the

same type (e.g., conditions, triggers, .etc) within the

same requirement sentence are captured and mapped

from the RCM structure.

6 QUALITY CHECKING

This section illustrates how SRCM facilitates de-

tecting requirements redundancy, ambiguity, incon-

sistency, and incompleteness quality issues (ranked

as the top attributes affecting requirements quality

enova et al., 2013; Anuar et al., 2015; Kocerka

et al., 2018)).

Redundancy: is when the same requirement appears

more than once in the requirements speciﬁcation doc-

ument (Lami et al., 2004). The problem is not in

the redundancy itself, but in the consequences of hav-

ing redundancy, especially when the document is up-

dated. For example, if a requirements document has

two duplicate requirements in two places and only

one of them is altered, the document will be incon-

sistent. In addition, because requirements are mostly

written by more than one engineer, there is also the

prospect of having the same requirement stated dif-

ferently (e.g., ”If X exceeds Y, Z shall be set to true”

and ”transition Z to true, if X is larger than Y”). Such

case is not easily detectable at the informal level of

requirements. However, it can be detected in SRCM

just by locating repeated action sources. The reason

behind that is, detected duplicate system components

of the same type (detected during the construction)

are stored only once in SRCM and are assigned with

unique keys. Consequently, action sources of redun-

dant requirements will map to the same keys.

Ambiguity: within requirements can lead to confu-

sion, wasted efforts, and unnecessary rework. Am-

biguity has a set of indicators such as vagueness,

subjectivity, optionality, implicity, .etc (Lami et al.,

2004). Currently, vagueness can be detected dur-

ing the construction of SRCM. Vagueness means that

the requirement sentence contains word(s) with more

than one quantiﬁable meaning (Lami et al., 2004).

Thus, such issue can be ﬂagged whenever a descrip-

tive value is found during the construction process.

Inconsistency: is the case where two or more require-

ments contradict one another (Lami et al., 2004). This

issue can be detected through SRCM as follows:

• domain-independent approach: in this approach,

inconsistencies can be detected when entities as-

signed/compared to values with different types.

Assume the following two requirements ”If X ex-

ceeds Y, set X to True. Y is initialized with 2”.

There is an inconsistency because X is compared

to an argument with a number type and assigned

to value with a boolean type. Such type of incon-

sistencies can be easily detected through SRCM

construction. The value type of each entity is re-

alized from the given set of requirements. In case

that a contradicting type is encountered for an al-

ready type-bound entity, an inconsistency issue

is ﬂagged for that entity highlighting the require-

ments contributing to the problem.

• domain-dependent approach: entities and values

of the processed sentences are compared to the

given domain ontology. In case of a mismatch

(e.g., encountering an ineligible value type), the

broken requirement sentence is ﬂagged highlight-

ing the mismatch. This type of checking is op-

tional –can be achieved once the system domain

is available.

Incompleteness: Incompleteness is considered to be

the most difﬁcult of the speciﬁcation attributes to de-

ﬁne and detect (Lami et al., 2004). SRCM can help

in detecting missed information/arguments from a re-

quirement component. Assume the following exam-

ple ”If X is True, Y shall be set”. In such example, it

is not determined to what value ”Y” shall be set. In

case that ”Y” is a number type, then ”Y” is eligible

to many variations. Such type of incompleteness can

be detected through SRCM when a component com-

prises at most one argument.

7 SRCM VISUALIZATION

The second goal of SRCM is visualising requirements

in an integrated and uniﬁed view. SRCM can provide

two different views of the system.

• Entities View: provides the complete depen-

dency of either the entire requirements entities or

only a selected subset. These dependencies show

the effect of a change occurring in a given en-

tity on other entities. The beneﬁt of this view is

providing a focused interaction map of the (sub-

set)requirements of interest. SRCM can provide

this view based on the aggregated information, af-

fecting and affected entities of each entity, for the

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

282

system entities discussed before.

• Requirements View: presents the SRCM com-

ponents and their relations for either the entire re-

quirements or only a selected subset of require-

ments. Representing textual requirements in a vi-

sual structure increases their expressiveness for

all requirements stakeholders. Moreover, detected

quality issues can be highlighted on the visualised

view.

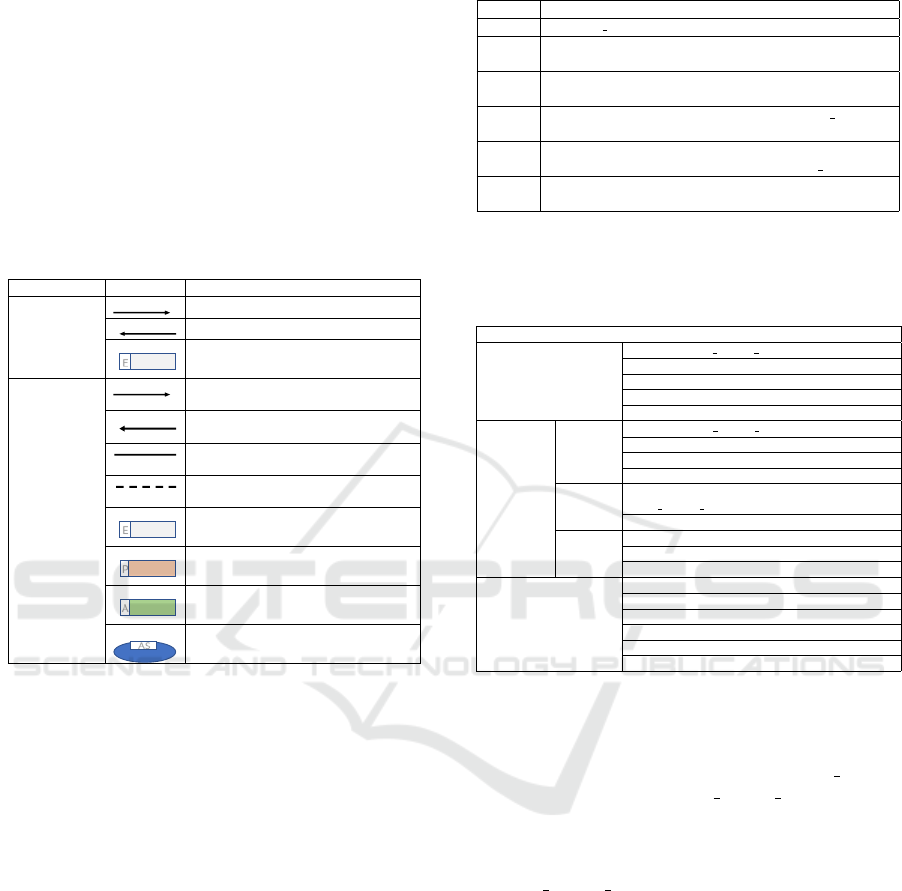

Table 1 provides the graph notations of both views.

Table 1: Graphical Representation of SRCM Views.

View Type Notation Role

Entities View

in arrow: represents affecting entities

out arrow: represents affected entities

represents System Entity

Requirements

View

in arrow: represents a contributing pre-

condition in an action source

out arrow: represents a response action

of an action source

solid line: represents the primary entity

of a system component

dashed line: represents the value source

of a system component

represents System Entity

represents System Pre-Condition (Trig-

ger/Condition)

represents System Action

represents System Action sources

8 CASE STUDY

The case study used refers to a hand crafted set of

requirements for an elevator system. An elevator sys-

tem is the service by which people can transfer from

one building level to another. Usually in an eleva-

tor service a client can request an elevator, command

a speciﬁc level, close/open the door and alert emer-

gency. In order to show how SRCM can be con-

structed, and how it represents the requirements in

a uniﬁed integrated view, the results obtained with

SRCM are presented for six individual requirements

(manually visualised) in Table 2. Such requirements

are developed with the following considerations (1)

reﬂect the proposed cases of quality issues and (2)

illustrate construction and visualisation aspects. For

each, requirement, we discuss the SRCM construc-

tion process, and the quality issues detected. Finally,

we present the corresponding requirements and enti-

ties views supported by a demonstration of the details

in each view.

Table 2: Elevator Requirements.

Req-Id Requirement Text

Req1 <weight thr> is initialized to 1000

Req2 When the direction status is [Up] or [down], the elevator

motion status shall be changed

Req3 When the direction status is false, the elevator motion sta-

tus shall be transitioned to [Idle].

Req4 If the weight of the elevator exceeds <weight thr>, the

elevator motion status shall be [Idle].

Req5 The elevator motion status shall be set to [Idle], if the

weight of the elevator is larger than <weight thr>.

Req6 If the weight of the elevator is heavy, the alert light shall

be set to true.

The ﬁnal SRCM breakdowns reﬂecting the eleva-

tor requirements are presented in Table 3.

Table 3: SRCM Breakdowns of Requirements in Table 2.

SRCM BreakDowns

System Entities

E1: RCMVAR weight thr

E2: the direction status

E3: the elevator motion status

E4: the weight of the elevator

E5: the alert light

System

Components

System-

Actions

A1: RCMVAR weight thr = 1000

A2: the elevator motion status shall be changed

A3: the elevator motion status shall = [Idle]

A4: the alert light shall = true

System-

Condition

C1: the weight of the elevator > RCM-

VAR weight thr

C2: the weight of the elevator = heavy

System-

Trigger

T1: the direction status = [Up]

T2: the direction status = [Down]

T3: the direction status = false

Action Sources

AS1: [][][A1]

AS2: [T1,T2][][A2]

AS3: [T3][][A3]

AS4: [][C1][A3]

AS5: [][C1][A3]

AS6: [][C2][A4]

The corresponding conducted analysis, reasoning,

and tracing for each requirement are as follows:

• Req1: this requirement is stored in RCM as an ac-

tion component. In which, (1) <weight thr> is

replaced with ”RCMVAR weight thr since” it is

a domain variable and (2) ”is initialized to” de-

tected as ”=” relation. By processing this com-

ponent, one system entity is detected ”RCM-

VAR

weight thr” (identiﬁed with the key ”E1”

and marked as the primary entity to the compo-

nent). The type of the detected entity is identi-

ﬁed as Number since it is assigned a value ”1000”

tagged as cardinal number.

• Req2: is decomposed into three components in

RCM ”When the direction status is [Up]”, ”When

the direction status is [down]” and ”the elevator

motion status shall be changed”. The ﬁrst two

components, classiﬁed as triggers, are mapped to

system triggers in SRCM and the last one is an

action mapped to system action. This sentence

produces two system entities: (1) ”the direction

status” with the key ”E2”, possible values {[Up],

[down]}, and type ”SystemValue”; and (2) ”the

SRCM: A Semi Formal Requirements Representation Model Enabling System Visualisation and Quality Checking

283

elevator motion status” with the key ”E3”. The ac-

tion component is marked as incomplete because

it contains only one argument in addition to the

relation (i.e, the value of change for ”the elevator

motion status” is unknown). ”E2” is stored as an

Affecting entity in ”E3” since any change in ”E2”

can cause a change in ”E3”. In addition, ”E3” is

stored as an Affected entity in ”E2”.

• Req3: here, RCM has two components: trigger

and action mapped to system trigger and system

action in SRCM respectively. The sentence results

in two entities: (1) ”the direction status” with the

value ”false” and type ”Boolean”. The entity is

already identiﬁed before with the key ”E2”, but

an inconsistency case is detected due to the types

conﬂict ”Boolean” and ”SystemValue”. (2) ”the

elevator motion status” is already recognised be-

fore with the key ”E3”, but it is assigned the type

”SystemValue” and the value ”[Idle]” here.

• Req4: this sentence has two RCM components

condition mapped to system condition and action

mapped to system action in SRCM. These compo-

nents provide only one new entity ”the weight of

the elevator” and two previously detected entities

”RCMVAR weight thr” ;and the ”elevator motion

status”. The entity ”the weight of the elevator” is

added to system entities with the key ”E4” and

type Number because it is compared against an

entity with type Number. Similarly to Req2, ”E1”

and ”E4” are stored as Affected entities in ”E3”

and ”E3” is stored as an Effected entity at ”E4”

and ”E1”.

• Req5: the sentence is a paraphrasing for Req4.

Thus, it does not add any new components or en-

tities to the constructed SRCM.

• Req6: the requirement has two RCM components:

condition mapped to system condition and action

mapped to system action. Only one entity ”the

alert light” is new and added to system entities

with the key ”E5” and the type ”Boolean”. In ad-

dition, the system condition ”If the weight of the

elevator is heavy” is ﬂagged as ambiguous since

it comprises a vague value ”heavy”. Finally, ”E4”

is stored as an Affecting entity in ”E5” and ”E5”

is stored as an Affected entity in ”E4”.

The relations ”is initialized to”, ”is”, ”shall be

transitioned to”, ”exceeds”, ”shall be”, ” shall be set

to” and ”is larger than” are transformed to ”=”, ”=”,

”=”, ”>”, ”=”, ”=” ,and ”>” respectively in RCM.

This helps us detect the unique system components as

indicated in Table 3.

Finally, an action source for each requirement is

created (including the redundant one) and assigned a

unique key and instantiated with three lists compris-

ing the keys of the contributing conditions, triggers

and action in the corresponding requirement as indi-

cated in Table 3. After that, action sources with the

same action keys for the three lists are marked as re-

dundant (e.g., Req4 and Req5 ﬂagged as redundant).

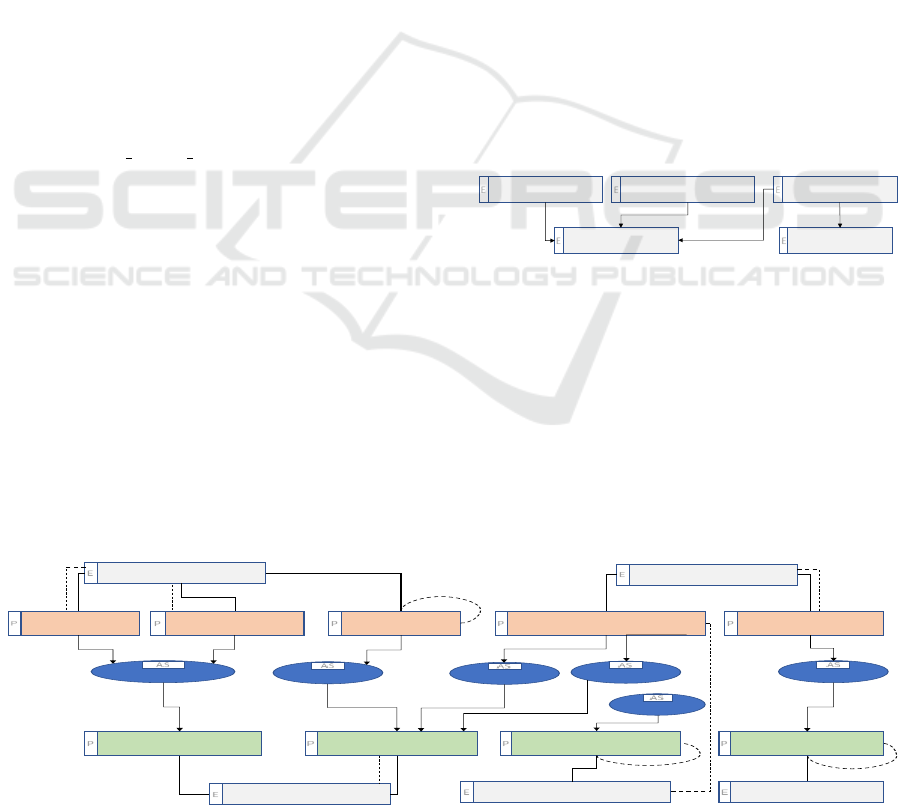

The requirements view and entities view of the

elevator six requirements are shown in Figure 5 and

Figure 6 respectively. This abstraction can help the

user ﬁgure out missing requirements because any

missing relation between the entities can be spotted.

In Figure 6, it can be noticed that, ”E3” is sensitive to

”E1”, ”E2” and ”E4”; and ”E5” is sensitive to ”E4”.

E1: RCMVAR_weight_thr

E2: the direction

status

E3: the elevator

motion status

E4: the weight of the

elevator

E5: the alert light

Figure 6: Entities View of Requirements in Table 2.

9 CONCLUSION

In this paper, we propose a graph-based semi-formal

requirements representation model (SRCM) that fa-

cilitates the visualisation of system requirements and

the relations among requirements components and

system entities. It also allows for quality checks

to be automatically applied over the automatically

E1: RCMVAR_weight_thr

E2: the direction

status

E3: the elevator

motion status

E4: the weight of the

elevator

E5: the alert light

T1: the direction

status = [Up]

T2: the direction

status = [Down]

T3: the direction

status = false

C1: the weight of the elevator

> RCMVAR_weight_thr

C2: Ithe weight of the

elevator = heavy

A3: the elevator motion

status shall = [Idle]

A2: the elevator motion

status shall be changed

A4: the alert light shall

= true

A1: RCMVAR_weight_thr

= 1000

AS2:T1 or T2

AS3:T3

AS4:C1

AS5:C1

AS6:C2

AS1:

Figure 5: Requirements View of Requirements in Table 2.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

284

constructed model views. The intrinsic structure of

SRCM enables detecting wider range of quality is-

sues (i.e., ambiguity, incompleteness, incorrectness

and inconsistencies) compared to existing approaches

– with far less effort compared to formal methods. It

also keeps the requirements comprehensible by non

technical stakeholders and even enhances the expres-

siveness of the requirements by showing a uniﬁed

view of the system. We illustrated the construction

and visualisation of SRCM using a case study high-

lighting how some quality issues can be detected.

REFERENCES

Anuar, U., Ahmad, S., and Emran, N. A. (2015). A sim-

pliﬁed systematic literature review: Improving soft-

ware requirements speciﬁcation quality with boiler-

plates. In 2015 9th Malaysian Software Engineering

Conference (MySEC), pages 99–105. IEEE.

Azzouzi, E., Jardin, A., Bouskela, D., Mhenni, F., and Cho-

ley, J.-Y. (2019). A survey on systems engineering

methodologies for large multi-energy cyber-physical

systems. In 2019 IEEE International Systems Confer-

ence (SysCon), pages 1–8. IEEE.

Buzhinsky, I. (2019). Formalization of natural language re-

quirements into temporal logics: a survey. In 2019

IEEE 17th International Conference on Industrial In-

formatics (INDIN), volume 1, pages 400–406. IEEE.

Cabot, J. and Teniente, E. (2009). Incremental integrity

checking of uml/ocl conceptual schemas. Journal of

Systems and Software, 82(9):1459–1478.

Corea, C. and Delfmann, P. (2017). Detecting compliance

with business rules in ontology-based process model-

ing.

De Gea, J. M. C., Nicol

as, J., Alem

an, J. L. F., Toval, A.,

Ebert, C., and Vizca

ıno, A. (2012). Requirements en-

gineering tools: Capabilities, survey and assessment.

Information and Software Technology, 54(10):1142–

1157.

Farfeleder, S., Moser, T., Krall, A., St

alhane, T.,

Omoronyia, I., and Zojer, H. (2011). Ontology-driven

guidance for requirements elicitation. In Extended Se-

mantic Web Conference, pages 212–226. Springer.

enova, G., Fuentes, J. M., Llorens, J., Hurtado, O., and

Moreno, V. (2013). A framework to measure and im-

prove the quality of textual requirements. Require-

ments engineering, 18(1):25–41.

Ghosh, S., Elenius, D., Li, W., Lincoln, P., Shankar, N.,

and Steiner, W. (2016). Arsenal: automatic require-

ments speciﬁcation extraction from natural language.

In NASA Formal Methods Symposium, pages 41–46.

Springer.

Kamalrudin, M., Hosking, J., and Grundy, J. (2011). Im-

proving requirements quality using essential use case

interaction patterns. In Software engineering (ICSE),

2011 33rd international conference on, pages 531–

540. IEEE.

Kamalrudin, M., Hosking, J., and Grundy, J. (2017). Mara-

maaic: tool support for consistency management and

validation of requirements. Automated software engi-

neering, 24(1):1–45.

Kocerka, J., Krze

slak, M., and Gałuszka, A. (2018).

Analysing quality of textual requirements using nat-

ural language processing: A literature review. In 2018

23rd International Conference on Methods & Models

in Automation & Robotics (MMAR), pages 876–880.

IEEE.

Konrad, S. and Cheng, B. H. (2005). Real-time speciﬁca-

tion patterns. In Proceedings of the 27th international

conference on Software engineering, pages 372–381.

ACM.

Lami, G., Gnesi, S., Fabbrini, F., Fusani, M., and Trentanni,

G. (2004). An automatic tool for the analysis of nat-

ural language requirements. Informe t

ecnico, CNR

Information Science and Technology Institute, Pisa,

Italia, Setiembre.

ucio, L., Rahman, S., bin Abid, S., and Mavin, A. (2017).

Ears-ctrl: Generating controllers for dummies. In

MODELS (Satellite Events), pages 566–570.

Marko, N., Leitner, A., Herbst, B., and Wallner, A. (2015).

Combining xtext and oslc for integrated model-based

requirements engineering. In 2015 41st Euromicro

Conference on Software Engineering and Advanced

Applications, pages 143–150. IEEE.

Mhenni, F., Choley, J.-Y., Penas, O., Plateaux, R., and Ham-

madi, M. (2014). A sysml-based methodology for

mechatronic systems architectural design. Advanced

Engineering Informatics, 28(3):218–231.

Nguyen, T. H., Grundy, J. C., and Almorsy, M. (2016).

Ontology-based automated support for goal–use case

model analysis. Software quality journal, 24(3):635–

673.

Roques, P. (2016). Mbse with the arcadia method and the

capella tool.

alhane, T. and Wien, T. (2014). The dodt tool applied

to sub-sea software. In 2014 IEEE 22nd Interna-

tional Requirements Engineering Conference (RE),

pages 420–427. IEEE.

Truong, N.-T. and Souqui

eres, J. (2004). An approach for

the veriﬁcation of uml models using b. In Proceed-

ings. 11th IEEE International Conference and Work-

shop on the Engineering of Computer-Based Systems,

2004., pages 195–202. IEEE.

Zaki-Ismail, A., Osama, M., Abdelrazek, M., Grundy, J.,

and Ibrahim, A. (2020). Rcm: Requirement capturing

model for automated requirements formalisation.

SRCM: A Semi Formal Requirements Representation Model Enabling System Visualisation and Quality Checking

285
