Automated Black Box Detection of HTTP GET Request-based Access

Control Vulnerabilities in Web Applications

Malte Kushnir

, Olivier Favre

, Marc Rennhard

, Damiano Esposito

and Valentin Zahnd

Institute of Applied Information Technology, Zurich University of Applied Sciences, Winterthur, Switzerland

scanmeter GmbH, Zurich, Switzerland

Keywords:

Automated Web Application Security Testing, Access Control Security Testing, Black Box Security Testing.

Abstract:

Automated and reproducible security testing of web applications is getting more and more important, driven

by short software development cycles and constraints with respect to time and budget. Some types of vul-

nerabilities can already be detected reasonably well by automated security scanners, e.g., SQL injection or

cross-site scripting vulnerabilities. However, other types of vulnerabilities are much harder to uncover in an

automated way. This includes access control vulnerabilities, which are highly relevant in practice as they

can grant unauthorized users access to security-critical data or functions in web applications. In this paper, a

practical solution to automatically detect access control vulnerabilities in the context of HTTP GET requests

is presented. The solution is based on previously proposed ideas, which are extended with novel approaches

to enable completely automated access control testing with minimal conﬁguration effort that enables frequent

and reproducible testing. An evaluation using four web applications based on different technologies demon-

strates the general applicability of the solution and that it can automatically uncover most access control

vulnerabilities while keeping the number of false positives relatively low.

1 INTRODUCTION

Web applications are prevalent in today’s world and

are used for a wide range of services. Often, web ap-

plications provide access to security-critical data or

functions and correspondingly, they are frequently at-

tacked (WhiteHat Security, 2019). To counter such

attacks, web applications should be developed and

operated in a secure way and one important part of

this is security testing. Ideally, at least parts of secu-

rity testing should be automated as this increases efﬁ-

ciency and enables continuous and reproducible secu-

rity tests, which is getting more and more important

in light of today’s short software development cycles.

One way to automate security testing of web ap-

plications is by using vulnerability scanning. Web

application vulnerability scanners test a running ap-

plication “from the outside” by sending speciﬁcally

crafted requests to the target and analyzing the re-

ceived response. Various commercial and open source

vulnerability scanners are available (Chen, 2016) and

while these tools are certainly not perfect and dif-

ferent tools have different strengths and weaknesses

(Rennhard et al., 2019), they are in general well-

suited to detect some types of web application vul-

nerabilities such as SQL injection, cross-site script-

ing or cross-site request forgery (CSRF) vulnerabili-

ties. However, there are also vulnerability types that

are hard to detect for vulnerability scanners, which

includes access control vulnerabilities. The main rea-

son for this is that vulnerability scanners typically do

not know which users are allowed to do what in a web

application, so there’s no way to determine which ac-

cesses to the web application are legitimate or not.

At the same time, access control vulnerabilities

are highly relevant and critical in practice (OWASP,

2017a) and consequently, there’s a strong desire for

solutions that can at least partly automate detection.

Several approaches have been proposed in the past

(see Section 6) and while all these proposals have

their merits, they usually have limitations that pre-

vent their wide applicability in practice, e.g., because

they still require signiﬁcant manual work, because

they require a formal speciﬁcation of an access con-

trol model as a basis (which is typically not available

in practice), because they are dependent on the used

web application technology (which means they have

to be adapted if different technologies are used), or

because they require access to the source code (which

204

Kushnir, M., Favre, O., Rennhard, M., Esposito, D. and Zahnd, V.

Automated Black Box Detection of HTTP GET Request-based Access Control Vulnerabilities in Web Applications.

DOI: 10.5220/0010300102040216

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 204-216

ISBN: 978-989-758-491-6

is not always granted when a web application of a

third party is analyzed).

In this paper, we present a practical solution that

overcomes the limitations of previous proposals. Our

solution is based on existing ideas, which are ex-

tended with novel approaches to enable completely

automated, black box detection of access control vul-

nerabilities in the context of HTTP GET requests.

The solution is applicable with minimal conﬁguration

effort to a wide range of web applications without re-

quiring access to the source code and without requir-

ing the availability of a formal access control model.

Our evaluation demonstrates that the solution can in-

deed be applied to various types of web applications

and that it can uncover several vulnerabilities while

keeping the number of false positives low.

The remainder of this paper is organized as fol-

lows: Section 2 provides an introduction to access

control vulnerabilities in web applications. Section 3

describes our solution to detect such vulnerabilities in

an automated way and Section 4 contains the evalua-

tion results. Section 5 discusses the solution approach

and the evaluation results and provides directions for

future work. Related work is covered in Section 6 and

Section 7 concludes this work.

2 ACCESS CONTROL

VULNERABILITIES

Access control vulnerabilities in web applications can

be divided into two main categories: function-level

and object-level vulnerabilities. Function-level ac-

cess control vulnerabilities occur if a web applica-

tion does not sufﬁciently check whether the current

user is authorized to access a speciﬁc function (which

often corresponds to a resource in the web appli-

cation). For instance, assume that the URL https:

//www.site.com/admin/viewcustomers is intended to

be accessible only by administrators of an e-shop to

view the registered customers. In this case, the re-

source admin/viewcustomers identiﬁes the function to

view customers and if a non-administrative user of the

web application manages to successfully access this

function, then this corresponds to a function-level ac-

cess control vulnerability. Object-level access control

vulnerabilities occur when a user gets unauthorized

access to objects within a web application. For in-

stance, assume that a seller in an e-shop has legiti-

mate access to edit his own products, that the prod-

uct with id=123 belongs to him, and that the URL

https://www.site.com/editproduct&id=123 grants him

access to edit the product. If this seller now changes

the id in this URL so that it corresponds to a product

that belongs to another seller (e.g., by using id=257

so that the resulting URL is https://www.site.com/

editproduct&id=257) and if access to edit the prod-

uct is granted by the web application, then this corre-

sponds to an object-level access control vulnerability.

There are many possible root causes for such vul-

nerabilities, including coding mistakes (e.g., forget-

ting to include an authorization check or implement-

ing the check incorrectly), conﬁguration errors (e.g.,

Cross-Origin Resource Sharing (CORS) misconﬁg-

urations in the case of APIs), and vulnerabilities in

web application server software and web application

frameworks (OWASP, 2017b). The impact of an ac-

cess control vulnerability depends on the vulnerable

component and can range from information disclo-

sure (e.g., an e-banking customer that manages to

view the account details of other customers) to unau-

thorized manipulation of data (e.g., a user of a web-

based auctioning platform who can modify the bids of

other users) up to getting complete access to and con-

trol of the affected web application (e.g., an attacker

that manages to get access to the function to create a

new administrator account in the web application).

3 SOLUTION APPROACH

The solution presented in this paper focuses on auto-

mated detection of access control vulnerabilities us-

ing a black box approach. Black box means that the

solution analyses a running web application by inter-

acting with it “from the outside” and that it neither re-

quires nor makes use of any internal information such

as the source code or access control conﬁgurations.

The solution is able to detect function- and object-

level access control vulnerabilities in the context of

HTTP GET requests. The reason for focusing on GET

requests is to minimize side effects due to changes in

the application state that usually happen with POST,

PUT, PATCH or DELETE requests. These requests

often change the data and/or state of an application,

which can alter its appearance and functionality and

which in turn would make it more difﬁcult to compare

application behavior when using different users.

The fundamental idea how our solution deter-

mines legitimate accesses in the web application un-

der test is based on the assumption that in most web

applications, the web pages presented to a user con-

tain only links, buttons or other navigation elements

that can legitimately be used by this user. For in-

stance, navigation elements to access administrative

functions in a web application typically only show

up after an administrator has successfully logged in

and are usually not presented to users that don’t have

Automated Black Box Detection of HTTP GET Request-based Access Control Vulnerabilities in Web Applications

205

administrator rights. Based on this assumption, web

crawling can be used to determine the content which

can be legitimately accessed by different users of a

web application, as web crawlers mainly follow nav-

igation elements that are presented to a user. In the

next step, it is then checked – for each user – whether

content that was found during crawling with the other

users (but not with the current user) can be accessed

by the current user. If this is the case, then this is a

strong indication for an access control vulnerability.

This basic approach is not novel and there exist

publications on it or that use of parts of it (see Sec-

tion 6). However, what separates our solution from

previous work is that it is designed to be a truly prac-

tical approach that is easily applicable to a wide range

of web applications, that it is highly automated with-

out requiring manual effort beyond providing a simple

conﬁguration ﬁle, and that it aims at optimizing au-

tomated detection of vulnerabilities with the goal to

maximize true positives while minimizing false posi-

tives. This is achieved by using a strict black approach

and by integrating several novel approaches in our

overall solution, in particular by combining crawlers

with different strengths (see Section 3.3), by using a

sequence of several ﬁltering steps to remove HTTP

request/response pairs that are not relevant when do-

ing access control tests (see Section 3.4), and by us-

ing a sophisticated validation approach to determine

whether a possibly detected access control vulnerabil-

ity is indeed a vulnerability or not (see Section 3.5).

3.1 Prerequisites

The solution is based on two main prerequisites. The

ﬁrst is that one has to know the authentication mecha-

nism used by the web application under test, which

can easily be determined by observing the HTTP

trafﬁc exchanged between browser and web applica-

tion. Most web applications use either cookie-based

session authentication or token-based authentication

with JSON Web Tokens (JWT) and our solution sup-

ports both. The second prerequisite is that for each

user account which should be included in the analy-

sis, authenticated session IDs or token values can be

created and captured. This can be done using the stan-

dard sign-up and login functionality of a web applica-

tion.

3.2 Overall Workﬂow

Figure 1 illustrates the overall workﬂow of the pre-

sented solution.

As inputs, the URL of the target web application,

the authentication mechanism and authentication in-

Input:

- Target URL

- Authentication

Mechanism and

Information

FilteringCrawling

Replay

Testing

Output:

Access Control

Vulnerabilties

Figure 1: Access control testing workﬂow.

formation (e.g., authenticated session IDs, JWTs) of

two users are required. These users can have different

roles (e.g., a seller and an administrator in an e-shop)

or they can have the same role (e.g., two sellers in an

e-shop that both offer their own products). The work-

ﬂow described in this and the following subsections

is always based on two authenticated users, but it can

easily be extended to more than two users and also

works if one of the users is an anonymous (unauthen-

ticated) user, as will be explained in Section 3.7.

In a ﬁrst step, the crawling component is used

to capture all reachable content of the target web

application when using the authentication informa-

tion of the two users and when using the anonymous

user. The data collected by the crawling component

is passed to the ﬁltering component, which removes

data points that are not relevant when doing access

control tests in the context of the two users. The ﬁl-

tered dataset is then used as input for the replay test-

ing component, which replays requests that were cap-

tured with one user with the other user and analyses

the behavior of the application to detect vulnerabili-

ties. The result of the replay testing component is a

set of detected access control vulnerabilities. The in-

dividual components of this workﬂow are explained

in more detail in the following subsections.

3.3 Crawling

The crawling component receives the target URL, the

authentication mechanism, and authentication infor-

mation of two users (identiﬁed as U

and U

) as in-

puts and uses two custom crawlers, built with the pop-

ular crawling frameworks Scrapy (Scrapy, 2020) and

Puppeteer (Puppeteer, 2020). The workﬂow of this

component is shown in Figure 2.

Custom

Crawler

based on

Scrapy

Custom

Crawler

based on

Puppeteer

Input:

- Target URL

- Authentication

Mechanism and

Information

Output:

Crawling Results

Figure 2: Crawling component.

Combining two crawlers has several beneﬁts.

First, coverage improves by merging the results of

two crawlers since their underlying detection mech-

anisms vary. Second, by adding the custom crawler

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

206

based on Puppeteer, it is possible to capture HTTP

requests and responses that are executed as part of

JavaScript code in the browser. Many single page

application dynamically load and modify the Docu-

ment Object Model (DOM) of a web page and can

therefore not be reliably crawled with a crawler such

as Scrapy that relies on parsing HTML content. The

custom crawler based on Puppeteer, however, allows

to control a real Chrome browser instance and waits

for a page to fully load all dynamic content before

processing the page for any navigation links and ac-

tion elements such as buttons.

Both crawlers are used to crawl the target appli-

cation three times: One time for each of the users U

and U

for which authentication information has been

provided and once without any authentication infor-

mation to capture content that is publicly accessible.

Since the solution currently focuses on GET requests,

no other request types are used during crawling. The

output of the crawling component are three lists of

HTTP request and response pairs (one for U

, one

for U

, and one for the anonymous user) that resulted

from the three crawling runs. Duplicates created dur-

ing crawling are removed from the lists, i.e., if a URL

was used multiple times when crawling with a certain

user, e.g., U

, the corresponding request and response

pair is included only once in the list of U

3.4 Filtering

The ﬁltering component uses a sequence of ﬁve ﬁlters

to remove HTTP requests and responses that are not

relevant when doing access control tests in the context

of U

and U

. These ﬁlters analyze all HTTP request

and response pairs that were collected during crawl-

ing and discard content that fails the respective check.

Note that effective ﬁltering is highly important as oth-

erwise, many false positives will be generated during

replay testing. Figure 3 depicts the steps performed

during ﬁltering.

Public

 Content

Filter

Output:

Filtering

Results

Input:

Crawling

Results

Static

 Content

Filter

 Standard

Pages

Filter

Content

  Similarity

Filter

Filtering Sequence

Both

Users

Content

Filter

Figure 3: Filtering component.

The ﬁrst ﬁlter, the public content ﬁlter, looks for

content that is accessible without any authentication.

It compares the URLs of the requests in the crawling

results of U

and U

with the URLs in the crawling

results when no authentication information was used.

If there’s an overlap, the content is considered public

information and therefore ﬁltered out from the crawl-

ing results of U

and U

The second ﬁlter, the both users content ﬁlter, re-

moves content that is present in the crawling results of

both U

and U

. It compares the URLs of the requests

in the crawling results of U

and U

and if there’s an

overlap, the content is ﬁltered out from the crawling

results of both users. The rationale here is that if a

URL is found during crawling with U

and U

, it is

assumed that both users can legitimately access the

content and consequently, it must not be considered

in the context of access control tests with the current

two users and can therefore be ﬁltered out.

Next, the static content ﬁlter ﬁlters out static con-

tent that is not relevant for access control decisions.

This applies mostly to frontend-speciﬁc content that

is served as static ﬁles, e.g., CSS ﬁles, JavaScript ﬁles,

logo ﬁles, etc. This is a conﬁgurable ﬁlter that can be

supplied with a list of ﬁle extensions that mark static

content. The ﬁlter will then ﬁlter out all requests that

point to ﬁles with these extensions. By default, only

CSS and JavaScript ﬁles are ﬁltered.

The standard pages ﬁlter ﬁlters out speciﬁc stan-

dard pages. Many web applications have pages like

“About Us” or contact forms that are typically not rel-

evant in access control testing scenarios. The ﬁlter

looks for keywords in URLs that indicate such pages.

It is preconﬁgured with a list of common keywords

and can optionally be customized. This can be help-

ful if the web framework that was used to develop

the web application is known since many frameworks

have well-known paths for standard pages.

Finally, the content similarity ﬁlter checks

whether the crawling dataset contains HTTP re-

sponses that are equal or very similar to each other.

The used approach is based on fuzzy hashing and will

be described in Section 3.6. This ﬁlter mainly aims

at ﬁltering out standard content that is missed by the

previous ﬁlter. For instance, some applications do not

use HTTP status codes to indicate that a page was not

found, that a redirect occurred or that some other er-

ror happened, but instead respond with an HTTP 200

status code and a custom error page. This would be

detected by this ﬁlter and the corresponding requests

and responses would be removed from the crawling

results. The same applies to other standard content:

If multiple URLs in the crawling results point to very

similar content, this content has a high probability of

being not relevant in access control decisions. For in-

stance, a contact page with support phone numbers or

email addresses could be shown when accessing the

path /contact but also when starting a support request

from another part of the application.

The output of the ﬁltering component are two lists

of ﬁltered HTTP request and response pairs, one for

and one for U

Automated Black Box Detection of HTTP GET Request-based Access Control Vulnerabilities in Web Applications

207

3.5 Replay Testing

The replay testing component is the core component

of the solution to detect access control vulnerabilities.

It takes the ﬁltered list of HTTP request and response

pairs and replays each request with the other user, i.e.,

requests on the ﬁltered list of U

are replayed with U

and vice versa. The goal is to learn whether URLs

that were found during crawling with one user and

that were not ﬁltered out during the previous step can

successfully be accessed with the other user, as this is

a strong indication of a vulnerability. To verify suc-

cessful access, the response to the replayed request is

analyzed using a series of validators, as illustrated in

Figure 4.

Input:

HTTP Response

when replaying a

Request

Status Code

Validator

Regex

Validator

HTTP 200 Not HTTP 200

Not

vulnerableMatch

Content Similarity

Validator

No Match

Vulnerable

No Match

Not

vulnerable Match

Not

vulnerable

Figure 4: Validators used during replay testing.

First, the status code validator checks whether the

HTTP response status code indicates successful ac-

cess. Everything except HTTP 200 status codes is

treated as an access denied decision, which means that

no vulnerability is detected. In most web applications,

the application replies to requests that it can handle

with an HTTP 200 status code. The other status codes

are used to signal a redirection (codes starting with 3,

i.e., 3xx), a client error (4xx), or a server error (5xx).

If an application strictly follows these status code con-

ventions, permitted and denied access decisions could

be determined from the status code alone. In such a

scenario, a permitted access would result in a 200 sta-

tus code and a denied access in a 301, 302, 401 or

403 status code. In practice, however, many applica-

tions do not follow these conventions. For example,

an application could always reply to a request with

a 200 status code and show the user a custom error

page indicating the result of a denied access. Badly

formed requests, internal server errors or expired user

sessions would however still lead to status codes dif-

ferent from 200. To summarize, anything other than a

200 status code is considered as an access denied de-

cision but a 200 status code does not directly identify

a permitted access and needs to be analyzed further.

All responses that have a 200 status code are next

analyzed by the regex validator. This validator looks

for speciﬁc strings inside the response body to decide

about permitted and denied access, e.g., custom ac-

cess denied error messages that appear when an ille-

gitimate access is attempted. If there’s a match, this

is considered as an access denied decision and con-

sequently, no vulnerability is ﬂagged. Note that this

validator must be conﬁgured manually and is there-

fore not used in the default conﬁguration.

The ﬁnal validator, the content similarity valida-

tor, checks whether the content of the response of the

replayed request is similar to the response of the orig-

inal request using the same approach as during the

content similarity ﬁltering step. The reason for using

this validator is because even if U

can successfully

access a resource that was found when crawling with

, it does not always indicate a vulnerability. For

instance, assume U

and U

are two sellers in an e-

shop that offer products. As sellers, both can access

a resource that lists their own products, but let’s as-

sume that the resource was only found when crawl-

ing with U

. During replay testing, U

can success-

fully access the resource and without this validator,

this would wrongly be ﬂagged as a vulnerability. By

using this ﬁnal validator, however, no vulnerability

would be reported because the two sellers offer dif-

ferent products so the contents of the responses are

very likely not similar enough for the validator to in-

dicate a vulnerability. As another example, assume

that during crawling with U

, a list of documents is

received that can be downloaded by U

. U

does not

have the rights to download documents so the URL

to get the list was not found when crawling with U

But now assume that the application is implemented

in a way that it simply returns an empty list during

replay testing, when it is attempted to access the list

using U

. From an access control point of view, this

corresponds to correct behavior. In this case, if this

validator were not used, a vulnerability would be re-

ported, which would again be wrong. But by using

the validator, it is recognized that the contents are dif-

ferent, and consequently, no vulnerability is reported.

The output of the replay testing component is a list

of requests that correspond to access control vulnera-

bilities.

3.6 Content Similarity

In Sections 3.4 and 3.5, ﬁlters and validators based on

content similarity were used to determine the similar-

ity between the content in HTTP responses. Since this

is a a key component of our solution, the approach is

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

208

described in more detail in this subsection.

There are different approaches to compare the

contents of responses for similarity. One option is

to directly compare the contents of two responses for

equality. While very fast and simple, this has the ma-

jor drawback that it can’t detect even the smallest dif-

ferences between two responses. In practice, when

sending the same request twice, there’s often no guar-

antee that the responses are exactly the same because

of, e.g., dynamic elements such as server-generated

CSRF tokens or timestamps. Therefore, a better ap-

proach is required to cope with such differences.

An approach that can cope with small differences

is to only compare the relevant parts of the con-

tents for equality. For example, when comparing two

HTML documents, one would ﬁrst remove all ele-

ments from the documents that are not interesting for

comparison (e.g., meta tags, static content, scripts,

footers, etc.) and then compare the stripped docu-

ments. The beneﬁt of this solution is that it allows

to ﬁlter out all elements that could taint a compari-

son for equality. The big drawback, however, is that

one has to deﬁne and maintain a list of elements that

should be excluded or allowed. In practice, this is

difﬁcult and time consuming, especially as there are

major differences between different web frameworks.

We therefore use a more general approach that

does not require application-speciﬁc conﬁguration.

Instead of comparing two contents directly, fuzzy

hashes of each content are computed and compared

for similarity. To do this, two different fuzzy hash-

ing algorithms are used, ssdeep (Kornblum, 2006)

and tlsh (Oliver et al., 2013). These algorithms were

chosen because tlsh has been proven to perform well

when comparing HTML documents (Oliver et al.,

2014) while ssdeep is one of the best known and most

widely used fuzzy hashing algorithms.

The two fuzzy hashing algorithms are used as fol-

lows when comparing two contents: First, the ssdeep

and tlsh hashes are computed of both contents and

compared with each other. If the resulting compari-

son score is above a certain conﬁgurable threshold for

either ssdeep or tlsh, the contents are processed by a

ﬁltering step where certain elements that are not rele-

vant for the comparison are removed. Then, the fuzzy

hashes are computed again, this time of the ﬁltered

contents. If the comparison scores for both ssdeep and

tlsh are above the threshold, the contents are consid-

ered similar. Otherwise, they are considered different.

To illustrate this procedure, we again use the ex-

ample scenario introduced in Section 3.5 where U

and U

are two sellers in an e-shop that both can

access a resource that lists their own products. The

contents of the HTTP responses they get are differ-

ent and now it must be determined how similar these

two contents are to get a ﬁnal vulnerability verdict. In

step one, the fuzzy hashes of both contents are com-

puted and compared with each other. Let’s assume

that the two contents differ mainly in terms of the tex-

tual information about the listed products, while most

of the other page elements are the same in both cases

due to standard web page components such as scripts,

navigation, header, footer, etc. Therefore, it is quite

likely that the comparison score is above the threshold

for at least one of the fuzzy hash algorithms, which

would wrongly indicate a vulnerability. To prevent

such false positives, the second step is used, where as

many standard components as possible are removed

from the contents. In the case of HTML content, a

small list of predeﬁned tags is used to deﬁne what el-

ements should be removed, which currently contains

scripts and meta tags. This list is based on an analysis

of our test applications (see Section 4) and is subject

to change once more data is available. As a result

of this removal, the actual differences (the included

products) in the two contents are now more apparent,

which results in fuzzy hashes that are much less sim-

ilar than before and which therefore most likely will

result in the correct verdict of not vulnerable.

3.7 Testing of Multiple Users and Roles

The workﬂow described above can be used to de-

tect access control vulnerabilities based on two users.

However, there are often more than two users and

roles that should be considered. To support this, the

workﬂow is simply used repeatedly for each pair of

users or roles that should be tested, where one of the

users can also be the anonymous (unauthenticated)

user. For example, if an application provides three

user roles administrator (A), vip user (V) and stan-

dard user (S), and if the anonymous user (Y) should

also be considered and one wants to ﬁnd vulnerabili-

ties between each pair of distinct users or roles, then

six runs of the entire workﬂow would be done based

on the pairs (A,V), (A,S), (A,Y), (V,S), (V,Y) and (S,Y).

Note that if one of the two users is the anonymous

user, the entire workﬂow basically works as described

above, but crawling is only done with one authenti-

cated user and the both users content ﬁlter is omitted.

3.8 Conﬁguration Example

To give an idea about the conﬁguration that is required

for the solution to detect vulnerabilities based on two

users, Figure 5 shows the default conﬁguration ﬁle.

The ﬁrst two sections target and auth are self-

explanatory and must be speciﬁcally conﬁgured. As

Automated Black Box Detection of HTTP GET Request-based Access Control Vulnerabilities in Web Applications

209

target:

target_url: https://www.site.com

target_domain: site.com

auth:

auth_user_1: Cookie cookie-value-user-1

auth_user_2: Cookie cookie-value-user-2

username_user_1: userA

username_user_2: userB

options:

do_not_call_pages: logout,logoff,log-out

static_content_extensions: js,css

standard_pages: about.php,credits.php

regex_to_match:

ssdeep_threshold: 80

tlsh_threshold: 50

Figure 5: Conﬁguration example.

can be seen, the required conﬁguration effort is small.

The third section options can be adapted to supply ad-

ditional information about the web application under

test, which may improve vulnerability detection. The

parameters in this section mean the following:

• do not call pages: URLs that the crawler should

not follow, e.g., to avoid logging itself out.

• static content extensions: Extensions of static

content that are used by the static content ﬁlter.

• standard pages: Standard pages that are used by

the standard pages ﬁlter.

• regex to match: The regular expression used by

the regex validator (empty per default).

• ssdeep threshold/tlsh threshold: Thresholds for

content similarity matching above which contents

are considered similar. The default values 80 and

50 worked well during the evaluation.

3.9 Implementation

The described solution was implemented as a fully

functional prototype using Python. To capture all re-

quests and responses made by the crawling compo-

nent, a web proxy was built based on the proxy library

mitmproxy (Mitmproxy, 2020). The proxy saves all

requests and responses plus additional meta data (e.g.,

which user authentication information was used for

the request and which crawler was used) to a database.

For the database, SQLite (SQLite, 2020) is used.

The prototype implementation does not require

any special hardware. During development and eval-

uation, a standard Linux-based server system with 4

CPU cores and 8 GB RAM was used.

4 EVALUATION

To evaluate the prototype and the entire solution ap-

proach, a set of test applications is required, each con-

taining at least one access control vulnerability. To

create such a set, access control vulnerabilities were

added to three available web applications by modify-

ing the application code or access control conﬁgura-

tions. In addition, we used one web application with

a vulnerability that has been publicly disclosed. In to-

tal, the test set consists of four web applications that

represent a diverse set of traditional and modern web

technologies and frameworks:

• Marketplace: based on Node.js Express

• Bludit: based on PHP

• Misago: single page application based on Django

(backend) and React (frontend)

• Wordpress: based on PHP

4.1 Test Application 1: Marketplace

The ﬁrst application used for evaluation is a web shop

application that is used at our university for educa-

tional purposes. The application is quite small in

scope and therefore a good starting point to evalu-

ate the approach. The application has an administra-

tive area where users can add and delete products and

view and delete the purchases that were made in the

shop. There are three different roles that have differ-

ent permissions in the administrative area:

• Role Marketing (M): view purchases

• Role Sales (S): view and delete purchases

• Role Product Manager (P): add and delete prod-

ucts

One access control vulnerability was added to the

application. It can be found in the Add Product func-

tionality, which should only be accessible by users

with the role P. Due to the vulnerability, every au-

thenticated user (i.e., also users with role M or S) can

access this resource to add a product.

To evaluate how well our solution performs, all

pairs of two roles are considered, including the anony-

mous user Y. This results in six runs of the workﬂow

using pairs (P,S), (P,M), (P,Y), (S,M), (S,Y) and (M,Y).

In addition, three runs are done using two different

users with the same role, i.e., (P

), (S

) and

). This corresponds to a full analysis that takes

into account all possible combinations. The standard

conﬁguration was used for all runs (see Figure 5).

Figure 6 shows the results of the crawling and ﬁltering

components.

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

210

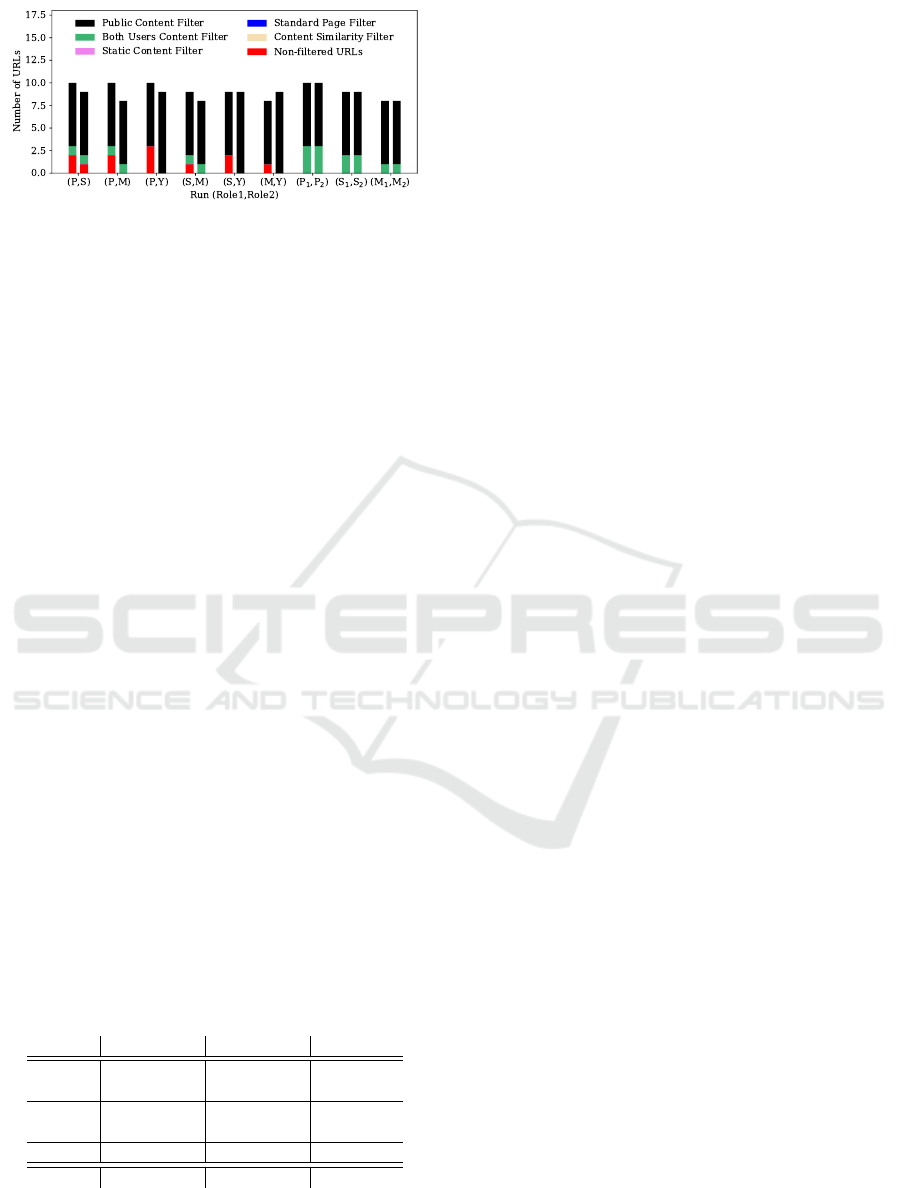

Figure 6: Results of crawling and ﬁltering for Marketplace.

Figure 6 shows two bars for each run because dur-

ing each run, crawling and ﬁltering is done with both

involved users. For instance, looking at the two bars

associated with run (P,S), the left bar shows the crawl-

ing and ﬁltering results for P and the right bar the re-

sults for S. In general, Figure 6 conﬁrms that the ap-

plication is indeed small as no more than ten URLs

are found in any case. One can also see the effec-

tiveness of the ﬁltering steps that remove most URLs.

For instance, looking at the left bar of run (P,S), seven

of ten URLs that were found when crawling with P

are removed by the public content ﬁlter, which is to

be expected as this ﬁlter is executed ﬁrst in the ﬁl-

ter chain and as several of the URLs can be reached

by the anonymous user. In addition, one URL is re-

moved by the both users content ﬁlter, as this URL

was also found when crawling using the user with role

S. The other ﬁlters have no effect, mainly because the

application is so small that all URLs that should be

removed could already be eliminated by the ﬁrst two

ﬁlters. In the end, only two non-ﬁltered URLs are

remaining, one of which corresponds to the URL to

access the Add Product functionality (where the vul-

nerability is located). Similar results can be observed

in the other runs. Note that in several cases, no non-

ﬁltered URLs are left in the end, which corresponds

to the correct behavior. For instance both bars of run

) have no non-ﬁltered URLs in the end as with

both involved users, the same crawling results are pro-

duced and consequently, all URLs are ﬁltered out.

The results of the replay testing component are

displayed in Table 1.

Table 1: Results of replay testing for Marketplace.

Run Vuln exists Vuln found False Pos

(P,S)

yes yes 0

no no 0

(P,M)

yes yes 0

no no 0

other no no 0

overall 2 2 0

Table 1 shows two rows for each run. For instance,

the top row of run (P,S) shows the replay testing re-

sults when replaying the non-ﬁltered requests of P

with S and the bottom row shows the same when re-

playing the non-ﬁltered requests of S with P. The col-

umn Vuln(erability) exists indicates whether the vul-

nerability exists in the corresponding scenario, i.e.,

the entry yes in the top row of run (P,S) means that

the vulnerability allows S to access a resource of P.

Conversely, the entry in the bottom row of run (P,S)

is set to no as there is no vulnerability that allows P

to access a resource of S. The top row of run (P,S)

also shows that when taking the two URLs that were

remaining in the ﬁltered list of URLs of P and re-

playing the corresponding requests with S, the vul-

nerability is detected (column Vuln(erability) found is

set to yes), i.e., access to the Add Product resource is

indeed possible with S. Exactly the same can be ob-

served from the results of run (P,M), i.e., it is also de-

tected that M gets access to the Add Product resource.

The bottom rows of runs (P,S) and (P,M) show that no

vulnerability was detected when accessing the non-

ﬁltered URLs of S and M with P, which corresponds

to the correct result as no vulnerabilities exist in these

two cases. In addition, the rightmost row shows that

no false positives were reported during runs (P,S) and

(P,M). In the other seven runs, no vulnerabilities exist

and none are reported (also no false positives). There-

fore, the results of these runs are summarized in a sin-

gle row with the Run column set to other.

Overall, this ﬁrst evaluation demonstrates that the

solution works well with a simple application and –

in this case – delivers an optimal result: The solution

could identify the vulnerability in both cases where it

was present without reporting any false positives.

4.2 Test Application 2: Bludit

Bludit (Bludit, 2020) is a CMS that represents a more

traditional web application, where most of the logic is

implemented in the backend. It has an extensive priv-

ileged area where authenticated user can add, modify

and delete content. There are three roles:

• Role Author (U): create, modify and delete own

content

• Role Editor (E): create, modify and delete any

content of any user

• Role Administrator (A): all permissions of E, in

addition change the appearance of the website, in-

stall plugins, manage user accounts and change

numerous settings

In this application, three different access control

vulnerabilities V

– V

were implemented:

• V

is located in the plugin settings area, which

should only be accessible by users with role A.

Automated Black Box Detection of HTTP GET Request-based Access Control Vulnerabilities in Web Applications

211

Due to this vulnerability, every authenticated user

is able to access the resource where all plugin set-

tings can be viewed and modiﬁed.

• V

is similar to V

but exists in a different re-

source, namely the page where a user with role

A can view and change general website settings.

• V

allows authenticated users with role U to get

access to resources where content of other users

with role U can be modiﬁed.

Nine runs were done that consider all possible

pairs based on the three roles and the anonymous user

Y. To prevent state changes in the application dur-

ing testing (despite using only GET requests), some

resources were added to the do not call pages con-

ﬁguration (speciﬁcally: install-plugin, install-theme,

uninstall-plugin, uninstall-theme). Otherwise, the

standard conﬁguration was used. Figure 7 shows the

results of the crawling and ﬁltering components.

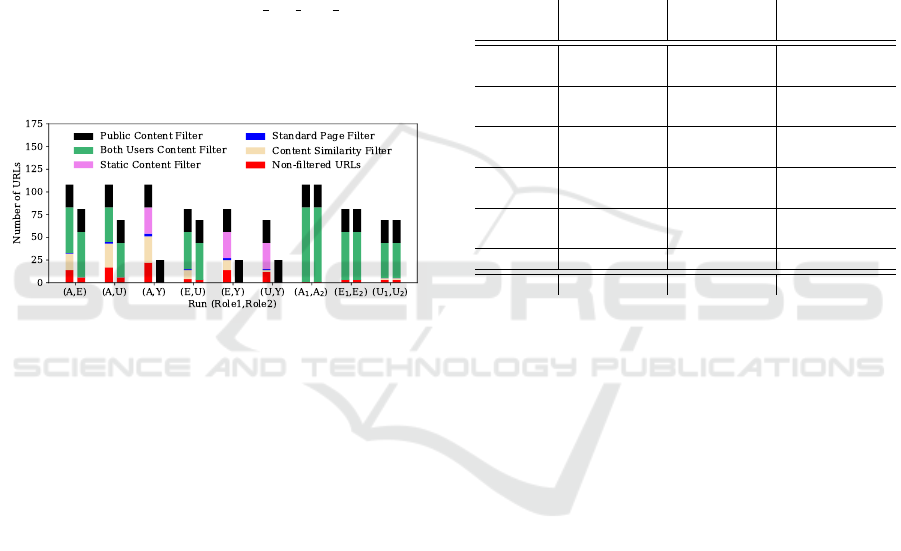

Figure 7: Results of crawling and ﬁltering for Bludit.

With a maximum of over 100 unique URLs iden-

tiﬁed during crawling, this application is much bigger

than the ﬁrst one and therefore better suited to evalu-

ate the effectiveness of the ﬁltering steps. Compared

to test application 1, the publicly reachable resources

make up a much smaller part of the overall applica-

tion. Only about 20% is accessible by an anonymous

user and ﬁltered out by the public content ﬁlter. The

most signiﬁcant ﬁltering happens with the both users

content ﬁlter with the exception of the runs that in-

volve the anonymous user Y. The reason for the latter

is that in theses runs, content that can be reached by

both users corresponds to public content, which is al-

ready ﬁltered out by the public content ﬁlter. The con-

tent similarity ﬁlter is also effective, mainly as there

are a lot of menu pages in the protected area of the

application that are very similar and that often differ

only in one HTML tag. Overall, the number of URLs

could be reduced by more than 90% on average.

The results of the replay testing component are

displayed in Table 2. The results show that V

and

were detected whenever they should have been de-

tected in the corresponding runs. However, V

was

never detected because the vulnerable URL was con-

sistently ﬁltered out by the both users content ﬁlter.

The reason for this is a strange application design

choice by the developers: For the privileged area,

the developers chose to implement two different nav-

igation menus, one for devices with a small and one

for devices with a bigger screen. While the naviga-

tion links are correctly implemented in one of these

menus, the other one exposes all navigation links,

even those a user isn’t permitted to visit. Therefore,

during crawling, the vulnerable URL can be found by

all authenticated users and not only by A and conse-

quently, it is ﬁltered out.

Table 2: Results of replay testing for Bludit.

Run Vuln exists Vuln found False Pos

(new unique)

(A,E)

yes yes no yes no no 0

no no no no no no 0

(A,U)

yes yes yes yes no yes 0

no no no no no no 0

(E,U)

no no yes no no yes 2 (2)

no no no no no no 2 (0)

)

no no no no no no 2 (0)

)

no no yes no no yes 2 (0)

other no no no no no no 0

overall 2 2 3 2 0 3 2 unique

Overall, 12 false positives were reported, How-

ever, they correspond to only two unique false pos-

itives. This is reﬂected in the rightmost column in

Table 2: Only the ﬁrst two false positives are actu-

ally counted as they are new unique false positives

(the new unique false positives are shown in parenthe-

ses). All other reported false positives are duplicates

of the ﬁrst two and not counted as unique false pos-

itives. The total number of unique false positives is

also listed in the bottom row. The two false positives

are application-speciﬁc and related to editing the pro-

ﬁle of a user: When accessing the user-speciﬁc URL

to edit the proﬁle of another user, the web application

returns the page to edit the own proﬁle instead, so the

own proﬁle is accessible with the URL belonging to

the proﬁle of another user. A more standard behavior

would be a redirect to the correct URL of the current

user or a status code such as 403 or 404.

4.3 Test Application 3: Misago

Misago (Pito

n, 2020) provides a web forum solution.

It uses a modern web application architecture, mean-

ing that a lot of functionality is implemented client-

side using JavaScript code while the backend provides

a REST API. For such an application, the crawler

based on Puppeteer is paramount to discover the API

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

212

endpoints. Aside from being a good test application

to evaluate the crawling component of the solution, it

is also a good case study to ﬁnd out whether the con-

tent similarity approach can handle non-HTML con-

tent, as communication between front- and backend

is mainly done using JSON data. The following three

roles are considered in this evaluation:

• Role Member (M): create own threads and partic-

ipate in the threads of others

• Role Moderator (O): all permissions of M, in ad-

dition moderation actions such as removing posts

and banning members

• Role Administrator (A): all permissions of M, in

addition access to the administrator interface to do

forum management, user management, etc.

In this application, three different access control

vulnerabilities V

– V

were implemented:

• V

is located in the administrator interface, specif-

ically in the resource that lets a user with role A

view and manage users of a forum. The vulner-

ability allows any authenticated user to view the

complete list of users of the forum.

• V

can be found in a feature called Private Thread,

which allows users to start a private conversation

with anyone they invite to the thread. The vulner-

ability allows any authenticated user to view the

content of any private thread. This vulnerability

manifests itself both in the client-side navigation

URL and in the REST API in the backend, which

serves the content of the thread.

• V

is present in the user proﬁle. When trying to

change details of the own proﬁle, a request to an

API endpoint is ﬁrst made to gather the current

user information. The vulnerability allows all au-

thenticated users to get the details of any other

user, except of users with role A. This vulnera-

bility is only present in the REST API, but not in

the client-side navigation URL and is therefore a

good test case to see whether the solution can de-

tect access control vulnerabilities that can only be

reached directly via JSON-based REST APIs.

Nine runs were done using all pairs based on the

three roles and the anonymous user Y. The standard

conﬁguration was used for all runs. Figure 8 shows

the results of the crawling and ﬁltering components.

Figure 8 shows that the number of URLs has in-

creased again compared to the previous applications.

Also, the number of URLs remaining after ﬁltering is

signiﬁcantly higher than before, both in absolute and

relative terms. This is not because of a ﬂawed ﬁlter-

ing process, but is a consequence of the fact that the

permissions between the roles differ signiﬁcantly. In

Figure 8: Results of crawling and ﬁltering for Misago.

particular, A can access many resources that no other

user can access, which can clearly be seen in Figure 8.

The results of the replay testing component are

displayed in Table 3.

Table 3: Results of replay testing for Misago.

Run Vuln exists Vuln found False Pos

(new unique)

(A,O)

yes yes no yes yes no 7 (7)

no no no no no no 2 (1)

(A,M)

yes yes no yes yes no 2 (0)

no no no no no no 2 (0)

(A,Y)

no no no no no no 5 (1)

no no no no no no 0

(O,M)

no yes yes no yes yes 0

no yes yes no yes yes 1 (0)

(O,Y)

no no no no no no 1 (0)

no no no no no no 0

(M,Y)

no no no no no no 1 (0)

no no no no no no 0

)

no yes yes no yes yes 14 (7)

no no yes no no yes 7 (1)

)

no yes yes no yes yes 1 (0)

no no yes no no yes 2 (1)

)

no yes yes no yes yes 1 (1)

no no yes no no yes 6 (1)

overall 2 7 8 2 7 8 20 unique

All vulnerabilities were detected whenever they

should have been detected in the corresponding run.

Overall, 20 unique false positives were reported, but

considering the large number of URLs that were

tested (all non-ﬁltered URLs shown in Figure 8), the

number of false positives is relatively small. Several

of the false positives occurred because some user pro-

ﬁles that are accessible by less privileged users were

not found when crawling using these less privileged

users, as the corresponding users had neither created

a thread nor a forum post and consequently, no links

to the proﬁles were found. This shows a design weak-

ness in our approach as it assumes that ideally, the

web application under test is showing links to all con-

tent a speciﬁc user has access to. Most of the other

false positives can be attributed to crawling issues,

where resources were not found either due to appli-

cation errors or application-speciﬁc behavior. For ex-

Automated Black Box Detection of HTTP GET Request-based Access Control Vulnerabilities in Web Applications

213

ample, the password reset page is only found when

crawling with an authenticated user, but during replay

testing, it can also be accessed with the anonymous

user, although an anonymous user has no need for a

password reset. Some of these issues could be mit-

igated by adding the corresponding resources under

do not call pages in the conﬁguration ﬁle.

4.4 Test Application 4: Wordpress

The ﬁnal test application is a standard Wordpress site

with a vulnerable version of the plugin Job Manager

(Townsend, 2015). The plugin allows to list job offers

and lets users of the site submit job offers, and con-

tains a published access control vulnerability (CVE-

2015-6668 (NIST, 2015)). The vulnerability exists

because the plugin does not enforce any access con-

trol checks on media ﬁles, e.g., PDF documents, that

are submitted as part of an application. Therefore, the

ﬁles are even accessible by anonymous users.

In the evaluation, the role Author (U) and the

anonymous user Y are considered. An author has ac-

cess to his own job applications but not to the applica-

tions of others. Two users with the role U are included

in the analysis, where U

has created one job appli-

cation with an attached PDF document and U

hasn’t

created any job applications. Based on this, three runs

were done. The standard conﬁguration was used for

all runs. Figure 9 shows the results of the crawling

and ﬁltering components.

Figure 9: Results of crawling and ﬁltering for Wordpress.

The crawling component identiﬁed at most 60

URLs and the different ﬁltering steps managed to re-

duce the number of URLs signiﬁcantly.

The results of the replay testing component are

displayed in Table 4. The results show that the vulner-

ability could be detected in both cases where it should

have been detected, i.e., both Y and U

managed to get

access to the PDF ﬁle in the job application offered by

. No false positives were reported.

Table 4: Results of replay testing for Wordpress.

Run Vuln exists Vuln found False Pos

,Y)

yes yes 0

no no 0

,Y)

no no 0

)

yes yes 0

no no 0

overall 2 2 0

5 DISCUSSION AND FUTURE

WORK

As demonstrated in Section 4, the presented solution

is capable of ﬁnding access control vulnerabilities in

different types of web applications, i.e., in web ap-

plications based on different underlying technologies

and based on both traditional and modern architec-

tures. Overall, only one vulnerability was missed and

the number of false positives is relatively low. How-

ever, there are also some limitations that provide a lot

of potential for future work.

Evaluation Scope. The current evaluation scope is

limited. To get a better understanding about the gen-

eral applicability of the solution, we will apply it to

further web applications. In particular, the two co-

authors from scanmeter GmbH will use the prototype

implementation in penetration tests with customers,

from which we expect to gain lots of insights with re-

gard to the usefulness of the solution in practice.

Fundamental Assumptions. If the assumption that

web pages presented to a user contain only navi-

gation elements to legitimately accessible content is

not valid, then vulnerabilities can be overlooked (see

evaluation of Bludit). Likewise, if the crawler does

not ﬁnd legitimately reachable content or links to such

content are missing, there may be false positives (see

evaluation of Misago). To get a better understanding

of how prevalent such issues are in real-world web

application and how to deal with these issues, more

analysis is required and we expect that the broader

application of the prototype implementation by scan-

meter GmbH will provide further insights with re-

spect to these issues as well. Based on the ﬁndings,

we will then extend and/or ﬁne-tune the overall so-

lution approach to optimize its results. One possible

approach in this regard is to use fuzzing techniques

to ﬁnd content that is not directly linked in the web

pages presented to the user. Such content is often ac-

cessed via request parameters, e.g., https://www.site.

com/invoices?id=1. By analyzing the crawled URLs

for request parameters and using fuzzing techniques

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

214

on these parameters it should be possible to extend the

coverage of our testing approach.

Focus on GET Requests. A complete solu-

tion should also support POST, PUT, PATCH and

DELETE requests. This poses new challenges, in

particular as such requests typically change the data

and/or state of the web application during crawling

and replay testing. Resetting the application state reg-

ularly can help to a certain degree, but there is still

the problem of changes that happen during the actual

crawling and replay testing. There are further com-

plications such as CSRF tokens, which are often used

with requests different from GET. Extending our so-

lution so it can also reliably support further request

types is an open research problem and one that we are

going to address in the near future.

6 RELATED WORK

Manually Driven Approaches. A manually driven

way to detect access control vulnerabilities in web

applications is using interceptor proxies, e.g., Burp

Suite (PortSwigger, 2020) or OWASP ZAP (OWASP,

2020b). In such an approach, the security tester man-

ually navigates through the web application using a

high privileged user. Based on this, the proxy learns

all URLs and subsequently tries to access all URLs

using less privileged users. As a result of this, the

security tester is presented with a table that shows

which user could access which URLs, which allows

the tester to verify the correctness of the implemented

access control rules. This approach is supported, e.g.,

in Burp Suite with the Autorize plugin (Tawly, 2020)

and in OWASP ZAP with the Access Control Testing

plugin (OWASP, 2020a). While all these approaches

are black box-based and work well when doing man-

ual security tests, they suffer from their low level of

automation.

Automated Extraction of the Access Control

Model. Another fundamental approach is to analyze

a web application with the goal to extract and ver-

ify the implemented access control model. In (Alalﬁ

et al., 2012), a reverse engineering approach is used

to extract a role-based access control model from

the source code of a web application, which is then

checked to verify whether it corresponds to the ac-

cess control properties speciﬁed by a security engi-

neer. Two limitations with this approach are that the

model extraction is dependent on the source code,

which means it has to be adapted for every program-

ming language and/or web framework to be supported

and that veriﬁcation of the extracted model is done

manually. In (Le et al., 2015), the web application

under test is analyzed by crawling it using different

users. This results in access spaces for the different

users and based on this, a machine learning-based ap-

proach is employed to derive access rules from an ac-

cess space. These rules can then be compared auto-

matically with an existing speciﬁcation, if available.

Otherwise, a human expert is involved in the assess-

ment of the access rules. While this approach is in-

dependent of the source code of the tested web appli-

cation, it still requires an access control speciﬁcation

for complete automation.

Replay Testing-based Approaches. Approaches that

use some form of replay testing have been proposed

as well. In (Segal, 2006), the basic idea of crawl-

ing a web application with different users and then

trying to access all detected URLs with all users to

uncover access control vulnerabilities is described.

However, the document neither provides details about

the entire process nor any evaluation results. In (Sun

et al., 2011), it is stated that the source code of a

program often implicitly documents the intended ac-

cesses of each role. Based on this, the authors gener-

ate sitemaps for different roles from the source code

and test, by interacting with the target web applica-

tion, whether there are roles that allow access to re-

sources that shouldn’t be accessible based on the de-

termined sitemaps. In (Li et al., 2014), the authors

try to extract the access control model from a web ap-

plication by crawling it with different users. In addi-

tion, while crawling, database accesses performed by

the web application are monitored. Based on this, the

derived access control model describes the relations

between users and permitted data accesses, which is

then used to create test cases to check whether users

can access data that should not be accessible based on

this model. In (Noseevich and Petukhov, 2011), the

authors consider typical use cases in a web applica-

tion (i.e., reasonable sequences of requests instead of

random sequences as typically used by crawlers) to

improve vulnerability detection accuracy. To do so,

an operator ﬁrst has to manually use the web applica-

tion to record typical use cases, which are represented

in a graph. This graph is then used as a basis to detect

vulnerabilities when trying to access resources that

should not be accessible by non-privileged users. The

approach was applied to one JSP-based web applica-

tion, where it managed to uncover several vulnerabil-

ities. Finally, in (Xu et al., 2015), a role-based access

control model for an application to be analyzed must

be deﬁned manually as a basis. Based on this model,

test cases are generated automatically, which can be

transformed to executable code to carry out the tests.

The approach was applied to three Java programs and

demonstrated that it could automatically create a sig-

Automated Black Box Detection of HTTP GET Request-based Access Control Vulnerabilities in Web Applications

215

niﬁcant portion of the required test code automatically

and that it could detect access control defects.

7 CONCLUSIONS

In this paper, we presented a practical solution that

allows completely automated black box detection of

HTTP GET request-based access control vulnerabili-

ties in web applications. What separates our solution

from previous work is that it is designed to be a truly

practical approach in the sense that it is easily appli-

cable to a wide range of web applications based on

traditional or modern architectures, that it neither re-

quires access to the source code nor the availability

of a formal access control model, and that it requires

only minimal conﬁguration. The solution was eval-

uated in the context of four web applications based

on different technologies and managed to detect al-

most all access control vulnerabilities (all except one)

while producing only relatively few false positives.

This demonstrates both the effectiveness and the gen-

eral applicability of the solution approach. There ex-

ists a lot of potential for future work, in particular in

the context of further analysis and ﬁne-tuning of the

solution in the context of various real-world web ap-

plications and by extending the solution to support ad-

ditional request types. We are going to address these

issues in the near future.

ACKNOWLEDGEMENTS

This work was partly funded by the Swiss Confed-

eration’s innovation promotion agency Innosuissse

(project 31954.1 IP-ICT).

REFERENCES

Alalﬁ, M. H., Cordy, J. R., and Dean, T. R. (2012). Auto-

mated Veriﬁcation of Role-Based Access Control Se-

curity Models Recovered from Dynamic web Appli-

cations. In 2012 14th IEEE International Symposium

on Web Systems Evolution (WSE), pages 1–10, Trento,

Italy.

Bludit (2020). Bludit. https://www.bludit.com.

Chen, S. (2016). SECTOOL Market. http://www.

sectoolmarket.com.

Kornblum, J. (2006). Identifying Almost Identical Files Us-

ing Context Triggered Piecewise Hashing. Digital In-

vestigation, 3:91 – 97.

Le, H. T., Nguyen, C. D., Briand, L., and Hourte, B. (2015).

Automated Inference of Access Control Policies for

Web Applications. In Proceedings of the 20th ACM

Symposium on Access Control Models and Technolo-

gies, SACMAT ’15, pages 27–37, Vienna, Austria.

Li, X., Si, X., and Xue, Y. (2014). Automated Black-Box

Detection of Access Control Vulnerabilities in Web

Applications. In Proceedings of the 4th ACM Confer-

ence on Data and Application Security and Privacy,

CODASPY ’14, pages 49–60, San Antonio, USA.

Mitmproxy (2020). Mitmproxy. https://mitmproxy.org.

NIST (2015). National Vulnerability Database, CVE-

2015-6668. https://nvd.nist.gov/vuln/detail/

CVE-2015-6668.

Noseevich, G. and Petukhov, A. (2011). Detecting In-

sufﬁcient Access Control in Web Applications. In

2011 First SysSec Workshop, pages 11–18, Amster-

dam, Netherlands.

Oliver, J., Cheng, C., and Chen, Y. (2013). TLSH – A Lo-

cality Sensitive Hash. In 2013 Fourth Cybercrime and

Trustworthy Computing Workshop, pages 7–13.

Oliver, J., Forman, S., and Cheng, C. (2014). Using Ran-

domization to Attack Similarity Digests. In Interna-

tional Conference on Applications and Techniques in

Information Security, pages 199–210. Springer.

OWASP (2017a). OWASP Top Ten. https://owasp.org/

www-project-top-ten.

OWASP (2017b). OWASP Top Ten - A5:2017

Broken Access Control. https://owasp.org/

www-project-top-ten/OWASP Top Ten 2017/

Top 10-2017 A5-Broken Access Control.

OWASP (2020a). Access Control Testing.

https://www.zaproxy.org/docs/desktop/addons/

access-control-testing/.

OWASP (2020b). OWASP Zed Attack Proxy. https://

owasp.org/www-project-zap.

Pito

n, R. (2020). Misago. https://misago-project.org.

PortSwigger (2020). Burp Suite. https://portswigger.net/

burp.

Puppeteer (2020). Puppeteer. https://pptr.dev.

Rennhard, M., Esposito, D., Ruf, L., and Wagner, A.

(2019). Improving the Effectiveness of Web Appli-

cation Vulnerability Scanning. International Journal

on Advances in Internet Technology., 12(1/2):12–27.

Scrapy (2020). Scrapy. https://scrapy.org.

Segal, O. (2006). Automated Testing of Privilege Escala-

tion in Web Applications. http://index-of.es/Security/

testing-privilege-escalation.pdf.

SQLite (2020). SQLite. https://www.sqlite.org.

Sun, F., Xu, L., and Su, Z. (2011). Static Detection of Ac-

cess Control Vulnerabilities in Web Applications. In

Proceedings of the 20th USENIX Conference on Secu-

rity, SEC’11, page 11, USA. USENIX Association.

Tawly, B. (2020). Autorize. https://github.com/portswigger/

autorize.

Townsend, T. (2015). Wordpress Plugin Job Manager.

https://wordpress.org/plugins/job-manager.

WhiteHat Security (2019). 2019 Application Secu-

rity Statistics Report. https://info.whitehatsec.com/

Content-2019-StatsReport LP.html.

Xu, D., Kent, M., Thomas, L., Mouelhi, T., and Le Traon,

Y. (2015). Automated Model-Based Testing of

Role-Based Access Control Using Predicate/Transi-

tion Nets. IEEE Transactions on Computers, 64(9).

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

216
