Cooperative Neighborhood Learning: Application to Robotic

Inverse Model

Bruno Dato, Marie-Pierre Gleizes and Fr

eric Migeon

Universit

e Toulouse III Paul Sabatier, Toulouse, France

Keywords:

Multiagent Learning, Distributed Problem Solving, Learning by Endogenous Feedback, Inverse Kinematics

Learning.

Abstract:

In this paper we present a generic multiagent learning system based on context learning applied in robotics.

By applying learning with multiagent systems in robotics, we propose an endogenous self-learning strategy

to improve learning performances. Inspired by constructivism, this learning mechanism encapsulates models

in agents. To enhance the learning performance despite the weak amount of data, local and internal negotia-

tion, also called cooperation, is introduced. Agents collaborate by generating artiﬁcial learning situations to

improve their model. A second contribution is a new exploitation of the learnt models that allows less train-

ing. We consider highly redundant robotic arms to learn their Inverse Kinematic Model. A multiagent system

learns a collective of models for a robotic arm. The exploitation of the models allows to control the end posi-

tion of the robotic arm in a 2D/3D space. We show how the addition of artiﬁcial learning situations increases

the performances of the learnt model and decreases the required labeled learning data. Experimentations are

conducted on simulated arms with up to 30 joints in a 2D task space.

1 INTRODUCTION

One of the challenges of robotic interactive systems

is to learn without having any intrinsic knowledge of

the tasks they will have to solve. To do so, they need

internal curiosity mechanisms to avoid biases, maxi-

mize genericity and provide adaptation to their envi-

ronment (Oudeyer et al., 2014). Such a system is also

called an agnostic system (Kearns et al., 1994). To de-

sign it, it is essential to generate knowledge through

processes and actions that are purely internal to an in-

teractive system. We call this type of process: “learn-

ing by endogenous feedback”.

The constructivist approach has shown to be at-

tractive for robotics where a child learner, using as-

similation and accommodation (Piaget, 1976), can be

replaced by a robot learner which is confronted to its

physical real world (many parameters, many intercon-

nections, feedback loops, non-linearity, threshold ef-

fects, dynamics...). Considering this physical world

as a complex system allows to generalize the concep-

tualization of learning and thus to make it generic.

Control in this context requires a complex artiﬁcial

controller able to differentiate and face all kinds of

situations (Ashby, 1956). A relevant approach for this

problem is context-based adaptive multiagent sys-

tems. Inspired from contructivism, it is able to deal

with complex systems. This self-adaptive approach

allows communication between fragments of learnt

models to enhance their performances. Our goal is

to learn from small amount of examples as additional

examples are internally generated. This paper focuses

on self-enrichment of knowledge fragments through

learning by multiagent systems. Another of our con-

cern is the scalability of the proposed learning archi-

tecture that is applied to the inverse control of robotic

arms.

In the paper, we begin by giving a quick overview

of the work around inverse models in robotics and

computer graphics. We follow with the presentation

of the studies that led to Context Learning. We then

detail our contribution which is Endogenous Context

Learning coupled with a new exploitation of the learnt

models. We evaluate the learning across metrics of

control performance and data.

2 BACKGROUND

In this section, we provide a brief outline of inverse

models in robotics and computer graphics. We in-

troduce Context Learning inspired by Constructivist

368

Dato, B., Gleizes, M. and Migeon, F.

Cooperative Neighborhood Learning: Application to Robotic Inverse Model.

DOI: 10.5220/0010303203680375

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 368-375

ISBN: 978-989-758-484-8

Learning and present the state of various works car-

ried out in this theme.

2.1 Inverse Models

Robotic applications usually rely on task space con-

trollers. The model allowing to control a robot in

its task space is called the Inverse Kinematic Model

(IKM). It can be calculated with analytical approaches

for rigid bodied robots of low DOF (Degrees Of Free-

dom). These approaches perform poorly on complex

systems with lot of DOF or soft robots as they are

difﬁcult to model (Thuruthel et al., 2016). Common

methods for solving IKM of a redundant manipula-

tor systems are numerical solutions: pseudo-inverse

methods (Bayle et al., 2003) and Jacobian transpose

methods (Hootsmans and Dubowsky, 1991). They al-

low better scalability for higher DOF but they still

rely on the availability of accurate robot parameters

which can be difﬁcult to obtain. Recent motion cap-

tion techniques allow to generate pre-learnt postures

and use data-driven approaches for Inverse Kinemat-

ics problems (Ho et al., 2013; Holden et al., 2016).

Hybrid methods combine previous techniques and at-

tempt to reduce the complexity of the problem by de-

composing it in several components (Unzueta et al.,

2008). Data-driven techniques are the most exploited

approaches in the last decades in the domain of com-

puter graphics (Aristidou et al., 2018). We also found

geometric approaches that provide direct solutions us-

ing geometrical heuristics (Jamali et al., 2011). From

the point a view of developmental robotics, Baranes

and Oudeyer (Baranes and Oudeyer, 2013) tackled

the Inverse Kinematics problem by using intrinsically

motivated goal exploration while learning the limits

of reachability.

Future robots will possess soft joints and high

numbers of DOF making them difﬁcult or yet impos-

sible to model. Thus, learning the IKM for complex

robots is an inevitable way. The implemented archi-

tecture for learning the IKM presented is this paper

can be considered as a data-driven approach.

2.2 Constructivism and MultiAgent

Systems

Context Learning is inspired by Constructivist Learn-

ing, which is a theory from Piaget’s work on child

development (Piaget, 1976). According to this the-

ory, knowledge is a construction based on the obser-

vation of a subject’s environment and the impact of

its actions. The basic unit of knowledge in this theory

is the schema. It aggregates several perceptions and,

in most cases, several actions (Guerin, 2011). Pro-

posed by Drescher (Drescher, 1991) then formalized

by Holmes (Holmes et al., 2005), it has been reused

by combining it with Self-Organizing Maps (SOM)

(Chaput, 2004; Provost et al., 2006) and model-based

learning (Perotto, 2013).

The Multiagent Systems approach (Ferber, 1999),

and in particular the AMAS (Adaptive Multiagent

Systems) approach (Georg

e et al., 2011), gives a sys-

tem adaptive properties to deal with unexpected sit-

uations, which is appropriate for learning systems

(Mazac et al., 2014; Gu

eriau et al., 2016). An

AMAS is a complex artiﬁcial system composed of

ﬁne-grained agents promoting the emergence of ex-

pected global properties. It allows to cope with the

complexity of the world (non-linearity, dynamics, dis-

tributed information, noisy data and unpredictability)

as deﬁned by Ashby (Ashby, 1956). Numerous exper-

iments have shown such properties in areas such as

the control of biological processes, the optimal con-

trol of motors or robotics learning (Boes et al., 2015).

2.3 Context Learning

The contribution in this paper is based on the

AMOEBA system (Agnostic MOdEl Builder by self-

Adaptation) (Nigon et al., 2016). It relies on Con-

text Learning and implements supervised online ag-

nostic learning capable of generalizing with continu-

ous training data. This section presents the formal-

ism of Context Learning and the functioning of the

AMOEBA system.

Context Learning is a problem of exploring a

search space with n dimensions and estimating a lo-

cal model based on any machine learning technique

(neural networks, linear regression, SVMs, nearest

neighbor, k-means...). An instance of the learning

system learns an output called the prediction vector

∈ R

according to a hidden function F (P

) =

F (p

,. .. , p

) = O

with O

∈ R

the desired

predictions or the oracle values. P

is the vector of

inputs called the perceptions and P

= [p

,. .. , p

] ∈

. The perceptions can be the state of robot (sen-

sors, position, speed ...) or a situation of an envi-

ronment (temperature, luminosity, noise...). The vec-

tor L

n,m

= [P

], composed of perceptions associ-

ated with desired predictions, deﬁnes a learning sit-

uation, which is similar to a schema in Piaget’s the-

ory. A learnt model is represented by a Context Agent

with j the j

pavement in dimension n which

represents a part of the schema. A Context Agent

is an intelligent autonomous agent that locally rep-

resents a part of the global function F with a local

function f

,. .. , p

) = o

with o

∈ R

It is a parallelotope of dimension n associated with

Cooperative Neighborhood Learning: Application to Robotic Inverse Model

369

a machine learning model. The parallelotope is de-

ﬁned by validity ranges R

= [r

,. .. ,r

] with

= [r

i,start

i,end

] which represents a validity interval

on a perception p

(Fig. 1). All Context Agents use

the same set of inputs P

| |

1,start

1,end

(a) Dimension 1

1,start

1,end

2,start

2,end

(b) Dimension 2

Figure 1: Parallelotopes Validity Ranges in dimension 1 and

The Context Agents have a conﬁdence c

∈ Z to eval-

uate themselves in relation to others. A Context

Agent is therefore deﬁned by its validity ranges, its

model and its conﬁdence C

= {R

, f

}. In this

study, each Context Agent has a local linear regres-

sion model f

. In this case, the prediction vectors and

the oracle predictions are a real values O

and O

. A

learning situation is then L

n,1

= [P

2.4 Exogenous Learning Rules

Learning with Context Agents in AMOEBA (Nigon

et al., 2016) is based on several simple rules. Each ex-

ecution cycle is either a learning cycle or an exploita-

tion cycle. For learning cycles, the input is a learning

situation L

n,1

and for exploitation cycles, the input is

an exploitation situation that is only perceptions P

Learning Cycles. During learning cycles, if the

perceptions P

belong to the validity ranges of an ex-

isting Context Agent, it is a Valid Context Agent (Fig.

2a). It proposes a prediction with its model. If there

are several Valid Context Agents, the prediction of the

one with the best conﬁdence is retained. It is called

the Best Context Agent for the current execution cy-

cle. If it gives a good prediction, it increments its

conﬁdence. If the prediction is bad all Valid Context

Agents reorganize themselves by following adaptive

behaviors. To know if the prediction of a Context

Agent is good or bad, an error margin and an inac-

curacy margin are used. They are given by the user of

the learning mechanism. A prediction is good if the

error with the oracle’s prediction O

is less than the

inaccuracy margin.

Exploitation Cycles. During the exploitation, if

they are several Valid Context Agents, the one with

the higher conﬁdence is the Best Context Agent. It

provides the prediction output O

. If there aren’t any

Valid Context Agents, the closest Context Agent to the

perceptions is designated as the Best Context Agent.

Shortcomings. The presented rules suffer from a

lack of local interactions between the Context Agents.

This approach proposes a distributed learning method

that is adaptive with respect to the oracle values but

not between the knowledge fragments. Another is-

sue is the scalability of the local added interactions.

AMOEBA does not possess any mechanism allowing

Context Agents to communicate locally without acti-

vating all the Context Agent of the system.

(a) Valid Context Agent

with all perceptions.

(b) Closest Context Agent

with all perceptions in the

neighborhood.

exploitation with only the

perception p

(d) Cooperative neighbor-

hood learning situations;

the endogenous learning

situations are represented

with diagonal crosses.

Figure 2: Context Agents Mechanisms; Best Context Agent,

valid Context Agents and neighborhood areas are ﬁlled

darker; Best Context Agents are boxed; the neighborhood

is represented by a dotted box.

3 ENDOGENOUS CONTEXT

LEARNING

Endogenous Context Learning is an enhancement of

Context Learning using internal information to self-

generate new learning situations. In the next sec-

tions, we differentiate exogenous learning situations

and endogenous learning situations which are re-

spectively provided by an external entity and self-

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

370

Figure 3: 3 joints robotic arm

with segments of equal length l

in a 2D task space.

Figure 4: Explo-

ration with a 3 joints

robotic arm simulation

after 1000 training

situations.

generated by the learning mechanism. This mecha-

nism is based on a collaboration inside the neighbor-

hood of the Context Agents. The presented process is

operational regardless of the number of dimensions.

3.1 Neighborhood

A Context Agent is considered as a neighbor of the

perceptions if its validity ranges intersect a neighbor-

hood area surrounding the current perceptions. The

size of this area results from the precision range, a

parameter chosen by the user of the learning mech-

anism. For a perception p

, there is a default ra-

dius creation for a Context Agent r

creation

= (p

max

−

min

).precision range. p

max

and p

min

are the maxi-

mum and minimum experienced values by the learn-

ing mechanism on the perception p

. From this,

it results an approximation error distance d

aed

0.25.r

creation

. The neighborhood area radius is r

creation

3.2 Endogenous Learning Rules

To take advantage of the neighborhood in the learn-

ing process, it is necessary to modify the rules of

AMOEBA. The inaccuracy margin is removed so

there is only an error margin chosen by the user of

the learning mechanism to deﬁne its accuracy expec-

tations.

Bad Prediction Situation. The distance to the

learning situation is greater than the error margin.

The Context Agent is not valid for this learning sit-

uation. Its prediction is not accurate enough given

expected precision. It moves one of its ranges to ex-

clude the current perception and it decreases its con-

ﬁdence. It always chooses the range that least affects

the volume of its validity ranges. If the distance to the

learning situation is less than the error margin, the

agent’s conﬁdence increases and it updates its model

with the current learning situation. There is only one

margin to deﬁne whether a Context Agent is good or

bad. The agents’ models are regularly updated to be

robust to noise.

Uselessness Situation. A Context Agent is useless

if one of its validity ranges has a critical size below

aed

Unproductive Situation. The mechanism of ex-

tending the closest good Context Agent remains the

same. The closest good Context Agent extends one of

its ranges towards the new situation. The novelty ap-

pears at the creation of a new Context Agent if needed.

If there are neighbors, they are used to initialize the

properties of the new agent. If there are no neighbors,

the created agent uses initialization values based on

the perception limits of the search space and on the

parameters chosen by the system user.

3.3 Cooperative Neighborhood

Learning

In order to enhance the learning process, each Best

Context Agent communicates with its neighbors to

ask them for endogenous learning situations L

endo

]. This has for objective to locally

smooth the models between them. As for the percep-

tion neighborhood radiuses, the prediction neighbor-

hood radius is deﬁned as it follows r

= k

.(O

max

−

min

).precision range. The perceptions P

endo

of the

endogenous learning situation are chosen randomly

in the intersection of the neighborhood and the neigh-

bor’s validity ranges (ﬁg. 2d). The prediction O

endo

is asked to the model of the neighbor. Only neighbors

that have a close last prediction share an endogenous

learning situation. If the difference between the en-

dogenous prediction and the last Best Context Agent

prediction |O

endo

−o

Best Context Agent

1,last

| is lesser than r

the endogenous learning situations is retained. The

set of all retained endogenous learning situations is

used to update the Best Context Agent model with a

weight w

endo

. To satisfy this weight, artiﬁcial Learn-

ing Situations are generated. They are distributed on

the current model according to a normal law centered

in the validity ranges center and with a standard devi-

ation of ((r

i,end

− r

i,start

)/10)

. This distribution en-

sures that the center of the model, is slightly altered.

The endogenous learning situations are then used to

estimate new regression parameters using Miller’s re-

gression (Miller, 1992).

Cooperative Neighborhood Learning: Application to Robotic Inverse Model

371

3.4 Context Exploitation

The addition of the neighborhood is useful to opti-

mize the exploitation, specially when there aren’t any

valid Context Agents. In this case, the Best Context

Agent is the closest Context Agent to the perceptions

among the Context Agents neighbors (Fig. 2b). If

they are no neighbors, it is the closest Context Agent

among all the Context Agents. The neighborhood

speeds up the exploitation when there are neighbors

and a lot of Context Agents in the whole system.

In the case that all the perceptions are not provided

for the exploitation, we propose a new way of exploit-

ing the models. The given subset of perceptions is

used to deﬁne the set of valid Context Agents. The

Best Context Agent is then chosen using the distance

to the sub-perceptions. The unspeciﬁed perceptions

are set by default to the center of the validity ranges

of the Best Context Agent. Fig. 2c shows an exploita-

tion with the sub-perception p

only.

4 INVERSE KINEMATICS

LEARNING CASE STUDY

For our experimentations, we repeat one of the ex-

perimental setups of Baranes and Oudeyer (Baranes

and Oudeyer, 2013) which is the learning of the in-

verse kinematics with a redundant arm. We consider

a robotic arm with segments of equal length and n

joints in a 2D plane: (θ

,θ

,. .. ,θ

) (Fig. 3 shows an

example for 3 joints). To control it, one must use its

Forward Kinematic Model FKM and its Inverse Kine-

matic Model IKM which are both non linear models

dependent on the characteristics of the arm. The For-

ward Kinematic Model is used to calculate the po-

sition of the robot tool in a task space from the an-

gles of each joint: FKM(θ

,θ

,. .. ,θ

) = (x

) for

a task space of two dimensions. The analytical In-

verse Kinematic Model gives all the possible angle

vectors for a desired tool position: IKM(x

) =

(θ

,θ

,. .. ,θ

),(θ

,θ

,. .. ,θ

)

,. ..

We propose here to learn the IKM using the FKM

as a supervisor and to exploit the learning without us-

ing all the Perceptions. This approach is independent

of the joints number of the considered robots.

Training. The training is made from several ran-

dom joints conﬁgurations (θ

rdn

,θ

rdn

,. .. ,θ

rdn

). The

corresponding position of the end of the robot

arm is given by the Forward Kinematic Model :

FKM(θ

rdn

,θ

rdn

,. .. ,θ

rdn

) = (x

rdn

). The per-

ceptions for the learning mechanism are the po-

sition of the end of the robot (x

rdn

) and

all the corresponding angles except the last one

(θ

rdn

,θ

rdn

,. .. ,θ

rdn

n−1

). The perceptions vector is

rdn

,θ

rdn

,θ

rdn

,. .. ,θ

rdn

n−1

). The last angle θ

rdn

is the prediction of the local models. The

global function that is learnt by the mechanism

is F

rdn

,θ

rdn

,θ

rdn

,. .. ,θ

rdn

n−1

) = θ

rdn

. We

deﬁne the training learning situations as exoge-

nous learning situations given by the joints con-

ﬁguration of the robot and its FKM: L

exo

[(x

rdn

,θ

rdn

,θ

rdn

,. .. ,θ

rdn

n−1

),θ

rdn

Exploration. The generation of the random angles

for the joints is done following a normal distribution.

Considering that an outstretched arm is deﬁned by

all the angles being set to 0 rad, the distribution of

each angle is centered around this value except for θ

which has an homogeneous random distribution be-

tween 0 and 2π. The dispersion is set empirically for

3, 10 and 30 joints with the objective of having ho-

mogeneous situations in the task space (Fig. 4 shows

an example of exploration with 3 joints after 1000 ex-

ogenous learning situations). The obtained dispersion

depending on the number of joints is : 2.5593n

−0.479

Exploitation. As we are learning the IKM, the goal

here is to get a set of angles to position the end of

the robotic arm in a point P

goal

= (x

goal

) (ﬁg.

3). All P

goal

are randomly generated in the reach-

able zone of the task space. It is an exploitation

without all the perceptions and the sub-perceptions

are x

goal

and y

goal

. The learning mechanism is given

goal

) and it provides a joints conﬁguration

(θ

explo

,θ

explo

,. .. ,θ

explo

5 EXPERIMENTATIONS

In this section, we present our results achieved with

the addition of endogenous leaning situations in the

learning of robotic arms inverse models. A learning

cycle corresponds to a conﬁguration for the robotic

arm. The learning mechanism receives an exogenous

learning situation at each learning cycle. The inverse

models to be learnt are non linear models of high di-

mensions (up to 30). We chose to stop at 30 to match

the numbers of degrees of freedom on a usual hu-

manoid robot. We are aware that on a humanoid all

linkages are not serial. The goal here is to test our

approach with the same degrees of freedom order of

magnitude.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

372

5.1 Metrics

Goal Error. To appraise the score of the learnt IKM,

we evaluate the proposals of the learning mechanism.

We calculate the end position error of the robot in the

task space E

. This error is the distance between the

randomly asked positions P

goal

in the reachable task

space and the position resulting from the exploitation

of the learning P

explo

. This error is normalized by

the diameter of the reachable space D

reachable

which

is a disk in this case: E

= ||

# »

goal

explo

||/D

reachable

The prediction metric is calculated over exploitation

cycles where the mechanism is asked to make angles

predictions to get the goal position.

Endogenous Data. To evaluate the impact of the

cooperative neighborhood mechanism on the goal

performances, we are interested in the number of gen-

erated endogenous learning situations L

endo

5.2 Results

The presented results are averaged over 15 learning

experiences. Each learning experience is stopped af-

ter 1000 training cycles. The goal errors are av-

eraged over 200 exploitation cycles. The stretched

length for each tested arms is the same (50 units in

our simulation). Each arm segment is the same size.

For each arm size scenario, the size of the reachable

space is the same. The error margin is set to 1. The

weight w

endo

of endogenous learning situations is 0.1.

The code is implemented in java with the framework

AMAK (Perles et al., 2018) and it is executed on a

machine

with Ubuntu 18.04.3 LTS.

Arm Dimensions. Figure 5 shows that without

cooperative neighborhood learning the best perfor-

mance is obtained for 2 joints and with a preci-

sion range of 1%. The precision range of 1% also

gives lower mean error for the arms of 2, 3 and 6 joints

than the precision range of 3%. For arms with more

joints the gap is less visible. We can also see that the

mean error and its dispersion increase up to 10 joints.

Then, they decrease as the number of joints gets big-

ger.

Neighborhood Sizes. Figure 6 shows that the size

of the neighborhood has an impact on the mean er-

ror for the arms of 2, 3 and 6 joints. With a preci-

sion range of 3% the error decreases and reaches a

Intel(R) Core(TM) i7-4790 CPU @ 3.60GHz × 8,

RAM 31.4 GB.

minimum value with a delay in the neighborhood size

for the different arms. It then increases for 2 and 3

joints for high neighborhood sizes. For 10, 20 and 30

joints (Fig. 7), the error only decreases for 10 joints.

The other cases are not impacted by the variation of

neighborhood.

Endogenous Data. Figures 8 and 9 represent the

same experimentation than 6 and 7 but focusing on

the variation of the error according to the endogenous

learning situations. Fig. 8, for 6 joints and a preci-

sion range of 3%, the more endogenous learning sit-

uations there are, the lower the error is. For 2 and 3

joints, we ﬁnd the same behavior than Fig. 6, there is

an optimal situation beyond which the error increases.

For 10 joints with a precision range of 3% (Fig. 9),

more endogenous learning situations reduce the error.

But for 20 and 30 joints, the endogenous learning sit-

uations don’t reduce the goal error, they even slightly

increase it.

Figure 5: Mean errors from goal depending on robotic arm

sizes (2, 3, 6, 10, 20 and 30 joints) without cooperative

neighborhood learning. Learning cycles = 1000; exploita-

tion cycles = 200; averaged overs 15 learning experiences.

5.3 Discussion

We have seen that the lowest error is obtained for the

lowest arm dimensions. The error increases up to 10

joints and it decreases for higher arm dimensions. At

low dimensions, the good performance is due to the

low redundancy of the problem making the explo-

ration less extensive. The decreasing of the error at

high dimensions is caused by the exploitation of the

Context Agents with sub-perceptions. If the requested

goal P

goal

during the exploitation is in a less explored

area, it is the closest model that is used for the last

angle prediction. The smaller the size of the last arm

segment, the smaller the distance error on the goal.

Which is the case for the higher dimensions. The rest

of the angles are ﬁxed using the validity ranges of the

Best Context Agent.

Figures 6, 7, 8 and 9 showed that the expansion

of the neighborhood can lead to better or worse per-

Cooperative Neighborhood Learning: Application to Robotic Inverse Model

373

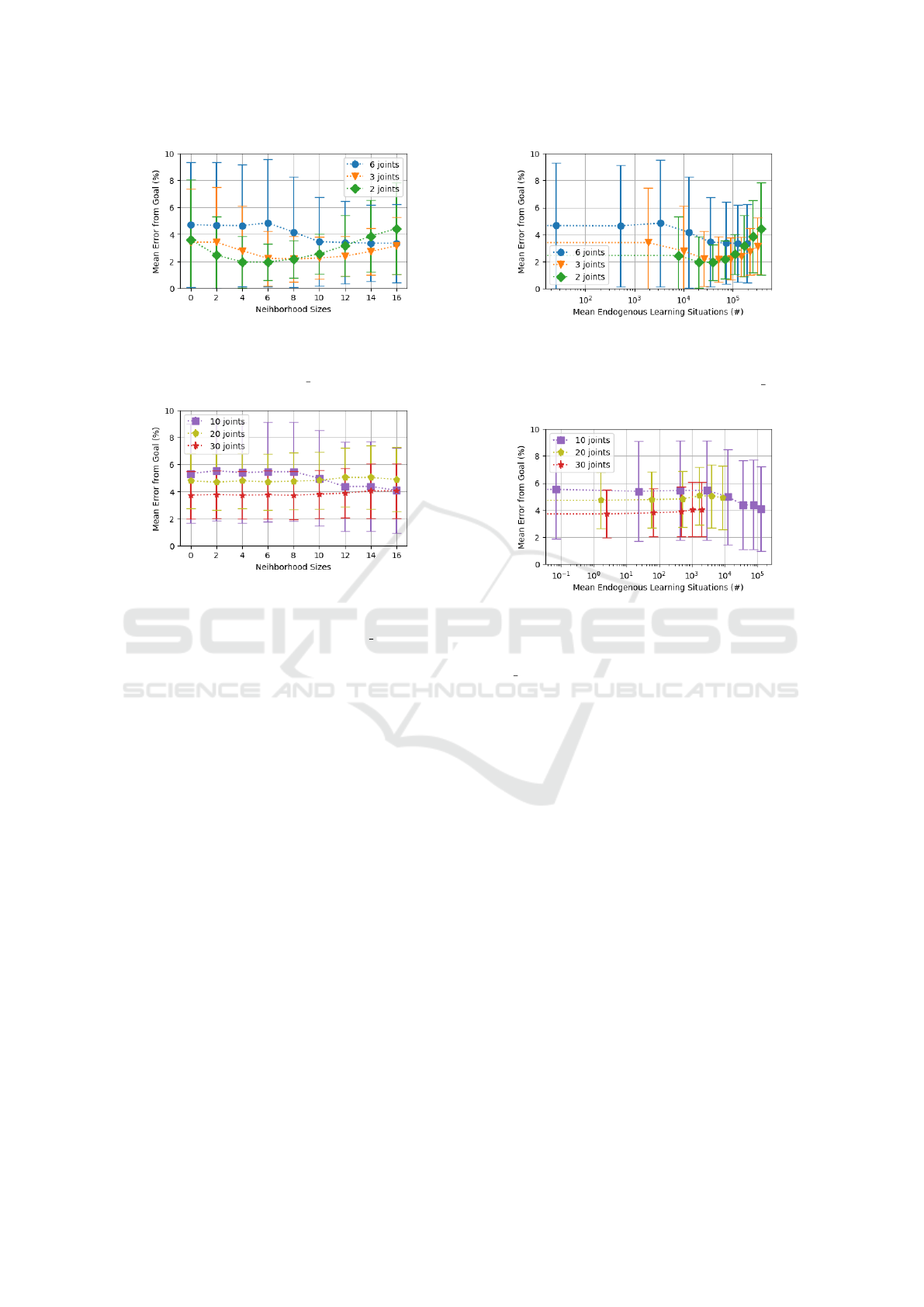

Figure 6: Mean errors from goal depending on mean neigh-

borhood sizes over robotic arms of 2,3 and 6 joints. Learn-

ing cycles = 1000; exploitation cycles = 200; averaged overs

15 learning experiences. precision range = 3%.

Figure 7: Mean errors from goal depending on mean neigh-

borhood sizes over robotic arms of 10,20 and 30 joints.

Learning cycles = 1000; exploitation cycles = 200; aver-

aged overs 15 learning experiences. precision range = 3%.

formances by generating more endogenous learning

situation. The point of best performance is different

for each arm sizes which shows that the neighborhood

behaves differently with higher dimensions. Past this

point, the error increases because the endogenous

learning situations are too far from the Context Agent

to bring a coherent smoothing. At high dimensions,

endogenous learning situations are harder to gener-

ate because of the large exploration space. This is

why, for the same neighborhood sizes, there are more

endogenous learning situations at low dimensions.

Moreover, beyond 10 joints, the performances are not

affected by the endogenous learning situation.

5.3.1 Related Work

The magnitude of the mean goal reaching errors of

the Self-Adaptive Goal Generation RIAC algorithm

(SAGG-RIAC) (Baranes and Oudeyer, 2013) is close

to our results. The difference is that SAGG-RIAC

uses around 10

micro actions for each goal to ob-

tain comparable goal errors. Our approach instanta-

neously gives a set of angles to reach any goal after

one training of 1000 learning situations.

Figure 8: Mean errors from goal depending on mean en-

dogenous learning situations over robotic arms of 2, 3 and

6 joints. Learning cycles = 1000; exploitation cycles = 200;

averaged overs 15 learning experiences. precision range =

3%.

Figure 9: Mean errors from goal depending on mean en-

dogenous learning situations over robotic arms of 10, 20

and 30 joints. Learning cycles = 1000; exploitation cy-

cles = 200; averaged overs 15 learning experiences; pre-

cision range = 3%.

6 CONCLUSION AND

PERSPECTIVES

In this paper, we have proposed an extension of a

Context-based learning multi-agent system which has

already proven to be suitable to complex systems

and that is directly inspired by Constructivism. This

is a generic approach because it does not rely on

the underlying application. This work was applied

on the learning of the Inverse Kinematic Models of

robotic arms with different numbers of joints. Self-

observation of self-adaptive multiagent systems al-

lowed us to add collaboration between fragments of

learning which are the Context Agents. Based on

the internal detection of close Context Agents models,

we proposed the generation of endogenous learning

situations that led to better performances on Inverse

Kinematic Model learning. This work has shown

that the generation of endogenous learning situations

makes it possible to reduce exogenous learning situ-

ations as the performance improvement with endoge-

nous cooperative learning attests.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

374

The proposed approach needs to be reﬁned in or-

der to select the right size of neighborhood accord-

ing to the dimension of the exploring space to maxi-

mize performance. The scalability was not discussed

here but the generation of endogenous learning situ-

ations at high dimensions needs also to be optimized

to access to more neighbors with reasonable execu-

tion times. Another promising lead is to decompose

the learning into several local instances of the learn-

ing mechanism, one for each joint. This would re-

duce the high-dimensional problem into several low-

dimensional problems where the cooperative neigh-

borhood learning is more effective. It will also ensure

that the performances are independent of the number

of dimensions, and that the execution time is linearly

dependent on the dimensions.

REFERENCES

Aristidou, A., Lasenby, J., Chrysanthou, Y., and Shamir,

A. (2018). Inverse kinematics techniques in computer

graphics: A survey. In Computer Graphics Forum,

volume 37, pages 35–58. Wiley Online Library.

Ashby, W. R. (1956). Cybernetics and requisite variety. An

Introduction to Cybernetics.

Baranes, A. and Oudeyer, P.-Y. (2013). Active learning of

inverse models with intrinsically motivated goal ex-

ploration in robots. Robotics and Autonomous Sys-

tems, 61(1):49–73.

Bayle, B., Fourquet, J.-Y., and Renaud, M. (2003). Manipu-

lability of wheeled mobile manipulators: Application

to motion generation. The International Journal of

Robotics Research, 22(7-8):565–581.

Boes, J., Nigon, J., Verstaevel, N., Gleizes, M.-P., and Mi-

geon, F. (2015). The self-adaptive context learning

pattern: Overview and proposal. In International and

Interdisciplinary Conference on Modeling and Using

Context, pages 91–104. Springer.

Chaput, H. H. (2004). The constructivist learning archi-

tecture: A model of cognitive development for robust

autonomous robots. PhD thesis.

Drescher, G. L. (1991). Made-up minds: a constructivist

approach to artiﬁcial intelligence. MIT press.

Ferber, J. (1999). Multi-agent systems: an introduction to

distributed artiﬁcial intelligence, volume 1. Addison-

Wesley Reading.

Georg

e, J.-P., Gleizes, M.-P., and Camps, V. (2011). Coop-

eration. In Self-organising Software, pages 193–226.

Springer.

eriau, M., Armetta, F., Hassas, S., Billot, R., and

El Faouzi, N.-E. (2016). A constructivist approach for

a self-adaptive decision-making system: application

to road trafﬁc control. In 2016 IEEE 28th Interna-

tional Conference on Tools with Artiﬁcial Intelligence

(ICTAI), pages 670–677. IEEE.

Guerin, F. (2011). Learning like a baby: a survey of arti-

ﬁcial intelligence approaches. The Knowledge Engi-

neering Review, 26(2):209–236.

Ho, E. S., Shum, H. P., Cheung, Y.-m., and Yuen, P. C.

(2013). Topology aware data-driven inverse kinemat-

ics. In Computer Graphics Forum, volume 32, pages

61–70. Wiley Online Library.

Holden, D., Saito, J., and Komura, T. (2016). A deep

learning framework for character motion synthesis

and editing. ACM Transactions on Graphics (TOG),

35(4):1–11.

Holmes, M. P. et al. (2005). Schema learning: Experience-

based construction of predictive action models. In

Advances in Neural Information Processing Systems,

pages 585–592.

Hootsmans, N. and Dubowsky, S. (1991). Large motion

control of mobile manipulators including vehicle sus-

pension characteristics. In ICRA, volume 91, pages

2336–2341.

Jamali, A., Khan, R., and Rahman, M. M. (2011). A new

geometrical approach to solve inverse kinematics of

hyper redundant robots with variable link length. In

2011 4th International Conference on Mechatronics

(ICOM), pages 1–5. IEEE.

Kearns, M. J., Schapire, R. E., and Sellie, L. M. (1994). To-

ward efﬁcient agnostic learning. Machine Learning,

17(2-3):115–141.

Mazac, S., Armetta, F., and Hassas, S. (2014). On boot-

strapping sensori-motor patterns for a constructivist

learning system in continuous environments. In Artiﬁ-

cial Life Conference Proceedings 14, pages 160–167.

MIT Press.

Miller, A. J. (1992). Algorithm as 274: Least squares rou-

tines to supplement those of gentleman. Journal of the

Royal Statistical Society. Series C (Applied Statistics),

41(2):458–478.

Nigon, J., Gleizes, M.-P., and Migeon, F. (2016). Self-

adaptive model generation for ambient systems. Pro-

cedia Computer Science, 83:675–679.

Oudeyer, P.-Y. et al. (2014). Socially guided intrinsic moti-

vation for robot learning of motor skills. Autonomous

Robots, 36(3):273–294.

Perles, A., Crasnier, F., and Georg

e, J.-P. (2018). Amak-

a framework for developing robust and open adaptive

multi-agent systems. In International Conference on

Practical Applications of Agents and Multi-Agent Sys-

tems, pages 468–479. Springer.

Perotto, F. S. (2013). A computational constructivist model

as an anticipatory learning mechanism for coupled

agent–environment systems. Constructivist Founda-

tions, 9(1):46–56.

Piaget, J. (1976). Piaget’s theory. Springer.

Provost, J., Kuipers, B. J., and Miikkulainen, R. (2006). De-

veloping navigation behavior through self-organizing

distinctive-state abstraction. Connection Science,

18(2):159–172.

Thuruthel, T. G., Falotico, E., Cianchetti, M., and Laschi, C.

(2016). Learning global inverse kinematics solutions

for a continuum robot. In Symposium on Robot De-

sign, Dynamics and Control, pages 47–54. Springer.

Unzueta, L., Peinado, M., Boulic, R., and Suescun,

A. (2008). Full-body performance animation with

sequential inverse kinematics. Graphical models,

70(5):87–104.

Cooperative Neighborhood Learning: Application to Robotic Inverse Model

375
