Individual Action and Group Activity Recognition in Soccer Videos

from a Static Panoramic Camera

Beerend Gerats

1,2

, Henri Bouma

, Wouter Uijens

, Gwenn Englebienne

and Luuk Spreeuwers

Faculty of EEMCS, University of Twente, Drienerlolaan 5, 7522 NB, Enschede, The Netherlands

Intelligent Imaging, TNO, Oude Waalsdorperweg 63, 2597 AK, The Hague, The Netherlands

Keywords:

Action Recognition, Group Activity Recognition, Soccer Match Events, Player Snippets.

Abstract:

Data and statistics are key to soccer analytics and have important roles in player evaluation and fan engage-

ment. Automatic recognition of soccer events - such as passes and corners - would ease the data gathering

process, potentially opening up the market for soccer analytics at non professional clubs. Existing approaches

extract events on group level only and rely on television broadcasts or recordings from multiple camera view-

points. We propose a novel method for the recognition of individual actions and group activities in panoramic

videos from a single viewpoint. Three key contributions in the proposed method are (1) player snippets as

model input, (2) independent extraction of spatio-temporal features per player, and (3) feature contextuali-

sation using zero-padding and feature suppression in graph attention networks. Our method classiﬁes video

samples in eight action and eleven activity types, and reaches accuracies above 75% for ten of these classes.

1 INTRODUCTION

Match event data gained an important role in soc-

cer, from team and player evaluation (Pappalardo,

2019a) to increasing fan engagement (Aalbers and

Van Haaren, 2018). The data often describes when,

where, what and by whom events are triggered dur-

ing a professional game. Competition Information

Providers (CIPs) manually annotate match event data

by a team of three or four persons (Pappalardo,

2019b). The procedure is expensive and time con-

suming considering the hundreds of annotated games

in hundreds of yearly competitions. Automating parts

of the annotation process would mitigate the disad-

vantages of manual annotation.

Over the previous decades, several methods have

been proposed for the detection of soccer highlights in

television broadcast videos (Giancola, 2018). How-

ever, these methods report general events rather than

individual player actions. Importantly, match event

data annotated by CIPs describe individual ball inter-

actions (e.g. high pass, heading) and may be labelled

with general event tags (e.g. corner, goal attempt).

Automating annotation of match event data thus re-

quires a shift towards event detection on an individual

level, accompanied with detections of general activi-

ties.

Methods that simultaneously recognise individ-

ual actions and group activities have been evaluated

on videos in the Volleyball Dataset (Ibrahim, 2016).

However, such methods are not trivially applicable to

soccer videos. In this work, we show that a state-

of-the-art method in the volleyball domain, the Actor

Relation Graph (ARG) (Wu, 2019), has a poor perfor-

mance in the soccer domain.

Our main contribution is the proposal of a novel

method for the automatic recognition of soccer

events. The method works with videos that are cap-

tured by a static panoramic camera, positioned at the

long side of the soccer ﬁeld. We show that it is pos-

sible to recognise actions and activities that occur all

over the ﬁeld from this perspective only. To the best

of our knowledge, it is the ﬁrst method in the soccer

domain that infers both individual actions and group

activities simultaneously. Three key contributions in

the proposed method are:

(1) the use of player snippets as model input;

(2) per-player extraction of spatio-temporal features;

(3) and feature contextualisation using zero-padding

and feature suppression in graph attention networks.

This paper is structured as follows. In Section 2,

we present a brief overview of methods for event de-

tection and recognition in sport videos. In Section 3,

we explain the design and implementation of the pro-

posed method. In Section 4, a new soccer video

dataset and evaluation metrics are presented. In Sec-

tion 5, we present experiments and results. Conclu-

sions are given in Section 6.

594

Gerats, B., Bouma, H., Uijens, W., Englebienne, G. and Spreeuwers, L.

Individual Action and Group Activity Recognition in Soccer Videos from a Static Panoramic Camera.

DOI: 10.5220/0010303505940601

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 594-601

ISBN: 978-989-758-486-2

2 RELATED WORK

In this section, we describe methods that detect gen-

eral events (“group activities”) in soccer videos, and

we discuss approaches for the simultaneous recogni-

tion of actions and group activities, outside the soccer

domain.

2.1 Event Detection in Soccer

The aim of event detection is to detect temporal

boundaries of a match event or camera shot, and

to classify the isolated samples accordingly (Tavas-

solipour et al., 2013). Goal (attempts), corners, cards,

shoots, penalties, fouls and offsides have been de-

tected in television broadcast videos. Recent meth-

ods use a 3D-Convolutional Neural Network (CNN)

(Khan, 2018) or combine a CNN and a Recurrent

Neural Network (RNN) (Jiang et al., 2016) consec-

utively. Often, these methods rely on the detection of

cinematic features, based on general ways for televi-

sion production teams to record soccer events on cam-

era (Ekin et al., 2003). For example, a goal attempt is

often followed by a slow-motion shot of the event. We

consider these dependencies undesirable as it limits

the applicability of a model to broadcast videos only.

Performances range between 82.0% (Tavassolipour

et al., 2013) and 95.5% (Vanderplaetse and Dupont,

2020) multi-class accuracy (MCA), for the recogni-

tion of seven and four activity classes respectively.

Others combine recordings of twelve (Zhang,

2019) or fourteen (Tsunoda, 2017) static cameras, po-

sitioned around the ﬁeld. The latter approach reaches

70.2% MCA for the recognition of three classes. We

argue that multiple-camera setups are expensive in

purchase and require large computational resources.

Our method is designed for event recognition in

videos from one static panoramic camera, which are

more accessible for non professional clubs.

Soccer videos contain a majority of background

pixels due to the size of the ﬁeld. Nevertheless, most

of the methods mentioned above classify events di-

rectly from video frames. Zhang et al. (2019) pro-

pose to detect events from latent player embeddings,

created by a U-encoder on pixels in player bound-

ing boxes. Our method creates latent player embed-

dings also, from normalised player snippets instead of

bounding boxes.

2.2 Action and Group Activity

Recognition

Three types of deep learning networks can be dis-

covered in state-of-the-art action and group activ-

ity recognition methods: spatio-temporal, multiple-

stream and hybrid networks. Spatio-temporal net-

works, such as a 3D-CNN (Ji, 2012), search for volu-

metric patterns at different scales of the input videos.

The I3D CNN (Carreira and Zisserman, 2017) is a

multiple-stream network that recognises actions from

RGB and optical ﬂow videos. The network appears to

give better results in group activity recognition than

a standard CNN (Azar, 2019). In a hybrid network,

two networks are combined consecutively (Kong and

Fu, 2018). The approach is popular for group activity

recognition. First, a CNN extracts individual features

and creates a latent embedding per group member.

We will refer to this phase as feature extraction. Sec-

ond, a different network explores inter-human rela-

tions to update the embeddings accordingly. We will

refer to this phase as feature contextualisation. RNNs

(Tsunoda, 2017) and Graph Convolutional Networks

(Ibrahim and Mori, 2018) are often used for the latter

phase.

Our method uses a hybrid network with I3D

for feature extraction and graph attention networks

(GATs) (Veli

ckovi

c, 2017) for feature contextualisa-

tion. We have not yet seen these networks being ap-

plied to event recognition in the soccer domain.

2.3 Actor Relation Graph as Baseline

It is difﬁcult to compare our method with state-of-the-

art in soccer event detection, because each method is

evaluated with another dataset. The sets vary in event

types, number of classes and input videos, while none

of the methods recognise individual actions.

The Actor Relation Graph (ARG) is a hybrid

network that uses an Inception-V3 CNN (Szegedy,

2016) for feature extraction and uses GATs with self-

attention (Vaswani, 2017) for feature contextualisa-

tion. The method reaches state-of-the-art perfor-

mance in action and group activity recognition on

Volleyball Dataset videos. Because the domain is re-

lated to soccer, and an open-source implementation is

available, the ARG is selected as baseline.

3 PROPOSED METHOD

We start this section with an overview of the proposed

method architecture, and note where it differs from

the baseline approach. Thereafter, the architecture is

explained along four phases in the data pipeline: data

pre-processing, feature extraction, feature contextual-

isation and the generation of predictions. Last, we

provide implementation details.

Individual Action and Group Activity Recognition in Soccer Videos from a Static Panoramic Camera

595

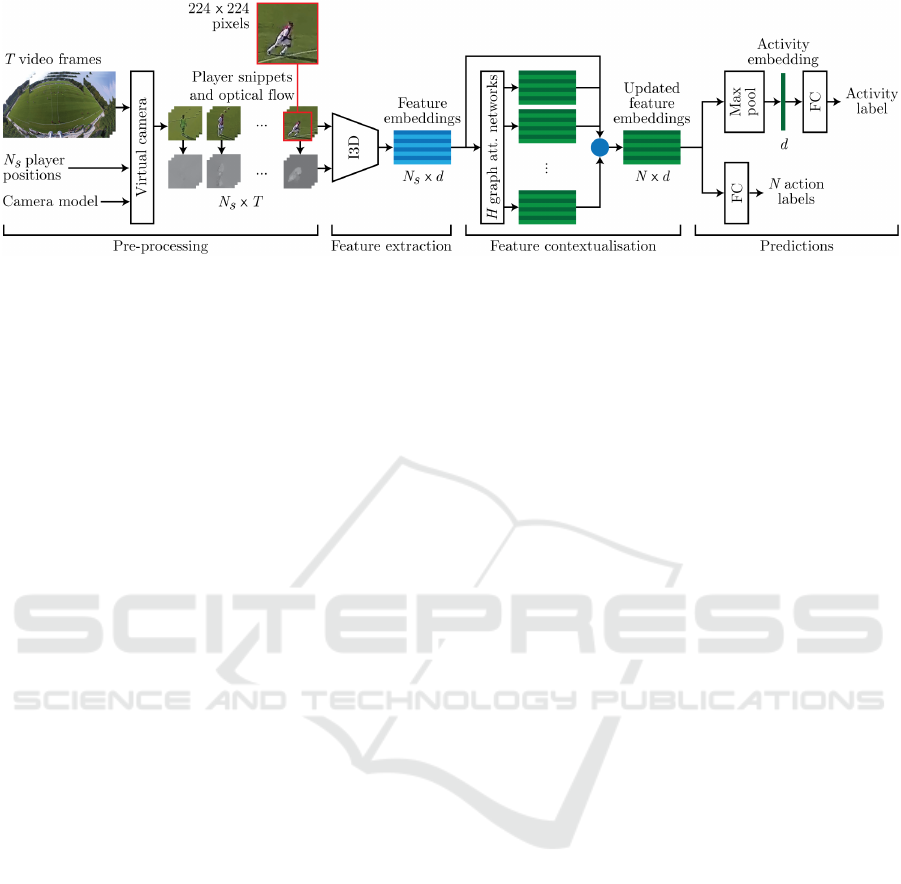

Figure 1: Architecture of the proposed method. T is the number of consecutive frames considered in one activity. N is a

pre-deﬁned number of persons to be detected on the soccer ﬁeld. N

= min(N

, N), with N

the number of automatically

detected players by an ACF person detector. d is the dimensionality of a player embedding.

3.1 Overview of Architecture

The data pipeline of the proposed method is dis-

played in Figure 1. The method pre-processes the data

by generating player snippets using a virtual cam-

era algorithm. Such an algorithm synthesises frames

from a raw video stream where the camera virtu-

ally zooms and rotates, while normalising for lens

distortion (Matsui, 1998). The virtual camera algo-

rithm takes raw video frames, player positions and

a camera model as input. Spatio-temporal features

are extracted from RGB and optical ﬂow videos by

the I3D network. The resulting player embeddings

are updated with multi-head self-attention in GATs.

The model outputs an action label per player and one

shared activity label per sample.

The Actor Relation Graph (ARG), extracts fea-

tures from the whole frame at once. The video frames

are sub-sampled to 1280 × 720 pixels such that a fea-

ture map can be generated from the full scene. There-

after, a standard sized feature map is cut-out for ev-

ery player with RoIAlign. Only spatial features are

captured by a standard CNN. Similar to the proposed

method, the ARG uses GATs with self-attention to

contextualise player embeddings.

3.2 Player Snippets as Model Input

A soccer ﬁeld is about 40 times larger than a volley-

ball ﬁeld, meaning that the distance between a player

and the camera can become much larger, players be-

come smaller and more pixels in the video capture ir-

relevant background. Therefore, the proposed method

uses high resolution player representations as model

input in the form of player snippets.

To create player snippets, the positions of all play-

ers must be known in ﬁeld coordinates such that a vir-

tual camera algorithm can zoom in on these positions.

We denote a ﬁeld coordinate with (X, Y ), where (0, 0)

is the centre spot of the ﬁeld. An Aggregated Chan-

nel Features (ACF) person detector (Doll

ar, 2014) re-

turns N

bounding boxes for persons located within

the soccer ﬁeld lines. The detector is applied to all T

consecutive frames considered in one activity. Player

trajectories are created from bounding boxes that re-

late to the same player in consecutive frames, using

tracking software (Bouma, 2013). When trajecto-

ries are shorter than T frames, they are linearly in-

terpolated and extrapolated. For each activity, we

select the N

trajectories with the largest mean con-

ﬁdence of the person detector over T frames. Here

= min(N

, N), with N(=23) the number of persons

that we strive to detect (22 players and one referee).

With the camera model, pixel coordinates (x,y)

can be transformed into real-world coordinates

(X,Y ,Z) by the projection on a virtual plane at height

Z. The bottom-centre pixel in each bounding box

is projected onto the ground (Z = 0.0 meters) to be

transformed into a ﬁeld coordinate. Finally, a virtual

camera zooms in on position (X

, Y

, 0.8m) for player

i in frame t. The zoomed image is cut-out from the

original frame and resized to 224 × 224 pixels, the

standard resolution for I3D input.

The use of player snippets gives two beneﬁts for

action and activity recognition. First, the snippets

provide high resolution representations for all players,

including those located far from the camera. Second,

the virtual camera normalises for the rotated horizon

present at most ﬁeld positions in our dataset.

3.3 I3D for Feature Extraction

The proposed method uses a two-stream I3D network

(Carreira and Zisserman, 2017) to create player fea-

ture embeddings. The CNN extracts spatio-temporal

features, which we expect to be more informative than

spatial features only, as they could describe move-

ment over time. For example, it could distinguish

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

596

between ball movements towards and away from a

player. We experiment with two temporal window

sizes for I3D, being 0.32 and 0.48 seconds, corre-

sponding to T = 9 (baseline) and T = 13 frames.

Optical ﬂow images are generated from the player

snippets using the TV-L1 algorithm (Zach et al.,

2007). I3D processes RGB and optical ﬂow videos in

two separate streams. For each stream, the videos are

given to the network in batches of N

video samples,

where N

relates to the number of detected players.

Then, I3D provides a d-dimensional player embed-

ding through d logits. The result of both streams is

added element-wise, in a late fusion fashion. For each

activity sample, I3D returns one N

×d feature matrix.

Previously, we experimented with d=1024 (baseline)

and d=256, and found the latter to be more optimal

for our model. All presented results are with d=256.

3.4 Graph Attention Networks for

Feature Contextualisation

State-of-the-art methods for group activity recogni-

tion have shown that attention is a useful mechanism

for contextualisation (Gavrilyuk, 2020). We will fol-

low this approach and use multi-head self-attention

(Vaswani, 2017). Before feature contextualisation,

we apply layer normalisation over each embedding

independently and a ReLU activation thereafter.

Graph Attention Networks. We construct H(=64)

GATs, where each graph contains N(=23) vertices

representing the players and one referee. We adopt

the ARG approach, where the magnitudes of atten-

tion between players depend on inter-player relation-

ships and relative player distance (see Equation 1). A

distance-mask D ∈[0, 1]

N×N

prunes player-pairs from

the graph when they are physically too far from each

other. D

i, j

= 0 if the distance between player i and j is

larger than µ, and D

i, j

= 1 otherwise. We use µ = 20.8

meters, which is 0.2 times the width of a soccer court.

It is comparable to the original ARG implementation,

using 0.2 times the image width.

(h)

= σ









(h)

E + b

(h)



(h)

E + b

(h)



√







(1)

with σ the softmax function, E ∈ R

N×d

the

original player embeddings and G

(h)

∈ R

N×N

the

graph attention matrix from graph h. Weight matrices

(h)

, W

(h)

∈ R

d×d

and biases b

(h)

, b

(h)

∈ R

linearly

transform the player embeddings to query and key

embeddings.

Graph Convolution. The original player embed-

dings are non-linearly transformed via a graph convo-

lution layer, as in Equation 2, also adopted from the

ARG approach. Layer normalisation is applied over

all embeddings in one graph.

(h)

= ReLU



LayerNorm



(h)





(2)

with

(h)

∈ R

N×d

the updated context features

from graph h and weight matrix W

(h)

∈ R

d×d

that

transforms the collection of contextualised features to

value embeddings.

Missing Player Detections. Where it was possi-

ble to process N

players per sample in the previ-

ous phases, feature contextualisation requires pre-

cisely N feature embeddings. This is required, as the

model processes feature matrices with dimensionality

BS ×N ×d, with BS=batch size. Code implementa-

tion

of the ARG reveals that the method duplicates

N − N

player embeddings in each graph, to ﬁll in

for the missing players. The proposed method ﬁlls

the gaps with d-dimensional vectors containing zeros

only (“zero-padding”) instead. These embeddings are

thus ignored by the self-attention mechanism.

Multi-head Attention. The context features from

multiple graphs are combined using a fusion func-

tion. Previously, we found H = 64 to be optimal for

our model. The authors of the ARG propose to add

the contextualised embeddings element-wise. The

proposed method uses a concatenation operation (see

Equation 3) instead of an addition operation.

= E + Concat



(1)

(2)

, . . . ,

(H)



(3)

with E

the ﬁnal feature embeddings before label

prediction, a residual connection to the original em-

beddings E and weight matrix W

∈ R

H×d×d

. The

embeddings from H graphs are concatenated and lin-

early transformed through W

Implicit Bias. We consider players that are interact-

ing with the ball or that are involved in a duel as ac-

tive. Players that are not active are referred to as pas-

sive. Soccer games contain an implicit bias that when

no duel occurs, only one player is interacting with

the ball (“active”). A model with feature contextu-

alisation should explore this inter-player relation, and

predict fewer “false positives” (passive players that

are wrongly recognised as active); especially in activ-

ities with no duel where multiple players are initially

github.com/wjchaoGit/Group-Activity-Recognition

Individual Action and Group Activity Recognition in Soccer Videos from a Static Panoramic Camera

597

recognised as active. The duplication padding strat-

egy could accidentally duplicate active players in ac-

tivities where usually only one is interacting with the

ball. Zero-padding avoids this issue and is expected

to strengthen the implicit bias. Besides, the network

must ﬁnd a way to diminish large activations that re-

late to active classes in passive players. We argue that

adding non-negative embedding values as fusion op-

eration does not diminish any activations. We call this

feature accumulation. With the concatenation opera-

tion, context features can be added as well as sub-

tracted. We call the latter feature suppression.

3.5 Predictions

The reﬁned player representations E

are grouped in a

N ×d feature matrix. Thereafter, two output streams

predict the action labels and activity label, separately.

Both classiﬁcations are performed through a fully-

connected (FC) layer and softmax. In the activity

stream, max pooling is applied to the feature matrix

beforehand, to obtain one d-dimensional vector.

3.6 Implementation Details

The I3D model is trained without feature contextu-

alisation ﬁrst, and is initiated with model parameters

pre-trained on ImageNet (Deng, 2009) and Kinetics

(Kay, 2017). Hyperparameters that resulted in the

best performing ARG on soccer videos were selected

to train all models with. The model is trained in 20

epochs, with learning rate 1×10

−5

(5 ×10

−6

starting

from epoch 15), dropout probability of 0.3, no weight

decay and using an Adam optimiser (Kingma and Ba,

2014). Cross entropy with class weights is used to

calculate the action and activity prediction losses.

The GATs are trained afterwards, with all I3D lay-

ers frozen. Hyperparameters are unchanged, except

for the number of epochs (40 instead of 20).

4 EXPERIMENTAL SETUP

4.1 The Soccer Dataset

We constructed a new dataset including soccer videos

from one panoramic camera, which contains four

sensors that are positioned side-by-side and together

capture the whole ﬁeld from one static perspective

(see Figure 2). A camera model is constructed for

each sensor by calibration with the ﬁeld dimensions.

Videos from the four sensors are combined in one

video stream that has a resolution of 3840 × 2160

pixels at 25 frames per second. During 280 minutes

in four soccer games, we annotated 3717 activities in

eleven categories. The exact frame that an event oc-

curred was registered, i.e. the moment of ball contact,

when the ball leaves the players’ foot/hands, or when

the referee blows its whistle. This frame is the middle

frame in temporal window T . The training set con-

tains 2801 events from game one, game two and the

ﬁrst half of game three. The validation set consists of

403 events in the second half of game three. All 513

events in game four are kept in the test set.

Using an ACF person detector, we obtained

bounding boxes for persons located inside the ﬁeld

lines, for each activity. The detected persons were an-

notated with an action label, in eight categories, or as

an incorrect detection. The number of action and ac-

tivity instances can be seen in Table 7 for the train,

validation and test set. In total, 83818 samples were

annotated with an individual action label. Note that

94.6% of the detections have a passive action label.

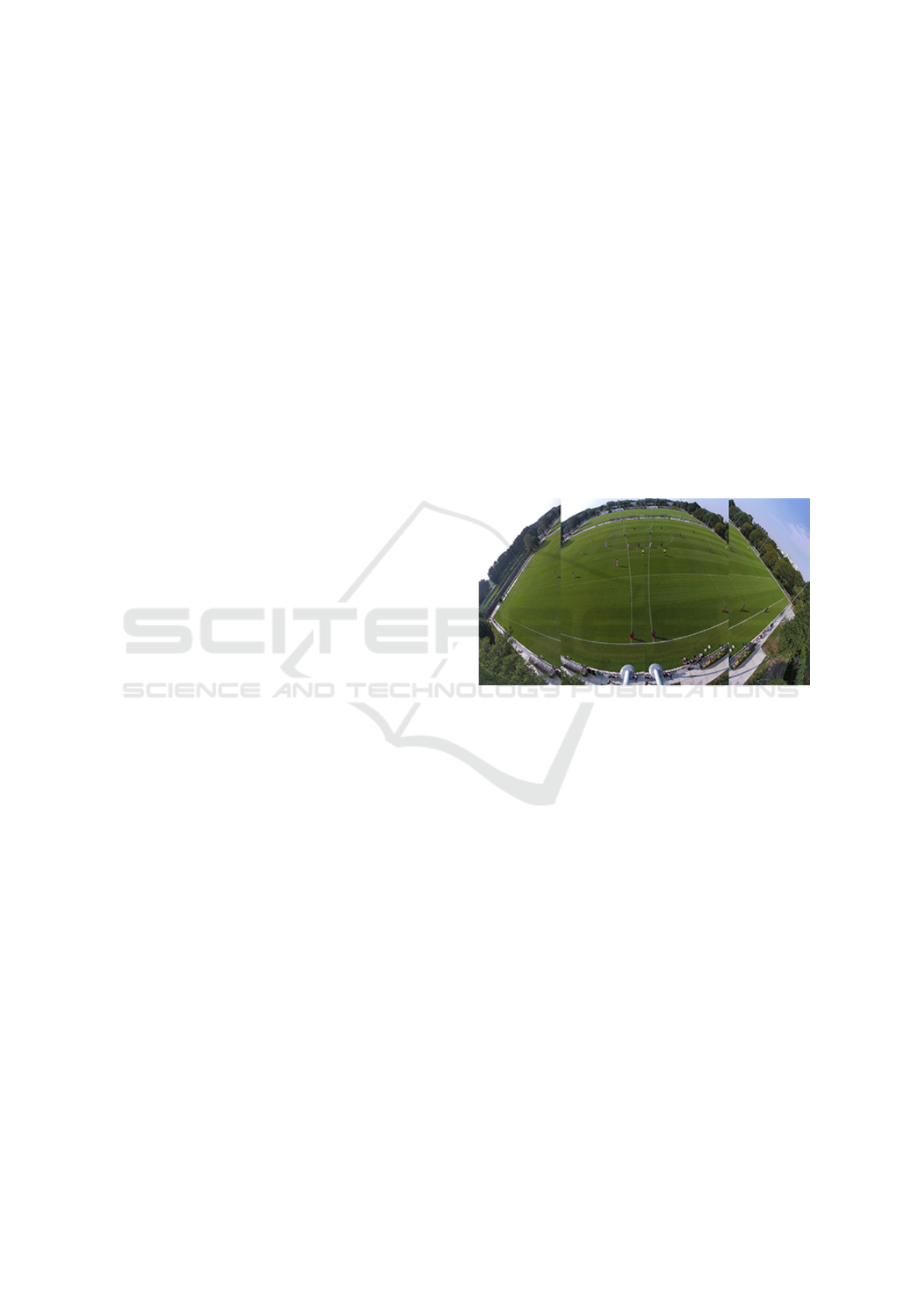

Figure 2: Example frame of the raw video stream.

4.2 Evaluation Metrics

In related work, performance in action and group ac-

tivity recognition is often reported in multi-class ac-

curacy (MCA). However, as the Soccer Dataset is

highly unbalanced, this metric gives a too optimistic

view. Therefore, we calculate a Matthew Correlation

Coefﬁcient (MCC) (Matthews, 1975) per class label.

The metric is independent of class imbalance. To

avoid reporting nineteen MCCs at every evaluation,

we average the scores over all actions and all activi-

ties. The result is two mean MCC (MMCC) scores.

5 EXPERIMENTS AND RESULTS

Experiments are discussed along three phases: data

pre-processing, feature extraction and feature contex-

tualisation. Experiments in Sections 5.1-5.3 use the

validation set for evaluation. In Section 5.4, we eval-

uate the ability of the ARG as baseline and the pro-

posed method to generalise to samples in the test set.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

598

5.1 Sub-sampling and Player Snippets

In soccer, players can be positioned far from the cam-

era due to the large playing ﬁeld. The ARG as used

by Wu et al. (2019) sub-samples the video frames to

a standard resolution. This causes soccer players that

are farthest from the camera to be represented with

very few pixels. In Figure 3 (a) it can be seen that for

a soccer player located at the goal line, the body pose

is difﬁcult to recognise. The effect of using player

snippets instead, with and without horizon normalisa-

tion (see Figure 3 (b) and (c)), is evaluated by training

an Inception-V3 with the three different inputs.

(a) Sub-sampled (b) Player snippet (c) Pl.sn. + norm.

Figure 3: Sample of a player located at the left goal line.

In Table 1 it can be seen that using player snip-

pets increases the MMCC in action recognition from

0.163 to 0.264 and in activity recognition from 0.364

to 0.437. Normalisation of the rotated horizon further

increases these scores to 0.358 (actions) and 0.616

(activities). In Figure 4, the accuracies for action

recognition are provided per ﬁeld region, where the

top regions are farthest away from the camera. It can

be seen that the use of player snippets not only im-

proves action recognition, but also results in more uni-

form performance scores over all ﬁeld regions. Sub-

sampling gives the poorest results for players that are

rotated or that are positioned far away from the cam-

era. In the next experiments, player snippets with

horizon normalisation are used as model input.

Table 1: MMCCs for sub-sampling (baseline) and player

snippets, with and without horizon normalisation.

Model input Norm. Actions Activities

Sub-sampling 5 0.163 0.364

Player snippets 5 0.264 0.437

Player snippets X 0.358 0.616

(a) Sub-sampling (b) Player snippets + norm.

Figure 4: Accuracies of action predictions at different parts

of the soccer ﬁeld. Top regions are farthest from the camera.

5.2 Inception-V3 and I3D

We compared Inception-V3 and I3D as backbone for

feature extraction. The former extracts spatial fea-

tures and uses temporal fusion via element-wise ad-

dition. I3D explores spatio-temporal features.

The previous experiment was carried out using

Inception-V3 with a batch size of four. In Table 2,

it can be seen that decreasing the batch size to one in-

creases action recognition performance to an MMCC

of 0.500. It can also be seen that spatio-temporal

features are particularly important for the recognition

of individual actions, increasing performance to an

MMCC of 0.646. Both networks give comparable re-

sults for activity recognition. We reason that group

activities develop over multiple seconds, rather than

the short time period that we selected for one sam-

ple (0.32 seconds). Increasing the temporal window

to 0.48 seconds results in MMCCs of 0.658 for action

and 0.641 for activity recognition. I3D, with a 0.48s

temporal window, is used in the next experiment.

Table 2: MMCCs when using Inception-V3 (baseline) or

I3D as backbone for feature extraction.

Back- Temp. Batch

Actions Activities

bone window size

Inc-V3 0.32 sec 4 0.358 0.616

Inc-V3 0.32 sec 1 0.500 0.615

I3D 0.32 sec 1 0.646 0.619

I3D 0.48 sec 1 0.658 0.641

5.3 Padding and Fusion Function

The action classiﬁcations made in the previous exper-

iments are without feature contextualisation. Putting

player embeddings into the context of other players is

expected to improve model predictions. However, in

Table 3 can be seen that using GATs with an additive

fusion function and duplication for missing player de-

tections does not improve upon the model without

contextualisation. Using zero-padding and concate-

nation does improve the results towards MMCCs of

0.687 for action and 0.676 for activity recognition.

Table 3: MMCCs with or without (ﬁrst row) feature con-

textualisation, using different fusion functions and padding

strategies for missing player detections.

Fusion Padding Actions Activities

- - 0.658 0.641

Addition Duplication 0.651 0.628

Addition Zero 0.669 0.607

Concat. Zero 0.687 0.676

Individual Action and Group Activity Recognition in Soccer Videos from a Static Panoramic Camera

599

In Table 4 can be seen that the number of false

positives (FPs) can be reduced with feature contextu-

alisation, in activities where only one player can in-

teract with the ball. When a network recognises mul-

tiple players as active (X≥2) in one activity, it should

discover that only one of these is correct. However,

the duplication padding strategy weakens this implicit

bias, resulting in more FPs than a model without con-

textualisation. Zero-padding and the suppression of

features via the concatenation operation reduces the

number of initial FPs with 83%.

Table 4: Number of misclassiﬁed passive players that are

recognised as active (false positives), in all activities where

only one player can interact with the ball.

Fusion

function

Padd-

ing

# FPs, when X are

recognised as active:

Total

#FPs

X=1 X≥2

- - 5 36 41

Addition Dupl. 3 43 46

Addition Zero 3 18 21

Concat. Zero 1 6 7

5.4 Test Samples From an Unseen Game

We evaluated the ARG (Wu, 2019) and the proposed

method on test samples from an unseen game. The

former is not able to generalise to these samples and

gains MMCCs equal to random predictions (see Ta-

ble 5). The domain gap between volleyball and soccer

is too large for the method to be applied right away.

Nevertheless, with the proposed adaptations it is pos-

sible to gain MMCCs of 0.623 for action and 0.632

for activity recognition. Compared to the scores on

the validation set, the performance drop is only 0.064

and 0.044 respectively. Our method reaches 98.7%

MCA for action and 75.2% MCA for activity recog-

nition. However, recall that the dataset is unbalanced.

Table 5: Performance of the baseline and proposed method,

both trained with soccer videos, on test samples from an

unseen game.

Method

Actions Activities

MMCC MCA MMCC MCA

ARG 0.005 21.6% 0.000 7.2%

Proposed 0.623 98.7% 0.632 75.2%

For group activity recognition, we can compare

the results with related work in the soccer domain (see

Table 6). Our method recognises a large number of

activity classes, while it cannot rely on cinematic fea-

tures in television broadcasts and does not use video

input from multiple camera positions. Nevertheless,

the maximum reduction in MCA is 20.3%.

Table 6: MCA for activity recognition in soccer videos,

with #C the number of classes.

Method Video input #C MCA

Tavassolipour, 2013 TV broadc. 7 82.0%

Jiang, 2016 TV broadc. 4 89.1%

Khan, 2018 TV broadc. 4 94.5%

Vanderplaetse, 2020 TV broadc. 4 95.5%

Tsunoda, 2017 Multi cam. 3 70.2%

Ours Panorama 11 75.2%

In Table 7, the correlation coefﬁcients and accu-

racies can be seen per class. The proposed method

recognises four actions and six activities with an

MCC above 0.7 and with an accuracy above 75% (see

classes in bold).

6 CONCLUSION

We proposed a novel method for the recognition of in-

dividual actions and group activities in soccer videos

from a static panoramic camera. We showed that it

is possible to recognise four actions and six activities

with accuracies above 75%, in videos captured from

a single perspective. We introduced three novel as-

pects: (1) player snippets and horizon normalisation,

(2) spatio-temporal feature extraction, and (3) the use

of context information by graph attention networks

that use zero-padding and feature suppression.

ACKNOWLEDGEMENTS

The soccer video recordings, player detections and

tracks, camera models and virtual camera software

were provided by the Netherlands Organisation for

Applied Scientiﬁc Research (TNO).

REFERENCES

Aalbers, B. and Van Haaren, J. (2018). Distinguishing be-

tween roles of football players in play-by-play match

event data. In Int. Workshop on Machine Learn.

and Data Mining for Sports Analytics, pages 31–41.

Springer.

Azar, S. M. e. a. (2019). Convolutional relational machine

for group activity recognition. In Proc. of the IEEE

Conf. on CVPR, pages 7892–7901.

Bouma, H. e. a. (2013). Real-time tracking and fast retrieval

of persons in multiple surveillance cameras of a shop-

ping mall. In Multisensor, Multisource Inf. Fusion:

Architect., Algorithms, and Appl. 2013, volume 8756,

page 87560A. Int. Soc. for Opt. and Photon.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

600

Table 7: Performance of the proposed method on test samples from an unseen game. Three activity classes describe different

kinds of duels: air duel (A), duel with one player in ball possession (P), duel with a loose ball (L). “Ball OOB” is an

abbreviation for “ball out-of-bounds”. The numbers of training/validation/test samples are provided in the last three rows.

Passive

Heading

Interception

Dribble

Play ball

In duel

Throw in

Keeper

Duel (A)

Duel (P)

Duel (L)

Play freely

Free kick

Kick off

Goal kick

Corner

Throw in

Whistle

Ball OOB

MCC .96 .47 .00 .56 .84 .85 .85 .47 .58 .59 .33 .74 .43 .76 .86 .81 .84 .28 .73

Acc. (%) 100 40 00 50 88 79 100 35 36 64 39 82 43 100 78 90 99 32 87

# Instances Actions Activities

Training 59459 70 67 303 1262 1575 121 34 59 221 468 1541 59 13 41 22 121 74 182

Validation 8710 6 11 40 202 189 15 4 10 26 53 231 7 2 9 9 15 9 32

Test 11140 15 17 44 221 27 35 8 11 32 85 255 13 2 9 10 35 12 49

Carreira, J. and Zisserman, A. (2017). Quo vadis, action

recognition? a new model and the kinetics dataset. In

Proc. of the IEEE Conf. on CVPR, pages 6299–6308.

Deng, J. e. a. (2009). Imagenet: A large-scale hierarchical

image database. In IEEE Conf. on CVPR, pages 248–

255. Ieee.

Doll

ar, P. e. a. (2014). Fast feature pyramids for object de-

tection. IEEE Trans. on Pattern Anal. and Mach. In-

tell., 36(8):1532–1545.

Ekin, A., Tekalp, A. M., and Mehrotra, R. (2003). Auto-

matic soccer video analysis and summarization. IEEE

Trans. on Image Process., 12(7):796–807.

Gavrilyuk, K. e. a. (2020). Actor-transformers for group

activity recognition. In Proc. of the IEEE/CVF Conf.

on CVPR, pages 839–848.

Giancola, S. e. a. (2018). Soccernet: A scalable dataset for

action spotting in soccer videos. In Proc. of the IEEE

Conf. on CVPR Workshops, pages 1711–1721.

Ibrahim, M. S. and Mori, G. (2018). Hierarchical relational

networks for group activity recognition and retrieval.

In Proc. of the ECCV, pages 721–736.

Ibrahim, M. S. e. a. (2016). A hierarchical deep temporal

model for group activity recognition. In Proc. of the

IEEE Conf. on CVPR, pages 1971–1980.

Ji, S. e. a. (2012). 3d convolutional neural networks for hu-

man action recognition. IEEE Trans. on Pattern Anal.

and Mach. Intell., 35(1):221–231.

Jiang, H., Lu, Y., and Xue, J. (2016). Automatic soccer

video event detection based on a deep neural network

combined cnn and rnn. In IEEE 28th Int. Conf. ICTAI,

pages 490–494. IEEE.

Kay, W. e. a. (2017). The kinetics human action video

dataset. arXiv preprint arXiv:1705.06950.

Khan, M. Z. e. a. (2018). Learning deep c3d features for

soccer video event detection. In 14th Int. Conf. ICET,

pages 1–6. IEEE.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Kong, Y. and Fu, Y. (2018). Human action recog-

nition and prediction: A survey. arXiv preprint

arXiv:1806.11230.

Matsui, K. e. a. (1998). Soccer image sequence computed

by a virtual camera. In Proc. 1998 IEEE Comput. Soc.

Conf. on Comput. Vision and Pattern Recognit. (Cat.

No. 98CB36231), pages 860–865. IEEE.

Matthews, B. W. (1975). Comparison of the predicted and

observed secondary structure of t4 phage lysozyme.

Biochimica et Biophysica Acta (BBA)-Protein Struct.,

405(2):442–451.

Pappalardo, L. e. a. (2019a). Playerank: data-driven perfor-

mance evaluation and player ranking in soccer via a

machine learning approach. ACM TIST, 10(5):59.

Pappalardo, L. e. a. (2019b). A public data set of spatio-

temporal match events in soccer competitions. Scien-

tiﬁc data, 6(1):1–15.

Szegedy, C. e. a. (2016). Rethinking the inception architec-

ture for computer vision. In Proc. of the IEEE Conf.

on CVPR, pages 2818–2826.

Tavassolipour, M., Karimian, M., and Kasaei, S. (2013).

Event detection and summarization in soccer videos

using bayesian network and copula. IEEE Trans. on

Circuits and Syst. for Video Techn., 24(2):291–304.

Tsunoda, T. e. a. (2017). Football action recognition using

hierarchical lstm. In Proc. of the IEEE Conf. on CVPR

Workshops, pages 99–107.

Vanderplaetse, B. and Dupont, S. (2020). Improved soccer

action spotting using both audio and video streams.

In Proc. of the IEEE/CVF Conf. on CVPR Workshops,

pages 896–897.

Vaswani, A. e. a. (2017). Attention is all you need. In

Advances in Neural Inf. Process. Syst., pages 5998–

6008.

Veli

ckovi

c, P. e. a. (2017). Graph attention networks. arXiv

preprint arXiv:1710.10903.

Wu, J. e. a. (2019). Learning actor relation graphs for group

activity recognition. In Proc. of the IEEE Conf. CVPR,

pages 9964–9974.

Zach, C., Pock, T., and Bischof, H. (2007). A duality based

approach for realtime tv-l 1 optical ﬂow. In Joint Pat-

tern Recognit. Symp., pages 214–223. Springer.

Zhang, K. e. a. (2019). An automatic multi-camera-based

event extraction system for real soccer videos. Pattern

Anal. and Appl., pages 1–13.

Individual Action and Group Activity Recognition in Soccer Videos from a Static Panoramic Camera

601
