Multimodal Sentiment Analysis on Video Streams using Lightweight

Deep Neural Networks

Atitaya Yakaew

, Matthew N. Dailey

and Teeradaj Racharak

Department of Information and Communication Technologies,

Asian Institute of Technology, Klong Luang, Pathumthani, Thailand

School of Information Science, Japan Advanced Institute of Science and Technology, Ishikawa, Japan

Keywords:

Deep Learning for Multimodal Real-Time Analysis, Emotion Recognition, Video Processing and Analysis,

Lightweight Deep Convolutional Neural Networks, Sentiment Classiﬁcation.

Abstract:

Real-time sentiment analysis on video streams involves classifying a subject’s emotional expressions over

time based on visual and/or audio information in the data stream. Sentiment can be analyzed using various

modalities such as speech, mouth motion, and facial expression. This paper proposes a deep learning approach

based on multiple modalities in which extracted features of an audiovisual data stream are fused in real time

for sentiment classiﬁcation. The proposed system comprises four small deep neural network models that

analyze visual features and audio features concurrently. We fuse the visual and audio sentiment features into

a single stream and accumulate evidence over time using an exponentially-weighted moving average to make

a ﬁnal prediction. Our work provides a promising solution to the problem of building real-time sentiment

analysis systems that have constrained software or hardware capabilities. Experiments on the Ryerson audio-

video database of emotional speech (RAVDESS) show that deep audiovisual feature fusion yields substantial

improvements over analysis of either single modality. We obtain an accuracy of 90.74%, which is better than

baselines of 11.11% – 31.48% on a challenging test dataset.

1 INTRODUCTION

Sentiment analysis is the task of classifying the state

of mind and feeling of a person into categories such

as happy, sad, and angry from a particular form of in-

put. Automatic sentiment estimation has great poten-

tial for use in a wide variety of applications (Cambria

et al., 2013). For instance, an online shopping system

can employ sentiment analysis to classify the emo-

tional state of customers, presenting them with more

attractive deals given their mood. It can also be used

in healthcare applications; we can imagine monitor-

ing the mental state of a patient and suggesting appro-

priate treatment and therapy (Chen et al., 2018). It is

also useful in other areas including educational tech-

nology (Harley et al., 2015), the Internet of Things

(IoT) (Chen et al., 2017), and natural language pro-

cessing (NLP) (Lippi and Torroni, 2015). The most

common approach to customer emotion classiﬁcation

is in the visual modality, and most systems analyzing

the visual modality extract hand-crafted features from

the video content and attempt to predict the subject’s

spontaneous emotional response (Wang and Ji, 2015).

Findings in the literature on multimodal sentiment

analysis in computer vision (Huang et al., 2016; Val-

star et al., 2016) indicate that a single modality may

not be sufﬁcient for high accuracy, due to the transient

nature of emotion expressions (Hossain and Muham-

mad, 2019). Early on, researchers put an especially

great deal of effort into static input processing, while

sentiment analysis on dynamic input such as video

streams received less attention, perhaps due to the di-

versity of the input modalities. More recently, multi-

modal real-time media analysis is emerging and has

received a great deal of attention. Dynamic multi-

modal analysis is much more rich than static analysis,

enabling the use of the movement of the subject’s eyes

and mouth, changes in facial expression over time,

and the timbre of the human voice (Avots et al., 2019).

This paper proposes an approach to automated

real-time sentiment analysis useful for retail in which

small neural network based modules are synthesized

to predict emotion content dynamically from an input

video stream in three classes: positive, neutral, and

negative. While people may in fact express many dif-

ferent types of emotion in a given situation, we argue

that some of ﬁner-grained emotion categories would

442

Yakaew, A., Dailey, M. and Racharak, T.

Multimodal Sentiment Analysis on Video Streams using Lightweight Deep Neural Networks.

DOI: 10.5220/0010304404420451

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 442-451

ISBN: 978-989-758-486-2

not give clear feedback to a business monitoring cus-

tomers’ satisfaction. For example, if the system in-

dicates that a customer has expressed surprise, the

owner or analyst would want to know if the surprise

was positive or negative. With this goal, given a video

stream, we detect the face if present, then we clas-

sify the mouth as open or closed. When the mouth is

closed, sentiment is analyzed based solely on the face

image. Otherwise, a spectrogram is generated from

the speech signal using a windowed Fourier trans-

form. This spectrogram and the face image are passed

to separate CNN modules to extract a learned repre-

sentation of the audiovisual input. The fused repre-

sentation is ﬁnally classiﬁed with a softmax classi-

ﬁer. Sentiment is accumulated over time based on an

exponentially-weighted moving average to infer ﬁnal

prediction for a period of time. Section 2 explains our

models performing these tasks.

The contribution of this paper is that we demon-

strate the feasibility of improving the performance of

sentiment classiﬁcation based on multimodal process-

ing by lightweight deep neural networks over video

data in real time. Our approach consists solely of

4,034,937 parameters in total, which is much smaller

than typical recent deep learning models such as

Inception-ResNet-v2, which has 55.8 million param-

eters. Despite this small size, our approach achieves

state-of-the-art accuracy on the Ryerson audio-video

database of emotional speech (RAVDESS) (Living-

stone and Russo, 2018). We discuss our experiments

and compare to the state of the art work in Section

3 and Section 4, respectively. Finally, Section 5 pro-

vides a conclusion and discussion of future directions.

2 DEEP AUDIOVISUAL

SENTIMENT FEATURE

FUSION

Our deep audiovisual sentiment fusion analyzer com-

prises four lightweight neural networks for (1) mouth

classiﬁcation, (2) visual sentiment analysis, (3) audio

sentiment analysis, and (4) fused audiovisual senti-

ment classiﬁcation. Figure 1 shows an overview of

the system containing these components. Overall, the

system workﬂow proceeds as follows.

1. Video is captured at 30 ms intervals. This is

appropriate because humans typically speak only

one phoneme during a 30 ms interval. We detect

and track the face in the video. Each face image is

cropped to have a width of 800 pixels and a height

of 450 pixels and is then resized to 96 ×96 (cf.

Subsection 2.1);

2. After that, we detect mouth landmarks and resize

the detected mouth region to 28 ×28. The mouth

is classiﬁed as to whether it is either closed or

open using a small CNN (cf. Subsection 2.2);

3. When the mouth is closed, sentiment is predicted

using a small CNN with the face only (cf. Sub-

section 2.3);

4. Otherwise, a spectrogram (of size 400 ×400) is

created from the audio signal and is processed

with the face image concurrently; audio features

and video features are concatenated prior to over-

all classiﬁcation by another lightweight CNN (cf.

Subsection 2.4).

At test time, predictions for each frame are accumu-

lated according to an exponentially-weighted moving

average to yield the ﬁnal prediction

←

(

, t = 0

α · ˆy

+ (1 −α) ·a

t−1

, t > 0;

(1)

Here, vector ˆy

represents the predicted distribution

for time t, vector a

represents the accumulated pre-

dicted distribution at time period t, and the coefﬁcient

α ∈ (0,1) controls the amount of smoothing, with a

higher α discounting older ˆy

faster. Finally, the ana-

lyzer outputs the sentiment class with the highest esti-

mated probability. We explain each step of the work-

ﬂow in detail in the following subsections.

2.1 Face and Mouth Detection

As indicated in Figure 1, video frames are extracted

every 30 ms from the input video stream. To deter-

mine if there is a face in the frame, we use the classic

Histogram of Oriented Gradient (HOG) detector with

a linear SVM and tracking as implemented by the

dlib library (Dalal and Triggs, 2005). We further use

dlib’s facial landmark detector to ﬁnd ﬁducial points

on the face and mouth. Note that dlib implements the

method of (Kazemi and Sullivan, 2014), which yields

68 landmark points such as the corners of the eyes

and the nasal tip. The 68 points are computed rela-

tive to the mean of all the coordinates throughout the

face image. Once the face and its mouth region are de-

tected in a frame, we extract crops as separate images.

The mouth is delineated by dlib landmarks numbered

49 – 63. Each face is resized to 450 ×800. These

images are subsequently used by our mouth classiﬁer,

visual sentiment analysis model, and audiovisual sen-

timent analysis model.

2.2 Mouth Classiﬁcation

To determine whether a mouth is open or closed, we

use a small CNN consisting of ﬁve layers. We resize

Multimodal Sentiment Analysis on Video Streams using Lightweight Deep Neural Networks

443

Video stream

at 30 ms / frame

Detect and track

human face

Face present ?

First face found?

Reinitialize

queue

Crop and resize

to 450 x 800

450 x 800

3-channel


Mouth detection

Crop and resize

mouth region

to 28 x 28

Resize to 96 x 96

Visual sentiment

analysis model

(Figure 3)

Audiovisual sentiment

analysis model

(Figure 4)

Accumulate

weighted average

Spectrogram

Convert to

spectrogram

Audio samples

(30ms)

Is mouth open?

YesNo

End of stream?

Yes

Mouth image

Mouth motion

classiﬁcation

(Figure2)

End

Start buffering audio

data at 48 kHz.

Yes

96 x 96

3-channel


Sentiment prediction

(negative, neutral, positive)

Figure 1: Overall system diagram of the proposed approach.

the input mouth image to a ﬁxed size of 28 ×28 ×3.

The CNN uses two convolutional layers with ReLU

activation and max-pooling followed by two fully-

connected layers, also with ReLU activations, fol-

lowed by a logistic sigmoid classiﬁer. The output rep-

resents the posterior probability that the input repre-

sents an “open” mouth, which we threshold at 0.5 to

obtain the prediction from the network

← ˆy

≥ 0.5, (2)

where ˆy

represents the posterior probability output

by the logistic classiﬁer at time t and a

represents

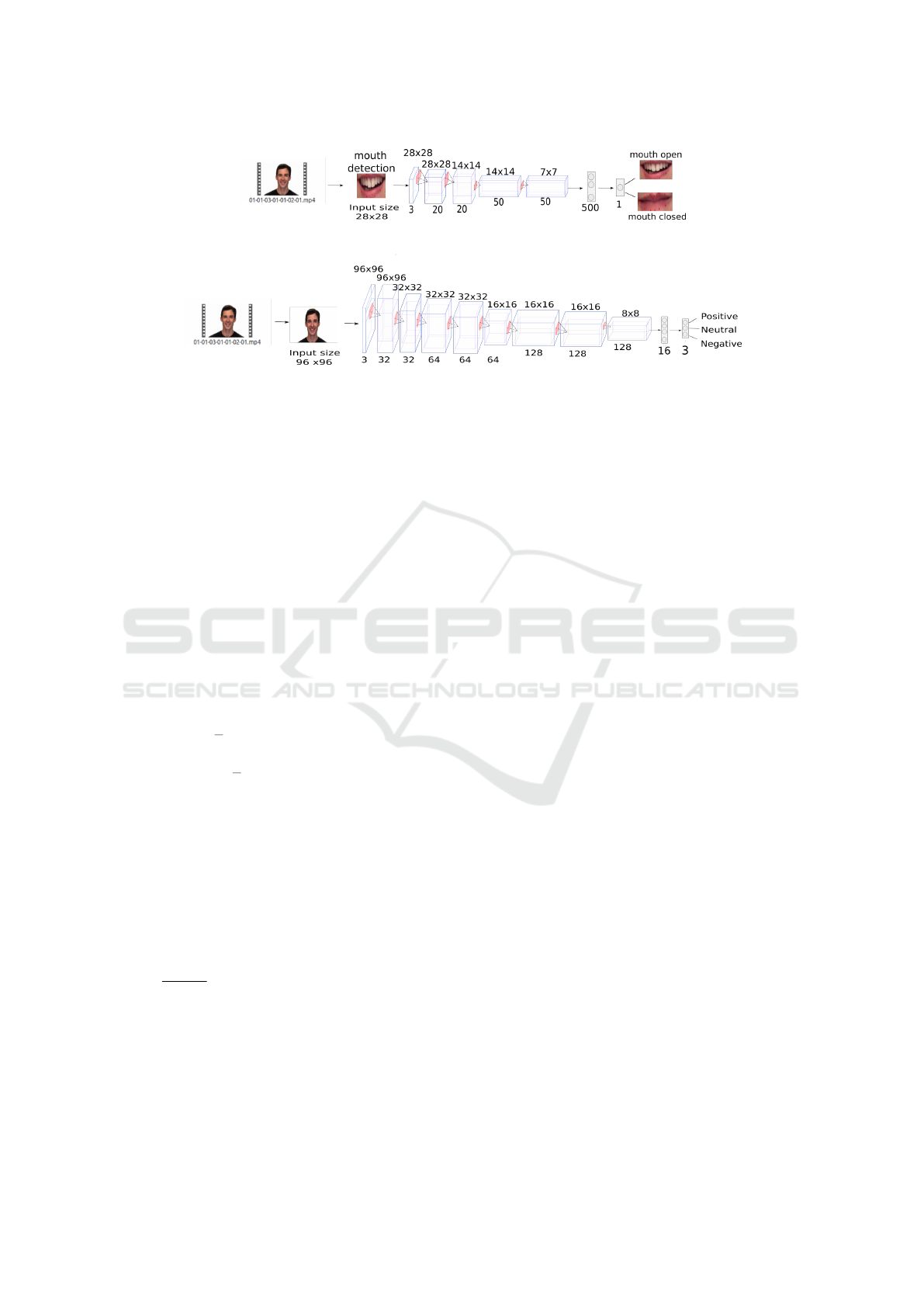

the predicted mouth state at time t. Figure 2 and Ta-

ble 1 show the model architecture and parameters, re-

spectively. All weights are initialized using Xavier’s

method (Glorot and Bengio, 2010).

2.3 Visual Sentiment Analysis

When the mouth in a frame is closed, the speaker’s

sentiment is analyzed solely from the facial expres-

sion in that frame using the small CNN described in

Figure 3 and Table 2, with an input image size of

96 ×96, a softmax output, and the cross entropy loss

−

∑

i=1

∑

k=1

(i)

log( ˆy

(i)

), (3)

where n denotes the batch size, y

(i)

is the target (0

or 1) for class k for the i-th instance, and ˆy

(i)

is the

predicted probability that the i-th instance belongs to

class k. The model outputs a probability distribution

over the three sentiment classes: positive, negative,

and neutral. Output prediction ˆy

= [ ˆy

, ˆy

]

time t is then fed to Equation 1 to obtain an aggre-

gated prediction for the video stream up to time t.

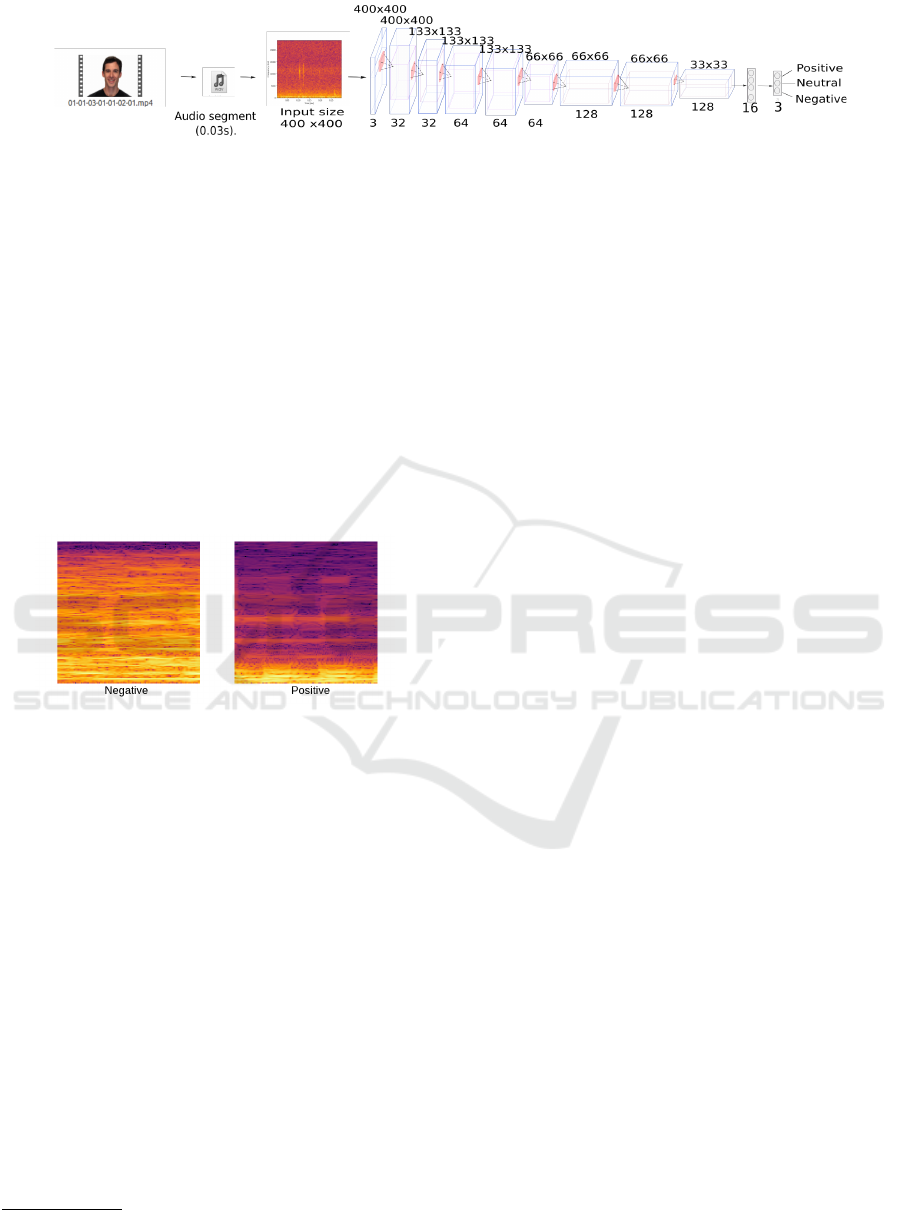

2.4 AudioVisual Sentiment Analysis

When the mouth in a frame is open, the speaker’s

sentiment is analyzed based on both the facial ex-

pression and speech signal in that frame concurrently.

These two types of input are processed by two dif-

ferent small CNNs, which have different-but-similar

structures, as shown in Table 2 (with Figure 3) and

Table 3 (with Figure 4). At a high level, they ex-

ploit the same structure but differ in the dimensions

of each layer due to the different sizes of their in-

put. Moreover, the visual CNN includes dropout to

improve generalization, whereas the audio CNN does

not. The input to the visual CNN is executed in par-

allel with the input to the audio CNN; all layers are

used with ReLU activations. The outputs of the two

modules are concatenated and then piped to a soft-

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

444

Figure 2: CNN for mouth open / closed classiﬁcation.

Figure 3: Face-only sentiment classiﬁer.

max layer in order to calculate a probability distribu-

tion over the three sentiment classes. This combined

model is used with RGB images of size 96 ×96 for

the visual input (face) and images of size 400 ×400

for the audio input (spectrogram).

It is worth noting that this module treats the au-

dio signal in the same fashion as an image. A spec-

trogram is a two-dimensional representation of fre-

quency spectra, with time along the horizontal axis

and frequency along the vertical axis. We generate

spectrograms for the audio signal in real time along

with the video frames then pass them to the audio

CNN in the same way ordinary images are fed to an

image CNN. We use a short time Fourier transform

(STFT) to compute the complex-valued spectrogram

(n,k), where n and k are the time frame and fre-

quency indices, respectively:

(n,k) ←

−1

∑

l=−

w(l) ·x(l + nh) ·e

−2πilk/W

(4)

To compute the STFT, the audio signal x(n) is sliced

into overlapping segments of length W . Each segment

is offset in time by a hop size h. Each segment is

multiplied element-wise by a Hanning window w(l)

that acts as a tapering function to reduce spectral leak-

age. Finally, a DFT of size W is computed separately

on each windowed waveform segment to generate the

spectrogram (Lyon, 2009). Each pixel in the spectro-

gram image represents the magnitude of the complex

value S

(n,k) in decibels. Note that, for any com-

plex number z, the magnitude can be calculated by

|z| =

√

+ b

where a and b represent the real and

imaginary parts, respectively.

Like the visual analyzer, the combined model is

trained to minimize the cross-entropy loss (Equation

3). The output predictions ˆy

at time t are further ac-

cumulated using Equation 1 to yield a ﬁnal prediction

for the video stream. Overall, the proposed model has

2,646,107 parameters (cf. Tables 1 – 4).

3 EXPERIMENTS

In this section, we specify the dataset used to eval-

uate the system and demonstrate the effectiveness of

the proposed method for sentiment analysis on video

streams. We use Keras version 2.3.1 with TensorFlow

version 2.2.4 as its backend, with OpenCV version 4.2

for all experiments.

3.1 Dataset

We use the Ryerson audio-video database of emo-

tional speech (RAVDESS) (Livingstone and Russo,

2018). RAVDESS is an audio and visual database

of emotional speech and song. The dataset was col-

lected from 24 professional actors and includes eight

emotion categories: neutral, calm, happy, sad, angry,

fearful, disgusted, and surprised. All sequences in the

dataset are available in face-and-voice, face-only, and

voice-only formats. However, we only use the audio-

video format.

Since our system comprises four subsystems for

face-mouth detection, mouth classiﬁcation, visual

sentiment classiﬁcation, and audiovisual sentiment

classiﬁcation (cf. Section 2), we created training

datasets for each module separately. We generated

separate sets of mouth images, face images, audio

ﬁles, and corresponding spectrogram images as the

training dataset. We explain the generation steps in

detail here. First, to create the mouth dataset, we used

six actors from RAVDESS and an additional video

from a webcam for one person. For each sequence,

we ran the dlib landmark detector, extracted the

mouth region, randomly sampled 832 mouth regions,

and manually classiﬁed each sample mouth as open

or closed. Second, to create the face dataset, we

manually classiﬁed face images for 19 actors into

ﬁve categories: neutral, calm, happy, angry, and sad

(leaving out surprised and fearful sequences, as they

Multimodal Sentiment Analysis on Video Streams using Lightweight Deep Neural Networks

445

Table 1: Mouth classiﬁer.

Index Layer Kernel Filter

Stride /

Padding

Activation Parameters Input Output

1 input 2,352 0 28 ×28 ×3 28 ×28 ×3

2 convolution1 + ReLU 5 ×5 20 1 / 2 15,680 1,520 28 ×28 ×3 28 ×28 ×20

3 max pooling + dropout (25%) 2 ×2 20 2 / 0 3,920 0 28 ×28 ×20 14 ×14 ×20

4 convolution2 + ReLU 5 ×5 50 1 / 2 9,800 25,050 14 ×14 ×20 14 ×14 ×50

5 max pooling + dropout (25%) 2 ×2 50 2 / 0 2,450 0 14 ×14 ×50 7 ×7 ×50

6 fully connected layer + ReLU 500 1,225,500 2,450 ×1 500 ×1

7 logistic classiﬁer 1 501 500 ×1 1 ×1

Total 1,252,571

Table 2: Visual CNN.

Index Layer Kernel Filter

Stride /

Padding

Activation Parameters Input Output

1 input 27,648 0 96 ×96 ×3 96 ×96 ×3

2 convolution1 + ReLU 3 ×3 16 1 / 1 147,456 448 96 ×96 ×3 96 ×96 ×16

3 batch normalization 147,456 64 96 ×96 ×16 96 ×96 ×16

4 max pooling + dropout (25%) 3 ×3 16 3 / 0 16,384 0 96 ×96 ×16 32 ×32 ×16

5 convolution2 + ReLU 3 ×3 32 1 / 1 32,768 4,640 32 ×32 ×16 32 ×32 ×32

6 batch normalization 32,768 128 32 ×32 ×32 32 ×32 ×32

7 convolution3 + ReLU 3 ×3 32 1 / 1 32,768 9,248 32 ×32 ×32 32 ×32 ×32

8 batch normalization 32,768 128 32 ×32 ×32 32 ×32 ×32

9 max pooling + dropout (25%) 2 ×2 32 2 / 0 8,192 0 32 ×32 ×32 16 ×16 ×32

10 convolution4 + ReLU 3 ×3 64 1 / 1 16,384 18,496 16 ×16 ×32 16 ×16 ×64

11 batch normalization 16,384 256 16 ×16 ×64 16 ×16 ×64

12 convolution5 + ReLU 3 ×3 64 1 / 1 16,384 36,928 16 ×16 ×64 16 ×16 ×64

13 batch normalization 16,384 256 16 ×16 ×64 16 ×16 ×64

14 max pooling + dropout (25%) 2 ×2 64 2 / 0 4,096 0 16 ×16 ×64 8 ×8 ×64

15 fully connected layer + ReLU 16 65,552 4,096 ×1 16 ×1

16 batch normalization 16 64 16 ×1 16 ×1

17 softmax classiﬁer 3 51 16 ×1 3 ×1

Total 136,259

Table 3: Audio CNN.

Index Layer Kernel Filter

Stride /

Padding

Activation Parameters Input Output

1 input 480,000 0 400 ×400 ×3 400 ×400 ×3

2 convolution1 + ReLU 3 ×3 32 1 / 1 5,120,000 896 400 ×400 ×3 400×400 ×32

3 batch normalization 5,120,000 128 400 ×400 ×32 400 ×400 ×32

4 max pooling 3 ×3 32 3 / 0 566,048 0 400 ×400 ×32 133 ×133 ×32

5 convolution2 + ReLU 3 ×3 64 1 / 1 1,132,096 18,496 133 ×133 ×32 133 ×133 ×64

6 batch normalization 1,132,096 256 133 ×133 ×64 133 ×133 ×64

7 convolution3 + ReLU 3 ×3 64 1 / 1 1,132,096 36,928 133 ×133 ×64 133 ×133 ×64

8 batch normalization 1,132,096 256 133 ×133 ×64 133 ×133 ×64

9 max pooling 2 ×2 64 2 / 0 278,784 0 133 ×133 ×64 66 ×66 ×64

10 convolution4 + ReLU 3 ×3 128 1 / 1 557,568 73,856 66 ×66 ×64 66 ×66 ×128

11 batch normalization 557,568 512 66 ×66 ×128 66 ×66 ×128

12 convolution5 + ReLU 3 ×3 128 1 / 1 557,568 147,584 66 ×66 ×128 66 ×66 ×128

13 batch normalization 557,568 512 66 ×66 ×128 66 ×66 ×128

14 max pooling 2 ×2 128 2 / 0 139,392 0 66 ×66 ×128 33 ×33 ×128

15 fully connected layer + ReLU 16 2,230,288 139,392 ×1 16 ×1

16 batch normalization 16 64 16 ×1 16 ×1

17 softmax classiﬁer 3 51 16 ×1 3 ×1

Total 2,509,827

do not express clear sentiment typical of everyday

human interaction), then randomly sampled 1,200

positive, negative, and neutral faces from these sets.

Finally, we prepared the audio data. To be consistent

with the face and mouth image data, we segmented

the RAVDESS audio into chunks 30 ms long using

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

446

Figure 4: Spectrogram-only sentiment classiﬁer.

pydub.

We applied the STFT using scipy

to acquire

spectrogram images as frequency-domain representa-

tions of the original signals. We set a sampling rate

of 48 kilohertz, a window size W of 1,400, and 250

overlapping samples between neighboring segments.

All spectrogram elements were converted to a deci-

bel scale. Figure 5 shows spectrogram examples for a

positive sentiment sample (right) and a negative senti-

ment sample (left). The x-axis represents time (in sec-

onds), and the y-axis represents frequency (in Hertz).

The brightness of each pixel indicates the log magni-

tude for a frequency over the window at a particular

time. The x-axis range is 0 – 0.03 seconds, and the

y-axis range is 0 – 24 kHz.

Figure 5: Sample spectrograms for negative (left) and posi-

tive (right) audio.

The test data are organized into three categories:

mouth images (open mouth and closed mouth), sam-

pled video streams for RAVDESS, and sampled video

streams from a web camera. First, we cropped the

mouth region for ﬁve RAVDESS actors that were not

used for training. The mouth test set has 200 mouth

images (open mouth and closed mouth). Second, we

used 54 RAVDESS video ﬁles from six actors (both

males and females) to test the audio sentiment model,

the visual sentiment model, and the audiovisual senti-

ment model. We also randomly selected video of the

six actors (as our in-sample dataset), balanced so that

each actor provides 9 videos consisting of three pos-

itive, three neutral, and three negative videos. Third,

we used 9 sampled video streams from web camera

videos of three actors (as our out-of-sample dataset),

providing an additional three positive, three neutral,

and three negative videos. These video streams’

http://pydub.com/

https://docs.scipy.org/doc/scipy/reference/signal.html

lengths range from 4 – 5 seconds. Tables 5 and 6

summarize the size of each dataset constructed as de-

scribed above. We explain how the datasets were used

for training and testing in the next subsection.

3.2 Experimental Setting and

Evaluation Results

We set up each deep learning model as described in

Section 2. We retained 25% of the training data for

validation. The training parameters were as follows.

For the visual CNN, we used the Adam opti-

mizer (Kingma and Ba, 2014) with a batch size of

32 samples, a learning rate of 0.001, a decay of

0.00002, and otherwise the default hyper-parameters

suggested by the authors. The network was trained

for 50 epochs. We compared results with and with-

out augmenting the dataset by up to 25 degrees in

rotation, 0.1 for width shift, 0.1 for height shift, 0.2

for shear range, 0.2 for zoom-in, a horizontal ﬂip,

all using the nearest ﬁll mode. Table 7 shows that

training accuracy and training loss with augmenta-

tion are 91.25% and 0.2185, respectively, compared

to 99.31% and 0.0186, respectively, without augmen-

tation. Hence, we used no augmentation for the visual

image classiﬁer when testing. For the audio CNN,

we again used the Adam optimizer with the same set-

tings as the visual CNN, but with no augmentation,

given that the images are spectrograms for while aug-

mentation would introduce uncertain about frequency.

The network was likewise trained for 50 epochs. Ta-

ble 7 shows that the training accuracy and training

loss with augmentation are 61.18% and 0.813, respec-

tively, compared to 100% and 0.0022, respectively,

without augmentation. Hence, we also used no aug-

mentation for the audio classiﬁer when testing.

For the audiovisual CNN, we ﬁrst trained the

mouth model with mouth samples partitioned as

shown in Table 5. The training parameters of the

mouth classiﬁer were as follows: Adam optimization

with a batch size of 32 samples and the same hyper-

parameters setting as above, except that mouth data

augmentation used a 30 degrees rotation range. We

trained the mouth CNN for 50 epochs. The resulting

training accuracy, validation accuracy, and test accu-

racy are 99.34%, 99.46% and 97.00% as shown in Ta-

Multimodal Sentiment Analysis on Video Streams using Lightweight Deep Neural Networks

447

Table 4: AudioVisual CNN.

Index Layer Kernel Filter

Stride /

Padding

Activation Parameters Input Output

1 input from layer 17 of face classiﬁer 3 51 16 ×1 3 ×1

2 input from layer 17 of audio classiﬁer 3 51 16 ×1 3 ×1

3 concatenation 6 0 3 ×1 + 3 ×1 6 ×1

4 softmax classiﬁer 3 21 6 ×1 3 ×1

Total 2,646,107

Table 5: Number of mouth sample images for each senti-

ment class in training, validation, and test sets.

Dataset

Mouth motion

Mouth Open Mouth Closed Accuracy

Training 666 666 99.34%

Validation 166 166 99.46%

Test 200 200 97%

Table 6: Number of spectrogram and face images for each

sentiment class in training, validation, and test sets.

Dataset

Positive Neutral Negative

Happy Calm Neutral Angry Sad

Training 960 960 960

Validation 240 240 240

Test (RAVDESS) 18 ﬁles 18 ﬁles 18 ﬁles

Test (vid. stream) 3 ﬁles 3 ﬁles 3 ﬁles

ble 5. Finally, the mouth CNN was used to determine

which CNN model the input frame should be classi-

ﬁed by. We concatenated the trained CNN models as

explained in Subsection 2.4. The parameters of the in-

tegrated model were learned with stochastic gradient

descent, a batch size of 32 samples, and a learning rate

of 0.01 without weight decay. We trained this model

for 50 epochs and achieved 99.89% training accuracy

(cf. Table 7). Table 8 shows a confusion matrix for

the audiovisual CNN on the validation subset.

To investigate the effectiveness of the proposed

system in a ﬁnal test, we used both the visual-

only sentiment classiﬁer and the audio-only senti-

ment classiﬁer as baseline models. We computed

the number of correct predictions from the in-sample

test dataset (RAVDESS) and the out-of-sample test

dataset (webcam streams) for our fusion model and

the baselines. A prediction was made for each video

using Equation 1 with y

= 0 and α = 0.1. Using

audiovisual sentiment feature fusion, we achieved a

90.74% accuracy for the in-sample test dataset and

66.67% accuracy for the out-of-sample test dataset.

This shows that our system can perform better than

the baselines of 11.11% – 31.48% on a challenging

dataset. Indeed, using either single modality yielded

lower test accuracy on both datasets. Sample real-

time system outputs are shown in Figures 6 and 7. The

experimental results are presented in Tables 9 and 10.

As for special conditions, we performed addi-

tional tests of the system’s tolerance to partial occlu-

sion and rotation on the roll axis. We found that if the

subject’s hand is only partially covering the mouth,

dlib will generally ﬁnd the visible landmarks on the

rest of the mouth. Thus, the audiovisual sentiment

feature classiﬁcation can proceed. Sample real-time

system outputs for such cases are shown in Figure 8.

Figure 6: Real-time output of mouth motion.

Figure 7: Real-time output of sentiment analysis.

Figure 8: Real-time mouth classiﬁcation under partial oc-

clusion is generally successful.

4 COMPARISON WITH THE

STATE OF THE ART

(He et al., 2019) propose a preprocessing tech-

nique followed by emotion classiﬁcation using faces

only. The preprocessing technique comprises three

steps: face detection, face alignment, and frame

subtraction. Frame subtraction is used to capture

changes in expression between subsequent frames.

The authors experiment with GoogleNet, ResNet, and

AlexNet, achieving accuracies of 62.89%, 75.89%,

and 79.74%, respectively. Though the AlexNet-based

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

448

Table 7: Model training results.

Epoch 50

Model

Audio Visual Visual with Augmentation AudioVisual

Images size 400 ×400 96 ×96 96 ×96 400 ×400 + 96 ×96

Training accuracy 100% 99.31% 91.25% 99.89%

Training loss 0.0022 0.0186 0.2185 0.0162

Validation accuracy 53.89% 99.58% 97.36% 88.78%

Validation loss 1.7694 0.0164 0.1090 0.3083

Table 8: Validation confusion matrix.

Actual

Sentiment

Predicted Sentiment

Negative Neutral Positive

Negative 0.72 0.006 0.26

Neutral 0.03 0.84 0.121

Positive 0.07 0.06 0.85

Table 9: Accuracy of in-sample test set prediction.

RAVDESS 6 Actors

(Male and Female)

Video.mp4

Amount

Amount of Correct

Prediction from Model

Visual Audio AudioVisual

1. Positive 18 Files 11 0 13

2. Neutral 18 Files 16 16 18

3. Negative 18 Files 16 16 18

Accuracy 79.63% 59.26% 90.74%

Table 10: Accuracy of out-of-sample test set prediction.

Video Stream

3 Actors

Video Stream

Amount

Amount of Correct

Prediction from Model

Visual Audio AudioVisual

1. Positive 3 Files 3 0 3

2. Neutral 3 Files 0 0 0

3. Negative 3 Files 2 3 3

Accuracy 55.56% 33.33% 66.67%

approach has a similar accuracy to our visual CNN,

our audiovisual CNN performs much better and is

much smaller than AlexNet (61M parameters).

(Rzayeva and Alasgarov, 2019) also attempt emo-

tion recognition from RAVDESS using faces only.

They develop ﬁve CNN-based models, among the top

performer is inspired by VGG16. The model uses in-

put images of size 128 ×128. Frames are extracted

every 0.5 seconds and are preprocessed by convert-

ing to grayscale, cropping, and scaling. The model

has 300K parameters and achieves 92% training ac-

curacy, which is less accurate than the training accu-

racy of our visual CNN (cf. Table 7). However, the

authors do not discuss their test performance or how

the approach should be used for real-time sentiment

classiﬁcation for video streams.

Regarding emotion recognition with RAVDESS

from audio signals only, (Rajak and Mall, 2019)

develop two different CNNs based on 1D and 3D

convolutions. In their experiments, RAVDESS au-

dio is sampled at 44.1 kHz, and Mel-frequency cep-

stral coefﬁcients (MFCCs) are extracted as features.

Their 1D CNN predicts emotion from the waveform,

whereas their 3D CNN classiﬁes according to valence

and arousal. The 1D CNN achieves 49.5% accuracy

on emotion prediction, whereas the 3D CNN achieves

76.2% accuracy on the valence-arousal quadrant pre-

diction task.

For audiovisual emotion recognition, (Jannat

et al., 2018) fuse features learned from both video and

audio, with face image detection and cropping; also,

audio signals are converted into 2D waveform images.

Faces are taken from BP4D+ (Zhang et al., 2016), and

audio signals are taken from RAVDESS. The audiovi-

sual inputs are concatenated then input to Inception-

v3 (a model with 23.83M parameters). The authors

conduct experiments based on image only, audio only,

and both image and audio, achieving training accu-

racy of 99.22%, 66.41%, and 96.09%, respectively.

These four systems use the same RAVDESS test set

that we do. However, our training and test data are

different random samples from the larger dataset, so

we may expect some small deviation due to sampling.

Nevertheless, we demonstrate higher accuracy than

the existing work on the training data (0.09% better

for visual, 33.59% better for audio, and 3.8% better

for audiovisual). Also, while (Jannat et al., 2018) do

not report test accuracy at all, we obtain high accuracy

for the in-sample test set and acceptable accuracy for

the out-of-sample test set (cf. Tables 9 and 10). Our

model size is also much smaller, meaning it can be

used in a resource-constrained environment. Finally,

our deep fusion system also accounts for dynamic

emotion in video streams by predicting per frame and

also accumulating information over multiple frames

prior to making a prediction.

5 DISCUSSION AND FUTURE

DIRECTIONS

This paper introduces a method for deep audiovisual

multimodal sentiment analysis on video streams by

synthesizing small neural networks to deal with open

and closed mouths differently. We conduct compre-

hensive experiments with a RAVDESS test set and

an out-of-sample test dataset to show that emotional

expressions of a subject can be estimated accurately

with the use of multiple modalities. We achieve

Multimodal Sentiment Analysis on Video Streams using Lightweight Deep Neural Networks

449

90.74% in-sample test accuracy using the proposed

system. The experiments also show that using both

visual and audio features improves performance. Our

model is very good at predicting negative and neutral

sentiment, but it is less effective at predicting pos-

itive sentiment. We hypothesize that the lower ac-

curacy for positive sentiment is due to a low num-

ber of happy video samples in RAVDESS. Moreover,

in the positive samples, positive sentiment is not ex-

pressed in every frame. In frames of the positive-

labeled videos, the subjects actually evince a neu-

tral sentiment. Thus, at test time, the model may

over-estimate the probability of neutral sentiment in

the happy sample. As a ﬁnal observation, test accu-

racy with the out-of-sample dataset is lower than with

the in-sample dataset. We suppose this is because

the RAVDESS actors are Caucasian Americans, while

our out-of-sample actors are Asian.

It is worth mentioning again that we target real-

time sentiment monitoring for retail businesses; hence

the size of the neural networks used in the system

is very important, and our work compares favorably

with larger state-of-the-art models such as Inception-

ResNet-v2 and VGG16 in size. In the future, we

will employ our solution at commercial scale, e.g, to

predict customer satisfaction in multiple SME retail

shops, which usually have limited willingness to in-

vest in software and hardware capability. Moreover,

we will improve the out-of-sample performance of

our system and explore alternative methods to accu-

mulate information over a period of time.

REFERENCES

Avots, E., Sapi

nski, T., Bachmann, M., and Kami

nska, D.

(2019). Audiovisual emotion recognition in wild. Ma-

chine Vision and Applications, 30(5):975–985.

Cambria, E., Schuller, B., Xia, Y., and Havasi, C. (2013).

New avenues in opinion mining and sentiment analy-

sis. IEEE Intelligent systems, 28(2):15–21.

Chen, M., Yang, J., Zhu, X., Wang, X., Liu, M., and Song, J.

(2017). Smart home 2.0: Innovative smart home sys-

tem powered by botanical iot and emotion detection.

Mobile Networks and Applications, 22(6):1159–1169.

Chen, M., Zhang, Y., Qiu, M., Guizani, N., and Hao, Y.

(2018). Spha: Smart personal health advisor based

on deep analytics. IEEE Communications Magazine,

56(3):164–169.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In 2005 IEEE com-

puter society conference on computer vision and pat-

tern recognition (CVPR’05), volume 1, pages 886–

893. IEEE.

Glorot, X. and Bengio, Y. (2010). Understanding the difﬁ-

culty of training deep feedforward neural networks.

In Proceedings of the thirteenth international con-

ference on artiﬁcial intelligence and statistics, pages

249–256.

Harley, J. M., Lajoie, S. P., Frasson, C., and Hall, N. C.

(2015). An integrated emotion-aware framework for

intelligent tutoring systems. In Conati, C., Heffernan,

N., Mitrovic, A., and Verdejo, M. F., editors, Artiﬁ-

cial Intelligence in Education, pages 616–619, Cham.

Springer International Publishing.

He, Z., Jin, T., Basu, A., Soraghan, J., Di Caterina, G., and

Petropoulakis, L. (2019). Human emotion recognition

in video using subtraction pre-processing. In Proceed-

ings of the 2019 11th International Conference on Ma-

chine Learning and Computing, pages 374–379.

Hossain, M. S. and Muhammad, G. (2019). Emotion

recognition using deep learning approach from audio–

visual emotional big data. Information Fusion, 49:69–

78.

Huang, X., Kortelainen, J., Zhao, G., Li, X., Moilanen,

A., Sepp

anen, T., and Pietik

ainen, M. (2016). Multi-

modal emotion analysis from facial expressions and

electroencephalogram. Computer Vision and Image

Understanding, 147:114 – 124. Spontaneous Facial

Behaviour Analysis.

Jannat, R., Tynes, I., Lime, L. L., Adorno, J., and Cana-

van, S. (2018). Ubiquitous emotion recognition us-

ing audio and video data. In Proceedings of the 2018

ACM International Joint Conference and 2018 In-

ternational Symposium on Pervasive and Ubiquitous

Computing and Wearable Computers, pages 956–959.

Kazemi, V. and Sullivan, J. (2014). One millisecond face

alignment with an ensemble of regression trees. In

Proceedings of the IEEE conference on computer vi-

sion and pattern recognition, pages 1867–1874.

Kingma, D. P. and Ba, J. (2014). Adam: A

method for stochastic optimization. arXiv preprint

arXiv:1412.6980.

Lippi, M. and Torroni, P. (2015). Argument mining: A ma-

chine learning perspective. In International Workshop

on Theory and Applications of Formal Argumentation,

pages 163–176. Springer.

Livingstone, S. R. and Russo, F. A. (2018). The ryerson

audio-visual database of emotional speech and song

(ravdess): A dynamic, multimodal set of facial and

vocal expressions in north american english. PloS one,

13(5):e0196391.

Lyon, D. A. (2009). The discrete fourier transform, part 4:

spectral leakage. Journal of object technology, 8(7).

Rajak, R. and Mall, R. (2019). Emotion recognition from

audio, dimensional and discrete categorization using

cnns. In TENCON 2019-2019 IEEE Region 10 Con-

ference (TENCON), pages 301–305. IEEE.

Rzayeva, Z. and Alasgarov, E. (2019). Facial emotion

recognition using convolutional neural networks. In

2019 IEEE 13th International Conference on Applica-

tion of Information and Communication Technologies

(AICT), pages 1–5.

Valstar, M., Gratch, J., Schuller, B., Ringeval, F., Lalanne,

D., Torres Torres, M., Scherer, S., Stratou, G., Cowie,

R., and Pantic, M. (2016). Avec 2016: Depression,

mood, and emotion recognition workshop and chal-

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

450

lenge. In Proceedings of the 6th international work-

shop on audio/visual emotion challenge, pages 3–10.

Wang, S. and Ji, Q. (2015). Video affective content analy-

sis: a survey of state-of-the-art methods. IEEE Trans-

actions on Affective Computing, 6(4):410–430.

Zhang, Z., Girard, J. M., Wu, Y., Zhang, X., Liu, P., Ciftci,

U., Canavan, S., Reale, M., Horowitz, A., Yang, H.,

Cohn, J. F., Ji, Q., and Yin, L. (2016). Multimodal

spontaneous emotion corpus for human behavior anal-

ysis. In 2016 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 3438–3446.

Multimodal Sentiment Analysis on Video Streams using Lightweight Deep Neural Networks

451
