A Framework for Projectional Multi-variant Model Editors

Johannes Schr

opfer, Thomas Buchmann and Bernhard Westfechtel

Chair of Applied Computer Science I, University of Bayreuth, Universit

atsstrasse 30, 95440 Bayreuth, Germany

Keywords:

Model-driven Development, Software Product Lines, Multi-variant Model, Projectional Editing, ALF, Ecore,

Syntax-directed Editor, Generic Framework.

Abstract:

Model-driven software product line engineering (MDSPLE) combines the productivity gains achieved by

model-driven software engineering and software product line engineering. In MDSPLE, multi-variant models

are created in domain engineering which are conﬁgured into single-variant models that are adapted further (if

required) in application engineering. Since multi-variant models are inherently complex, tools are urgently

needed which provide speciﬁc support for editing multi-variant models. In this paper, we present a framework

for projectional multi-variant editors which do not hide complexity but make it manageable by a user-friendly

representation. At all times, a domain engineer is aware of editing a multi-variant model which is necessary to

assess the impact of changes on all model variants. Projectional multi-variant editors provide a novel approach

to representing variability information which is displayed non-intrusively and supports a clear separation of

the product space (the domain model) from the variant space (variability annotations). Furthermore, the do-

main engineer may employ a projectional multi-variant editor to adapt the representation of the multi-variant

domain model in a ﬂexible way, according to the current focus of interest.

1 INTRODUCTION

After having explained the context of our research

(Section 1.1), we summarize the contribution of this

paper (Section 1.2). Finally, we provide an overview

of the rest of this paper (Section 1.3).

1.1 Context

In model-driven software engineering (MDSE)

olter et al., 2006), software systems are developed

by creating high-level models which are analyzed,

simulated, executed, or transformed into code. In this

context, models are structured artifacts which are in-

stantiated from metamodels. A metamodel deﬁnes the

types of elements from which models are composed

and the rules for their composition. For metamodels,

the Object Management Group (OMG) has deﬁned

the MOF standard (Meta Object Facility), a subset of

which is implemented as Ecore in the Eclipse Model-

ing Framework (EMF) (Steinberg et al., 2009).

Models may be represented in a variety of differ-

ent ways, including diagrams, trees, tables, or human-

readable text. Different kinds of editors may be em-

ployed to create and modify models. In the case of a

textual representation, a syntax-based editor may be

used which persists the text and derives the underly-

ing model by an incremental parsing process. In the

EMF ecosystem, the Xtext

framework is frequently

used to generate syntax-based editors from language

descriptions.

In contrast, projectional editors provide for com-

mands operating directly on the model and project

the model onto a suitable representation (V

olter et al.,

2014). A projectional editor may ensure syntactic cor-

rectness of models and enjoys further advantages con-

cerning tool integration. In particular, since models

are stored as instances of metamodels, unique iden-

tiﬁers may be assigned to model elements such that

they may be referenced in a reliable way.

Software product line engineering (SPLE) (Pohl

et al., 2005) is a discipline which is concerned with

the systematic development of families of software

systems from reusable assets. To this end, common

and discriminating features of family members are

captured in a variability model, e.g., a feature model

(Kang et al., 1990). In domain engineering, a variabil-

ity model is developed along with a set of reusable as-

sets. In application engineering, product variants are

developed from reusable assets.

Product variants may be constructed in different

https://www.eclipse.org/Xtext

294

Schröpfer, J., Buchmann, T. and Westfechtel, B.

A Framework for Projectional Multi-variant Model Editors.

DOI: 10.5220/0010310102940305

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 294-305

ISBN: 978-989-758-487-9

ways. In case of positive variability, they are com-

posed from reusable modules. In case of transforma-

tional variability, product variants are constructed by

applying a sequence of transformations. In case of

negative variability, multi-variant artifacts are rep-

resented as superimpositions of annotated elements.

An annotation constitutes a presence condition over

features. A product variant is deﬁned by a feature

conﬁguration, stating which features have to be in-

cluded and excluded, respectively. To construct a

single-variant artifact, all elements are removed from

a multi-variant artifact whose annotations evaluate to

false.

Model-driven software product line engineering

(MDSPLE) combines MDSE with SPLE. Thus, SPLE

is applied to models. While most SPLE approaches

focus on source code rather than models, a num-

ber of MDSPLE tools have been developed, e.g.,

FeatureMapper (Heidenreich et al., 2008), FAMILE

(Buchmann and Schw

agerl, 2012), and SuperMod

(Schw

agerl and Westfechtel, 2019) all of which are

based on EMF.

1.2 Contribution

This paper presents a framework for generating pro-

jectional multi-variant model editors. This frame-

work is based on our previous work on projectional

single-variant editors for models in the technologi-

cal space of EMF. As described in (Schr

opfer et al.,

2020), a projectional editor may be generated from a

metamodel for domain models (an Ecore model deﬁn-

ing classes, attributes, and references) and a syntax

deﬁnition which maps model elements to a human-

readable textual representation. In the work pre-

sented in this paper, we have extended the frame-

work for single-variant model editors into a frame-

work for building multi-variant editors. This exten-

sion is generic, i.e., it depends neither on the under-

lying metamodel nor on the syntax deﬁnition. Thus,

no additional development effort is required to turn a

single-variant editor into a multi-variant editor.

A projectional multi-variant editor which has been

built with the help of our framework is characterized

by the following properties:

1. So far, our projectional editors support human-

readable text as the external representation of

EMF models. In MDSE, human-readable text is

becoming increasingly popular which is substan-

tiated, e.g., by the deﬁnition of UML-based tex-

tual languages such as the Action Language for

Foundational UML (ALF) (OMG, 2017). The ed-

itor’s design is extensible; further representations

such as diagrams may be added in the future.

2. Projectional multi-variant editors are based on

negative variability (probably the main-stream

SPLE approach). Thus, engineers do not have to

learn new languages. Rather, domain models are

augmented with annotations.

3. For modeling variability, feature models (the most

widespread notation in SPLE) are used. All anno-

tations refer to features and attributes from a fea-

ture model for the software product line.

4. Projectional multi-variant editors are designed to

support domain engineering. Since multi-variant

models are the artifacts of domain engineering, a

projectional multi-variant editor directly operates

on a multi-variant model. Thus, all variants may

be considered by the domain engineer during edit-

ing. Furthermore, each command has a uniquely

determined semantics. These properties distin-

guish our approach from variation control systems

which are faced with view-update problems and

limited awareness in ﬁltered views.

5. Internally, annotations of model elements are

stored in a separate mapping model. Thus, exist-

ing domain metamodels may be reused. Further-

more, the relationships between features in the

feature model and elements of domain models are

captured in one single central data structure. This

approach facilitates traceability and propagation

of changes from the feature model to annotated

domain models.

6. The mapping model is shielded from the user.

Rather, annotations are displayed intuitively along

with the model elements in a single representa-

tion. Therefore, the user does not have to deal

with the internal concepts and structure of the

mapping model. In contrast to approaches based

on preprocessor directives, annotations are sepa-

rated clearly from domain model elements in the

representation of a multi-variant model.

7. Projectional multi-variant editors include com-

mands for projectional editing of annotations.

Thus, annotations are handled as structured ob-

jects rather than as text strings. Context-free cor-

rectness of annotations is guaranteed by the pro-

jectional editor.

8. To cope with complexity, projectional multi-

variant editors provide several commands for

adapting the representation of an annotated

model to the current focus of interest. For ex-

ample, annotations may be hidden completely or

selectively. In this way, the representation of the

model may be simpliﬁed. It should be noted, how-

ever, that all editing commands still refer to the

underlying multi-variant model.

A Framework for Projectional Multi-variant Model Editors

295

1.3 Overview

The rest of this paper is structured as follows: Sec-

tion 2 explains the background of our research and re-

lated work. Section 3 describes the functionality and

the user interface of projectional multi-variant editors.

Section 4 outlines the model-based internal architec-

ture underlying these editors. Section 5 details a spe-

ciﬁc aspect of the realization: the mapping between

domain models and feature models. Finally, Section 6

concludes the paper.

2 BACKGROUND AND RELATED

WORK

As stated above, software product line engineering

fosters organized reuse to create a set of software ar-

tifacts from which single applications sharing com-

mon features may be (automatically) derived. In or-

der to be successful, a special development process is

required which contains two phases: (1) domain en-

gineering (DE) and (2) application engineering (AE)

(Pohl et al., 2005). Domain engineering covers cap-

turing and implementing common and variable as-

pects of the software system, e.g., in a variability

model and implementation artifacts. The variabil-

ity model and the corresponding implementation ar-

tifacts form the platform of the software product line.

Throughout the years, feature models (Kang et al.,

1990) have become a de facto standard for models

capturing the variability of a software product line.

A feature model uses features as boolean proper-

ties of a software system which can be either present

or absent in a speciﬁc product. Features are arranged

in an and/or tree. Each feature is either mandatory

or optional. If a child feature is selected, the respec-

tive parent feature has to be selected, as well. Addi-

tionally, groups of alternative features are provided,

exactly one member of which has to be selected, re-

spectively. Depending on the respective variant of

feature models, reﬁning modeling constructs are pro-

vided, such as requires and excludes relationships

(Schobbens et al., 2006).

Application engineering deals with the construc-

tion of product variants from the reusable assets de-

veloped in domain engineering. Basically, three dif-

ferent approaches exist to construct products: (1) In

approaches based upon positive variability, product-

speciﬁc artifacts are built around a common core.

Composition techniques (Apel et al., 2009) are used

to ﬁnally derive products. (2) In case of transfor-

mational variability (Schaefer, 2018), a sequence of

transformations is performed to construct products,

while (3) in approaches based on negative variability

(Apel and K

astner, 2009; Buchmann and Schw

agerl,

2012), a superimposition of all variants is created in

the form of a multi-variant product. The derivation

of products is realized by removing all fragments of

artifacts implementing features not contained in the

desired product.

In all three cases, the application engineer binds

the variability by creating a feature conﬁguration. In

a feature conﬁguration, a selection state (selected or

deselected) is assigned to each feature variable. A fea-

ture conﬁguration is consistent if the provided selec-

tions conform to the constraints deﬁned in the feature

model.

Negative variability extends single- to multi-

variant artifacts by annotating artifact elements. In

contrast to positive and transformational variabil-

ity, the languages for single-variant artifacts may be

reused. Thus, SPLE engineers do not have to learn

new languages. However, editing multi-variant arti-

facts poses a signiﬁcant cognitive challenge. For ex-

ample, editing source code written in the program-

ming language C turns out to be difﬁcult because pre-

processor directives realizing annotations are inter-

mingled with ordinary C code.

Therefore, dedicated multi-variant editors are re-

quired for making the complexity manageable. To

date, quite a number of rather different approaches

have been proposed and implemented. All of these

approaches suffer from different shortcomings:

• Virtual separation of concerns (Apel and K

astner,

2009) applies C-like preprocessor directives to

Java code; separation of concerns is supported

in a syntax-based editor by assigning colors to

features and by eliding deselected program frag-

ments. Coloring works only for a small set of

features; furthermore, preprocessor directives are

still intermingled with ordinary code, i.e., two

different aspects of the software product line are

mixed in one physical resource. In addition, as

soon as a product is derived, the traceability links

between features and code are lost.

• Model-driven tools such as FeatureMapper (Hei-

denreich et al., 2008) and FAMILE (Buchmann

and Schw

agerl, 2012) follow a different approach:

Annotations are stored and visualized in a dedi-

cated mapping model. While annotations are sep-

arated from models, the SPLE engineer is exposed

to an internal data structure which should be hid-

den from the user. Furthermore, it is hard to

understand the relationships between model ele-

ments and annotations. Eventually, the mentioned

tools support domain engineering only. As soon

as a product is derived, the connection to the plat-

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

296

form of the product line is lost.

• In contrast to the approaches having been dis-

cussed above, variation control systems reduce

complexity by ﬁltered editing (Linsbauer et al.,

2021). From a multi-variant artifact called source,

a view is materialized in which variability has

been resolved completely or partially. After edit-

ing of the view has been ﬁnished, the performed

changes are propagated back to the source. Varia-

tion control systems are faced with two problems:

Limited awareness of the context in which editing

is performed and delineation of the scope of the

change in the variant space. While the other tools

mentioned above primarily display and edit arti-

facts of domain engineering, and provide (ﬁltered)

views of the multi-variant domain model, varia-

tion control systems operate on (partially conﬁg-

ured) products. Thus, the software product line

engineer works on speciﬁc variants (as in applica-

tion engineering) and domain engineering is per-

formed implicitly when a commit into the version

repository is executed.

In contrast to the approaches mentioned above, our

approach completely hides the mapping model from

the user. The SPL engineer is empowered to use fea-

ture annotations in the concrete syntax in an intuitive

way. Furthermore, the annotations may be hidden in

the editor at any time. Sophisticated visualizations

allow for different views of the multi-variant domain

model ranging from ﬁne-grained views showing sin-

gle features only, over partial feature conﬁgurations to

a view on the complete multi-variant domain model.

In our approach, application engineering is a fully

automated process where the ﬁnal products are de-

rived from the multi-variant domain model using a

feature conﬁguration. The derived artifacts comprise

traceability links to the multi-variant domain model to

support evolution.

In (Mukelabai et al., 2018) the authors present a

multi-view projectional editor for software product

lines based on JetBrains MPS

. In contrast to our ap-

proach which is generic and allows for reusing ex-

isting EMF technology (modeling languages, model

transformations, code generators), the PEoPL solu-

tion focuses on combining annotative and composi-

tional editing of software product lines for a speciﬁc

modeling language.

https://www.jetbrains.com/mps/

3 FUNCTIONALITY AND USER

INTERFACE

This section describes the functionality of the projec-

tional editor framework by outlining an example use

case. In general, the multi-variant editor may be gen-

erated for an arbitrary domain model (or an appropri-

ate subtree) that is an instance of an arbitrary meta-

model. For the example scenario, a projectional ed-

itor for the textual modeling language ALF has been

generated; the language ALF (Action Language for

Foundational UML) (OMG, 2017) provides a concise

textual syntax for Foundational UML (fUML) (OMG,

2020), a subset of UML enriched with precise execu-

tion semantics. In the editor, a graph library product

line is modeled which constitutes a common example

in SPL literature (Lopez-Herrejon and Batory, 2001;

Schw

agerl et al., 2015).

3.1 The Framework in General

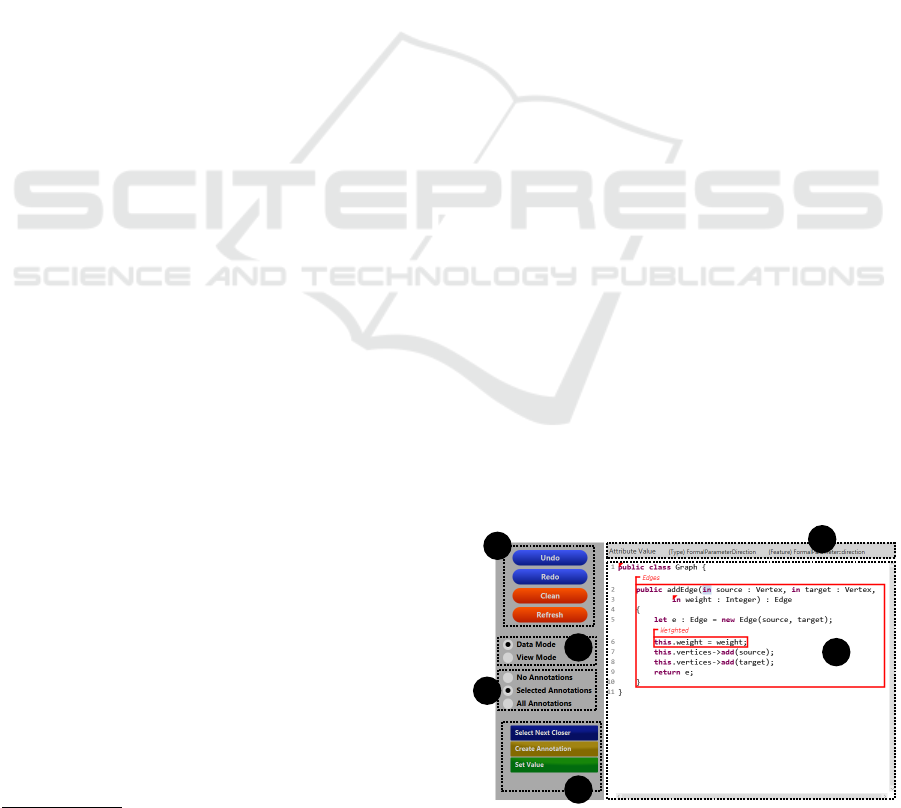

Figure 1 shows a screenshot of the full editor. The

main pane constitutes the major part of the user in-

terface (cf. part 1); it presents the representation

of the underlying abstract syntax (sub-)tree as well

as the corresponding annotations. Above the main

pane, brief information regarding selected elements

is displayed (cf. part 2). The editor provides several

modes. Besides buttons for mode-independent com-

mands (cf. part 3), e.g., the common editor operations

Undo and Redo, mode-speciﬁc buttons (cf. part 4),

e.g, commands for inserting elements into the domain

model, can be executed.

With respect to the range of commands, the edi-

tor differentiates two modes (cf. part 5). The data

mode offers commands for editing the domain model.

Data commands perform modiﬁcations of the abstract

syntax tree which are propagated to the representation

model. The view mode supports view-speciﬁc repre-

Figure 1: The editor user interface for an example use case.

A Framework for Projectional Multi-variant Model Editors

297

GraphLibrary

Vertices

Position Colored Labeled

Edges

Weighted

defaultValue : INTEGER

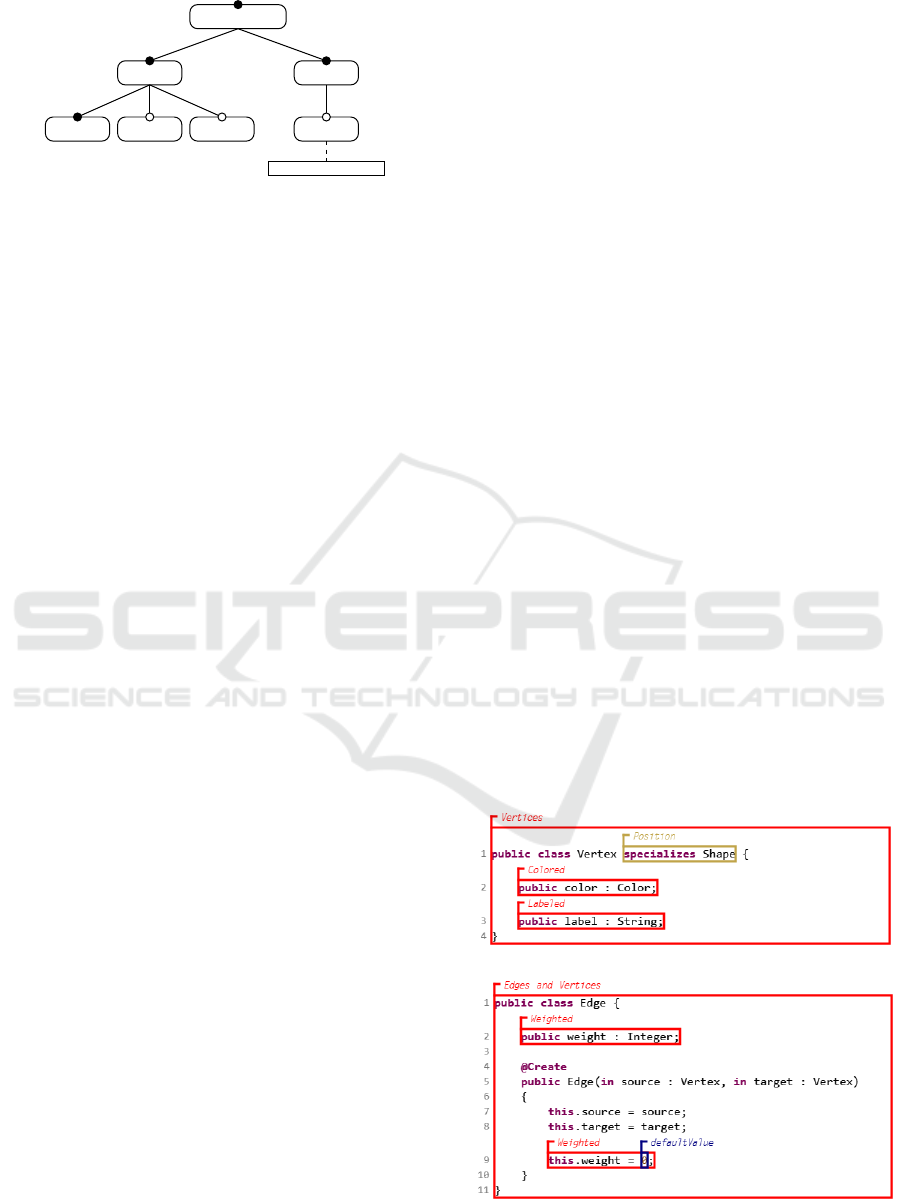

Figure 2: Feature model for the use case in graphical no-

tation. Rectangles with rounded corners represent fea-

tures while ordinary rectangles stand for feature attributes.

Mandatory features are tagged by means of ﬁlled circles.

sentation commands as adding line breaks or whites-

paces. View commands only affect the representation

model. Since the editor framework not only persists

the domain model but also the representation, custom

layout information is stored after the editor has been

closed.

In addition, three modes are present that refer to

the visibility of annotations (cf. part 6). The do-

main engineer may choose whether no annotations

are visible – without any annotation commands at all

–, whether all annotations are visible, or whether only

a subset of all annotations (selected annotations) are

visualized, e.g., annotations that are relevant for a cer-

tain feature conﬁguration. In the latter case, annota-

tions can be individually visualized and hidden; hid-

den ones are marked by means of a corner triangle

which can be clicked in order to display the respec-

tive annotation again. These three modes are orthog-

onal to the two modes described before; therefore, six

combinations of modes are provided.

The feature model itself is not visualized by the

editor. Currently, the generic EMF tree editor is used.

Future work will provide for a speciﬁc projectional

feature model editor with a human-readable textual

syntax. To this end, we will apply our framework to a

metamodel for feature models. By means of this boot-

strapping strategy, we minimize the number of depen-

dencies to other tools. For the example scenario used

in this paper, we assume the feature model graphically

shown in Figure 2. The root feature GraphLibrary con-

tains the mandatory features Vertices and Edges. The

feature Vertices has the mandatory child feature Po-

sition and the optional features Colored and Labeled.

The feature Edges exhibits the optional child feature

Weighted that possesses an integer attribute named

defaultValue.

3.2 Support for Domain Engineering

In general, each representation visualized by the edi-

tor shows exactly one subtree of a domain model. Fur-

thermore, for one domain model, several representa-

tion models may be present each of which refers to

another subtree. Finally, a product line may comprise

several domain models. Therefore, the editors pro-

vide different views of a range of domain models. For

the illustrated use case, there is exactly one domain

model. The model contains an ALF package with

several classes, associations, and a data type. Each

representation model shows an ALF class. Therefore,

for each class, an own editor view is present – analo-

gously to Java classes, for instance.

The editor depicted in Figure 1 shows the repre-

sentation of the ALF class Graph with selected anno-

tations two of which are completely visible and two

are hidden – the annotation binding the whole class

to the feature GraphLibrary and the one for the third

operation parameter referring to the feature Weighted.

For the sake of readability, annotations are depicted as

labels which have speciﬁc colors and are located be-

tween the physical lines of the actual domain model

representation. The representation area of the respec-

tively annotated elements is marked by a border line.

Annotations can contain links to features and their

attributes as atoms within boolean expressions pro-

viding common logical operators (conjunction, ex-

and inclusive disjunction, negation). Elements are

modiﬁed by projectional commands for adding and

removing objects, restructuring expressions, and set-

ting links. One physical line may also comprise more

than one annotation; their representations are ordered

by employing a layout mechanism that avoids over-

lapping (by moving the labels).

The editor supports several kinds of annotations

depending on the domain model element that is anno-

tated. All kinds of annotations are visible in Figure 3;

Figure 3: Further multi-variant model elements of the ex-

ample use case.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

298

for different kinds of annotations, different colors are

used. The framework employs the following classiﬁ-

cation of domain artifacts that can be annotated:

• Visibilities of Objects or Values. The respective

object or value is annotated with a boolean expres-

sion that indicates whether for a given feature con-

ﬁguration, the respective domain model element

is present in the derived product. In the graph li-

brary example, the class Vertex as well as the con-

tained properties color and label (cf. lines 2 f.) are

annotated this way.

• Visibilities of Optional Elements. Optional model

elements – that may comprise numerous different

model artifacts as objects, links, values, or key-

words – are annotated with a boolean expression

that indicates whether for a given feature conﬁg-

uration, the respective optional part of the model

is present in the derived product. The ALF class

Vertex inherits from the class Shape – providing

properties for the position coordinates of shapes

within a diagram (not shown in the ﬁgure). This

relationship is bound to the annotation Position by

annotating the optional structural feature for gen-

eralizations of classiﬁers (cf. line 1).

• Elementary Values of Attributes. In addition to

visibilities, values can be annotated with annota-

tions employing feature attributes (from the fea-

ture model). In the multi-variant model, the de-

fault value is stored depending on the concrete at-

tribute type (e.g., 0 for integer attributes). When a

certain product is derived, the values for the fea-

ture attributes are speciﬁed within the course of

the feature conﬁguration. In the graph library ex-

ample, the initial value for the property weight in

the class Edge is derived from the feature attribute

defaultValue (cf. line 9).

In case of visibility annotations, the principle of top-

down propagation of annotations is applied. There-

fore, an annotated element is visible if and only if

its annotation evaluates to true and all transitive con-

tainer elements are visible, as well.

4 ARCHITECTURE

This section outlines the underlying architecture of

the framework and describes the involved system of

models for an example use case. We state the assump-

tion that each product line bases upon one global fea-

ture model. The product line comprises a set of mod-

els which are instances of arbitrary, possibly differ-

ent metamodels based on EMF. Furthermore, the con-

nections between domain model elements and annota-

tions are persisted within one global mapping model.

Analogously, one global correspondence model cap-

tures the internal editor structure.

4.1 Overview

Figure 4 shows the architecture that illustrates editors

and models as well as their dependencies. As the tool

context is the Eclipse Modeling Framework, all mod-

els are based on the ECORE metamodel. The editor

including product line support (PL-EDITOR) is an ex-

tension of the projectional editor without product line

context (EDITOR) (Schr

opfer et al., 2020). An edi-

tor instance refers to exactly one abstract syntax tree

(AST) and visualizes either the complete model or a

subtree. The framework does not state any assump-

tions about the metamodel of the abstract syntax tree

(AST

The mappings from domain model elements to

annotations are stored in the (product line) map-

ping model PL-MAPP. The mapping model comprises

mapping elements for domain model elements of sev-

eral abstract syntax trees. For each annotation, the

mapping element for the respective domain model el-

ement contains a subtree that constitutes the respec-

tive logical expression referencing the feature model

(FEAT); see Section 5 for details about feature model

and mappings. The metamodels FEAT

and PL-

MAPP

are generic and ﬁxed for arbitrary domain

metamodels. The feature model is modiﬁed by using

an extra editor (FEAT-EDITOR). Currently, the default

tree editor provided by EMF is used; future work will

deal with a more comfortable and powerful editor in-

cluding consistency and satisﬁability checking.

The correspondence model (CORR) serves as the

central data structure of the editor. It connects the ab-

stract syntax trees, the representation models (REPR),

and the concrete syntax deﬁnition model (CSYN).

Furthermore, in case of the extended editor, each edi-

tor correspondence model is linked to a speciﬁc prod-

uct line mapping model and vice versa; therefore, in-

ternal editor correspondences and product line map-

pings are conceptually and physically separated. The

correspondence metamodel CORR

, the representa-

tion metamodel REPR

, as well as the metamodel for

the syntax deﬁnition models CSYN

are ﬁxed. In case

of the extended editor including product line support,

the representation model also contains elements for

annotations and their contents and the correspondence

model provides respective mappings for expressions

within annotations.

Each editor instance corresponds to one repre-

sentation model. The representation model consists

of model elements for blocks, lines, and cells. For

A Framework for Projectional Multi-variant Model Editors

299

Product Line

Context

Editor Context

FEAT-EDITOR PL-EDITOR

EDITOR

CSYN-EDITOR

UI-MAPP

FEAT

PL-MAPP

FEAT

PL-MAPP

AST

ECORE

CORR REPR

CSYN

CORR

REPR

CSYN

[1]

[?]

[*]

[1]

[?]

[1]

[*]

[1]

[*]

[1]

[*]

[1]

[*]

[1]

[*]

[1]

[*]

[1]

[1] [1]

[1]

Tool editor (user interface)

Variable model (persisted)

Fixed model (persisted)

Transient data structure

References

Is instance of

Extends

Modiﬁes

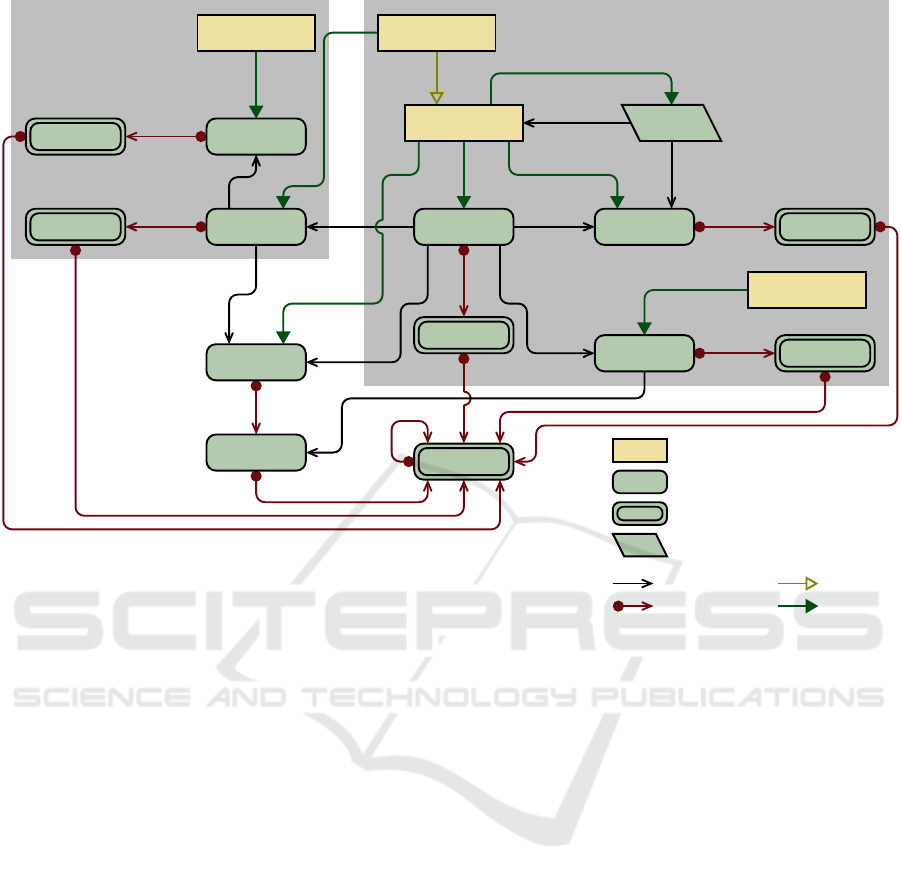

Figure 4: Megamodel describing the architecture elements within one product line and their relations. For References and

Modiﬁes dependencies, the UML multiplicities [1] (exactly one element) and [*] (arbitrarily many elements) are used; the

multiplicity [?] describes optional single elements (in UML 0..1) depending on the fact whether the extended editor is used

(with product line context) or not.

the abstract model elements, the editor pane visu-

alizes concrete geometrical shapes (rectangles and

labels). The traces between representation (REPR

model) and presentation elements (EDITOR user in-

terface) are captured by an internal, transient data

structure (UI-MAPP) which is not persisted when the

editor is closed. The concrete syntax deﬁnition model

CSYN is built from projection rules which are spec-

iﬁed by the DSL developer using an extra editor

(CSYN-EDITOR).

All in all, this architecture facilitates a ﬂexible

information exchange between the involved models.

For a given representation element, the editor detects

the respective internal correspondence element in or-

der to access the represented domain model element,

the respective product line mapping element (if any)

as well as the applied projection rule. The intercon-

nected system of models establishes the basis for the

functionality of the different editor commands.

4.2 Exemplary Model System

As example use case, we refer to the graph library

example of Section 3. Figure 5 shows the involved

system of models for a cutout of the domain model

containing the ALF classes Graph (cf. Figure 1) and

Vertex (cf. Figure 3, above) and several child ele-

ments; for the sake of readability, only inter-model

dependencies and no cross references between model

elements are visualized. For each ALF class within

the domain model (AST), one representation model is

present (REPR 1 and REPR 2). Both representation

models have root blocks that refer to the respective

class.

For each object that is represented by the editor,

an object correspondence (within the CORR model)

stores this representation relation together with the re-

spective projection rule (contained in the syntax deﬁ-

nition model CSYN) as well as the product line map-

ping element (in the PL-MAPP model). In this exam-

ple, the correspondence model contains an object cor-

respondence (1) for the root block (2) that represents

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

300

PL-EDITOR 1 PL-EDITOR 2

REPR 1 REPR 2

CSYN

AST

PL-MAPP

CORR

UI-MAPP 1 UI-MAPP 2

: Block : Annotation

: Cell

: Line

: Cell

: Body

: Block : Annotation

: Cell

: Fragment

: Block

: Annotation

: Cell

: BlockPattern : BlockPattern : LinePattern

: Unit

: Package

: Class

: Operation

: Parameter

: Class

: Mapping

: Mapping: Annotation

: Mapping : Annotation

: ObjCorr

: AnnotCorr

: ObjCorr

: AnnotCorr

: ObjCorr

: AnnotCorr

label = public

label = class

expanded = false

label = GraphLibrary

label = Edges

label = Vertices

expanded = true

name = Class

name = Operation

name = Parameter

name = graphLibrary

name = Graph

name = addEdge

name = source

direction = IN

name = Vertex

Figure 5: Example system of models for the graph library example (cutout). AST objects which are visible within the editors,

their representation elements, and related elements have a red ﬁlling while annotations and their corresponding elements are

marked by a yellow ﬁlling. Blue arrows symbolize cross references between components of the system. Elements of the

representation models that exhibit analogous elements within the editors are marked through a blue border. AST objects and

the respective mappings which are not visualized by the editors are grayed out. Diamond arrows stand for direct containment

relations and dashed ones for transitive containment relations between model elements.

the ALF class Graph (3). This element is connected

with the respective projection rule (4) and the product

line mapping element (5). As the editors only show

the representations of the ALF classes, the container

elements (and their product line mappings) do neither

have any representation elements nor any correspon-

dence elements.

In general, the containment hierarchy of the ab-

stract syntax tree is also applied for the correspon-

dence model and the representation models. Thus,

in case of the class Graph that contains the ALF op-

eration addEdge, the representation element for the

operation is contained in the representation element

for the class and the correspondence element for the

operation is contained in the correspondence element

for the class. The product line mapping elements also

possess this structure; more details about the mapping

models are provided by Section 5.

While the referenced features are contained in the

feature model, the annotation expressions are per-

sisted as children of mappings within the product

line mapping model. Besides the representation ele-

ments of the domain model, the representation model

also comprises elements for the annotations (and their

cells). For instance, the annotation Vertices (6) is rep-

resented by a REPR annotation (7) with an annota-

tion correspondence element (8). The representation

model also stores the information that the annotation

for the whole class Graph is hidden.

Each representation model (REPR) is visualized

by a speciﬁc editor (EDITOR) where the traces are

persisted by a speciﬁc transient data structure (UI-

MAPP). The editor contains corresponding graphical

elements for blocks, bodies, cells, and annotations.

Note that for hidden annotations – for which the at-

tribute expanded is set to false –, their cells are not

part of the editor presentation.

A Framework for Projectional Multi-variant Model Editors

301

5 MAPPING DOMAIN MODEL

AND ANNOTATIONS

After a brief overview of the metamodel for feature

models, this section outlines structure and concepts of

the product line mapping models that persist the anno-

tations of domain model elements. Finally, for an ex-

ample use case, the internal structure of the concrete

feature model and the mapping model is depicted.

5.1 Feature Model

Figure 6 shows the metamodel for feature models.

One feature constitutes the unique root feature. Each

feature has a name and a boolean value whether it is

mandatory. Features may be groups – which can con-

tain arbitrarily many child features – or atomic fea-

tures – that do not have any child features. Further-

more, features may have named attributes for boolean,

integer, real, and string values.

A group is linked to a selection range that indi-

cates how many child features must be selected at

least (minimum number) and may be selected at most

(maximum number). The minimum number must be

less than or equal to the maximum number; further-

more, the minimum number may not be less than the

number of mandatory child features; the maximum

number has to be less than or equal to the number

of child features. For instance, the semantics of OR-

and XOR-groups which are commonly supported by

feature models can be easily expressed by appropriate

selection ranges.

In addition to the feature model tree, cross-tree

constraints, i.e., dependencies between features, can

be speciﬁed. To this end, an expression language is

provided that supports common logical operators. By

means of this expression language as well as the con-

cept of selection ranges, arbitrary dependencies be-

tween features can be speciﬁed precisely.

Model

Feature



enumeration



AttributeType

Atomic

Group SelectionRange

Attribute

model

0..1

root

feature

attributes

children

0..1

parent

range

name : EString

mandatory : EBoolean

minimum : EInt

maximum : EInt

name : EString

type : AttributeType

BOOLEAN

INTEGER

REAL

STRING

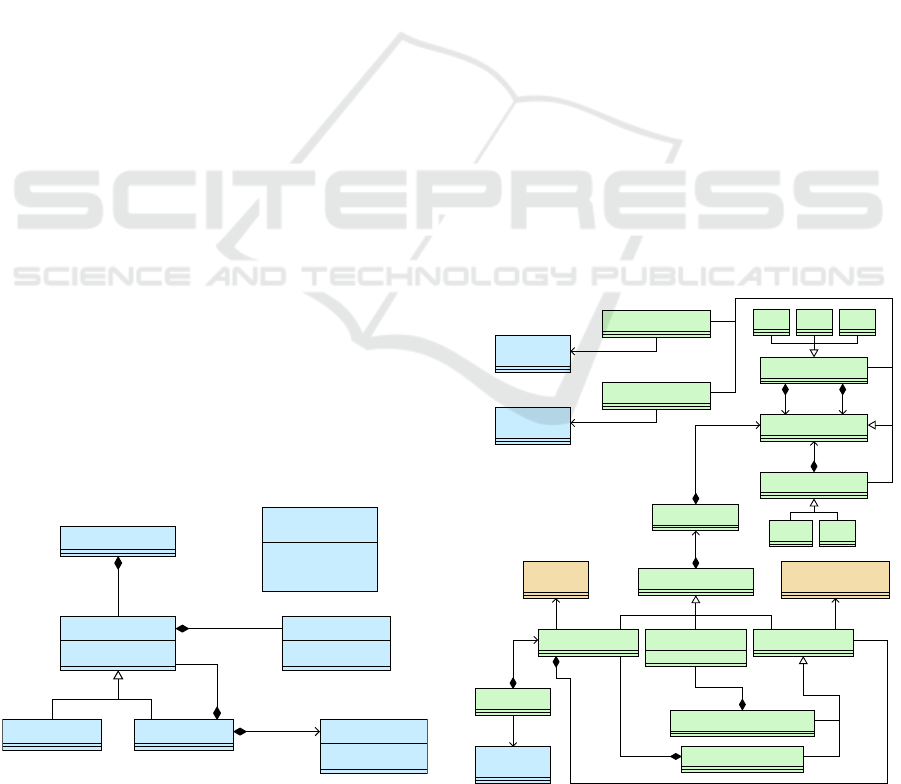

Figure 6: The metamodel for feature models.

5.2 Mapping Model

This section covers the metamodel for mapping mod-

els, i.e., models connecting domain model elements

and annotations. As stated in Section 4, this model

is conceptually separated from the correspondence

model, i.e., the internal mapping model of the edi-

tor core. The domain engineer is not exposed to the

internal structure of the product line mapping model

directly; rather, annotations are visualized with the

domain model elements by the editor within an in-

tegrated, user-friendly view.

Figure 7 shows the metamodel of the product line

mapping metamodel. The mapping model consists of

Mapping instances referring to the domain model. In

order to provide the different kinds of annotations in-

troduced in Section 3, three kinds of mappings are

distinguished; concrete examples are depicted by Fig-

ure 3.

• All ObjectMapping instances refer to objects

within the domain model, i.e., EObject instances.

Object mappings are annotated if a domain model

object is annotated, e.g., the whole class Vertex.

• All PropertyMapping instances correspond to

structural features (attributes or references), i.e.,

EStructuralFeature instances, in the context of an

object. Annotations contained in property map-

pings refer to annotated options, e.g., the declara-

tion fragment of supertypes of the ALF class Ver-

Expression

UnaryExpression

NotParen

BinaryExpression

And Xor Or

FeatureReference

(from feat)

Feature

AttributeReference

(from feat)

Attribute

Annotation

Mapping

ObjectMapping

(from ecore)

EObject

Model

(from feat)

Model

ValueMapping PropertyMapping

(from ecore)

EStructuralFeature

AttributeOrCrossMapping

ContainmentMapping

rootMappings

0..*

container

1..1

properties

0..*

0..1

containment

children

0..*

1..1

property

values

0..*

annotation

0..1

root

1..1

expression

1..1

left

1..1

right

mappedObject

1..1

mappedProperty

1..1

featModel

1..1

feature

1..1

attribute

index : EInt

Figure 7: The metamodel for (product line) mapping mod-

els.

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

302

tex.

• All ValueMapping instances represent attribute

values or cross links within the domain model.

Value mappings are used for annotations refer-

ring to values, e.g., the natural literal for the initial

weight value in the class Edge.

The structure of the mapping model reﬂects the con-

tainment hierarchy of the domain model elements.

Direct child mappings of object mappings are always

property mappings – corresponding to their structural

features. Direct child mappings of property mappings

are either object mappings – in case the property map-

ping refers to a containment reference – or value map-

pings – otherwise. Different value mappings con-

tained in the same property mapping – which occurs

in case of multi-valued structural features – can be

identiﬁed by their index values. The index value of

a value mapping describes the index of the element

within the respective collection in the domain model;

note that EMF always provides ordered collections

for multi-valued structural features. The root map-

pings, i.e., the mappings referring to domain model

root objects, build a ﬂat collection in the root Model

instance.

As a consequence of this analogous structure,

mapping elements can be located very easily by em-

ploying their location in the domain model. The ed-

itor framework applies the principle of lazy creation

and deletion: When a new annotation is created, only

mapping elements are created which are necessary for

this annotation; these elements comprise the mapping

element that contains the annotation as well as all con-

tainer mappings up to the object mapping for the do-

main model root. Furthermore, when an annotation is

deleted, the mapping elements are not removed; map-

ping elements are deleted if and only if the respective

domain model elements are deleted.

Annotations are stored as subtrees within the re-

spective mapping element. The root Expression in-

stance is directly referenced by the Annotation object.

The child expressions are arbitrarily nested according

to the respective logical operator precedence. Atomic

expressions pose references to features or feature at-

tributes.

5.3 Example Annotation Mapping

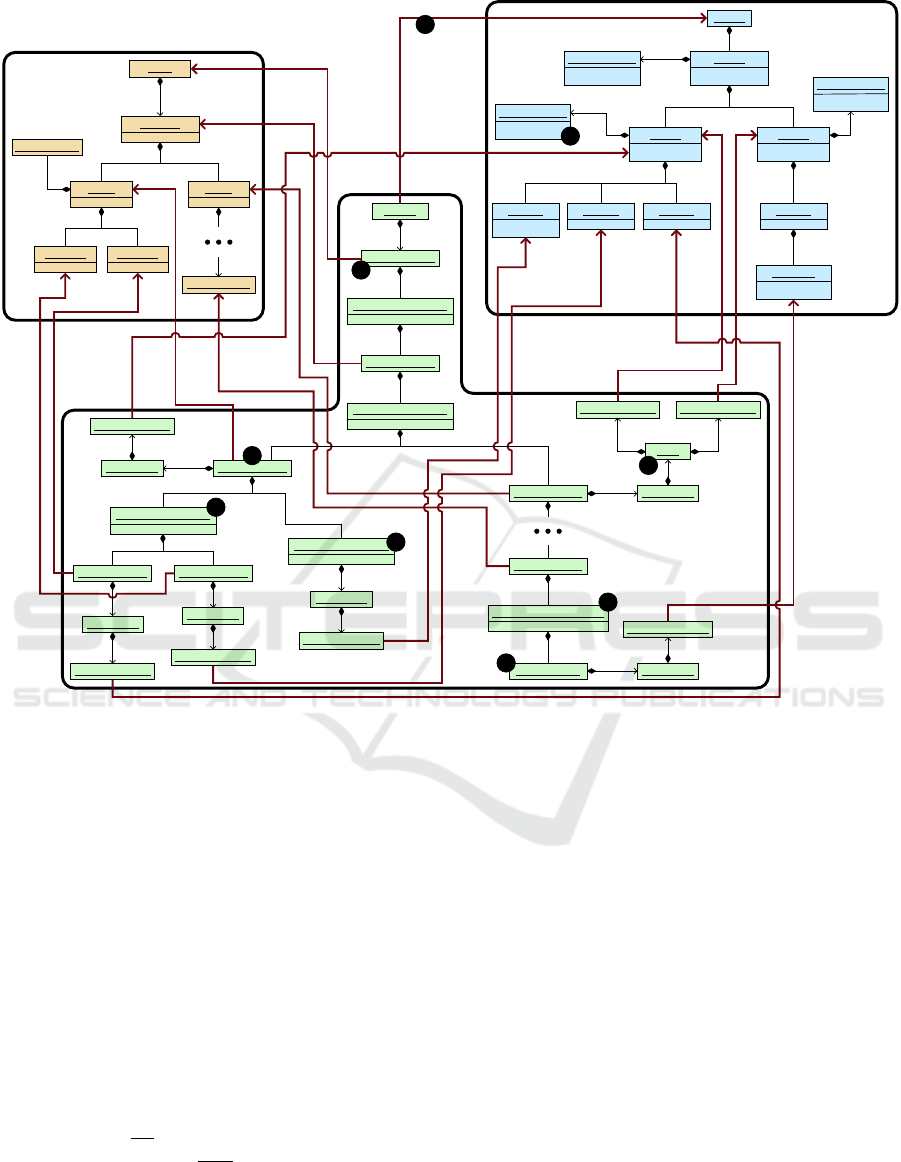

Figure 8 depicts the internal structure of the feature

model as well as the mapping model for a cutout

of the multi-variant domain model presented in Fig-

ure 3. Besides other artifacts that are comprised by

the graph product line, the given ALF package con-

tains the classes Vertex and Edge. The ALF class Ver-

tex contains the properties color and label and inherits

from the class Shape. The ALF class Edge provides

the operation addEdge which transitively contains a

natural literal expression. The property weight within

the class Edge as well as other children of the opera-

tion addEdge are not considered here.

The feature model (cf. Figure 2) comprises the

features Position, Colored, Labeled, and Weighted as

atomic features. All other features are groups with

default selection ranges, e.g., the group Vertices has

a selection range (1) with minimum value 1 – since

it has one mandatory child feature – and maximum

value 3 – since it has three child features.

The unique global mapping model is linked (2)

to the unique global feature model. As exactly one

abstract syntax tree – with different views of it – is

present, the mapping model has one root mapping (3)

that references the domain model root. The contain-

ment hierarchy of the abstract syntax tree leads to an

alternating sequence of ObjectMapping and Contain-

mentMapping instances. Since both properties color

and label are contained in the same class Vertex and

refer to the same containment reference, the respec-

tive object mappings are children of the same con-

tainment mapping (4); analogously for the two ALF

classes within one package. The attribute for the nat-

ural literal is represented by an AttributeOrCrossMap-

ping instance (5) with a single ValueMapping object

(6). Due to the lazy creation principle, the mapping

model exhibits no mapping element which neither

contains an annotation nor another mapping (as the

mapping element would be useless).

Annotations are stored as subtrees within the re-

spective mappings. The annotations for the classes

and the properties are internally represented as child

objects of the respective object mappings, e.g., the

annotation Vertices (i.e., a feature reference) within

the mapping (7) for the class Vertex. The annotation

for the superclass of the class Vertex comprises the

whole optional structural feature; thus, the respective

annotation constitutes a child element of the Contain-

mentMapping instance (8) for the generalization ob-

jects. The annotation for the natural literal value is a

child element of the single value mapping (6). Map-

pings that do not directly contain annotations only

serve as members within the structure of the complete

containment hierarchy.

In this use case, the annotations contain both

feature references – referring to groups or atomic

features – and attribute references. The AND-

conjunction within the annotation of the class Edge is

represented by a binary tree (9) with the two operands

as its leaf elements.

A Framework for Projectional Multi-variant Model Editors

303

AST

FEAT

PL-MAPP

: Model

: ObjectMapping

: ContainmentMapping

: ObjectMapping

: ContainmentMapping

: ObjectMapping: Annotation

: FeatureReference

: ContainmentMapping

: ObjectMapping

: Annotation

: FeatureReference

: ObjectMapping

: Annotation

: FeatureReference

: ContainmentMapping

: Annotation

: FeatureReference

: ObjectMapping : Annotation

: And

: FeatureReference : FeatureReference

: ObjectMapping

: AttributeOrCrossMapping

: ValueMapping : Annotation

: AttributeReference

: Atomic : Atomic : Atomic

: Group

: SelectionRange

: Atomic

: Attribute

: Group

: SelectionRange

: Group: SelectionRange

: Model

: Unit

: Package

: Class

: Generalization

: Property : Property

: Class

: NaturalLiteral

rootMappings

container

properties

containment

children

container

properties

containment

children

annotation

root

container

properties

containment

children

annotation

root

children

annotation

root

properties

annotation

root

children

annotation

root

right

left

container

children

container

properties

property

values

annotation

root

model

root

parent

children children

range

parent

children children children

range

parent

children

range

feature

attributes

ownedMember

namespace

ownedMember ownedMember

namespace

ownedMember ownedMember

general

generalization

namespace

mappedProp. = ownedMember

mappedProp. = generalization

mappedProp. = image

name = GraphLibrary

mandatory = true

minimum = 2

maximum = 2

name = Vertices

mandatory = true

minimum = 1

maximum = 3

name = Edges

mandatory = true

minimum = 0

maximum = 1

name = Position

mandatory = true

name = Colored name = Labeled

name = Weighted

name = defaultValue

type = INTEGER

name = graphLibrary

name = Vertex

name = Edge

name = color name = label

Figure 8: The internal representation of an example mapping model (PL-MAPP) with cross links to one feature model (FEAT)

and one domain model (AST) that constitutes a cutout of the model in Figure 3. Inter-model cross references are visualized

by red, bold arrows.

6 CONCLUSION

We presented a generic framework for building pro-

jectional multi-variant editors which are based on fea-

ture models for deﬁning variability and support nega-

tive variability by annotating domain model elements

with feature expressions. Human-readable textual no-

tation is employed at the user interface. In particular,

the notation provides for a clear separation between

domain model elements and annotations, and offers a

variety of commands for ﬂexible ﬁltering of variabil-

ity information (Section 3).

Projectional multi-variant editors have not only

been designed for model-driven engineering; they

have also been realized with model-driven engineer-

ing. Thus, projectional multi-variant editors consti-

tute a complex use case for the application of model-

driven engineering. As described in Section 4, we

devised a notation for megamodeling which we ap-

plied to describe the internal architecture of projec-

tional multi-variant editors. Furthermore, Section 5

illustrates the complexity of the models employed in-

ternally by means of the mapping between domain

models and feature models.

The work presented in this paper is still ongo-

ing. Future work will include support for deﬁning

partial or total feature conﬁgurations and conﬁguring

multi-variant domain models accordingly. Here, en-

suring well-formedness of conﬁgured domain mod-

els constitutes an important challenge which may be

addressed along the lines of our previous work on

FAMILE (Buchmann and Schw

agerl, 2012). Please

note that conﬁguration of feature models and domain

models is essential not only for application engineer-

ing but should be supported in domain engineering,

as well. In domain engineering, conﬁguration sup-

port enables previews of conﬁgured domain models

which may be visualized by coloring and eliding. In

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

304

addition, such previews will be editable. In this way,

the projectional multi-variant editor will support auto-

mated management of annotations in a similar way as

variation control systems (avoiding their view-update

problems since each editing command always refers

to the underlying multi-variant model).

REFERENCES

Apel, S. and K

astner, C. (2009). Virtual separation of con-

cerns - A second chance for preprocessors. J. Object

Technol., 8(6):59–78.

Apel, S., K

astner, C., and Lengauer, C. (2009). Feature-

House: Language-independent, automated software

composition. In Proceedings of the ACM/IEEE Inter-

national Conference on Software Engineering (ICSE),

pages 221–231. IEEE.

Buchmann, T. and Schw

agerl, F. (2012). Ensuring well-

formedness of conﬁgured domain models in model-

driven product lines based on negative variability.

In Schaefer, I. and Th

um, T., editors, 4th Interna-

tional Workshop on Feature-Oriented Software Devel-

opment, FOSD ’12, Dresden, Germany - September

24 - 25, 2012, pages 37–44. ACM.

Buchmann, T. and Schw

agerl, F. (2012). FAMILE: tool

support for evolving model-driven product lines. In

orrle, H., Botterweck, G., Bourdell

es, M., Kolovos,

D., Paige, R., Roubtsova, E., Rubin, J., and Tolvanen,

J.-P., editors, Joint Proceedings of co-located Events

at the 8th European Conference on Modelling Foun-

dations and Applications, CEUR WS, pages 59–62,

Building 321, DK-2800 Kongens Lyngby. Technical

University of Denmark (DTU).

Heidenreich, F., Kopcsek, J., and Wende, C. (2008). Fea-

turemapper: mapping features to models. In Sch

afer,

W., Dwyer, M. B., and Gruhn, V., editors, 30th Inter-

national Conference on Software Engineering (ICSE

2008), Leipzig, Germany, May 10-18, 2008, Compan-

ion Volume, pages 943–944. ACM.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented domain

analysis (FODA) feasibility study. Technical Report

CMU/SEI-90-TR-21, Software Engineering Institute,

Carnegie Mellon University.

Linsbauer, L., Schw

agerl, F., Berger, T., and Gr

unbacher, P.

(2021). Concepts of variation control systems. Jour-

nal of Systems and Software, 171:25.

Lopez-Herrejon, R. E. and Batory, D. S. (2001). A standard

problem for evaluating product-line methodologies. In

Proc. 3rd International Conference on Generative and

Component-Based Software Engineering, GCSE ’01,

pages 10–24, London, UK. Springer.

Mukelabai, M., Behringer, B., Fey, M., Palz, J., Kr

uger, J.,

and Berger, T. (2018). Multi-view editing of software

product lines with peopl. In Chaudron, M., Crnkovic,

I., Chechik, M., and Harman, M., editors, Proceed-

ings of the 40th International Conference on Software

Engineering: Companion Proceeedings, ICSE 2018,

Gothenburg, Sweden, May 27 - June 03, 2018, pages

81–84. ACM.

OMG (2017). Action Language for Foundational UML

(Alf). Object Management Group, Needham, MA,

formal/2017-07-04 edition.

OMG (2020). Semantics of a Foundational Subset for Ex-

ecutable UML Models (fUML). Object Management

Group, Needham, MA, ptc/2020-05-10 edition.

Pohl, K., B

ockle, G., and van der Linden, F. (2005). Soft-

ware Product Line Engineering - Foundations, Prin-

ciples, and Techniques. Springer.

Schaefer, I. (2018). A personal history of delta mod-

elling. In M

uller, P. and Schaefer, I., editors, Prin-

cipled Software Development - Essays Dedicated to

Arnd Poetzsch-Heffter on the Occasion of his 60th

Birthday, pages 241–250. Springer.

Schobbens, P., Heymans, P., and Trigaux, J. (2006). Fea-

ture diagrams: A survey and a formal semantics. In

14th IEEE International Conference on Requirements

Engineering (RE 2006), 11-15 September 2006, Min-

neapolis/St.Paul, Minnesota, USA, pages 136–145.

Schr

opfer, J., Buchmann, T., and Westfechtel, B. (2020).

A generic projectional editor for EMF models. In

Hammoudi, S., Pires, L. F., and Selic, B., editors,

Proceedings of the 8th International Conference on

Model-Driven Engineering and Software Develop-

ment (MODELSWARD 2020), pages 381–392. IN-

STICC, SciTePress.

Schw

agerl, F., Buchmann, T., and Westfechtel, B. (2015).

SuperMod - A model-driven tool that combines ver-

sion control and software product line engineer-

ing. In Proc. 10th International Conference on Soft-

ware Paradigm Trends, pages 5–18, Colmar, Alsace,

France. SCITEPRESS.

Schw

agerl, F. and Westfechtel, B. (2019). Integrated

revision and variation control for evolving model-

driven software product lines. Softw. Syst. Model.,

18(6):3373–3420.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF Eclipse Modeling Framework. The

Eclipse Series. Addison-Wesley, Boston, MA, 2nd

edition.

olter, M., Siegmund, J., Berger, T., and Kolb, B. (2014).

Towards user-friendly projectional editors. In Soft-

ware Language Engineering - 7th International Con-

ference, SLE 2014, V

aster

as, Sweden, September 15-

16, 2014. Proceedings, pages 41–61.

olter, M., Stahl, T., Bettin, J., Haase, A., and Helsen, S.

(2006). Model-Driven Software Development: Tech-

nology, Engineering, Management. John Wiley &

Sons.

A Framework for Projectional Multi-variant Model Editors

305
