Active Region Detection in Multi-spectral Solar Images

Majedaldein Almahasneh

1 a

, Adeline Paiement

2 b

, Xianghua Xie

1 c

and Jean Aboudarham

3 d

Department of Computer Science, Swansea University , Swansea, U.K.

Universit

e de Toulon, Aix Marseille Univ, CNRS, LIS, Marseille, France

Observatoire de Paris/PSL, Paris, France

Keywords:

Joint Analysis, Solar Images, Active Regions, Multi-spectral Images.

Abstract:

Precisely detecting solar Active Regions (AR) from multi-spectral images is a challenging task yet important

in understanding solar activity and its inﬂuence on space weather. A main challenge comes from each modal-

ity capturing a different location of these 3D objects, as opposed to more traditional multi-spectral imaging

scenarios where all image bands observe the same scene. We present a multi-task deep learning framework

that exploits the dependencies between image bands to produce 3D AR detection where different image bands

(and physical locations) each have their own set of results. We compare our detection method against base-

line approaches for solar image analysis (multi-channel coronal hole detection, SPOCA for ARs (Verbeeck

et al., 2013)) and a state-of-the-art deep learning method (Faster RCNN) and show enhanced performances in

detecting ARs jointly from multiple bands.

1 INTRODUCTION

Active regions (ARs) detection is essential in studying

solar behaviours and space weather. The solar atmo-

sphere is monitored on multiple wavelengths, as seen

in Fig. 1. However, unlike traditional multi-spectral

scenarios such as Earth imaging, e.g. (Wagner et al.,

2016; Ishii et al., 2016), where multiple imaging

bands reveal different aspects (e.g. composition) of

a same scene, different bands image the solar atmo-

sphere at different temperatures, which correspond to

different altitudes (Revathy et al., 2005). Therefore,

imaging the sun using different wavelengths shows

different 2D cuts of the 3D objects that span the solar

atmosphere. This makes handling the multi-spectral

nature of the data not straightforward. Moreover, the

variety of shapes and brightness, and fuzzy bound-

aries, of ARs also introduce a high complexity in pre-

cisely localising them.

Very few solutions were presented to the AR de-

tection problem. Most of these methods exploited sin-

gle image bands only. (Benkhalil et al., 2006) pro-

posed a method for single-band images from Paris-

Meudon Spectroheliograph (PM/SH) and SOHO/EIT.

In (Revathy et al., 2005), ARs were segmented from

a single band at a time, which the authors justify by

https://orcid.org/0000-0002-5748-1760

https://orcid.org/0000-0001-5114-1514

https://orcid.org/0000-0002-2701-8660

https://orcid.org/0000-0002-0156-8162

the fact that they each provide information from a dif-

ferent solar altitude, and they showed how the area of

ARs differs between the different bands. While we

also aim at getting specialised results for each image

band, we argue that inter-dependencies exist between

bands, which can be exploited for increased robust-

ness. The SPOCA method (Verbeeck et al., 2013),

used in the Heliophysics Feature Catalogue (HFC)

segments ARs and coronal holes from SOHO/EIT

171

A and 195

A combined images. These two bands

image overlapping (but different) regions of the solar

atmosphere. SPOCA considers that they should yield

identical detections. This approximation may result in

a bad analysis of at least one of these bands. We pro-

vide separate but related results for these bands. We

also exploit more bands for richer information on the

solar atmosphere, with separate results for each band.

SPOCA’s segmentation is based on clustering,

with Fuzzy and Possibilistic C-means followed by

morphological operations. The method of (Benkhalil

et al., 2006) uses local thresholding and mor-

phological operations followed by region growing.

The method was evaluated against manual detec-

tions (synoptic maps) produced at PM and National

Oceanic and Atmospheric Administration (NOAA),

and detected similar numbers of ARs as PM, and

∼ 50% more than NOAA. In (Revathy et al., 2005),

ARs were segmented by computing the pixel-wise

fractal dimension (a measure of non-linear growth

http://voparis-helio.obspm.fr/hfc-gui/

452

Almahasneh, M., Paiement, A., Xie, X. and Aboudarham, J.

Active Region Detection in Multi-spectral Solar Images.

DOI: 10.5220/0010310504520459

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 452-459

ISBN: 978-989-758-486-2

that reﬂects the degree of irregularity over multiple

scales) in a convolutional fashion, and feeding the re-

sulting feature map to a Fuzzy C-means algorithm.

Overall, these methods, mainly based on clustering

and morphological operations, are very pre- and post-

processing dependant. This makes them difﬁcult to

adapt to new image domains. We address this limita-

tion using deep learning (DL).

Deep learning methods generally aim at analysing

2D images or dense 3D volumes, while the sparse

3D nature of the solar imaging data requires design-

ing a specialised DL framework. Furthermore, multi-

spectral images are commonly treated in a similar

manner to RGB images, by stacking different bands

into composite multi-channel images, extracting a

common feature map, and producing a single detec-

tion result for the composite image, e.g. (Mohajerani

and Saeedi, 2019; Ishii et al., 2016; Guo et al., 2019).

This multi-channel strategy is ill-suited to the solar

imaging scenario, since different images show differ-

ent scenes and should have their own detection re-

sults.

In (Wagner et al., 2016), a feature-fusion approach

was proposed where HOG features extracted sepa-

rately from the RGB+thermal images were concate-

nated before performing the ﬁnal analysis by a fully

connected layer. This strategy obtained better re-

sults than the previously mentioned image-level fu-

sion. Authors discussed that the network may opti-

mise the learned features for each band. Moreover,

they reckon that small misalignments may be over-

come as spatial information gets less relevant in late

network stages. This may be an advantage in our case

of images showing different parts of a scene.

However, when comparing image-level and

feature-level fusion, (Guo et al., 2019) found on the

contrary that image fusion worked best when seg-

menting soft tissue sarcomas in multi-modal medical

images. These different results suggest that there is

no universal best fusion strategy, and it needs to be

adapted to each case. In our detection scenario, we

investigate the best stages where to apply fusion.

Another feature-fusion strategy was used in

(Jarolim et al., 2019) to segment coronal holes from

7 SDO bands and a magnetogram. The method re-

lies on training a CNN to segment coronal holes from

a single band, followed by ﬁne-tuning the learned

CNN over the other bands consecutively. The fea-

ture maps of each specialised CNN are used in com-

bination as input to a ﬁnal segmentation CNN, re-

sulting in a unique ﬁnal prediction. The production

of a unique localisation result for all multi-spectral

images is a common limitation to all cited works,

which we address in this study with a multi-task net-

work. We introduce MultiSpectral-MultiTask-CNN

(MSMT-CNN), a multi-tasking DNN framework, as a

robust solution for solar AR detection that takes into

consideration the multi-spectral aspect of the data and

the 3-dimensional spatial dependencies between im-

age bands. This multi-spectral and multi-tasking con-

cept may be applied to any CNN backbone.

The 3D nature of our multi-spectral imaging sce-

nario, which differs from previous multi-spectral ap-

plications, requires a new benchmark. We introduce

two annotated datasets comprised of solar images

from both ground and space, and which cover evenly

all phases of solar activity, which follows an 11-year

cycle. To the best of our knowledge, no detection

ground-truth was previously available for such data.

A labeling tool was hence designed to cope with its

temporal and multi-spectral nature and will be also

released.

2 METHODOLOGY

While some existing works were developed for

analysing multi-spectral images, to our best knowl-

edge, the problem of detecting objects over sparse

3D multi-spectral imagery, in which different bands

show different scenes, was not yet addressed. Our

framework exploits jointly several time-matched im-

age bands in parallel, to predict separate, although re-

lated, detection results for each image. This frame-

work is general and may be used with any DNN back-

bone, we demonstrate it using Faster RCNN (Ren

et al., 2015).

The intuition behind our framework manifests in

3 key principles:

1. Extracting features from different image bands

individually using parallel feature extraction

branches. This allows the network to learn in-

dependent features from each band, according to

their speciﬁc modality.

2. Aggregating the learned features from the differ-

ent branches using some appropriate fusion opera-

tor. This assists the network to jointly analyse the

extracted features from different bands and thus

learn their interdependencies. In this work, we

test fusion by addition and concatenation, at dif-

ferent feature levels (i.e. early and late fusion).

3. Generating a set of results per image band, based

on a multi-task loss, allowing the detection of dif-

ferent sections or layers of 3D objects.

Points 1 and 3 are motivated by the nature of the

multi-spectral data, where different bands image dif-

ferent locations in a 3D scene, each providing a

Active Region Detection in Multi-spectral Solar Images

453

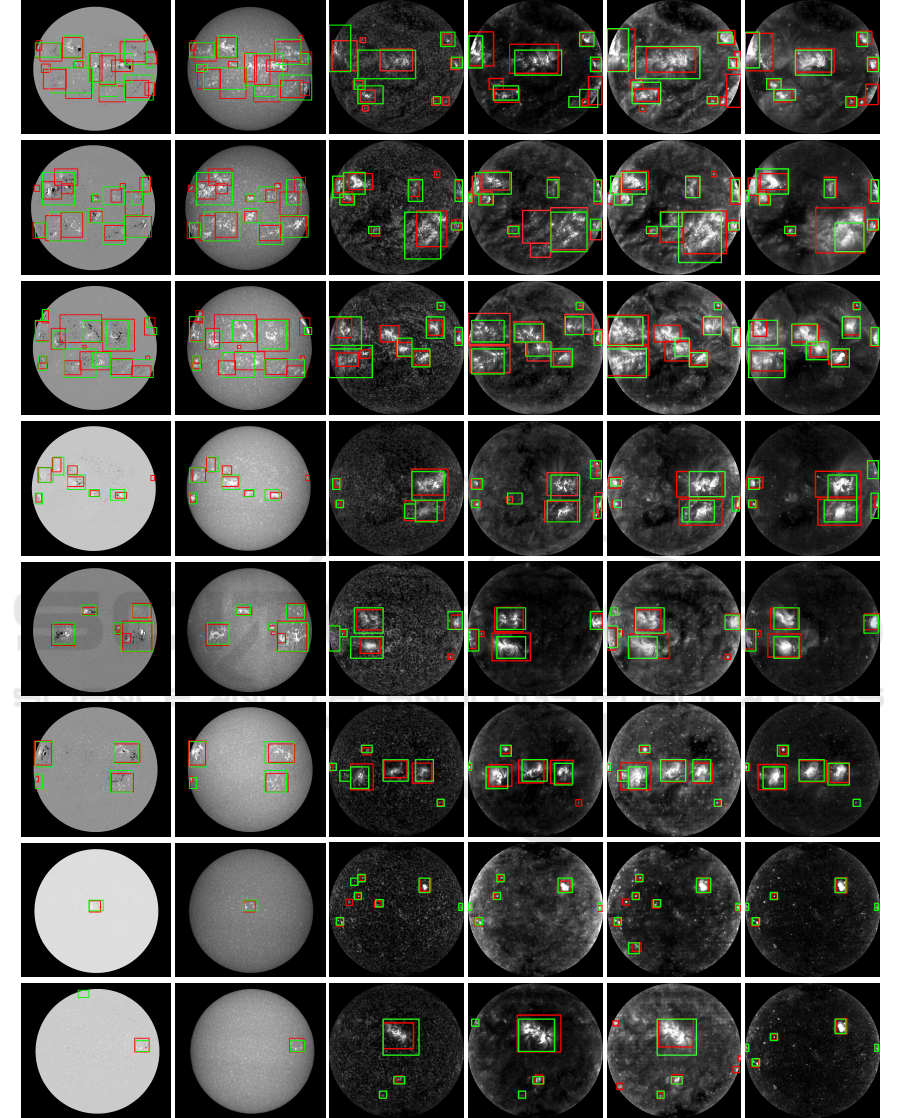

Figure 1: Ground-truth (red) and MSMT-CNN’s (green) detection of ARs in randomly selected images from (left to right)

SOHO/MDI Magnetogram and PM/SH 3934

A, SOHO/EIT 304

A, 171

A, 195

A, and 284

A. Contrast has been increased

for convenience of visualisation.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

454

unique information. Our multi-tasking framework

aims at getting specialised results for each image

band, in contrast to most existing works where fo-

cus is on producing a unique prediction to all im-

age bands. This is crucial since the localisation in-

formation may differ from one band to another in so-

lar (sparse) multi-spectral images. Yet, all bands are

correlated, which motivates point 2. Our framework

exploits the inter-dependencies between the different

bands by its joint analysis strategy, increasing the ro-

bustness of its performance in individual bands.

Furthermore, our framework emulates how ex-

perts manually detect ARs (see also Section 3.1),

where a suspected region’s correlation with other

bands is evaluated prior to its ﬁnal classiﬁcation. This

demonstrates the usefulness and importance of ac-

counting for (spatially and temporally) neighbouring

slices in robustly detecting ARs.

The MSMT-CNN framework is very modular and

ﬂexible. It may accommodate any number of avail-

able multi-spectral images. Additionally, since differ-

ent scenarios may require different fusion strategies

(as suggested by existing works), the modularity of

our framework allows it to be easily adapted to dif-

ferent types and levels of feature fusion (e.g. addi-

tion and concatenation, early and late). This modular

design also allows our framework to adopt different

backbone architectures (e.g. Faster RCNN in our ex-

periments). Indeed, its 3 key principles are applicable

to any backbone, as they are not architecture depen-

dent.

2.1 Pre-processing

The input of our system are time-matched observa-

tions, possibly acquired by different instruments or

at different orientations of the same instrument. As

such they need to be spatially aligned. We harmonise

the radius and center location of the solar disk, either

using SOHO image preparation routines, or through

Otsu thresholding of the solar disc of PM/SH images

followed by minimum enclosing circle ﬁtting and re-

projection into a uniﬁed center and radius. Orienta-

tion is normalised by SOHO and PM routines to a

vertical north-south solar axis. Although this process

does not correct a possible small time difference and

resulting east-west rotation of the Sun between two

acquisitions, it ensures a sufﬁcient alignment for our

purpose of AR detections from spatially (and tempo-

rally) correlated solar disks.

The SOHO/EIT images are prepared by EIT rou-

tines. We eliminate any prominences or solar erup-

tions by masking out all areas outside the solar disk.

The contrast of SOHO/MDI Magnetograms is en-

hanced by intensity rescaling. Contrast enhancement

was not used on SOHO/EIT and PM/SH images, as

it was found to have minimal effect on our detection

results.

Both datasets are augmented using north-south

ﬂipping, east-west ﬂipping, and a combination of the

two. Augmentation with arbitrary rotations of the

images is a popular way of augmenting astronomy

datasets. However, such rotations are ruled out from

our study because ARs tend to appear predominantly

alongside the solar equator.

Finally, a single-channel solar image was repeated

along the depth axis resulting in a 3-channel image in

order to match the pre-trained CNN’s input depth.

2.2 MSMT-CNN

Our detection DNN is presented in Fig. 2. A CNN

(ResNet50 or VGG16 in our experiments) is ﬁrst used

as a feature extraction network. Parallel branches

(subnetworks) produce a feature map per image band,

following the late feature fusion strategy. This allows

the subnetworks’ ﬁlters to be optimised for their input

bands individually. The feature maps are then con-

catenated across the bands.

The combined feature map is jointly analysed by

one parallel module per image band that performs

Faster RCNN’s region proposal network (RPN). The

RPN stage uses three aspect ratios ([1:1], [1:2], [2:1])

and four sizes of anchor (32, 64, 128, and 256 pixel

width), found empirically to match well the typical

size and shape of ARs. One specialised RPN per im-

age band is trained.

At training, for each band, the correspondent re-

gion proposals along with the combined feature map

are used by a Faster RCNN’s detector module to per-

form the ﬁnal prediction for the band. However, at

testing time, the band-specialised detector modules

use the region proposals from all bands. This com-

bination of region proposals helps ﬁnding potential

AR locations in bands where they are more difﬁcult

to identify.

It is good to note that during training, the RPN’s

proposals for a band are ﬁltered (i.e. labeled as pos-

itive or negative) with respect to their overlap with

the band’s ground-truth. Hence, combining them in

the training time would mean implicitly inheriting the

ground-truth of a band to another, in contradiction

with the band-speciﬁc ground-truth used for training

the detector module. This may hinder the learning of

both the RPN and detector modules. Therefore, re-

gion proposals are only combined at testing time to

ensure a better learning of the ﬁnal detection modules.

Active Region Detection in Multi-spectral Solar Images

455

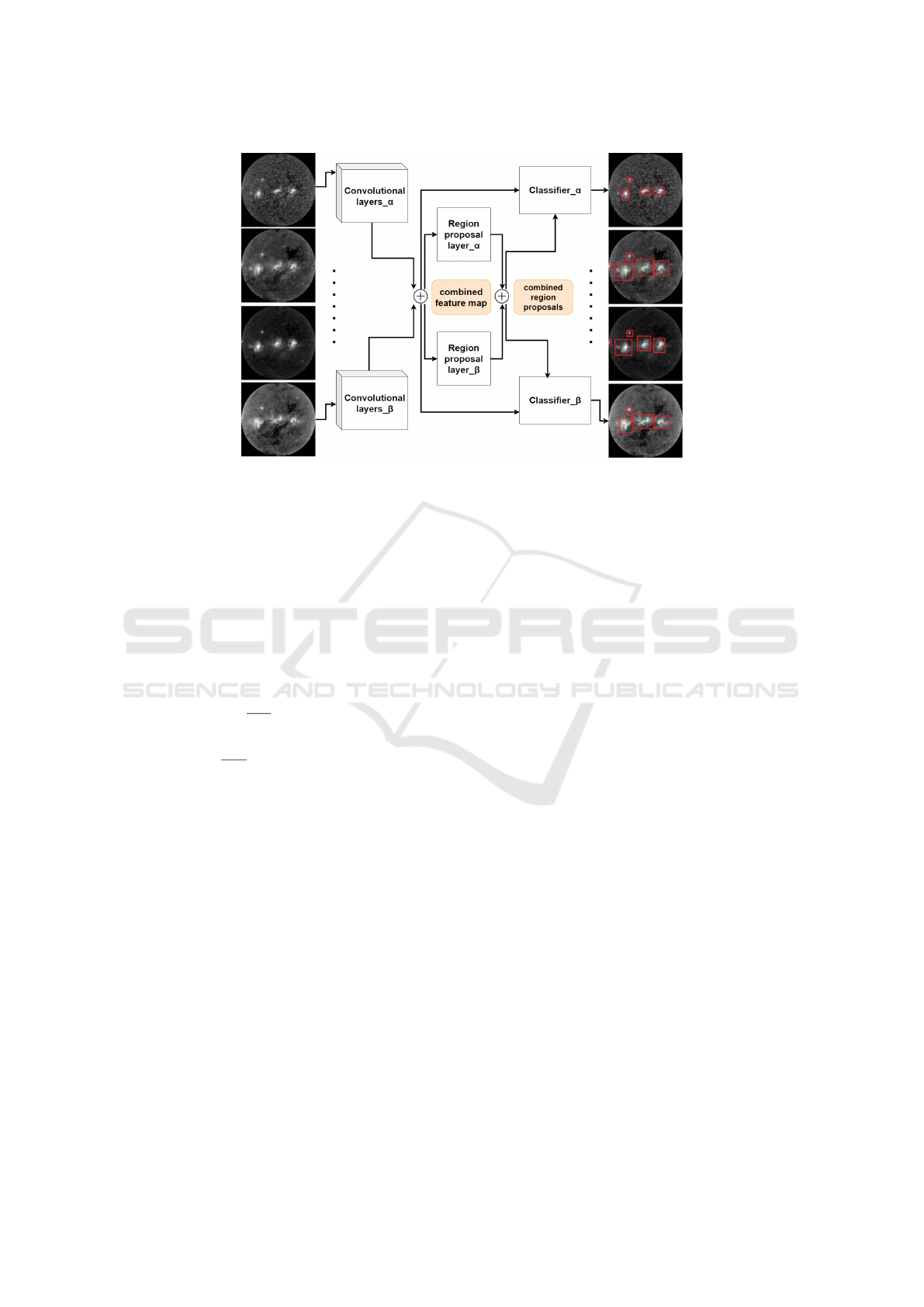

Figure 2: MSMT for detection using the Faster-RCNN backbone. ‘Plus’ sign denotes concatenation of the feature maps, or

of the lists of region proposals (at testing time).

Using the combined feature map for both RPN

prediction and classiﬁcation helps the network learn

the relationship between the image bands and hence

provide more consistent region proposals and ﬁnal

predictions. We demonstrate in Section 3 that this is

particularly helpful in cases where an AR is difﬁcult

to detect in a single band.

The network is trained in the same way as the orig-

inal Faster RCNN, using all input bands and branches

according to a combined loss function:

L =

∑



cls

∑

cls

, p

∗

)

+ λ

reg

∑

∗

reg

, t

∗

)



(1)

where b and i refer to the image band and the

index of the bounding box being processed, respec-

tively. The terms L

cls

and L

reg

are the bounding-

box classiﬁcation loss and the bounding-box regres-

sion loss deﬁned in (Ren et al., 2015). N

cls

and N

reg

represent the size of the mini batch being processed

and the number of anchors, respectively. λ balances

the classiﬁcation and the regression losses (we set λ

to 10 as suggested in (Ren et al., 2015)). p and p

are the predicted anchor’s class probability and its ac-

tual label, respectively. Lastly, t and t

represent the

predicted bounding box coordinates and the ground-

truth coordinates, respectively. It is worth noting that

our proposed framework is not limited to using Faster

RCNN’s loss and may be trained with using other

task-suitable loss functions.

During training, the weights of each stage (i.e.

feature extraction, region proposal, and detection)

are stored independently whenever the related Faster

RCNN loss decreases. At testing time, the best per-

forming set of weights is retrieved per stage. We re-

fer to this practice as ‘Multi-Objective Optimisation’

(MOO). The improved performance that we observe

in Section 3 may be explained by each stage having a

different objective to optimise, which may be reached

at different times.

In this paper, we experiment with a 2, 3, and 4-

band pipeline. However, the approach may generalise

straightforwardly to n bands and new imaging modal-

ities. Similarly, our framework may exploit any DNN

architecture, and may be updated with new state-of-

the-art DL architectures easily.

3 EXPERIMENTS

Our framework was implemented using Tensorﬂow

and run on an NVIDIA GeForce GTX 1080 Ti. We

evaluate our detection stage using precision, recall,

and F1-score. A detection is considered a true positive

if its intersection with a ground-truth box is greater or

equal to 50% of either the predicted or ground-truth

area. We empirically found that this provides a good

trade-off of precision over recall. Non maximum sup-

pression (NMS) is used to discard any redundant de-

tections.

All tested CNN were initialised with pre-trained

ImageNet weights. Indeed, we demonstrated in

(Crabbe et al., 2015) that CNNs pre-trained on RGB

images may ﬁne-tune and adapt well to other modal-

ities such as depth images, provided that the im-

age’s gain and contrast are suitably enhanced to match

those of the pre-training RGB images.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

456

3.1 Data

We consider data from SOHO (space-based) and

PM observatory (ground-based). We use the bands

171

A and 195

A (transition region), 284

A (corona),

and 304

A (chromosphere and base of transition

region) from SOHO/EIT, 3934

A (chromosphere)

from PM/SH, and line-of-sight magnetograms (pho-

tosphere) from SOHO/MDI, as illustrated in Fig. 1.

To account for the regular solar cycle, we select im-

ages evenly from each of 3 periods of varying solar

activity level, with years 2002-03, 2004-05, and 2008-

10 for high, medium, and low activity respectively.

We publish two new datasets with detection an-

notations (i.e bounding boxes): the Lower Atmo-

sphere Dataset (LAD) and Upper Atmosphere Dataset

(UAD). All annotations were validated by a solar

physics expert.

Localising ARs in multi-spectral images can be

challenging due to inconsistent numbers of polarity

centers, shapes, sizes, and activity levels. To miti-

gate this issue, when manually annotating, we exploit

neighboring image bands, magnetograms, as well as

temporal information where we examine the evolu-

tion of a suspected AR to validate its detection and

localisation. We designed a new multi-spectral label-

ing tool

which displays, side by side, images from an

auxiliary modality and from a sequence of 3 previous

and 3 subsequent time steps.

Table 1: Technical summary of the two annotated datasets.

# numbers are in train / test format.

Dataset Modality # images # boxes

UAD

SOHO/EIT 284

A 283 / 40 2205 / 287

SOHO/EIT 171

A 283 / 40 1919 / 262

SOHO/EIT 195

A 283 / 40 2341 / 330

SOHO/EIT 304

A 283 / 40 2016 / 263

LAD

PM/SH 3934

A 213 / 53 1380 / 406

SOHO/MDI magn. 213 / 53 1380 / 406

Auxiliary imaging modalities may have different

observation frequencies and times, therefore we work

with time-matched images, i.e. the time-closest im-

age, if any, in a 12-hour window during which ARs

may not undergo any signiﬁcant change.

ARs have a high spatial coherence in 3934

A and

magnetogram images due to the physical proximity

of the two imaged regions. Hence, when annotating

3934

A images, time-matched magnetograms were

used as an extra support. Furthermore, the 3934

bounding boxes could be considered to be good ap-

proximations of magnetograms’ annotations. Table

Our labeling tool will be released on the project’s web-

site.

1 presents an overview of annotated images for both

datasets. We split the datasets into training and testing

as indicated in the table.

To compare against SPOCA, we consider a subset

of the UAD testing set for which SPOCA detection

results are available in HFC: the SPOCA subset. It

consists of 26 testing images (181, 168, 213, and 166

bounding boxes in the 304

A, 171

A, 195

A and 284

images respectively).

3.2 Independent Detection on Single

Image Bands

We ﬁrst compare detection results of Faster RCNN

over individual image bands analysed independently

(Table 2). This aims to evaluate different feature ex-

traction DNNs, and will further serve as baseline to

assess our proposed framework.

The ResNet50 architecture consistently produces

better results than the VGG one with higher F1 scores

in all experiments. Based on these results, we adopt

the ResNet50 architecture as backbone for our frame-

work in the next experiments.

Table 2: Detection performance of the single image band

detectors. For each band, the highest scores are highlighted

in bold.

Detector Dataset Band Precision Recall F1

Faster

RCNN

(ResNet50)

LAD 3934

A 0.93 0.82 0.87

LAD Magn. 0.89 0.78 0.83

UAD 304

A 0.73 0.83 0.78

UAD 171

A 0.84 0.89 0.86

UAD 195

A 0.81 0.75 0.78

UAD 284

A 0.86 0.82 0.84

SPOCA 304

A 0.72 0.82 0.77

SPOCA 171

A 0.87 0.87 0.87

SPOCA 195

A 0.82 0.73 0.77

SPOCA 284

A 0.86 0.82 0.84

Faster

RCNN

(VGG16)

UAD 304

A 0.67 0.78 0.72

UAD 171

A 0.84 0.81 0.82

UAD 195

A 0.79 0.73 0.76

UAD 284

A 0.83 0.81 0.82

SPOCA 304

A 0.68 0.80 0.74

SPOCA 171

A 0.85 0.80 0.82

SPOCA 195

A 0.78 0.72 0.75

SPOCA 284

A 0.84 0.82 0.83

When comparing the detection results per image

band, we notice that 304

A images are repeatedly

amongst the most difﬁcult to analyse in UAD, having

the lowest F1-scores in all tests. On the other hand,

171

A has the best results of UAD bands, followed by

284

A and 195

A. This may be explained by ARs hav-

ing a denser or less ambiguous appearance in 171

195

A, and 284

A image bands than in 304

A since

they are higher in the corona. A similar observation

can be made in the LAD dataset when comparing the

magnetogram results to 3934

A, where magnetograms

Active Region Detection in Multi-spectral Solar Images

457

observe a lower altitude than 3934

We also notice a strong contrast between a same

detector’s precision and recall on the different UAD

bands. This further demonstrates that these bands are

not equal in how easily they may be analysed, even

though they were acquired at the same time with same

size and resolution.

Detections are visually veriﬁed to be poorer for

small ARs and for spread and faint ones with more

ambiguous boundaries. Visual inspection also con-

ﬁrms the different performances in various bands be-

ing caused by differing visual complexities of ARs.

These observations suggest that detecting ARs us-

ing information provided by a single band may be an

under-constrained problem.

3.3 Joint Detection on Multiple Image

Bands

We now present the results of our framework when

detecting ARs over the LAD/UAD bands jointly.

Joint detection results are summarised in Table 3.

We ﬁrst experimented with different types of feature-

fusion (image-level and feature-level, by addition and

concatenation) over the LAD dataset.

Overall, the three approaches show an enhanced

performance in contrast to single band based detec-

tion. However, we ﬁnd that late fusion with concate-

nation performs best. Hence, we pick this approach

for all following experiments.

We also evaluate the beneﬁt of our MOO strat-

egy using our 2-band architecture over the UAD. This

approach generally improves the F1-scores in most

bands comparing to the non-MOO architectures. This

behaviour may indicate that the two feature extrac-

tion stages were indeed more effectively optimised for

their different tasks at different epochs. We retain this

MOO approach for all other experiments.

On the UAD dataset, with various combinations of

2 bands, we notice a general improvement over single

band detections. In addition, the performance varies

in correspondence to the bands being used. Combin-

ing bands that are difﬁcult to analyse (304

A or 195

that have lowest F1-scores in the single band analy-

ses) with easier bands (171

A and 284

A) unsurpris-

ingly enhances their respective performance. More

interestingly, combining the difﬁcult 304

A and 195

bands together also improve on their individual per-

formance. Similarly, when combining bands that are

easier to analyse (171

A and 284

A), in contrast to

using combinations of difﬁcult and easy bands in the

analysis, performances are also improved over their

individual analyses. Following these settings, our 2-

band based approach was able to record higher or

similar F1-scores in contrast to the best performing

single-band detector. This supports our hypothesis

that joint detection may provide an increased robust-

ness through learning the inter-dependencies between

the image bands.

Table 3: AR detection performance of the MSMT-CNN de-

tectors. For each band, the highest scores are highlighted in

bold.

Detector Dataset Band Prec. Recall F1

MSMT (ResNet50

– MOO)

LAD

3934

A 0.97 0.82 0.89

Magn. 0.96 0.85 0.90

MSMT

(ResNet50)

UAD

171

A 0.92 0.77 0.84

284

A 0.90 0.81 0.85

171

A 0.82 0.85 0.83

195

A 0.86 0.72 0.78

195

A 0.88 0.67 0.77

284

A 0.84 0.78 0.81

304

A 0.82 0.79 0.80

195

A 0.87 0.75 0.80

MSMT (ResNet50

– MOO)

UAD

171

A 0.90 0.83 0.87

284

A 0.93 0.80 0.86

SPOCA

171

A 0.89 0.83 0.86

284

A 0.92 0.80 0.86

UAD

171

A 0.86 0.77 0.82

195

A 0.89 0.75 0.81

SPOCA

171

A 0.83 0.77 0.80

195

A 0.86 0.73 0.79

UAD

195

A 0.88 0.68 0.77

284

A 0.84 0.78 0.81

SPOCA

195

A 0.87 0.67 0.75

284

A 0.81 0.78 0.80

UAD

304

A 0.82 0.78 0.80

195

A 0.88 0.78 0.83

SPOCA

304

A 0.79 0.78 0.79

195

A 0.85 0.77 0.81

UAD

304

A 0.78 0.74 0.76

171

A 0.76 0.76 0.76

284

A 0.79 0.78 0.78

UAD

304

A 0.93 0.69 0.79

171

A 0.94 0.66 0.78

195

A 0.91 0.72 0.80

284

A 0.93 0.66 0.77

MSMT (ResNet50

– MOO)

Combining

neighbour bands

UAD

304

A 0.72 0.76 0.74

171

A 0.74 0.79 0.76

195

A 0.81 0.73 0.77

284

A 0.68 0.84 0.75

SPOCA SPOCA

171

A 0.54 0.93 0.68

195

A 0.58 0.82 0.68

(Jarolim et al.,

2019) using Faster

RCNN (ResNet50)

UAD

304

A 0.73 0.83 0.78

171

A 0.80 0.90 0.84

195

A 0.83 0.72 0.77

284

A 0.86 0.80 0.83

Moreover, the most dramatic improvement in F1-

scores across both LAD and UAD datasets is for the

3934

A images when magnetograms are added to the

analysis. This is in line with the current understanding

of AR having strong magnetic signatures.

Generally, in the UAD dataset, we ﬁnd that us-

ing a combination of 2 bands produces the best re-

sults in comparison to using 3 or 4 bands. This may

be caused by the fact that optimising the network for

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

458

multiple tasks (2, 3, or 4 detection tasks) simultane-

ously increases the complexity of the problem. While

the network successfully learned to produce better de-

tections in the case of 2 bands, it was difﬁcult to ﬁnd a

generalised yet optimal model for 3 or 4 bands at the

same time.

Furthermore, since bands imaging consecutive

layers of solar atmosphere are expected to be highly

correlated, we test our framework by combining di-

rectly neighbouring bands together, such that a pre-

diction for a band is performed using the band’s own

feature map combined with the feature map(s) of its

available (1 or 2) direct neighbour(s). This approach

gets the highest recall score on the UAD band 284

of all tests, where it is combined with the 195

A band.

However, it does not improve the performance on the

other bands comparing to the single-band and 2-band

based experiments.

We compare against state-of-the-art SPOCA (Ver-

beeck et al., 2013) on the SPOCA subset, and against

the ﬁrst stage of (Jarolim et al., 2019) (sequentially

ﬁne-tuned networks) by adapting their approach to

Faster RCNN and testing it on UAD. SPOCA de-

tections were obtained from 171

A and 195

A im-

ages only, combined as two channels of an RGB im-

age, and SPOCA produces a single detection for both

bands. We compare this detection against the ground

truth of each of the bands individually. To prove the

robustness and versatility of our detector, we also ex-

periment with a combination of chromosphere, tran-

sition region, and corona bands on the SPOCA subset

in addition to the whole UAD.

On the SPOCA subset, over the bands 171

A and

195

A for which it is designed, SPOCA gets the poor-

est performance of all multi-band and single-band ex-

periments. It is worth noting that this method relies

on manually tuned parameters according to the devel-

opers’ own deﬁnition and interpretation of AR bound-

aries, which may differ from the ones we used when

annotating the dataset. While supervised DL-based

methods could integrate this deﬁnition during train-

ing, SPOCA could not perform such adaptation. This

may have had a negative impact on its scores. Fur-

thermore, visual inspection shows a poor performance

for SPOCA on low solar activity images. This may

be due to the use of clustering in SPOCA, since in

low activity periods the number of AR pixels (if any)

is signiﬁcantly smaller than solar background pixels,

which makes it hard to identify clusters.

Moreover, the ﬁne-tuned networks of (Jarolim

et al., 2019) suffer from a high rate of false positives,

and show a close performance to single band detec-

tion using Faster RCNN with an identical precision,

recall and F1-score over the band 304

A and a slight

decrease over the other 3 bands. This may be due

to the fact that its transfer learning does not incor-

porate the inter-dependencies directly when analysing

the different bands.

4 CONCLUSION

We presented MSMT-CNN, a multi-branch and multi-

tasking framework to tackle the 3D solar AR detec-

tion problem from multi-spectral images that observe

different cuts of the 3D solar atmosphere. MSMT-

CNN analyses multiple image bands jointly to pro-

duce consistent detection across them. It is a ﬂexi-

ble framework that may use any CNN backbone, and

may be be straightforwardly generalised to any num-

ber and modalities of images. MSMT-CNN showed

competitive results against baseline and state-of-the-

art detection methods.

REFERENCES

Benkhalil, A., Zharkova, V., Zharkov, S., and Ipson, S.

(2006). Active region detection and veriﬁcation with

the solar feature catalogue. Solar Phys.

Crabbe, B., Paiement, A., Hannuna, S., and Mirmehdi,

M. (2015). Skeleton-free body pose estimation from

depth images for movement analysis. In ICCVW.

Guo, Z., Li, X., Huang, H., Guo, N., and Li, Q. (2019).

Deep learning-based image segmentation on multi-

modal medical imaging. IEEE TRPMS.

Ishii, T., Simo-Serra, E., Iizuka, S., Mochizuki, Y., Sug-

imoto, A., Ishikawa, H., and Nakamura, R. (2016).

Detection by classiﬁcation of buildings in multispec-

tral satellite imagery. In ICPR.

Jarolim, R., Veronig, A., Hofmeister, S., Temmer, M.,

Heinemann, S., Podladchikova, T., and Dissauer, K.

(2019). Multi-channel coronal hole detection with a

CNN. In ML-Helio.

Mohajerani, S. and Saeedi, P. (2019). Cloud-Net: An end-

to-end cloud detection algorithm for Landsat 8 im-

agery. In IGARSS.

Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster R-

CNN: Towards real-time object detection with region

proposal networks. In NIPS.

Revathy, K., Lekshmi, S., and Prabhakaran Nayar, S.

(2005). Fractal-based fuzzy technique for detection

of active regions from solar images. Solar Phys.

Verbeeck, C., Delouille, V., Mampaey, B., and Visscher,

R. D. (2013). The SPoCA-suite: Software for extrac-

tion, characterization, and tracking of active regions

and coronal holes on EUV images. Astron. Astrophys.

Wagner, J., Fischer, V., Herman, M., and Behnke, S. (2016).

Multispectral pedestrian detection using deep fusion

convolutional neural networks. In ESANN.

Active Region Detection in Multi-spectral Solar Images

459
