Towards a Theory of Models in Systems Development Modeling

Andrea Hillenbrand

Computer Science Division, University of Applied Sciences, Darmstadt, Germany

Keywords:

Modeling, Model Theory, Model-driven Development, Development Methodology, Informatics, Logics.

Abstract:

Despite decades of gaining experience in the development of software systems, the controversies on competing

methodologies have not subsided. The pivotal element of reasoning and justiﬁcation of any perspective taken

thereon is arguably the recourse to models. Speciﬁcally, by means of a logical conceptualization of the notion

of model-being, judgments on models can then be assessed whether they are justiﬁed, because as model

judgments they are based on typical contextual constructive relationships. With such a conceptualization the

potential lies in the realization of an epistemic architecture that emerges as a systematic structure of relations

between models at object and meta levels. Each model application is then embedded in a systematic process

during which a software system is developed. In this article, the combinatorics of model interweavements

of such an epistemic architecture is presented, thereby providing the means to assess the development of a

particular system as well as best practices and methodologies of systems development in general.

1 INTRODUCTION

The discourse on development methodologies contin-

ues unabated. Currently it seems to be dominated by

the stance towards the agile paradigm as there are en-

tire conferences dedicated to this topic (Stray et al.,

2020). Large software companies involved in innova-

tive product development usually have the operational

luxury of implementing best practices of a concep-

tual methodology in unison with agile practices, like

DevOps and its toolchain (Macarthy and Bass, 2020).

Yet, many startups adopt speed-related agile practices

exclusively, in a lean startup approach (Pantiuchina

et al., 2017). Despite purported inadequacies, how-

ever, these startups do not necessarily sacriﬁce qual-

ity for speed more than other startups do. Oftentimes

the model of proﬁt margin works in favor of startups,

arguably because agility draws in capable junior soft-

ware developers whose value is not yet reﬂected on

their payroll. In contrast to product development, the

scope of project development also appears less risky

as there exists more experience with regard to soft-

ware system requirements and thus, speed-related ag-

ile practices are sufﬁcient (Pantiuchina et al., 2017).

Of course, a concrete answer whether agile develop-

ers are more prone to erroneous reasoning and biased

decision-making (Mohanani et al., 2020) or the ﬁrst to

realize and reverse ﬂawed thinking when focusing in-

https://orcid.org/0000-0002-1063-5734

cessantly on interactions, working software, and cus-

tomer wishes (Dingsyr et al., 2010) has to be given by

domain experts. Regardless, any concrete answer de-

pends on the role models play during the development

of a system, either their explicit development and con-

scious, logical usage contributing to model adequacy,

or their implicit, though through experience routinely

established usage, or their rather vague, unconscious

usage, in which case model adequacy is potentially

in jeopardy. Thus, any perspective is taken with re-

gard to the role of models in systems development.

It is claimed in this article that justiﬁed reasoning and

taking a substantiated perspective are only guaranteed

to be meaningful with recourse to models. This arti-

cle explains why decision-making during the devel-

opment of a software system should be justiﬁed along

the lines of judgments about models in respect of their

adequacy and intent—and in retrospect, decisions are

defended or corrected better in that same respect.

Be the current frontline of development method-

ologies as it may, in any case judgments on how to

develop systems need a common conceptualization of

the underlying notion of models in order to discuss,

evaluate, and compare concrete development deci-

sions as well as competing methodologies. With the

Model of Model-being (Mahr, 2009), Bernd Mahr put

a logical conceptualization forward by which model

judgments can then be assessed whether they are jus-

tiﬁed, that is, if they are based on typical contextual

constructive relationships. Sadly, he was not able to

322

Hillenbrand, A.

Towards a Theory of Models in Systems Development Modeling.

DOI: 10.5220/0010322703220329

In Proceedings of the 9th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2021), pages 322-329

ISBN: 978-989-758-487-9

complete the research on the Model of Model-being

in his lifetime. In Section 3 of this article, this con-

ceptualization is revisited. The potential of the con-

ceptualization of Mahr’s Model of Model-being now

lies in the realization of the epistemic architecture of

constructive relationships which emerges as a system-

atic structure of relations between models at object

and meta levels. The epistemological question, which

remained open and is now addressed in this article,

is how these contextual constructive relationships of

the involved models can, and can only, be interwo-

ven. This clariﬁcation facilitates the discussions how

any one model application is embedded in a system-

atic process during which a software system is devel-

oped. In this article, the combinatorics of model inter-

weavements of an epistemic architecture is presented,

thereby providing the means to assess the develop-

ment of particular systems as well as best practices

and development methodologies in general.

Contributions. This article contributes:

• The logical conceptualization of systems devel-

opment modeling based on the Model of Model-

being is completed through the epistemic archi-

tecture of the constructive relationships between

models at object and meta levels.

• This epistemic architecture is clariﬁed by means

of discussing the combinatorics of interweave-

ments with abstract logical means, including the

composition and superimposition of models, and

the application of meta models.

• This facilitates a methodological conceptualiza-

tion of systems development modeling as a sys-

tematic process of creating, applying, and inter-

weaving models, thereby forming a methodologi-

cal basis of the best practices and methodologies

of systems development in general.

Outline. Section 2 recognizes related work. Sec-

tion 3 revisits Mahr’s Model of Model-being as a log-

ical conceptualization of the notion of model-being.

Based on this, the combinatorics of model inter-

weavements is presented in Section 4, completing the

conceptualization of systems development modeling.

Section 5 concludes this article.

2 RELATED WORK

Bernd Mahr’s late work focused on the notion of

judgments (Mahr, 2010b), the Model of Model-

being (Mahr, 2009; Mahr, 2015; Mahr, 2010c), and

a model of conception (Mahr, 2010a). An issue

of a journal was dedicated to the Model of Model-

being (Mahr, 2015) including many critiques as well

as responses. The complete works of Mahr are in the

process of being published (Robering, 2020).

On the subject of conceptual modeling in com-

puter science Thalheim has published prominently,

for instance in (Thalheim, 2013; Thalheim, 2010;

Thalheim, 2011). The semantics of models is dis-

cussed in (Kralemann and Lattmann, 2013), among

many other noteworthy works left out here for the

sake of brevity. The notion of design rationale in

software engineering is investigated in (Burge et al.,

2008), which instantiates the presented conceptual-

ization consistently as a methodological basis of sys-

tems development. In (Boronat et al., 2009), semanti-

cally well-founded notions of a multi-modeling lan-

guage and of semantic correctness of model trans-

formations are proposed, to which the presented sys-

tematic process how model are embedded during the

systems development ﬁts in. In (Pastor and Ruiz,

2018), the sound software production process based

on conceptual modeling is detailed going from the ini-

tial requirements model to the ﬁnal application code

through a well-deﬁned set of conceptual models and

transformations between them, with which the fol-

lowing discussion is consistent.

3 MODEL OF MODEL-BEING

Teaching computer science relies on the use of mod-

els. Generally speaking, models serve as conveyors

of knowledge shared by those who take an interest in

the facts of the matter being conveyed. It is argued

here that models appear constitutive as they form the

methodological basis of a science. But how do mod-

els do this? It turns out that what justiﬁes perceiving

something as a model provides an insightful answer,

because a model judgment to be justiﬁed through log-

ical reasoning allows that models are being consulted

as conveyors of knowledge. In the tradition of philos-

ophy, the the act of a model judgment is determined

by that which in a model judgment is being modeled,

the intentionality. It addresses the age-old question of

the relationship between the outside world and the hu-

man perception of it. Although it seems far-fetched,

intentionality is of crucial importance to modeling,

because any scientiﬁc statement can only be under-

stood as qualiﬁed networks of judgments about mod-

els in respect of their adequacy and intent (Mahr,

2009, p. 366). Mahr’s Model of Model-being sheds

light on what the judgment of model-being implies,

thereby equipping us with the understanding of what

it is that we do in systems development modeling.

Towards a Theory of Models in Systems Development Modeling

323

In this section, the role of models in systems de-

velopment is introduced in 3.1, followed by the dis-

cussion of the judgment of model-being in 3.2, and

concluding with the logic of models in 3.3.

3.1 Model-driven Systems Development

In the tradition of systems development, models ap-

pear constitutive in particular as they provide the

means to assert statements of possibility in theory and

in practice, for instance, when prototypes are being

developed as a proof of concept. This, broadly speak-

ing, corresponds to the notion of validity in model the-

ory, where certain propositions are considered valid

with regard to certain models. It seems that for any

kind of development, any constructive act toward a re-

alizing a goal, we need models to put our thoughts in

order and to reason in a certain direction. What this

reasoning entails is going to be discussed in 3.3. In

any case, the direction is naturally given through the

intent when developing something, as this connects

the factuality of the past experiences and the possibil-

ity of a future reality, both becoming accessible in the

present through models.

In the context of systems development, any seri-

ous activity is directed toward providing an answer to

the leading question: Does the system S comply with

the requirements for its application? (Mahr, 2009,

ibid.) An answer that addresses the future reality of

the system application fulﬁlling the requirements can

only be given using models, because models incor-

porate adequacy and intent referred to by the leading

question in systems development. For the activities

during the systems development, aimed at fulﬁlling

the requirements for its application, the future system

is accessible as a model only. In other words, the key

characteristic in the development of a system is that

the requirements to be complied with can only be for-

mulated in respect of models anticipating the scenar-

ios of the prospective system application. Even when

a system has been put into operation, the models still

remain models in respect of the system requirements.

As such, many models live on, so to speak, and form

the methodological basis of a science.

For complex systems to be developed, the process

of creating models in respect of fulﬁlling the system

requirements is oftentimes inaccurate. The crux lies

with a dilemma: Concluding from a necessarily ﬁnite

system description and from a necessarily ﬁnite num-

ber of application tests to a potentially inﬁnite future

system behavior is an uncertain inductive conclusion.

Furthermore, the context of the future system applica-

tion is oftentimes unknown. Not to put too ﬁne a point

on it, the problem can be aggravated through biased

or self-serving decision-making or questionable ex-

perience of the developers. Yet, inductive reasoning,

through its generalizing conclusion from premises of

particular incidents, has enormous potential and is

constitutive in the creation and application of models,

but it also has a potential to introduce errors as its con-

clusion cannot be formalized within a language rich

enough for the purposes at issue here—a dilemma

system developers should be aware of.

3.2 The Judgment of Model-being

A model judgment is indivisible, i.e., a subject de-

cides whether to perceive of an object as a model,

or conceive of it as a model consistent with Mahr’s

terminology (Mahr, 2010a). This judgment depends

on a subject’s conception of the object in a certain

context. Thus, Mahr distinguishes in the Model of

Model-being between the purely mental model µ and

the model object M by which µ is represented (rf. to

Figure 1). Now, the identity of an object as a model

depends on two constructive relationships, depicted

in Figure 1 horizontally, into which the model object

enters according to the conception of the judging sub-

ject: First, a model object is created via a constructive

act of production, selection, role assignment, abstrac-

tion, or mapping, on the basis of an initial object, for

instance, a prototype, a set of requirements, or some-

thing that is observed (Mahr, 2009, pp. 377/8). This

constructive act can be thought of or actually per-

formed, also through an act of speech when a role of

an object is assigned. Once the model object has been

created, the second constructive act of a model judg-

ment is the application of the model. As depicted in

Figure 1 from left to right, in the act of model creation

from an initial object A, the model object M is the re-

sulting object, whereas in the act of model application

to a resulting object B, the model object M is the ini-

tial object. Hence, a model µ can be viewed as both a

model of something and for something. This dual role

of M justiﬁes viewing it as a model µ, the perspective

of which is highlighted in red in Figure 1.

Through the application of the model, certain

qualities are transferred with which M is loaded in

its model capacity, so to speak. The cargo χ of the

model, which was worked into M, can be unloaded

through the model application, in Figure 1 highlighted

in blue. The identity of χ depends on M as well as

it depends on µ (Mahr, 2009, p. 378). The judging

subject has decided for M that it carries the cargo χ

adequately when serving as a model. Hence, one can

distinguish two modeling perspectives, the perspec-

tive of model creation µ and the perspective of model

application χ. Note that even when a model has not

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

324

cargo

model

carries

from

for

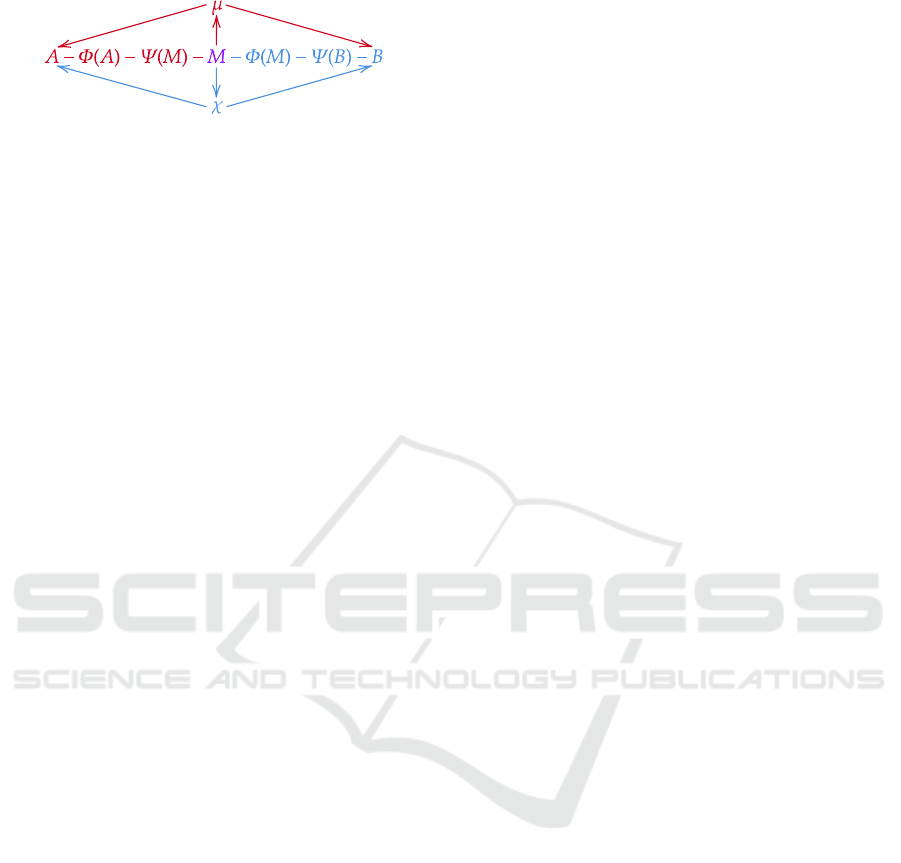

Figure 1: The logical structure of the constructive acts of

the model judgment: Deduction Φ, transformation, and in-

duction Ψ; adapted from (Mahr, 2009, pp. 383).

yet been applied, it can still be a model, because it has

been created with a certain model capacity intended to

be used in order to transfer certain qualities. This is

the case, because M has been created from the per-

spective of µ as a model of and for something. How-

ever, if it is logically impossible for an object M to be

applied, for instance, in case of contradictions, then it

cannot be judged a model in this conceptualization.

3.3 The Logic of Models

The two constructive acts in the judgment of model-

being can be characterized as follows. Both construc-

tive relationships, A−M and M−B, are similar in the

sense that whatever inﬂuence is exerted on a resulting

object, here M and B, must be identiﬁable in an ob-

servation on the initial objects, here A and M. In this

subsection, M and B are abbreviated by Y , and A and

M by X. Φ(X) refers to a set of valid assertions ob-

servable on X. Accordingly, whatever has emanated

from X exerting an inﬂuence on Y must be identiﬁ-

able in an observation on Y , henceforth called Ψ(Y ).

The model object M has the role of a mediator be-

tween the two constructive relationships. The set of

valid assertions Φ(X ) emerges from the initial object

X through an observation on X, the relationship of

which is denoted by X − Φ(X). The set of valid asser-

tions Ψ(Y) emerges from Φ(X) through a transforma-

tion, denoted by Φ(X ) − Ψ(Y). Ψ(Y ) can be under-

stood as requirements directed towards the resulting

object Y , which emerges through a realization of the

requirements Ψ(Y ) in Y , denoted by Ψ(Y ) − Y . In

Figure 1, the complete sequence of the two construc-

tive acts of model creation and application, A−M and

M−B, are instantiated as follows.

These constructive relationships, according to

which a resulting object emerges from an initial

object, can be described further by using abstract

logic (Beziau, 2005). A logical theory is a set of

propositions in a formal language that is closed un-

der the consequence relation. If the objects X and Y

are replaced by their theories Th(X ) and Th(Y ), i.e.,

by the sets of propositions valid in X and Y , resp.,

then Φ(X) ⊆ Th(X), and Ψ(Y ) ⊆ Th(Y ). Thus, the

object X and its theory Th(X) correlate in the sense

that within the scope of the logical language, noth-

ing else can be known about X than what is already

entailed in Th(X). The same holds true for Y and

Th(Y ). Hence, every observation in Φ(X) is a con-

sequence of Th(X) and valid in X, and every require-

ment in Ψ(Y) is a consequence of Th(Y ) and valid

in Y . Therefore, an interpretation of the relationship

X − Φ(X), in Figure 1 occurring as A − Φ(A) and

M−Φ(M), can be identiﬁed as a logical deduction.

Analogously, the realization Ψ(Y ) − Y , in Figure 1

occurring as Ψ(M)−M and Ψ(B)− B, is identiﬁable

as a logical induction. Hence, the logical structure

of the relationships between A−M and M−B, created

through two constructive acts, can be viewed as a se-

quence of an act of deduction comprehended as an

observation, a transformation, and an act of induction

comprehended as a realization, for each constructive

act. This is what is called the logic of models in this

context (rf. to (Mahr, 2009, pp. 380-385) for an ex-

tensive discussion).

By this notion of a logic of models, a double se-

quence of two constructive acts is inherent in the pro-

cess of modeling. Obviously, this is a powerful con-

cept, because an intermediate constructive act of a

model creation facilitates the exploration of possibil-

ities, the conception of scenarios of future applica-

tions, and the demonstration of a possible solution to

be implemented. Earlier in this section, it is referred

to this as activities during the systems development

aimed at fulﬁlling the requirements for its applica-

tion where the future system is accessible as a model

only. An intermediate constructive act of a model cre-

ation also makes decisions in the development process

comprehensible, the outcomes of which predictable

and defendable as decisions are based on judgments

about models in respect of their adequacy and intent.

In this sense, Mahr’s Model of Model-being, as a gen-

eral model, serves as a condition of correctness justi-

fying a model judgment. (Mahr, 2009, p. 385). This

can be extended to justify decision-making in the de-

velopment process, where decisions, that are based on

justiﬁed model judgments, are themselves justiﬁed,

which is currently being researched by the author.

In order to motivate the following Section 4,

imagine that there is a shortcut possible from ob-

servations on A, that is from Φ(A), to requirements

on B, that is to Ψ(B). A shortcut seems feasi-

ble if B is realized from A in one constructive act,

but all the complexity usually carried by a model

cargo would have to be worked into the transforma-

tion from Φ(A) to Ψ(B). Though not impossible,

it seems much more plausible that models would be

present implicitly facilitating this transformation so

Towards a Theory of Models in Systems Development Modeling

325

that the complexity of Φ(A)−Ψ(B) is manageable.

Then, this transformation step would integrate a trans-

formation model in the development process, i.e.,

Φ(A) − Ψ(M)−M−Φ(M) − Ψ(B). Thereby, it would

be reconstructed what modeling is about: It makes the

reﬂective and anticipating activities more manageable

and provides the possibility to formulate the observa-

tions and requirements in a common language. The

implicit modeling would be made explicit. The ex-

plicitness of the model judgment allows an indepen-

dent consultancy of the model from the perspective of

χ thereby facilitating a validation of the model judg-

ment in terms of its condition of correctness. Now,

imagine further, that models are being created and

applied at different levels of abstraction. Modeling

at different levels of granularity, thereby creating a

structure of constructive relationships, seems not fea-

sible but rather prone to errors. While implicit rou-

tine modeling may be conceivable with regard to the

usual canon of models, which is commonly taught in

computer science, however, a discussion of the com-

binatorics of the model interrelationships sheds light

on what happens at different levels of abstraction in

case that it is not routine.

4 INFORMATICS OF MODELS

In order to fully understand how models are used

in systems development, the combinatorics of what

Mahr hinted at by the interweavements of model in-

terrelationships is discussed in this section. As ex-

plained, models appear constitutive as they form the

methodological basis of a science. Based on this, the

informatics of models can be viewed as the method-

ological practice of interweaving canonical models as

used in the development of software systems. Hav-

ing realized what a judgment of model-being implies,

the potential of the informatics of models now lies in

a realization of the epistemic architecture of the con-

structive relationships which emerges as a systematic

interweavement of relations to other models at object

and meta levels (Mahr, 2009, p. 397). The applica-

tion of one model is then embedded in a systematic

process of applying a range of models on all levels

during the systems development.

The interweavement of model interrelationships

can come about in three ways, that is the composition

and superimposition of models, and the application

of meta models. An analysis of the combinatorics of

model interweavements is presented here for the ﬁrst

time. The inﬂuences of the combinatorics of model

interweavements on decision-making is currently be-

ing researched by the author. In the following, the

three possibilities of interweavements of model inter-

relationships are discussed, the composition of mod-

els in 4.1, the superimposition of models in 4.2, and

the application of meta models in 4.3.

4.1 The Composition of Models

The composition of models represents the linear de-

velopment and can be distinguished into two cases

depending on whether the constructive relationships

of the involved models overlap or not. In the latter

case, the resulting object of a model application is, in

turn, the initial object of a model creation, which is

depicted as Case 1 of Figure 2. This combination is

referred to here as complete model composition and

can be viewed as generic development process. If the

system to be developed is particularly complex, then

many consecutive steps of this process may be nec-

essary to ﬁnally implement a system in its production

setting. Some of steps can be intermediate models

serving as auxiliary models. In an evaluation pro-

cess, an auxiliary model could represent the changes

to be made in order to improve the preceding model in

this development. One example of such a normative-

actual comparison in software engineering is the sys-

tem analysis.

In Case 2 of Figure 2, the application of one model

and creation of a subsequent model overlap, which

is possible because their constructive acts match in

terms of their deduction, transformation, and induc-

tion. Note that the result of a model application is

again a model. The transformation Φ(M

) − Ψ(M

i+1

)

here is a process converting observations of one

model object to requirements of another model object.

Precisely, it transforms the set of assertions Φ(M

)

valid in M

to the set of assertions Ψ(M

i+1

) valid

in M

i+1

. In a transformation, the expressiveness of

Ψ(M

i+1

) remains the same or becomes more or less

expressive, consistent with the claim of universality

of the Model of Model-being. Note that neither set is

required to be closed under the consequence relation

since this is not required of Φ or Ψ in general. The

case is canonical when M

i+1

is a better model (bet-

ter in respect of the conception µ

i+1

) compared to M

but despite the transformation M

is still recognized as

predecessor of M

i+1

The overlapping model composition can come

about by two motivations: First, the application of

is intended to be used in the constructive process

of creating another model M

i+1

. Here, applying M

facilitates creating M

i+1

. The observations made on

the preceding model object are the observations on

the initial object of a model creation. The preceding

model’s cargo allows such usage or even intended the

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

326

Case 1:

Case 2: Model Development

Generic Development

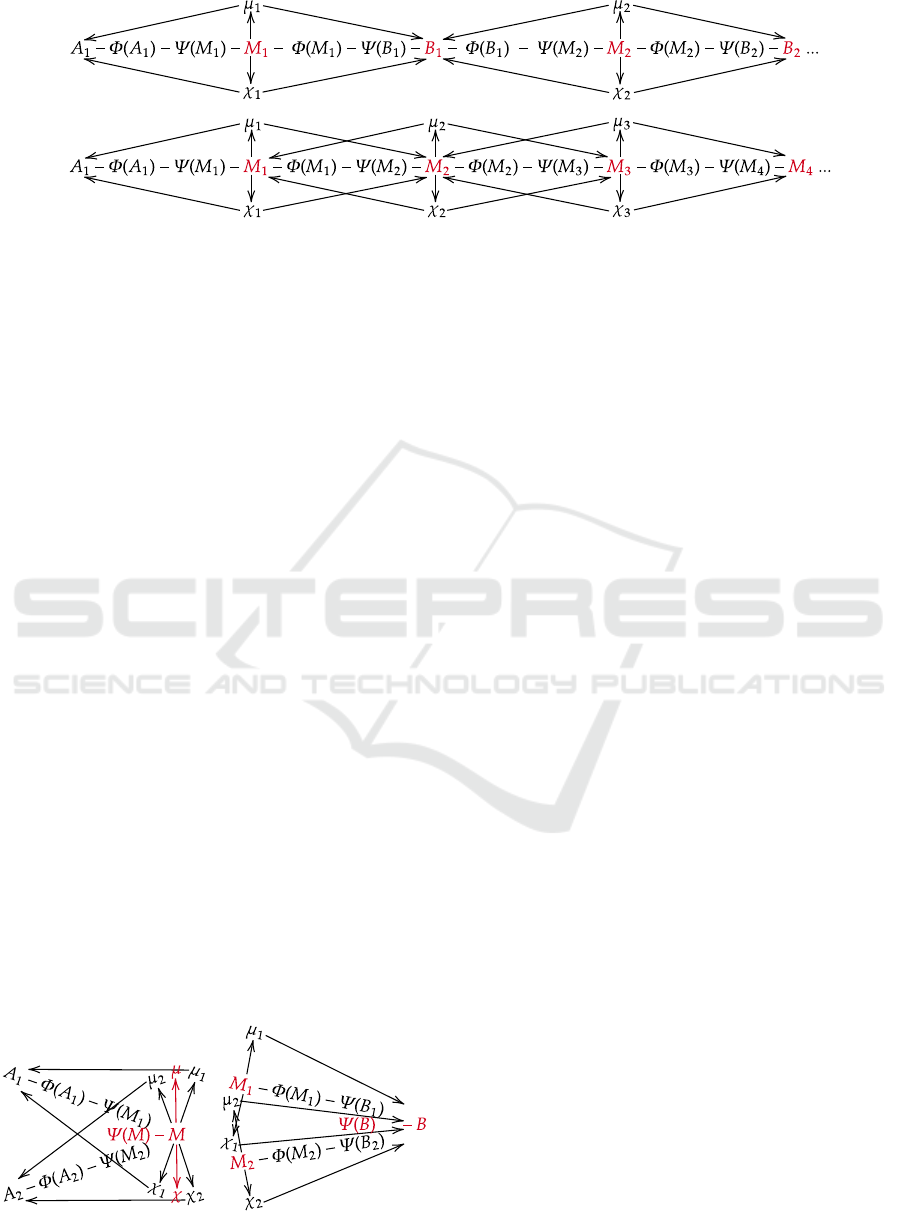

Figure 2: Complete and Overlapping Model Composition: Generic Development and Model Development.

usage of applying the model to result in a succeed-

ing model. Another motivation could be that M

i+1

an improvement on M

, where M

is the precursor of

i+1

. Epistemically, though, this can both be viewed

as model development. The ambivalence to view M

as a facilitator for and a precursor of M

i+1

also ap-

plies to the complete model composition, where the

applicate B

is the initial object in the creation of a

subsequent model object M

i+1

For instance, Case 2 allows these interpretations:

Recursion as such could be viewed as model devel-

opment, where M

i+1

is the model that emerges from

one step of a recursive application process prescribed

in M

. This recursive application process continues

until the last model M

is reached when the termina-

tion condition applies and the recursion ends with the

applicate B

, the result of a recursively applied func-

tion deﬁned in M

. A second, degenerated form of

modeling would be stagnation, where the transforma-

tion of Φ(M

) − Ψ(M

i+1

) is an isomorphism so that

would equal M

i+1

in so far that no cargo would be

gained except for a potential renaming.

4.2 The Superimposition of Models

Two cases of the superimposition of constructive rela-

tionships can be distinguished depending on how the

constructive relationships overlap. In Case 1 of Fig-

ure 3, a model object is the resulting object of two (or

more) model creations. This can happen during a con-

structive act when an integration process takes place

Case 1: Superimposed Creation

Case 2: Superimposed

Application

Figure 3: Model Creation and Application Superimposition.

of different observations, Φ(A

) on A

and Φ(A

) on

. Instead of being transformed to different sets

of requirements for different models, they are trans-

formed to the set of valid assertions Ψ(M) which shall

be observable of M, i.e., to the requirements Ψ(M) for

the integrated model object M. This transformation

has to be consistent, which means that contradictory

requirements have to be resolved during the transfor-

mation so that the set of valid assertions Ψ(M) can be

realized into M. Accordingly, the modeling perspec-

tives µ

and χ

both change to be model and cargo of

an integrated M, implying integrated model perspec-

tive µ and integrated cargo χ.

Integration can also occur as a superimposed ap-

plication, as depicted in Case 2 of Figure 3, when

an applicate B is the resulting object of two (or

more) model applications. In this case, the integra-

tion comes about as transformation when two differ-

ent sets of observations Φ(M

) and Φ(M

) are trans-

formed to that which shall be observable of B, the

integrated requirements Ψ(B). This transformation

has to be consistent as well, which means that con-

tradictory observations on the model objects Φ(M

)

and Φ(M

) have to be resolved during or after the

transformation so that the set of transformed and inte-

grated valid assertions Ψ(B) can be realized into B. If

the models M

and M

are already mutually consistent

submodels of M, then the integration M is straightfor-

ward and has probably been anticipated. Therefore,

the two forms of model superimposition are both in-

terpretable as integration processes.

4.3 The Application of Meta Models

A meta model is a model whose resulting object of

its application is an element of at least one of the

two constructive relationships. This can occur in two

forms depending on whether the resulting object of a

meta model application is an object of the construc-

tive relationships (Case 1 of Figure 4) or whether it is

used during a transition from one object to the subse-

quent object (Case 2). Case 1 appears constitutive in

Towards a Theory of Models in Systems Development Modeling

327

Constitutive Meta Models

Constructive Meta Models

Transformation

Deduction Induction

Transformation

Deduction Induction

Creation

Application

Case 1:

Case 2:

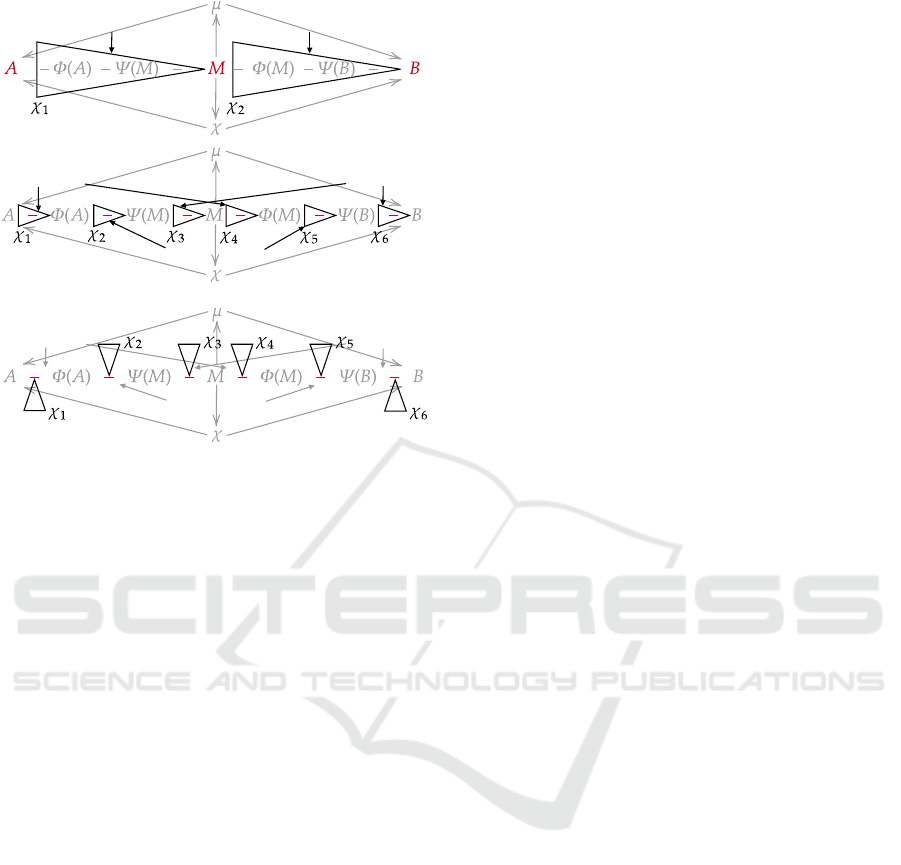

Figure 4: Applications of Meta Models.

nature, i.e., this kind of meta model is necessarily ap-

plied during modeling. Two subcases of Case 1 can

be distinguished: First, as such, model creation and

application themselves are constitutive meta models

for the construction of models, because their appli-

cations result in the ﬁnal objects of the constructive

relationships M and B. Second, the meta models rep-

resenting notions of deductive and inductive reason-

ing as well as a notion of transformation make the

creation and application of models possible, in which

they appear as meta models. Here, the resulting ob-

ject of the application of this constitutive meta model

coincides with an object of the model construction in

three ways: (1.) It coincides with the result Φ(A) of

the observation on A or the result Φ(M) of the obser-

vation on M both via deductions unloading the car-

goes χ

and χ

, resp. (2.) It coincides with the result

of the realization M of the requirements Ψ(M) or the

result of the realization B of the requirements Ψ(B)

via inductions (χ

and χ

), or (3.) with the results of

the transformations into Ψ(M) or Ψ(B) (χ

and χ

As depicted in Case 2 of Figure 4, meta mod-

els are used during a transition from one object to

the subsequent object of the constructive relation-

ships. These meta model applications are construc-

tive in nature, i.e., applying these meta models con-

tributes their cargoes during the application of consti-

tutive meta models as explained above. The model of

reference (highlighted in gray in Figure 4) then gains

the weights of the cargoes χ

in the respective parts of

the constructive relationships. For instance, the cargo

of the meta model χ

is contributed during the deduc-

tive reasoning observing A and leading to Φ(A) while

deducing assertions valid in A. In general, the result-

ing objects of the applications of constructive meta

models coincide with the observation A − Φ(A) on A

or the observation M − Φ(M) on M, the transforma-

tions Φ(A) − Ψ(M) or Φ(M) − Ψ(B), or the realiza-

tion Ψ(M) − M of the model object M or the real-

ization Ψ(B) − B of the applicate B. Consequently,

in the creation and application of the model of refer-

ence, multiple meta models can be applied and thus

contribute to the cargo χ of the model of reference.

5 CONCLUSION

Decision-making during the development of a soft-

ware system can only be justiﬁed along the lines of

judgments about models. The pivotal element of rea-

soning and justiﬁcation of all perspectives taken is al-

ways their recourse to models, because models incor-

porate adequacy and intent through the typical con-

textual constructive relationships. With the presented

conceptualization all aspects of systems development

can be discussed in a common language and with the

same underlying notion of models. Systems devel-

opment can then be assessed by the way models are

created, applied, and interwoven, and whether these

model judgments are justiﬁed.

Taking up the discussion in the introduction on the

usage of agile practices, the justiﬁcation of which can

be assessed based on the adequacy and intent of the

involved models, whose detailed analysis is beyond

the scope of this article. However, consider some

other examples when model judgments are not jus-

tiﬁed due to lacking model adequacy: First published

in 1975, Brooks et al. had already recognized that de-

cision biases are quite common in software engineer-

ing (Brooks, 1975). They proved that initial inquiries

are often based on inadequate information and that

requirements emerge when prototypes are already de-

veloped, a classical case of disregarding the construc-

tive relationships of modeling. Cross et al. coined the

notion of the solution-ﬁrst bias stating the tendency of

designers to prematurely decide on a prototypical so-

lution, before having fully grasped the problem, and

to use this premature solution to explore the problem

further (Cross, 2001). What he calls ﬁxation in design

ﬁts into Nobel laureate Kahneman’s notion of cogni-

tive ease, the reason for the manifold biases in human

decision-making (Kahneman and Tversky, 2000).

In the context of systems development, any seri-

ous activity is directed toward creating a system that

complies with the requirements for its application.

The future reality of a system application can only

MODELSWARD 2021 - 9th International Conference on Model-Driven Engineering and Software Development

328

be addressed using models, because models incorpo-

rate adequacy and intent referred to by the compliance

of the requirements for the application of the system.

Such a conceptualization has been introduced in this

article. The above discussions constitute the potential

of the informatics of models realizing the epistemic

architecture of the constructive relationships which

emerges as a systematic structure of relations between

models at object and meta levels. The application of

one model is then embedded in a systematic process

of applying a range of models on various abstraction

levels during the systems development. Then sys-

tems development modeling form a methodological

basis and practice in respect of all abstraction levels

throughout the informatics of models. Models, that

have become canonical in this process, serve as con-

veyors of knowledge and systematize it into different

levels of abstraction. With such a general method-

ological conceptualization based on the same under-

lying notion of a model a wide variety of topics can

be discussed related to systems development, such as

its best practices, business process modeling, the in-

tegration of multiple views in management systems,

adequate or biased decision-making, or the conceptu-

alization of fairness in machine learning.

ACKNOWLEDGEMENTS

This work has been funded by the German

Research Foundation/Deutsche Forschungsgemein-

schaft (DFG) – grant 385808805.

The author would like to thank Klaus Robering for

constructive criticism of the manuscript.

REFERENCES

Beziau, J.-Y. (2005). From Consequence Operator to Uni-

versal Logic: A Survey of General Abstract Logic. In

Logica Universalis. Birkh

auser, Basel.

Boronat, A., Knapp, A., Meseguer, J., and Wirsing, M.

(2009). What Is a Multi-modeling Language? In

Proc. WADT’16, volume 10644 of LNTCS, pages 71–

87. Springer, Berlin.

Brooks, F. (1975). The Mythical Man-Month: Essays on

Software Engin. Addison-Wesley, Boston.

Burge, J. E., Carroll, J. M., McCall, R., and Mistrik,

I. (2008). Rationale-Based Software Engineering.

Springer, Berlin.

Cross, N. (2001). Design Cognition: Results from Protocol

and other Empirical Studies of Design Activity. In De-

sign Knowing and Learning, pages 79–103. Elsevier,

Oxford.

Dingsyr, T., Dyb, T., and Moe, N. B. (2010). Agile Soft-

ware Development: Current Research and Future Di-

rections. Springer, Berlin.

Kahneman, D. and Tversky, A. (2000). Choices, Values,

and Frames. Cambridge University Press.

Kralemann, B. and Lattmann, C. (2013). The Semantics of

Models: A Semiotic Philosophy of Science Approach.

In Proc. SDKB’13, volume 4925 of LNCS, pages 50–

69. Springer, Berlin.

Macarthy, R. W. and Bass, J. M. (2020). An Empirical Tax-

onomy of DevOps in Practice. In Proc. Euromicro

SEAA’20, pages 221–228.

Mahr, B. (2009). Information Science and the Logic of

Models. J. SoSyM, 8(3):365–383.

Mahr, B. (2010a). Intentionality and Modeling of Concep-

tion, pages 61–87. Logos Verlag, Berlin.

Mahr, B. (2010b). On Judgements and Propositions. ECE-

ASST, volume 26.

Mahr, B. (2010c). Position Statement: Models in Software

and Systems Developm. ECEASST, 30.

Mahr, B. (2015). Modelle und ihre Befragbarkeit. Grundla-

gen einer allgemeinen Modelltheorie. Erw

agen Wis-

sen Ethik, volume 26.

Mohanani, R., Salman, I., Turhan, B., Rodr

ıguez, P., and

Ralph, P. (2020). Cognitive Biases in Software Engi-

neering: A Systematic Mapping Study. J. TSE (IEEE),

46(12):1318–1339.

Pantiuchina, J., Mondini, M., Khanna, D., Wang, X., and

Abrahamsson, P. (2017). Are Software Startups Ap-

plying Agile Practices? In Proc. XP’17, volume 283

of LNBIP, pages 167–183. Springer.

Pastor, O. and Ruiz, M. (2018). From Requirements to

Code: A Conceptual Model-based Approach for Au-

tomating the Software Production Process. EMISAJ,

13(Special):274–280.

Robering, K., editor (2020). Schriften zur Modellforschung.

To be published.

Stray, V., Hoda, R., Paasivaara, M., and Kruchten, P., editors

(2020). Proc. XP’20, volume 383 of LNBIP. Springer,

Berlin.

Thalheim, B. (2010). Towards a theory of conceptual mod-

elling. J. UCS, 16(20):3102–3137.

Thalheim, B. (2011). The Theory of Conceptual Models,

the Theory of Conceptual Modelling and Foundations

of Conceptual Modelling, pages 543–577. Springer,

Berlin.

Thalheim, B. (2013). The Conception of the Model. In

Proc. BIS’13, volume 157 of LNBIP, pages 113–124.

Springer, Berlin.

Towards a Theory of Models in Systems Development Modeling

329
