Automated Assessment with Multiple-choice Questions using Weighted

Answers

Francisco de Assis Zampirolli

a,∗

, Val

erio Ramos Batista

, Carla Rodriguez

Rafaela Vilela da Rocha

and Denise Goya

Centro de Matem

atica, Computac¸

ao e Cognic¸

ao, Universidade Federal do ABC (UFABC),

09210-580, Santo Andr

e, SP, Brazil

Keywords:

Automated Assessment, Multiple Choice Questions, Parametrized Quizzes.

Abstract:

A resource that has been used increasingly in order to assess people is the evaluation through multiple-choice

questions. However, in many cases some test alternatives are wrong just because of a detail and scoring

nought for them can be counter-pedagogical. Because of that, we propose an adaptation of the open-source

system MCTest, which considers weighted test alternatives. The automatic correction is carried out by a

spreadsheet that stores the students’ responses and compares them with the individual answer keys of the

corresponding test issues. Applicable to exams either in hardcopy or online, this study was validated to a

total of 607 students from three different courses: Networks & Communications, Nature of Information, and

Compilers.

1 INTRODUCTION

In the case of multiple-choice questions, it is ex-

pected that teachers and professors engage in extra en-

deavour to elaborate ones that fairly assess their stu-

dents’ competencies and skills. There are widely ac-

cepted methods to evaluate and classify a large num-

ber of candidates, for instance the Item Response The-

ory (Aybek and Demirtasli, 2017). As an example, let

us consider the Brazilian National High School Exam

(ENEM), elaborated by Instituto Nacional de Estu-

dos e Pesquisas Educacionais An

ısio Teixeira (INEP).

In January 2021 ENEM had almost 5.8 million stu-

dents enrolled for the classroom tests, but the absence

rate was 55.3% mostly due to the Coronavirus pan-

demic. The reader can see enem.inep.gov.br for de-

tails, but here we highlight that for the ﬁrst time ap-

plicants could sit this exam online in some venues.

This was possible for 93,079 of the candidates but

precisely they contributed 70% to absence. Anyway,

INEP foresees that 100% of the tests will be online al-

https://orcid.org/0000-0002-7707-1793

https://orcid.org/0000-0002-8761-2450

https://orcid.org/0000-0002-1522-3130

https://orcid.org/0000-0003-4573-3016

https://orcid.org/0000-0003-0852-6456

∗

Grant #2018/23561–1, S

ao Paulo Research Founda-

tion (FAPESP).

ready in 2026. In fact, it is following the same trend of

many others, e.g. the TOEFL language exam, which

is now online (ets.org), and such a trend boosts more

sophisticated studies devoted to the elaboration of ap-

plicable questions.

In (Burton, 2001) the author presents a study on

improvements for the reliability of multiple-choice

questions through deterring examinees from just

guessing the right answer. The paper states that pure

guessing can be discouraged by fractional marks at-

tributed to wrong answers, namely ‘negative mark-

ing’ or ‘penalty scoring’. However, the ﬁnal perfor-

mance can be damaged by the examinee’s uncertainty

in case they have solved a question just partially. The

very author cites some works that debate such penal-

ties, but he focuses on achieving percentage values

of unreliability of a test by studying three scenarios:

Q, where the only random element is the drawing

of some items from Question Banks (QB) in which

scope and difﬁculty are equally levelled, and the ﬁnal

mark is exactly the number of correct answers; G, in

which the only random element is the drawing of the

alternatives; QG, which uses both random elements.

All questions must be answered. For Q and QG one

must have QB with at least ﬁve times the number of

questions in the exam. In his model, the author con-

siders an exam with sixty questions and four alterna-

tives per question. By taking the average knowledge

254

Zampirolli, F., Batista, V., Rodriguez, C., Vilela da Rocha, R. and Goya, D.

Automated Assessment with Multiple-choice Questions using Weighted Answers.

DOI: 10.5220/0010338002540261

In Proceedings of the 13th International Conference on Computer Supported Education (CSEDU 2021) - Volume 1, pages 254-261

ISBN: 978-989-758-502-9

of 50% the mean scores in cases Q, G and QG were

30, 37.5 and 37.5, respectively. He concludes that a

60-question four-choice test is rather unreliable, and

one of the main reasons is that G and QG allow guess-

ing, which is not the case of Q.

The authors in (Oliveira Neto and Nascimento,

2012) adapted the Learning Management System

(LMS) Moodle to make formative assessment during

the teaching-learning process with high quality feed-

back for a distance learning course of 40h per week

in Mathematical Finance. These evaluations can bet-

ter direct the student’s performance if the feedback

is quick and precise at pointing out their difﬁculties.

Moreover, the feedback can guide the teacher about

the adopted teaching process, and so the students’

understanding can be reinforced regarding some top-

ics that have not been assimilated yet. By analysing

the students’ answers in previous classes, the authors

have improved the QB with additional rules to tests,

error messages and links to either theoretical topics or

extra exercises.

In the elaboration of multiple-choice questions, it

is also important to consider suitable wrong options

among the alternatives, also called distractors. Un-

suitable distractors enable the examinee to guess the

correct answer by discard, as discussed in (Moser

et al., 2012), where the authors present a text pro-

cessing algorithm for automatic selection of distrac-

tors. A more recent work is (Susanti et al., 2018),

but devoted to automatic production of distractors for

the English vocabulary. In (Ali and Ruit, 2015) the

authors present an empirical study on ﬂawed alterna-

tives and low distractor functioning. They conclude

that removal or replacement of such defective distrac-

tors, together with increasing the cognitive level, im-

prove detection of high- and low-ability examinees.

Our present work introduces an automatic gen-

erator and corrector devoted to exams that consist

of multiple-choice questions with weighted alter-

natives. It is adapted from the open-source sys-

tem MCTest available on GitHub. For such exams

MCTest stores the correction in a CSV-ﬁle and emails

it to the professor. This ﬁle contains each student’s

responses compared with the individual answer key

of the exam issue received by that student. Common

programs like Excel and LibreOfﬁce open the ﬁle in a

spreadsheet with built-in formulas that give each stu-

dent’s ﬁnal mark according to the weights, as we shall

detail in this paper.

As a related work we cite (Presedo et al., 2015),

in which the authors use Moodle to create multiple-

choice questions with weighted alternatives. Their

system also enables the user to give an exam in hard-

copy but with neither the student’s id nor variations

of the exam. Moreover, it requires the plugin Ofﬂine

Quiz (moodle.org/plugins/mod ofﬂinequiz). Moodle

enables Calculated question type, that we call para-

metric question in MCTest, in which the statement

and the alternatives accept wildcards but in Moodle

only for simple mathematical operations. By contrast,

MCTest enables nominal exams, numerous variations

and wildcards that accept complex formulas written in

Python and its libraries. Details on parametric ques-

tions with MCTest can be found in (Zampirolli et al.,

2021; Zampirolli et al., 2020; Zampirolli et al., 2019).

The paper is organized as follows. Section 2 de-

scribes the adapted MCTest for an automated assess-

ment with multiple-choice questions using weighted

answers; Section 3 shows the obtained results and dis-

cusses them; ﬁnally, Section 4 presents our main con-

clusions and opportunities for future work.

2 USING ADAPTED MCTest:

MATERIALS AND STEPS

This work applies the open-source Information and

Communication Technology (ICT) MCTest available

on GitHub (https://github.com/fzampirolli/mctest).

We have implemented MCTest in order to enable

weighting answers of multiple-choice questions. In

this section, we explain how to create exams that in-

clude such questions with weighted answers.

2.1 Creating Multiple-choice Questions

After downloading MCTest from GitHub, the sys-

tem administrator must install it on a server. Be-

fore creating a question, they have to include Insti-

tution, Course, Discipline and also associate a pro-

fessor as Discipline Coordinator. This one can cre-

ate discipline Topics and also add more professors.

See vision.ufabc.edu.br for details. Afterwards, any

of them can add a Class and also questions asso-

ciated to a Topic thereof. An example would be

setting [ED]<template-figure> at Choose Topic

in Figure 1. Namely, this topic belongs to a dis-

cipline called ED, a mnemonic to Example Disci-

pline. In that ﬁgure we have Short Description:

template-fig-tiger-en, which is optional but

makes it easier to locate questions in Question Banks

(QB), as we shall explain in Subsection 2.2. The ﬁeld

Group is also optional for the user to deﬁne a group

of questions, so that in each exam MCTest will always

draw only one question from that group. The most rel-

evant ﬁeld is Description, where we can insert para-

graphs in L

X and also combine them with a Python

code, as explained later in another example.

Automated Assessment with Multiple-choice Questions using Weighted Answers

255

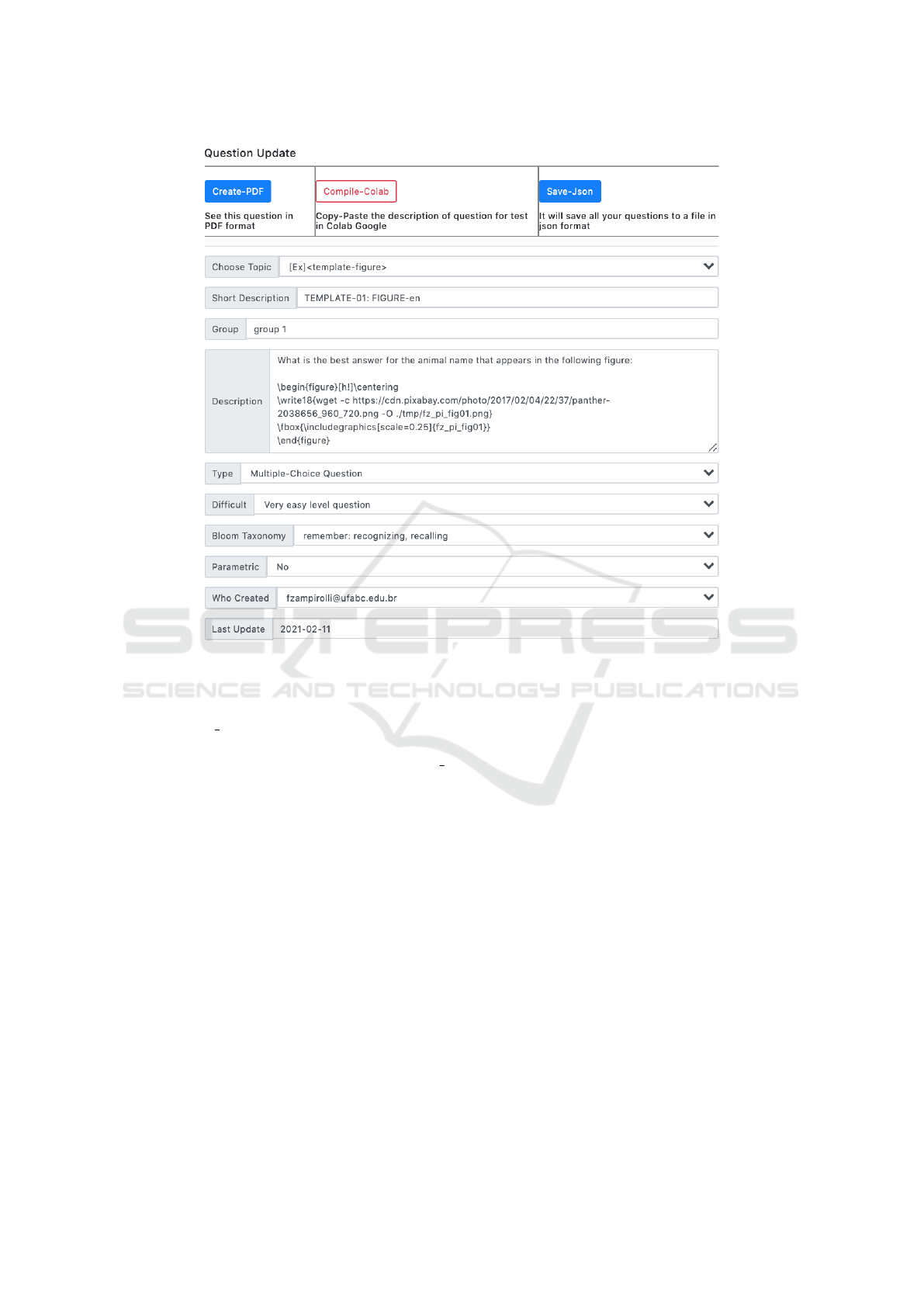

Figure 1: Cutout of the MCTest subpage to create/update a question. In this ﬁrst step we describe the statement and optionally

some parameters.

Notice that in Figure 1 we are invoking a graphic,

namely mctest fig01.png available at shorturl.at/

opFM5. This image was stored in a server where

MCTest is installed, and we use the path ./tmp/mctest

ﬁg01.png to retrieve it with the following command:

\write18{wget -c shorturl.at/opFM5 -O

./tmp/mctest_fig01.png}

The L

X compiler retrieves this image and includes

it in the question.

In Figure 1 one sees Type: Multiple-Choice

Question (QM), which could be toggled to

Dissertation Question (QT) in case of written

response, for instance if the student must write a

program code. In the ﬁeld Difficult the user must

choose one among ﬁve levels of difﬁculty to that

question, whereas Bloom Taxonomy is optional, but

has six levels (Krathwohl et al., 1956; Anderson and

Krathwohl, 2001). As default the ﬁeld Parametric

is toggled to No, but if the user changes it to Yes they

will be able to deﬁne wildcards to which MCTest can

attribute values either at random or as a result of

a mathematical operation (Zampirolli et al., 2019).

Finally, we have the self-explanatory ﬁelds Who

Created and Last Update, which are optional.

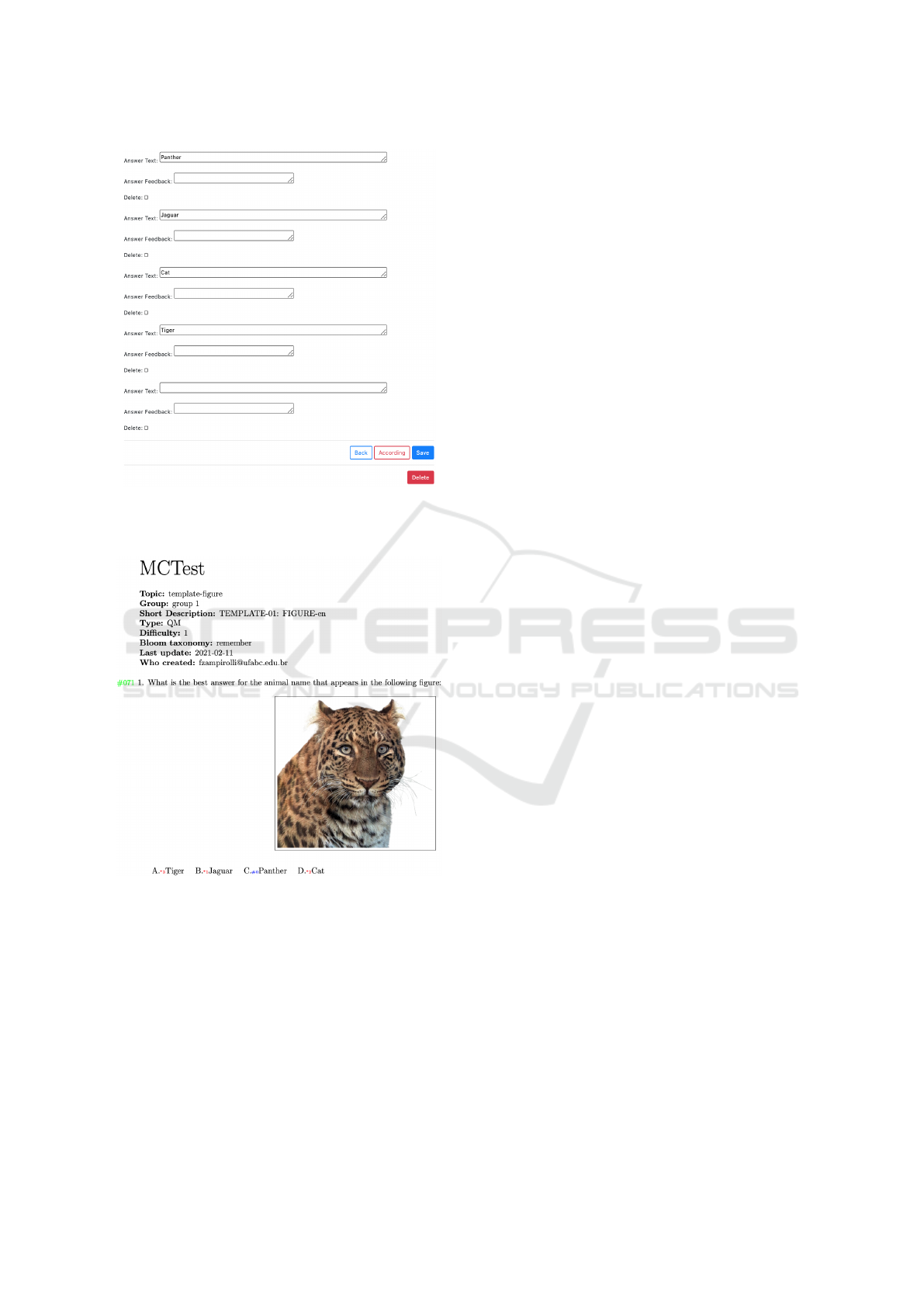

Figure 2 complements MCTest’s subpage of up-

dating a question. There we see the ﬁelds of an-

swers and optionally feedback. New answers can be

included right after ﬁlling out the last ﬁeld Answer

Text and clicking on Submit. Already existing an-

swers can be marked with Delete, and they will be

discarded with Submit. MCTest draws a random or-

der for the alternatives each time it produces an issue.

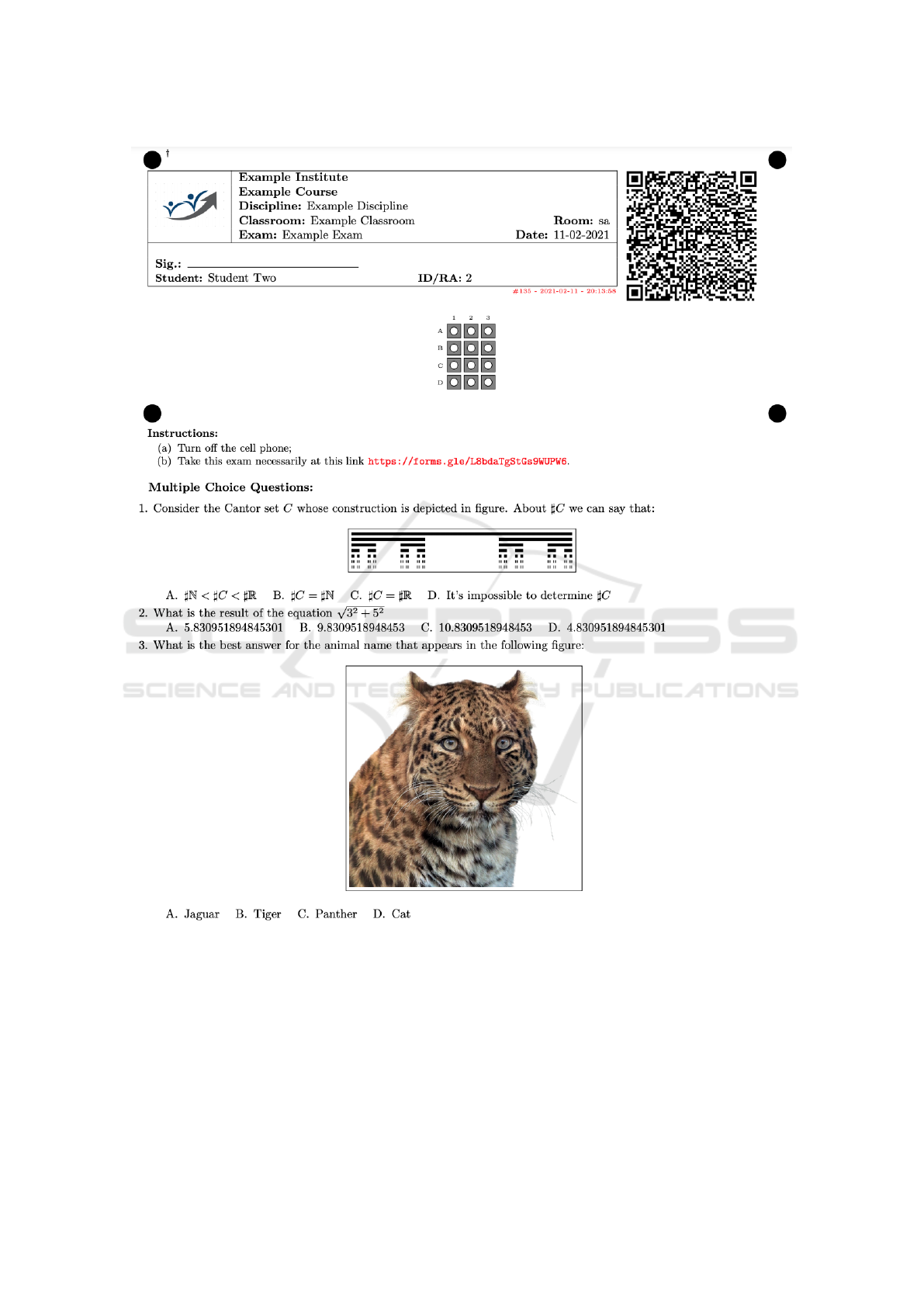

See the red and blue numbers after the symbol # in

Figure 3. But in Figure 2 the user must always put the

correct answer in the ﬁrst ﬁeld.

The answers in Figure 2 can be weighted accord-

ing to what the professor considers from 0% to 100%

correct. This process will be detailed in Section 3, but

here we already mention that values outside the inter-

val [0, 100] are possible, for instance negative weights

that penalize wrong answers. However, we only know

this choice in case of competitions for a job opportu-

nity, a prize, etc. Since teaching is the main objec-

tive of an educational institution, then we have never

applied negative weights, as corroborated in (Burton,

2001).

CSEDU 2021 - 13th International Conference on Computer Supported Education

256

Figure 2: Cutout of the MCTest subpage to create/update a

question. In this second step the user writes each answer

and decides on its feedback.

Figure 3: Cutout of MCTest to visualize the layout of a ques-

tion after clicking on Create-PDF (see Figure 1). The green

number is the question ID in the QB, and here the right

answer is C (located with #0). This and the red numbers

give the order in which MCTest drew the answers. Invoking

again Create-PDF will result in another random order of

the answers.

2.2 Creating Exams

Once the user has made or updated QB according

to the steps explained in Subsection 2.1, next they

can create an exam by choosing classes and ques-

tions. Figure 4 shows MCTest’s subpage Exam for

this purpose. There one must ﬁll out Name of the

exam and Choose Classrooms to apply it. In order

to choose questions the user can resort to a search-

ing interface. As an example, in the ﬁeld Search:

we included the token “-en” to see all the questions

that have it in their description. Here the ﬁeld Par.

was toggled to sort them by showing ﬁrst the non-

parametric questions. We also have the option to cre-

ate PDF, similarly to our explanation of Figure 1,

but here MCTest will show the whole exam as de-

picted in Figure 5. In this ﬁgure one sees other ques-

tions drawn by MCTest and the third one is paramet-

ric, described as template-sum matrix-en. The

correct answer is computed by a Python code that

goes together with the L

X statement, but located

between [[code: and ]] for MCTest to compile

them correctly. The right answer is computed with

[[code:0+1+2+3+1+2+3+4+2+3+4+5]]. See vision.

ufabc.edu.br for details about combining L

X and

Python for parametric questions and for creating ex-

ams.

The professor gets a PDF, like in Figure 5, and

can also print it if approved. As a matter of fact, the

PDF has many pages that reproduce what we show in

Figure 5, but each page has a different order of the

questions and of their respective answers. Of course,

these are the different issues, one for each student,

who will have to ﬁll out the answer card of the exam

header shown in Figure 5. Afterwards, the professor

must digitize all exam ﬁrst pages into a single PDF

and send it to MCTest by clicking on Upload-PDF of

the Exam subpage. Then MCTest will email a CSV-

ﬁle to the professor. This ﬁle contains the correction

of each exam, as we shall explain in Section 3.

If students are allowed to sit the exam online, then

instead of printing the PDF the professor can email

it to them. Of course, each student will receive only

their corresponding issue, not the whole PDF. In this

case each one must ﬁll out an online form, and the au-

tomatic correction will happen similarly, as we shall

explain in Section 3. Also, in this case, MCTest emails

the aforementioned CSV-ﬁle to the professor.

3 EXPERIENCE REPORT:

METHOD, RESULTS AND

DISCUSSION

MCTest has been used by professors at our institution

since 2011. Earlier versions of MCTest did not work

with weighted alternatives, which were ﬁrst incorpo-

rated by the system in 2017. In this paper, we present

an experience report of a professor that started using

Automated Assessment with Multiple-choice Questions using Weighted Answers

257

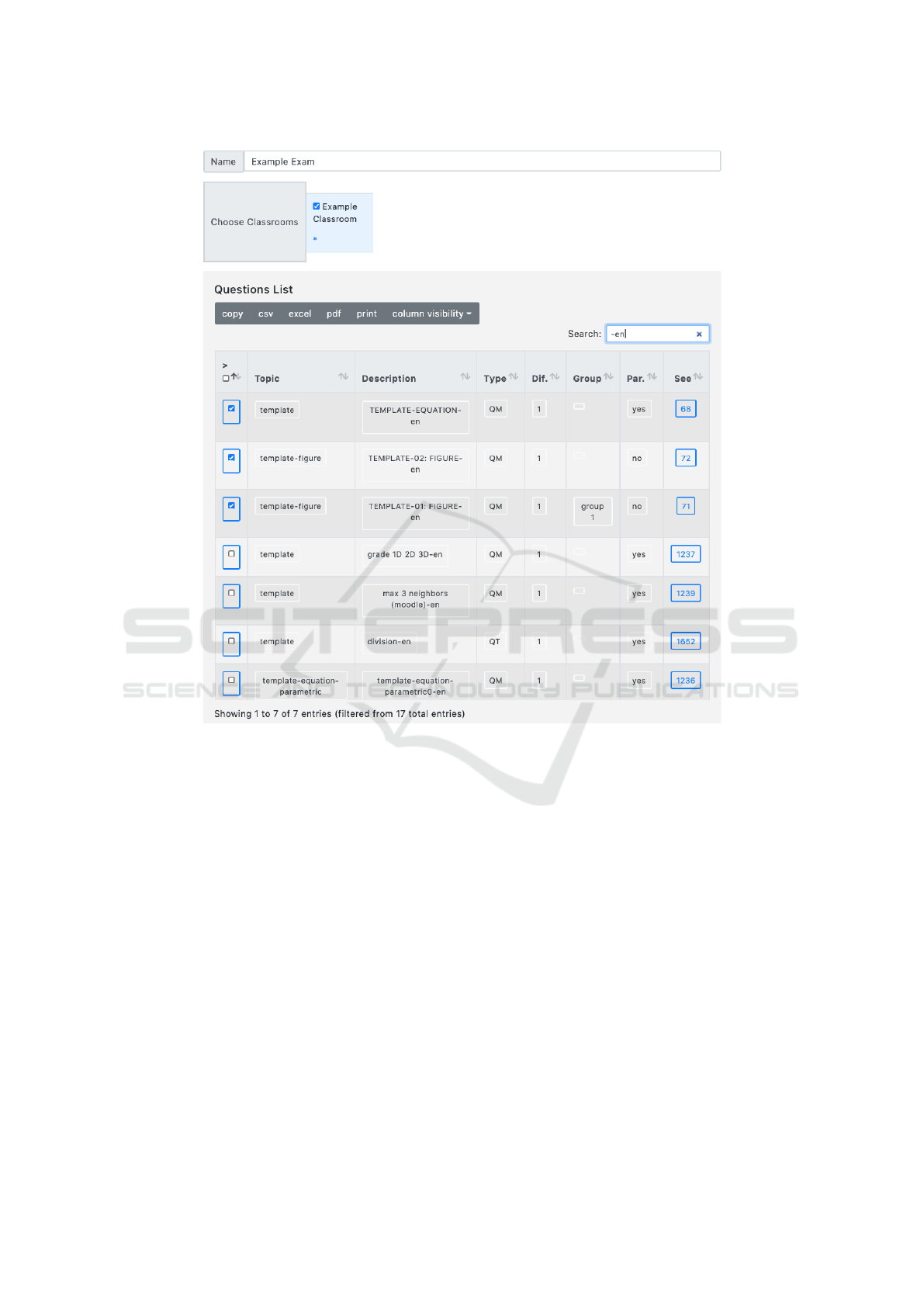

Figure 4: Cutout of the MCTest subpage to create/update an exam. In this ﬁrst step one chooses name, classes and questions.

MCTest in 2016 and motivated us to implement this

option in our system.

This professor started lecturing Computer Science

at our university in 2012. Until 2016 the largest

classes consisted of ﬁve to six dozens of students, and

at the time he was responsible for two of such classes

in the course Networks & Communications, the one

in the morning and the other in the evening. He was

consulted about applying MCTest to his classes, so

that the correction of the exams could be carried out

automatically, except for the written response part,

called QT in MCTest. This would reduce the correc-

tion time, but MCTest needed QB for that course, so

he would have to elaborate multiple-choice questions,

called QM. The recommended format was ten QM,

one long question of QT, each part devoted to half of

the total mark, and this he called model 1.

Of course, it is much simpler to prepare an exam

with four to ﬁve written response questions, which he

called model 2, but for circa 60 to 70 students the

correction time is considerable. Since both options

would make him spend an equivalent time, he decided

to let the students vote the model for the ﬁrst exam.

However, in order to discourage guessing alternatives,

in both models questions were to be of middle to high

difﬁculty levels, but students could use a handwritten

summary on a single paper in model 2.

Surprisingly, morning and evening classes voted

for different models, 2 and 1, respectively. But these

results were repeated in the subsequent votings for

the second exam, and also in another course he lec-

tured both in 2016 and 2017: Nature of Information.

Classes were then growing to circa 80 students and

model 1 was becoming his preference, specially be-

cause one can easily change and increase already ex-

isting QB. By asking the students for their reasons to

reject either model, the evening classes claimed they

did not have time to prepare a handwritten summary,

and the morning classes complained that QM is un-

fair because a partially correct answer deserves a frac-

CSEDU 2021 - 13th International Conference on Computer Supported Education

258

Figure 5: Cutout of the MCTest subpage to create/update an exam. In this second step the user checks whether the PDF meets

their expectations.

tional score. He then decided to propose model 1 with

4 alternatives per question and the following weights:

100% (the correct one), 0% (the absurd one), and 20%

(either of the partially correct ones). This because if

someone made “shots in the dark” when answering

the QM the expected score would still remain quite

low, namely 3.5 (compared with 2.5 if non-weighted).

This improvement in model 1 made it acceptable for

the morning classes, so that he started applying it even

for other courses, e.g. Compilers in 2019.

As commented in Subsection 2.2, MCTest stores

the correction in a CSV-ﬁle and emails it to the pro-

fessor, and Figure 6 shows an example thereof. Col-

umn A gives the PDF page of the scanned ﬁlled-out

answer card, B is the exam issue, C is the number

of alternatives per question (MCTest allows only the

Automated Assessment with Multiple-choice Questions using Weighted Answers

259

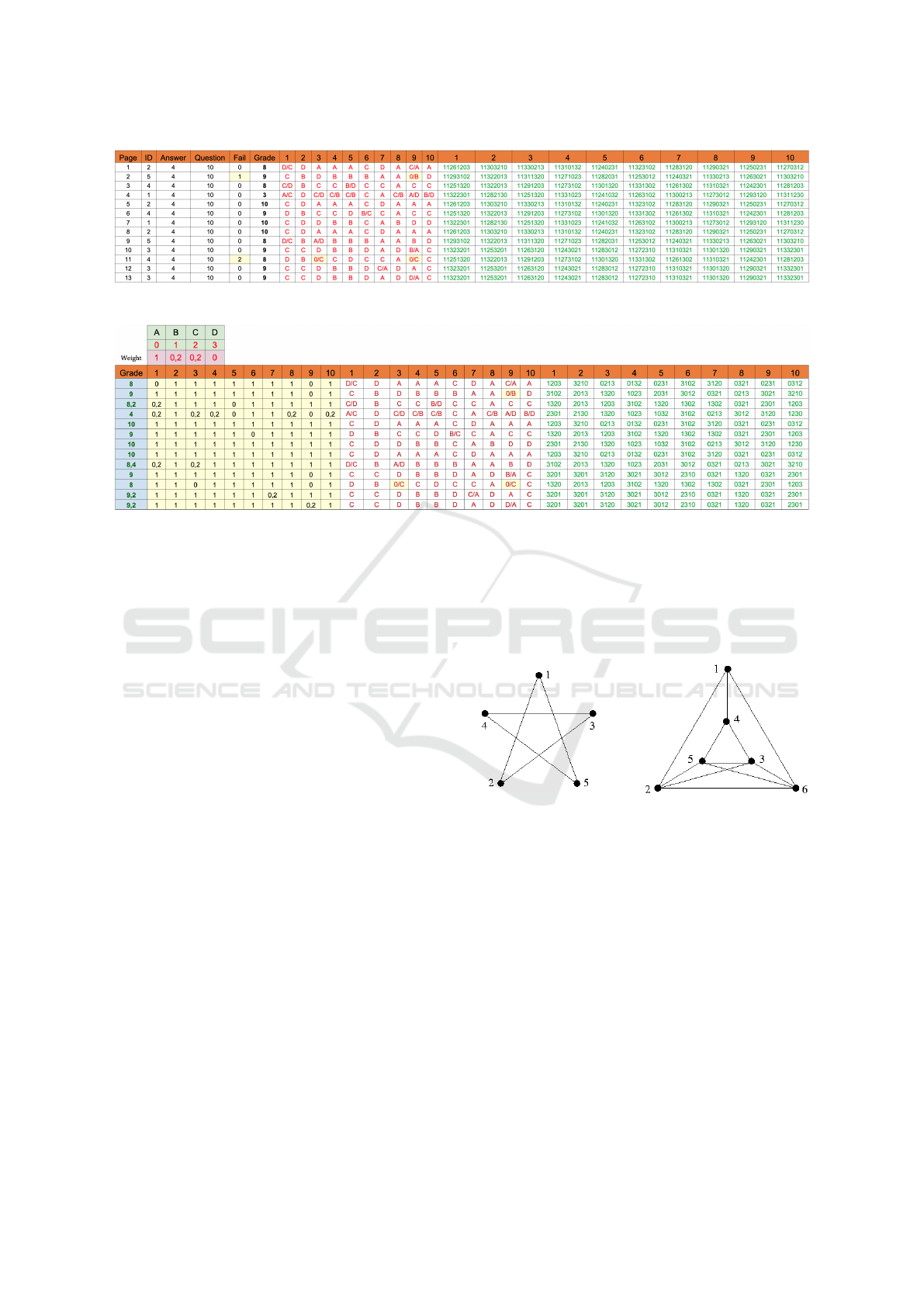

Figure 6: LibreOfﬁce visualization of the CSV-ﬁle sent by MCTest.

Figure 7: Spreadsheet with weighted alternatives derived from MCTest’s CSV-ﬁle in Figure 6.

same number for the whole QM), D is the QM size,

E shows the number of corrupted questions (0 = non-

corrupted, i.e. the student chose one item per ques-

tion), and F the non-weighted score. Columns G to

P show the answers in red and also the correct one in

case of mismatch (“chosen”/“key”).

Columns Q to Z in green show information on

both the question ID in the QB and the order in which

alternatives were drawn for that student. In this exam-

ple, we had four alternatives per question, hence the

last four digits show their order. For instance, cell Q2

shows 11261203, where 1126 stands for the question

ID and 1203 means the drawn order. By looking at

Figure 2 this order indicates that A=1, B=2, C=0, D=3

are the 2nd, 3rd, 1st and 4th alternative, respectively.

Hence one can add a new tab to the spreadsheet,

and with simple formulas compute the ﬁnal mark by

attributing weights to the alternatives, as depicted in

Figure 7. In this example the right alternative weighs

1, the partially-right ones weigh 0.2 each, and the

absurd one weighs 0. The yellow ﬁeld in Figure 7

shows the score of each question, where any row cor-

responds to a single student’s answer card.

According to the professor’s account, simple so-

lutions as this one proposed in our work increase the

students’ acceptance of QM. For the users not very

familiar with spreadsheet formulas, we have left the

template of Figure 7 at: http://vision.ufabc.edu.br/static/

GRADE.ods

Anyway, it is important to consider what we

brieﬂy exposed at the Introduction. For this purpose,

the professor conceded one of his questions:

In the course we have seen that a graph G = (V, E)

can be planar though one needs to redraw it, as in

Figure 8(a), which is equivalent to a regular pentagon

with vertices 1 −·· · − 5 −1. By considering G in Fig-

ure 8(b) and S = V −E +F, where F is the number of

faces, we have:

(a) (b)

Figure 8: A question with weighted alternatives used in the

experience report.

These were the alternatives (but the order varied

by issue): A. G is planar because S = 2 *3; B. S = 2

but G is planar not for this reason *2; C. G is not

planar because S = 3 #0; D. G is not planar although

S = 2 *1.

4 CONCLUSIONS AND FUTURE

WORKS

We have just presented a system and experience report

with 607 students in three courses between 2017 and

2019, based on the open-source MCTest available on

CSEDU 2021 - 13th International Conference on Computer Supported Education

260

GitHub. With MCTest the professor can prepare an

exam either in hardcopy or online, and this second

modality is useful in case the class cannot gather in

a classroom. Here each student receives their PDF

issue by email and sends the answers through Google

Form. In either modality the professor gets all non-

weighted corrections in a spreadsheet, which can be

adapted to compute marks by weighting the answers,

as explained in Section 3.

In future works we are going to investigate the

students’ acceptance of weighted QM by considering

more participants and questionnaires. Our purpose is

to ﬁnd out which styles of exam can simplify the pro-

fessor’s work, be acceptable by the classes and, at the

same time, result in a fair assessment of the students’

learning. To the best of our knowledge the literature

still lacks such a study.

REFERENCES

Ali, S. and Ruit, K. (2015). The impact of item ﬂaws, testing

at low cognitive level, and low distractor functioning

on multiple-choice question quality. Perspectives on

medical education, 4(5):244–251.

Anderson, L. and Krathwohl, D. (2001). A taxonomy

for learning, teaching, and assessing: A revision of

bloom’s taxonomy of educational objectives.

Aybek, E. and Demirtasli, R. (2017). Computerized adap-

tive test (cat) applications and item response theory

models for polytomous items. International Journal

of Research in Education and Science, 3:475–487.

Burton, R. (2001). Quantifying the effects of chance in

multiple choice and true/false tests: question selection

and guessing of answers. Assessment & Evaluation in

Higher Education, 26(1):41–50.

Krathwohl, D., Bloom, B., and Masia, B. (1956). Taxonomy

of educational objectives: The classiﬁcation of educa-

tional goals. David McKay Company, Incorporated.

Moser, J., G

utl, C., and Liu, W. (2012). Reﬁned distrac-

tor generation with lsa and stylometry for automated

multiple choice question generation. In Australasian

Joint Conference on Artiﬁcial Intelligence, pages 95–

106. Springer.

Oliveira Neto, J. and Nascimento, E. (2012). Intelligent tu-

toring system for distance education. JISTEM-Journal

of Information Systems and Technology Management,

9(1):109–122.

Presedo, C., Arm

endariz, A., L

opez-Cuadrado, J., and

erez, T. (2015). Calibraci

on de

ıtems v

ıa exper-

tos utilizando moodle. Revista Ibero-americana de

Educac¸

ao, 69(1):117–132.

Susanti, Y., Tokunaga, T., Nishikawa, H., and Obari, H.

(2018). Automatic distractor generation for multiple-

choice english vocabulary questions. Research and

Practice in Technology Enhanced Learning, 13(1):15.

Zampirolli, F., Borovina Josko, J., Venero, M., Kobayashi,

G., Fraga, F., Goya, D., and Savegnago, H. (2021). An

experience of automated assessment in a large-scale

introduction programming course. Computer Appli-

cations in Engineering Education.

Zampirolli, F., Pisani, P., Borovina Josko, J., Venero, M.,

Kobayashi, G., Fraga, F., Goya, D., and Savegnago,

H. (2020). Parameterized and automated assess-

ment on an introductory programming course. In

Anais do XXXI Simp

osio Brasileiro de Inform

atica na

Educac¸

ao, pages 1573–1582. SBC.

Zampirolli, F., Teubl, F., and Batista, V. (2019). Online gen-

erator and corrector of parametric questions in hard

copy useful for the elaboration of thousands of indi-

vidualized exams. In CSEDU, pages 352–359.

Automated Assessment with Multiple-choice Questions using Weighted Answers

261
