A High Accuracy Text Detection Model of Newly Constructing and

Training Strategies

Kha Cong Nguyen

and Ryosuke Odate

Research and Development Group, Hitachi, Ltd., Tokyo, Japan

Keywords: Text Detection, Text Recognition, Anchor Boxes, Clustering, Feature Extraction, Non-Maximum

Suppression.

Abstract: Normally, text recognition systems include two main parts: text detection and text recognition. Text detection

is a prerequisite and has a big impact on the performance of text recognition. In this paper, we propose a high-

accuracy model for detecting text-lines on a receipt dataset. We focus on the three most important points to

improve the performance of the model: anchor boxes for locating text regions, backbone networks to extract

features, and a suppression method to select the best fitting bounding box for each text region. Specifically,

we propose a clustering method to determine anchor boxes and apply novel convolution neural networks for

feature extraction. These two points are the newly constructing strategies of the model. Besides, we propose

a training strategy to make the model output angles of text-lines, then revise bounding boxes with the angles

before applying the suppression method. This strategy is to detect skewed and downward/upward curved text-

lines. Our model outperforms other best models submitted to the ICDAR 2019 competition with the detection

rate of 98.87% (F1 score) so that we can trust the model for detecting text-lines automatically. These strategies

are also flexible to apply for other datasets of various domains.

1 INTRODUCTION

Recently, document recognition for information

retrieving and digitally storing has garnered a large

amount of interest from the deep learning and

computer vision communities due to the important

information included in documents and the huge

amount of scanned and captured document

accumulated during many decades. To recognize

documents, the first task is text detection. Text

detection locates and extracts text regions from

documents that encompass many complex layouts

such as text regions, tables, figures, and even noised

regions. This task has a big influence on the

performance of its consequent text recognition task.

Currently, we receive many requests for

developing an automatically text-image recognizing

system for scanned receipts, invoices, and form

documents. By applying cutting-edge technologies

such as the method composing Convolutional Neural

Network (CNN), Recurrent Neural Network (RNN)

https://orcid.org/0000-0002-2760-8724

https://orcid.org/0000-0002-9467-2275

and Connectionist Temporal Classification (CTC) or

the method combining CNN, RNN, and Attention-

based sequence prediction (Attn) (Jeonghun, 2019),

we achieved high recognition rates for text-line

recognition. The remaining bottleneck is a high

accuracy text-line detection model where we can trust

machines for text-line detection mostly. Besides, the

method needs to be effective and flexible to apply for

detecting text on datasets including complex

backgrounds, various styles, and languages.

In this paper, we propose a text-line detection

model, based on the Faster R-CNN architecture for

object detection (Ren, 2015). In this model, a CNN is

used to extract feature maps at multiple deep levels,

and a set of anchor boxes with different scales and

aspect ratios is employed to locate text regions on the

feature maps. Finally, a selection algorithm like Non-

Maximum Suppression (NMS) is utilized to select a

bounding box (denoted bbox shortly) with the highest

confidence score of containing a text region (Bodla,

2017). It discards other bbox candidates that are

overlapping the selected bbox.

Nguyen, K. and Odate, R.

A High Accuracy Text Detection Model of Newly Constructing and Training Strategies.

DOI: 10.5220/0010343406350642

In Proceedings of the 10th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2021), pages 635-642

ISBN: 978-989-758-486-2

635

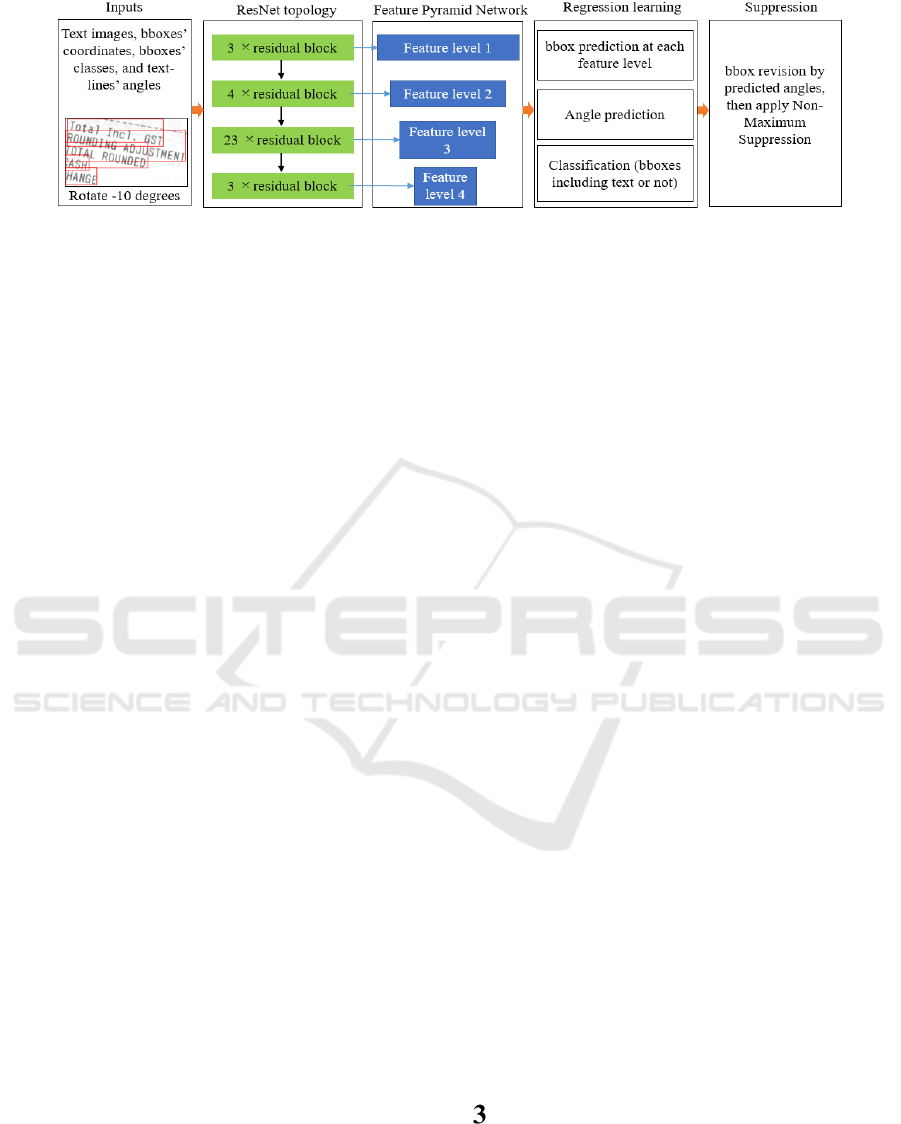

Figure 1: Overview of our proposed text-detection network.

The aforementioned architecture of the text

detection model is typically used by other research

groups for text detection, but there are three our main

contributions: applying clustering methods to

produce the best fitting anchor-set for training the

model; implementing CNNs for feature extraction

that keep the almost similar number of trainable

parameters and computational complexity; proposing

a training strategy for detecting skewed and

downward/upward curved text-line regions.

The remaining of this paper is organized as

follows. In Section 2, we present the related work of

text detection. Then, in Section 3, we describe the

overview of our text detection network and the

detailed implementation with an emphasis on our

main contributions. We show the experiment result of

each contribution and comparison with other best

models in Section 4. Finally, in Section 5, we

conclude and summarize the main points in this

paper.

2 RELATED WORK

This section presents the related work of text

detection, including conventional methods and CNN-

based methods. Conventional methods produce not

good results on documents of complex backgrounds,

so we mainly focus on advanced methods employing

CNNs.

2.1 Conventional Methods

Before CNNs became popular, conventional methods

for text detection had adopted text-component

extraction by edge detection or extremal region

extraction, and then text components were conjoined

by geometric relations to make text-lines. The typical

methods here include the method by (Dinh, 2007), the

Stroke Width Transform method (SWT) by

(Epshtein, 2010), and the Maximally Stable Extremal

Region method (MSER) by (Huang, 2014). Those

methods, however, are outdated when dealing with

documents of complex backgrounds, low resolution,

stroke distortion, or touching text-lines.

2.2 CNN-based Methods

With the great advances of CNN, a wider variety of

text detection methods has been explored. (Zhou,

2017) proposed a faster and accurate model for scene

text detection. The method utilizes an CNN that can

directly produce either rotated rectangular or

quadrangular bboxes of text regions. The loss

functions for training to predict rotated rectangular

bboxes are a region overlapping loss and a cosine

similarity loss. The loss function for training to

predict coordinates of quadrilateral bboxes is a

regression loss – smooth L1 loss.

For methods using the same architecture as our

work, (Zhong, 2019) applied direct regression

(Wenhao, 2017) for Faster R-CNN to predict

quadrilateral bboxes of arbitrarily oriented text-lines.

Unlike regular Faster R-CNN using regression

training to predict offsets between pre-defined anchor

boxes and rectangular bboxes of text regions, the

method predicted core points and the offsets from

these points to quadrilateral bboxes of text regions.

The method is effective for predicting quadrilateral

bboxes but for rectangular bboxes, it works worse

than the conventional Faster R-CNN method because

the network needs to learn to output core the points

besides the offsets. That is proved by the comparison

between our method and the second rank method

submitted to the ICDAR competition (Huang, 2019)

as shown in Section 4.

METHODOLOGY

In this section, we present the overview of our text

detection network and the detailed implementation of

each component in the proposed network.

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

636

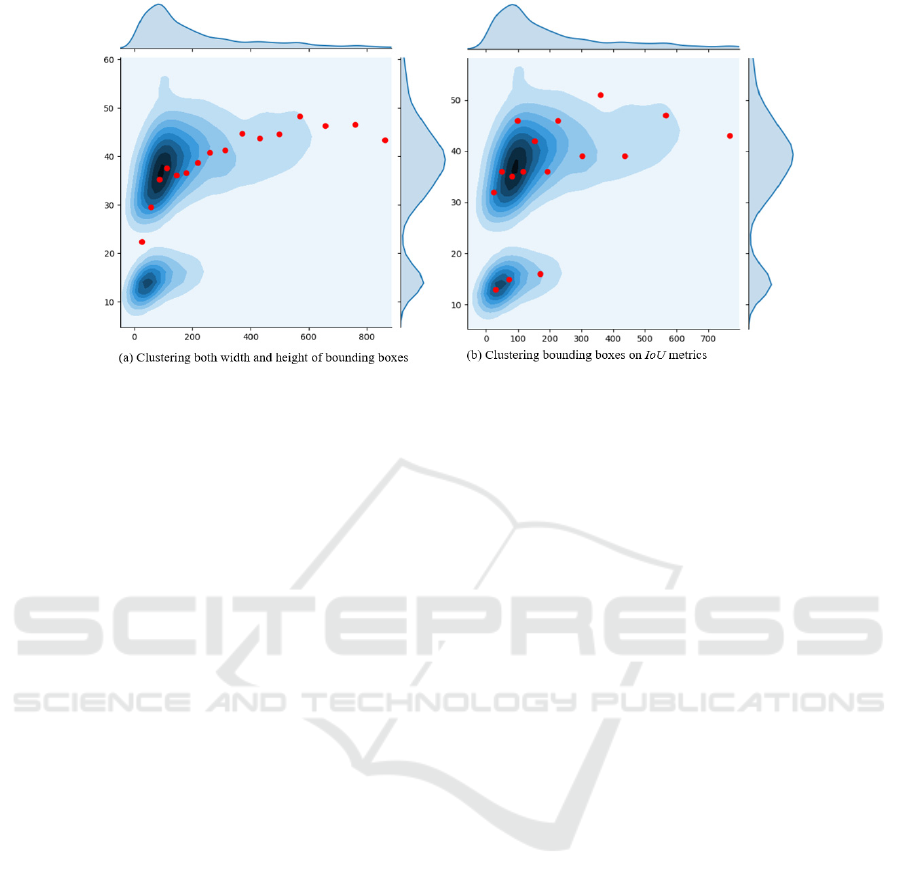

Figure 2: Sixteen estimated anchor boxes (red points) based on clustering the training bounding. Horizontal and vertical axes

are width and height of bboxes respectively.

3.1 Overview of Proposed Network

Figure 1 displays an overview of our proposed text-

detection network. The training inputs of the network

include text images, coordinates of ground-truth

rectangular bboxes, the class of bboxes (value of 1,

indicating that they contain text regions), and rotated

angles when applying a rotating data-augmentation

method randomly. We use a ResNet architecture

network to extract features of input images after four

container layers, defined as conv2_x, conv3_x,

conv4_x, and conv5_x by (Kaiming, 2016). This is

known as the Feature Pyramid Network. We apply the

newest techniques such as the split-transform-merge

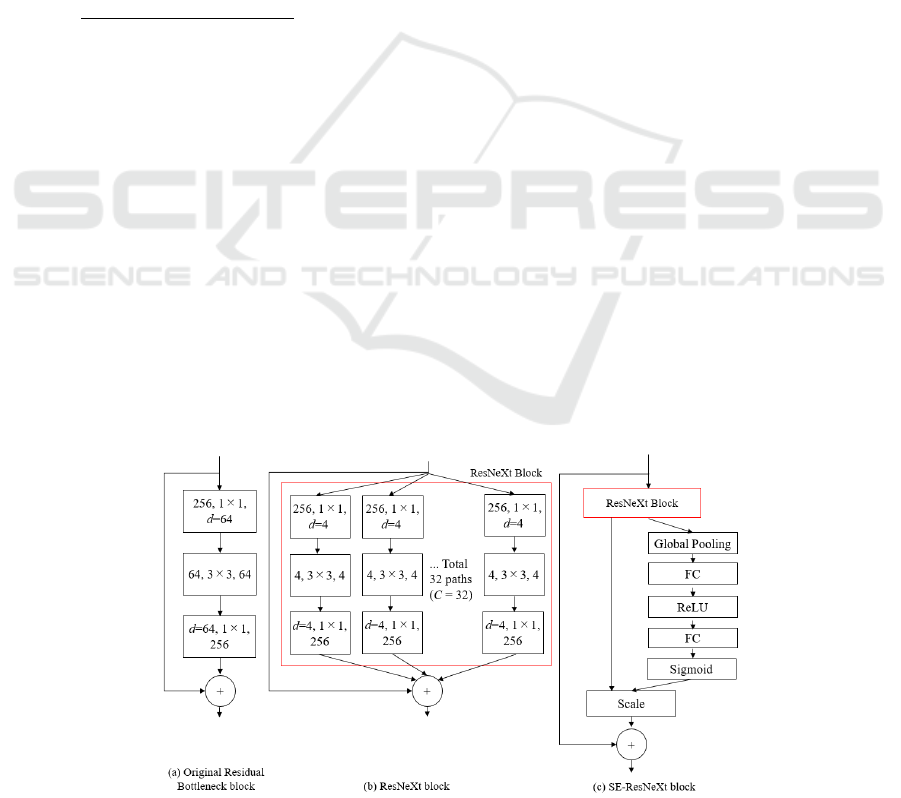

strategy (Xie, 2017) and Squeeze-and-Excitation

(SE) (Hu, 2018) to bottleneck residual blocks of

ResNet. The details of feature extraction networks are

presented in Section 3.3.

Next, at each considering point of feature maps,

we match pre-defined anchor boxes to ground-truth

rectangular bboxes. The methods to determine the

anchor boxes are presented in Section 3.2. Anchor

boxes overlap ground-truth rectangular bboxes more

than a certain threshold of IoU (defined in Section

3.2), are assigned a positive label (value of 1). In our

configuration, the threshold is set up to 0.5. Only

positive label bboxes are considered when training

offsets and angles regressively. Others are marked by

negative labels (value of zero, indicating that they do

not contain text regions) and ignored. The network is

trained to produce the probabilities of anchor boxes

containing text regions. Besides, we perform

regression training to make the network produce

offsets between pre-defined anchor boxes of a

positive label and their corresponding ground-truth

bboxes. From pre-defined anchor boxes and their

predicted offsets, the network can produce predicted

bboxes in the testing phase. We also train regression

for oriented angles of bboxes. The loss (𝐿



) to train

the network to yield the probabilities of bboxes

including text regions is the binary cross-entropy loss

function. The regression losses for training the

network to predict coordinates (𝐿

 

) and angles

( 𝐿

 

) of bboxes are L1 loss functions. To

balance loss values, we add a weight w = 0.01 to the

loss of angle regression practically. w has a small

impact to the performance of model. The total loss

(𝐿



) is calculated as Eq. (1).

𝐿



𝐿

 

𝑤∗ 𝐿

 

𝐿



(1)

The network may produce many bboxes for each

text region. We finally revise proposed bboxes with

predicted angles before applying Non-Maximum

Suppression to discard overlapped bboxes of smaller

confident scores that show whether they include text

or not. This step is described in Section 3.4

specifically.

3.2 Anchor Box Determination

Anchor box sizes are one of the most influential

factors in the performance of text detection models.

We perform a statistic from training data to determine

which anchor boxes are the most suitable to allocate

text regions. First, training bboxes are rescaled with

scaled ratios of whole images when applying data

augmentation methods such as resizing or cropping.

Then, we can choose one of the following methods to

produce the best fitting set of anchor boxes.

A High Accuracy Text Detection Model of Newly Constructing and Training Strategies

637

1) Method 1: clustering training bboxes into groups

based on both their width and height

We apply the K-mean algorithm to the Euclidian

distance between training bboxes and centroids for

clustering training bboxes into k groups. The center

point of each group is an anchor box for training the

network. The larger number of anchor boxes helps the

network allocate text regions more precisely,

however, it also increases the execution load of the

network. Therefore, we need to trade-off between the

number of anchor boxes and the preciseness of the

network.

2) Method 2: clustering by Intersection of Union

Method 1 does not put priorities on bigger bboxes

and smaller bboxes. We propose a method, which

clusters training bboxes into groups, based on

Intersection of Union (IoU) metrics as Eq. (2)

between them and centroids of groups.

𝐼𝑜𝑈 

    

    

(2)

Figure 2 shows the distribution of determined

anchor boxes by two methods. The first method treats

every bbox with the same priority, so even at thinly

scattered areas, it also proposes anchor boxes.

Otherwise, the second method proposes more anchor

boxes in the highly-dense areas and fewer anchor

boxes in other areas. Therefore, it can estimate anchor

boxes better than the first method. We select the

second method to estimate the anchor boxes when

comparing our method with others in Section 4.

3.3 Networks for Feature Extraction

Normally, a network to extract feature maps for

locating bboxes is designed in the ResNet architecture

(Kaiming, 2016). The ResNet architecture is easy for

mapping feature maps to input images when

allocating text regions because it down-samples input

features two times after each container layers. This is

more complicated when using other deeper

architectures like Inception ResNet (Szegedy, 2016)

where each down-sampling block adds a different

offset to output sizes. ResNet is constructed by many

residual blocks as shown in Figure 3 (a). Each

residual block is built in a bottleneck architecture

which includes three convolutional layers: 1×1

convolution, 3×3 convolution, and 1×1 convolution.

The first convolutional layer reduces the

dimensionality and the last one restores it. The

number of filters of the first convolutional layer is

called bottleneck width (denoted d). Another feature

of the residual block is the addition of the input to its

output, known as skip connection or residual

connection, to produce the input for its next layer.

That makes the network can backpropagate the

gradient to early layers so that it can avoid the

gradient vanished problem and allows the network to

learn deeper in comparison with traditional

convolutional neural networks like VGG net

(Simonyan, 2014).

One of the upgraded versions of ResNet is

applying the split-transform-merge strategy of the

Inception ResNet model to each original residual

block to create a new type block named ResNeXt as

shown in Figure 3 (b) (Xie, 2017). The block keeps

the topology, the computation complexity, and spatial

output sizes the same as the original residual block.

In this block, a new dimension named cardinality

(denoted as C) is introduced. It is the number of

aggregated transformation paths. In Figure 3 (a), we

can estimate the number of trainable parameters of

the residual bottleneck block is 256×64 + 64×64×3×3

+ 64×256 where d = 64. We can split and transform

the original residual block to the corresponding block

Figure 3: Different residual blocks. Each layer is shown as (number of input channels, filter size, number of output channels).

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

638

as shown in Figure 3 (b) with the same number of

training parameters: C × (256 ×d + 3×3×d×d +

d×256) where C=32 and d = 4.

Furthermore, (Hu, 2018) has recently proposed a

Squeeze-and-Excitation block (SE block) that can be

combined with the ResNeXt block and bring a

significant improvement to the performance of the

original ResNet for classification. Therefore, we also

apply this idea to the ResNeXt block. The

combination is shown in Figure 3 (c) in which the

ResNeXt block (red box) is integrated into the SE

block. The SE block carries out two operations:

squeeze and excitation. The squeeze operation is

aggregating feature maps across their spatial

dimensions. The excitation operation is to capture

channel-wise dependencies which improve channel

interdependencies of features but change at least the

computational cost. The squeeze operation is

performed by the global pooling layer, and the

excitation operation is executed by fully connected

layers following by their activation layers as shown

in Figure 3 (c). The first fully connected layer and its

ReLU activation layer are to reduce the channel

dimension so that they limit model complexity and

enhance generalization. The second fully connected

layer and its sigmoid activation layer are to restore the

dimensionality.

3.4 Detecting Skewed, Upward and

Downward Curved Text-lines

The Non-Maximum Suppression (NMS) algorithm is

used to select one bbox of the highest confident score

of text including classification when having many

predicted bboxes overlapped each other at one

position. The algorithm removes other bboxes that are

overlapping the selected bbox more than a threshold.

In our network, we set the threshold of 0.25. That,

however, prunes bbox candidates of skewed,

upward/downward curved text-lines wrongly.

Especially, when these text-lines are close to each

other vertically. Therefore, we apply a training strate-

gy to make the network produce angles of text-lines.

Then, the angles are utilized to revise the bboxes of

text-lines before applying the NMS algorithm.

To do that, we take advantage that the provided

training dataset often includes straight text-lines. We

apply the rotation augmentation method to produce

skewed text-lines as shown in the input part of Figure

1. The limitation of rotated angles is in a range [-10



] from the fact that text-lines are not rotating so

much practically. The rotated angles are used to train

the text detection network regressively. The

regression learning allows the network to predict

angels of text-lines besides bbox coordinates and

confident scores of text including classification.

Figure 4: Revision of predicted bboxes. Black line bboxes

are revised with predicted angles. Other color line bboxes

are originally predicted bboxes by our network without

revision. Blue numbers are predicted angles.

In Figure 4, black line bboxes are revised with

their predicted angles while other color line bboxes

are predicted directly by our text-detection network.

The directly predicted bboxes of upward/downward

curved text-lines are easy to be removed by the NMS

algorithm because they are overlapping others. We

need to revise the bboxes of these text-lines before

applying the NMS algorithm. In our proposed

network, only predicted bboxes of angles that are

larger than one degree, are revised their angles. The

directly predicted bboxes, corresponding to revised

bboxes that are remaining after applying the MNS

algorithm are kept as results.

We assume



𝑥



,𝑦





and 𝑥



,𝑦



 are the top-left

and bottom-right corner coordinates of a predicted

bbox. ⍺ and



𝑥



 𝑥



 𝑥



/2, 𝑦



 𝑦



 𝑦



/



are a predicted angle (blue numbers in Figure 4)

and the center point of the bbox respectively. We

carry out rotating the bbox with ⍺



to get top-left



𝑥





,𝑦







and bottom-right corner coordinates



𝑥





,𝑦







of the revised bbox as Eq. (3).

𝑥





𝑥







𝑥



𝑥





∗ cos



⍺







𝑦



𝑦





∗sin



⍺



𝑦





 𝑦







𝑥



𝑥





∗sin



⍺







𝑦



𝑦





∗ cos



⍺



𝑥





 𝑥







𝑥



𝑥





∗ cos



⍺







𝑦



𝑦





∗sin



⍺



𝑦





𝑦







𝑥



𝑥





∗sin



⍺







𝑦



𝑦





∗ cos



⍺



(3)

EXPERIMENTS

We do three experiments on the receipt dataset in the

ICDAR 2019 competition on scanned receipt OCR

and information extraction (Huang, 2019). The

dataset includes a training set of 626 English receipt

images and a testing set of 361 English receipt

images. The images come along with rectangular

A High Accuracy Text Detection Model of Newly Constructing and Training Strategies

639

bbox coordinates of text-lines and ground-truth text.

We just use ground-truth text to set text including

labels for training.

We also compare our best model with the top rate

methods submitted to the ICDAR 2019 competition.

There is a total of 29 submissions to the ICDAR 2019

competition for detecting text regions of the above

dataset. The top-4 methods are summarized as follows:

1) The first-ranking method named “SCUT-

DLVC-Lab-Refinement” (ICDAR-MT1): The

method uses a refinement-based Mask-RCNN

model for text detection.

2) The second-ranking method named “Ping An

Property & Casualty Insurance Company”

(ICDAR-MT2): This method applies an

anchor-free detection framework with FishNet

as the backbone.

3) The third-ranking method named “H&H Lab”

(ICDAR-MT3): This method is based on

EAST (Zhou, 2017). They add a multi-

oriented corner network to EAST to make

network learning easier.

4) The fourth-ranking method named “GREAT-

OCR Shanghai University” (ICDAR-MT4):

This method uses a novel text detector called

Progressive Scale Expansion Network

(PSENet).

Our models are trained in 100 epochs and batch

sizes of 8 images. We use the precision, recall, and

harmonic mean (F1 score) as the ICDAR competition

to evaluate the performance of our models. Predicted

bboxes overlapped ground-truth bboxes more than

0.5 are evaluated as correct bboxes.

4.1 Evaluating Methods to Determine

Anchor Boxes

The first experiment is to evaluate methods to

determine anchor boxes for training the network. As

shown in the first part of Table 1, clustering training

bboxes, based on both their width and height is not

good enough for determining anchor boxes. On the

other hand, clustering by IoU between assumed

anchor boxes and training bboxes proposes more

anchor boxes at the densely distributed regions of

bbox sizes, so it estimates the more fitting set of

anchor boxes. When the number of anchor box is

small, the efficiency of two methods is not evident,

but it is clear when using more number for anchor

boxes. The larger number of anchor boxes we use, the

better performance we get. However, it seems that the

efficiency increases slowly when using a large

number of bboxes. Because of the limitation of GPU,

we just train with a maximum of 96 anchor boxes.

Table 1: Contribution of different improvements to the performance of the text-detection network.

Experiments Models

Recall

(%)

Precision

(%)

F1 score

(%)

Anchor box

determination

methods and

number of anchor

boxes

(Section 4.1)

ResNet 101 backbone + 16 anchors by method 1 +

without bbox revision

97.61 97.45 97.53

ResNet 101 backbone + 16 anchors by method 2 +

without bbox revision

97.58 97.72 97.65

ResNet 101 backbone + 36 anchors by method 1 +

without bbox revision

97.71 97.57 97.64

ResNet 101 backbone + 36 anchors by method 2 +

without bbox revision

97.89 97.83 97.86

ResNet 101 backbone + 96 anchors by method 2 +

without bbox revision

98.15 97.91 98.03

Backbone networks

for feature

extraction

(Section 4.2)

ResNet 152 backbone + 96 anchors by method 2 +

without bbox revision

98.19 98.29 98.24

ResNeXt 101 backbone + 96 anchors by method 2 +

without bbox revision

98.17 98.25 98.21

SE ResNeXt 101 backbone + 96 anchors by method 2 +

without bbox revision

98.83 98.49 98.66

Bbox revision by

predicted angles

and comparison

with other

submitted methods

(Section 4.3)

SE ResNeXt 101 backbone + 96 anchors by method 2 +

bbox revision (our best model)

98.79 98.95 98.87

ICDAR-MT1 98.64 98.53 98.59

ICDAR-MT2 98.60 98.40 98.50

ICDAR-MT3 97.93 97.95 97.94

ICDAR-MT4 96.62 96.21 96.42

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

640

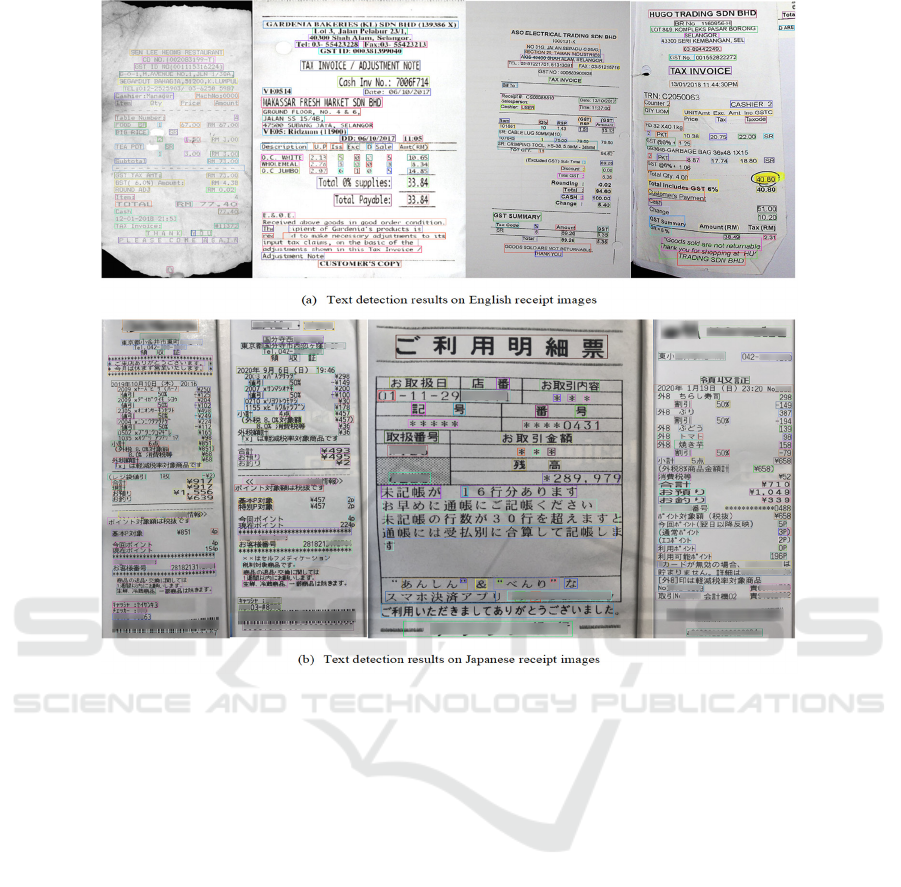

Figure 5: Some text detection results. We use text bounding boxes of different colors to display them better.

4.2 Asserting Efficiency of Backbone

Networks

The second experiment is to assert the efficiency of

different backbone networks for feature extraction. As

shown in the second part of Table 1, combining SE

blocks and ResNeXt blocks in SE-ResNeXt backbone

of 101 layers (~ 64 million trainable parameters) for

extract features improves the performance of the text

detection model significantly in comparison with

using ResNet of 152 layers (~75 million trainable

parameters) and ResNeXt of 101 layers (~ 60 million

trainable parameters, the same as using ResNet of 101

layers). The ResNeXt backbone of 101 layers also

shows improvement for the performance of the model,

but it still cannot outperform the original ResNet

network of 152 layers.

4.3 Comparison of with/without Bbox

Revision and Other Methods

The last experiment is a comparison of bbox revision

and without bbox revision. As shown in the second

and third part of Table 1, the revision of bboxes with

their predicted angles before applying the MNS

algorithm also shows the contribution to the

performance of the text detection model. This model

shows a better result than the best model without bbox

revision in Section 4.2. It is effective for detecting

skewed, curved downward/upward text-lines.

By integrating all improvements in this model, it

outperforms other models submitted to the ICDAR

competition. Our best model achieves the text

detection rate of 98.87% (F1 score), more than 0.28%

in comparison with the best method submitted to the

ICDAR 2019 competition.

4.4 Discussion of Detection Results

Figure 5 shows some text-detection results. Our

model can work well with receipt images of

complicated backgrounds and can detect skewed,

upward/downward curved text-lines. We also test our

best model with some of our taken Japanese receipts.

The model, just trained with the English receipt

dataset in the ICDAR 2019 competition, is also able

A High Accuracy Text Detection Model of Newly Constructing and Training Strategies

641

to detect text-lines on a new domain of receipts. We

blur characters in some bboxes because of sensitive

information. We think fine-tuning with a small dataset

may help the model work better on new domains of

different languages, backgrounds, and styles.

5 CONCLUSIONS

In this paper, we propose newly constructing and

training strategies for a text-detection model based on

the Faster R-CNN architecture. We focus on three

important factors that influence the accuracy of text-

detection models. Firstly, we propose an anchor box

determining method by clustering the IoU of assumed

anchor boxes and bboxes. Secondly, we implement

Squeeze-and-Excitation blocks (SE blocks) and

ResNeXt blocks to create a very deep feature

extraction network so that the model using this

network outperforms the model using the ResNet 152

network, which has more trainable parameters.

Finally, we train the text detection network with

artificially skewed text-lines, then they can predict

angles of skewed and upward/downward curved text-

lines. We use the predicted angles to revise bboxes

before applying the Non-Maximum Suppression

algorithm, so that the model can detect skewed and

upward/downward curved text-lines.

The model achieves a high accuracy of text-line

detection, so we can integrate it with our text-line

recognition model to create an automatically text-

image recognizing system for receipt, invoice, and

form images. Our approach is also flexible to apply

for other datasets of complex backgrounds, different

styles, and languages.

REFERENCES

Jeonghun, Baek, Geewook Kim, Junyeop Lee, Sungrae

Park, Dongyoon Han, Sangdoo Yun, Seong Joon Oh,

and Hwalsuk Lee. “What is wrong with scene text

recognition model comparisons? dataset and model

analysis.” In Proceedings of the IEEE International

Conference on Computer Vision, pp. 4715-4723. 2019.

Ren, Shaoqing, Kaiming He, Ross Girshick, and Jian Sun.

“Faster r-cnn: Towards real-time object detection with

region proposal networks.” In Advances in neural

information processing systems, pp. 91-99. 2015.

Bodla, Navaneeth, Bharat Singh, Rama Chellappa, and

Larry S. Davis. “Soft-NMS--improving object

detection with one line of code.” In Proceedings of the

IEEE international conference on computer vision, pp.

5561-5569. 2017.

Dinh, Viet Cuong, Seong Soo Chun, Seungwook Cha,

Hanjin Ryu, and Sanghoon Sull. “An efficient method

for text detection in video based on stroke width

similarity.” In Asian conference on computer vision,

pp. 200-209. Springer, Berlin, Heidelberg, 2007.

Epshtein, Boris, Eyal Ofek, and Yonatan Wexler.

“Detecting text in natural scenes with stroke width

transform.” In 2010 IEEE Computer Society

Conference on Computer Vision and Pattern

Recognition, pp. 2963-2970. IEEE, 2010.

Huang, Weilin, Yu Qiao, and Xiaoou Tang. “Robust scene

text detection with convolution neural network induced

mser trees.” In European conference on computer

vision, pp. 497-511. Springer, Cham, 2014.

Zhou Xinyu, Cong Yao, He Wen, Yuzhi Wang, Shuchang

Zhou, Weiran He, and Jiajun Liang. “East: an efficient

and accurate scene text detector.” In Proceedings of the

IEEE conference on Computer Vision and Pattern

Recognition, pp. 5551-5560. 2017.

Zhong, Zhuoyao, Lei Sun, and Qiang Huo. “An anchor-free

region proposal network for Faster R-CNN-based text

detection approaches.” International Journal on

Document Analysis and Recognition (IJDAR) 22, no. 3

(2019): 315-327.

Wenhao, He, Xu-Yao Zhang, Fei Yin, and Cheng-Lin Liu.

“Deep direct regression for multi-oriented scene text

detection.” In Proceedings of the IEEE International

Conference on Computer Vision, pp. 745-753. 2017.

Huang, Zheng, Kai Chen, Jianhua He, Xiang Bai,

Dimosthenis Karatzas, Shijian Lu, and C. V. Jawahar.

“ICDAR 2019 competition on scanned receipt OCR

and information extraction.” In 2019 International

Conference on Document Analysis and Recognition

(ICDAR), pp. 1516-1520. IEEE, 2019.

Kaiming, He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun.

“Deep residual learning for image recognition.” In

Proceedings of the IEEE conference on computer vision

and pattern recognition, pp. 770-778. 2016.

Xie, Saining, Ross Girshick, Piotr Dollár, Zhuowen Tu, and

Kaiming He. “Aggregated residual transformations for

deep neural networks.” In Proceedings of the IEEE

conference on computer vision and pattern recognition,

pp. 1492-1500. 2017.

Hu, Jie, Li Shen, and Gang Sun. “Squeeze-and-excitation

networks.” In Proceedings of the IEEE conference on

computer vision and pattern recognition, pp. 7132-

7141. 2018.

Szegedy, Christian, Sergey Ioffe, Vincent Vanhoucke, and

Alex Alemi. “Inception-v4, inception-resnet and the

impact of residual connections on learning.” arXiv

preprint arXiv:1602.07261 (2016).

Simonyan, Karen, and Andrew Zisserman. “Very deep

convolutional networks for large-scale image

recognition.” arXiv preprint arXiv:1409.1556 (2014).

ICPRAM 2021 - 10th International Conference on Pattern Recognition Applications and Methods

642
