SimFaaS: A Performance Simulator for Serverless Computing Platforms

Nima Mahmoudi

1 a

and Hamzeh Khazaei

2 b

Electrical and Computer Engineering, University of Alberta, Edmonton, Alberta, Canada

Electrical Engineering and Computer Science, York University, Toronto, Ontario, Canada

Keywords:

Simulator, Serverless, Serverless Computing, Performance Analysis.

Abstract:

Developing accurate and extendable performance models for serverless platforms, aka Function-as-a-Service

(FaaS) platforms, is a very challenging task. Also, implementation and experimentation on real serverless

platforms is both costly and time-consuming. However, at the moment, there is no comprehensive simulation

tool or framework to be used instead of the real platform. As a result, in this paper, we ﬁll this gap by

proposing a simulation platform, called SimFaaS, which assists serverless application developers to develop

optimized Function-as-a-Service applications in terms of cost and performance. On the other hand, SimFaaS

can be leveraged by FaaS providers to tailor their platforms to be workload-aware so that they can increase

proﬁt and quality of service at the same time. Also, serverless platform providers can evaluate new designs,

implementations, and deployments on SimFaaS in a timely and cost-efﬁcient manner.

SimFaaS is open-source, well-documented, and publicly available, making it easily usable and extendable to

incorporate more use case scenarios in the future. Besides, it provides performance engineers with a set of tools

that can calculate several characteristics of serverless platform internal states, which is otherwise hard (mostly

impossible) to extract from real platforms. In previous studies, temporal and steady-state performance models

for serverless computing platforms have been developed. However, those models are limited to Markovian

processes. We designed SimFaaS as a tool that can help overcome such limitations for performance and cost

prediction in serverless computing.

We show how SimFaaS facilitates the prediction of essential performance metrics such as average response

time, probability of cold start, and the average number of instances reﬂecting the infrastructure cost incurred by

the serverless computing provider. We evaluate the accuracy and applicability of SimFaaS by comparing the

prediction results with real-world traces from Amazon AWS Lambda.

1 INTRODUCTION

There is very little ofﬁcial documentation made pub-

licly available about the scheduling algorithms in pub-

lic serverless computing platforms. However, many

works have focused on partially reverse engineering

this information through experimentations on these

platforms (Wang et al., 2018; Figiela et al., 2018;

Lloyd et al., 2018). Using the results of such stud-

ies and by modifying their code base and thorough

extensive experimentation, we have come to a good un-

derstanding of the way modern serverless frameworks

are operated and managed by the service providers. In

this work, we plan to use this information to build an

open and public performance simulator

for modern

https://orcid.org/0000-0002-2592-9559

https://orcid.org/0000-0001-5439-8024

A simulator focusing on the performance-related key

metrics and aspects of the system.

serverless computing platforms with a high degree of

ﬂexibility, ﬁdelity and accuracy.

In serverless computing platforms, computation is

done in function instances. These instances are com-

pletely managed by the serverless computing platform

provider and act as tiny servers for the incoming trig-

gers (requests). To develop a comprehensive simulator

for serverless computing platforms, we ﬁrst need to

understand how they work underneath and are man-

aged.

The simulator presented in this work is written in

Python. The resulting package can easily be installed

using pip

. The source code is openly accessible on

the project Github

. The documentation is accessible

on Read the Docs

. For more information, interested

https://pypi.org/project/simfaas/

https://github.com/pacslab/simfaas

https://simfaas.readthedocs.io/en/latest/

Mahmoudi, N. and Khazaei, H.

SimFaaS: A Performance Simulator for Serverless Computing Platforms.

DOI: 10.5220/0010376500230033

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 23-33

ISBN: 978-989-758-510-4

readers can check out our Github repository, which

provides links to all of our artifacts as well as easy-to-

setup environments, to try out our sample scenarios.

The remainder of the paper is organized as follows:

Section 2 describes the system simulated in SimFaaS

in detail. Section 3 outlines the design of SimFaaS

with the most important design choices and character-

istics. Section 4 lists some of possible use cases for

SimFaaS. In Section 5, we present the experimental

evaluation of SimFaaS, validating the accuracy of the

simulator. Section 6 gives a summary of the related

work. Finally, Section 7 concludes the paper.

2 SYSTEM DESCRIPTION

In this section, we introduce the management system

in serverless computing platforms, which has been

fully captured by the serverless simulator presented in

this paper.

Function Instance States:

according to recent stud-

ies (Mahmoudi and Khazaei, 2020a; Mahmoudi and

Khazaei, 2020b; Wang et al., 2018; Figiela et al., 2018;

Mahmoudi et al., 2019), we identify three states for

each function instance: initializing, running, and idle.

The initializing state happens when the infrastructure

is spinning up new instances, which might include set-

ting up new virtual machines, unikernels, or containers

to handle the excessive workload. The instance will

remain in the initializing state until it is able to handle

incoming requests. As deﬁned in this work, we also

consider application initializing, which is the time

user’s code is performing initial tasks like creating

database connections, importing libraries or loading a

machine learning model from an S3 bucket as a part of

the initializing state which needs to happen only once

for each new instance. Note that the instance cannot

accept incoming requests before performing all initial-

ization tasks. It might be worth noting that the applica-

tion initializing state is billed by most providers while

the rest of the initializing state is not billed. When

a request is submitted to the instance, the instance

goes into the running state. In this state, the request is

parsed and processed. The time spent in the running

state is also billed by the serverless provider. After the

processing of a request is over, the serverless platform

keeps the instances warm for some time to be able

to handle later spikes in the workload. In this state,

we consider the instance to be in the idle state. The

application developer is not charged for an instance

that is in the idle state.

Cold/Warm Start:

as deﬁned in previous

work (Lloyd et al., 2018; Wang et al., 2018;

Figiela et al., 2018), we refer to a request as a cold

start request when it goes through the process of

launching a new function instance. For the platform,

this could include launching a new virtual machine,

deploying a new function, or creating a new instance

on an existing virtual machine, which introduces

an overhead to the response time experienced by

users. In case the platform has an instance in the idle

state when a new request arrives, it will reuse the

existing function instance instead of spinning up a

new one. This is commonly known as a warm start

request. Cold starts could be orders of magnitude

longer than warm starts for some applications. Thus,

too many cold starts could impact the application’s

responsiveness and user experience (Wang et al.,

2018). This is the reason a lot of research in the ﬁeld

of serverless computing has focused on mitigating

cold starts (Lin and Glikson, 2019; Bermbach et al.,

2020; Manner et al., 2018).

Autoscaling:

we have identiﬁed three main autoscal-

ing patterns among the mainstream serverless comput-

ing platforms: 1) scale-per-request; 2) concurrency

value scaling; 3) metrics-based scaling. In scale-per-

request Function-as-a-Service (FaaS) platforms, when

a request comes in, it will be serviced by one of the

available idle instances (warm start), or the platform

will spin up a new instance for that request (cold start).

Thus, there is no queuing involved in the system, and

each cold start causes the creation of a new instance,

which acts as a tiny server for subsequent requests. As

the load decreases, to scale the number of instances

down, the platform also needs to scale the number of

instances down. In the scale-per-request pattern, as

long as requests that are being made to the instance

are less than the expiration threshold apart, the in-

stance will be kept warm. In other words, for each

instance, at any moment in time, if a request has not

been received in the last expiration threshold units of

time, it will be expired and thus terminated by the

platform, and the consumed resources will be released.

To enable simpliﬁed billing, most well-known pub-

lic serverless computing platforms use this scaling

pattern, e.g., AWS Lambda, Google Cloud Functions,

IBM Cloud Functions, Apache OpenWhisk, and Azure

Functions (Wang et al., 2018; Van Eyk et al., 2018).

As scale-per-request is the dominant scaling technique

used by major providers, in this paper, we strive to

simulate the performance of this type of serverless

platform.

In the concurrency value scaling pattern (Google

Cloud Platform Inc., 2020), function instances can re-

ceive multiple requests at the same time. The number

of requests that can be made concurrently to the same

instance can be set via concurrency value. Figure 1

shows the effect of concurrency value on the autoscal-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

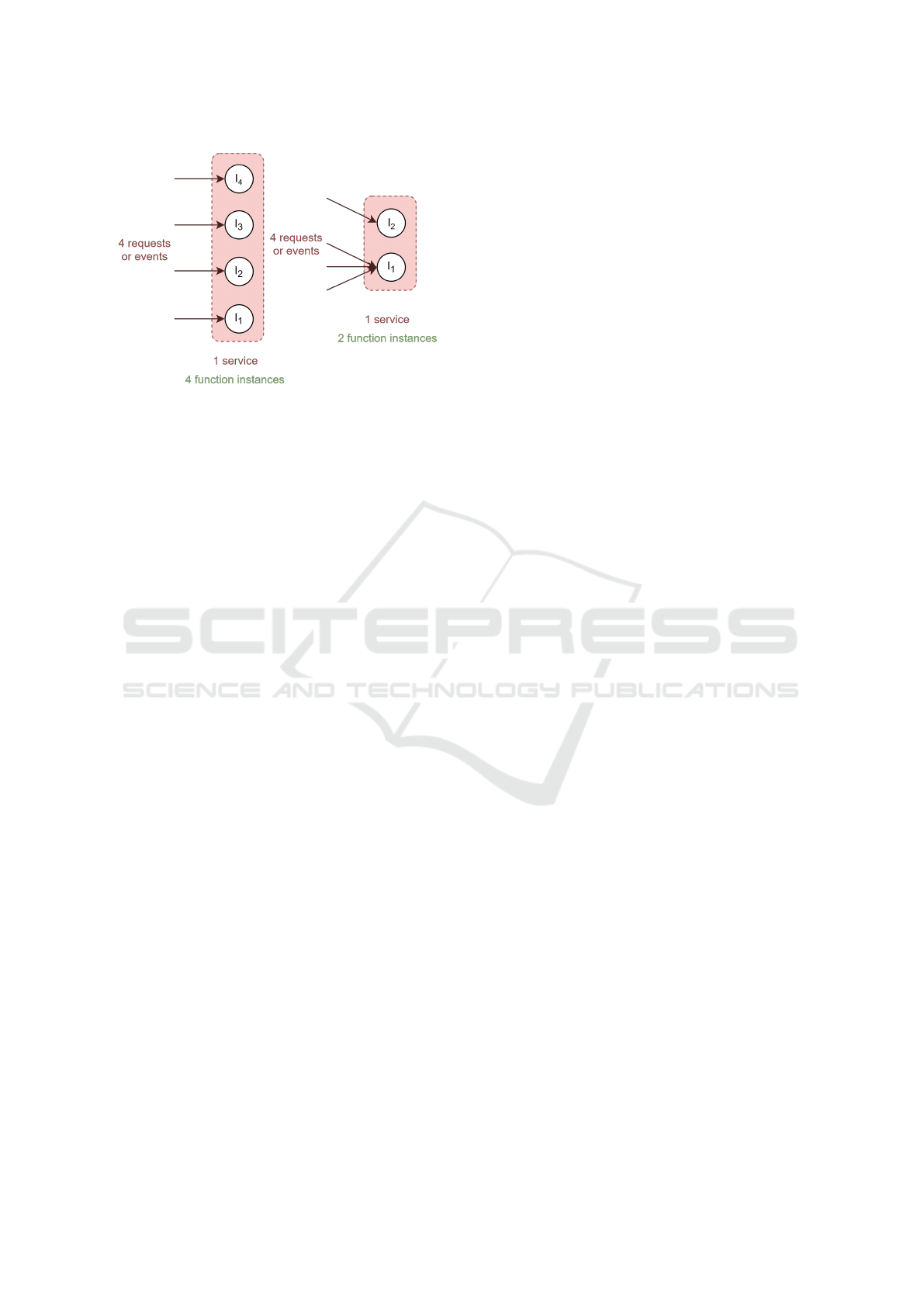

Figure 1: The effect of the concurrency value on the number

of function instances needed. The left service has a concur-

rency value of 1, while the right service has a concurrency

value of 3.

ing behaviour of the platform. It is worth noting that

the scale-per-request autoscaling pattern can initially

be seen as a special case of concurrency value scaling

pattern where concurrency value is set to 1. However,

due to its popularity, importance, and fundamental dif-

ferences in their management layer, we classify them

into separate categories. Examples of this scaling pat-

tern are Google Cloud Run and Knative.

Metrics-based scaling tries to keep metrics like

CPU or memory usage within a predeﬁned range.

Most on-premises serverless computing platforms

work with this pattern due to its simplicity and re-

liability. Some of the serverless computing platforms

that use this pattern are AWS Fargate, Azure Container

Instances, OpenFaaS, Kubeless, and Fission.

The simulator proposed in this work considers only

the platforms that use the scale-per-request pattern

due to their importance and widespread adoption in

mainstream public serverless computing platforms.

Initialization Time:

as mentioned earlier, when the

platform is spinning up new instances, they will ﬁrst

go into the initialization state. The initialization time is

the amount of time it takes since the platform receives

a request until the new instance is up and running and

ready to serve the request. The initialization time, as

deﬁned here, is comprised of the platform initializa-

tion time and the application initialization time. The

platform initialization time is the time it takes for the

platform to make the function instance ready, whether

a unikernel or a container and the application initializa-

tion time is the time it takes for the application to run

the initialization code, e.g., connecting to the database.

Response Time:

the response time usually includes

the queuing time and the service time. Since we are

addressing the scale-per-request serverless computing

platforms here, there is no queuing involved for the in-

coming requests. Due to the inherent linear scalability

in serverless computing platforms (Lloyd et al., 2018;

Wang et al., 2018; Figiela et al., 2018), the distribution

of the response time does not change over time with

different loads.

Maximum Concurrency Level:

every public server-

less computing platform has some limitations on the

number of function instances that can be spun up and

in running state for a single function. This is mainly

due to ensuring the availability of the service for oth-

ers, limiting the number of instances one user can have

up and running at the same time. This is mostly known

as the maximum concurrency level. For example, the

default maximum concurrency level for AWS Lambda

is 1000 function instances in 2020 for most regions.

When the system reaches the maximum concurrency

level, any request that needs to be served by a new

instance will receive an error status showing the server

is not able to fulﬁll that request at the moment.

Request Routing:

in order to minimize the number of

containers that are kept warm and thus to free up sys-

tem resources, the platform routes incoming requests

to new containers, and it will use older containers

only if all containers that are created more recently are

busy (McGrath and Brenner, 2017). In other words,

the scheduler gives priority to newly instantiated idle

instances using priority scheduling according to cre-

ation time, i.e., the newer the instance, the higher the

priority. By adopting this approach, the system mini-

mizes the number of requests going to older containers,

maximizing their chance of being expired and termi-

nated.

3 THE DESIGN OF SimFaaS

This section discusses the design of the novel Function-

as-a-Service (FaaS) platform simulator (SimFaaS) pro-

posed in this work. SimFaaS was created by the au-

thors as a tool for simplifying the process of validating

a developed performance model and allowing accurate

performance prediction for providers and application

developers in the absence of one. SimFaaS mainly tar-

gets public serverless computing platforms. There are

several built-in tools for visualizing, analyzing, and

verifying a developed analytical performance model.

In addition, we added tools that can accept custom

state encoding and generate approximations for Proba-

bility Density Functions (PDF) and Cumulative Distri-

bution Functions (CDF) from the simulations, which

can help debug several parts of a given analytical per-

formance model.

The proposed simulator can predict several QoS-

related metrics accurately like cold start probability,

SimFaaS: A Performance Simulator for Serverless Computing Platforms

7/13/2020 packages_simfaas.svg

file:///D:/Users/Nima/Documents/Github/serverless-performance-simulator/packages_simfaas.svg 1/1

simfaas

simfaas.FunctionInstance

simfaas.ServerlessSimulator

simfaas.SimProcess

simfaas.ServerlessTemporalSimulator

simfaas.Utility

Figure 2: The package diagram of SimFaaS. Each square

represents a class in the package and arrows represent depen-

dency.

average response time, and the probability of rejec-

tion for requests under different load intensities, which

helps application developers understand the limits of

their system and measure their SLA compliance with-

out the need for expensive experiments. In addition,

it can predict the average number of running server

count and total server count, which helps predict the

cost of service for the application developer and the

infrastructure cost incurred by the serverless provider,

respectively.

Figure 2 outlines the package diagram of SimFaaS,

showing the dependency between different modules.

The Utility module provides helper functions for plots

and calculations. The SimProcess module will help

simulate a single process and allows for comparisons

with the optional analytical model provided as a func-

tion handle to the module. The FunctionInstance mod-

ule provides the functionality of a single function in-

stance. The main simulation with an empty initial state

is provided by the ServerlessSimulator module. Fi-

nally, ServerlessTemporalSimulator module performs

simulations similar to ServerlessSimulator module, but

with added functionality allowing customized initial

state and calculation of simulation results in a time-

bounded fashion.

3.1 Extensibility and Ease of Use

SimFaaS has been developed entirely in Python using

an object-oriented design methodology. In order to

leverage the tools within the package, the user needs

to write a Python application or a Jupyter notebook

initializing the classes and providing the input parame-

ters. In addition, the user has the option to extend the

functionality in the package by extending the classes

and adding their custom functionality. Almost every

functionality of classes can be overridden to allow for

modiﬁcation and extensions. For example, the arrival,

cold start service, and warm start service processes

can be redeﬁned by simply extending the SimProcess

class. We included deterministic, Gaussian, and Ex-

ponential processes as examples of such extensions in

the package. Examples of such changes can be found

in the several examples we have provided for SimFaaS.

In addition, the user can include their analytically pro-

duced PDF and CDF functions to be compared against

the simulation trace results.

The simulator provides all of the functionality

needed for modelling modern scale-per-request server-

less computing platforms. However, we created a mod-

ular framework that can span future types of computa-

tional platforms. To demonstrate this, we extended the

ServerlessSimulator class to create ParServerlessSim-

ulator, which simulates serverless platforms that allow

queuing in the function instances but have a scaling

algorithm similar to scale-per-request platforms.

3.2 Support for Popular Serverless

Platforms

SimFaaS includes simulation models able to mimic the

most popular public serverless computing platforms

like AWS Lambda, Google Cloud Functions, IBM

Cloud Functions, Apache OpenWhisk, Azure Func-

tions, and all other platforms with similar autoscaling.

We have also performed over one month of experimen-

tation to demonstrate the validity of the simulation

results extracted from SimFaaS.

To capture the exogenous parameters needed for

an accurate simulation, the following information is

needed:

• Expiration Threshold

which is usually constant

for any given public serverless computing plat-

form. According to our experimentations and

other works (Shahrad et al., 2020; Mikhail Shilkov,

2020), in 2020, this value is 10 minutes for AWS

Lambda, Google Cloud Functions, IBM Cloud,

and Apache OpenWhisk, and 20 minutes for Azure

Functions. For other serverless computing plat-

forms, experimentation is needed by the users. The

use of a non-deterministic expiration threshold is

also possible by extending the FunctionInstance

class.

• The arrival process

which can rather safely be as-

sumed as an exponential for most consumer-facing

applications. However, other applications might

use a deterministic process, e.g. cron jobs, or other

types like batch arrival. The user can use one of

our built-in processes or simply deﬁne their own.

• The warm/cold service process

can be extracted

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

by measuring the response time from monitoring

the workload response time for cold and warm

requests. By default, SimFaaS uses exponential

distribution for this process but can be overridden

by the user by passing any class that extends the

SimProcess class. We have provided Gaussian and

ﬁxed-interval distributions as part of the package

to demonstrate this.

4 SAMPLE SCENARIOS FOR

USING SimFaaS

In this section, we will go through a few sample use

cases for the serverless platform simulator presented

in this work. For more details, a comprehensive list

of examples can be found in the project Github reposi-

tory

4.1 Steady-state Analysis

In this example, we use the SimFaaS simulator to cal-

culate the steady-state properties of a given workload

in scale-per-request serverless computing platforms.

In SimFaaS, the workload is only characterized by

arrival rate, service time (warm start response time),

and the provisioning time (the amount of time to have

a cold start instance get ready to serve the request),

which are easily accessible through experimentation

and any monitoring dashboard. The only information

needed to characterize the serverless computing plat-

form is the expiration threshold, which is the amount

of time it takes for the platform to expire and recycle

the resources of an instance after it has ﬁnished pro-

cessing its last request. This value is usually constant

and the same for all users of the serverless computing

platform. To run a simple simulation, we can leverage

the ServerlessSimulator class and run the simulation

long enough to minimize the transient effect and let

the system achieve the steady-state.

Table 1 shows a set of example simulation parame-

ters with the default exponential distribution both for

the arrival and service time processes. Note that in-

stead of using exponential distributions, the user can

pass a random generator function with a custom dis-

tribution to achieve more accurate results for speciﬁc

applications. As can be seen, the system can produce

QoS-related parameters like the probability of cold

start or rejection of the request for a given arrival rate,

which can help the application developer analyze and

ﬁnd the limits of the system. In addition, the appli-

https://github.com/pacslab/SimFaaS/tree/master/

examples

Table 1: An example simulation input and selected output pa-

rameters. The output parameters are signiﬁed with a leading

star (*).

Parameter Value

Arrival Rate 0.9 req/s

Warm Service Time 1.991 s

Cold Service Time 2.244 s

Expiration Threshold 10 min

Simulation Time 10

Skip Initial Time 100 s

*Cold Start Probability 0.14 %

*Rejection Probability 0 %

*Average Instance Lifespan 6307.7389 s

*Average Server Count 7.6795

*Average Running Servers 1.7902

*Average Idle Count 5.8893

cation developer can also use the average number of

running servers as an important measure for the cost of

their service that can be used for setting different con-

ﬁgurations of services that the function relies on, e.g.,

the database concurrent connection capacity (Ama-

zon Web Services Inc., 2020). Besides, information

like the average server count can produce an estimate

for the infrastructure cost incurred by the serverless

provider. The serverless provider can use SimFaaS as

a tool to analyze the possible effect of changing pa-

rameters like the expiration threshold on their incurred

cost and QoS for different scenarios.

Another way the proposed simulator can be lever-

aged is for extracting information about the system

that is not visible to software engineers and devel-

opers in public serverless computing platforms like

AWS Lambda or Google Cloud Functions. This in-

formation could facilitate research for predicting cost,

performance, database conﬁgurations or other related

parameters. For example, we can ﬁnd out the distri-

bution of instance counts in the system throughout

time in the simulated platform for input parameters

shown in Table 1, which is shown in Figure 3. This

information can help researchers develop performance

models based on internal states of the system with

very good accuracy, which is otherwise not possible

in public serverless offerings. To further analyze the

reproducibility of our instance count estimation us-

ing the parameters in Table 1, we ran 10 independent

simulations and generated our estimation of average

instance count over time for each run. Figure 4 shows

the average and 95% conﬁdence interval of our estima-

tion over those runs. As can be seen, our estimation

SimFaaS: A Performance Simulator for Serverless Computing Platforms

converges, showing less than 1% deviation from the

mean in the 95% conﬁdence interval.

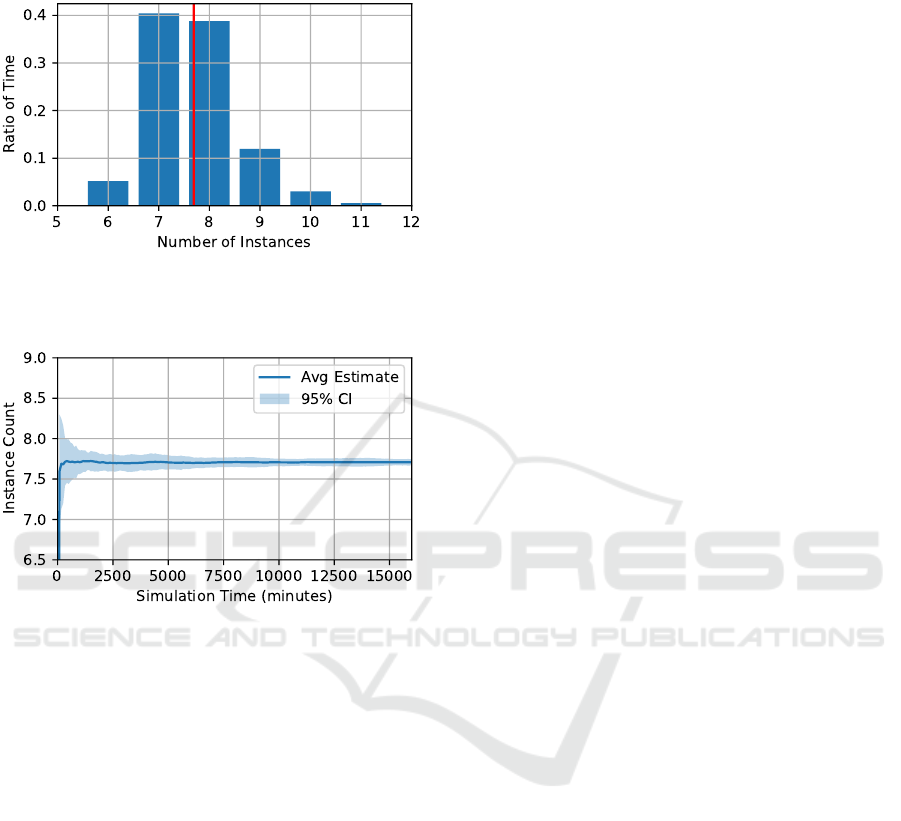

Figure 3: The instance count distribution of the simulated

process throughout time. The y-axis represents the portion

of time in the simulation with a speciﬁc number of instances.

Figure 4: The estimated average instance count over time in

10 simulations. The solid line shows the average of simula-

tions and the shaded area shows the 95% Conﬁdence Interval

(CI).

4.2 Transient Analysis

Although the steady-state analysis of the serverless

computing platform’s performance can give us the

long-term quality of service metrics, the application

developer or the serverless provider might be inter-

ested in the platform’s transient behaviour. A transient

analysis simulation can provide insight into the im-

mediate future, facilitating time-bound performance

guarantees. Besides, it can help serverless providers

ensure the short-term quality of service when trying

new designs.

Previous efforts have been made to develop per-

formance models able to provide transient analysis of

serverless computing platforms (Mahmoudi and Khaz-

aei, 2020b). However, there are inherent limitations

to such performance models, like the absence of batch

arrival modelling and being limited to Markovian pro-

cesses. SimFaaS doesn’t have such limitations and

can help both application developers and serverless

providers gain insight into the transient aspect of the

performance of serverless computing platforms.

4.3 What-if Analysis

Due to the inherent highly-dynamic infrastructure of

serverless computing platforms, there are very few

tools from the performance engineering methodologies

and analysis that can be used in the emerging serverless

technologies. Because of this inherent lack of tools

and resources, serverless computing platforms were

forced to use trial and error through implementation to

analyze their new designs for making performance and

efﬁciency improvements. There have been previous

studies that proposed analytical performance models

for serverless computing platforms (Mahmoudi and

Khazaei, 2020a; Mahmoudi and Khazaei, 2020b), but

these methods have limitations like only supporting

Markovian processes, limiting their applicability in a

number of scenarios.

One major beneﬁt of having an accurate serverless

platform simulator is the ability to perform what-if

analysis on different conﬁgurations and ﬁnd the best-

performing settings for a given workload. Implementa-

tion and experimentation to gather similar data is both

time-consuming and costly, while using the proposed

simulator makes the data collection much faster and

easier. Figure 5 shows an example of such an anal-

ysis for different values for the expiration threshold

in the system. Different workloads running on server-

less computing platforms might have different perfor-

mance/cost criteria. Using what-if analysis powered

by an accurate performance model, one could optimize

the conﬁguration for each unique workload. Similar

examples can be found in the project examples.

4.4 Cost Calculation

Performing cost prediction under different loads in

cloud computing is generally a very challenging task.

These challenges tend to be exacerbated in the highly

dynamic structure of serverless computing platforms.

Generally, there is a broad range of possible costs for a

given serverless function, including computation, stor-

age, networking, database, or other API-based services

like machine learning engines or statistical analysis.

However, all charges incurred by serverless functions

can be seen as either per-request charges (e.g., exter-

nal APIs, machine learning, face recognition, network

I/O) or runtime charges billed based on execution time

(e.g., memory or computation). Per-request charges

can be calculated using only the average arrival rate.

However, runtime charges may differ under different

load intensities due to the difference in cold start prob-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

ability. Using the proposed simulator, users can get an

estimate on the cold start probability and the average

number of running servers, which are necessary for

cost estimation under different load intensities.

In addition to the average running server count,

which helps estimate the cost incurred by the appli-

cation developer, the average total server count is lin-

early proportional to the infrastructure cost incurred

by the serverless provider. Thus, using the proposed

simulator, both developer charges and infrastructure

charges incurred by the provider can be estimated un-

der different conﬁgurations, which can help improve

the platform by studying the effect of using different

conﬁgurations or designs without the need to perform

expensive or time-consuming experiments or imple-

mentations.

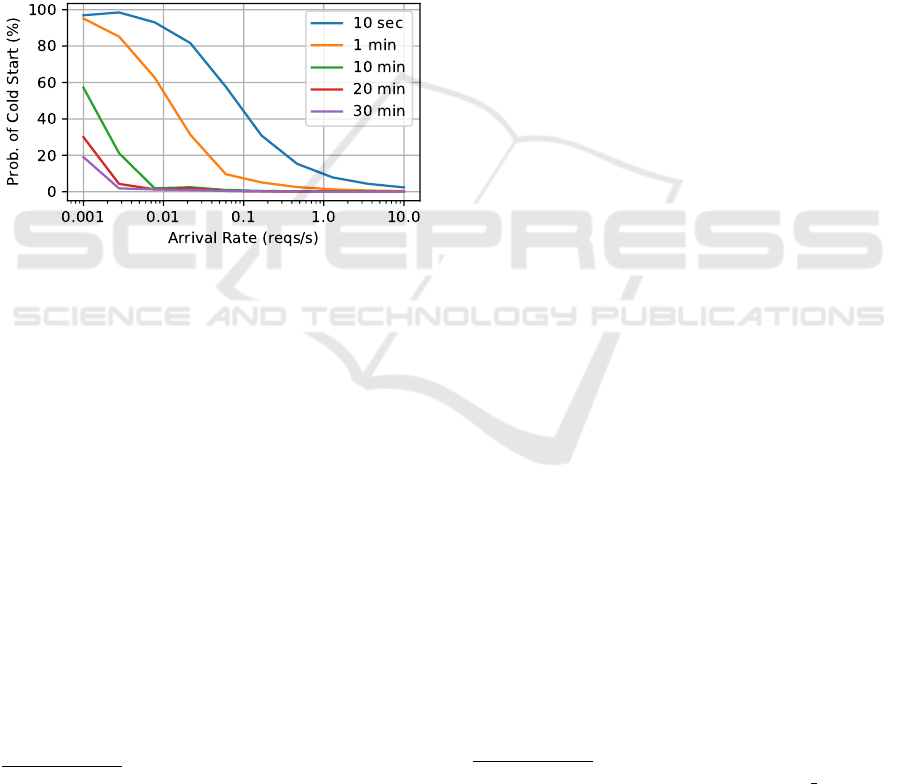

Figure 5: Cold start probability against the arrival rate for

different values of the expiration threshold for the workload

speciﬁed in Table 1. SimFaaS can ease the process of con-

ducting experiments with several conﬁgurations to ﬁnd the

best performing one.

5 EXPERIMENTAL EVALUATION

To show the accuracy of the proposed simulator,

we performed extensive experimentations on AWS

Lambda and showed that the results were in tune with

the results from SimFaaS. The experiments are above

one month of running benchmark applications on AWS

Lambda and are openly accessible on Github

. All of

our experiments were executed for a 28-hour window

with 10 minutes of warm-up time in the beginning, dur-

ing which we do not record any data. The workload

used in this work was based on the work of Wang et

al. (Wang et al., 2018) with minor modiﬁcations. Our

workload is openly available in our Github repository

For the purpose of experimental validation, we used a

https://github.com/pacslab/

serverless-performance-modeling/tree/master/experiments/

results

https://github.com/pacslab/

serverless-performance-modeling

combination of CPU intensive and I/O intensive work-

loads. During the experimentation, we have obtained

performance metrics and the other parameters such as

cold/warm start information, instance id, lifespan, etc.

5.1 Experimental Setup

In our AWS Lambda deployment, we used the Python

3.6 runtime with 128 MB of RAM deployed on the

us-east-1 region in order to have the lowest possible

latency from our client. Note that the memory con-

ﬁguration won’t affect the accuracy of the simulation

as the results depend on the service time distribution,

which captures the effect of changing the memory con-

ﬁguration. For the client, we used a virtual machine

with 8 vCPUs, 16 GB of memory, and 1000 Mbps

network connectivity with single-digit milliseconds

latency to AWS servers hosted on Compute Canada

Arbutus cloud

. We used Python as the programming

language and the ofﬁcial boto3 library to communi-

cate with the AWS Lambda API to make the requests

and process the resulting logs for each request. For

load-testing and generation of the client requests based

on a Poisson process, we used our in-house work-

load generation library

, which is openly accessible

through PyPi

. The result is stored in a CSV ﬁle

and then processed using Pandas, Numpy, Matplotlib,

and Seaborn. The dataset, parser, and the code for ex-

traction of system parameters and properties are also

publicly available in our analytical model project’s

Github repository

5.2 Parameter Identiﬁcation

We need to estimate the system characteristics to be

used in our simulator as input parameters. In this

section, we discuss our approach to estimating each of

these parameters.

Expiration Threshold:

here, our goal is to measure

the expiration threshold, which is the amount of time

after which inactive function instance in the warm

pool will be expired and therefore terminated. To

measure this parameter, we created an experiment in

which we make requests with increasing inter-arrival

times until we see a cold start meaning that the system

has terminated the instance between two consecutive

requests. We performed this experiment on AWS

lambda with the starting inter-arrival time of 10

seconds, each time increasing it by 10 seconds until

https://docs.computecanada.ca/wiki/Cloud resources

https://github.com/pacslab/pacswg

https://pypi.org/project/pacswg

https://github.com/pacslab/

serverless-performance-modeling

SimFaaS: A Performance Simulator for Serverless Computing Platforms

we see a cold start. In our experiments, AWS lambda

instances seemed to expire an instance exactly after

10 minutes of inactivity (after it has processed its last

request). This number did not change in any of our

experiments leading us to assume it is a deterministic

value. This observation has also been veriﬁed in

(Mikhail Shilkov, 2020; Shahrad et al., 2020).

Average Warm Response Time and Average Cold

Response Time:

with the deﬁnitions provided here,

warm response time is the service time of the function,

and cold response time includes both provisioning time

and service time. To measure the average warm re-

sponse time and the average cold response time, we

used the average of response times measured through-

out the experiment.

5.3 Simulator Results Validation

In this section, we outline our methodology for

measuring the performance metrics of the system,

comparing the results with the predictions of our

simulator.

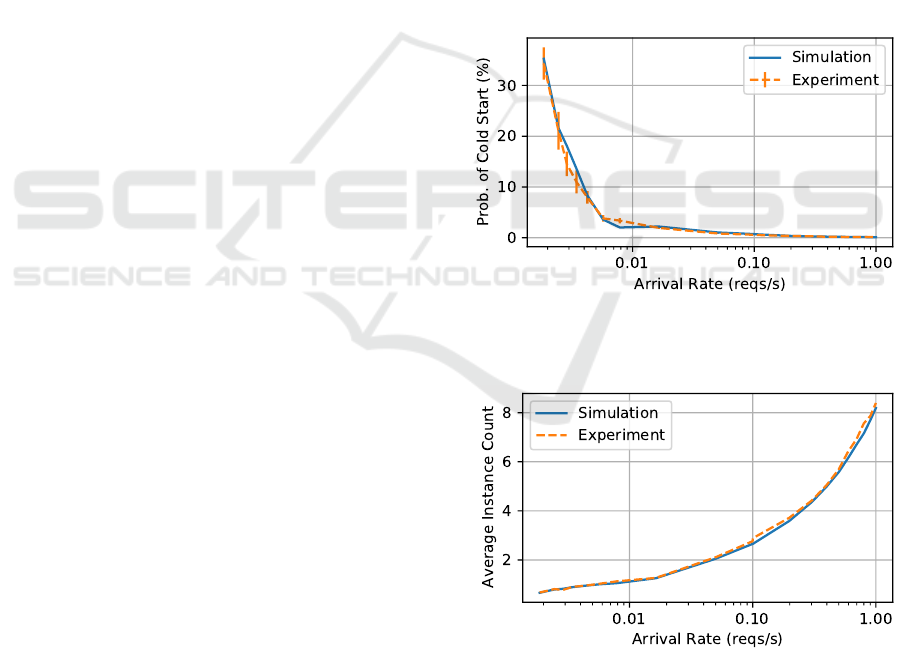

Probability of Cold Start:

to measure the probability

of cold start, we divide the number of requests causing

a cold start by the total number of requests made

during our experiment. Due to the inherent scarcity of

cold starts in most of our experiments, we observed

an increased noise in our measurements for the

probability of cold start, which led to increasing the

window for data collection to about 28 hours for each

sampled point.

Mean Number of Instances in the Warm Pool:

measure the mean number of instances in the warm

pool, we count the number of unique instances that

have responded to the client’s requests in the past 10

minutes. We use a unique identiﬁer for each function

instance to keep track of their life cycle, as obtained

in (Wang et al., 2018).

Mean Number of Running Instances:

we calculate

this metric by observing the system every ten seconds,

counting the number of in-ﬂight requests in the

system, taking the average as our estimate.

Mean Number of Idle Instances:

this can be

measured as the difference between the total average

number of instances in the warm pool and the number

of instances busy running the requests.

Average Wasted Capacity:

for this metric, we de-

ﬁne the utilized capacity as the ratio of the number of

running instances over all instances in the warm pool.

Using this deﬁnition, the ratio of idle instances over

all instances in the warm pool is the wasted portion of

capacity provisioned for our workload. Note that this

value is very important to the provider as it measures

the ratio of the utilized capacity (billed for the applica-

tion developer) over the deployed capacity (reﬂecting

the infrastructure cost).

5.4 Experimental Results

Figure 6 shows the probability of cold start for differ-

ent arrival rates extracted from the simulation com-

pared with real-world results. As can be seen, the

results match the performance metrics extracted from

experimentations. The results show an average error

12.75%

, while the standard error of the underlying

process for the experiments over

runs totalling

hours is

10.14%

showing the accuracy of the results

obtained from the simulation. Figures 7 and 8 show the

average number of instances and the average wasted

capacity (in idle state) for the simulation and experi-

ments with Mean Absolute Percentage Error (MAPE)

of 3.43% and 0.17%, respectively.

Figure 6: Probability of cold start extracted from simula-

tion compared with real-world experimentations on AWS

Lambda.

Figure 7: The average number of instances extracted from

simulation compared with real-world experimentations on

AWS Lambda.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

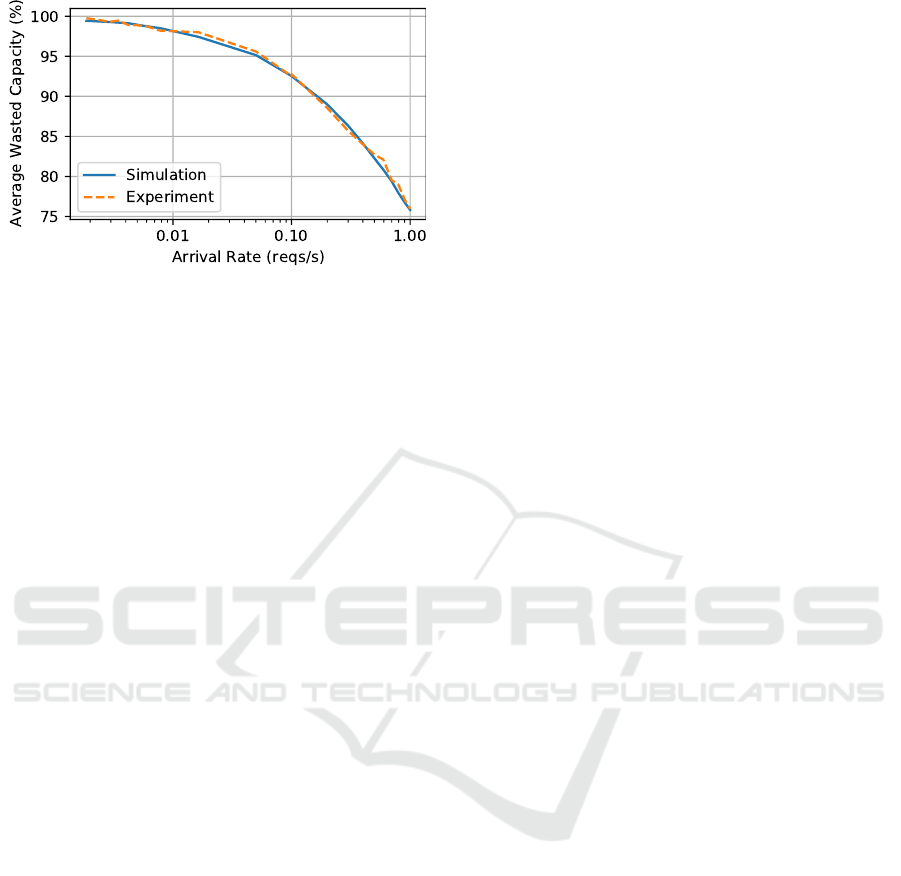

Figure 8: Average wasted resources extracted from simula-

tion compared with real-world experimentations on AWS

Lambda.

6 RELATED WORK

Many recent works in the area of serverless computing

platforms have focused on studying and ﬁnding ways

to improve the performance of serverless computing

platforms (van Eyk and Iosup, 2018; Manner et al.,

2018; Manner, 2019; Boza et al., 2017; Abad et al.,

2018; Jeon et al., 2019). However, to the best of the

authors’ knowledge, none have been able to predict

or simulate comprehensive performance or quality of

metrics characteristics for a given workload. In this

section, we will go through the most related recent

works in the prediction of the performance or quality

of service for serverless computing platforms.

Some of the previous studies have focused on

developing comprehensive performance models for

steady-state and transient analysis of a given work-

load (Mahmoudi and Khazaei, 2020a; Mahmoudi and

Khazaei, 2020b). However, the proposed models im-

pose several limitations on the arrival and service time

processes and cannot handle batch arrivals. These

limitations render the developed performance model

unusable for many types of workloads, especially for

batch and analytics workloads. The serverless per-

formance simulator proposed in this work can handle

any type of arrival or service time process and can

be adapted to future emerging serverless computing

management models with less manual effort.

In (Bortolini and Obelheiro, 2019), Bortolini et

al. used experimentations on different conﬁgurations

and serverless providers in order to ﬁnd the most im-

portant factors inﬂuencing the performance and cost

of current serverless platforms. In their study, they

found low predictability of cost as one of the most

important drawbacks of serverless computing plat-

forms. Using simulators like what we proposed in this

work can help improve the predictability of the cost

of a given workload under different load intensities.

Hellerstein et al. (Hellerstein et al., 2018) addressed

the main shortcomings present in the ﬁrst-generation

serverless computing platforms and the anti-patterns

present in them. They showed that current implemen-

tations are restricting distributed programming and

cloud computing innovations. Eyk et al. (Van Eyk

et al., 2018) found the most important issues surround-

ing the widespread adoption of FaaS to be sizeable

overheads, unreliable performance, and new forms of

cost-performance trade-off. In their work, they identi-

ﬁed six performance-related challenges for the domain

of serverless computing and proposed a roadmap for

alleviating these challenges. Several of the aforemen-

tioned shortcomings of serverless computing platforms

can be mitigated by predicting the cost-performance

trade-off using serverless simulators.

Eyk et al. (van Eyk and Iosup, 2018) investigated

the performance challenges in current serverless com-

puting platforms. They found the most important chal-

lenges in the adoption of FaaS to be the remarkable

computational overhead, unreliable performance, and

absence of benchmarks. The introduction of an accu-

rate simulator for function-as-a-service offerings could

overcome some of these shortcomings. Manner et

al. (Manner et al., 2018) investigated the factors inﬂu-

encing the cold start performance of serverless comput-

ing platforms. Their experiments on AWS Lambda and

Azure Functions show that factors like the program-

ming language, deployment package size, and memory

settings affect the performance on serverless comput-

ing platforms. In a later study, Manner et al. (Manner,

2019) describe the importance of an accurate simula-

tor for Function-as-a-Service (FaaS) products. They

mention how scaling, cold starts, function conﬁgura-

tions, dependent services, network latency, and other

important conﬁgurations inﬂuence cost-performance

trade-off. In their work, they propose a simulation

framework for a cost and performance simulator for

serverless computing platforms. In this platform, they

suggest extracted mean values from experiments as

inputs to the performance model in order to calculate

different properties.

Boza et al. (Boza et al., 2017) introduced a model-

based simulation for cloud budget planning. In their

work, they perform cost simulation for using reserved

VMs, on-demand VMs, bid-based VMs, and serverless

computing for a similar computing task. In their work,

the serverless computing simulation is overly simplis-

tic for performance modelling researchers and lacks

several important details. In this work, we focus solely

on performance simulation of serverless computing

platforms, but with more details in mind, which seems

necessary for the simulator to be leveraged by the per-

SimFaaS: A Performance Simulator for Serverless Computing Platforms

formance research community, application developers,

and serverless providers.

Abad et al. (Abad et al., 2018) mainly considered

the problem of scheduling small cloud functions on

serverless computing platforms. As a part of their eval-

uations, they implemented a SimPy-based simulation

for their proposed scheduling method. Although this

work shows promise of rather accurate serverless com-

puting simulations, their focus is on scheduling tasks

while ignoring several details of interest for perfor-

mance modelling. In this work, we strive to ﬁll this

gap by providing the performance modelling research

with the proper tooling necessary for high-ﬁdelity per-

formance models of serverless computing platforms.

Jeon et al. (Jeon et al., 2019) introduced a CloudSim ex-

tension focused on Distributed Function-as-a-Service

(DFaaS) on edge devices. Although the DFaaS sys-

tems hold a great promise for the future of serverless

computing, it doesn’t allow simulation for the main-

stream serverless computing platforms.

7 CONCLUSION AND FUTURE

WORK

In this work, we presented SimFaaS, a simulator for

modern serverless computing platforms with sufﬁcient

details to yield very accurate results. We introduced

a range of tools available for performance modelling

researchers giving them insights and details into sev-

eral internal properties that are not visible for users in

public serverless computing platforms. We reviewed

some of the possible use cases of the proposed simula-

tor and showed its accuracy through comparison with

real-world traces gathered from running benchmark

applications on AWS Lambda.

SimFaaS enables performance modelling re-

searchers with a tool allowing them to develop accurate

performance models using the internal state of the sys-

tem, which cannot be monitored on public serverless

computing platforms. Using SimFaaS, both server-

less providers and application developers can predict

the quality of service, expected infrastructure and in-

curred cost, amount of wasted resources, and energy

consumption without performing lengthy and expen-

sive experimentations. The beneﬁts of using SimFaaS

for serverless computing platform providers could be

two-fold: 1) They can examine new designs, develop-

ments, and deployments in their platforms by initially

validating new ideas on SimFaaS, which will be sig-

niﬁcantly cheaper in terms of time and cost compared

to actual prototyping; 2) They can provide users with

ﬁne-grain control over the cost-performance trade-off

by modifying the platform parameters (e.g., expiration

threshold). This is mainly due to the fact that there

is no universal optimal point in the cost-performance

trade-off for all workloads. By making accurate pre-

dictions, a serverless provider can better optimize their

resource usage while improving the application devel-

opers’ experience and consequently the end-users.

As future work, we plan to extend SimFaaS to

include new generations of serverless computing, in

addition to adding several billing schemas in order to

predict the cost of running workloads on the serverless

platform. We are also aiming to maintain SimFaaS

by the members of PACS Lab

to add new features

offered by serverless providers.

ACKNOWLEDGEMENTS

This research was enabled in part by support provided

by Sharcnet (www.sharcnet.ca) and Compute Canada

(www.computecanada.ca). We would also like to thank

Amazon for supporting this research by providing us

with the education credit to access the Amazon Web

Services (AWS).

REFERENCES

Abad, C. L., Boza, E. F., and Van Eyk, E. (2018). Package-

aware scheduling of faas functions. In Companion

of the 2018 ACM/SPEC International Conference on

Performance Engineering, pages 101–106.

Amazon Web Services Inc. (2020). Amazon DynamoDB

Read/Write Capacity Mode. https://docs.aws.amazon.

com/amazondynamodb/latest/developerguide/

HowItWorks.ReadWriteCapacityMode.html. Last

accessed 2020-11-20.

Bermbach, D., Karakaya, A. S., and Buchholz, S. (2020).

Using application knowledge to reduce cold starts in

faas services. In Proceedings of the 35th ACM/SIGAPP

Symposium on Applied Computing.

Bortolini, D. and Obelheiro, R. R. (2019). Investigating

performance and cost in function-as-a-service plat-

forms. In International Conference on P2P, Parallel,

Grid, Cloud and Internet Computing, pages 174–185.

Springer.

Boza, E. F., Abad, C. L., Villavicencio, M., Quimba, S., and

Plaza, J. A. (2017). Reserved, on demand or serverless:

Model-based simulations for cloud budget planning.

In 2017 IEEE Second Ecuador Technical Chapters

Meeting (ETCM), pages 1–6. IEEE.

Figiela, K., Gajek, A., Zima, A., Obrok, B., and Malawski,

M. (2018). Performance evaluation of heterogeneous

cloud functions. Concurrency and Computation: Prac-

tice and Experience, 30(23):e4792.

https://pacs.eecs.yorku.ca

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

Google Cloud Platform Inc. (2020). Concurrency. https:

//cloud.google.com/run/docs/about-concurrency. Last

accessed 2020-02-13.

Hellerstein, J. M., Faleiro, J., Gonzalez, J. E., Schleier-Smith,

J., Sreekanti, V., Tumanov, A., and Wu, C. (2018).

Serverless computing: One step forward, two steps

back. arXiv preprint arXiv:1812.03651.

Jeon, H., Cho, C., Shin, S., and Yoon, S. (2019). A cloudsim-

extension for simulating distributed functions-as-a-

service. In 2019 20th International Conference on

Parallel and Distributed Computing, Applications and

Technologies (PDCAT), pages 386–391. IEEE.

Lin, P.-M. and Glikson, A. (2019). Mitigating cold starts in

serverless platforms: A pool-based approach. arXiv

preprint arXiv:1903.12221.

Lloyd, W., Ramesh, S., Chinthalapati, S., Ly, L., and Pal-

lickara, S. (2018). Serverless computing: An investiga-

tion of factors inﬂuencing microservice performance.

In 2018 IEEE International Conference on Cloud En-

gineering (IC2E), pages 159–169. IEEE.

Mahmoudi, N. and Khazaei, H. (2020a). Performance Mod-

eling of Serverless Computing Platforms. IEEE Trans-

actions on Cloud Computing, pages 1–15.

Mahmoudi, N. and Khazaei, H. (2020b). Temporal Perfor-

mance Modelling of Serverless Computing Platforms.

In Proceedings of the 6th International Workshop on

Serverless Computing, WOSC ’20, pages 1–6. Associ-

ation for Computing Machinery.

Mahmoudi, N., Lin, C., Khazaei, H., and Litoiu, M. (2019).

Optimizing serverless computing: introducing an adap-

tive function placement algorithm. In Proceedings of

the 29th Annual International Conference on Computer

Science and Software Engineering, pages 203–213.

Manner, J. (2019). Towards performance and cost simulation

in function as a service. Proc. ZEUS (accepted).

Manner, J., Endreß, M., Heckel, T., and Wirtz, G. (2018).

Cold start inﬂuencing factors in function as a service.

In 2018 IEEE/ACM International Conference on Utility

and Cloud Computing Companion (UCC Companion),

pages 181–188. IEEE.

McGrath, G. and Brenner, P. R. (2017). Serverless com-

puting: Design, implementation, and performance.

In 2017 IEEE 37th International Conference on Dis-

tributed Computing Systems Workshops (ICDCSW),

pages 405–410. IEEE.

Mikhail Shilkov (2020). Cold starts in aws lambda. https:

//mikhail.io/serverless/coldstarts/aws/. Last accessed

2020-03-18.

Shahrad, M., Fonseca, R., Goiri,

I., Chaudhry, G., Batum, P.,

Cooke, J., Laureano, E., Tresness, C., Russinovich, M.,

and Bianchini, R. (2020). Serverless in the wild: Char-

acterizing and optimizing the serverless workload at a

large cloud provider. arXiv preprint arXiv:2003.03423.

van Eyk, E. and Iosup, A. (2018). Addressing performance

challenges in serverless computing. In Proc. ICT.

OPEN.

Van Eyk, E., Iosup, A., Abad, C. L., Grohmann, J., and

Eismann, S. (2018). A spec rg cloud group’s vision on

the performance challenges of faas cloud architectures.

In Companion of the 2018 ACM/SPEC International

Conference on Performance Engineering, pages 21–24.

ACM.

Wang, L., Li, M., Zhang, Y., Ristenpart, T., and Swift, M.

(2018). Peeking behind the curtains of serverless plat-

forms. In 2018 USENIX Annual Technical Conference

(USENIX ATC 18), pages 133–146.

SimFaaS: A Performance Simulator for Serverless Computing Platforms
