Comparing Feature Engineering and Deep Learning Methods

for Automated Essay Scoring of Brazilian National High School

Examination

Aluizio Haendchen Filho

, Fernando Concatto

, Hércules Antonio do Prado

and Edilson Ferneda

Laboratory of Technological Innovation in Education (LITE), University of Vale do Itajaí (UNIVALI), Itajaí, Brazil

Catholic University of Brasilia (UCB) QS 07, Lote 01, Taguatinga, Brasília, DF, Brazil

Keywords: Automated Essay Scoring, Machine Learning, Deep Learning.

Abstract: The National High School Exam (ENEM) in Brazil is a test applied annually to assess students before entering

higher education. On average, over 7.5 million students participate in this test. In the same sense, large

educational groups need to conduct tests for students preparing for ENEM. For correcting each essay, it is

necessary at least two evaluators, which makes the process time consuming and very expensive. One

alternative for substantially reducing the cost and speed up the correction of essays is to replace one human

evaluator by an automated process. This paper presents a computational approach for essays correction able

to replace one human evaluator. Techniques based on feature engineering and deep learning were compared,

aiming to obtain the best accuracy among them. It was found that is possible to reach accuracy indexes close

to 100% in the most frequent classes that comprise near 80% of the essays set.

1 INTRODUCTION

The Brazilian National High School Examination

(ENEM) is an evaluation that happens annually in

order to verify the knowledge of the participants

about skills acquired during the high school years,

including writing abilities. During the essay

evaluation, two reviewers assign scores ranging from

0 to 2, in intervals of 0,5 for each of the five

competencies: [C

] Formal writing of Brazilian-

Portuguese language; [C

] Understanding the essay

proposal within the structural limits of the essay-

argumentative text; [C

] Selecting, relating,

organizing, and interpreting information, facts,

options, and defence of a point of view; [C

]

Demonstrating knowledge of the linguistic

mechanisms necessary to construct the

argumentation; [C

] Proposing of an intervention for

the problem addressed based on consistent

arguments.

https://orcid.org/0000-0002-7998-8474

https://orcid.org/0000-0003-4361-7134

https://orcid.org/0000-0002-8375-0899

https://orcid.org/0000-0003-4164-5828

The scoring process varies from 0 to 2 for each

competence, summing 10 for the essay. A grade 0

(zero) for a competence means that the author does

not demonstrate mastery over the competence in

question. In contrast, a score of 2 indicates that the

author demonstrates mastery over that competence. It

is important to mention that two reviewers are

considered in agreement when the difference between

grades is less or equal than 20%.

Arguably, the essays evaluation by at least two

reviewers makes the process time-consuming and

expensive. According to a survey conducted by the

Brazilian G1 portal, 6.1 million essays were evaluated

in 2019 at a cost of US$ 4.96 per essay, reaching

approximately US$ 30.27 million. This value

includes the structure, logistics, and personnel needed

to evaluate the national exam. On the other hand,

large educational groups need to conduct training

tests with students for the ENEM test. It is necessary

to use at least two evaluators for each essay, which

Filho, A., Concatto, F., Antonio do Prado, H. and Ferneda, E.

Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination.

DOI: 10.5220/0010377505750583

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 575-583

ISBN: 978-989-758-509-8

575

makes the process time consuming and very

expensive. One of the ways to substantially reduce the

cost and speed up the correction of essays is to replace

one of the human evaluators by an automated process.

Automated Essay Scoring (AES) has been the

subject of study for some decades. An AES system

takes as input an essay and assigns a numeric score

reflecting its quality, based on its content, grammar,

and organization. Until recently, Machine Learning

(ML) approaches using methods based on Features

Engineering (FE) prevailed for predicting such

outcomes (Shermis and Burstein, 2003, 2013; Dikli,

2006; Fonseca et al., 2018). Some studies have

pointed out that Deep Learning (DL) AES

frameworks seem to have better prediction results

compared to FE-based approaches (Nguyen and

Dery, 2016; Shin, 2018; Fonseca et al., 2018; Ge and

Chen, 2020).

This paper presents a comparison between FE and

DL results for AES, emphasizing the particular

characteristics that can lead to improvements in the

ENEM scoring. The comparison results point out to a

solution able to automatedly score essays that, in

synergy with a human evaluator, can lead to a

decreasing in the set of essays that requires another

human reviewer. Consequently, this approach can

reduce substantially the number of required human

reviewers. The solution was tested on the five ENEM

competencies, however, due to space limitations,

only the results with Competence C

are shown.

Section 2 presents some concepts of the main

technologies used. Section 3 gives an overview on the

related works. The details of this approach are

provided in Section 4. Following, Section 5 brings a

discussion on the results and the conclusion is

presented in Section 6.

2 BACKGROUND

A summary of AES approaches and a description of

FE-based and DL methods along with balancing

techniques is presented in this section.

2.1 Automated Essay Scoring

AES is defined as the computer technology that

evaluates and scores the written prose (Dikli, 2006;

Shermis and Burstein, 2003). AES systems are

mainly used to overcome time, cost, reliability, and

generalization issues in essay assessment (Bereiter,

2003). This subject keeps attracting the attention of

public schools, universities, testing companies,

researchers and educators (Dikli, 2006). Usually,

AES systems are dedicated to assist teachers in

classroom assessment both in low and large-scale

participation.

A number of studies have been driven to assess

the accuracy and reliability of AES systems regarding

essay assessment. Several studies have been

developed in order to increase the agreement rates

between AES systems and human scoring (Attali and

Burstein, 2006; Foltz et al., 1999; Shermis and

Burstein, 2013; Fonseca et al., 2018).

AES systems are built using several technologies

and heuristics that allow for essay evaluation with fair

accuracy. Moreover, unlike human evaluators, these

systems maintain consistency over the assigned

scores, as they are not affected by subjective factors.

They can also enable faster in providing grades on

essays (Shermis and Burstein, 2013).

2.2 Feature Engineering Methods

Currently, most of the research efforts for features

extraction from essays are based on ML approaches

(Rao and Pais, 2019). These approaches use mainly a

combination of statistical and Natural Language

Processing techniques to extract linguistic features.

The features extracted by this method are classified

with different models such as Support Vector

Machines with different kernels (Shin, 2018), neural

network models (Taghipour and Ng, 2016), and

Gradient Boosting Trees (GBT) (Friedman, 2001;

Fonseca et al., 2018).

Analysis of essays based on linguistic features is

interesting not only for scoring but also for providing

student feedback. Given a set of human scored essays,

the features can be derived from the essays and a

classifier can be trained to associate the feature values

with the previously assigned score.

The statistical method Least Absolute Shrinkage

and Selection Operator (LASSO), proposed by

Tibshirani (1996), is an alternative to improve the

accuracy and interpretability of linear regression.

This is accomplished by removing the less relevant

features, i.e., with lower impacts in the regression

results. The gradient boosting machine proposed by

Friedman (2001) works as an estimation-

approximation function. It can be considered as a

numerical optimization in the function space, rather

than the parameter space. A connection is done

among stepwise additive expansions and steepest

descent minimization. A general gradient descent

boosting paradigm is developed for additive

expansions based on an arbitrarily chosen criterion.

Specific boosting procedures are proposed for: (i)

least-squares; (ii) least absolute deviation; (iii)

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

576

Huber-M loss functions; and (iv) multiclass logistic

likelihood for classification. Special enhancements

are derived for the particular case of regression trees,

for which tools for interpretation are presented.

According to Friedman (2001), the relatively high

accuracy, consistent performance, and robustness of

boosting may represent a noticeable advantage.

2.3 Deep Learning Methods

DL aims at solving the dependence of FE with respect

to quality of the features. It is a laborious task to

manually select the most informative features for

such a system (Taghipour and Ng, 2016). DL aims at

releasing a strong human effort in selecting features

for AES.

Prediction accuracy, and interpretability of the

scoring algorithms are concerns in adopting AES

(Zaidi, 2016). In order to overcome such concerns,

researchers have attempted to introduce improved

AES frameworks (Shin, 2018). Some improvements

in accuracy prediction have been obtained by means

of DL algorithms or by using deep language features

to ensure the model captures essay contents and the

focused construct (Dong et al., 2017).

ML approaches (especially DL) for AES have

shown promising prediction results (Shin, 2018;

Taghipour and Ng, 2016; Dong et al., 2017). ML-

based AES algorithms are heavily dependent on

features selected by humans (or Feature

Engineering). On the other hand, the effectiveness of

DL algorithms depends only on having at least a

medium or large training corpus.

Recurrent neural networks are one of the most

successful DL models and have attracted the attention

of researchers from many fields. Compared to

feedforward neural networks, recurrent neural

networks (RNN) are theoretically more powerful and

are capable of learning more complex patterns from

data (Taghipour and Ng, 2016). Previous studies (Kim

et al., 2016; Dong et al., 2016) have demonstrated that

DL AES frameworks using RNN and convolutional

neural networks (CNN) can produce more robust

results than the traditional models based on ML

algorithms across different domains. Many algorithms

have been used to demonstrate the robustness of results

such as the RNN approach (Dong et al., 2017; Fonseca

et al., 2018).

2.4 Classes Balancing

Class imbalance is a common problem in many

application domains, including AES. The imbalance

of the number of samples among the classes

represents a problem for traditional classification

algorithms. The problem is that these algorithms are

biased by the classes’ frequency distribution, which

influences the prediction accuracy benefiting the

more frequent classes. For example, if 25% of all

essays correspond to the set of minority classes, then

the algorithm will to produce a classifier with an

accuracy tending to 75% (Seiffert et al., 2008).

There are different balancing techniques, like

Synthetic Minority Oversampling Technique –

SMOTE (Chawla et al., 2002), Adaptive Synthetic

Sampling Method – ADASYN (He et al., 2008),

Random Undersampling – RUS and Random

Oversampling (ROS) (Yap et al., 2014). SMOTE

creates synthetic examples of the minority class based

on samples of this class, applying the nearest

neighbour’s approach. ADASYN is based on

SMOTE, adding the distribution of samples on the

minority class as a criterion to decide the number of

synthetic examples that should be created from each

sample. RUS takes the non-minority classes and

randomly discard some examples in order to match

the amount of the minority class. Conversely, ROS

approach increases the number of non-majority

classes samples by replicating them in order to match

the majority class.

3 RELATED WORKS

Some studies were obtained from the literature

review, considering how up to date and relevant they

are to the state of art of AES in Brazilian-Portuguese

language. Shin (2018) compares the effectiveness and

the performance of two AES frameworks, one based

on FE and the other on DL algorithms. The FE-based

framework adopts support vector machines (SVM) in

conjunction with Coh-Metrix features, and the second

one uses the CNN approach. The results were

evaluated using the Quadratic Weighted Kappa

(QWK) score and compared with the results from

human evaluators. CNN model outperformed the

Coh-Metrix + SVM model based on the two-criterion

guidelines (Writing Application and Language

Convention Competencies) and produced a higher

average QWK score.

Fonseca et al. (2018) pursued two directions for

AES: (i) deep neural networks, considered the state-

of-art results in the literature; and (ii) FE-based

systems, which can benefit from domain knowledge

and usually are faster to train and provide a more

transparent feedback. On the FE-based method, they

had trained one regressor for each competence with

features extracted from the data.

Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination

577

The authors extracted five types of features: (i)

count metrics: most of these features are

commonplace in the literature and extract basic

statistics about the text, such as number of commas,

number of characters, number of paragraphs, number

of sentences, sentences per paragraph ratio, average

sentence length, and so on; (ii) specific expressions:

some groups of words and expressions are expected

to appear in good essays (e.g., social agents such as

the government, media, family, law enforcement

agencies, and schools); (iii) token n-Grams: checked

in order to identify the presence of n-grams highly

correlated with essay score; (iv) POS n-Grams: they

extract a similar list of POS tag n-grams, with 2 ≤ n ≤

4, and check their presence in essays; and (v) POS

Counts: count the occurrences of each POS tag in the

text. In total, they consider a pool of 681 features

values, but not all of them are relevant to each of the

ENEM competencies.

For the deep neural network, they used a

hierarchical neural architecture with two RNN layers.

The first layer reads word vectors and generates

sentence vectors, which are in turn read by the second

layer to produce a single essay vector. Both recurrent

layers use bidirectional Long Short-Term Memory

(BiLSTM) cells. A BiLSTM is basically two LSTM,

one reading the sequence from left to right and the

other reading it from right to left. At each time step

(each token in the first layer or each sentence in the

second one), the hidden states of both LSTM are

concatenated, and the resulting vector of the layer

(sentence or essay vector) is obtained as the mean of

all hidden states.

Taghipour and Ng (2016) developed a system

called Neural Essay Assessor – NEA. It works with a

recurrent neural network-based method to score the

essays in an end-to-end manner. They have explored

a variety of neural network models in this paper to

identify the most suitable model. The best model

found was a LSTM neural network trained with a

regression method. The approach accepts directly an

essay as input and automatically learns the features

from the data.

The neural network architecture used includes

five layers: (i) lookup table layer, that projects each

word into a high-dimensional space; (ii) convolution

layer, which extracts local features; (iii) recurrent

layer, that works by generating embeddings (whether

from the convolution layer or directly from the

lookup table layer) and a representation for the given

essay; (iv) mean over time layer, that receives the

recurrent layer outputs and calculates an average

vector; and (v) linear layer with sigmoid activation,

that maps the vector generated in the mean over time

layer into a scalar value. They concluded that the

recurrent neural network model effectively utilizes

essay content to extract the required information for

scoring essays.

4 METHODOLOGY AND

EXPERIMENTS

At this point, empirical results on the search for better

performances are presented in terms of accuracy of

FE and DL approaches in the context of AES for

ENEM. It involves the following steps: (i) corpus and

class balancing; (ii) FE-based approach; (iii) DL-

based approach.

4.1 Corpus

The corpus used in the experiments was extracted by

a crawling process on essays datasets from Brasil

Escola portal (https://brasilescola.uol.com.br).

Monthly, a topic is proposed in this portal and

interested students submit their textual productions

for evaluation. Part of the evaluated essays are then

made available along with the respective corrections,

scores, and comments from the reviewers. For each

competence in an essay, a score between 0 and 2 is

assigned, ranging in steps of 0.5.

It is also important to highlight the verification of

the quality of the scores attributed by the evaluator.

For this, approximately 10% of the total essays were

checked by specialists in the Portuguese-Brazilian

language. It was found that the agreement index

between evaluators and specialists in Portuguese was

close to 90%.

In order to avoid noise in the automatic

classification process, the following processing steps

were performed: (i) removal of special characters,

numbers, and dates; (ii) transformation of all text to

lowercase; (iii) application of morphological markers

(POS tagging) using the nlpnet library; (iv) inflection

of the tokens by means of stemming using the NLTK

library and the RSLPS algorithm, specific for the

Portuguese language; and (v) segmentation

(tokenization) by words, sentences, and paragraphs.

Only the essays with more than fifty characters

and with scores available in all competencies were

considered. A set of 4,317 essays, from 2007 to 2018,

was collected. The corpus has an imbalanced number

of essays per grade in Competence C

, as well as in

the other four competencies, which could negatively

affect the efficiency of the classifier. The first

competence was chosen to illustrate how the

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

578

balancing was carried out; other competencies have

slightly different balances, but do not differ

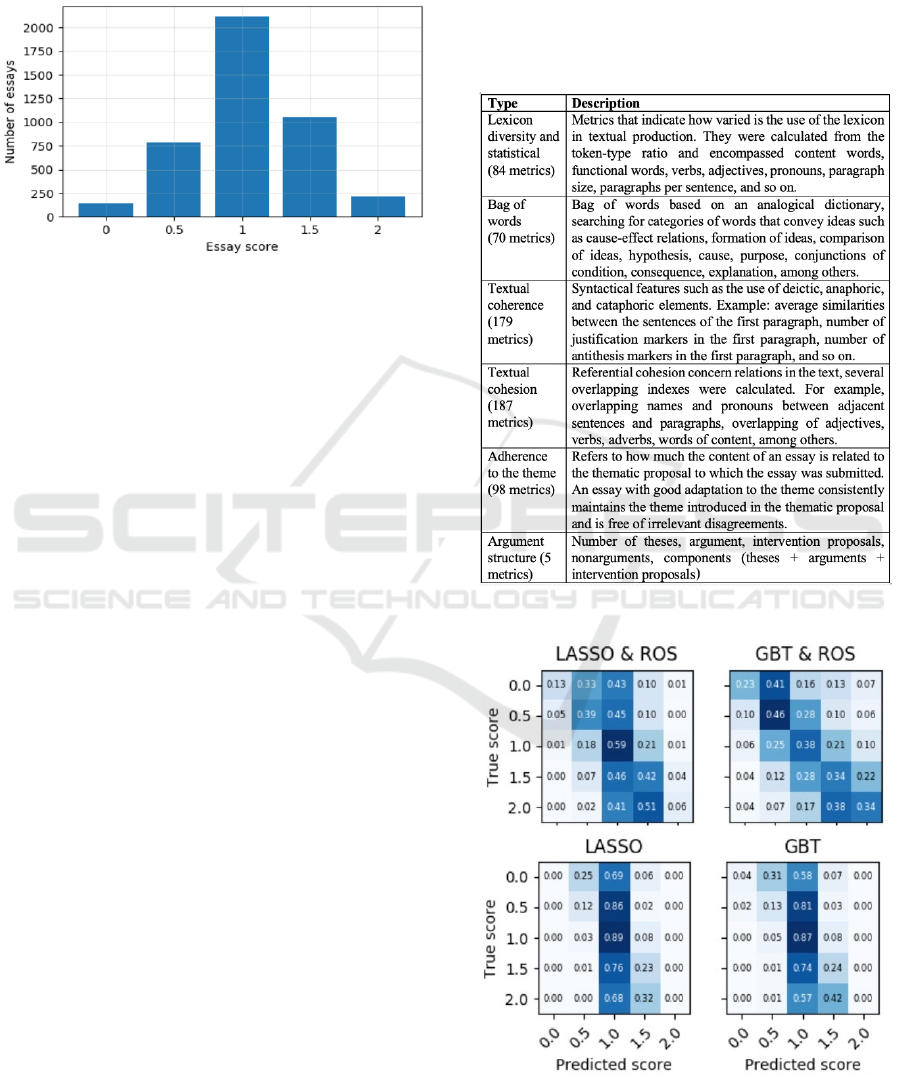

significantly. Fig. 1 shows the proportion of scores

for each category.

Figure 1: Class distribution in the corpus.

Better results in the experiments were achieved by

using balancing techniques. For balancing, SMOTE,

Adasyn, Random Oversampling, and Random

Undersampling algorithms were applied. Each

technique generated a new corpus that was submitted

to the algorithms below.

4.2 Feature Engineering Approach

This approach comprises features generation and

features vector scoring.

Features Generation. It was considered 623 textual

features, taking into account the results obtained by

(Haendchen Filho et al., 2019), organized in five

dimensions: lexical diversity, bag of words, textual

cohesion, adherence to the theme, and argument

structure, as shown in Figure 2. The features were

submitted to a z-score standardization.

Features Vector Scoring. For transforming each

feature vector into a grade, a function of the form F:

V  C must be applied, with each v = (f

, f

, … f

623

)

 V representing a 623-dimensional feature vector

and each c = (c

, c

)  C representing a 5-

dimensional vector of grades. Due to the high

dimensionality of the input vector, this function must

be discovered by means of inference algorithms.

During the experiments, six algorithms were applied

to the same problem, and concluded LASSO and

GBT as the most accurate algorithms (see Figure 3).

So, these were the choices for this research.

A slightly modified version of the k-fold cross-

validation (Hastie et al., 2009) was applied. So, each

cycle of the k-fold algorithm splits the entire training

data into two disjoint subsets: a test set, containing a

fraction of the full available data given by 1/k, and a

restricted training set containing the remaining data.

A stratified sampling approach was adopted, where

the distribution of each class, present in the full

training data, is maintained in the two subsets. This

methodology guarantees the same characteristics for

both the test sets and the data that will be input into

the model in a deployment environment. It was used

a 5-fold splitting strategy.

Figure 2: Characteristics of the applied features groups.

Figure 3: Correlation matrices for model pairs.

Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination

579

The examples in this section refer to Competence

of ENEM. The distribution of occurrences in other

competencies are similar to Competence C

, except

for Competence C

, which is studied in a specific

work (Haendchen Filho et al., 2019).

An analysis based on confusion matrices was

carried out in order to provide an overview on the

performance of the model-balancer combinations.

The values of each matrix were normalized according

the usual column-wise procedure, considering the

extreme values as 0 or 2, and defining proportionally

the remaining values. The results are shown in Fig. 3.

A few conclusions can be clearly gleaned from

these results. First, when no balancing methods are

used (second row of the figure), neither of the two

models achieved a true positive rate of more than 4%

in the classes located in the extremities (0 and 2).

Thus, they cannot be applied in real situations, as they

are unable to discern high- and low-quality essays

from average ones. In terms of QWK, the LASSO

achieved a value of 0.245, while the GBT achieved

0.285.

Second, the ROS balancing method, coupled with

GBT classification model, was found to be the only

kind of combination that can pinpoint low- and high-

quality essays with some level of reliability.

However, even with balancing, the LASSO

algorithm, which represents the regressor model,

concentrates the predictions in the score class 1.0,

which represents the baseline. It is, therefore,

inefficient in predicting scores in the extreme classes.

With the balanced corpus, the LASSO achieved a

QWK of 0.384, which is higher than GBT result

(QWK=0.367) due to its more accurate predictions in

the intermediate classes.

4.3 Deep-Learning Approach

Some researchers and developers (Dikli, 2006; Shermis

and Burstein, 2013; Fonseca et al., 2018; Amorim and

Veloso, 2017

) share the same opinion that feature

selection for AES is one of the most important tasks.

According to Ge and Chen (2020), DL is a technique

suitable for AES research and development and can

be used to select meaningful features related to

writing quality and to be applied in the AES model

construction.

The results found by applying NEA framework to

ENEM are here presented. The training vector was

generated by a Word2vec model of the continuous

bag-of-words (CBOW) variety, with 50 and 100

dimensions. The vocabulary was composed by the

4,000 most frequent words from a total of 31,953

unique words, resulting in an unknown rate of

approximately 10%.

The model architecture comprises 300 LSTM as

recurrent units and did not use a convolutional layer.

To avoid overfitting, 50% of the outputs of the

recurrent layer were dropped out; the remaining

partition fed a Mean-over-Time aggregation layer

(Taghipour and Ng, 2016). Finally, a fully connected

layer mapped the incoming signs into a single real

number – the essay’s score – using a sigmoidal

activation function.

The model was trained for a fixed amount of 50

epochs in each experiment. Nearly the same

behaviour could be observed when using 50 or 100

dimensions in the embedding layer, with the first

option offering marginally better results on average.

This section concentrates on the results achieved with

a 50-dimensional embedding.

Similar to the FE-based approach, a 5-fold

procedure was carried out, where the data was split

into five 80/20 folds before any training was

proceeded. At the end of each epoch, an evaluation

step was executed in which the model attempted to

predict the scores for the validation set of the current

fold. The results presented in this section are the best

ones (in QWK) out of all 50 epochs.

The adapted NEA was trained with the corpus of

4,317 essays, without balancing. Since FE-based

models assigned a score of 1 (the majority class) to

the vast majority of essays, it is expected a similar

behaviour using this approach. The results obtained

are presented in Fig. 4, which represents epoch 23, the

one with the highest QWK (0.329).

From these results, one can see that even though

there is a considerable concentration on the more

prevalent classes (0.5, 1.0 and 1.5), the NEA

outperforms both FE-based models when no

balancing is used. These results are comparable to the

LASSO-ROS pair. However, these results are still

lower than GBT-ROS, which produces more accurate

results in the minority classes (0.0 and 2.0). These

results point out that DL approaches have a high

potential for scoring Portuguese written essays.

Afterwards, an experiment with the ROS balancer

was executed, aiming to measure how it affects the

learning process in a deep neural network. The results

of the 9th epoch, which achieved a QWK of 0.336,

are presented in Fig. 5.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

580

Figure 4: Confusion matrix for NEA’s 23

epoch, without

class balancing.

Figure 5: Confusion matrix for 9

epoch of the NEA model,

with ROS.

Observing these results, it becomes noticeable

that the improvement obtained by means of balancing

procedure was significant, but considerably less

pronounced when compared to the FE-based

approach. Considering the ENEM criteria for correct

predictions, an accuracy of 0.57 was achieved in both

extreme classes – a value that, on average, surpasses

all other models, except for GBT-ROS. Even though

the DL approach produces competitive results

without balancing, it has shown to be unable to

surpass the accuracy of the best FE-based model in

the minority classes.

5 DISCUSSION

Two main issues are discussed in this section. First, a

comparison between FE and DL is presented. Next,

this configuration is compared with the state of art.

5.1 On the Results

Initially,

the

QWK

for

and

were

calculated.

FE is based on features extracted from a 623-

dimensional vector of real numbers representing each

essay. The resulting data set was submitted to LASSO

and GBT inference algorithms. On the other hand, DL

(NEA) creates its own features from the essays. Table

1 shows the computed QWK values for the three

algorithms used in this work, with and without

balancing.

Table 1: Computed QWK scores.

Algorithm No balancing With ROS

LASSO 0.245 0.384

GBT 0.285 0.367

NEA 0.329¹ 0.336²

¹ epoch 23

² epoch 9

The results demonstrate that, when the corpus is

used with no balancing, the deep neural network

clearly outperforms both FE-based models. As shown

in the confusion matrices, the FE-based models

assign a score of 1.0 (the mean) to the vast majority

of essays, producing a mostly vertical figure.

NEA accuracy tends to the optimal diagonal

figure, although it is still unable to precisely detect

extremely good or bad essays. This accuracy

improves much more when the ROS balancing

procedure is applied. Both FE-based approaches

exhibit a significant increase in QWK: 56.7% with

LASSO and 28.8% with GBT. In the extreme classes,

the largest gain was observed in the GBT method,

which varied from a mean accuracy of 2% to 28.5%,

while LASSO varied from 0% to 9.5%. On the other

hand, DL performance did not change significantly

by oversampling the corpus, showing just a small

increase of 2.1% in the QWK and a very subtle

change in the confusion matrix, achieving a mean

accuracy of 13.5% in the extremities.

It is important to consider that, according to ENEM

criteria, two reviewers are considered agreed when the

difference between their grades is less or equal than

20%. It is the so-called relaxed accuracy. When the

scores are in this range, the final score is considered as

their mean. Table 2 presents the relaxed accuracies for

each model or combination model-balancer.

Table 2: Relaxed accuracies.

Class LASSO

LASSO-

ROS

GBT

GBT-

ROS

NEA

NEA-

ROS

0.0 0.25 0.46 0.35

0.64

0.40 0.57

0.5 0.98 0.89 0.96 0.84

100.0

0.96

1.0

0.99

0.92 0.98 0.84 0.95 0.86

1.5

0.99

0.92 0.98 0.84 0.95 0.86

2.0 0.32 0.57 0.42

0.72

0.60 0.57

Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination

581

The relaxed accuracy in the intermediate classes,

is near 100% for LASSO and for NEA, both with no

balancing. The extreme classes seem to benefit from

oversampling, having 0.64 and 0.72 as the best

accuracies with GBT-ROS.

One can realize that, predicting better in the

central classes will produce a smaller number of

essays to be submitted to another evaluator, what will

reduce considerably the time and costs involved.

5.2 Comparison with the State of Art

A discussion on the relation between this work and

the state of art of AES for ENEM (Fonseca et al.,

2018) is here presented. While Fonseca et al. (2018)

reported a QWK of 0.68 for the first competence

using Gradient Boosting (which achieved the best

results), the approach proposed here found a QWK of

only 0.384 in the best case (LASSO with

oversampling). One can hypothesize that this

difference is mainly a consequence of the dataset that

was used by the authors: while in this work an open-

access corpus of 4,317 essays was used, Fonseca et

al. (2018) employed a proprietary dataset containing

56,644. Due to the small number of examples, it is

likely that the models were unable to make proper

generalizations from the data, therefore producing a

smaller QWK value. The deep learning model used in

Fonseca et al. (2018) is also proprietary, while an

open source model (NEA) was applied in this work.

This model was applied by Taghipour and Ng (2016)

for English essays with promising results.

From the present approach, that adheres to the

ENEM criteria for true positives, it is noticeable a

high level of accuracy, near 100% in scores 0.5, 1.0,

1.5. In these classes, the accuracy rates are,

respectively, 1.00/0.95/0.95 with DL NEA, and

0.98/0.99/0.99 with LASSO. In the extreme classes

e C

) it was found accuracies of 0.64/0.72,

respectively, by combining GBT and ROS. Notice

that these classes correspond to less than 1% of the

total amount of essays (see Fig. 1). Since accuracies

near 100% was already reached in classes C

, C

and

, any improvement would be residual.

6 FINAL REMARKS

Tools for helping to reduce problems related to the

proficiency of the Portuguese-Brazilian language are

fundamental for the development of education in

Brazil. The average reading performance of Brazilian

students in the exam carried out by the Program for

International Student Assessment (PISA), in 2018,

was below average (INEP-MEC, 2020). This

deficiency is reflected in undergraduate courses,

where students have difficulties to express

themselves in an appropriate and logical way, which

ends up compromising their learning.

In order for educational institutions to apply tests

and essay writing exercises on a large scale, it is

essential to reduce the costs related to correction time

and, at the same time, streamline the process. In a

context in which two human evaluators participate,

replacing one of them by a reliable AES system is an

alternative that may be feasible.

The search for an accurate system able to replace

a human was one of the main objectives of this work.

In a context of 5 scoring classes (0.0 / 0.5 / 1.0 / 1.5 /

2.0) for each competence, accuracies close to 100%

was achieved for the three central scores, and close to

57% in the two extremity scores (0.0 / 2.0). It means

that, on average, 90% of the scores assigned by the

computer are correct. Another advantage is the

consequent reduction in the number of essays that

need to be sent to a third reviewer.

The study also showed that significant gains in

accuracy can be obtained for true positives by

applying balancing techniques. As class imbalance is

one of the characteristics for essay grading corpora,

in this work this technique has proven to be efficient

for AES, and contributed to obtain required

accuracies (Table 2). In addition, there are very few

studies on literature exploring the corpora balancing

technique in the context of AES.

Another contribution of this work is the corpus of

ENEM-based essays that is made available ready to

use (download from https://github.com/concatto/aes-

portuguese). It is relevant for research in Portuguese,

beyond the usual English. There is no equivalent

corpus available for the research community.

As future works, firstly, it is suggested to combine

the best aspects of each approach in an ensemble.

Taking into account that some models or

combinations of model-balancer techniques learn

better some specific class, it is interesting to build a

model with these combinations and take advantage

from the particular accuracies. Other interesting

future work is to improve the predictive quality of the

features. Although the high level of relaxed accuracy

- near 100% - had been reached for the dominant

classes, there is still room to improve the QWK scores

in the extremes. Finally, the accuracy on ENEM

results could be enabled by taking a bigger corpus and

exploring new features.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

582

REFERENCES

Amorim, E. C. F., Veloso, A., 2017. A Multi-aspect

Analysis of Automatic Essay Scoring for Brazilian

Portuguese. 15th Conference of the European Chapter

of the Association for Computational Linguistics, pp.

94-102. DOI: 10.18653/v1/E17-4010.

Attali Y., Burstein, J., 2006. Automated Essay Scoring with

e-rater® V.2. Journal of Technology, Learning, and

Assessment, 4(3).

Bereiter, C., 2003. Foreword. In Mark D. Shermis and Jill

Burstein (Eds.), Automated essay scoring: a cross

disciplinary perspective. Lawrence Erlbaum

Associates, Mahwah, NJ, pp. vii-x.

Chawla, N. V., Bowyer, K. W., Hall, Lawrence, O. W.,

Kegelmeyer, P., 2002. SMOTE: Synthetic Minority

oversampling technique. Journal of Artificial

Intelligence Research, 16:321-357. DOI:

10.1613/jair.953.

Dikli, S., 2006. An Overview of Automated Scoring of

Essays. Journal of Technology Learning, and

Assessment, 5(1).

Dong, F., Zhang, Y., Yang, J. 2017. Attention-based

Recurrent Convolutional Neural Network for

Automatic Essay Scoring. 21st Conference on

Computational Natural Language Learning – CoNLL

2017, pp. 153-162. DOI: 10.18653/v1/K17-1017.

Foltz, P. W., Laham, D., Landauer, T. K., 1999. Automated

Essay Scoring: Applications to educational technology.

World Conference on Educational Multimedia,

Hypermedia and Telecommunications – EdMedia’99,

pp. 939-944.

Fonseca, E. R., Medeiros, I., Kamikawachi, D., Bokan, A.,

2018. Automatically grading Brazilian student essays. 13th

International Conference on Computational Processing of

the Portuguese Language – PROPOR 2018, pp. 170-179.

DOI: 10.1007/978-3-319-99722-3_18.

Friedman, J. H., 2001. Greedy function approximation: A

gradient boosting machine. Annals of Statistics,

29(5):1189-1232.

Ge, S., Chen, X., 2020. The Application of Deep Learning

in Automated Essay Evaluation. In Emerging

Technologies for Education. LNCS 11984, Springer,

pp.310-318. DOI: 10.1007/978-3-030-38778-5_34

Haendchen Filho, A., Concatto, F., Nau, J., do Prado, H. A.,

Imhof, D. O., Ferneda, E., 2019. Imbalanced Learning

Techniques for Improving the Performance of

Statistical Models in Automated Essay Scoring.

Procedia Computer Science, 159:764-773.

Hartmann, N. S., Fonseca, E. R., Shulby, C. D., Treviso, M.

V., Rodrigues, J. S., Aluísio, S. M., 2017. Portuguese

Word Embeddings: Evaluating on Word Analogies and

Natural Language Tasks. Symposium in Information

and Human Language Technology – STIL 2017, pp.

122-131.

Hastie, T., Tibshirani, R., Friedman, J. H., 2009. The Elements

of Statistical Learning: Data Mining, Inference, and

Prediction. Springer, New York, NY, 2

Edition.

He, H., Bai, Y., Garcia, E. A., Li, S., 2008. ADASYN:

Adaptive Synthetic Sampling Approach for Imbalanced

Learning. IEEE International Joint Conference on

Neural Networks (IEEE World Congress on

Computational Intelligence), pp. 1322-1328. DOI:

10.1109/IJCNN.2008.4633969.

INEP-MEC, 2018. Relatório Brasil no Pisa 2018. Diretoria

de Avaliação da Educação Básica. Ministério da

Educação. Brasilia. Brazil. http://portal.inep.gov.br/

documents/186968/484421/RELAT%C3%93RIO+BR

ASIL+NO+PISA+2018/3e89677c-221c-4fa4-91ee-

08a48818604c?version=1.0

Kim, Y. Jernite, Y., Sontag, D., Rush, A. M., 2016.

Character-aware neural language models. Thirtieth

AAAI Conference on Artificial Intelligence – AAAI-16,

pp. 2741-2749.

Nguyen H., Dery, L., 2016. Neural Networks for Automated

Essay Grading. CS224d Stanford Reports.

https://cs224d.stanford.edu/reports/huyenn.pdf.

Rao, R. S., Pais, A. R., 2019. Detection of phishing

websites using an efficient feature-based machine

learning framework. Neural Comput & Applications

31:3851-3873. DOI: 10.1007/s00521-017-3305-0.

Seiffert, C., Khoshgoftaar, T. M., van Hulse, J., Napolitano,

A., 2008. Building Useful Models from Imbalanced

Data with Sampling and Boosting. Twenty-First

International FLAIRS Conference, pp. 306-311.

Shermis, M. D., Burstein J. (Eds.), 2003. Automated essay

scoring: A cross-disciplinary perspective. Lawrence

Erlbaum Associates Publishers, Mahwah, NJ.

Shermis, M. D., Burstein J., 2013. Handbook of Automated

Essay Evaluation: Current applications and new

directions. Routledge, New York, NY.

Shin, E., 2018. A Neural Network approach to Automated

Essay Scoring: A Comparison with the Method of

Integrating Deep Language Features using Coh-

Metrix. Master Thesis. Department of Educational

Psychology University of Alberta, Canada. DOI:

10.7939/R3V11W25D.

Taghipour K., Ng, H. T., 2016. A Neural Approach to

Automated Essay Scoring. 2016 Conference on

Empirical Methods in Natural Language Processing,

pp. 1882-1891.

Tibshirani, R., 1996. Regression shrinkage and selection

via the LASSO. Journal of the Royal Statistical Society

B, 58(1):267-288.

Yap, B. W., K. A. Rani, K. A., Rahman, H. A. A., Fong, S.,

Khairudin, Z., Abdullah, N. N., 2014. An Application

of Oversampling, Undersampling, Bagging and

Boosting in Handling Imbalanced Datasets. First

International Conference on Advanced Data and

Information Engineering, pp. 13-22. Lecture Notes in

Electrical Engineering 285, Springer. DOI:

10.1007/978-981-4585-18-7_2.

Zaidi, A. H., 2016. Neural Sequence Modelling for

Automated Essay Scoring. Master Thesis. University of

Cambridge. https://www.cl.cam.ac.uk/~ahz22/docs/

mphil-thesis.pdf.

Zou, Will Y., Socher, R., Cer, D., Manning, C. D., 2013.

Bilingual word embeddings for phrase-based machine

translation. IN Conference on Empirical Methods in

Natural Language Processing, pp. 1393-1398.

Comparing Feature Engineering and Deep Learning Methods for Automated Essay Scoring of Brazilian National High School Examination

583
