Advanced Car Driving Assistant System: A Deep Non-local Pipeline

Combined with 1D Dilated CNN for Safety Driving

Francesco Rundo

, Roberto Leotta

, Francesca Trenta

, Giovanni Bellitto

Federica Proietto Salanitri

, Vincenzo Piuri

, Angelo Genovese

, Ruggero Donida Labati

Fabio Scotti

, Concetto Spampinato

and Sebastiano Battiato

STMicroelectronics, ADG Central R&D, Italy

University of Catania, IPLAB Group, Italy

University of Catania, PerCeiVe Lab, Italy

University of Milan, Computer Science Department, Italy

Keywords:

Drowsiness, Deep Learning, D-CNN, Deep-LSTM, PPG (PhotoPlethysmoGraphy).

Abstract:

Visual saliency refers to the part of the visual scene in which the subject’s gaze is focused, allowing signiﬁcant

applications in various ﬁelds including automotive. Indeed, the car driver decides to focus on speciﬁc objects

rather than others by deterministic brain-driven saliency mechanisms inherent perceptual activity. In the au-

tomotive industry, vision saliency estimation is one of the most common technologies in Advanced Driver

Assistant Systems (ADAS). In this work, we proposed an intelligent system consisting of: (1) an ad-hoc

Non-Local Semantic Segmentation Deep Network to process the frames captured by automotive-grade cam-

era device placed outside the car, (2) an innovative bio-sensor to perform car driver PhotoPlethysmoGraphy

(PPG) signal sampling for monitoring related drowsiness and, (3) ad-hoc designed 1D Temporal Deep Convo-

lutional Network designed to classify the so collected PPG time-series providing an assessment of the driver

attention level. A downstream check-block veriﬁes if the car driver attention level is adequate for the saliency-

based scene classiﬁcation. Our approach is extensively evaluated on DH1FK dataset, and experimental results

show the effectiveness of the proposed pipeline.

1 INTRODUCTION

The term ”drowsiness” indicates a state characterized

by a low level of awareness and difﬁculty in main-

taining the wakeful state. Driver’s drowsiness may

cause serious road trafﬁc accidents involving vehi-

cles. In the automotive ﬁeld, the ability of detect-

ing an attention state of a driver may facilitate eval-

uation of his/her ﬁtness to drive a vehicle, preventing

road accidents. In this respect, several studies have

highlighted the correlation between the level of at-

tention and Heart Rate Variability (HRV) of a subject

(Igasaki et al., 2015). HRV is a measure of heart ac-

tivity over beat-to-beat interval. Indeed, estimating

HRV of a driver may permit to obtain useful infor-

mation concerning possible drowsiness (Igasaki et al.,

2015). Speciﬁcally, HRV reﬂects the heartbeat-to-

beat interval that results mainly from the dynamic in-

teraction between the Autonomous Nervous System

and the heart (Igasaki et al., 2015; Cai et al., 2017;

Winterlich et al., 2013). However, the driver’s atten-

tion level must be adequate for the driving scenario.

For instance, driving with low trafﬁc and low speed

requires a lower level of attention than a driving sce-

nario that includes risky maneuvers (overtaking, lane

changes, etc.) and at high speeds. Within this per-

spective, we propose an algorithm based on salience

analysis to understand the driving scenario in order

to adjust the monitoring of the attention level accord-

ingly. Saliency Detection is a method to identify the

most outstanding and informative parts in a video or

still image. It has been widely studied in such dif-

ferent kind of applications including automotive (Cai

et al., 2017; Winterlich et al., 2013). The proposed

work will show how the saliency analysis is able to

improve the robustness of the implemented car driver

drowsiness pipeline. The paper is organized as fol-

lows. Section 2 reports a brief introduction on the re-

lated works. In Section 3, we provide details about the

used hardware framework to acquire the PPG signal

along with the related processing pipeline. In Section

4, we described our innovativeDeep learning pipeline

Rundo, F., Leotta, R., Trenta, F., Bellitto, G., Salanitri, F., Piuri, V., Genovese, A., Labati, R., Scotti, F., Spampinato, C. and Battiato, S.

Advanced Car Driving Assistant System: A Deep Non-local Pipeline Combined with 1D Dilated CNN for Safety Driving.

DOI: 10.5220/0010381000810090

In Proceedings of the International Conference on Image Processing and Vision Engineering (IMPROVE 2021), pages 81-90

ISBN: 978-989-758-511-1

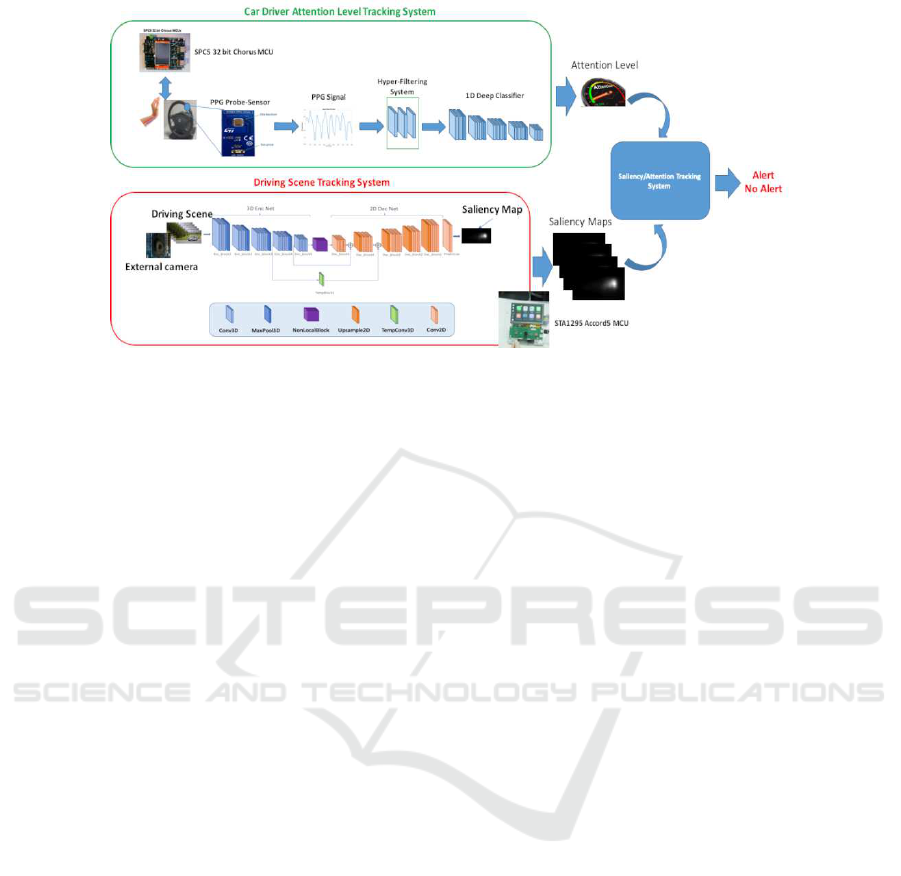

Figure 1: The overall scheme of the proposed pipeline.

to evaluate the car driver’s drowsiness alongside the

driving scenario. Finally, experimental results and fu-

ture works are reported in Section 5.

2 RELATED WORKS

In this section, we summarize previous approaches on

evaluating car-driver attention level as well as driving

scene understanding. In (Vicente et al., 2011), the au-

thors introduced an innovative pipeline for monitoring

a car driver’s drowsinessanalyzing the ElectroCardio-

Graphy (ECG) signal alterations analysis, which may

introduce noise and artifacts while measuring HRV.

Indeed, they proposed a pipeline to perform ECG sig-

nal stabilization and classiﬁcation based on classical

linear discriminant analysis. In (Szypulska and Pi-

otrowski, 2012), the authors proposed a reliable ap-

proach for detecting fatigue and sleep onset. Speciﬁ-

cally, the authors showed a method to discriminate ac-

tivity, drowsiness, and sleep, taking into account the

LF/HF ratio detected over the R-R tachogram com-

puted from the ECG frequency analysis. The re-

sults obtained are promising and can be used to de-

velop a drowsiness detection system for ADAS ap-

plications. In (Fujiwara et al., 2018), the authors an-

alyzed speciﬁc changes in sleep condition by using

the HRV signal. The authors proposed eight hand-

crafted HRV signal features to be processed using a

multivariate statistical process framework for detect-

ing speciﬁc HRV dynamics. The results showed the

effectiveness of the proposed method through stan-

dard conﬁrmation based on usage of the ElectroEn-

cephaloGraphy signal (EEG). Generally, existing ap-

proaches based on HRV detection propose invasive

ECG sampling. In particular, it is necessary to have

at least three electrodes in contact with the human

skin according to the minimum conﬁguration known

as Einthoven’s Triangle (Abi-Saleh and Omar, 2019).

Both car driver’s hands must remain on the steering

wheel where the two electrodes of the ECG signal

sampling system are usually placed. Then, the third

electrode is placed on the driver’s seat. This require-

ment raises a speciﬁc well-known issue related to the

robustness of the ECG signal sampling system in au-

tomotive applications (Abi-Saleh and Omar, 2019).

For this reason, many authors have proposed meth-

ods based on the PhotoPlethysmGraphy (PPG) sig-

nal analysis rather than on the ECG. In (Rundo et al.,

2018b), the authors presented a solution for evaluat-

ing the HRV from the PPG signal to analyze parasym-

pathetic nervous activity and classify the subject’s

drowsiness level. The obtained results conﬁrmed the

robustness of the proposed approach based on apply-

ing a low-power PPG probe. In (Rundo et al., 2018b;

Rundo et al., 2018c), the authors proposed an inter-

esting indicator from the PPG signal, which has been

analyzed. In (Xu et al., 2012; Kurian et al., 2014),

the authors implemented effective algorithms based

on PRV (Pulse Rate Variability) data processing as

a measure of the ANS and then the drowsiness of

the subject. An interesting approach has been pro-

posed in (Ryu et al., 2018) in which the authors pro-

jected a ﬂexible sensor array composed of red organic

light-emitting diodes (OLEDs) and organic photodi-

odes (OPDs) for detection of photoplethysmographic

(PPG) signal. The reported test benchmarks in (Ryu

et al., 2018) conﬁrmed that the proposed ﬂexible PPG

sensor estimates the drowsiness with high accuracy

concerning the classical PPG probe. Over the last

years, researchers have investigated the use of Deep

Learning in order to estimate the drowsiness of a sub-

ject from bio-signals and imaging. In (Hong and

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

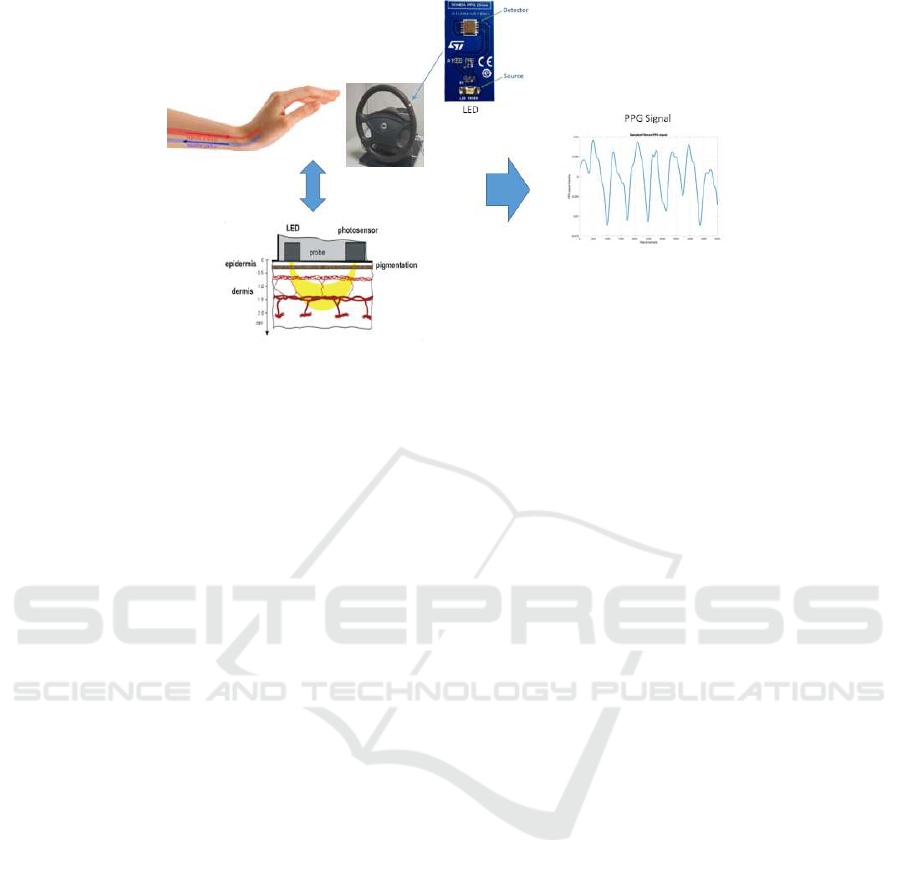

Figure 2: The PPG pattern formation scheme.

Qin, 2007; Alshaqaqi et al., 2013), the authors pro-

posed effective pipelines in order to estimate the car-

driver drowsiness by examining the ”eye state” of

the driver through applying such image processing

methods. However, the main issues of the proposed

solutions involve the quality of video frames. In-

deed, the effectivenessof these approachesmay be af-

fected by environmental conditions (illumination, oc-

clusions, etc.) of the passenger compartment. As in-

troduced, recent Deep learning advances in automo-

tive applications allow such innovation in the ﬁeld of

the Drowsiness Detection system as conﬁrmed by the

pipeline proposed in (Sari and Huang, 2016). In (Sari

and Huang, 2016), the authors presented an intelli-

gent algorithm consisting of the wavelet packet trans-

form (WPT) and a functional-link-based fuzzy neural

network (FLFNN) to provide early detection of car-

driver drowsiness. The drowsiness analysis is based

on the HF/LF analysis (Alshaqaqi et al., 2013). A

similar approach was proposed in (Cheon and Kang,

2017), where a Support Vector Machine (SVM) ap-

proach has been successfully applied to classify the

car-driver physiological data coming from an array

of bio-sensors placed over the steering wheel. An-

other promising approach is (Choi et al., 2018) in

which the authors designed a system based on Mul-

timodal Deep Learning that recognizes both visual

and physiological changes in the state of attention of

the driver. More speciﬁcally, they used a deep learn-

ing framework consisting of Long Short-Term Mem-

ory (LSTM) to classify the driver’s condition based

on both visual and physiological data properly pre-

processed. The results reported in (Choi et al., 2018)

conﬁrmed the robustness of the proposed approach.

In (Altun and Celenk, 2017), the authors introduced

an interesting vision-based driver assistance system

for scene awareness using video saliency analysis.

The results reported that the proposed pipeline was

able to detect how the driver’s gaze was focused dur-

ing driving. In (Deng et al., 2016), the authors col-

lected the eye-tracking data of 40 subjects consisting

of non-drivers and experienced drivers when viewing

100 trafﬁc images. In particular, the authors proposed

a solution to assess the drowsiness level and a moni-

toring system regulatedby the information of the driv-

ing scenario.

3 METHODS AND MATERIALS

This section describes the overall pipeline. The at-

tention level tracking system is described ﬁrst. Af-

terwards, we introduced a Visual Saliency Scene

pipeline. Finally, we provide details about our im-

plemented ad-hoc Saliency/Attention Tracking Sys-

tem to evaluate the driver’s attention level determined

by the analysis of the car driver PPG signal with the

salience map. The Fig. 1 shows the overall scheme

of the proposed pipeline. The following sections de-

scribe each of the blocks included in the pipeline

shown in Fig. 1.

3.1 The Car Driver Attention Level

Tracking System

This system is based on the usage of PPG signal sam-

pled from the car driver to track the corresponding

attention level. We provide hereinafter a brief intro-

duction to PPG signal. The PPG sampling is a non-

invasive method to monitor cardiovascular dynamic

of a subject. Both heart health as well as respira-

tory rate and vascular disorders may be monitored by

means of ad-hoc analysis of such PPG signal dynamic

Advanced Car Driving Assistant System: A Deep Non-local Pipeline Combined with 1D Dilated CNN for Safety Driving

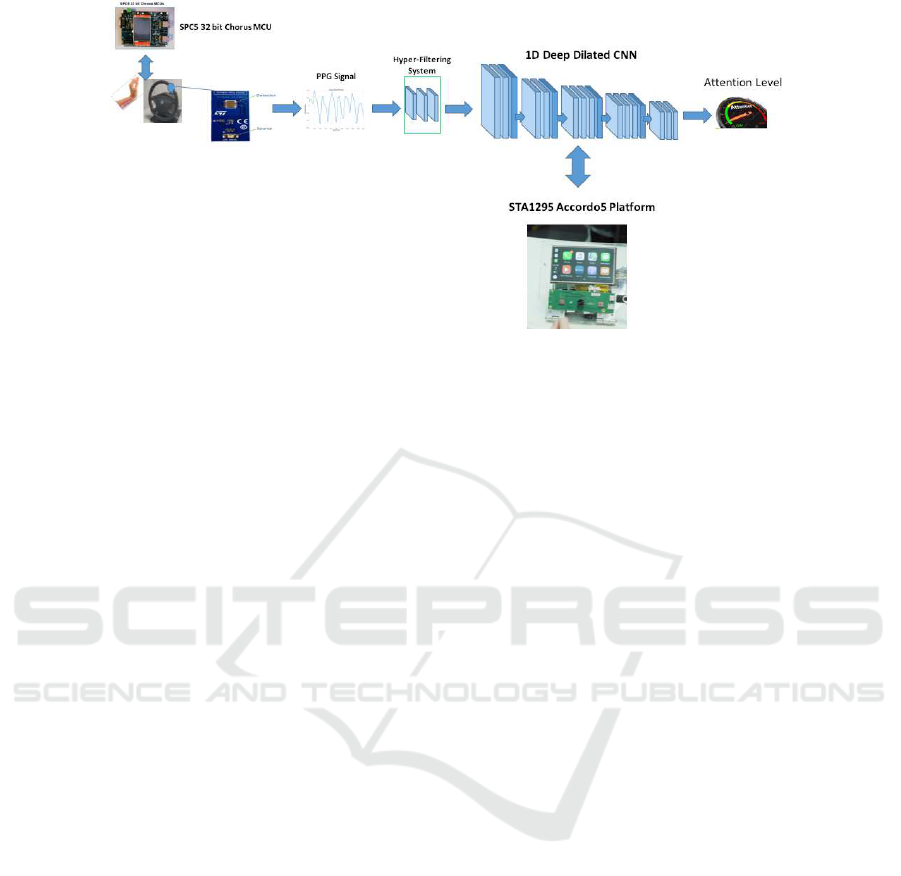

Figure 3: The proposed driver drowsiness monitoring pipeline.

(Rundo et al., 2018b). In few words, by means of ad-

hoc analysis of the PPG signal we are able to collect a

non-invasive measure of the heart activity and blood

volume dynamic. A classical PPG raw waveform is

composed by a pulsatile (‘AC’) physiological signal

which is correlated to cardiac-synchronouschanges in

the blood volume (in sync with heart-beat) superim-

posed with a slowly varying (‘DC’) component con-

taining lower frequency signals which is correlated

to respiration, thermoregulation and skin tissues (in

which the PPG sensor is plugged). For each cardiac

cycle the heart pumps blood to the subject body with

a speciﬁc pressure enough to distend the arteries and

arterioles in the subcutaneous tissue. Through a sim-

ple sensing device composed by a light-emitter and

a photo-detector attached over the subject skin, the

blood volume changes can be detected as part of the

PPG dynamic. More in details, the change in volume

caused by the heart pressure pulse can be detected

by illuminating the skin and then by measuring the

amount of back-scattered light either transmitted or

reﬂected to the photo-detector (Rundo et al., 2018b).

Further information about PPG patter formation and

dynamics are provided in (Rundo et al., 2018b). The

Fig. 2 shows the physiologicalphenomena underlying

PPG waveform(s) formation as previously described.

For the proposed pipeline, the authors implemented

a PPG sensing device composed by a Silicon Photo-

multiplier sensor coupled with a LEDs emitter (Vin-

ciguerra et al., 2018; Mazzillo et al., 2018; Rundo

et al., 2019a; Rundo et al., 2019b).

The proposed PPG sensing probe is composed by

a large area n-on-p Silicon Photomultipliers (SiPMs)

fabricated at STMicroelectronics (Mazzillo et al.,

2018). The used SiPMs array device has a total area of

4.0×4.5 mm

and 4871 square microcells with 60µm

pitch. The devices have a geometrical ﬁll factor of

67.4% and are packaged in a surface mount housing

(SMD) with about 5.1× 5.1 mm

total area (Fujiwara

et al., 2018). We used a Pixelteq dichroic bandpass

ﬁlter with a pass band centered at about 540nm with

a Full Width at Half Maximum (FWHM) of 70nm

and an optical transmission higher than 90− 95% in

the pass band range was glued on the SMD package

by using a Loctite 352TM adhesive. With the dichroic

ﬁlter at 3V-OV the SiPM has a maximum detection ef-

ﬁciency of about 30% at 565nm and a PDE of about

27.5% at 540nm (central wavelength in the ﬁlter pass

band). From our studies we obtained that the so im-

plemented dichroic ﬁlter reduces the absorption of en-

vironmental light of more than 60% when the detec-

tor works in the linear range in Geiger mode above

its breakdown voltage (∼27V). As described, the

PPG detector needs a light emitter together with the

introduced detector based on SiPM technology. We

have used successfully the OSRAM LT M673 LEDs

in SMD package emitting at 529nm and based on In-

GaN technology (Fujiwara et al., 2018). The used

LEDs devices have an area of 2.3 × 1.5 mm

, view-

ing angle of 120

◦

, spectral bandwidth of 33 nm and

lower power emission (mW) in the standard opera-

tion range. The authors to get the PPG probe easily to

use, have designed a printed circuit board (PCB) han-

dled by a user-interface developed over the NI (Na-

tional Instruments) equipment. The PCB is populated

by a 4V portable battery, a power management cir-

cuits, a conditioning circuit for output SiPMs signals,

several USB connectors for PPG probes and related

SMA output connectors. About the used hardware,

more implementation details can be found in (Vin-

ciguerra et al., 2018; Mazzillo et al., 2018; Rundo

et al., 2019a; Rundo et al., 2019b). An implemented

set of PPG sensing probes have been placed in the

steering of the car where statistically it is more likely

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

Table 1: Hyper low-pass ﬁltering setup (in Hz).

F f1 f2 f3 f4 f5 f6 f7 f8 f9 f10 f11

HP 0.5 / / / / / / / / / /

LP 0 1.5 2.2 2.3 3.1 3.9 4.2 4.3 5 5.9 6.9

Table 2: Hyper high-pass ﬁltering setup (in Hz).

F f1 f2 f3 f4 f5 f6 f7 f8 f9 f10 f11

HP 0.5 1.2 3 3.2 3.3 3.9 4.2 4.5 5 5.7 6.9

LP 7 / / / / / / / / / /

that the driver rests his hand. Please note that to sam-

ple the PPG signal a single driver’s hand only (placed

on top of the embedded PPG sensor probe) is needed

in order to trigger the detecting of the physiological

signal. In this way we have covered the ﬁrst issue

aforementioed and related to the use of the ECG dif-

ﬁcult to be sampled on the car. As showed in Fig. 2,

the proposed PPG sensing probe is embedded in the

car steering. We populated the car steering with dif-

ferent PPG sending devices. More details about the

hardware setup of this solution can be found (Vin-

ciguerra et al., 2018; Mazzillo et al., 2018; Rundo

et al., 2019a). The sampled PPG raw data will be fed

into SP5C Chorus Dual Cortex A7 Microcontrollers

(MCUs) having ad-hocs Analog to Digital Convert-

ers (ADCs) ports. An overall scheme of the proposed

PPG based pipeline is reported Fig. 3 (Rundo et al.,

2019b).

In the following paragraphs the pipeline reported

in Fig. 3 will be detailed. Preliminary, we conﬁrmed

that the PPG waveforms (raw data) of the car driver

will be collected as per scheme reported in Fig. 1.

The sampled raw PPG signal will be furtherly pro-

cessed by the hyper-ﬁltering system (Rundo et al.,

2019b) having the cut-off frequencies reported in Ta-

bles 1, 2. The collected hyper-ﬁltered PPG signal

patterns (Mazzillo et al., 2018) were classiﬁed by

ad-hoc designed 1D Temporal Dilated Convolutional

Neural Network as reported in Fig. 3. The main

building block consists of a dilated causal convolu-

tion layer that operates over the time steps of each

sequence. The proposed 1D-CNN includes multi-

ple residual blocks, each containing two sets of di-

lated causal convolution layers with the same dila-

tion factor, followed by normalization, ReLU acti-

vation, and spatial dropout layers. Furthermore, a

1 − by − 1 convolution is applied to adapt the num-

ber of channels between the input and output as well

as a ﬁnal activation function. Speciﬁcally, we imple-

mented a 1D pipeline composed of 18 blocks with a

downstream softmax layer. Each of the Deep blocks

comprises a dilated convolution layer with 3 × 3 ker-

nel ﬁlters, a spatial dropout layer, another dilated

convolution layer, a ReLU layer, and a ﬁnal spatial

dropout. The dilation size starts at two and increases

for each block. A softmax layer completes the pro-

posed pipeline. The so-designed 1D Dilated Tempo-

ral CNN output represents the drowsiness level of the

car-driver from which the pipeline has sampled and

processed the PPG signal. This output is a scalar num-

ber in the range [0, 1] that deﬁnes the attention level

of the car driver, i.e., from the drowsy driver (0) to

wakeful driver (1). The obtained results conﬁrmed

that the proposed Deep Learning framework correctly

estimates the driver’s drowsiness with high accuracy.

The implemented 1D Deep CNN backbone is ported

over the STA1295 Accord5 embedded MCU platform

(Mazzillo et al., 2018).

3.2 The Video Saliency Scene

Understanding Block

This block is able to generate the saliency map of

the video frames representing the driving scene cap-

tured by the external automotive grade camera. The

Fig. 4 shows the overall scheme of this block. The

video frames acquired by the external camera device

during the driving are processed by the implemented

Non-Local Semantic Segmentation Fully Convolu-

tional Network (NL-FCN) as schematized in Fig. 4.

Semantic segmentation of the samples driving scene

will be performed by the encoder/decoder architec-

ture, which provides a saliency map representing the

most salient object in the acquired video frames. The

proposed NL-FCN architectures are composed of an

encoder and a decoder block. The encoder block

(3D Enc Net) performs spatiotemporal feature extrac-

tion, and it is composed of ﬁve blocks. The ﬁrst

two blocks are composed of two separable convolu-

tion layers with a 3 × 3 × 2 kernel ﬁlter followed by

batch normalization, ReLU layer, and a downstream

1 × 2 × 2 max-pooling layer. The remaining three

blocks consist of two separable convolution layers

with a 3 × 3 × 3 kernel ﬁlter followed by batch nor-

malization, another convolutional layer with 3×3×3

kernel, batch normalization, and ReLU with a down-

Advanced Car Driving Assistant System: A Deep Non-local Pipeline Combined with 1D Dilated CNN for Safety Driving

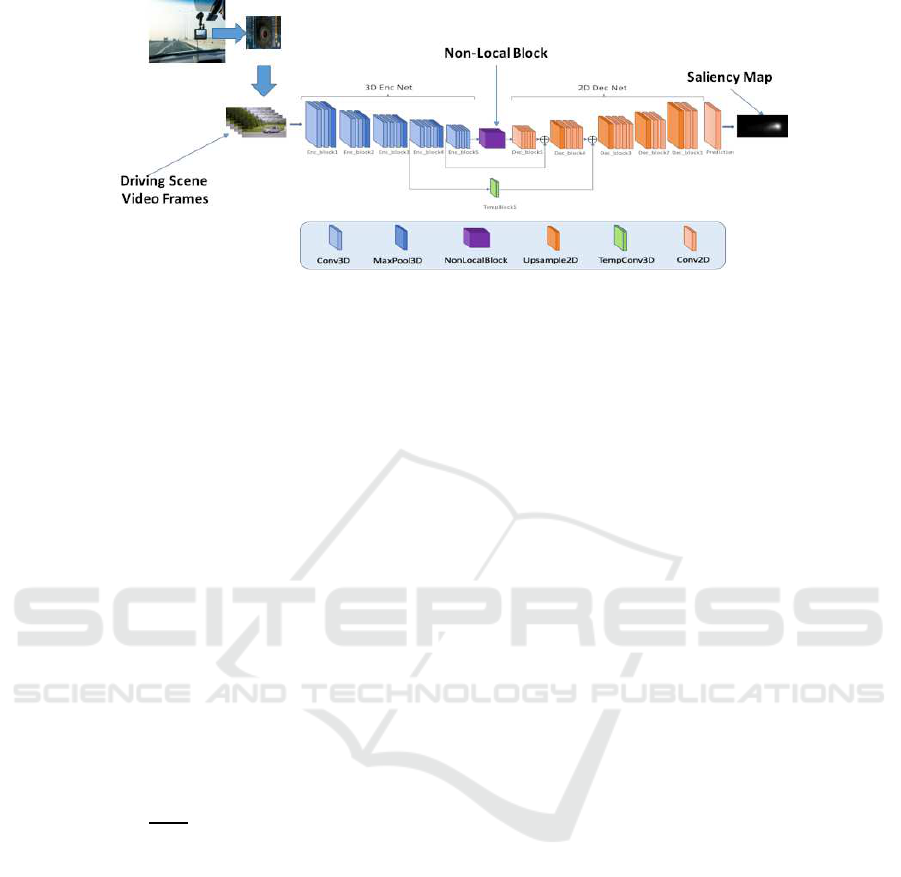

Figure 4: The proposed video saliency scene understanding block.

stream 1 × 2 × 2 max-pooling layer. Furthermore,

we inserted a Non-Local processing layer. Non-local

blocks have been recently introduced (Wang et al.,

2018) as a reliable approach for capturing space-time

long-range dependencies and correlation on feature

maps, providing a sort of “self-attention” mechanism.

Self-attention through non-local blocks aims to en-

force the model to extract correlation among feature

maps by weighting he averaged the features at all pos-

sible positions in the generated feature maps (Wang

et al., 2018). In our pipeline, non-local block is able

to extract features in dependencies at multiple abstract

levels for holistic morphological modeling of the in-

put driving scene frames. The mathematical formula-

tion of non-local operation is reported in the following

equations. Let x a general input data; the employed

non-local operation computes the corresponding re-

sponse y

(of the given Deep architecture) at i location

in the input data as a weighted sum of the input data

at all positions j 6= i:

ψ(x)

∑

∀ j

ζ(x

, x

)β(x

) (1)

With ζ(·) being a pairwise potential describing the

afﬁnity or relationship between data positions at index

i and j respectively. β(·) is, instead, a unary potential

modulating ζ according to input data. The sum is then

normalized by a factor ψ(x). The parameters of ζ, β

and ψ potentials are learned during model’s training

and deﬁned as follows:

ζ(x

, x

) = e

Θ(x

)

Φ(x

)

(2)

Where Θ and Φ are two linear transformations of

the input data x with learnable weights W

and W

Θ(x

) = W

Φ(x

) = W

β(x

) = W

(3)

For the β(·) function, a common linear embed-

ding (classical 1× 1 × 1 convolution) with learnable

weights Wβ is employed. The normalization function

ψ is:

ψ(x) =

∑

∀ j

ζ(x

, x

) (4)

In Eqs. (1) - (4), and Embedded Gaussian setup

is reported (Wang et al., 2018). The selection of the

Embedded Gaussian based afﬁnity function is com-

pliant with recent self-attention approaches (Wang

et al., 2018) speciﬁcally recommended for 2D or 3D

applications. Through Non-Local Blocks, we cap-

ture long-range Spatio-temporal dependencies on the

frames representing the driving scene, improving the

capability of the saliency-based semantic segmenta-

tion pipeline. The Decoder backbone (2D Dec Net)

decodes the visual features of the encoder. The De-

coder Backbone shows a structure similar to the en-

coder one. Indeed, it comprises ﬁve blocks including

2D separable convolutional layers with 3 × 3 kernel,

batch normalization layers, and ReLU. Such resid-

ual connections through a convolutional block are

added. In particular, we have interpolated an up-

sampling block (with a bi-cubic algorithm) to ad-

just the size of the feature maps. The output of the

so-designed NL-FCN is the feature map of the ac-

quired scene frame i.e., the segmented area of the

most salient object. The Fig. 5 shows some instances

of the saliency analysis of the video reporting the driv-

ing scene. In Fig. 5, some frames of a driving sce-

nario are reported. The ﬁxation point over the driv-

ing scene video frames represents the most salient

area detected by our proposed NL-FCN architecture.

The corresponding saliency map (output of the NL-

FCN) is reported in Fig. 5. The NL-FCN has been

trained and tested on the DHF1K dataset (Min and

Corso, 2019). The proposed architecture reports ac-

ceptable performance on DHF1K dataset (Min and

Corso, 2019) (Area Under the Curve: 0.875; Sim-

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

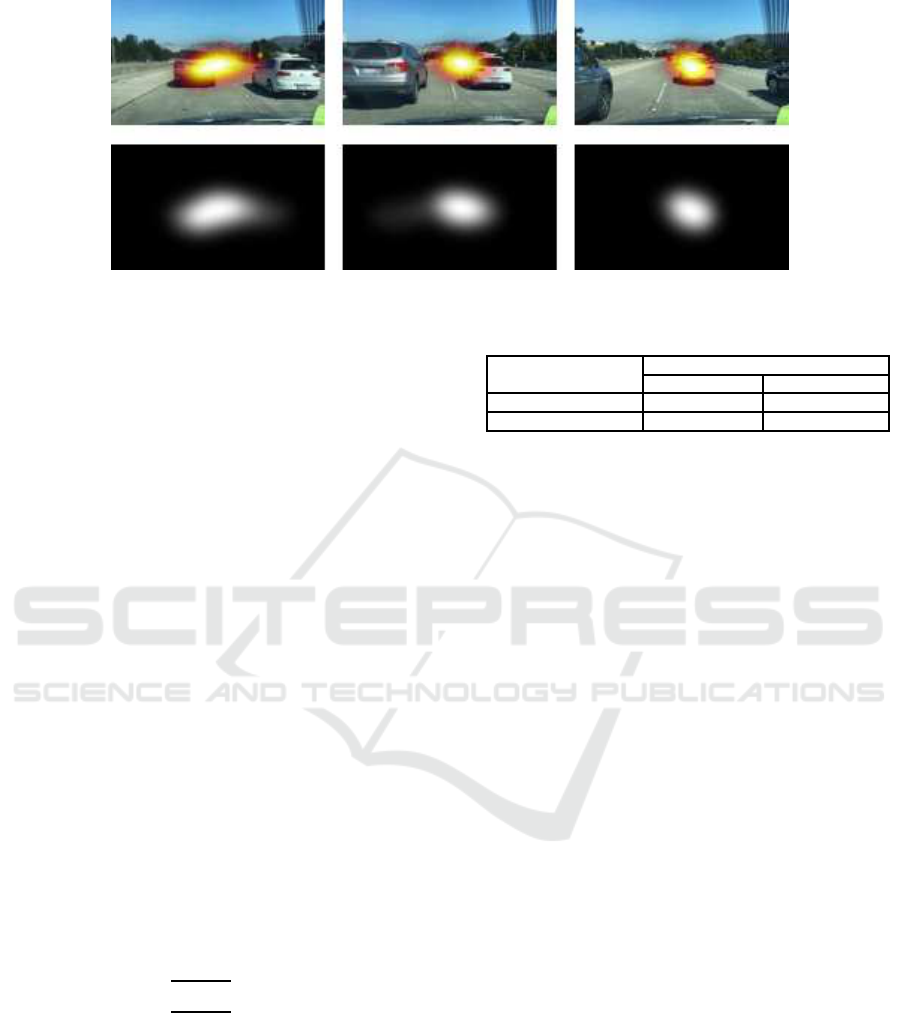

Figure 5: Saliency analysis of the video representing the driving scene.

ilarity: 0.318; Correlation Coefﬁcient: 0.416; Nor-

malized Scanpath Saliency: 2.613) compared with the

performance of similar architectures (Min and Corso,

2019). However, we noticed that the architectures

performing better than our pipeline are particularly

complex computationally and require an expensive

hardware. Conversely, our solution does not require

speciﬁc hardware accelerations as it runs on the CPU

in the STA1295 Accordo5 MCU platform (STMicro-

electronics, 2019).

3.3 The Saliency/Attention Tracking

System

This block is designed to evaluate the driver’s atten-

tion level determined by the PPG signal analysis with

the salience map generated by the NL-FCN block.

Therefore, with a static salience maps (low dynamic

of the driving scene frames), the level of attention re-

quired does not necessarily have to be high. On the

contrary, with a high temporal dynamic of the driv-

ing scene saliency map, the system checks if the car

driver attention level is adequately high. Formally, if

we set S

(x, y,t) as the saliency map and O

(t) the

output of the 1D-CNN model, this block performs the

following mathematical analysis:

V(S(x, y,t)) =

(

∂S

(x,y,t)

∂t

6 ϑO

(t) 6 ϕ

∂S

(x,y,t)

∂t

> ϑO

(t) > ϕ

(5)

Basically, as described in Eq. 5 the Driver

Attention Block checks the changing dynamic of

the saliency map S

(x, y,t) through ad-hoc deﬁned

threshold ϑ verifying that the level of attention deter-

mined by the Drowsiness Monitoring system (through

analysis of the PPG signal) is followed according to

an ϕ threshold. The thresholds ϑ and ϕ are heuristi-

cally determined as described in the next sections.

Table 3: Benchmark performance of the proposed pipeline.

Car Driver Attention Estimation

Drowsy Driver Wakeful Driver

Proposed 98.71 % 99.03 %

(Rundo et al., 2019b) 96.50 % 98.40 %

4 EXPERIMENTAL RESULTS

In this section, we present and analyze the obtained

results. To carry out the experiments, we trained and

tested the above-described saliency processing sys-

tem on the DH1FK dataset (Mazzillo et al., 2018),

including other driving scenarios acquired by a cam-

era device having a resolution of 2.3 Mpx as and a

framerate of 60 fps. Moreover, we trained and tested

the 1D-CNN model over several PPG signals sampled

on a well recruited dataset. More in detail, under the

scientiﬁc coordination of physiologists who partici-

pated in this study, we recruited several subjects to

which we have sampled the PPG signals simulating

different attention levels conﬁrmed by the collected

EEG signal (Rundo et al., 2019a). Furthermore, we

sampled the subject’s PPG signal by using the hard-

ware setup described in this paper with a sampling

frequency of 1 kHz. We collected a total of 70 sub-

jects, males and females having an age range from 21

to 70 years. For each recruited subject, the PPG signal

was acquired, considering various levels of attention.

For each condition (i.e., Drowsy and Wakeful), we

collected 5 minutes of PPG signals. Afterward, we

subdivided the dataset, consisting of PPG time-series

and video driving scenes, taking the 70% of data as

the training data and 30% of data as testing and val-

idation data. The table 3 reports the results obtained

with the proposed pipeline.

The following Fig. 6 shows some instances of the

validated scenarios. In Fig. 6, we show the over-

all proposed pipeline detecting the required driver’s

attention level by analyzing the driving scene us-

Advanced Car Driving Assistant System: A Deep Non-local Pipeline Combined with 1D Dilated CNN for Safety Driving

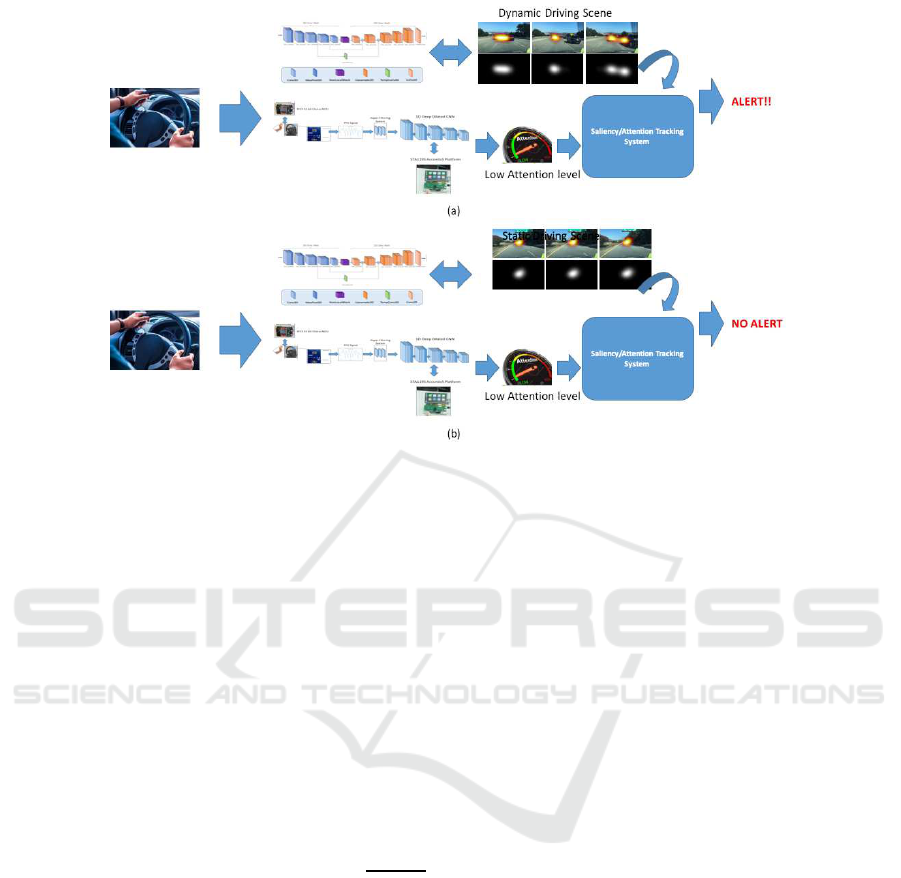

Figure 6: (a) Dynamic driving scenario (car overtaking) requiring high attention level. The Saliency/Attention Tracking

System detects an inadequate level of attention generating an acoustic signal alert. (b) Static driving scenario requiring low

attention level. The Saliency/Attention Tracking System conﬁrms an adequate level of attention.

ing the NL-FCN pipeline. More speciﬁcally, the

Saliency/Attention Tracking System compares the

level of attention required by the driving scenario

with the Drowsiness Monitoring System results. An

acoustic signal alerts the driver if the level of atten-

tion determined is lower than that required by the

driving scenario. For this purpose, we have deﬁned

a threshold of ϕ = 0.6 for the 1D-CNN embedded

in the Drowsiness Monitoring System. Speciﬁcally,

the 1D-CNN output ranges from 0 to 0.6 (thresh-

old) refers to a medium-low attention level, while

the range from 0.61 to 1 indicates a high attention

level. Consequently, we have deﬁned the ad-hoc nor-

malized ϑ threshold as 0.45 to deﬁne a static scene-

based saliency map. Therefore, the values of

∂S

(x,y,t)

∂t

greater than the threshold 0.45, represents a high dy-

namic driving scene which require high level of the

car driver attention. Conversely, saliency maps with

low dynamics (under the threshold) will require a low

to medium level of attention from the driver.

5 CONCLUSION AND

DISCUSSION

This paper introduced an innovative approach that

combines visual and physiological data to evaluate the

driver’s drowsiness. The obtained results conﬁrmed

the robustness of the proposed approach. The main

advantage of the method lies in the fact that it does

not require any data analysis in the frequency domain.

Furthermore, the proposed method does not require

either sampling of the ECG or EEG signals of the

driver difﬁcult to be sampled inside the car. The pro-

posed method requires only the PPG signal to be sam-

pled using the described hardware system placed on

the steering wheel of the car. Moreover, we evaluated

the level of attention by ad-hoc fully convolutional

deep network. The proposed network is able to de-

termine a salience map to estimate the attention level

for safe driving. Therefore, the proposed pipeline is

able to verify whether the level of attention required

by the driving scenario is appropriate to the level of

attention retrieved by the analysis of the driver’s PPG

signal, alerting the driver if a risk mismatch occurs.

The proposed pipeline is currently being ported to an

embedded system based on the SoC STA1295 AC-

CORDO 5 MCU platform produced by STMicroelec-

tronics (software environment with embedded Linux)

(STMicroelectronics, 2019). To sum up, the results

have reported promising results in deﬁning an efﬁ-

cient attention monitoring system. Finally, there are

a few directions for further studies. Speciﬁcally, we

aim to include more robust domain adaptation meth-

ods based on the usage of combined supervised and

unsupervised approaches successfully used in differ-

ent applications (Rundo et al., 2019c; Rundo et al.,

2019d; Rundo et al., 2018a; Banna et al., 2018).

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

ACKNOWLEDGEMENTS

The authors thank the physiologists belonging to the

Department of Biomedical and Biotechnological Sci-

ences (BIOMETEC) of the University of Catania,

who collaborated in this work in the context of the

clinical study Ethical Committee CT1 authorization

n.113 / 2018 / PO. This research was funded by

the National Funded Program 2014-2020 under grant

agreement n. 1733, (ADAS + Project). The reported

information is covered by the following registered

patents: IT Patent Nr. 102017000120714, 24 Octo-

ber 2017. IT Patent Nr. 102019000005868, 16 April

2018; IT Patent Nr. 102019000000133, 07 January

2019.

REFERENCES

Abi-Saleh, B. and Omar, B. (2019). Einthoven’s triangle

transparency: a practical method to explain limb lead

conﬁguration following single lead misplacements.

Reviews in cardiovascular medicine, 11(1):33–38.

Alshaqaqi, B., Baquhaizel, A. S., Ouis, M. E. A., Boume-

hed, M., Ouamri, A., and Keche, M. (2013). Driver

drowsiness detection system. In 2013 8th Interna-

tional Workshop on Systems, Signal Processing and

their Applications (WoSSPA), pages 151–155. IEEE.

Altun, M. and Celenk, M. (2017). Road scene content

analysis for driver assistance and autonomous driv-

ing. IEEE transactions on intelligent transportation

systems, 18(12):3398–3407.

Banna, G. L., Camerini, A., Bronte, G., Anile, G., Ad-

deo, A., Rundo, F., Zanghi, G., Lal, R., and Li-

bra, M. (2018). Oral metronomic vinorelbine in

advanced non-small cell lung cancer patients unﬁt

for chemotherapy. Anticancer research, 38(6):3689–

3697.

Cai, Y., Liu, Z., Wang, H., and Sun, X. (2017). Saliency-

based pedestrian detection in far infrared images.

IEEE Access, 5:5013–5019.

Cheon, S.-P. and Kang, S.-J. (2017). Sensor-based driver

condition recognition using support vector machine

for the detection of driver drowsiness. In 2017 IEEE

Intelligent Vehicles Symposium (IV), pages 1517–

1522. IEEE.

Choi, H.-T., Back, M.-K., and Lee, K.-C. (2018). Driver

drowsiness detection based on multimodal using fu-

sion of visual-feature and bio-signal. In 2018 Inter-

national Conference on Information and Communi-

cation Technology Convergence (ICTC), pages 1249–

1251. IEEE.

Deng, T., Yang, K., Li, Y., and Yan, H. (2016). Where does

the driver look? top-down-based saliency detection in

a trafﬁc driving environment. IEEE Transactions on

Intelligent Transportation Systems, 17(7):2051–2062.

Fujiwara, K., Abe, E., Kamata, K., Nakayama, C., Suzuki,

Y., Yamakawa, T., Hiraoka, T., Kano, M., Sumi, Y.,

Masuda, F., et al. (2018). Heart rate variability-based

driver drowsiness detection and its validation with

eeg. IEEE Transactions on Biomedical Engineering,

66(6):1769–1778.

Hong, T. and Qin, H. (2007). Drivers drowsiness de-

tection in embedded system. In 2007 IEEE Inter-

national Conference on Vehicular Electronics and

Safety, pages 1–5. IEEE.

Igasaki, T., Nagasawa, K., Murayama, N., and Hu, Z.

(2015). Drowsiness estimation under driving en-

vironment by heart rate variability and/or breathing

rate variability with logistic regression analysis. In

2015 8th International Conference on Biomedical En-

gineering and Informatics (BMEI), pages 189–193.

IEEE.

Kurian, D., PL, J. J., Radhakrishnan, K., and Balakrish-

nan, A. A. (2014). Drowsiness detection using photo-

plethysmography signal. In 2014 Fourth international

conference on advances in computing and communi-

cations, pages 73–76. IEEE.

Mazzillo, M., Maddiona, L., Rundo, F., Sciuto, A., Lib-

ertino, S., Lombardo, S., and Fallica, G. (2018). Char-

acterization of sipms with nir long-pass interferential

and plastic ﬁlters. IEEE Photonics Journal, 10(3):1–

12.

Min, K. and Corso, J. J. (2019). Tased-net: Temporally-

aggregating spatial encoder-decoder network for

video saliency detection. In Proceedings of the IEEE

International Conference on Computer Vision, pages

2394–2403.

Rundo, F., Conoci, S., Banna, G. L., Ortis, A., Stanco, F.,

and Battiato, S. (2018a). Evaluation of levenberg–

marquardt neural networks and stacked autoencoders

clustering for skin lesion analysis, screening and

follow-up. IET Computer Vision, 12(7):957–962.

Rundo, F., Conoci, S., Ortis, A., and Battiato, S.

(2018b). An advanced bio-inspired photoplethysmog-

raphy (ppg) and ecg pattern recognition system for

medical assessment. Sensors, 18(2):405.

Rundo, F., Petralia, S., Fallica, G., and Conoci, S. (2018c).

A nonlinear pattern recognition pipeline for ppg/ecg

medical assessments. In Convegno Nazionale Sensori,

pages 473–480. Springer.

Rundo, F., Rinella, S., Massimino, S., Coco, M., Fallica, G.,

Parenti, R., Conoci, S., and Perciavalle, V. (2019a).

An innovative deep learning algorithm for drowsiness

detection from eeg signal. Computation, 7(1):13.

Rundo, F., Spampinato, C., and Conoci, S. (2019b). Ad-hoc

shallow neural network to learn hyper ﬁltered photo-

plethysmographic (ppg) signal for efﬁcient car-driver

drowsiness monitoring. Electronics, 8(8):890.

Rundo, F., Trenta, F., Di Stallo, A. L., and Battiato, S.

(2019c). Advanced markov-based machine learning

framework for making adaptive trading system. Com-

putation, 7(1):4.

Rundo, F., Trenta, F., di Stallo, A. L., and Battiato, S.

(2019d). Grid trading system robot (gtsbot): A novel

mathematical algorithm for trading fx market. Applied

Sciences, 9(9):1796.

Advanced Car Driving Assistant System: A Deep Non-local Pipeline Combined with 1D Dilated CNN for Safety Driving

Ryu, G.-S., You, J., Kostianovskii, V., Lee, E.-B., Kim, Y.,

Park, C., and Noh, Y.-Y. (2018). Flexible and printed

ppg sensors for estimation of drowsiness. IEEE Trans-

actions on Electron Devices, 65(7):2997–3004.

Sari, N. N. and Huang, Y.-P. (2016). A two-stage intelligent

model to extract features from ppg for drowsiness de-

tection. In 2016 International Conference on System

Science and Engineering (ICSSE), pages 1–2. IEEE.

STMicroelectronics (2019). STMicroelectronics AC-

CORDO 5 Automotive Microcontroller. https://www.

st.com/en/automotive-infotainment-and-telematics/

automotive-infotainment-socs.html?icmp=

tt4379

gl pron nov2016. (accessed on 02 July

2019).

Szypulska, M. and Piotrowski, Z. (2012). Prediction of

fatigue and sleep onset using hrv analysis. In Pro-

ceedings of the 19th International Conference Mixed

Design of Integrated Circuits and Systems-MIXDES

2012, pages 543–546. IEEE.

Vicente, J., Laguna, P., Bartra, A., and Bail´on, R. (2011).

Detection of driver’s drowsiness by means of hrv anal-

ysis. In 2011 Computing in Cardiology, pages 89–92.

IEEE.

Vinciguerra, V., Ambra, E., Maddiona, L., Romeo, M.,

Mazzillo, M., Rundo, F., Fallica, G., di Pompeo,

F., Chiarelli, A. M., Zappasodi, F., et al. (2018).

Ppg/ecg multisite combo system based on sipm tech-

nology. In Convegno Nazionale Sensori, pages 353–

360. Springer.

Wang, X., Girshick, R., Gupta, A., and He, K. (2018). Non-

local neural networks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 7794–7803.

Winterlich, A., Zlokolica, V., Denny, P., Kilmartin, L.,

Glavin, M., and Jones, E. (2013). A saliency weighted

no-reference perceptual blur metric for the automo-

tive environment. In 2013 Fifth International Work-

shop on Quality of Multimedia Experience (QoMEX),

pages 206–211. IEEE.

Xu, Y. J., Ding, F., Wu, Z., Wang, J., Ma, Q., Chon, K.,

Clancy, E., Qin, M., Mendelson, Y., Fu, N., et al.

(2012). Drowsiness control center by photoplythes-

mogram. In 2012 38th Annual Northeast Bioengineer-

ing Conference (NEBEC), pages 430–431. IEEE.

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering
