Memory State Tracker: A Memory Network based Dialogue State

Tracker

Di Wang and Simon O’Keefe

Department of Computer Science, University of York, Heslington, York, U.K.

Keywords:

Dialogue State Tracker, Memory Network.

Abstract:

Dialogue State Tracking (DST) is a core component towards task oriented dialogue system. It ﬁlls manually-

set slots at each turn of an utterance, which indicate the current topics or user requirement. In this work we

propose a memory based state tracker that includes a memory encoder which encodes the dialogue history into

a memory vector, and then connects to a pointer network which makes predictions. Our model reached a joint

goal accuracy of 49.16% on MultiWOZ 2.0 data set (Budzianowski et al., 2018) and 47.27% on MultiWOZ

2.1 data set (Eric et al., 2019), outperforming the benchmark result.

1 INTRODUCTION

Task oriented dialogue systems, such as Apple Siri or

Amazon Alexa, address one of the major tasks in the

NLP ﬁeld. While the complete accomplishment of a

dialogue system may still have a long way to go, a

step-by-step approach that includes Dialogue Repre-

sentation, State Tracking and Text Generation is been

proposed. The main component of the middle step is

State Tracking, which predicts at each turn of the dia-

logue what the topics or user requirements are. The

state is represented as values in certain predeﬁned

slots. For example, given one of the sentences of a

dialogue: Is there any restaurant in the city center?

then the corresponding state values could be [Task:

Restaurant][Location: Center].

Various task oriented dialogue data sets have been

released, including NegoChat (Rosenfeld et al., 2014)

and Car assistance (Eric and Manning, 2017). Eric et

al. introduced the MultiWOZ 2.1 data set (Eric et al.,

2019), which is a multi-domain data set in which the

conversation domain may switch over time. The user

may start a conversation by asking to reserve a restau-

rant table, then go on to request a taxi ride to that

restaurant. In this case, the state tracker has to de-

termine the corresponding domain, slots and values

at each turn of the dialogue, taking into account the

history of the conversation if necessary.

In this paper, we introduce a memory based di-

alogue state tracker, which consists of two compo-

nents: a memory encoder which encodes the dialogue

history into a memory vector, and a pointer network

which points to the set of possible values of states in-

cluding words in the dialogue history and ontology of

the data set. The memory vector will be updated at

each turn of the dialogue, and it will then be passed to

the pointer network, where prediction is made based

on the current memory. For each dialogue there are

multiple slots to be ﬁlled, each with a set of possi-

ble value. Both the slots and their possible values are

predeﬁned. The prediction is a two step procedure.

Firstly, predict the domains the current utterance lies

in, then for the speciﬁc domain, ﬁll values into corre-

sponding slots.

2 RELATED WORK

2.1 Dialogue State Tracking

Dialogue state tracking (DST), or Belief tracking, was

introduced as an intermediate step in dialogue sys-

tems. In this step the task is to recognize user’s goal

as state, which will then be used to guide the sys-

tem response correspondingly(Bohus and Rudnicky,

2006). Table 1 shows an example of a dialogue with

the corresponding dialogue states at each turn of the

dialogue, which will be updated at every user utter-

ance.

DST systems can be classiﬁed into two types:

ontology-based and ontology-free. Ontology-based

DST (Ramadan et al., 2018; Zhong et al., 2018) re-

quires a set of pre-deﬁned possible values for the dia-

Wang, D. and O’Keefe, S.

Memory State Tracker: A Memory Network based Dialogue State Tracker.

DOI: 10.5220/0010385705330538

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 533-538

ISBN: 978-989-758-484-8

533

Table 1: An example of dialogue states at each turn of the dialogue.

utterance dialogue state

User:I would like to ﬁnd a cheap restaurant

that serves tuscan food

System: nothing is matching your request.

I’m sorry.

(restaurant, food, tuscan)

(restaurant, price range, cheap)

(restaurant, name, not mentioned)

(restaurant, area, not mentioned)

User:Could you help me ﬁnd some cheap Italian

food then?

System: If you do not have a preference of area,

I recommend La Margherita in the west.

(restaurant, food, italian)

(restaurant, price range, cheap)

(restaurant, name, not mentioned)

(restaurant, area, not mentioned)

logue state, and the model selects the most likely one

from the ontology set. The Ontology-free DST (Xu

and Hu, 2018; Gao et al., 2019), on the other hand,

does not require such an ontology set, and will choose

the most likely phrase from the dialogue history and

vocabulary set.

The ontology-based DST will require a manually

deﬁned set of values for all slots, which will be expen-

sive for large scale dialogue systems and makes it dif-

ﬁcult to generalise the model. On the other hand, the

ontology-free DST is easy to generalise for large scale

dialogue systems, but can not utilize expert knowl-

edge in the model.

The two types of DST can be incorporated by us-

ing a gate function which determines if the current

slot should be ﬁlled by choosing from an ontology or

from the dialogue history (Qiu et al., 2019).

2.2 Multi Domain Dialogue State

Tracking

The MultiWOZ 2.1 data set released by (Eric et al.,

2019) is one of the largest task oriented dialogue sys-

tem data sets so far. It includes 9 different domains,

and at each turn of a dialogue there can be more than

one domain active. As the dialogue continues the ac-

tive domain and corresponding slot may be changed.

Benchmark methods of dialogue state tracking on this

data set include FJST, HJST (Eric et al., 2019), refer-

ring to Flat Joint State Tracker and Hierarchical Joint

State Tracker respectively. FJST encodes the dialogue

history into a vector and predicts the state. HJST is

the same but uses a hierarchical encoder. TRADE

(Wu et al., 2019) uses a slot generator to generate slot

values from a dialogue history and vocabulary.

2.3 Memory Network

A memory network was ﬁrstly proposed by (Weston

et al., 2014) for the Question Answering task. The

core of a memory network is a memory vector which

will be updated with each new input. MemN2N

(Sukhbaatar et al., 2015) was the ﬁrst end to end

memory network. TheDynamic Memory Network

(Kumar et al., 2016) proposes a method to update

the memory vector repeatedly with different attention

controlled by previous memory.

In this work, we adopt the idea of memory vectors,

, which will be updated by the dialogue history and

the previously predicted dialogue states.

3 MODEL

In this section, we provide a detailed description

of the proposed Memory State Tracking model, as

shown in ﬁgure 1.

Each sentence in the input dialogue is ﬁrst en-

coded to vector representation by sentence encoder.

Then each sentence vector is fed into a RNN struc-

tured Memory network in turn, and the memory net-

work will output a memory vector at each turn of the

dialogue. The ﬁnal step is to make prediction based

on the memory vector, which is a three step proce-

dure for each state slot to be ﬁlled: ﬁrstly, through a

binary ‘mention’ gate to determine if the current state

is mentioned or not in the dialogue. If the gate pre-

dicts it is not mentioned, then the state slot will be

marked as “not mentioned”. If it is mentioned, two

predictors will make independent predictions of pos-

sible slot values in the ontology and dialogue history

respectively, and another gate function will be used

to decide which prediction will be used as the ﬁnal

predicted value of the slot.

3.1 Encoder

We used two types of sentence encoding model as our

model’s encoder, the ﬁrst one used Glove word em-

bedding(Pennington et al., 2014) and feed each word

into a GRU and used the last hidden state as the sen-

tence representation. The second one used BERT

model for language understanding (Devlin et al.,

2018) as the sentence encoder. For each turn of the di-

NLPinAI 2021 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

534

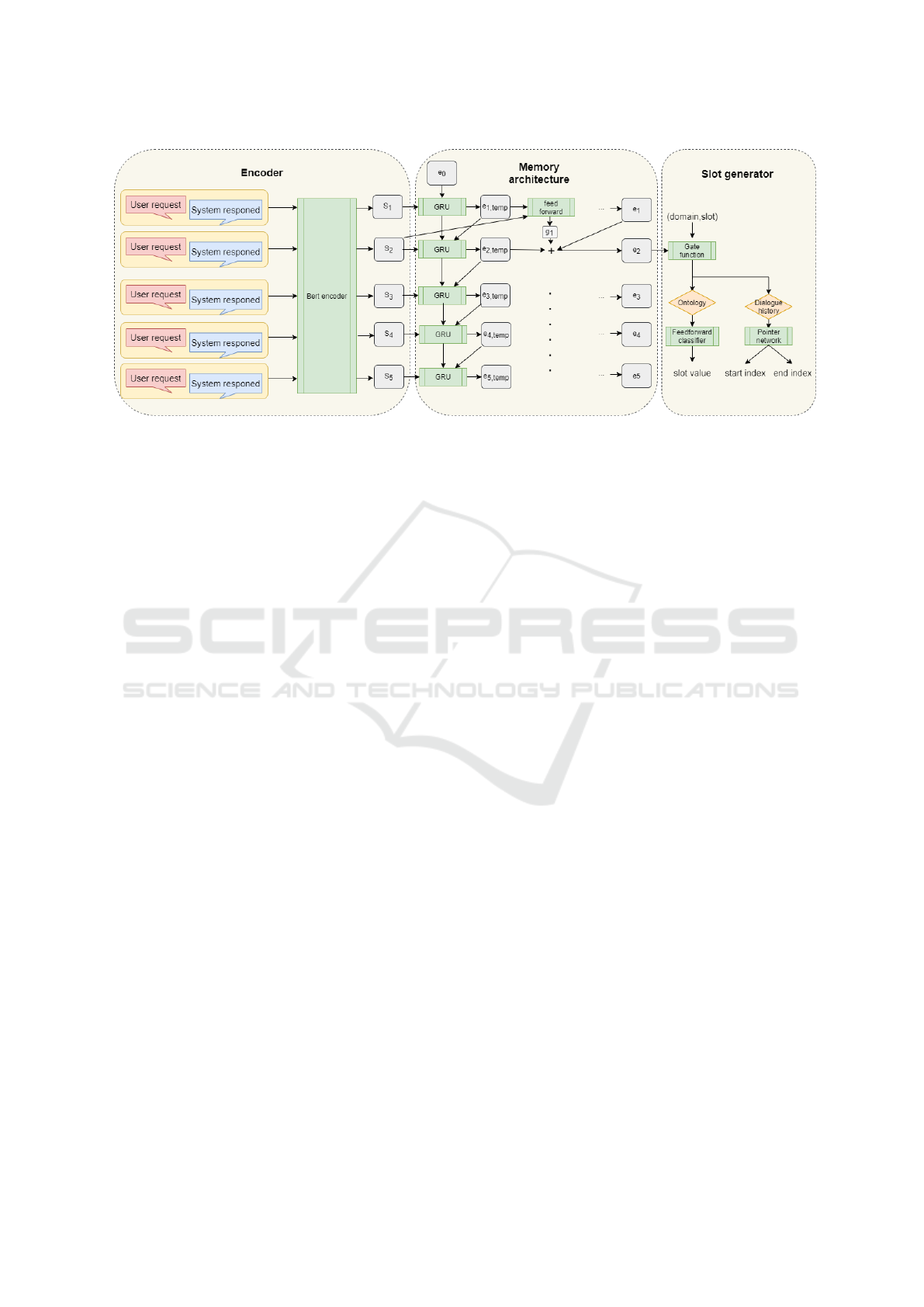

Figure 1: Memory state tracking system. In this graph the Memory is working on the second turn of the dialogue as example,

and the Slot predictor is predicting for a speciﬁc (domain, slot) pair.

alogue, the input sequence is the current user request

and system response separated by [SEP] token, and

then padded to a ﬁxed length and fed into the encoder,

the output s

is the vector representation of sentence i.

3.2 Memory Network

For each dialogue, a memory vector e

is used to rep-

resent all information from the dialogue history. At

each turn of the dialogue, the memory vector is up-

dated using an RNN structured network, where the

input is the sentence representation s

of the utterance

at current turn. At the beginning of the training pro-

cess, a hidden parameter H

is initialized with all val-

ues set to zero, then for each turn of the dialogue, the

memory is updated with

temp

, H

= GRU(s

, H

i−1

) (1)

= g

· e

temp

+ (1 − g

) · e

i−1

(2)

where the e

is the ith memory representation of the

dialogue, representing the whole dialogue until the ith

turn.

is an attention score computed by a simple gate

function with two layer feed-forward neural networks

= sigmoid(W

·tanh(W

·tanh(s

, e

i−1

)) (3)

The purpose of this gate function is to measure how

important the current turn of the dialogue is. If the

gate function gives a high score it means the current

turn is informative, and by equation 2 it will update

the memory vector greatly, and vice versa.

3.3 Pointer Predictor

We adopt the Pointer network architecture (Merity

et al., 2016) as the predictor in our model. The pre-

diction model makes predictions based only on the

memory vector e

at each turn. The prediction is a

two step procedure. First we have a set of mention

gate functions for each of the slot to be ﬁlled:

i, j

= G

j∈J

) (4)

which decide if the jth (domain, slot) pair is men-

tioned or not at ith. J is the set of all (domain, slot)

pairs to be ﬁlled, m

i, j

is the probability of the mention

gate, and G

j∈J

is a fully connected layer with sigmoid

activation.

j∈J

) = sigmoid(W

+ b

) (5)

Different from the three way gate in TRADE (Wu

et al., 2019), we do not add “don’t care” in this gate,

as the number of “don’t care” slots is relatively small

compared with “not mentioned”, and it can be pre-

dicted later in the categorical predictor.

If the mention gate predicts the jth (domain, slot)

pair is not mentioned, then the value of this slot will

be ﬁlled with “not mentioned”. If the gate predicts

that it is mentioned, the value will be ﬁlled by the

pointer network.

For (domain, slot) pairs that are predicted to be

“mentioned”, there are two independent predictors to

predict its values. One is a pointer network point to

words in the dialogue history

Index

start, j

= argmax

(sigmoid(W

j,1

+ b

j,1

)) (6)

Index

end, j

= argmax

(sigmoid(W

j,2

+ b

j,2

)) (7)

Memory State Tracker: A Memory Network based Dialogue State Tracker

535

where w

is the word embedding of the kth word in

the dialogue history. Index

start, j

represents the start

index of predicted slot values and Index

end, j

repre-

sents the end index, with words in between being the

ﬁnal prediction of pointer network.

Another predictor is a categorical classiﬁer that

chooses a word from possible values for current (do-

main, slot) pairs, with a feed-forward neural network.

A gate function is employed to determine which

predictor is used, with a structure similar to the men-

tion gate.

pred

) = sigmoid(W

+ b

) (8)

4 EXPERIMENT

This section discusses the experiment of our model

trained on the MultiWOZ 2.0 (Budzianowski et al.,

2018) and MultiWOZ2.1 (Eric et al., 2019) data sets,

including experiment setups, parameters and results.

4.1 Data Set

MultiWOZ 2.0 and 2.1 are large goal oriented di-

alogue system data sets, which consist of around

10,000 dialogues, 113, 556 turns of dialogues with

multiple domains including restaurant, hotel, hospi-

tal, taxi, police train, attraction, and bus. Table 1 is

an example of a dialogue about restaurant booking.

MultiWOZ 2.1 is a reﬁned version of MultiWOZ

2.0, modiﬁng around 2% of the slots.

4.2 Experiment Setup

In our work the hospital and police domains are ig-

nored as they contain only very few of the dialogues,

following (Wu et al., 2019). We use the validation and

test set supplied by the data set.

4.3 Model Details and Parameters

Our model is trained on a single GTX 2080 GPU with

Pytorch environment.

Word embedding dimension is set to 300 using

Glove embedding (Pennington et al., 2014). The max-

imum sentence length is set to 30, in order to train

the model in batches. This means words in an input

sentence after the 30th word will be discarded, if the

sentence is longer than 30, and if shorter, a special to-

ken of [PAD] will be added until the length of input

sentence is 30. Similarly, the max dialogue length is

set to be 10.

The training batch size is 128, hidden size of en-

coder and all feed-forward neural networks is 256.

We also used Gradient Clipping (Kanai et al., 2017)

with clip parameter 50, to prevent gradient explosion.

We used different learning rates for encoder and

pointer networks, which shows to have better perfor-

mance. The encoder learning rate is 0.001 and predic-

tor learning rate is 0.0001.

4.4 Experimental Results

We used joint goal accuracy to test our model. The

slot accuracy is the accuracy of each single state

value. For the joint accuracy, only if all the slots in

one turn are correctly predicted will the prediction be

marked as correct, otherwise it is incorrect.

Table 2 shows the joint goal accuracy of our model

on MultiWOZ2.0 and MultiWOZ2.1 data set, com-

pared with benchmark models. Our model beats these

baseline models in both data sets.

Table 2: Joint goal accuracy on MultiWOZ 2.0 and Multi-

WOZ 2.1 data set.

MWOZ 2.0 MWOZ 2.1

HJST(Eric et al., 2019) 38.4 35.55

FJST(Eric et al., 2019) 40.2 38.0

TRADE(Wu et al., 2019) 48.6 45.6

DST(Gao et al., 2019) 39.41 36.4

HyST(Goel et al., 2019) 42.33 38.10

MST(ours) 49.16 47.27

Table 3 shows the accuracy of each domain for Mul-

tiWOZ 2.1 data set.

Table 3: Domain-Speciﬁc Accuracy on MultiWOZ 2.1 data

set.

Domain Joint Accuracy Slot Accuracy

Restaurant 66.41 98.22

hotel 48.13 97.14

Taxi 39.50 94.85

Attraction 66.47 98.43

Train 63.83 94.98

4.5 Ablation Test

Table 4 shows the ablation test on the MultiWOZ 2.1

data set. We tested the performance with different en-

coders, and with and without the memory mechanism.

The test shows that the choice of the encoder does not

make much difference, but the memory mechanism

does improve the model performance signiﬁcantly.

NLPinAI 2021 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

536

Table 4: Ablation test on MultiWOZ 2.1 data set.

Feature Joint accuracy

GRU encoder(no memory) 46.55

Bert encoder(no memory) 46.62

Bert+Memory mechanism 47.27

5 CONCLUSION AND

DISCUSSION

In this paper we introduced a novel memory mech-

anism for a dialogue state tracking system. The core

contribution of our work is to incorporate the memory

architecture into the dialogue state tracking system.

We used a vector which will be updated at each turn

of the dialogue, so it will preserve useful historical

information in the model. This model outperforms a

set of benchmark models with joint goal accuracy on

both MultiWOZ 2.0 and MultiWOZ 2.1 data set.

In the domain-speciﬁc accuracy table, we can see

that the Hotel and Taxi domains are shown to be more

difﬁcult compared with other domains. The Hotel do-

main has 11 slots to be ﬁlled which is the largest of

all domains, so it is reasonable that the Hotel domain

has a lower joint goal accuracy. For the Taxi domain,

as shown in the Appendix, the number possible val-

ues for its state slot is the highest among all domains,

which may lead to the low joint goal accuracy.

REFERENCES

Bohus, D. and Rudnicky, A. (2006). A “k hypotheses+

other” belief updating model.

Budzianowski, P., Wen, T.-H., Tseng, B.-H., Casanueva,

I., Ultes, S., Ramadan, O., and Ga

c, M. (2018).

Multiwoz-a large-scale multi-domain wizard-of-oz

dataset for task-oriented dialogue modelling. arXiv

preprint arXiv:1810.00278.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2018). Bert: Pre-training of deep bidirectional trans-

formers for language understanding. arXiv preprint

arXiv:1810.04805.

Eric, M., Goel, R., Paul, S., Sethi, A., Agarwal, S., Gao,

S., and Hakkani-Tur, D. (2019). Multiwoz 2.1: Multi-

domain dialogue state corrections and state tracking

baselines. arXiv preprint arXiv:1907.01669.

Eric, M. and Manning, C. D. (2017). Key-value retrieval

networks for task-oriented dialogue. arXiv preprint

arXiv:1705.05414.

Gao, S., Sethi, A., Agarwal, S., Chung, T., and Hakkani-

Tur, D. (2019). Dialog state tracking: A neural

reading comprehension approach. arXiv preprint

arXiv:1908.01946.

Goel, R., Paul, S., and Hakkani-T

ur, D. (2019). Hyst: A hy-

brid approach for ﬂexible and accurate dialogue state

tracking. arXiv preprint arXiv:1907.00883.

Kanai, S., Fujiwara, Y., and Iwamura, S. (2017). Prevent-

ing gradient explosions in gated recurrent units. In

Advances in neural information processing systems,

pages 435–444.

Kumar, A., Irsoy, O., Ondruska, P., Iyyer, M., Bradbury,

J., Gulrajani, I., Zhong, V., Paulus, R., and Socher, R.

(2016). Ask me anything: Dynamic memory networks

for natural language processing. In International con-

ference on machine learning, pages 1378–1387.

Merity, S., Xiong, C., Bradbury, J., and Socher, R. (2016).

Pointer sentinel mixture models. arXiv preprint

arXiv:1609.07843.

Pennington, J., Socher, R., and Manning, C. D. (2014).

Glove: Global vectors for word representation. In

Proceedings of the 2014 conference on empirical

methods in natural language processing (EMNLP),

pages 1532–1543.

Qiu, L., Xiao, Y., Qu, Y., Zhou, H., Li, L., Zhang, W.,

and Yu, Y. (2019). Dynamically fused graph network

for multi-hop reasoning. In Proceedings of the 57th

Annual Meeting of the Association for Computational

Linguistics, pages 6140–6150.

Ramadan, O., Budzianowski, P., and Ga

c, M. (2018).

Large-scale multi-domain belief tracking with knowl-

edge sharing. arXiv preprint arXiv:1807.06517.

Rosenfeld, A., Zuckerman, I., Segal-Halevi, E., Drein, O.,

and Kraus, S. (2014). Negochat: a chat-based ne-

gotiation agent. In Proceedings of the 2014 interna-

tional conference on Autonomous agents and multi-

agent systems, pages 525–532.

Sukhbaatar, S., Weston, J., Fergus, R., et al. (2015). End-

to-end memory networks. In Advances in neural in-

formation processing systems, pages 2440–2448.

Weston, J., Chopra, S., and Bordes, A. (2014). Memory

networks. arXiv preprint arXiv:1410.3916.

Wu, C.-S., Madotto, A., Hosseini-Asl, E., Xiong, C.,

Socher, R., and Fung, P. (2019). Transferable multi-

domain state generator for task-oriented dialogue sys-

tems. arXiv preprint arXiv:1905.08743.

Xu, P. and Hu, Q. (2018). An end-to-end approach for han-

dling unknown slot values in dialogue state tracking.

arXiv preprint arXiv:1805.01555.

Zhong, V., Xiong, C., and Socher, R. (2018). Global-locally

self-attentive encoder for dialogue state tracking. In

Proceedings of the 56th Annual Meeting of the Associ-

ation for Computational Linguistics (Volume 1: Long

Papers), pages 1458–1467.

Memory State Tracker: A Memory Network based Dialogue State Tracker

537

APPENDIX

Table 5: Number of possible values for each (domain, slot)

pairs, for MultiWOZ 2.0 and MultiWOZ 2.1 data set.

Slot Name MultiWOZ2.0 MultiWOZ2.1

taxi-leaveAt 119 108

taxi-destination 277 252

taxi-departure 261 254

taxi-arriveBy 101 97

restaurant-people 9 9

restaurant-day 10 10

restaurant-time 61 72

restaurant-food 104 109

restaurant-pricerange 11 5

restaurant-name 183 190

restaurant-area 19 7

hotel-people 11 8

hotel-day 11 13

hotel-stay 10 10

hotel-name 89 89

hotel-area 24 7

hotel-parking 8 4

hotel-pricerange 9 8

hotel-stars 13 9

hotel-internet 8 4

hotel-type 18 5

attraction-type 37 33

attraction-name 137 164

attraction-area 16 7

train-people 14 12

train-leaveAt 134 203

train-destination 29 27

train-day 11 8

train-arriveBy 107 157

train-departure 35 31

NLPinAI 2021 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

538
