Formal Validation for Natural Language Programming

using Hierarchical Finite State Automata

Yue Zhan and Michael S. Hsiao

Bradley Department of Electrical and Computer Engineering,

Virginia Tech, Blacksburg, VA 24060, U.S.A.

Keywords:

Natural Language Programming, Natural Language Processing, Formal Validation, Hierarchical Finite State

Automata.

Abstract:

Natural language programming (NLPr) is a sub-ﬁeld of natural language processing (NLP) that provides a

bridge between natural languages (NL) and programming languages (PL), allowing users to design programs

in the form of structured NL documents. Due to the imprecise and ambiguous nature of NL, it is essen-

tial to ensure the correctness of translation for critical applications where errors are unacceptable. Machine

learning-based approaches for error checking are insufﬁcient as it can be difﬁcult for even the most sophisti-

cated models to capture all the relevant intricacies of a natural language. Automata offer a formalism that has

been used in compiling programming languages, and this paper extends automata-based methods to validating

programs written in natural languages. In particular, we propose a hierarchically structured ﬁnite-state automa-

ton, modeled based on domain-speciﬁc knowledge, for NLPr input validation and semantic error reporting.

Experimental results from validating a set of collected NL sentences show that the proposed validation and

error reporting can catch the unexpected input components while validating the semantics.

1 INTRODUCTION

Natural languages (NL) serve as the primary ex-

change of information among humans. Increasingly,

NL is also becoming a key interface in the ﬁeld of

human-computer interaction. Natural language pro-

gramming, an approach in which a computer program

is constructed from NL, holds exciting promises of

lowering the barrier to entry for programming and en-

abling new forms of interaction with devices.

Designing a system that understands NL and gen-

erates the corresponding code is challenging due to

the massive amount of language features that the sys-

tem must be able to interpret correctly. For example,

users might give an NLPr system an input containing

lexicon, grammar, or sentence structure that the sys-

tem was not intended to handle or accept. Statistical

n-gram language models are popular in the ﬁeld of

information extraction (IE) because of their forgive-

ness and robustness compared to rule-based gram-

mars. However, such forgiveness might cause the loss

of some semantics, thus making the NLPr system brit-

tle (Kaiser et al., 1999). For example, in an n-gram

based NLPr system where forgiveness and robustness

are achieved by dropping unknown words in the in-

put and where the words “love” and “hate” are un-

known, the three sentences below will all result in the

same output program. This treatment is undesirable

to a human as the three inputs clearly have different

meanings.

The robot loves going forward.

The robot hates going forward.

The robot goes forward.

One way to avoid translating with errors is to en-

sure that the NLPr system is able to accept, or re-

ject, any sentence fully it receives as input, as op-

posed to statistically process the sentence as in ma-

chine learning based systems. Accepting a sentence

can be performed by using a formal validation method

to screen out invalid inputs. Such a formal validation

method must detect unknown words/phrases, missing

information, as well as words and phrases that are

not compatible with the problem domain of the target

programs. Whenever an invalid sentence is detected,

the formal validation engine should provide feedback,

and “debug” suggestions to help users ﬁx their pro-

grams.

Finite-state machines (FSM) have played a sig-

niﬁcant role in both traditional and modern natural

language processing (NLP) applications such as IE

506

Zhan, Y. and Hsiao, M.

Formal Validation for Natural Language Programming using Hierarchical Finite State Automata.

DOI: 10.5220/0010388905060515

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 1, pages 506-515

ISBN: 978-989-758-484-8

and natural language parsing (Manning and Sch

utze,

1999). In language processing, an FSM is an ab-

stract machine with a ﬁnite number of states where

the transition from one state to another is made ac-

cording to a predetermined set of coded instructions

as a sequential transducer (Rangra and Madhusudan,

2016). At each state, the next state is determined by

the next input token in the sequence to select a rel-

evant FSM path. FSMs serve as a powerful formal

validation mechanism due to their deterministic prop-

erties, generating robust semantic representations that

can lead to less error-prone results for NLPr systems.

The correctness of the input processing and transla-

tion is critical for NL-based robot program synthesis.

In addition, in the event that a user inputs NL sen-

tences that the system is unable to process, we need

to provide users useful and easy-to-understand feed-

back in order for the users to rectify their inputs. For

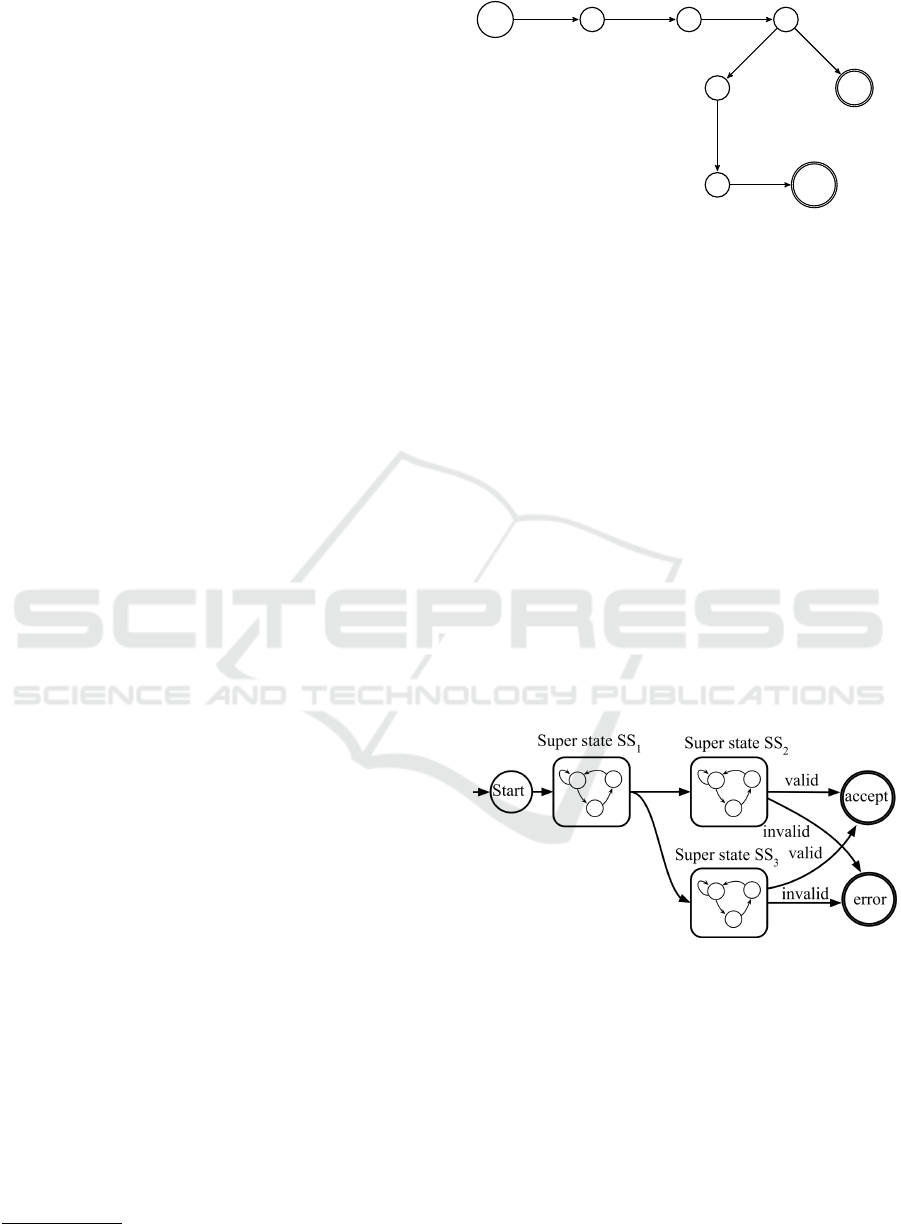

example, in Figure 1, the token “randomly” brings the

system to the error state from S

because the word is

not covered in the system’s lexicon. If the system sim-

ply terminated at this line without providing any error

messages, it would leave the users no clue about how

to ﬁx the problem. In fact, an NLPr system that does

not provide useful feedback is difﬁcult to use for non-

expert users, negating much of the appeal of NLPr.

In order to validate input sentences and report pos-

sible errors, the system must not only parse the sen-

tences into their constituent words, necessary for gen-

erating expressive language intermediate representa-

tions for downstream processing. It must also identify

unknown words and phrases in sentences that are not

covered in the language model, thus avoiding possi-

ble misinterpretations. In this paper, we address the

challenge of semantic parsing and input sentence val-

idation by implementing a context-sensitive analysis

engine. An automaton can be used to validate an NL

sentence by checking the end state reached by the sen-

tence. If the accept state is reached at the end of

the sentence, then the sentence is valid. On the other

hand, if the automate ends in the error state, then the

sentence contains unknown or unexpected language

components or missing some of the expected infor-

mation. Different error messages can be generated

depending on exactly how the error state was reached.

However, modeling all language features into one

modular FSM-based system is a complicated and

challenging process, resulting in a hard-to-maintain

system. A hierarchically structured machine can re-

duce the complexity of the system by breaking the

state machine into several superstates, denoted as SS

in this paper, where SS

∈ SS, 1 ≤ i ≤ m, as shown in

Figure 2. A superstate represents a cluster of one or

Stands for “end of sentence”

Start

error

NP : robot

V P : go

AP : dir

CD : num

AP : randomly

NP : unit

EOS

Figure 1: Example FSM.

more substates, noted as S

, where S

∈ S, 1 ≤ x ≤ n,

as in Figure 1. Such a structure makes it possible to

view the validation system at different levels of ab-

straction, making the system easier to reason about

and makes it possible to specify the system more in

detail (Alur and Yannakakis, 1998). Such a hierarchi-

cal structure also simpliﬁes the addition of new lan-

guage features to the model, allowing new features

to be added without modifying all other states’ previ-

ous transition conditions. The hierarchical structure

also allows us to reuse states when transitioning be-

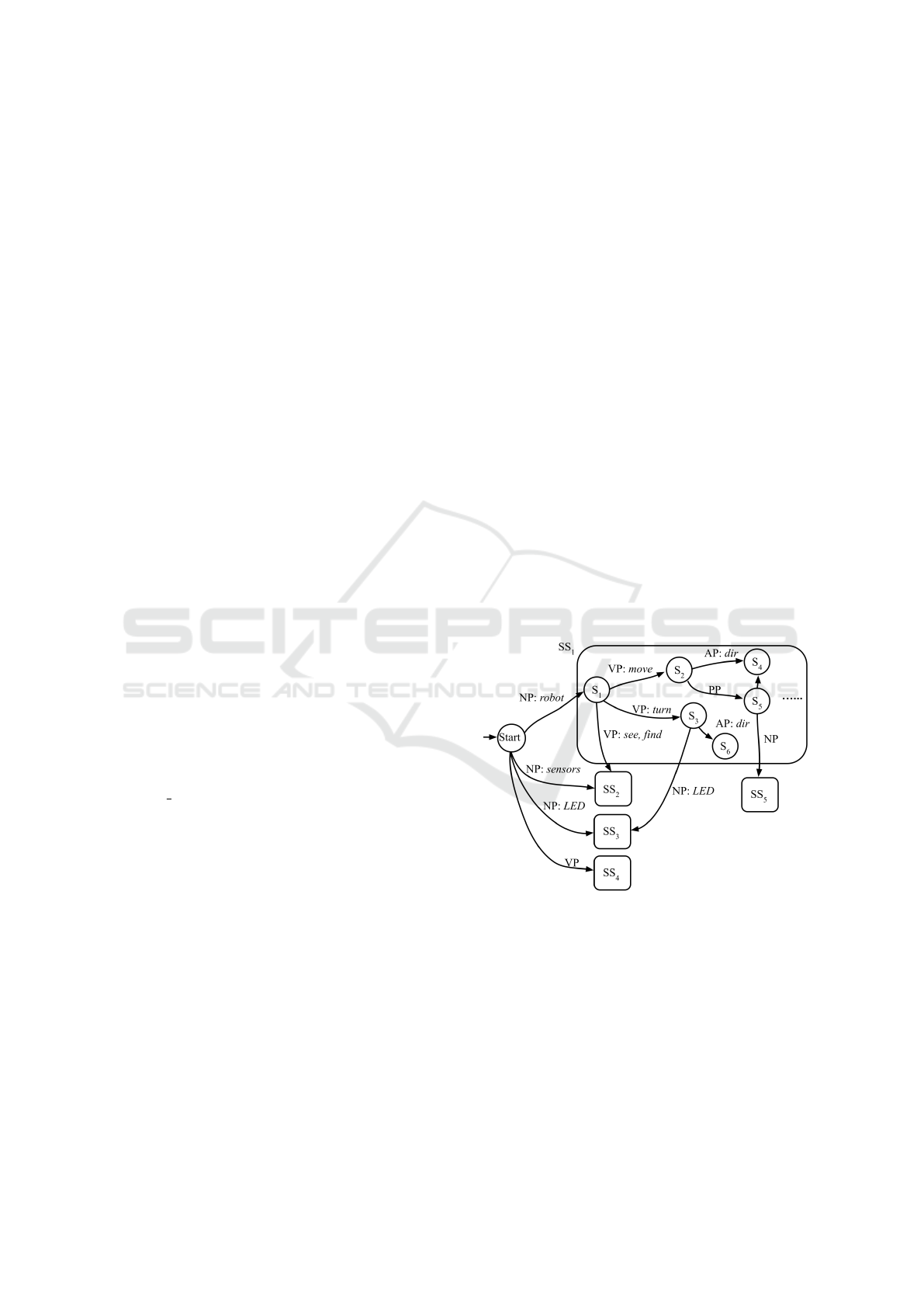

tween the super states. For example, as shown in Fig-

ure 4, the sensor-related states are reused by the robot

superstate SS

. Finally, although hierarchical FSMs

have played important roles in handling non-terminal

nodes in a Context-Free Grammar (CFG), they can-

not be easily extended to handle ambiguity in a lan-

guage. In this paper, we present a hierarchical FSM

for formal validation of inputs and error reporting for

the task of robot navigation using NLPr.

Figure 2: Example HFSM.

2 RELATED WORK

Finite-state automata are widely used in several sta-

tistical NLP tasks such as lexical analysis, tokeniz-

ing, part-of-speech (POS) tagging, and sentence pars-

ing. In (Rangra and Madhusudan, 2016), the authors

proposed a Modular Finite State Automa (MFSA) for

sentence grammar validation based on POS. Their

MFSA recognized the validity of token combinations

in the sentence and built the parse tree in a bottom-

Formal Validation for Natural Language Programming using Hierarchical Finite State Automata

507

up manner after completing all modular validations.

This approach reduced repeat parsing by using sub-

modules based on grammatical categories. However,

this MFSA did not address issues like ambiguity res-

olution.

An FSM-based parser application is presented in

(Graham and Johnson, 2014) for parsing Internet pro-

tocols. The authors claim that FSM approaches are

straightforward to construct and maintain and that

they are sufﬁciently expressive for high-throughput

applications like Internet protocols. This stands in

contrast to the previously dominant belief that FSMs

are not scalable or expressive and that they take too

much time actually to implement. This work demon-

strated that the integration of domain-speciﬁc knowl-

edge into an FSM is feasible.

A hybrid FSM framework that combines the ben-

eﬁt of spell checking and machine translation ap-

proaches is presented in (Beaufort et al., 2010). It per-

forms NL SMS text normalization, converting noisy

SMS conversations to a more standardized form. The

major drawback of training the model using SMS text

is that building a machine that can transcribe the cor-

pora to standard written forms is difﬁcult due to the

signiﬁcant variation present in SMS conversations.

As such, the authors stated that future works using

similar approaches should be based on text with a

more rigid structure than SMS messages.

Finite state-based compiler toolkits like Foma

(Hulden, 2009) and OpenFst (Allauzen et al., 2007)

also embrace the formal analysis power of statistical

ﬁnite state techniques.

Finite-state methods are also leveraged in the

ﬁelds of machine learning and Neural Machine Trans-

lation (NMT). A deterministic pushdown transducer

(DPDT) is adopted in (Moisl, 1992) for general NLP,

and a simple recurrent neural network is trained to

simulate a ﬁnite state automaton. The authors demon-

strate that using such NN-based implementation re-

sults in a system that can meet a typical NLP system’s

desirable properties for language parsing.

In (Goyal et al., 2016), neural language models

are used to regularize ﬁnite state machines with a

character-level model for NL text generation. The

weighted ﬁnite-state automaton proposed in this pa-

per incorporates prior knowledge to guide an RNN to

generate valid and well-formed character sequences.

In the works (Stahlberg et al., 2019)(Yuan et al.,

2019), the authors use ﬁnite-state transducers that are

built from unlabeled corpus to constrain the output of

a neural beam decoder to solving Grammatical Er-

ror Correction (GEC) tasks in NLP. They claim that

these methods can also be used with statistical ma-

chine translation (SMT) approaches if training data

is available, and they report superior gains over SMT

baselines. Their work suggests that ﬁnite state tech-

niques can enrich the search space of possible gram-

matical errors and corrections and constrain the neural

GEC system.

3 THE PROPOSED

CONTEXT-SENSITIVE

HIERARCHICAL FSM (HFSM)

Our approach to semantic parsing is to transform

an NL input into an intermediate semantic represen-

tation with domain-speciﬁc information. Semantic

parsing for general NL inputs can be difﬁcult due to

the underlying text’s imprecision and ambiguity. In

a LEGO robot NLPr application (Zhan and Hsiao,

2018)(Zhan and Hsiao, 2020), the lexicon and the

domain-speciﬁc function library F is built upon the

functionalities allowed by the hardware and sentences

manually collected from users that describe robot

movements. We restrict the application domain to be

the LEGO EV3 robot and constrain the language to

be a semi-controlled natural language (CNL) (Kuhn,

2014). By restricting the NLPr system’s problem do-

main to LEGO robot program synthesis, the problem

of semantic parsing can be modeled into a domain-

speciﬁc context-sensitive FSM. Such a machine per-

forms semantic checking and validation on a subset

of NL, e.g., a semi-controlled natural language. The

object-oriented language style also helps to reduce

ambiguity in sentences, as each phrase must involve

an object.

Unlike conventional programming languages that

are precise and unambiguous by design, we must deal

with NL inputs that could be imprecise and ambigu-

ous. Parsing an NL sentence into the grammatical

form using a grammar that ignores context, such as

CFG, might cause the loss of semantic information

and other problems. Even though modeling all lan-

guage features into one single NLPr system is imprac-

tical, if not impossible, the task can be made easier by

restricting the lexicon and language features to a ﬁ-

nite size, such as the lexicon describing robot tasks.

With this domain-speciﬁc knowledge-based lexicon

and library, the ambiguity and imprecision in the in-

put NL texts can be mitigated. Therefore, instead

of fully encoding the NL sentences into an abstract

form, some particular categories are kept and mapped

based on the library, while others may be dropped.

Words that the system does not care about, such as

“a”, “the”, “that” are dropped from the input. For ex-

ample, the sentence “The robot turns on the LED in

NLPinAI 2021 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

508

red” is pre-processed to “robot turns on LED PREPO-

SITION RED.”, keeping the sentence structure as well

as the subjects and properties of the action, such as the

color RED in this example.

3.1 Construction of the HFSM

In order to validate NL texts fed into the NLPr system

and detect sentence components, we propose a hier-

archical FSM with a semantic checking mechanism.

The hierarchical FSM is constructed based on basic

English grammar, the domain-speciﬁc lexicon, and li-

braries of the LEGO robot application. The FSMs

are developed based on a set of NL sentences that de-

scribe the capabilities of the robot. The ﬁrst super-

state handles the initial transitions to other superstates

by detecting the objects and actions in a sequence of

word tokens. We deﬁne nouns, verbs, and preposi-

tions based on POS tagging of the input sentences, us-

ing the Penn Treebank standard (Taylor et al., 2003),

and denote the following word classes:

• NP: Noun and noun phrases. For example: the

robot, sensors, LED, servo, etc.

• VP: Verb. For example: turn, move, delay, etc.

• AP: Adjective, Adverb. For example: colors, di-

rections, etc.

• PP: Preposition, preposition phrases. For exam-

ple: in, on, from, to, etc.

There are some exceptions to these classes, includ-

ing the following: the customized object names are

treated as NP, declared variable names are treated as

NP. For example, the happy in the sample sentence

“The robot is happy.” is treated as a Boolean variable.

The exception treatment treats random variable names

as NP as well, as in sentences such as “The robot is

variable xyz.”. Grammatical faults like this are for-

given in the FSM-based parsing system. Each FSM

has one start state and two terminal states: accept and

error.

In the ﬁgures, circles represent states, denoted as

, and rounded rectangles represent superstates de-

noted as SS

. Arrows denote the transition from one

state to another, with the label denoting the token that

triggered that transition, as shown in Figure 3. The

ordering of tokens in the input holds important infor-

mation about the sentence’s meaning, and the HFSM

can account for this. Depending on the ordering of to-

kens in a sentence, the HFSM may transition between

superstates in a different order, thus parsing the con-

text. For example, in the simpliﬁed HFSM in Figure

3, the combination of the NP robot and VP see in-

dicates the usage of the color sensor or the ultrasonic

sensor, and as such the HFSM transitions from the

robot superstate SS

to the sensor superstate SS

. The

combination of the NP robot, NP LED and VP turn

indicates the LED function. Thus, the HFSM tran-

sits from SS

to the LED superstate SS

. The hierar-

chical structure of the HFSM allows us to model the

system by building individual sub-FSMs based on the

domain-speciﬁc function library for the LEGO robot

and also improves maintainability and scalability.

In addition to handling simple action statements,

the LEGO NLPr system also handles Condition-

Action statements with ﬂexible sentence structure.

Logical keywords such as if, else, while, and, and

or are treated similarly to how they are in standard

computer programming languages.

The same token sequence can correspond to dif-

ferent desired functions depending on whether the se-

quence is part of a condition or an action. For exam-

ple, the token sequence in the conditional statement

if “the robot is happy” refers to a Boolean variable

checking function to see if the happy is True, while

the same token sequence in the action statement “the

robot is happy” refers to a variable assignment func-

tion that assigns True to happy. In order to account

for this behavior and correctly parse and validate the

semantic meaning of the input sentences, the main

FSM is split into two sub-machines: condition FSM

and action FSM. Each sub machine part has its own

properties of validation.

Figure 3: Example HFSM with some states omitted.

3.1.1 The Condition FSM

The LEGO NLPr system accepts conditional state-

ments of the following types: 1) sensor usage: check-

ing the value read from a sensor. There are four differ-

ent sensors available on the LEGO Mindstorms EV3

platform: gyro sensor, touch sensor, ultrasound sen-

sor, and a color sensor. 2) variable usage: checking

the value of a variable. A variable can be a Boolean,

a numeric value, or a string. However, all variable

Formal Validation for Natural Language Programming using Hierarchical Finite State Automata

509

names must be declared in advance. Using a variable

without ﬁrst initializing it results in the HFSM tran-

sitioning to the error state. For example, checking

“If the robot is happy, ...” will result in the HFSM

reaching the error state and raising an error about the

undeclared variable happy if there is not a statement

such as “The robot is happy.” ahead of it.

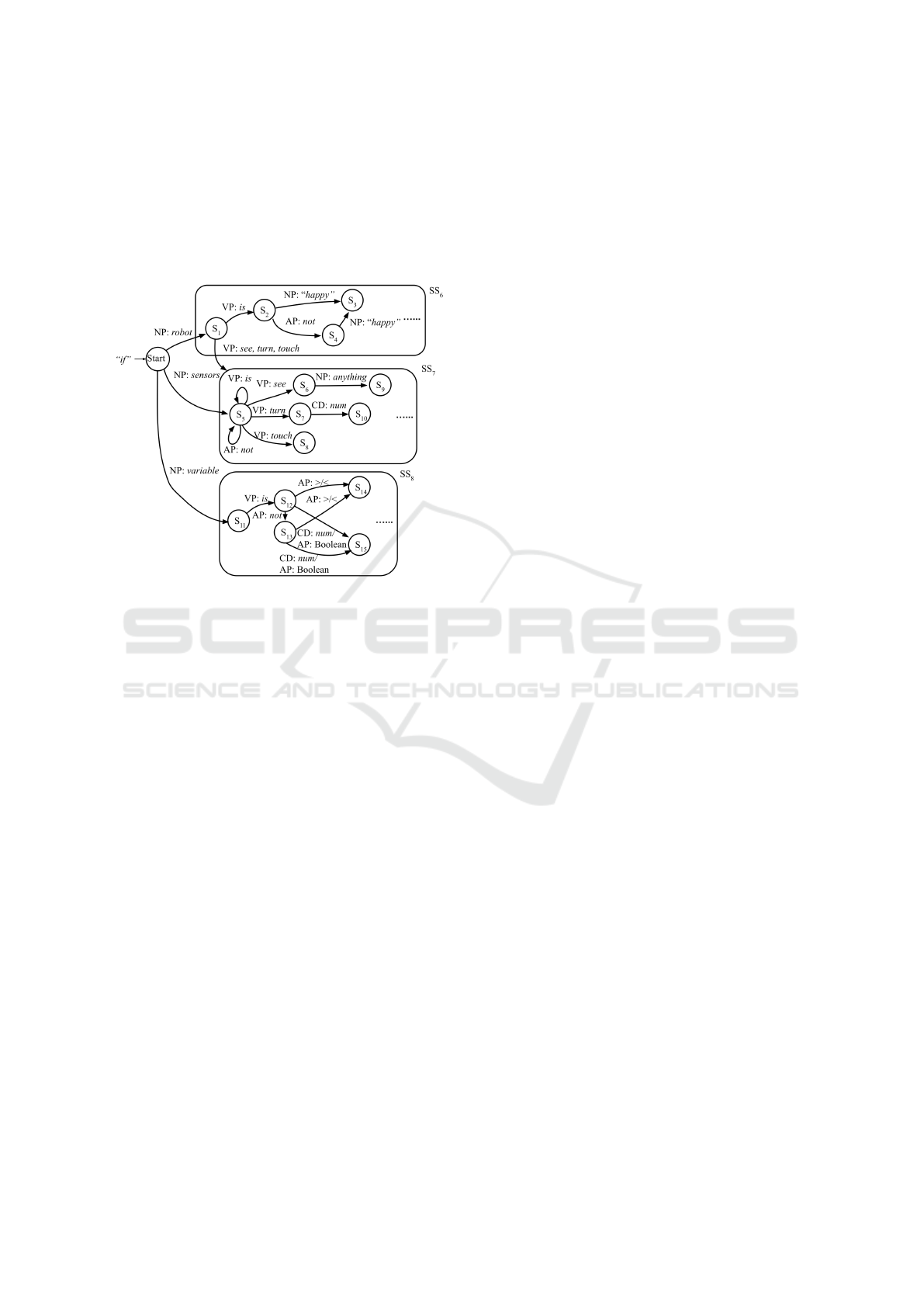

Figure 4: Condition HFSM with some states omitted.

3.1.2 The Action FSM

The LEGO hardware limits the action space that

the robot operates in. The functions in the LEGO

domain-speciﬁc function library can be split into mul-

tiple sub-FSMs based on the primary object: 1) the

robot, 2) the sensors, 3) the LED, 4) default attach-

ments that are always connected to the robot, such as

the servo and 5) new numeric and Boolean variables,

as well as new custom user-deﬁned robot attachments,

which need to be declared in advance.

3.1.3 Implementing Context-sensitivity

Unlike CFG, the proposed HFSM considers a token’s

context when evaluating its validity, enabling it to de-

tect errors in the sentences’ semantic meaning early.

The HFSM’s sensitivity to context is also different

from simple sentence pattern-matching because our

approach reports errors in semantics.

In order to ensure the correctness of the NLPr sys-

tem’s understanding of how to map inputs to their cor-

responding output programs, context analysis is re-

quired to guarantee that context-sensitive requests are

handled properly.

To achieve such context analysis, context-

sensitive rules γ applied in the HFSM are mod-

eled based on the domain-speciﬁc function library

of LEGO robot. Context sensitivity helps catch er-

rors that arise in situations where input is syntacti-

cally valid but not semantically valid such as ambigu-

ous inputs, undeclared variables, mismatched hard-

ware functionalities, and unimplementable or pro-

hibited behaviors. For example, the sentence “The

robot moves forward 90 degrees.” would pass syn-

tactic checking, as shown in the Superstate SS

Figure 6. However, the combination of the action

robot.move(forward) and the unit degree poses

a problem for an NLPr system as the move function

expects a distance variable but receives an angle in-

stead. Such semantic checking is done by apply-

ing the context-sensitive rules γ after input token se-

quence validation has been performed.

After the validation of the input token sequence,

and before making a ﬁnal assertion of the input’s va-

lidity, a case analysis for context-sensitive semantic

checking checks if the input satisﬁes a given property

P is applied as the ﬁnal check. The case analysis acts

as a checklist with multiple registers that need to be

set to pass validation. Take the LED superstate SS

another example. When the sequential tokens pass the

structure validation, instead of a directly transitioning

to the accept or error states, there is a semantic check-

ing multiplexer by the end of the LED superstate SS

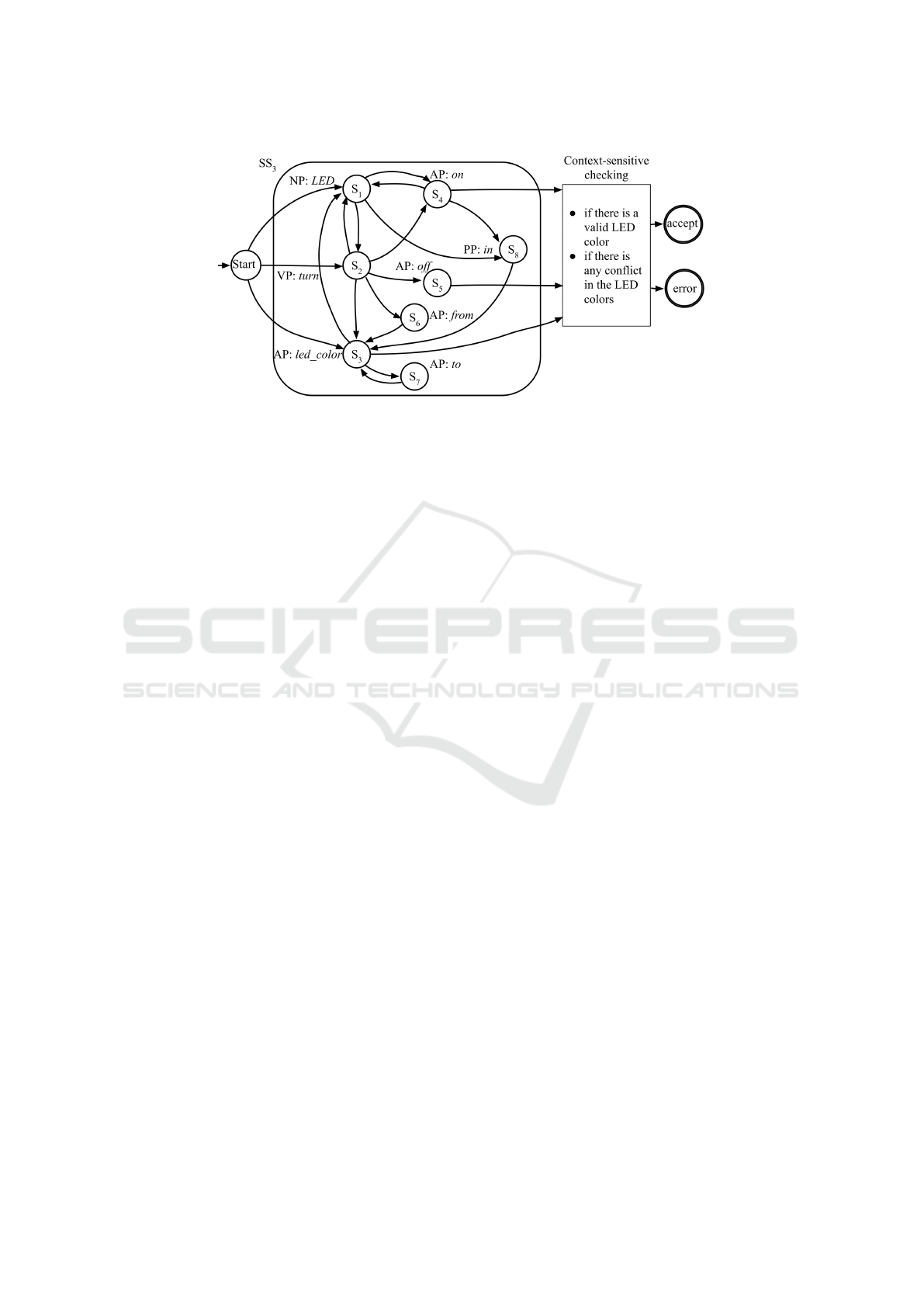

shown in Figure 7. The multiplexer checks if the in-

formation extracted from the sentence can form valid

token combinations that the NLPr system can then use

to generate corresponding code. For example, if the

target LED color and the original LED color are the

same, which makes no sense in terms of controlling

the robot, the input will be marked as invalid, as in

the invalid sentence “The red LED turns red.” If a

target LED color, such as blue, is not supported, this

would result in an error as well, as shown in the in-

valid sentence “The LED turns on in blue.”

A similar approach is used to detect sentences

with run-on errors as well. For example, the checker

checks the registers for the target LED color and the

original LED color to detect the error in the sentence

“The LED turns from red to green from red to green.”

If one color register is already set when assigning a

new value, we know it could be a possible run-on sen-

tence with redundant or dangling terms.

3.2 The Error Reporting Mechanism

Much research on engineering education has high-

lighted the importance of high-quality and eas-

ily understandable error messages for beginner stu-

dents for learning a programming language (Traver,

2010)(Munson and Schilling, 2016)(Crestani and

Sperber, 2010)(Marceau et al., 2011). This is simi-

NLPinAI 2021 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

510

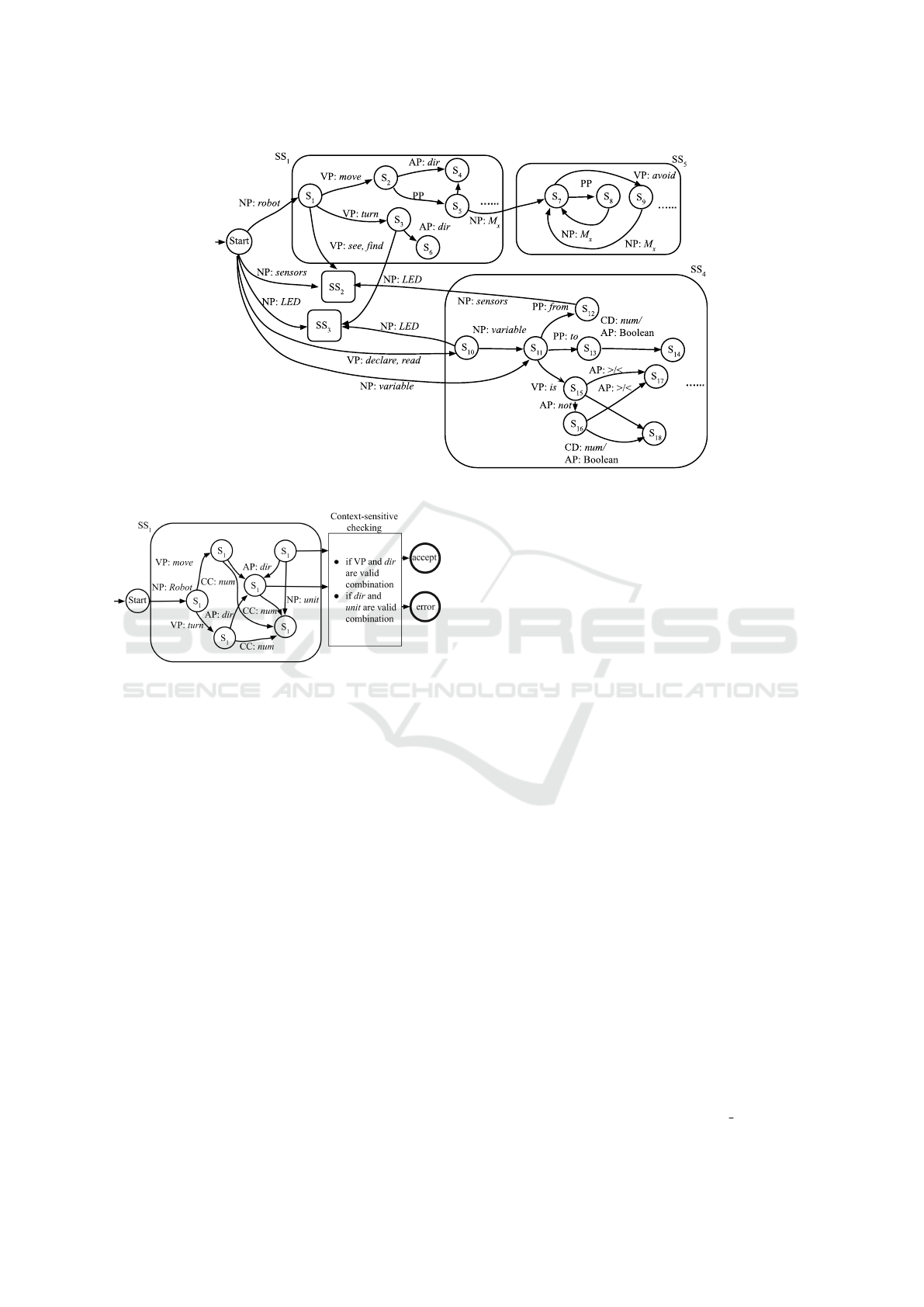

Figure 5: Simpliﬁed action HFSM with some states, including terminal states, omitted.

Figure 6: Simpliﬁed robot Superstate SS

with basic mo-

tions related states only.

larly important for debugging natural language sen-

tences, such as in GamgChangineer, an NLPr appli-

cation for video game design (Hsiao, 2018). The

phrasing and quality of error messages play a funda-

mental role in how feedback mechanisms impact stu-

dents’ actions when wrestling with untranslated NL

sentences, as well as the human-computer interaction

between the NLPr system and the users.

NL parsing is the process of transforming raw NL

inputs into a more standard and meaningful form that

can be understood and processed by the NLPr system.

By transforming and validating the inputs to the NLPr

system, the FSM-based parser imbues the input sen-

tences with trust (Graham and Johnson, 2014), which

means that we expect the sentences input to the NLPr

system to be written using somewhat reasonable stan-

dard forms and structures.

As the NLPr system expects input sentences to

be well-formed, we augment the FSM-based valida-

tion to include an error reporting framework that helps

guide users towards creating valid inputs. This FSM-

based error reporting framework leverages domain-

speciﬁc knowledge and lexicon for the NLPr applica-

tion. The error reporting functionality of this frame-

work provides early detection of not-covered, unim-

plementable, untranslatable, and ambiguous language

components in the inputs. Error and warning re-

porting alone does not provide much information for

beginner users. Therefore, in addition to meaning-

ful error messages, example sentences related to the

sentences’ semantic meanings are provided in accor-

dance with the teaching by example paradigm.

The errors that challenge the NLPr system can be

categorized into three main types:

1. Not-covered Language Components. These er-

rors mean that there are unknown words or unex-

pected sentence structures in the input. For ex-

ample, the sentence “The robot goes forward ran-

domly.” shown in Figure 1 is invalid because the

token “randomly” is not covered in the lexicon.

Thus, the error message generated would point

out that “randomly” is not understood by the sys-

tem and that it will be ignored when generating

the ﬁnal program.

2. Missing Information. These errors mean that the

information extracted from the sentence is not suf-

ﬁcient for function matching or program synthe-

sis. For example, while the sentence “The robot

goes forward.” is grammatically correct, it is not

concrete enough for generating executable pro-

grams for a robot as it is missing details such

as how far the robot should move forward. In a

situation such as this, where information is miss-

ing, default values will be used substituted. There

are many other forms such these errors may take,

such as the sentence “Read variable xyz from the

Formal Validation for Natural Language Programming using Hierarchical Finite State Automata

511

Figure 7: Simpliﬁed LED Superstate SS

with some states omitted.

sensor”, which does not adequately specify which

sensor is being used.

3. Mismatched Information. These errors mean

that the extracted sentence contains conﬂicting

information that cannot map to a unique match

in the function library. For example, the ob-

ject color sensor and the action touch together

would result in a transition to an error state as

there is no valid function that can both handle

color and touch. Function properties also need

to be validated when a valid function is matched.

For example, the unit inch does not ﬁt the function

robot.turn(left) in the sentence “The robot

turns left 90 inches.”

Currently, the error message library contains 118

distinct error and warning message templates associ-

ated with LEGO robot objects and actions. Each mes-

sage has a unique error ID. Error messages describe

precisely what part of the input caused the validation

error, whether that be a problematic token, a missing

token, or a mismatch between an object and its action.

Many error messages are accompanied by handwrit-

ten examples of proper inputs, which serve to show

users how to correct their errors directly.

One sentence can result in multiple errors. For

example, the sentence in Example 1 results in three

error messages. Error #117 points out that the token

“avoid” is not understood by the system. Error #13

and error #16 are generated because the system parses

the sentence in as “robot move forward”, but no infor-

mation is given that dictates how far the robot should

move forward.

Not all errors result in the termination of the trans-

lation process for the given sentence. For some errors,

such as certain missing information errors, the system

can still generate output code by inserting default val-

ues. For example, the token “avoids” in Example 1

would be skipped, and the rest of the sentence will

be ﬁlled with default values in order to generate the

program, as seen in error #13 and error #16.

Example 1. “The robot avoids moving forward.”

Error messages:

• ERROR(117): Unknown word found when de-

scribing a robot action. Please consider re-

writing the sentence without it. In the LEGO

NLPr system, you need to describe what needs to

happen step by step to avoid ambiguity. I see that

the next word is an action. I will skip the current

word, which might cause mistranslation: *avoid*

• ERROR(16): It seems like we are missing a num-

ber. Please write numbers in numerical digits 0 9.

A default value will be used.

• ERROR(13): It seems like we are missing a

unit. You can turn for “degrees”, move for

“inches”/“cm”/“seconds”, or stop for “sec-

onds”. I will use default now.

However, the system is not able to handle all pos-

sible cases where an unknown token is in the input.

For example, the sentence in Example 2 cannot be

translated because the object “right arm” is not recog-

nized by the system, and if it were simply dropped,

then no action would take place.

Example 2. “Turn the right arm up.”

Error messages:

• ERROR(24): It seems like we are missing an ob-

ject or a sensor that can be recognized. Please

check your spelling or re-write the sentence in

an object-orientated way. For example, use “the

robot turns left 90 degrees.” instead of “turn the

robot left 90 degrees.”

• ERROR(48): Possible undeﬁned variable or

Boolean status. It looks like you are checking a

variable or status that’s not previous deﬁned. You

NLPinAI 2021 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

512

can declare a variable by using example sen-

tences like “*xyz* is 5.”, “*happy* is True”, “set

*distance* to 10 inches.” or simply use “xyz =

5”(do not forget the space). Can you check the

object in: *right arm up*

• ERROR(80): Unable to understand this action.

Possible sentence fragment!

For NL sentences with multiple conditions or mul-

tiple actions, the sentences are ﬁrst split into condition

set and action set and then processed separately. For

example, the conditional statement “if the distance is

larger than 10 inches and the distance is less than 50

inches, ...” contains two conditions: distance>10

and distance<50. This approach allows the system

to treat each condition independently. As such, the

valid parts can be translated even if some of the con-

ditions are not understood by the system. For exam-

ple, in the condition statement “If the robot is happy

or the robot is going forward, ...”, the ﬁrst condi-

tion happy==True is valid while the second condition

raises the following error in Example 3.

Example 3. Condition: “robot is going forward ”

Error messages:

• ERROR(118): Can’t check the moving direction

as a condition. Please consider declaring a robot

status. For example, “If CONDITION, the robot

goes forward 10 inches.” then use the same CON-

DITION for the desired action.

4 EXPERIMENTAL RESULTS

To evaluate the performance and the coverage crite-

rion of the proposed HFSM-based semantic parsing

and error-reporting system, we used two sets of in-

put sentences: 1) 630 total valid and invalid sentences

collected manually, 2) 1148 stochastically generated

sentences. These sentences are randomly synthesized

using a Markov chain based method based on the

manually collected sentences and the domain-speciﬁc

lexicon. The HFSM-based formal validation helps to

effectively reduce the mistranslations caused by sim-

ply accepting a sentence based on the n-gram based

models keyword matching.

4.1 Manually Collected Sentences

The manually collected and annotated test set covers

each transition of the HFSM and each nested sub-

state at least once. 422 out of 630 sentences are valid

by default and pass the validation through the pro-

posed HFSM. 3 false negative cases and 7 false pos-

itive cases are in the rest 208 ill-designed sentences,

which results in a precision of 98.21% and a recall

of 99.23%. 892 error messages are generated for the

208 erroneous sentences, minimum 1 message, maxi-

mum 8 messages, and mean 1.38 messages. The for-

mal validation system correctly classiﬁes 98.41% of

the manually collected sentences as valid or invalid.

4.2 Auto-generated Sentences

A simple Markov chain-based NL text generator is

implemented to generate a rich set of testing sen-

tences. 1148 sentences with a max sentence length

of 30 words are produced. Because of the stochastic

nature of the Markov chain model, the sentences gen-

erated are random and error-prone. This is desirable

since we want to see if the corresponding error mes-

sages can provide helpful information for the users.

290 out of the 1148 sentences generated are semanti-

cally and grammatically correct and are successfully

validated by the HFSM. After running the rest of the

sentences through the HFSM, 50 false negative cases

and 15 false positive cases are identiﬁed, which re-

sults in a precision of 94.77% and a recall of 84,47%.

1619 error messages are generated for the 858 erro-

neous sentences, minimum 1 message, maximum 7

messages, and mean 1.89 messages. The formal vali-

dation system achieves an accuracy of 94.34% on the

auto-generated dataset. Therefore, the overall accu-

racy of the formal validation engine is 95.78%.

4.3 Case Study

In order to demonstrate how the semantic parsing and

error reporting system works, some examples are dis-

cussed above and in this section. In Example 4, the

condition “if the touch sensor” is clearly a sentence

fragment, thus labeled with Error #9, #23 and #39.

Example 4. “The robot picks up the robot if the touch

sensor.”

Error messages:

• ERROR(9): missing action for sensor condition.

• ERROR(23): incomplete sentence. Please check

if you are missing an action word, numbers, units,

colors, or directions.

• ERROR(39): sentence fragment found. In our sys-

tem, the “and” and “or” are keywords used to

parse the sentence. For example, a conditional

statement can be written as “if CONDITION1 and

CONDITION2, ACTION1 and ACTION2”. Each

CONDITION and ACTION will be processed sep-

arately. Therefore, to avoid ambiguity in condi-

tions, instead of using sentences like “if the color

sensor sees black or white, *action*”, use “if the

Formal Validation for Natural Language Programming using Hierarchical Finite State Automata

513

color sensor sees black, *action*. Else if the color

sensor sees black, *action*”.

• ERROR(116): Unknown word found when de-

scribing a robot action. Please consider re-write

the sentence without it. In the LEGO NLPr sys-

tem, you need to describe what needs to happen

step by step to avoid misunderstanding. Can you

check what is: *pick*

• ERROR(17): Expect an action word for the robot

object.

While evaluating the performance of the proposed

HFSM using collected sample sentences, we also

found corner cases where false negatives and false

positives exist, which indicates that future develop-

ment and improvement on the HFSM’s structure are

needed. Example 5 shows a false negative, an auto-

generated sentence that passes validation despite be-

ing erroneous. This error occurs because the declare

superstate SS

ﬁrst skips the unknown word “vari-

able xyz” and then checks the rest of the sentence

to see if the unknown word needs to be treated as a

variable name or not. When the submachine passes

the previous state to the next state after skipping the

custom variable token “variable xyz”, the action “set”

overwrites the ﬁrst action read. Thus, the sentence is

treated as “The variable xyz sets to 10 seconds.”

Example 5. “Read the variable xyz sets to 10 sec-

onds.”

The unknown word is initially ignored for variable

declaration functions modeled in SS

because it is un-

certain whether the unknown word is a variable name

without checking the context of the rest of the sen-

tence. When the rest of the input tokens indicates this

sentence assigns variable value, the unknown word

then is recognized as a variable and pass the valida-

tion. This kind of mistake could be ﬁxed by incorpo-

rating short term memory or a 2-pass analysis.

A false positive example is shown in Example 6.

While error #118 and error #17 are correctly raised by

the condition and action in the sentence, error #116

regarding unknown word is falsely raised because it

accidentally treats the end of sentence “.” as a word

token since the usage of punctuation in this circum-

stance is not considered while modeling the FSM.

Example 6. “The robot if the robot goes to M1.”

Error messages:

• ERROR(118): Cannot check the moving direction

as a condition. Please consider declaring a robot

status. For example, “If CONDITION, the robot

goes forward 10 inches.” then use the same CON-

DITION to for the desired action.

• ERROR(116): Unknown word found when de-

scribing a robot action. Please consider re-write

the sentence without it. In the LEGO NLPr sys-

tem, you need to describe what needs to happen

step by step to avoid misunderstanding. Can you

check what is: *.*

• ERROR(17): Expect an action word for the robot

object.

5 CONCLUSION AND FUTURE

WORK

We have presented an HFSM-based formal valida-

tion of NL inputs for the LEGO robot natural lan-

guage programming application. This system pro-

cesses input sentences using a hierarchical structured

FSM to extract information for generating interme-

diate representations for valid sentences and mean-

ingful error messages to help users “debug” invalid

sentences. As such, the unknown and missing lan-

guage components would not simply be ignored while

generating executable programs for LEGO robots.

The HFSM is modeled based on basic English gram-

mar rules with the additional use of exceptions and

domain-speciﬁc knowledge for the LEGO robot. The

transitions between two states/superstates are context-

sensitive, allowing the detection of any mismatch-

ing/unknown/missing information. This detection en-

riches the meaning of generated error messages and

provides more useful error messages to users.

The use of hierarchical structure also eases the

maintainability of the system and signiﬁcantly re-

duces the number of repeat states needed. Since an

input sentence will only be labeled as valid if the tran-

sitions result in a ﬁnal success state, the process of

translating natural language sentences to executable

programs is more reliable. However, the system may

still be tricked by some carefully crafted sentences

and is subject to some restrictions in sentence struc-

ture due to the HFSM’s preference for an object-

oriented language style. Despite these limitations, it

is well-suited for teaching novice users logical think-

ing and problem-solving skills.

Future work includes improving the modeling to

include more language components and more diverse

structure, expanding the error messages dictionary,

and investigating the applicability of this technique to

new problem domains.

REFERENCES

Allauzen, C., Riley, M., Schalkwyk, J., Skut, W., and

Mohri, M. (2007). Openfst: A general and efﬁcient

weighted ﬁnite-state transducer library. In Holub, J.

NLPinAI 2021 - Special Session on Natural Language Processing in Artiﬁcial Intelligence

514

and

arek, J., editors, Implementation and Applica-

tion of Automata, pages 11–23, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Alur, R. and Yannakakis, M. (1998). Model checking of

hierarchical state machines. In Proceedings of the 6th

ACM SIGSOFT International Symposium on Founda-

tions of Software Engineering, SIGSOFT ’98/FSE-6,

page 175–188, New York, NY, USA. Association for

Computing Machinery.

Beaufort, R., Roekhaut, S., Cougnon, L.-A., and Fairon, C.

(2010). A hybrid rule/model-based ﬁnite-state frame-

work for normalizing SMS messages. In Proceed-

ings of the 48th Annual Meeting of the Association for

Computational Linguistics, pages 770–779, Uppsala,

Sweden. Association for Computational Linguistics.

Crestani, M. and Sperber, M. (2010). Experience report:

Growing programming languages for beginning stu-

dents. ICFP ’10, page 229–234, New York, NY, USA.

Association for Computing Machinery.

Goyal, R., Dymetman, M., and Gaussier, E. (2016). Natural

language generation through character-based RNNs

with ﬁnite-state prior knowledge. In Proceedings of

COLING 2016, the 26th International Conference on

Computational Linguistics: Technical Papers, pages

1083–1092, Osaka, Japan. The COLING 2016 Orga-

nizing Committee.

Graham, R. D. and Johnson, P. C. (2014). Finite state ma-

chine parsing for internet protocols: Faster than you

think. In 2014 IEEE Security and Privacy Workshops,

pages 185–190.

Hsiao, M. S. (2018). Automated program synthesis from

object-oriented natural language for computer games.

In Proceedings of the Sixth International Workshop

on Controlled Natural Language, August, 2018, pages

71–74.

Hulden, M. (2009). Foma: A ﬁnite-state compiler and li-

brary. In Proceedings of the 12th Conference of the

European Chapter of the Association for Computa-

tional Linguistics: Demonstrations Session, EACL

’09, page 29–32, USA. Association for Computational

Linguistics.

Kaiser, E. C., Johnston, M., and Heeman, P. A. (1999).

Profer: predictive, robust ﬁnite-state parsing for spo-

ken language. In 1999 IEEE International Confer-

ence on Acoustics, Speech, and Signal Processing.

Proceedings. ICASSP99 (Cat. No.99CH36258), vol-

ume 2, pages 629–632 vol.2.

Kuhn, T. (2014). A survey and classiﬁcation of controlled

natural languages. Comput. Linguist., 40(1):121–170.

Manning, C. D. and Sch

utze, H. (1999). Foundations of

Statistical Natural Language Processing. MIT Press,

Cambridge, MA, USA.

Marceau, G., Fisler, K., and Krishnamurthi, S. (2011).

Mind your language: On novices’ interactions with

error messages. In Proceedings of the 10th SIG-

PLAN Symposium on New Ideas, New Paradigms, and

Reﬂections on Programming and Software, Onward!

2011, page 3–18, New York, NY, USA. Association

for Computing Machinery.

Moisl, H. (1992). Connectionist ﬁnite state natural language

processing. Connection Science, 4(2):67–91.

Munson, J. P. and Schilling, E. A. (2016). Analyzing novice

programmers’ response to compiler error messages. J.

Comput. Sci. Coll., 31(3):53–61.

Rangra, R. and Madhusudan (2016). Natural language pars-

ing: Using ﬁnite state automata. In 2016 3rd In-

ternational Conference on Computing for Sustainable

Global Development (INDIACom), pages 456–463.

Stahlberg, F., Bryant, C., and Byrne, B. (2019). Neural

grammatical error correction with ﬁnite state trans-

ducers. In Proceedings of the 2019 Conference of the

North American Chapter of the Association for Com-

putational Linguistics: Human Language Technolo-

gies, Volume 1 (Long and Short Papers), pages 4033–

4039, Minneapolis, Minnesota. Association for Com-

putational Linguistics.

Taylor, A., Marcus, M., and Santorini, B. (2003). The Penn

Treebank: An Overview, pages 5–22. Springer Nether-

lands, Dordrecht.

Traver, V. J. (2010). On compiler error messages: What

they say and what they mean. Adv. in Hum.-Comp.

Int., 2010.

Yuan, Z., Stahlberg, F., Rei, M., Byrne, B., and Yan-

nakoudakis, H. (2019). Neural and FST-based ap-

proaches to grammatical error correction. In Proceed-

ings of the Fourteenth Workshop on Innovative Use

of NLP for Building Educational Applications, pages

228–239, Florence, Italy. Association for Computa-

tional Linguistics.

Zhan, Y. and Hsiao, M. (2020). Breaking down high-

level robot path-ﬁnding abstractions in natural lan-

guage programming. In NL4AI@AI*IA.

Zhan, Y. and Hsiao, M. S. (2018). A natural language pro-

gramming application for lego mindstorms ev3. In

2018 IEEE International Conference on Artiﬁcial In-

telligence and Virtual Reality (AIVR), pages 27–34.

Formal Validation for Natural Language Programming using Hierarchical Finite State Automata

515
