Multiple Pursuers TrailMax Algorithm for Dynamic Environments

Azizkhon Afzalov

, Ahmad Lotfi

, Benjamin Inden

and Mehmet Emin Aydin

School of Science and Technology, Clifton Campus, Nottingham Trent University, England NG11 8NS, U.K.

Max Planck Institute for Mathematics in the Sciences, Inselstraße 22, 04103 Leipzig, Germany

University of the West of England, Coldharbour Ln, Bristol BS16 1QY, U.K.

Keywords: Multiple Targets, Multi-agent Path Planning, Path Finding, Search Algorithm.

Abstract: Multi-agent multi-target search problems, where the targets are capable of movement, require sophisticated

algorithms for near-optimal performance. While there are several algorithms for agent control, comparatively

less attention has been paid to near-optimal target behaviours. Here, a state-of-the-art algorithm for targets to

avoid a single agent called TrailMax has been adapted to work within a multiple agents and multiple targets

framework. The aim of the presented algorithm is to make the targets avoid capture as long as possible, if

possible until timeout. Empirical analysis is performed on grid-based gaming benchmarks. The results suggest

that Multiple Pursuers TrailMax reduces the agent success rate by up to 15% as compared to several

previously used target control algorithms and increases the time until capture in successful runs.

1 INTRODUCTION

Search algorithms have been developed and studied

for a long time. The basic scenario is that of a single

agent that is tasked with finding a target or goal

state on a graph within minimal time. Various

assumptions of this scenario can be relaxed, leading

to more difficult problems: there can be several

agents that need to coordinate their search, there can

be multiple targets, all of which need to be caught,

and targets can move on the graph over time rather

than be in a fixed position.

Many suitable algorithms have been proposed for

pursuing agents in the domains of video and computer

games, robotics, warehouses (Li et al., 2020), and

military and surveillance applications (Panait &

Luke, 2005). Some of these algorithms are for single

agent, such as MTS (Ishida, 1992), D* Lite (Koenig

& Likhachev, 2002) or RTTES (Undeger & Polat,

2007) and some are multi-agent, for example, FAR

(Wang & Botea, 2008), WHCA* (Silver, 2005), CBS

(Sharon, Stern, Felner, & Sturtevant, 2015) and

MAMT (Goldenberg, Kovarsky, Wu, & Schaeffer,

2003). These algorithms aim to find the shortest path

https://orcid.org/0000-0002-1456-542X

https://orcid.org/0000-0002-5139-6565

https://orcid.org/0000-0001-6048-6856

https://orcid.org/0000-0002-4890-5648

to the target location(s). While the shortest path is

important, the run time is essential, too, as considered

by real-time heuristic algorithms (Loh & Prakash,

2009).

For scenarios with moving targets, the target

algorithms also play an essential role in developing

multi-agent scenarios, but they are less studied. The

goal of such algorithms is to evade capture as long as

possible.

Consider a pursuit and evasion game, where

agents could be humans or computer controlled. To

make the game more interesting, intriguing, and

challenging, the targets need to behave intelligently.

Therefore, good target algorithms are an essential

factor of improving the gaming experience.

Existing target algorithms usually have strategies

such as maximising the escaping distance (Xie,

Botea, & Kishimoto, 2017), random movements to a

selected, unblocked positions in order to evade from

the capturer (Pellier, Fiorino, & Métivier, 2014) or, in

a state of the art approach called TrailMax,

maximising the survival time in the environment

(Moldenhauer & Sturtevant, 2009).

Multi-agent path finding (MAPF) problems have

been analysed in detail in the literature (Sigurdson,

Afzalov, A., Lotﬁ, A., Inden, B. and Aydin, M.

Multiple Pursuers TrailMax Algorithm for Dynamic Environments.

DOI: 10.5220/0010392404370443

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 437-443

ISBN: 978-989-758-484-8

437

Bulitko, Yeoh, Hernández, & Koenig, 2018), and are

known to be NP-hard (Li et al., 2020). As an example

of such a problem, in a video game, all non-player

agents may need to navigate from a starting location

to the goal location on a conflict free route in a static

or dynamic environment (Chouhan & Niyogi, 2017).

Good algorithms for moving targets can make the

empirical study of MAPF problems more meaningful

and challenging. So how can we improve on existing

ones? This paper introduces an algorithm based on

TrailMax that can be used for multiple moving targets

to escape from multiple agents in a dynamic

environment.

In the remaining parts of this paper, Section 2

presents the related work. Section 3 describes the new

approach to the problem. Empirical comparisons are

described in Section 4, and conclusion is derived in

Section 5.

2 RELATED WORK

This section introduces several existing target

algorithms in the literature. The following is a brief

description of each algorithm.

2.1 Target Algorithms

Although there is plenty of research in the literature

emphasising algorithms for pursuing agents, there are

few studies that are conducted on algorithms for

mobile targets. A classic example is the A* algorithm,

which is implemented for many pursuing agent and

target algorithms (Sigurdson et al., 2018).

2.1.1 TrailMax

TrailMax is a strategy-based algorithm that generates

a path for a target considering the pursuing agent’s

possible moves, i.e. it efficiently computes possible

routes by expanding its position nodes and agent’s

nodes simultaneously (Moldenhauer & Sturtevant,

2009). The aim of the TrailMax algorithm is to make

the targets stay longer by maximising the capture

time. To compute a path, an escape route that

maximises the intersection point, it checks the best

cost of the neighbouring states against the pursuer’s

costs and expands nodes accordingly. The algorithm

expands nodes that are not yet expanded, not in the

target’s list and not in the pursuer’s list. The node

with the best cost is added to the target’s list, which

would generate the path afterwards.

It is a state-of-the-art target strategy algorithm that

performs the best against pursuing agents, aiming to

make the targets less catchable or more difficult to be

caught (Xie et al., 2017).

2.1.2 Minimax

When used as the target algorithm, it runs an

adversarial search that alternates moves between the

agents and the target, where the agent gets closer to

the target state and the target distances itself from the

pursuing agent’s state. To make the algorithm faster,

Minimax is run with alpha-beta pruning search,

where alpha (α) and beta (β) are constantly updated to

avoid the exploration of suboptimal branches

(Bulitko & Sturtevant, 2006). The used depth is 5, i.e.,

the outcomes after at most 5 moves of each party are

considered.

2.1.3 Dynamic Abstract Minimax

Dynamic Abstract Minimax (DAM) is a target

algorithm that finds a relevant state on the map

environment and directs the target using Minimax

with alpha-beta pruning in an abstract space. The

search starts on the highest level of abstraction, an

abstract space created from the original space. If there

is a path, then an escape route is computed using

PRA* (see Section 2.2). If the target cannot escape

and there is no available move to avoid the capture on

the selected abstract space, then the level of

abstraction is decreased and the whole process repeats

until the target can successfully run away from being

caught (Bulitko & Sturtevant, 2006). The used depth

is 5.

2.1.4 Simple Flee

Simple Flee (SF) is another algorithm that can be used

by targets to escape from the pursuing agents (Isaza,

Lu, Bulitko, & Greiner, 2008). The SF algorithm

works as follows. In the beginning of the search, the

target identifies some random locations on the map.

When the target starts moving, it navigates to the

furthest location away from the pursuers. To disorient

the pursuing agents, the direction towards the selected

location changes in every five steps, and if it is the

furthest location, it keeps moving. The number of

locations on the map and the number of steps before

the change are the parameters of the algorithm.

2.2 Pursuing Algorithm

This study sets out to develop a new multiple target

algorithm. Therefore, this part of the section

introduces only one algorithm for pursuing agents,

which will be used in the experiments.

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

438

Partial-Refinement A* (PRA*) is an algorithm

that reduces the cost of search by generating a path on

an abstract level of the search space. These abstracted

spaces (graphs) are built from the grid map. The

abstract level is selected dynamically. The A*

algorithm is then used to run a search with sub-goals

on the abstract graph. The abstract path creates a

corridor of states in the actual search space, through

which the optimal path is found .

This is a widely used approach and its variations

have been described with different search techniques

(Sturtevant, Sigurdson, Taylor, & Gibson, 2019).

3 PROPOSED APPROACH

In the following section, a new target algorithm is

described. First, the motivation will be given for the

algorithm. The pseudo code (see Figure 1) provides

more details.

When the problem was described in Section 1, it

was stated that a smart target algorithm is very useful

to have. In the simple scenarios where one agent

pursues a target, the target would know from which

agent it needs to escape, as there is only one. Some of

the strategies to run away from the agent have been

discussed in the previous sections. But if we consider

a situation where multiple targets need to escape from

the current state and move to the safest destination in

the dynamic environment, how would targets know

which agent they need to avoid for a successful run?

Although the TrailMax algorithm, as introduced

in Section 2.1.1, is the state-of-the-art algorithm, it

has been designed to work with only one agent,

meaning a target does not have any strategy to escape

from one pursuer and avoid another approaching

pursuer at the same time.

For this particular reason, a target algorithm that

would be able to identify approaching multiple agents

and escape from all pursuers, a novel algorithm,

called Multiple Pursuers TrailMax (MPTM), is

developed.

The MPTM algorithm uses a similar methodology

as TrailMax but enhanced for MAPF problems. There

are two important reasons for implementing MPTM

algorithm in MAPF problems. First, it can identify the

state location of other targets and collaborate with

them. Second, it can ensure the escape not only from

one pursuing agent, but from any approaching

evading agents. Here the focus is on the second issue.

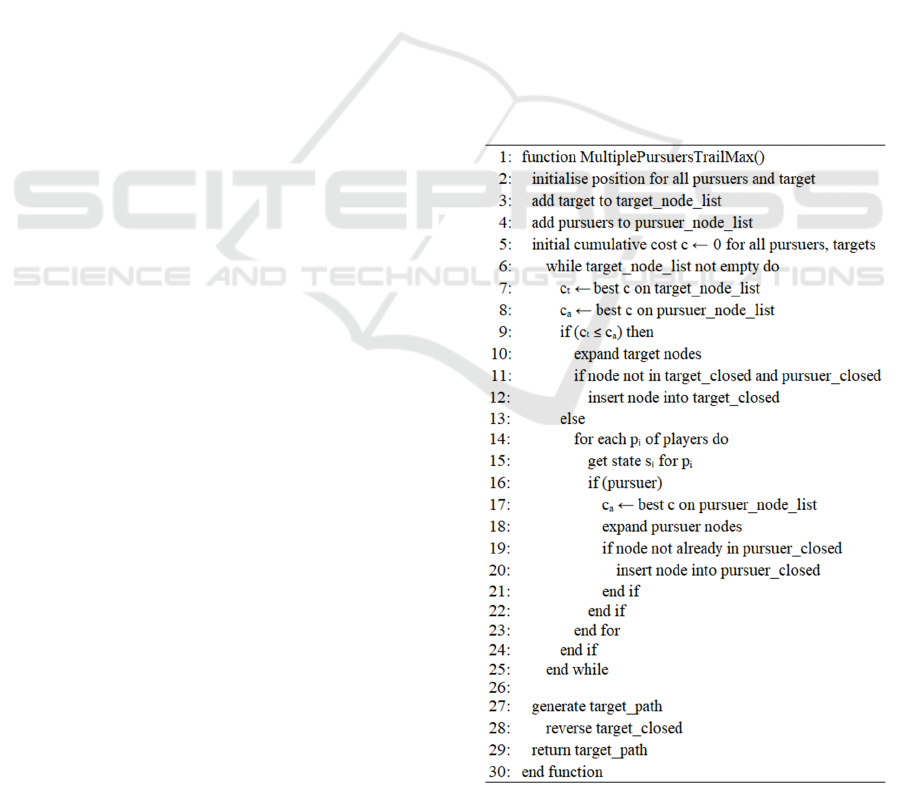

The pseudo code for the MPTM algorithm is

depicted in Figure 1. First, the current locations of all

pursuers and targets need to be initialised. The next

step is to sort all players according to their role and

insert into the relevant lists, all pursuers to the

pursuer_node_list and a target to the

target_node_list. At this point all players will have a

cumulative cost of zero. To make it easier to follow

the code, each movement cost will be equal to one,

unless it is in wait action, then it is zero. This is with

an assumption that there is no octile distance.

Since this is the target algorithm, it starts first to

check if there are any target nodes in the

target_node_list. Then, it finds the best cumulative

cost c, the highest value, for target and pursuer at line

7 and 8. If the c

is lower or equal to the cₐ, then the

target expands its nodes. The expansion of nodes is

computed simultaneously for target and pursuing

agents. During the expansion of nodes, each side

marks nodes as visited and insert into the closed lists,

line 12 and 20.

The main part of this algorithm are the lines in

between 13-22, where each pursuer loops through its

state and expands its nodes independently from other

pursuers. The closed nodes list for the target is

reversed to identify the route. This expansion goes to

the point where one of the pursuing agents occupies

the node of the target.

Figure 1: Pseudo code for the MPTM algorithm.

Multiple Pursuers TrailMax Algorithm for Dynamic Environments

439

For multiple targets, the algorithm is run on each

target, and normally, each will get a different

outcome based on their location. The result will be the

same if they are all in the same state. Even if the

starting position is different, the targets could join

their path if that is the optimal option.

4 EMPIRICAL EVALUATION

In this section the empirical results will be presented

to demonstrate the efficiency of the proposed

algorithm. First, the experimental setup will be

described, then, performance results of the MPTM

algorithm described in Section 3 will be reported.

4.1 Experimental Setup

For better comparability, standardised grid-based

maps from the commercial game industry are used as

a benchmark (Stern et al., 2019). The environments

used are four maps from Baldur’s Gate video game as

shown in Table 1. Within the experiments, these maps

are used with a four-connected grid and impassable

obstacles. Figure 2 displays a sample map used for the

experiments, where black coloured spaces are the

obstacles, and the white space is a traversable area.

The maps were chosen based on the presence of

obstacles and difficulty of navigation. The movement

directions could be up, down, left and right with a cost

of one each. That said, the approach should work with

different moving costs as well.

Figure 2: The experimented sample map (AR0607SR) used

in the Baldur’s Gate video game.

Table 1: The name of testbeds for the experiments with their

height and width sizes.

Map names Height x Width

AR0607SR 54x60

AR0514SR 64x64

AR0313SR 64x60

AR0417SR 54x52

The scenario chosen for the first tests is to have two

targets and twice the number of pursuing agents. The

second set of tests has the number of targets increased

by one. The last configuration increases pursuing

agent number to six versus three targets. All players

are placed at different pre-selected random locations

on each map. Altogether there were five different sets

of starting positions. Only the first set has all pursuers

in the same location and all targets in the same

location, and targets are positioned in far distance

from pursuers. This helps to analyse the behaviour of

the algorithms.

Each configuration runs 30 times. The

implementation of the simulation (Isaza et al., 2008)

is developed using C++. The simulation was

developed for a single target scenario and it was

modified so that the tasks with multiple targets and

assignment strategy for pursuing agents could be

tested. The results were obtained using a Linux

machine on Intel Core i7 with 1.9 GHz CPU and

RAM with 40 GB.

4.2 Experimental Results

The section below reports the results from the

experiments. Performance analysis is conducted with

respect to two key indicators; (i) the number of steps

taken for each target algorithm before being caught

and (ii) its success rate. Both of the measurements are

averaged considering all targets.

During the experiments, some pursuers could

catch one target but miss the second one, and because

the search is not finished yet, the chase continues.

Success is achieved when both targets are caught, and

the number of steps until all targets have been caught

is recorded.

4.2.1 Pathfinding Cost

To evaluate the MPTM algorithm the comparison

with SF and Minimax is displayed in Table 2. This

measures the performance in terms of number of steps

for all targets. The numbers indicate the means of

steps by target algorithms per map.

It is seen from Table 2 that the proposed target

algorithm offers much longer stay on the maps. This

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

440

Table 2: The average number of steps for each target

algorithm per map for each set of configurations. Larger

number is better as it avoids the capture from the pursuing

agents.

SF Minimax MPTM

4 pursuers versus 2 targets

AR0607SR 66.59 139.01 206.83

AR0514SR 46.55 62.04 142.82

AR0313SR 57.61 116.07 317.66

AR0417SR 46.32 173.16 260.52

4 pursuers versus 3 targets

AR0607SR 78.21 181.06 331.61

AR0514SR 61.68 87.09 153.13

AR0313SR 65.99 139.84 344.91

AR0417SR 50.81 178.42 228.92

6 pursuers versus 3 targets

AR0607SR 72.76 137.85 325.59

AR0514SR 66.59 85.33 88.55

AR0313SR 62.45 133.57 237.05

AR0417SR 47.82 171.07 197.83

indicates that it avoids capture and demonstrates

smarter decisions. The higher number is better.

In the scenario, when the target number increases

to three versus four pursuing agents, usually the

targets manage to avoid capture longer in comparison

with the first set of tests. In the cases where the

number of pursuing agents are increased to six, 6

pursuers versus 3 targets, this predominance gives

greater advantage to the pursuers and makes it

difficult for targets to escape. Therefore, targets might

get caught quicker.

The evidence shows that the new MPTM

algorithm outperforms SF and Minimax algorithms in

number of steps in all test configurations.

4.2.2 Success Rate

Success for the agents is achieved when a pursuing

agent gets to the position of the target. In the multi-

target scenarios, success is achieved when all targets

have been captured. For the target(s), success is the

absence of agent success. The success of the target

algorithm is shown in Figure 3. There are three

different graphs based on the number of players that

are set for each test configuration.

From these graphs in Figure 3, the SF algorithm

performs the worst, and it always gets caught by

pursuing agents. Minimax shows better results in

comparison with SF, although it has the cases where

it gets caught 100%. Minimax is slightly worse than

the MPTM algorithm on the AR0514SR map (4 vs 2)

and on the AR0417SR map (4 vs 3) but performs

better and escape longer only on one occasion, the

AR0417SR map (6 vs 3). It is possible to say, the

MPTM algorithm performs better than Minimax in

most of the configurations and displays excellent

results in some of these, but on the AR0417SR map

with six pursuers and three targets, it performs

approximately equal to Minimax.

The behaviour of the MPTM algorithm is better

on the maps that have obstacles that could be

navigated around, for example the map illustrated in

Figure 2. These types of maps may be suitable for

adaptive target algorithms as they offer opportunities

for escape but may be difficult for the pursuing agent

(a)

(b)

(c)

Figure 3: The performance rate of success for SF, Minimax

and MPTM target algorithms, lower is better. (a) displays

the results for 4 pursuers versus 2 targets, (b) is for 4

pursuers versus 3 targets and (c) is for 6 pursuers versus 3

targets.

Multiple Pursuers TrailMax Algorithm for Dynamic Environments

441

algorithms if they do not have strategies such as the

trap strategy (John, Prakash, & Chaudhari, 2008). The

maps AR0514SR and AR0417SR have dead-ends or

blind alleys and thus make it more difficult to find an

escape route, leading to lower target performance on

these maps.

The results clearly show that the new target

algorithm, MPTM, performs far better in all of these

simulations on the gaming maps used for

benchmarking.

With the better algorithms, pursuing agents

sometimes fail to catch the targets although these are

outnumbered. They might catch one target but fail to

catch the other, or keep following the target, or end in

a deadlock until timeout.

The result of this study indicates that the MPTM

algorithm exceeds expectations and, on average over

all maps, shows a success rate 9% and 15% better

then Minimax and SF, respectively.

5 CONCLUSION AND FUTURE

WORK

The aim of this paper was to develop and study a

target algorithm in MAPF problems. There have been

many interesting studies done on search algorithms

and among of them are solutions to the MAPF

frameworks. Only several studies have been

conducted on target algorithms, especially in the area

where there are multiple targets.

The investigation shows that TrailMax is a

successful algorithm for control of targets if extended

for dealing with multiple agents. This study proposes

amendments, first time, to TrailMax strategy

algorithm as a state-of-the-art approach modifying

and enhancing its scope to meet the criteria for

multiple targets in the dynamic environment.

This new MPTM algorithm is applicable to

moving targets and the success of having a smart

method makes fast pursuing search algorithms to

timeout. The results of this study demonstrate that the

target algorithms are equally important in comparison

to pursuer algorithms, and that makes the search more

challenging and interesting.

Future studies should also look at computation

time and how it could be improved. A more

systematic approach would also study how the

algorithm behaves on different testbeds and with

different agent configurations, including those with a

larger number of players. The comparison with other

pursuing multi-agent algorithms would be useful.

REFERENCES

Bulitko, V., & Sturtevant, N. (2006). State abstraction for

real-time moving target pursuit: A pilot study.

Proceedings of AAAI Workshop on Learning for

Search, WS-06-11. pp. 72-79.

Chouhan, S. S., & Niyogi, R. (2017). DiMPP: A complete

distributed algorithm for multi-agent path planning.

Journal of Experimental & Theoretical Artificial

Intelligence, 29(6), 1129-1148.

Goldenberg, M., Kovarsky, A., Wu, X., & Schaeffer, J.

(2003). Multiple agents moving target search. IJCAI

International Joint Conference on Artificial

Intelligence, pp. 1536-1538.

Isaza, A., Lu, J., Bulitko, V., & Greiner, R. (2008). A cover-

based approach to multi-agent moving target pursuit.

Proceedings of the 4th Artificial Intelligence and

Interactive Digital Entertainment Conference, AIIDE

2008, pp. 54-59.

Ishida, T. (1992). Moving target search with intelligence.

Proceedings Tenth National Conference on Artificial

Intelligence, pp. 525-532.

John, T. C. H., Prakash, E. C., & Chaudhari, N. S. (2008).

Strategic team AI path plans: Probabilistic pathfinding.

International Journal of Computer Games Technology,

2008, 1-6.

Koenig, S., & Likhachev, M. (2002). D* lite. Proceedings

of the National Conference on Artificial Intelligence,

pp. 476-483.

Li, J., Gange, G., Harabor, D., Stuckey, P. J., Ma, H., &

Koenig, S. (2020). New techniques for pairwise

symmetry breaking in multi-agent path finding.

Proceedings International Conference on Automated

Planning and Scheduling, pp. 193-201.

Loh, P. K. K., & Prakash, E. C. (2009). Novel moving target

search algorithms for computer gaming. Computers in

Entertainment, 7(2), 27:1-27:16.

Moldenhauer, C., & Sturtevant, N. R. (2009). Evaluating

strategies for running from the cops. IJCAI

International Joint Conference on Artificial

Intelligence, pp. 584-589.

Panait, L., & Luke, S. (2005). Cooperative multi-agent

learning: The state of the art. Autonomous Agents and

Multi-Agent Systems, 11(3), 387-434.

Pellier, D., Fiorino, H., & Métivier, M. (2014). Planning

when goals change: A moving target search approach.

12th International Conference on Advances in

Practical Applications of Heterogeneous Multi-Agent

Systems: The PAAMS Collection, 8473. pp. 231-243.

Sharon, G., Stern, R., Felner, A., & Sturtevant, N. R.

(2015). Conflict-based search for optimal multi- agent

pathfinding. Artificial Intelligence, 219, 40-66.

Sigurdson, D., Bulitko, V., Yeoh, W., Hernández, C., &

Koenig, S. (2018). Multi-agent pathfinding with real-

time heuristic search. Paper presented at the 14th IEEE

Conference on Computational Intelligence and Games

(CIG), 2018-August. pp. 1-8.

Silver, D. (2005). Cooperative pathfinding. Proceedings of

the First AAAI Conference on Artificial Intelligence

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

442

and Interactive Digital Entertainment (AIIDE'05),

Marina del Rey, California. pp. 117-122.

Stern, R., Sturtevant, N. R., Felner, A., Koenig, S., Ma, H.,

Walker, T. T., et al. (2019). Multi-agent pathfinding:

Definitions, variants, and benchmarks. Paper presented

at the Proceedings of the 12th International Symposium

on Combinatorial Search, SoCS 2019, pp. 151-158.

Sturtevant, N. R., Sigurdson, D., Taylor, B., & Gibson, T.

(2019). Pathfinding and abstraction with dynamic

terrain costs. Paper presented at the Proceedings of the

15th AAAI Conference on Artificial Intelligence and

Interactive Digital Entertainment, AIIDE 2019, pp. 80-

86.

Undeger, C., & Polat, F. (2007). RTTES: Real-time search

in dynamic environments. Applied Intelligence, 27(2),

113-129.

Wang, K. -. C., & Botea, A. (2008). Fast and memory-

efficient multi-agent pathfinding. ICAPS 2008 -

Proceedings of the 18th International Conference on

Automated Planning and Scheduling, pp. 380-387.

Xie, F., Botea, A., & Kishimoto, A. (2017). A scalable

approach to chasing multiple moving targets with

multiple agents. Proceedings of the 26th International

Joint Conference on Artificial Intelligence, Melbourne,

Australia. 0. pp. 4470-4476.

Multiple Pursuers TrailMax Algorithm for Dynamic Environments

443
