AutoGE: A Tool for Estimation of Grammatical Evolution Models

Muhammad Sarmad Ali

, Meghana Kshirsagar

, Enrique Naredo

and Conor Ryan

Biocomputing and Developmental Systems Lab, University of Limerick, Ireland

Keywords: Grammatical Evolution, Symbolic Regression, Production Rule Pruning, Effective Genome Length.

Abstract: AutoGE (Automatic Grammatical Evolution), a new tool for the estimation of Grammatical Evolution (GE)

parameters, is designed to aid users of GE. The tool comprises a rich suite of algorithms to assist in fine tuning

BNF grammar to make it adaptable across a wide range of problems. It primarily facilitates the identification

of optimal grammar structures, the choice of function sets to achieve improved or existing fitness at a lower

computational overhead over the existing GE setups. This research work discusses and reports initial results

with one of the key algorithms in AutoGE, Production Rule Pruning, which employs a simple frequency-

based approach for identifying less worthy productions. It captures the relationship between production rules

and function sets involved in the problem domain to identify optimal grammar structures. Preliminary studies

on a set of fourteen standard Genetic Programming benchmark problems in the symbolic regression domain

show that the algorithm removes less useful terminals and production rules resulting in individuals with

shorter genome lengths. The results depict that the proposed algorithm identifies the optimal grammar

structure for the symbolic regression problem domain to be arity-based grammar. It also establishes that the

proposed algorithm results in enhanced fitness for some of the benchmark problems.

1 INTRODUCTION

Grammatical Evolution (GE), since its inception

twenty years back, has found wide acceptance in the

research communities (Ryan et al 2018). It is a

bioinspired population-based methodology from the

domain of evolutionary. Its ability to produce

arbitrary valid data structures and the way executable

programs can be evolved has created wide-scale

appeal. Moreover, due to its simple approach of

evolving programs constrained through the definition

of BNF grammar and the ability to adapt to domain

knowledge through it makes it a valuable tool.

GE uses an innovative mapping scheme in which

variable-length input genomes (also known as

chromosomes or genotype) are represented in binary

form and get mapped to the output program or

phenotype. The values in the genotype control the

choice of production rules and the resulting

phenotype then gets evaluated based on the definition

https://orcid.org/0000-0002-7223-5322

https://orcid.org/0000-0002-8182-2465

https://orcid.org/0000-0001-9818-911X

https://orcid.org/0000-0002-7002-5815

of fitness functions that gives a fitness score to the

individuals in the population.

Although the selection and definition of fitness

criteria is dependent on the problem and/or the

problem domain, there exists a good body of

knowledge which serves as guidelines (Koza 1993).

This, however, is not the case when a user is faced

with the problem of choosing a function set and

defining a grammar. There is little guidance in the

literature and no systematic approach exists (Wang

2005, Uy 2013).

Automatic Grammatical Evolution (AutoGE) is

an initiative to create a tool that can aid users to define

and identify proper grammar structures to smoothly

adapt to the application under consideration. Its suite

of algorithms will enable GE users to design

appropriate BNF rules using the right grammar

structures. This will mainly help the users in

identifying appropriate terminals involved in forming

production rules. The algorithm will also facilitate the

selection of correct fitness function definition. Fitness

functions can be composed of single, multiple or

1274

Ali, M., Kshirsagar, M., Naredo, E. and Ryan, C.

AutoGE: A Tool for Estimation of Grammatical Evolution Models.

DOI: 10.5220/0010393012741281

In Proceedings of the 13th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2021) - Volume 2, pages 1274-1281

ISBN: 978-989-758-484-8

many objectives. They can be hierarchical in nature.

As such AutoGE will serve to automate the selection

of grammar structure, function sets and fitness

functions depending on the nature of the underlying

problem and its complexity. AutoGE’s suite of

algorithms are designed in a manner to automatically

assist in evolving individuals of shorter lengths

thereby optimizing memory usage (Kshirsagar 2020).

AutoGE’s rich suite of powerful algorithms also

automatically address bloats (Bleuler 2008) through

restricting tree size and tree nodes thereby reducing

computational overhead and complexity (Murphy

2020).

2 BACKGROUND

2.1 Grammatical Evolution (GE)

Grammatical Evolution is a variant of Genetic

Programming (GP) in which the space of possible

solutions is specified through a grammar (Ryan

1998). Although different types of grammars have

been used, the most commonly used is Context Free

Grammar (CFG), generally written in Backus-Naur

Form (BNF). GE facilitates a modular design, which

means that any search engine can be used, although

typically a variable-length Genetic Algorithm (GA) is

employed to evolve a population of binary strings.

In GE, each population individual has a dual

representation, a genotype and a phenotype. When the

underlying search engine is a genetic algorithm, the

genotype is a sequence of codons (a group of 8-bit

substrings), while the phenotype expresses an

individual's representation in the solution space.

Mapping, a key process in GE, maps a given genotype

to the phenotype. While subsequently consuming

each codon, it selects a production from the available

set of alternative productions in a rule and builds the

derivation tree. Although there are other mapping

schemes (Fagan 2018), the conventional scheme

follows left-most derivation.

An important measure in the mapping process is

the effective genome length, which is equal to the

number of codons consumed to generate a fully

mapped individual (the one which does not contain

any non-terminals in this phenotype). The actual

genome length is the total number of codons in the

genome, some of which may remain unused.

2.2 Grammar Design in GE

Since GE exploits the expressive power of grammars,

it can be applied to a multitude of problem domains,

for instance in Symbolic Regression (SR) where the

purpose is to search the space of mathematical

expressions to find a model that best fits a given

dataset (Koza 1993). To construct valid and useful

mathematical expressions in GE, the grammar needs

to be well designed.

A grammar is formally defined as the tuple (T, N,

P, S) where T is a set of terminal symbols, N is a set

of non-terminal symbols, P is a set of production

rules, and S is the start symbol. While the set of

terminals outline the building blocks of a solution, the

choice of non-terminals and deciding how exactly to

organize those into a set of rules and productions is a

design task. By designing an appropriate grammar,

one specifies the syntactic space of possible solutions.

2.2.1 Grammar Structures

Instead of designing grammar from scratch, a

common approach is to utilize and adapt existing

grammar designs for that domain. For example, in

grammatical evolution based symbolic regression

(GESR), typical grammar structures are shown in

Table 1. In a mixed-arity grammar, operations of

multiple arities are combined in a single rule. A

contrasting design is that of arity-based grammars

where productions relevant to arity-1 and arity-2

operations are grouped in separate rules. A balanced

grammar version balances the probabilities of

selecting recursive (non-terminating) productions and

terminating production (Nicolau 2018).

It is important to note how operators and functions

are represented as productions in the grammar.

Besides embodying arithmetic operators, a number of

common mathematical functions are represented as

alternative recursive productions.

Table 1: Grammar structures for symbolic regression.

Mixed-arity

Grammar

|sin(<expr>)|cos(<expr>)

|exp(<expr>)|pow(<expr>,2)

|sqrt(<expr>)|<var>

<op> ::= + | - | * | /

<var> ::= X | Y

Arity-based

Grammar

<expr1>::=sin(<expr>)|cos(<expr>)

|exp(<expr>)|pow(<expr>,2)

|sqrt(<expr>)

<op> ::= + | - | * | /

<var> ::= X | Y

Balanced

Arity-

ased

Grammar

|<expr2>|<var>

... # The rest is the same as arity-based

AutoGE: A Tool for Estimation of Grammatical Evolution Models

1275

3 METHODOLOGY

We discuss our approach to rank grammar

productions and subsequently pruning of unworthy

productions in this section. Figure 1 depicts the

overall schematic of our approach.

3.1 Production Ranking

With the correct configuration and fitness criteria, an

evolutionary process is geared towards convergence.

Increasingly, the evolved solutions contain more and

more of the right ingredients or building blocks (in

our case, grammar productions). We hypothesize that

the structural composition of evolved solutions

carries information that can be useful in identifying

the right ingredients.

In GE, every individual in the population is

composed of terminals which appear in an order

defined by the derivation tree constructed during

genotype to phenotype mapping. By traversing the

derivation tree, it is possible to obtain a list of

grammar productions used in the mapping process to

generate an individual. Such a list is termed as the

production-list. Once identified, the frequency of

usage of each production in the production-list can be

easily determined.

Productions can be weighed or ranked based on

how frequently they are used in the construction of

individuals in the population. As evolution proceeds,

fitter individuals survive, and the productions which

more frequently shape the structures are the ones that

are considered to be worthy being part of the

grammar. Such productions are assigned a high rank.

On the contrary, productions which harm individual's

fitness such that they become extinct, generally do not

enjoy high usage frequency (although rarely zero, due

to hitch-hiking effects) in the population.

To test our hypothesis, we devised a simple

frequency-based approach to rank productions. Since

frequency counting is a trivial and efficient operation,

it carries minimal overhead. The two basic production

ranking schemes are:

Normalized Frequency-based Ranking (NFR):

This is the simplest ranking scheme where

frequencies of the productions in production-list are

normalized to unity. We compute ranking scores

offline, at the end of each evolutionary cycle (see

Figure 1), which bears minimal overhead. Note that

this does not take the fitness of individuals into

consideration, rather simply the survival of

production rules.

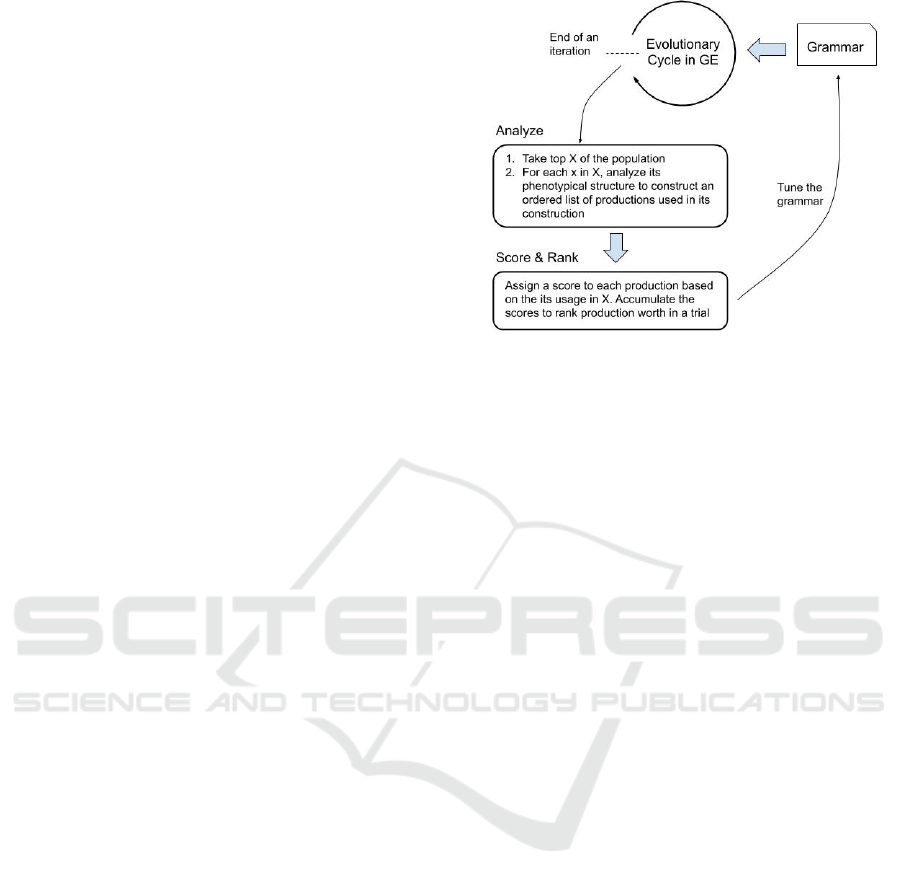

Figure 1: Schematic of production ranking and pruning

cycle. Information about the use of each production rule is

harvested after each iteration and subsequently used to tune

to the grammar.

Fitness Proportionate Ranking (FPR): In this

scheme, the normalized ranks are multiplied with the

individual’s fitness.

An important consideration is to decide how much

of the population to select for ranking. We

experimented with three possible choices: 1) the

whole population, 2) all unique individuals, 3) top

X% of the population (we use X=20, a completely

arbitrary number that seemed reasonable). Potential

issues include, with the 1st option, rankings can be

biased due to repeated individuals, and with the 3rd

option there was a chance of pruning important

productions. The second option turned out to be the

best choice based on our empirical evaluations.

Once individual ranking scores have been

computed, we accumulate the scores to compute run

worth of a production. Figure 2 shows a sample box

and whisker plot of FPR ranking for Pagie-1 problem.

It exposes a nice picture of the utility of each

production in the evolutionary cycle.

3.2 Grammar Pruning

We follow the principle of Occam’s razor which

states “no more things should be presumed to exist

than are absolutely necessary.” Grammar is a key

model of the solution space, so the idea is to remove

unnecessary or less worthy productions (or functions)

from the grammar to tune the grammar design.

The key driver in grammar tuning is the pruning

strategy and the algorithm. There can be a number of

strategies for pruning and we look at two here. The

key concept they have in common is a staged

approach; that is, a small number of runs is

conducted, then one or more rules are pruned, and

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

1276

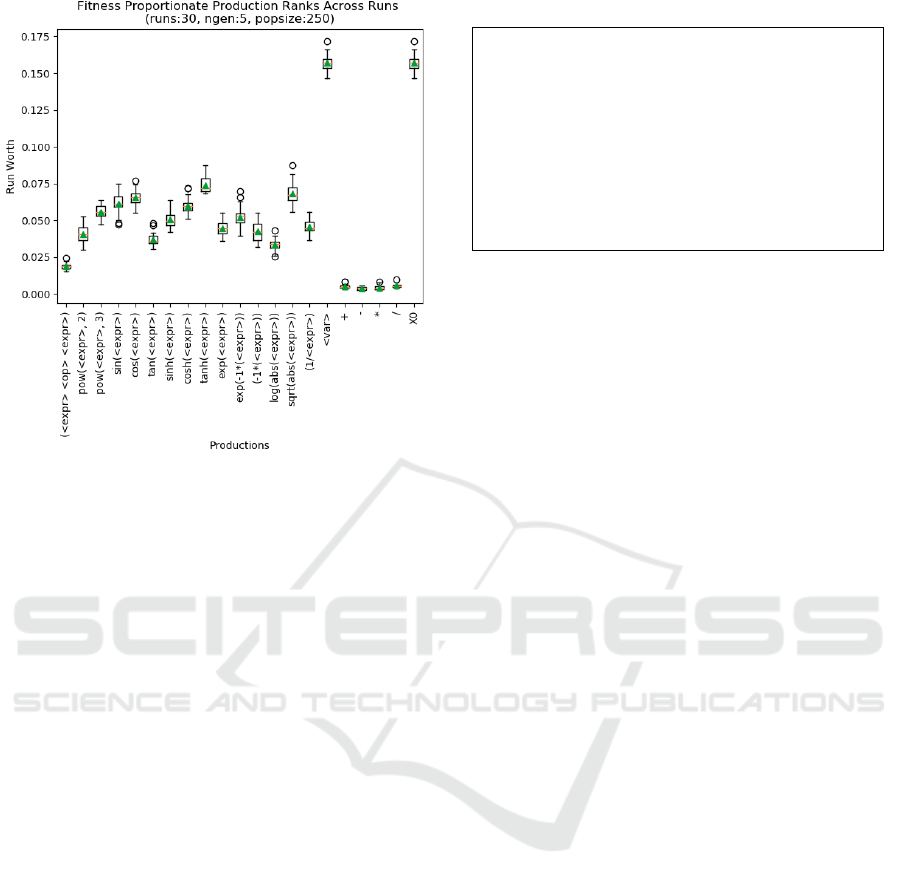

Figure 2: Fitness Proportionate Production ranks across

runs for Pagie-1 problem (runs: 30, ngen: 5, popsize 250).

then more runs are conducted. This second stage (also

true for third and subsequent stages, if they exist) is a

complete restart with the newly modified grammar.

The exact algorithm depends on the strategy being

employed. We experimented with the following two

strategies:

● Strategy 1: Prune for the maximum available

budget. The remaining runs will verify if it was

fruitful.

● Strategy 2: Only proceed with pruning if it results

in improving mean training score at each stage. If

it degrades performance, stop.

Strategy 1 has slightly less overhead but suffers from

blind pruning which in many cases failed to reap any

benefits. For instance, in case of Keijzer-6 problem,

this strategy pruned the production carrying

logarithm function, which is a vital approximating

function for this problem.

Strategy 2 incorporates a feedback loop which

informs on its usefulness. In our preliminary

experiments, we have observed it to be yielding a

much better overall outcome. Coupled with the

pruning policies defined in section 4.3, our

Production Rule Pruning algorithm achieved

excellent results.

3.2.1 Production Rule Pruning Algorithm

The outlines the Production Rule Pruning (PRP)

algorithm is shown in Listing 1:

Listing 1: PRP Algorithm.

procedurePRP():

Prunings=Empty

Stage=0;AvailableBudget=20%;PruningGen=5

DofullrunsforPruningGengenerations

SetthetrainingperformancescoreE

trg

(0)andPRUNE

WhilethereisAvailableBudget:

Proceedtopruningstagei

DofullrunsforPruningGengenerationsandgetE

trg

(i)

IfE

trg

(i)<E

trg

(i‐1):PRUNE

IfE

trg

(i)>E

trg

(i‐1):REVERT

DecrementAvailableBudget

PRUNE is the key procedure in the algorithm. It

performs two important functions:

1) It analyses production ranking scores and

identifies the least worthy productions. Based on

the pruning policy, it identifies how many

productions to prune at a given stage and returns

that many productions as candidates to be pruned.

2) It removes productions from the grammar and

adds them to

Prunings, which is implemented as

a stack. At each stage, pruned productions are

pushed to the stack.

The REVERT function undoes the last pruning action

by popping the last productions from

Prunings and

adding them back to the grammar. When a pruning

stage reverts, the

PruningGen is incremented from 5

to 10.

3.2.2 Consistency of Pruning Suggestions

The output of the PRP algorithm is pruning

suggestions. In order to verify how consistent the

pruning suggestions are, we ran 100 experiments on

certain problems for each grammar structure and

ranking scheme. Each experiment consisted of 50

independent runs evolving for 5 generations with a

population size of 250. Due to space limitations,

Table 2 only shows the count of experiments for

which the given productions were the first, second,

and third pruning suggestions for mixed-arity

grammar and FPR ranking scheme.

4 EXPERIMENTAL SETUP

4.1 Problems and Function Set

A collection of symbolic regression benchmark

problems was listed in (McDermott 2012). We

utilized a subset of those problems ranging from

simple to more challenging ones. Among the chosen

problems, there is a high variance in terms of problem

difficulty, number of variables, and the sample size

AutoGE: A Tool for Estimation of Grammatical Evolution Models

1277

for training and test data. Table 3 lists the problems

considered in this work and the original function sets.

For details on the mathematical expression, training

and test ranges, please refer to (McDermott 2012).

Table 2: Experimental results to assess the consistency of

pruning suggestions in case of FPR ranking.

Pruning Suggestions

Problem Production 1st 2nd 3rd

Vlad-2

tan(<expr>) 99 1 -

log(abs(<expr>) 1 83 16

pow(<expr>,2) - 16 84

Pagie-1

sinh(<expr>) 99 1 -

log(abs(<expr>) 1 99 -

(-1*(<expr>))

tan(<expr>)

Keijzer-6

(-1*(<expr>)) 98 2 -

tan(<expr>) 2 98 -

log(abs(<expr>)

pow(<expr>,2)

Nguyen-7

log(abs(<expr>) 100 - -

tan(<expr>) - 100 -

pow(<expr>,2)

(-1*(<expr>))

4.1.1 Original Function Set

The function set proposed for each benchmark

problem, as shown in Table 3, is referred to as

Original Function Set. Note that the grammar which

embodies the original function set is termed Original

Grammar in this work, referenced with the letter ‘O’

in Table 4 and 5.

Choosing an appropriate function set is a key

decision in applying GP as it can have a vital impact

on the performance of GP (Wang 2005). However,

there is not enough guidance in selecting a function

set. To date, it is largely considered a decision made

by domain experts. A new user trying to apply

evolutionary search faces a challenge with no clear

guidelines.

4.1.2 Extended Function Set

A few recent studies (e.g. Nicolau 2020) suggested

that using an extended function set (even with

functions that appear to be useless for a particular

problem) can improve performance. Our own

exploratory experiments confirm this, so we create an

Extended Function Set (shown below):

+ - * / sin cos tan sinh cosh tanh

-x

-x ln(|x|) √x 1/x

It is the superset of all the original function sets. It

includes arithmetic operators and all common

trigonometric functions, exponentials, and power

functions. Note that we do not use protected division

(Keijzer 2003). The grammar which embodies the

extended function set is termed Extended Grammar

in this work and is referenced with the letter ‘E’ in

Table 4 and 5.

Table 3: Original function sets defined with benchmarks.

Problem Original Function Set

Koza-1, Koza-2, Koza-3,

Pagie-1, Nguyen-7

+ - * / sin cos e

ln(|x|)

Keijze

-6 + * 1/x -x

√

Vla

-1, Vla

-6 + - * / x

-x

Vla

-2, Vla

-3, Vla

-7 + - * / x

-x

sin cos

Vla

-4, Vla

-5, Vla

-8 + - * / x

4.2 Parameters & Fitness Function

Following evolutionary parameters were used in all

experiments in this work:

Population Size: 250

Number of Generations: 100

Crossover Type: One-point Crossover

Crossover Probability: 0.9

Mutation Probability: 0.01

Selection Type: Tournament

Initialization Method: Sensible Initialization

Maximum Depth: 10

Number of Runs: 30

The objective of the fitness function is to measure

the performance of the algorithm against a predefined

objective goal. The fitness of every individual is

measured using Root Mean Squared Error (RMSE)

against an acceptable threshold. As it is a negatively

aligned metric, it is defined to minimise the fitness

function. The lower the RMSE, the better the value of

objective function

4.3 Pruning Policies

For the problems we examined, the usage frequency

of arithmetic operators, variables, and constant

terminals was low, irrespective of the grammar

structure. We therefore do not consider their

corresponding productions, and the productions

where the right-hand side is only composed of non-

terminals (for example productions in the start rule of

arity-based grammar in Table 1). This resulted in 14

prunable productions which primarily consist of

extended function set excluding arithmetic operators.

It is important to highlight a few other policies

adopted while pruning which server as parameters to

the PRP algorithm:

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

1278

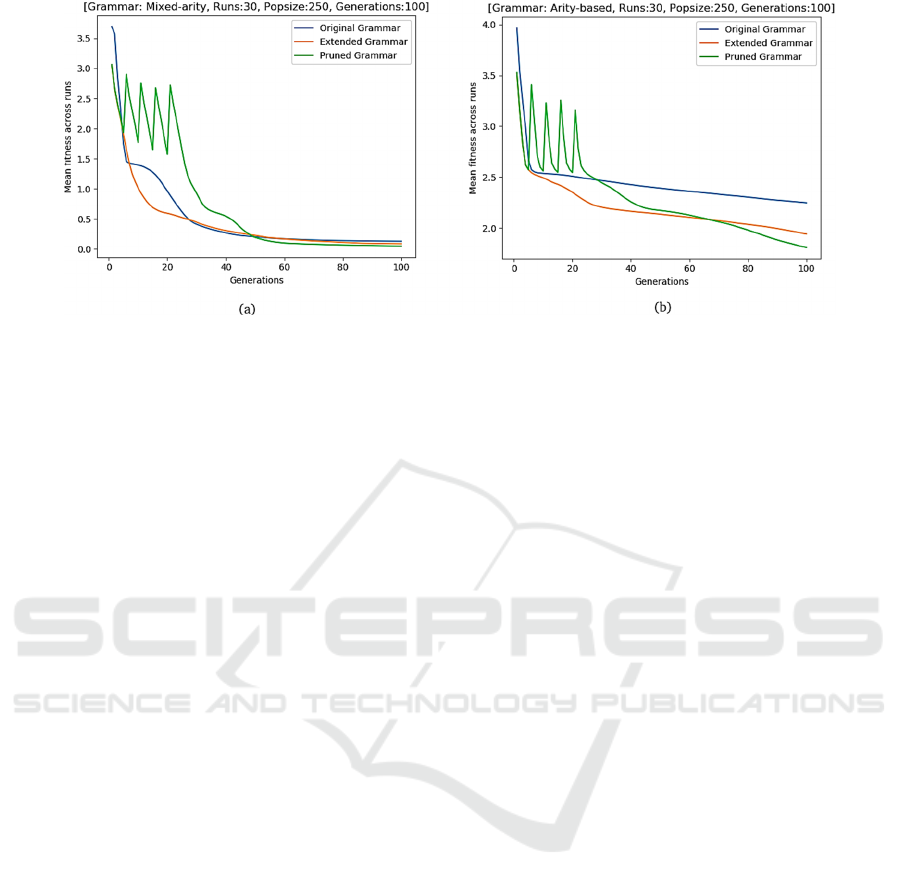

Figure 3: Approximation performance comparisons for (a) Keijzer-6, (b) Vladislavleva-6.

 We do not consume more than 20% of the

computational budget on pruning. In our case, it

meant consuming at most 20 generations.

 Pruning takes place in stages. At a stage, prune

only 10% of the productions.

 In pruning runs, we evolve for 5 generations to

maximize pruning. If 5 generation runs terminate

with a REVERT decision and the pruning budget

is remaining, we proceed with 10 generations.

Note that the grammar which results after pruning is

termed Pruned Grammar in this work and is

referenced with the letter ‘P’ in Table 4 and 5.

5 RESULTS

A summarized view of results from all 42 (14 x 3)

experiments is presented in Table 4 and 5. They show

the impact of using various grammar structures

alongside extended functions set and pruning

approach on performance (both in approximation and

generalization) and mean effective genome length for

the best solution as well as the whole population.

5.1 Statistical Test

We applied statistical test to validate our results and

claims. Student's t-test for statistical significance with

the p-value of 0.05 was used. The outcome of the

significance test is also encoded in Table 4 and 5. The

symbol ‘+’ indicates significant improvement, while

‘-’ is for improvement which is not statistically

significant. Results from the original grammar are

treated as baseline. ‘O -’ indicates that though original

grammar had the best output, it was not significantly

better than the extended grammar. With ‘E -’ or ‘P -’,

the results are only slightly better than original

grammar.

5.2 Impact of Extended Grammar

In general, for most of the problems and for all three

grammar structures, using the extended grammar

(representing the extended function set) significantly

improved performance as well as genome size when

compared with the original grammar. This

observation is consistent with the outcome noted by

(Nicolau 2020). Although the problem set we

experimented with is limited, considering the

diversity in the problem complexity and non-linearity

(Vladislavleva 2009) which makes it a representative

sample, we can suggest utilizing our extended

function set for synthetic symbolic regression

problems.

Koza highlighted that if a function set is not

adequate, GP cannot find (good) solutions, but on the

other hand, if a function set includes many extraneous

functions, the performance is degraded (Koza 1993).

Our results are contrary to this later recommendation.

Besides, extending or adding more productions to the

grammar adds additional dimensions to the search

space, which may result in bigger individuals and

lower performance. However, this is usually not the

case. Finding exactly why warrants an in-depth

analysis. Here we believe that production ranking can

expose some clues.

5.3 Effect of Grammar Structures

It is evident that some grammar structures are more

appropriate for certain types of improvement or for

certain problems. Overall, arity-base grammar

structure results in significant reduction in genome

length, except for vlad-6 where size reductions are not

AutoGE: A Tool for Estimation of Grammatical Evolution Models

1279

Table 4: Summarized results for training and test performance (RMSE). The value in each cell is the best mean fitness/test

score averaged across 30 runs with standard deviation in parenthesis.

Mixed-arity Grammar Arity-based Grammar Balanced Arity-based Grammar

Problem Trainin

Test Trainin

Test

Koza-1 0.0651 (0.0253) O + 0.254 (0.1187) O + 0.0484

(

0.0376

)

E - 0.2396

(

0.1774

)

O - 0.0161 (0.019) P + 0.1698

(

0.112

)

O -

Koza-2 0.0206

(

0.0172

)

P - 0.0573

(

0.0289

)

P - 0.0081 (0.0048) E + 0.0609

(

0.0377

)

O - 0.0047 (0.0029) P + 0.0458

(

0.0339

)

E -

Koza-3 0.0127

(

0.0046

)

E - 0.0568

(

0.0456

)

E - 0.0010 (0.0029) E + 0.0253 (0.0654) P + 0.0003 (0.0016) E + 0.0017 (0.0064) E +

Kei

-6 0.0281 (0.0215) P + 0.0351 (0.0297) P + 0.0430 (0.0136) E + 0.0562 (0.0194) P + 0.0286 (0.0126) E + 0.0424 (0.02113) E +

ie-1 0.178 (0.0441) E + 0.1914 (0.0477) E + 0.1771

(

0.0805

)

O - 0.2136

(

0.0304

)

E - 0.1447 (0.0666) O + 0.1914

(

0.0247

)

E -

en-7 0.0202 (0.0077) O + 0.0213 (0.0081) O + 0.0186

(

0.0068

)

O - 0.0199

(

0.00737

)

O - 0.0118 (0.0130) E + 0.01277

(

0.0148

)

E -

Vlad-1 0.1092 (0.0082) E + 0.1376

(

0.0177

)

E - 0.1064 (0.0101) P + 0.1239 (0.0134) P + 0.1026 (0.0104) P + 0.1326 (0.0185) P +

Vlad-2 0.2336

(

0.0189

)

O - 0.2279

(

0.0234

)

O - 0.2287

(

0.0396

)

P - 0.243

(

0.05394

)

P - 0.0851 (0.0378) P + 0.0905 (0.0446) P +

Vlad-3 1.0235 (0.0216) E + 0.7116 (0.0627) E + 0.9648 (0.0342) P + 0.9299

(

0.0478

)

P - 0.9874 (0.0336) O + 0.7758 (0.2588) E +

Vlad-4 0.1693 (0.0120) E + 0.1681 (0.0144) E + 0.1795 (0.0055) P + 0.1779 (0.0077) P + 0.1774 (0.0066) E + 0.1771

(

0.009

)

P -

Vlad-5 22.774

(

3.4164

)

E - 2.2087

(

2.0808

)

E - 19.990 (1.4914) E + 1.9437

(

1.5527

)

E - 17.446 (1.5113) E + 2.014

(

1.4189

)

E -

Vlad-6 1.7666 (0.3035) E + 2.6943

(

0.9461

)

P - 1.4347 (0.234) P + 1.887 (0.4259) P + 0.8276 (0.3464) P + 1.0013 (0.4969) P +

Vlad-7 2.2200 (0.1708) E + 2.844 (0.2705) E + 2.376 (0.1574) E + 3.0098 (0.2118) E + 2.2813 (0.2553) E + 2.9105 (0.3917) E +

Vlad-8 0.7159 (0.0544) E + 2.0075 (0.0957) E + 0.7409 (0.0299) P + 2.4189 (0.6991) P + 0.7564 (0.0493) P + 2.444 (0.8646) P +

Table 5: Summarized results for mean effective size. The value in each cell is the best mean effective size with standard

deviation in parenthesis.

Mixed-arit

Grammar Arit

-based Grammar Balanced Arit

-based Grammar

Problem Po

Mean Best Ind. Po

Mean Best Ind.

Koza-1 8.75 (1.715) P + 10.867 (3.73) P + 11.962 (2.16) P + 17.767 (5.245) E + 18.8 (5.188) E + 21.1 (8.125) E +

Koza-2 15.755

(

9.105

)

P - 16.833

(

8.482

)

P - 12.964 (2.758) P + 18.033 (6.385) P + 16.076 (4.96) P + 20.033 (8.376) P +

Koza-3 12.276 (4.991) P + 13.9 (6.199) P + 10.539 (3.047) E + 11.033 (5.456) E + 9.6 (3.094) E + 9.433 (3.03) E +

Kei

-6 20.88

(

3.592

)

O - 23.3 (9.737) E + 20.342 (4.615) P + 26.967 (9.485) P + 38.442

(

13.769

)

P - 40.467 (18.261) P +

ie-1 14.136 (5.006) P + 17.667 (4.323) P + 13.348 (3.54) P + 21.733 (9.532) P + 22.833 (11.1) P + 30.333 (15.613) P +

en-7 5.052 (2.111) P + 5.767 (3.87) P + 19.061 (5.183) P + 23.867 (10.566) P + 20.26 (10.616) P + 28.9 (12.496) P +

Vlad-1 14.157 (4.505) P + 20.433

(

6.657

)

P - 13.105 (4.733) P + 19.362 (5.984) P + 21.098

(

5.995

)

O - 28.3

(

14.055

)

O -

Vlad-2 16.333 (4.767) O + 18.467 (6.796) O - 16.517 (3.425) P + 21.633 (10.206) P + 31.893 (7.419) P + 35.3 (8.017) P +

Vlad-3 17.728

(

4.76

)

P - 20.967 (9.711) P + 19.821 (3.947) P + 28.6

(

12.417

)

P - 30.906

(

14.023

)

P - 38.967

(

20.336

)

O -

Vlad-4 11.325 (3.13) O + 14.1 (4.812) O + 10.566 (0.939) O + 11.867 (2.473) O + 11.343 (2.227) O + 12.6 (3.648) O +

Vlad-5 14.212 (6.447) P - 18.667 (7.44) P + 18.885 (5.04) E - 21.733 (6.547) E + 20.042 (3.586) O + 30.133 (9.629) O +

Vlad-6 13.504 (2.828) P + 16.567 (5.679) P + 19.654

(

3.15

)

E - 26.333

(

10.094

)

E - 25.643

(

5.298

)

E - 31.667 (8.825) E +

Vlad-7 13.765 (4.611) P - 18.633 (7.868) P - 14.416 (3.363) P + 20.467 (9.419) P + 23.815 (6.107) O - 33.0 (11.072) P -

Vlad-8 11.056

(

4.062

)

P - 13.8 (3.525) O + 15.065 (3.328) E + 24.2

(

7.648

)

E - 16.534

(

5.639

)

P - 23.967

(

7.998

)

O -

significant both for best-of-run individuals and the

mean effective size in the population.

To our knowledge, many symbolic regression

studies using GE or Grammar Guided Genetic

Programming (GGGP) use mixed-arity grammar

structure, for instance (Nicolau 2015). Even though,

for many problems, the genome lengths are shortest in

case of mixed-arity grammar and the reductions are

also significant in several cases, the corresponding

performance gains are lower as compared to simple or

balanced arity-based grammars. In general, balanced

arity-based grammar produced best performing

individuals as compared to other structures.

5.4 Effect of Pruning

Pruning was applied in all 42 experiments. The

number of productions pruned varied from 1 to 6, out

of 14 prunable productions. Pruning achieved

significantly shorter effective lengths when looking at

the whole population for 6 different problems with

mixed arity grammar. However, with arity-based

grammar, 9 out of 14 get improvements.

Regarding performance, pruning achieves better

results in only 1 problem (Keijzer-6) with mixed-

arity, and 4 problems with (balanced) arity-based

grammar. However, it is worth noting that in order to

keep the same computational budget, trials with the

pruned grammar lasted for 80 (in some cases 85)

generations. Had the pruned grammar also exercised

for 100 generations, it is likely that it would have

achieved better performance.

Figure 3 shows two sample convergence plots (for

Keijzer-6 and Vladislavleva-6 problems) where

grammar pruning effectively improved

approximation performance when compared with

original and extended grammars. The four spikes in

the plot in case of pruned grammar depict that pruning

runs were carried out in four stages (as explained in

section 3.2) in the first 20 generations.

6 CONCLUSIONS

We propose a new algorithm as part of the AutoGE

tool suite being developed. The proposed Production

ICAART 2021 - 13th International Conference on Agents and Artiﬁcial Intelligence

1280

Rule Pruning algorithm is an approach combining an

extended function set and a frequency counting

mechanism for ranking production rules. Together,

with the choice of extended function set and pruning

algorithm, AutoGE achieved significantly better

genome length in 13 out of 14 problems, with the

(balanced) arity-based grammar structure. Significant

improvement in approximation performance for 13

problems and generalization performance for 8 out of

14 problems is observed with balanced arity-based

grammar. We therefore conclude that arity-based

grammar structure (simple or balanced), as opposed

to commonly used mixed arity grammar, would yield

better results not only in terms of shorter genome

lengths but minimized errors for symbolic regression

problems resulting in enhanced accuracy.

6.1 Future Work

An immediate extension to the current work is to trial

symbolic problems with real-world data, and by

exploring other problem domains for instance

program synthesis, and Boolean logic. The PRP

algorithm performance can be further enhanced by

investigating other search mechanisms, for example

particle swarm optimization or ant colony

optimization. We aim to extend AutoGE’s suite of

algorithms and to make it more robust by exploring

approaches like grammar-based EDAs.

ACKNOWLEDGEMENTS

This work was supported with the financial support

of the Science Foundation Ireland grant 13/RC/2094.

REFERENCES

Bleuler, S., Bader, J., and Zitzler, E. (2008). Reducing Bloat

in GP with Multiple Objectives. In Knowles Corne D.,

Deb K., C. D., editor, Multiobjective Problem Solving

from Nature, pages 177–200. Springer

Fagan D., Murphy E. (2018) Mapping in Grammatical

Evolution. In: Ryan C., O'Neill M., Collins J. (eds)

Handbook of Grammatical Evolution. Springer, Cham.

Keijzer, M. (2003) ‘Improving symbolic regression with

interval arithmetic and linear scaling’, Lecture Notes in

Computer Science, 2610, pp. 70–82. Springer Berlin

Koza, J. R. (1993) Genetic Programming: On the

Programming of Computers by Means of Natural

Selection. MIT Press.

Kshirsagar, M., Jachak, R., Chaudhari, P. and Ryan, C.

(2020), GEMO: Grammatical Evolution Memory

Optimization System, In Proceedings of the 12th

International Joint Conference on Computational

Intelligence (IJCCI), pages 184-191

McDermott J. et. al. (2012). Genetic programming needs

better benchmarks. In Proceedings of the 14th annual

conference on Genetic and evolutionary computation

(GECCO '12). pages 791–798.

Murphy, A., Ali, M., Dias, D., Amaral, J., Naredo, E. and

Ryan C. (2020), Grammar-based Fuzzy Pattern Trees

for Classification Problems., In Proceedings of the 12th

International Joint Conference on Computational

Intelligence (IJCCI), pages 71-80

Nicolau, M. et al. (2015) ‘Guidelines for defining

benchmark problems in Genetic Programming’, In

Proceedings of IEEE Congress on Evolutionary

Computation (CEC’15), pp. 1152–1159

Nicolau M., Agapitos A. (2018) Understanding

Grammatical Evolution: Grammar Design. In: Ryan C.,

O'Neill M., Collins J. (eds) Handbook of Grammatical

Evolution. Springer, Cham.

Nicolau, M. and Agapitos, A. (2020) ‘Choosing function

sets with better generalisation performance for

symbolic regression models’, Genetic Programming

and Evolvable Machines. Springer US

O'Neill, M., Ryan, C., Keijzer, M. et al. (2003) ‘Crossover

in Grammatical Evolution’, Genetic Programming and

Evolvable Machines 4, 67–93.

Ryan C., Collins J., Neill M.O. (1998) Grammatical

evolution: Evolving programs for an arbitrary language.

In: Banzhaf W., Poli R., Schoenauer M., Fogarty T.C.

(eds) Genetic Programming. EuroGP 1998. Lecture

Notes in Computer Science, vol 1391. Springer, Berlin

Ryan C., O’Neill M., Collins J. (2018) Introduction to 20

Years of Grammatical Evolution. In: Ryan C., O'Neill

M., Collins J. (eds) Handbook of Grammatical

Evolution. Springer, Cham.

Uy, N. Q. et. al. (2013) ‘Guiding Function Set Selection in

Genetic Programming based on Fitness Landscape

Analysis’, in Companion Publication of the 2013

Genetic and Evolutionary Computation Conference

(GECCO’13), pp. 149–150.

Vladislavleva, E. J., Smits, G. F. and den Hertog, D. (2009)

‘Order of nonlinearity as a complexity measure for

models generated by symbolic regression via pareto

genetic programming’, IEEE Transactions on

Evolutionary Computation, 13(2), pp. 333–349.

Wang, G. and Soule, T. (2004) ‘How to Choose

Appropriate Function Sets for Genetic Programming’,

Lecture Notes in Computer Science, 3003, pp. 198–207.

AutoGE: A Tool for Estimation of Grammatical Evolution Models

1281
