Kubernetes Autoscaling: YoYo Attack Vulnerability and Mitigation

Ronen Ben David

and Anat Bremler-Barr

Interdisciplinary Center, Herzliya, Israel

Keywords:

Distributed Denial of Service (DDoS), Economic Denial of Sustainability (EDoS), Kubernetes, Containers.

Abstract:

In recent years, we have witnessed a new kind of DDoS attack, the burst attack(Chai, 2013; Dahan, 2018),

where the attacker launches periodic bursts of trafﬁc overload on online targets. Recent work presents a new

kind of Burst attack, the YoYo attack (Bremler-Barr et al., 2017) that operates against the auto-scaling mech-

anism of VMs in the cloud. The periodic bursts of trafﬁc loads cause the auto-scaling mechanism to oscillate

between scale-up and scale-down phases. The auto-scaling mechanism translates the ﬂat DDoS attacks into

Economic Denial of Sustainability attacks (EDoS), where the victim suffers from economic damage accrued

by paying for extra resources required to process the trafﬁc generated by the attacker. However, it was shown

that YoYo attack also causes signiﬁcant performance degradation since it takes time to scale-up VMs.

In this research, we analyze the resilience of Kubernetes auto-scaling against YoYo attacks. As containerized

cloud applications using Kubernetes gain popularity and replace VM-based architecture in recent years. We

present experimental results on Google Cloud Platform, showing that even though the scale-up time of con-

tainers is much lower than VM, Kubernetes is still vulnerable to the YoYo attack since VMs are still involved.

Finally, we evaluate ML models that can accurately detect YoYo attack on a Kubernetes cluster.

1 INTRODUCTION

The burst attack is a new trend in DDoS attacks. In

a burst attack, the victim is attacked with recurring

high-volume trafﬁc bursts, lasting from a few seconds

up to several minutes, while the total duration of the

attack can span hours and even days (Dahan, 2018;

Zeifman, 2019). In 2017, it was reported that 42%

of organizations experienced such attacks (Cimpanu,

2017). Burst attacks have become feasible due to re-

cent improvements in botnet technologies that allow

them to be perpetrated in a scheduled and synchro-

nized manner. A burst attack, when carried out cor-

rectly, is cost effective to the attacker, who can divert

the attack trafﬁc between multiple end-point targets,

leveraging a high degree of resource control. More-

over, it confused conventional DDoS mitigation and

detection solution (Chai, 2013).

Recent work presents a new kind of Burst attack

(Bremler-Barr et al., 2017), the YoYo attack, that op-

erates against web services implemented as native

cloud applications using VMs. We note that cloud

applications are resilient to many of the classic DDoS

(i.e.,attackers operate a ﬂat vector attacks) due to their

https://orcid.org/0000-0002-2577-1333

https://orcid.org/0000-0002-8165-2558

high bandwidth pipe, built-in anti-spooﬁng mitiga-

tion in the load-balancers, and the common use of

a content distribution network (CDN). Amazon lists

the auto-scaling mechanism such as using AWS layer

DDoS mitigation as one of the best practices for deal-

ing with Distributed Denial of Service (DDoS) (AWS

Best Practices, 2019) attacks that target web applica-

tions. In ﬂat DDoS attack the auto-scaling mechanism

translates a DDoS attack into an Economic Denial of

Sustainability attack (EDoS), incurred by paying the

extra resources required to process the bogus trafﬁc of

the attack. However, there is no performance damage,

since the extra machines handle the extra trafﬁc.

The YoYo attack (Bremler-Barr et al., 2017) op-

erates against the auto-scaling mechanism of VMs

in the cloud. The periodic bursts of trafﬁc loads

cause the auto-scaling mechanism to oscillate be-

tween scale-up and scale-down phases. The YoYo

attack causes signiﬁcant performance degradation in

addition to economic damage. During the repetitive

scale-up process, which usually takes up to a few

minutes, the cloud service suffers from a substantial

performance penalty. When the scale-up process ﬁn-

ishes, the attacker stops sending trafﬁc and waits for

the scale-down process to start. When the scale-down

process ends, the attacker begins the attack again, and

Ben David, R. and Bremler-Barr, A.

Kubernetes Autoscaling: YoYo Attack Vulnerability and Mitigation.

DOI: 10.5220/0010397900340044

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 34-44

ISBN: 978-989-758-510-4

so on. Moreover, when the scale-up process ends,

there are extra machines, but no extra trafﬁc. Thus,

the victim pays unwittingly for extra machines that

are not utilized.

A recent trend in cloud applications is to use con-

tainers, adding an additional virtualization layer by

loading multiple containers on a single VM. Contain-

ers are light-weight with lower space and time over-

head than VMs. Thus, the question arises whether

containerized applications are less vulnerable to the

YoYo attack. One might speculate that this is the case

due to their short scale-up and scale-down times while

the performance penalty is proportional to scale-up

time, and the economic penalty is proportional to

scale-down time.

In this paper, we analyze Kubernetes, the most com-

mon container orchestration engine for containerized

applications. We show that the YoYo attack can still

have a huge impact. This is due to the Kubernetes

cluster architecture, which combines two levels of vir-

tualization, Pods (container level) and Nodes (VM

level), and uses a two-stage auto-scaling mechanism:

Pods are scaled ﬁrst until they ﬁll allocated nodes and

trigger new node allocations. The root observation is

that the increase in the number of nodes increases the

economic damage of the attack but also the perfor-

mance damage, since it takes time to scale up Node.

In Section 2 we present a model of Kubernetes auto-

scaling mechanism. We then present a formal model

of YoYo attack on Kubernetes in Section 3. In Sec-

tion 4 we evaluate YoYo attack on Google Cloud in-

frastructure. We compared the damage caused by the

attack, economic and performance wise, while con-

ducting YoYo attack on Google Cloud Engine (GCE)

that is VMs based, and YoYo attack on Google Ku-

bernetes Engine (GKE) that is containers based. We

show, that Kubernetes, with the fast Pod scale-up re-

duces the performance damage, but does not elimi-

nate it. We also evaluate the classic DDoS attack on

Kubernetes and show that the YoYo attack is more

cost effective to the attacker than a ﬂat DDoS attack.

In Section 5, we propose a detection mechanism

of YoYo attack on Kubernetes, based on machine-

learning technique. Previous machine learning based

techniques in the literature (Deepa et al., 2018;

Ravichandiran et al., 2018) are not applicable to YoYo

attack, since they rely mainly on trafﬁc bandwidth and

attempt to assign a score that reﬂects the severity of

the attack. Our solution suggests the XGBoost clas-

siﬁer to detect a YoYo attack on a Kubernetes cluster.

We show high accuracy results based on a compre-

hensive analysis using that model, exploiting unique

data (i.e., response time, Pod count, Node count and

CPU load) acquired from the Kubernetes cluster.

2 KUBERNETES

2.1 Kubernetes Background

Kubernetes is an open-source container orchestration

engine for automating the management and deploy-

ment of containerized applications. In this paper,

we focus on Google Kubernetes Engine (GKE), but

note that other implementations of Kubernetes in the

cloud, such as AKS(Azure) and EKS(AWS), share

the same behavior. We describe the Kubernetes basic

mechanism, focusing on the aspects relevant to auto-

scaling. Kubernetes is a cluster of machines, called

Nodes, that are used to run user workloads called

Pods. A Pod is the basic compute unit. It has one or

more containers running together, according to spe-

ciﬁc conﬁguration parameters such as network uti-

lization, storage, CPU utilization, memory and con-

tainer image name. Nodes are virtual machines in the

cloud environment, and usually several Pods run on

the same Node.

Applications use a simple Kubernetes Controller

called Deployment, which provides declarative up-

dates for Pods. Each Pod gets its own IP address. In

a Deployment where Pods are created and destroyed

dynamically, the set of Pods running at one moment

might differ from the set of Pods running that appli-

cation a moment later. However, when there is a re-

quirement to track Pods and their IP address, Kuber-

netes deﬁnes a Service, which is a logical set of Pods

and a policy (aka microservice). The set of Pods tar-

geted by a Service is determined by a selector. When

a Node is closed, all the Pods that run in the context on

the Nodes are also closed. Pods can run in standalone

conﬁguration but are usually grouped by Controllers.

The Controller is responsible for maintaining the cor-

rect number of Pods for every replication. For sim-

plicity, we demonstrate the impact of the YoYo attack

on a deployment object and a deployment controller.

Deployment objects represent a set of multiple, iden-

tical Pods (that can be parts of multiple Nodes). De-

ployments are well-suited for stateless applications.

We note that there are other types of objects, such as

StatefulSets, which are designed for stateful applica-

tions.

2.2 Kubernetes Autoscaling

The GKE autoscaling is done by two components, the

Horizontal Pod Autoscaler that automatically scales

the number of Pods and works on the application ab-

straction layer, and the Cluster Autoscaler that au-

tomatically resizes the number of Nodes in a given

Node pool and works on the infrastructure layer.

Kubernetes Autoscaling: YoYo Attack Vulnerability and Mitigation

Kubernetes also deﬁnes the Vertical Pod Autoscaler

(VPA) that automatically sets the resource request and

limit values of containers based on usage. VPA is not

in the scope of this work.

2.2.1 The Horizontal Pod Autoscaler (HPA)

The HPA is responsible for automatically scaling the

number of Pods (Kubernetes.io, 2021). The controller

periodically adjusts the number of Pods needed based

on the observed metric to the target conﬁgured by the

user. Each scale rule is deﬁned by a threshold, scale

interval and action, s.t. if the threshold exceeds the

duration of the scale interval, the action will be per-

formed. We denote by I

down

the scale interval for

scale-up and scale-down of a Pod. Note that the de-

fault values (correct to the time of writing this paper)

are 1 minute for I

and 5 minutes for I

down

. The

most common metric for a threshold is the relative

CPU utilization, measured as the actual CPU usage

of a Pod divided by the CPU requested by the Pod.

Note that the different metrics are measured on a ser-

vice level. Let P be the number of Pods, let U

target

the relative target CPU of the Pod, deﬁned as the re-

cent CPU divided by the CPU requested by the Pod,

and let U

be the relative CPU utilization of the Pod

i measured across the last 1 minute. Note that the

relative CPU utilization can have a value higher than

100%, since the Pod CPU usage is conﬁgured in milli

CPU units. Thus, 200 milli CPU is equal to 0.2 CPU,

and if in peak time the Pod uses 500 milli CPU, then

= 250%. We deﬁne the Average Relative CPU Uti-

lization (Current CPU Utilization Percentage in Ku-

bernetes terminology (Kubernetes.io, 2017)) as:

∑

1≤i≤P

(1)

Note that, similar to relative CPU utilization, the av-

erage CPU utilization can be higher than 100%. The

goal of the HPA is that the value will be close to the

target value, in our case CPU utilization, U

target

. In

order to avoid oscillation, the HPA triggers scaling

actions only if the value is below 0.9 or above 1.1 of

the target value (i.e., 10% tolerance) (Kubernetes.io,

2021). Thus, the target number of Pods is:

∑

1≤i≤P

target

e (2)

We note that other possible metrics are the relative

memory and storage. The HPA uses an internal ser-

vice called a metric server to periodically test the met-

rics of the cluster and act accordingly (scale-up/scale-

down) (Kubernetes.io, 2021). After a scaling decision

is made, it takes relatively little time until the Pod

is ready to function. We call this time the Warming

time and we denote it by W

. Similarly, we also have

down

, the time until the Pod is destroyed. We ob-

served very fast warming time, less than 30 seconds,

and downtime of 5 seconds.

2.2.2 The Cluster Autoscaler (CA)

The CA interacts with the HPA and the metric server.

It monitors and populates pending (newly created)

Pods and releases idle Nodes after the Pods are

closed. Speciﬁcally, the CA checks every 10 seconds

for pending Pods that cannot be allocated in existing

Nodes due to the lack of computer resources. If such

Pods are found, it initiates the creation of new Nodes

to which the pending Pods are scheduled. The num-

ber of Pods in the Nodes is according to the machine

type of the Nodes and the deployment conﬁguration

(cluster autoscaling, 2021). The machine type is con-

ﬁgured by the system administrator (per Node pool),

and the system allocates as many Pods as possible to

a Node. The bound on the minimum and maximum

number of Nodes in a cluster can be conﬁgured. A

minimal Kubernetes cluster needs 3 Nodes for scala-

bility and high availability and can scale up to thou-

sands of Nodes (GKE Guides, 2020). We denote by

the I

down

the scale interval for scale-up and scale-

down of Nodes and the warming time of Nodes by

and W

down

. We observed interval scale-up of

10 seconds, and interval scale-down of 10 minutes,

which corresponded to a scale-up warming time of 2

minutes and scale-down warming time of around 2

minutes. We note that none of these parameters can

be conﬁgured and are set by the Kubernetes infras-

tructure.

The Kubernetes autoscaling mechanism is well il-

lustrated in ﬁgures 1. It shows nicely how the cluster

scales-up Nodes and Pods to manage a ﬂat DDoS at-

tack.

2.3 Kubernetes Pricing Models

As Kubernetes has become the leading container or-

chestration tool in the market, major Cloud vendors

have developed different pricing models to support

their customers in order to leverage Kubernetes from

the TCO (total cost of ownership) perspective. Cost

analysis is crucial to understanding the economic

damage of a YoYo attack on a Kubernetes cluster. We

have selected Google Kubernetes engine platform as

our choice to analyze YoYo attack experiments. How-

ever, our analysis and conclusions are relevant to Ku-

bernetes technology in general. The cost of running

a Kubernetes Cluster in GKE is mainly a function of

the number of Node instances. Customers are billed

for each of those instances according to the Compute

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

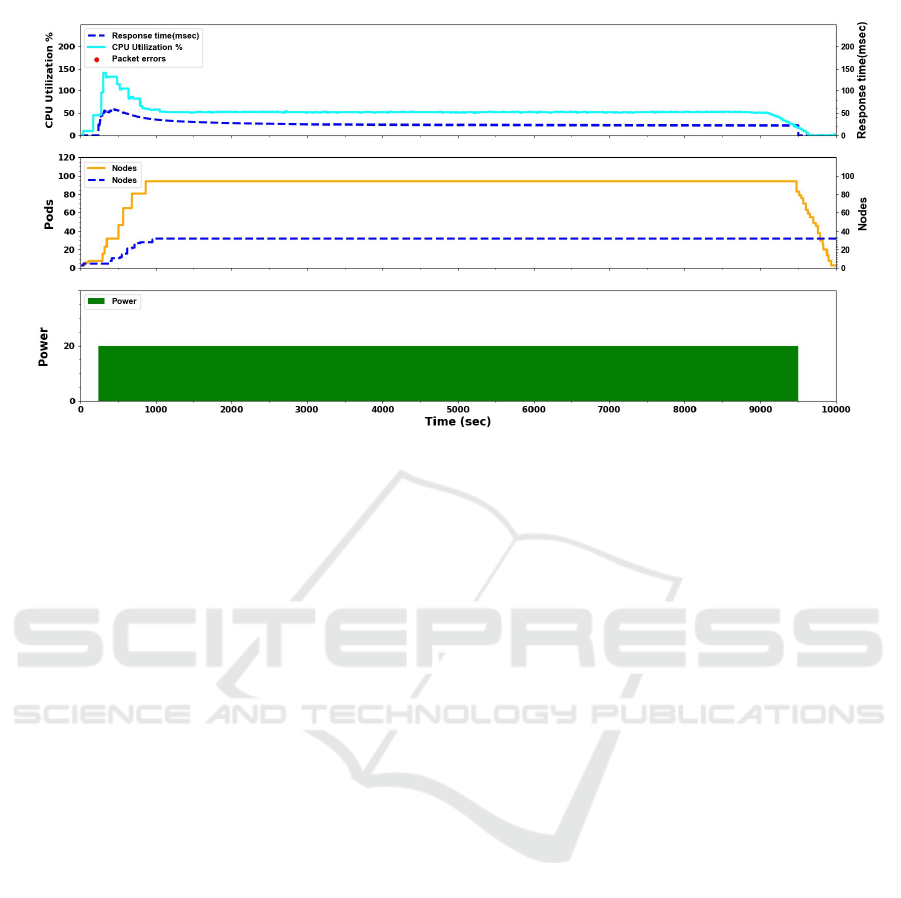

Figure 1: Classic DDoS attack with power k=20 on Kubernetes.

Engine’s pricing, until the Nodes are deleted. These

Node instances are billed on a per-second basis with

a one-minute minimum usage cost regardless of the

container workload in that instance. In addition, there

is an hourly ﬂat fee for cluster management, irre-

spective of cluster size and topology, whether it is a

single-zone, multi-zone or a regional cluster. Amazon

EKS has a similar pricing model where customers us-

ing Amazon EC2 will pay for EC2 Node instances.

Amazon established an alternative pricing model for

their customers called AWS Faragate where the cus-

tomers are charged per vCPU workload, meaning per

resource (Amazon EKS pricing, 2018).

In a Faragate Kubernetes cluster, the instance

hours are proportional to the number of Pods in the

cluster and other resources allocated to those Pods.

Therefore, the cost of attack is derived from the per-

formance damage accrued, and the load of requests

that the cluster can process concurrently is inﬂuenced

by the number of Pods and their elasticity.

3 YoYo ATTACK

We follow the notation of the original YoYo attack

(Bremler-Barr et al., 2017) and adapt it to the Kuber-

netes model. Consider a Kubernetes environment that

includes autoscaling with identical service machines

behind a load balancer. Requests arrive with average

rate of r requests per unit time, and the load balancer

distributes them to N

Pods that are divided between

Nodes in the steady state. Let R be the number of

Pods that can be in one node. The number of Pods

in a Node is determined by the Node machine type; a

stronger machine will have a higher number of Pods.

The YoYo attack is composed of n cycles, and

each cycle duration is T , comprised of an on-attack

period, denoted as t

, and an off-attack period, de-

noted as t

o f f

. Thus T = t

+ t

o f f

. We deﬁne the

power of the attack as the extra load on the cluster.

Let k be the power of the attack and r the average re-

quest rate per second in a steady state. We assume

that in the on-attack period, the attacker adds fake re-

quests k times more than the rate in the steady state

(i.e. a total rate of (k + 1) · r), while in the off-attack

period t

o f f

, the attacker does not send any trafﬁc. See

Table 1 for notation summary. The following is the

best strategy from the adversary side: We assume that

the attacker aims to optimize the economic damage of

the attack, with the main goal of being active as little

as possible while still scaling up to extra k · N

nodes.

A secondary goal is to cause performance damage.

Autoscaling will occur as a result of Pod cre-

ation, which automatically activates the creation of

new Nodes. Two conditions must be met in order

to activate autoscaling: First, the extra load of k · r

should burden the system such that the threshold for

Pod scaling is fulﬁlled, regardless of the criterion

(e.g., CPU utilization, trafﬁc). Second, t

should be

greater than or equal to the scale-interval of the Pods:

. That is, t

≥ I

. To maximize the performance

damage, the value of t

should be set such that the at-

tack continues the load up until all Pods are active and

it loads the largest possible number of Nodes set in

the cluster. Node loading occurs throughout t

since

there are not enough activated Pods to meet the per-

formance criterion.

That is, t

= I

+ I

Kubernetes Autoscaling: YoYo Attack Vulnerability and Mitigation

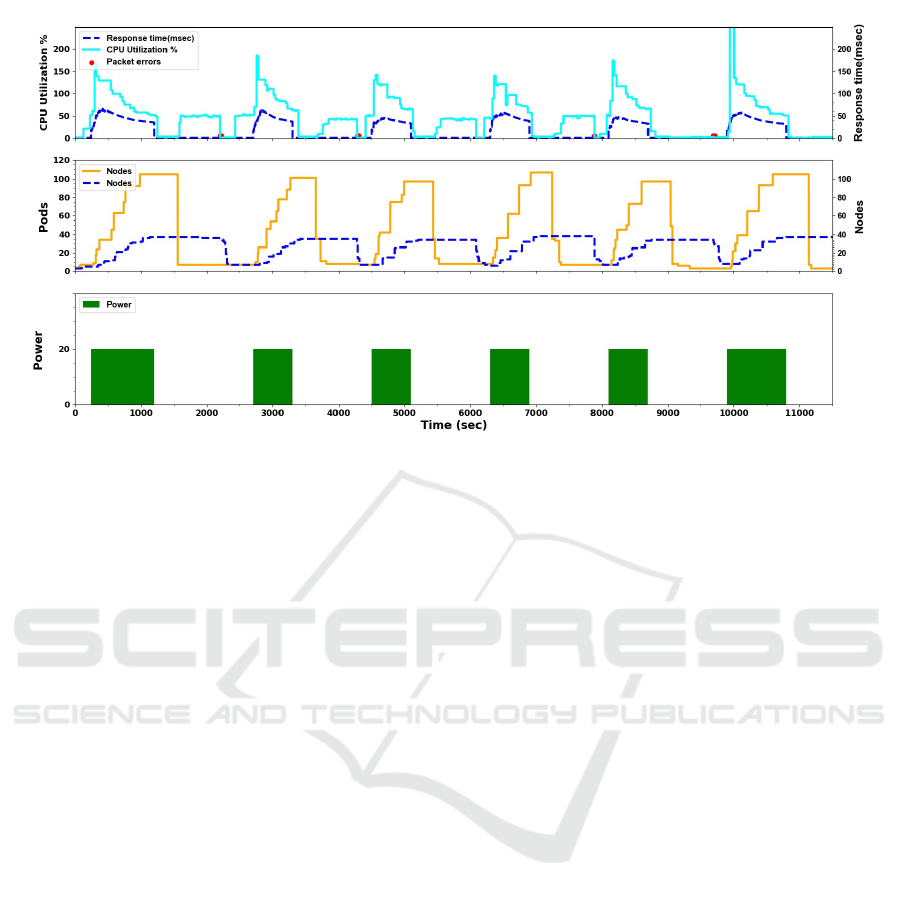

Figure 2: YoYo attack with power k=20 on Kubernetes.

Note that the dominant values are I

, which is

around 1 minute, and W

, which is around 2 minutes.

Therefore an optimal t

is around 4 minutes. More-

over, most of the parameters use the system default

conﬁguration, but some of them can be modiﬁed. As

such, the attacker will know most of these parameters

and can take advantage of them to optimize the at-

tack. The t

o f f

should be large enough such that all the

Pods and Nodes perform scale-down as this is how we

maximize the run time of the Nodes and cause extra

spending. The mechanism ﬁrst scales down all Pods,

after which it triggers the scale-down of the Nodes.

Hence, t

o f f

= I

down

+ W

down

+ I

down

+ W

down

. Note

that the dominant values are I

down

of 5 minutes and

down

of 10 minutes. Thus, the optimal t

o f f

is around

18 minutes.

An illustration of the YoYo attack can be seen in

ﬁgures 2. It shows nicely how the cluster oscillates its

auto-scaling mechanism bases on Pods and Nodes to

manage bursts of escalated trafﬁc.

4 EXPERIMENT ANALYSIS

In this section, we present a proof of concept of the

YoYo attack on Google Kubernetes engine (GKE).

Our environment in GKE consists of a simple HTTP

server wrapped with a Docker container, front-end

side stateless without back-end. Each container is

wrapped into a Pod. We ran the Pods with the De-

ployment Controller, which is well-suited for stateless

applications.

4.1 GKE Parameter Settings

We set the HPA utilization target parameter, U

target

to 50%. The container runs a Web server where each

connection requires high CPU consumption. Each

request to the Web server will perform some com-

putation on the dynamic input of that query. We

used Google Stackdriver and the Kubernetes ”watch”

command to monitor cluster parameters while collect-

ing logs using the Kubernetes Core API about Pods,

Nodes, Relative CPU Utilization and the response

time. We used Apache JMeter (Apache JMeter

2019) to simulate the load on the cluster. We evalu-

ated the performance and economic damage through-

out the attack. Our Cluster Autoscaler boundaries

were set to a minimum of 3 Nodes. For the Node ma-

chine, we use an N1-Standard-1 CPU, and we started

the experiment with 4 Nodes. In this conﬁguration

there are 3 Pods per Node (R = 3). At the begin-

ning of the experiment there are 4 Nodes and 3 Pods

= 4 , N

= 3). Hence, the system has enough

Nodes to populate newly created Pods (at least more

than N

∗ R − N

Pods). This is a common technique

that allows a fast response to a limited overload, while

paying for extra Nodes. We set the power of the attack

k, to 20. We set the on-attack time to t

= 10 min-

utes and the off attack time to t

o f f

= 20 minutes; a

substantial number of experiments showed these val-

ues to be the best (although not optimal bullet proof)

for the YoYo attack and can demonstrate YoYo attack

characteristics.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

Table 1: Notation values of parameters given according to the experiments in Section 4.

Parameter Deﬁnition Conﬁguration given by Value

r Average requests rate per second of legitimate clients System usage

Initial number of Pods 4

Initial number of Nodes System administrator 4

R Number of Pods per Node 3

down

Threshold interval for scale-up and scale-down for a Pod 1min\5min

down

Threshold interval for scale-up and scale-down for a Node 10sec\10min

down

Warming time of scale-up and scale-down for a Pod Kubernetes infrastructure 30sec\5sec

down

Warming time of scale-up and scale-down for a Node 2min\2min

k The power of the attack

n Number of attack cycles Attacker

T Cycle duration 10\20

o f f

Time of on-attack phase and off-attack phase. T = t

o f f

Figure 3: YoYo attack on Google Cloud Engine, VM Group.

4.2 Experiment Results

Figure 2 illustrates this attack: There are three sub-

graphs sharing the x-axis, that shows the attack time

series in seconds. The bottom sub-graph shows the

o f f

attacks (on attacks are in ﬁlled green rectan-

gles) using the Power unit. The middle sub-graph de-

scribes the expansion of Pods (orange line) that the

victim loads throughout the attack. The dotted blue

line represents the number of nodes provisioned to ac-

commodate the Pods. The number of Pods increases

up to 120 and the number of Nodes increases to 32 as

a result of the increase in CPU utilization. When the

attack ends the cluster autoscaling keeps Pods in the

idle state for 5 more minutes and the Nodes remain

active for 10 additional minutes after all Pods are ter-

minated. The top sub-graph describes both the aver-

age relative CPU utilization in cyan solid line. The

CPU Utilization graph follows the equation 1, and as

explained, the value can be larger than 100%. The

HPA aims for a value of U

target

= 50, and the scal-

ing decision is made according to these values. The

dashed blue line in the sub-graph shows an average

response time to answer requests in the cluster.

In some cases when nodes are deleted we experi-

enced transient disruption interpreted as packet errors

and marked in red dots. This phenomenon is due to

the fact that our workload consists of a controller with

a single replica, whose Pod might be rescheduled to

a different node when its current node was deleted.

This can be solved by conﬁguring critical Pods not to

be interrupted.

4.2.1 Comparing the YoYo Attack to the Classic

Attack

In order to understand the effect of the YoYo attack

on Kubernetes as compared to a traditional DDoS at-

Kubernetes Autoscaling: YoYo Attack Vulnerability and Mitigation

tack, we executed a constant power attack experiment

(k = 20). Figure 1 illustrates a classic DDoS attack

that employs the same power of attack on the cluster

as in the YoYo attack. The three sub-graphs share a

common x-axis which, as in Figure 2, shows the at-

tack time series in seconds. Likewise, the y-axis of

each sub-graph is as described in Figure 2.

We deﬁne D

attack

(k), the performance damage

caused by an attack as a function of k, the power of

the attack, and assess it as the average extra response

time to answer requests during the total attack time.

We note that this is a simpliﬁed assumption, since the

actual impact on client performance is more compli-

cated to analyze. We deﬁne the relative performance

damage as the ratio between the damage following

the attack and the corresponding value measured at

a steady state.

attack

(k) =

attack

(k)

attack

(k = 1)

. (3)

Similarly, we deﬁne relative economic damage as the

ratio between the economic damage following the at-

tack and the corresponding value measured at a steady

state.

attack

(k) =

attack

(k)

attack

(k = 1)

. (4)

attack

(k), is the economic damage caused by the at-

tack, and assess it as the average extra Nodes running

in the system for the duration of the attack. We re-

fer in Figure 4 to RD

attack

(k) and RD

attack

(k) as the

relative performance damage and relative economic

damage correspondingly.

In the YoYo attack, the attack cost is directly af-

fected by the power of attack k and by the t

period

relative to the attack cycle length. That is:

Cost(k) = k ·

(5)

The cost of a classic DDoS attack is equal to the

power of the attack, while the cost of the YoYo attack

is only a third of the cost of a classic attack.

Potency is a metric that measures the effectiveness

of DDoS attack from the attacker side. It is deﬁned as

the ratio between the damage caused by an attack and

the cost of mounting such an attack. We denote P

(k)

as the Potency of the attack. An attacker would be

interested in maximizing the potency. We use the fol-

lowing deﬁnitions for cluster autoscaling (ca) attack:

(k) =

(k)

Cost(k)

(6)

Figure 4 illustrates a comparison of the relative eco-

nomic damage and the potency incurred by the victim

had it been attacked by the two attack types. Fig-

ure 4 shows that the classic DDoS attack results in

= 7 whereas the YoYo attack results in RD

= 5.

The top sub-graph shows the potency comparison be-

tween the YoYo attack and the classic DDoS attack.

In addition, the YoYo attack causes iterative perfor-

mance damages, incurred at the beginning of each it-

eration starting at t

. The classic DDoS attack causes

the least performance damage to a Kubernetes cluster

without any packet errors since Pods are not resched-

uled and Nodes are not scaled-down. The attack im-

pact is mainly in the beginning of the attack while

for the remainder of the attack a Kubernetes cluster

is fully resilient. We summarize the results in Table

2 and conclude that the YoYo attack on Kubernetes

is more cost effective for the attacker than a classic

DDoS attack.

4.2.2 YoYo Attack: Kubernetes Vs. VM

To emphasize that Kubernetes has better resilience

than VM against YoYo attacks (performance wise) but

shares a similar vulnerability to economic damage,

we repeated the experiments from the original YoYo

paper (Bremler-Barr et al., 2017) and compared them

to the experiments we conducted in this paper. We

built an instance of VM group in GCE and a load bal-

ancer based on a VM group template using machine

type n1-standard-1 (1 vCPU, 3.75 GB memory) iden-

tical to the one we built for the GKE cluster. The

VM group instance is set with auto-scaling capabil-

ity of up to 24 VMs and adaptive scaling where all

the machines that are ready to be scaled are scaled

up at once. We used same parameters used in the

YoYo Kubernetes attack and ran it for n cycles of du-

ration T. The power of the attack was k = 20. Fig-

ure 3 illustrates YoYo VM attack which can be com-

pared with the YoYo Kubernetes attack illustrated in

Figure 2. A key observation is that an attack on VM

group causes to an immediate slow response time and

packet errors through the burst of loads. That obser-

vation lasts until the scale-up process ends. This be-

havior repeats in every attack cycle. YoYo VM attack

results a relative performance damage RD

= 1.66.

The relative performance degradation recorded by a

YoYo Kubernetes is signiﬁcantly lower with almost

no packet errors (except the transient disruption due

to Pods rescheduling). We can explain this since Ku-

bernetes loads Pods in seconds to absorb the increased

trafﬁc until enough additional Nodes are ready with

new Pods. Like in Kubernetes the attack cost is di-

rectly affected by the power of attack k and by the

period relative to the attack cycle length. Figure

4 shows that the YoYo VM attack results almost the

same relative economic damage and Potency as the

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

YoYo attack causes to a Kubernetes cluster. YoYo at-

tack may cause relatively the same economic damage

in the cloud to GCE VM group as to a Kubernetes

cluster, while the performance damage is more sig-

niﬁcant to a victim in GCE VM group. We conclude

that a VM group is less resilient to YoYo attacks than

a Kubernetes cluster.

Table 2: Summary results: Classic DDoS:(k = 20), YoYo

Kubernetes and YoYo VM both:[t

= 10,t

o f f

= 20],(k =

20).

Parameters Classic DDoS YoYo Kubernetes YoYo VM

Cost 20

Relative Economic Damage 7 5 5

Relative Performance Damage 0.75 1.15 1.66

Potency Economic 0.3 0.75 0.75

5 YoYo ATTACK DETECTION

In this section we propose an enhanced detection

technique designed to protect Kubernetes autoscal-

ing from YoYo attacks. Detecting YoYo attack al-

lows cloud vendors to mitigate the attack by apply-

ing different strategies such as inline scrubbing or by

holding cluster downscale of Nodes to maintain the

short response time on the expense of high economic

damage. Unfortunately, we were unable to access real

life data from Kubernetes production clusters that can

supply big data to feed our model. Our research aims

to analyze a live Kubernetes cluster reacting dynam-

ically. Considering that, although our analysis is fo-

cused on ML methods evaluation and results high ac-

curacy detecting the YoYo attack, we can not guar-

antee at this point the same results on a production

Kubernetes cluster.

Time series data generated by the Kubernetes

cluster are the primary foundations of the features for

our model (e.g., response time, pod count, node count

and CPU load as you can see see in Figure 2). The in-

put data contains hundreds of thousands discreet fea-

tures (e.g., each value recorded is considered a fea-

ture). We evaluated a deep neural network approach

where a convolution neural network (CNN) was con-

catenated with long short term memory (LSTM) mod-

ule which is good ﬁt for a sequential data, followed by

a linear layer to classify a YoYo attack. This deep neu-

ral network requires a large amount of data and long

training cycles, this method is not optimal to sparse

datasets. In order to match our unique input data to

machine learning methods we used a feature extrac-

tion principles. We found out that extracting statisti-

cal functions from the time series data (e.g mean, min-

imum, maximum,std,median) generating up to 20 fea-

tures per sample is ideal for our model to achieve ex-

cellent performance. We evaluated multiple machine

learning methods and selected the XGBoost (Chen

and Guestrin, 2016) algorithm. XGBoost is a non lin-

ear classiﬁer that works well for our attack detection

evaluation.

5.1 Model Setup and Formulation

5.1.1 XGBoost Classiﬁcation Algorithm

XGBoost is a state of the art method that addresses the

best speed and accuracy with limited datasets. XG-

Boost is a classiﬁer and a regressor based on the gra-

dient boosting algorithm. It uses an ensemble of deci-

sion trees. Each tree corrects the mistakes of the trees

that came before it. It is both fast and efﬁcient, per-

forming well on sparse data and on a wide range of

predictive modeling tasks.

We explain the XGBoost detection method (Chen

et al., 2018) in a nut-shell. R

is the space of regres-

sion trees. Let q represent the structure of each tree

that maps a sample to a corresponding leaf index. Let

T be the number of leaves in the tree. Each f

cor-

responds to an independent tree structure q and leaf

weights w. Each regression tree contains a continu-

ous score on each leaf. The ﬁnal prediction for a given

sample is the sum of predictions from each tree. The

tree ensemble model is trained in an additive mode

and it greedily sums up the gradients on each leaf and

then applies the scoring value to improve the target

function, and brings the result to a minimum.

5.1.2 Methodology & Data Engineering

Our test-bed design for the YoYo attack on Kuber-

netes is documented in detail in Section 4 (Experi-

ment analysis). We built our datasets on a live cluster,

experimenting on labeled trafﬁc loads with the fol-

lowing two classes: Attack (1) and Regular (0). Class

label Attack (1) represents a YoYo attack as described

above, and class label Regular (0) represents an av-

erage load on a site. Testing and training datasets

are a collection of balanced experiments of the two

classes taken with a range of parameters as describe

in 3. Note, the default setting for the on-attack time

to t

= 10 minutes and off-attack time to t

o f f

= 20

minutes. The default settings for the YoYo attack is

k = 20 and for Regular load is k = 2. The collec-

tion is split randomly with 70%:30% ratio for training

and testing datasets. We are interested in learning the

cluster autoscaling behavior when the system is un-

der attack and when the system is normally or highly

but legitimate loaded. The goal is to binary classify

the situation. We mimicked normal and attack distri-

butions loads by setting HTTP connections using the

Kubernetes Autoscaling: YoYo Attack Vulnerability and Mitigation

Figure 4: Measuring attack effectiveness: Classic DDoS Vs. YoYo on Kubernetes and VM.

popular JMeter v5.2 (Apache JMeter

, 2019) net-

work tool. Hence we started by generating a workload

that simulates YoYo attacks. To increase the dataset

variance we populated multiple parameters and val-

ues. We trained the model with multiple t

and t

o f f

attacks, covering in each attack or regular sample at

least 3 cycles of duration T . Thus, our model requires

at least 3 of cycles of duration T for inference. We

conﬁgured threads ramp-up time (The ramp-up pe-

riod deﬁnes the duration the full number of threads

are loading) to control load scale-up in different lev-

els. Last, we used JMeter timers to set either a con-

stant or random delay between requests in the Regular

class. We believe that using all of these parameters

simulate similar conditions as best as possible of a

real distributed load on typical web applications. Ta-

ble 3 represents the variance of datasets created using

experiments parameters.

Table 3: Dataset parameters for YoYo classiﬁer.

ramp-up(sec) t

o f f

(min) Power(k) timers

Regular 30,60,120 continuous 1,3,5,7 constant,random

Attack 30,60,120 7/14, 10/20, 12/24 15,20,30 constant

5.1.3 XGBoost Optimization

We used Python Scikit-learn model selection in-

terfaces such as RandomizedSearchCV and Grid-

SearchCV to optimized the XGboost parameters. The

parameters of these estimators used to optimized our

selected method parameters by cross-validated search

over parameter settings and can apply scoring. The

parameters we optimized using these methods are:

number of estimator trees (The more trees deﬁned,

the better are the estimates and longer is the compu-

tation time), max depth (parameter to control over-

ﬁtting as higher depth will allow model to learn re-

lations very speciﬁc to a particular sample. The ab-

solute maximum depth would be N − 1, where N

is the number of training samples), max features

and criterion (Impurity function: gini vs entropy).

We found by using cross validation estimator the

following parameters values as the best to achieve

the highest performance: classweight = balanced,

criterion = gini, max depth = 1, max f eatures =

auto, min samples lea f = 10, min samples split =

40, n estimators = 10. In addition, we executed the

Explainable Boosting Machine package (EBM) to un-

derstand the most explainable features for the classiﬁ-

cations among the 20 selected features. Table 4 ranks

each feature with a value between 0 and 10 where 0 is

the least important feature for the model and 10 is the

most important feature.

Table 4: Importance absolute score for XGBoost features.

Feature name Mean Std Maximum Minimum Median

Response Time 6.0 6.0 8.8 0.0 7.8

Pods 9.3 9.8 9.5 0.0 7.2

CPU load 4.4 4.5 10.0 0.0 1.0

Nodes 9.2 9.2 9.8 5.5 9.3

5.2 Evaluation Results

In this section we summarize the results of our

models as they perform on our dataset. We collected

experimental data from 21 samples of attacks and the

same regular load as described above. We provide

the results of classiﬁcation measures for accuracy,

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

precision, recall, F1, false positives (FP), false

negatives (FN), true positives (TP) and true negatives

(TN).

accuracy =

T P + T N

T P + FP + T N + FN

(7)

precision =

T P

T P + FP

(8)

recall =

T P

T P + FN

(9)

F1 = 2 ·

precision · recall

precision + recall

(10)

5.2.1 XGBoost Classiﬁer Evaluation

The XGBoost classiﬁer has the most accurate results

on our Datasets as you can see in table 5. We evalu-

ated multiple machine learning methods in addition to

XGboost. Among them are: Logistic regression, Ran-

dom forest, Decision trees and a deep neural network

based on CNN + LSTM. XGBoost model is a perfect

ﬁt for experiments with either sparse data, it requires

less performance time (no epochs are required), and it

suffers the least from over-ﬁtting.

Our proposed classiﬁer can achieve the highest ac-

curacy score on the testing dataset, the XGBoost al-

gorithm reaches an accuracy score of 95% (F1=0.94),

while the CNN+LSTM, Logistic Regression, Deci-

sion Tree and Random Forest can achieve accuracy

score which is less than 90%. The running time of

XGBoost and other classic machine learning algo-

rithms is less than a second. The running time of

CNN+LSTM is much higher,it is counted in thou-

sands seconds due to the enormous number of epochs.

Therefore, overall, our selected model has the best

comprehensive performance.

Table 5: Algorithms performance comparison.

Recall Precision Accuracy % Training Time(sec)

XGBoost 1.0 0.89 94% 0.33

CNN+LSTM 0.85 1.0 93% 3600

Random Forest 0.83 0.82 83% 0.15

Logistic Regression 0.78 0.78 85% 0.5

Decision Tree 0.83 0.89 84% 0.04

6 RELATED WORK

DDoS prevention is crucial to cloud computing en-

vironments (Grobauer et al., 2011). Several works

(AWS Best Practices, 2019; Miao et al., 2014) rec-

ommend auto-scaling and Kubernetes speciﬁcally as

a possible solution to mitigate DDoS attacks. Some

works (VivinSandar and Shenai, 2012; Somani et al.,

2015) describe how a traditional DDoS attack can be

transformed into an EDoS in the cloud environment.

Other works have tried to mitigate EDoS attacks

(Shawahna et al., 2020; Nautiyal and Wadhwa, 2019;

Ravichandiran et al., 2018; Chen et al., 2018) using

machine learning classiﬁcation techniques trying to

limit a malicious bot. A recent work uses the XG-

Boost classiﬁer as a DDoS detection method (Chen

et al., 2018) in an SDN based cloud. Other studies

(Casalicchio and Perciballi, 2017) research container-

ized autoscaling but refer neither to cloud resilience

nor DDoS mitigation. A recent work (Ravichandi-

ran et al., 2018) focused on resource patterns with

cyclic trends with the aim of analyzing resource be-

havior on micro-services using auto-aggressive statis-

tical models on auto-scaling systems. Older works at-

tempt to prevent EDoS by directing suspicious trafﬁc

to a scrubber service and using client puzzles to detect

legitimate users by identifying suspicious trafﬁc using

a threshold policy (e.g., requests/sec)(Naresh Kumar

et al., 2012).

7 CONCLUSIONS

In this work we illuminate the potential of exploit-

ing the auto-scaling mechanism to perform an efﬁ-

cient attack on Kubernetes that impacts the cost and

the quality of a service. We show that Kubernetes

is still vulnerable even with a light-weight container-

ized architecture. We also show that YoYo VM attack

results almost the same relative economic damage as

the YoYo Kubernetes attack. However, VM groups

are still less resilient to YoYo attacks than Kubernetes

clusters. In addition we conclude that the YoYo attack

on Kubernetes is more cost effective for the attacker

than a classic DDoS attack. We believe that the auto-

scaling mechanism alone is not enough, and therefore

we propose a unique approach based on XGBoost al-

gorithm to detect YoYo attacks and allow to mitigate

the DDoS damage. We also show that XGBoost al-

gorithm has an high accuracy and a lower false pos-

itive rate. To the best of our knowledge this work is

the ﬁrst to detect DDoS burst attacks on a Kubernetes

cluster using a machine learning method, speciﬁcally

with XGBoost.

Future works will aim to evaluate YoYo attacks on

multiple applications from different tenants running

in the same Kubernetes cluster when only one of the

applications is the target. Future research may also

evaluate the resilience of cloud mesh services running

multi-tenant environments to YoYo and similar DDoS

attacks.

Kubernetes Autoscaling: YoYo Attack Vulnerability and Mitigation

ACKNOWLEDGEMENTS

This research was supported by Google Cloud Re-

search. We would like to thank also to Daniel Bachar

and Assaf Sinvani for helpful discussions and their

help with the experiments setup.

REFERENCES

Amazon EKS pricing (2018). Amazon eks pricing. https:

//aws.amazon.com/eks/pricing/.

Apache JMeter

(2019). The apache jmeter

. https:

//jmeter.apache.org/.

AWS Best Practices (2019). Aws best practices for ddos

resiliency,december 2019. https://d0.awsstatic.com/

whitepapers/Security/DDoS White Paper.pdf.

Bremler-Barr, A., Brosh, E., and Sides, M. (2017). Ddos at-

tack on cloud auto-scaling mechanisms. In IEEE IN-

FOCOM 2017 - IEEE Conference on Computer Com-

munications, pages 1–9.

Casalicchio, E. and Perciballi, V. (2017). Auto-scaling

of containers: The impact of relative and absolute

metrics. In 2017 IEEE 2nd International Workshops

on Foundations and Applications of Self* Systems

(FAS*W), pages 207–214.

Chai, E. (2013). Ddos attacks: Hit and run

ddos attack. https://www.imperva.com/blog/

hit-and-run-ddos-attack.

Chen, T. and Guestrin, C. (2016). Xgboost: A scalable

tree boosting system. In Proceedings of the 22nd

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, KDD ’16, page

785–794, New York, NY, USA. Association for Com-

puting Machinery.

Chen, Z., Jiang, F., Cheng, Y., Gu, X., Liu, W., and Peng,

J. (2018). Xgboost classiﬁer for ddos attack detection

and analysis in sdn-based cloud. In 2018 IEEE Inter-

national Conference on Big Data and Smart Comput-

ing (BigComp), pages 251–256.

Cimpanu, C. (2017). Pulse wave new

ddos assault pattern discovered. https:

//www.bleepingcomputer.com/news/security/

\\pulse-wave-new-ddos-assault-pattern-discovered/.

cluster autoscaling (2021). Cluster autoscaler.

https://cloud.google.com/kubernetes-engine/docs/

concepts/cluster-autoscaler.

Dahan, A. (2018). Behavioral burst-attack protec-

tion. https://blog.radware.com/security/2018/02/

burst-attack-protection.

Deepa, V., Sudar, K. M., and Deepalakshmi, P. (2018).

Detection of ddos attack on sdn control plane using

hybrid machine learning techniques. In 2018 Inter-

national Conference on Smart Systems and Inventive

Technology (ICSSIT), pages 299–303.

GKE Guides (2020). Guidelines for creating scalable

clusters. https://cloud.google.com/kubernetes-engine/

docs/concepts/scalability.

Grobauer, B., Walloschek, T., and Stocker, E. (2011). Un-

derstanding cloud computing vulnerabilities. IEEE

Security Privacy, 9(2):50–57.

Kubernetes.io (2017). Horizontal pod autoscaler.

https://github.com/kubernetes/community/blob/

master/contributors/design-proposals/

autoscaling/horizontal-pod-autoscaler.md.

Kubernetes.io (2021). Horizontal pod autoscaler.

https://kubernetes.io/docs/tasks/run-application/

horizontal-pod-autoscale/.

Miao, R., Yu, M., and Jain, N. (2014). NIMBUS: cloud-

scale attack detection and mitigation. In ACM SIG-

COMM Computer Communication Review, 2014, vol-

ume 44, pages 121–122. SIGCOMM.

Naresh Kumar, M., Sujatha, P., Kalva, V., Nagori, R.,

Katukojwala, A. K., and Kumar, M. (2012). Mit-

igating economic denial of sustainability (edos) in

cloud computing using in-cloud scrubber service. In

2012 Fourth International Conference on Compu-

tational Intelligence and Communication Networks,

pages 535–539.

Nautiyal, S. and Wadhwa, S. (2019). A comparative ap-

proach to mitigate economic denial of sustainability

(edos) in a cloud environment. In 2019 4th Interna-

tional Conference on Information Systems and Com-

puter Networks (ISCON), pages 615–619.

Ravichandiran, R., Bannazadeh, H., and Leon-Garcia, A.

(2018). Anomaly detection using resource behaviour

analysis for autoscaling systems. In 2018 4th IEEE

Conference on Network Softwarization and Work-

shops (NetSoft), pages 192–196.

Shawahna, A., Abu-Amara, M., Mahmoud, A. S. H., and

Osais, Y. (2020). Edos-ads: An enhanced mitiga-

tion technique against economic denial of sustainabil-

ity (edos) attacks. IEEE Transactions on Cloud Com-

puting, 8(3):790–804.

Somani, G., Gaur, M. S., and Sanghi, D. (2015).

DDoS/EDoS attack in cloud: affecting everyone out

there! In Proceedings of the 8th International Confer-

ence on Security of Information and Networks, 2015,

pages 169–176. ACM.

VivinSandar, S. and Shenai, S. (2012). Economic denial

of sustainability (EDoS) in cloud services using http

and xml based DDoS attacks. International Journal

of Computer Application 2012, 41(20).

Zeifman, I. (2019). Pulse wave ddos at-

tacks:. https://www.imperva.com/blog/

pulse-wave-ddos-pins-down-multiple-targets/.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
