In a context of pedagogical resource production via publishing chains that are based on an model-driven

engineering approach, we consider the proposition of a learning analytics implementation. We argue that, by

using the same approach to carry out such an implementation versus a classical one, a series of beneﬁts could

be assessed, whether they are related to the fact that it is using this speciﬁc context, methodological approach

or both. Perhaps one of the most particular beneﬁts is the detailed knowledge of the semantics and structure

of any document produced, that could therefore be automatically added to the traces/analysis. Other potential

improvements discussed are: separation of content and form, interoperability, compliance with data privacy,

maintainability, performance, multi format, customization and reproducibility.

1 INTRODUCTION

The intent of the present work is to propose an im-

plementation of a learning analytics solution into an

educational platform design framework that uses a

model-driven approach to design and publish peda-

gogical resources via publishing chains. Although we

deﬁne more precisely a publishing chain in section 4,

we can consider for now that it is a technological so-

lution that facilitates producing and publishing struc-

tured documents.

In recent years the growing number of courses and

resources offered by learning platforms on the Web

attracted lots of participants. Learners interactions

with these systems have generated a vast amount of

learning-related data. Learning Analytics (LA) fo-

cuses on the collection, processing and analysis of

such data. The most common deﬁnition of learning

analytics is: “Learning analytics is the measurement,

collection, analysis, and reporting of data about learn-

ers and their contexts, for the purposes of understand-

ing and optimizing learning and the environments in

which it occurs” (Siemens, 2011). Learning analyt-

ics is an interdisciplinary ﬁeld of study

combining

https://orcid.org/0000-0002-7226-0931

https://orcid.org/0000-0001-9436-1250

https://orcid.org/0000-0001-8978-0944

https://solaresearch.org/about

different disciplines such as data science, statistics,

computer science and, psychology.

According to Wise and Vytasek, when applying

learning analytics, one can focus on: what e-learning

interaction traces need to be captured, how to process

them and how to present them to stakeholders in a

useful way (Wise and Vytasek, 2017). In this work

we take an approach allowing to holistically design

those three aspects. The aim is to create solutions that

support stakeholders on making data-driven decisions

in order to ultimately improve learning, taking advan-

tage of the context of publishing chains to do so.

The rest of this paper is structured as follows: in

section 2 we situate our research with related liter-

ature, in section 3 we deﬁne the model-driven engi-

neering methodology principles and in section 4 we

describe how it is used to create pedagogical materi-

als, including a (simpliﬁed) practical example of its

phases and actors. In section 5 we detail how, by us-

ing the same methodological principles, we deﬁned a

metamodel dedicated for the application of LA pro-

cesses and its differences to a classical approach. In

section 6 we deﬁne and estimate the beneﬁts of our

proposed approach. A discussion can be found in sec-

tion 7.

Canellas, C., Bouchet, F., Arribe, T. and Luengo, V.

Towards Learning Analytics Metamodels in a Context of Publishing Chains.

DOI: 10.5220/0010402900450054

In Proceedings of the 13th International Conference on Computer Supported Education (CSEDU 2021) - Volume 2, pages 45-54

ISBN: 978-989-758-502-9

2 RELATED WORK

Classical approaches of LA solutions consist of anal-

ysis of vast amounts of data about learning that were

collected through the increasing use of technology

(Ga

sevi

c et al., 2017). The underlying assumption

is that the interaction data is either already at hand,

or will be collected via the addition of the record-

ing of all student interactions with a given system, for

example using Experience API (xAPI), IMS Caliper,

Learning Context Data Model (LCDM), among oth-

ers.

This approach implies that the data science meth-

ods applied to these data sets in order to calculate and

report indicators – of learning processes, learning out-

comes, and learning activities, among others – usu-

ally happen at a later time, after the decision to col-

lect such data and long after the creation of the actual

pedagogical resources.

This approach not only implies taking time trying

to understand the traces in relation to what one is try-

ing to analyze, but also that the details of the resources

used/traced are usually not available at the traces

level. Some attempts have been made to overcome

this such as with UTL (Usage Tracking Language)

(Choquet and Iksal, 2007), which aims at describing

and operationalizing learning indicators prescribed by

ﬁnal users. It enables adapting to the described ele-

ments by modifying the information available, using a

model-driven approach. Another approach consists in

creating indicators guided by interaction’s traces then

modeled and leveraged by the Trace Based Manage-

ment System (Djouad et al., 2009).

To the best of our knowledge, no work has been

proposed allowing to speciﬁcally deﬁne, at the same

time, both the desired LA indicators and the educa-

tional resources production. We argue that, by doing

so, we could enable both the document and its usage

analysis to be closely linked, thus allowing to perform

detailed analysis, among other beneﬁts discussed in

detail below. As the works cited in this section, the

approach we use is the model-driven engineering one,

that has been used in other domains – such as automo-

tive, banking, printing, web applications, among oth-

ers (Hutchinson et al., 2011) –, yet not as much in LA

systems.

3 METHODOLOGY: CREATING

MODELS

When developing complex systems such as publish-

ing chains, model-driven engineering (MDE) is a

methodology that allows one to focus on a more ab-

stract level than classical programming (Combemale,

2008). This practice allows to describe both the prob-

lem at hand and its solution. In computer science,

modeling is widely used in an attempt to control such

complexity (J

equel et al., 2012), both to create soft-

ware or to validate it. In model-driven engineering

the focus is to create and leverage domain models –

in our case, the educational domain – as a conceptual

model taking into account all the topics related to this

speciﬁc task/domain.

Model-driven engineering is a form of genera-

tive engineering (Combemale, 2008) in the sense that

it follows an approach by which all or part of a

computer application is generated from models. To

achieve a given objective, some aspects of reality (or

a solution to a problem) are simpliﬁed. This modeling

can also be used to separate the different functional

needs and extra-functional concerns (such as reliabil-

ity, performance, etc.).

A model is therefore a concept or object, often

simpliﬁed, perceived as representative of another. It

can be more or less abstract, more or less precise. In

computer science, a model is used to deﬁne the de-

sign or operation of a set of computer programs. A

metamodel, in its turn, is a model which deﬁnes the

expression language of a model, i.e. the modeling lan-

guage (J

equel et al., 2012).

A model is an operational resource created by the

modeler that designs the system. A metamodel is the

expression as well as the validation language of this

model. The method consists in generating artefacts

(code if we refer to software development, but other

areas can also be addressed) via the model validated

by the metamodel and a transformation algorithm.

One example of systems based on model-driven

engineering are digital publishing chains. Such sys-

tems use this approach to create models that will then

be used in document production.

4 PUBLISHING EDUCATIONAL

DOCUMENTS VIA MODELS

Pedagogical resources often have a well-known con-

sistency in structure, i.e the parts that compose the

document, and in semantics, i.e., what the type of con-

tent of each part is. For example, the parts could be

an introduction, a few sections on the topic in ques-

tion – a deﬁnition, an example, a practical illustration,

etc. –, and a series of exercises/tests aimed at compre-

hension and memorization. Some systems, such as

digital publishing chains, have specialized in assist-

ing the production and publication of such structured

CSEDU 2021 - 13th International Conference on Computer Supported Education

documents, especially in their design processes (Ar-

ribe et al., 2012).

Crozat proposes the following deﬁnition of pub-

lishing chains: “A publishing chain is a technological

and methodological process consisting in producing a

document template, assisting in content creation tasks

and automating formatting” (Crozat, 2007, p.2, our

translation).

Digital publishing chains allow for documents ho-

mogeneity via systems that logically connect editing

and publishing large amounts of documents. Natu-

rally, the design of models is strongly linked to the

profession in which it ﬁts. The document needs are

analyzed and then formalized in a model, including

structural diagrams. Moreover, such systems support

the separation of content and form (Bachimont and

Crozat, 2004), allowing for authors to concentrate on

the content itself as the form is automatically applied

according to each type of the parts composing the

content. In this way, one format is used for the pro-

duction of content and one (or several) for its publi-

cation, which can include PDF, Web, or presentations

(Bachimont and Crozat, 2004).

According to (Guillaume et al., 2015), other ad-

vantages of using such systems are making teach-

ing practices explicit, sharing of practices, optimizing

production management, and reducing costs in docu-

ment production.

Typically, the document will be based on a model,

that is itself based on a metamodel and sometimes a

metametamodel can also be in place, depending on

the level of abstraction needed. In this context, a doc-

ument primitive (primitive documentaire) works like

a “building brick” as it is the foundation from which

the actual document model will be constructed. It is a

computer code abstracting the essential principles of

documentary objects that later in the chain will allow

the generation of speciﬁc code instantiating multiple

document models (Arribe et al., 2012). We illustrate

this process in the next section, allowing to under-

stand the phases and actors involved when publishing

a document using (1) model-driven engineering as the

underlying methodology, and (2) publishing chains as

the context/tool of editing, publishing and diffusing

resources.

4.1 Illustration of the Publishing

Processes

In our context, developers have deﬁned “building

bricks”, called document primitives, which will serve

as a basis for the creation of the document’s models.

This corresponds to having a metamodel in an model-

driven engineering approach (cf. example below).

In the next phase, a modeling tool allows the deﬁ-

nition of any document model desired. In practice, the

so-called modeler, will deﬁne a document model us-

ing the available document primitives. The challenge

of this metamodel is to abstract the technical aspects

as much as possible.

Later, an author (a teacher, for example) will use

this document model to create his or her document

such as a course module. The design tool (s)he uses

includes transformation algorithms that automatically

publish the document in several formats such as PDF,

Open Document, Web, synthetic presentation, etc. As

stated before, the interesting aspect here is the sepa-

ration of the content and its format (Bachimont and

Crozat, 2004). We are particularly interested in the

document in its Web format and in the ways in which

it will later be used by its ﬁnal users (learners).

4.1.1 A Practical Example

In order to understand the phases and roles of the

stakeholders involved in the process of designing doc-

uments for educational purposes via model-driven en-

gineering, we describe here a very simpliﬁed prac-

tical example. This example uses the vocabulary of

the Opale model

, which is suitable for creating aca-

demic courses (on-site training, distance or blended

learning). Other open-source models are available

to carry out case studies with a gamiﬁed twist, cre-

ate exercisers with different modes of execution (self-

learning, evaluation), build question banks for evalu-

ations, etc.

First Phase: The Developer. At ﬁrst, a developer

deﬁnes document primitives such as “text”, “multi-

media”, “quiz”, “organization”, etc. Each of these

bricks (cf. ﬁgure 1) is used to build the document

model. They can look like a multimedia block or quiz

in Moodle for instance. It is from these bricks that the

modeler will work, by deﬁning a document model that

meets the needs of a given community of users. Be-

sides the elements created, the language used is there-

fore appropriate for this group/domain, the same ap-

plies to the available transformation functions.

TEXT ORGANIZATIONQUIZMULTIMEDIA

Figure 1: First Phase: Metamodel with the document prim-

itives for our illustrative document modeling.

Second Phase: The Modeler. A modeler then uses

the available primitives on the design tool to deﬁne

document models. For example, using a particular

Available at: https://doc.scenari.software/Opale/en/

Towards Learning Analytics Metamodels in a Context of Publishing Chains

primitive (called organization primitive), one can de-

ﬁne a very simpliﬁed model of a “learning activity”

as having one or more:

• “Introduction” (text primitive)

• “Concept” (text or multimedia primitives)

• “Content” made up of parts (text and multimedia

primitives) titled “Information” and “Example”

• “Conclusion” (multimedia primitive)

• “Practice” made up of quizzes (quiz primitive)

As seen in ﬁgure 2, the modeler also deﬁnes that

a learning module can have one or more “learning

activities”. A “learning activity” must have exactly

one “introduction”, one “conclusion” and a “practice”

part at the end, and include between “introduction”

and “conclusion” one or more “concept” and/or “con-

tent” parts. A “practical” part must have one or more

quizzes.

COURSE MODULE

Learning Activity (n)

Content (n)

Introduction (1)

Concept (n)

Conclusion (1)

Practice (1 - end)

Information (n)

Example (1)

Concept

(n)

Concept

Figure 2: Second Phase: Metamodel used to deﬁne the

model for our illustrative document modeling.

If publishing in Web format, the modeler may choose

to have a page created for each “learning activity”.

They may also choose to have a menu reﬂecting the

document structure created and displayed on the left,

allowing learners to browse the module, either by the

pages names or by jumps to these internal parts of the

page, the blocks.

The modeler therefore deﬁnes the structure (each

block and its possible/obligatory components) as well

as the basic semantics (what each block is supposed

to contain) for each document based on this partic-

ular document model, and this information will also

be used by the publishing algorithm. In other words,

the different possible “parts” of the document are pre-

established at the time of modeling and the content

type of each part is deﬁned by the chosen blocks. Sub-

sequently, the semantics is known beforehand, when

creating each document, depending only on the block

types chosen by authors.

Knowing the semantics, for example that a “con-

cept” block was used 15 times in a course, may al-

low the creation of a table of concepts at the end of

the course and to automatically create a sheet-cheat

with the list of concepts and to format them differ-

ently from the rest. Thus, 1/ the author must choose

the model corresponding to the needs of his profes-

sion (or type of course, in our case) and 2/ this will

also have consequences in the phase of trace analysis,

in particular with regard to semantics analysis.

Third Phase: The Author. An author, such as a in-

structor, uses this model to create a course. Its course

consists of four “learning activities”, each with an “in-

troduction”, two “concepts”, four “contents”, a “con-

clusion”, followed by a “practice” activity to check

the understanding of the theoretical content. Once the

course has been created, the instructor can publish it

in a Web format.

CHEMICAL REACTIONS

Combustion of Methane in Oxygen

Introduction - In this module we...

The concept of oxygen combustion is...

[video] We can see how...

[image] To conclude, we see that...

Stages of Experiment A

1. Pour the liquid in the container...

Test your knowledge

Figure 3: Third Phase: Document model used in the instan-

tiating process of our illustrative document modeling.

Fourth Phase: The Learner. Finally, learners access

the published content, open pages in whatever order

they want, scroll through them, take quizzes, etc.

It is worth noting that the framework where the

publishing chains just described are implemented also

include components for the dissemination and ex-

ploitation. These components are themselves con-

ceived using a model-driven approach that simpli-

ﬁes developing new approaches/platforms and main-

taining existing ones, makes those platforms repro-

ducible, and allows including an analyst in the plat-

form design without forcing them to go into the core

code. To summarize, this preexisting system, based

on a model-driven engineering approach, allows the

design of resources production, the publication of

such resources, to deﬁne users, store data and interact

with learning management systems via, for example,

Learning Tools Interoperability (LTI).

CSEDU 2021 - 13th International Conference on Computer Supported Education

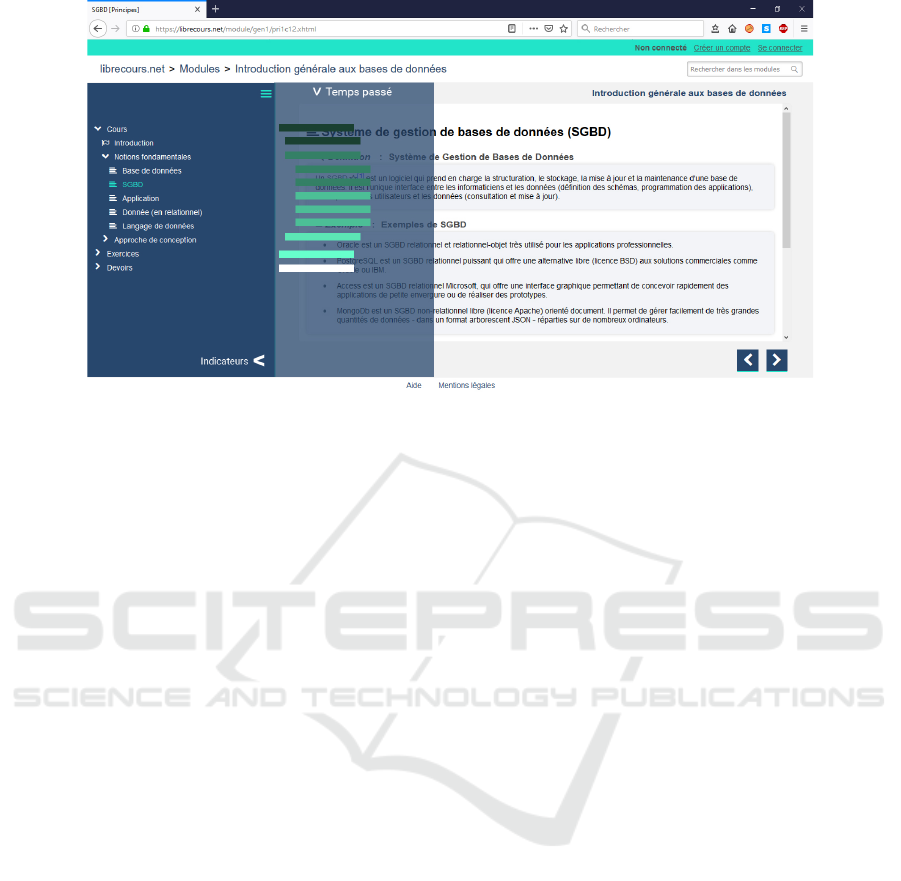

Figure 4: Fourth Phase: Document transformed into a Web format, ready to be used by learners. We added as an example the

visualization of an indicator following the menu (structure) of the course.

5 ADDING LEARNING

ANALYTICS TO THE CHAIN

In a context where the production of document re-

sources for educational purposes is based on a model-

driven engineering approach, we argue that using this

same methodology to implement a learning analytics

environment to analyse the use of these documents

has several beneﬁts.

We started by isolating the concept of a LA indi-

cator. We consider that a learning indicator used in

a learning analytics approach is a calculated measure

(quantitative or qualitative) linked to a behavior or an

activity of one or more learners. The result of the

calculation of the indicator is given back to a human

(administrator, learner, instructor, etc), in one way or

another. It may also be used in the calculation of

other (more advanced) indicators. A simple indica-

tor could be the time spent by students in each section

of a course, whereas a more complex could be the pre-

diction of dropout at week 3 (which calculation could

rely, among other things, on how long students spent

on each section of a course).

Subsequently, we used the model-driven engineer-

ing approach to create the corresponding learning an-

alytics primitives, by abstracting processes and com-

ponents of a learning analytics indicator, dedicated to

the traces analysis cycle.

This metamodel allows modelers to cover the col-

lection of usage traces of the documents. It has the ad-

vantage of allowing to determine, for each indicator,

the traces needed and the information it holds. Thus

instead of collecting traces ﬁrst and then trying to ﬁnd

what can be done with them, our approach allows to

start by asking the question of what indicator might

be useful for each situation/course and only then cre-

ate the tracing necessary to do so. This is also an asset

regarding compliance with legal and ethical norms as

only the traces needed for the indicators calculation

are collected, and the purpose of such collection is

clear to the user. Another great advantage here is that

it allows to add to traces the information regarding

the semantics/structure of the document, that is well

known beforehand (cf. section 3).

Furthermore, the metamodel let modelers deﬁne

how the calculations will be done and, if it is the case,

from whom any input should be entered. For exam-

ple, the number of concepts visualized before a feed-

back message is shown could be added by the instruc-

tor. It is also possible to determine any preprocess-

ing, post-processing and frequency of (re)calculations

where necessary.

Finally, completing the analysis cycle, the meta-

model allows to determine how results will be pre-

sented. It can range from a raw format (i.e. algorithms

results, patterns), the use of visual representations

(i.e. in a dashboard and using a certain graph, along-

side the menu as a percent bar) or as an automated

action (a notiﬁcation, an alert with a suggestion, etc.);

and to whom (i.e. roles that can include administra-

tors, pedagogical assistants, instructors, learners, etc).

Thereafter, we describe the phases and roles of im-

plementing a LA cycle using our metamodel by pro-

viding an illustration of the implementation of an in-

dicator. We emphasize how it differs from a classical

Towards Learning Analytics Metamodels in a Context of Publishing Chains

cycle regarding the succession of the steps, actors in-

volved and, naturally, its proximity to the content(s).

5.1 Illustration of the Learning

Analytics Processes

For easiness of description we will use a simple indi-

cator – the time spent in each part of a course module

– to illustrate the roles and steps of using the proposed

metamodel. A more complex indicator – aimed at

predicting completion – will also be used as an exam-

ple allowing to indicate the differences of implement-

ing this type of previous data-dependent indicators.

5.1.1 First Step: Assessing Needs

The ﬁrst step relates to the identiﬁcation of the ques-

tion to be answered (user needs). Usually, a need

is expressed by one of the stakeholders. This stake-

holder comes from the community using the docu-

ment model in question: an instructor, learner, edu-

cational administrator, etc.

In our example, an instructor wishes to identify

the time spent on each type of the different parts of

his course, he will use the information to understand

the usage of such resources by learners. With this in-

formation, he wishes to understand the importance of

each type of resource and identify sections that may

need a re-design.

Note that this ﬁrst step does not differentiates

signiﬁcantly from a classical learning analytics ap-

proach, besides of the actors involved (when the com-

munity discuss the changes to the model).

5.1.2 Second Step: Deﬁning Indicators

The second step consists of deﬁning the indica-

tors that will meet the expressed need. Modeling

stems from the aforementioned deﬁnition of indica-

tor. Therefore, on the one hand the modeler will have

to understand the needs of the stakeholder and, on the

other hand, he or she may consult an analyst about

the indicator to conceive it holistically: To whom it is

addressed? Has it already been proposed in the litera-

ture? If it is the case, with what results? How should it

be shown to the users who will consult it (dashboard,

type of graph, warning message, etc.)?

In our example, we assume that the instructor pro-

poses the indicator to the modeler that conﬁrms it is

possible to implement it.

This step differs from a classical approach. Usu-

ally, the e-learning interaction traces are already col-

lected and there is a need to select the relevant ones.

Often this is done by the learning environment expert,

that has in-depth knowledge of the traces collected

and their structure and the analyst will need to work

closely with him.

5.1.3 Third Step: Modeling Indicators

Once all the information has been gathered, the mod-

eler proceeds with the modeling of the indicator. This

modeling concerns three main parts: traces, indicator

and visualization(s).

First, the modeler deﬁnes the traces to be gen-

erated to compute the indicator. He or she decides

among other things the type of triggering event of a

log. In our example, the event corresponds to each

block being shown/not shown on the screen (focus in

and focus out). The modeler also indicates the content

of the trace, i.e. the recorded information, – in our ex-

ample, the ID of the block shown and its type/name,

among others. (S)He can also deﬁne which parts of

the document are concerned: all the pages, all the

pages and each sub-part (blocks) of the pages (our

case), just the blocks which are “concept” and “in-

troduction”, any attempt to answer a quiz, etc. The

modeler also deﬁnes how these traces will be period-

ically converted into ready-to-use tables when calcu-

lating the indicator.

Then, the modeler proceeds to model the indica-

tor itself. He or she deﬁnes the inputs necessary. It

can range from a type of trace, as just described, to

an input of a start/end date coming from the instruc-

tor, or another indicator used as input, among others.

The calculations to be performed are coded (applica-

tion of operators) and the type of output indicated. In

our example, a JSON matrix containing the total time

spent grouped by each type of the parts of the docu-

ment. Any preprocessing and post-processing can be

done either in this code or in the previous step by di-

rectly registering information within the stored data,

which can be particularly useful if it is used by mul-

tiple indicators. The modeler also deﬁnes the calcu-

lation schedule for each indicator, with the possibility

to identify any incremental processing. The idea is

that this way more efﬁcient calculations can be done,

avoiding to recalculate everything each time an indi-

cator is shown. This logic is not always in place as

usually the interest relies on the result of an analysis,

whereas here the modeler can better care about these

optimization questions and this impacts all users of

the indicator thereafter.

Finally, the modeler deﬁnes the transformer used

to produce the visualization through a widget. One

has to deﬁne (1) how the result will be returned to the

users (i.e. a bar chart), (2) where it will be included

(i.e. a dashboard), and (3) for whom (i.e. instructors

and learners).

CSEDU 2021 - 13th International Conference on Computer Supported Education

Regarding the dropout prediction indicator: as it

is a case of previous data-dependent analysis, the ex-

ploratory analysis is recommended to be made using

data from a previous version of the course to carry out

feature engineering and run different algorithms in or-

der to identify the best performing one related to the

data at hand. Once this analysis has been done (out-

side of the current system) and a data model has been

identiﬁed (for example, a decision tree), it is this data

model that will be embedded into the metamodel of

the indicator.

This step is certainly the one that differs the most

from a classical approach of a LA implementation, as

an indicator is usually deﬁned a posteriori.

5.1.4 Fourth Step: Evaluating Indicators

The fourth step consists of making sure results are

beneﬁcial to the stakeholders. As for any educa-

tional intervention there are risks associated such as

incorrect or imprecise interpretation of the informa-

tion provided, for instance a bad interpretation of a

graph or an unexpected effect, such as motivation de-

crease when comparing to others.

Finally, the expected improvement linked to the

need expressed at the start of the project can be as-

sessed, formally or informally, using any research

method allowing to assess the implementation effects,

as in a classical approach. The advantage here is that,

since the document model is used in different con-

texts, an analysis of the results can be more consis-

tent, for example, comparing access to “concepts” in

documents from courses across different knowledge

areas or universities.

6 PROOF OF CONCEPT

6.1 Reiﬁcation

As indicated in section 5.1, when compared with a

classical learning analytics implementation, the main

difference is in step 3, where the actual model of in-

dicator is deﬁned. Another difference is in the im-

plication of different actors/roles. As the modeler is

already an expert on the document model(s), he or she

can deﬁne the traces needed, that relate speciﬁcally to

each model structure and semantics, and by doing so,

there is no need to rely on traces generically collected

that frequently require the intervention of an environ-

ment expert.

We implemented the components of the proposed

metamodel in the same tool used to create document

models, as seen in ﬁgures 5 and 6. Note that the trans-

formations needed for it to be functional are still un-

der consideration. The components of the metamodel

are currently under evaluation by modelers in order

to assess if the components are sufﬁcient to model a

variety of indicators in different contexts and if any

improvements can be made at this time.

6.2 Potential Beneﬁts

As stated before, the differences on the approach used

possibly allow for an improvement in productivity,

specially regarding scalability. In this section, we

describe different measures and cases that could po-

tentially be improved by using an model-driven engi-

neering approach to implement a LA cycle in a pub-

lishing chain context. Naturally, some of the advan-

tages come from the approach used, some from the

context and, some from the strong integration of both.

6.2.1 Detailed Analysis of a Document

A ﬁrst aspect to be considered is that, by using model-

driven engineering to produce both the document it-

self and the indicator, allows to create detailed indi-

cators (or add details to existing one) taking into ac-

count (in the traces themselves) the document seman-

tics and/or structure. This fact allows, for instance,

to easily create the indicator given as an example in

section 5.1, i.e. time spent in each type of content

parts (our blocks, i.e. “introduction”, “concept”, “ex-

ample”, etc.), as the information (type of block used)

can be added to the traces to be collected with a few

clicks, linking the document primitive to the learn-

ing analytics primitive. Whereas in a classical ap-

proach one would need to tag a posteriori each part

(having the premise that the document is structured

in a consistent way) that would have to be done al-

most manually, linking each part identiﬁer to a type

of content. And any modiﬁcation of the content of

the course would either require this tagging to be re-

done, or it would be the instructor’s responsibility to

make sure the tagging remain valid – an error-prone

extra task that they are not an expert at.

The easiness of the implementation of this level

of detailed analysis, integrated to the system, can cer-

tainly be seen as an advantage when considering indi-

cators meant at re-designing courses. Moreover, us-

ing this detailed information as inputs when carrying

out feature engineering for more complex indicators

such as prediction, sequence analysis, among others,

is a promising path we are willing to address in the

future.

Towards Learning Analytics Metamodels in a Context of Publishing Chains

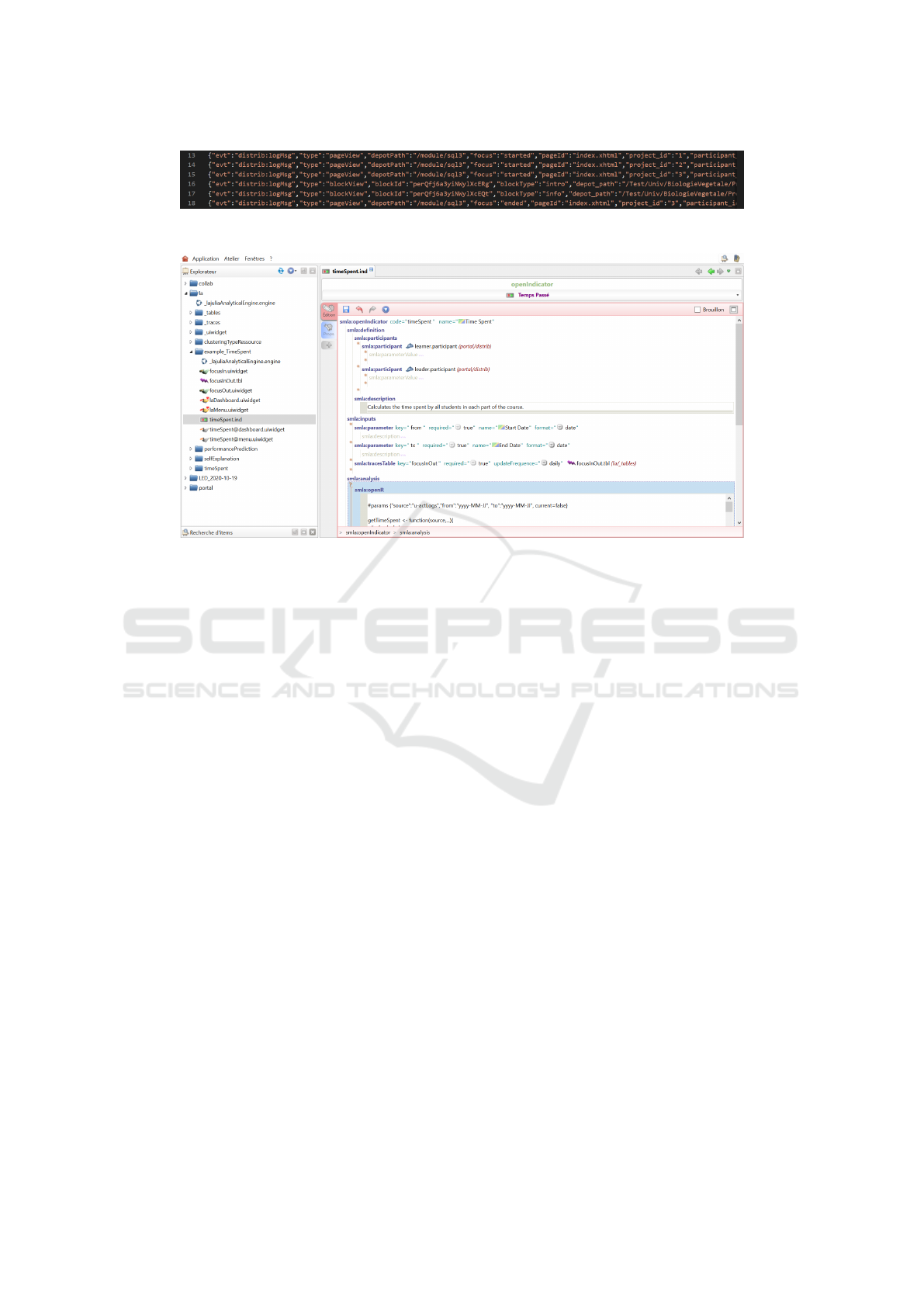

Figure 5: Traces generated with the information of the document included.

Figure 6: The learning analytics modeling of an indicator.

6.2.2 Separation of Content and Form

Habitually, indicators are implemented using one spe-

ciﬁc chart as the desired result, often available for

consultation in a dashboard.

Having different learning analytics primitives for

calculation and visualization of an indicator has the

advantage of separation of content and form, in the

same way as documents created using publishing

chains (see section 4. As a result, we can imagine sit-

uations where the same calculation result can be used

in a dashboard, intended at the instructor, and side by

side with the course menu for learners (ﬁgure 4. For

our example, the time spent in each part: the former

will go directly to a dashboard to see which parts are

the most time consuming for learners, while the later

can see the time spent without having to stop con-

sulting the content and going to check a dashboard,

maintaining the ﬂow of a studying session.

6.2.3 Interoperability

The interoperability of a LA system ensures the com-

patibility of any type of virtual learning environment

by allowing the integration of different data sources

(Dyckhoff et al., 2012). More broadly, according to

systems engineering, it is a characteristic of a system

allowing it to work with other products or systems,

currently or in the future, whether in its implementa-

tion or in access.

As stated above, traces produced using the pro-

posed approach have the potential of being enriched

with document details. However, if needed by cer-

tain situations – this may be needed when traces will

be analyzed by an external tool –, it is also possible to

create such traces using any given standard (for exam-

ple, xAPI). Doing so may increase the interoperability

of the system, but decreases the advantage of working

with enriched traces.

6.2.4 Compliance with Data Privacy

Compliance with various data privacy laws is cer-

tainly an increasingly important point regarding the

innate requirements of a personal data analysis pro-

cess. The data collected as well as access to it and its

processing thereof must be carefully documented.

In order to justify the tracing, for each piece of

data, the documentation must determine and justify

why this tracing is done, who has access to it, the re-

sulting uses and treatments, etc. In addition, explicit

consent from users is required.

This point has been brieﬂy mentioned before, as

a key difference in the approach discussed here is the

fact that traces are collected because they are going

to be used when calculating a certain indicator that

was modeled as required by a stakeholder. This is a

twist from the approach where all actions performed

in the learning environment are collected and only

later stakeholders will decide how they could use it.

CSEDU 2021 - 13th International Conference on Computer Supported Education

As traces are connected to indicators, it will likely

be easier to create a documentation that conforms

to GDPR

principles such as communicating speciﬁc

purposes for data collected and actors involved in the

data processing. The key idea of only tracing what is

necessary to answer to predeﬁned questions is also an

inherently very GDPR-compliant approach.

6.2.5 Maintainability

Another fundamental beneﬁt in this approach is the

maintainability of the proposed solution. Maintain-

ability measures the effort required to correct or trans-

form the software, but also its extensibility, that is

to say the little effort required to add new functions.

This is potentially where we can ﬁnd the greatest ad-

vantage of using model-driven engineering in order to

create the learning analytics implementation.

Given our context where many document models

and contexts of use will rely on the same solution,

being able to easily choose and adapt indicators is

essential. Thereby, a modeler can create an indica-

tor for a speciﬁc document model and, the fact that it

will potentially be used by a number of users in dif-

ferent contexts, i.e. any document produced using the

document model, from a single source (the modeling)

is a great improvement in maintainability. Moreover,

on the long term, any changes or corrections needed

are to be made at one single code/modelling, reducing

development time, resources and sources of potential

errors.

6.2.6 Performance

The ratio between the quantity of resources required

(means including personnel, time, material, etc.) and

results delivered constitutes performance.

Regarding the proposed approach, we can speak

of performance with regard to the creation of an indi-

cator used in many contexts (any using the same doc-

ument model), of a series of indicators – in a dash-

board, for example – or even of a kind of industrial-

ization of analysis processes, which would allow the

creation of different dashboards adapted to the spe-

ciﬁc needs of a series of document models, with a po-

tential saving of time to do this task.

6.2.7 Multi Format

As we saw, in our context a single pedagogical re-

source can be automatically transformed into several

formats as PDF, Open Document, Web, synthetic pre-

sentation, etc. In a situation where a learner will print

https://gdpr.eu/

one or two chapters of a course in order to study dur-

ing his or her vacations, we can imagine that, on the

resulting PDF an indicator – say the time he or her has

already spent on each part of each chapter – will be

printed alongside the content. Needless to say, there

will be no trace recorded of his or her studying session

from the resulting PDF, but any data already available

at the time of the transformation of the resource at

hand could be appended to it.

6.2.8 Customization

The possibility of customizing an indicator or a dash-

board has been studied by several authors (Dabbebi

et al., 2017). This may involve offering ﬁltering al-

ternatives or different viewing modes, the choice of

which is made by users according to their preferences

and needs felt during their practices. The fact that

each document model can have its speciﬁc indicators

related to its actual usages can also be understood as

a form of customization.

Providing the possibility of customization is cer-

tainly an asset, nevertheless requires ensuring that

users understand the choices available to them, as

well as special attention not to overwhelm the user

with a number of choices – and therefore decisions

– too important to make, which could consequently

inhibit the use of the system.

Using the proposed approach, it is possible to cus-

tomize an indicator in two ways: (1) by proposing

more than one option, such as a visualization inside

a dashboard or alongside the menu, allowing users

to choose the one they prefer; and (2) by remodeling

an indicator, for instance, starting with the model of

an indicator analysing the time spent in each sub-part

(blocks within a page) of the document and chang-

ing it to only show the results of the main parts (each

page) can be done with a few clicks.

6.2.9 Reproducibility

Another important aspect regarding LA implementa-

tions is linked to the need to allow the reproducibil-

ity of any indicators already in place. According to

(Lebis et al., 2018), reproducibility is made up of

three properties, namely:

Replication: the ability to reproduce an identical

analysis, without necessarily taking into account the

variables linked to the context. More precisely, in an

analysis process, replication is considered as the or-

dered succession of operators of such process. This

is because the operators involved in this process are

clearly identiﬁed and their order of application is also

well deﬁned (Lebis et al., 2018). An indicator that

Towards Learning Analytics Metamodels in a Context of Publishing Chains

has being modeled in one document model can eas-

ily be used (with or without adaptations) in another

document model as the operators needed and their or-

der of application are known, only changes to the en-

try traces (as model’s parts are not the same) should

be adapted, as well as visualization modes, if neces-

sary/desired from the new context.

Repeatability: the property of an analysis process

to be carried out several times, on the same set of data

and with the same conﬁgurations, having the same

output results. In other words, this quality makes it

possible to trace the results produced and their con-

sistency (Lebis et al., 2018). Checking the repeata-

bility quality of implemented indicators should be fa-

cilitated as the same implementation would be avail-

able/tested in various practical contexts.

Reuse: the ability of software (or an analysis pro-

cess) to be reused in an application other than that

for which it was designed or in another context. The

same process must then be easily reused on another

data set which is more or less similar to the initial

one. Thus, possible adaptations can be made in order

to adapt the analysis to a similar context, for example,

to another document model, but with particular atten-

tion to guarantee that the foundation of the analysis

process (a learning, theory from which the indicator

was envisaged, for example) are respected and remain

consistent.

Lastly, by using our approach, a large variety of

indicators can be modeled, but it is also possible to

envisage the proposition of a given set of an indica-

tors ready to use (as a single “primitive”/component).

Speciﬁcally, an indicator, or series of indicators seen

as most useful/standards, can be modeled with the

primitives we propose and, at a later time, be “con-

densed” as a single primitive to be added to model-

ing processes, facilitating even more their implemen-

tation into other document models.

7 DISCUSSION

In this work we analyse the potential beneﬁts of

implementing learning analytics solutions using a

model-driven approach in conjunction with digital

publishing chains that are also based on the same ap-

proach. The metamodel proposed aims at being sufﬁ-

ciently abstract in order to allow the implementation

of the vast majority of learning analytics indicators,

with the advantage of counting on the prior knowl-

edge of documents semantics and structure.

Future work will be conducted aiming at modeling

a variety of indicators and measuring in more detail

the beneﬁts discussed here.

REFERENCES

Arribe, T., Crozat, S., Bachimont, B., and Spinelli, S.

(2012). Cha

ınes

editoriales num

eriques : allier efﬁ-

cacit

e et variabilit

e gr

ace

a des primitives documen-

taires. In Actes du colloque CIDE, pages 1–12, Tunis,

Tunisie.

Bachimont, B. and Crozat, S. (2004). Instrumentation

num

erique des documents : pour une s

eparation

fonds/forme. Revue I3 - Information Interaction In-

telligence, 4(1):95.

Choquet, C. and Iksal, S. (2007). Mod

elisation et

construction de traces d’utilisation d’une activit

d’apprentissage : une approche langage pour la

eing

enierie d’un EIAH. Sciences et Technolo-

gies de l’Information et de la Communication pour

l’

Education et la Formation, 14(1):419–456.

Combemale, B. (2008). Ing

enierie Dirig

ee par les Mod

eles

(IDM) –

Etat de l’art.

Crozat, S. (2007). Scenari, la cha

ıne

editoriale libre. Ey-

rolles.

Dabbebi, I., Iksal, S., Gilliot, J.-M., May, M., and Garlatti,

S. (2017). Towards Adaptive Dashboards for Learning

Analytic: An Approach for Conceptual Design and

Implementation. In Proceedings of the 9th Interna-

tional Conference on Computer Supported Education

(CSEDU), pages 120–131, Porto, Portugal.

Djouad, T., Mille, A., Reffay, C., and Benmohamed, M.

(2009). Ing

enierie des indicateurs d’activit

a partir

de traces mod

elis

ees pour un Environnement informa-

tique d’apprentissage humain. Sciences et Technolo-

gies de l’Information et de la Communication pour

l’

Education et la Formation, 16(1):103–139.

Dyckhoff, A. L., Zielke, D., Chatti, M. A., and Schroeder,

U. (2012). Design and Implementation of a Learning

Analytics Toolkit for Teachers. Educational Technol-

ogy & Society, 15(01).

sevi

c, D., Kovanovi

c, V., and Joksimovi

c, S. (2017).

Piecing the learning analytics puzzle: a consolidated

model of a ﬁeld of research and practice. Learning:

Research and Practice, 3(1):63–78.

Guillaume, D., Crozat, S., Rivet, L., Majada, M., and Hen-

nequin, X. (2015). Cha

ınes

editoriales num

eriques.

Hutchinson, J., Rounceﬁeld, M., and Whittle, J. (2011).

Model-driven engineering practices in industry. In

Proceedings - International Conference on Software

Engineering, pages 633–640, New York, New York,

USA. ACM Press.

equel, J.-M., Combemale, B., and Vojtisek, D. (2012).

Ing

enierie dirig

ee par les mod

eles - Des concepts

a la

pratique. Ellipses, Paris.

Lebis, A., Lefevre, M., Luengo, V., and Guin, N. (2018).

Capitalisation of Analysis Processes : Enabling Re-

producibility , Openess and Adaptability thanks to

Narration. In LAK ’18 - 8th International Conference

on Learning Analytics and Knowledge, pages 245–

254, Sydney, Australia.

Siemens, G. (2011). Learning and Academic Analytics.

Wise, A. F. and Vytasek, J. (2017). Learning Analytics Im-

plementation Design. In Lang, C., Siemens, G., Wise,

A., and Ga

sevi

c, D., editors, Handbook of Learning

Analytics, chapter 13, pages 151–160. SoLAR, ﬁrst

edition.

CSEDU 2021 - 13th International Conference on Computer Supported Education
