Time Series Segmentation for Driving Scenario Detection with Fully

Convolutional Networks

Philip Elspas

, Yannick Klose

, Simon Isele

, Johannes Bach

and Eric Sax

Dr. Ing. h.c. F. Porsche AG, Weissach, Germany

FZI Research Center for Information Technology, Karlsruhe, Germany

Keywords:

Scenario Detection, Data-Driven Development, Time Series Segmentation, Fully Convolutional Networks,

Driving Scenarios.

Abstract:

Leveraging measurement data for Advanced Driver Assistant Systems and Automated Driving Systems re-

quires reliable meta information about covered driving scenarios. With domain expertise, rule-based detectors

can be a scalable way to detect scenarios in large amounts of recorded data. However, rules might struggle

with noisy data, large number of variations or corner cases and might miss valuable scenarios of interest.

Finding missing scenarios manually is challenging and hardly scalable. Therefore we suggest to complement

rule-based scenario detection with a data-driven approach. In this work rule-based detections are used as la-

bels to train Fully Convolutional Networks (FCN) in a weakly supervised setup. Experiments show, that FCNs

generalize well and identify additional scenarios of interest. The main contribution of this paper is twofold:

First, the scenario detection is formulated as a time series segmentation problem and the capability to learn a

meaningful scenario detection is demonstrated. Secondly, we show how the disagreement between the rule-

based method and the learned detection method can be analyzed to ﬁnd wrong or missing detections. We

conclude, that the FCNs provide a scalable way to assess the quality of a rule based scenario detection without

the need of large amounts of ground truth infromation.

1 INTRODUCTION

With increasing capabilities of Advanced Driver As-

sistant Systems (ADAS) and Automated Driving Sys-

tems (ADS), recorded driving data becomes an es-

sential aspect for data-driven development processes

(Bach et al., 2017b). Before testing new features in

costly measurement campaigns, recorded data can be

used to gain a better understanding of relevant situa-

tions, detailing required test cases or testing functions

by re-simulation (Bach et al., 2017a). With advances

in machine learning, also function development itself

can leverage large amounts of data. For example,

imitation learning can be used to learn directly from

recorded human driving (Bansal et al., 2019). How-

ever, safety is still an issue in the domain of automated

driving (Wood et al., 2019).

For state of the art development processes, the

Automotive Software Process Improvement and Ca-

pability dEtermination (ASPICE) reference model

demands speciﬁcation of system requirements that

are validated with corresponding system qualiﬁcation

tests (VDA QMC Working Group 13 / Automotive

SIG, 2015). Deﬁning driving scenarios in a formal

way is of great interest in current research as a trace-

able way to match requirements with concrete test

cases (Menzel et al., 2018; Bach et al., 2017c; Sippl

et al., 2019; Bock et al., 2019). One aspect of a sce-

nario based development process is the identiﬁcation

of scenarios in recorded driving data (Elspas et al.,

2020). Due to the large number of possible scenarios

and huge amounts of recorded data, automated and

scalable methods are needed to match scenarios of in-

terest with slices of recorded data covering those.

Scenarios are often deﬁned on an abstract level.

Arbitrary interactions between different trafﬁc partic-

ipants and the trafﬁc infrastructure can be used to de-

scribe scenarios. However, some interactions can be

challenging to identify in recorded data. Information

is restricted by the perception range and precision,

and are prone to noise and uncertainty. While sim-

ple rules allow identifying basic scenarios, some vari-

ations might be missed or detected wrongly. Partic-

ularly, missing detections can lead to a oversimpliﬁ-

cation during the development process and cause mal-

functions. However, ﬁnding missing detections (False

Elspas, P., Klose, Y., Isele, S., Bach, J. and Sax, E.

Time Series Segmentation for Driving Scenario Detection with Fully Convolutional Networks.

DOI: 10.5220/0010404700560064

In Proceedings of the 7th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2021), pages 56-64

ISBN: 978-989-758-513-5

Negatives) and wrong detections (False Positives) be-

comes a major effort with increasing amounts of data.

Another way for scenario detection are machine

learning methods, which enjoy great popularity in a

broad range of domains. Machine Learning shows

strengths in leveraging large amounts of data, unless

the availability of labeled training data is a bottleneck

and limitation. In this work we suggest a combina-

tion of a rule-based approach, with a FCN for sce-

nario detection in multivariate time series. The rule-

based approach is used to create datasets of labeled

data, which is used to train a FCN in a weakly su-

pervised setting. With this approach we leverage the

availability of recorded driving data along with the

reasonable quality of rule-based detectors. As label-

ing is done programmatically, datasets can be created

and adapted quickly. We observe that the FCNs do

not perfectly replicate the rule-based detections, but

generalize well and ﬁnd missing labels. Exploring the

deviations of the rule-based and the learned scenario

detection provides a systematic approach to ﬁnd ad-

ditional scenarios of interest. In an iterative process

these scenarios of interest can be used to improve the

reliability of scenario detection.

We start this work with an overview of the state

of the art in scenario detection, data programing and

time series segmentation. In Section 3, we discuss

the formulation of the scenario detection problem and

adapt a FCN architecture, as commonly used for im-

age segmentation, to be used for multivariate time

series. Section 4 covers training and experiments

to learn a model to detect lane changes and cut-ins.

We evaluate additionally found and missing scenar-

ios, which reveals good generalization capabilities.

Manually labeled scenarios are used to verify the sug-

gested method. Finally, in Section 5 we discuss our

ﬁndings and give an outlook on future work.

2 STATE OF THE ART

While simulation becomes more and more important

in the development of ADAS and ADS, real world

testing, offering the highest possible validity, still re-

mains necessary. Virtualization is not yet capable to

fully compensate real world variations. To identify

the covered scenarios within a given large data collec-

tion, automated scenario detection is a major concern.

Domain knowledge can be expressed with context-

free grammars (Lucchetti et al., 2016) or with regu-

lar expressions (Elspas et al., 2020) as rule-based ap-

proaches of scenario detection. Unsupervised learn-

ing can be used to identify scenarios as repeating

patterns in recorded data. Recent work in (Langner

et al., 2019) and (Montanari et al., 2020), suggests

that found clusters can match well with different driv-

ing situations. In (Ries et al., 2020) word embed-

dings were used to compare driving states in a lower-

dimensional space. However, it remains challenging

to match requirements and formally deﬁned scenarios

to real world driving data.

A paradigm to tackle the bottleneck of labeled

data for supervised learning was introduced as data

programming (Ratner et al., 2016). Experts are en-

couraged to deﬁne heuristic labeling functions while

noisy labels are derived by the agreement or disagree-

ment of multiple labeling functions. Discriminative

models can be trained on such programmatically gen-

erated labels to leverage generalization capabilities of

neural networks in a weakly supervised setup. In this

work, we incorporate the basic paradigm of program-

matic labeling functions to train discriminative mod-

els for scenario detection. However, assumptions on

conditionally independent labeling functions to learn

generative models (Ratner et al., 2016) seem hardly

applicable to the given domain. Time series are tem-

poral dependent and the underlying information for

scenario detection, like object lists, are strongly cor-

related.

With the availability of labeled data, supervised

learning can be used to detect scenarios. In the con-

text of time series, e.g. the loggings from the bus

interfaces of a vehicle, various problem formulations

can be used: Fu (Fu, 2011) distinguishes between rep-

resentation and indexing, similarity measure, segmen-

tation, visualization, and mining. The general capa-

bilities of deep neural networks for time series clas-

siﬁcation tasks were shown in (Wang et al., 2017)

and (Fawaz et al., 2019). Classically, segmentation

of time series deals with ﬁnding the best representa-

tion of the time series with respect to a given number

of segments or a given error function (Keogh et al.,

2004). While semantic segmentation with deep con-

volutional networks is widely used for computer vi-

sion, e.g. (Ronneberger et al., 2015), semantic seg-

mentation of time series is less popular. However,

the successful application of semantic time series seg-

mentation was demonstrated for sleep staging (Per-

slev et al., 2019).

3 TIME SERIES SEGMENTATION

FOR DRIVING SCENARIOS

In this work, we use loggings from the bus interface

of the vehicle’s communication network. Due to the

highly distributed electronics architecture in current

vehicles, the bus loggings provide comprehensive in-

Time Series Segmentation for Driving Scenario Detection with Fully Convolutional Networks

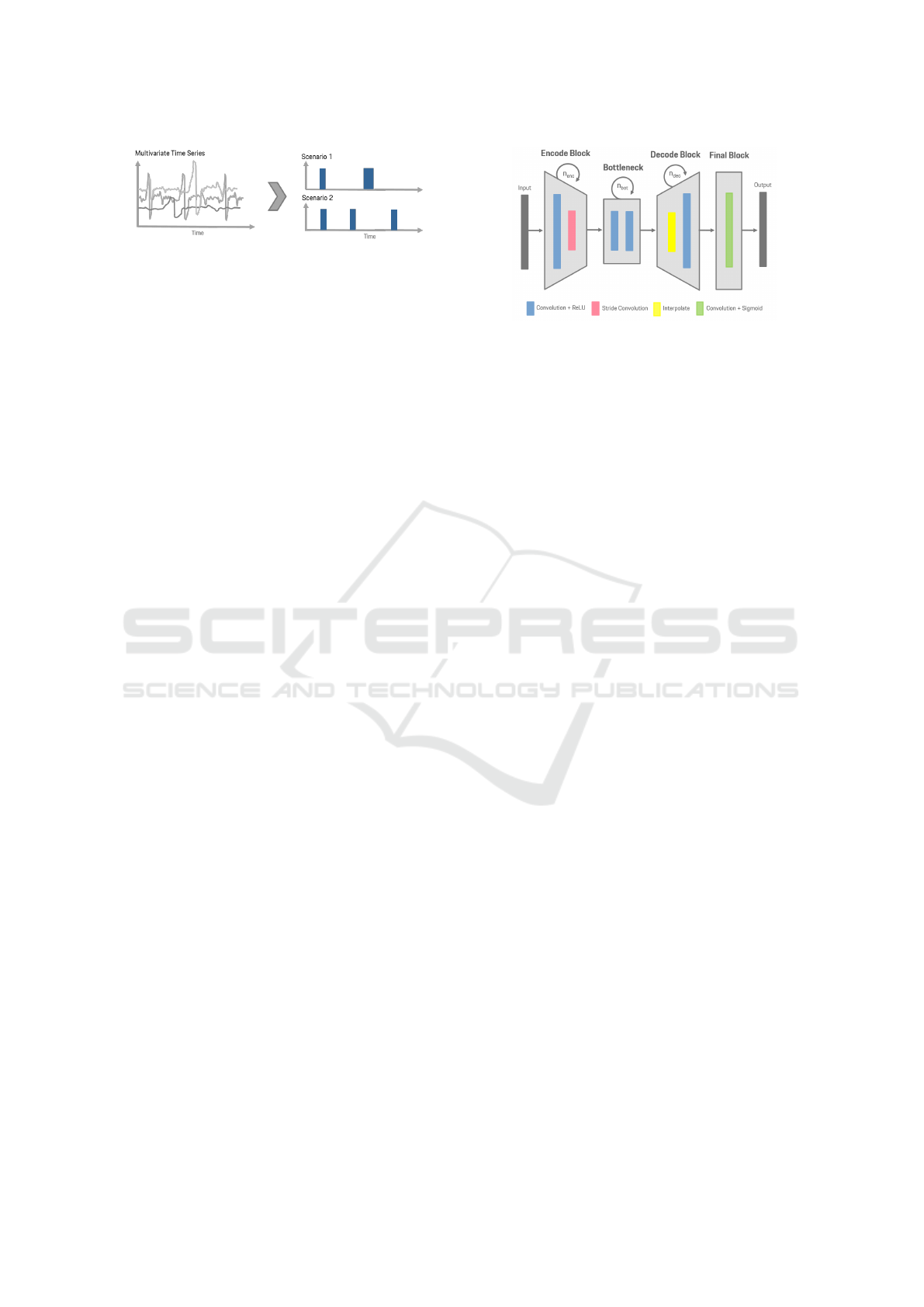

Figure 1: Scenario detection as a semantic segmentation

problem of multivariate time series.

formation for scenario detection. From the data per-

spective the bus loggings are multivariate time series.

The data preprocessing includes a use-case speciﬁc

selection of relevant signals and upsampling to a ﬁxed

sampling rate. Detected scenarios are represented as a

list of scenario tuples s = (l, t

, t

, m) with a semantic

label l, start time t

, end time t

, and a reference to the

corresponding measurement m. As a varying number

of scenarios can occur within a measurement, a di-

rect prediction with neural networks is not well condi-

tioned. Instead we suggest a two step procedure: We

estimate a scenario probability for each time step and

extract the scenario by identifying consecutive time

steps with a high scenario probability.

Figure 1 shows a multivariate time series as in-

put data with binary scenario labels. As each point in

time can indicate the presence or absence of one or

multiple scenarios of interest, the problem becomes

a semantic segmentation problem similar to semantic

image segmentation, where each pixel is assigned to

one out of n semantic classes. However, we do not

demand disjunct classes to support potentially simul-

taneous and overlapping scenarios.

3.1 Dataset Creation

For supervised learning, labeled data is a common

bottleneck. Manual labeling becomes infeasible with

growing amounts of data and potentially changing re-

quirements. Therefore, we use a programmatic label-

ing approach. With numerical and Boolean expres-

sions, multivariate signals are combined to a single,

univariate time series of relevant states. Thereafter,

regular expressions are used to ﬁnd a pattern of state

changes. These two steps provide a ﬂexible and ex-

pressive way to describe patterns that are associated

with a scenarios of interest.

With such a rule-based labeling approach we do

not expect perfect ground truth labels. But, as our

experiments suggest, the label quality is sufﬁcient

to learn a meaningful scenario detection. Since no

manual labeling is needed, the detection rules can be

adapted and we were able to create datasets quickly

and on demand.

Figure 2: Structural overview of the neural network archi-

tecture.

3.2 Neural Network Architecture

While recurrent neural networks are commonly used

for time series, we follow the argumentation in (Per-

slev et al., 2019), that recurrent networks are often

difﬁcult to optimize and can be replaced by feed-

forward networks for many tasks, as shown in (Bai

et al., 2018) and (Chen and Wu, 2017). As the sce-

nario detection in recorded data is an ofﬂine prob-

lem, the scenario classiﬁcation for time step can be

based on past and future data points. A complete time

sequence can be directly fed into the model and no

recurrent units are needed to cover the dimension of

time.

Based on the success of Fully Convolutional Net-

works (FCN) for semantic image segmentation, we

adapt the popular U-Net architecture (Ronneberger

et al., 2015) for multivariate time series, as shown in

Figure 2. We replace 2D-Convolution layers by 1D-

Convolutions along the time domain. Due to the fully

convolutional architecture, the network can be applied

to input sequences of different lengths. Furthermore,

we keep the basic principles of an encoder block to re-

duce the resolution of the time series, bottleneck lay-

ers to add further depth, and a decode layer to restore

the original temporal resolution of the input.

The encoder consists of n

enc

downsampling blocks

with strided convolutions (Springenberg et al., 2015)

in each second convolutional layer. The bottleneck

layer consists of n

bot

residual blocks to avoid vanish-

ing gradients (He et al., 2016). The decoder restores

the original temporal resolution with n

dec

= n

enc

up-

sampling blocks with an interpolation layer followed

by a convolution layer. All layers in the network use

ReLU as activation, only the ﬁnal layer uses the sig-

moid function. Finally, the network is trained with the

binary cross entropy as loss function using stochastic

gradient descent with momentum.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

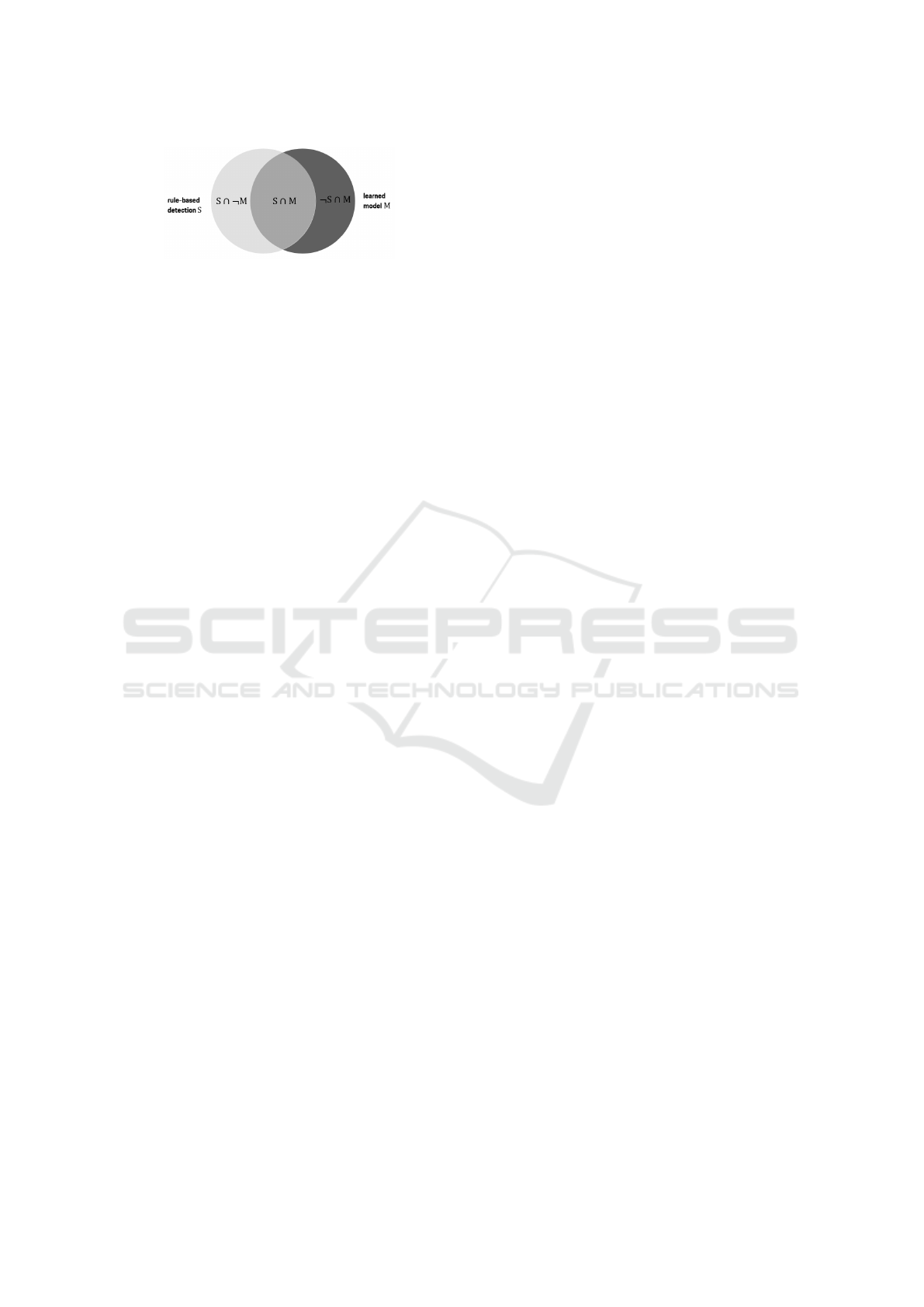

Figure 3: Schematic representation of the overlapping se-

quences of the rule-based detector and the neural network.

3.3 Event based Evaluation

In the context of driving scenarios, exact start and end

points are often unprecise. For example the start of a

lane change could be chosen as the ﬁrst movement

towards the lane markings or, more conservatively,

the ﬁrst time the lane marking is crossed. Noisy data

makes sharp start and end times further unpractical.

Therefore, we suggest an event based evaluation of

the detected scenarios: Instead of evaluating the cor-

rect detection for each time step, we summarize con-

secutive time steps with the same scenario label and

evaluate the number of correctly detected events. So

the evaluation consists of two steps: First we trans-

form the time series into events. By ﬁltering events

with implausible short duration we avoid model un-

certainty to cause large numbers of false positive de-

tections. Secondly, we ﬁnd matching events between

the set of all detections S from the rule-based ap-

proach and the detections M from the learned model.

As shown in Figure 3, we get a set of matching events

S ∩ M that were identiﬁed by both approaches, a set

S ∩ ¬M not found by the learned model, and a set

¬S ∩ M not found by the rule-based approach. Com-

monly, the terms True Positives (TP), False Positives

(FP) and False Negatives (FN) are used for these sets

respectively. However, due to the weak supervision

setup, we avoid these terms to stress that the train-

ing labels do not represent ground truth information.

High Precision and Recall indicate that the learned

model can reproduce the rule-based detections, but do

not assess the quality of the scenario detection. In-

stead, we explicitly investigate the additional detec-

tions ¬S ∩ M and the missing ones S ∩ ¬M from the

rule-based detection as a systematic approach to iden-

tify FP and FN respectively.

4 DRIVING SCENARIO

DETECTION

We use the proposed concept for the detection of two

basic driving scenarios: lane changes and cut-ins.

This section describes how we generate the training

set and chose hyperparameters for the FCN model,

before we evaluate the learning results and verify

those.

For our experiments we use 105 hours of bus log-

gings from 9 cars of 3 different models. The record-

ing was done during 16 days in 4 different countries.

For scenario detection we rely on information from

the inertial measurement unit, the ego velocity and

yaw rate, and the perception from a front camera, i.e.

detections of lane markings and other trafﬁc partici-

pants. The camera detections are available as object

lists in the recordings from the vehicle bus. Videos

from a front camera were used to review few scenar-

ios manually. This proved especially useful for corner

cases which were noticed, irregular visualizations of

detected scenarios.

4.1 Lane Changes

Lane changes are a common maneuver with a clear

pattern in the lateral distance to the left and right

lane markings from the onboard perception. How-

ever, missing detections and noise make it challenging

to ﬁnd all lane change scenarios and potential corner

cases with a rule-based approach.

4.1.1 Data Labeling

First, we generate a training set by extracting a set of

relevant signals: We chose the lateral distance to the

detected left and right lane markings, as well as the

velocity and yaw rate from the ego vehicle. We deﬁne

a rule-based detector to create a set of labels S

, as

suggested in (Elspas et al., 2020): We identify driv-

ing close to the left and close to the right lane mark-

ings as relevant driving states A and D respectively.

Driving on the left and right lane markings, is deﬁned

as states B and C. Now, a lane change to the left is

detected as a state transitions A → B → C → D. Sim-

ilarly, lane changes to the right can be found by the

pattern D → C → B → A. Due to sensor noise and

perception uncertainty, these patterns miss some lane

change situations as revealed by reviewing few video

recordings. By also matching patterns where the lane

markings are lost for up to one second during the ma-

neuver, we make the labeling more robust. With these

robust patterns, we create a second set of label de-

noted by S

. This increases the number of detected

lane changes from |S

| = 1380 to |S

| = 1677.

We use both sets of labels to train a FCN to show

that, even with different quality of the labels, the FCN

learns a meaningful scenario detection and reveals

missing labels.

Time Series Segmentation for Driving Scenario Detection with Fully Convolutional Networks

0.3

0.16

0.25

0.14

0.12

0.2

0.1

0.15

0.08

0.1

0.06

0.05

0.04

100 150 200

100 150

200

Epochs

Loss

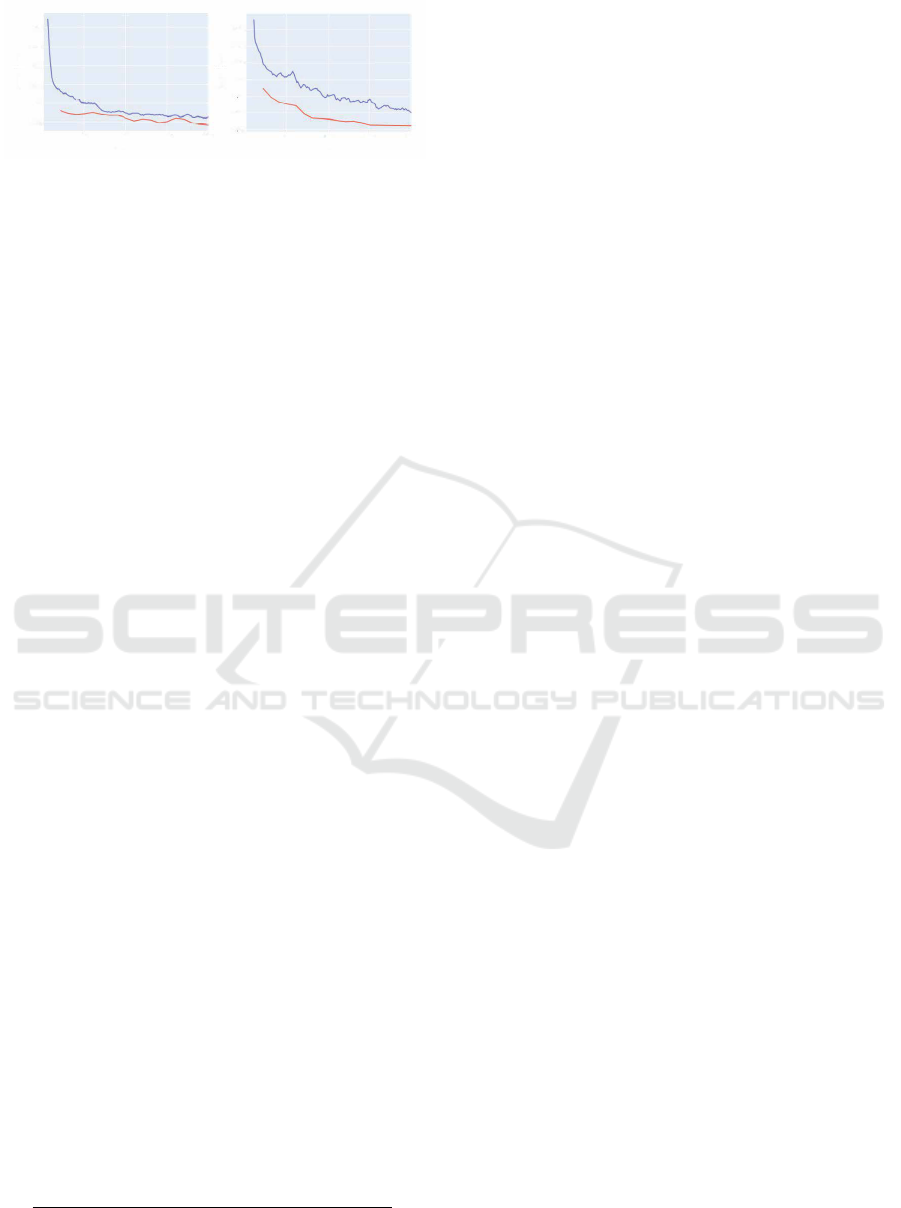

Figure 4: Training loss (blue) and validation loss (red) for

two models trained with labels from the simple rule-based

detector (left) and the improved rule-based detector (right).

4.1.2 Training

Before training the FCN model, described in sec-

tion 3.2, some crucial hyperparameters need to be

chosen. First, we note that the training data is highly

imbalanced. Lane changes have a mean duration of 6

seconds and account for 2.8% of the time. Therefore

we use undersampling and drop sequences without a

lane change with a drop probability of p

drop

= 70%.

We chose n

enc

= n

dec

= 3, so that the temporal res-

olution is reduced from originally 0.1 seconds to 0.8

seconds in the bottleneck layer. We argue, that this

granularity is sufﬁcient.

Figure 4 shows the decreasing training and valida-

tion loss for training the FCN for 200 epochs with the

rule-based detections in S

(left) and the more robust

detections S

as labels. Note, that the lower validation

loss in Figure 4 is caused by missing data balancing

in the validation set.

4.1.3 Results

As discussed in Section 3.3, the loss can be a mislead-

ing metric, because it depends highly on the scenario

duration and is prone to the label distribution. We

use the loss as indication for a converging model, but

further evaluation is based on events, extracted from

scenario predictions of the FCN: The threshold 0.5

is used as decision boundary for the presence of sce-

narios, rising and falling edges indicate start and end

times of the events. Implausible events with a du-

ration below 1 second are removed from the result-

ing sets. This prevents potentially large numbers of

toggling detections for situations, where the model is

unsure and predicts scenario probabilities around the

threshold. The set of events learned from the simple

labels S

is called M

, the set of detections from the

improved labels M

Table 1: Event based evaluation of lane changes.

S M |S ∩ M| |S ∩ ¬M| |¬S ∩ M|

1370 10 412

1670 7 413

Comparing the sets of rule-based detections S with

the detections from the learned models M in Table 1

shows only few missing detections from the learned

model (S ∩ ¬M), but few hundred additional detec-

tions (¬S ∩ M).

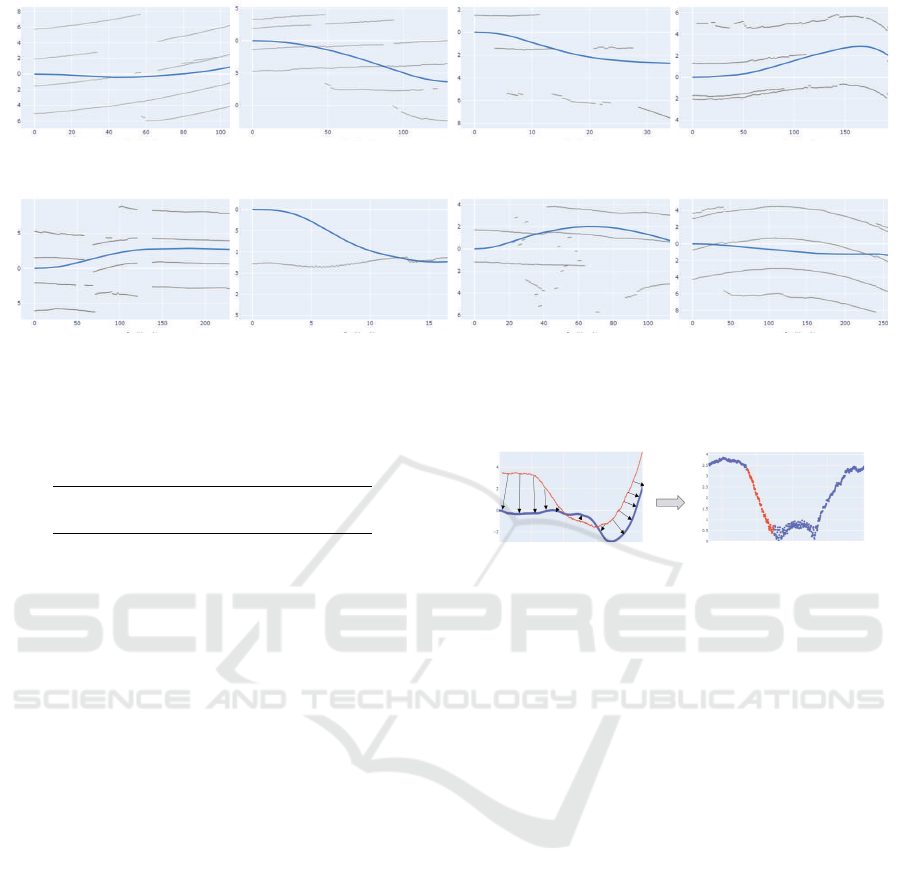

To determine whether the additional detections are

real lane changes or not, top-down views with the

odometry of the ego vehicle (blue) and the detected

lane markings (grey), as in Figure 5, can be reviewed.

Such visualizations allow simple visual inspection of

detected scenarios. Reviewing the 10, respectively 7,

missing detections from the learned model conﬁrms

all those situations as lane changes (e.g. Figure ??).

We interpret this as a strong indication for a high

Precision of the rule-based approach: Even the lane

changes that were hard to learn for the FCN model

were correctly identiﬁed by the rule-based detection.

Similarly, we check the additional detections from

the learned model: In the 412 additional detections

in ¬S

∩ M

roughly 58% of the detections are real

lane changes. This proves the learned models’ ability

to detect a signiﬁcant number of lane changes, which

were not labeled.

Even training with the improved labels, which

identiﬁed 297 additional lane changes in S

compared

to S

, the learned model predicts 413 additional sce-

narios. Reviewing those scenarios reveals 86 further

lane changes. Some of those have clearly missing de-

tections from the lane perception as shown in Figure

5b. Also corner cases like changed lanes for road-

works or holding on the sidewalk were found and are

shown in Figure 5c. Furthermore, the learned model

identiﬁes 46 situations in which the lane marking is

temporarily crossed, see Figure 5d. While such lane

crossings might be no lane changes as such, those are

clearly related scenarios and identifying such can be

beneﬁcial to further detail the discrimination of the

scenario of interest.

4.1.4 Veriﬁcation

Evaluating the sets in which the rule-based and

learned method disagree, does not directly provide

metrics about the detection quality: The detections

from both methods S ∩ M were only evaluated on a

sample base and could include FP. Furthermore, the

data could contain lane changes detected by neither

method.

To verify that the proposed methods provides

a reasonable scenario detection, we label all lane

changes within a subset of the recorded data manu-

ally. With this ground truth information we can cal-

culate Precision, Recall and F1-Score of the different

approaches. Hence we can also account for scenarios

missed by both methods.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

(a) Lane changes not detected by the learned model in S∩¬M. (b) Lane changes with missing lane information in ¬S ∩ M.

Figure 5: Lane changes where the improved labels M

and detections S

from the corresponding learned model do not match.

Also corner cases with modiﬁed lanes due to roadwork or holding on the sidewalk where found (c).

Table 2: Performance metrics for for lane change detection.

Precision Recall F1-Score

0.992 0.717 0.832

0.921 0.873 0.896

0.994 0.890 0.939

0.953 0.936 0.945

The results, shown in Table 2, verify the expec-

tations in Section 4.1.3: As indicated by no FP in

S ∩ ¬M, the rule-based detections S have a high Pre-

cision. The Recall for the simple rules is rather low

with 72%, which was indicated by the large number

of additional detections from the learned model.

With more robust rules the recall is largely in-

creased to 89%. The learned model, trained on this

data, is still able to ﬁnd further missing detections, re-

sulting in an even higher Recall of 93%. However, the

learned model tends to predict some false positives as

well, which leads to a lower Precision.

In both cases, the high Precision from the rule-

based approach was not reached, however, the learned

model was able to outperform the rule-based ap-

proach in Recall and in F1-Score.

4.2 Cut-ins

While lane changes can be rather easily identiﬁed by

the lane markings, cut-ins are a more complex sce-

nario where other trafﬁc participants interact with the

lane infrastructure in relation to the ego vehicle. Due

to a limited detection range of the lane perception, not

all detected objects can be reliably mapped to lanes.

In combination with potentially strong road curva-

tures, various variations of cut-in scenarios can occur.

200

400

Position X

600

800

335

340

345

Time

350

355

Lateral distance

Position Y

Figure 6: Trajectories from the ego vehicle in blue and a de-

tected object in red (left). The decreasing minimal distance

between the trajectories is used for cut-in detection (right).

4.2.1 Data Labeling

First, we write a rule-based cut-in detector to create a

dataset with noisy labels programmatically. The front

camera provides detected vehicles in form of object

lists. Those object lists include the relative positions

to the ego vehicle as features. Leveraging a kinematic

single-track model, based on odometry signals as ego

velocity and yaw rate, we transform the relative posi-

tions to trajectories in global coordinates. This repre-

sentation, visualized in Figure 6, is used to calculate

the minimum distance from each position of the de-

tected objects to the future trajectory of the ego vehi-

cle. With this information cut-ins can be detected by

a decreasing lateral distance between the trajectories.

For our experiments we assign state A for a decreasing

lateral distance above 1.5 meters, state B for a lateral

distance between 1 and 1.5 meters and ﬁnally state C

for a lateral distance below 1 meter. Then cut-ins are

identiﬁed as the state transition A → B → C. As lane

changes of the ego vehicle behind a leading vehicle

on the neighbor lane result in similar patterns of ap-

proaching trajectories, we ﬁlter out scenarios where

the detected lane markings are crossed. With this ap-

proach we ﬁnd |S

| = 472 cut-ins in the used dataset.

Time Series Segmentation for Driving Scenario Detection with Fully Convolutional Networks



















 





Epochs

Pre

cision

0.95

0.9



0.85

0.8

0.75

0.7

100 200 300 400

500

600

Epochs

Reca

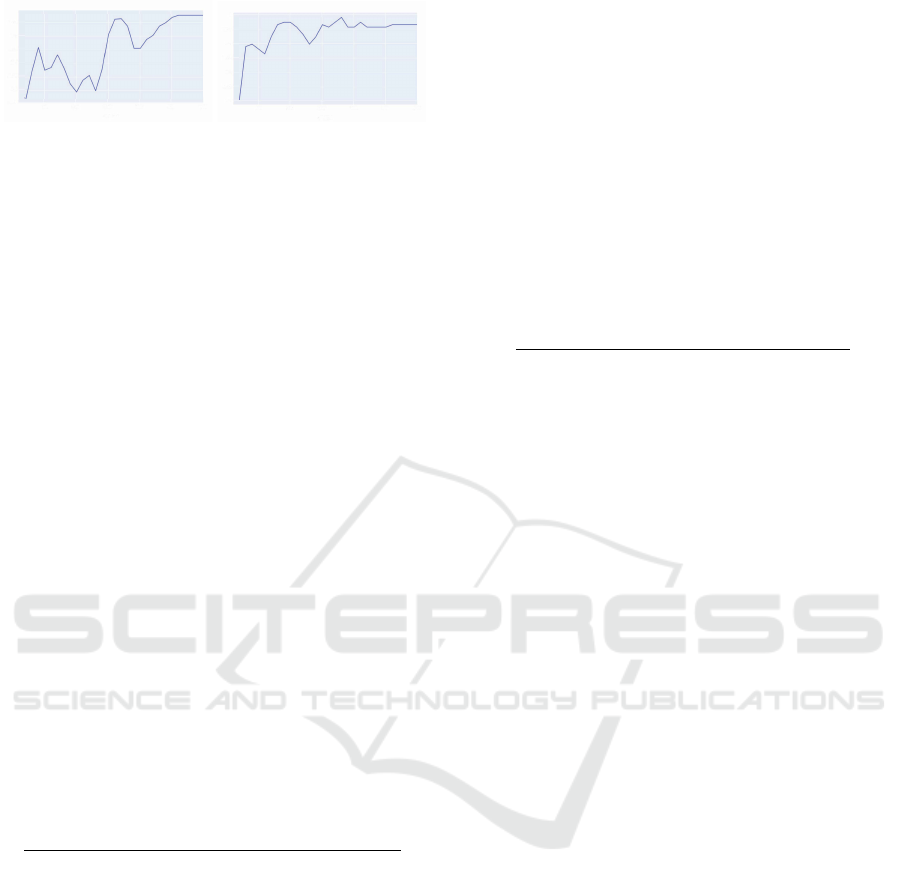

Figure 7: Event based precision (left) and recall (right) for

cut-in detection based on the training labels.

4.2.2 Training

Similar to lane changes, cut-ins are rather rare events

with an average duration of 5.7 seconds that account

for 0.7% of the recorded time. For data balancing we

chose the drop probability p

drop

= 80% for samples

without cut-ins. The sample rate of the input data is

40 ms and n

enc

= n

dec

= 4 is chosen to get a temporal

resolution of 0.64 s in the bottleneck layer.

Figure 7 shows the increasing event-based Preci-

sion and Recall with respect to the labels from the

rule-based cut-in detection. The high Recall indi-

cates, that the learned model is able to ﬁnd almost

all labeled cut-ins, while the lower Precision indi-

cates various additional detections. Assuming rather

conservative labeling rules, a lower Precision during

training can be in favor of a well generalizing model,

that is able to detect scenarios with missing labels.

4.2.3 Results

We extract the sets of detected cut-in events from the

learned model trained for 400 epochs as M

400

and

from the model trained for 600 epochs as M

600

. Those

detections are compared with the rule-based labels S

as shown in Table 3.

Table 3: Event based evaluation of cut-ins.

S M |S ∩ M| |S ∩ ¬M| |¬S ∩ M|

400

462 10 171

600

463 9 86

To evaluate the detected scenarios we create a vi-

sualization of those scenarios as exemplarily shown

in Figure 8. The visualization includes the trajectory

from the ego vehicle, the distance to the detected lane

markings, as well as the color encoded trajectories of

all detected objects during the relevant sequence.

Similar to the lane changes, the neural network

detects almost all labels found by the rule-based ap-

proach (S ∩ ¬M is small) and ﬁnds several additional

detections (¬S ∩ M). Those reveal cut-in situations

that were missed by the rule-based approach, as in

Figure 8a. Besides correctly detected cut-ins, sev-

eral corner cases were identiﬁed that show rather chal-

lenging situations with multiple detected objects and

strong curvatures. A repeating corner case was cut-

ins going hand in hand with a lane change of the ego

vehicle. Such scenarios, as exemplarily visualized in

Figure 8b, are clearly hard to categorize. However,

data samples of such corner cases can support ﬁnd-

ing different variations of these scenarios and deﬁning

necessary distinctions.

4.2.4 Veriﬁcation

For veriﬁcation of the cut-in detections we calculate

Precision, Recall and F1-Score for the rule-based and

the learned detections (Table 4).

Table 4: Performance metrics for cut-in detection.

Precision Recall F1-Score

0.95 0.74 0.83

400

0.87 0.82 0.84

600

0.91 0.80 0.85

Again the learned model can not reach the high

Precision of the rule-based approach. However, the

recall and the F1-Score were improved by the learned

model. Comparing the metrics for M

400

and M

600

shows that the model is approaching towards the per-

formance of the rule-based approach: The Precision

is increasing, but the Recall is decreasing. Conse-

quently, training less epochs can reveal even more

missing labels. On the other hand evaluating the con-

verged model after 600 epochs reveals less additional

detections and causes less evaluation effort.

5 DISCUSSION AND

CONCLUSION

Due to the large amounts of data, manual scenario

detection becomes less and less feasible. Automated

methods are needed for scalability and adaptability to

new or changing requirements. Domain knowledge

and expertise can be leveraged by rule-based labeling

functions. In our examples the rule-based approaches

are rather conservative. They provide a high Preci-

sion, but lower Recall. It seems reasonable, that de-

velopers start with rules that are based on a typical

understanding of a scenario. Variations with noisy

or missing data, as well as corner cases are hard to

consider in the ﬁrst place. While detected events can

be reviewed rather quickly for false positives, ﬁnding

missing detections (false negatives) requires huge ef-

forts.

In this work we showed, that learning a model

from programmatically labeled data provides a sys-

tematic approach to identify wrong or missing de-

tections. Instead of reviewing hundreds of hours of

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems

(a) Cut-ins detected by the learned model. (b) Corner cases with cut-in and lane changes.

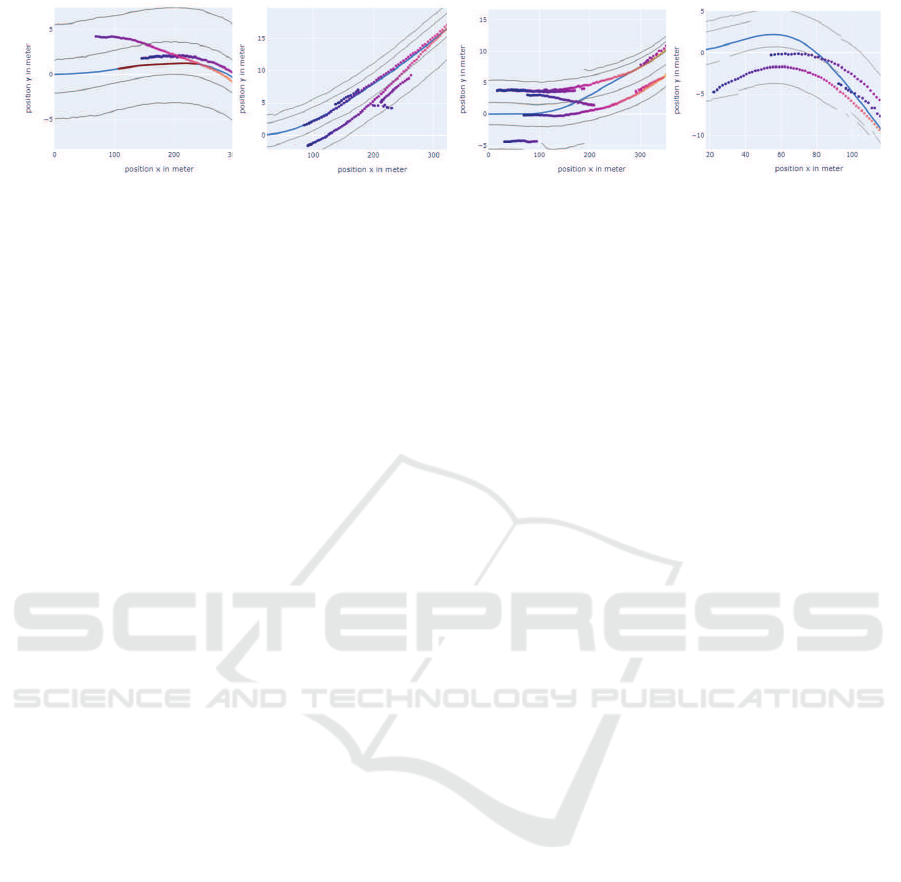

Figure 8: Top-Down visualization of not labeled cut-ins detected by the learned model (¬S ∩ M). The ego trajectory is shown

in blue, detected lane markings in grey and the trajectories of detected objects are color encoded with brighter colors with

ongoing time.

recorded data, we could identify few hundreds of

samples as candidates for manual review. With an ef-

fective visual representation, such candidates can be

quickly reviewed to estimate the quality of the rule-

based detection approach.

The FCN architecture for time series segmenta-

tion proved to be well suited for learning from weak

scenario labels. The suggested model was inspired

by popular network architectures for semantic image

segmentation and was able to learn a meaningful gen-

eralization of the provided labels. Not only missing

labeled were identiﬁed, but also similar scenarios and

related corner cases.

We expect the presented method to be a valuable

complement for improving the quality and robustness

of rule-based scenario detections. In future work, the

processing pipeline can be further automated and in-

tegrated into iterative development processes, where

domain experts develop new rules which are auto-

matically challenged by learning methods. Further-

more, the concept could be extended to compare the

detections from multiple approaches for scenario de-

tection. This could include several rule-based meth-

ods, as well as multiple learned models.

REFERENCES

Bach, J., Holz

apfel, M., Otten, S., and Sax, E. (2017a).

Reactive-replay approach for veriﬁcation and valida-

tion of closed-loop control systems in early develop-

ment. Technical report, SAE Technical Paper.

Bach, J., Langner, J., Otten, S., Holz

apfel, M., and Sax, E.

(2017b). Data-driven development, a complementing

approach for automotive systems engineering. In 2017

IEEE International Systems Engineering Symposium

(ISSE), pages 1–6. IEEE.

Bach, J., Langner, J., Otten, S., Sax, E., and Holz

apfel, M.

(2017c). Test scenario selection for system-level ver-

iﬁcation and validation of geolocation-dependent au-

tomotive control systems. In 2017 International Con-

ference on Engineering, Technology and Innovation

(ICE/ITMC), pages 203–210. IEEE.

Bai, S., Kolter, J. Z., and Koltun, V. (2018). An em-

pirical evaluation of generic convolutional and re-

current networks for sequence modeling. CoRR,

abs/1803.01271.

Bansal, M., Krizhevsky, A., and Ogale, A. S. (2019). Chauf-

feurnet: Learning to drive by imitating the best and

synthesizing the worst. In Bicchi, A., Kress-Gazit,

H., and Hutchinson, S., editors, Robotics: Science and

Systems XV, University of Freiburg, Freiburg im Breis-

gau, Germany, June 22-26, 2019.

Bock, F., Sippl, C., Heinzz, A., Lauerz, C., and German,

R. (2019). Advantageous usage of textual domain-

speciﬁc languages for scenario-driven development

of automated driving functions. In 2019 IEEE In-

ternational Systems Conference (SysCon), pages 1–8.

IEEE.

Chen, Q. and Wu, R. (2017). CNN is all you need. CoRR,

abs/1712.09662.

Elspas, P., Langner, J., Aydinbas, M., Bach, J., and Sax,

E. (2020). Leveraging regular expressions for ﬂexible

scenario detection in recorded driving data. In 2020

IEEE International Symposium on Systems Engineer-

ing (ISSE), pages 1–8. IEEE.

Fawaz, H. I., Forestier, G., Weber, J., Idoumghar, L., and

Muller, P.-A. (2019). Deep learning for time series

classiﬁcation: a review. Data Mining and Knowledge

Discovery, 33(4):917–963.

Fu, T.-c. (2011). A review on time series data min-

ing. Engineering Applications of Artiﬁcial Intelli-

gence, 24(1):164–181.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Keogh, E., Chu, S., Hart, D., and Pazzani, M. (2004). Seg-

menting time series: A survey and novel approach.

In Data mining in time series databases, pages 1–21.

World Scientiﬁc.

Langner, J., Grolig, H., Otten, S., Holz

apfel, M., and Sax,

E. (2019). Logical scenario derivation by clustering

dynamic-length-segments extracted from real-world-

driving-data. In Gusikhin, O. and Helfert, M., edi-

tors, Proceedings of the 5th International Conference

on Vehicle Technology and Intelligent Transport Sys-

tems, VEHITS 2019, Heraklion, Crete, Greece, May

3-5, 2019, pages 458–467. SciTePress.

Time Series Segmentation for Driving Scenario Detection with Fully Convolutional Networks

Lucchetti, A., Ongini, C., Formentin, S., Savaresi, S. M.,

and Del Re, L. (2016). Automatic recognition of driv-

ing scenarios for adas design. IFAC-PapersOnLine,

49(11):109–114.

Menzel, T., Bagschik, G., and Maurer, M. (2018). Scenarios

for development, test and validation of automated ve-

hicles. In 2018 IEEE Intelligent Vehicles Symposium

(IV), pages 1821–1827. IEEE.

Montanari, F., German, R., and Djanatliev, A. (2020). Pat-

tern recognition for driving scenario detection in real

driving data. In IEEE Intelligent Vehicles Symposium,

IV 2020, Las Vegas, NV, USA, October 19 - November

13, 2020, pages 590–597. IEEE.

Perslev, M., Jensen, M., Darkner, S., Jennum, P. J., and Igel,

C. (2019). U-time: A fully convolutional network for

time series segmentation applied to sleep staging. In

Advances in Neural Information Processing Systems,

pages 4415–4426.

Ratner, A. J., De Sa, C. M., Wu, S., Selsam, D., and R

C. (2016). Data programming: Creating large train-

ing sets, quickly. In Advances in neural information

processing systems, pages 3567–3575.

Ries, L., Stumpf, M., Bach, J., and Sax, E. (2020). Se-

mantic comparison of driving sequences by adapta-

tion of word embeddings. In 2020 IEEE 23rd Interna-

tional Conference on Intelligent Transportation Sys-

tems (ITSC), pages 1–7. IEEE.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:

Convolutional networks for biomedical image seg-

mentation. In International Conference on Medical

image computing and computer-assisted intervention,

pages 234–241. Springer.

Sippl, C., Bock, F., Lauer, C., Heinz, A., Neumayer, T., and

German, R. (2019). Scenario-based systems engineer-

ing: An approach towards automated driving function

development. In 2019 IEEE International Systems

Conference (SysCon), pages 1–8. IEEE.

Springenberg, J. T., Dosovitskiy, A., Brox, T., and Ried-

miller, M. A. (2015). Striving for simplicity: The all

convolutional net. In Bengio, Y. and LeCun, Y., ed-

itors, 3rd International Conference on Learning Rep-

resentations, ICLR 2015, San Diego, CA, USA, May

7-9, 2015, Workshop Track Proceedings.

VDA QMC Working Group 13 / Automotive SIG (2015).

Automotive SPICE Process Assessment: Reference

Model. page 132.

Wang, Z., Yan, W., and Oates, T. (2017). Time series clas-

siﬁcation from scratch with deep neural networks: A

strong baseline. In 2017 International joint confer-

ence on neural networks (IJCNN), pages 1578–1585.

IEEE.

Wood, M., Robbel, P., Maass, M., Tebbens, R. D., Meijs,

M., Harb, M., Reach, J., Robinson, K., Wittmann, D.,

Srivastava, T., Bouzouraa, M. E., Liu, S., Wang, Y.,

Knobel, C., Boymanns, D., L

ohning, M., Dehlink, B.,

Kaule, D., Kr

uger, R., Frtunikj, J., Raisch, F., Gru-

ber, M., Steck, J., Mejia-Hernandez, J., Syguda, S.,

uher, P., Klonecki, K., Schnarz, P., Wiltschko, T.,

Pukallus, S., Sedlaczek, K., Garbacik, N., Smerza,

D., Li, D., Timmons, A., Bellotti, M., O‘Brien, M.,

Sch

ollhorn, M., Dannebaum, U., Weast, J., Tatourian,

A., Dornieden, B., Schnetter, P., Themann, P., Weid-

ner, T., and Schlicht, P. (2019). Safety ﬁrst for auto-

mated driving. Technical report.

VEHITS 2021 - 7th International Conference on Vehicle Technology and Intelligent Transport Systems
