ConfIs: A Tool for Privacy and Security Analysis and Conflict

Resolution for Supporting GDPR Compliance through

Privacy-by-Design

Duaa Alkubaisy

1,2

, Luca Piras

, Mohammed Ghazi Al-Obeidallah

, Karl Cox

and Haralambos Mouratidis

Centre for Secure, Intelligent and Usable Systems, University of Brighton, U.K.

Imam Abdurrahman Bin Faisal University, Dammam, Saudi Arabia

School of Computing, Robert Gordon University, Aberdeen, U.K.

School of Computer Sciences and Informatics, Amman Arab University, Jordan

m.obeidallah@aau.edu.jo

Keywords: Security Requirements, Privacy Requirements, Requirements Conflicts, General Data Protection Regulation

(GDPR), Requirements Modelling, Privacy by Design.

Abstract: Privacy and security requirements, and their potential conflicts, are increasingly having more and more

importance. It is becoming a necessary part to be considered, starting from the very early stages of

requirements engineering, and in the entire software engineering cycle, for the design of any software system.

In the last few years, this has been even more emphasized and required by the law. A relevant example is the

case of the General Data Protection Regulation (GDPR), which requires organizations, and their software

engineers, to enforce and guarantee privacy-by-design to make their platforms compliant with the regulation.

In this context, complex activities related to privacy and security requirements elicitation, analysis, mapping

and identification of potential conflicts, and the individuation of their resolution, become crucial. In the

literature, there is not available a comprehensive requirement engineering oriented tool for supporting the

requirements analyst. In this paper, we propose ConfIs, a tool for supporting the analyst in performing a

process covering these phases in a systematic and interactive way. We present ConfIs and its process with a

realistic example from DEFeND, an EU project aiming at supporting organizations in achieving GDPR

compliance. In this context, we evaluated ConfIs by involving privacy/security requirements experts, which

recognized our tool and method as supportive, concerning these complex activities.

1 INTRODUCTION

Conflicts arising between different requirements,

such as privacy and security, are a common problem

in engineering software systems (Kim et al., 2007).

Conflicts in software requirements are inevitable

because of the nature of software development for

realistic systems, and conflicts, therefore, are the

most common cause of inconsistencies during the

software development process (Egyed and Boehm,

1998). Every case of conflict based on requirements

is surrounded by complex issues, and these issues

should be taken into consideration when resolving the

conflicts (Lamsweerde, et al., 1998). Security and

privacy requirements should be considered essential

for every software system. Privacy has become a

mainstream topic, and especially problematic for

software development companies. Problems around

misuse of presumed personal data by organizations,

especially social media companies, has led to moves

to ‘guarantee’ privacy at legislative levels, as

envisioned in the EU’s General Data Protection

Regulation (GDPR) (Albrecht, 2016). However, from

the developer’s point of view, certain issues crop up

when adhering to security requirements, while others

appear when adhering to privacy requirements. This

can lead to conflict when trying to meet these

requirements, and it is now necessary for developers

to manage these conflicts in order to be compliant

with GDPR. However, there is a degree of complexity

within these conflicting requirements that makes

resolution less immediately obvious. Recourse to the

business objective is one way to determine whether a

Alkubaisy, D., Piras, L., Al-Obeidallah, M., Cox, K. and Mouratidis, H.

ConfIs: A Tool for Privacy and Security Analysis and Conﬂict Resolution for Supporting GDPR Compliance through Privacy-by-Design.

DOI: 10.5220/0010406100800091

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 80-91

ISBN: 978-989-758-508-1

security requirement outweighs its privacy conflict in

aiming to achieve compliance with GDPR. The first

step in this type of conflict resolution is to be able to

identify the conflict in the first place: this paper

outlines an approach for doing so.

In the context of software development, a conflict

is defined as a clash of interests in the development

environment between privacy and security

requirements (Schar et al., 2015). Such a conflict

could arise at any point in the Systems Development

Life Cycle (SDLC), irrespective of whether an agile,

traditional or hybrid approach is used. Regardless of

the approach, it is less costly to identify incorrect

requirements – and here we can add privacy and

security requirements (Liu et al., 2003) – in the

requirements phase than to do so later (Egyed and

Boehm, 1998). For example, pseudonymization

(privacy requirement) may conflict with the need for

authentication (security requirement) to avoid a data

breach. While such conflicts are common, the

challenge is to balance them without creating the

opportunity for an easier breach of privacy or

security. Conflicts arising from incompatible

requirements can negatively affect information

systems, even if controls are put in place (Kim et al.,

2007; Egyed and Boehm, 1998; Lamsweerde et al.,

1998). Consequently, it is preferable to manage

conflicts that are identified early in the lifecycle,

before they derail the entire project. However, a

requirement conflict can still affect the development

of information systems and their successful

deployment, even after controls have been put in

place to manage conflict or resolve it (Schar et al.,

2015).

Data breaches are a key concern for businesses

with large amounts of personal data, such as banks

and governmental departments, as such systems are

the most frequently targeted, accounting for nearly

80% of all incidents disclosed (Botha et al., 2017).

Commercial organizations are also at risk. For

example, TalkTalk, a telecoms provider, was hit with

a record £400K fine for a data breach in 2015 that

exposed the private details of more than 150,000

customers (Farrell, 2015).

GDPR forces organizations to implement changes

that relate to the use of personal data as well as its

protection. GDPR empowers citizens to take greater

control of their personal data by having a say in the

use of their data. Organizations are required to keep

track of the use of user data, which allows the relevant

authorities (such as individuals) to give consent with

ease. Despite the advantages of GDPR, it can be hard

to apply for several reasons, including complexities

involved in measures put in place by companies to

enhance security. These complexities can lead to

conflicts in addition to the complexity involved in

covering various aspects of data protection. Most of

the existing approaches in the literature (Aldekhail et

al., 2016; Mairiza and Zowghi, 2010; Mairiza et al.,

2013) do not provide adequate solutions to identify

and resolve conflicts between security and privacy

requirements. Identifying and resolving such

conflicts are essential to mitigate threats to software

systems, as unresolved conflicts could make a system

vulnerable to threats.

This paper is based on our previous work

Alkubaisy (2017, 2019), and here we present the final

framework. This paper provides a novel structured

framework that fulfils the gap of the current state of

the art. Above all, this paper addresses the following

Research Questions (RQs):

RQ1: How to design a framework supporting the

analyst to identify and resolve conflicts between

privacy and security requirements?

RQ2: How to support the analyst in the identification

and resolution of conflicts between requirements in a

systematic and tool-supported way in real cases?

RQ1 will be addressed by extending SecTro, a

requirement modelling tool (Pavlidis and Islam,

2011). The proposed framework offers the analyst a

process or guide to help him in identifying and

resolving conflicts. The presented framework will be

validated using one part of the DEFeND project

(Mouratidis, 2011) to ensure that this framework is

GDPR compliant.

RQ2 will be addressed by reviewing the current

methods to identify conflicts between requirements,

and by introducing ConfIS framework phases to help

the analyst to locate conflicts between requirements.

The rest of the paper is organized as follows.

Section 2 presents the baseline from which we started

and based our work. These parts are phases of the

theoretical framework, DEFeND project where the

framework has been applied, and answers to RQ1.

Section 3 addresses RQ2 by proposing Tool-

Supported Conflict Identification, Resolution and

application of these within DEFeND, showing and

discussing our Case Study. Section 4 evaluates the

proposed ConfIS framework. Related work and

conclusion are presented respectively in Sections 5

and 6.

ConfIs: A Tool for Privacy and Security Analysis and Conﬂict Resolution for Supporting GDPR Compliance through Privacy-by-Design

2 BASELINE AND

THEORETICAL FRAMEWORK

This section presents an overview of the key parts

presented in this paper. This paper is based on our

previous work Alkubaisy (2017, 2019), and here we

present the final framework based on the previous

work. The first part presents our proposed theoretical

framework, enhanced with an explanation of each

phase. We then explain more about the DEFeND

project (Piras et al., 2019; Piras et al., 2020), an

ongoing live project aiming to determine needs

related to identifying conflicts and conflict resolution.

An overview of the SecTro tool, which has been

extended to fulfil the requirements of our proposed

framework, is presented at the end of this section.

2.1 Theoretical Framework Phases

Our proposed framework has a sequence of phases to

achieve conflict detection and resolution, presented in

Figure. 1:

Figure 1: The phases of the proposed theoretical

framework.

As Fig. 1 illustrates, some of the steps are semi-

automated, while the others are manual steps, based

on the analyst’s point of view.

The partners might have a special perspective on

requirements. First, the conflicts between

requirements are identified, based on a matrix

presented by a previous study (Piras et al., 2019).

Hence, we sort the requirements that could lead to a

potential conflict. After identifying the requirements

that are in conflicts, the analyst must decide whether

this kind of conflict would affect the system, based on

the presented scenarios. Therefore, the first phase of

the framework is performed manually by the software

requirements analyst. Phase Two identifies the

potential conflicts between requirements that were

detected in the previous phase. The final phase

proposes conflict resolution patterns by matching the

problem to a resolution pattern for each conflict that

the analyst might face. Those patterns act as a

reference for the analyst to resolve conflicts between

requirements. The final phase of our framework is

automated by using the SecTro tool (by importing a

privacy pattern library).

2.2 DEFeND Project

The DEFeND project was designed as an EU project

to support organizations by defining essential tools

and methods that enable organizations and authorities

to monitor their actions so that they can be GDPR-

compliant (Mouratidis, 2011). DEFeND stands for

Data govErnance For supportiNg gDpr. DEFeND

aims at improving existing frameworks and software

tools and developing and designing new integration

software based on market needs. This is with the aim

of delivering a unique data platform for privacy

governance.

In order to achieve GDPR compliance and raise

awareness of the diverse features of GDPR, DEFeND

will deliver a platform which empowers

organizations in various sectors to assess their

compliance status. The DEFeND platform allows for

designing and analysing models following a Privacy-

by-Design approach. The DEFeND platform provides

five main services to organizations and relevant

stakeholders: Data Scope Management Service, Data

Process Management Service, Data Breach

Management Service, GDPR Planning Service and

GDPR Reporting Service. Each of these services

assists organizations in collecting, analysing and

operationalizing different aspects and articles of

GDPR, and providing appropriate reporting

capabilities.

The DEFeND platform will be in a live laboratory

pilot studies in four different areas: healthcare,

finance (or banking), energy and local public

administration. The DEFeND platform will be tested

in an effective environment in three scenarios through

two different types. The first type focuses on the

GDPR compliance process for end users, while the

second addresses GDPR implications for external

stakeholders. Our proposed framework will identify

and resolve conflicts between requirements by

applying a scenario from the healthcare sector of the

DEFeND project.

2.3 SecTro

SecTro tool has been used to aid in the modelling of

conflicts resolution (Alkubaisy et al., 2019). It

implements the Secure Tropos Methodology which

consists of an engineering approach for security and

privacy requirements, starting from early-stage

requirements of the IS (Information System)

development process. Secure Tropos must be

specified in the early phases of an IS development, as

it is an organized approach for goal-oriented security

and privacy requirement modelling. The Secure

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

Tropos methodology supports a modelling language,

security aware processes and automated processes.

The Secure Tropos methodology enhances our

framework by translating conflicts between

requirements in a goal model. SecTro presents

models that contain security and privacy

requirements (Piras et al., 2020). It involves

modelling views which are used to facilitate system

design and elicitation of security and privacy

requirements.

3 TOOL-SUPPORTED CONFLICT

RESOLUTION AND CASE

STUDY

To solve the conflicts between requirements, we

explored critical conflicts from literature review,

research studies and European Projects. The needs

come also from a discussion with stakeholders from

different domains, such as banking, healthcare, public

administration, and smart energy; all of which need to

achieve GDPR compliance. In addition, we found that

conducting a requirement analysis on Privacy-by-

Design, found potential conflicts that could not be

solved. Hence, on behalf of DEFeND – a European

Project - we have interviewed those stakeholders in

relation to how to create platforms to address such

conflicts.

Achieving GDPR compliance is very complex. To

do so, requirements analysis must be conducted, in

which many conflicts arise, and stakeholders may

have great difficulty in understanding how to manage

and solve them. Moreover, we found that performing

requirements analysis on Privacy-by-Design in real

cases is essential, according to the stakeholders. We

recognize that stakeholders need to achieve GDPR

compliance via Privacy-by-Design, and they consider

this as a problem. In addition, as mentioned above,

there is a lack of recent studies which addresses this

issue. Stakeholders need a tool to resolve the

identified conflicts more quickly by reducing their

effort and having a ready-to-use solution of any of the

conflicts that could arise.

3.1 Motivation Scenario

As we discussed earlier, within the DEFeND project

section, it comprises several services. The Centre for

Secure, Intelligent and Usable Systems at the

University of Brighton works on one of DEFeND’s

services; Data Scope Management (DSM) which

supports Privacy by Design (PbD). DSM developed a

case study which has been used as a storyline, to

regard highly valuable PbD activities of DSM. In

Mouratidis and Giorgini, (207), the DSM service has

been widely discussed by describing its flow phase by

phase, and by using the storyline. In this paper, we

will illustrate one example from the storyline and

apply the ConfIS framework phase by phase to

identify and resolve the conflicts between security

and privacy requirements. The example being

applied in the ConfIS framework is as follows:

One of the most critical aspects is to manage

patients’ medical record, have verification from

a supervisor for any changes happening to it, and

establish a retention period for the data.

In section 3.4 we will analyse this example and

find out the related security and privacy requirements.

Therefore, we will apply the ConfIS framework phase

by phase to resolve conflicts.

3.2 Integrating the Theoretical

Framework in SecTro

The SecTro tool has been extended with new

concepts to support the analyst in identifying and

resolving conflicts. The theoretical framework was

completely integrated and implemented in the top of

SecTro, with its analysis supporting all phases. Here,

the case study shows in more details, diagrams from

the tool that are integrated with the theoretical

framework.

Moreover, the new concepts are added to the

privacy by design view of SecTro to support the

modelling of requirements conflicts. Phase two

involves identifying conflicts between requirements

according to the output from phase one. At This Point,

the analyst needs to make conflict decisions based on

each scenario and the relevant requirements. Next, in

phase three, new concepts are added to identify

conflicts; based on the out-come of phase two, the

analyst will locate these conflicts. The next section

describes the case study in further depth and applies

the theoretical framework to achieve conflict

resolution.

3.3 Tool Description in a Case Study

Based on the motivation example, we will illustrate

the security and privacy requirements, following the

phases of the ConfIS framework to resolve conflicts,

using the extended supported tool. The first phase

aims to map the security and privacy requirements

(

Alkubaisy, 2017). This assumes the existence of a

matrix to find out the potential conflicts between

security and privacy requirements, based on our

ConfIs: A Tool for Privacy and Security Analysis and Conﬂict Resolution for Supporting GDPR Compliance through Privacy-by-Design

recent study Piras et al., 2019). The next sections

show the application of our proposed framework

phases in identifying and resolving conflicts,

discusses the application of the motivation example

in SecTro, and presents the theoretical framework to

identify and resolve conflicts (3.4-3.6).

3.4 Phase 1: Mapping Security and

Privacy Requirements

Based on the motivation scenario presented in section

3.1, we find that there are security and privacy

requirements involved. Therefore, to determine

which requirements are in conflict, we model the

scenario using the organizational view of SecTro as

presented in Figure 2. Each bubble represents an actor

(i.e. Supervisor, Doctor, and Employee). We break

the scenario into several tasks to assign a related

requirement for it, and assign each task to a related

requirement, to find out which task has a potential

conflict. The Doctor needs to acquire patient medical

results from an Employee, while sending this sort of

information needs to be confidential and treated with

integrity. When the Doctor runs a patient examination

or updates patient medical records, this task must

remain Anonymous. On the other hand, the same data

needs to be validated by a Supervisor; hence, this task

requires some Accountability. Any updates on patient

medical records by the Doctor also needs to be

Accountable based on GDPR Principles. As a result,

each task has its own security and privacy

requirements, which helps in identifying the

conflicting requirements. For instance, anonymity as

a privacy requirement conflicts with accountability as

a security requirement. In Fig. 2, we model the

motivation example in SecTro to pinpoint these

conflicts.

3.5 Phase 2: Identify Conflicts between

Requirements and Conflict

Decisions

To identify conflicts, we next divide each scenario

task to address the possible conflicts. Therefore, for

each case, we assign the involved requirements.

Based on the “Managing Patient Records” scenario

presented, we will address the security and privacy

requirements for each activity. For instance: The lab

must perform a medical examination, then send the

results to the doctor (security requirements:

confidentiality and integrity). Furthermore, medical

results will be sent to the doctor to update the patient’s

medical record; this action must be compatible with

the GDPR accountability principle. Furthermore,

while the doctor is updating the patient’s medical

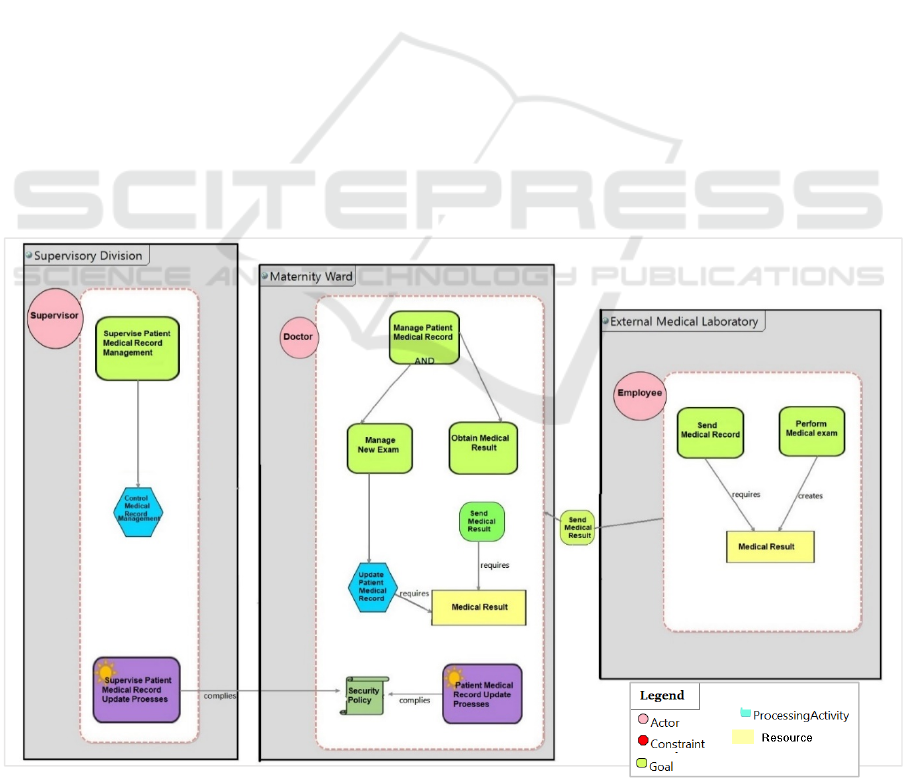

Figure 2: Organization View of Managing Patient Records.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

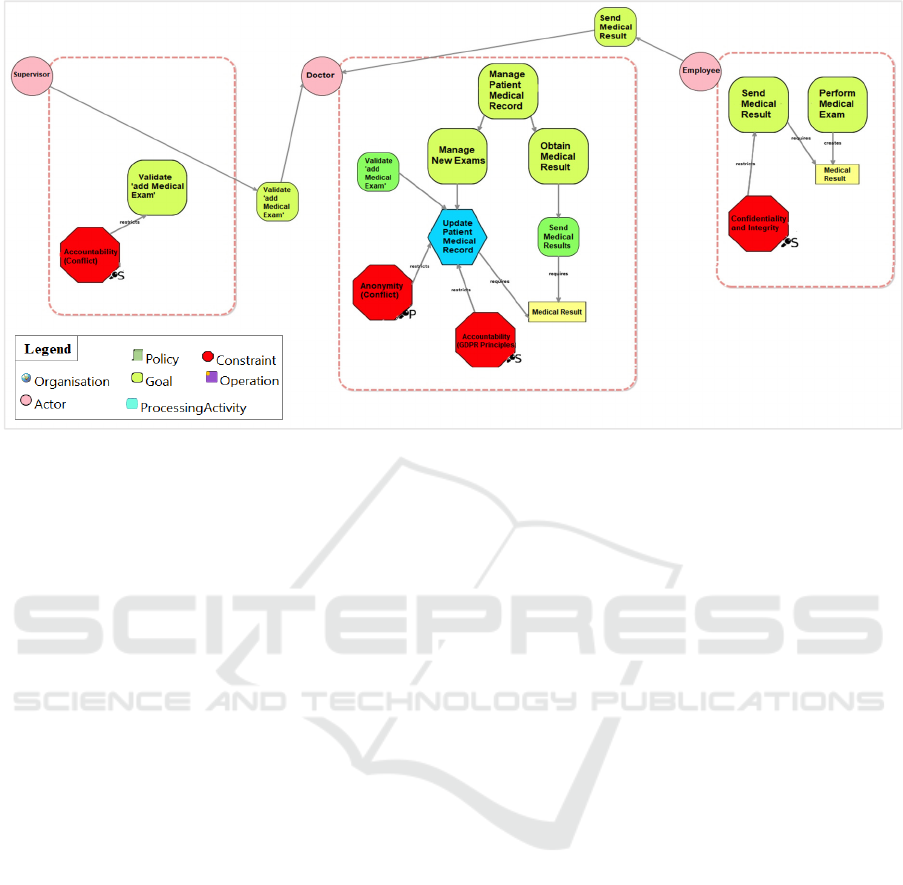

Figure 3: Privacy by Design View of Managing Patient Records.

record, this action should be anonymous. This

therefore could lead to conflicts between

requirements- accountability and anonymity. To

process the updated results, they should be verified by

a supervisor; therefore, this requirement involves

accountability as a security requirement. In addition,

updating the patients’ medical record involves

anonymity, to keep the patients’ record private,

according to Privacy-by-Design principles. On the

other hand, this update must be accountable to the

supervisor to keep the system secure and accurate; the

supervisor must be aware of every and final updates

being made and by whom. At this point conflicts is

likely to occur between anonymity as a privacy

requirement and accountability as a security

requirement. This task can require more than one

requirement involved which will have potential

conflicts arising between requirements, especially

based on privacy and security requirements. It is

therefore difficult to fulfil both requirements.

Accountability is the requirement that holds entities

responsible for their actions, while anonymity allows

entities to use resources or services without having to

reveal their identity. In Figure 3, we provide an

overview of the Privacy-by-Design view of

Managing Patient Records. In this view, we allocate

security and privacy requirements for each soft goal.

As discussed above, we have already identified a

conflict between accountability related to the

supervisor and anonymity related to the doctor. In this

phase, we only highlight the conflict issue.

3.6 Phase 3: Conflict Resolution

Patterns

In this phase, for each type of conflicts, we model a

pattern to link two conflicting requirements, and a

suitable supporting tool.

To resolve a conflict via supported tools, we

identified a relevant tool that could satisfy both types

of privacy and security requirements. By applying

this scenario in SecTro, we must add the tool to the

Privacy Pattern Library. In this case, we identify two

supporting tools, but determine that the IDEMIX tool

is more appropriate (Camenisch & Lysyanskaya,

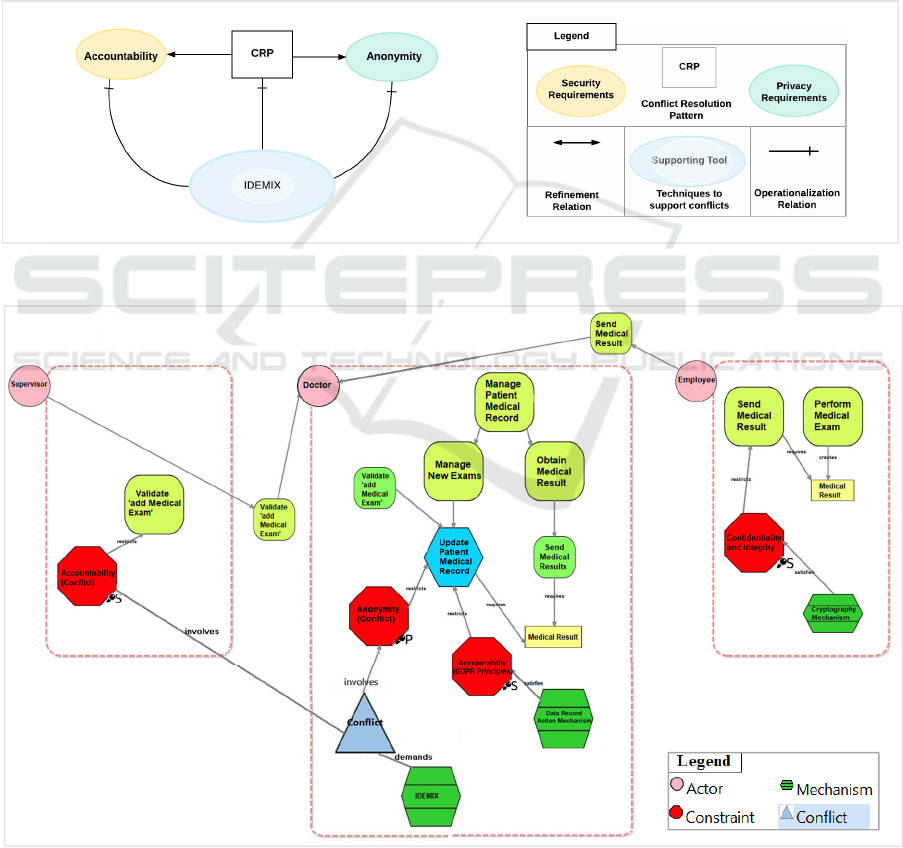

2001). Figure4 shows how we add the supporting tool

into the framework. Consequently, Figure.5 shows

the Privacy-by-Design view after adding the new

concepts to identify conflict between requirements

and imports a suitable mechanism to satisfy the

requirements.

4 DISCUSSION

There is a need to fulfil the anonymity requirement

for the Update Patient Medical Record process,

making sure that nobody knows which doctor has

made the change on a record. This is fulfilled by the

mechanism, which IDEMIX fulfils our solution

requirement. In addition, the accountability constraint

is related to the validate aspect of the Add Medical

Exam process, i.e., a supervisor needs to validate the

change. However, for this, the supervisor needs to

ConfIs: A Tool for Privacy and Security Analysis and Conﬂict Resolution for Supporting GDPR Compliance through Privacy-by-Design

know which doctor made the change; thus, there is a

conflict between accountability and anonymity,

because the supervisor cannot know, due to the

anonymity requirement, who the doctor is, so

accountability cannot be fulfilled. We solve this by

introducing the IDEMIX mechanism, which will be

used by the supervisor, so that accountability can be

fulfilled.

IDEMIX is a solution for minimizing the release of

personal information and can be based on one of

many proposed techniques for anonymizing the

transport medium used between users and service

providers. IDEMIX is an optimizing cryptographic

compiler that achieves an unprecedented level of

assurance, without sacriﬁcing the practicality for a

comprehensive class of cryptographic protocols. This

protocol satisfies the conditions for anonymous,

authenticated, and accountable transactions between

users and service providers. On the lab side, the

employee should fulfil confidentiality and integrity

while sending medical results; we fulfil this with the

cryptographic mechanism. In addition, the last point

is related to fulfilling GDPR principles, and an

example is accountability, where it is necessary to

record which doctor did the change. We fulfil this by

the Record Data Action mechanism.

Figure 4: Conflict Resolution.

Figure 5: Integrating conflict resolution in Privacy-by-Design view of Managing Patient Records.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

5 EVALUATION

In this section, we describe the preliminary evaluation

we carried out within the DEFeND project, for the

tool and method described in this paper. Here we

report the evaluation strategy and results. The

framework is Human Oriented, which supports the

investigation to conduct this kind of analysis based on

the importance of usable systems and promotes the

process of human centered design as a way to achieve

them (Maguire, 2001). Human Oriented is useful to

design the evaluation in a human centered way, to

obtain feedback from experts of security and privacy

engineering. We have fifteen participants, who are

researchers of privacy and security engineering. They

work within different universities from various

countries including the United Kingdom, Italy,

Greece, Germany, Saudi Arabia, and China; this

gives scope for a variety of perspectives (achieving

heterogeneity).

Evaluation Strategy. To have a comprehensive

evaluation, we use qualitative and quantitative

analyses. For the qualitative aspect, we design a focus

group session, having participants who are both

experts and researchers. Before we began the

evaluation, we constructed a pilot focus group

evaluation with three participant groups, namely-

PhD student, Doctor and Research Fellow. This

revealed to us the possibilities of improving the focus

group evaluation according to the participants’

feedback. Moving forward, we could perform the

full-scale focus group evaluation. The rational of the

problem, is to allow the participants to interact with a

task in order to find out how the researcher can

identify conflicts between requirements. Therefore,

we describe the ConfIS framework with an example

provided (as discussed in this paper) and provide the

participants a useful handout containing a description

of the focus group sessions, and what the input and

outputs for each phase of the framework are. In

addition, each part has full content. After the

participants have grasped the full idea and learned

how to use the framework, we asked them to apply

ConfIS to the same task that we started the

presentation with it. This comparison method gave us

some insight into using the framework and without

using it. By the end of the session, participants are

required to complete a survey, evaluating the

framework in general- phase by phase.

This evaluation strategy covered the qualitative

evaluation. By having the focus group and during

discussions in this session, we observe how the

participants understand the framework. Additionally,

answering the survey thereafter gave a quantitative

evaluation of the framework.

Evaluation Results. The survey consisted of fifteen

participants, of which 100% are respondents.

Encouraging responses of its design, revealed it

showed huge efforts, with a well and confident

presentation, interesting field and helpful work,

utilizing real cases within EU projects. Its clarity in

understanding the research objective, deemed a

supportive method which could be used in an iterative

way, and for each phase there is good support for the

analyst. Additionally, it brought revelations of much

more alternatives that could arise for the designer.

The tables are a valuable form of presentation, but

models could be a better way to visualize potential

analysis of elements and solutions, speeding up the

process. The evaluation was in general a positive

experience, and the evaluator clearly presented the

framework and its main objectives. Furthermore,

suggested areas for improvement included,

considering additional features/phases such as

prioritization and the conflicts involved with this. The

material and tools used to resolve conflicts could be

more informative especially for those without much

knowledge of the field, which could mean including

more examples. Furthermore, specifying the basis of

any choice of solution; when the participant identifies

conflicts, and then chooses a possible solution,

specifying how to choose one if there is more than

one option is not supported. Moreover, creating a

more structured evaluation that guides the subjects in

their evaluation should be noted. Participants were a

bit unsure of the utility (or the ordering) of the conflict

identification phase. The identification of the

enforcement technologies that "resolve" the identified

conflicts, eliminated the conflict and some

participants did not see the reason identifying them,

if there were no more conflicts to search.

The majority’s share, well over 70% of research

fellows agree with the general framework. They

approve that the relevant phases are clear, well defined,

sequentially in order, can have a fast development

process, is easier for identifying conflict, reducing it

and its relevant costs, and maintaining the value of

each requirement. The same can be said for doctors,

with the exception of 50% indicating a neutral response

to the framework phases having a fast development

process, being easier for detecting/identifying and

reducing conflict, and for maintaining the value of each

requirement. Additionally, more than 80% of PhD

students agree with the design of the general

framework, and its phases Figure 6.

ConfIs: A Tool for Privacy and Security Analysis and Conﬂict Resolution for Supporting GDPR Compliance through Privacy-by-Design

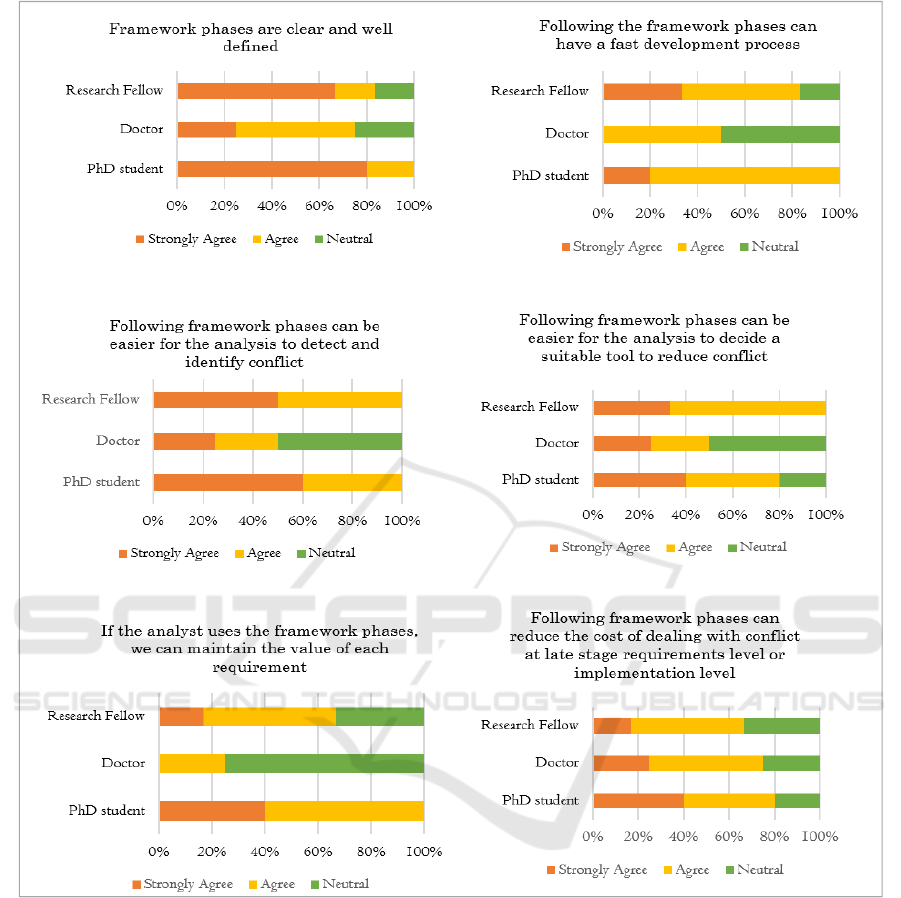

Figure 6: General Framework Per Respondent Group.

A summary analysis of the evaluation survey

reveals most respondents were research fellows

(40%), followed by PhD students (33%) and doctors

(27%). They all found the research design questions

to be appropriate, useful, well presented (87%) and

the research field quite interesting (93%) in gaining

their feedback. On the other hand, just 54% agreed

that the results were clearly presented; this leaves

room for improvement Additionally, the general

framework was also well received by the majority,

proving to be sequentially in order (87%), clear and

well defined (80%), easier for analysis (80%) and for

making feasible decisions such as reducing cost,

conflict, and faster development processing (73%)

(Figure 7). Among the three phases, to Phase 1 (74-

80%) agreed that Mapping between security and

privacy to identify conflict was clear. Phase 2 was

well received with the majority (80-86%) agreeing

that the researcher adequately addressed conflicts

between requirements and decisions.

Additionally, feedback on Phase 3 showed

varying responses (67-87%), yet the participants still

agreeing that there was an ease to understanding

conflict resolutions patterns and its supporting tools.

(Table 1).

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

Table 1: Phases.

Phase 1: Mapping Security and Privacy

Requirements

74-80%

(strongly/agree)

Phase 2: Identify Conflicts between

Requirements and Conflict Decisions

80-86%

(strongly/agree)

Phase 3: Conflict Resolution Patterns

67-87%

(strongly/agree)

Figure 7: General Framework.

6 RELATED WORK

Studies have been conducted regarding conflicts in

requirement engineering approaches. Aldekhail et al

(2016) provide a comparative review on the conflict

analysis approach, which was conducted with 20

studies from 2001 to 2014. Moreover, approaches in

the literature are focused only on considering the

following important aspects separately:

identification, analysis, and resolution of conflicts. In

fact, most of them focus only on identifying conflicts

between requirements, especially NFR (non-

functional requirements), without considering an

overall, systematic approach for identifying,

analysing and, above all, resolving them. This paper

aims exactly to fulfil such gap, by supporting the

analyst in all three phases, in a tool-supported, semi-

automatic, interactive way, with the systematic

approach we propose.

A recent study conducted by Ramadan et al., (2018

and 2020) examine- detecting conflicts between data-

minimization and security requirements. They

investigate how conflicts between security and

privacy requirements gather into the systems, in

business process models.

Salnitri et al. (2020) in their work, propose a novel

method named SePTA (Security, Privacy and Trust

Approach). This method supports a unified

specification of security, privacy and trust

requirements, under one framework. It, more so,

enables software designers and security experts to

enforce such requirements, and is designed for

sociotechnical systems. They focus on how security,

privacy and trust requirements can be specified in the

early requirement phase, using a goal-based

modelling language, and how such requirements can

be correctly enforced in the late requirement phase,

using goal-based modelling languages and a

modelling language for business processes. Horkoff

et al., (2019) examined the top-cited 246 papers over

the past 20 years, as per Scopus. They make several

observations about the Goal-oriented requirements

engineering (GORE) field, where goals are used as a

useful conceptualization to elicit, model, and analyse

requirements, capturing alternatives and conflicts.

Despite extensive efforts in this field, the

requirements engineering (RE) community lacked a

recent, general systematic literature review of the

area.

An expressive goal-based modelling language for

requirements that supports the representation of nice-

to-have requirements, preferences, optimization

requirements, constraints and more, have been

proposed by Nguyen et al. (2018). They exploited

automated reasoning solvers in order to develop a tool

that supports sound and complete reasoning, with

respect to goal models, and scales well to goal models

with thousands of elements. Their proposal advances

the state-of-the-art on goal modelling and reasoning.

Additionally, for future work they propose an

empirical validation of the CGM-Tool with modelers

and domain experts, currently working in this

direction with PhD students and post-docs. While

their work is in the preliminary stages, our framework

has already been applied to a real case study named

DEFeND, which has been validated, and is now in the

evaluation process.

Bhavsar et al., (2019) presented a survey paper

comparing recent studies of conflict between

requirements in the early stage of development. In

their survey, they summarize case studies related to

different domains of software engineering, with

respect to requirement gathering techniques, and how

conflicts could be resolved, that arise at the RE phase,

using the Agile software development method. This

model includes a continuous iteration of development

and testing phases, so that it could deliver the product

in the early stage, which makes Agile software

development used widely by companies. While this is

so, it also increases the complexity of the system. The

authors have also cited the work of Alkubaisy et al.,

(2019) who investigates conflicts between security

and privacy requirements.

ConfIs: A Tool for Privacy and Security Analysis and Conﬂict Resolution for Supporting GDPR Compliance through Privacy-by-Design

Maxwell et al., (2011) also conducts a cross-

reference approach for identifying conflicting

software requirements. Their work revealed that rules

and laws are easier to handle, and the reputation of

the company depends on the rules and regulation

which are followed. On the other hand, this can lead

to an increase in costs, because system laws have

overloads.

Furthermore, Schon et al., (2017) investigates

agile software development, and discovers that rapid

changing in requirements can be easy to handle,

whilst on the other hand, there are more complexities

because a hybrid development model is used.

7 CONCLUSION

In this paper, we outline the need to identify conflicts

between requirements and to have a suitable tool to

resolve such conflicts. The ConfIS framework has

been presented for identifying conflicts between

security and privacy requirements. ConfIS allows the

analyst to deal with the potential conflicts that may be

discovered later and has been applied to a case study

from the DEFeND project. Lastly, we demonstrate

the phases of ConfIS step-by-step, to investigate how

it helps the analyst to identify and resolve conflicts

via a supporting tool.

ACKNOWLEDGMENTS

The DEFeND project received funding from the

European Union’s Horizon 2020 research and

innovation programme under grant agreement No.

787068.

REFERENCES

Albrecht, J. P. (2016). How the GDPR will change the

world. Eur. Data Prot. L. Rev., 2, 287.

Aldekhail, M., Chikh, A., & Ziani, D. (2016). Software

requirements conflict identification: review and

recommendations. Int J Adv Comput Sci Appl

(IJACSA), 7(10), 326.

Alkubaisy, D. (2017, May). A framework managing

conflicts between security and privacy requirements. In

2017 11th international conference on research

challenges in information science (RCIS) (pp. 427-

432). IEEE.

Alkubaisy, D., Cox, K., & Mouratidis, H. (2019, May).

Towards Detecting and Mitigating Conflicts for

Privacy and Security Requirements. In 2019 13th

International Conference on Research Challenges in

Information Science (RCIS) (pp. 1-6). IEEE.

Bhavsar, R., Thakkar, A., Sanghavi, P., & Tanwar, S.

(2019). Resolving conflicts in requirement engineering

through agile software development: A comparative

case study. In International Conference on Innovative

Computing and Communications (pp. 349-357).

Springer, Singapore.

Botha, J., Grobler, M., & Eloff, M. (2017, June). Global

Data Breaches Responsible for the Disclosure of

Personal Information: 2015 & 2016. In European

Conference on Cyber Warfare and Security (pp. 63-72).

Academic Conferences International Limited.

Camenisch, J., & Lysyanskaya, A. (2001, May). An

efficient system for non-transferable anonymous

credentials with optional anonymity revocation. In

International conference on the theory and applications

of cryptographic techniques (pp. 93-118). Springer,

Berlin, Heidelberg.

Egyed, A., & Boehm, B. (1998, July). 4.5. 3 A Comparison

Study in Software Requirements Negotiation. In

INCOSE International Symposium (Vol. 8, No. 1, pp.

666-674).

Farrell, S. "Nearly 157,000 had data breached in TalkTalk

cyber-attack." (2015). Available at: https://www.the

guardian.com/business/2015/nov/06/nearly-157000-

had-data-breached-in-talktalk-cyber-attack [Accessed:

15 May 2017].

Horkoff, J., Aydemir, F. B., Cardoso, E., Li, T., Maté, A.,

Paja, E., & Giorgini, P. (2019). Goal-oriented

requirements engineering: an extended systematic

mapping study. Requirements Engineering, 24(2), 133-

160.

Kim, M., Park, S., Sugumaran, V., & Yang, H. (2007).

Managing requirements conflicts in software product

lines: A goal and scenario based approach. Data &

Knowledge Engineering, 61(3), 417-432.

Van Lamsweerde, A., Darimont, R., & Letier, E. (1998).

Managing conflicts in goal-driven requirements

engineering. IEEE transactions on Software

engineering, 24(11), 908-926.

Liu, L., Yu, E., & Mylopoulos, J. (2003, September).

Security and privacy requirements analysis within a

social setting. In Proceedings. 11th IEEE International

Requirements Engineering Conference, 2003. (pp. 151-

161). IEEE.

Maguire, M. (2001). Methods to support human-centred

design. International journal of human-computer

studies, 55(4), 587-634.

Mairiza, D., Zowghi, D., & Nurmuliani, N. (2010).

Towards a Catalogue of Conflicts Among Non-

functional Requirements. ENASE, 2010, 20-29.

Mairiza, Dewi, et al. (2013). "Conflict characterization and

analysis of non-functional requirements: An

experimental approach." Intelligent Software

Methodologies, Tools and Techniques (SoMeT), 2013

IEEE 12th International Conference on. IEEE.

Maxwell, J. C., Antón, A. I., & Swire, P. (2011, August). A

legal cross-references taxonomy for identifying

conflicting software requirements. In 2011 IEEE 19th

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

international requirements engineering conference (pp.

197-206). IEEE.

Mouratidis, H. (2011). Secure software systems

engineering: the secure tropos approach. JSW, 6(3),

331-339.

Mouratidis, H., & Giorgini, P. (2007). Secure tropos: a

security-oriented extension of the tropos methodology.

International Journal of Software Engineering and

Knowledge Engineering, 17(02), 285-309.

Nguyen, C. M., Sebastiani, R., Giorgini, P., & Mylopoulos,

J. (2018). Multi-objective reasoning with constrained

goal models. Requirements Engineering, 23(2), 189-

225.

Pavlidis, M., & Islam, S. (2011, June). SecTro: A CASE

Tool for Modelling Security in Requirements

Engineering using Secure Tropos. In CAiSE Forum

(pp. 89-96).

Piras, L., Al-Obeidallah, M. G., Praitano, A., Tsohou, A.,

Mouratidis, H., Crespo, B. G. N., ... & Zorzino, G. G.

(2019, August). DEFeND architecture: a privacy by

design platform for GDPR compliance. In International

Conference on Trust and Privacy in Digital Business

(pp. 78-93). Springer, Cham.

Piras, L., Al-Obeidallah, M. G., Pavlidis, M., Mouratidis,

H., Tsohou, A., Magkos, E., ... & Crespo, B. G. N.

(2020, September). DEFeND DSM: a data scope

management service for model-based privacy by design

GDPR compliance. In International Conference on

Trust and Privacy in Digital Business (pp. 186-201).

Springer, Cham.

Ramadan, Q., Strüber, D., Salnitri, M., Riediger, V., &

Jürjens, J. (2018, June). Detecting conflicts between

data-minimization and security requirements in

business process models. In European Conference on

Modelling Foundations and Applications (pp. 179-

198). Springer, Cham.

Ramadan, Q., Strüber, D., Salnitri, M., Jürjens, J., Riediger,

V., & Staab, S. (2020). A semi-automated BPMN-

based framework for detecting conflicts between

security, data-minimization, and fairness requirements.

Software and Systems Modeling, 1-37.

Salnitri, M., Angelopoulos, K., Pavlidis, M.,

Diamantopoulou, V., Mouratidis, H., & Giorgini, P.

(2020). Modelling the interplay of security, privacy and

trust in sociotechnical systems: A computer-aided

design approach. Software and Systems Modeling,

19(2), 467-491.

Schär, B., Jüngling, S., & Thönssen, B. (2015, October).

Towards an Agile Requirements Engineering Process

Combining HERMES 5 and SCRUM. In 2015

International Conference on Enterprise Systems (ES)

(pp. 98-109). IEEE.

Schön, E. M., Thomaschewski, J., & Escalona, M. J.

(2017). Agile Requirements Engineering: A systematic

literature review. Computer Standards & Interfaces, 49,

79-91.

ConfIs: A Tool for Privacy and Security Analysis and Conﬂict Resolution for Supporting GDPR Compliance through Privacy-by-Design
