Does Fractal Enterprise Model Fit Operational Decision Making?

Victoria Klyukina

, Ilia Bider

1,2

and Erik Perjons

DSV, Stockholm University, Stockholm, Sweden

ICS, Tartu University, Tartu, Estonia

Keywords: Decision-making, Enterprise Modelling, Fractal Enterprise Model, FEM.

Abstract: The paper reports on testing suitability of using a so-called Fractal Enterprise Model (FEM) in operational

decision making. The project in which the testing has been done aimed at identifying areas for cost reduction

improvements in a support department of a European branch of an international high-tech concern. The idea

was to use modeling of the department’s operational activities on the intermediate level of details, just enough

to identify the areas that need attention or provide an opportunity for cost reduction. FEM connects enterprise

business processes with assets that are used in and are managed by these processes. It also allows to split a

process into subprocesses in order to reach an intermediate level of details. The split is done by using a special

type of assets called stock, which, for example, could be a stock of orders or a stock of parts to be used in an

assembly process. The experience from the project shows that the level of details that has been achieved by

using FEM is sufficient to understand the activities being completed by the department and identify possible

ways for improvements. Furthermore, two generic patterns that can help to identify some areas of improve-

ment have been established; these can be used in other projects.

1 INTRODUCTION

1.1 Motivation

According to (Hoverstadt, 2013) modern organiza-

tions have become so complex that no one in the man-

agement of an organization fully understand how it

operates. The paper also states that for Enterprise Ar-

chitecture to be taken seriously, it should provide the

business with models that the management under-

stands. As a model always simplify the reality, the

type of models to be employed depends on the task at

hand. More specifically, it depends on in what type of

decision-making the model should be used, and in

which decision-making phase. For example, a model

that is suitable for a strategy decision, such as sug-

gested in (Hoverstadt & Loh, 2017), might not be

suitable for decision-making related to improvement

of a particular process.

The need to have different models for different

kind of business-related decision-making and their

phases requires understanding of which modelling

techniques are suitable for building models for these

different purposes. There is a range of modelling

techniques used in practice, like IDEF0 (NIST, 1993),

BPMN (OMG, 2013) or ArchiMate (The open group,

2020), each of them focusing on some aspects of an

organization, e.g. processes, resources, goals, while

disregarding others. The decision of which technique

to use is not always easy to make as the priorities of

different stakeholders participating in the decision-

making project may differ. For example, the model-

ers engaged in a project might insist on using a tech-

nique with which they are familiar, even if it might

not constitute the best fit with the modelling purpose.

In theory, a fit can be checked by analysing

whether a modelling technique has concepts im-

portant for a particular type of decision making. How-

ever, if a modelling technique employs high-level ab-

stract concepts, such test might be positive for any

purpose, but it would not guarantee suitability or use-

fulness for a specific purpose. The final test comes

only from using a particular modelling technique in a

real decision-making context. As the saying goes “the

proof of the pudding is in the eating”.

This paper is devoted to answering a particular

question of whether a so-called fractal enterprise

modelling (FEM) technique (Bider et al., 2017) is

suitable for employing in operational decision-mak-

ing. To answer this question, FEM was used in a busi-

ness case that gave an opportunity to test this tech-

nique for the operational decision-making.

Klyukina, V., Bider, I. and Perjons, E.

Does Fractal Enterprise Model Fit Operational Decision Making?.

DOI: 10.5220/0010407306130624

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 613-624

ISBN: 978-989-758-509-8

613

At the operational level, decisions are related to a

short-term planning for the implementation of guide-

lines set by the upper planning levels, and they con-

cern the preparation of detailed instructions for oper-

ational execution (Ayora et al., 2015). Models used in

operation research, such as Process Diagrams, Math-

ematical models and Operational models, are focused

on processes as subjects of investigation to capture

relevant activities as detailed as they are needed for a

particular task (Jacobs et al., 2011; Weske, 2007).

In this work, we concentrate on the operational

decisions within the current business model, i.e. deci-

sions that are not connected to changing what, how

and for whom an enterprise creates value. Such oper-

ational decisions may include streamlining business

processes, outsourcing or relocating some parts of the

business operation, introducing more efficient/effec-

tive methods to complete operational activities, in-

cluding changing equipment or software systems.

Note that the operational decision-making includes

various phases, one of which is finding potential areas

where improvement can be made to produce the de-

sirable effect. This work concerns only operational

decision-making related to this phase.

1.2 Project Overview

The project aimed at investigating opportunities for

improvement in an EMEA (i.e. Europe, Middle East

and Africa) branch of an international high-tech busi-

ness concern. The business concern provides test

measurement products and related services to other

high-tech organizations. The project started by a re-

quest from the department director of the internal

Business Support and Services (BSS) department

whose prime responsibility is sales support and man-

aging supply chain activities. The BSS department is

entrusted with the task of relieving sales and service

departments from administrative work. Thereby,

these departments could concentrate on their core

businesses, i.e. increasing sales, and providing effi-

cient high-quality calibration and repair of products.

As a result, BSS completes the activities in business

processes that belong to other departments, while

having no total responsibility for these processes. The

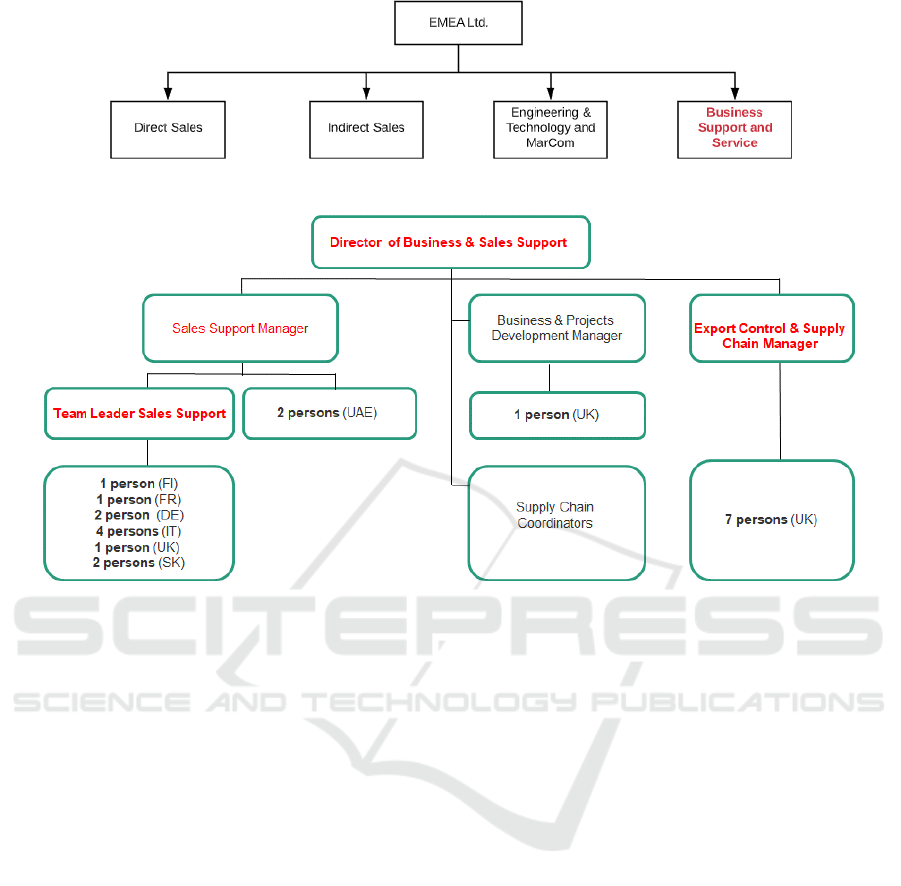

staff of the BSS department is distributed across sev-

eral European countries residing in sales and services

headquarters of these countries.

The background of the request that triggered the

project is the exposure of EMEA branch to a signifi-

cant economic decline that requires adjustment of the

operational cost. Several alternatives to achieve cost

reduction were considered, such as changing respon-

sibility structure or relocating the staff to a lower-

wage country. Our task has been to suggest a set of

alternatives for organizational changes based on mod-

eling of operational activities of the BSS department.

We assumed that modelling of BSS’s operational ac-

tivities on an intermediate level of details would be

reasonable for the task, i.e. sufficient for identifying

opportunities for improvements. More details, which

might be needed for analysis of the opportunities and

implementation of the final decision, could be added

later.

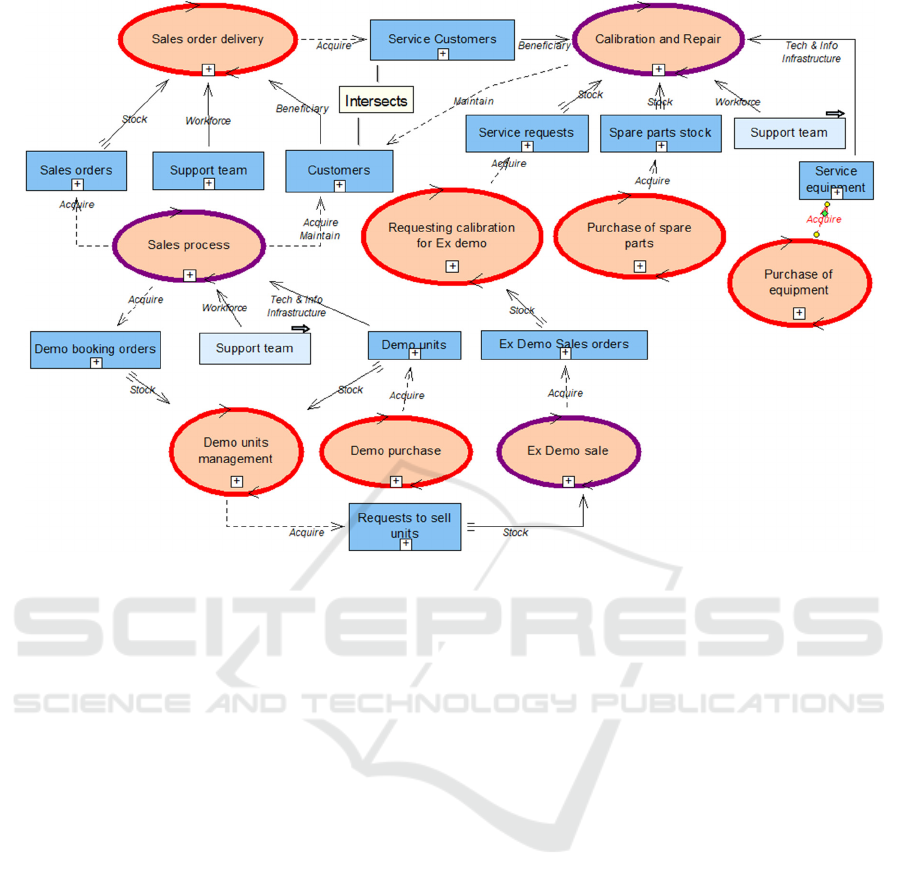

Fractal Enterprise Model (FEM) (Bider et al.,

2017) has a form of a directed graph with two types

of nodes, processes and assets, where the arrows

(edges) from assets to processes show which assets

are used in which processes and arrows from pro-

cesses to assets show which processes help to have

specific assets in "healthy" and working order. The

arrows are labeled with meta-tags that show in what

way a given asset is used, e.g. as workforce, reputa-

tion, infrastructure, etc., or in what way a given pro-

cess helps to have the given assets “in order”, i.e. ac-

quire, maintain or retire.

FEM is aimed at showing the relationships be-

tween business processes through different types of

assets used in the processes. It does not have means

for representing individual activities in the process

and their detailed sequence as is the custom for the

workflow-based notations, e.g. BPMN (OMG, 2013).

Nevertheless, FEM allows to represent a business

process as a set of subprocesses through using a spe-

cial type of assets called stock. A typical stock asset

is a stock of parts that are used in an assembly pro-

cess. Other examples of stock assets are a list of or-

ders or customer complaints that need to be handled.

Hence, a stock asset differs from other types of assets

used in a process in it being depleted by instances

(runs) of the process. Each process instance consumes

one or more entities from the stock, thus the stock

needs to be constantly filled with new entities by

some other business process(es). The latter pro-

cess(es) is connected with the stock asset by a relation

of type acquire. Using acquire-asset-stock chain we

can connect casually related (sub)processes based on

the result from one (sub)process being used in another

(sub)process.

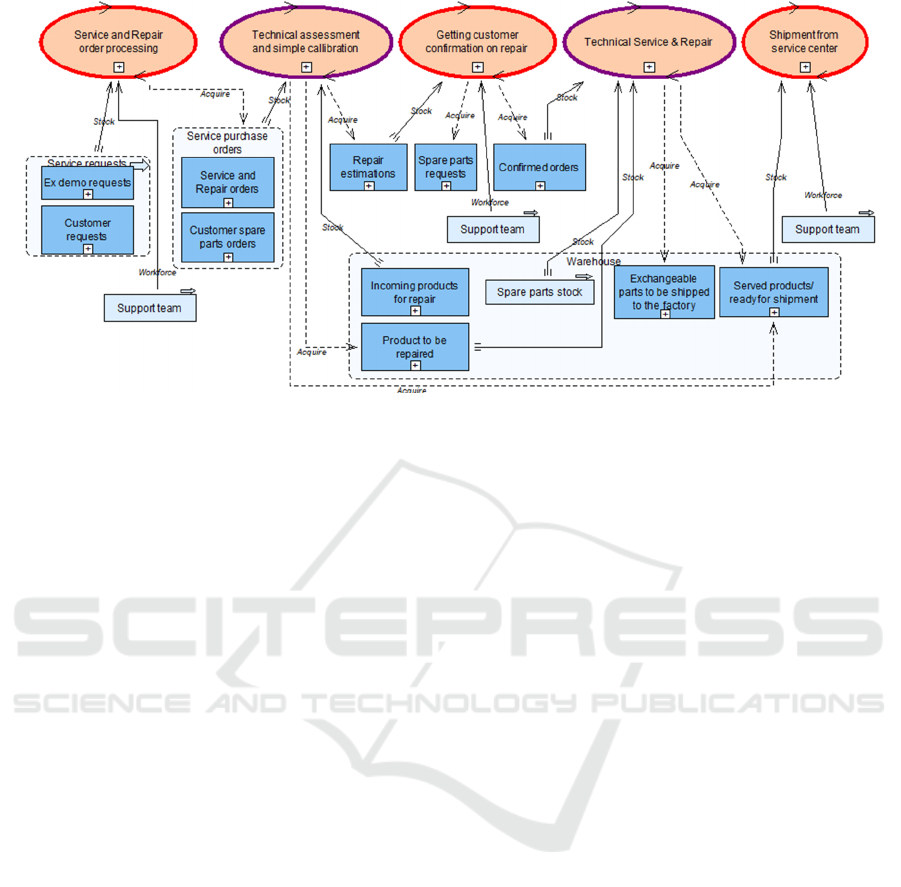

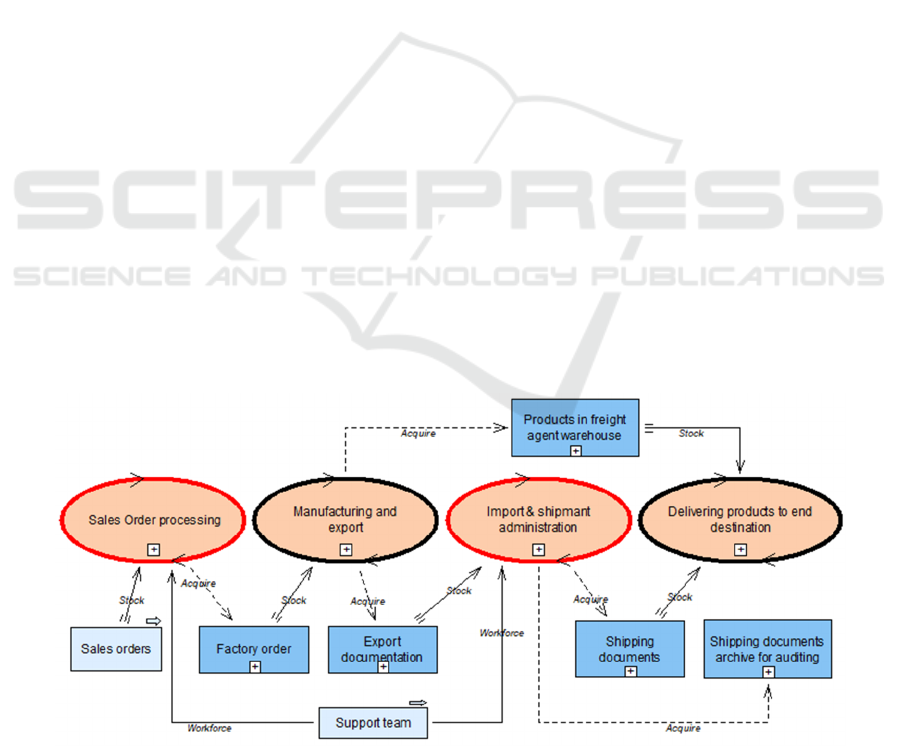

The decomposition of the company’s business

processes into subprocess helped us to identify and

understand subprocesses completed by the BSS de-

partment. In particular, we could identify which par-

ticular subprocesses the BSS department is carrying

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

614

out within business processes controlled by other de-

partments. These subprocesses could be analyzed

without further decomposing them into individual ac-

tivities.

During the analysis of decompositions, we have

identified two patterns of recurring situations that

points to areas for potential improvement. One pat-

tern is a subprocess that deals exclusively with virtual

information. In such a situation, the members of staff

who handle the subprocess have no explicit connec-

tion to a physical location, as they can do it from any

place on the earth. The handling of the subprocesses

could be moved to another location, and even out-

sourced. This type of situations constitutes our first

pattern for identifying opportunities for organiza-

tional change that might lead to cost reduction im-

provements.

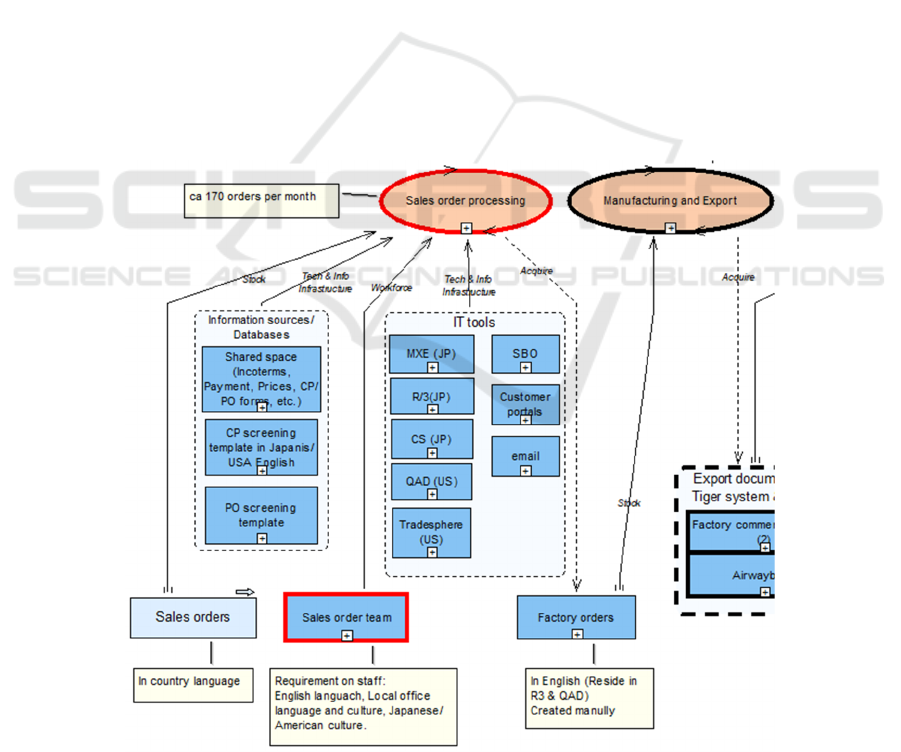

Another pattern that has emerged is a subprocess

that converts a virtual document from one form into

another and includes the usage of a diverse set of IT

tools. This situation gives an indication of interoper-

ability issues that require attention. Either the IT tools

need to be integrated, or a new integrated IT system

should be employed, so that the tasks of manually

moving information from one system into another be-

come automated.

Based on the analysis of detailed FEM model, the

management was presented with a set of potential ar-

eas for improvement, which are currently under con-

sideration. On the whole, our experience of using

FEM for analysis of operational activities to identify

potential areas for improvement could be considered

as positive. We could get the level of detail that is

needed for our purpose without diving too deep in

how the processes are conducted. We have also iden-

tified some patterns of areas for improvement that can

be used in other projects of a similar kind. Based on

the results achieved in the project, we can give a pos-

itive answer to the question posed in Section 1.1 and

in the title of this paper.

The rest of the paper is structured in the following

way. In Section 2, we give an overview of FEM, so

that the reader does not need to look for it in other

works. In addition, we position the project inside a

wider research program, of which the project is a part.

In Section 3, we give an overview of the company and

business activities of the support department. In Sec-

tion 4, we present examples of models that decom-

pose the company’s business processes in subpro-

cesses connected via acquire-asset-stock chains. In

Section 5, we use these models for identifying poten-

tial areas of improvement. In Section 6, we summa-

rize our experience and present lessons learned. In

Section 7, we discuss our findings. Section 8 includes

concluding remarks and areas for future research.

2 BACKGROUND

2.1 Overview of FEM

In this section, we repeat the main principles of build-

ing Fractal Enterprise Models (FEM) already pub-

lished in a number of other works, especially in

(Bider et al., 2017). FEM includes three types of ele-

ments: business processes (more exactly, business

process types), assets, and relationships between

them, see Fig. 1 in which a fragment of a model is

presented. The fragment is related to the business case

analyzed in this paper, and it will be explained in de-

tail later. In this section, Fig. 1 is used for illustrating

the FEM concepts. Note that processes in FEM can

be presented on different levels of granularity. For ex-

ample, on the highest level the whole company can be

presented as one process. In Fig.1, an intermediate

level of granularity has been chosen.

Graphically, a process is represented by an oval,

an asset is represented by a rectangle (box), while a

relationship between a process and an asset is repre-

sented by an arrow. We differentiate two types of re-

lationships in the fractal model. One type represents

a relationship of a process “using” an asset; in this

case, the arrow points from the asset to the process

and has a solid line. The other type represents a rela-

tionship of a process changing the asset; in this case,

the arrow points from the process to the asset and has

a dashed line. These two types of relationships allow

tying up processes and assets in a directed graph.

In FEM, a label inside an oval names the given

process, and a label inside a rectangle names the

given asset. Arrows are also labeled to show the type

of relationships between the processes and assets. A

label on an arrow pointing from an asset to a process

identifies the role the given asset plays in the process,

for example, workforce, and infrastructure. A label

on an arrow pointing from a process to an asset iden-

tifies the way in which the process affects (i.e.

changes) the asset. In FEM, an asset is considered as

a pool of entities capable of playing a given role in a

given process. Labels leading into assets from pro-

cesses reflect the way the pool is affected, for exam-

ple, the label acquire identifies that the process

can/should increase the pool size.

Note that the same asset can be used in multiple

processes playing the same or different roles in them,

Does Fractal Enterprise Model Fit Operational Decision Making?

615

Agenda for border coloring: Red – BSS is responsible for the process; Purple – another department of EMEA is

responsible for the process; Black - a third party is responsible for the process.

Figure 1: A fragment of a FEM for the business case.

which is reflected by labels on the corresponding ar-

rows. It is also possible that the same asset plays mul-

tiple roles in the same process. In this case, several

labels can be placed on the arrow between the asset

and the process. Similarly, a process could affect mul-

tiple assets, each in the same or in different ways,

which is represented by the corresponding labels on

the arrows. Moreover, it is possible that a single pro-

cess affects a single asset in multiple ways, which is

represented by having two or more labels on the cor-

responding arrow.

When there are too many arrows leading to the

same process or asset, several copies can be created

for this process or asset in the diagram. In this case,

the shapes for copies have a bleaker color than the

original, see asset Support team in Fig. 1 that appears

in three places.

In FEM, different styles can be used for shapes to

group together different kinds of processes, assets,

and/or relationships between them. Such styles can

include dashed or double lines, or lines of different

thickness, or colored lines and/or shapes. For exam-

ple, a special start of an arrow notifies that the relation

is of the stock type (see the arrows in Fig. 1). Another

example of styles used in this project, is the color of

borders of processes and assets which identify which

department is responsible for each process and asset.

Labels inside ovals (which represent processes)

and rectangles (which represent assets) are not stand-

ardized. They can be set according to the terminology

accepted in the given domain, or be specific for a

given organization. Labels on arrows (which repre-

sent the relationships between processes and assets)

are standardized. This is done by using a relatively

limited set of abstract relations, such as, workforce or

acquire, which are clarified by the domain- and con-

text-specific labels inside ovals and rectangles. Stand-

ardization improves the understandability of the mod-

els.

While there are a number of types of relationships

that show how an asset is used in a process (see ex-

ample in Fig. 1), there are only three types of relation-

ships that describe how an asset is managed by a pro-

cess – Acquire, Maintain and Retire.

To make the work of building a fractal model

more systematic, FEM uses archetypes (or patterns)

for fragments from which a particular model can be

built. An archetype is a template defined as a frag-

ment of a model where labels inside ovals (processes)

and rectangles (assets) are omitted, but arrows are la-

belled. Instantiating an archetype means putting the

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

616

fragment inside the model and labelling ovals and

rectangles; it is also possible to add elements absent

in the archetype, or omit some elements that are pre-

sent in the archetype.

FEM has two types of archetypes, process-assets

archetypes and an asset-processes archetype. A pro-

cess-assets archetype represents the kinds of assets

that can be used in a given category of processes. The

asset-processes archetype shows the kinds of pro-

cesses that are aimed at changing the given category

of assets. The whole FEM graph can be built by alter-

native application of these two archetypes in a recur-

sive manner representing self-similar patterns on dif-

ferent scales, fractals. The term fractal in the name of

our modelling technique points to the recursive nature

of the model

Hereby, we finish a short overview of the standard

FEM. The reader who wants to know more about the

model and why it is called fractal are referred to

(Bider et al., 2017) and the later works related to

FEM.

2.2 Research Approach

The research presented in this paper belongs to the

Design Science (DS) paradigm (Hevner et al., 2004;

Bider et al., 2013), which focuses on looking for ge-

neric solutions for problems. These problems could

be known, or unknown. The result of a DS research

project can be a solution of a problem in terminology

of (Bider et al., 2013), or artifact in terminology of

(Hevner et al., 2004); alternatively, the result can be

in form of "negative knowledge" stating that a certain

approach is not appropriate for solving certain kind of

problems (Bider et al., 2013). Note that from the

knowledge acquisition perspective, it does not really

matter whether the answer on the question posed in

the previous section would be positive or negative.

This research is part of a broader undertaking con-

nected to FEM. Initially, FEM has been developed as

a means for finding all or the majority of the processes

that exist in an organization. The result of this re-

search produced more than a solution to the original

problem, as FEM includes not only relations between

the processes, but produces a map of assets usage and

management in the organization. Therefore, it be-

came clear that it would be worthwhile to look for

other problems/challenges that could be solved using

FEM while extending FEM when necessary. One ex-

ample of a specific application of FEM is using FEM

for business model innovation, which belong to the

area of strategic decision-making, see, for example,

(Bider & Perjons, 2018).

From the point of view of classification of DS op-

portunities introduced in (Anderson et al., 2012) and

adopted in (Bider et al., 2013), see Fig. 2, we use ex-

aptation (in terminology of (Anderson et al., 2012))

or transfer (in terminology of (Bider et al., 2013)),

which amounts to extending the known solutions to

new problems, including adapting solutions from the

other fields/domains. According to both (Bider et al.,

2013) and (Anderson et al., 2012), exaptation pro-

vides a research opportunity.

As far as this particular project is concerned, it can

be classified as a practitioner reflections project.

(Mott, 1996). In this project, the authors functioned

as practitioners, i.e. business analysts. The research

conclusions when answering the question from Intro-

duction are based on the reflection from own practice.

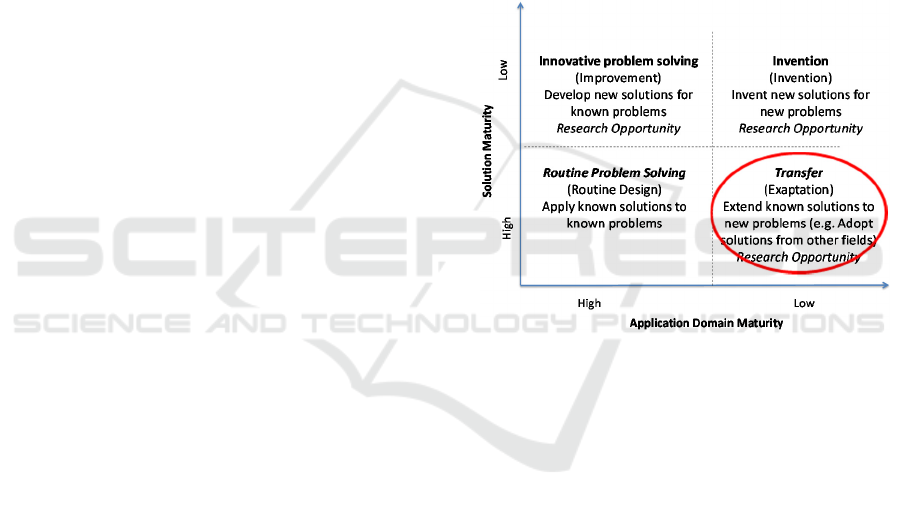

Figure 2: The Application Domain Maturity/Solution Ma-

turity matrix adopted from (Anderson et al., 2012).

3 BUSINESS CASE

Our project has been conducted in an international

high-tech business concern. The business concern

produces and sells test measurement equipment to

their clients, most of which are teleoperators or pro-

viders of equipment for teleoperators. The business

concern also provides services related to the test

measurement equipment. There are three major

branches of the global organizations: USA, Asia and

EMEA (Europe/Middle East/Africa). These days,

EMEA, which has been in the center of our investiga-

tion, is challenged by the competitive environment. It

has been exposed to a significant economic decline

and urgently needs a solution that will help retaining

a leading position in the industry. In particular,

the question of how to minimize the operational costs

Does Fractal Enterprise Model Fit Operational Decision Making?

617

Figure 3: EMEA structure in relation to BSS.

Figure 4: BSS formal organization (from the case documentation).

while maintaining the quality of service of the EMEA

Business Support and Service (BSS) department has

been raised.

The core activities of EMEA related to our project

are presented in the form of four boxes in Fig. 3. The

last box is marked with a red font to highlight activi-

ties that are entrusted to the BSS department, the de-

partment with which we have cooperated during our

project. Some examples of activities included in this

box, according to EMEA documentation, are as fol-

lows:

─ Sales and Service Support. This activity is aimed

at unloading sales staff and technical service per-

sonal from paperwork and other formalities related

to the customer orders for equipment and service.

It ensures that other departments (i.e. the Sales and

the Service departments) can concentrate on their

primary activities, e.g. generating customer orders

or performing service and calibration. This activity

includes Purchasing of products from the factories

(see the next activity) and Customer Support as its

parts.

─ Purchasing. The activity takes care of any purchase

within the company, such as products for custom-

ers, equipment, spare parts, etc. It includes Export

Control and Shipping as its parts.

─ Export Control and Shipping (i.e. Supply Chain).

This activity is aimed at ensuring export and im-

port compliance with the government regulations

and smooth physical movement of products and

equipment between relevant parties, e.g. produc-

tion plants, country offices, customers.

─ Demo and Loan. This activity is aimed at supply-

ing sales with demonstration units of company

products to be tested by customers, and later can

be sold to customer with reduced prices. It includes

paper work and Purchasing and Export Control

and Shipping as its parts.

The formal organization of BSS is presented in Fig.

4, which also shows that the staff of BSS is distributed

through the whole Europe. The red font in Fig 3 iden-

tifies managers with whom we cooperated during the

project.

Considering the range of activities completed by

BSS and their interweaving with the activities of

other departments, choosing what to change and the

scale of changes have become a challenge for the

management team. Our project was started in an at-

tempt to assist their decision-making. Beside the au-

thors of the paper, the BSS director and other key em-

ployees of BSS participated in the project. The latter

included Export Control and Supply Chain manager,

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

618

Sales Support manager and team leader. The project

lasted over the period of 8 months (September 2019 -

April 2020) and included multiple detailed interviews

with key persons based on which the models of BSS

activities were built.

The goal of the project was to assist the BSS man-

agement with operational decision making by sug-

gesting alternatives for restructuring that might lead

to cost reduction.

4 UNDERSTANDING BSS

ACTIVITIES

4.1 Processes in Which BSS

Participates

Fig. 1 presents a partial model of EMEA business ac-

tivities in which BSS participate. That part includes

two primary processes, that is, processes that deliver

value to customers, Sales order delivery and Calibra-

tion and Repair, and assets that are needed for the

process instances of this processes to run smoothly.

In addition, Fig. 1 features a number of management

processes aimed at having the assets in order. The

most important of these processes is Sales process

that provides Sales order delivery with both new Cus-

tomers and new Sale orders. This process in its own

turn require assets, one of which is Demo units, which

are examples of the company products that can be

borrowed by customers for testing. These need to be

sold after half a year in order to renew the stock of

demo units. This is done by a special sales process

called Ex Demo sale.

Fig.1 uses a special coloring scheme to show for

which processes BSS is responsible. The red border

means that BSS is responsible for the process that has

this border color. The purple border means that some

other EMEA department is responsible for the pro-

cess. The processes in which BSS participate, but

might not be responsible for, are identified by asset

Support team being used in it. As follows from Fig.

1, BSS is responsible for one primary process, Sales

order delivery, and participates in two other im-

portant processes, Calibration and Repair process (a

primary process), and Sales process. Besides, BSS is

responsible for many supporting processes, some of

them being depicted in Fig. 1.

While Fig. 1 provides a good picture of the diver-

sity of tasks completed by BSS it does not provide a

more detailed picture of what BSS does in each pro-

cess and whether the same kind of tasks are present in

many processes in which the BSS staff is engaged on

the daily basis. To better understand these issues, we

have decomposed many of the EMEA business pro-

cess into subprocess. The examples of such decom-

positions will be presented in the next sections.

4.2 Examples of Decomposition of BSS

Processes

Fig. 5 presents a simplified FEM model of decompo-

sition of business process Sales order delivery from

Fig. 1. Simplification has been made to illustrate the

idea of decomposition without burdening the reader

with too many details. A more detailed model of this

process will be presented in the next section.

Figure 5: Decomposition of Sales order delivery.

Does Fractal Enterprise Model Fit Operational Decision Making?

619

Agenda for border coloring: Red – BSS is responsible for the process; Purple – another department of EMEA is

responsible for the process; Black - a third party is responsible for the process.

Figure 6: Decomposition of Calibration and Repair.

The decomposition features four subprocesses,

two of which are handled by BSS – they have red col-

ored borders, while the other two are handled by par-

ties outside EMEA – they have black colored borders

(see “Agenda for border coloring” in Fig. 1). The sub-

process Manufacturing and export is handled by one

of the factories of the concern, while Delivering prod-

ucts to end destination is handled by a shipping agent.

The connection between the subprocesses is done

through acquire-asset-stock chains. For example,

subprocesses Sales Order processing and Manufac-

turing and export are connected via the asset Factory

order, more precisely via the first subprocess acquir-

ing Factory order that serve as a stock for the second

subprocess.

A more complex, but still simplified, model pre-

sented in Fig. 6 decomposes process Calibration and

Repair from Fig. 1. The subprocesses in the model in

Fig. 6 are connected to each other in the same way as

in Fig. 5. In this model subprocesses for which BSS

is responsible (red colored border), are intervened

with the subprocesses for which the EMEA product

service department is responsible which have purple

border coloring.

As we can see from models in Fig. 5 and 6, activ-

ities completed by the BSS team are:

 Interwoven with activities completed by others,

i.e. other departments or external partners

 Of administrative nature, mostly processing infor-

mation/documents. The larger part of this infor-

mation resides in various IT systems, but it can

also be in the form of PDF documents sent and re-

ceived by email.

5 ANALYZING BSS ACTIVITIES

To better understand the business activities of BSS

and identify the possible areas for improvement, the

models of the type presented in Fig. 5 and 6 were ex-

tended by adding more details. In particular, a more

detailed information on technical and information in-

frastructure has been added to the models. This is il-

lustrated in the example of the enhanced model from

Fig. 5, part of which is presented in Fig. 7.

In Fig. 7, the subprocess Sales order processing is

enriched with the groups of assets belonging to Infor-

mation sources/Databases and IT tools that are used

by the process participants when managing process

instances. By visually representing all systems and in-

formation sources used in the process, Fig. 7 high-

lights the complexity of the process of translating en-

tities from the asset Sales orders into entities of the

asset Factory orders.

Databases and other information sources provide

such information as prices of products and services,

and they also include various types of forms to enable

the transformation of a sales order into a factory or-

der. To such sources belong Customer profile form,

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

620

Customer screening form, Purchase order screening

form, Incoterms, Customer credits, Price lists, Quote,

etc. First, all documentation related to a factory order

is created and shared internally using an IT system

called SBO (provided by SAP). Then, these docu-

ments must be shared/uploaded into IT systems used

in a business concern’s production organization, one

of which is situated in Japan and another one in US.

The Japan production uses systems CP, MXE and R3,

and the US production uses systems QAD and

Tradesphere. Besides these systems, email and cus-

tomer portals are often involved in communicating

the information related to a factory order.

The primary cause for complexity of this process

is the employment of multiple disjoint IT systems,

which are not easy to use and which require manually

transferring of information from one system into an-

other. Looking at the model in Fig. 7, it becomes

clearer why the BSS department has been created in

EMEA. Sales people have no time and no desire to

learn and handle all this information sources and IT

systems. They want to concentrate their efforts at get-

ting new orders and new customers, especially, con-

sidering that their salary is based on commission from

sales.

The fragment presented in Fig. 7 is repeated with

some modification in other BSS processes, such as

Purchase of spare parts and Demo purchase from

Fig. 1. To make Sales order processing less complex

something should be done to eliminate manual oper-

ations included in it, especially the ones that consists

of manually moving information from one system

into another. This can be done by integrating systems

employed in the process, in the simplest way by in-

troducing robot integration (e.g. robotic process auto-

mation). An alternative could be acquiring one inte-

grated system which is easy to use. In addition, auto-

mation of some operations, such as translation of the

sales order in a country language into English, could

be considered.

A situation presented in Fig. 7 gave rise to a pat-

tern for potential improvement, which was present in

several BSS processes. This pattern can be defined in

a following manner. If there is a process/subprocess

that:

─ Converts some virtual information/documents

from one form to another without much communi-

cation with the external world,

Figure 7: Part of the enhanced model of Sales order delivery.

Does Fractal Enterprise Model Fit Operational Decision Making?

621

─ And it employs a lot of disjoint IT systems and

other type of tech and information infrastructure,

especially when it is not user friendly and difficult

to handle,

─ And, possibly, it includes manual movement of in-

formation from one system to another,

Then, there is a potential gain to either integrate the

systems, or substantially reduce their number while

automating manual operations, at least partially, dur-

ing this process.

For all BSS processes that fitted this pattern, we

suggested the BSS management to have a closer look

on them and see whether something could be done.

For some of such processes BSS has no control, and

the suggestions would need a decision on the higher

level. For others, BSS could decide on the measures

on their own.

Another pattern that could be derived from Fig. 7

concerns the physical placement of the Sales order

team which is part of the Support team from Fig. 1.

As we can see from the model, they deal with virtual

documents and use IT resources that are available re-

motely. This means that the team can operate from

any location, as long as its members satisfies the re-

quirements listed in the note attached to Sales order

team in Fig. 7.

For all BSS processes that fitted the second pat-

tern, we suggested the BSS management to have a

closer look on them and see whether they would want

to relocate the teams.

6 REFLECTIONS

The following lessons could be drawn from our expe-

rience regarding the usage of FEM in operational de-

cision-making:

1. FEM is an effective tool for understanding activi-

ties performed by a particular business department.

For this purpose, modelling starts with drawing of

a high-level FEM that includes all processes that

the department participates, without showing

much of details, as it is done in Fig. 1. Then, the

processes in which the department participate are

decomposed using acquire-asset-stock chains.

This method is especially suitable for departments

such as BSS, which performed a set of diverse ad-

ministrative activities.

2. Intermediate level of details obtained via FEM

during decomposition seems to be sufficient for

identifying areas that need attention and present

opportunities for improving efficiency or reducing

costs. However, more granulated analysis may be

required for assessing the opportunities, and for

this purpose, a different modeling technique(s)

could be more suitable.

3. FEM is useful for identifying patterns of situations

that require attention and present opportunities for

improvement. Two such patterns have been identi-

fied during the project. One pattern concerns IT in-

tegration/automation. The other one concerns

physical relocation of teams, and, possibly, out-

sourcing. We believe that more patterns can be

identified in the frame of other projects that have a

similar goal to ours.

In the project, we also tested a newly developed tool

for FEM modelling implemented using ADOxx

toolkit (ADOxx.org, 2017), (Bork et al., 2019). Gen-

erally, we were satisfied with the functionality of the

tool but encountered some opportunities for enhance-

ments. In particular, it would be beneficial to subclass

assets and processes according to various dimensions.

For example, assets could be classified in three cate-

gories: tangible, intangible and human. Subclasses

could have different background and/or border colors.

The subclassing needs to be flexible, so that each

modeling project could define its own subclasses and

its own visual way of presenting them. In the version

of the tool we used, it was possible to visualize sub-

classes, but this required manual adjustment of colors

for each asset and/or process.

The subclassing enhancement has been success-

fully introduced in the next version of the tool, and

the tool has been made available for the public

(Fractal Enterprise Model, 2020).

7 DISCUSSION

Summarizing our reflections from Section 6, we can

give a positive answer to the question posed in Intro-

duction of whether FEM is suitable for employing in

operational decision-making. However, we need to

add some limitations on the fitness of FEM for oper-

ational decision-making. Firstly, the use of FEM was

limited to finding areas for potential improvement.

When such area is detected, a more detailed investi-

gation needs to be completed to assess the feasibility

and costs of the suggested change. To what extent

FEM could be useful for such investigation is not

clear at this stage. For example, if a detailed analysis

of the activities involved in the area is required for

decision, then another technique might be more suit-

able.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

622

The second limitation concerns a different dimen-

sion of fitness. Besides being suitable for performing

modeling tasks, we need to consider the team engaged

in building the model. In our project, the modelers

where acquainted with FEM, thus the challenge asso-

ciated with learning and applying new tool was not

present in the project. Based on the lessons learned,

we may conclude that for business analysts who have

experience of using FEM, this technique could be

successfully used in operational decision-making.

What other modelling techniques could be used in

the context similar to our project and whether they are

more or less suitable for this task than FEM is an open

question. Answering it is outside the scope of this pa-

per. As we have mentioned in Section 1, answering

such a question usually requires testing of each tech-

nique in a real project. Nevertheless, some presump-

tions can be made based on the logical analysis. For

example, business process modelling techniques,

such as BPMN, may not be suitable, as they are aimed

at depicting details on activities completed and their

ordering, rather than depicting all assets (resources)

used in a process/subprocess. IDEF0 might also be

less suitable than FEM, but in a different way. As it

has been shown in (Bider et al., 2019), there are some

similarities between FEM and IDFE0 which allow

transformation of a FEM model into an IDEF0 model

and vice versa. However, IDEF0 can represent less

types of assets, and, what is more substantial, it pre-

sents them graphically as arrows, which could be dif-

ficult to overview and analyse.

Other general enterprise modelling techniques,

such as ArchiMate (The open group, 2020), could be

suitable, especially for the modelers that have experi-

ence of the techniques. Still they need to be tested in

an appropriate context, i.e. similar to the one we had

in our project to provide with a more definite answer.

8 CONCLUDING REMARKS AND

PLANS FOR THE FUTURE

As it was explained in Section 1, the research goal of

the project was to test whether FEM can be used in

operational decision-making. Besides the research

goal, the project has a practical objection to analyse a

challenging business situation and produce recom-

mendations. Therefore, the research team was pre-

pared to abandon FEM if it proved not to be suitable

for the practical goal.

The possibility of decomposing business pro-

cesses into subprocesses using acquire-asset-stock

chains allowed us to proceed with FEM in the project.

This possibility has been suggested already in (Bider

et al., 2017), but it has never been tested in practice

before. Such decomposition should now be consid-

ered as useful for certain contexts and goals since it

has proved to be useful in the presented project. At

the beginning of the research we were overwhelmed

with the diversity of the activities performed by BSS.

Understanding what the department does and why has

been a challenge. Building an overview model, as

presented in Fig. 1, and decomposing processes in

which BSS participated helped us to comprehend the

complexity, and identify patterns of recurrent situa-

tions related to the BSS business activities.

Note that the concept of stock used in this work is

consistent with the business terminology, e.g. stock of

orders, and with the usage of the term in other mod-

elling techniques, e.g. System Dynamics (Richardson

& Pugh III, 1981), where any kind of reservoir for

storage is modelled as a stock.

The project has identified the needs to extend the

capabilities of our modeling tool in order to provide a

more convenient environment for modelers. Desired

features concern easy to grasp visual presentation of

decomposition, and classification of assets and pro-

cesses according to various dimensions. As was men-

tioned in Section 6, these features have been imple-

mented in the new version of the tool.

Other directions of our work on using FEM in op-

erational decision-making include conducting more

case studies, and starting working on a library of pat-

terns, two of which were identified in the project.

ACKNOWLEDGEMENTS

The authors are grateful to the BSS management team

who spent a lot of time describing their activities and

answering numerous questions. We are also in debts

to Dominik Bork who has created the first version of

the FEM modeling tool and continues helping us in

the further development of the tool.

The work of the second author was partly sup-

ported by the Estonian Research Council (grant

PRG1226).

REFERENCES

ADOxx.org, 2017. ADOxx. [Online] Available at:

https://www.adoxx.org [Accessed March 2019].

Does Fractal Enterprise Model Fit Operational Decision Making?

623

Anderson, J., Donnellan, B. & Hevner, A.R., 2012.

Exploring the Relationship between Design Science

Research and Innovation: A Case Study of Innovation

at Chevron. In Communications in Computer and

Information Science, 286. Springer, pp.116-31.

Ayora, C. et al., 2015. VIVACE: A framework for the

systematic evaluation of variability support in process-

aware information systems. Information and Software

Technology, 57, pp.248–76.

Bider, I., Johannesson, P. & Perjons, E., 2013. Design

science research as movement between individual and

generic situation-problem-solution spaces. In

Baskerville, R., De Marco, M. & and Spagnoletti, P.

Organizational Systems. An Interdisciplinary

Discourse. Springer. pp.35-61.

Bider, I. & Perjons, E., 2018. Defining Transformational

Patterns for Business Model Innovation. In

Perspectives in Business Informatics Research: 17th

International Conference, BIR 2018, Stockholm,

Sweden, LNBIP. Springer, pp.81-95.

Bider, I., Perjons, E., Elias, M. & Johannesson, P., 2017. A

fractal enterprise model and its application for business

development. SoSyM, 16(3), pp.663–89.

Bider, I., Perjons, E. & Johannesson, P., 2019. Using

Ontologies for Comparing Modeling Techniques:

Experience Report. In Advances in Conceptual

Modeling. Springer, LNSC, Vol. 11787, pp.180-90.

Bork, D. et al., 2019. An Open Platform for Modeling

Method Conceptualization: The OMiLAB Digital

Ecosystem. Communications of the Association for

Information Systems, 44.

Fractal Enterprise Model, 2020. FEM toolkit.

[Online] fractalmodel.org Available at: https://www.

fractalmodel.org/fem-toolkit/ [Accessed 27 February

2021].

Hevner, A.R., March, S.T. & and, P.J., 2004. Design

Science in Information Systems Research. MIS

Quarterly, 28(1), pp.75-105.

Hoverstadt, P., 2013. Why Business should take Enterprise

Architecture seriously. In J. Gøtze & A. Jensen-Waud,

eds. Beyond alignment, Systems Volume 3. College

publishing. pp.55-166.

Hoverstadt, P. & Loh, L., 2017. Patterns of Strategy. Taylor

& Francis.

Jacobs, F.R., Berry, W.L., Whybark, D.C. & Vollmann,

T.E., 2011. Manufacturing planning and control for

supply chain management: APICS/CPIM Certification

Edition. McGraw-Hill Education.

Mott, V., 1996. Knowledge comes from practice:

Reflective theory building in practice. In R.W. Rowden,

ed. Workplace learning: Debating five critical

questions of theory and practice. San Francisco, CA:

Jossey-Bass. pp.57-63.

NIST, 1993. Integration definition for function modeling

(IDEF0), Draft Federal Information Processing

Standards, Publication 183, 1993. [Online] Available

at: https://www.idef.com/idefo-function_modeling_

method/ [Accessed 30 October 2020].

OMG, 2013. Business Process Model and Notation

(BPMN), Version 2.0.2, Object Management Group

(OMG), Document formal/2013-12-09, December

2013. [Online] OMG Available at: http://www.

omg.org/spec/BPMN/2.0.2/PDF [Accessed February

2015].

Richardson, G.P. & Pugh III, A.L., 1981. Introduction to

System Dynamics Modeling.

The open group, 2020. ArchiMate® 3.0.1 Specification.

[Online] Available at: https://publications.opengroup.

org/standards/archimate/specifications/c179 [Accessed

30 October 2020].

Weske, M., 2007. Business process management: concepts,

methods, technology. Springer-Verlag.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

624
