BarChartAnalyzer: Digitizing Images of Bar Charts

Komal Dadhich, Siri Chandana Daggubati

∗

and Jaya Sreevalsan-Nair

a,†

Graphics-Visualization-Computing Lab, and E-health Research Center,

International Institute of Information Technology Bangalore, Bangalore, India

Keywords:

Chart Classiﬁcation, Chart Segmentation, Chart Image Analysis, Optical Character Recognition, Data

Extraction, Text Recognition, Text Summarization, Convolutional Neural Network, Bar Charts, Stacked Bar

Charts, Grouped Bar Charts, Histograms.

Abstract:

Charts or scientiﬁc plots are widely used visualizations for efﬁcient knowledge dissemination from datasets.

However, these charts are predominantly available in image format. There are various scenarios where these

images are interpreted in the absence of datasets used initially to generate the charts. This leads to a pertinent

need for data extraction from an available chart image. We narrow down our scope to bar charts and propose a

semi-automated workﬂow, BarChartAnalyzer, for data extraction from chart images. Our workﬂow integrates

the following tasks in sequence: chart type classiﬁcation, image annotation, object detection, text detection

and recognition, data table extraction, text summarization, and optionally, chart redesign. Our data extraction

uses second-order tensor ﬁelds from tensor voting used in computer vision. Our results show that our workﬂow

can effectively and accurately extract data from images of different resolutions and of different subtypes of

bar charts. We also discuss speciﬁc test cases where BarChartAnalyzer fails. We conclude that our work is an

effective and special image processing application for interpreting charts.

1 INTRODUCTION

Data can be interpreted better when presented as visu-

alizations, wherein one of the simplest and most ubiq-

uitous forms is the class of charts. Chart representa-

tion speciﬁcally is a widely used approach, which is

evident from the inclusion of the basic understanding

of simple charts in the curriculum of primary school

education. Simple charts, e.g., bar charts, scatter

plots, etc., are commonly found in documents (text-

books, publications), print media (newspapers, maga-

zines), and on the internet; and are most prevalent in

image format. There are use cases of redesign and re-

construction of charts for getting high-resolution im-

ages for applications such as generating accessible

reading materials for differently-abled students. The

chart redesign also enables students with learning dif-

ﬁculty to understand data using alternative designs.

These applications pose a problem when the source

data for the charts is not available alongside the chart

image for ready consumption. Thus, data extraction

in the form of semi-structured tables (Methani et al.,

https://orcid.org/0000-0001-6333-4161

∗

K. Dadhich and S. C. Daggubati contributed equally.

†

Corresponding author.

2020) from these chart images is a relevant problem,

speciﬁcally in the space of improving assistive tech-

nologies.

Amongst all statistical plots, bar chart representa-

tion is the most commonly used one for visual sum-

marization. Since the design space for charts is large,

in terms of chart types and their formatting, we focus

on bar charts here. Bar charts have subtypes, depend-

ing on the data type and user requirement, such as

simple, stacked, grouped bar charts, to name a few.

Stacked and grouped bar charts help visualize multi-

class or multi-series data. The grouped bar chart gives

inter-and intra-class trends, and the stacked bars give

part-to-whole information for multiple classes.

The redesigning of multi-series charts is a moti-

vating application, as they are relatively difﬁcult to

interpret (Burns et al., 2009). The redesign entails

the requirement of source data that is used to gen-

erate the original plot as well as information about

classes/multi-series being represented in the image.

The state-of-the-art in reasoning over scientiﬁc plots

includes bar charts (Methani et al., 2020; Choi et al.,

2019), where object detection using convolutional

neural networks (CNN) for bars may fail for specif-

ically the stacked bars. Hence, we revisit the im-

Dadhich, K., Daggubati, S. and Sreevalsan-Nair, J.

BarChartAnalyzer: Digitizing Images of Bar Charts.

DOI: 10.5220/0010408300170028

In Proceedings of the International Conference on Image Processing and Vision Engineering (IMPROVE 2021), pages 17-28

ISBN: 978-989-758-511-1

Chart Image

Image Annotation (C2)

Text Detection and

Recognition (C5)

CNN

Classiﬁcation

(C1)

Canvas Extraction (C3) Tensor Field Computation

and Corner Detection (C4)

Of bar chart type

Not of bar chart type

Data (Table) Extraction (C6)

Chart Reconstruction/

Redesign

The plot depicts a Vertical

Grouped Bar Graph. The plot

is between Weight on y-axis

over Date on the x-axis for

c39, and c52. The Weight of

c39 has an overall decreasing

trend from d16 to d21. The

Weight of c52 starts with 2 in

d16 then increases till d20,

followed by and ﬁnally ends

with 1 in d21

Chart Summary (C7)

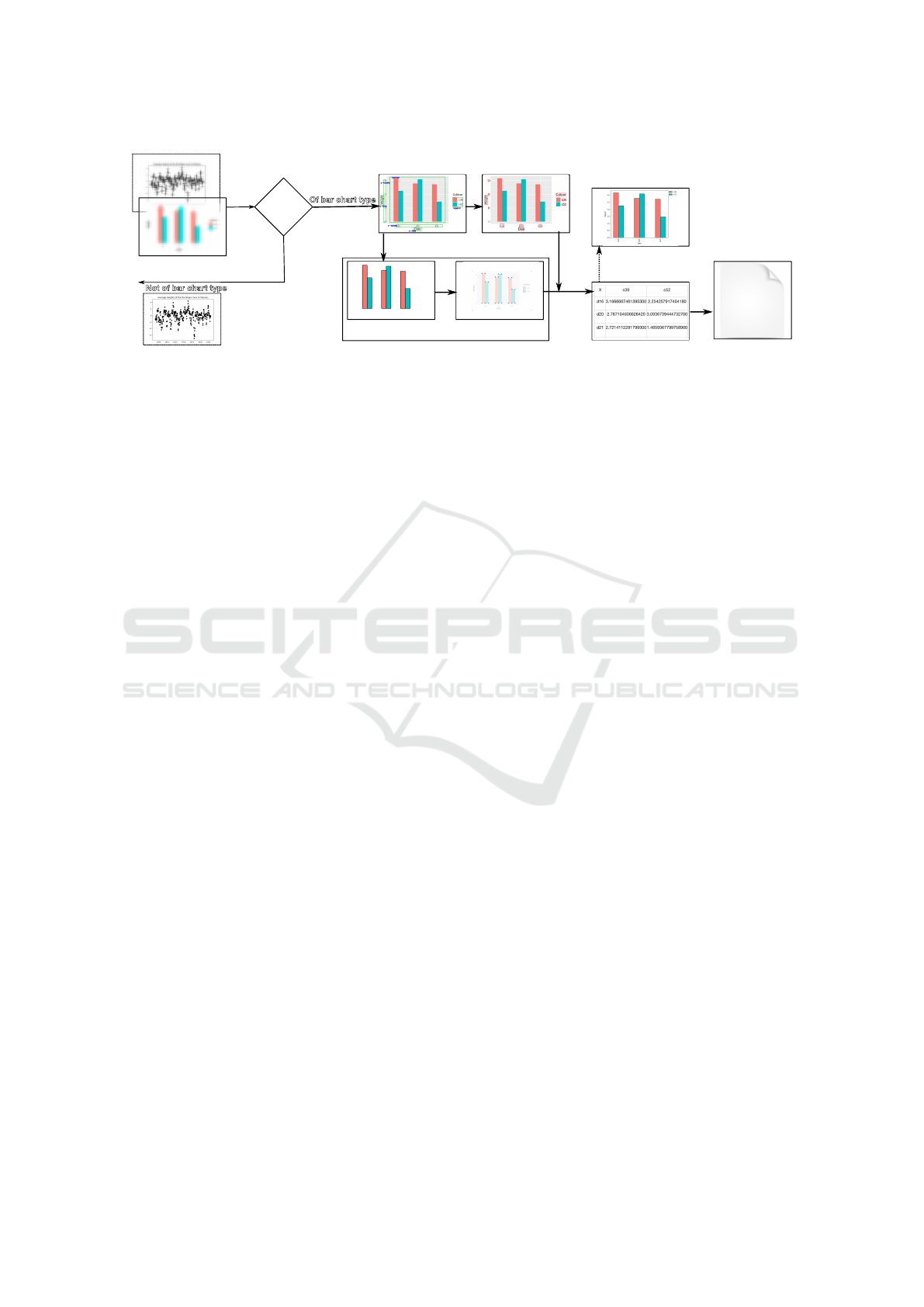

Figure 1: Our proposed workﬂow for data extraction from a given image of a chart using our proposed semi-automated

BarChartAnalyzer (BCA), with seven components (C1-C7), for applications including chart reconstruction and redesign.

Signiﬁcant components include C1 for classifying the chart image to bar charts and its subtypes, C2-C4 for feature extraction,

C5 for text detection for data contextualization, and ﬁnally C6 for generating the data table.

age processing method exploiting spatial locality for

object detection (Sreevalsan-Nair et al., 2020). We,

thus, propose a semi-automated workﬂow (Figure 1),

called BarChartAnalyzer, that can take an image as in-

put, identify the bar chart, sub-classify it to bar chart

type, and then perform data extraction. The extracted

data can be further used for reconstruction to get cus-

tomized charts of high-resolution image quality, as

well as for redesigning the complex to simpler charts.

Our contributions in this work are in:

• proposing a complete semi-automated workﬂow

for digitizing images of bar charts and its seven

subtypes, including stacked bar charts,

• identifying appropriate state-of-the-art algorithms

for text recognition in bar charts,

• generating training dataset for bar chart images

covering all seven subtypes, and a complement set

“others”,

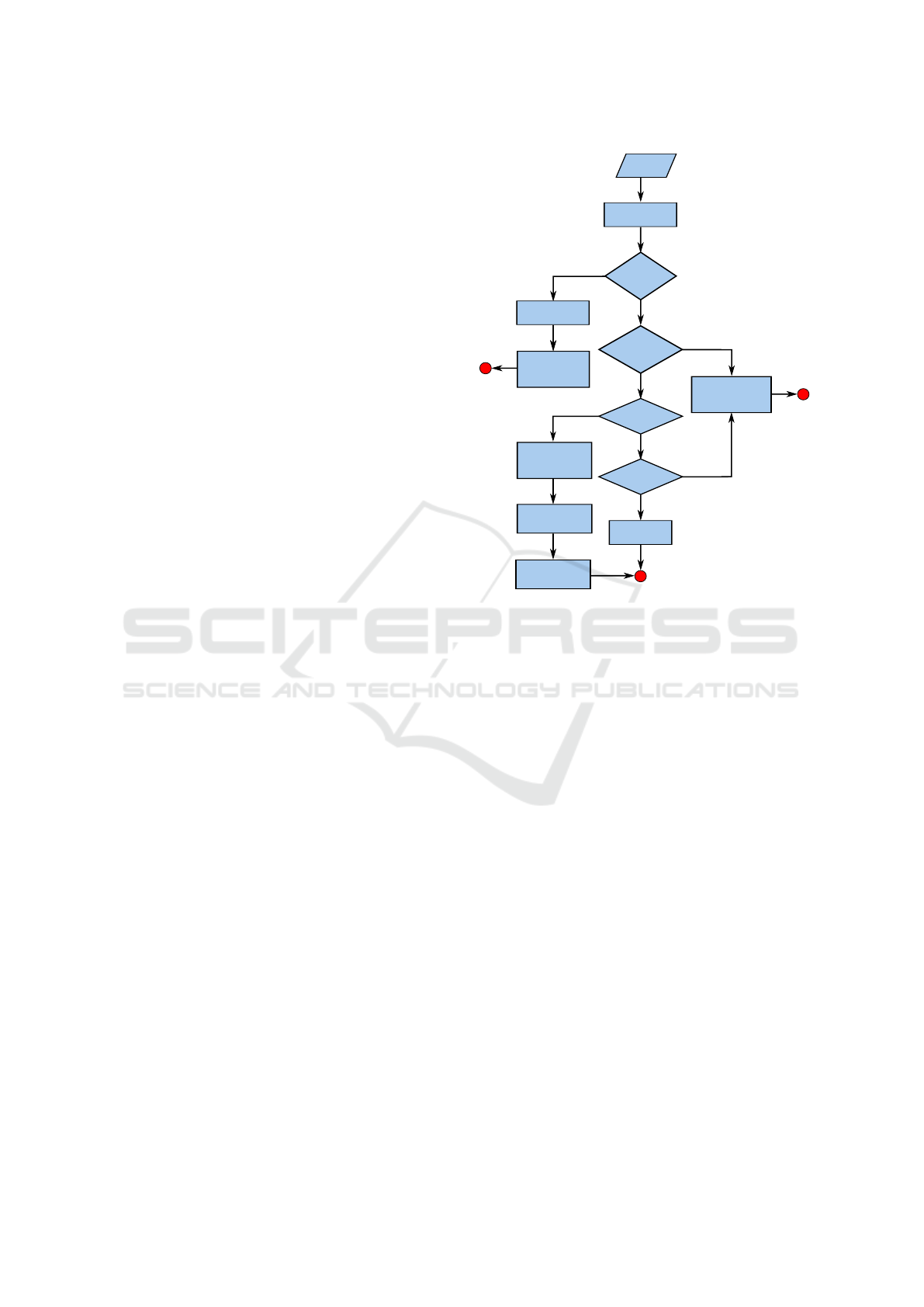

• proposing a ﬂowchart for templatizing text sum-

mary of bar charts from its images, and

• conducting a systematic study of limitations in our

workﬂow for speciﬁc test cases.

2 RELATED WORK

Chart analysis is generally divided into smaller tasks

such as chart type classiﬁcation, data extraction and

optionally, reconstruction or redesign, and summa-

rization. Revision is a system that performs tasks like

identifying chart type, extracting visual elements, and

encoded data by creating feature vectors and identify-

ing geometric structures in pixel space (Savva et al.,

2011). WebPlotDigitizer is another system that pro-

vides both automatic and manual procedures to ex-

tract data from given chart images (Rohatgi, 2011).

However, the tool requires extensive user interaction

for aligning axes to select data points. It works for

simple bars but fails for stacked and grouped bar

charts in giving class information.

Machine learning models have been effectively

used for classiﬁcation and/or object detection prob-

lems in chart analysis. Beagle is a web-based sys-

tem for classifying charts in scalable vector graphics

format (Battle et al., 2018). Text type classiﬁcation

has been done using feature vector generated using

the geometric property of text along with mark type

classiﬁcation using a ﬁne-tuned AlexNet (Poco and

Heer, 2017). FigureSeer uses a similar ﬁne-tuning ap-

proach (Siegel et al., 2016). A convolutional neural

network (CNN) model used for chart classiﬁcation,

can also used for object detection, e.g., for chart ob-

jects such as bars in the source image (Choi et al.,

2019). ChartSense uses GoogleNet for chart clas-

siﬁcation for line, bar, pie, scatter charts, map, and

table types (Jung et al., 2017). ChartSense further

uses the connected components method to extract bar

objects, using the x-axis as a baseline in the image.

While this method works for simple bar charts, the

charts with bars of multiple series (e.g., grouped bars)

get incorrectly identiﬁed as belonging to the same se-

ries. The existing methods using object detection-

based approach have not been shown to work for all

subtypes of bar charts, e.g., stacked bars, for which

training data is currently unavailable.

Text detection is important for chart inference.

Automated data extraction for bar charts has been

done by identifying graphical components and text

regions independently (Al-Zaidy and Giles, 2015).

Chart data is further extracted using inference.

Chart analysis has been used for applications of

automated question-answer systems. PlotQA is one

such solution for reasoning over scientiﬁc plots that

uses a more accurate neural network for object de-

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

tection for visual elements, such as bars (Methani

et al., 2020). However, manual drawing of bounding

boxes around bars fails for complex bar types, such

as stacked bars. Hence, we use the method that ex-

ploits spatial locality using second-order tensor ﬁelds

for corner detection (Sreevalsan-Nair et al., 2020) in

our proposed system. While PlotQA is an example

of an approach where data is extracted, an alterna-

tive approach for chart question answering (CQA)

is through the use of Transformers for answering

questions from charts directly, e.g., Structure-based

Transformer using Localization, STL-CQA (Singh

and Shekhar, 2020).

Textual summary of a chart is a relevant task for

its interpretation. While its relevance may appear

counter-intuitive as the charts are visual summary of

data, its text summarization is useful for the visually

impaired users to read its images, usually embedded

in documents. Linguistic constructs have been used

to generate a chart summary with the help of seman-

tic graph representation (Al-Zaidy et al., 2016). Three

types of features have been selected from charts,

namely, salience, trend, and rank, that encode details

like increasing or decreasing trend, any speciﬁc col-

ored bar showing highly prominent detail. However,

we have found the summary output of the system to

have a limited description. Summaries, especially for

bar charts, have also been generated by calculating

differences using existing attributes in chart images

and providing the core message represented by the se-

lected chart (Demir et al., 2008). The iGRAPH-Lite

system generates a short summary explaining the vi-

sual description of the chart itself but does not provide

insight into the information provided by visualization

using the chart (Ferres et al., 2007).

3 PROPOSED WORKFLOW &

IMPLEMENTATION

We propose a workﬂow that extracts data from a given

chart image, BarChartAnalyzer, which has seven

main components (Figure 1), namely, chart subtype

classiﬁcation, chart image annotation, canvas extrac-

tion, tensor ﬁeld computation, text recognition, data

table extraction, and chart summarization.

Chart Subtype Classiﬁcation (C1). Data is repre-

sented using different chart types based on the num-

ber of variables and user requirements. For exam-

ple, scatter plots and bar chart representations visu-

ally encode the data differently, which require dif-

ferent approaches for chart analysis. In the case of

bar charts, there are subtypes available in the design

space, namely, simple bars, grouped bars, stacked

bars, and of different orientations, depending on de-

sign requirements. Since the process of data extrac-

tion from a given chart image depends on its chart

type, identifying both the type and subtype informa-

tion is the ﬁrst step of our workﬂow.

Image classiﬁcation is a widely studied problem in

computer vision, and it has been done using different

CNN-based classiﬁcation models such as AlexNet,

GoogleNet. These models were trained and tested for

a set of natural images provided during the ImageNet

challenge (Deng et al., 2009). The natural images

contain characteristics other than the shape of the ob-

ject as well, like texture, ﬁner edges, color gradients,

etc. However, compared to natural images, the chart

images are sparser and more structured with repeat-

ing patterns. Hence, the models that work for natural

images do not work effectively for chart images.

The chart objects such as bars, scatter points, and

lines are distinguishable based on their shape and ge-

ometry, unlike objects found in natural images. The

chart subtypes for bar charts also have similar geom-

etry through chart objects. Overall, contour-based

techniques for chart subtype classiﬁcation are inef-

ﬁcient. Some of the pre-trained models have been

used for chart type classiﬁcation of images by impos-

ing certain constraints, e.g., training with a small im-

age corpus; however, the classiﬁcation outcomes have

low accuracy. The classiﬁer in ChartSense has used

GoogleNet (Jung et al., 2017) and has been trained

on different chart types. This model classiﬁes sub-

types, such as grouped and simple bars, also, since

the features are similar in both subtypes. However,

other subtypes of our interest, namely, stacked bar

charts, have not been explored. On the other hand,

mark-based chart classiﬁcation has been used (Poco

and Heer, 2017), where the classiﬁer is trained to rec-

ognize speciﬁcally ﬁve mark types: bars, lines, areas,

scatter plot symbols, and other type. This classiﬁer

is limited to identify the chart type without extension

to subtypes. Thus, we explore all bar chart subtypes,

including the stacked bar charts and histograms, that

have not been explored at all in the state-of-the-art.

Our classiﬁer is inspired by the VGGNet (Visual

Geometry Group Network) architecture (Simonyan

and Zisserman, 2015), which is widely used for object

detection and segmentation tasks on image databases,

such as KITTI (Chen, 2015), an image benchmark

dataset for road-area and ego-lane detection (Fritsch

et al., 2013). We choose the VGGNet architecture

as it is efﬁcient in feature extraction from images,

and addresses the issue of depth in convolutional net-

works. It is also simple to implement for a new model,

with the ﬂexibility of adding more VGG blocks. The

BarChartAnalyzer: Digitizing Images of Bar Charts

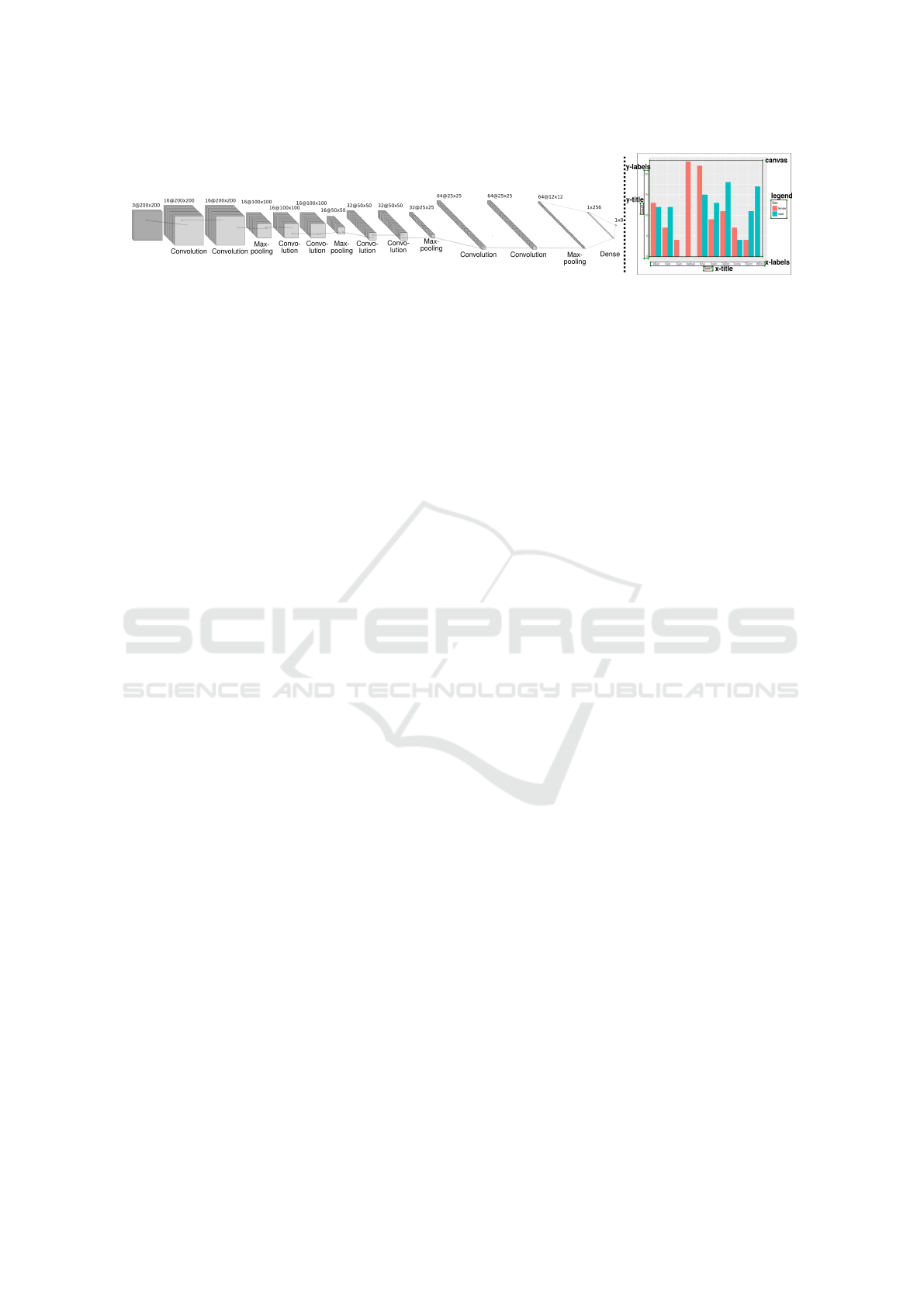

Figure 2: (Left) The architecture diagram of our CNN-based classiﬁer for identifying bar chart subtypes. (Right) Human-

guided annotation of the chart image, where the chart canvas is used for object detection.

VGGNet architecture has a stack of convolutional lay-

ers (Figure 2) that generalizes the deep learning tasks.

Our CNN model is a combination of the convolu-

tional, pooling, and fully connected layers. The con-

volutional layers are responsible for extracting fea-

tures by convolving images using kernels or ﬁlters.

Our classiﬁer uses max-pooling to reduce computa-

tion by reducing the spatial size by half. The tailing

layers in our classiﬁer are the fully connected layers

that take the results of the pooling/convolutional layer

and assign it a label/class. Our classiﬁer identiﬁes the

bar chart subtype of an input image. This classiﬁca-

tion also results in checking if the given image is of

bar chart type, as the workﬂow downstream accepts

only bar charts, rejecting the others.

Our chart image dataset consists of images of

seven different subtypes of bar charts, namely, sim-

ple, grouped/clustered, and stacked bar charts of hor-

izontal and vertical orientations and histograms. For

training our CNN model, the training dataset consists

of images of these seven subtypes, and additionally

an “other” category. The “other” category of im-

ages consists of scatter plots, line and pie chart im-

ages, which are commonly found charts, that are not

bar chart subtypes. Histograms are included as one

of the subtypes of bar charts since some of the plot-

ting tools, e.g., Google sheets and Microsoft Excel®,

use bar charts for histogram plots. Also, we observe

that the geometry of bins in histograms is the same

as columns/bars in the bar charts. Our CNN-based

classiﬁer requires input images of ﬁxed size for train-

ing; hence, we ﬁrst resize the images in the dataset

to 200 × 200 size. The image resizing and classiﬁer

implementation has been done using Python imag-

ing (PIL) and Keras libraries, respectively. Our CNN

model for chart sub-type classiﬁcation is novel in its

application for classifying bar chart subtypes. Our

classiﬁer assigns class labels to an input image speci-

fying the bar chart subtype and its orientation, except

in the case of histograms, e.g., “horizontal grouped

bar”, “vertical stacked bar”.

Image Annotation (C2) and Canvas Extraction

(C3). Image annotation is usually performed to

prepare training datasets for computer vision-related

problems like object detection, segmentation, etc.

The idea behind image annotation is to provide la-

bels to different regions of interest (ROI) in the im-

ages. These predeﬁned labels are used to detect and

extract regions of interest. As this task requires con-

textual labels and appropriate associations between

labels and ROIs, human-guided annotation of images

is a straightforward image annotation approach.

For chart images, manual marking and annota-

tion of bounding boxes for ROIs have been widely

used (Choi et al., 2019; Methani et al., 2020). Differ-

ent labels are decided for components of chart images

based on their role in the visualization, such as canvas,

x-axis, y-axis, x-labels, y-labels, legend, title, x-title,

and y-title. We use LabelImg (Tzutalin, 2015) as a

tool to mark and annotate bounding boxes for ROIs

of a chart image. LabelImg is a Python tool with a

graphical user interface (GUI) for interactively select-

ing an image, drawing a bounding box for an ROI, an-

notating the ROI, and labeling the ROI. We use the la-

bel Canvas for the ROI that contains the chart objects

such as bars, lines, or scatter points and is deﬁned as

chart canvas, which is one of the chart image compo-

nents (Sreevalsan-Nair et al., 2020). The annotation

is generated as an XML ﬁle that is processed to ex-

tract the canvas region as well as for text localization.

The former is used for chart extraction (C3), and the

latter for text detection (C5). Figure 2 (right) shows a

sample annotated bar chart.

The canvas extraction step (C3) includes image

preprocessing methods to remove the remaining ele-

ments other than chart objects such as gridlines, over-

laid legends, etc. The subsequent step (C4) on ten-

sor ﬁeld computation is sensitive to the presence of

these extraneous elements, which lead to erroneous

results. Image processing techniques marker-based

watershed segmentation and contour detection algo-

rithm have been used to remove such components in

the chart canvas effectively (Sreevalsan-Nair et al.,

2020). These steps also ﬁll hollow bars, as required,

since the tensor ﬁeld is computed effectively for ﬁlled

bars. Highly pixelated edges in aliased images lead

to uneven edges in each bar object. This issue is ad-

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

dressed by using the contour detection method to add

a ﬁxed-width border to bars (Sreevalsan-Nair et al.,

2020). Overall, we perform these steps to extract a

chart canvas containing chart objects used in C4.

Tensor Field Computation (C4). Tensor ﬁelds have

been widely used to exploit geometric properties of

objects in natural images (Medioni et al., 2000) us-

ing structure tensor and tensor voting. We use local

geometric descriptor as a second-order tensor for ten-

sor vote computation (Sreevalsan-Nair and Kumari,

2017) that further leads to corner detection in case

of bars for a given bar chart. Structure tensor T

a pixel provides the orientation of the gradient com-

puted from the local neighborhood, computed as:

= G

∗ (G

G), where G =

∂I

∂x

∂I

∂y

is the gradient tensor at the pixel with intensity I; con-

volved (using ∗ operator) with Gaussian function G

with zero mean and standard deviation ρ. The tensor

vote cast at x

by x

using a second-order tensor K

d-dimensional space is, as per the closed-form equa-

tion (Wu et al., 2016): S

i j

= c

i j

where R

i j

= (I

− 2r

i j

); R

i j

= (I

−

i j

is the d-dimensional identity matrix; unit vector of

direction vector r

i j

, with d

i j

= x

− x

; σ

is the

scale parameter; and c

i j

= exp



−



−1

.kd

i j



. The

gradient T

can be used as K

(Moreno et al., 2012).

Anisotropic Diffusion: As the tensor votes T

in nor-

mal space have to encode object geometry in tan-

gential space, we perform anisotropic diffusion to

transform T

to tangential space (Sreevalsan-Nair and

Kumari, 2017; Sreevalsan-Nair et al., 2020). The

eigenvalue decomposition of the two-dimensional T

yields ordered eigenvalues, λ

≥ λ

, and correspond-

ing eigenvectors v

and v

, respectively. Anisotropic

diffusion of T

using diffusion parameter δ, is:

v-ad

∑

k=0

, where λ

= exp



−



Diffusion parameter value (δ = 0.16) is widely

used (Wang et al., 2013; Sreevalsan-Nair et al., 2020).

Saliency Computation: The saliency of a pixel

to belong to geometry features of line- or

junction/point-type is determined by the eigen-

values of T

v-ad

(Sreevalsan-Nair et al., 2020). We get

the saliency maps at each pixel of an image of its

likelihood for being a line- or junction-type feature,

and C

, respectively, C

−λ

+λ

and C

2λ

+λ

using eigenvalues of T

v-ad

of the pixel, such that,

≥ λ

. The pixel with C

≈ 1.0 is referred to as a

critical point or degenerate point in the parlance of

tensor ﬁelds. Our goal is to ﬁnd all the critical points

in the chart canvas in the C4 step.

DBSCAN Clustering: The critical points of chart

image computed from tensor ﬁeld computation form

sparse clusters at the corners of each bar (Sreevalsan-

Nair et al., 2020). These pixels are localized us-

ing density-based clustering, DBSCAN (Ester et al.,

1996), and cluster centroids are computed by adjust-

ing hyperparameters of DBSCAN clustering to spe-

ciﬁc chart types. These cluster centroids are treated

as corners of the bar. Using the positional layout or

arrangement of these corner points based on the spe-

ciﬁc chart type and subtype, we heuristically compute

the height of each bar in pixel space.

Text Recognition (C5) and Information Aggrega-

tion for Data Extraction (C6). The data we have ex-

tracted from the chart image, using tensor ﬁeld com-

putation, is in the image (or pixel) space. However,

the extracted data has to be in the data space for ac-

curately summarizing, and optionally, reconstructing

the chart. Hence, to transform the data from the pixel

space to the data space, we now combine the data in

pixel space with the text information in the image.

We perform text detection to get x-axis and y-axis la-

bels and compute the scale factor between the pixel

and data spaces. The recognition of other textual el-

ements, namely, plot title, legend, x-axis, and y-axis

titles, also plays a crucial role in analyzing chart im-

age, e.g., the information is used in summary (C7).

Tesseract-OCR is known for its popularity in text

detection and recognition (Smith, 2007). It works ef-

fectively with scanned document images with a clean

background with regular font, plain layout, and single

uniform color. However, Tesseract fails for text im-

ages with different colors, sizes, orientations, curvy

fonts, and different languages, along with interfer-

ences or issues in the text, such as low resolution, ex-

posure, noise, motion blur, out-of-focus, varying illu-

mination, etc. Here, chart images may have text with

numerical characters, small text font size, formatting,

and blurry appearance. Yet, few of these cases are

solved by improving image resolution, varying orien-

tations in text regions like axis labels and chart title in

a chart image are falsely recognized. Also, Tesseract

tends to incorrectly detect non-textual elements, such

as arrows, color boxes in legend, etc., in the image.

We explore the use of deep-learning-based OCR,

namely Character Region Awareness for Text Detec-

tion, CRAFT (Baek et al., 2019) for effective text area

detection, including arbitrarily-oriented text. This ap-

proach is designed for relatively complex text in im-

ages, and it works by exploring each character region

and considering the afﬁnity between characters. A

CNN designed in a weakly-supervised manner pre-

dicts the character region score map and the afﬁnity

score map of the image. The character region score

BarChartAnalyzer: Digitizing Images of Bar Charts

is used to localize individual characters and afﬁnity

scores to group each character to a single instance.

So, the instance of text detected is not affected by its

orientation and size. The text orientation is inferred

from the detected text boxes and is then rotated to hor-

izontal orientation for the extraction.

The CRAFT text detection model can be followed

by a uniﬁed framework for scene text recognition that

ﬁts all variants of scenes, called the scene text recog-

nition framework, STR (Baek et al., 2019). Being

a four-stage framework consisting of transformation,

feature extraction, sequence modeling, and predic-

tion, STR resembles the combination of computer vi-

sion tasks such as object detection and sequence pre-

diction task, and hence, uses a convolutional recurrent

neural network (CRNN) for text recognition. We ﬁnd

that the CRAFT model, along with the STR frame-

work, works efﬁciently to retrieve labels and titles of

the chart image better than Tesseract OCR.

In our workﬂow, we transform the data extracted

in pixel space to data space and add appropriate tex-

tual information for the variable name and bar width

to extract the data table in C6. For both stacked and

grouped bar charts, we identify class or series infor-

mation using the legend to add to the extracted data ta-

ble. However, BarChartAnalyzer can only be used to

distinguish bars and stacked segments differentiated

based on color, but those differentiated using texture

will not give correct output with our workﬂow.

Chart Summarization (C7). Today chart images

are increasingly used in mass media and other print

media for knowledge dissemination. However, such

information encoded in the graph remains inaccessi-

ble to the visually impaired. While we aim to retrieve

the data table from the chart image, the users with the

need to access the encoded information may not ﬁnd

this data table useful. Instead, the brief, signiﬁcant

details of this data and/or chart itself are useful. Thus,

our next step is to generate a summary of the chart im-

age based on its retrieved data table and the chart im-

age, thereby allowing the user to know enough about

the chart image before having the option to access the

data table to learn more about the chart.

An effective summary should be accurate and con-

cise for readers to consume. We present a well-built

sentence structure to generate a summary of bar charts

using the data table retrieved from the chart image in a

way that captures the core information of the data ta-

ble. The sentence structure is heuristically produced

based on features identiﬁed from the extracted data.

Based on this sentence structure produced, the sum-

mary for the intended graph image is generated. The

features of the chart used in summary depend on its

type and subtype. For the histogram type chart, we

Describe

titles & chart type

Is the

chart subtype

is histogram?

Extracted

data table

Describe binwidth,

range and mode

Is the

chart image

a plot of ordered

attributes?

Yes

Compute best ﬁt

distribution and

describe it

Is the

chart subtype

is simple bar?

Yes

Is the

data in

sorted order?

Yes

Describe legends,

range and

standard deviation

Compute Spearman

correlation, describe

if value > 0.5

Describe any single

item creating an

exception in trend

Describe data

range & mean

Describe trends in

graph, if any

Figure 3: The proposed ﬂow chart of sentence structure for-

mation for chart summary generation in text format (C7).

focus on features like the type of distribution, range,

and mode. For bar charts with categorical variables,

we check for ordinal variable type, e.g., age, date, day,

month, and year in the image, and extract the variable-

based trend patterns in the chart image. Apart from

these, we consider the statistical descriptors, such

as the range of attributes, correlation between them,

standard deviations, and mean values based on cases

mentioned in our proposed ﬂowchart (Figure 3). We,

thus, generate the chart summary using the template

abstracted in the ﬂowchart.

4 EXPERIMENTS & RESULTS

In C1 of the BarChartAnalyzer, we have trained the

CNN model for classiﬁcation using 1000 images be-

longing to eight types of charts, namely, the seven

subtypes of bar charts and a complement set, “oth-

ers”, consisting of chart images of line charts, scatter

plots, and pie charts. The training set excludes im-

ages for charts with textured, hollow, or hand-drawn

bar objects. The training accuracy for our classi-

ﬁer is currently at 85%. For testing, we have used

a dataset of 50 chart images each from these eight

types. For experiments, we generated a dataset that

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

Corner DetectionText Detection

Input Chart Images

Reconstrcted Chart

from Extracted Data

Text Summary

The plot depicts a Horizontal Simple Bar Graph

illustrating In general, how satisﬁed are you

with your job?. The plot is having Percent of

Respondents on x-axis. The Percent of

Respondents has an overall decreasing trend

from very satisﬁe to very

dissatisﬁed

The plot depicts a Histogram with the bins

ranging from 0.0 to 10.0 with 1.68 bin width.

The mode of a histogram is 2.0 with a

frequency of 200. The frequency distributio

histogram is the norm with following

parameters loc=0.00, scale=1.00.

The plot depicts a Vertical Grouped Bar Graph

illustrating Employed Workers by Gender for

Select Jobs. The plot is between Employed on

y-axis over Job on the x-axis for women, and

men. The list of 'Job' values is actor,

bartender, dentist, engi ineer, scientist, and

scientist. The 'women' range from 0.0 to

232592.19, with a standard deviation of

76529.27. The 'men' range from 30206.07 to

397559.66, with a standard deviation of

123926.7. The categories 'women' and 'men'

are positively correlated by 0.66 Spearman

rank correlation. All except for bartender 'men'

is greater than 'women'

The plot depicts a Vertical Stacked Bar Graph

for brand c, brand b, and brand a. The list of

'X-axis' values is jan, feb, mar, apr, june, jul,

aug, and aug. The 'brand c' range from 0.0 to

80.42, with a standard deviation of 30.2. The

'brand b' range from 0.0 to 80.42, with a

standard deviation of 30.33. The 'brand a'

range from 0.0 to 89.32, with a standard

deviation of 38.0. The categories 'brand c' and

'brand a' are positively correlated by 0.56

Spearman rank correlation. The categories

'brand b' and 'brand a' are positively correlated

by 0.61 Spearman rank correlation

(i)

(ii) (iii)

(iv)

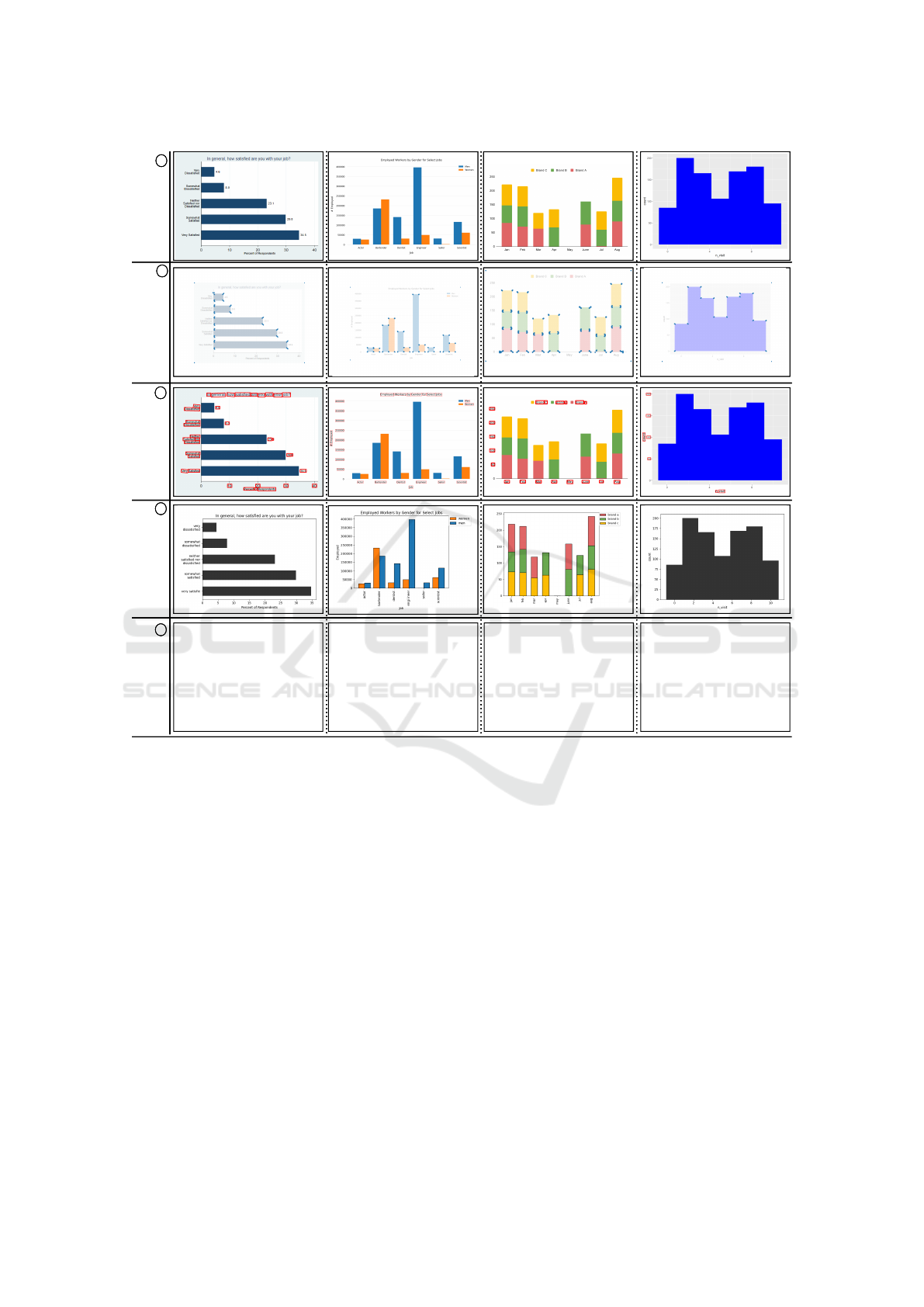

Figure 4: The key steps in our BarChartAnalyzer workﬂow of corner detection (C4), text detection (C5), data extraction (C6),

chart reconstruction, and chart summary (C7) of the source input chart images. We observe the ordering of the series could

be reversed in (ii) the grouped and (iii) stacked bar charts, even though the data is extracted accurately.

includes bar chart images of these eight types from

two sources, namely images downloaded from the in-

ternet and synthetically generated images. The latter

is from bar charts generated using Python plotting li-

brary, matplotlib from known data tables.

The results from the BarChartAnalyzer for a subset of

our experiments are shown in Figure 4. The images

are ﬁrst classiﬁed, and only those of bar charts and

its subtypes pass through the BarChartAnalyzer. The

source images are given in Figure 4(A). The tensor

ﬁeld analysis on extracted canvas detects the corner of

the bars using critical points identiﬁed by the saliency

value calculation. The results of pixels identiﬁed by

corner detection are shown in Figure 4(B). The criti-

cal points are detected at the top and bottom corners

of bars and at the bar segment junctions in the stacked

bar chart. The histogram displays the distribution of

such points at the junction where the transition be-

tween bins occurs. The visualization of critical points

at corners also guides us in deciding the hyperparam-

eters for DBSCAN, e.g., distance (eps), minPts.

The OCR based text detection model (Baek et al.,

2019) works with 0.95 F1 score on ICDAR 2013

dataset. The model fails to detect certain text compo-

nents during testing, as shown in Figure 4(C, ii). Our

workﬂow addresses this limitation while performing

data extraction based on pixel scaling and the in-

tervals retrieved from the detected text/values. Our

reconstructed charts in Figure 4(D) can be visually

compared with the original images in Figure 4(A).

Color is an important property of the images of

the multi-series bar charts like grouped and stacked

bar, as color is a visual encoding of the metadata of

the series. In such cases, color represents the identity

BarChartAnalyzer: Digitizing Images of Bar Charts

nMAE=0.009, MAPE=0.89% nMAE=0.011, MAPE=1.07% nMAE=0.025, MAPE=6.55% nMAE=0.021, MAPE=2.26%

nMAE=0.003, MAPE=0.33%

nMAE=0.006, MAPE=0.61%

nMAE=0.008, MAPE=6.51%

nMAE=0.005, MAPE=0.52%

nMAE=0.004, MAPE=0.53%

nMAE=0.020, MAPE=12.65%

nMAE=0.051, MAPE=51.88%

nMAE=0.040, MAPE=38.62%

nMAE=0.012, MAPE=1.38%

nMAE=0.006, MAPE=0.65%

nMAE=0.014, MAPE=1.20%

nMAE=0.002, MAPE=0.18%

(i)

(ii) (iii) (iv)

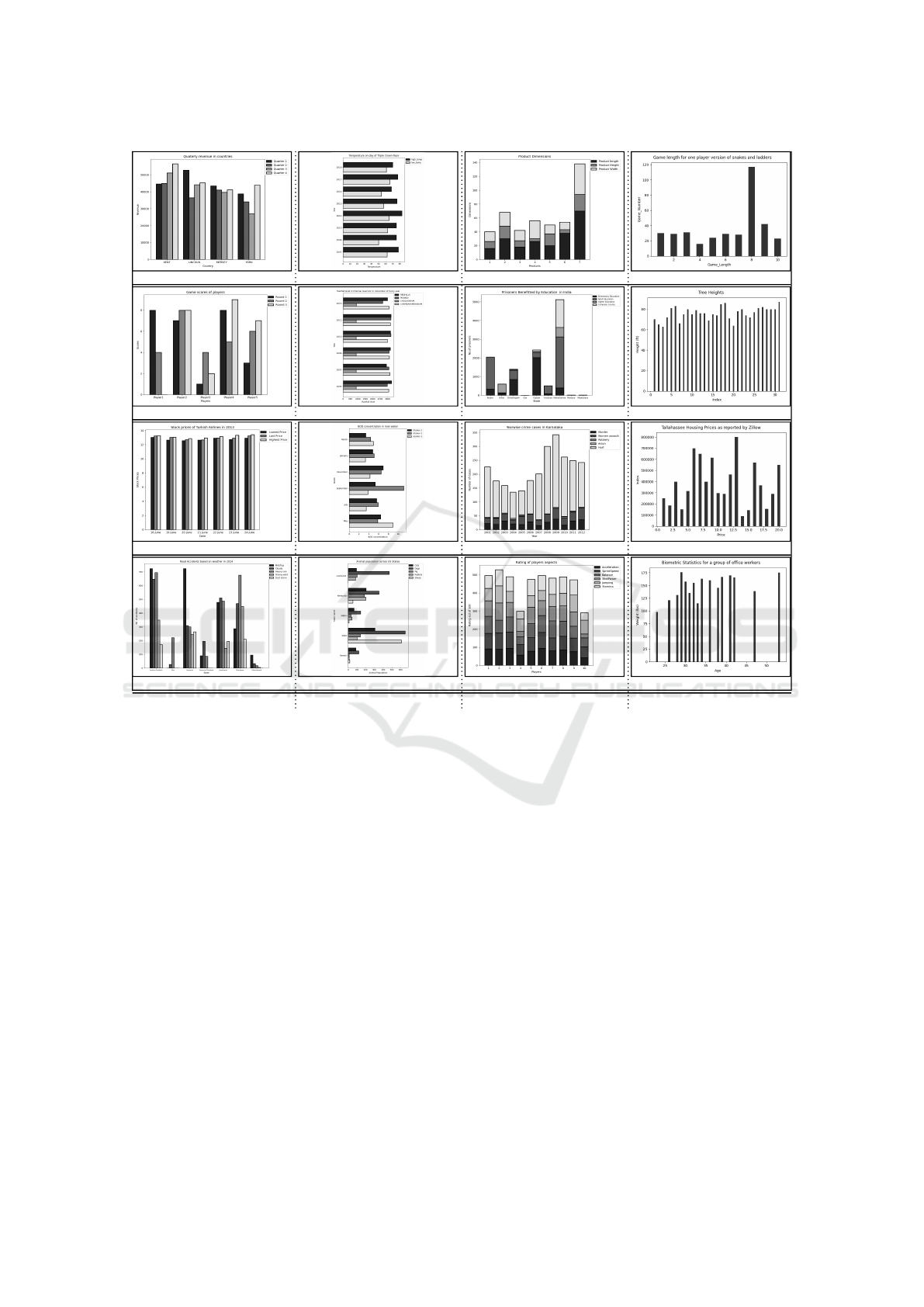

Figure 5: Reconstruction of synthetically generated bar chart images with their error evaluation in normalized mean absolute

error (nMAE) and mean absolute percentage error (MAPE).

of the class or series the data item belongs to. But,

in the case of simple bar charts and histograms, the

use of color is cosmetic. Our algorithm preserves the

source color value only in the case of it being a visual

encoding, where we use the color value identiﬁed in

the legend for the bars during reconstruction. In the

cases where color is not used as a visual encoding for

the chart, we use a default color value, i.e., black, dur-

ing reconstruction. Thus, color is preserved in recon-

struction for charts in Figure 4(ii, iii), but not in Fig-

ure 4(i, iv). However, even where color is preserved,

the order of rendering the series is not guaranteed to

be preserved, as shown in Figure 4(ii, iii), as ordering

of the classes or series is not an important property in

the multi-series bar charts.

Evaluation. The premise of our work is to extract

data from images of charts that do not have accom-

panying data tables, i.e., the ground truth. Hence,

to compare the extracted data with source informa-

tion, we run our algorithm on images of charts gen-

erated using the plotting library, e.g., matplotlib,

from known data tables. While our algorithm works

well with such synthetically generated images ow-

ing to their high resolution and ﬁdelity, they are use-

ful in computing exact numerical errors in the ex-

tracted data table. The extracted data achieved by

mapping pixel location of cluster center of degener-

ate points and text location extracted using OCR. We

observe that the extracted values have numerical pre-

cision errors predominantly. Hence, to compare the

difference between the extracted values, we compute

the normalized Mean Absolute Error (nMAE), and

the Mean Absolute Percentage Error (MAPE) for the

synthetic images (Figure 5), which are bounded in

[0,1]. MAPE is commonly reported in a percentage

format. We observe that nMAE captures our perfor-

mance better than MAPE, as it does not augment nu-

merical precision errors as much as MAPE. MAPE

is augmented in the case of missing extracted data

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

Corner DetectionText Detection

Input Chart Images

Reconstrcted Chart

from Extracted Data

Text Summary

The plot depicts a Horizontal Stacked Bar

Graph illustrating Male age structure. The plot

is having Population, millions on x-axis for 14 o

years a, 15 64 years i, and older 65 and years.

The list of 'Y-axis' values is united states,

brazil, russia, japan, mexico, germany, and

germany. The '14 o years a' range from 5.63

to 29.61, with a standard deviation of 8.64.

The '15 64 years i' range from 20.41 to 91.49,

with a standard deviation of 21.93. The 'older

65 and years' range from 3.4 to 15.11, with a

standard deviation of 3.8. The categories '14 o

years a' and '15 64 years i' are positively

correlated by 0.89 Spearman rank correlation.

The plot depicts a Horizontal Simple Bar Graph

illustrating Fatalities in ﬁlght accidents. The

plot is between Flight Id on y-axis over

Fatalities on the x-axis. The Flight Id with the

highest Fatalities 112.04 is '2'. The Flight Id

with the lowest Fatalities 2.72 is '4'. The mean

Fatalities of Flight Id is 39.18.

The plot depicts a Vertical Simple Bar Graph

illustrating Percentage of United States Women

in the Labor Force. The plot is between

Percentage of Women on y-axis over Year on

the x-axis. The Percentage of Women has an

overall increasing trend from 1956 to 2012.

The plot depicts a Histogram with the bins

ranging from 3 to 43 with 4.87 bin width. The

mode of a histogram is 23 with a frequency of

397. The frequency distribution of histogram is

the norm with following parameters loc=0.00,

scale=1.00.

(i)

(ii)

(iii)

(iv)

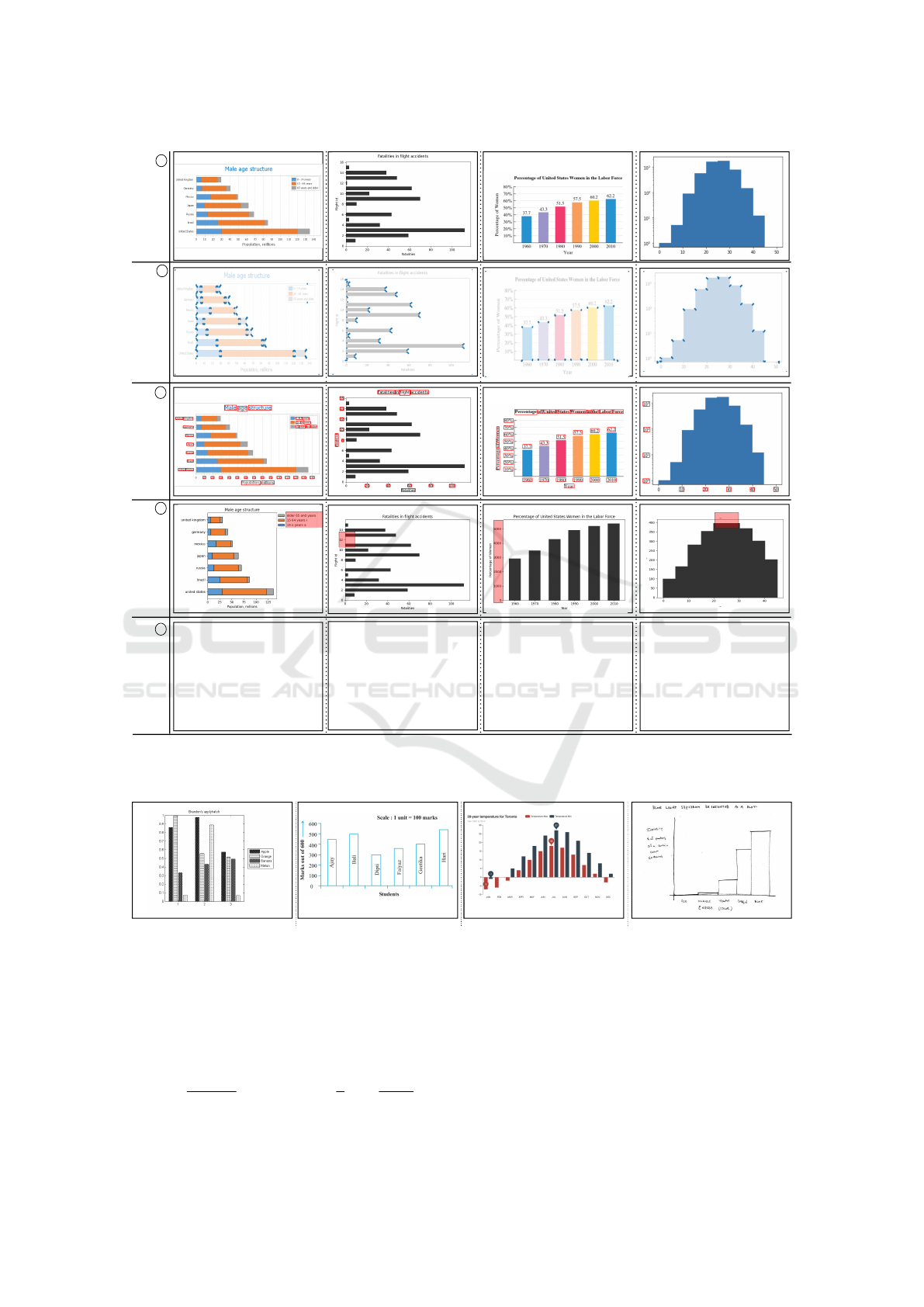

Figure 6: Examples of bar chart images that give erroneous results in BarChartAnalyzer. The errors in the chart reconstruction

are indicated using red translucent boxes in row D.

(a) Textured grouped bar (b) Hollow bars with text inside (c) Bar chart with graphics (d) Hand drawn bar chart

Figure 7: Bar charts generated in different design spaces, which are known to not work with our chart analysis workﬂow,

BarChartAnalyzer.

in grouped bar charts (Figure 5(ii)) and stacked bar

charts (Figure 5(iii)) owing to relatively short bars or

bar segments. For N data items with source data value

and its corresponding extracted value x

(e)

nMAE=

∑

i=1

−x

∑

i=1

; and MAPE =

∑

i=1



−x

(e)



In our representative examples in Figure 5, we ob-

serve relatively low nMAE values. Histograms are

not included in this analysis as the source, and ex-

tracted data in its case is a frequency table, different

from a data table in the case of bar charts.

BarChartAnalyzer achieves near-perfect accuracy

for high-resolution bar chart images, created with

BarChartAnalyzer: Digitizing Images of Bar Charts

standard or minimal formatting available commonly

across all plotting libraries. The morphological

methods for image preprocessing in C3 in BarChar-

tAnalyzer improve data extraction accuracy from

low-ﬁdelity images. The aggregated accuracy for

PlotQA (Methani et al., 2020) for CQA is 22%, and

STL-CQA (Singh and Shekhar, 2020) achieves near-

perfect accuracy, but with synthetic datasets. How-

ever, comparing our work with the CQA algorithms is

not a fair comparison, as the goals are different, even

though there are overlapping outcomes. Accuracy-

based comparison is not a complete exercise in itself.

Limitations. In a limited number of cases,

our system suffers from errors in detection, specif-

ically when DBSCAN clustering does not distin-

guish small/insigniﬁcant height differences between

bars/bins (Sreevalsan-Nair et al., 2020). We have

identiﬁed two such cases. The ﬁrst case is of false

negatives when bars are close to the baseline, which

is the x-axis and y-axis for column and bar orienta-

tions, respectively (Figure 6(D, ii)). The second case

is when heights of adjacent bins in a histogram have

relatively small height differences, and the extracted

data does not capture the differences (Figure 6(D,

iv)). This error is also manifested as missing values in

grouped and stacked bar charts when the bars or bar

segments are relatively short (Figure 5(ii),(iii)).

The text recognition model (Baek et al., 2019)

identiﬁes text with F1 score of 0.93 on ICDAR 2013

dataset. This recognition model misidentiﬁes and

confuses the alphabet ’O’ or ’o’, irrespective of the

case, as the numeral ’0’ and vice versa in chart im-

ages. Also, the model has gaps in handling special

characters, such as $,%,£, sign(-), and cannot han-

dle superscript symbols, e.g., degrees, and exponents

(Figure 6(C, iii)). These shortcomings affect the ac-

curacy of extracted data scale (Figure 6(C, i)). The

inaccurate results in text recognition also manifest as

errors in the textual summary of the source image.

Some of these errors in text detection are shown in

the reconstructed chart in Figures 6(D, i) and (D, iii).

Thus, the key drawback in our BarChartAnalyzer

is in the false positives for corner detection in rela-

tively low-ﬁdelity images, owing to aliasing and sub-

sequent pixelation. Also, our classiﬁcation model

cannot handle variants of bar charts with textures in

the bars or hollow bars. Our workﬂow fails for chart

canvas extraction for such special test cases, e.g., im-

ages shown in Figure 7. Even though not consid-

ered a best practice, bars may be created with text or

bar value written inside each bar, as shown in Fig-

ure 7(b). BarChartAnalyzer also fails for another test

case where the data extraction process cannot identify

negative bars, as shown in Figure 7(c). The text recog-

nition model fails to identify text written in the hand-

drawn chart shown in Figure 7(d). One of the draw-

backs in our methodology, just as is the case with the

state-of-the-art, lies in human-guided canvas extrac-

tion and interactive hyperparameter setting for DB-

SCAN for clustering corner points.

5 CONCLUSIONS

As a next step, such a subtype-based analysis can be

extended to other chart types, such as scatter plots.

Our workﬂow requires user interaction for tasks such

as image annotation for canvas extraction and set-

ting hyperparameters of DBSCAN. We are consider-

ing methods to make the workﬂow more automated.

We currently use tensor ﬁeld computation on the chart

images, which can be made more robust to separate

chart objects from the source image. As VGGNet

has been widely used for object detection tasks, our

goal is to improve our classiﬁer to automate the can-

vas extraction step to reduce user dependency. Super-

resolution algorithms may be explored as an addi-

tional component in our algorithm to improve the ac-

curacy of both OCR and object detection, especially

for severely aliased images.

In summary, we propose a workﬂow BarChart-

Analyzer using standard image processing techniques

and deep learning models to perform the critical task

of chart image digitization and summarization for bar

charts. BarChartAnalyzer is novel in handling seven

different bar chart subtypes. Our contributions in-

clude the mapping between pixel space data and the

data space using the text detection model. We intro-

duce the chart type- and structure-based templatized

text summarization for the data extracted from the

chart image. The summarization achieved from our

system has the potential of being used in a language

processing module, such as gtts in Python, to gener-

ate an audio summary of the given chart image for the

visually impaired audience. As discussed, our work-

ﬂow has limitations of the dependency of workﬂow

on the image ﬁdelity, object size, training dataset, a

variety of chart images, etc. Overall, our work is a

step towards chart image digitization.

ACKNOWLEDGEMENTS

This work has been funded by the Machine In-

telligence and Robotics Center (MINRO) grant to

the International Institute of Information Technol-

ogy Bangalore (IIITB) by the Government of Kar-

nataka. The authors are grateful for the discussion

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

with T. K. Srikanth, IIITB; Sindhu Mathai of Azim

Premji University; Vidhya Y. and Supriya Dey of Vi-

sion Empower; Neha Trivedi, XRCVC; Vani, Push-

paja, Kalyani, and Anjana of Braille Resource Center,

Matruchayya, that has shaped this work. The authors

are thankful for the helpful comments from anony-

mous reviewers.

REFERENCES

Al-Zaidy, R., Choudhury, S., and Giles, C. (2016). Auto-

matic summary generation for scientiﬁc data charts.

In WS-16-01, volume WS-16-01 - WS-16-15, pages

658–663, United States. AI Access Foundation.

Al-Zaidy, R. A. and Giles, C. L. (2015). Automatic extrac-

tion of data from bar charts. In Proceedings of the

8th International Conference on Knowledge Capture,

K-CAP 2015, pages 1–4, New York, NY, USA. Asso-

ciation for Computing Machinery.

Baek, J., Kim, G., Lee, J., Park, S., Han, D., Yun, S.,

Oh, S. J., and Lee, H. (2019). What is wrong with

scene text recognition model comparisons? dataset

and model analysis. volume abs/1904.01906, pages

4714–4722.

Baek, Y., Lee, B., Han, D., Yun, S., and Lee, H. (2019).

Character region awareness for text detection. In 2019

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition (CVPR), pages 9357–9366.

Battle, L., Duan, P., Miranda, Z., Mukusheva, D., Chang,

R., and Stonebraker, M. (2018). Beagle: Automated

extraction and interpretation of visualizations from the

web. In Proceedings of the 2018 CHI Conference on

Human Factors in Computing Systems, CHI ’18, page

1–8, New York, NY, USA. Association for Computing

Machinery.

Burns, R., Carberry, S., and Elzer, S. (2009). Modeling Rel-

ative Task Effort for Grouped Bar Charts. In Proceed-

ings of the Annual Meeting of the Cognitive Science

Society, volume 31.

Chen, T. (2015). Going deeper with convolutional neural

network for intelligent transportation. PhD thesis, Ph.

D. dissertation, Dept. Elect. Comput. Eng., Worcester

Polytech. Institute.

Choi, J., Jung, S., Park, D. G., Choo, J., and Elmqvist, N.

(2019). Visualizing for the non-visual: Enabling the

visually impaired to use visualization. In Computer

Graphics Forum, volume 38, pages 249–260. Wiley

Online Library.

Demir, S., Carberry, S., and McCoy, K. F. (2008). Generat-

ing textual summaries of bar charts. In Proceedings of

the Fifth International Natural Language Generation

Conference, INLG ’08, page 7–15, USA. Association

for Computational Linguistics.

Deng, J., Dong, W., Socher, R., Li, L.-J., Li, K., and Fei-Fei,

L. (2009). ImageNet: A large-scale hierarchical im-

age database. In 2009 IEEE conference on computer

vision and pattern recognition, pages 248–255. IEEE.

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters in

large spatial databases with noise. In Proceedings of

the Second International Conference on Knowledge

Discovery and Data Mining, KDD’96, page 226–231.

AAAI Press.

Ferres, L., Verkhogliad, P., Lindgaard, G., Boucher, L.,

Chretien, A., and Lachance, M. (2007). Improving

accessibility to statistical graphs: The igraph-lite sys-

tem. In Proceedings of the 9th International ACM

SIGACCESS Conference on Computers and Accessi-

bility, Assets ’07, page 67–74, New York, NY, USA.

Association for Computing Machinery.

Fritsch, J., Kuehnl, T., and Geiger, A. (2013). A new per-

formance measure and evaluation benchmark for road

detection algorithms. In 16th International IEEE Con-

ference on Intelligent Transportation Systems (ITSC

2013), pages 1693–1700. IEEE.

Jung, D., Kim, W., Song, H., Hwang, J.-i., Lee, B., Kim,

B., and Seo, J. (2017). Chartsense: Interactive data

extraction from chart images. In Proceedings of the

2017 CHI Conference on Human Factors in Comput-

ing Systems, CHI ’17, page 6706–6717, New York,

NY, USA. Association for Computing Machinery.

Medioni, G., Tang, C.-K., and Lee, M.-S. (2000). Ten-

sor Voting: Theory and Applications. Proceedings of

RFIA, Paris, France, 3.

Methani, N., Ganguly, P., Khapra, M. M., and Kumar, P.

(2020). PlotQA: Reasoning over Scientiﬁc Plots. In

The IEEE Winter Conference on Applications of Com-

puter Vision, pages 1516–1525.

Moreno, R., Pizarro, L., Burgeth, B., Weickert, J., Gar-

cia, M. A., and Puig, D. (2012). Adaptation of ten-

sor voting to image structure estimation. In Laidlaw,

D. H. and Vilanova, A., editors, New Developments

in the Visualization and Processing of Tensor Fields,

pages 29–50, Berlin, Heidelberg. Springer Berlin Hei-

delberg.

Poco, J. and Heer, J. (2017). Reverse-Engineering Visu-

alizations: Recovering Visual Encodings from Chart

Images. In Computer Graphics Forum, volume 36,

pages 353–363. Wiley Online Library.

Rohatgi, A. (2011). Webplotdigitizer.

Savva, M., Kong, N., Chhajta, A., Fei-Fei, L., Agrawala,

M., and Heer, J. (2011). Revision: Automated clas-

siﬁcation, analysis and redesign of chart images. In

Proceedings of the 24th Annual ACM Symposium on

User Interface Software and Technology, UIST ’11,

page 393–402, New York, NY, USA. Association for

Computing Machinery.

Siegel, N., Horvitz, Z., Levin, R., Divvala, S., and Farhadi,

A. (2016). Figureseer: Parsing result-ﬁgures in re-

search papers. In Leibe, B., Matas, J., Sebe, N.,

and Welling, M., editors, Computer Vision – ECCV

2016, pages 664–680, Cham. Springer International

Publishing.

Simonyan, K. and Zisserman, A. (2015). Very Deep Con-

volutional Networks for Large-Scale Image Recogni-

tion. In Bengio, Y. and LeCun, Y., editors, 3rd In-

ternational Conference on Learning Representations,

BarChartAnalyzer: Digitizing Images of Bar Charts

ICLR 2015, San Diego, CA, USA, May 7-9, 2015,

Conference Track Proceedings.

Singh, H. and Shekhar, S. (2020). STL-CQA: Structure-

based Transformers with Localization and Encoding

for Chart Question Answering. In Proceedings of the

2020 Conference on Empirical Methods in Natural

Language Processing (EMNLP), pages 3275–3284.

Smith, R. (2007). An overview of the Tesseract OCR en-

gine. In Ninth international conference on document

analysis and recognition (ICDAR 2007), volume 2,

pages 629–633. IEEE.

Sreevalsan-Nair, J., Dadhich, K., and Daggubati, S. C.

(2020). Tensor Fields for Data Extraction from Chart

Images: Bar Charts and Scatter Plots. In Hotz, I., Ma-

sood, T. B., Sadlo, F., and Tierny, J., editors, Topolog-

ical Methods in Visualization: Theory, Software and

Applications (to appear). Springer-Verlag.

Sreevalsan-Nair, J. and Kumari, B. (2017). Local Geo-

metric Descriptors for Multi-Scale Probabilistic Point

Classiﬁcation of Airborne LiDAR Point Clouds, pages

175–200. Springer Cham, Mathematics and Visual-

ization.

Tzutalin (2015). Labelimg. https://github.com/tzutalin/

labelImg.

Wang, S., Hou, T., Li, S., Su, Z., and Qin, H. (2013).

Anisotropic Elliptic PDEs for Feature Classiﬁcation.

Visualization and Computer Graphics, IEEE Transac-

tions on, 19(10):1606–1618.

Wu, T.-P., Yeung, S.-K., Jia, J., Tang, C.-K., and Medioni,

G. (2016). A Closed-Form Solution to Tensor

Voting: Theory and Applications. arXiv preprint

arXiv:1601.04888.

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering
