Software Product Line Traceability and Product Conﬁguration in Class

and Sequence Diagrams: An Empirical Study

Thais S. Nepomuceno

and Edson OliveiraJr

State University of Maring

a, Maring

a, Brazil

Keywords:

Class Diagram, Experiment, Product Conﬁguration, Sequence Diagram, Software Product Lines, Traceability,

UML.

Abstract:

A set of systems that share common and variable parts is called a Software Product Line (SPL). These kind

of systems are usually part of the same market segment. Their elements that vary are what allow the di-

versiﬁcation among products from the same family, thus managing variability is an important issue of SPL

engineering. There are few studies in the literature that evaluate and compare approaches to SPL variability

management in UML-based SPLs. In this work, two of the existing approaches, SMarty and Ziadi et al., are

compared throughout an experiment to verify: the effectiveness in conﬁguring products based on UML class

and sequence diagrams; the inﬂuence of the participants knowledge on UML, SPL and variability in the ef-

fectiveness results; and how traceability is performed in each approach. Results show the SMarty approach

is statically superior with relation to Ziadi et al. for the effectiveness at conﬁguring products with class and

sequence diagrams. Regarding the knowledge level needed to a better effectiveness, SMarty demands less

knowledge than Ziadi et al. In addition, Ziadi et al. provides no means to round-trip trace variabilities in class

and sequence diagrams, thus SMarty was previously designed to allow it.

1 INTRODUCTION

According to Almeida (2019), several techniques ex-

ist to allow software reuse, establishing actions and

strategies to be taken to ensure compliance with stan-

dards such as: software product lines, application

frameworks, design standards, and program libraries.

Software Product Line (SPL) is an approach that is

constantly growing since the adoption of a successful

SPL brings out several advantages to the organization,

such as productivity improvement, development time,

product quality and customer satisfaction (Clements

and Northrop, 2001; Linden et al., 2007).

For the successful adoption of SPL, managing

variability becomes essential. In the SPL context,

variability represents a subset of all possible choices

to generate speciﬁc products. Variation points and

variants are used to deﬁne SPL variabilities. Accord-

ing to Chen and Ali Babar (2011), variation points

describe the speciﬁc location where differences occur

in systems, and variants represent the different possi-

bilities to resolve a variation point.

https://orcid.org/0000-0001-7107-1648

https://orcid.org/0000-0002-4760-1626

In the existing literature, we may highlight consol-

idated UML-based SPL variability management ap-

proaches, such as PLUS (Gomaa, 2004) and the Ziadi

et al. approach (Ziadi and Jezequel, 2006).

Chen and Ali Babar (2011), Galster et al. (2014),

and Raatikainen et al. (2019) point out such ap-

proaches have not been properly experimented, using

rigorous scientiﬁc methods. In a systematic review by

Ahnassay et al. (2014), the results show that a large

part of the empirical assessments on SPL was not ad-

equately designed or reported.

We previously compared the SMarty approach

to other existing UML-based variability management

approaches as: in Nepomuceno et al. (2020) for use

cases and classes; and in Nepomuceno et al. (2020)

for classes and components. Therefore, in this work

we want to answer the following research question:

“Is the SMarty approach more effective at conﬁgur-

ing speciﬁc products from UML-based SPL at class

and sequence diagrams level compared to the Ziadi

et al. approach?”.

This work is supported by CAPES/Brazil

(Coordenac¸

ao de Aperfeic¸oamento de Pessoal de N

ıvel

Superior) code 001.

Nepomuceno, T. and OliveiraJr, E.

Software Product Line Traceability and Product Conﬁguration in Class and Sequence Diagrams: An Empirical Study.

DOI: 10.5220/0010411001970204

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 197-204

ISBN: 978-989-758-509-8

197

2 BACKGROUND AND RELATED

WORK

2.1 The Ziadi et al. Approach

The Ziadi et al. approach (Ziadi and Jezequel, 2006)

is composed of an UML 2.0 proﬁle with a set of ex-

plicit tagged values and metaclasses to annotate se-

quence and class diagrams elements for represent-

ing variability. The stereotypes proposed by Ziadi et

al. are as follows: <<optionalLifeline>> used to

represent alternative or optional lifelines in sequence

diagrams; <<optionalInteraction>> used to rep-

resent optional interactions in sequence diagrams;

<<optional>> used to represent optional elements

in class diagrams, such as classes and packages;

<<variation>> used to represent variation points

in sequence and class diagrams; <<variant>> used

to represent variants in class and sequence diagrams;

<<virtual>> used to indicate when an interaction

represents a speciﬁc situation in which the behavior

of a sequence diagram can be represented by another

sequence diagram.

Figure 1 represents a sequence diagram example.

The highlighted elements are possible products con-

ﬁgured from the complete diagram.

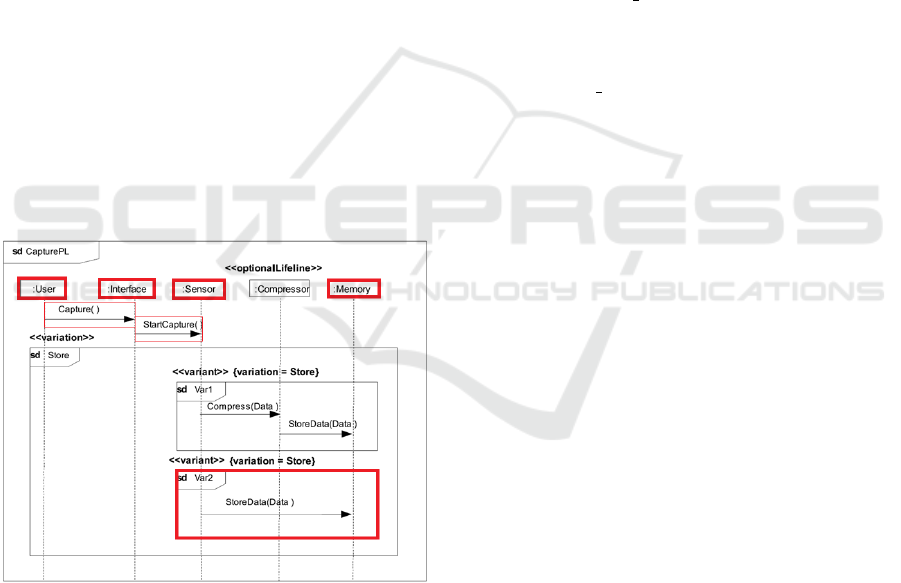

Figure 1: A sequence diagram modeled according to Ziadi

et al.

The Ziadi et al. approach does not offer any support

for tracking elements from class to sequence diagrams

and vice-versa.

2.2 The SMarty Approach

SMarty is composed of a UML proﬁle, the

SMartyProﬁle, and a process, the SMartyProcess

(OliveiraJr et al., 2010). The UML proﬁle is com-

posed of a set of stereotypes and tagged-values as

follows: <<variability>>: represents variabilities

in an UML note. It has the following attributes:

name: name used to refer to a variability; minS-

election: minimum number of variants selected to

solve a variation point or variability; maxSelection:

maximum number of variants selected to solve a

variation point or variability; bindingTime: moment

of variability resolution; variants: collection of in-

stances associated with variability; realizes+: collec-

tion of variability names of higher level diagrams;

and realizes-: collection of variability names of lower

level diagrams. <<variationPoint>>: stereotype

of variation point; <<mandatory>>: represents

this variant must necessarily be present in any prod-

uct; <<optional>>: represents an optional vari-

ant; <<alternative OR>>: indicates the existence

of a group of inclusive variants. Different com-

binations of inclusive variants can be selected for

the resolution of a variation point or variability;

<<alternative XOR>>: indicates the existence of

a group of exclusive variants. Only one variant of

this group can be selected for the resolution of a vari-

ation point or variability; <<mutex>>: represents

the mutually exclusive relationship between variants;

<<requires>>: represents a complement relation-

ship between two variants.

Figure 2 represents a sequence diagram example.

The highlighted elements are possible products con-

ﬁgured from the complete diagram.

Traceability among class and sequence elements

and vice-versa in SMarty is performed using the

realizes+ and realizes- meta-attributes of the

<<variability>> stereotype.

2.3 Related Work

As far as we know, based on a non-systematic search

and the works of Ahnassay et al. (2014), Chen

and Ali Babar (2011), Galster et al. (2014), and

Raatikainen et al. (2019) there is no study in the

literature directly related to experimental compari-

son among UML-based variability management ap-

proaches with regard to product conﬁguration and

traceability in class and sequence diagrams. However,

our research group has developed several experiments

to show the effectiveness of SMarty.

Marcolino et al. (2013) conducted an experiment

in 2013 comparing the SMarty approach with the

PLUS (Gomaa, 2004) method in relation to the iden-

tiﬁcation and resolution of variability in use case di-

agrams, in which SMarty provided better results than

the PLUS method.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

198

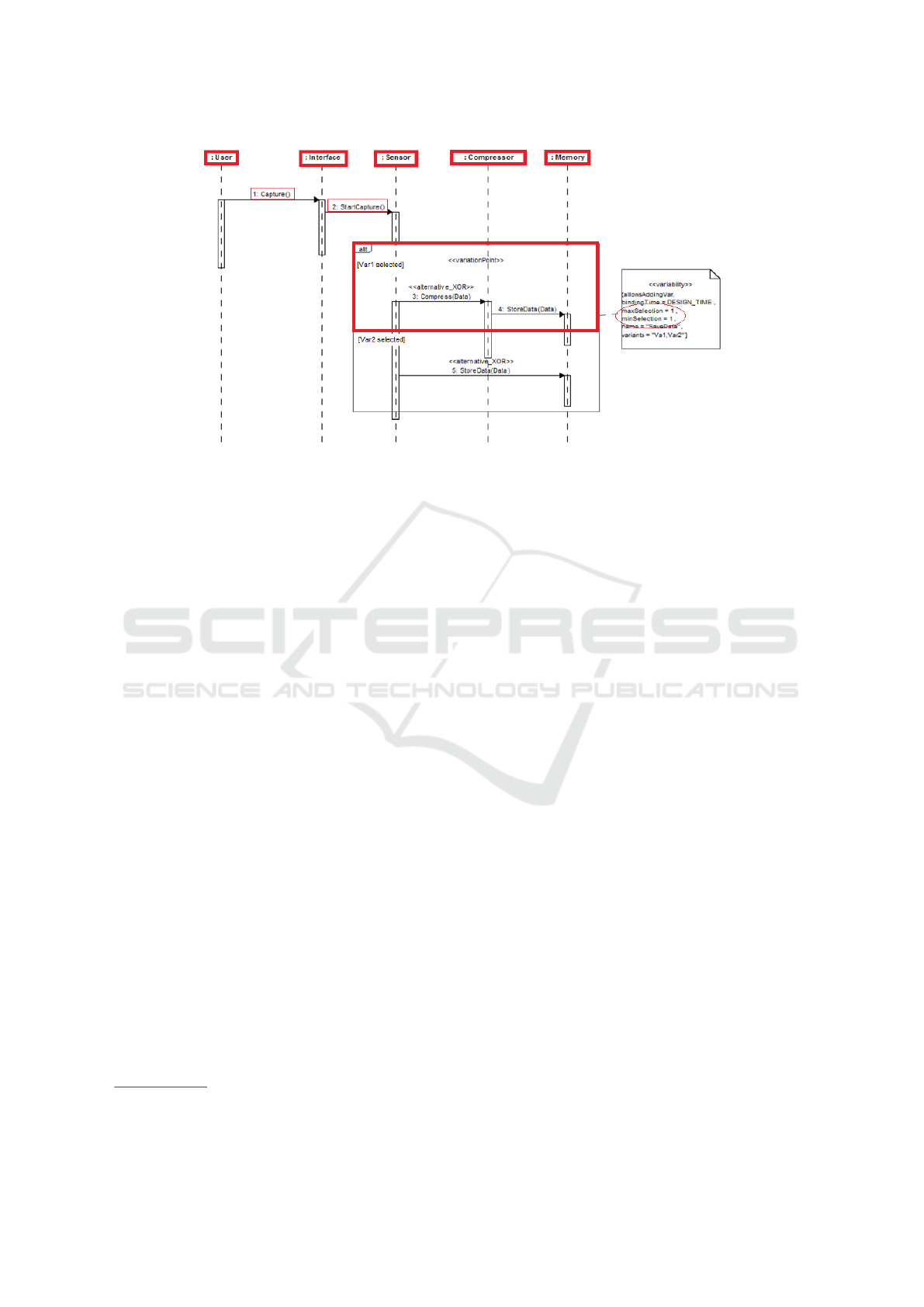

Figure 2: A sequence diagram modeled according to the SMarty approach.

A year later, a new experiment was conducted by

Marcolino et al. (2014a) comparing SMarty and Ziadi

et al. approaches in sequence diagrams. As a re-

sult, SMarty also provided more effectiveness results

at identifying and resolving variabilities.

In another experiment in 2014, Marcolino et al.

(2014b) compared SMarty and PLUS regarding the

identiﬁcation and resolution of variability in class dia-

grams. In this evaluation, the PLUS method provided

better effectiveness results.

Two other experiments were conducted by Mar-

colino et al. (2017) and Marcolino and OliveiraJr

(2017) in 2017, which compared SMarty and PLUS

for a class diagram. In the ﬁrst experiment, there

was no statistical difference between the effectiveness

samples in relation to the ability to interpret and con-

ﬁgure the correct products. In the second, PLUS pro-

vided better results.

3 EMPIRICAL STUDY

This study

is characterized as a quasi-experiment,

as the selection of participants was not randomized

based on the fact that the participants were chosen for

convenience.

The goal of this experiment is to compare the ap-

proaches Ziadi et al. and SMarty, with the purpose of

identifying which is more effective regarding the con-

ﬁguration of speciﬁc products in sequence and class

diagrams, thre relevance of the knowledge of each

participant, and the traceability capacity of each ap-

Data of this study are available at https://doi.org/10.

5281/zenodo.4304279

proach from the point of view of researchers in the

role of SPL architects, in the context of undergradu-

ate and graduate students who have previously knowl-

edge about UML, SPL and variability.

We deﬁned the following research questions for

this study: RQ1: Which approach is more effective

for deriving speciﬁc product conﬁgurations from se-

quence and class diagrams?; RQ2: What is the inﬂu-

ence of the participants level of knowledge in conﬁg-

uring speciﬁc products from sequence and class dia-

grams?; and RQ3: Which approach is more effective

in tracing elements from class to sequence diagrams

and vice-versa?

3.1 Planning

This study can be characterized on the following di-

mensions: Process: for eight participants, the process

was online. We provided all instruments as a link on

the Google drive and the responses were returned by

email. For 22 participants, we applied the experiment

ofﬂine in different days, according to the availability

of each participant; and Participants: all participants

were undergraduate or graduated students. The pro-

ﬁle description of participants knowledge is shown in

Table 1.

The selection of participants was non-

probabilistic, not randomized based on the fact

that participants were chosen for convenience.

Thirty people participated in the experimental

evaluation. Such participants were undergraduate or

graduate students in Computer Science and Computer

Engineering, some with expertise in the industry.

The participants received a set of documents,

which are:

Software Product Line Traceability and Product Conﬁguration in Class and Sequence Diagrams: An Empirical Study

199

Table 1: Knowledge level of participants.

Part. ID

Knowledge

Education

Exper. in

Industry?

Experience

(months)

UML

SPL/

Variab.

1 Basic Basic Masters St. No 36

2 Moderate Have read Masters St. Yes 36

3 Moderate Basic Masters St. No 50

4 Moderate Basic Masters St. No 48

5 Basic Have read Bachelor Yes 25

6 Basic None Bachelor Yes 12

7 Basic None Bachelor Yes 30

8 Moderate Have read Bachelor No 10

9 Basic Have read Bachelor No 60

10 Moderate Have read Bachelor No 36

11 Basic None Bachelor No 8

12 Basic Have read Bachelor Yes 36

13 Basic Have read Bachelor Yes 30

14 Basic Have read Bachelor Yes 48

15 Moderate None Bachelor No 48

16 Basic None Bachelor No 24

17 Moderate Have read Bachelor Yes 20

18 Moderate Have read Bachelor Yes 15

19 Moderate None Bachelor Yes 36

20 Moderate Have read Bachelor No 36

21 Basic None Bachelor No 24

22 Basic None Bachelor Yes 34

23 Basic None Bachelor Yes 40

24 Moderate None Bachelor No 36

25 Moderate None Bachelor No 36

26 Basic None Bachelor No 36

27 Moderate None Masters St. No 36

28 Basic None Bachelor Yes 60

29 Basic None Bachelor No 36

30 Basic None Bachelor Yes 26

• Informed Consent Term (ICT): containing the

main information about the experiment, such as:

conﬁdentiality, procedures and beneﬁts. Such

document allowed the participants to make their

decision about participation or not in the research

in a fair way;

• Characterization Questionnaire: applied to par-

ticipants to analyze the level of knowledge and ex-

perience on UML, SPL and variability;

• Theoretical Synthesis: to facilitate the partici-

pant to ﬁnd the information on the experiment,

this document was divided into three sections.

The ﬁrst with the main concepts of Software Prod-

uct Lines and the second with the general descrip-

tion of the AGM SPL. As the participants were

divided into two blocks (one block for each ap-

proach), the third section of this document, which

comprised information about the approaches, was

different for each group. The division was car-

ried out by sending different links to each group

of participants, as follows:

– Block with Ziadi et al.: comprised a summary

of the concepts of the Ziadi et al. approach,

as well as their stereotypes and examples. This

approach in the documentation was represented

by X;

– Block with SMarty: concepts about the

SMarty approach, its stereotypes and examples.

This approach was identiﬁed as Y.

• Videos (in Portuguese): with the explanation of

SPL and the approaches and examples.

We deﬁned the following hypotheses as follows:

• for effectiveness in sequence diagrams:

– Null Hypothesis (H0

e f f seq

): there is no sig-

niﬁcant difference in the effectiveness between

SMarty and Ziadi et al. at conﬁguring speciﬁc

SPL products from sequence diagrams.

e f f seq

: µ(eff seq(SMarty)) =

µ(eff seq(Ziadi et al))

– Alternative Hypothesis (H1

e f f seq

): there is a

signiﬁcant difference in the effectiveness be-

tween SMarty and Ziadi et al. at conﬁguring

speciﬁc SPL products from sequence diagrams.

e f f seq

: µ(eff seq(SMarty)) 6=

µ(eff seq(Ziadi et al))

• for effectiveness in class diagrams:

– Null Hypothesis (H0

e f f cls

): there is no sig-

niﬁcant difference in the effectiveness between

SMarty and Ziadi et al. at conﬁguring speciﬁc

SPL products from class diagrams.

e f f cls

: µ(eff cls(SMarty)) =

µ(eff cls(Ziadi et al))

– Alternative Hypothesis (H1

e f f cls

): there is a

signiﬁcant difference in the effectiveness be-

tween SMarty and Ziadi et al. at conﬁguring

speciﬁc SPL products from class diagrams.

e f f cls

: µ(eff cls(SMarty)) 6=

µ(eff cls(Ziadi et al))

We deﬁned the following variables for this study:

• Independent Variables: the variability

management approach, which is a factor with

two treatments: SMarty and Ziadi et al., and a pre-

ﬁxed variable, the AGM SPL;

• Dependent Variables: the effectiveness on

correctly conﬁguring products, the influence

of the participants knowledge on the

observed value of effectiveness, and the

traceability capability of each approach.

To calculate effectiveness we considered the follow-

ing equation:

Effectiveness (z) = nVarC/Total

Where:

• z = the approach;

• nVarC = number of variabilities correctly re-

solved; and

• Total = number of variabilities of a given diagram.

We calculated the inﬂuence of each participant knowl-

edge using a correlation between the ﬁve levels

of knowledge in the Characterization Questionnaire

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

200

(Likert Scale) and the value obtained for the effec-

tiveness for each participant.

We ran a pilot project to a set of Master’s students

in the area of software engineering at the State Uni-

versity of Maring

a with knowledge in managing vari-

ability in SPL.

From the application of this project, several issues

could be corrected and some changes to improve the

study instrumentation were made.

The participants answers of the pilot project were

discarded for the ﬁnal set of responses on this study.

3.2 Operation

Thirty students participated in this study. Each of the

participants conﬁgured two speciﬁc products of the

AGM SPL: one from the sequence diagram; and one

from the class diagram.

The period of the experiment was one month, with

several days for face-to-face application of the exper-

iment according to the availability of each participant

and with the same period for participants who per-

formed the experiment online.

The group of participants was divided according

to the approach received by each participant. The di-

vision was done at random. Each group received a

document identifying the tasks to perform. Half of the

group conﬁgured products from an AGM SPL class

diagram, while the other half did it from a sequence

diagram.

3.3 Analysis and Interpretation

3.3.1 Effectiveness at Conﬁguring Products

(RQ1)

The results collected from the conﬁguration of the

products by each participant are shown in Table 2,

which refers to Ziadi et al. and SMarty. Such ta-

ble lists information on the correct resolved variabili-

ties (Corr), the total number of variability for a given

diagram (Total), and the effectiveness (Eff) of each

approach. In addition, descriptive statistics is shown

in such table. A correct modeled variability element

means it strictly follows the semantic meaning of vari-

ability, variation points and variants.

Normality Test. We applied the Shapiro-Wilk test

to the SMarty and Ziadi et al. effectiveness samples

for class and sequence diagrams.

We can observe all samples obtained p < (α =

0.05), therefore, they do not follow a normal distri-

bution: Ziadi et al. for class diagram (N=15): p =

0.0071; Ziadi et al. for sequence diagram (N=15):

Table 2: values observed with Ziadi et al. and SMarty for

class and sequence diagrams.

Class

Ziadi et al. SMarty

Part. ID Corr Total Eff Part. ID Corr Total Eff

1 6 10 0.6 2 10 10 1.0

3 10 10 1.0 4 10 10 1.0

5 9 10 0.9 6 10 10 1.0

7 7 10 0.7 8 8 10 0.8

9 8 10 0.8 10 10 10 1.0

11 6 10 0.6 12 9 10 0.9

13 7 10 0.7 14 10 10 1.0

15 10 10 1.0 16 10 10 1.0

17 10 10 1.0 18 9 10 0.9

19 10 10 1.0 20 10 10 1.0

21 8 10 0.8 22 10 10 1.0

23 7 10 0.7 24 10 10 1.0

25 10 10 1.0 26 9 10 0.9

27 10 10 1.0 28 10 10 1.0

29 6 10 0.6 30 9 10 0.9

Mean 8.22 - 0.82 Mean 9.6 - 0.96

Median 8 - 0.80 Median 10 - 1.00

St. Dev. 1.66 - 0.16 St. Dev. 0.63 - 0.06

Sequence

Ziadi et al. SMarty

Part. ID Corr Total Eff Partic Corr Total Eff

1 6 10 0.6 2 10 10 1.0

3 9 10 0.9 4 8 10 0.8

5 7 10 0.7 6 9 10 0.9

7 7 10 0.7 8 10 10 1.0

9 6 10 0.6 10 9 10 0.9

11 7 10 0.7 12 10 10 1.0

13 7 10 0.7 14 9 10 0.9

15 10 10 1.0 16 8 10 0.8

17 9 10 0.9 18 10 10 1.0

19 10 10 1.0 20 9 10 0.9

21 7 10 0.7 22 10 10 1.0

23 8 10 0.8 24 10 10 1.0

25 8 10 0.8 26 9 10 0.9

27 7 10 0.7 28 9 10 0.9

29 7 10 0.7 30 8 10 0.8

Mean 7.66 - 0.76 Mean 9.20 - 0.92

Median 7 - 0.70 Median 9 - 0.90

St. Dev. 1.29 - 0.12 St. Dev. 0.77 - 0.07

Corr = # of correct resolved elements, Eff = Effectiveness

p = 0.02453; SMarty for class diagram (N=15): p =

0.00011; and SMarty for sequence diagram (N=15):

p = 0.0043.

Hypothesis Test. Based on the non-normality of

samples, we decided to apply the Mann-Whitney-

Wilcoxon hypothesis test for the samples to indicate

whether there is a signiﬁcant difference between them

according to the hypotheses established in Section

3.1, as follows:

• For Class Diagram Effectiveness Samples: the

calculated value for p was 0.0299 (< α = 0.05).

Therefore, we could reject H0

e f f cls

. It means

there is a signiﬁcant difference between the effec-

tiveness of Ziadi et al. and SMarty samples for

effectiveness in conﬁguring products from class

diagrams. By analyzing Table 2 we can observe

better results for SMarty compared to Ziadi et al.;

• For Sequence Diagram Effectiveness Samples:

the value of p calculated in the test was 0.001846

(< α = 0.05). Thus, we could reject H0

e f f seq

. It

means there is a signiﬁcant difference between the

Software Product Line Traceability and Product Conﬁguration in Class and Sequence Diagrams: An Empirical Study

201

effectiveness of Ziadi et al. and SMarty samples

for effectiveness in conﬁguring products from se-

quence diagrams. By analyzing Table 2 we can

observe better results for SMarty compared to

Ziadi et al.

Effect Size. We calculated the effect size of each

hypothesis test to conﬁrm the strength of respective

samples, as follows:

• For Class Diagram Effectiveness: the Cohen d

test was applied and we obtained -1.05, which in-

dicates a large difference between the samples for

class diagrams.

• For Sequence Diagram Effectiveness: for the

sequence diagram, the Cohen test returned the

value -1.44, which indicates a large difference be-

tween the samples of effectiveness in the conﬁgu-

ration of products from sequence diagrams.

3.3.2 Correlation between Effectiveness and

Participants Knowledge Level (RQ2)

In this section, we want to check whether there is a

correlation between the effectiveness and the partici-

pant level of knowledge. To do so, we used the Spear-

man’s correlation technique as we performed a con-

version of nominal scales to discrete values regarding

the participant knowledge.

We then found the following values for each dia-

gram:

• For Class Diagrams:

– Ziadi et al.: ρ = 0.77 a strong positive correla-

tion;

– SMarty: ρ = 0.27 a weak positive correlation.

• For Sequence Diagrams:

– Ziadi et al.: ρ = 0.66 a strong positive correla-

tion;

– SMarty: ρ = 0.05 a weak positive correlation.

We understand the lower the correlation ρ value, the

lesser the inﬂuence of the participant knowledge on

the obtained effectiveness. Therefore, SMarty ob-

tained better results than Ziadi et al. as the former de-

mands less previous knowledge to conﬁgure products

and to trace variabilities in both class and sequence

diagrams. This is particularly important to SMarty

newcomers to comprehend its syntax and semantics

for modeling variability in UML-based SPLs.

3.3.3 Traceability (RQ3)

As the Ziadi et al. approach has no traceability mech-

anisms as mentioned in Section 2.1, we analyzed such

mechanisms in SMarty.

To do so, we deﬁned two likert-scaled questions

to the experiment participants who used the SMarty

approach:

• Question #1: Assuming that in a product conﬁg-

uration the features related to the Game Sprite

are excluded from the class diagram, can you ob-

serve/identify the respective changes/impacts in

the sequence diagram?.

• Question #2: If Play Game does not exist in the

sequence diagram, can you observe/identify the

respective changes/impacts in the class diagram?

We summarize the answers in Table 3.

Table 3: SMarty round-trip traceability to/from class and

sequence diagrams.

Question #1: Class to Sequence

Likert Labels Count Percentage (%)

I totally agree 8 53.33

I partially agree 5 33.33

I partially disagree 2 13.33

I totally disagree 0 0.00

Total 15 100.0

Question #2: Sequence to Class

Likert Labels Count Percentage (%)

I totally agree 6 40.00

I partially agree 5 33.30

I partially disagree 3 20.00

I totally disagree 1 6.70

Total 15 100.0

As observed in Table 3, 13 (86.66%) participants

agree changes can be traced to sequence diagrams

when a related variability element is modiﬁed in

a class diagram by using the <<variability>> at-

tribute realizes-. We assume, sequence diagrams

are lower abstraction level than class diagrams.

The same conclusion is valid for tracing elements

from sequence to class diagrams as 11 (73.33%)

participants could observe/identify such changes by

means of the attribute realizes+.

Based on these results, we understand traceability

in SMarty is promising, thus we need to reach 100%

satisfaction of its users.

3.4 Threats to Validity

We can make considerations regarding the internal va-

lidity of this experiment, as follows: all participants

were students, therefore there were no advanced skills

of the group; the participants training has leveled the

knowledge regarding SPL and variability, thus, we

consider the participants answers valid and signiﬁ-

cant.

We detected certain threats related to the instru-

mentation. The AGM diagrams are not from an ac-

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

202

tual SPL. In addition, they are relatively simple to

understand. Therefore, in further studies, actual and

more complex SPLs must be considered to reduce

such threats.

The level of knowledge of the participants can also

be a threat, as some have more knowledge than others

on related topics (SPL and variability).

The feasibility of the study and the instrumenta-

tion were initially tested with a pilot project to ana-

lyze whether they are suitable to be applied in the real

study, and consequently not to invalidate the experi-

ment. As for the level of knowledge, the participants

received training on the concepts of SPL, variability,

SMarty, and Ziadi et al., thus we understand that they

obtained the necessary understanding to conﬁgure the

products and to answer the SMarty-related traceabil-

ity questions.

4 DISCUSSION OF RESULTS

4.1 Effectiveness Discussion

Observing the results of this study, we note a great

difference between samples in terms of effectiveness.

Analyzing the results on class diagrams, SMarty

had a mean of effectiveness of 0.96, a standard de-

viation of 0.06 and a median of 1.0, while Ziadi et

al. obtained a mean of 0.82, a standard deviation of

0.16 and a median of 0.8. SMarty participants conﬁg-

ured 10 products with 100% effectiveness, which rep-

resents more than half of the sample (median = 1.0).

On the other hand, Ziadi et al. obtained only six prod-

ucts totally correctly conﬁgured, which means less

than 50% of the sample (median = 0.8).

Although SMarty had better results than Ziadi et

al. for class diagrams effectiveness, SMarty partic-

ipants experienced partially wrong conﬁguration of

certain products, which indicates a lack of total com-

prehensibility of the conﬁguration process of the ap-

proach.

In relation to the sequence diagram, SMarty ob-

tained an effectiveness mean of 0.92, a standard de-

viation of 0.07 and a median of 0.9, whereas Ziadi et

al. obtained a mean of 0.76, a standard deviation of

0.12 and a median of 0.7. SMarty participants con-

ﬁgured six products with 100% effectiveness, which

represents less than half of the sample (median = 0.9).

Ziadi et al. obtained only two products totally cor-

rectly conﬁgured, which means much less than 50%

of the sample (median = 0.7).

We understand sequence diagrams are more difﬁ-

cult to understand and to conﬁgure products with both

approaches. Comparing both approaches, SMarty ob-

tained way better results than Ziadi et al. However, es-

pecially for SMarty, this result corroborates the con-

clusion on the class diagrams about the lack of guide-

lines to support its conﬁguration process.

All of these results provide evidence on the ad-

vantage of SMarty over Ziadi et al. We assume par-

ticipants who used SMarty had better results because:

• SMarty provides a process to guide the user on

representation and identiﬁcation of variability;

• SMarty provides several stereotypes for class

and sequence diagrams, not available in Ziadi

et al., which may make product conﬁguration

easier.

4.2 Inﬂuence of Participant Previous

Knowledge

In this research question, we analyzed which ap-

proach had the least inﬂuence of the participants prior

knowledge. Therefore, we correlated the effective-

ness obtained to the level of knowledge.

When analyzing the correlation of the class dia-

grams, SMarty had ρ value 0.27 and Ziadi et al. 0.77.

With regard to Ziadi et al., a same knowledge tends

to lead to a speciﬁc effectiveness value at conﬁgur-

ing products. It means, the participant knowledge

highly determines his/her effectiveness. On the other

hand, in the SMarty approach, there is no tendency a

same knowledge to determine the effectiveness. For

SMarty, it is important as it provides numerous stereo-

types Ziadi et al. does not, as well as SMarty provides

a process to identify and represent variabilities, which

may inﬂuence the effectiveness at conﬁguring prod-

ucts.

With relation to sequence diagrams, SMarty had

ρ value 0.05 and Ziadi et al. 0.66. As SMarty had a

way less correlation ρ value than Ziadi et al., the same

rationale can be used to interpret their results.

Therefore, we can summarize the results as fol-

lows: the participant knowledge seems to be irrel-

evant to SMarty at conﬁguring product from both

class and sequence diagrams.

4.3 Traceability Results

We analyzed traceability for SMarty in a round-trip

ﬂavor, from: class to sequence diagrams; and se-

quence to class diagrams.

From class to sequence diagrams 86.66% of par-

ticipants agree with SMarty support at identifying

and tracing the impacts at the sequence diagram level

when changes are made at the class level. This means

the majority of participants really comprehend the

Software Product Line Traceability and Product Conﬁguration in Class and Sequence Diagrams: An Empirical Study

203

SMarty mechanism to trace variabilities from a higher

abstraction level diagram (class) to a lower level dia-

gram (sequence) by means of the <<variability>>

attribute realizes-. However, it seems there were

certain issues making it difﬁcult to a small portion

(13.33%) of the participants to trace variabilities.

With regard to sequence to class diagrams,

73.3% of participants agree with SMarty support at

identifying and tracing the impacts at the class dia-

gram level when changes are made at the sequence

level. Again, the majority of participants really com-

prehend the SMarty mechanism to trace variabilities

from a lower abstraction level diagram (sequence)

to a higher level diagram (class) by means of the

<<variability>> attribute realizes+.

Unfortunately, for the traceability analysis, we did

not ask any open questions to participants to express

their thoughts on it, because we did not want to extend

the time for the participation in the experiment, thus

causing more fatigue threats.

5 CONCLUSION

Regarding the ﬁrst research question, the results on

the effectiveness at conﬁguring products showed an

advantage of SMarty in relation to Ziadi et al. for

both class and sequence diagrams.

We provide evidence the previous knowledge of

the participant in SPL, variability and UML may be

related to the effectiveness of Ziadi et al. to product

conﬁguration. Especially for SMarty, the knowledge

seems not to determine such effectiveness, thus de-

manding less experienced participants.

With regard to the third research question, we un-

derstand SMarty provides subsidies for traceability

of variability-related elements in both class and se-

quence diagrams. However, this aspect still needs to

be improved. Ziadi, on the other hand, cannot be eval-

uated for not providing support for traceability of ele-

ments.

As future work we are developing an automated

tool to UML-based approaches which takes as a basis

any proﬁle from the UML metamodel.

REFERENCES

Ahnassay, A., Bagheri, D., and Gasevic, D. (2014). Em-

pirical evaluation in sofware product line engineering.

Technical report, Ryerson University.

Almeida, E. S. (2019). Software Reuse and Product Line

Engineering. In Cha, S., Taylor, R. N., and Kang,

K., editors, Handbook of Software Engineering, pages

321–348. Springer International Publishing, Cham.

Chen, L. and Ali Babar, M. (2011). A systematic re-

view of evaluation of variability management ap-

proaches in software product lines. Inf. Softw. Tech-

nol., 53(4):344–362.

Clements, P. and Northrop, L. (2001). Software Product

Lines: Practices and Patterns. Addison-Wesley.

Galster, M., Weyns, D., Tofan, D., Michalik, B., and Avge-

riou, P. (2014). Variability in software systems—a

systematic literature review. IEEE Transactions on

Software Engineering, 40(3):282–306.

Gomaa, H. (2004). Designing Software Product Lines with

UML: From Use Cases to Pattern-Based Software Ar-

chitectures. Addison Wesley Longman Publishing

Co., Inc., Redwood City, CA, USA.

Linden, F. J. v. d., Schmid, K., and Rommes, E. (2007).

Software Product Lines in Action: The Best Indus-

trial Practice in Product Line Engineering. Springer-

Verlag, Berlin, Heidelberg.

Marcolino, A. and OliveiraJr, E. (2017). Comparing smarty

and plus for variability identiﬁcation and represen-

tation at product-line uml class level: A controlled

quasi-experiment. J. Comp. Sci., 13:617–632.

Marcolino, A., OliveiraJr, E., and Gimenes, I. (2014a).

Variability identiﬁcation and representation in soft-

ware product line uml sequence diagrams: Proposal

and empirical study. In SBES, pages 141–150.

Marcolino, A., OliveiraJr, E., Gimenes, I., and Barbosa,

E. F. (2014b). Empirically based evolution of a vari-

ability management approach at uml class level. In

COMPSAC, pages 354–363. IEEE.

Marcolino, A., OliveiraJr, E., Gimenes, I., and Maldonado,

J. (2013). Towards the effectiveness of a variability

management approach at use case level. In SEKE,

pages 214–219.

Marcolino, A., OliveiraJr, E., Gimenes., I. M. S., and Bar-

bosa, E. F. (2017). Variability resolution and product

conﬁguration with smarty: An experimental study on

uml class diagrams. J. Comp. Sci., 13:307–319.

Nepomuceno, T., OliveiraJr, E., Geraldi, R., Malucelli, A.,

Reinehr, S., and Silva, M. A. G. (2020). Software

product line conﬁguration and traceability: An empir-

ical study on smarty class and component diagrams. In

IEEE Annual Computers, Software, and Applications

Conference, pages 979–984.

Nepomuceno, T. S., OliveiraJr, E., Penteado, R. R. M.,

Silva, M. A. G., and Zorzo, A. (2020). Empirical study

on product conﬁguration and traceability in uml-based

product-lines. In Proceedings of the Ibero-American

Conference on Software Engineering, pages 1–14.

OliveiraJr, E., Gimenes, I., and Maldonado, J. (2010). Sys-

tematic management of variability in uml-based soft-

ware product lines. J. UCS, 16:2374–2393.

Raatikainen, M., Tiihonen, J., and M

annist

o, T. (2019).

Software product lines and variability modeling: A

tertiary study. Journal of Systems and Software,

149:485 – 510.

Ziadi, T. and Jezequel, J.-M. (2006). Software Product Line

Engineering with the UML: Deriving Products, pages

557–588. Springer.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

204
