Automatic Extraction of a Document-oriented NoSQL Schema

Fatma Abdelhedi

1,2 a

, Amal Ait Brahim

, Hela Rajhi

, Rabah Tighilt Ferhat

and Gilles Zurfluh

IRIT, Toulouse Capitole University, Toulouse, France

CBI² - TRIMANE, Saint Germain-En-Laye, France

Keywords: Big Data, NoSQL, MDA, QVT, Schemaless, Reverse-engineering, Schema-extraction.

Abstract: The NoSQL systems make it possible to manage Databases (DB) verifying the 3Vs: Volume, Variety and

Velocity. Most of these systems are characterized by the property schemaless which means absence of the

data schema when creating a DB. This property provides undeniable flexibility by allowing the schema to

evolve while the DB is in use; however, it is a major obstacle for developers and decision makers. Indeed, the

expression of queries (SQL type) requires precise knowledge of this schema. In this article, we provide a

process for automatically extracting the schema from a NoSQL document-oriented DB. To do this, we use

the MDA (Model Driven Architecture). From a NoSQL DB, we propose transformation rules to generate the

schema. An experiment of the extraction process was carried out on a medical application.

1 INTRODUCTION

The last few years have seen the explosion of data

generated and accumulated by increasingly lot of

computing devices. The DBs thus formed are

designated by the expression "Big Data" which refers

to the so "3V" minimum rule: volume, variety and

velocity (Chen & Zhang, 2014). This rule

characterizes a DB of several terabytes containing

data of various types and formats such as texts, tables,

highly structure documents. In addition, this data is

often captured at very highly frequency and must

therefore be filtered and aggregated in real time to

avoid necessary saturation of storage space.

Classical implantation of techniques based mainly

on the relational principle, have limitations lot of

managing massive DB (Angadi et al., 2013). Thereby,

new data storage and manipulation systems have been

appeared. Grouped under the term NoSQL (Han et al.,

2011), these systems are much greeted to manage

large volumes of data with flexible schemas. They

also provide great scalability and good response of

time performance (Angadi et al., 2013).

https://orcid.org/0000-0003-2522-3596

https://orcid.org/0000-0003-3570-9792

https://db-engines.com/en/ranking/document+store

https://www.omg.org/mda/

Most NoSQL DBMS are characterized by the

property of the schemaless which corresponds to the

absence of the data schema when doing a DB. This

property appears in all NoSQL systems such as

MongoDB, CouchDB, HBase and Neo4j. Note,

however, that it is absent in some systems as

Cassandra and Riak TS. The property schemaless

offers undeniable flexibility by allowing the schema

to evolve readily. For example, adding new attributes

to an existing line is done without modifying other

lines of the same type previously stored.

In this article, we study the process of extracting

the schema from a schemaless NoSQL document-

oriented DB. We have chosen the specific vocabulary

of the document-oriented NoSQL system MongoDB

which is the most used in the industry

. Our process

uses MDA

(Model Driven Architecture) which

provides a formal frame for model transformations

(Bézivin & Gerbé, 2001).

The rest of the paper is structured as follows.

Section 2 presents the medical application which

justifies the interest of our work. Section 3 reviews

the state of the art. Section 4 presents our contribution

which consists in formalizing with MDA the process

192

Abdelhedi, F., Brahim, A., Rajhi, H., Ferhat, R. and Zurﬂuh, G.

Automatic Extraction of a Document-oriented NoSQL Schema.

DOI: 10.5220/0010433501920199

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 192-199

ISBN: 978-989-758-509-8

of extracting the schema from a schemaless NoSQL

DB. Section 5 details the development of our

prototype and describes the experimentation and

validation of our process. Finally, section 6 concludes

the paper and announces future works.

2 CASE STUDY

In this section, we present the case study which

motivated our work as well as its development.

2.1 NoSQL Database

Our work is motivated by the development of a

medical application within the framework of an

industrial contract; this application will also allow us

to illustrate the concepts and mechanisms used. This

involves the establishment of scientific programs

dedicated to the following of a specific pathology.

Each program can being together around fifty

European hospitals (hospitals, clinics and specialized

care centers).

The primary objective of such a program is to

collect significant data on the course of the disease

over time, to study its interactions with opportune

diseases and to assess the influence of its treatments

in the short and medium. The duration of a program

is done when it is launched and can be between three

and ten years. The data collected by several

establishments as part of a multi-year program

present the characteristics generally accepted for Big

Data (the 3 Vs), (Douglas, 2001). Indeed, the volume

of medical data collected from daily patients can

reach, for all establishments and over three years,

several terabytes. On the other hand, the nature of the

data entered (measurements, radiography,

scintigraphy, etc.) is diverse and may vary from one

patient to another depending on their status health.

Finally, some data is produced continuously by

sensors; they must be processed almost in time real

because they can be integrated into time emotive

processes (measures crossing a threshold that would

involve the intervention of an emergency practitioner,

for example). Patient following requires the storage

of various data such as the recording of consultations

carried by out practitioners, test results, prescriptions

for drugs and specific treatments. We therefore stored

all of this data in a schemaless NoSQL system.

Thus, to develop requests corresponding to this

type of analysis over time, doctors need to know the

schema of the DB.

2.2 Development Framework

To meet the needs of this medical application, a

software has been developed in Java language and

uses MongoDB NoSQL system. This DBMS offers

stability and provides satisfactory data access

performance for the application. The DB has been

transactions that are implemented by health personnel

from touch tablets.

3 RELATED WORK

Several research works have proposed processes to

extract the schema from a NoSQL schemaless DB,

mainly for document DBs like MongoDB. Thus, a

process has been proposed in (Klettke et al., 2015) to

extract the schema from a collection of JSON

documents stored on MongoDB. The returned

schema is itself in JSON format; it is obtained by

browsing the DB and identifying the names of the

attributes that appear in the documents. Attributes are

associated with atomic types, lists, or structured

documents.

A similar work (Izquierdo & Cabot, 2016)

proposes a process for generating a NoSQL model

from a collection of JSON documents. This process

consists in (1) first extracting the model from each

document by replacing pairs (Key, Value) by pairs

(Key, Type) and (2) subsequently unifying all the

models obtained to have a single model for the whole

collection. The generated model is in JSON format.

In the article (Sevilla Ruiz et al., 2015), the

authors propose another process of extracting the

schema in a document NoSQL DB. The returned

result is not a unified schema for the whole DB, but it

gives the different versions of document schemas

(according to the names and types of the attributes)

for each collection. The extraction process is

composed of two successive steps. The first one

browses the DB and, for each distinct schema version,

generates a document in a collection called "Model".

In the second step, the process provides a model of

each version by instantiating the JSON metamodel.

We can also cite the work of (Gallinucci et al.,

2018) which proposes a process called BSP (Build

Schema Profile) to classify documents in a collection

by applying rules corresponding to user requirements.

These rules are expressed through a decision tree

whose nodes represent the attributes of the

documents; the edges specify the conditions on which

the classification is based. These conditions reflect

either the absence or presence of an attribute in a

Automatic Extraction of a Document-oriented NoSQL Schema

193

document or its value. As in the previous article

(Sevilla Ruiz et al., 2015), the result returned by this

approach is not a unified schema but a set of schema

versions; each one is common to a group of

documents.

In addition, the article by (Comyn-Wattiau &

Akoka, 2017) proposes a process for extracting a

schema from requests for inserting objects and

relations in a graph NoSQL DB. The proposed

process is based on an MDA architecture and applies

two types of transformations to the queries. The

process consists of two steps. The first one consists in

building a graph (Nodes + Edges) from Neo4J

queries. The second step consists in extracting from

the graph an Entity-Relationship model by

transforming nodes with the same label into entity

classes and edges into association.

In (Maity et al., 2018), the authors describe the

transition from a document or graph NoSQL DBs to

a relational schema. The process groups together all

documents (or objects) that have the same field

names. For each class of objects thus obtained, it

generates a table with the field names as attributes and

the field values as lines.

On the other hand, in (Baazizi et al., 2017), the

authors propose a process for extracting the schema

from a large collection of JSON documents using the

MapReduce system. The Map phase consists in

extracting the schema of each document in the

collection by inferring pairs (key, type) from pairs

(key, value). The Reduce phase consists in unifying

all the schemas produced in the Map phase in order to

provide a global schema of all the documents in the

collection. In another article (Baazizi et al., 2019), the

same authors proposed to extend this process by

integrating the parameterization of the extraction at

the Reduce phase. Thus, the user can choose either to

unify all the schemas of the documents in the

collection, or to unify only the schemas having the

same fields (names and types).

Through this related work section, it appears that

these solutions only partially answer our problem.

The process we propose aims at extracting a

schema from a document NoSQL DB. We chose the

MongoDB system that was used in the development

of the medical application presented in section 2. In

addition, MongoDB is the most widely used NoSQL

DBMS in the world as shown by a recent study by

DB-Engines (DB-Engines Ranking, n.d.). Our

process extracts the descriptions of the collections as

well as some types of links present in the application.

Object Management Group (OMG):

http://www.omg.org/

4 EXTRACTING THE NoSQL

SCHEMA

The goal of this article is to automate schema

extraction from a document-oriented schemaless

NoSQL DB. This schema indicates the names of the

collections, the names of the fields as well as their

types as is done in the relational DBs where the

schema is provided by the system. To do this, we

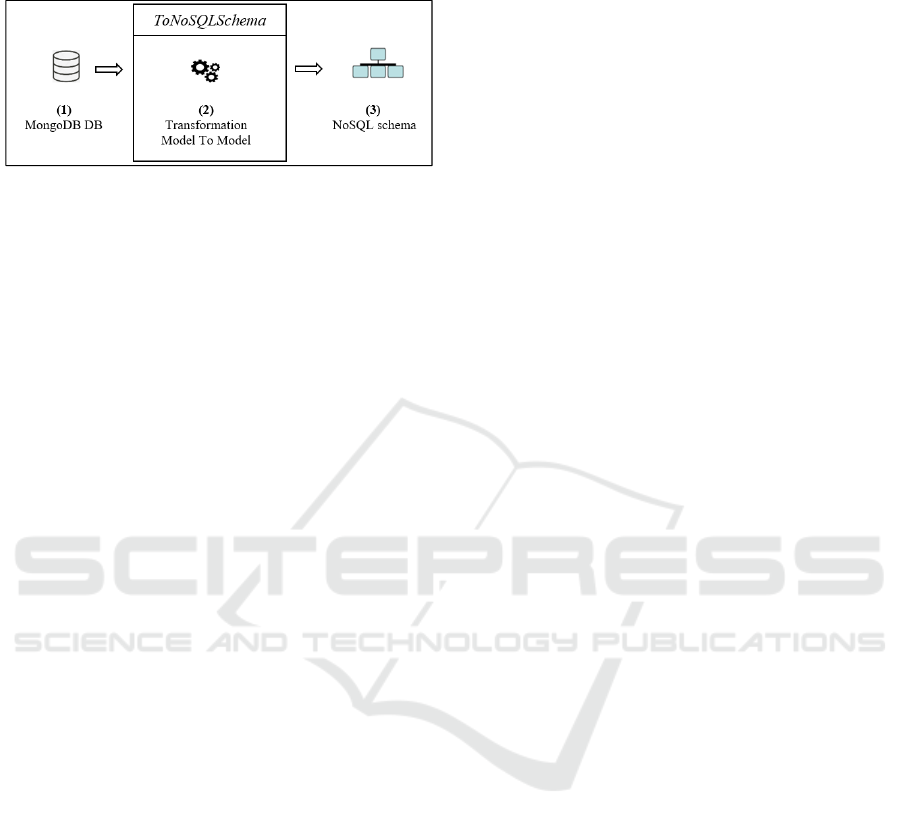

propose the ToNoSQLSchema process that allows to

automatically extract the schema after a scan of the

DB. It is about a “cold extraction”, i.e., the process is

the totality of the DB at time t and the schema

describes the data structures at time t. A

complementary "hot extraction" has been developed

and allows the schema to be updated to consider the

development of the DB.

To develop and automate our ToNoSQLSchema

process, we use the OMG

Model Driven

Architecture (MDA) which provides a formal frame

for the automation of schema processing (Hutchinson

et al., 2011). The objective of this design is to

separately describe the specifications functional and

the specifications implementation of an application

on a given platform; to do this, it uses three sitters

representing the levels abstract of the application.

These are (1) the requirements schema (CIM for

Computation Independent Model) in which IT

considerations appear, (2) the analysis and design

schema (PIM for Platform Independent Model)

independent of aspects technical execution platforms

and (3) the code model (PSM for Platform Specific

Model) specific to a specific platform. Since the input

to our process is a NoSQL DB and its output

corresponds to a physical schema, we only retain the

PIM level. We develop the inputs / outputs with the

Ecore language and the model transformations using

the QVT (Query View Transformation) standard

defined by the OMG.

The advantage of using the MDA architecture lies

mainly in the generalization of our process

ToNoSQLSchema. Indeed, the formalization of

inputs / outputs by meta models (sections 4.1 and 4.2)

as well as the use of QVT notations, ensure a certain

independence from the specificities of NoSQL

systems, current and future. Warning: for the sake of

consistency of the article, we have used the term

model from the MDA vocabulary to denote the result

of a modeling process; we use the term schema.

By applying a series of QVT transformations on

an existing schemaless DB, our ToNoSQLSchema

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

194

process (Figure 1) produces a schema explicitly

describing the structured data.

Figure 1: Our ToNoSQLSchema process.

In the following sections, we define the

ToNoSQLSchema process by presenting

successively the source, the target, and the

transformation rules.

4.1 The Source: A Document-oriented

NoSQL Database

A document-oriented DB is made up of collections;

each of which contains together of documents. A

document consists of an aggregate of fields in the

form of couple (Field-name, Value). A value can be

atomic, multivalued, or structured (i.e., composed of

other). To make a link between the collections, the

developer can use a field called field reference to a

principle proposed in (MongoDB, 2018). This field is

a structure of the form: (identifier of the referenced

document, name of the targeted collection) if the link

is monovalued. On the other hand, to express a

multivalued link, the reference field takes the form

([identifiers of the referenced documents], name of

the targeted collection). Note, however, that the

MongoDB system does not check referential integrity

when feeding the DB; this verification remains the

responsibility of the data entry software.

The source, i.e. the DB, is described by a meta- model

(Figure 2) formalized with the standardized language

Ecore.

4.2 The Target: A NoSQL Schema

The NoSQL schema generated by our process

describes the collections, their fields and the links

restrained in the DB. It is saved under MongoDB in a

set of documents. Each file contains the model

diagram of a collection. The documents are composed

of a lot of domains; each of them can be atomic,

structured, or multivalued. An atomic field is

presented in the form of a couple (Name, Type) where

Type contains Integer, Boolean or String. A

structured field is made up of an aggregate of fields

of any type. A multivalued field is composed of a set

of fields of the same type. We formalize these

concepts through the Ecore meta- model of Figure 3.

4.3 Transformations

After having formalized the concepts located at the

input of the process (document-oriented NoSQL DB)

and at the output (NoSQL model), we describe the

switch between automatic the two models in the form

of a sequence of transformation rules.

The following present the rules in natural language of

ToNoSQLSchema process.

R1: A NoSQL document-oriented DB is transformed

into a collection called DB_Schema.

R2: Each input collection is transformed into a

document. This includes a field noted

CollectionSchema which indicates the name of the set

concerned and that we find at the top in the target

schema. Note that each document contains a unified

schema for all that make up the input set. This means

that our process generates a single collection schema

grouping together all document fields that we have in

the collections input. We therefore do not consider

grouping together all document fields that we have in

the collections input. We therefore do not consider

several versions for the same input collection as it is

in (Sevilla Ruiz et al., 2015) and (Gallinucci et al.,

2018). Indeed, we are dealing with the case of

synonymous fields nor the case where a field has

different types depending on their values within the

same collection at the level of database input.

R3: For each atomic field, the pair (Field-name,

Value) is transformed into a couple in the set of the

target model like (Field-name, Type). In fact, the type

of a field is generated according to its value. For

example, if the value is of the form "xxx", then its

type is String; if the value is of the form [yyy, zzz,

etc.], then its type is [Integer], i.e., a set of Integers.

For example, the field Last-NameP: "DUPONT" is

transformed into Last-NameP: String.

R4: For structured field, the process goes through all

the fields that make it up. For each of them, if it is an

atomic field, then apply R3; if this is a structured field

then apply R4.

For example, the field Address: {Code: 1735, City:

"Paris"} is transformed into {Code: Integer, City:

String}.

R5: For a monvalued reference field, the pair

(document identifier, name of the collection) is

transformed into a pair (ObjectId, name of

collection).

Automatic Extraction of a Document-oriented NoSQL Schema

195

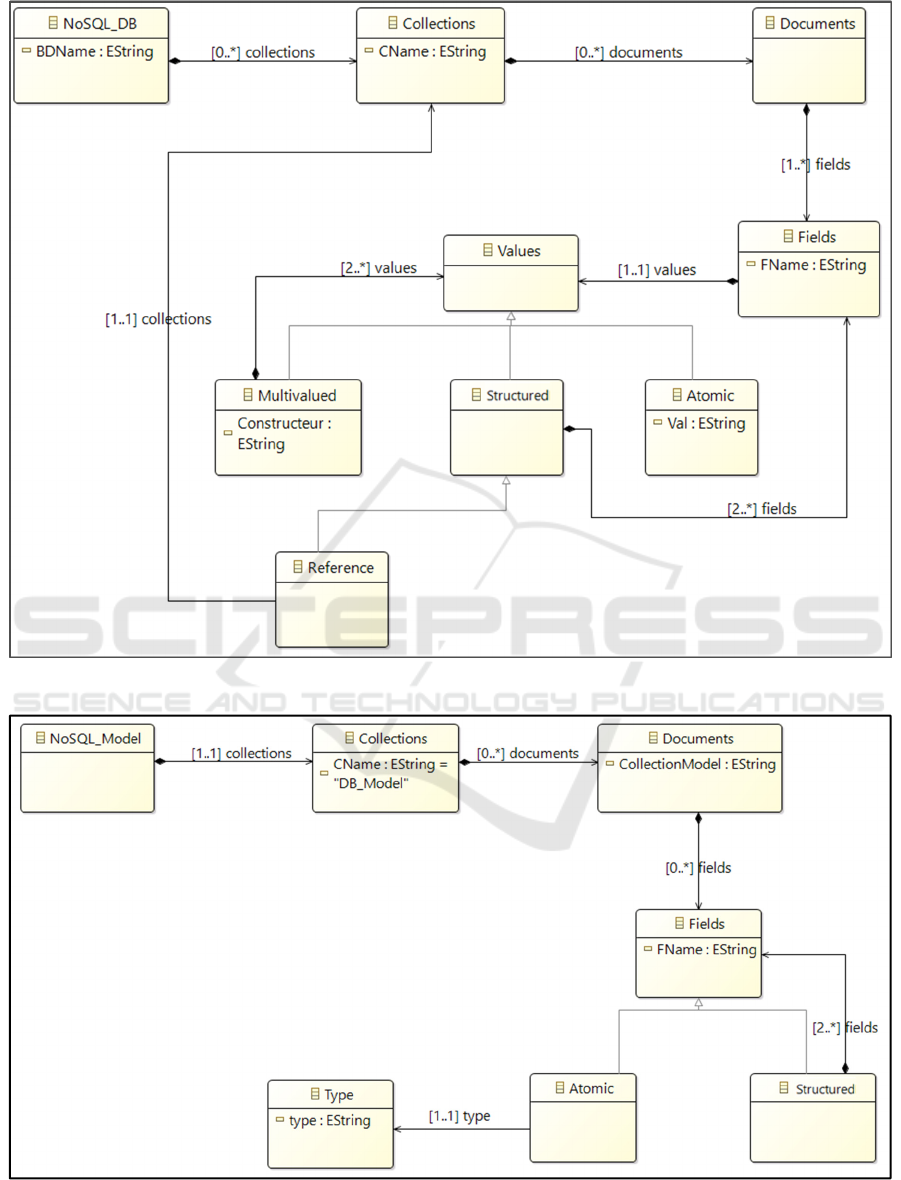

Figure 2: Meta-model describing the source of our process.

Figure 3: Meta- model describing the target of our process.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

196

R6: For a multivalued reference field, the pair

([document identifiers], name of the collection) is

transformed into a pair ([ObjectId], name of

collection).

We present in Figure 4 an example for applying these

rules.

5 DEVELOPMENT OF A

PROTOTYPE AND

VA L I D AT I O N

5.1 Technical Environment

In collaboration with the company TRIMANE, a

digital services company, we have developed a

schematic extraction software prototype according to

the principles outlined above. We briefly describe the

mechanisms that in the development we implemented

of ToNoSQLSchema. We use a technical middle

pertinent of modeling, meta-modeling and

transformation in accordance with the MDA

architecture. We therefore used the Eclipse Modeling

Framework (EMF) platform (Budinsky et al., 2004).

EMF provides a set of elements designed un

introducing a schema approach to development

within the Eclipse environment. Among the tools of

EMF, we used:

- Ecore: a meta-modeling language used for the

formation of meta models; Figures 2 and 3

illustrate the Ecore source and target meta models.

- XMI (XML Metadata Interchange): a standard

used to show schemas in XML format.

- QVT: a standardized language for voicing schema

transformations.

First, we tested our prototype on data from the

medical application presented in section 2.

5.2 Prototype Achievement

The prototype contains, in dedicated files, the

transformation rules expressed in QVT as well as the

meta- models in format for the source and the target

Ecore (Figures 2 and 3). To obtain the resulting

schema, it is necessary to apply the following steps:

Step1: we create a source and a target metamodel to

represent the concepts handled by our process

(Figures 2 and 3 respectively).

Step2: we build an instance of the source metamodel.

For this, we use the standard based XML Metadata

Interchange format.

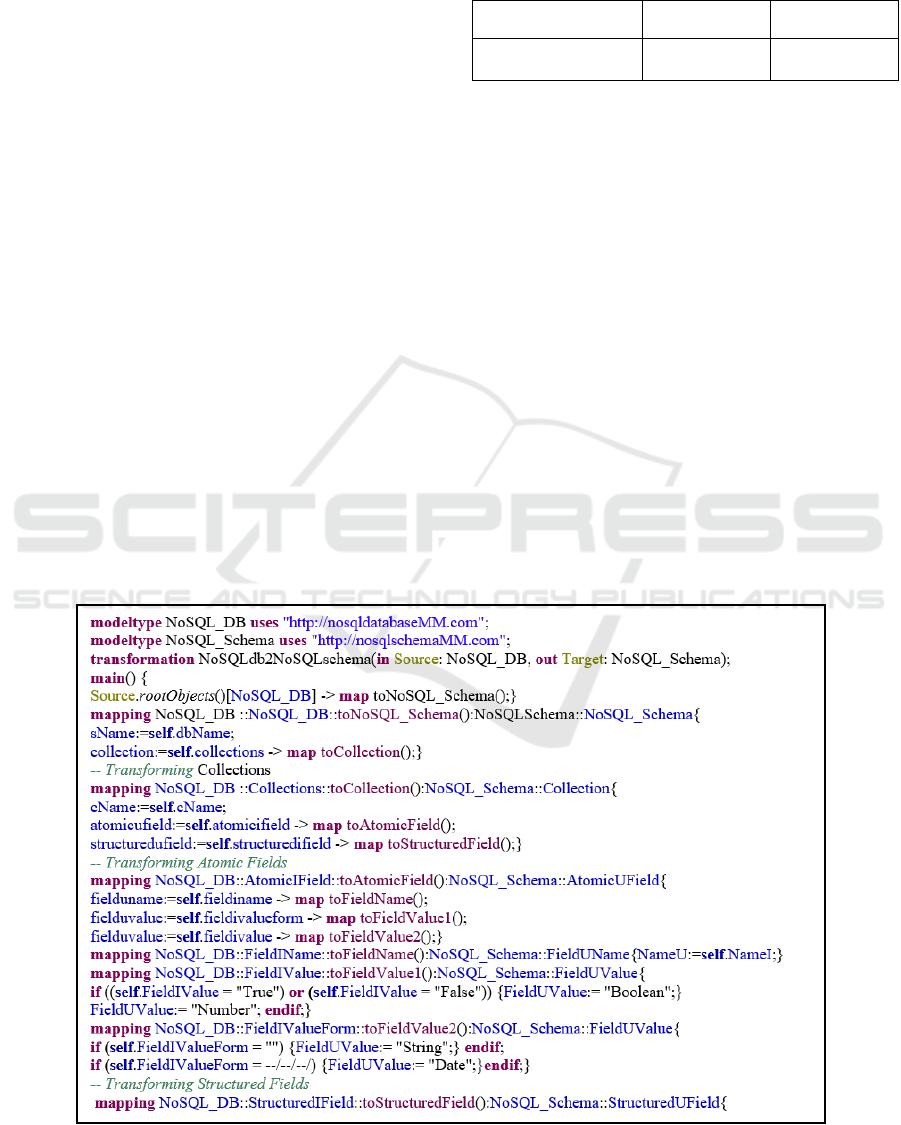

Step3: we implement the transformation rules by

means of the QVT language provided within EMF as

shown in Figure 5.

Step4: we test the transformation rules by running the

QVT script created in step3. This script takes as input

the source model built in step2 and returns as output

a physical schema. The result is provided in the form

of XMI file.

5.3 Experimentation and Validation

To validate our process, it is necessary on the one

hand to check the descriptive quality of the generated

schema and on the other hand to show the usefulness

of this schema for users.

Figure 4: Example of transformations.

Patients: {

{

_id: ObjectId("6a2d2350ecb25a25bd86dc1"),

First-NameP : ["Lea", "Elodie"],

Last-NameP: "DUPONT",

Treating-Doctor:

{

$_id: ObjectId("112f1f77bce36cd799438722"),

$Ref: Doctors

}

… }

Doctors: {

{

_id: ObjectId("112f1f77bce36cd799438722"),

First-NameD: "David",

Last-NameD: "MAMAR",

… }

DB_Schema: {

{

CollectionSchema: Patients,

_id: ObjectId,

First-NameP: [String],

Last-NameP: String,

Treating-Doctor: {

$_id: ObjectId,

$Ref: Doctors

}

{

CollectionSchema: Doctors,

_id : ObjectId,

First-NameD: String,

Last-NameD: String

}

Automatic Extraction of a Document-oriented NoSQL Schema

197

Regarding the descriptive quality of the schema,

our process is based on the MDA architecture. Thus,

the use of meta-models to extract the schema from the

DB guarantees the correct use of modeling

formalisms. We can therefore consider that the

schema produced by the ToNoSQLSchema prototype

describes well the data structures present in the DB.

Regarding the usefulness of a schema for

developers responsible for writing queries on the DB,

we implemented our prototype on test data in an

industrial environment. To carry out this

experimentation, we considered two applications, one

belonging to the medical field and the other to the

legal field. We sent test sets to sixteen developers (IT

consulting engineers) from TRIMANE, a digital

services company specializing in business

intelligence and Big Data. The aim was to test the

hypothesis that it is faster to write queries on a DB

when you have the data schema. Although the

verification of this hypothesis appears intuitive, the

experimentation provided us with indicators

corresponding to the query writing times.

Of the 32 test results returned by the 16

developers, the time taken to write queries by

category (with or without schema) was relatively

homogeneous. Thus, the absence of any schema

associated with a DB required the developer to

manually search for field properties and justifies the

average time of 49 minutes shown in Table 1. On the

contrary, the use of a schema facilitated the

understanding of the DB and led to a significant

reduction of the query writing time (- 27 minutes).

Table 1: Average time to write queries.

Without schema With schema

Average time to

write the 10 queries

49 minutes 22 minutes

A schemaless NoSQL DB can contain various

data presenting complex structures and whose

semantics are often difficult to understand by

computer scientists themselves. Our schema

extraction system therefore provides an appreciable

facility allowing developers to write queries more

quickly.

5.4 Discussion

In this sub-section, we compare our solution with the

work presented in section3.

In (Klettke et al., 2015), (Izquierdo & Cabot,

2016), (Maity et al., 2018), (Baazizi et al., 2017)

(Baazizi et al., 2019), the authors propose processes

that take as input a single collection and do not

consider the links between objects. Similarly, the

works (Sevilla Ruiz et al., 2015) and (Gallinucci et

al., 2018) have the advantage of starting from a DB

composed by several collections. However, they do

not address the links between collections. On the

Figure 5: Extract of the QVT code.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

198

other hand, the works of (Comyn-Wattiau & Akoka,

2017) do not take into consideration structured

attributes because the graphical oriented system

Neo4J does not allow to declare this type of attributes.

To overcome these limitations, we proposed a

more complete solution (ToConceptualSchema). This

solution considers two techniques to describe the

relationships between objects in the medical

application: structured attributes and links. Indeed,

our process considers two types of links (monovalued

and multivalued) between the collections of the

document-oriented database. In addition, it considers

all types of attributes, whether atomic, structured, or

multivalued.

6 CONCLUSION

Our work falls within the framework of Big Data

DBs. They currently focus on the schema extraction

mechanisms of a schemaless NoSQL database to

facilitate query expression.

In this article, we have proposed an automatic

process to extract the schema from a document

NoSQL DB. This process based on the MDA

provides a formal framework for the automation of

model transformation. It generates the DB schema by

applying a series of transformations expressed in

QVT language.

Our ToNoSQLSchema process is based on the

MDA architecture, which provides both a formal

framework and the ability to evolve DB systems. In

addition, it proposes the considering of monovalued

and multivalued association links between the

documents contained in the DB.

Currently we are studying a functionality to

maintain the schema obtained by the

ToNoSQLShema process. It is a question of

reflecting in the schema the structural evolutions of

the DB throughout its exploitation.

REFERENCES

Angadi, A. B., Angadi, A. B., & Gull, K. C. (2013). Growth

of new databases & analysis of NOSQL datastores.

International Journal of Advanced Research in

Computer Science and Software Engineering, 3(6).

Baazizi, M.-A., Colazzo, D., Ghelli, G., & Sartiani, C.

(2019). Parametric schema inference for massive JSON

datasets. The VLDB Journal, 28(4), 497–521.

Baazizi, M.-A., Lahmar, H. B., Colazzo, D., Ghelli, G., &

Sartiani, C. (2017). Schema inference for massive

JSON datasets.

Bézivin, J., & Gerbé, O. (2001). Towards a precise

definition of the OMG/MDA framework. Proceedings

16th Annual International Conference on Automated

Software Engineering (ASE 2001), 273–280.

Budinsky, F., Steinberg, D., Ellersick, R., Grose, T. J., &

Merks, E. (2004). Eclipse modeling framework: A

developer’s guide. Addison-Wesley Professional.

Chen, C. P., & Zhang, C.-Y. (2014). Data-intensive

applications, challenges, techniques and technologies:

A survey on Big Data. Information Sciences, 314–347.

Comyn-Wattiau, I., & Akoka, J. (2017). Model driven

reverse engineering of NoSQL property graph

databases: The case of Neo4j. 2017 IEEE International

Conference on Big Data (Big Data), 453–458.

DB-Engines Ranking. (n.d.). DB-Engines. Retrieved

December 10, 2020, from https://db-

engines.com/en/ranking

Douglas, L. (2001). 3d data management: Controlling data

volume, velocity and variety. Gartner. Retrieved,

6(2001), 6.

Gallinucci, E., Golfarelli, M., & Rizzi, S. (2018). Schema

profiling of document-oriented databases. Information

Systems, 75, 13–25.

Han, J., Haihong, E., Le, G., & Du, J. (2011). Survey on

NoSQL database. 2011 6th International Conference on

Pervasive Computing and Applications, 363–366.

Hutchinson, J., Rouncefield, M., & Whittle, J. (2011).

Model-driven engineering practices in industry.

Proceedings of the 33rd International Conference on

Software Engineering, 633–642.

Izquierdo, J. L. C., & Cabot, J. (2016). JSONDiscoverer:

Visualizing the schema lurking behind JSON

documents. Knowledge-Based Systems, 103, 52–55.

Klettke, M., Störl, U., & Scherzinger, S. (2015). Schema

extraction and structural outlier detection for JSON-

based NoSQL data stores. Datenbanksysteme Für

Business, Technologie Und Web.

Maity, B., Acharya, A., Goto, T., & Sen, S. (2018). A

Framework to Convert NoSQL to Relational Model.

Proceedings of the 6th ACM/ACIS International

Conference on Applied Computing and Information

Technology, 1–6.

MongoDB.(2018).https://docs.mongodb.com/manual/refer

ence/database-references/

Sevilla Ruiz, D., Morales, S. F., & Molina, J. G. (2015).

Inferring versioned schemas from NoSQL databases

and its applications. International Conference on

Conceptual Modeling, 467–480.

Automatic Extraction of a Document-oriented NoSQL Schema

199
