An Empirical Study about the Adoption of Multi-language Technique in

Computation Ofﬂoading in a Mobile Cloud Computing Scenario

Filipe Fernandes S. B. de Matos

, Paulo A. L. Rego

and Fernando A. M. Trinta

GOHaN Research Group, Federal University of Cear

a, Crate

us, Brazil

GREat Research Group, Federal University of Cear

a, Fortaleza, Brazil

Keywords:

Multi-language, gRPC, Ofﬂoading, Performance Evaluation, Mobile Cloud Computing.

Abstract:

Low processing capabilities and limited energy autonomy are common restrictions faced by most mobile

devices. In order to address these issues, the computation ofﬂoading technique has been proposed to transfer

tasks from low processing devices to other machines with higher computing capability. This paper presents an

empirical study on the performance of multi-language techniques in ofﬂoading procedures. Our experiments

evaluate the processing time and the energy consumed by a mobile device when executing methods of two

applications locally (on a mobile phone) and remotely (via ofﬂoading) on a server process developed using

distinct programming languages (Go, C++, Java, and Python). Google’s gRPC and Protocol Buffers were used

as a data serialization mechanism to allow ofﬂoading between client and server processes. The results show

that using a multi-language approach for ofﬂoading can reduce the processing time by up to 39 times and the

mobile device’s energy consumption by up to 96% approximately.

1 INTRODUCTION

It is widely well-known the increase in the num-

ber of mobile devices (for example, smartphones or

tablets) available in the global market in the last

decade (O’Dea, 2021). Sales growth motivated the

emergence of new applications and constant improve-

ments in the hardware of these devices. However, de-

spite all this technological progress, these devices still

have severe computational restrictions (enhanced by

the emergence of increasingly complex and demand-

ing applications in processing and storage), and issues

related to power consumption (Coulouris et al., 2011).

A recent study (Cisco, 2020) presents impressive

projections about mobile devices and applications’

demand until 2023. It reports a global increase of 5%

and 8% in the number of mobile users and connec-

tions, respectively. The same document also estimates

an increment in the number of application downloads

in the range of hundreds of billions and a more exten-

sive exploration of machine-learning techniques and

other computationally expensive procedures. Studies

like this indicate that the restrictive problems of mo-

bile devices could become more critical soon.

Computation ofﬂoading is a possible solution to

mitigate such a problem. This method allows a more

restrictive device (especially concerning computa-

tional and energetic aspects) to submit a task/method

to be processed in another equipment (less restric-

tive) via network and then receive the processing re-

sult. The ofﬂoading technique can also be applied

for storage purposes, where a more restrictive device

can send data to be persisted remotely in another ma-

chine with a larger storage capacity. The decision on

whether the ofﬂoading will be enforced locally or re-

motely depends on factors like network quality and

task complexity, for example.

There are too many programming languages avail-

able in the market. Each has peculiar features that

vary from simple technical aspects (such as the data

types and code structures available) to more complex

differences (portability or parallelism support, for in-

stance). These differences make each language better

suited to speciﬁc activities, and their programs have

different computational performances when running

the same task (Sebesta, 2012). Due to all these dis-

tinctions, developers can create systems (or part of

them) using multiple programming languages, mak-

ing communication between components a challenge.

One possible solution for this problem is the marshal-

ing/unmarshaling multi-language technique, which

consists of standardizing data representation and al-

lows programs written with different programming

languages to communicate with each other (Coulouris

B. de Matos, F., Rego, P. and Trinta, F.

An Empirical Study about the Adoption of Multi-language Technique in Computation Ofﬂoading in a Mobile Cloud Computing Scenario.

DOI: 10.5220/0010437802070214

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 207-214

ISBN: 978-989-758-510-4

207

et al., 2011).

This paper presents an empirical study about the

performance of ofﬂoading methods when performed

in a multi-language approach. In this method, pro-

cesses developed with different programming lan-

guages can perform computation ofﬂoading with each

other. We aim to investigate the impact caused on

the ofﬂoading performance by adopting different pro-

gramming languages on the server-side. We con-

ducted several experiments using two applications

that performed the ofﬂoading of execution methods

in processes implemented in four different languages.

The results indicate that it is possible to reduce the

processing time and the energy consumption of com-

putationally complex tasks when submitted to pro-

cesses implemented with compiled or partially com-

piled languages. The processing time in scenarios

with these types of languages was 39% lower, while

the mobile device’s energy consumption decreases up

to 96% caused by the ofﬂoading performance. The

main contributions of this work are:

1. Adapt two applications in the literature and de-

velop eight server processes (four for each appli-

cation) able to performing ofﬂoading via gRPC;

2. Contribute with new experiments and results that

indicate gRPC as a promising framework for com-

putation ofﬂoading solutions;

3. The results obtained in this paper indicate that

the adoption of a server process developed with a

non-Java programming language can provide sig-

niﬁcant gains in computation ofﬂoading.

This work is organized as follows: Section 2 ad-

dresses related works. Section 3 contextualizes

the main concepts related to conventional ofﬂoading

and gRPC. Section 4 deﬁnes the ofﬂoading multi-

language model and presents the conﬁgurations of the

tests performed. Section 5 presents the results ob-

tained and analyzes them. Finally, Section 6 presents

the obtained conclusions and future works.

2 RELATED WORKS

There are several works in the literature related to

the ofﬂoading technique in Mobile Cloud Computing

(MCC) contexts. However, few of them on adopt-

ing gRPC as a support technology for communica-

tion between devices. To the best of our knowledge,

(Chamas et al., 2017) was the ﬁrst work to conduct

a study in this direction. The authors compared the

performance of REST, SOAP, Socket, and gRPC, an-

alyzing energy consumption and total processing time

as a communication resource during ofﬂoading proce-

dures. To this end, the authors used a data sorting ap-

plication in their tests. This application consisted of

sorting data (integers, ﬂoats, or objects) using well-

known sorting algorithms (Bubble Sort, Heap Sort,

or Selection Sort). Such an application can compute

tasks locally or send them to a server process devel-

oped in Java for processing using one of the commu-

nication resources. Although this work had adopted a

wider variety of data types, it was limited to analyzing

the ofﬂoading performance using only one application

and one programming language.

(Ara

ujo et al., 2020) conducted a speciﬁc study

about the performance of gRPC in the Internet of

Things (IoT) context. The authors evaluated the total

time spent in ofﬂoading methods in a scenario with

two applications developed in Kotlin. The ﬁrst appli-

cation performs the multiplication of random matrices

with order NxN, while the second one applies differ-

ent ﬁlters to images of different resolutions. The mo-

bile device ofﬂoads its tasks to a server process devel-

oped in C++, Python, Java, Go, or Ruby and hosted in

a BeagleBone Black device. The communication be-

tween the mobile application and the server process

used gRPC. Their study performed experiments with

more than one application and more than one pro-

gramming language on the server-side. However, the

proposed test environment is somewhat atypical since

the mobile device has better conﬁgurations than the

server-side (for instance, processor and primary mem-

ory resources). In typical ofﬂoading scenarios, mobile

clients ofﬂoad their tasks to more robust server de-

vices with more signiﬁcant computational resources

and energy capabilities.

(Georgiou and Spinellis, 2019) conducted a com-

parative study involving three widely known inter-

process communication mechanisms: gRPC, RPC,

and REST. The authors developed client and server

applications using some of the most popular lan-

guages, such as Java, Python, and C#. The scenario

for the experiments involved machines with both In-

tel (two Desktops) and ARM architectures (two Rasp-

berry Pi), interconnected by a wired local network

(LAN). The authors analyzed the processing time of

the tasks and the energy consumption on both de-

vices. The results showed that Go and JavaScript’s

implementations had the fastest execution time and

the lowest energy consumption. Despite using more

programming languages in the development of server

and client programs, the application proposed in the

experiments was a “toy application” (a Hello World

in a Request/Response fashion). The adopted envi-

ronment is also not consistent with a typical MCC

scenario because it does not use cell phones and inter-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

208

Table 1: Comparison between this work and related works.

Work Apps Adopted Server Languages

Metrics Evaluated

Time Energy Network

(Chamas et al., 2017) Sorting Java 3 3 7

(Georgiou and Spinellis, 2019)

Request/Response

(HelloWorld)

Go, Java, JavaScript, PHP,

Python, Ruby, and C#

3 3 7

(Ara

ujo et al., 2020)

Image ﬁltering and

Matrix multiplication

C++, Python, Java, Kotlin,

Go, and Ruby

3 7 7

This work

Image ﬁltering and

Matrix multiplication

C++, Go, Java, and Python

3 3 3

connects the devices through a wired network, which

tends to simplify the network’s issues.

Table 1 summarizes the comparison between the

works. This paper presents the evaluation of gRPC

as a computation ofﬂoading tool (including using a

multi-language approach) as its main contribution.

None of the related works carried out tests, including

all the following aspects simultaneously: 1) Adopt

recurrent application types in ofﬂoading tests by the

literature (Silva et al., 2016); 2) Use different types

of languages in the development of the server pro-

cess (compiled, partially compiled and interpreted);

3) Evaluate processing time, energy consumption, and

network time as performance metrics.

3 BACKGROUND

This section presents the main concepts associated

with the computation ofﬂoading and the gRPC frame-

work. Both topics are essential for a better under-

standing of the paper’s proposal and the tests.

3.1 Computation Ofﬂoading

Computation ofﬂoading is an approach where devices

with low computational power can migrate tasks for

processing in a remote execution environment (RRE)

with better computational resources (Fernando et al.,

2013). RREs vary from virtual machines hosted by

public cloud providers to traditional devices on the

same local network where the weaker device is run-

ning. However, the effective performance of ofﬂoad-

ing depends typically on a decision process to evalu-

ate whether migrating the task to another device with

higher computational power is advantageous or not.

In general, this decision making involves criteria such

as (i) performance, (ii) energy savings, or (iii) both

(Kumar et al., 2013). If performing ofﬂoading is

not advantageous, the task is executed locally by the

weaker device itself.

In general, the performance has been the most

evaluated criteria by ofﬂoading solutions (Silva et al.,

2016). At this point, it is crucial to highlight that the

total time of ofﬂoading comprises, in addition to the

process execution time remotely, the time related to

sending data to the ofﬂoading target and receiving the

response from it. Thus, factors such as the quality

of the connection between the client device and the

remote server, the amount of data sent, and the re-

sponse’s size signiﬁcantly impact the advantage or not

of the ofﬂoading (De, 2016).

3.2 gRPC Framework

gRPC is a framework developed by Google to sim-

plify and potentialize Inter-Process Communication

(IPC) in a distributed system (Indrasiri and Kuruppu,

2020). gRPC adopts the Client/Server model and

supports advanced features such as load balancing,

data streaming treatment, multiplexing, cryptography,

among others. Another advantage of gRPC is the ex-

tensive support for several programming languages

such as Java, PHP, Ruby, C#, Dart, and Objective-C.

The development with gRPC is similar to the de-

velopment of other traditional RPC tools. Initially,

the developer must create the interaction interfaces

between the processes and deﬁne the messages ex-

changed between them using an Interface Deﬁnition

Language (IDL) with syntax based on another Google

tool: the Protocol Buffers. The gRPC also adopts Pro-

tocol Buffers as a standard mechanism for represent-

ing its messages, as well as marshaling and unmar-

shaling them. This standardization of messages al-

lows programs developed with different programming

languages to talk to each other. So, the main objective

of gRPC is to abstract from the developer how the re-

mote invocation procedure is performed.

Once deﬁned the interfaces and the messages, the

generated code is submitted to a compiler (speciﬁc for

each language) that produces a standard code in the

target language. With the generated code, the devel-

oper must implement the client and server processes

and the server’s services. Finally, the developer must

inform the server process IP address and port to the

client process, and the system is ready for execution.

An Empirical Study about the Adoption of Multi-language Technique in Computation Ofﬂoading in a Mobile Cloud Computing Scenario

209

4 MULTI-LANGUAGE

OFFLOADING EVALUATION

Our work conducted a performance evaluation of

the computation ofﬂoading between an Android mo-

bile device and a server process developed with dif-

ferent programming languages (C++, Java, Python,

and Go) when performed using multi-language tech-

niques. Initially, we chose the languages based on

their type and popularity: compiled (C++), partially

compiled (Java), and interpreted (Python). Later, we

selected Go because it has a different architecture

compared to other languages in gRPC (Mastrangelo,

2018). Like traditional ofﬂoading techniques, the idea

is to allow devices with computational or power re-

strictions to submit part of their processing to remote

servers with better computing resources or unlimited

power sources (i.e., directly connected to a power sup-

ply). However, the possibility that a process devel-

oped in a programming language can submit tasks

to a remote process developed in another language

differentiates the multi-language approach from the

traditional ones. By adopting the multi-language ap-

proach, developers may take advantage of features,

optimizations, and other languages’ facilities.

Like traditional ofﬂoading, multi-language of-

ﬂoading is based on Client-Server architecture too. In

architectural terms, the difference between the mod-

els is how the communication occurs among the de-

vices. As the communication involves processes de-

veloped with different programming languages (i.e.,

with different resources and forms of information rep-

resentation), the messages exchanged must follow a

pre-deﬁned pattern and compatible with adopted lan-

guages. In this respect, the gRPC is perfect because,

in addition to standardizing remote service invoca-

tion (and the messages involved), it also supports a

wide variety of programming languages. It is essen-

tial to highlight that we could have chosen any other

multi-language communication tool for this purpose,

as long as the above requirements are satisﬁed.

We choose two applications to analyze the perfor-

mance of the multi-language ofﬂoading proposed in

this work: MatrixGRPC and BenchImageGRPC. We

choose these applications because they are the most

adopted by literature in tests with ofﬂoading (Silva

et al., 2016). Both applications are modiﬁed ver-

sions of two applications already used in the litera-

ture (Rego et al., 2017). The modiﬁcations consist

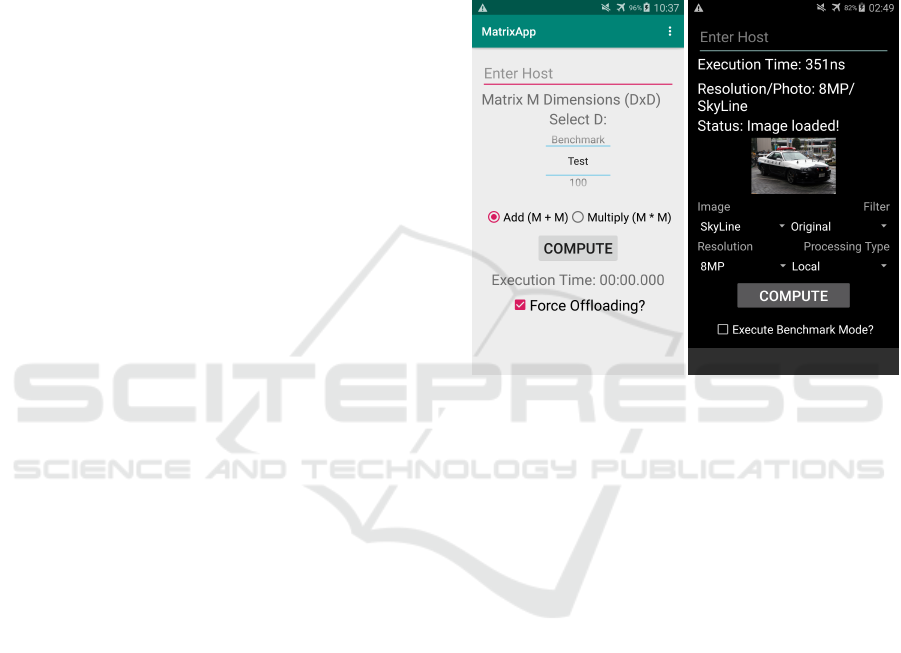

of adapting them to work together with gRPC. Figure

1 shows the initial screenshot of the two applications

mentioned above. The objectives with the application

choices are as follows:

• MatrixGRPC. This application computes multi-

plication between quadratic matrices. Our objec-

tive is to analyze ofﬂoading performance with a

task that requires high computational power and

large input and output parameters;

• BenchImageGRPC. This application applies a

ﬁlter in images with different resolutions. Our ob-

jective is to analyze the performance of ofﬂoading

with a common task in users’ daily lives.

(a) MatrixGRPC (b) BenchImageGRPC

Figure 1: Main screens of the applications adopted.

In MatrixGRPC, the user must choose the dimension

of the matrices, the operation to be performed, and

whether the processing must be done remotely or lo-

cally. The matrices are quadratic and also formed by

integers. Upon receiving the response, the applica-

tion displays the task’s execution time. In BenchIm-

ageGRPC, the user must choose the image, its resolu-

tion, the ﬁlter to be applied, and whether the process-

ing must be done remotely or locally (choosing the

Local or Cloudlet option, respectively). Both applica-

tions have a benchmark mode where it is possible to

perform all tests automatically.

On the server-side, it is required to highlight the

libraries and resources adopted to perform mobile de-

vices’ ofﬂoading. In addition to gRPC, we used the

following libraries: in MatrixGRPC, Gonum, Numpy,

Eigen, and Apache Math in Go, Python, C++, and

Java implementations respectively; in BenchImage-

GRPC, we used OpenCV4 as a base library for ma-

nipulating the images. In Python, Java, and Go lan-

guages, we used wrappers from the base library devel-

oped in C++, respectively, opencv-python, opencv-

java e GoCV. The adoption of libraries can skew

(positively or negatively) the implementations’ per-

formance since they tend to execute the tasks efﬁ-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

210

Table 2: Details of the experiment.

System

(used

devices)

Smartphone with Qualcomm Snapdragon 600 Processor (1.9GHz, Quad Core), 2GB RAM and Android

5.0.2, Notebook with Intel Core i5-5200U Processor (2.20GHz, Quad Core), 8GB RAM and Ubuntu 19.04

64 bits, A Netgear WGR612 router was used to build an exclusive 2.4 GHz wireless network between the

devices. PowerMonitor connected to the smartphone to collect energy consumption data from it.

Factors/

Levels

Applications (MatrizGRPC and BenchImageGRPC), Processing Type (Local or Remote), Programming

Languages (Go 1.14.6, Java Openjdk 8, Python 2.7.16, and C++ 5.1.0), Matrix dimension of MatrixGRPC

(400x400, 700x700, and 1000x1000) and image resolution of BenchImageGPRC (0.3 MP, 4 MP, and 8 MP).

Iterations Each experiment was performed 33 times for each combination of factors/levels. Totalizing 990 iterations

(2 applications × 5 processing types × 6 matrix dimensions or image resolution × 33 iterations).

Response

Metrics

Total time of processing, Time spent in network operations (sending and receiving data), and Energy con-

sumption of the mobile device.

ciently. Thus, implementations that use libraries tend

to perform better than those that do not. As a con-

sequence, there is also no guarantee that different li-

braries adopt the same optimizations. It is also possi-

ble to ﬁnd variations in performance results between

implementations that used different libraries.

Table 2 summarizes the main conﬁgurations and

parameters of the experiments performed. The test

environment consisted of a wireless network with a

star topology and exclusive to both devices involved

in the tests. Unfortunately, because it is a widespread

frequency of use (Doli

nska et al., 2017), even though

it is a dedicated network, it was not possible to isolate

it from other networks and devices that operate on the

same frequency. Thus, data transmissions were not

free from external interference and collisions, which

can delay the effective delivery of packets and gener-

ate unwanted variations in the time spent on network

operations and, consequently, in the total ofﬂoading

time. We monitored the mobile device’s power con-

sumption during ofﬂoading using the Monsoon Pow-

erMonitor equipment

Each application consisted of two parts: an An-

droid client hosted in the smartphone and one server

developed in Go, C++, Java, or Python hosted in the

notebook. About MatrixGRPC, the tests consisted

of multiplying matrices of integers with dimensions

400x400, 700x700, and 1000x1000. About BenchIm-

ageGRPC, the tests consisted of applying the gray ﬁl-

ter in the same image in different resolutions (0.3 MP,

4 MP, and 8 MP). When executing the client part, it is

possible to choose whether the processing is local (on

the smartphone itself) or remote (on the notebook).

We conducted the tests 33 times for each combina-

tion of factors. For example, we repeated 33 times

the experiment in a scenario where the multiplication

of two 400x400 matrices was processed remotely by

a Go server process. The number of repetitions was

chosen according to (Jain, 1991).

We choose as metrics: 1) total processing time; 2)

https://www.msoon.com/high-voltage-power-monitor

time spent with the network; and 3) the mobile de-

vice’s energy consumption; The total processing time

is the period between the beginning and the end of the

task execution. The task starts when the button gen-

erating the request is pressed and ends the moment

before the result display. Only one connection was

opened for each remote processing performed. The

time spent with the network consists only of the pe-

riod that involves uploading the request and down-

loading the response. It is clear that this last metric

only exists in ofﬂoading scenarios since the task’s lo-

cal processing does not use network resources.

5 RESULTS

This section presents the results of the experiments

performed with the devices and applications de-

scribed in Section 4. The results are displayed in ta-

bles and bar charts with a 95% conﬁdence interval.

5.1 MatrixGRPC Application

The results about processing time and time spent with

the network are compiled in Figure 2. Note that,

for all matrix dimensions, all multi-language solu-

tions were faster than the respective local approach.

The Go language presented the best results among all

other languages. For instance, ofﬂoading to a process

implemented with Go reduced the multiplication time

of the 1000x1000 matrices around 39 times compared

to the local execution. In the same scenario, even

the process developed with Python language (the one

with the worst performance) reduced around 15 times

the local processing time.

In all scenarios, it is possible to notice that net-

work operations consumed most of the 50% time

spent on computation ofﬂoading, which indicates a

strong inﬂuence of the network on multi-language of-

ﬂoading performance. For all languages, we believe

that these delays caused by the network are due to

An Empirical Study about the Adoption of Multi-language Technique in Computation Ofﬂoading in a Mobile Cloud Computing Scenario

211

(a) 400x400 (b) 700x700 (c) 1000x1000

Figure 2: Total processing time and network time spent during the MatrixGRPC’s experiments. Note there is no Network

time when the ﬁlter is executed locally, and the chart uses a logarithmic scale.

Table 3: Average energy gain of the mobile device during MatrixGRPC’s experiments.

Matrix Dimension

400x400 700x700 1000x1000

Method (Language)

Energy Cons

(in uAh)

% Gain

Energy Cons

(in uAh)

% Gain

Energy Cons

(in uAh)

% Gain

Local (Android) 23908.68 NA 383591.64 NA 1173827.79 NA

Remote (Go) 6578.56 72.49% 19273.02 94.98% 41568.77 96.46%

Remote (C++) 6938,14 70.98% 19980,85 94.79% 42606,12 95.97%

Remote (Java) 7435,55 68.90% 23848,72 93.78% 55925,93 95.24%

Remote (Python) 8347.34 65.09% 28277.73 92.63% 67494.83 94.25%

external interference caused by other devices and/or

networks that operate on the 2.4 GHz frequency. This

fact indicates that multi-language ofﬂoading becomes

even more attractive if the network’s transmission

quality is improved.

Table 3 presents the results related to the mo-

bile device’s power consumption during the experi-

ments with the MatrixGRPC application. It also pre-

sented the percentage values of each multi-language

ofﬂoading solution with the local approach’s power

consumption as a reference (baseline). In general,

we observe that all ofﬂoading multi-language solu-

tions obtained better performances than the local ap-

proach in this metric. We observed that the multi-

language solutions reduced between 65% and 72%

the energy consumptions of the local approach in the

worst case (1MP images). In the best case (8MP im-

ages), the improvement was between 94% and 96%.

We also highlight the Go language results that showed

the most signiﬁcant reductions in power consumption

in all scenarios, as well as the task’s total process-

ing time (Figure 2). We believe that this behavior

is mainly because the local approach is signiﬁcantly

slower than the others. In this way, the task process-

ing consumes more time, resources, and power from

the device to be concluded.

5.2 BenchImageGRPC Application

Figure 3 shows the results about processing time and

time spent with the network of the experiments with

the BenchImageGRPC application. The results indi-

cate that all multi-language ofﬂoading solutions have

reduced local processing time by up to 5 times in sce-

narios with images with 4 MP or 8 MP resolutions. In

contrast to MatrixGRPC, for the simplest data (0.3MP

images), local processing proved to be more advanta-

geous than any multi-language solutions. Thus, the

results discourage the use of ofﬂoading for small im-

ages. Just like in the MatrixGRPC app, the time spent

with the network consumes most of the time dedi-

cated to ofﬂoading in all scenarios, especially where

the amount of data to be processed is relatively small.

Another point in these results is how libraries,

even wrappers from other libraries, can improve of-

ﬂoading performance. As already mentioned, all lan-

guages have adopted the same library for manipu-

lating images: OpenCV4. This decision provided

greater equality in the performance of languages. The

results seen with Python and Java are examples of this

performance improvement. Unlike the MatrixGRPC

(Figure 2) where such languages (mainly Python) pre-

sented the worst results, in BenchImageGRPC (Fig-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

212

Figure 3: Total processing time and network time spent during the BenchImageGRPC’s experiment. Note there is no Network

time when the ﬁlter is executed locally, and the chart uses a logarithmic scale.

Table 4: Average energy consumption (in percentages) of the mobile device during BenchImageGRPC’s experiment.

Image Resolution

0.3MP 4MP 8MP

Method (Language)

Energy Cons

(in uAh)

% Gain

Energy Cons

(in uAh)

% Gain

Energy Cons

(in uAh)

% Gain

Local (Android) 3796.35 NA 40786.24 NA 84483.09 NA

Remote (Go) 4177.95 110.05% 9401.84 76.95% 18813.86 77.73%

Remote (C++) 4331.52 114.09% 10156.79 75.10% 19847.76 76.51%

Remote (Java) 4599.55 121.15% 10382.93 74.55% 21269.56 74.83%

Remote (Python) 4506.77 118.71% 9794.64 75.90% 18810.57 77.74%

ure 3), their results were very close to other languages

and, in some cases, even better (for example, those re-

lated to 0.3MP images). By allowing a greater variety

of languages on the server-side, the multi-language

approach increases the number of libraries available

for processing tasks. So, this more generous offer

enables even more signiﬁcant performance improve-

ments than those seen in traditional ofﬂoading solu-

tions, where many of them are limited to only libraries

and resources supported by mobile devices.

The results of energy consumption obtained in the

experiments with the application BenchImageGRPC

are presented in Table 4. In general, it is important to

highlight the exception that occurred with 0.3MP im-

ages. In this scenario, the energy consumption when

processing the task on the mobile device was slightly

lower than processing it remotely using any of the

multi-language solutions. In the worst case, the Java

server consumed 21.15% more energy than the local

approach for this kind of image. When we compare

this result with the one presented in Figure 3, we re-

alize that the local processing time was lower than

the time of any of the multi-language approaches.

The speed when computing the task justiﬁes this low

power consumption on the device. For larger images

(4MP and 8MP), all multi-language ofﬂoading solu-

tions showed signiﬁcantly better results than the local

approach. These solutions saved between 75% and

77% energy of the device.

6 CONCLUSION AND FUTURE

WORKS

This work evaluated the performance of multi-

language techniques applied in computation ofﬂoad-

ing in MCC scenarios. We have conducted experi-

ments with four server processes (developed in C++,

Go, Java and Python) that receive ofﬂoaded tasks via

gRPC, from two Android applications: multiplica-

tion of quadratic integer matrices (MatrixGRPC) and

an application that applies different ﬁlters in images

(BenchImageGRPC). In these experiments, we have

evaluated the overall processing time, the device’s en-

ergy consumption, and the elapsed network time.

The results obtained were promising for the pro-

posed technique. Regarding the task processing time

metric, the results showed a reduction in the local pro-

cessing time of up to 5 times in BenchImageGRPC

and up to 39 times in MatrixGRPC. The only ex-

ception was for the scenario that involved applying

a ﬁlter to 0.3 MP images, where the local process-

ing was slightly better than remotely. We believe

that was a consequence of the small size of the im-

ages used, making it more advantageous to process

the task locally. Considering MatrixGRPC, solutions

with servers developed with compiled languages ob-

tained better results, while in BenchImageGRPC, the

languages’ performance was very close. We believe

An Empirical Study about the Adoption of Multi-language Technique in Computation Ofﬂoading in a Mobile Cloud Computing Scenario

213

that the choice of the adopted libraries justiﬁes this

behavior. Regarding the metrics related to the net-

work, we observed that the network has a strong in-

ﬂuence on multi-language ofﬂoading performance. In

extreme cases, 97% of the ofﬂoading time was dedi-

cated only to network operations.

Regarding the results of the mobile device’s en-

ergy consumption, we observed that, in general, en-

ergy consumption is proportional to the task pro-

cessing time. All multi-language solutions showed

lower energy consumption than processing tasks lo-

cally, except in the scenario with 0.3 MP images

in BenchImageGRPC, where remote processing per-

formed worse than local processing. In general, com-

piled languages obtained more signiﬁcant gains with

MatrixGRPC (between 70% and 96%) and similar

gains with BenchImageGRPC (close to 76%).

As future work, we plan to expand the current

tests to new applications, particularly those that use

machine learning techniques (such as facial detection

apps). We also plan to conduct multi-language of-

ﬂoading experiments in D2D (Device-to-Device) sce-

narios by performing, through gRPC, computation of-

ﬂoading between Android and iOS smartphones. We

consider comparing the performance of gRPC with

other consolidated ofﬂoading frameworks from the

literature and other multi-language frameworks (for

example, Apache Thrift and Cap’n Proto). Finally, we

also intend to explore the native support that gRPC

offers to handle data streaming and evaluate its per-

formance in applications of this type.

ACKNOWLEDGEMENTS

The authors would like to thank The Cear

a State

Foundation for the Support of Scientiﬁc and Tech-

nological Development (FUNCAP) for the ﬁnancial

support (6945087/2019) and the National Institute of

Science and Technology for Software Engineering

(INES).

REFERENCES

Ara

ujo, M., Maia, M. E. F., Rego, P. A. L., and De Souza,

J. N. (2020). Performance analysis of computational

ofﬂoading on embedded platforms using the gRPC

framework. In 8th International Workshop on AD-

VANCEs in ICT Infrastructures and Services (AD-

VANCE 2020), pages 1–8.

Chamas, C. L., Cordeiro, D., and Eler, M. M. (2017). Com-

paring rest, soap, socket and grpc in computation of-

ﬂoading of mobile applications: An energy cost analy-

sis. In IEEE 9th Latin-American Conference on Com-

munications (LATINCOM), pages 1–6.

Cisco (2020). Cisco annual internet report (2018–2023)

white paper. Available in: https://www.cisco.com/

c/en/us/solutions/collateral/executive-perspectives/

annual-internet-report/white-paper-c11-741490.

html. Access in: 11-02-2020.

Coulouris, G., Dollimore, J., Kindberg, T., and Blair, G.

(2011). Distributed Systems: Concepts and Design.

Addison-Wesley Publishing Company, 5th edition.

De, D. (2016). Mobile Cloud Computing: Architectures,

Algorithms and Applications. CRC Press, 1st edition.

Doli

nska, I., Jakubowski, M., and Masiukiewicz, A. (2017).

Interference comparison in wi-ﬁ 2.4 ghz and 5 ghz

bands. In 2017 International Conference on Informa-

tion and Digital Technologies (IDT), pages 106–112.

Fernando, N., Loke, S., and Rahayu, W. (2013). Mobile

cloud computing: A survey. Future Generation Com-

puter Systems, 29:84–106.

Georgiou, S. and Spinellis, D. (2019). Energy-Delay In-

vestigation of Remote Inter-Process Communication

Technologies. Journal of Systems and Software.

Indrasiri, K. and Kuruppu, D. (2020). gRPC: Up and Run-

ning: Building Cloud Native Applications with Go

and Java for Docker and Kubernetes. O’Reilly Me-

dia, 1st edition.

Jain, R. (1991). The art of computer systems performance

analysis - techniques for experimental design, mea-

surement, simulation, and modeling. Wiley profes-

sional computing. Wiley.

Kumar, K., Liu, J., Lu, Y.-H., and Bhargava, B. (2013). A

survey of computation ofﬂoading for mobile systems.

Mobile Networks and Applications, 18.

Mastrangelo, C. (2018). Visualizing grpc language stacks.

Available in: https://grpc.io/blog/grpc-stacks/. Access

in: 11-02-2021.

O’Dea, S. (2021). Number of smartphones sold to end

users worldwide from 2007 to 2021. Available

in: https://www.statista.com/statistics/263437/global-

smartphone-sales-to-end-users-since-2007/. Access

in: 11-02-2021.

Rego, P. A., Costa, P. B., Coutinho, E. F., Rocha, L. S.,

Trinta, F. A., and Souza, J. N. d. (2017). Performing

computation ofﬂoading on multiple platforms. Com-

puter Communications, 105(C):1–13.

Sebesta, R. W. (2012). Concepts of Programming Lan-

guages. Pearson, 10th edition.

Silva, F. A., Zaicaner, G., Quesado, E., Dornelas, M., Silva,

B., and Maciel, P. (2016). Benchmark applications

used in mobile cloud computing research: a system-

atic mapping study. The Journal of Supercomputing,

72(4):1431–1452.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

214
