Machine Learning Algorithms for Breast Cancer Detection in

Mammography Images: A Comparative Study

Rhaylander Mendes de Miranda Almeida

, Dehua Chen

, Agnaldo Lopes da Silva Filho

and Wladmir Cardoso Brand

1 a

Department of Computer Science, Pontiﬁcal Catholic University of Minas Gerais (PUC Minas), Belo Horizonte, Brazil

Department of Computer Science, Federal University of Minas Gerais (UFMG), Belo Horizonte, Brazil

Faculty of Medicine, Federal University of Minas Gerais (UFMG), Belo Horizonte, Brazil

Keywords:

Deep Learning, Classiﬁcation, Mammography Screening, Mammogram Abnormalities, Breast Cancer.

Abstract:

Breast tumor is the most common type of cancer in women worldwide, representing approximately 12% of

reported new cases and 6.5% of cancer deaths in 2018. Mammography screening are extremely important for

early detection of breast cancer. The assessment of mammograms is a complex task with signiﬁcant variability

due to professional experience and human errors, an opportunity for assisting tools to improve both reliability

and accuracy. The usage of deep learning in medical image analysis have increased, assisting specialists in

early detection, diagnosis, treatment or prognosis of diseases. In this article, we compare the performance of

XGBoost and VGG16 in the task of breast cancer detection by using digital mammograms from CBIS-DDSM

dataset. In addition, we perform a comparison of prediction accuracy between full mammogram images

and patches extracted from original images based on ROI annotated by experts. Moreover, we also perform

experiments with transfer learning and data augmentation to exploit data diversity, and the ability to extract

features and learn from raw unprocessed data. Experimental results show that XGBoost achieves 68.29% in

AUC, while VGG16 achieves approximately the same performance of 68.24% in AUC.

1 INTRODUCTION

According to the World Health Organization (WHO)

breast cancer is the most common cancer in women

worldwide, causing more than 627 thousand deaths

in 2018. The American Cancer Society estimated

more than 41 thousand deaths and 268 thousand new

cases of female breast cancer in the United States in

2019 (DeSantis et al., 2019). Mammography screen-

ing for early breast cancer detection has been adopted

in many countries, helping in a signiﬁcant reduction

of deaths due to early diagnosis and treatment. While

the beneﬁts of mammography screening have been

observed in the past years, its harms are also topics

of discussion. For instance, overdiagnosis of breast

cancer is the main harm resulted of mammography

screening, with an estimated occurrence of 31% in the

United States (Løberg et al., 2015).

Overdiagnosis is the diagnosis that would not have

been identiﬁed clinically, but that is previously iden-

https://orcid.org/0000-0002-1523-1616

http://www.who.int

tiﬁed (Løberg et al., 2015). Tumor regression, lack of

potential progression or even deaths caused by other

reasons prior to the clinical surface are cases of over-

diagnosis, all situations where the actual treatment

will not have beneﬁt (Løberg et al., 2015). Surgery,

chemotherapy, antiestrogen treatment and radiother-

apy are treatment options for breast cancer, and the

last is known to increase the risk of death from cardio-

vascular disease (Løberg et al., 2015). While the risk

of radiation exposure in a mammogram is small, the

scenario may be different due to repeated X-rays in

follow-up exams and considerably increased in cases

of overtreatment (Darby et al., 2013).

The assessment of screening mammograms is a

complex task which has signiﬁcant variability due to

many reasons such as professional experience and hu-

man errors. Therefore, it is encouraged the usage

of Computer Aided Diagnosis (CAD) to aid radiol-

ogists in diagnosing cancer to improve reliability and

accuracy (Ribli et al., 2018). Even though the qual-

ity of digital mammograms is higher when compared

to the conventional ﬁlm version, interpretation is still

an issue as observer error is frequent in breast can-

660

Almeida, R., Chen, D., Filho, A. and Brandão, W.

Machine Learning Algorithms for Breast Cancer Detection in Mammography Images: A Comparative Study.

DOI: 10.5220/0010440906600667

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 660-667

ISBN: 978-989-758-509-8

cer screening, leading to misinterpretations of abnor-

malities or even lack of identiﬁcation (Vadivel and

Surendiran, 2013). Abnormalities found in a mam-

mogram are broadly categorized as masses and cal-

ciﬁcation, which have several distinguishing charac-

teristics used to classify a mammogram as benign or

malignant (Vadivel and Surendiran, 2013). Due to

the high correlation between breast cancer and the ap-

pearance of abnormalities, along with the difﬁculty in

distinguishing some characteristics such as shape and

margin, the use of CAD to help radiologists in ab-

normality classiﬁcation represents an opportunity to

reduce misdiagnosis (Vadivel and Surendiran, 2013).

The use of Machine Learning (ML) have in-

creased in several research areas due to the increase of

the computing power required to train effective mod-

els, and the increase in the availability and capacity

of processing big amounts of data in the learning pro-

cess (Shen et al., 2017). The ability of learning from

raw and unlabeled data and the capacity of address-

ing complex problems and data structures are also

key factors to the increase on usage of ML (Baka-

tor and Radosav, 2018). Remarkable results have

been achieved by Deep Learning (DL) models in

medical image analysis to support specialists in early

detection, diagnosis, treatment or prognosis of dis-

eases (Shen et al., 2017), which is expected to in-

crease the overall quality of healthcare (Bakator and

Radosav, 2018). The accuracy and reliability of mam-

mography assessment vary with the level of exper-

tise of each specialist and a high variability has been

observed in previous studies (Sprague et al., 2016).

Hence, this represents an opportunity for the applica-

tion of CAD for mammography assessment to achieve

reliable and accurate solutions based on DL models.

In this article, we compare the performance of

XGBoost, a classic tree-based ML algorithm and

VGG16, a Convolutional Neural Network (CNN), in

the task of breast cancer detection using the Curated

Breast Imaging Subset of DDSM (CBIS-DDSM)

dataset composed of full mammogram images and

abnormality-focused patches extracted from original

images properly labeled by a trained mammogra-

pher (Lee et al., 2017). In particular, XGBoost is

a scalable gradient boosting library designed to han-

dle big amounts of data while consuming fewer re-

sources (Chen and Guestrin, 2016), while VGG16 is

one of the famous CNN architectures proposed during

the 2014 ImageNet (Simonyan and Zisserman, 2014;

Russakovsky et al., 2015). We also compare the abil-

ity of the algorithms to extract features and learn from

raw data.

The remainder of this article is organized as fol-

lows. In Section 2, we present a literature review. In

Section 3 we present relevant related work reported in

literature. Section 4 describes our proposed approach

to perform breast cancer detection, comparing ML al-

gorithms. In Section 5 we present the experimental

setup. Section 6 presents the experimental results. Fi-

nally, in Section 7 we present the conclusion and di-

rections for future work.

2 BACKGROUND

Machine Learning systems are able to learn from

past experiences to make decisions with no need of

explicit instructions. The learning process is based

on inductive reasoning, in which generic conclusions

are reached based on a dataset (Russell and Norvig,

2009). ML models are created based on datasets

with examples from the problem domain. However,

datasets often present imperfections, such as incon-

sistency, redundancy, missing and noisy data. Hence,

ML algorithms must be robust to minimize the impact

of data imperfections. Data preprocessing is usually

required to reduce this impact and improve general-

ization.

Particularly, the goal is to ﬁnd a ML model with

good generalization, being capable of accurately pre-

dict not only the training data but also unknown data

from the problem domain. Bad generalization might

be a result of overﬁtting, when a model performs well

on the training data but has poor generalization on

new data items, or underﬁtting, when a model does

not perform well on the training data and has poor

generalization on new data items (Russell and Norvig,

2009).

There are different ML algorithms reported in the

literature. Decision trees use the divide and conquer

strategy to solve complex problems by recursively

splitting them into smaller ones. The data space is

split on each recursive interaction based on feature

values. Branches are created every time the data space

is split and a decision rule is deﬁned to describe a por-

tion of the data space. A tree model is either deﬁned

as classiﬁcation tree if the target variable is a ﬁnite set

of values, or as regression tree if the target variable

can take continuous values.

Boosting algorithms combine weak learners into

an ensemble, resulting in a strong learner. A weak

learner is a classiﬁer slightly better than a random

pick, and a strong learner is a well-correlated ar-

bitrary classiﬁer with lower error rate. The main

idea is to interactively associate a hypothesis and a

weight to each example of the training set so that

the classiﬁcation may focus on different examples

leading to different classiﬁers. On each interaction

Machine Learning Algorithms for Breast Cancer Detection in Mammography Images: A Comparative Study

661

the weights are adjusted and a weak classiﬁer is in-

corporated. The ensemble output is the result of a

weighted vote of all classiﬁers. Gradient boosting is

commonly used with decision trees and has proven

to be effective and widely used on many ML chal-

lenges (Chen and Guestrin, 2016). Extreme Gradi-

ent Boosting (XGBoost) is a scalable gradient boost-

ing library designed to handle billions of examples

by providing a parallel tree boosting that consume

fewer resources, while achieving state-of-the-art per-

formance (Chen and Guestrin, 2016).

An Artiﬁcial Neural Network (ANN) is a dis-

tributed system composed of simple processing units

connected together, which have the ability to learn

from the environment and preserve experimental

knowledge (Russell and Norvig, 2009). The devel-

opment of ANNs is inspired by the human’s nervous

system and aimed the creation of models with simi-

lar learning capabilities of the human brain to acquire

knowledge. High generalization, fault tolerant, ro-

bustness to deal with noisy raw data are reasons for

ANNs popularity. However, the decisions taken by

their complex mathematical (black box) models are

usually difﬁcult to understand. Thus “white box” sys-

tems are generally preferred by industries, since their

results are easily interpretable by humans (Loyola-

Gonz

alez, 2019).

Deep Learning (DL) is used to describe ANNs

with complex multilayers architecture (Liu et al.,

2017; Abiodun et al., 2018). By simulating how

key sensory areas of the human brain work (Pouyan-

far et al., 2018), DL models can represent complex

structures and are able to automatically perform fea-

ture extraction (Abiodun et al., 2018). They require

large datasets for training to effectively prevent over-

ﬁtting (Liu et al., 2017). Particularly, remarkable re-

sults have been achieved by DN in the medical ﬁeld to

support specialists in early detection, diagnosis, treat-

ment and prognosis of diseases (Shen et al., 2017).

The ability of learning from unlabeled raw data to au-

tomatically identify abstractions brings a lot of value

in the medical ﬁeld (Bakator and Radosav, 2018).

Tissue segmentation, structure detection, computer-

aided disease diagnosis and prognosis are speciﬁc

uses of DL in the medical ﬁeld (Shen et al., 2017;

Bakator and Radosav, 2018).

Convolutional Neural Network (CNN) is a popu-

lar DL architecture extensively used in computer vi-

sion, audio and speech processing, and natural lan-

guage processing (Pouyanfar et al., 2018; Abiodun

et al., 2018). Recently, an effective CNN model

called VGG16, achieves high accuracy on image clas-

siﬁcation (Simonyan and Zisserman, 2014). In par-

ticular, VGG16 is a VGGNet with 16 layers that

uses smaller (3x3) convolution ﬁlters stacked together

producing deeper networks with the same effective

receptive ﬁeld and capable of handling more non-

linearities, and fewer parameters (Simonyan and Zis-

serman, 2014).

3 RELATED WORK

DL models have been extensively used in medi-

cal image analysis achieving remarkable results(Shen

et al., 2017; Bakator and Radosav, 2018). A CNN

model performs breast density classiﬁcation based on

the four BI-RADS classes, using a dataset of over

200,000 screening mammography exams(Wu et al.,

2018). Particularly, it uses pixel intensity as a base-

line, since ﬁbroglandular tissue absorbs much of the

radiation, which make them appear brighter than adi-

pose tissue. The authors report accuracy similar to hu-

man experts. In the same vein, a similar CNN-based

classiﬁer based on AlexNet model can consistently

distinguish between the difﬁcult classes “scattered ar-

eas of ﬁbroglandular density” and “heterogeneously

dense” (Mohamed et al., 2018).

A challenging problem in DL for medical image

analysis is the access to large datasets with reliable

annotations from domain experts (Tan et al., 2018).

Transfer learning can mitigate this problem by train-

ing a model in a source domain with high quality

data, later using the learned model to perform pre-

dictions in a target domain(Tan et al., 2018; Perre

et al., 2019). In the context of lesion classiﬁcation

in mammograms, transfer learning was already been

effectively used to overcome the problem of missing

datasets (Perre et al., 2019).

Experiments reported from the Digital Mammog-

raphy DREAM Challenge (DM Challenge) to diag-

nosis breast cancer using a dataset with 86,000 exams

show that an ensemble of two CNN models (R-CNN

and VGG16) can effectively detect breast cancer in

mammography (Ribli et al., 2018). Additionally,

other different DL architectures present outstanding

performance for the same task (Li et al., 2019). More-

over, random trees and random forest have also been

used to classify mammograms and the authors re-

ported 90% of accuracy (Vibha et al., 2006).

4 METHODOLOGY

As mentioned in the Section 2, DL can represent com-

plex models, automatically performing feature extrac-

tion learning from raw data (Abiodun et al., 2018;

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

662

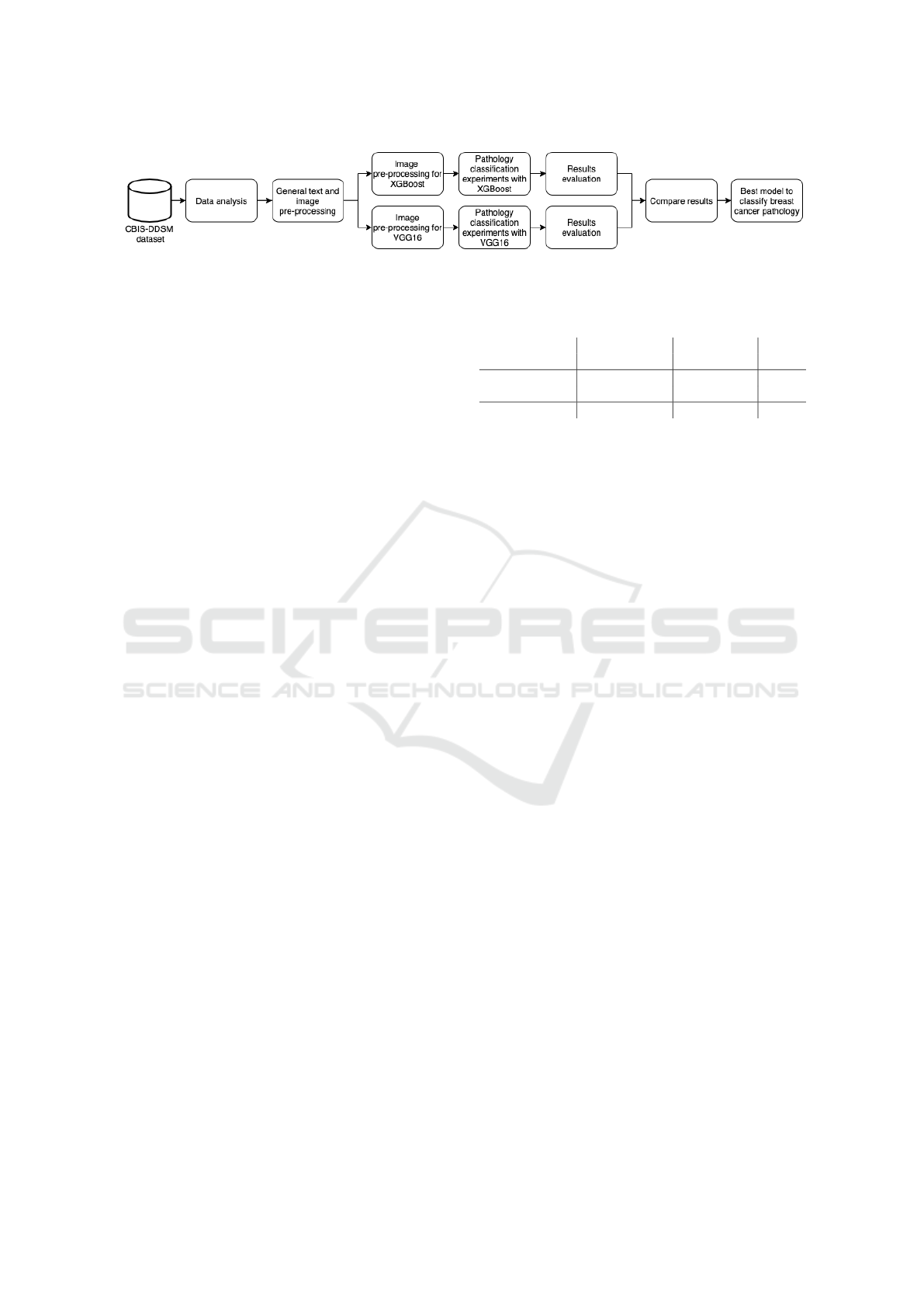

Figure 1: The methodology used to compare different algorithms for breast cancer detection.

Pouyanfar et al., 2018). In this article, we compare

the performance of the traditional XGBoost algorithm

and the classic VGG16 DL network for breast cancer

pathology classiﬁcation on raw mammogram images

available in the CBIS-DDSM dataset.

Figure 1 presents each step of the comparison

methodology. First, we perform an analysis of the

dataset to understand available data and how it can

be used for breast cancer detection. Second, general

pre-processing steps are performed to ﬁx and enhance

text metadata available in the dataset and extract raw

image data from DICOM ﬁles, creating intermediate

datasets. Third, different experiments are carried out

using both XGBoost and VGG16 to perform pathol-

ogy classiﬁcation in mammograms. Particularly, each

ML algorithm requires speciﬁc image pre-processing

steps to adjust the dataset to the expected input for-

mat and to perform data augmentation. Fourth, exper-

imental results are collected and compared based on

research questions made on each experiment. Finally,

the most effective model of each ML algorithm are

evaluated and compared. The AUC metric and confu-

sion matrix are used to compare the results obtained

by the classiﬁcation models.

5 EXPERIMENTAL SETUP

5.1 Dataset

The Curated Breast Imaging Subset of DDSM (CBIS-

DDSM) dataset is composed of decompressed DI-

COM images selected and curated by specialists (Lee

et al., 2017). It contains 10,239 images of 6,775 cases

from 1,566 patients, 753 of them calciﬁcation cases,

and other 891 mass cases. Table 1 presents the num-

ber of images tagged as benign or malignant in CBIS-

DDSM by category.

Each patch extracted from mammograms has an

equivalent ROI segmentation ﬁlter. The 3,568 ROI ﬁl-

ters are not relevant to this work, so from the original

10,239 images we removed 3,568, considering only

6,671 images. There is no standard resolution across

all images in the dataset. Usually mammograms have

resolutions higher than 3000x4000 pixels, and the res-

Table 1: Number of images by category in CBIS-DDSM

dataset.

Train Test

Category Ben. Mal. Ben. Mal. Total

Mammograms 1,354 1,104 385 260 3,103

ROI patches 1,683 1,181 428 276 3,568

Total 3,037 2,285 813 536 6,671

olution of ROI patch images presents high variability,

ranging from 100x100 up to 2000x2000 pixels.

Each case contains the original decompressed im-

ages of Medio-Lateral Oblique (MLO) and Cranial-

Caudal (CC) views of mammograms from both

breasts, a ROI segmentation ﬁlter, patches contain-

ing ROI for each abnormally found on each mammo-

gram image, and metadata information about the pa-

tient (Lee et al., 2017). The available information on

patient are: Breast Imaging Reporting and Data Sys-

tem (BI-RADS) classiﬁcation for mass shape, mass

margin, calciﬁcation type, calciﬁcation distribution,

and breast density, overall BI-RADS assessment from

0 to 5, rating of the subtlety of the abnormality from 1

to 5, age, date of the study, date of digitization, dense

tissue category, scanner used to digitize, resolution of

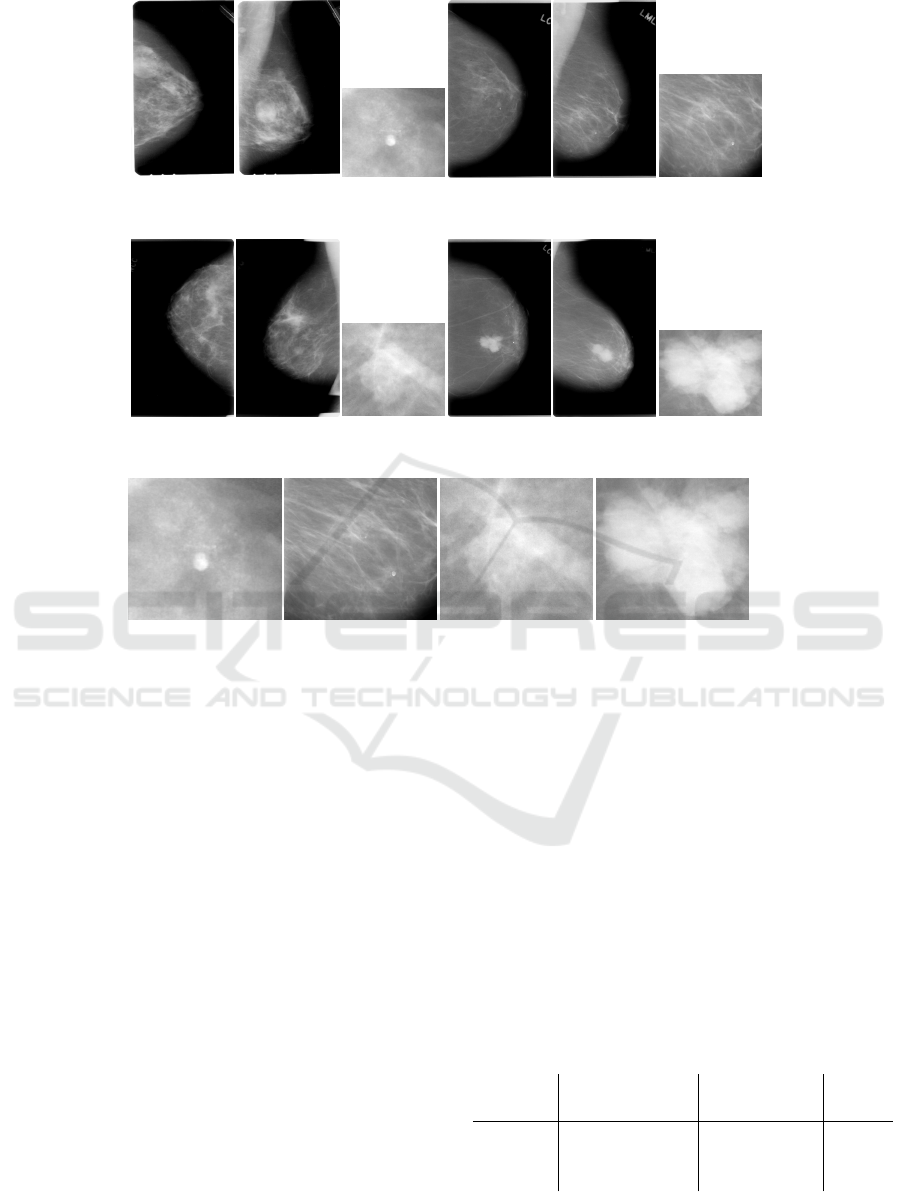

each image, and pathology (Lee et al., 2017). Fig-

ure 2 shows different examples of images available in

the dataset, CC, MLO, and ROI patch images from

both benign and malignant abnormalities are visible

for calciﬁcations (a) and masses (b).

5.2 Data Pre-processing

5.2.1 Metadata Files

As mentioned in the Section 5.1, the dataset not only

has DICOM images but also metadata ﬁles. In par-

ticular, there are three columns used to map the path

to patients’ original decompressed images, ROI seg-

mentation ﬁlter and bounding boxes of all abnormali-

ties found on each original image. However, the paths

were all broken as the inner folder names were all

incorrect. Once this scenario was identiﬁed as part

of the dataset analysis, the ﬁrst pre-processing effort

was to ﬁx all paths and create two additional types

of metadata ﬁles after separating original mammo-

grams and patch images. The latter was required as

Machine Learning Algorithms for Breast Cancer Detection in Mammography Images: A Comparative Study

663

(I) CC (II) MLO

(III) ROI patch

(IV) CC

(V) MLO

(VI) ROI patch

(a) Examples of benign (I, II, and III) and malignant (IV, V, and VI) calciﬁcations, they belong to a single breast of two

randomly picked patients.

(I) CC (II) MLO

(III) ROI patch

(IV) CC

(V) MLO

(VI) ROI patch

(b) Examples of benign (I, II, and III) and malignant (IV, V, and VI) masses, they belong to a single breast of two randomly

picked patients.

(I) Benign

(II) Malignant

(III) Benign

(IV) Malignant

Figure 2: Example of images from CBIS-DDSM dataset.

each metadata ﬁle would have duplicated instances in

case a mammogram would have multiple abnormali-

ties. This approach made it easier to perform further

experiments based on image types. Manual human

veriﬁcation was required in order to ensure all image

paths were correct, a script to create thumbnails was

created to facilitate this effort.

5.2.2 Images

All experiments have been performed using raw im-

ages. Data augmentation techniques were used to in-

crease the data diversity of the dataset for training

and as a mechanism to help dealing with overﬁtting.

Images were generated during execution time, and

the number of images is the same as the number of

original images in the dataset. The random transfor-

mations performed as part of data augmentation are

random horizontal ﬂips, rotation around the center,

shear transformation, vertical and horizontal shifts,

and zoom in and out. Lastly, images are resized to

224x224 pixels to comply with VGG16’s input and to

reduce data dimensionality.

Since all images from the dataset are in the DICOM

format, the pixel data information is extracted and

stored as TIFF format. During this step three datasets

are created, one containing only original mammo-

grams, another for abnormality patches and the last

one containing both image types, respectively called

dataset A, B and C, as presented in Table 2. These

datasets are used individually to evaluate and com-

pare how models perform when using raw original

images versus focused abnormality patches extracted

from original images, and to evaluate if mixing them

would bring any beneﬁts.

Table 2: Datasets created after grouping images by cate-

gory.

Train Test

Dataset Ben. Mal. Ben. Mal. Total

A 1,354 1,104 385 260 3,103

B 1,683 1,181 428 276 3,568

C 3,037 2,285 813 536 6,671

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

664

5.3 Training and Validation

As mentioned in Section 5.2.2, we use data augmen-

tation to perform random transformations on images

during the training phase to not only increase data

diversity, but also to reduce overﬁtting. The images

used for validation are not transformed, except for

resizing all of them to keep the same dimensions.

Knowledge transfer and ﬁne-tuning have been used

for both XGBoost and VGG16 models. Addition-

ally, the three datasets mentioned in Table 2 have

been used individually and also combined for trans-

fer learning as described in Section 6. We use AUC

to measure model’s performance for classifying pa-

tient’s pathology. We also present Confusion Matrix

to improve understanding in which class the models

performs better (or worst).

For XGBoost, we use 5-fold cross-validation for

tuning and Grid Search to ﬁnd hyperparameters, in

particular learning rate = 0.2, gamma = 1.5, max

tree depth = 5, min child weight = 3 and subsam-

ple = 0.8. In addition, to avoid overﬁtting we set

epoch limit to 30. For VGG16, we use the last fully

softmax connected layer to properly classify outputs

in two classes. In addition, knowledge transfer has

been used by loading weights from ImageNet VGG16

ILSVRC2014 (Russakovsky et al., 2015) to under-

stand if the learned knowledge is useful for breast

pathology classiﬁcation. For ﬁne-tuning, we test

three different models: load weights from ImageNet

VGG16 ILSVRC2014 while locking convolutional

layers, training only the last max pooling and fully

connected layers; use the previous models as a start-

ing point, but unlocking convolutional layers; train

the entire network from scratch. For all the models

the training upper limit of epochs was set to 100 and

an early stopping callback was leveraged to stop the

execution in case there was no improvement in AUC

metric during the course of 30 consecutive epochs.

An stochastic gradient descent (SGD) optimizer was

used with learning rate = 1e-4 and momentum = 0.9.

6 EXPERIMENTAL RESULTS

In this section, we present the experiments we car-

ried out to evaluate the performance of XGBoost and

VGG16 in the task of breast cancer detection using

mammograms. As mentioned in the Section 5.1, since

the CBIS-DDSM dataset has full mammogram im-

ages and abnormality-focused patches extracted from

the original images, three other datasets were cre-

ated during pre-processing as an effort to have control

over an image type used as input and to compare how

would the models perform against each type. Particu-

larly, we perform experiments to answer the following

research questions:

• Experiment 1. Is the knowledge extracted from

a XGBoost model trained on abnormality patches

useful to predict pathology of full mammogram

images?

• Experiment 2. Is the knowledge extracted from a

XGBoost model trained on full mammogram im-

ages useful to predict pathology of abnormality

patches?

• Experiment 3. Which type of image would pro-

vide better features for pathology classiﬁcation?

• Experiment 4. What is the XGBoost per-

formance when trained on dataset B? What if

we transfer knowledge and continue training in

dataset A?

• Experiment 5. Is knowledge transfer with no

ﬁne-tuning useful for VGG16?

• Experiment 6. What is the VGG16 performance

when trained from scratch with no knowledge

transfer?

• Experiment 7. Is knowledge transfer with ﬁne-

tuning useful for VGG16?

• Experiment 8. What is the VGG16 performance

when trained on dataset B? What if we transfer

knowledge and continue training in dataset A?

Table 3 presents the experimental results for all the

previous research questions. From Table 3 we observe

that train XGBoost model on abnormality patches to

predict pathology of full mammogram images (Ex-

periment 1) is better than train XGBoost model on

full mammogram images to predict pathology of ab-

normality patches (Experiment 2). Additionally, we

observe that transfer learning provide negligible gains

for XGBoost, since the AUC metric of 0.6829 in the

Experiment 3 with dataset A (no transfer learning) is

almost the same as AUC metric of 0.6849 in the Ex-

periment 4 (with transfer learning). Moreover, we ob-

serve that abnormality-focused patch images impact

negatively in XGBoost performance as the AUC score

for Experiment 3 dataset B was 19.14% less accurate

than dataset A, and 10.10% less accurate than dataset

C. However, Experiment 4 shows that abnormality-

focused images can be effectively used for transfer

learning, since the knowledge learned by the pre-

trained model that use these images (Experiment 3

dataset B) provides outperforming results when trans-

ferred to train dataset A.

Similarly to XGBoost, for VGG16 we observe

that abnormality-focused patch images impact nega-

Machine Learning Algorithms for Breast Cancer Detection in Mammography Images: A Comparative Study

665

Table 3: Experimental results for XGBoost and VGG16.

Algorithm Experiment Dataset AUC Precision Recall F1-Score

XGBoost

1 - 0.5694 0.5260 0.5541 0.4755

2 - 0.4207 0.5050 0.5308 0.3303

A 0.6829 0.6411 0.6409 0.6410

B 0.5522 0.5471 0.5516 0.5461

C 0.6139 0.5780 0.5852 0.5780

4 - 0.6849 0.6219 0.6243 0.6228

VGG16

A 0.6527 0.6022 0.5988 0.5905

B 0.6151 0.5138 0.5833 0.4287

C 0.6279 0.5472 0.5542 0.5442

6 A 0.6233 0.5843 0.5838 0.5841

A 0.6822 0.6405 0.6406 0.6405

B 0.6207 0.5082 0.5679 0.4133

C 0.6331 0.5598 0.5804 0.5506

8 - 0.6527 0.6026 0.6014 0.5828

tively in performance, since the AUC score for Exper-

iment 5 dataset B is 5.77% smaller than dataset A, and

2.04% smaller than dataset C. Additionally, Experi-

ment 6 show that training network from scratch pro-

vide downgraded results, particularly a drop of 4.50%

in AUC score when compared to the best result from

Experiment 5. Moreover, Experiment 7 shows that

transfer learning with ﬁne-tuning impacts positively

VGG16 models, particularly for dataset A, with an

increase in AUC score of 4.52%. Finally, Experiment

8 shows that, differently from XGBoost, abnormality-

focused images can not be effectively used for trans-

fer learning, since the knowledge learned by the pre-

trained model that use these images (Experiment 5

dataset B) provides inferior results when transferred

to train dataset A (0.6527 of AUC in Experiment 8

compared to 0.6822 of AUC in Experiment 7).

In summary, both XGBoost and VGG16 performs

better when trained with original full mammogram

images, but XGBoost slightly outperforms VGG16

for classiﬁcation of malignant tumors. For XGBoost,

abnormality-focused images can be effectively used

for transfer learning, but not for VGG16. Also,

transfer learning with ﬁne-tuning impacts positively

VGG16, but provides negligible gains for XGBoost.

Precision, recall, and F1-Score measures follow the

same behavior than AUC metrics. Both XGBoost

and VGG16 can effectively discriminate instances be-

longing to the benign class, but there is still room for

improvement for malignant tumors classiﬁcation.

7 CONCLUSION

In this article we compared the performance of XG-

Boost and VGG16 for breast cancer detection. Exper-

iments with CBIS-DDSM dataset show that they per-

formed similarly, achieving AUC scores of approxi-

mately 0.68. In addition, experimental results show

that patch images did not contribute to performance.

Moreover, XGBoost were able to identify more ma-

lignant samples than VGG16, ﬁnding a better balance

between both classes.

A limitation of this work is the amount of cases

in the CBIS-DDSM dataset. A larger well-annotated

dataset would contribute to deeply train a CNN and

further explore their ability to extract features from

raw data. For future work, we intent to: i) per-

form experiments with other mammography screen-

ing datasets that can either be used individually or

combined to increase the number of available cases;

ii) perform image normalization and feature extrac-

tion to assist ML algorithms, since mammograms

have noisy, and possibly annotations not relevant to

the problem; iii) combine image datasets with tex-

tual image metadata and demographic information

from patients; iv) use ensembles that can handle

high-resolution images; v) perform experiments with

datasets containing patients historical information to

perform analysis of abnormalities growth over time.

ACKNOWLEDGEMENTS

The present work was carried out with the support

of the Coordenac¸

ao de Aperfeic¸oamento de Pessoal

de N

ıvel Superior - Brazil (CAPES) - Financing

Code 001. The authors thank the partial support of

the CNPq (Brazilian National Council for Scientiﬁc

and Technological Development), FAPEMIG (Foun-

dation for Research and Scientiﬁc and Technological

Development of Minas Gerais) and PUC Minas.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

666

REFERENCES

Abiodun, O. I., Jantan, A., Omolara, A. E., Dada, K. V.,

Mohamed, N. A., and Arshad, H. (2018). State-of-the-

art in artiﬁcial neural network applications: A survey.

Heliyon, 4(11):e00938.

Bakator, M. and Radosav, D. (2018). Deep learning and

medical diagnosis: A review of literature. Multimodal

Technologies and Interaction, 2(3).

Chen, T. and Guestrin, C. (2016). XGBoost: A scalable

tree boosting system. In Proceedings of the 22nd

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, KDD’16, page

785–794.

Darby, S. C., Ewertz, M., McGale, P., Bennet, A. M., Blom-

Goldman, U., Brønnum, D., Correa, C., Cutter, D.,

Gagliardi, G., Gigante, B., Jensen, M.-B., Nisbet, A.,

Peto, R., Rahimi, K., Taylor, C., and Hall, P. (2013).

Risk of ischemic heart disease in women after radio-

therapy for breast cancer. New England Journal of

Medicine, 368(11):987–998.

DeSantis, C. E., Ma, J., Gaudet, M. M., Newman, L. A.,

Miller, K. D., Goding Sauer, A., Jemal, A., and Siegel,

R. L. (2019). Breast cancer statistics. CA: A Cancer

Journal for Clinicians, 69(6):438–451.

Lee, R., Gimenez, F., Hoogi, A., Miyake, K., Gorovoy, M.,

and Rubin, D. (2017). A curated mammography data

set for use in computer-aided detection and diagnosis

research. Scientiﬁc Data, 4:170177.

Li, H., Zhuang, S., ao Li, D., Zhao, J., and Ma, Y. (2019).

Benign and malignant classiﬁcation of mammogram

images based on deep learning. Biomedical Signal

Processing and Control, 51:347–354.

Liu, W., Wang, Z., Liu, X., Zeng, N., Liu, Y., and Alsaadi,

F. E. (2017). A survey of deep neural network ar-

chitectures and their applications. Neurocomputing,

234:11–26.

Løberg, M., Lousdal, M. L., Bretthauer, M., and Kalager,

M. (2015). Beneﬁts and harms of mammography

screening. Breast Cancer Research, 17(1):63.

Loyola-Gonz

alez, O. (2019). Black-box vs. white-box:

Understanding their advantages and weaknesses from

a practical point of view. IEEE Access, 7:154096–

154113.

Mohamed, A. A., Berg, W. A., Peng, H., Luo, Y., Jankowitz,

R. C., and Wu, S. (2018). A deep learning method for

classifying mammographic breast density categories.

Medical Physics, 45(1):314–321.

Perre, A. C., Alexandre, L. A., and Freire, L. C. (2019).

Lesion classiﬁcation in mammograms using convolu-

tional neural networks and transfer learning. Com-

puter Methods in Biomechanics and Biomedical En-

gineering: Imaging & Visualization, 7(5-6):550–556.

Pouyanfar, S., Sadiq, S., Yan, Y., Tian, H., Tao, Y., Reyes,

M. P., Shyu, M.-L., Chen, S.-C., and Iyengar, S. S.

(2018). A survey on deep learning: Algorithms, tech-

niques, and applications. ACM Computing Surveys,

51(5):92:1–92:36.

Ribli, D., Horv

ath, A., Unger, Z., Pollner, P., and Csabai,

I. (2018). Detecting and classifying lesions in mam-

mograms with deep learning. Scientiﬁc Reports,

8(1):4165.

Russakovsky, O., Deng, J., Su, H., Krause, J., Satheesh, S.,

Ma, S., Huang, Z., Karpathy, A., Khosla, A., Bern-

stein, M., Berg, A. C., and Fei-Fei, L. (2015). Ima-

geNet Large Scale Visual Recognition Challenge. In

Proceedings of the International Journal of Computer

Vision, IJCV’15, pages 211–252.

Russell, S. and Norvig, P. (2009). Artiﬁcial Intelligence: A

Modern Approach. Prentice Hall Press, Upper Saddle

River, NJ, USA, 3rd edition.

Shen, D., Wu, G., and Suk, H.-I. (2017). Deep learning in

medical image analysis. Annual Review of Biomedical

Engineering, 19:221–248.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

CoRR, abs/1409.1556.

Sprague, B. L., Conant, E. F., Onega, T., Garcia, M. P., Be-

aber, E. F., Herschorn, S. D., Lehman, C. D., Toste-

son, A. N. A., Lacson, R., Schnall, M. D., Kontos, D.,

Haas, J. S., Weaver, D. L., Barlow, W. E., and Consor-

tium, P. R. O. S. P. R. (2016). Variation in mammo-

graphic breast density assessments among radiologists

in clinical practice: A multicenter observational study.

Annals of Internal Medicine, 165(7):457–464.

Tan, C., Sun, F., Kong, T., Zhang, W., Yang, C., and

Liu, C. (2018). A survey on deep transfer learning.

In K

urkov

a, V., Manolopoulos, Y., Hammer, B., Il-

iadis, L., and Maglogiannis, I., editors, Proceedings of

the 27th International Conference on Artiﬁcial Neural

Networks and Machine Learning, ICANN’18, pages

270–279.

Vadivel, A. and Surendiran, B. (2013). A fuzzy rule-based

approach for characterization of mammogram masses

into BI-RADS shape categories. Computers in Biol-

ogy and Medicine, 43(4):259 – 267.

Vibha, L., Harshavardhan, G. M., Pranaw, K., Shenoy,

P. D., Venugopal, K. R., and Patnaik, L. M. (2006).

Classiﬁcation of mammograms using decision trees.

In Proceedings of the 10th International Database En-

gineering and Applications Symposium, IDEAS’06,

pages 263–266.

Wu, N., Geras, K. J., Shen, Y., Su, J., Kim, S. G., Kim,

E., Wolfson, S., Moy, L., and Cho, K. (2018). Breast

density classiﬁcation with deep convolutional neural

networks. In Proceedings of the IEEE International

Conference on Acoustics, Speech and Signal Process-

ing, ICASSP’18, pages 6682–6686.

Machine Learning Algorithms for Breast Cancer Detection in Mammography Images: A Comparative Study

667
