The VoIP PBX Honeypot Advance Persistent Threat Analysis

N. Mcinnes and G. Wills

Department of Electronics and Computer Science, Faculty of Engineering and Physical Sciences,

University of Southampton, U.K.

Keywords:

VoIP, SIP, PBX Hacking, IRSF, Toll Fraud, APT, Next Generation Networks.

Abstract:

PBX hacking is a multi-billion dollar per year criminal and terrorism funding source. This paper follows on

from a previous 10-day Honeypot experiment, to run a VoIP PBX Honeypot for a longer period of 103-day

to not only validate any similarities, but to also analyse non-VoIP methods hackers use in an attempt to gain

access to a VoIP System. Over the 103-day data collection period, the Honeypot recorded over 100 million

SIP messages. Different techniques were used (including SQL injections in Invites) and hackers of the same

IP subnet also attempted using web vulnerabilities in different telephony phone systems to gain access. Of

speciﬁc interest, over the Christmas period of 2018, attack intensity decreased signiﬁcantly. To validate these

ﬁndings, the Honeypot experiment was also conducted for a short period over the Christmas period of 2019

which found that unlike Christmas 2018, attacks increased. The sophistication, scale and complexity of the

fraud would suggest an Advance Persistent Threat exists with an aim to inﬁltrate a VoIP system (including a

PBX) to conduct Toll Fraud and where possible to also add that system to a botnet of infected voice systems.

1 INTRODUCTION

Telephone networks are currently migrating from

Time-Division Multiplexing (TDM) networks to

Voice over Internet Protocol (VoIP) using Next Gen-

eration Networking (NGN) technologies using the IP

Telephony protocol Session Initiated Protocol (SIP)

(Colin and Richard, 2019), (Ofcom, 2007). This tran-

sition will allow organisations (both the communica-

tions operator and end organisation) to reduce costs

and increase ﬂexibility

1 2

. The United Kingdom is an

example where this is due to be completed by 2025

(Colin and Richard, 2019). Therefore, as more organ-

isations move to VoIP and NGNs, it is prudent that

the risks are carefully examined. Especially as large

phone bills can be caused in a short period of time,

documented in some cases to be in excess of $100,000

(New York Times, 2014), (Central Netherlands Dis-

trict Court, 2014).

A Private Branch Exchange (PBX) is a busi-

ness phone system which typically connects to their

provider through various technologies such as tra-

https://www.itu.int/en/ITU-T/studygroups/2013-

2016/03/Documents/201405-miniworkshop/05-Chaesub-

Lee.pdf

https://www.cisco.com/c/dam/en/us/solutions/collateral/

executive-perspectives/executive-perspectives/ngn-cio.pdf

ditional analogue, ISDN or more commonly VoIP

which enables calls to the Public Switch Telephone

Network (PSTN) enabling a business greater control

of their uniﬁed communications solutions (Colin and

Richard, 2019)

Telephony fraud is a multi-billion-dollar problem

(Europol and Trend Micro, 2018). Toll Fraud, also

known as International Revenue Share Fraud (enabled

via PBX hacking or similar

) according to the CFCA

is thought to account for approximately 7 billion USD

in 2015. It is growing (Marketwired, 2016) and in

2017 was thought to be over 10 billion USD (Privsec

Report, 2017). The true costs are still unknown as op-

erators are not necessarily forthcoming due to fear of

reputational damage, additional regulation and costs

for them and their customers (Europol and Trend Mi-

cro, 2018).

Unlike other kinds of frauds, this would affect the

customer more than the communications provider as

the communications provider would potentially proﬁt

from this activity.

A 10-day PBX Honeypot was originally ran that

solely focused on VoIP ports (McInnes et al., 2019)

to compare to previous historic research conducted. It

https://www.3cx.com/pbx/pbx-phone-system/

https://www.twilio.com/learn/voice-and-video/toll-

fraud

Mcinnes, N. and Wills, G.

The VoIP PBX Honeypot Advance Persistent Threat Analysis.

DOI: 10.5220/0010443500700080

In Proceedings of the 6th International Conference on Internet of Things, Big Data and Security (IoTBDS 2021), pages 70-80

ISBN: 978-989-758-504-3

found that attacks were larger (30 time increase from

historic Honeypots conducted), more distributed and

suggested a botnet of compromised devices. That re-

search focused only on SIP monitoring and the time

duration period was limited to 10 days.

To further advance understanding of PBX Hack-

ing, this paper builds off the previous research to run

for a longer time duration (115-days – 103-days of

data collected) and open up the PBX web ports. This

was conducted to see if any new additional behaviour

was noticed during a longer time period and to val-

idate the 10-day Honeypot ﬁndings. Opening web

ports would also determine whether web attacking is

conducted as an alternative vector in attempting to

break into a PBX.

2 BACKGROUND LITERATURE

2.1 SIP and PBX Overview

Session initiated Protocol (SIP), known by IETF

RFC3261 (Internet Engineering Task Force, 2002), is

the interconnection protocol of choice between com-

munication providers and their customers. SIP sig-

nalling establishes a session between one or more

end points which in the telephony sector are usu-

ally audio in nature but can also support video and

message based communications (Internet Engineer-

ing Task Force, 2002). A SIP device can be a handset

(Cisco, Yealink, Avaya to name a few) or a routing

device such as a PBX or Session Border Controller.

It is common for one SIP device to probe an-

other SIP device to understand its parameters and fea-

tures. This is known as an Option (Internet Engineer-

ing Task Force, 2002). Once a device understands the

third-party device (such as that between a handset and

a PBX), a Registration can take place. This is similar

to authentication of an email server. Therefore, when

a phone call is made, the device making the call will

send an Invite to the intended third party with details

of the proposed communication. If the proposed com-

munication is acceptable, a session can be established

(Internet Engineering Task Force, 2002). It is impor-

tant to note that a Registration is not required for an

Invite to be sent, in this scenario it is common in the

SIP Trunking world (i.e between PBX and Supplier)

where two parties trust each others IP which is known

as IP Authentication

PBX design and features have grown consider-

ably in recent years and enable a wide range of fea-

https://support.voicepulse.com/hc/en-

us/articles/202526945-What-is-IP-Authentication-

tures such as conference rooms, remote working for

staff and its not uncommon for large global organi-

sations to run their entire communication systems on

their PBX to enable Uniﬁed Communications. Some

PBX’s are now focusing on providing this functional-

ity

2.2 PBX Penetration Studies

Sengar suggests poor conﬁguration and lack of com-

plex credentials rather than SIP vulnerabilities are the

reasons why SIP systems are compromised (Sengar,

2014).

In 2012 the ﬁndings of a 2-year distributed Hon-

eypot (Honeynet) experiment by researchers from the

University of Essen, Germany witnessed over 47.5

million SIP messages. They further went on to de-

scribe behaviour that was noticed in the form of 4

stages to an attack. The authors noted that some parts

of an attack were automated, while others were not

(Hoffstadt et al., 2012). During this period, other

researchers such as those from the Vienna Univer-

sity of Technology were also running a SIP Honeynet

(Gruber et al., 2013). There ﬁndings were similar in

that hackers attempted to call African countries such

as Ethiopia and Egypt and calls originated from an

Egyptian IP (Hoffstadt et al., 2012), (Gruber et al.,

2013).

Shortly prior to this research, the researchers

of this paper conducted a 10-day Honeypot experi-

ment that focused whether attacker methodology had

changed. Unlike the Essen and Vienna experiment,

the researchers at the University of Southampton used

a real, well known PBX (FreePBX

). The researchers

only focused on opening and studying SIP Ports. The

ﬁndings in this short period of time were consider-

able in comparison to previous research. In 10 days,

the Honeypot received approximately 19 million SIP

Messages with most Invites originating from France

and the United States. The experiment also suffered a

signiﬁcant attack during 1 day which resulted in sys-

tem resources mostly being consumed during the pe-

riod that had similar characteristics of Distributed De-

nial of Service attack (McInnes et al., 2019).

2.3 Consequences of Attacks

The consequences of an attack are rarely reported but

can be catastrophic for small organisations. The cost

of attacks can be extremely high, and costs can rise

to business fatal amounts within a very short period

of time. In 2014 a business was reported to receive a

https://www.3cx.com/pbx/uniﬁed-communications/

https://www.freepbx.org

The VoIP PBX Honeypot Advance Persistent Threat Analysis

bill from their communications provider of $166,000

after their PBX was hacked over a weekend period

(New York Times, 2014). In similar situations, litiga-

tion cases were brought in the UK (£30,000+ Phone

Bill) (His Honour Judge David Grant (Bailii.org),

2014) and Netherlands (C176,000+ Phone Bill) (Cen-

tral Netherlands District Court, 2014).

Furthermore, the FBI noted a case where the

group behind the Mumbai 2008 bombings had re-

ceived funding by PBX Hacking (not speciﬁcally for

an individual attack) (Lisa Vaas, 2011). This gen-

eral thought of terrorist groups being funded by PBX

Hacking and general telecommunication fraud is fur-

ther reinforced by a former corporate security fraud

manager at a large global telecommunications opera-

tor

Europol in a joint report with TrendMicro claim

that telephony fraud is originating in failed states and

“being used to prop up failing economies” (Europol

and Trend Micro, 2019).

2.4 Advance Persistent Threat (Kill

Chain)

The Cyber Kill Chain is an adaption of the military

use of the term “Kill Chain” by Lockheed Martin to

describe how an enemy carries out an attack in cy-

ber space (Lance Spitzner, 2019). Researchers from

Lockheed Martin deﬁne an Advance Persistent Threat

(APT) as actors who are well trained and resourced in

performing continual campaigns against their targets

in an attempt to acquire information of a conﬁdential

nature such as proprietary or national security (Eric M

Hutchins and Michael Cloppert and Rohan M Amin,

2011). Tankard describes “Advance” as the skill set of

the hackers, along with techniques and exploits used,

while “Persistent” refers to their continual attempts

in gaining and maintaining access and “Threat” be-

ing hard to defend against due to the sophistication

(Tankard, 2011). Tankard quotes McAfee as imply-

ing the sophistication of techniques used by attackers

are only seen the defence sector (Tankard, 2011).

Hutchins et al. deﬁne the kill chain as “a system-

atic process to target and engage an adversary to cre-

ate desired effects” (Eric M Hutchins and Michael

Cloppert and Rohan M Amin, 2011). This is true

within the context of the Air Force where the kill

chain is deﬁned as Find, Fix, Track, Target, Engage,

Asses (F2T2EA) (John A Tirpak, 2000). Hutchins et

al. further describes that the cyber equivalent of the

kill chain as Reconnaissance, Weaponization, Deliv-

https://riskandassurancegroup.org/telecoms-fraud-

terrorism-and-money-laundering-by-david-morrow-of-

fraud-ﬁt/

ery, Exploitation, Installation, Command and Control,

Actions on Objectives (Eric M Hutchins and Michael

Cloppert and Rohan M Amin, 2011).

3 METHODOLOGY

The Honeypot ran over a 115-day period between

18th October 2018 00:00 BST – 9th February 2019

23:59 GMT. However, due to recording errors (such

as the Virtual Machine (VM) becoming full), 12 days

were not included in the data sets. Therefore, for

the purpose of analysing data, this Honeypot ran for

103-days. Furthermore, for a short period (21 days)

between the 20th December 2019 00:00 GMT to

9th January 2020 23:59 GMT the Honeypot experi-

ment was setup in a basic VoIP Ports monitor only

scenario to monitor SIP attacks on the system over

the 2019/2020 Christmas period. In this experiment

an Invite, Registration and Option have the meaning

set out within IETF RFC 3261 (Internet Engineering

Task Force, 2002). The main Honeypot was not ad-

vertised, except from several weeks earlier when it

was used to conduct a 10-day experiment (McInnes

et al., 2019).

Unlike historic research from over 6 years ago

(Essen and Vienna), this Honeypot used a well-known

and distributed PBX called FreePBX

. The beneﬁt of

this is that meta data exchanged in Invites, Registra-

tions and Options would provide details on the PBX

such as software version.

3.1 PBX Conﬁguration

The Honeypot was set up in a similar conﬁguration to

the 10-day Honeypot that was previously conducted

(McInnes et al., 2019). The location of the VM was

London, United Kingdom.

In addition to the SIP ports (TCP/UDP 5060 –

5070) being opened as per the 10-day experiment

(McInnes et al., 2019), ports 80 and 443 were also

opened to monitor any web trafﬁc attempts. To pre-

vent any attacker successfully gaining access, the

.htaccess was modiﬁed to allow access from speciﬁc

IPs, but ultimately would log if any connection at-

tempt had been made. The same SIP user accounts

that were created in the 10-day experiment were also

used in this experiment in an attempt to see if hack-

ers are able to successfully authenticate through brute

force.

There were various options to capturing data, such

as Packet Analysis, Asterisk Log and Apache Logs.

https://www.freepbx.org

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

A similar method used in the 10-day experiment

(McInnes et al., 2019) was also used in this experi-

ment. To investigate and note any trends, Wireshark

was used to extract knowledge out of the results us-

ing the tools built in to summarise key information

on both SIP and Web protocols. To make sure results

were not skewed by our own activity, we have made

sure that our access has been omitted from the results.

3.2 PBX Security

The security of the experiment is important as the ob-

jective is to observe hack attempts, but not actually

get hacked itself. Therefore, several techniques were

used to enable this.

The VM provider provided a ﬁrewall at the cloud

level. Therefore, by default all ports were closed ex-

cept SIP and Web Ports. The SSH port for control-

ling the server was opened up to only allow connec-

tions from a select number of IPs. In addition to this,

to prevent third parties from the VM provider seeing

any of the data, disk encryption was also used on the

VM partition using LUKS at the OS Level. Further-

more, as discussed in the previous section, a .htaccess

ﬁle was used to control the ﬁles any potential hacker

could access if they attempted to access via the web

ports. Finally, the PBX came with a feature called

Fail2Ban that could ban IP addresses on certain pa-

rameters being met. Although in the real world this

may help, in our experiment this feature could impede

us collecting full results to demonstrate the scale of

such problem. Therefore, this feature was disabled.

4 RESULTS

During the 103-day period, the Honeypot encountered

100,898,222 inward SIP messages. This is a mean av-

erage of 979,594 messages per day. A sample of these

days can be seen in Table 1. During the experiment

only 0.03% of all Registration attempts registered

successfully. During the 103-day period all exten-

sions that had the same username and password com-

bination registered successfully. During this experi-

ment, the system resources were not actively moni-

tored although on occasions the CPU was 80% when

attackers conducted attacks in short time periods.

4.1 Attack Origination

During the 103-day Honeypot period, the Honeypot

received SIP messages originating from 732 differ-

ent IP subnets from 45 different countries. Table 2

Table 1: Summary Breakdown of SIP Messages Received.

SIP Message Type Received

Date Register Invite Option

18/10/2018 265,365 155 64

19/10/2018 243,161 23,621 78

08/02/2019 133,245 12,081 2,779

09/02/2019 555,654 5,867 1,240

Total 98,928,641 1,790,648 179,633

demonstrates the most popular IP Subnets. In this ex-

periment an IP Subnet means a /24 IP range where the

last octet has been removed for data privacy reasons.

Table 2: Top Countries of IP /24 subnets Observed.

Country Amount

France 199

United States 186

Palestine Territories 70

Germany 45

Netherlands 40

Canada 30

Russia 29

United Kingdom 16

Poland 14

Italy 11

Other 92

Total 732

4.2 Christmas 2018 Slow Down

During the 2018 Christmas period, there was a sig-

niﬁcant slowdown in attacks of Registrations, Invites

and Options. Speciﬁcally, on Boxing Day 2018, the

Registrations were the lowest by a signiﬁcant margin

recorded during the entire 103-day Honeypot period.

The lowest Registration and Invites were witnessed

during this period and have been underlined in Ta-

ble 3. The SIP messages daily mean average during

the Christmas 2018 period (excluding 24/12/2018 as

there is a large difference) is 153,575.

During the Christmas period of 2019, the Honey-

pot ran for a short period between the 20th December

2019 to 9th January 2020. During this period there

was no slow down over the Christmas period. Only

the basic Registration, Invites and Options were ob-

served. There was a total of 11,919,525 SIP Mes-

sages received during the 21 days. Table 4 contains

The VoIP PBX Honeypot Advance Persistent Threat Analysis

Table 3: Christmas 2018 SIP Messages Received.

SIP Message Type Received

Date Register Invite Option

24/12/2018 4,420,467 5,397 326

25/12/2018 2,409 3,828 326

26/12/2018 404 887 758

27/12/2018 83,294 935 101

28/12/2018 94,588 738 881

29/12/2018 109,225 1,596 403

30/12/2018 312,117 1,596 804

31/12/2018 460,416 145 133

the Christmas 2019 break down comparison to the

same period in 2018. The SIP messages daily mean

average during the 2019 Christmas period (exclud-

ing 24/12/2019 to compare the same date range) is

746,222 (567,596 messages per day if considering the

21 day period the Honeypot ran for.)

Table 4: Christmas 2019 SIP Messages Received.

SIP Message Type Received

Date Register Invite Option

24/12/2018 422,690 12,251 1,024

25/12/2018 377,845 15,684 289

26/12/2018 207,709 10,725 740

27/12/2018 775,099 7,142 747

28/12/2018 608,075 10,323 896

29/12/2018 1,742,582 7,284 172

30/12/2018 340,244 14,421 4,114

31/12/2018 1,089,406 8,449 1,605

4.3 Unauthenticated Invites

During the 103-day experiment, there were 1,170,828

call attempts across 1720 telephone numbers in 119

countries (including numbers that were internal ex-

tensions and numbers not known). The most popular

countries along with their proportion of numbers can

be seen in Table 5.

To summarise there were 1,790,648 Invites, but

overall there were 1,170,828 call attempts. This is

because when an attacker attempts a call, it may get

rejected, therefore they may try to authenticate and

then send the Invite again. This would be classed as 1

call attempt. The majority of these numbers were low

cost and not premium in nature.

Figure 1 shows the disruption of IP subnets that

generated the call attempts.

In this experiment the following countries were

observed with having 6 or more digits in their preﬁx

when attempting to call out:

Table 5: Individual Numbers Observed.

Country

Unique

Numbers

Total

Call

Attempts

Percent

Invites

United States 522 127,077 10.9%

Unknown 189 1,218 0.1%

United

Kingdom

126 453,791 38.8%

Germany 122 142,911 12.2%

Israel 80 44,841 3.8%

Poland 52 147,765 12.6%

Turkey 46 65 0.0%

Sri Lanka 34 34 0.0%

Myanmar 33 34 0.0%

Norway 28 136,621 11.7%

Other 448 116,471 9.9%

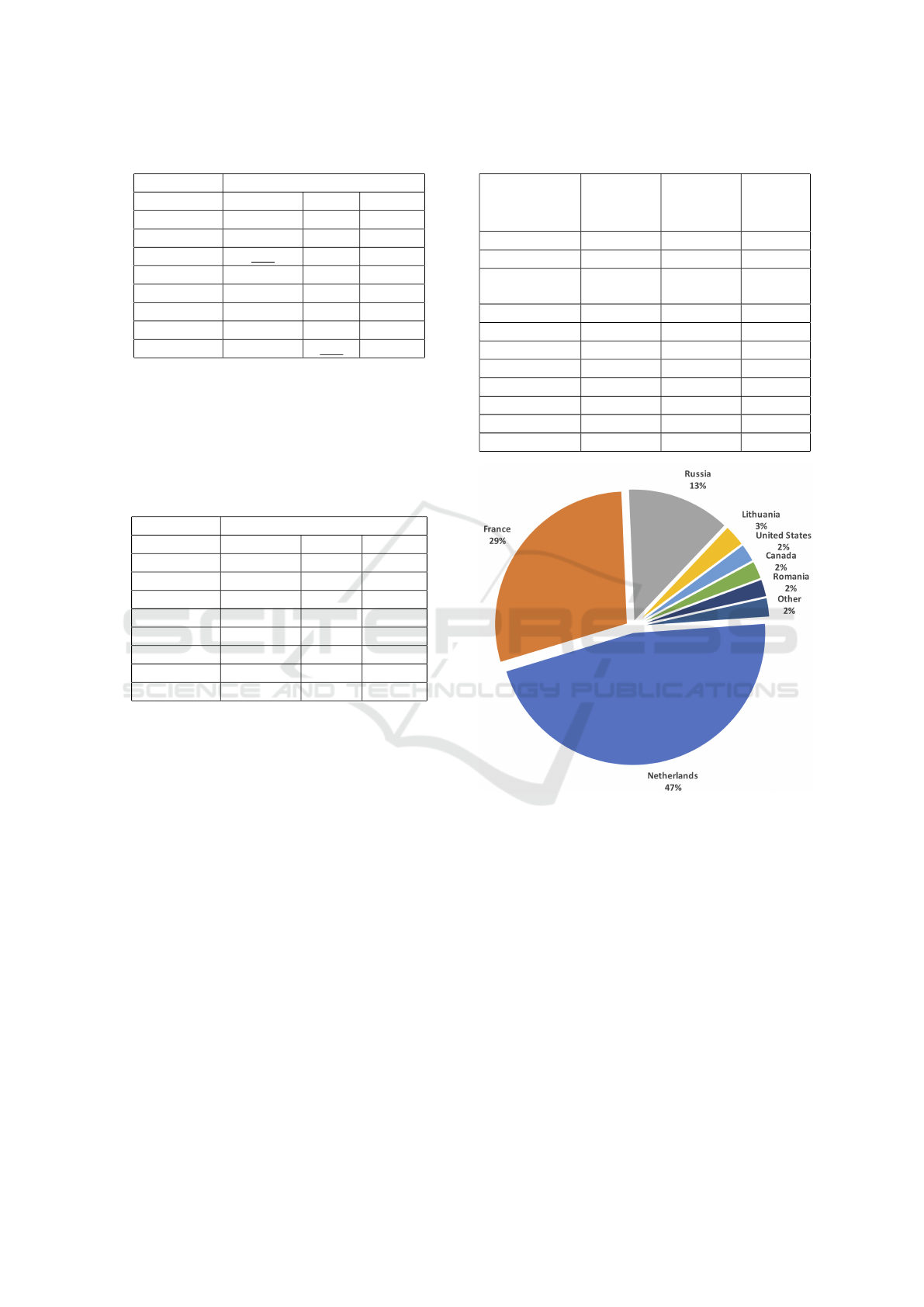

Figure 1: Top Countries where Invites Originated from

based on IP /24 Subnet.

• Argentina

• Belgium

• France

• Germany

• Ireland

• Israel

• Netherlands

• Norway

• Palestinian Terr.

• Poland

• Spain

• Sweden

• United Kingdom

4.4 SQL Injection Invites

During the detailed analysis of Invites, peculiar ac-

tivity was observed in some of the “From” head-

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

Table 6: Sample SQL Injection SIP Headers.

From To

or”=’hsip:’or”=’@IPi 97059995XXXX hsip:97059995XXXX@IPi

hsip:’or”=’@IPi

hsip:90114681240XXXX@IPi

4+2=11hsip:4+2=11@IPi

0221518595XXXXhsip:0221518595XXXX@IPi

a’or’3=3–hsip:a’or’3=3–@IPi

003375677XXXXhsip:003375677XXXX@IPi

hsip:&= 72ZyTaKvw5CvD4urd@IPi

hsip:0044190491XXXX@IPi

Table 7: Common SQL related resources being attempted.

URL

Count of Resource

attempted

/phpMyAdmin/scripts/setup.php

189

/phpmyadmin/scripts/db .init.php

/mysql/sqlmanager/index.php

/phpMyAdmin/

/DownFile.php?ﬁlename=../../../../../../../../etc/passwd%00

/estadisticas/download.php?csv=../../../../../../../../../etc/passwd

/download ﬁle.php?ﬁle=../../../../../etc/passwd

/export.php?export=../../../../../../../../../etc/passwd

ers within the Invite messages being received by the

Honeypot PBX. These “From” headers were receiv-

ing non-numerical characters. On detailed inspection,

it was realised that these were SQL injection attempts.

Some examples can be seen in Table 6.

4.5 URL Accessed

During the 103-day period, web ports were observed

in an attempt to see what, if any activity, occurred on

web ports and do attackers attempt to gain access or

an advantage using web ports? There was a total of

43,872 resource requests made, to a total of 1856 dif-

ferent URLs on port 80. On port 443 (Secure Socket

Layer), there were 15,680 resources requested where

1,222 were unique.

During the 103-day period, there was a signiﬁ-

cant continual attempt to access SQL database man-

agement software known as PhPMyAdmin

. Ad-

ditionally, there were regular attempts to access the

/etc/passwd ﬁle on the Linux Server through path

traversal attacks

. It was observed where a VoIP

based resource was attempted to be accessed on port

80, it would regularly follow the redirection to port

443. However, most non-VoIP based resources did

not follow, or attempt on port 443. Examples of these

can be seen in Table 7.

Many of the attempted URLs were not thought to

be VoIP or PBX related. Therefore, these were called

noise. Most SQL and traversal were noise, although

https://www.phpmyadmin.net

https://owasp.org/www-

community/attacks/Path Traversal

as discussed later some were also VoIP Based. Table 8

contains the top 10 accessed VoIP Resources on Port

80.

The most attempted page accessed is the PBX

admin conﬁguration page (/admin/conﬁg.php). The

second most popular is the recordings folder. The

third most accessed resource was the administrative

interface for an open source VoIP Billing software

(A2billing

). The different URL’s witnessed in re-

lation to A2billing, attempted to make use of a secu-

rity vulnerability which allowed database backups

By gaining access to this, attackers would have the

raw SIP credentials to be able to facilitate their attacks

(among other customer data resulting in a signiﬁcant

data breach). These can be seen in Table 9.

It was also observed that a traversal attack was at-

tempted using a vulnerability in the vtigerCRM soft-

ware in an attempt to access the Asterisk sip.conf

ﬁle which could facilitate access to SIP credentials

that may exist

. Vtiger is a Customer Relationship

Manager (CRM) software which contains a telephony

gateway

. These speciﬁc attempts can be seen in

more detail in Table 9.

When analysing the URLs that were attempted,

it was noticed that names of devices were regularly

appearing. On further investigation, these are pro-

visioning folders or ﬁles potentially containing cre-

http://www.asterisk2billing.org

https://www.exploit-db.com/exploits/42616

http://www.asteriskdocs.org/en/3rd Edition/asterisk-

book-html-chunk/DeviceConﬁg id216341.html

https://www.exploit-db.com/exploits/35574

https://www.vtiger.com/docs/phone-calls

The VoIP PBX Honeypot Advance Persistent Threat Analysis

Table 8: Top 10 VoIP Resources requested.

URL

Count of URL

/admin/conﬁg.php

23,857

/recordings/

325

/a2billing/admin/Public/index.php

311

/recordings/page.framework.php

/vtigercrm/vtigerservice.php

//recordings/

/recordings/index.php

/ asterisk/

/vtigercrm/modules/com vtiger workﬂow/sortﬁeldsjson.php?module name=

..%2f..%2f..%2f..%2f..%2f..%2f..%2f..%2fetc %2fasterisk%2fsip.conf%00

/digium phones/

Table 9: A2billing and VTiger Vulnerability Examples.

URL

Count of URL

/a2billing/admin/Public/A2B entity backup.php?form action=add&path=

/var/www/html/ asterisk/.txt

/a2billing/admin/Public/A2B entity backup.php?form action=add&path=

/var/www/html/assets/.txt

/a2billing/admin/Public/A2B entity backup.php?form action=add&path=

/var/www/html/recordings/.txt

/a2billing/admin/Public/A2B entity backup.php?form action=add&path=

/var/www/html/var/.txt

/vtigercrm/graph.php?module=../../../../../../../..//etc/passwd%00

/vtigercrm/graph.php?module=/etc/passwd%00

/vtigercrm/modules/backup/page.backup.php?action=download&dir=/etc/passwd

dential details for a speciﬁc phone. This could infer

there is a vulnerability in this method of provision-

ing phones. In addition, Table 8 contains the folder

“/digium phones/” which is used by handsets for con-

ﬁguration and provisioning

The IP Subnet data collected on URLs were cross

referenced with that witnessed in SIP Attacks. On

port 80, there were 2,618 different IP subnets ob-

served. When cross referencing these, 68 subnets

were found to be in common. It was observed that a

Dutch IP subnet that resulted in the highest amount of

data for any individual subnet on SIP attacks was also

the subnet that was responsible for the largest amount

of VoIP Based URL attempts and was responsible for

a large portion of URL attempts to the admin conﬁgu-

ration panel, along with attempts to exploit A2billing

vulnerabilities and the recordings folder.

https://support.digium.com/s/article/Why-can-t-I-

update-phone-ﬁrmware-or-custom-ringtones-after-a-

FreePBX-update

5 DISCUSSION OF RESULTS

The 103-day experiment has re-enforced the original

ﬁndings of the original 10-day experiment (McInnes

et al., 2019), but with providing an improved estimate

of the scale due to its prolonged duration. If this ex-

periment were to run for the same duration as that of

the Essen Honeynet (771 days) (Hoffstadt et al., 2012)

then it is projected there would be 760 million SIP

messages which is more than 16 times the scale. This

is more accurate than the 30 times the scale ﬁnding

due to 1 day skewing the results because of a large at-

tack in the 10-day experiment (McInnes et al., 2019).

Furthermore, it is worth considering that this is just

1 Honeypot, where the Essen experiment had several

Honeypots to make up a Honeynet. Either way, this

demonstrates the size of attacks have increased signif-

icantly since the Essen Honeynet began.

It was observed through Wireshark, there were

a large number of Invites compared to total call at-

tempts. This can be explained either because the PBX

was overloaded and had not responded fast enough

and therefore resent or (most occasions) was because

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

the PBX would send a 401 requesting the attacker

to Register (i.e. their Invite was unauthenticated), at

which point the attacker would send the same Invite

again, but with registration details. This signalling

ﬂow can be observed in Figure 2.

The difference in call attempts can be seen in the

SIP Invite messages (Figure 3) where the Call-ID

are the same, meaning the same call attempt, but the

caller attempts to authenticate. This is an alternative

way of Registering with a PBX than directly Regis-

tering.

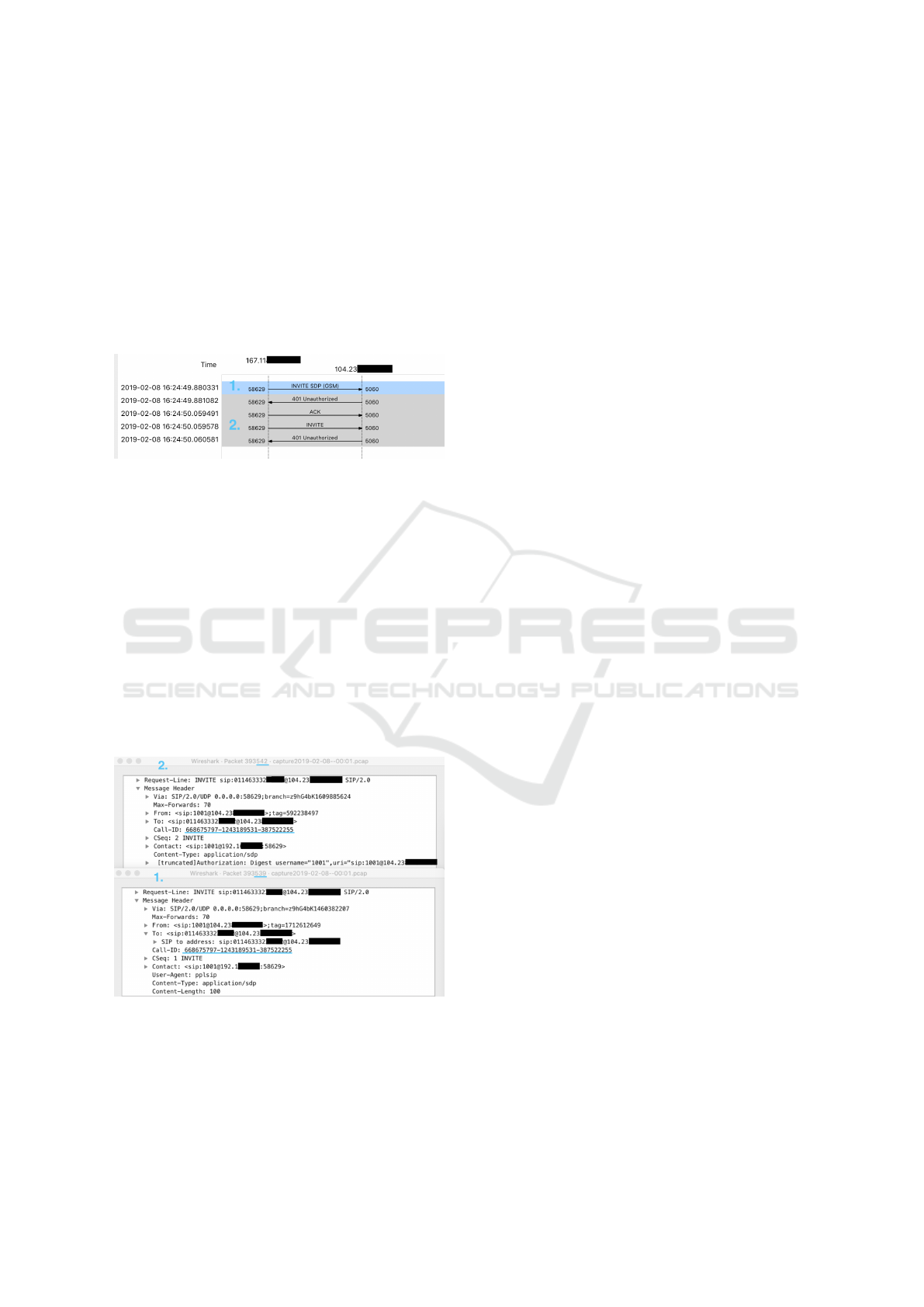

Figure 2: Wireshark Unauthorised Invite Attempt.

On detailed inspection, it can be seen the attacker

is attempting to make the IP source (from header) of

the call appear as if it is coming from the PBX itself

suggesting that there is a vulnerability that some sys-

tems would allow the call to go through as the PBX

may be tricked into believing the call originated in-

ternally. 104.23. . . .. is the IP of the PBX Honey-

pot and it can be observed that the number beginning

011463332 is a Swedish number where 011 is the

preﬁx being used to dial international from a North

American country. This could suggest that some tele-

phony systems are vulnerable to this method of attack

(i.e. if the IP is local to the machine, then skip authen-

tication).

Figure 3: Wireshark Authenticated Invite Attempts.

The same user agents that were detected in the

10-day Honeypot (McInnes et al., 2019) were also

detected in this experiment. As seen in Figure 3,

“pplsip” is the user agent used in this Invite. However,

on other occasions as similar to the 10-day Honeypot,

user agents were giving the impression of other VoIP

Equipment being used to attack the PBX Honeypot

(Such as Avaya, Cisco etc.).

In the 10-day experiment (McInnes et al., 2019),

it was suggested that SIP hardware has been com-

promised (due to various user agents appearing to

be hardware). It could also suggest attackers are at-

tempting to trick the PBX into believing that speciﬁc

equipment is attempting to make use of the PBX as a

method of overcoming authentication requirements or

hiding attack attempts. This can further be expanded

to suggest another theory and reinforce a botnet idea

that there is a botnet of different hacked devices. As

witnessed in the web traversal attempts, access to the

/etc/passwd ﬁle on Linux system would provide the

ability for the attacker to compromise and control that

system, adding it to a botnet. This may explain how

so many systems appear to be involved attacking.

Essen researchers concluded that different attack-

ers were involved in different elements of the attack

(Hoffstadt et al., 2012). Based on this Honeypot, it

would reinforce the 10-day Honeypot suggestion that

there is now a botnet involved in attempting to hack

PBXs due to the distribution of IPs witnessed and the

wide variety of equipment that is claimed to be used.

The Essen researchers made a claim that attack-

ers shared data between themselves (Hoffstadt et al.,

2012). This does remain valid, but this may have

been mistaken for botnet activity which is better un-

derstood today as the actual attackers appear to be the

same (Christmas slow down – discussed later on), but

their means are to use systems that are distributed to

attack the Honeypot making it harder to block if a sys-

tem needs to remain open as users are geographically

distributed (i.e. not on the same network).

There were only IP Subnets in 45 countries over

103 days witnessed, which is signiﬁcantly less than

the 75+ countries witnessed in the 10-day Honeypot.

This could be because the machines available to at-

tackers are always changing.

When analysing IP Subnets, it was observed that

Invite IPs were rarely the same as registration IP Sub-

nets. Although there is a large number of examples

where attackers already knew the extension numbers

of extensions when sending Invites. This may be be-

cause a similar conﬁguration was used previously, and

the attackers have this information stored (10-day ex-

periment (McInnes et al., 2019)). This can also be

determined through trying to Register as different er-

ror codes are sent by the PBX when the credentials

are wrong, or a user does not exist. Therefore, over

time an attacker could build a list of users. It was also

observed that over 50% of Invites had they’re “From”

The VoIP PBX Honeypot Advance Persistent Threat Analysis

header set as a valid extension number, although there

had been no Registration from those IPs. This can

be seen in Figure 3. It is not always a requirement

to authenticate with a username/password. Calls can

be authenticated through Caller Line Identity (CLI)

which may explain why attackers attempted to use

known extensions. Furthermore, some systems may

also be vulnerable to SQL Injections after similarly

seeing attempts in the “from” SIP signalling header

as shown in Table 6. This could be attempting to by-

pass authentication through SQL injection where call-

ing is based on CLI Authentication which would re-

inforce that some systems could be vulnerable and do

there authentication based on extensions as witnessed

earlier where many Invites contained valid extension

numbers.

The level of the sophisticated nature and persis-

tence of these attacks demonstrates similarities to that

of the background literature discussed Kill Chain and

an Advance Persistent Threat (APT). This is demon-

strated by the witnessed qualities:

• Advance:

– Attackers use a large range of methodologies

and vulnerabilities in software and misconﬁgu-

rations across various web and VoIP attack vec-

tors.

– Utilising complexity of cross border stakehold-

ers involved in the Call Chain.

– Attackers appear to originate from many coun-

tries.

– Attackers have over 1,000 low-cost numbers

available to them (logistically complicated to

manage this setup) suggesting stealthy based

behaviour in an attempt to be able to call out

without raising suspicion prior to main attack.

This is similar to behaviour identiﬁed histor-

ically by C. Yates

, although many of the

numbers witnessed in our experiment would be

classed as regular landline numbers.

• Persistent:

– On connection to the internet, PBX system is

under attack soon after. Almost appearing ev-

ery minute of every day.

– Previous research suggests once attackers gain

access they do not call immediately, although

our research showed attackers were attempting

numbers persistently.

• Threat:

– Spectrum of vectors used by attackers means

only way to defend is to block all ports on a ﬁre-

http://www.yatesfraudconsulting.com/prism-irsf-db/

wall, but this action would signiﬁcantly limit

functionality.

In addition, the sophistication, automation and re-

sources (numbering, suspected botnets etc.) avail-

able to the attackers demonstrated by monitoring web

ports showed the lengths attackers would go to in

an attempt to get access to SIP credentials and make

calls. Cross referencing of IPs demonstrated that the

same attackers are involved in multi-vector type at-

tacks to gain access. Furthermore, the large amount

of money involved would require specialist skills to

launder the signiﬁcant scale of money involved in

these frauds (possibly across multiple borders, out-

side the telephony network). It would be difﬁcult to

believe if this was a lone actor conducting these at-

tacks, but a sponsored group who are well organised.

Given the geographical spread of IP’s involved it is

difﬁcult to determine where these attackers are actu-

ally located. However, during Christmas 2018 (Table

3) the attacks signiﬁcantly decreased, which deﬁes

logic considering phones systems would most likely

have less attention given to them during this time pe-

riod and attacks could be more proﬁtable if an attack

is successful. This provides the impression that at-

tackers possibly celebrate Christmas and the opera-

tion still has signiﬁcant human oversight. It also sug-

gests given the large reduction in attack frequency,

it was possible only 1 or a small handful of attack-

ers were involved in attacking our Honeypot. During

Christmas 2019 (Table 4), the Honeypot was repeated

and during this time, there was no slow down. This

could be explained by an apparent improvement in au-

tomation of the operation since the original Hoffstadt

et al. experiment.

This sophistication is evident in the web protocol

monitoring which saw vulnerabilities in PBXs and

VoIP software attempting to be exploited. If these

vulnerabilities were exploited it could have not only

provided the attacker with SIP credentials, but also

personal data (CRM and billing systems) which could

provide extra value to attackers if they were to sell this

data on.

Expanding previous research investigating PBX

hacking as a whole, this research has demonstrated

that PBX hacking has become highly sophisticated

when compared to previous studies. The multi-vector

(SIP and Web) based methods would require a lot of

resources and planning. Due to the large number of

attacks, the methodologies involved and sophisticated

nature with some IP subnets being involved in cross

vector attacks, it is unlikely to be a large number of

entities involved. This is based on the following evi-

dence:

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

• Over 1000 numbers setup in over 100 countries.

• Attacks originate between 700-800 IP Subnets.

• Highly specialised and niche fraud where signiﬁ-

cant understanding of the sector is required.

• With the value of money being moved, specialised

cross border money laundering skills are required.

In comparison to the Essen Honeynet (Hoffstadt

et al., 2012) and the 10-day Honeypot (McInnes

et al., 2019), this 103-day Honeypot and the addi-

tional Christmas 2019 period demonstrates the wide

variety of methods attackers are using in an attempt

to be able to make outbound phone calls. Further-

more, given the scale of events (SIP and Web based)

that have been logged, it would suggest that attack-

ers have improved the automation of their operations.

Elements may still be manual, however based on the

evidence so far, the money involved and size of the

operation, it would suggest this is mostly if not all au-

tomated now.

Sengar suggested that poor conﬁguration and lack

of complex credentials rather than SIP vulnerabilities

are the reasons why SIP systems are compromised

(Sengar, 2014). This research has partially conﬁrmed

this conjecture through seeing poor SIP credentials as

a mechanism for registering with a PBX, although

this research has also demonstrated that there is a

strong indication that given the methodologies used

by the attackers, some methods used are vulnera-

bilities rather than poor conﬁguration. For example

SQL Injection would be a vulnerability at the SIP and

database level due to non-escaping rather than con-

trolled within the administrators domain. This is fur-

ther demonstrated by web based vulnerabilities being

used by attackers against conﬁguration web panels.

This demonstrates how attackers have become more

thorough in there persistence in attempting to inﬁl-

trate a VoIP System.

The large number of IP Subnets involved demon-

strate the challenges Cloud VoIP and PBX administra-

tors have in attempting to protect against attack, while

also not limiting the ﬂexibility, functionality and ben-

eﬁts of NGNs. Due to the high volume of countries

where attacks appear to originate, blocking countries

may not work. Additionally, attacks appear to origi-

nate from well developed countries, so blocking spe-

ciﬁc countries may not be practical. Given it is also

unclear if devices are getting hacked and comman-

deered into a botnet, a different approach is required

around attempting to secure setups. This could in-

clude requiring SIP devices to be on the same net-

work through a Virtual Private Network (VPN) con-

nection, implementing features such as Fail2ban (as

discussed in the methodology), using provider spend

limiting and implementation of other ﬁrewall type

controls. Although, realistically each setup is differ-

ent and would need professional consideration around

how to secure each setup while maintaining the func-

tionality and beneﬁts PBXs, VoIP and NGN’s bring.

6 CONCLUSION

The data and ﬁndings of this 103-day Honeypot has

demonstrated the increase in threats facing PBX own-

ers. Following on shortly after a 10-day Honeypot

(McInnes et al., 2019), this experiment has on bal-

ance through a longer run experiment shown that at-

tacks are on average 16 times more aggressive than

historic research in this area.

This experiment was conﬁgured similar to a pre-

vious 10-day Honeypot (McInnes et al., 2019). This

Honeypot (unlike the 10-day experiment) also mon-

itored web ports for hacking attempts in addition to

VoIP ports. In doing so it witnessed that attackers are

multi-discipline in nature by conducting attacks not

only on VoIP protocols, but also web protocols, where

in some cases these were from the same IP subnets.

This research witnessed attempts to make use of vul-

nerabilities in popular VoIP based software for man-

agement and billing used by businesses and providers

respectively to either gain access to these systems for

gathering SIP credentials or to possibly commandeer

to add to a botnet. This experiment also witnessed un-

like previous research, SQL injection style attacks in

the SIP signalling message suggesting that some SIP

systems are vulnerable to malformed SIP headers.

This research saw 100,898,222 SIP messages (ex-

cluding Christmas 2019) in 103 days from over 732

IP subnets in 45 countries. Furthermore, it observed

1,170,828 call attempts to 1720 different numbers in

119 countries. It was witnessed that many of these

attempts appeared to originate from the Honeypot IP

address in the “From” SIP header which suggests a

poorly implemented authentication vulnerability ex-

ists in certain equipment. Furthermore, given the

scale of events this research logged, including how

Christmas 2018 attacks subsided, while Christmas

2019 continued, it would suggest the attackers opera-

tion is now mostly, if not fully automated.

Given the background literature suggesting that

telecom fraud is “being used to prop up failing

economies” (Europol and Trend Micro, 2019), along

with the expected revenue this type of fraud generates

and the technical complexity, sophistication in multi-

ple disciplines and scale in terms of attack sizes, this

research suggests there is an APT dedicated to PBX

hacking to conduct Toll Fraud.

The VoIP PBX Honeypot Advance Persistent Threat Analysis

Finally, as this research has demonstrated that at-

tacks are growing in sophistication and that attacks

are multi-vector in nature, the Honeypot experiment

could be repeated, but this time monitoring other pro-

tocols to see if attackers who are involved in VoIP

Hacking (through VoIP and Web protocols), are also

attempting to break into PBXs via other protocols.

ACKNOWLEDGEMENTS

This work was supported by the Digital Economy pro-

gramme, led by the Engineering and Physical Sci-

ences Research Council on behalf of UK Research

and Innovation.

Acknowledgement would also like to be given E.J.

Zaluska who was initially involved with the supervi-

sion of this research.

REFERENCES

Central Netherlands District Court (2014). Zoekresul-

taat - inzien document ecli:nl:rbmne:2014:2617.

https://uitspraken.rechtspraak.nl/inziendocument?id=

ECLI:NL:RBMNE:2014:2617 - Retrieved December

10, 2020.

Colin, D. and Richard, C. T. (2019). Detecting and Com-

bating Internet Telephony Fraud - Crime Solvability

Factors, pages 127–148. Springer.

Eric M Hutchins and Michael Cloppert and Rohan

M Amin (2011). Intelligence-driven computer

network defense informed by analysis of adver-

sary campaigns and intrusion kill chains. https:

//www.lockheedmartin.com/content/dam/lockheed-

martin/rms/documents/cyber/LM-White-Paper-Intel-

Driven-Defense.pdf - Retrieved December 10, 2020.

Europol and Trend Micro (2018). Toll fraud, in-

ternational revenue share fraud and more.

https://www.europol.europa.eu/sites/default/ﬁles/

documents/cytel fraud intelligence notiﬁcation.pdf -

Retrieved December 10, 2020.

Europol and Trend Micro (2019).

Cyber-telecom crime report 2019.

https://www.europol.europa.eu/sites/default/ﬁles/

documents/cyber-telecom crime report 2019 public

.pdf - Retrieved December 10, 2020.

Gruber, M., Schanes, C., Fankhauser, F., and Grechenig, T.

(2013). Voice calls for free: How the black market

establishes free phone calls-trapped and uncovered by

a voip honeynet. In 2013 11th Annual Conference on

Privacy, Security and Trust, PST 2013, pages 205–

212.

His Honour Judge David Grant (Bailii.org) (2014).

Frontier systems ltd trading as voiceﬂex

(claimant) -and- frip ﬁnishing ltd (defendant).

https://www.bailii.org/ew/cases/EWHC/TCC/2014/

1907.html - Retrieved December 10, 2020.

Hoffstadt, D., Marold, A., and Rathgeb, E. P. (2012). Anal-

ysis of sip-based threats using a voip honeynet system.

In Proc. of the 11th IEEE Int. Conference on Trust,

Security and Privacy in Computing and Communica-

tions, TrustCom-2012 - 11th IEEE Int. Conference on

Ubiquitous Computing and Communications, IUCC-

2012, pages 541–548.

Internet Engineering Task Force (2002). Sip: Session ini-

tiation protocol. https://www.ietf.org/rfc/rfc3261.txt -

Retrieved December 10, 2020.

John A Tirpak (2000). Find, ﬁx, track, target, engage, as-

sess. https://www.airforcemag.com/article/0700ﬁnd/ -

Retrieved December 10, 2020.

Lance Spitzner (2019). Applying security awareness to the

cyber kill chain. https://www.sans.org/security-

awareness-training/blog/applying-security-

awareness-cyber-kill-chain - Retrieved December 10,

2020.

Lisa Vaas (2011). Manila at&t hackers tied to ter-

rorist attack in mumbai. https://nakedsecurity.

sophos.com/2011/11/30/manila-att-hackers-tied-to-

terrorist-attack-in-mumbai/ - Retrieved December 10,

2020.

Marketwired (2016). Argyle data recommendations from

cfca’s 2015 fraud survey analysis: Think globally, act

locally. https://ﬁnance.yahoo.com/news/argyle-data-

recommendations-cfcas-2015-100000320.html - Re-

trieved December 10, 2020.

McInnes, N., Wills, G., and Zaluska, E. (2019). Analysis of

a pbx toll fraud honeypot. International Journal for

Information Security Research, 9(1):821–830.

New York Times (2014). Phone hackers dial and redial to

steal billions. https://www.nytimes.com/2014/10/20/

technology/dial-and-redial-phone-hackers-stealing-

billions-.html, Retrieved December 10, 2020.

Ofcom (2007). Regulation of voip services. https://

www.ofcom.org.uk/ data/assets/pdf ﬁle/0023/55571/

voipstatement.pdf, Retrieved December 10, 2020.

Privsec Report (2017). Telecommunications: the bat-

tle against fraud. https://gdpr.report/news/2017/05/

29/telecommunications-battle-fraud/ - Retrieved De-

cember 10, 2020.

Sengar, H. (2014). Voip fraud: Identifying a wolf in sheep’s

clothing. In Proceedings of the ACM Conference on

Computer and Communications Security, pages 334–

345.

Tankard, C. (2011). Advanced persistent threats and how to

monitor and deter them. Network Security, (8):16–19.

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security
