Vis2Learning: A Scenario-based Guide to Support Developers in the

Creation of Visualizations on Educational Data

Maylon Pires Macedo

1 a

, Ranilson Oscar Ara

ujo Paiva

2 b

, Isabela Gasparini

3 c

and Luciana A. M. Zaina

1 d

Federal University of S

ao Carlos (UFSCar), Sorocaba, S

ao Paulo, Brazil

Federal University of Alagoas (UFAL), Alagoas, Brazil

Santa Catarina State University (UDESC), Santa Catarina, Brazil

Keywords:

Information Visualization, InfoVis, HCI, User Evaluation, e-Learning, Educational Data.

Abstract:

Information Visualization provides techniques to build graphics representation that enhance human perception

from data. In educational data area, visualizations support professionals to analyze a great amount of data to

then make decisions to improve the learning-teaching process. However, the visualizations of educational data

often do not fulﬁll the needs of the end-users. In this paper, we present a scenario-based guidelines for the

development of visualizations in e-learning context. For each scenario, we provide the chart format, describe

its aim and characteristics and gives examples of its application in the e-learning context. Besides, we provide

recommendations to bring improvements to the data visualized from the users interaction with that chart. We

conducted an evaluation with 26 participants divided into two groups where one of them used our guidelines

and the other did not. Our results revealed that the participants who used the guidelines were more successful

in building the visualizations. They reported that the guidelines allow them to be concentrated on the main

purpose of the visualizations. We saw that the participants background on e-learning or on the use of charts

did not have inﬂuence in the building of suitable solutions which reinforce the usefulness of our guidelines.

1 INTRODUCTION

Information Visualization (InfoVis) area proposes

methods and techniques to assist the construction of

visualizations that are more adherent to the needs of a

target audience (Ware, 2012). From the point of view

of Human-Computer Interaction (HCI), InfoVis aims

to provide users with better graphics representation to

enhance human perception using data (Ware, 2012;

Munzner, 2014). The main focus of InfoVis is to cre-

ate visualizations that amplify the user’s perception to

facilitate the decision-making process based on data

observation and prevent users from employing exces-

sive efforts to interpret data (Card et al., 1999; Ware,

2012).

The use of charts differs from the visualization

of data in ﬂat tables, as the latter does not assist

users to infer patterns, ﬁnd trends or outliers (Card

https://orcid.org/0000-0002-2686-1103

https://orcid.org/0000-0002-0894-751X

https://orcid.org/0000-0002-8094-9261

https://orcid.org/0000-0002-1736-544X

and Jacko, 2012). One of Infovis premisses is the

use of graphical representations to obtain information

from the recognition of visual patterns (Carneiro and

Mendonc¸a, 2013).

The design of visualizations are highly attached

to the domain of data, because its main purpose is to

show data to speciﬁc users that want to achieve par-

ticular goals. Tervakari et al. (2014) report that vi-

sualizations for educational context need to show rel-

evant information in a simple and straight way with-

out requiring users to know statistics. Majumdar and

Iyer (2016) point out that visualization-based tools

are more suitable for the analysis of educational data,

since the data are numerous and complex to be under-

stood without proper treatment (Reyes, 2015). Ac-

cording to the literature, educational data comprises

information such as grades, demographic data, fre-

quency of access, delivered activities and other data

related to student’s interactions with materials (Jord

et al., 2014; Tervakari et al., 2014; Vieira et al., 2018).

The literature points to a gap in investigations on

methods and techniques that help the development

of visualizations that are adherent to the e-leaning

Macedo, M., Paiva, R., Gasparini, I. and Zaina, L.

Vis2Learning: A Scenario-based Guide to Support Developers in the Creation of Visualizations on Educational Data.

DOI: 10.5220/0010443804510462

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 451-462

ISBN: 978-989-758-509-8

451

context and fulﬁll the users’ needs at the same time

(Schwendimann et al., 2017; Vieira et al., 2018). For

being a learning modality that involves computer sys-

tems, e-learning environments handle large amounts

of data related to students’ interaction with materials.

The purpose of appropriate visualizations in this con-

text allows educational professionals (i.e. teachers,

coordinators) to have relevant information for track-

ing and assessing students’ performance. With this in-

formation, these professionals are able to make more

precise decisions about learning and teaching pro-

cesses (Schwendimann et al., 2017).

Considering the gaps presented in the literature,

we propose a set of guidelines that supports devel-

opers and designers developing visualizations in the

educational context. Our proposal differs from other

visualization guidelines to provide recommendations

to scenarios applied in the educational domain. We

designed the guidelines from lessons learned found in

the literature concerned on visualizations in the edu-

cation context. We also validated our proposal with

three specialists in the HCI and Computers in Educa-

tion area.

We performed a study with 26 participants divided

into two groups. One of these groups built visual-

izations by considering the guidelines, the other did

not use the guidelines. We gathered the two groups’

perceptions regarding the easy and difﬁcult points for

building the visualizations. Besides, the group that

used the guidelines answered a questionnaire about

perceptiveness of ease and usefulness of the guide-

lines.

2 RELATED WORK

Many studies concentrate on the deﬁnition of pro-

cesses for creating visualizations from educational

data. However, little has been done in terms of

proposing guidelines that support developing these vi-

sualization, as we can see below.

Conde et al. (2015) and Maldonado et al. (2015),

proposed a workﬂow for preparing visualizations

whose data came from learning analytics (LA) algo-

rithms. Conde et al. (2015) present a 4-stages pro-

cess: (1) identify the characteristics of the expected

results; (2) assess what data is needed; (3) select the

algorithms that will manipulate the data and which

visualizations will be used to report it; and (4) col-

lect the user’s impressions to generate new products.

Whereas Maldonado et al. (2015) deﬁnes a process

focused on evaluating tools that can be used to pro-

vide visualizations. To develop solutions for MOOCs

(Massive Open Online Courses), Chen et al. (2016)

propose an iterative process in which visualization

prototypes are successively reﬁned through interac-

tion with experts (not with end-users).

Considering speciﬁc proposal of visualizations,

Ruip

erez-Valiente et al. (2016) present a process

composed of the analysis of teaching materials avail-

able in an online learning environment and interviews

with stakeholders to choose the most suitable visual-

ization. Issues regarding users’ context and/or pref-

erences are not considered in the process of choos-

ing the visualizations. Park et al. (2017) devel-

oped a dashboard for students and teachers to follow

the learning process using e-books. The visualiza-

tions prototypes were based on related works that per-

formed usability tests. The prototypes were presented

to the interviewees for them to choose the best option.

Taking into account end-users in the construction

of visualizations in general, Victorelli et al. (2019)

propose a mixed approach between the use of guide-

lines and participatory design to engage stakeholders

throughout the development process. As a result, the

visualizations developed under the proposed process

were more adherent to the users’ needs. However, the

stakeholders classiﬁed the approach as inadequate,

as the process was considered costly because it con-

sumed a lot of time with several long meetings that

required a lot of availability from everyone involved.

In the context of educational data, Klerkx et al. (2017)

proposes a guideline to assist the construction of visu-

alizations to analyze the path of learning. The authors

deﬁne which data is relevant to evaluate performance

and then choose the visualization format, according

to the characteristics of the data. However, the pro-

posal does not concern aspects related to the user’s

interaction with the visualization.

Munzner (2014) deﬁnes a framework to guide the

evaluation and development of visualizations based

on the user’s data, tasks and domain. The author seeks

to raise awareness about the importance of contextu-

alizing the “idiom of visualization” to the user’s work.

Visualization idiom can be understood as the way in

which the user is communicated about the data, and

can be perceived by: chart formats; interaction fea-

tures (eg zoom and pinch); navigation between differ-

ent granularity of information; among other features.

The framework proposed by Munzner (2014) has

been a reference for the development of investigations

in the visualization area. However, the recommenda-

tions proposed by the author do not deal with spe-

ciﬁc visualization formats, but with aspects related to

the interaction of users with the use of visualizations.

In addition, the recommendations do not have a spe-

ciﬁc context and target audience, and are presented

throughout the different chapters of the book, requir-

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

452

ing the complete reading of the work.

3 Vis2Learning

Our guidelines are based on scenarios to assist the

development of educational data visualizations in e-

learning contexts. It has 15 scenarios for applying vi-

sualizations within the e-learning context (see Table 1

for common charts and Table 2 for advanced charts).

Each scenario describes a situation where a particular

chart can be applied with no repetition of chart format

for each scenario. For each scenario, the following in-

formation is provided: the most suitable chart and its

main characteristics and examples of application (ﬁrst

table column); and general recommendations to bring

improvements to the data visualized from the users

interaction with that chart (second table column).

The guidelines were built in a contextualized way

based on lessons learned from the literature during the

development and evaluation of educational data visu-

alizations for e-learning environments. All the pro-

cess of guidelines construction is available in previous

work of the authors (Macedo et al., 2020). In this pa-

per, we will describe the steps of the guidelines con-

struction brieﬂy. For the conception of the guidelines,

a rigorous literature search was carried out follow-

ing the Systematic Literature Review Method. The

search string was applied on ﬁve scientiﬁc papers’

search engine, returning 1207 papers. After applying

the inclusion and exclusion criteria and the analysis

of the title, abstract and conclusion of all the papers,

12 papers were considered relevant to our proposal.

They were fully read for extracting the lessons learned

presented in each paper, regarding the design and/or

evaluation of educational data visualizations. The ex-

tracted information were consolidated and submitted

to the evaluation of three specialists in HCI and Com-

puters in Education. From the validation, we reﬁned

the guidelines to its current version.

4 EVALUATION

We evaluated the use and the acceptance of our guide-

lines. In our study, two group of participants repre-

senting developers/designer constructed prototypes of

charts considering scenarios of use in e-learning con-

text. Only one group used the guidelines. Our eval-

uation was guided by two research questions: (RQ1)

How did the participants of both groups build the vi-

sualizations?, and (RQ2) What are the participants’

feedback about the guidelines?. For the RQ1, the aim

was to understand the strategies the participants took

to produce their solutions, including those that used

the guidelines. From RQ2, we explored the accep-

tance of the guidelines in the participants perspective.

Our study was approved by the ethical committee of

UFSCar with protocol number 4105750. Our study

follows the methodology proposed by Wohlin et al.

(2012) . We will present the planning, execution,

analysis and threats to the validity of our study in the

next sections.

4.1 Planning

Taking into account our RQs, we started by planning

a set of artifacts to support our study.

First, we created two scenarios of use (SU). To

fulﬁll the scenarios, the visualizations should be con-

structed taking into account our guidelines. The ﬁrst

scenario of use (SU1) followed the guideline SC2 (see

Table 1) and described a teacher’s need to visualize

the ﬁnal grade of students, composed of four partial

grades. The second scenario of use (SU2) followed

the guideline SC6 and described the teacher’s needs

to know the time students take an exam, and the aver-

age time to answer each question. The teacher had to

create one chart per student.

We also selected a tool for the prototyping of the

visualizations. We set ﬁve requirements that the se-

lected tool should fulﬁll. The requirements are: R1

- to work via a browser; R2 - allow the editing of

the tooltip text; R3 - allow the editing of the subti-

tle of a chart; R4 - allow changes in colors and the

transparency inside charts; and R5 - allow the use of

colors and patterns to differentiate groups of data in

charts. Besides, the tool should not demand expertise

in programming.

We tested the selected tools to see if they allowed

to apply SU1 and SU2, following the guidelines SC2

and SC6, respectively. We got the recommenda-

tions about the tools in JUSTINMIND blog (JUSTIN-

MIND, 2020) and applied our set of requirements.

After analysis of basic characteristics, four tools were

chosen and evaluated according to the ﬁve require-

ments mentioned above. The results can be seen in

Table 3. The two last columns show whether the SUs

could be applied or not, by using these tools. After the

analysis, we chose AMCHARTS as the most suitable

tool to our purposes. After selecting the tool, we de-

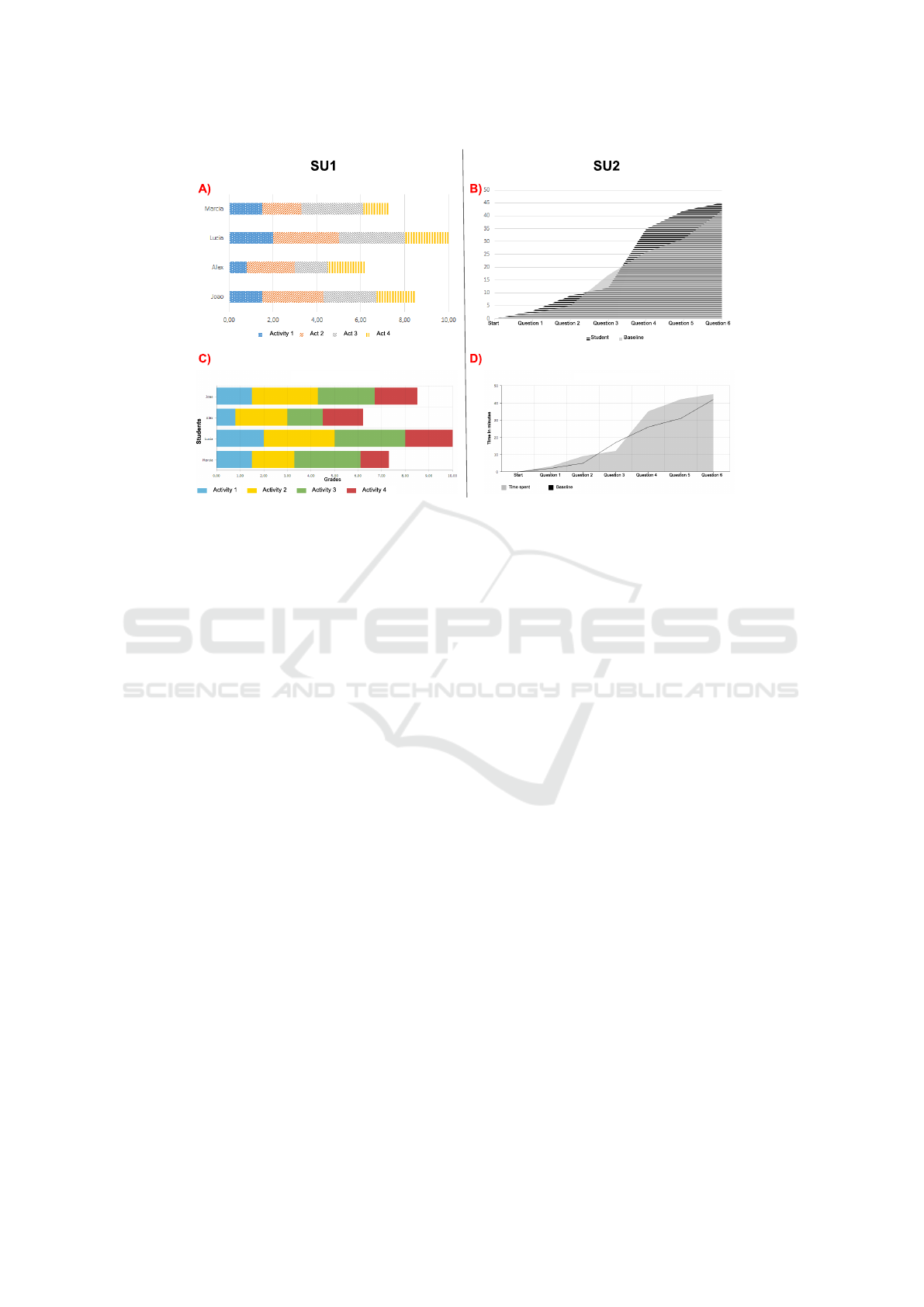

veloped the templates for the SU1 (see Figure 1 - A)

and SU2 (see Figure 1 - B), following the guidelines.

The two templates served as baselines for comparing

with the solutions produced by the participants of the

study.

We also created an online feedback questionnaire

based on the Technology Acceptance Model (TAM)

Vis2Learning: A Scenario-based Guide to Support Developers in the Creation of Visualizations on Educational Data

453

Table 1: Vis2Learning - Scenarios with common charts - Identiﬁcation:: id, chart’s name, and its purpose; Characteristics: the

main chart features in the education data context; Recommendations:: how the interaction with the chart can be improved.

Identiﬁcation :: Characteristics Recommendations

(SC1) Pie chart - Distribution of student data in pre-planned categories :: (i) Aim: represents the proportion in relation

of the whole; (ii) Chart characteristics: pie chart provides an overview about proportions of the chosen variables (i.e.

slices) in relation of the whole (complete pizza = sum of the slices); it is mandatory that the variables represented (i.e.

slices) add 100 % in whole; (iii) Example of application: illustrate proportions of the evasion rates; visualization of

students’ demographic and proﬁle data (e.g. education level, age, gender).

(i) Exact value: as this chart often hides the real value of each slice, tooltips or

legends are recommended to present the real value; in charts composed by many

different categories, captions are suitable to show the total value of each categories;

(ii) Filtering data mechanisms: usually not applied; (iii) Highlight data: stand

out the slices of the categories selected by users; (iv) Speciﬁcities: it is recom-

mended do not use more than 5 different categories for data classiﬁcation to pre-

vent the legibility issues which can be caused by overlapping of slices or even by

the use of small fonts; in cases with more than 5 categories the recommendation is

to present the 4 main ones and agglomerate the others by labelling as “others”.

(SC2) Horizontal bar chart - Representation of the total amount of data for a category :: (i) Aim: shows quantitative

values of X-Axis identiﬁed by the categories presented at Y-Axis; (ii) Chart characteristics: in aggregate viewing,

the bar of each category is composed of two or more small bars arranged on the top of each other to represent the idea

of parts of the whole; however, the aggregate viewing is suitable only in cases that by adding the individual values of

each small bar it has the representation of a total; nevertheless this total does not necessarily bring information for the

analysis; horizontal bar chart ﬁts to illustrate timeline visualizations where the X-axis represents the timeline while the

bars arranged from the Y-axis represent quantitative values; (iii) Example of application: show how students’ averages

are composed in a course, from an aggregate viewing, where each full bar represents the total grade of a student and

each piece of the bar outlines a component of the total grade (e.g. tests, tasks, assessments, activities in group).

(i) Exact value: real values are displayed from tooltips by positioning the mouse

over the bars or the captions; (ii) Filtering data mechanisms: allows the visual-

ization of students’ individual data; (iii) Highlight data: as a student is selected,

display in the foreground the full bar (i.e. highlight the bar); (iv) Speciﬁcities:

in agglomerate mode bars, colors and patterns (e.g. scratches, dots, dashes) are

applied to demonstrate clearly what is the size of each piece of the total bar; the

use of 3D bar format is not recommended due to it can insert difﬁculties for users

comparing the different data.

(SC3) Vertical bar chart - Comparison of values one each other, or with an average or target value :: (i) Aim: represents

quantitative values of Y-Axis identiﬁed by the categories assigned in the X-Axis; (ii) Chart characteristics: it has the

same characteristics of horizontal bars however in a vertical mode; (iii) Example of application: illustrate to students

information from their performance compared to the average of the class to support them in managing their needs of

learning; this visualization motivates students to review, if they need, their learning strategies with the aim of getting

better outcomes.

(i) Exact value: display the real value from tooltips by positioning the mouse over

the bars or the captions; (ii) Filtering data mechanisms: provides the option of

visualizing students’ individual data; (iii) Highlight data: as a student is selected,

display in the foreground the full bar (i.e. highlight the bar); make clear the dif-

ference among the bar by applying colors and patterns; (iv) Speciﬁcities: as in

vertical bar chart, the use of 3D bar format is not recommended.

(SC6) Area chart - Illustrates the midway students’ outcomes showing the evolving and data changings over time :: (i)

Aim: represents variables associating them to progress viewing (e.g. percentage completed, time elapsed); (ii) Chart

characteristics: a continuous line passes through all the crossing points presented between the X and Y-axis; the use

of several lines is suitable to describe different groups of data; it is recommended to the X-axis to contain the progress

scale (e.g. time, steps.), and to the Y-axis, the quantitative variables; (iii) Example of application: provide to students

a visualization of the distribution of time that they spent on each part/step of an activity; from this visualization the

students are able to evaluate their pace of studies and consequently make adjustments if they need; as well visualize the

performance of workgroups versus an expected outcome to search for difﬁculties that they could have in one activity.

(i) Exact value: display from tooltips the real values when users hover the mouse

on the chart; (ii) Filtering data mechanisms: provide ways to see data of partic-

ular students; (iii) Highlight data: in cases of multiple variables representation,

colors with transparency are recommended to avoid the missing of information

caused by the overlapping of areas, for instance; (iv) Speciﬁcities: use patterns

(e.g. dots, dashes) to contrast the areas in cases of colors are not available; the 3D

bar format is not recommended because it can insert difﬁculties to the comparison

of data; provide the meaning of the colors and format of the lines in captions.

(SC8) Wordcloud chart - Illustrates terms most used in courses or in forum discussions :: (i) Aim: represents the

occurrence of terms within a sample of words; (ii) Chart characteristics: it encodes few variables and the font size

of each word indicates its number of occurrences in that sample without showing its real value; the chart often is

constructed in real-time easily; the analysis of data from this chart type is subjective as the exact value of each word

is expressed by the font size of the word; (iii) Example of application: wordclouds help teachers on explaining the

understandings of those terms that the class have; it is useful to link the discussions of forum posts to the wordcloud

chart; it allows visualizing the questions that received the most correct answers by the students.

(i) Exact value: captions or tooltips provide the value of the occurrences and

their classiﬁcation (e.g. 250 times, 3rd most repeated word); (ii) Filtering data

mechanisms: option of removing words from the cloud; (iii) Highlight data:

usually not applied; (iv) Speciﬁcities: usually not applied.

(SC9) Map chart - Represents data from the geographic localization of students :: (i) Aim: represent the distribution

of data related to the geographic position (e.g. countries, states, cities); useful for distance learning courses; (ii) Chart

characteristics: the world map is often the format of representation where the regions of the map get the focus according

to the needs of data or users; the color shades are applied to illustrate the quantitative data and the colors tones give

the perception of having a great or less amount of data in that map region; (iii) Example of application: allows the

visualization of rates on dropouts, retentions or approvals by location.

(i) Exact value: by positioning the mouse over a map region, tooltips provide

the real value; (ii) Filtering data mechanisms: zoom in allows to see details of

some location (e.g. users can see data from particular schools in some region of a

city); (iii) Highlight data: put in the foreground a location selected by users; (iv)

Speciﬁcities: shades support the perception of amount of data for the same color

(e.g. bold colors express more retention than the light color).

(SC15) Bubble chart - Provides an overview involving 3 variables (X, Y and Z) where X and Y are categories and Z is

quantitative number :: (i) Aim: represent a quantitative variable (bubble size) distributed in a categorical plane (i.e. X

and Y); (ii) Chart characteristics: while a bubble depicts the crossing point of X and Y (i.e. categories descriptions) the

bubble size draws the value of a quantitative variable associated with this crossing point; (iii) Example of application:

see the engagement of students from the frequency they access the materials and from which source (e.g. personal

computer, mobile phone).

(i) Exact value: consider the addition of captions inside the bubbles to provide

the exact value whenever the bubble size accommodate it. For small bubbles use

tooltips; (ii) Filtering data mechanisms: allow the selection of which students

will have the data shown; (iii) Highlight data: stand out a bubble according to the

category selected by users; (iv) Speciﬁcities: the bubble colors can encode a 4th

variable.

(Davis, 1989). TAM questions are divided into the

dimensions of ease-of-use perception and usefulness

perception. The ease-of-use is related to the percep-

tion that a technology can be adopted with no efforts.

The perceived usefulness represents how much a per-

son considers that the use of a speciﬁc technology

may improve their performance. We also added an

open question about the guidelines in the feedback

questionnaire.

4.2 Execution

We carried out an evaluation with 26 participants, 4

graduated and 22 undergraduate students of a Human-

Computer Interaction course at the Federal University

of S

ao Carlos (UFSCar) - campus Sorocaba.

All participants ﬁlled an informed consent form to

take part in the study. Before the study session, the

participants answered a proﬁle questionnaire which

supported us in dividing them into groups. In this

questionnaire participants were asked about (a) their

experience with programming languages, InfoVis,

and the tools that would be used in the evaluation; (b)

their experience as developers; (c) where they were

used to handle charts; and (d) where they searched

for information about the application of charts. Table

4 shows the participants’ responses. Each participant

is identiﬁed by ID followed by the group they were in

(i.e A or B). The participant D-26 was the only one

not to answer the proﬁle questionnaire. We used the

information collected by the proﬁle questionnaire to

assign participant to each groups in a balanced way.

Participants in group A used the guidelines, while par-

ticipants in group B did not. The participants that

already used the chosen visualization tool were as-

signed to group B, in order to avoid that their previous

expertise biased the results.

The evaluation took place in a computer lab at the

UFSCar which had tables arranged in rows and di-

vided into two parts by a central corridor. We divided

the participants per groups on the right side (i.e. group

A) and on the left side (i.e. group B). All the partici-

pants had the same infrastructure resources, i.e. insti-

tution’s computers to perform the required activities.

Before starting the activity of prototyping, the par-

ticipants took part of a warm-up session where one

researcher presented (i) the fundamentals of educa-

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

454

Table 2: Vis2learning - Scenarios with advanced charts - Identiﬁcation:: id, chart’s name, and its purpose; Characteristics: the

main chart features in the education data context; Recommendations:: how the interaction with the chart can be improved.

Identiﬁcation :: Characteristics Recommendations

(SC4) Violin plot - Identiﬁcation of subgroups from the distribution of data quickly :: (i) Aim: represents the distribution

of a data set correlated to a variable through scale (i.e. minimum to maximum values); (ii) Chart characteristics: in

violin plot, the data is disposed along a line depicting the values; data relates to one single variable, but with different

identiﬁers; it enables the visualization of subgroups from the data without applying equations or algorithms; (iii) Example

of application: show students’ grades in one activity or course to identify subgroups as such as students who fail or pass;

or show the number of students positioned above/below of the class average (or any other grade).

(i) Exact value: display from tooltips the real values when users hover the

mouse on the violin plot border; (ii) Filtering data mechanisms: usually not

applied; (iii) Highlight data: stand out the dot on the line related to the selected

data (i.e. a student); (iv) Speciﬁcities: colors and patterns are applied to delimit

data ranges and are enabled by user interaction.

(SC5) Radar chart - Illustrating data of the different students’ interaction versus a material :: (i) Aim: represents the

value of 3 or more quantitative variables that have a common identiﬁer (e.g. grades, the variables and a particular student,

the identiﬁer); (ii) Chart characteristics: this chart contains axes, lines and data points, where the axes represent the scale

values for each variable; the line that connects all the axes represents a data set; and the data point in the axis that the line

touches represents the data value of that variable attributed to group that the line represents; one chart can include several

lines, and each one represents a set of data being differentiated by colors; a 3rd variable is represented by adding a bar chart

in the center of radar chart; (iii) Example of application: see grades from student workgroups that performed the same

activities; it provides a feedback to the groups about which activities they should put effort to improve their knowledge on

a topic; observe whether there was a balance in the composition of workgroups concerning on students performance.

(i) Exact value: display from tooltips the real values when users hover the

mouse on the chart; (ii) Filtering data mechanisms: provide ways to see spe-

ciﬁc students or workgroups; (iii) Highlight data: stand out the line linked to

the selected student; (iv) Speciﬁcities: patterns (e.g. dots, dashes) in the format

of the lines are recommended as a way of identifying and distinguishing data in

cases of colors are not available; provide the meaning of the colors and formats

of the lines in the captions.

(SC7) Activity network diagram - Represents the instructional design of courses or steps of workgroup projects :: (i)

Aim: shows the paths taken the execution of steps; (ii) Chart characteristics: the shapes depict activities and the arrows

the movements from one to another step; the chart main purpose is not the representation of quantitative data; (iii) Example

of application: the chart provides the linear visualization of activities arrangement supporting teachers in detecting issues

from the activities to then they make improvements; for instance, from the visualization teachers can observe whether

some element affect all the activities ﬂow as well as analyze the relevance in the order that activities are performed.

(i) Exact value: usually not applied; (ii) Filtering data mechanisms: usually

not applied; (iii) Highlight data: usually not applied; (iv) Speciﬁcities: colors

and line patterns are assigned to arrows to indicate, for example, steps where

delays or problems arisen during the activities executions; captions provide the

meaning of the colors and line patterns adopted.

(SC10) Heatmap chart - Illustrates the performance of large groups of students :: (i) Aim: represent information from

3 variables, being X and Y categories and Z the quantity or category; (ii) Chart characteristics: the chart is built on a

cartesian plane where the data crossing point X and Y are assigned with a color that denotes the 3rd variable (i.e. Z); in

each cell instead of using the absolute value in the standard format, this chart employs colors which facilities the detection

of patterns of data; another representation of this chart is on pictures where X and Y are coordinates and Z represents the

number of times that point was observed; (iii) Example of application: visualization of students’ performance and the

identiﬁcation of common characteristics based on the colors (e.g. all students who failed in an exam).

(i) Exact value: by positioning the mouse over a cell, tooltips show the ex-

act value; captions show the absolute value inside the cell; (ii) Filtering data

mechanisms: usually not applied; (iii) Highlight data: usually not applied;

(iv) Speciﬁcities: patterns (e.g. scratches, dots, dashes) is an alternative in re-

placing of the use of colors to differentiate and identify data; the use of captions

to report the meaning of formats and colors employed in the chart.

(SC11) Treemap chart - Shows the data about the students’ participation categorized by topics and ordered by a raking ::

(i) Aim: represent data that follows a well-deﬁned hierarchical distribution; the viewing of total are got by adding each;

(ii) Chart characteristics: rectangular shapes represent the data, but there area alternatives to plot in circular formats as

pie charts, it often occupies all the area available for it; treemap provides an overview with the existing hierarchy in the

data and the percentage that each category represents in the whole; (iii) Example of application: see the number of topics

discussed in forums in a distributed or ranked way, being possible to observe the most commented topics.

(i) Exact value: by moving the mouse over the rectangles, tooltips show the

real value; (ii) Filtering data mechanisms: usually not applied; (iii) Highlight

data: usually not applied; (iv) Speciﬁcities: color shades are applied to illus-

trate the larger and smaller samples of data.

(SC12) Scatter plot - Shows a comparison of datasets (e.g. students’ grades) to illustrate the cause-effect from the

application of a teaching-learning method :: (i) Aim: represents two or more datasets (Y) that are related to a categorical

variable (X) to observe the relationship between two groups; (ii) Chart characteristics: this chart compares two datasets

displayed by dots which are plotted at the intersection of X and Y-axis in a cartesian plane; whether only one dataset is

used it represents a dot plot; scatter plot is not suitable for overviewing of high-density data due to the large volume of

data can cause overlapping of lines or high density of dot clouds; (iii) Example of application: compare students’ grades

from activities executed online and ofﬂine mode to uncover patterns in relation of the mode applied; compare the average

of students to the time spent on activities; observe the differences on the performance among students.

(i) Exact value: by moving the mouse over the dots, tooltips reveal the value for

X and Y; (ii) Filtering data mechanisms: usually not applied; (iii) Highlight

data: usually not applied; (iv) Speciﬁcities: for each dataset, dots have different

colors and shapes (e.g. group A represented by green circles and group B by

blue triangles); a matrix of scatterplots is a well-representation for cases that

there are more than one pair of variables; captions report the meaning of formats

and colors employed in the chart.

(SC13) Q-Q plot - Compares a group of students performance with baseline values :: (i) Aim: represents the distribution

of data; (ii) Chart characteristics: the X-axis contains the performance measures and the Y-axis the baseline values; this

chart is suitable to conﬁrm and illustrate the existence of subgroups of data when used together with violin chart; (iii)

Example of application: from the students’ grades are possible to identify subgroups (e.g. groups of failed students or

passed students); check whether the level of difﬁculty of activities are balanced.

(i) Exact value: by pointing the mouse over dots, tooltips show the values of

X and Y, and the student’s name; (ii) Filtering data mechanisms: usually not

applied; (iii) Highlight data: stand out the point correspondent to the student

selected by users; design a line as a baseline value to show the groups of data

which are close or far from the line (e.g. the line show the minimum average of

approval and the points above the line represent the approvals and the below the

retentions); (iv) Speciﬁcities: usually not applied.

(SC14) Hexbin plot - Compares datasets with a large volume (high density) of data to ﬁnd out patterns :: (i) Aim: represent

data from 3 variables (i.e. X and Y are categories and Z is the quantitative value or category); (ii) Chart characteristics:

a hexagon represents the crossing point between X and Y values and the color encodes the Z value; the “dots” are replaced

by hexagons so that the data is not overlapping and ﬁts in all the space available without having no-used spaces; (iii)

Example of application: visualize the student session in a Learning Management System and their grades.

(i) Exact value: by pointing the mouse over a chart point, tooltips show the

value for X and Y and the student’s name; (ii) Filtering data mechanisms:

usually not applied; (iii) Highlight data: shaded borders help to delimit data

in neighbor hexagons that often is close due to the high-density of data; (iv)

Speciﬁcities: by combining colors and captions, the data representation mean-

ing informs the larger and smaller samples of data; use patterns (e.g. scratches,

dots, dashes) in cases that colors are not available.

Table 3: Evaluation of tools based on the ﬁve requirements.

Tool R1 R2 R3 R4 R5 SU1 SU2

Chartblocks

OK - - OK - OK -

Plotly

OK - OK OK - OK -

Datawrapper

OK - - OK - OK -

AMCHARTS

OK OK OK OK OK OK OK

tional data and InfoVis (Munzner, 2014; Ware, 2012),

and conducted a (ii) hands-on exercise by using the

AMCHARTS tool to explore its resources. Besides,

the researcher pointed out the activity objective and

all the steps the participants should follow during the

evaluation. After the warm-up, the participants car-

ried out the prototype activity. All the participants

(i.e. groups A and B) built prototypes of both SUs.

The participants in group B, i.e. who did not use our

guidelines, were free to search for information about

the charts on the Internet.

After building each chart, participants should sub-

mit, to an online platform, the source code automati-

cally generated by AMCHARTS; the list of references

used to produce the visualization and the reason for

using it (in the case they searched for information on

Internet); and the description of the difﬁculties s/he

faced. Each participant should pack all this informa-

tion in a single ﬁle and submitted it. Only participants

in group A answered the feedback questionnaire (i.e.

TAM questions) at the end of the study.

4.3 Analysis

We explored all the prototypes produced by the par-

ticipants and the answers from the feedback ques-

tionnaire. Table 5 shows the details of our analysis

for each scenario of use (SU1 and SU2) per partici-

pant. First, we checked the chart format the partici-

pant used and the recommendations each one applied

(about the use of tooltip, 3D, and so on). We also ver-

iﬁed whether the participant’s solution was suitable to

the scenario of use, using our templates as baselines.

After examining the participants’ visualizations,

we concentrated on exploring the participants’ com-

ments as well as the references they used to construct

Vis2Learning: A Scenario-based Guide to Support Developers in the Creation of Visualizations on Educational Data

455

Table 4: Participants proﬁle — (a) Knowledge: (1) I’ve never heard of; (2) I have theoretical knowledge; (3) I have practical

and theoretical knowledge; (4) I have deep knowledge — (b) Exp: (2) I programmed only at school; (3) I’ve worked with

programming; (4) I currently work with programming — (c) Use of charts: (1) I don’t use it; (2) I used it a few times; (3) I

always use it because it is necessary; (4) I always use — (d) Information about charts: (1) I don’t use, (2) I seek tips on the

internet; (3) I’m looking for ready examples, (4) I search for guidelines that have detailed descriptions of charts usage.

Identiﬁcation (a) Knowledge (b) Exp (c) Use of charts (d) Information

ID Age Higher education HTML JS Charts InfoVis AMCHARTS Dev Personal use At school At work about charts

D1-B 23 Complete 3 3 2 1 1 3 1 2 2 2;3

D2-B 21 Incomplete 4 3 3 3 3 2 2 3 3 2;3

D3-B 22 Incomplete 4 4 3 3 3 2 4 4 3 2;3

D4-B 34 Complete 4 3 3 3 1 4 3 3 3 2;3

D5-A 22 Incomplete 3 3 2 1 1 4 2 3 1 2;3

D6-A 21 Incomplete 3 3 3 3 1 2 2 2 1 2;3

D7-B 20 Incomplete 3 3 2 1 1 2 1 2 1 2

D8-A 35 Complete 2 2 2 2 1 2 2 2 2 2;3

D9-A 21 Incomplete 3 3 3 2 1 2 2 2 1 2;3

D10-A 23 Incomplete 3 3 3 3 1 4 2 3 3 1

D11-A 21 Incomplete 3 3 3 2 1 2 2 2 1 2;3

D12-A 22 Incomplete 3 3 2 2 1 4 4 2 1 2;3

D13-A 21 Incomplete 3 3 2 1 1 2 1 2 1 2;3

D14-B 22 Incomplete 4 4 3 2 1 2 2 2 1 2;3;4

D15-A 24 Incomplete 2 2 2 2 1 4 1 1 1 3;4

D16-B 20 Incomplete 3 3 3 2 1 2 1 2 1 2;3

D17-B 21 Incomplete 3 3 3 2 1 2 2 3 1 3

D18-A 27 Complete 3 3 4 1 1 4 4 2 3 2;3;4

D19-B 24 Incomplete 3 3 2 1 1 2 2 2 1 2

D20-A 21 Incomplete 4 3 2 1 1 2 2 2 1 2

D21-B 22 Incomplete 3 2 2 2 1 2 2 3 3 2

D22-B 22 Incomplete 2 2 2 1 1 2 1 2 1 2;3

D23-A 25 Incomplete 3 2 1 1 1 2 2 2 2 2;3

D24-B 20 Incomplete 3 3 1 1 1 4 2 2 2 3

D25-A 26 Incomplete 3 3 3 2 1 4 2 1 2 2;3

the solutions. This allowed us to observe the steps

taken and the problems encountered by the partici-

pants during the process of choosing the visualiza-

tions’ formats. From this analysis, we could notice

the difference between the problems listed by the par-

ticipants in groups A and B. Finally, we explored the

participants’ responses (group A, only), regarding the

acceptance of our guidelines.

4.4 Threats to Validity

There are four threats to validity determined by

Wohlin et al. (2012) that we should check in our

study, which are: conclusion, construct, internal and

external. We will discuss each one as follow. The el-

ements to mitigate these threats are described below:

Several sources of information were used to give

reliability to our conclusions from the results. The fol-

lowing sources were considered: the code generated

by the AMCHARTS tool; the visualizations resulting

from the codes; the comments made by participants

about the strategies they used for constructing the so-

lution; the references used by the participants; and the

data collected via the feedback questionnaire. To mit-

igate construct problems, we prepared a set of arti-

facts that support the application of our study. We also

conducted a warm-up session providing the concepts

about InfoVis and education data to the participants.

A hands-on exercise helped the participants to handle

AMCHARTS tool.

To mitigate the participants’ fatigue, an internal

validity threat, we adopted the strategy of prototyping

solutions and not developing them from programming

languages. We used a tool that allowed participants

to change all parameters of the visualization without

the need to interact with the source code. Besides,

all formatted data was provided so that participants

could make efforts only in the design of the visualiza-

tions. In our study, students represented a sample of

developers which could comprise the external validity

threat. In the study of Salman et al. (2015), the au-

thors concluded that professionals and students tend

to perform similarly when developing new tasks. In

the context of our evaluation, only one participant de-

clared to work with visualization development, sug-

gesting that most of the group had no experience with

the charts construction even the ones with more expe-

rience in development of visualizations.

5 FINDINGS

We present our ﬁndings in three sections. In the ﬁrst

two sections we discuss the results that supported us

to answer the RQ1 and RQ2 (see in Section 4.1). In

the third section, we discuss whether the participants

proﬁle had inﬂuence or not in our results.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

456

Figure 1: Charts example — A and B baseline developed by the authors — C was develop by participant D25-A and D by

participant D20-A.

ﬁll any of the two scenarios and, among them, 3 fol-

lowed the guidelines.

Overall, the participants could develop visualiza-

tions for both scenarios. Some solutions were very

close to the baseline developed by the authors, such

as the solution proposed by participants D25-A and

D20-A (see Figures 1 - C and 1 - D). For these solu-

tions, the only recommendation (from the guideline)

not applied was the use of patterns or textures to dis-

tinguish data.

By exploring the solutions for the scenarios (i.e.

SU1 and SU2), our results revealed that all those who

developed visualizations for SU1 did not follow the

recommendation for using patterns (i.e. visual marks

as such dots) to identify elements in the chart. On

the other hand, in SU2, the participants applied the

patterns. We considered the participants used the pat-

terns because they were informed that the chart would

be printed in black and white.

Participants in group B (i.e. the group that did not

use the guidelines) reported the elaboration of the vi-

sualizations took long due to the lack of guidelines

with tips about how they could apply the different

chart formats. For instance, participant D22-B, when

developing a solution to SU1, stated that “I was strug-

gling in deciding on what type of charts available in

the tool should I use from which I could show the data

to that audience in an appropriate way”. The same

participant opinion was noticed when developing the

solution to SU2: “again my difﬁculties were concen-

trated on how to choose, among the chart formats

available, the most suitable one to show comparison

of information”.

Participants in group B adopted a strategy for

searching information about the charts that was close

to the organization approach by scenarios, provided

by the guideline. These participants extracted key-

words from the scenario description (i.e. SU1 or SU2)

and looked for the charts by pasting the keywords on

internet browsers as reported by the participants D1-

B and D4-B, respectively: “To get some examples, I

searched on Google Images ‘how to construct charts

to show students grades’”, and “I accessed Google

Images to explore the types of charts that could be

used to present students’ performance.”.

We found out that the participant D11-A decided

not to adopt the guidelines even being in group A.

The participant stood out taking a testing-based ap-

proach by visualizing the different charts available in

the tool, until s/he found the suitable one. However,

by following this approach, the participant faced difﬁ-

culties to select what would be the best chart to repre-

sent the data, as reported: “[I had] a little difﬁculty to

choose between line chart, [...] diagram chart (activ-

ity network) or area chart”. After some unsuccessful

attempts, this participant started to explore the guide-

lines and develop suitable solutions for SU1 and SU2.

This participant also realized that some choices that

seemed natural at ﬁrst, did not match the scenario’s

needs (i.e. SU1 and SU2). At the end of the evalua-

Figure 1: Charts example — A and B baseline developed by the authors — C was develop by participant D25-A and D by

participant D20-A.

5.1 RQ1: How Participants Build the

Visualizations

From the 26 participants, 11 produced suitable visu-

alizations, considering both scenarios (SU1 and SU2)

and, among them, 7 created the visualizations by fol-

lowing the guidelines. However, considering the 26

participants, 8 of them built solutions that did not ful-

ﬁll any of the two scenarios and, among them, 3 fol-

lowed the guidelines.

Overall, the participants could develop visualiza-

tions for both scenarios. Some solutions were very

close to the baseline developed by the authors, such

as the solution proposed by participants D25-A and

D20-A (see Figures 1 - C and 1 - D). For these solu-

tions, the only recommendation (from the guideline)

not applied was the use of patterns or textures to dis-

tinguish data.

By exploring the solutions for the scenarios (i.e.

SU1 and SU2), our results revealed that all those who

developed visualizations for SU1 did not follow the

recommendation for using patterns (i.e. visual marks

as such dots) to identify elements in the chart. On

the other hand, in SU2, the participants applied the

patterns. We considered the participants used the pat-

terns because they were informed that the chart would

be printed in black and white.

Participants in group B (i.e. the group that did not

use the guidelines) reported the elaboration of the vi-

sualizations took long due to the lack of guidelines

with tips about how they could apply the different

chart formats. For instance, participant D22-B, when

developing a solution to SU1, stated that “I was strug-

gling in deciding on what type of charts available in

the tool should I use from which I could show the data

to that audience in an appropriate way”. The same

participant opinion was noticed when developing the

solution to SU2: “again my difﬁculties were concen-

trated on how to choose, among the chart formats

available, the most suitable one to show comparison

of information”.

Participants in group B adopted a strategy for

searching information about the charts that was close

to the organization approach by scenarios, provided

by the guideline. These participants extracted key-

words from the scenario description (i.e. SU1 or SU2)

and looked for the charts by pasting the keywords on

internet browsers as reported by the participants D1-

B and D4-B, respectively: “To get some examples, I

searched on Google Images ‘how to construct charts

to show students grades’”, and “I accessed Google

Images to explore the types of charts that could be

used to present students’ performance.”.

We found out that the participant D11-A decided

not to adopt the guidelines even being in group A.

The participant stood out taking a testing-based ap-

proach by visualizing the different charts available in

the tool, until s/he found the suitable one. However,

by following this approach, the participant faced difﬁ-

culties to select what would be the best chart to repre-

sent the data, as reported: “[I had] a little difﬁculty to

Vis2Learning: A Scenario-based Guide to Support Developers in the Creation of Visualizations on Educational Data

457

Table 5: Results of the participants visualizations — (-1) Not applicable, (0) Not applied, (1) Partially applied, (2) Fully

applied — *Use of the 3D format was not appropriate.

SU1

ID Chosen chart Tooltip 3D* Stacked Patterns Suitable?

D1-B bar chart 1 0 2 1 Yes

D2-B column chart 1 0 2 1 Yes

D3-B bar chart 1 0 0 1 No

D4-B column chart 1 2 0 1 No

D5-A bar chart 2 0 0 1 No

D6-A bar chart 1 0 2 1 Yes

D7-B column chart 1 0 2 1 Yes

D8-A bar chart 1 0 0 1 No

D9-A bar chart 1 0 2 1 Yes

D10-A column chart 1 0 0 1 No

D11-A column chart 1 0 2 1 Yes

D12-A bar chart 1 0 2 1 Yes

D13-A bar chart 1 0 2 1 Yes

D14-B column chart 1 0 0 1 No

D15-A column chart 1 0 0 1 No

D16-B column chart 1 0 2 1 Yes

D17-B column chart 1 0 2 1 Yes

D18-A bar chart 1 0 2 1 Yes

D19-B column chart 1 0 2 1 Yes

D20-A column chart 1 0 2 1 Yes

D21-B line chart 0 0 -1 1 No

D22-B column chart 1 2 2 1 No

D23-A bar chart 1 0 2 1 Yes

D24-B bar chart 1 0 2 1 Yes

D25-A bar chart 1 0 2 1 Yes

D26-B column chart 1 0 2 1 No

SU2

Chosen chart Tooltip 3D* Label Transparency Paterns Suitable?

column + line 1 0 2 2 1 No

column + line 1 0 2 -1 1 No

line chart 2 0 2 -1 2 No

column chart 1 2 1 -1 0 No

area chart 1 0 2 2 0 Yes

area chart 2 0 2 2 2 Yes

line 1 0 2 -1 2 Yes

column chart 1 0 2 -1 0 No

column + line 1 0 2 -1 1 No

column + line 0 0 2 -1 1 No

line chart 1 0 2 -1 2 Yes

column chart 1 0 2 -1 2 No

line chart 1 0 2 -1 2 Yes

column + line 1 0 2 -1 1 No

line chart 1 0 2 -1 2 Yes

area + line 1 0 2 2 2 Yes

area chart 2 0 2 2 0 Yes

bar chart 1 0 2 -1 0 No

area + line 2 0 1 -1 0 Yes

overlap bar chart 1 0 2 1 0 No

overlap column 1 2 1 0 0 No

line 2 0 2 -1 2 Yes

line 0 0 2 -1 0 Yes

line 2 0 2 -1 2 Yes

column chart 1 0 2 -1 0 No

choose between line chart, [...] diagram chart (activ-

ity network) or area chart”. After some unsuccessful

attempts, this participant started to explore the guide-

lines and develop suitable solutions for SU1 and SU2.

This participant also realized that some choices that

seemed natural at ﬁrst, did not match the scenario’s

needs (i.e. SU1 and SU2). At the end of the evalua-

tion, the participant declared “I found it interesting to

apply these concepts [of the guidelines], because even

though it seems intuitive when looking at visualization

models [format], in practice we should consider a set

of requirements before constructing the visualization

to make the data interpretation more intuitive ”.

Even using the Internet to search for examples and

tips, the participants in group B reported a lack of con-

ﬁdence to choose a chart type, as we could as reported

by participant D1-B: “As I do not have much knowl-

edge about which chart is the most appropriate, I was

very confused at the time of choice and I ended up try-

ing different charts until I found out the one that could

be the best to visualize that information”.

Finally, we could notice that some participants in

group B (i.e. D7-B, D14-B, D16-B, D17-B and D24-

B) who did not have access to the guidelines, were

able to produce visualizations that fulﬁll practically

all the recommendations available in the SC6 (see Ta-

ble 1). By checking the proﬁle of these participants

(see Table 4), we saw they have a preference for seek-

ing ready-made tips and examples on the Internet,

based on the context of the scenario. In particular,

the participant D24-B has already worked on the con-

struction of charts for web applications.

Participant D1-B, who had experience in the de-

velopment of visualizations, stated difﬁculties be-

cause the visualization design is often handled in a

generic perspective without looking the data domain

characteristics. The participant reported “I’ve never

made an effort to think on how the design of the visu-

alization can impact the end-users... As a developer,

I’ve taken the trial and error approach to see what is

the best one, but I realized that some charts may not

give the user any information or may not present it

more effectively what the user needs to see”.

5.2 RQ2: Feedback of the Guidelines

Acceptance

Taking into account the responses collected from the

participants in group A, i.e. those who used the guide-

lines, we explored the feedback regarding the per-

ceived usefulness and ease-of-use of the guidelines

(see Table 6). We used a Likert scale of four point

as answer options, ranging from strongly disagree to

totally agree. Figure 3 and Figure 2 illustrate the re-

sults of the acceptance feedback. We also considered

the comments added by the participant in the open

question of the questionnaire.

Figure 2 shows that for the questions F1 and F2

(see Table 6) only 3 of 13 participants reported to

have difﬁculties related to the learning about the rec-

ommendations. From this result, we could under-

stand that the guidelines provide information enough

to the individuals guide themselves to building visu-

alizations and that it does not require training for its

use. We want to restate that we did not provide any

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

458

Table 6: Feedback questionnaire.

Dimension ID Question

Perceived

Usefulness

U1 Using the guidelines allowed me to choose the visualization

format more quickly.

U2 Using the guidelines improved my perception of good prac-

tices for building visualizations.

U3 Using guidelines is important and adds value to my work.

U4 Guidelines made the result of the visualization more interest-

ing.

U5 I ﬁnd the guidelines useful for developing educational data

visualizations.

Perceived

Ease-of-use

F1 It was easy to learn how to use the guidelines.

F2 I ﬁnd the guidelines easy to understand.

F3 I ﬁnd it easy to apply the guidelines.

F4 Using guidelines makes my work easier.

F5 Guidelines allow ﬂexibility for the development of visualiza-

tions.

ommendations. From this result, we could under-

stand that the guidelines provide information enough

to the individuals guide themselves to building visu-

alizations and that it does not require training for its

use. We want to restate that we did not provide any

explanation or training on the guidelines to the partic-

ipants of the group, being the evaluation activity the

ﬁrst contact of that group with them.

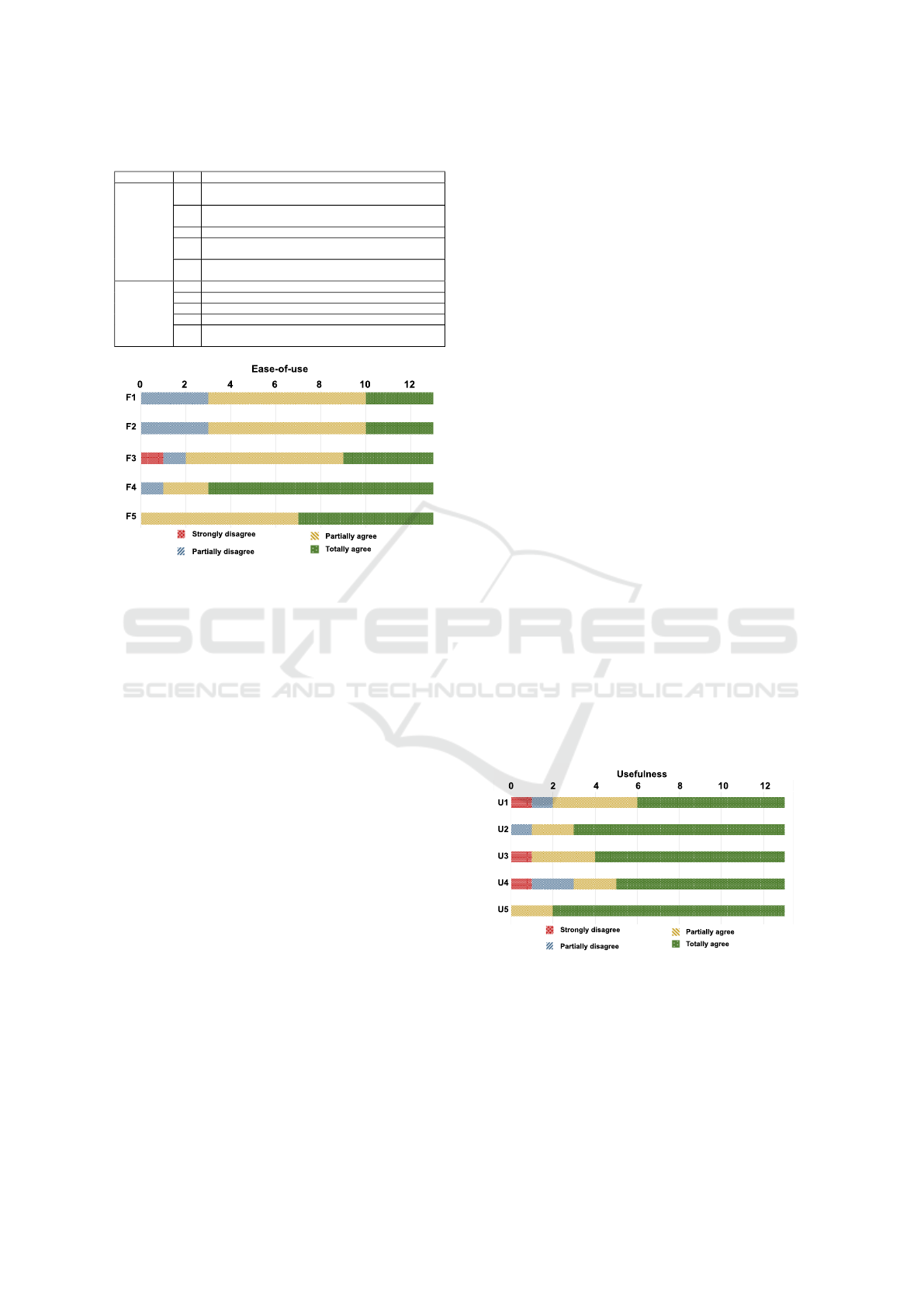

Figure 2: Participants’ feedback on the perceived ease-of-

use.

Taking into account the answers of the questions

F4 and F5, we see a high degree of agreement about

the usefulness of Vis2Learning to guide the partici-

pants in building of their solutions in a ﬂexible way.

According to the participant D6-A, “the guidelines

provide a set of recommendation which explains the

best way to apply each chart type... this kind of knowl-

edge is not easily found any other place... the guide-

lines are well-organized and contain full details on

how to use the charts”. The participants in group A

considered, in general, that the guidelines provide in-

formation regarding the characteristics of the visual-

ization formats, focusing on the most relevant points

of the data visualization. Participant D5-A men-

tioned: “the guidelines supported me choosing the

suitable chart for each type of data that I wanted to

present, keeping the focus on the proposed scenario”.

Taking into account the easy-of-use dimension

(see Figure 2), F3 was the only question that received

a “totally disagree” answer. We observed that the

disagreement came from participant D15-A, who in-

formed, in the proﬁle questionnaire, to have never

used charts to design visualizations. Besides, the par-

ticipant mentioned that was struggling to use the AM-

CHARTS tool. D15-A demonstrated the frustration

with the prototyping tool during the development of

the solutions for SU1 and SU2, as shown in the fol-

lowing quotes: “First I chose the radar chart [...] but

I couldn’t plot it on the tool”, and “ [...] for me the

biggest block was to be able to ﬁx the labels [...]”.

In Figure 3, we see that the participants consid-

ered the guidelines useful to support the design of vi-

sualizations in the educational context. Both ques-

tions U5 and U2 got a high level of agreement on

the usefulness of the guidelines as can be seen from

the comment of participant D12-A: “The guidelines

really helped me making a reﬂection on the possible

problems and beneﬁts of using each type of chart”.

There was no consensus on questions U1, U3 and

U4. Considering the responses for U4, we notice that

10 out of 13 participants agreed that the guidelines

supported them building visualizations which relevant

results. By looking to the positive answers for ques-

tion U1 (10 out of 13), we saw that the information

about the context of use for each chart present in the

guidelines, aided the participants in the solution de-

sign as mentioned by the participants D5-A and D8-

A, respectively: “the examples of how to apply each

chart were essential to make my decision about the

best visualization for the data.”, “the examples were

really important for the selection of the best chart.”.

For U3 only participant D15-A disagreed. By exam-

ining our results in-depth, we observed that all totally

disagree answers in the usefulness dimension were

from participant D15-A. As we mentioned above, this

participant disagreement reﬂected the difﬁculties s/he

faced using the prototyping tool. However, this par-

ticipant assigned a totally agreed answer the question

U5 which, even having difﬁculties with the tool.

Figure 3: Participants’ feedback on the perceived useful-

ness.

5.3 Inﬂuence of Participants’ Proﬁle in

the Results

We decided to run the Fisher’s exact test (1922) to see

whether the participants’ proﬁle (i.e. their experience)

could inﬂuence on the acceptance of Vis2Learning

and the selection of the correct chart. We took the

Fisher’s exact test because it allows comparing cat-

egorical data collected from small samples. It cal-

culates the exact signiﬁcance of the deviation from a

Figure 2: Participants’ feedback on the perceived ease-of-

use.

explanation or training on the guidelines to the partic-

ipants of the group, being the evaluation activity the

ﬁrst contact of that group with them.

Taking into account the answers of the questions

F4 and F5, we see a high degree of agreement about

the usefulness of Vis2Learning to guide the partici-

pants in building of their solutions in a ﬂexible way.

According to the participant D6-A, “the guidelines

provide a set of recommendation which explains the

best way to apply each chart type... this kind of knowl-

edge is not easily found any other place... the guide-

lines are well-organized and contain full details on

how to use the charts”. The participants in group A

considered, in general, that the guidelines provide in-

formation regarding the characteristics of the visual-

ization formats, focusing on the most relevant points

of the data visualization. Participant D5-A men-

tioned: “the guidelines supported me choosing the

suitable chart for each type of data that I wanted to

present, keeping the focus on the proposed scenario”.

Taking into account the easy-of-use dimension

(see Figure 2), F3 was the only question that received

a “totally disagree” answer. We observed that the

disagreement came from participant D15-A, who in-

formed, in the proﬁle questionnaire, to have never

used charts to design visualizations. Besides, the par-

ticipant mentioned that was struggling to use the AM-

CHARTS tool. D15-A demonstrated the frustration

with the prototyping tool during the development of

the solutions for SU1 and SU2, as shown in the fol-

lowing quotes: “First I chose the radar chart [...] but

I couldn’t plot it on the tool”, and “ [...] for me the

biggest block was to be able to ﬁx the labels [...]”.

In Figure 3, we see that the participants consid-

ered the guidelines useful to support the design of vi-

sualizations in the educational context. Both ques-

tions U5 and U2 got a high level of agreement on

the usefulness of the guidelines as can be seen from

the comment of participant D12-A: “The guidelines

really helped me making a reﬂection on the possible

problems and beneﬁts of using each type of chart”.

There was no consensus on questions U1, U3 and

U4. Considering the responses for U4, we notice that

10 out of 13 participants agreed that the guidelines

supported them building visualizations which relevant

results. By looking to the positive answers for ques-

tion U1 (10 out of 13), we saw that the information

about the context of use for each chart present in the

guidelines, aided the participants in the solution de-

sign as mentioned by the participants D5-A and D8-

A, respectively: “the examples of how to apply each

chart were essential to make my decision about the

best visualization for the data.”, “the examples were

really important for the selection of the best chart.”.

For U3 only participant D15-A disagreed. By exam-

ining our results in-depth, we observed that all totally

disagree answers in the usefulness dimension were

from participant D15-A. As we mentioned above, this

participant disagreement reﬂected the difﬁculties s/he

faced using the prototyping tool. However, this par-

ticipant assigned a totally agreed answer the question

U5 which, even having difﬁculties with the tool.

ommendations. From this result, we could under-

stand that the guidelines provide information enough

to the individuals guide themselves to building visu-

alizations and that it does not require training for its

use. We want to restate that we did not provide any

explanation or training on the guidelines to the partic-

ipants of the group, being the evaluation activity the

ﬁrst contact of that group with them.

Figure 2: Participants’ feedback on the perceived ease-of-

use.

Taking into account the answers of the questions

F4 and F5, we see a high degree of agreement about

the usefulness of Vis2Learning to guide the partici-

pants in building of their solutions in a ﬂexible way.

According to the participant D6-A, “the guidelines

provide a set of recommendation which explains the

best way to apply each chart type... this kind of knowl-

edge is not easily found any other place... the guide-

lines are well-organized and contain full details on

how to use the charts”. The participants in group A

considered, in general, that the guidelines provide in-

formation regarding the characteristics of the visual-

ization formats, focusing on the most relevant points

of the data visualization. Participant D5-A men-

tioned: “the guidelines supported me choosing the

suitable chart for each type of data that I wanted to

present, keeping the focus on the proposed scenario”.

Taking into account the easy-of-use dimension

(see Figure 2), F3 was the only question that received

a “totally disagree” answer. We observed that the

disagreement came from participant D15-A, who in-

formed, in the proﬁle questionnaire, to have never

used charts to design visualizations. Besides, the par-

ticipant mentioned that was struggling to use the AM-

CHARTS tool. D15-A demonstrated the frustration

with the prototyping tool during the development of

the solutions for SU1 and SU2, as shown in the fol-

lowing quotes: “First I chose the radar chart [...] but

I couldn’t plot it on the tool”, and “ [...] for me the

biggest block was to be able to ﬁx the labels [...]”.

In Figure 3, we see that the participants consid-

ered the guidelines useful to support the design of vi-

sualizations in the educational context. Both ques-

tions U5 and U2 got a high level of agreement on

the usefulness of the guidelines as can be seen from

the comment of participant D12-A: “The guidelines

really helped me making a reﬂection on the possible

problems and beneﬁts of using each type of chart”.

There was no consensus on questions U1, U3 and

U4. Considering the responses for U4, we notice that

10 out of 13 participants agreed that the guidelines

supported them building visualizations which relevant

results. By looking to the positive answers for ques-

tion U1 (10 out of 13), we saw that the information

about the context of use for each chart present in the

guidelines, aided the participants in the solution de-

sign as mentioned by the participants D5-A and D8-

A, respectively: “the examples of how to apply each

chart were essential to make my decision about the

best visualization for the data.”, “the examples were

really important for the selection of the best chart.”.

For U3 only participant D15-A disagreed. By exam-

ining our results in-depth, we observed that all totally

disagree answers in the usefulness dimension were

from participant D15-A. As we mentioned above, this

participant disagreement reﬂected the difﬁculties s/he

faced using the prototyping tool. However, this par-

ticipant assigned a totally agreed answer the question

U5 which, even having difﬁculties with the tool.

Figure 3: Participants’ feedback on the perceived useful-

ness.

5.3 Inﬂuence of Participants’ Proﬁle in

the Results

We decided to run the Fisher’s exact test (1922) to see

whether the participants’ proﬁle (i.e. their experience)

could inﬂuence on the acceptance of Vis2Learning

and the selection of the correct chart. We took the

Fisher’s exact test because it allows comparing cat-

egorical data collected from small samples. It cal-

culates the exact signiﬁcance of the deviation from a

Figure 3: Participants’ feedback on the perceived useful-

ness.

5.3 Inﬂuence of Participants’ Proﬁle in

the Results

We decided to run the Fisher’s exact test (1922) to see

whether the participants’ proﬁle (i.e. their experience)

Vis2Learning: A Scenario-based Guide to Support Developers in the Creation of Visualizations on Educational Data

459

could inﬂuence on the acceptance of Vis2Learning

and the selection of the correct chart. We took the

Fisher’s exact test because it allows comparing cat-

egorical data collected from small samples. It cal-

culates the exact signiﬁcance of the deviation from a

null hypothesis using the p-value, while other meth-

ods use an approximation. In addition to provid-

ing a p-value with greater accuracy in small samples,

the exact signiﬁcance tests do not require a balanced

or well-distributed sample (Mehta and Patel, 1996)

which matches our sample’s characteristics. A 95%

(i.e. 0.05) conﬁdence interval was considered to mit-

igate errors in the results

First, we checked the acceptance in the perspec-

tive of ease-of-use. In our test, we checked whether

the previous experience with InfoVis could inﬂuence

the acceptance of our guidelines. We thus deﬁned the

null and alternative hypothesis, taking into account

the answers of questions F1 and F2 (see Table 6), as

follows: H0 - The previous knowledge of the partic-

ipant on InfoVis has no inﬂuence in the acceptance,

and H1 - The previous knowledge of the participant

on InfoVis has inﬂuence in the acceptance. We com-

piled the data for the test in Table 7. After running the

Fisher exact test, we got a p-value=0.4615 to question

F1 and p-value=0.8368 to question F2. The results

suggest that there is no statistical evidence to support

that having previous knowledge of InfoVis inﬂuence

on the acceptance of the Vis2Learning.

Table 7: Previous knowledge on InfoVis vs feedback of ac-

ceptance.

TAM

question

Knowledge

in InfoVis?

Strongly

disagree

Partially

disagree

Partially

agree

Totally

agree

No 0 0 4 1

Yes 0 3 3 2

No 0 0 4 1

Yes 1 1 3 3

In a second checking, we considered whether the fact

of the participants are familiar with using charts could

inﬂuence the construction of suitable visualizations.

In this checking, we took data from groups A and

B, about the visualizations produced for the scenar-

ios SU1 and SU2 (see Table 5), and the participants’

proﬁle (see Table 4). Table 8 shows the compila-

tion of these data. The null and alternative hypothesis

were deﬁned as follows: H0 - The participant famil-

iarity with visualizations did inﬂuence the selection

of suitable chart, and H1 - The participant familiarity

with visualizations inﬂuenced the selection of suitable

chart. Fisher exact test returns a p-value=0.3748 for

SU1 and p-value=0.6652 for SU2. The results sug-

gest that there is no statistical evidence that the par-

We run tests from this website https://astatsa.com/

FisherTest/.

ticipant’s familiarity with charts inﬂuenced the par-

ticipants’ choices for both scenarios.

Table 8: Familiarity with visualizations vs suitable solu-

tions of visualizations.

Scenario Familiarity with

visualizations?

Suitable

visualization

Unsuitable

visualization

SU1

No 6 1

Yes 12 7

SU2

No 3 4

Yes 11 8

Finally, we run the test to verify if experience in pro-

gramming could impact the selection of the appropri-

ate chart format by the participants. In this test we did

not took the participants divided in groups (i.e. A or

B). The data used is displayed in Table 9. The null

and alternative hypotheses were deﬁned as follows:

H0 - The level of experience in programming of the

participant did not have an inﬂuence on the choice of

the suitable chart format, and H1 - The level of ex-

perience in programming of the participant did have

an inﬂuence on the choice of the suitable chart for-

mat. We obtained the p-value=0.3821 for SU1, and

the p-value=0.6828 for SU2 leading the rejection of

null hypotheses. The results suggest that there is no

statistical evidence that experience in programming

helped the participants make appropriate choices of

the charts.

Table 9: Experience in programming vs suitable visualiza-

tions.

Scenario Expert in

programming?

Suitable

visualization

Unsuitable

visualization

SU1

No 13 4

Yes 5 4

SU2

No 10 7

Yes 4 5

6 DISCUSSION

Taking into account our RQ1 (How did the partici-

pants in both groups build the visualizations?), the

results show that the participants who used the guide-

lines were more successful in building the solutions.

These participants stated that they have never been in

contact with similar guidelines. The participants that

did not use the guidelines made more efforts in the

construction of their visualizations as we saw from

their quotes. They often took the trial and error ap-

proach, which led them to spend more time to build

the solutions. We could also see that the participants

did not have issues related to the accessibility of vi-

sualizations when this was not pointed out explic-

itly. This way, we believe that the guidelines need to

evolve in order to properly address recommendations

for accessibility.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

460

Our results showed that the guidelines had a pos-

itive acceptance, i.e. our RQ2 ( What are the partic-

ipants feedback about the guidelines?). The partic-

ipants’ feedback considered our proposal as easy to

use and usefulness to the development of visualiza-

tions of educational data. The participants pointed

out that providing examples and recommendations

aimed at to a context could better support the solu-

tion design. Concerning the participants’ proﬁle, we

saw that these proﬁles did not have inﬂuence on the

Vis2Learning acceptance as well as in the choice of

the suitable chart.

By looking at the related work (see Section 2),

we see that our proposal presents important contri-

butions by providing guidelines related to data do-

main. Most of the related works proposed processes

to conduct the development of visualizations for e-

learning (Conde et al., 2015; Maldonado et al., 2015;

Ruip

erez-Valiente et al., 2017; Chen et al., 2016;

Klerkx et al., 2017). Even though our related work

section has presented works with proposals to the con-

text of educational data, none of them provides rec-

ommendations regarding the type of visualization to

be used. Others provided general guidelines not ad-

herent to the context of educational data (Victorelli

et al., 2019). Our proposal differs from the related

work by offering a set of guidelines for educational

data-related context and also by supporting develop-

ers with application scenarios.

Taking into account that Munzner’s recommenda-

tions (2014) are the most used in the literature, we de-

cided to compare the similarities between our guide-

lines and Munzner’s recommendations. To carry out

a parallel between the two works, we extracted the

rules from Munzner’s book which are spread in dif-

ferent chapters. After that, we analyzed the links be-

tween our guidelines and Munzner’s rules. We con-

sidered that there are similarities when our guidelines

encompassed at least one of the rules. To characterize

the strength of the link, we adopted an index ranging

from 1 to 3 which was applied as follows: 1 - our

guideline had the same purpose as a rule from Mun-

zner’s book; 2 - we applied concepts of a rule from

Munzner’s book but in a contextualized way to edu-

cational data; or 3 - our guideline partially presented

aspects to those of a rule from Munzner’s book.

Figure 4 illustrates the results of our comparison.

We noticed that all the scenarios (i.e. X-axis) of our

guidelines established at least one link (represented

by bubbles) with Munzner’s rules (i.e. Y-axis). We

see that 18 of the 35 links are characterized by in-

dex 2 (i.e. red bubble), indicating that our proposal

covers the rules. This result shows that our guide-

lines follows the best practices for constructing visu-

tions of educational data. The participants pointed

out that providing examples and recommendations

aimed at to a context could better support the solu-

tion design. Concerning the participants’ proﬁle, we

saw that these proﬁles did not have inﬂuence on the

Vis2Learning acceptance as well as in the choice of

the suitable chart.

By looking at the related work (see Section 2),

we see that our proposal presents important contri-

butions by providing guidelines related to data do-

main. Most of the related works proposed processes

to conduct the development of visualizations for e-

learning (Conde et al., 2015; Maldonado et al., 2015;

Ruip

erez-Valiente et al., 2017; Chen et al., 2016;

Klerkx et al., 2017). Even though our related work

section has presented works with proposals to the con-

text of educational data, none of them provides rec-

ommendations regarding the type of visualization to

be used. Others provided general guidelines not ad-

herent to the context of educational data (Victorelli

et al., 2019). Our proposal differs from the related

work by offering a set of guidelines for educational

data-related context and also by supporting develop-

ers with application scenarios.

Taking into account that Munzner’s recommenda-

tions (2014) are the most used in the literature, we de-

cided to compare the similarities between our guide-

lines and Munzner’s recommendations. To carry out

a parallel between the two works, we extracted the

rules from Munzner’s book which are spread in dif-

ferent chapters. After that, we analyzed the links be-

tween our guidelines and Munzner’s rules. We con-

sidered that there are similarities when our guidelines

encompassed at least one of the rules. To characterize

the strength of the link, we adopted an index ranging

from 1 to 3 which was applied as follows: 1 - our

guideline had the same purpose as a rule from Mun-

zner’s book; 2 - we applied concepts of a rule from

Munzner’s book but in a contextualized way to edu-

cational data; or 3 - our guideline partially presented

aspects to those of a rule from Munzner’s book.

Figure 4 illustrates the results of our comparison.

We noticed that all the scenarios (i.e. X-axis) of our

guidelines established at least one link (represented

by bubbles) with Munzner’s rules (i.e. Y-axis). We

see that 18 of the 35 links are characterized by in-

dex 2 (i.e. red bubble), indicating that our proposal

covers the rules. This result shows that our guide-

lines follows the best practices for constructing visu-

alizations, however, it is concerned on applying them

into the context of educational data. The guidelines

SC2, SC3, SC6 and SC9 stand out, because each of

them incorporates three or more aspects of Munzner’s

rules.

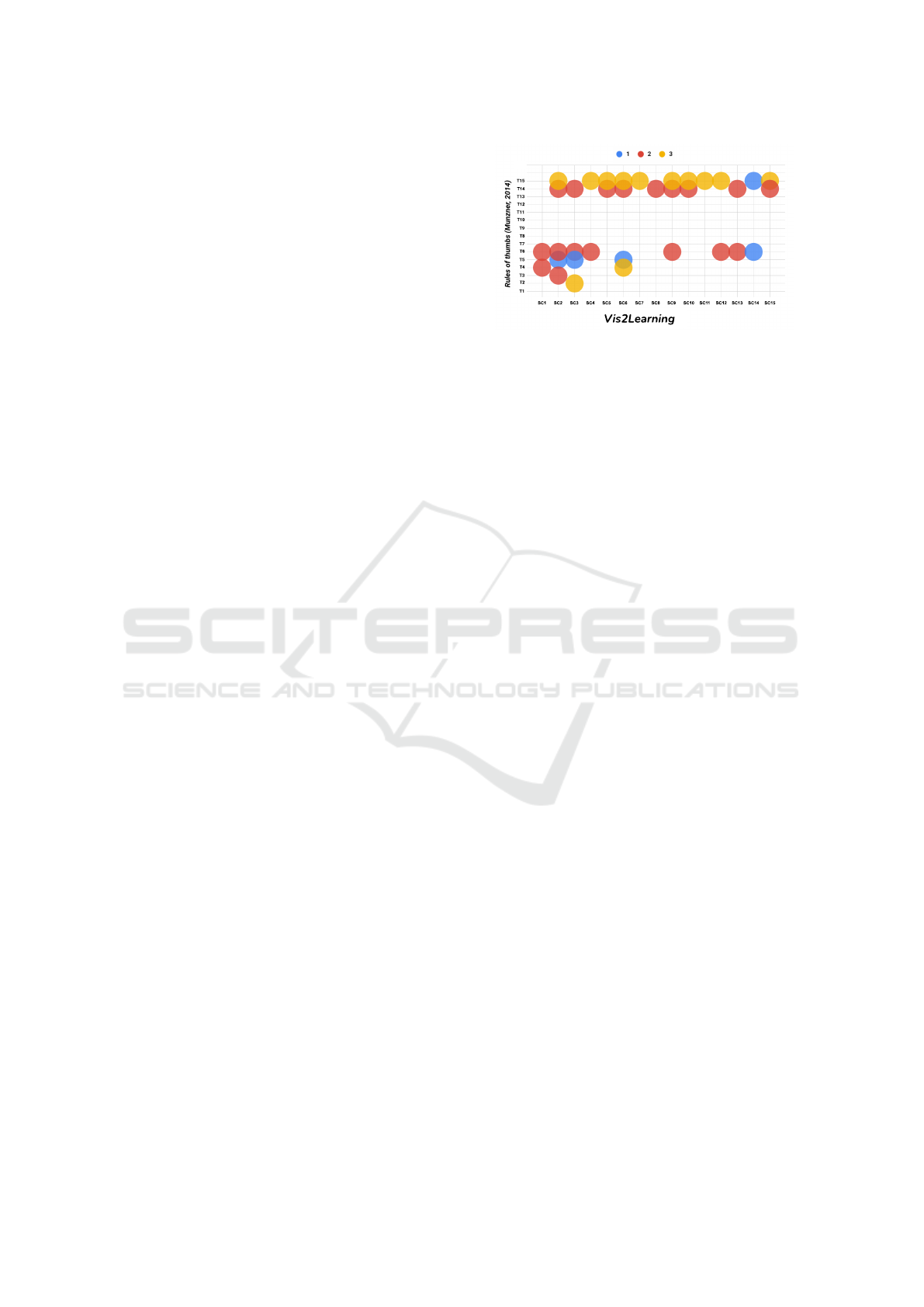

Figure 4: Comparison between our guidelines and rules of

thumbs (Munzner, 2014).

7 CONCLUSION AND FUTURE

WORK

In this paper, we presented a set of guidelines to sup-

port developers and designers in the development of

visualizations in the educational context. Our pro-

posal was evaluated by 26 participants. We analyzed

the results in three perspectives: (1) how the partic-

ipants constructed visualizations (in the educational

context), whether using or guidelines or not; (2) The

participants’ feedback, regarding the acceptance of

our guidelines and; (3) The inﬂuence that the partici-

pants’ proﬁle had on building suitable visualizations.

The results allowed us to conclude that our guide-

lines helped the participants to focus on the construc-

tion of visualization related to the data domain (i.e.

educational context), and on important details that im-

prove the users’ perception on the information. In ad-

dition, our guidelines work on the participants con-

scious of the importance of considering users’ inter-

action with the visualization and not just the chart for-

mat, when building the visualizations. Finally, the

participants show positive perceptions regarding the

the guidelines’ easy-of-use and usefulness. From sta-

tistical testings, we noticed that the participants’ pro-

ﬁle did not inﬂuence the construction of suitable so-

lutions, which reinforces the idea that our guidelines

are applicable to their purposes.

However, from our evaluation, we could notice

that our guidelines require some improvements to ad-

dress accessibility issues. We intend to extend our

guidelines by adding items related to accessibility as

further work, running additional evaluation with de-

velopers in the industry.

ACKNOWLEDGMENTS

The authors would like to thank the Coordenac¸

de Aperfeic¸oamento de Pessoal de N

ıvel Superior –

Brasil (CAPES) – Finance Code 001 and the Con-

selho Nacional de Desenvolvimento Cient

ıﬁco e Tec-

Figure 4: Comparison between our guidelines and rules of

thumbs (Munzner, 2014).

alizations, however, it is concerned on applying them

into the context of educational data. The guidelines

SC2, SC3, SC6 and SC9 stand out, because each of

them incorporates three or more aspects of Munzner’s

rules.

7 CONCLUSION AND FUTURE

WORK

In this paper, we presented a set of guidelines to sup-

port developers and designers in the development of

visualizations in the educational context. Our pro-

posal was evaluated by 26 participants. We analyzed

the results in three perspectives: (1) how the partic-

ipants constructed visualizations (in the educational

context), whether using or guidelines or not; (2) The

participants’ feedback, regarding the acceptance of

our guidelines and; (3) The inﬂuence that the partici-

pants’ proﬁle had on building suitable visualizations.

The results allowed us to conclude that our guide-

lines helped the participants to focus on the construc-

tion of visualization related to the data domain (i.e.

educational context), and on important details that im-

prove the users’ perception on the information. In ad-

dition, our guidelines work on the participants con-

scious of the importance of considering users’ inter-

action with the visualization and not just the chart for-

mat, when building the visualizations. Finally, the

participants show positive perceptions regarding the

the guidelines’ easy-of-use and usefulness. From sta-

tistical testings, we noticed that the participants’ pro-

ﬁle did not inﬂuence the construction of suitable so-

lutions, which reinforces the idea that our guidelines

are applicable to their purposes.

However, from our evaluation, we could notice

that our guidelines require some improvements to ad-

dress accessibility issues. We intend to extend our

guidelines by adding items related to accessibility as

further work, running additional evaluation with de-

velopers in the industry.

Vis2Learning: A Scenario-based Guide to Support Developers in the Creation of Visualizations on Educational Data

461

ACKNOWLEDGMENTS

The authors would like to thank the Coordenac¸

de Aperfeic¸oamento de Pessoal de N

ıvel Superior –

Brasil (CAPES) – Finance Code 001 and the Con-

selho Nacional de Desenvolvimento Cient

ıﬁco e Tec-

nol

ogico - Brasil (CNPq grants 313312/2019-2 and

308395/2020-4).

REFERENCES

Card, S. and Jacko, J. A. (2012). Human-Computer Inter-

action Handbook: Fundamentals, Evolving Technolo-

gies, and Emerging Applications, Third Edition. CRC

Press, Boca Raton, FL, USA.

Card, S., Mackinlay, J., and Shneiderman, B. (1999). Read-

ings in Information Visualization: Using Vision To

Think. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA.

Carneiro, G. d. F. and Mendonc¸a, M. G. d. (2013).

Sourceminer - a multi-perspective software visualiza-

tion environment. In Proceedings of the 15th Inter-

national Conference on Enterprise Information Sys-

tems - Volume 2: ICEIS, pages 25–36. INSTICC,

SciTePress.

Chen, Y., Chen, Q., , Boyer, S., Veeramachaneni, K., and

Qu, H. (2016). Dropoutseer: Visualizing learning

patterns in massive open online courses for dropout

reasoning and prediction. In 2016 IEEE Conference

on Visual Analytics Science and Technology (VAST),

pages 111–120.

Conde, M. A., Garc

ıa-Pe

nalvo, F. J., G

omez-Aguilar, D.,

and Ther

on, R. (2015). Exploring software engineer-

ing subjects by using visual learning analytics tech-

niques. IEEE Journal of Latin-American Learning

Technologies, 10(4):242–252.

Davis, F. D. (1989). Perceived usefulness, perceived ease of

use, and user acceptance of information technology.

MIS Q., 13(3):319–340.

Fisher, R. A. (1922). On the interpretation of x2 from con-

tingency tables, and the calculation of p. Journal of

the Royal Statistical Society, 85(1):87–94.

Jord

ao, V., Gonc¸alves, D., and Gama, S. (2014). Eduvis:

Visualizing educational information. In Proceedings

of the 8th Nordic Conference on Human-Computer In-

teraction: Fun, Fast, Foundational, NordiCHI ’14,

page 1011–1014, NY, USA. ACM.

JUSTINMIND (2020). 8 data visualization tools for

ux designers. https://www.justinmind.com/blog/8-

data-visualization-tools-for-ux-designers-visualize-

insights-prototype-better-products. Accessed:

2020-10-22.

Klerkx, J., Verbert, K., and Duval, E. (2017). Learning an-

alytics dashboards. In Lang, C., Siemens, G., Wise,

A. F., and Ga

sevic, D., editors, The Handbook of

Learning Analytics, page 143–150. Society for Learn-

ing Analytics Research, Alberta, Canada.

Macedo, M. P., Paiva, R. O. A., Gasparini, I., and Zaina, L.

A. M. (2020). Vis2learning: A scenario-based guide

of recommendations for building educational data vi-

sualizations. In Proceedings of the 19th Brazilian

Symposium on Human Factors in Computing Systems,

IHC ’20, New York, NY, USA. Association for Com-

puting Machinery.

Majumdar, R. and Iyer, S. (2016). isat: a visual learning

analytics tool for instructors. Research and Practice

in Technology Enhanced Learning, 11(16).

Maldonado, R. M., Pardo, A., Mirriahi, N., Yacef, K., Kay,

J., and Clayphan, A. (2015). The latux workﬂow: De-

signing and deploying awareness tools in technology-

enabled learning settings. In Proceedings of the Fifth

International Conference on Learning Analytics And

Knowledge, LAK ’15, pages 1–10, New York, NY,

USA. ACM.

Mehta, C. and Patel, N. (1996). SPSS exact tests.

Munzner, T. (2014). Visualization analysis and design.

A.K. Peters visualization series. A K Peters.

Park, Y.-G., Cho, Y.-S., and Son, J.-E. (2017). Design of

a learning analytics dashboard based on digital text-

books and online learning. In Workshop Proceedings

of the 25th International Conference on Computers in

Education, pages 326 – 334. Asia-Paciﬁc Society for

Computers in Education.

Reyes, J. A. (2015). The skinny on big data in education:

learning analytics simpliﬁed. TechTrends, 59:75–80.

Ruip

erez-Valiente, J. A., Merino, P. J. M., Gascon-Pinedo,

J., and Delgado-Kloos, C. (2017). Scaling to massive-

ness with analyse: A learning analytics tool for open

edx. IEEE Transactions on Human-Machine Systems,

47(6):909–914.

Salman, I., Misirli, A. T., and Juristo, N. (2015). Are

students representatives of professionals in software

engineering experiments? In 2015 IEEE/ACM 37th

IEEE International Conference on Software Engineer-

ing, volume 1, pages 666–676.

Schwendimann, B. A., Rodr

ıguez-Triana, M. J., Vozniuk,

A., Prieto, L. P., Boroujeni, M. S., Holzer, A., Gillet,

D., and Dillenbourg, P. (2017). Perceiving learning

at a glance: A systematic literature review of learning

dashboard research. IEEE Transactions on Learning

Technologies, 10(1):30–41.

Tervakari, A. M., Silius, K., Koro, J., Paukkeri, J., and Pirt-

til

a, O. (2014). Usefulness of information visualiza-

tions based on educational data. In 2014 IEEE Global

Engineering Education Conference, EDUCON, page

142–151, NY, USA. IEEE.

Victorelli, E. Z., Reis, J. C. d., Santos, A. A. S., and

Schiozer, D. J. (2019). Design process for human-

data interaction: Combining guidelines with semio-

participatory techniques. In Proceedings of the 21st

International Conference on Enterprise Information

Systems - Volume 2: ICEIS, pages 410–421. IN-

STICC, SciTePress.

Vieira, C., Parsons, P., and Byrd, V. (2018). Visual learning

analytics of educational data: a systematic literature

review and research agenda. Computers & Education,

122:119–135.

Ware, C. (2012). Information Visualization: perception for

design. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA, 3 edition.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2012). Experimentation in

Software Engineering. Springer Publishing Company,

Incorporated, USA.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

462
