Characterization of Network Management Trafﬁc in OpenStack

based on Virtual Machine State Changes

Adnei W. Donatti

1 a

, Charles C. Miers

1 b

, Guilherme P. Koslovski

1 c

, Maur

ıcio A. Pillon

1 d

and Tereza C. M. B. Carvalho

2 e

Graduate Program in Applied Computing (PPGCA), Santa Catarina State University (UDESC), Brazil

Laboratory of Sustainability in ICT, University of S

ao Paulo (USP), Brazil

Keywords:

Characterization, Cloud Computing, Network Trafﬁc, OpenStack.

Abstract:

OpenStack is a popular and versatile solution for creating IaaS clouds. OpenStack has several private cloud

issues implementations regarding its network infrastructure with which organizations are not always familiar.

In this context, this work characterizes the administrative network trafﬁc of OpenStack clouds. Administrative

trafﬁc has a separate network, which can affect the performance of the cloud as a whole. We set up an induced

lifecycle for virtual machines (VMs) and measured network trafﬁc and Application Programming Interface

(API) calls for each task with different operating system (OS) images. Moreover, we also provide an analysis

and characterization of the measured network trafﬁc in the management security domain of OpenStack, as

well as verify the possibility of using a linear regression model for predicting the trafﬁc volume produced for

each task.

1 INTRODUCTION

OpenStack (https://www.openstack.org) is one of the

most popular private and public IaaS cloud solutions.

OpenStack allows administrators to customize their

network conﬁguration and induces the networks of

the cloud should be divided into three security do-

mains: public, guest, and management (OpenStack,

2019b). This conﬁguration aims to guarantee basic

trafﬁc isolation and security along with the cloud net-

work. Moreover, trafﬁc isolation is necessary for pre-

venting cloud administrative operations from affect-

ing the user’s network performance and degrading the

performance of hosted applications.

The network infrastructure in a data center is es-

sential for satisfactory performance (Maswood and

Medhi, 2017). If the network is slow, some cloud-

hosted service may be slow too (OpenStack, ). Cloud

administrators need to plan this infrastructure cor-

rectly to avoid performance problems / bottlenecks.

OpenStack allows the customization of the service

https://orcid.org/0000-0002-4085-9640

https://orcid.org/0000-0002-1976-0478

https://orcid.org/0000-0003-4936-1619

https://orcid.org/0000-0001-7634-6823

https://orcid.org/0000-0002-0821-0614

module distribution within the data center. The

servers and all service module can be placed fol-

lowing the administrator’s objective (e.g., high avail-

ability, consolidation, and load balancing). In this

context, we discuss how common VM management

tasks may impact the administrative network of an

OpenStack-based cloud. In this sense, a network traf-

ﬁc analysis and characterization are performed. We

share some of the fundamental concepts of (Donatti.

et al., 2020), but we expressively deepened the discus-

sion on trafﬁc characterization with 8 more operating

systems, different ﬂavors, and using a completely new

monitoring tool developed by us.

The research gap here addressed is about the lack

of information regarding how user-generated tasks

(e.g., creating an instance of VM) may impact on

the most internal network domain of OpenStack.

The main contributions of the present paper are: (i)

the characterization of administrative network trafﬁc

based on user’s actions (VM states changes); (ii) ex-

perimental results considering multiple OS images;

and (iii) linear regression to support the estimation of

trafﬁc useful for bandwidth management.

This work is organized as follows. Section 2

deﬁnes the network-related concepts of OpenStack

clouds, and Section 3 discusses the related work. Sec-

tion 4 presents the characterization method, while

232

Donatti, A., Miers, C., Koslovski, G., Pillon, M. and Carvalho, T.

Characterization of Network Management Trafﬁc in OpenStack based on Virtual Machine State Changes.

DOI: 10.5220/0010447102320239

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 232-239

ISBN: 978-989-758-510-4

Section 5 details the testbed, experimentation pro-

cesses, and results. Section 6 discusses the analysis,

and Section 7 considerations / future directions.

2 OpenStack INFRASTRUCTURE

OpenStack works as a cloud operating system for

a large pool of computational resources (Open-

Stack, 2019d), controlling all data center servers.

Inter-service communication is commonly performed

through a messaging queue service, but REST re-

quests can also be executed. The messaging queue

services implement the Advanced Message Queu-

ing Protocol (AMQP), usually a RabbitMQ solu-

tion (OpenStack, 2020). It is worthwhile to high-

light, the messaging queue service is fundamental for

OpenStack even though there is no speciﬁc module

for these services.

The data center (DC) network design and con-

ﬁguration for OpenStack clouds may change accord-

ing to the demand of the cloud administrator. Al-

though there are several ways to conﬁgure a DC net-

work for OpenStack, there are a few common points,

which must be considered. OpenStack documenta-

tion states the division of the network trafﬁc into se-

curity domains: public, guest, and management (Fig-

ure 1)(OpenStack, 2019a).

Network Node

Cloud

Controller

Node

neutron-server

SQLdb

nova-scheduler

keystone

AMPQ

nova-api

Dashboard

HorizonAPI

Internet

External

Guest

Management

neutron-*-plugin-agent

neutron-L3-agent

neutron-DHCP-agent

neutron-metadata-agent

Network Node

neutron-*-plugin-agent

neutron-L3-agent

neutron-DHCP-agent

neutron-metadata-agent

Network Node

neutron-*-plugin-agent

neutron-L3-agent

neutron-DHCP-agent

neutron-metadata-agent

SDN Service

Node

Compute Node

nova-compute

neutron-plugin-agent

Project Network

PNET1

VM1

VM2

PNET2

VM3

VM4

Compute Node

nova-compute

neutron-plugin-agent

Project Network

PNET1

VM1

VM2

PNET2

VM3

VM4

Compute Node

nova-compute

neutron-plugin-agent

Project Network

PNET1*

VM1

VM2

PNET2*

VM3

VM4

* PNET1 = Project Network 1

* PNET2 = Project Network 2

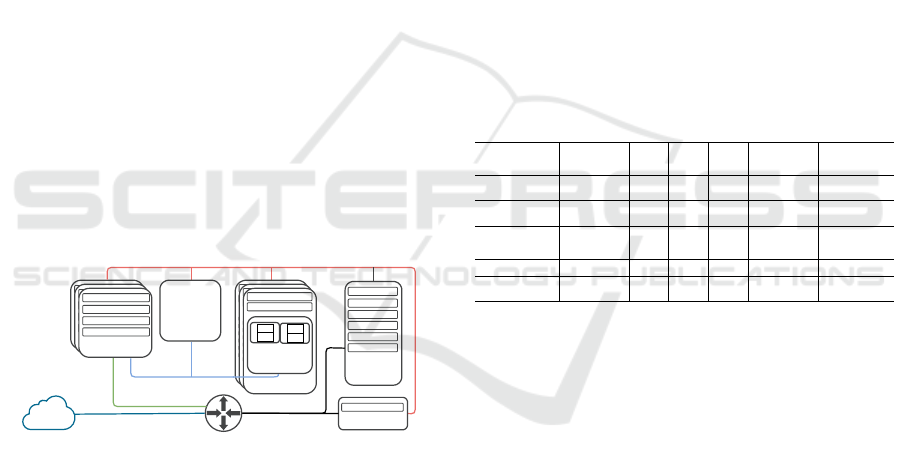

Figure 1: Standard OpenStack networking setup (Donatti.

et al., 2020).

The Public Domain is formed by the API and External

networks. The External network provides Internet ac-

cess to VMs, while the API network is used to access

OpenStack APIs. The Guest Domain network is basi-

cally the only network in the Guest Security Domain

used by VM communication within the cloud deploy-

ment; and the Management Domain is the most in-

ternal security domain reachable only within the data

center. The Management Domain is composed by

the Management network, but may also includes the

Database network. OpenStack components commu-

nication as well as the access to VM images and vol-

umes, for example, are held over the Management Se-

curity Domain.

3 RELATED WORK

The cloud infrastructure analysis is often seen from

the user’s perspective (Aishwarya. K and Sankar,

2015; Shete and Dongre, 2017; Chaudhary et al.,

2018; Alenezi et al., 2019), relinquishing the internal

operations and behavior of the cloud provider. There

is a lack of information regarding how user generated

tasks (e.g., VM launch) may impact the behavior of

the management network (Donatti. et al., 2020). Be-

sides, cloud performance can be evaluated by analyz-

ing its behavior while its usage (Bruneo, 2014).

This paper offers the use of an analysis and char-

acterization approach for the understanding of the net-

work trafﬁc into the provider’s management network

regarding consumer submitted tasks in VMs (e.g., cre-

ating, stopping, shelving instances of VMs). This net-

work trafﬁc understanding helps cloud administrators

to better design all the cloud architecture elements

(e.g., network topology, bandwidth). In this sense, we

deﬁned ﬁve criteria which are used to compare this

work to the other works in this area (Table 1).

Table 1: Related work comparison.

Criteria

(Sankari et al.,

2015)

(Flittner

and

Bauer,

2017)

(Gustamas

and

Shidik,

2017)

(Venzano

and

Michiardi,

2013)

(Sciammarella

et al., 2016)

(Donatti. et al., 2020)

Collect trafﬁc on the

OpenStack cloud man-

agement network

Partially. Focus on

analyzing the SDN

trafﬁc of DCs

No Yes No Yes Yes

Classify the network

trafﬁc regarding the state

changes of VMs

No No No No

Partially. Only VM

creation and termi-

nation

Yes

Analyze the collected

trafﬁc for identify-

ing which service the

packets are related

No No No No No

Partially. Signiﬁcant

”MISC” trafﬁc and

RabbitMQ trafﬁc was

still not characterized

Store the characterized

trafﬁc into a database

N.I. N.I. No N.I. N.I. Yes

Identify the timing in

which packet was col-

lected (timestamp)

Yes N.I. No N.I. Yes Yes

4 CHARACTERIZATION

METHODOLOGY

Trafﬁc analysis and characterization are both ap-

proaches, which can be used to understand and solve

performance issues in computer networks (Dainotti

et al., 2006), being generally composed by two steps:

(i) measurement: the collection of data being trans-

mitted over the network; and (ii) trafﬁc analysis: real-

ized to identify/classify relevant characteristics. The

trafﬁc measurement can employ tools to capture data

traveling across the network (e.g., TCPdump). De-

pending on how measurement is performed, it can

be classiﬁed as (Williamson, 2001): Active (network

trafﬁc creation by the monitoring system, inducing

speciﬁc situations), and Passive (capture only exist-

ing network trafﬁc).

Among the classiﬁcation techniques (port-based,

statistical, pattern matching, and protocol decoding)

commonly used to classify internet trafﬁc (Dainotti

Characterization of Network Management Trafﬁc in OpenStack based on Virtual Machine State Changes

233

et al., 2012; Finsterbusch et al., 2014), a port-based

approach ﬁts well when characterizing the Open-

Stack management network. All the services run-

ning in this context are supposed to use well deﬁned

ports, e.g., Nova API (compute services) uses port

TCP/8774. However, when deploying a naive port-

based approach, the trafﬁc generated by inter-services

communication is masked as RabbitMQ network traf-

ﬁc, since it uses RabbitMQ’s port (TCP/5672) and

not the application port itself. For improving the net-

work trafﬁc characterization, we adopted a different

strategy to characterize the packets. A reviewed port-

based approach is used, we also run lsof GNU/Linux

utility ﬁltering the RabbitMQ’s port. This approach

allows to identify which process is listening to Rab-

bitMQ during the network trafﬁc collection. More-

over, we adopted an active measurement of the con-

sumer operations on a VM instance. Since we found

no information to serve as a baseline for operations

on VM instances, we chose the Active approach and

deﬁned the sequence of operations, called here as in-

duced VM lifecycle. Each task/operation the user per-

forms to a VM may cause change in its state, e.g.,

when the user shutoffs a VM, the operation here is

STOP and the VM will go to the STOPPED state as

result.

The VM status cannot be measured at once, as an

absolute representation of the VM. For understand-

ing the status of a VM, OpenStack has three different

types of states for VMs (Wiki, 2014). The combina-

tion of these states provides a more precise informa-

tion about the VM current status: TASK STATE pro-

vides information about ongoing tasks, e.g., when an

user creates a VM, then the ongoing task is CREAT-

ING. VM STATE means the current stable (not tran-

sition) state, e.g., if a VM is created then it achieves

the ACTIVE state. POWER STATE reﬂects a snap-

shot of the hypervisor state and reveals if the ma-

chine is still running and if there was a failure (e.g.,

RUNNING, SHUTDOWN). In this article, when the

term VM state is used it refers to VM STATE. Open-

Stack has a total of 12 possible VM states (Open-

Stack, 2018b). However, by analyzing the operations

of users on our private OpenStack cloud, we ﬁnd out

the vast majority of our users typically have their VMs

in only 6 states (Figure 2).

INITIALIZED

ACTIVE

STOPPED

SUSPENDED

SHELVEDSHELVED_OFFLOADED

1.CREATE()

2.SUSPEND()

3.RESUME()

4.STOP()

5.SHELVE()

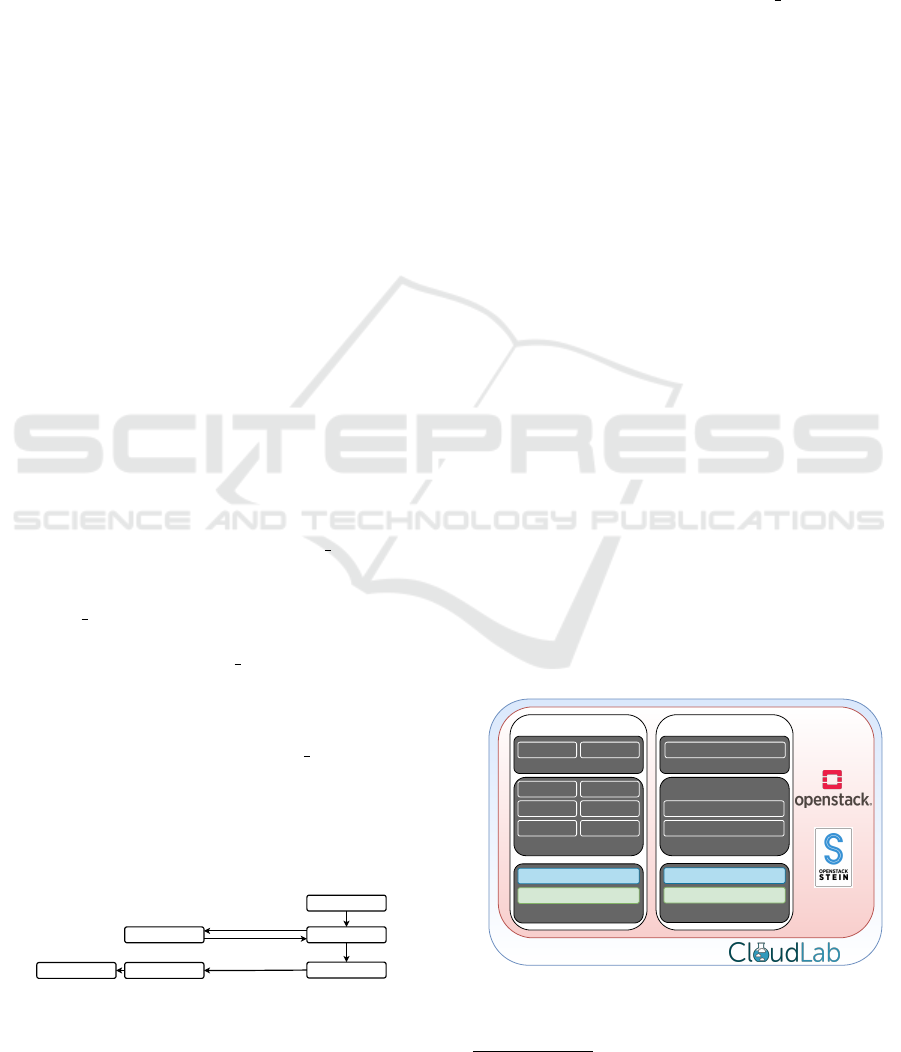

Figure 2: Induced VM lifecycle.

In Figure 2, when the VM is being created (operation

CREATE is being performed), the VM will transition

from its initial state, INITIALIZED, to an ACTIVE

state. Which means the VM is ready to be used. Once

the VM is ACTIVE, we then suspend its operation,

by performing SUSPEND procedure, which causes

the VM to hit the SUSPENDED state. Next, the

VM is reactivated by the RESUME operation, then

it is stopped and shelved (STOP and SHELVE op-

erations). The ﬁnal state, SHELVED OFFLOADED

is hit when the OS image is no longer used by the

hypervisor anymore. Therefore, this image may be

discarded from the compute node. In our tests, we

perform the induced life cycle 30 times each OS im-

age. We collected trafﬁc to identify the amount of

data transmitted, the elapsed operation time, and the

number of API calls for each state change enumerated

in Figure 2. The collected data is stored in a database

for further analysis.

5 TESTBED, EXPERIMENTS,

AND RESULTS

CloudLab was chosen as our testbed for deploying

OpenStack, Stein release. CloudLab provides re-

searchers with 256GB RAM and two 2.4Ghz proces-

sors servers. The default OpenStack m1.small ﬂavor,

composed of 1 vCPU, 2GB RAM and 20GB storage,

was adopted in all the experiments. All instances were

interconnected by a 1Gb/s network link. A proof-

of-concept cloud topology was prepared as described

by Figure 3. The two nodes topology is enough to

conﬁgure the networks (as stated in Section 2) and

to identify the communication between nodes. In

fact, we have several modules/services running on the

controller node (here is also relevant network trafﬁc

into loopback interface), in which our monitoring tool

runs, too.

Controller Node

SQLDB AMQP

External Services

KEYSTONE HORIZON

NEUTRON GLANCE

NOVA-API

NOVA-

SCHEDULER

OpenStack Services

Network Interface Card

VLAN1 - Management

VLAN2 - Guest / Public

VLAN1 - Management

VLAN2 - Guest / Public

Compute Node

NEUTRON-PLUGIN-AGENT

NOVA-COMPUTE

Network Interface Card

OpenStack Services

AMQP

External Services

Figure 3: CloudLab testbed setup.

We created the OpenStack Network Monitor (ONM)

Developed in Python 3.6, using TCPdump for packet

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

234

tool organized into two main functions: (i) induced

lifecycle - packet capture; and (ii) trafﬁc analysis.

ONM was customized to automate the experiments,

being possible to specify VM parameters (e.g., image,

ﬂavor) and VM operations sequence (operations enu-

merated in Figure 2). It also supports working with

VM image cache, which was not used in the experi-

ments described in this article.

The induced lifecycle (Figure 2) is executed on 10

different OS images for instances of VMs. FreeBSD

version 12.0, 454 MB image; GNU/Linux Fedora

Cloud version 31-1.9, 319 MB image; GNU/Linux

Fedora Cloud version 32-1.6, 289 MB image;

GNU/Linux Ubuntu Server version 18.04 LTS (Bionic

Beaver), 329 MB image; MS-Windows Server version

2012 R2, 6150 MB image; GNU/Linux CirrOS ver-

sion 0.4.0, 15 MB image; GNU/Linux CentOS ver-

sion 7, 898 MB image; GNU/Linux CentOS version

7, 1300 MB image; GNU/Linux Debian version 10,

550 MB image; and GNU/Linux Ubuntu Server ver-

sion 20.04 LTS (Focal Fossa), 519 MB image. All im-

ages are QCOW2-based, except MS-Windows Server

using QCOW2.GZ.

Table 2 shows a summary of data collected for

all OSs. Each operation (CREATE, SUSPEND, RE-

SUME, STOP, and SHELVE) was executed 30 times

for each OS image of VM, and results are reported

using the metrics: (i): Elapsed time of the operation

execution; (ii): Total network trafﬁc generated by the

operation; and (iii): Total number of API calls identi-

ﬁed on each operation.

All operations on the state of the VM have ac-

tions on the hypervisor, as well as on the Controller

Node. However, an operation initiated at the Con-

troller Node does not imply heavy network trafﬁc. For

example, a SUSPEND operation just removes the VM

out of memory and releases the vCPUs, but the image

ﬁle remains on the Compute Node. Thus, the results

of some operations may vary depending on the sys-

tem call implementation and we do not intent to eval-

uate those differences. The data collected shows that

CREATE and SHELVE operations have the greatest

impact on the volume of network trafﬁc. This hap-

pens because there is a need to transfer the image

from Glance service, inside the Controller Node (Fig-

ure 3), to the respective Compute Node at the time

of CREATE. Likewise, in SHELVE the updated im-

age in Compute Node needs to be transferred back to

Glance service. Table 2 reveals the number total traf-

ﬁc to CREATE and SHELVE are not largely spread,

between 0.02% to Windows Server and 2.17% to Cir-

rOS, among the 30 observations. The rest of the VM’s

collection, and employing OpenStack Python APIs: github.

com/Adnei/openstack monitor

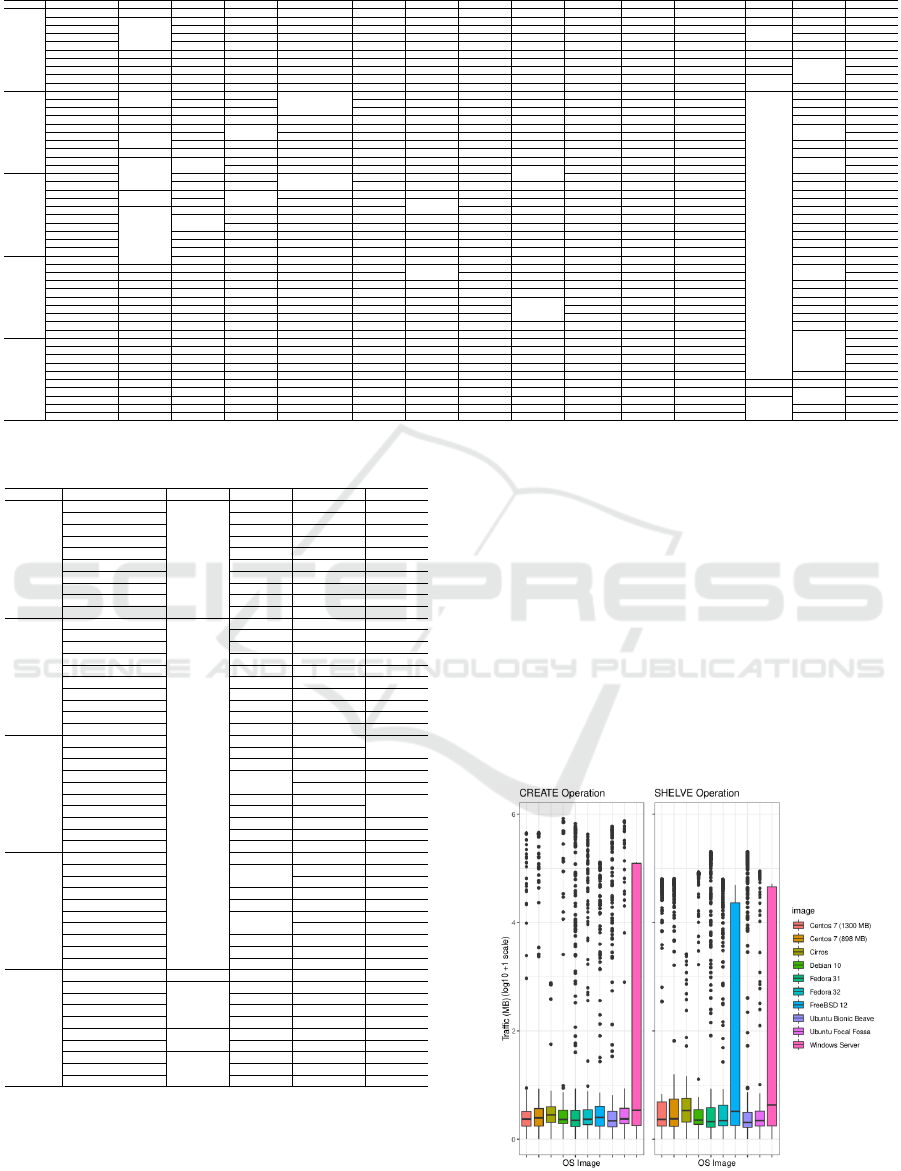

Table 2: Data summary of the analyzed metrics.

Image Operation Total Trafﬁc - MB (mean +/- sd) Total API Calls (mean +/- sd) Execution Time - seconds (mean +/- sd)

Ubuntu Bionic Beaver CREATE 358.759 +/- 1.988 67 +/- 2.801 25.433 +/- 1.455

Ubuntu Bionic Beaver RESUME 1.821 +/- 0.404 13 +/- 0.745 4 +/- 0

Ubuntu Bionic Beaver SHELVE 1129.658 +/- 5.195 85 +/- 10.845 37.767 +/- 1.695

Ubuntu Bionic Beaver STOP 3.291 +/- 0.874 16 +/- 2.985 9.8 +/- 0.761

Ubuntu Bionic Beaver SUSPEND 2.359 +/- 0.773 10 +/- 1.717 6 +/- 0

Centos 7 (1300 MB) CREATE 1419.955 +/- 0.709 100 +/- 2.541 48.6 +/- 1.776

Centos 7 (1300 MB) RESUME 2.007 +/- 0.215 13 +/- 0.407 4.1 +/- 0.316

Centos 7 (1300 MB) SHELVE 1424.304 +/- 0.639 108 +/- 1.442 57.2 +/- 1.229

Centos 7 (1300 MB) STOP 1.518 +/- 0.21 6 +/- 0.651 4 +/- 0

Centos 7 (1300 MB) SUSPEND 3.232 +/- 0.293 13 +/- 1.453 8.1 +/- 0.316

Centos 7 (898 MB) CREATE 876.562 +/- 0.738 79 +/- 3.886 33 +/- 1.563

Centos 7 (898 MB) RESUME 2.031 +/- 0.255 14 +/- 0.548 4 +/- 0

Centos 7 (898 MB) SHELVE 936.403 +/- 0.453 82 +/- 3.806 39.8 +/- 1.317

Centos 7 (898 MB) STOP 2.556 +/- 0.308 11 +/- 3.218 6 +/- 0

Centos 7 (898 MB) SUSPEND 2.736 +/- 0.324 11 +/- 2.535 6.3 +/- 0.675

Cirros CREATE 25.65 +/- 0.559 55 +/- 1.94 16.3 +/- 0.675

Cirros RESUME 1.998 +/- 0.198 14 +/- 2.583 4 +/- 0

Cirros SHELVE 33.749 +/- 0.271 31 +/- 2.833 7.2 +/- 0.632

Cirros STOP 22.649 +/- 0.187 96 +/- 0.675 63.2 +/- 0.422

Cirros SUSPEND 1.85 +/- 0.314 7 +/- 2.533 4 +/- 0

Debian 10 CREATE 592.787 +/- 0.676 78 +/- 2.644 32 +/- 0.667

Debian 10 RESUME 1.989 +/- 0.139 13 +/- 1.031 4 +/- 0

Debian 10 SHELVE 1539.051 +/- 0.808 119 +/- 2.062 63 +/- 1.563

Debian 10 STOP 2.339 +/- 0.509 10 +/- 3.059 5.6 +/- 0.843

Debian 10 SUSPEND 2.563 +/- 0.384 9 +/- 0.801 6 +/- 0

Fedora 31 CREATE 368.741 +/- 2.292 71 +/- 5.238 24.633 +/- 1.608

Fedora 31 RESUME 1.803 +/- 0.405 13 +/- 0.838 3.967 +/- 0.183

Fedora 31 SHELVE 993.256 +/- 3.7 73 +/- 9.138 30.033 +/- 0.669

Fedora 31 STOP 1.999 +/- 0.536 10 +/- 2.684 5.767 +/- 0.728

Fedora 31 SUSPEND 2.359 +/- 0.808 11 +/- 2.606 6 +/- 0

Fedora 32 CREATE 317.146 +/- 0.667 71 +/- 2.282 26.4 +/- 0.968

Fedora 32 RESUME 1.918 +/- 0.311 13 +/- 0.89 3.967 +/- 0.183

Fedora 32 SHELVE 853.332 +/- 0.797 83 +/- 4.452 40 +/- 1.145

Fedora 32 STOP 2.44 +/- 0.372 10 +/- 2.683 5.867 +/- 0.507

Fedora 32 SUSPEND 3.29 +/- 0.251 13 +/- 1.437 8.067 +/- 0.254

Ubuntu Focal Fossa CREATE 555.52 +/- 1.143 75 +/- 4.109 28.8 +/- 1.229

Ubuntu Focal Fossa RESUME 2.17 +/- 0.282 14 +/- 1.96 4 +/- 0

Ubuntu Focal Fossa SHELVE 1391.565 +/- 0.695 118 +/- 3.347 61.7 +/- 1.947

Ubuntu Focal Fossa STOP 4.318 +/- 0.607 17 +/- 3.161 10.2 +/- 0.632

Ubuntu Focal Fossa SUSPEND 4.317 +/- 0.6 17 +/- 3.607 10.2 +/- 0.632

FreeBSD 12 CREATE 487.157 +/- 1.812 66 +/- 4.554 23.367 +/- 1.991

FreeBSD 12 RESUME 1.675 +/- 0.51 13 +/- 1.597 4.067 +/- 0.365

FreeBSD 12 SHELVE 483.855 +/- 1.243 44 +/- 3.809 15.533 +/- 0.507

FreeBSD 12 STOP 18.031 +/- 0.567 97 +/- 2.837 62.833 +/- 0.379

FreeBSD 12 SUSPEND 1.329 +/- 0.419 7 +/- 2.139 4 +/- 0

MS Windows Server CREATE 6645.582 +/- 1.593 163 +/- 10.563 94.9 +/- 2.771

MS Windows Server RESUME 1.829 +/- 0.368 13 +/- 1.234 4 +/- 0

MS Windows Server SHELVE 6668.887 +/- 7.262 230 +/- 6.801 137.967 +/- 4.03

MS Windows Server STOP 18.084 +/- 0.463 98 +/- 2.511 62.933 +/- 0.254

MS Windows Server SUSPEND 1.24 +/- 0.433 6 +/- 1.517 4 +/- 0

state changes do not imply intensive network trafﬁc,

only API calls and local operations in Compute Node.

For better presenting the OpenStack participation in

the operation perform, we split the metrics network

trafﬁc volume and number of API calls by OpenStack

service (Tables 3 and 4).

The number of observed API calls may vary ac-

cording to the implementation of the induced lifecy-

cle and VM conﬁgurations, e.g., additional conﬁgura-

tions on the network would cause an increased num-

ber of Neutron-API calls. We used OpenStack Python

APIs on our experiments, but there are other ways

of performing those operations. OpenStack Connec-

tion.Compute (OpenStack, 2018a) was employed to

run VM operations (e.g., CREATE, and SUSPEND).

The results reveals the variation of API calls obtained

was between 1.3% (CentOS) and 12.75% (Ubuntu

Bionic Beaver). Although, CREATE operation of MS

Windows Server has a Standard Deviation (SD) value

a bit higher when comparing to the others SD val-

ues for all the operations and OS images. The high-

est SD value, in all operations, was caused by SUS-

PEND operation of CirrOS and MS Windows Server

summarizing 36.2% and 34.9%, respectively. Table 4

presents API calls by services. Table 2 reveals CRE-

ATE and SHELVE operations are responsible for pro-

ducing the highest amounts of trafﬁc and those oper-

ations with longer time to ﬁnish.

Analyzing Table 3, Glance, the module which

works as the manager of the VM images, is the

responsible for most the network trafﬁc. Also,

each CREATE operation for all OS images produces

Characterization of Network Management Trafﬁc in OpenStack based on Virtual Machine State Changes

235

Table 3: Trafﬁc Volume (MB) / Service (Mean +/- SD).

Operation Image Ceilometer Cinder Designate Glance Heat Keystone Magnum Manila MISC Neutron Nova RabbitMQ Sahara Trove

Ubuntu Bionic Beaver 0.022 +/- 0.004 0.008 +/- 0.007 0.105 +/- 0.012 346.61 +/- 0.01 0.073 +/- 0.087 0.14 +/- 0.016 0.012 +/- 0.019 0.007 +/- 0.007 9.552 +/- 1.605 0.345 +/- 0.159 1.11 +/- 0.194 0.249 +/- NA 0 +/- 0.001 0.011 +/- 0.017

Centos 7 (1300 MB) 0.018 +/- 0.015 0.195 +/- 0.016 1398.295 +/- 0.093 0.19 +/- 0.186 0.195 +/- 0.027 0.166 +/- 0.345 0.006 +/- 0.005 18.041 +/- 0.919 0.902 +/- 0.36 1.739 +/- 0.449 0.257 +/- NA 0.002 +/- 0.002 0.158 +/- 0.351

Centos 7 (898 MB) 0.01 +/- 0.006 0.142 +/- 0.008 860.562 +/- 0.123 0.223 +/- 0.298 0.163 +/- 0.027 0.245 +/- 0.474 0.006 +/- 0.007 13.229 +/- 1.015 0.55 +/- 0.293 1.362 +/- 0.232 0.001 +/- 0.001 0.049 +/- 0.055

Cirros 0.003 +/- 0.004 0.061 +/- 0.004 15.784 +/- 0.004 0.084 +/- 0.142 0.145 +/- 0.026 0.033 +/- 0.049 0.001 +/- 0.002 7.938 +/- 0.404 0.434 +/- 0.276 1.129 +/- 0.04

0.001 +/- 0.002 0.015 +/- 0.031

Debian 10

0.022 +/- 0.001

0.01 +/- 0.007 0.137 +/- 0.018 575.644 +/- 0.005 0.362 +/- 0.095 0.146 +/- 0.023 0.033 +/- 0.047 0.004 +/- 0.004 14.482 +/- 0.537 0.481 +/- 0.164 1.366 +/- 0.357 0.305 +/- NA 0.002 +/- 0.002 0.067 +/- 0.061

Fedora 31 0.021 +/- 0 0.007 +/- 0.006 0.116 +/- 0.048 356.159 +/- 0.017 0.1 +/- 0.124 0.137 +/- 0.027 0.032 +/- 0.035 0.065 +/- 0.146 9.547 +/- 1.734 0.374 +/- 0.236 1.025 +/- 0.209 NA 0.001 +/- 0.001 0.025 +/- 0.034

Fedora 32 0.021 +/- 0.004 0.009 +/- 0.009 0.339 +/- 0.106 303.511 +/- 0.011 0.09 +/- 0.126 0.141 +/- 0.023 0.028 +/- 0.043 0.005 +/- 0.007 11.6 +/- 0.638 0.362 +/- 0.135 0.988 +/- 0.236 0.321 +/- NA 0.041 +/- 0.047

Ubuntu Focal Fossa 0.022 +/- 0.001 0.005 +/- 0.005 0.127 +/- 0.014 539.857 +/- 0.003 0.295 +/- 0.049 0.159 +/- 0.033 0.018 +/- 0.023 0.004 +/- 0.004 13.408 +/- 1.038 0.447 +/- 0.177 1.094 +/- 0.185 NA 0.081 +/- 0.066

FreeBSD 12 0.023 +/- 0.005 0.008 +/- 0.005 0.092 +/- 0.01 476.316 +/- 0.003 0.06 +/- 0.08 0.151 +/- 0.037 0.019 +/- 0.03 0.003 +/- 0.003 8.58 +/- 1.673 1.051 +/- 0.155 0.828 +/- 0.15

0.001 +/- 0.002

0.014 +/- 0.025

CREATE

MS Windows Server 0.022 +/- 0.001 0.024 +/- 0.006 0.452 +/- 0.115 6615.876 +/- 1.037 0.233 +/- 0.178 0.243 +/- 0.033 0.057 +/- 0.041 0.012 +/- 0.005 25.98 +/- 1.927 1.16 +/- 0.606 1.429 +/- 1.006

0.292 +/- NA

0.004 +/- 0.006 0.08 +/- 0.132

Ubuntu Bionic Beaver 0.001 +/- 0.002 0.024 +/- 0.009 0.025 +/- 0.055 0 +/- 0.001 0.009 +/- 0.018 0.003 +/- 0.002 1.775 +/- 0.556 0.035 +/- 0.042 0.156 +/- 0.034 0 +/- 0 0.009 +/- 0.023

Centos 7 (1300 MB)

0.009 +/- 0

0.005 +/- 0.006 0.033 +/- 0.004 0.04 +/- 0.092 0.012 +/- 0.02 0.005 +/- 0.005 0.004 +/- 0.004 2.808 +/- 0.327 0.127 +/- 0.111 0.185 +/- 0.119 0.001 +/- 0.002 0.013 +/- 0.034

Centos 7 (898 MB) 0.011 +/- 0.007 0.002 +/- 0.003 0.026 +/- 0.006

0.003 +/- 0.002

0.008 +/- 0.005 0.004 +/- 0.007 0.08 +/- 0.077 0.002 +/- 0.003 2.436 +/- 0.345 0.059 +/- 0.028 0.153 +/- 0.021 0 +/- 0 0.003 +/- 0.003

Cirros 0.009 +/- 0 0.003 +/- 0.004 0.014 +/- 0.003 0.001 +/- 0.001 0.009 +/- 0.009 0.012 +/- 0.017 0.002 +/- 0.001 0.005 +/- 0.003 1.599 +/- 0.288 0.03 +/- 0.008 0.181 +/- 0.07 NA 0.007 +/- 0.004

Debian 10 0.009 +/- 0.001 0.003 +/- 0.005 0.002 +/- 0.002 0.108 +/- 0.106 0.002 +/- NA 0.008 +/- 0.007 0 +/- 0 2.237 +/- 0.38 0.076 +/- 0.126 0.104 +/- 0.045 0.001 +/- 0.001

Fedora 31 0.001 +/- 0.003

0.021 +/- 0.002

0.001 +/- 0.001 0.03 +/- 0.053 0.012 +/- 0 0.012 +/- 0.021 0.013 +/- 0.037 1.694 +/- 0.579 0.038 +/- 0.041 0.145 +/- 0.034

0 +/- 0

0.002 +/- 0.002

Fedora 32

0.009 +/- 0

0.006 +/- 0.007 0.108 +/- 0.033 0.004 +/- 0.005 0.022 +/- 0.058 0.006 +/- 0.01 0.016 +/- 0.025 0.001 +/- 0.003 2.937 +/- 0.277 0.071 +/- 0.085 0.116 +/- 0.074 0.001 +/- 0.001 0.016 +/- 0.031

Ubuntu Focal Fossa 0.011 +/- 0.007 0.003 +/- 0.004 0.044 +/- 0.013 0.003 +/- 0.003 0.153 +/- 0.164 0.008 +/- 0.014 0.036 +/- 0.053 0.003 +/- 0.003 3.815 +/- 0.513 0.097 +/- 0.119 0.155 +/- 0.09 0.002 +/- 0.002 0.006 +/- 0.005

FreeBSD 12 0.013 +/- 0.004 0 +/- 0 0.006 +/- 0.005 0 +/- 0 0.002 +/- 0.002 0.002 +/- 0.002 1.054 +/- 0.425 0.174 +/- 0.053 0.072 +/- 0.025 0.01 +/- 0.021

SUSPEND

MS Windows Server

0.002 +/- 0.004

0.031 +/- 0.031 0.003 +/- 0.005 0.019 +/- 0.05 0.001 +/- 0.003 0.016 +/- 0.025 1.03 +/- 0.422 0.085 +/- 0.05 0.064 +/- 0.015

0 +/- 0

0.004 +/- 0.008

Ubuntu Bionic Beaver 0.001 +/- 0.004 0.014 +/- 0.005 0.036 +/- 0.065 0 +/- 0 0.011 +/- 0.021

0.002 +/- 0.003

1.46 +/- 0.395 0.041 +/- 0.057 0.2 +/- 0.041 0.001 +/- 0.002 0.01 +/- 0.023

Centos 7 (1300 MB)

0.009 +/- 0

0.009 +/- 0.01 0.017 +/- 0.006

0.001 +/- 0.002

0.088 +/- 0.122 NA 0.044 +/- 0.079 0 +/- 0 1.626 +/- 0.22 0.056 +/- 0.021 0.207 +/- 0.055 0.004 +/- 0 0.097 +/- 0.125

Centos 7 (898 MB) 0.003 +/- 0.005 0 +/- 0 0.014 +/- 0.022 0.001 +/- NA 0.093 +/- 0.106 0.002 +/- 0.003 1.624 +/- 0.238 0.093 +/- 0.108 0.241 +/- 0.11 0 +/- 0 0.004 +/- 0.005

Cirros

0.009 +/- 0.001

0 +/- 0

0.015 +/- 0.004

0.001 +/- 0.001 0.009 +/- 0.012 0.032 +/- 0.046 0.001 +/- 0.002 1.733 +/- 0.189 0.032 +/- 0.017 0.194 +/- 0.019 0 +/- NA 0.004 +/- 0.003

Debian 10 0.004 +/- 0.004 0.016 +/- 0.005 0.005 +/- 0.009 0.093 +/- 0.003

0.039 +/- 0.06 0.006 +/- 0.002 1.671 +/- 0.147 0.052 +/- 0.025 0.128 +/- 0.046 0.001 +/- 0.002 0.008 +/- 0.006

Fedora 31 0.013 +/- 0.003 0 +/- 0 0.023 +/- 0.027 0.006 +/- 0.007 0.011 +/- 0.02 0.002 +/- 0.003 1.383 +/- 0.397 0.051 +/- 0.047 0.189 +/- 0.033 0.001 +/- 0.001 0.001 +/- 0

Fedora 32

0.003 +/- 0.004

0.104 +/- 0.031 0.002 +/- 0.004 0.008 +/- 0.026 0.012 +/- 0.011 0.012 +/- 0.026 0.003 +/- 0.003 1.646 +/- 0.287 0.033 +/- 0.018 0.106 +/- 0.037 0.001 +/- 0.002 0.004 +/- 0.005

Ubuntu Focal Fossa 0.002 +/- 0.003 0.013 +/- 0.005 0.002 +/- 0.002 0.1 +/- 0.013 0.037 +/- NA 0.03 +/- 0.049 0 +/- NA 1.863 +/- 0.309 0.035 +/- 0.017 0.127 +/- 0.087 0 +/- NA 0.003 +/- 0.003

FreeBSD 12 0.002 +/- 0.004 0.014 +/- 0.005 0 +/- 0 0.008 +/- 0.007 0.02 +/- 0.033 0.004 +/- 0.003 0.001 +/- 0.002 1.345 +/- 0.505 0.205 +/- 0.05 0.094 +/- 0.029 0.001 +/- 0.002 0.004 +/- 0.006

RESUME

MS Windows Server 0.002 +/- 0.003 0.033 +/- 0.038 0.002 +/- 0.004 0.009 +/- 0.01 0.013 +/- 0.021 0.013 +/- 0.024 0 +/- 0 1.545 +/- 0.345 0.123 +/- 0.067 0.1 +/- 0.033 0.002 +/- 0.002 0.013 +/- 0.016

Ubuntu Bionic Beaver

0.009 +/- 0

0.003 +/- 0.004 0.039 +/- 0.004 0.002 +/- 0.002 0.013 +/- 0.011 0.016 +/- 0.018 0.006 +/- 0.014 0.004 +/- 0.003 2.823 +/- 0.91 0.053 +/- 0.02 0.198 +/- 0.068 0.001 +/- 0.001 0.014 +/- 0.026

Centos 7 (1300 MB) 0.009 +/- 0.001 0.001 +/- 0.002 0.016 +/- 0.008 0.001 +/- 0.001 0.048 +/- 0.107 0.021 +/- 0.04 0.001 +/- 0.002 1.253 +/- 0.229 0.046 +/- 0.046 0.141 +/- 0.059 0.007 +/- 0.01

Centos 7 (898 MB) 0.009 +/- 0 0.004 +/- 0.004 0.024 +/- 0.003 0.002 +/- 0.002 0.008 +/- 0.005

0.072 +/- 0.107 0.004 +/- 0.003 2.195 +/- 0.306 0.072 +/- 0.129 0.192 +/- 0.09

0 +/- 0

0.002 +/- 0.002

Cirros 0.011 +/- 0 0.014 +/- 0.005 0.247 +/- 0.007 0.02 +/- 0.003 0.16 +/- 0.144 0.013 +/- 0.001 0.085 +/- 0.044 0.007 +/- 0.004 20.769 +/- 0.301 0.451 +/- 0.166 0.795 +/- 0.105 0.004 +/- 0.001 0.08 +/- 0.05

Debian 10 0.011 +/- 0.007 0 +/- 0 0.028 +/- 0.022 0.002 +/- 0.002 0.067 +/- 0.02 0.009 +/- 0.014 0.002 +/- 0.001 0.003 +/- 0.004 2.086 +/- 0.49 0.027 +/- 0.012 0.1 +/- 0.083 0 +/- 0 0.025 +/- 0.048

Fedora 31 0.01 +/- 0.004 0.001 +/- 0.004 0.021 +/- 0.005 0.001 +/- 0.001 0.042 +/- 0.068 0.009 +/- 0.009 0.009 +/- 0.02 1.607 +/- 0.548 0.039 +/- 0.043 0.138 +/- 0.047 0.001 +/- 0.001 0.015 +/- 0.027

Fedora 32 0.009 +/- 0 0.004 +/- 0.005 0.085 +/- 0.027 0.002 +/- 0.002 0.038 +/- 0.097 0.007 +/- 0.007 0.018 +/- 0.034 2.161 +/- 0.367 0.032 +/- 0.012 0.093 +/- 0.051 0.002 +/- 0.002 0.015 +/- 0.034

Ubuntu Focal Fossa 0.011 +/- 0.007 0.004 +/- 0.004 0.046 +/- 0.015 0.001 +/- 0.002 0.074 +/- 0.035 0.009 +/- 0.014 0.008 +/- 0.006

0.001 +/- 0.002

3.94 +/- 0.574 0.124 +/- 0.144 0.098 +/- 0.036 0 +/- 0 0.013 +/- 0.024

FreeBSD 12 0.013 +/- 0.007 0.014 +/- 0.005 0.258 +/- 0.009 0.004 +/- 0.004 0.1 +/- 0.099 0.018 +/- 0.023 0.029 +/- 0.034 0.007 +/- 0.003 15.12 +/- 0.663 1.939 +/- 0.182 0.482 +/- 0.205 0.001 +/- 0.001 0.051 +/- 0.04

STOP

MS Windows Server 0.015 +/- 0.009 0.016 +/- 0.006 0.293 +/- 0.067 0.018 +/- 0.009 0.162 +/- 0.126 0.024 +/- 0.018 0.034 +/- 0.035 0.009 +/- 0.004 16.308 +/- 0.771 0.664 +/- 0.426 0.486 +/- 0.123 0.054 +/- 0.096

Ubuntu Bionic Beaver 0.033 +/- 0.002 0.01 +/- 0.006 0.151 +/- 0.011 1113.557 +/- 0.088 0.105 +/- 0.099 0.072 +/- 0.02 0.024 +/- 0.032 0.01 +/- 0.012 11.663 +/- 1.583 0.307 +/- 0.141 0.824 +/- 0.114 0.025 +/- 0.031

Centos 7 (1300 MB) 0.035 +/- 0.001 0.029 +/- 0.028 0.233 +/- 0.014 1401.211 +/- 0.56 0.26 +/- 0.171 0.067 +/- 0.01 0.118 +/- 0.105 0.008 +/- 0.004 20.03 +/- 0.874 0.79 +/- 0.334 1.423 +/- 0.537 0.098 +/- 0.151

Centos 7 (898 MB) 0.034 +/- 0.001 0.013 +/- 0.013 0.169 +/- 0.021 919.581 +/- 0.527 0.179 +/- 0.134 0.089 +/- 0.014 0.077 +/- 0.075 0.006 +/- 0.003 14.844 +/- 0.441 0.462 +/- 0.242 0.898 +/- 0.133 0.049 +/- 0.055

Cirros 0.033 +/- 0.001 0.004 +/- 0.005 0.026 +/- 0.004 28.721 +/- 0.027 0.138 +/- 0.14 0.056 +/- 0.008 0.003 +/- 0.001 0.001 +/- 0.002 4.087 +/- 0.345 0.118 +/- 0.082 0.587 +/- 0.052

0.002 +/- 0.002

0.007 +/- 0.008

Debian 10 0.033 +/- 0.002 0.018 +/- 0.005 0.262 +/- 0.021 1512.123 +/- 0.106 0.61 +/- 0.139 0.062 +/- 0.011 0.093 +/- 0.052 0.009 +/- 0.004 24.048 +/- 0.655 0.728 +/- 0.214 0.971 +/- 0.221

0.003 +/- 0.002 0.09 +/- 0.054

Fedora 31 0.033 +/- 0.001 0.01 +/- 0.008 0.148 +/- 0.06 979.696 +/- 0.071 0.116 +/- 0.113 0.064 +/- 0.011 0.014 +/- 0.023 0.028 +/- 0.057 9.809 +/- 1.647 0.269 +/- 0.143 0.654 +/- 0.1 0.273 +/- NA 0.001 +/- 0.002 0.014 +/- 0.023

Fedora 32 0.032 +/- 0.006 0.015 +/- 0.013 0.383 +/- 0.145 836.53 +/- 0.118 0.174 +/- 0.161 0.07 +/- 0.019 0.066 +/- 0.053 0.006 +/- 0.004 14.959 +/- 0.759 0.339 +/- 0.159 0.704 +/- 0.285 0.264 +/- NA 0.046 +/- 0.049

Ubuntu Focal Fossa 0.033 +/- 0.002 0.019 +/- 0.008 0.263 +/- 0.012 1365.056 +/- 0.087 0.428 +/- 0.126 0.081 +/- 0.018 0.086 +/- 0.061 0.007 +/- 0.004 23.964 +/- 0.848 0.697 +/- 0.108 0.799 +/- 0.25

0.002 +/- 0.002

0.13 +/- 0.056

FreeBSD 12 0.034 +/- 0.001 0.003 +/- 0.004 0.062 +/- 0.005 476.908 +/- 0.084 0.068 +/- 0.093 0.058 +/- 0.012 0.018 +/- 0.03 0.002 +/- 0.003 5.598 +/- 1.214 0.669 +/- 0.124 0.43 +/- 0.122 0.001 +/- 0.001 0.007 +/- 0.015

SHELVE

MS Windows Server 0.035 +/- 0.001 0.032 +/- 0.004 0.659 +/- 0.167 6406.869 +/- 1208.735 0.319 +/- 0.199 0.064 +/- 0.016 0.09 +/- 0.035 0.018 +/- 0.004 37.046 +/- 1.885 1.54 +/- 0.951 222.094 +/- 1209.865

0.004 +/- 0.001 0.116 +/- 0.197

Table 4: API Calls / Service (Mean +/- SD).

Operation Image Glance Keystone Neutron Nova

Ubuntu Bionic Beaver 9 +/- 1.416 41 +/- 1.589 14 +/- 0.89

Centos 7 (1300 MB) 13 +/- 1.252 60 +/- 1.494 24 +/- 0.816

Centos 7 (898 MB) 11 +/- 1.636 47 +/- 2.066 18 +/- 1.252

Cirros 10 +/- 1.265 32 +/- 0.85 10 +/- 0.675

Debian 10 10 +/- 1.033 47 +/- 2.348 18 +/- 0.699

Fedora 31 10 +/- 1.655 41 +/- 1.691 14 +/- 0.986

Fedora 32 10 +/- 1.042 42 +/- 1.524 15 +/- 0.855

Ubuntu Focal Fossa 13 +/- 2.003 43 +/- 2.394 16 +/- 0.738

FreeBSD 12 11 +/- 2.074 39 +/- 2.313 13 +/- 0.95

CREATE

MS Windows Server

4 +/- 0

14 +/- 2.141 100 +/- 10.785 47 +/- 1.502

Ubuntu Bionic Beaver 1 +/- NA 6 +/- 1.143 4 +/- 0.484

Centos 7 (1300 MB) 2 +/- 0.707 8 +/- 0.568 5 +/- 0.422

Centos 7 (898 MB) 1 +/- NA 8 +/- 2.685 4 +/- 0.316

Cirros 2 +/- NA 5 +/- 2.406 3 +/- 0.316

Debian 10 1 +/- NA 6 +/- 0.699 3 +/- 0

Fedora 31 1 +/- 0 6 +/- 1.424 4 +/- 0.484

Fedora 32 2 +/- 0.707 8 +/- 1.39 5 +/- 0.379

Ubuntu Focal Fossa 2 +/- NA 12 +/- 2.908 6 +/- 0.675

FreeBSD 12 NA 5 +/- 2.132 3 +/- 0.183

SUSPEND

MS Windows Server 1 +/- 0 4 +/- 1.455 3 +/- 0.254

Ubuntu Bionic Beaver 1 +/- NA 11 +/- 0.774

Centos 7 (1300 MB) NA 11 +/- 0.422

2 +/- 0

Centos 7 (898 MB) 1 +/- NA 11 +/- 0.316 3 +/- 0.316

Cirros 12 +/- 2.677 2 +/- 0

Debian 10

11 +/- 0.85 3 +/- 0.422

Fedora 31 1 +/- 0 11 +/- 0.679

Fedora 32 2 +/- 0.548 11 +/- 0.466

3 +/- 0.183

Ubuntu Focal Fossa 3 +/- NA 11 +/- 0.816 3 +/- 0.422

FreeBSD 12 2 +/- NA 11 +/- 1.57 3 +/- 0.254

RESUME

MS Windows Server 2 +/- 0.707 11 +/- 0.724 3 +/- 0.346

Ubuntu Bionic Beaver 2 +/- 0.535 11 +/- 2.614 6 +/- 0.607

Centos 7 (1300 MB) 4 +/- 0.632 3 +/- 0.316

Centos 7 (898 MB)

8 +/- 3.373 4 +/- 0.316

Cirros 2 +/- 0.447 65 +/- 0.422 30 +/- 0

Debian 10 2 +/- 0.707 6 +/- 2.53 3 +/- 0.667

Fedora 31 7 +/- 2.811 3 +/- 0.403

Fedora 32

1 +/- 0

7 +/- 2.479 3 +/- 0.32

Ubuntu Focal Fossa 2 +/- 0.707 12 +/- 2.983 6 +/- 0.483

FreeBSD 12 2 +/- 1.166 66 +/- 1.213 31 +/- 0.669

STOP

MS Windows Server

2 +/- 1.029 66 +/- 1.474 31 +/- 0.583

Ubuntu Bionic Beaver 10 +/- 0.183 6 +/- 1.383 46 +/- 4.071 19 +/- 1.159

Centos 7 (1300 MB) 6 +/- 0.85 66 +/- 0.789 27 +/- 0.471

Centos 7 (898 MB) 8 +/- 1.269 47 +/- 3.498 20 +/- 0.919

Cirros 5 +/- 0.516 14 +/- 2.547 4 +/- 0.422

Debian 10

9 +/- 0

6 +/- 0.675 74 +/- 1.43 31 +/- 0.738

Fedora 31 6 +/- 1.184 38 +/- 3.845 15 +/- 0.615

Fedora 32

10 +/- 0.183

6 +/- 1.599 49 +/- 3.83 20 +/- 0.964

Ubuntu Focal Fossa 7 +/- 1.524 72 +/- 2.716 31 +/- 0.738

FreeBSD 12 5 +/- 0.968 23 +/- 3.358 8 +/- 0.479

SHELVE

MS Windows Server

9 +/- 0

6 +/- 0.997 150 +/- 4.938 66 +/- 2.069

Glance’s network trafﬁc around the image size. For

example, MS-Windows Server image size 6150 MB

and Glance network trafﬁc volume for MS-Windows

Server CREATE is around to 6615.876 MB, which

conﬁrms the transmission of the image through the

network. Therefore, we can assume the total traf-

ﬁc produced by the operation minus the image size

is the amount of administrative network trafﬁc. Pro-

ceeding with MS-Windows Server CREATE exam-

ple, 6645.582 MB (Table 2) - 6150 MB (image size)

= 495.582 MB of administrative network trafﬁc. The

same logic from CREATE operation may apply to

SHELVE, but instead of the VM image being trans-

ferred through network there is a VM with the content

modiﬁed during execution. The remaining operations

do not produce massive network trafﬁc and run on few

seconds. Figures 4 and 5 present the network trafﬁc

measured in CREATE and SHELVE operations.

Figure 4: Box plot of trafﬁc (MB) per second of each OS

image.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

236

0.00

0.25

0.50

0.75

1.00

0 100 200 300 0 50 100 150 200

Traffic (MB) Traffic (MB)

Cumulative Distribution Function


Centos 7 (1300 MB)

Centos 7 (898 MB)

Cirros

Debian 10

Fedora 31

Fedora 32

FreeBSD 12

Ubuntu Bionic Beaver

Ubuntu Focal Fossa

Windows Server

CREATE Operation SHELVE Operation

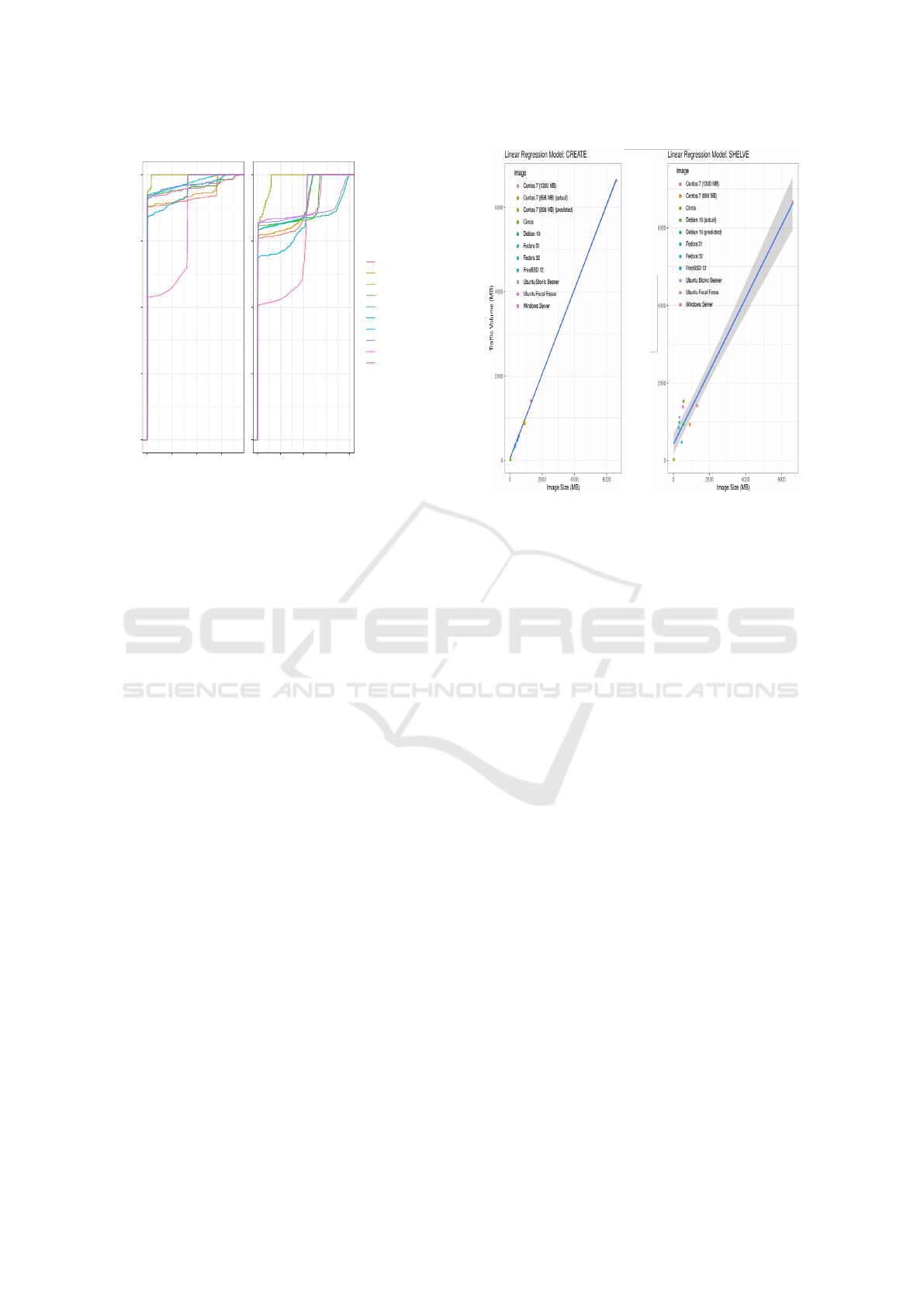

Figure 5: CDF plot of trafﬁc per second for each OS image.

Figure 4 groups the network trafﬁc volume (MB) per

second (in log10 + 1 scale) into box plots for each im-

age of OS. The outliers identiﬁed for each OS image

are due to peaks of network trafﬁc per second when

the image transfer is occurring. The same does not

happen to MS Windows Server. The considerable size

of MS Windows Server image implies a longer net-

work transfer. In fact, it causes the network to keep

high transfer rate long enough, so this high numbers

are no longer listed as outliers of the distribution. This

high numbers become common values inside this dis-

tribution, and thus, instead of outliers, it become part

of the Q3 of the boxplot.

Figure 5 shows a Cumulative Distribution Func-

tion (CDF) for network trafﬁc per second. CDF

graphs allow to identify the peaks of data transfer

through the network.

Figure 5 shows Fedora 31 and Ubuntu Bionic

Beaver, for example, have most part of their trafﬁc

(around to 90% in CREATE and 80% in SHELVE op-

eration) transmitted at the beginning of the operation.

This happens when the image is traveling through

the network. The remaining operations, the network

trafﬁc gradually increases (with smaller peaks) until

the operation is done. MS Windows Server opera-

tions analysis shows the beginning of both operations

(CREATE and SHELVE), around to 50% of the to-

tal trafﬁc was already transmitted. Sequentially, the

CDF grows in an exponential way, which means the

high tax of transmission (trafﬁc per second) is kept

until the operation trafﬁc amount hits 100% and the

operation ends. In order to study the relationship be-

tween the size of the OS image and the network traf-

ﬁc created by the operations to VMs we also set up a

Figure 6: Linear regression model for CREATE and

SHELVE operations. Image size is the predictor and net-

work trafﬁc is the target/response variable.

linear regression model. The linear regression model

allows to understand the growth of the network traf-

ﬁc as a function of the image size. Therefore, we

set the image size as a predictor for the network traf-

ﬁc, which is the target/response variable. Figure 6

shows the linear regression models for operations

CREATE and SHELVE, y = 40.700864 + 1.002707x

and y = 425.4478 + 0.9401x, respectively. Y stands

for the response variable (network trafﬁc volume) and

X stands for the predictor (image size in MB). We em-

ployed 9 OS images and 1 other image to compare

the predicted value by the model to an actual mea-

sured value. The OS image used in the comparison

predicted vs. actual is chosen randomly.

We found good accuracy responses for CREATE

operation (Figure 6), such as a Min Max Accuracy

(MMX) = 93% (approximately) and Mean Absolute

Percentage Error (MAPE) = 7% (approximately). We

adopted a conﬁdence level of 90%; the identiﬁed val-

ues of intercept and slope: 40.700864 and 1.002707.

Slope coefﬁcients suggests there is a strong relation-

ship between image size and network trafﬁc (Pr value

of 4e−14). Pr shows the probability of observing ex-

treme values leading to coefﬁcients of value 0 (called

null hypothesis). If Pr is low enough, we can dis-

card the null hypothesis. Thus, when the value of Pr

is signiﬁcant, it can be stated the null hypothesis is

discarded. Regarding intercept coefﬁcients, the re-

lationship between image size and network trafﬁc is

not so strong despite still valid (Pr value of 0.0139);

strongly signiﬁcant R-squared and p-value: 0.9998

Characterization of Network Management Trafﬁc in OpenStack based on Virtual Machine State Changes

237

and 3.997e − 14; and residual standard error of 32.3

MB on 7 degrees of freedom.

Regarding the linear model for SHELVE opera-

tion (Figure 6), we do not achieve high levels of ac-

curacy: MMX = 61%; and MAPE = 39%. A 90%

conﬁdence level is adopted; we identiﬁed intercept

and slope values of 425.4478 and 0.9401. Slope co-

efﬁcients suggests there is a strong relationship be-

tween image size and network trafﬁc (Pr value of

1.43e − 06). Intercept coefﬁcients suggests a valid re-

lationship between image size and network trafﬁc (Pr

value of 0.0208). R-squared and p-value of 0.9697

and 1.425e − 06, both signiﬁcant for the context; and

residual standard error of 366.5 MB on only 7 degrees

of freedom. Overall, both linear models provide a di-

rection of what to expect from the network trafﬁc vol-

ume when performing CREATE and SHELVE oper-

ations. Also, it is evident that a larger dataset could

lead the models to better results, in terms of statisti-

cally validation, since we already have good results.

6 ANALYSIS

CREATE and SHELVE operations produce most sig-

niﬁcant amount of network trafﬁc. SUSPEND, RE-

SUME, and STOP operations produce low volume of

network trafﬁc, which is very constant among our 30

observations (Table 2). Also, the networking trafﬁc

for these operations is highly related to the execution

duration, since they basically rely on system calls and

hypervisor actions, which are performed inside the

Compute Node itself, as discussed in Section 5.

Most part of collected trafﬁc was classiﬁed to the

service it belongs to. The trafﬁc created between

inter-service communication handled by RabbitMQ

was also listed to its respective services. There is

still a small amount of MISC trafﬁc (Table 3), which

is related to MySQL, since several OpenStack mod-

ules were contemplated in the classiﬁcation. Also, the

number of API calls depends on how the operations

are performed. There will not be a constant number

of API calls for each operation. In fact, this may vary

depending on conﬁgurations, such as the number of

network interfaces on the VM instance.

Multiple instance creation or shelving are opera-

tions demanding a considerable amount of bandwidth.

In a minimal topology, with Controller and Compute

nodes only, for example, multiple instance creation

and/or shelving at same time will cause the network to

clog up. A basic topology, which has a dedicated stor-

age network, deals better with multiple CREATE and

SHELVE operations, since it has a separated physical

network for storage node. Even though, depending on

the available bandwidth, this storage network will still

be slow. Therefore, the prediction of network trafﬁc

volume generated by operations such as CREATE and

SHELVE helps on solving the problem of bandwidth

allocation to a storage network, for example.

OpenStack has a feature for caching images in

Compute Nodes. Thus, when a new instance of the

same type is launched on the same Compute Node,

there is no need for transfer (network trafﬁc) between

Controller Node and Compute Node. In this sense,

OpenStack adopts a standard policy for allocating a

new instance of the ”Worst Fit” type. For exam-

ple, if a project with 10 instances of the same type

is launched on the same Computer Node, then only

one image will be transferred. However, this alloca-

tion policy can be changed to improve reliability and

resilience. Reliability and resilience can be obtained

by allocating each instance in a different Computer

Node so that failure in one of them does not cause the

service to drop all, but this will cause an increase in

network trafﬁc in the allocation (CREATE) and deal-

location (SHELVE). Although image caching helps

on reducing heavy network trafﬁc, it does not ﬁx to-

tally the problem. Considering real scenarios, there

may be several Compute Nodes distributed along the

cloud data center, so the image must be transferred

to them at least once. Also, this same image may be

updated, what makes the image cache deprecated and

new images may be created by the user. Thus, a base-

line network trafﬁc for operations such as CREATE

and SHELVE may help on evaluating more complex

scenarios, which demand several operations to be ex-

ecuted at same time.

Another aspect analyzed was the variation in the

size of the instances’ ﬂavors. Initially we considered

that an instance with more RAM could generate more

trafﬁc in the SHELVE operation. However, according

to the OpenStack documentation (OpenStack, 2019c),

in the SHELVE operation a STOP type operation is

performed, implying the disposal of all information

in the RAM memory. The only operation saving the

information from RAM is a snapshot, which is not

characterized by a change of a VMstate operation.

7 CONSIDERATIONS & FUTURE

WORK

One of the key contributions of this work is to pro-

vide a baseline for the network trafﬁc generated by

the user’s main operations of manipulating VMs in

the OpenStack management network. We accom-

plished the characterization of administrative network

trafﬁc based on VM states changes. We also in-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

238

cluded RabbitMQ network trafﬁc to the characteri-

zation, which represents the inter-services communi-

cation inside the cloud architecture. Besides the lin-

ear regression model provides parameters to estimate

the network trafﬁc generated for any images in the

QCOW2 format.

As future work, the latest versions of the MS

Windows Server are being incorporated into the

results. In addition, some variations in operations not

included in the induced life cycle (presented in this

work) are being measured.

ACKNOWLEDGMENTS

The authors would like to thank the support of

FAPESC, LabP2D / UDESC, and CloudLab.

REFERENCES

Aishwarya. K and Sankar, S. (2015). Trafﬁc analysis using

hadoop cloud. In (ICIIECS), pages 1–6.

Alenezi, M., Almustafa, K., and Meerja, K. A. (2019).

Cloud based sdn and nfv architectures for iot infras-

tructure. Egyptian Informatics Journal, 20(1):1 – 10.

Bruneo, D. (2014). A stochastic model to investigate data

center performance and qos in iaas cloud computing

systems. IEEE Transactions on Parallel and Dis-

tributed Systems, 25(3):560–569.

Chaudhary, R., Aujla, G. S., Kumar, N., and Rodrigues, J. J.

P. C. (2018). Optimized big data management across

multi-cloud data centers: Software-deﬁned-network-

based analysis. IEEE Communications Magazine,

56(2):118–126.

Dainotti, A., Pescape, A., and Claffy, K. C. (2012). Issues

and future directions in trafﬁc classiﬁcation. IEEE

Network, 26(1):35–40.

Dainotti, A., Pescape, A., and Ventre, G. (2006). A packet-

level characterization of network trafﬁc. In 2006 11th

International Workshop on Computer-Aided Model-

ing, Analysis and Design of Communication Links and

Networks, pages 38–45.

Donatti., A. W., Koslovski., G. P., Pillon., M. A., and

Miers., C. C. (2020). Network trafﬁc characterization

in the control network of openstack based on virtual

machines state changes. In Proc. 10th CLOSER, pages

347–354. SciTePress.

Finsterbusch, M., Richter, C., Rocha, E., Muller, J., and

Hanssgen, K. (2014). A survey of payload-based traf-

ﬁc classiﬁcation approaches. IEEE Communications

Surveys Tutorials, 16(2):1135–1156.

Flittner, M. and Bauer, R. (2017). Trex: Tenant-driven net-

work trafﬁc extraction for sdn-based cloud environ-

ments. In 2017 Fourth International Conference on

Software Deﬁned Systems (SDS), pages 48–53.

Gustamas, R. G. and Shidik, G. F. (2017). Analysis of

network infrastructure performance on cloud comput-

ing. In 2017 International Seminar on Application for

Technology of Information and Communication (iSe-

mantic), pages 169–174.

Maswood, M. M. S. and Medhi, D. (2017). Optimal connec-

tivity to cloud data centers. In 2017 IEEE 6th Interna-

tional Conference on Cloud Networking (CloudNet),

pages 1–6.

OpenStack. What to do when things are running

slowly. https://docs.openstack.org/operations-guide/

ops-maintenance-slow.html. Accessed: 2020-08-13.

OpenStack (2018a). Openstack docs: Connection.

https://docs.openstack.org/openstacksdk/latest/user/

connection.html. Accessed: 2020-07-15.

OpenStack (2018b). Provision an instance.

OpenStack (2019a). Networking architecture.

OpenStack (2019b). Openstack documentation. https:

//docs.openstack.org. Accessed: 2020-07-15.

OpenStack (2019c). Shelve and unshelve an instance.

OpenStack (2019d). What is openstack? https://www.

openstack.org/software.

OpenStack (2020). Message queuing. https://docs.

openstack.org/security-guide/messaging.html. Ac-

cessed: 2020-07-22.

Sankari, S., Varalakshmi, P., and Divya, B. (2015). Net-

work trafﬁc analysis of cloud data centre. In 2015

International Conference on Computing and Commu-

nications Technologies (ICCCT), pages 408–413.

Sciammarella, T., Couto, R. S., Rubinstein, M. G., Camp-

ista, M. E. M., and Costa, L. H. M. K. (2016). Analy-

sis of control trafﬁc in a geo-distributed collaborative

cloud. In 2016 5th IEEE Cloudnet, pages 224–229.

Shete, S. and Dongre, N. (2017). Analysis amp; auditing

of network trafﬁc in cloud environment. In 2017 In-

ternational Conference on Intelligent Computing and

Control Systems (ICICCS), pages 97–100.

Venzano, D. and Michiardi, P. (2013). A measurement

study of data-intensive network trafﬁc patterns in a

private cloud. In Proc. IEEE/ACM 6th UCC, UCC

’13, pages 476–481, Washington/DC, USA. IEEE.

Wiki, O. (2014). Vmstate. https://wiki.openstack.org/wiki/

VMState. Accessed: 2020-07-22.

Williamson, C. (2001). Internet trafﬁc measurement. IEEE

Internet Computing, 5(6):70–74.

Characterization of Network Management Trafﬁc in OpenStack based on Virtual Machine State Changes

239
